Article

Cunninghamia lanceolata PSK Peptide Hormone Genes Promote Primary Root Growth and Adventitious Root Formation

by
Hua Wu
1,
Renhua Zheng
2,
Zhaodong Hao
1,
Yan Meng
1,
Yuhao Weng
1,
Xiaohong Zhou
1,
Liming Zhu
1,
Xiangyang Hu
3,
Guibin Wang
4,
Jisen Shi
1 and
Jinhui Chen
1,*
1
Key Laboratory of Forest Genetics & Biotechnology of Ministry of Education of China, Co-Innovation Center for Sustainable Forestry in Southern China, Nanjing Forestry University, Nanjing 210037, China
2
Fujian Academy of Forestry, Fuzhou 350012, China
3
Shanghai Key Laboratory of Bio-Energy Crops, School of Life Sciences, Shanghai University, Shanghai 200444, China
4
College of Forestry, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Plants 2019, 8(11), 520; https://doi.org/10.3390/plants8110520
Submission received: 24 October 2019 / Revised: 10 November 2019 / Accepted: 12 November 2019 / Published: 18 November 2019
(This article belongs to the Section Plant Development and Morphogenesis)
Browse Figures
Versions Notes

Abstract

:
Phytosulfokine-α (PSK-α) is a newly discovered short peptide that acts as a phytohormone in various plants. Previous studies have shown that PSK-α is critical for many biological processes in plants, such as cell division and differentiation, somatic embryogenesis, pollen germination and plant resistance. In this study, we cloned two PSK homolog genes from Cunninghamia lanceolata (Lamb.) Hook (Chinese fir), ClPSK1 and ClPSK2, and characterized their function in root development. Quantitative RT-PCR analyses showed that both ClPSK1 and ClPSK2 were expressed in vegetative organs, mainly in roots. Transgenic Arabidopsis plants overexpressing ClPSK1 or ClPSK2 showed a higher frequency of adventitious root formation and increased root length. The expression of genes in Arabidopsis that are involved in stem cell activity (PLT1, PLT2 and WOX5), radial organization of the root (SHR and SCR) and cell cycle (CYCB1;1, CYCD4;1, CDKB1;1 and RBR) were significantly up-regulated, which may contribute to the elongation of the primary root and the formation of adventitious root in transgenic lines. Our results suggest that ClPSKs play an important role during root growth and development.

1. Introduction

Cunninghamia lanceolata (Lamb.) Hook (Chinese fir) is an important native evergreen tree in southern China. Because of its elite wood attributes and high timber productivity, Chinese fir occupies a prominent role regarding ecological and commercial prospects.
In natural environments, the growth and development of plants are strongly influenced by surrounding conditions. This plasticity allows plants to adapt to a changing and adverse environment, thus compensating for their immobile lifestyle. In many cases, the plant’s response to developmental conditions is mediated by non-proteinaceous phytohormones, such as auxin, cytokinin, gibberellin, abscisic acid, ethylene, etc.
In addition, many studies have shown that peptides are similarly important in plant signaling [1]. Peptides are generally defined as polypeptide chains smaller than 100 amino acid residues. Phytosulfokine-α (PSK-α) belongs to a group of sulfated plant peptides [2] and is derived from a precursor polypeptide that is 80–120 amino acids in length; such prepropeptides are often part of small gene families [3,4]. YIYTQ is a highly conserved pentapeptide sequence found in PSK homologs, that is located in the C-terminus of the precursor peptide [4]. Many studies have shown that PSK can promote cell division and differentiation, promote somatic embryogenesis, regulate pollen germination and improve plant resistance [3,5,6]. Although PSK-α has been identified in diverse plant species [6,7,8], the role of PSK-α in Chinese fir has not been reported.
There are six PSK genes in Arabidopsis, but five expressed PSK genes exist that contain the canonical YIYTQ sequence [1]. AtPSK1 and AtPSK3 were both expressed in root tips, and AtPSK2, AtPSK4 and AtPSK5 displayed strong overlapping activities in the central cylinder of the differentiated part of main and lateral roots [9]. Arabidopsis has two PSK receptor genes, AtPSKR1 and AtPSKR2. AtPSKR1 was expressed in shoots and roots at seemingly low levels, and PSK signaling through AtPSKR1 promotes cell elongation [9,10,11]. AtPSKR2 is expressed in the root tip and affects cell proliferation [1,9]. Taken together, PSK precursor and receptor genes might thus initiate divergent signaling pathways, leading to the activation of different cellular processes, both of which contribute to enhanced root growth. Low concentrations of brassinosteroid (BR) epi-brassinolide promote root elongation growth [12]. PSK signaling in the epidermis is dependent on the presence of BR signaling and BR synthesis and perception are a prerequisite for the PSK signaling of cell elongation [13]. These results indicated that PSK signaling of root growth requires brassinosteroid synthesis and may thus act as a mobile signal in the PSK response. ERF115 transcription factor as a rate-limiting factor of quiescent center (QC) cell division, acting as a transcriptional activator of the phytosulfokine PSK5 peptide hormone, whereas QC proliferation is driven by brassinosteroid-dependent ERF115 expression [14]. This evidence suggested that the PSK and brassinosteroid signal pathways interact in elongating cells and the QC.
The formation of adventitious roots, a dynamic phenomenon, involves the regeneration of cells and organs. Previous studies have shown that many compounds have been reported to promote adventitious root formation, including auxin [15,16,17,18] and abscisic acid [19,20]. PSK-α increases the formation of adventitious roots by promoting plant organogenesis in cucumber hypocotyls, acting possibly via enhancing plant cell proliferation [21]. Various genes involved in adventitious root formation have been studied [18,22,23,24]. The cell cycle marker genes, such as, CYCB1;1, CYCD4;1, CDKB1;1 and RETINOBLASTOMA-RELATED (RBR) are known to be important for regulating meristematic activity in roots [25,26,27,28,29,30]. AP2 family transcription factors, such as PLETHORA1 (PLT1), PLETHORA2 (PLT2), GRAS family transcription factors like SHORTROOT (SHR), SCARERROW (SCR), as well as the WUSCHEL RELATED HOMEOBOX transcription factor WOX5 have been extensively studied and found to be essential for primary root growth and development [18,30,31,32,33]. PLT is necessary for root formation; it acts dose dependently, with high PLT levels maintaining stem cells [34,35]. SHR and SCR mainly regulate asymmetric division and QC maintenance of endothelial and cortical blast cells [36,37]. WOX5 is expressed at the initiation of the lateral root, specifically expressed in the QC [38] and involved in regulating cell division of the root apical meristem (RAM) [39]. ERF115 is an AP2-type transcription factor gene that is expressed in the QC. ERF115-induced QC cell divisions depend on PSK, indicating that PSK signaling occurs in the QC [14]. These findings suggest that PSK and WOX5 signaling pathways interact in the QC.
We aimed to study whether in Chinese fir, PSK signaling similarly contributes to root development and could therefore aid in the plant’s adaptability to changing environmental conditions. Therefore, we cloned and characterized two putative Chinese fir PSK genes. Using cross-species transgenesis studies in Arabidopsis thaliana, we found that the rate and frequency of adventitious root formation was increased by over-expression of ClPSK corresponding to an increase in the expression levels of PLT1, PLT2, SHR, SCR and WOX5. These results indicate that ClPSK may play an important role in adventitious root formation. We demonstrate that overexpression of ClPSK improves root growth and promotes formation of adventitious root in Arabidopsis thaliana. These findings may aid future studies aimed at improving Chinese fir adaptability.

2. Results

2.1. Molecular Cloning and Characterization of the ClPSK Genes

We cloned the ClPSK1 and ClPSK2 sequences from Chinese fir embryogenic callus. The cDNA of ClPSK1 is 303 bp long and the open reading frame encodes 100 amino acids. The cDNA of ClPSK2 is 294 bp long, encoding 97 amino acids. PSK has a predicted secretion signal at the N-terminus and a highly conserved single PSK domain (YIYTQ) close to the C-terminus (Figure 1a). Sequence alignment reveals that the PSK domain is identical to that of other known PSK precursor amino acid sequences (Figure 1a). However, the remaining sequence is highly divergent across species.
To investigate the spatial distribution of ClPSK transcripts, quantitative real-time PCR (qRT-PCR) analysis was performed in different tissues of Chinese fir. This analysis indicated that ClPSK was expressed in the root, stem, leaf and embryonic callus of Chinese fir, and that the relative expression of ClPSK1 and ClPSK2 genes was highest in roots ((Figure 1b).

2.2. Overexpression of ClPSK Promotes Root Growth in Arabidopsis Thaliana

To determine functionality of ClPSK1 and ClPSK2, we overexpressed ClPSK genes under the control of the CaMV 35S promoter in Arabidopsis thaliana. We found that the roots of transgenic plants were significantly longer than those of the wild type (Figure 2a). This effect was consistent across three independent transgenic lines for each gene, with root lengths increased by 39.4%, 50.2% and 38.5% in the transgenic lines ClPSK1-1, ClPSK1-2 and ClPSK1-3, respectively, and increased by 23–28% in lines ClPSK2-1, ClPSK2-2 and ClPSK2-3, compared to the wild type (Figure 2b). These results demonstrate that overexpressing ClPSK in Arabidopsis thaliana promotes primary root growth.

2.3. Overexpression of ClPSK Gene Promotes Organ Differentiation

Previous studies have shown that PSK-α can promote organogenesis in plants [21]. To explore the function of ClPSK, we observed organogenesis from 35S::ClPSK and wild-type callus treated with basic liquid Murashige and Skoog (MS) medium. We found no apparent changes in wild-type callus after liquid suspension culture for 7 days, while transparent protrusions could be observed on the surface of 35S::ClPSK callus (Figure 3a–l). In addition, we observed transparent protrusions from wild-type callus grown in basic liquid MS medium supplemented with 0.1 mg L−1 PSK-α after 7 days of liquid culture (Figure 3a–l). After 14 days, the transparent protrusions became significantly longer (Figure 3m). Observed through the microscope, we found the transparent protrusions formed on the callus surface to display obvious root characteristics (Figure 3n–p). These results demonstrate that ClPSK can induce organogenesis and lead to the production of adventitious roots on callus surface in Arabidopsis thaliana.

2.4. Overexpression of ClPSK Genes Upregulates the Expression of Genes Related to Root Morphogenesis

To further investigate the relationship between ClPSK1/2 and root formation, we analyzed the expression of genes associated with root development, such as PLT1, PLT2, SHR, SCR and WOX5 in Arabidopsis callus. We found that these genes were up-regulated in callus overexpressing ClPSK genes or treated with PSK-α cultured for 7 days in suspension culture, with ClPSK overexpression being more effective at inducing some of these genes compared to PSK-α treatment (Figure 4a). These data support at a molecular level that overexpression of ClPSK promotes root morphogenesis.
Root meristem activity is required to accelerate the rate of cell division for a continuous supply of new cells. Acceleration of cell elongation contributes to enhanced root growth, but it is not sufficient to promote long-term growth without the production of new cells from the meristem. Therefore, we tested the expression level of genes involved in cell division [25,26,27,28,29,30]. The expression levels of CYCB1;1, CYCD4;1, CDKB1;1 and RBR are up-regulated in transgenic lines and wild-type treated with 0.1mg L−1 PSK-α, which were measured after callus was cultured for 7 days in suspension culture (Figure 4b). Moreover, the expression levels of CDKB1;1 and RBR of transgenic lines were slightly higher than PSK-α-treated wild-type (Figure 4b). These results indicate that PSK is able to promote cell division.

3. Discussion

Here, we describe the molecular cloning and characterization of two ClPSK gene homologs originating from Chinese fir, that encode the precursor of PSK-α. We detected high expression of both ClPSK1 and ClPSK2 genes in Chinese fir root (Figure 1b). Previous studies have shown that the primary root of plants overexpressing AtPSK4 is significantly longer than in the wild type by promoting root growth by enhancing cell elongation [9,40], and that GhPSK can promote the elongation of roots in Arabidopsis thaliana [41]. In this study, our results show that overexpression of ClPSK1 or ClPSK2 can significantly promote root growth in Arabidopsis thaliana, consistent with the phenotypes of AtPSK4 and GhPSK overexpression in Arabidopsis thaliana.
The growth and development of plant roots involves complex regulatory networks, as well as key transcription factors, such as PLT1, PLT2, SHR, SCR and WOX5, which have been shown to be involved in root formation. We observed that ClPSK1/2 overexpression or PSK-α treatment induced adventitious roots on the callus surface after 14 days. Correlating with these findings, increased levels of ClPSK1/2 enhanced the expression levels of PLT1, PLT2, SHR, SCR and WOX5 (Figure 4a). Taken together, these data suggest that ClPSK1 and ClPSK2 effect gene networks related to root development, and that they have functions involved in root morphogenesis. The positive contribution of PSK signaling to promoting adventitious root formation from callus has not been reported previously, although PSK has been implicated in inducing adventitious root formation from cucumber hypocotyls and adventitious bud formation from callus of Antirrhinum majus [21,42].
In addition, we found that expression of the cell cycle marker genes (CYCB1;1, CYCD4;1, CDKB1;1 and RBR) was up-regulated in the adventitious roots of 35S::ClPSK1/2 transgenic lines (Figure 4b). CYCD4;1 is abundantly expressed during the initiation of the root primordium, and CYCD4;1 transcripts accumulate in the vascular tissue of roots, as well as in lateral root primordia [29]. Overexpression of CYCB1;1 can promote root meristem division and increases root elongation [35]. CDKB is a type of CDK kinase that acts in the S and G2/M phases of the cell cycle [43,44]. Inhibition of CDKB activity can cause serious defects in plant meristems [45]. The expression of RBR directly affects the number and characteristics of cells in the root apical meristem (RAM) in Arabidopsis thaliana. Furthermore, RBR is required for stem cell maintenance, cell differentiation and lateral organ production [46]. These genes are all involved in the cell-cycle, but how does PSK impinge on the molecular control of the cell cycle? Hormone signaling is a key component of root growth, as a plant’s response to changing environmental or developmental conditions are mediated by hormones. PSK is a new plant hormone, but its physiological characteristics and its mechanism of action are still unclear. Our study demonstrates that ClPSK gene promotes organ differentiation, and it highlights a novel plant growth regulator that may be used for organogenesis and somatic embryogenesis of Chinese fir. Our findings provide a preliminary understanding of ClPSK function, and give an important basis for further understanding the PSK signal transduction mechanism and its role in plant growth and development.

4. Materials and Methods

4.1. Plant Materials and Culture Conditions

Experiments were performed with Arabidopsis thaliana ecotype Columbia (Col-0). Arabidopsis seeds were surface-sterilized with 75% (v/v) ethanol for 30 s, treated with 0.1% (w/v) HgCl2 for 2.5 min, germinated on Murashige and Skoog (MS) medium, and cultured at 22 ℃ and 70% humidity with a 16/8 h light/dark cycle. For the measurement of root length of T3 homozygous plants were measured after growing for 15 day after germination.
For callus induction, Arabidopsis thaliana seeds germinated on MS medium for 2 weeks, then Arabidopsis leaves were transferred to MS solid medium containing 2 mg L−1 2,4-dichlorophenoxyacetic acid, 0.2 mg L−1, benzyl-aminopurine, 500 mg L−1 casein hydrolysate (CH) (Sigma, Darmstadt, Germany) and 30 g L−1 sucrose, after which they were cultured at 23 ℃ in darkness. Callus was transferred to basic MS liquid medium consisting 30 g L−1 sucrose, and cultured at 23 ℃ in darkness so as to induce the formation of adventitious roots.
Roots, stems and leaves of Chinese fir seedlings germinated from somatic embryos and embryogenic callus were induced following the methods previously described by Zhou Xiaohong [47].

4.2. Gene Cloning and Construction of Vectors and ClPSK Overexpression Lines

Based on transcriptome data (shared in the Lab) of Chinese fir, the full-length cDNA clones of two ClPSK genes, ClPSK1 and ClPSK2, were cloned from embryogenic callus of Chinese fir and used the NCBI ORF finder to detect open reading frames (https://www.ncbi.nlm.nih.gov/orffinder/). Briefly, ClPSK1 and ClPSK2, were cloned and inserted into the pBI121 vector with restriction enzymes Bam HI and Xba I (NEB) to generate the overexpression vector 35S::PSK. Arabidopsis thaliana plants were transformed via the floral dipping method using Agrobacterium tumefaciens [48]. Resistant plants were selected using 50 mg L−1 kanamycin. The transgenic plants were selected by the PCR analysis. The single-locus homozygous transgenic lines were then identified by the genetic analyses of segregation at 3:1 in the T1 generation and no separations in the T2 and T3 generations (n > 30). All primers used for gene cloning were listed in Table S1.

4.3. Characterization of the ClPSK Genes Analysis

The amino acid multiple sequence alignment between ClPSK and phytosulfokine-a (PSKs) from other species was performed using TEXshade (https://ctan.org/pkg/texshade). The PSK protein sequences of other species were downloaded from the National Center for Biotechnology Information (NCBI) web site (http://www.ncbi.nlm.nih.gov).

4.4. Quantitative Real-Time PCR

Total RNA was isolated using the RNAprep Pure Plant Kit (Tiangen, Beijing, China) and then was reversely transcribed to cDNA with a reverse transcriptase kit (Roche, Shanghai, China). Quantitative real-time PCR was performed using the LightCycler 480 System (Roche Applied Science, Shanghai, China), as previously described [47]. The CleIF-3 housekeeping gene was selected as the endogenous reference gene for the qRT-PCR analysis of cambial development in Chinese fir [49], and primers for qRT-PCR are listed in the Table S2. All primers used for qRT-PCR of Arabidopsis thaliana were listed in Table S3. Each measurement was performed using three biological samples and each test of sample was conducted with three replicates. Relative gene expression was performed using the 2−∆∆CT method [50].

4.5. Morphological Analysis

The morphology and characteristics of adventitious roots was evaluated using a stereoscope (Leica, S8AP0) and micrographs were obtained using an inverted microscope (Leica, DMI4000, Wetzlar, Germany).

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/8/11/520/s1, Table S1: Primers were used for gene cloning, Table S2: Primer sets used for quantitative qRT-PCR in Chinese fir, Table S3: Primer sets used for quantitative qRT-PCR in Arabidopsis thaliana.

Author Contributions

J.C. and J.S. contributed conception and design of the study. H.W. analyzed the data and wrote the manuscript. Z.H., Y.M., Y.W., L.Z. and X.Z. performed the experiments and carried out the statistical analysis. R.Z., X.H. and G.W. contributed with materials and reagents. All authors have read and approved the final manuscript.

Funding

This research was supported by the Foundation of Jiangsu Forestry Bureau (LYKJ[2017]42), Key research and development plan of Jiangsu Province (BE2017376), the Nature Science Foundation of China (31770715), the Qinglan project of Jiangsu province, and Priority Academic Program Development of Jiangsu Higher Education Institutions and Natural Science Foundation of Jiangsu Province (BK20181176).

Acknowledgments

We thank Remco Mentink for critical reading and careful revision of the manuscript. This work was supported by Foundation of Jiangsu Forestry Bureau (LYKJ[2017]42), Key research and development plan of Jiangsu Province (BE2017376), the Nature Science Foundation of China (31770715), the Qinglan project of Jiangsu Province Priority Academic Program Development of Jiangsu Higher Education Institutions and Natural Science Foundation of Jiangsu Province (BK20181176).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Sauter, M. Phytosulfokine peptide signalling. J. Exp. Bot. 2015, 66, 5161–5169. [Google Scholar] [CrossRef] [PubMed]
  2. Matsubayashi, Y. Post-Translational Modifications in Secreted Peptide Hormones in Plants. Plant Cell Physiol. 2011, 52, 5–13. [Google Scholar] [CrossRef] [PubMed]
  3. Yang, H.; Matsubayashi, Y.; Nakamura, K.; Sakagami, Y. Diversity of Arabidopsis Genes Encoding Precursors for Phytosulfokine, a Peptide Growth Factor. Plant Physiol. 2001, 127, 842–851. [Google Scholar] [CrossRef] [PubMed]
  4. Lorbiecke, R.; Sauter, M. Comparative analysis of PSK peptide growth factor precursor homologs. Plant Sci. 2002, 163, 321–332. [Google Scholar] [CrossRef]
  5. Igasaki, T.; Akashi, N.; Ujinoihara, T.; Matsubayashi, Y.; Sakagami, Y.; Shinohara, K. Phytosulfokine Stimulates Somatic Embryogenesis in Cryptomeria japonica. Plant Cell Physiol. 2003, 44, 1412–1416. [Google Scholar] [CrossRef] [PubMed]
  6. Yang, H.; Matsubayashi, Y.; Nakamura, K.; Sakagami, Y. Oryza sativa PSK gene encodes a precursor of phytosulfokine-alpha, a sulfated peptide growth factor found in plants. Proc. Natl. Acad. Sci. USA 1999, 96, 13560–13565. [Google Scholar] [CrossRef]
  7. Lorbiecke, R.; Steffens, M.; Tomm, J.M.; Scholten, S.; Von Wiegen, P.; Kranz, E.; Wienand, U.; Sauter, M. Phytosulphokine gene regulation during maize (Zea mays L.) reproduction. J. Exp. Bot. 2005, 56, 1805–1819. [Google Scholar] [CrossRef]
  8. Zhang, H.; Hu, Z.; Lei, C.; Zheng, C.; Wang, J.; Shao, S.; Li, X.; Xia, X.; Cai, X.; Zhou, J. A Plant Phytosulfokine Peptide Initiates Auxin-Dependent Immunity through Cytosolic Ca2+ Signaling in Tomato. Plant Cell 2018, 30, 652–667. [Google Scholar] [CrossRef]
  9. Kutschmar, A.; Rzewuski, G.; Stuhrwohldt, N.; Beemster, G.T.S.; Inze, D.; Sauter, M. PSK-α promotes root growth in Arabidopsis. New Phytol. 2009, 181, 820–831. [Google Scholar] [CrossRef]
  10. Matsubayashi, Y.; Ogawa, M.; Kihara, H.; Niwa, M.; Sakagami, Y. Disruption and overexpression of Arabidopsis phytosulfokine receptor gene affects cellular longevity and potential for growth. Plant Physiol. 2006, 142, 45–53. [Google Scholar] [CrossRef]
  11. Stührwohldt, N.; Dahlke, R.I.; Kutschmar, A.; Peng, X.; Sun, M.X.; Sauter, M. Phytosulfokine peptide signaling controls pollen tube growth and funicular pollen tube guidance in Arabidopsis thaliana. Physiol. Plant. 2015, 153, 643–653. [Google Scholar] [CrossRef] [PubMed]
  12. Mussig, C.; Shin, G.; Altmann, T. Brassinosteroids Promote Root Growth in Arabidopsis. Plant Physiol. 2003, 133, 1261–1271. [Google Scholar] [CrossRef] [PubMed]
  13. Hartmann, J.; Stührwohldt, N.; Dahlke, R.I.; Sauter, M. Phytosulfokine control of growth occurs in the epidermis, is likely to be non-cell autonomous and is dependent on brassinosteroids. Plant J. 2013, 73, 579–590. [Google Scholar] [CrossRef] [PubMed]
  14. Heyman, J.; Cools, T.; Vandenbussche, F.; Heyndrickx, K.S.; Van Leene, J.; Vercauteren, I.; Vanderauwera, S.; Vandepoele, K.; De Jaeger, G.; Der Straeten, D.V. ERF115 Controls Root Quiescent Center Cell Division and Stem Cell Replenishment. Science 2013, 342, 860–863. [Google Scholar] [CrossRef] [PubMed]
  15. Lin, Y.; Li, M.; Cui, W.; Lu, W.; Shen, W. Haem Oxygenase-1 is Involved in Hydrogen Sulfide-induced Cucumber Adventitious Root Formation. J. Plant Growth Regul. 2012, 31, 519–528. [Google Scholar] [CrossRef]
  16. Nordstrom, A.; Eliasson, L. Levels of endogenous indole-3-acetic acid and indole-3-acetylaspartic acid during adventitious root formation in pea cuttings. Physiol. Plant. 1991, 82, 599–605. [Google Scholar] [CrossRef]
  17. Sukumar, P.; Maloney, G.S.; Muday, G.K. Localized Induction of the ATP-Binding Cassette B19 Auxin Transporter Enhances Adventitious Root Formation in Arabidopsis. Plant Physiol. 2013, 162, 1392–1405. [Google Scholar] [CrossRef]
  18. Liu, H.; Wang, S.; Yu, X.; Yu, J.; He, X.; Zhang, S.; Shou, H.; Wu, P. ARL1, a LOB-domain protein required for adventitious root formation in rice. Plant J. 2005, 43, 47–56. [Google Scholar] [CrossRef]
  19. Maldiney, R.; Pelese, F.; Pilate, G.; Sotta, B.; Sossountzov, L.; Miginiac, E. Endogenous levels of abscisic acid, indole-3-acetic acid, zeatin and zeatin-riboside during the course of adventitious root formation in cuttings of Craigella and Craigella lateral suppressor tomatoes. Physiol. Plant. 1986, 68, 426–430. [Google Scholar] [CrossRef]
  20. Noiton, D.; Vine, J.H.; Mullins, M.G. Endogenous indole-3-acetic acid and abscisic acid in apple microcuttings in relation to adventitious root formation. Plant Growth Regul. 1992, 11, 63–67. [Google Scholar] [CrossRef]
  21. Yamakawa, S.; Sakuta, C.; Matsubayashi, Y.; Sakagami, Y.; Kamada, H.; Satoh, S. The promotive effects of a peptidyl plant growth factor, phytosulfokine-α, on the formation of adventitious roots and expression of a gene for a root-specific cystatin in cucumber hypocotyls. J. Plant Res. 1998, 111, 453–458. [Google Scholar] [CrossRef]
  22. Rigal, A.; Yordanov, Y.S.; Perrone, I.; Karlberg, A.; Tisserant, E.; Bellini, C.; Busov, V.; Martin, F.; Kohler, A.; Bhalerao, R. The AINTEGUMENTA LIKE1 Homeotic Transcription Factor PtAIL1 Controls the Formation of Adventitious Root Primordia in Poplar. Plant Physiol. 2012, 160, 1996–2006. [Google Scholar] [CrossRef] [PubMed]
  23. Smolka, A.; Welander, M.; Olsson, P.; Holefors, A.; Zhu, L. Involvement of the ARRO-1 gene in adventitious root formation in apple. Plant Sci. 2009, 177, 710–715. [Google Scholar] [CrossRef]
  24. Wei, K.; Wang, L.; Cheng, H.; Zhang, C.; Ma, C.; Zhang, L.; Gong, W.; Wu, L. Identification of genes involved in indole-3-butyric acid-induced adventitious root formation in nodal cuttings of Camellia sinensis (L.) by suppression subtractive hybridization. Gene 2013, 514, 91–98. [Google Scholar] [CrossRef] [PubMed]
  25. Kono, A.; Umedahara, C.; Lee, J.; Ito, M.; Uchimiya, H.; Umeda, M. Arabidopsis D-Type Cyclin CYCD4;1 Is a Novel Cyclin Partner of B2-Type Cyclin-Dependent Kinase. Plant Physiol. 2003, 132, 1315–1321. [Google Scholar] [CrossRef] [PubMed]
  26. Cao, X.; Wang, H.; Zhuang, D.; Zhu, H.; Du, Y.; Cheng, Z.; Cui, W.; Rogers, H.J.; Zhang, Q.; Jia, C. Roles of MSH2 and MSH6 in cadmium-induced G2/M checkpoint arrest in Arabidopsis roots. Chemosphere 2018, 201, 586–594. [Google Scholar] [CrossRef]
  27. García-Cruz, K.V.; García-Ponce, B.; Garay-Arroyo, A.; Sanchez, M.D.L.P.; Ugartechea-Chirino, Y.; Desvoyes, B.; Pacheco-Escobedo, M.A.; Tapia-López, R.; Ransom-Rodríguez, I.; Gutierrez, C. The MADS-box XAANTAL1 increases proliferation at the Arabidopsis root stem-cell niche and participates in transition to differentiation by regulating cell-cycle components. Ann. Bot. 2016, 118, 787–796. [Google Scholar] [CrossRef]
  28. Lee, Y.P.; Fleming, A.; Korner, C.; Meins, F. Differential expression of the CBF pathway and cell cycle-related genes in Arabidopsis accessions in response to chronic low-temperature exposure. Plant Biol. 2009, 11, 273–283. [Google Scholar] [CrossRef]
  29. De Veylder, L.; Engler, J.D.A.; Burssens, S.; Manevski, A.; Lescure, B.; Van Montagu, M.; Engler, G.; Inze, D. A new D-type cyclin of Arabidopsis thaliana expressed during lateral root primordia formation. Planta 1999, 208, 453–462. [Google Scholar] [CrossRef]
  30. Wildwater, M.; Campilho, A.; Perezperez, J.M.; Heidstra, R.; Blilou, I.; Korthout, H.; Chatterjee, J.; Mariconti, L.; Gruissem, W.; Scheres, B. The RETINOBLASTOMA-RELATED Gene Regulates Stem Cell Maintenance in Arabidopsis Roots. Cell 2005, 123, 1337–1349. [Google Scholar] [CrossRef]
  31. Galinha, C.; Hofhuis, H.; Luijten, M.; Willemsen, V.; Blilou, I.; Heidstra, R.; Scheres, B. PLETHORA proteins as dose-dependent master regulators of Arabidopsis root development. Nature 2007, 449, 1053–1057. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Sozzani, R.; Cui, H.; Morenorisueno, M.A.; Busch, W.; Van Norman, J.M.; Vernoux, T.; Brady, S.M.; Dewitte, W.; Murray, J.A.H.; Benfey, P.N. Spatiotemporal regulation of cell-cycle genes by SHORTROOT links patterning and growth. Nature 2010, 466, 128–132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Tian, H.; De Smet, I.; Ding, Z. Shaping a root system: Regulating lateral versus primary root growth. Trends Plant Sci. 2014, 19, 426–431. [Google Scholar] [CrossRef] [PubMed]
  34. Aichinger, E.; Villar, C.B.R.; Mambro, R.D.; Sabatini, S.; Kohler, C. The CHD3 Chromatin Remodeler PICKLE and Polycomb Group Proteins Antagonistically Regulate Meristem Activity in the Arabidopsis Root. Plant Cell 2011, 23, 1047–1060. [Google Scholar] [CrossRef] [Green Version]
  35. Aida, M.; Beis, D.; Heidstra, R.; Willemsen, V.; Blilou, I.; Galinha, C.; Nussaume, L.; Noh, Y.; Amasino, R.M.; Scheres, B. The PLETHORA Genes Mediate Patterning of the Arabidopsis Root Stem Cell Niche. Cell 2004, 119, 109–120. [Google Scholar] [CrossRef] [Green Version]
  36. Helariutta, Y.; Fukaki, H.; Wysockadiller, J.; Nakajima, K.; Jung, J.; Sena, G.; Hauser, M.; Benfey, P.N. The SHORT-ROOT Gene Controls Radial Patterning of the Arabidopsis Root through Radial Signaling. Cell 2000, 101, 555–567. [Google Scholar] [CrossRef] [Green Version]
  37. Laurenzio, L.D.; Wysockadiller, J.; Malamy, J.E.; Pysh, L.; Helariutta, Y.; Freshour, G.; Hahn, M.G.; Feldmann, K.A.; Benfey, P.N. The SCARECROW Gene Regulates an Asymmetric Cell Division That Is Essential for Generating the Radial Organization of the Arabidopsis Root. Cell 1996, 86, 423–433. [Google Scholar] [CrossRef] [Green Version]
  38. Nardmann, J.; Reisewitz, P.; Werr, W. Discrete shoot and root stem cell-promoting WUS/WOX5 functions are an evolutionary innovation of angiosperms. Mol. Biol. Evolut. 2009, 26, 1745–1755. [Google Scholar] [CrossRef] [Green Version]
  39. Sarkar, A.K.; Luijten, M.; Miyashima, S.; Lenhard, M.; Hashimoto, T.; Nakajima, K.; Scheres, B.; Heidstra, R.; Laux, T. Conserved factors regulate signalling in Arabidopsis thaliana shoot and root stem cell organizers. Nature 2007, 446, 811–814. [Google Scholar] [CrossRef]
  40. Matsubayashi, Y.; Sakagami, Y. PEPTIDE HORMONES IN PLANTS. Annu. Rev. Plant Biol. 2006, 57, 649–674. [Google Scholar] [CrossRef]
  41. Han, J.; Tan, J.; Tu, L.; Zhang, X. A peptide hormone gene, GhPSK promotes fibre elongation and contributes to longer and finer cotton fibre. Plant Biotechnol. J. 2014, 12, 861–871. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Yang, G.; Shen, S.; Kobayashi, T.; Matsubayashi, Y.; Sakagami, Y.; Kamada, H. Stimulatory Effects of a Novel Peptidyl Plant Growth Factor, Phytosulfokine-α, on the Adventitious Bud Formation from Callus of Antirrhinum majus. Plant Biotechnol. 1999, 16, 231–234. [Google Scholar] [CrossRef] [Green Version]
  43. Porceddu, A.; Stals, H.; Reichheld, J.; Segers, G.; De Veylder, L.; Barroco, R.D.P.; Casteels, P.; Van Montagu, M.; Inze, D.; Mironov, V. A Plant-specific Cyclin-dependent Kinase Is Involved in the Control of G2/M Progression in Plants. J. Biol. Chem. 2001, 276, 36354–36360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Segers, G.; Gadisseur, I.; Bergounioux, C.; Engler, J.D.A.; Jacqmard, A.; Van Montagu, M.; Inze, D. The Arabidopsis cyclin-dependent kinase gene cdc2bAt is preferentially expressed during S and G2 phases of the cell cycle. Plant J. 1996, 10, 601–612. [Google Scholar] [CrossRef]
  45. Andersen, S.U.; Buechel, S.; Zhao, Z.; Ljung, K.; Novak, O.; Busch, W.; Schuster, C.M.; Lohmann, J.U. Requirement of B2-Type Cyclin-Dependent Kinases for Meristem Integrity in Arabidopsis thaliana. Plant Cell 2008, 20, 88–100. [Google Scholar] [CrossRef] [Green Version]
  46. Borghi, L.; Gutzat, R.; Futterer, J.; Laizet, Y.H.; Hennig, L.; Gruissem, W. Arabidopsis RETINOBLASTOMA-RELATED Is Required for Stem Cell Maintenance, Cell Differentiation, and Lateral Organ Production. Plant Cell 2010, 22, 1792–1811. [Google Scholar] [CrossRef] [Green Version]
  47. Zhou, X.; Zheng, R.; Liu, G.; Xu, Y.; Zhou, Y.; Laux, T.; Zhen, Y.; Harding, S.A.; Shi, J.; Chen, J. Desiccation treatment and endogenous IAA levels are key factors influencing high frequency somatic embryogenesis in Cunninghamia lanceolata (Lamb.) Hook. Front. Plant Sci. 2017, 8, 2054. [Google Scholar] [CrossRef] [Green Version]
  48. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [Green Version]
  49. Wang, Z.; Chen, J.; Liu, W.; Luo, Z.; Wang, P.; Zhang, Y.; Zheng, R.; Shi, J. Transcriptome characteristics and six alternative expressed genes positively correlated with the phase transition of annual cambial activities in Chinese Fir (Cunninghamia lanceolata (Lamb.) Hook). PLoS ONE 2013, 8, e71562. [Google Scholar] [CrossRef] [Green Version]
  50. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Plants 08 00520 g001 550

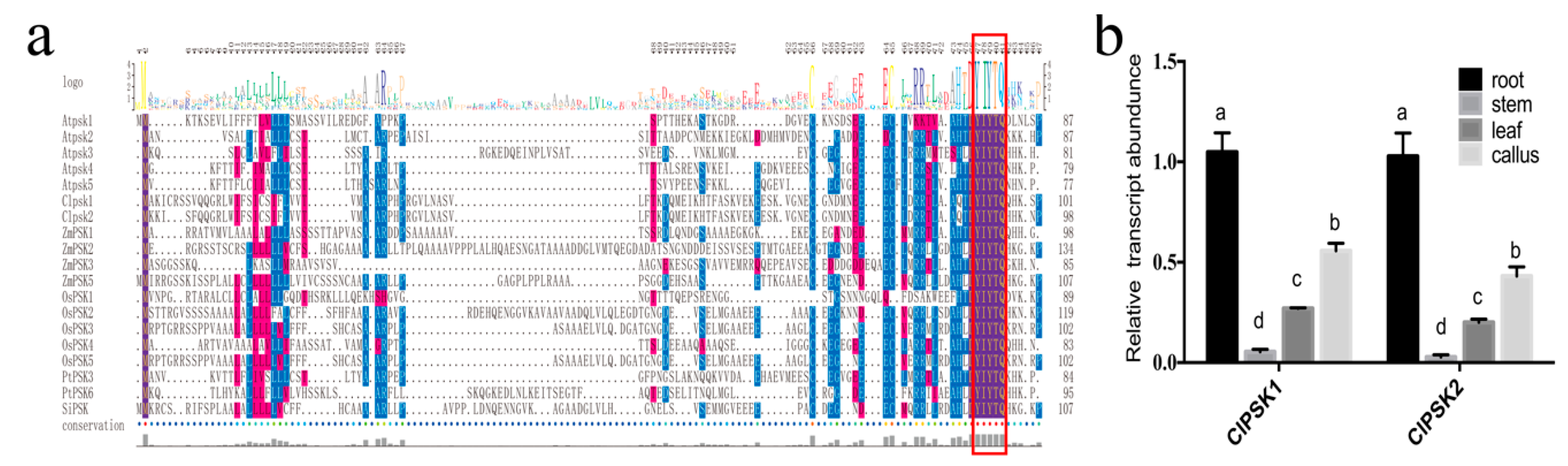

Figure 1. ClPSK is predicted to encode a phytosulfokine precursor protein. (a) Amino acid multiple sequence alignment between ClPSK and phytosulfokine-a (PSKs) from other species. The highly conserved single PSK domain (YIYTQ) is shown with a red rectangular box. The alignment was built from the following amino acid sequences: AtPSK1 (NP_172816); AtPSK2 (NP_179871); AtPSK3 (NP_566871); AtPSK (NP_566926); AtPSK5 (NP_201388); ZmPSK1 (NP_001105796); ZmPSK2 (NP_001150909); ZmPSK3 (NP_001147408); ZmPSK5 (NP_001146993); OsPSK1 (NP_001158130); OsPSK2 (NP_001065756); OsPSK3 (NP_001066155); OsPSK4(NP_001058803); OsPSK5 (NP_001066155); PtPSK3 (EEE90779); PtPSK6 (ABK92977); SiPSK (KQK99873). At: Arabidopsis thaliana; Cl: Cunninghamia lanceolata; Zm: Zea mays; Os: Oryza sativa; Pt: Populus trichocarpa; Si: Setaria italica. (b) Relative expression levels of ClPSK1/2 in the root, stem, leaf and embryonic callus of Chinese fir as determined by quantitative real-time PCR analysis. Error bars represent the standard deviations of three independent biological replicates. Different letters indicate significant differences between treatments, significant differences in mRNA levels were detected by the ANOVA test (P < 0.05).
Figure 1. ClPSK is predicted to encode a phytosulfokine precursor protein. (a) Amino acid multiple sequence alignment between ClPSK and phytosulfokine-a (PSKs) from other species. The highly conserved single PSK domain (YIYTQ) is shown with a red rectangular box. The alignment was built from the following amino acid sequences: AtPSK1 (NP_172816); AtPSK2 (NP_179871); AtPSK3 (NP_566871); AtPSK (NP_566926); AtPSK5 (NP_201388); ZmPSK1 (NP_001105796); ZmPSK2 (NP_001150909); ZmPSK3 (NP_001147408); ZmPSK5 (NP_001146993); OsPSK1 (NP_001158130); OsPSK2 (NP_001065756); OsPSK3 (NP_001066155); OsPSK4(NP_001058803); OsPSK5 (NP_001066155); PtPSK3 (EEE90779); PtPSK6 (ABK92977); SiPSK (KQK99873). At: Arabidopsis thaliana; Cl: Cunninghamia lanceolata; Zm: Zea mays; Os: Oryza sativa; Pt: Populus trichocarpa; Si: Setaria italica. (b) Relative expression levels of ClPSK1/2 in the root, stem, leaf and embryonic callus of Chinese fir as determined by quantitative real-time PCR analysis. Error bars represent the standard deviations of three independent biological replicates. Different letters indicate significant differences between treatments, significant differences in mRNA levels were detected by the ANOVA test (P < 0.05).
Plants 08 00520 g001
Plants 08 00520 g002 550

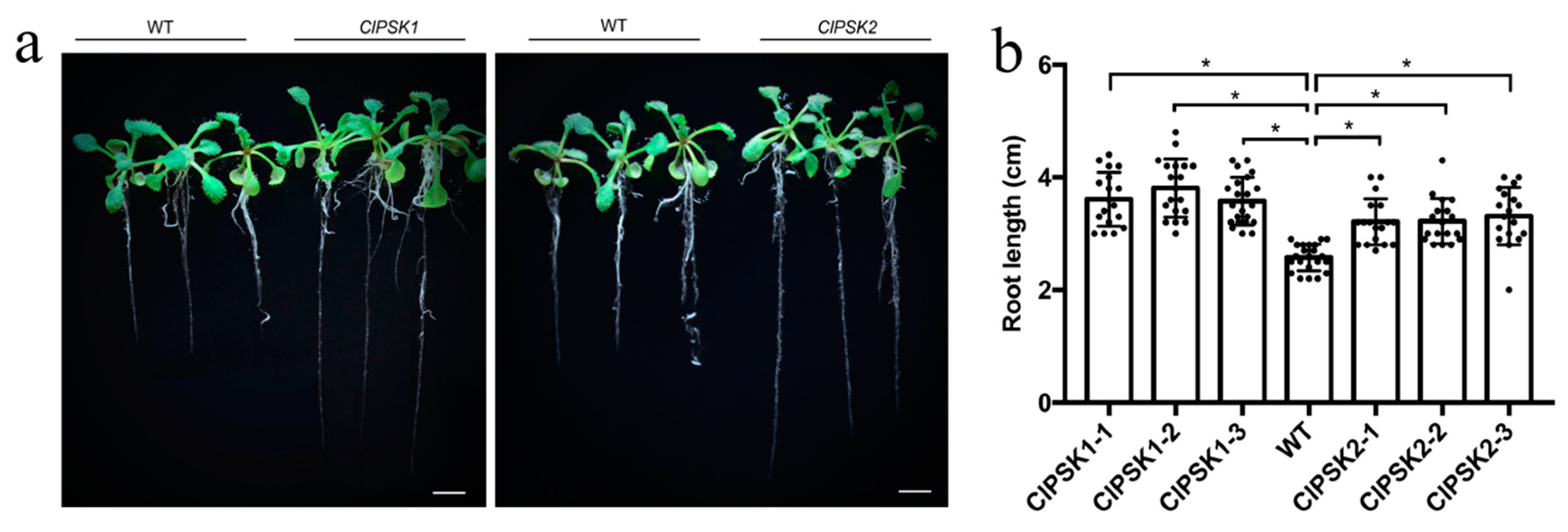

Figure 2. Overexpression of ClPSK promotes root growth in Arabidopsis thaliana plants. (a) Overexpression of ClPSK genes increases Arabidopsis root length. Representative photographs of Arabidopsis wild type (WT), ClPSK1 and ClPSK2 plants, grown for 15 d on plates. Bar = 0.5 cm. (b) Measurement of root length in 35S::ClPSK and wild type Arabidopsis. The average root length per plant was determined for Arabidopsis wild type (WT), three independent transgenic ClPSK1 lines (ClPSK1-1, ClPSK1-2, ClPSK1-3) and three independent transgenic ClPSK2 lines (ClPSK2-1, ClPSK2-2, ClPSK2-3). Plants were grown for 15 d on plates. Black points represent individual data points. The center line represents the mean, and error bars represent standard error (SE). n ≥ 20 biological replicates. Asterisks indicate statistically significant difference between WT and transgenic lines, as determined by Student’s t-test (P < 0.05).
Figure 2. Overexpression of ClPSK promotes root growth in Arabidopsis thaliana plants. (a) Overexpression of ClPSK genes increases Arabidopsis root length. Representative photographs of Arabidopsis wild type (WT), ClPSK1 and ClPSK2 plants, grown for 15 d on plates. Bar = 0.5 cm. (b) Measurement of root length in 35S::ClPSK and wild type Arabidopsis. The average root length per plant was determined for Arabidopsis wild type (WT), three independent transgenic ClPSK1 lines (ClPSK1-1, ClPSK1-2, ClPSK1-3) and three independent transgenic ClPSK2 lines (ClPSK2-1, ClPSK2-2, ClPSK2-3). Plants were grown for 15 d on plates. Black points represent individual data points. The center line represents the mean, and error bars represent standard error (SE). n ≥ 20 biological replicates. Asterisks indicate statistically significant difference between WT and transgenic lines, as determined by Student’s t-test (P < 0.05).
Plants 08 00520 g002
Plants 08 00520 g003 550
Figure 3. Overexpression of the ClPSK gene promotes organ differentiation. (a–l) Overexpression of ClPSK genes promotes organogenesis in Arabidopsis. Representative micrographs of wild-type, PSK-α treated and 35S::ClPSK1/2 Arabidopsis callus at 0 (a–d), 7 (e–h) and 14 (i–l) days of culture in a basic Murashige and Skoog (MS) liquid medium. Transparent protrusions (indicated by red arrows) occurred on the surface of PSK-α-treated wild-type callus (f) and transgenic callus i.e., ClPSK1 (g) and ClPSK2 (h) at 7 days. Elongated transparent protrusions on the surface of the PSK-α-treated wild-type callus (j) and transgenic callus ClPSK1 (k) and ClPSK2 (l) at 14 days. Bar = 2 mm. (m) The number of adventitious roots on the surface of wild-type (WT), PSK-α-treated wild-type (PSK-α) and transgenic callus (ClPSK1 and ClPSK2) at 0, 7 and 14 days of culture. Black points represent individual data points. The center line represents the mean, and error bars represent standard error (SE), n = 30 biological replicates. Different letters indicate statistically significant differences from WT (P < 0.05) were obtained using an ANOVA test. (n–p) Adventitious roots formed on Arabidopsis callus. Representative micrographs obtained using an inverted microscope. PSK-α-treated wild-type callus (n) and transgenic callus ClPSK1 (o) and ClPSK2 (p) at 14 days. Bar = 0.5 mm.
Figure 3. Overexpression of the ClPSK gene promotes organ differentiation. (a–l) Overexpression of ClPSK genes promotes organogenesis in Arabidopsis. Representative micrographs of wild-type, PSK-α treated and 35S::ClPSK1/2 Arabidopsis callus at 0 (a–d), 7 (e–h) and 14 (i–l) days of culture in a basic Murashige and Skoog (MS) liquid medium. Transparent protrusions (indicated by red arrows) occurred on the surface of PSK-α-treated wild-type callus (f) and transgenic callus i.e., ClPSK1 (g) and ClPSK2 (h) at 7 days. Elongated transparent protrusions on the surface of the PSK-α-treated wild-type callus (j) and transgenic callus ClPSK1 (k) and ClPSK2 (l) at 14 days. Bar = 2 mm. (m) The number of adventitious roots on the surface of wild-type (WT), PSK-α-treated wild-type (PSK-α) and transgenic callus (ClPSK1 and ClPSK2) at 0, 7 and 14 days of culture. Black points represent individual data points. The center line represents the mean, and error bars represent standard error (SE), n = 30 biological replicates. Different letters indicate statistically significant differences from WT (P < 0.05) were obtained using an ANOVA test. (n–p) Adventitious roots formed on Arabidopsis callus. Representative micrographs obtained using an inverted microscope. PSK-α-treated wild-type callus (n) and transgenic callus ClPSK1 (o) and ClPSK2 (p) at 14 days. Bar = 0.5 mm.
Plants 08 00520 g003
Plants 08 00520 g004 550

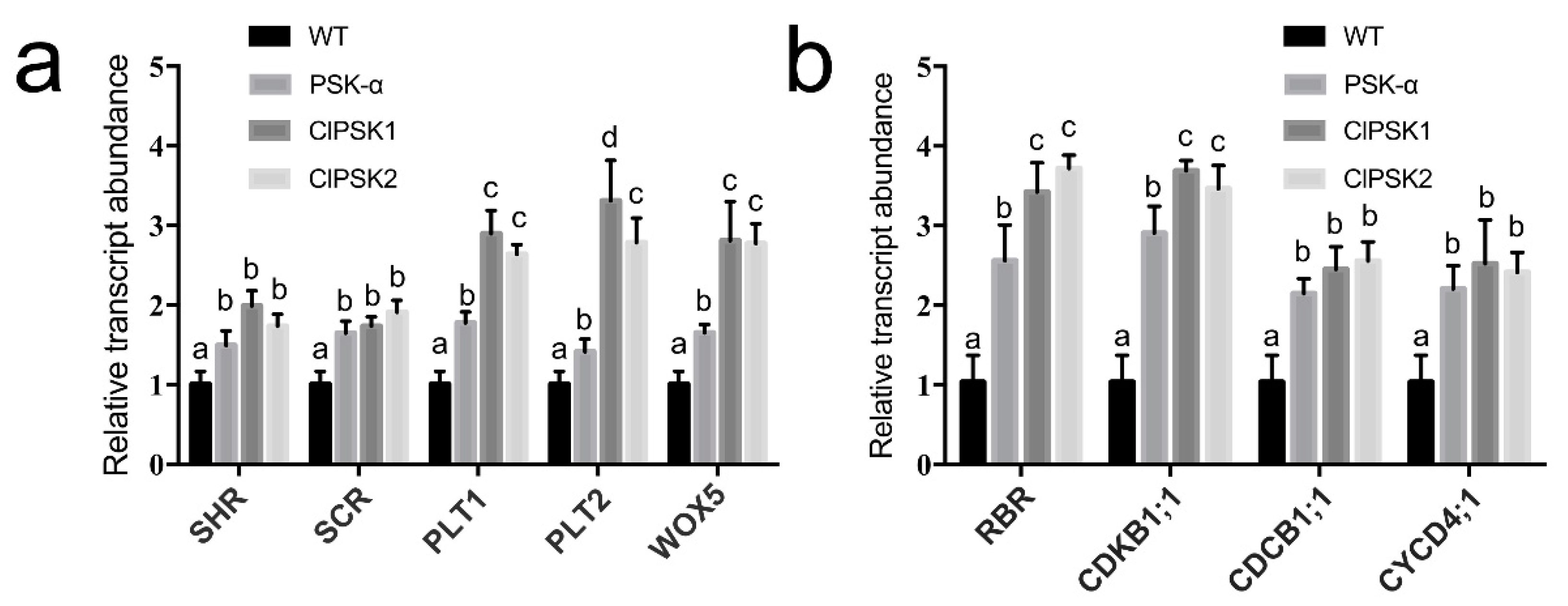

Figure 4. Overexpression of ClPSK genes upregulate the expression of genes related to root morphogenesis. (a) ClPSK1/2 induce expression of root patterning genes in Arabidopsis callus. Relative expression levels of genes associated with root development in wild-type (WT), PSK-α treated (PSK-α) and 35S::ClPSK1/2 (ClPSK1 and ClPSK2) callus grown 7 days in a basic MS liquid medium. Both ClPSK1/2 overexpression and exogenous treatment upregulate expression of SHR, SCR, PLT1, PLT2 and WOX5. Different letters indicate statistically significant differences between treatments in one genotype. Relative expression data are expressed as the mean ± SD, n = 3 biological replicates, and statistically significant differences from WT (P < 0.05) were obtained using an ANOVA test. (b) ClPSK1/2 induce expression of cell cycle genes in Arabidopsis callus. Relative expression levels of cell-cycle genes in wild-type (WT), PSK-α treated (PSK-α) and 35S::ClPSK1/2 (ClPSK1 and ClPSK2) callus grown 7 days in basic MS liquid medium. Both ClPSK1/2 overexpression and exogenous treatment upregulate expression of RBR, CDKB1;1, CYCB1;1 and CYCD4;1. Different letters indicate statistically significant differences between treatments in one genotype. Relative expression data are plotted as the mean ± SD, n = 3 biological replicates, and statistically significant differences from WT (P < 0.05) were obtained using an ANOVA test.
Figure 4. Overexpression of ClPSK genes upregulate the expression of genes related to root morphogenesis. (a) ClPSK1/2 induce expression of root patterning genes in Arabidopsis callus. Relative expression levels of genes associated with root development in wild-type (WT), PSK-α treated (PSK-α) and 35S::ClPSK1/2 (ClPSK1 and ClPSK2) callus grown 7 days in a basic MS liquid medium. Both ClPSK1/2 overexpression and exogenous treatment upregulate expression of SHR, SCR, PLT1, PLT2 and WOX5. Different letters indicate statistically significant differences between treatments in one genotype. Relative expression data are expressed as the mean ± SD, n = 3 biological replicates, and statistically significant differences from WT (P < 0.05) were obtained using an ANOVA test. (b) ClPSK1/2 induce expression of cell cycle genes in Arabidopsis callus. Relative expression levels of cell-cycle genes in wild-type (WT), PSK-α treated (PSK-α) and 35S::ClPSK1/2 (ClPSK1 and ClPSK2) callus grown 7 days in basic MS liquid medium. Both ClPSK1/2 overexpression and exogenous treatment upregulate expression of RBR, CDKB1;1, CYCB1;1 and CYCD4;1. Different letters indicate statistically significant differences between treatments in one genotype. Relative expression data are plotted as the mean ± SD, n = 3 biological replicates, and statistically significant differences from WT (P < 0.05) were obtained using an ANOVA test.
Plants 08 00520 g004
