Genome-Wide Investigation of the Role of MicroRNAs in Desiccation Tolerance in the Resurrection Grass Tripogon loliiformis

Centre for Tropical Crops and Biocommodities, Queensland University of Technology, Brisbane, QLD 4000, Australia
Department of Biochemistry and Biophysics, Institute for Plant Genomics and Biotechnology, Texas A&M University, College Station, TX 77843, USA
Department of Plant Pathology and Microbiology, Institute for Plant Genomics and Biotechnology, Texas A&M University, College Station, TX 77843, USA
Author to whom correspondence should be addressed.
Plants 2018, 7(3), 68;
Original submission received: 31 July 2018 / Revised: 24 August 2018 / Accepted: 29 August 2018 / Published: 31 August 2018
(This article belongs to the Special Issue The Role of MicroRNAs in Plants)


Drought causes approximately two-thirds of crop and yield loss worldwide. To sustain future generations, there is a need to develop robust crops with enhanced water use efficiency. Resurrection plants are naturally resilient and tolerate up to 95% water loss with the ability to revive upon watering. Stress is genetically encoded and resilient species may garner tolerance by tightly regulating the expression of stress-related genes. MicroRNAs (miRNAs) post-transcriptionally regulate development and other stress response processes in eukaryotes. However, their role in resurrection plant desiccation tolerance is poorly understood. In this study, small RNA sequencing and miRNA expression profiling was conducted using Tripogon loliiformis plants subjected to extreme water deficit conditions. Differentially expressed miRNA profiles, target mRNAs, and their regulatory processes were elucidated. Gene ontology enrichment analysis revealed that development, stress response, and regulation of programmed cell death biological processes; Oxidoreductase and hydrolyase molecular activities; and SPL, MYB, and WRKY transcription factors were targeted by miRNAs during dehydration stress, indicating the indispensable regulatory role of miRNAs in desiccation tolerance. This study provides insights into the molecular mechanisms of desiccation tolerance in the resurrection plant T. loliiformis. This information will be useful in devising strategies for crop improvement on enhanced drought tolerance and water use efficiency.

1. Introduction

The majority of higher plants are sensitive to dehydration and lose viability upon the loss of 41–70% of their total water content [1]. However, some plants are well adapted to adverse environments and implement adaptation mechanisms that mitigate the effects of water loss [2]. Although the adaptation mechanisms are effective under diverse environments, enabling plant survival, severe water loss still leads to the death of the plant. Resurrection plants represent a small but diverse group of angiosperms that exhibit unique tolerance mechanisms to cope with desiccation [3]. This unique group of plants can tolerate desiccation in their vegetative tissues for prolonged periods and rapidly recover their metabolic activity within 48 h of watering with minimal or non-existent tissue damage [3,4]. To achieve this phenomenal tolerance, resurrection plants utilize a repertoire of strategies that include the rapid shutdown of photosynthesis; leaf and cell wall structural adjustment; the stabilization of subcellular milieu through the accumulation of sugars, late embryogenesis abundant proteins (LEA), heat shock proteins, and other compatible solutes; and the induction of extensive antioxidant and ROS scavenging systems during desiccation [5,6,7,8].
Tripogon loliiformis is a small tufted diploid (2n = 20) annual to short-lived perennial C4 resurrection grass. It is endemic to a wide range of habitats in Australia and “resurrects” from its desiccated state within 72 h [9,10]. It’s short life cycle, ploidy level, and ease of propagation makes it a suitable experimental model for desiccation tolerance studies. T. loliiformis physiological responses to desiccation are characterized by structural, physiological, and biochemical changes that include leaf folding, cell wall folding and vacuole fragmentation, the early shutdown of photosynthesis, the retention of chlorophyll (homoiochlorophyllous) [9,11], increased anthocyanin accumulation, and the accumulation of sucrose and trehalose [12]. Response to stress is genetically encoded and transcriptional and post-transcriptional reprogramming are important elements in stress tolerance strategies [13,14,15,16]. Previous studies have linked miRNAs with many cellular processes [17,18].
MiRNAs are a class of 20–22 nt endogenous non-coding small RNAs that play important roles in the regulation of gene expression at the transcriptional and post-transcriptional level in animals, plants [19,20], and unicellular organisms [21]. In plants, miRNAs are involved in many metabolic and biological processes, where they play crucial regulatory roles in growth and development [22], phytohormone signaling [23], and adaptive responses to abiotic and biotic stress [17,24,25]. In Arabidopsis, using mannitol as a stress-inducing agent, miR396, miR168, miR167, and miR171 were found to be drought-responsive [26]. In rice, 30 differentially expressed miRNAs were identified under drought stress, while in tobacco, miR395 and miR169 were found to be sensitive to drought stress [27]. Using a combination of high throughput sequencing and microarray technology in a genome-wide study of Populus euphratica, Li et al. [28] identified 131 differentially expressed miRNAs under drought stress.
Although studies on miRNAs have been conducted in drought sensitive and tolerant plants including wheat [29], sorghum [30], switch grass [31], brachypodium [32], Arabidopsis [25], rice [33], and maize [34], their role in stress tolerance in desiccation tolerant plants has not been investigated. While drought sensitive and tolerant plants employ tolerance mechanisms to withstand mild to moderate dehydration stress, it is postulated that resurrection plants utilize a repertoire of unique desiccation tolerance mechanisms to overcome and adapt to extreme conditions. In this study, T. loliiformis plants subjected to desiccation stress at strategic dehydration, desiccation, and rehydration stages were analyzed through high throughput sequencing for the identification and enrichment of conserved miRNAs and elucidation of their potential roles in desiccation tolerance. Future crop production is threatened by the effects of global climate change, erratic weather patterns, and population growth. There is an urgent need for the development of climate resilient and water use efficient crops. Understanding the unique desiccation tolerance mechanisms harbored by resurrection plants presents a great potential for the development of robust crops.

2. Results

2.1. Analysis of Small RNAs in Shoot and Root of Tripogon loliiformis

The unique desiccation tolerance capabilities of resurrection plants suggests underlying tolerance mechanisms and effective regulation of transcription and translation. Studies have shown that miRNAs regulate gene expression at the transcriptional and post-transcriptional level. To investigate the role of miRNAs in desiccation tolerance, small RNA libraries from shoots and roots of hydrated, dehydrating (60% and 40% Relative Water Content (RWC)), desiccated (<10% RWC), and rehydrated plants were sequenced and the identification and expression profiling of miRNAs were conducted. High-throughput sequencing generated 142 million small RNAs reads in the range of 13–16 million reads per library, with an average of 1–3 million unique reads (Figure 1A). The raw reads were pre-processed to remove adapter sequences, low quality reads, and <15 nt reads, resulting in 104 (73%) million clean reads that were used for downstream analysis. Consistent with previous studies, the majority of the small RNAs were in the range of 21–24 nt, with 24 nt having the most reads, followed by 21 nt, across all libraries (Figure 1B).

2.2. Evolutionary Conservation of MiRNAs in Tripogon loliiformis

Many miRNAs are evolutionary conserved in species within the same kingdom and miRNA genes in one species may exist as orthologs or homologs in other species, presenting a powerful strategy to identify new miRNAs through a homology search [35]. To identify conserved miRNAs in T. loliiformis, the small RNA sequences were mapped against known plant miRNAs in the miRBase 21.0 database [36] and a total of 265 unique conserved miRNAs comprising 668 family members and isoforms from 60 MIR families were identified (Supplemental Table S1). Many of the identified miRNAs were family members and isoforms of the nine most evolutionary conserved miRNAs in plants [37]. The majority of the identified miRNAs were from closely related monocot species including Oryza sativa, Sorghum bicolor, Zea mays, Branchypodium distachyon, Hordeum vulgare, Triticum aestivum, and Aegilops tauschii, as well as from the model species Arabidopsis thaliana (Supplemental Figure S1).

2.3. Spatiotemporal Expression of MiRNAs in Tripogon loliiformis Tissues

Previous studies suggest that resurrection plants are genetically primed to respond to dehydration, even at a hydrated state, through the constitutive expression of stress response mechanisms [38,39]. Do resurrection plants gain their tolerance by post-transcriptionally regulating transcription more tightly than sensitive plants? Differential expression analysis identified 183 conserved miRNAs that differentially accumulated in shoots and roots during dehydration (Supplemental Table S2). A higher number of miRNAs were up-regulated in the shoots compared to the roots (Figure 2A). In the shoots at 60% RWC, 47 miRNAs were up-regulated and 29 down-regulated. At 40% RWC, 37 miRNAs were up-regulated while 40 were down-regulated. Surprisingly, miRNA accumulation was observed in desiccated tissue at <10% RWC, where 41 miRNAs showed an increased abundance, while 40 displayed a decreased accumulation. In rehydrating shoots, 51 miRNAs were up-regulated while 22 were down-regulated. In contrast, a reduced accumulation of miRNAs was observed in the roots where a higher number showed downregulation as dehydration ensued. In summary, 26 miRNAs were up-regulated and 54 down-regulated at 60% RWC, 24 up-regulated and 50 down-regulated at 40% RWC, and 30 up- and 54 down-regulated at <10% RWC, while 23 and 10 miRNAs were up- and down-regulated respectively on rehydration (Figure 2A, Supplemental Figure S2).
Tissue specific expression was observed where some miRNAs exhibited disparate expression between shoots and roots (Figure 2B). For example, miR399b, miR399j, miR167a, and miR393 h:i:j:k were up-regulated, while miR164c:h, miR169r:a, miR528a:b, and miR160d were down-regulated in the shoots, but were not expressed in the roots. The miRNAs miR444f, miR160e, and miR6300 were up-regulated in the shoots and down-regulated in the roots (Figure 2A), while other miRNAs showed a similar expression trend.

2.4. Tripogon loliiformis Stress-Associated MiRNAs Targets

MicroRNAs exert their post-transcriptional gene silencing role through base complementarity pairing with their cognate mRNA transcripts, leading to cleavage or translation repression. A large number of gene targets were predicted from T. loliiformis contigs annotated from RNAseq data generated in the same experiment [40], S. italica coding sequences, and A. thaliana transcripts preloaded in the psRNATarget genomic library for target prediction. A total of 1236 unique contigs targeted by conserved miRNAs were predicted in T. loliiformis (Supplemental Table S3). The majority of the predicted targets were orthologs of known conserved miRNAs targets involved in a broad range of biological processes including metabolism, response to abiotic stress, post-transcriptional gene silencing, regulation of development, and gene expression. The targets included transcription factors (TFs), protein kinases, transporters, chaperones, antioxidants, and carbohydrate metabolism associated genes. The transcription factors and other genes targeted by the miRNAs were interpreted to be differentially expressed based on the accumulation of their cognate miRNAs. The TFs associated with down-regulated miRNAs included members of Auxin response factor (ARF 5, 13, 22) targeted by miR162a, miR160a, and miR164b; Squamosa promoter binding-like protein (SPL 17, 18, 19) targeted by miR157d and miR156c; MYB (miR396, miR1128, miR159a), MADs-box (miR157a, 164b, miR1128), NAC (miR390), bHLH (miR408), and WRKY 38, 39, 70 targeted by miR167a, miR395b, and miR390. The TFs associated with up-regulated miRNAs included GATA 12 (miR396a), Scarecrow (miR171c), WRKY 4, 14 (miR5139, miR2916), ethylene-responsive transcription factor (ERF1) (miR5021), AP2/EREBP (miR166), bZIP (miR5021), and the nuclear factor Y (NFY A, C) as targets of miR169b and miR167a, respectively. However, it is worth noting that some members of the same transcription factor family, for example, WRKY, SPL, and MYB, showed disparate expression (Table S3). The predicted chaperones and heat shock proteins and factors targeted by miRNAs included HSP70, HSP90, and DNAJ. The antioxidants ascorbate peroxidase 4-like, peroxidase, and glutathione-s-transferase were among the targets for down-regulated miRNAs. A number of carbohydrate metabolism associated gene targets with a low accumulation of their cognate miRNAs included sucrose synthase (miR195a), Galactinol-sucrose galactosyltransferase (miR1128), fructokinase-4-like (miR319), hexokinase (miR319g:l, miR319a-d:f:h), and sucrose-phosphate synthase (miR167c) (Table S3). The accumulation of sucrose during dehydration and decline in glucose and fructose levels has been previously reported in a number of desiccation tolerant plants, including T. loliiformis [12,41].
The majority of the miRNAs targeting protein kinases were down-regulated during dehydration, indicating the active involvement of kinases in stress response signaling. The predicted kinases included class members of calcium-dependent protein kinase 1, 2, 3 targeted by miR157, miR169p, and miR159a, and CBL-interacting protein kinase as a target of miR408e. The expression of some kinases such as cysteine-rich receptor-like protein kinase (miR156h), MAP kinase (miR166h), serine/threonine-protein kinase (miR529), and phosphatidylinositol 4-kinase (miR408) was enhanced, while family members of some kinases displayed disparate expression. Transport associated members of ABC transporters, aquaporin NIP and H+ antiporter, were targeted by down-regulated miRNAs, while the K+ antiporter and aquaporin TIP and SIP were targets of up-regulated miRNAs during dehydration stress (Table S3).

2.5. Functional Roles of MiRNA Targets

MiRNAs control various cellular physiological, biochemical, and molecular processes. To investigate the potential functions and biological relevance of the predicted miRNA target genes, Gene ontology (GO) and enrichment analysis was conducted using Blast2GO [42] and GO terms viewed on Cytoscape [43]. The over-represented GO terms for the up-regulated miRNA gene targets included development associated processes such as cell development, growth and regulation of cell morphogenesis, metabolic and DNA catabolic processes, and regulation of programmed cell death. Other processes were related to vesicle fusion, membrane fusion, and protein transport and localization (Supplemental Figure S3). Over-represented metabolic activities included oxidoreductase, hydrolyase, nuclease, and ligase. The biological processes associated with down-regulated miRNA target genes included stress responses, defense and innate immunity, lipid and fatty acids metabolism, membrane transport, gene expression regulation, and post-transcriptional gene silencing (Supplemental Figure S4).

3. Discussion

MiRNAs research has been extensively conducted and their critical role in many biological processes enumerated [17,24,25,44]. In plants, most miRNA studies have focused on drought sensitive and tolerant species and no studies on desiccation responsive miRNAs in desiccation tolerant plants have been reported. Drought sensitive and tolerant plants employ stress tolerance mechanisms geared towards the restoration of homeostasis through water retention, albeit at different efficacies. Although resurrection plants utilize similar mechanisms at mild and moderate dehydration stress, they are primed for desiccation and utilize additional desiccation tolerance mechanisms to limit cellular damage to repairable levels through maintenance of the cellular structure and physiological integrity [2]. Based on the different response strategies, it is plausible that resurrection plants employ distinct regulatory processes at the post-transcriptional level that may not be observed in other vascular plant species. In this study, we performed a genome-wide profiling of miRNAs and their expression and targets in the desiccation tolerant T. loliiformis. High-throughput sequencing of small RNA libraries confirmed the evolutionary conservation of miRNAs through the identification of conserved miRNAs in T. loliiformis.
The high number of miRNAs identified suggests the critical role of miRNAs in gene expression regulation and their indispensable position in desiccation tolerance strategies in resurrection plants. The elevated accumulation of miRNAs in desiccated tissues suggested the existence of enhanced regulatory activities as dehydration ensued. However, the presence of miRNAs at a desiccated state could imply the repackaging and storage of miRNAs as the tissues dehydrated below 40% RWC, evidenced by high numbers during rehydration (Figure 2). The high number of miRNAs expressed during rehydration could be attributed to the regulation of cellular processes for protection against rehydration associated damage observed in resurrection plants [45].
Recent transcriptomics studies in resurrection plants indicated transcripts expression at extreme dehydration and attributed signal transduction proteins and retroelements to the instrumental role of gene silencing during desiccation [13,14,46]. In T. loliiformis, a similar trend was observed, where miRNAs expression was recorded at a desiccated state. Tissue specific expression was observed where miRNAs were induced in shoots and their expression was suppressed in roots (Figure 2). The expression disparity pointed to an inherent stress adaptation strategy where miRNAs act as master modulators of processes associated with energy metabolism, growth, and development in the shoots, while redirecting resources to promote stress tolerance and enhance protective mechanisms, some of which could be targeted to the roots. In Arabidopsis miR393, miR390/159, and miR159, TIR1, TCP/MYB, and SBP-LIKE, respectively, were induced under biotic and abiotic stress to suppress development-related processes for morphological adaptation to stress [17]. In resurrection plants, transcriptional reprogramming redirecting resources from growth processes towards cellular protection has been previously reported [13].
The majority of plant miRNAs target transcription factors that bind to conserved cis-acting promoter elements to affect the gene expression response, particularly those induced by abiotic stress [47]. Among the predicted transcription factors associated with down-regulated miRNAs during desiccation in T. loliiformis were nuclear factor Y NF-YA, NF-YB, and NF-YC targeted by miR169m, miR528, and miR167a, respectively. NF-Y is a CCAAT-DNA binding transcription factor that imparts significant tolerance to drought and facilitates increased yields in corn [48]. Members of the squamosa promoter-binding-like proteins (SPL) involved in the temporal regulation of shoot development and phase transition were differentially expressed, as previously reported [49]. The SPL transcription factors SPL17 (miR156a/c) and SPL18 (miR157) were cognates for down-regulated miRNAs and SPL6 (miR166), SPL12 (miR157), and SPL15 (miR5059) were predicted to be down-regulated. Under water deficit conditions, SPL are usually down-regulated as growth and developmental-associated processes including shoot development, vegetative phase transition, flowering, and leaf polarity are normally shutdown [17]. The observed differential expression implies that some members of SPL have stress tolerance-related functions in T. loliiformis, as recently reported in wheat [50]. The predicted members of the WRKY transcription factors modulate many processes in plants, including the response to abiotic and biotic stress [51]. The expression of WRKY 4, 38, 39, and 70 showed enhanced expression under extreme dehydration, pointing to their abiotic stress regulatory roles. In Arabidopsis, WRKY 70 was implicated in the positive regulation of defence, negative regulation of senescence, and modulation of osmotic stress tolerance through the regulation of stomatal aperture [52,53]. In the resurrection plant Haberlea rhodopensis, WRKY transcription factors were induced during desiccation [13]. The observed delayed senescence and early photosynthesis shutdown in T. loliiformis could be attributed to the regulation of WRKY 70 by miR390. Recent studies have associated NAC TFs with an unfolded protein response (UPR) in the ER stress response [54], while the regulation of GAMYB and ARF by miR159 and miR160 has been reported [49].
Protein synthesis and folding machinery in the endoplasmic reticulum (ER) can be compromised under unfavorable conditions, resulting in ER stress that activates the UPR [55,56]. The ER resident molecular chaperones play a critical role in the folding of newly synthesized proteins, maintenance of proteome integrity, and protein homeostasis [57]. In T. loliiformis, DNAJ and calnexin chaperones were predicted to be targeted by miR408 and miR5021, respectively. Calnexin (Cnx), an integral membrane protein, coordinates the processing of newly synthesized N-linked glycoproteins. DNAJ, on the other hand, binds directly on the luminal binding protein BiP, an HSP70 molecular chaperone that interacts with the newly synthesized polypeptides [58]. The observed down-regulation of miR408 and miR5021 would enhance the accumulation of DNAJ and calnexin chaperones to counter the ER stress during dehydration stress in T. loliiformis. Heterologous expression of Oryza sativa calnexin in tobacco conferred dehydration tolerance under mannitol stress [59].
Carbohydrate metabolism is a key process observed in resurrection plants during desiccation [7,60]. The accumulation of sucrose, oligosaccharides, and compatible solutes such as Late Embryogenesis Abundant (LEA) proteins and small heat shock proteins during desiccation leads to cellular stabilization through cytosolic vitrification [61]. Desiccation-induced accumulation of non-reducing trehalose sugar in T. loliiformis was recently associated with the induction of the cytoprotective autophagy pathways [12]. Comparative metabolic analysis of sucrose accumulation between desiccation tolerant and sensitive Eragrostis nindensis confirmed the crucial role of sucrose in desiccation tolerance, as sucrose only accumulated in the leaves of tolerant species [62]. Sucrose accumulation correlated with the expression of carbohydrate metabolic enzymes during desiccation, as previously reported in the resurrection plants Craterostigma plantagineum and Haberlea rhodopensis [13]. In T. loliiformis, the observed down-regulation of miRNAs targeting sucrose synthesis genes could lead to the enhanced expression of transcripts encoding sucrose synthase, sucrose 6-phosphate synthase, sucrose transporter, and galactinol synthase.
The lack of cellular damage and severe oxidative stress suggests elaborate protective mechanisms involving energy metabolism, growth, and development programs that regulate the induction of stress response mechanisms to provide a cushion against water loss. Differential miRNA expression analysis indicated distinct tissue specific accumulation patterns between the shoots and roots under desiccation stress. The majority of miRNAs were up-regulated in the shoots and down-regulated in the roots. For example, miR528a/b predicted to target LEA proteins and Calmodulin-like proteins (CML21) was down-regulated in shoots and had no expression in the roots. The accumulation of LEA proteins as a stress response mechanism has been previously reported. LEA proteins were reported to accumulate in shoot and scutellar, but not in root tissue of desiccation tolerant wheat seedling [63]. A variety of stress responses are mediated by Ca2+ signaling. For example, in rice, the multi-stress responsive gene2 (OsMSR2) was induced by multiple abiotic stress stimuli, and its overexpression in Arabidopsis enhanced tolerance to drought and salinity [64]. Chlorophyll biosynthesis is controlled by the scarecrow SCL27 gene through the regulation of photochlorophyllide oxidoreductase [65]. In T. loliiformis, miR171b predicted to target SCL27 was up-regulated in shoots and had zero expression in the roots. Disparate miRNA expression has been previously reported in other plants under diverse stress conditions [17], but not under desiccation tolerance. The observed spatiotemporal miRNAs expression in T. loliiformis suggests a unique adaptation strategy where extensive regulatory processes take place in the shoots, including early photosynthesis shutdown, induction of antioxidant systems, stress signaling, and resources mobilized and redirected to the roots to enhance survival.

4. Materials and Methods

4.1. Plant Materials and Stress Treatments

Tripogon loliiformis seeds from a single plant originally collected from Charleville in South western Queensland, Australia, were germinated in 65 mm plastic pots containing 50% native red soil and seed sowing potting mix in a growth chamber at 27 °C and for a 16 h photoperiod. The Tripogon loliiformis biological cycle completes in 12–14 weeks after germination. The plants are in their vegetative stage between two to six weeks and reproductive stage from the seventh to eighth week [66]. For this study, the dehydration experiment was conducted at the sixth week when the plants were in the vegetative stage. Twenty four hours prior to dehydration, fifteen pots containing multiple plants were well-watered to saturation. Three replicate samples from the hydrated plants were randomly collected. Since T. loliiformis is a small plant of approximately 5 cm in height, the entire aerial part (shoots) and roots, except the corm, were sampled per plant. The remaining plants were dehydrated by withholding water until they were air dry and their RWC dropped below 10% after six days [9]. During dehydration, triplicate shoot and root samples were collected at 60%, 40%, and <10% RWC. The collected samples were snap frozen in liquid nitrogen and stored at −80 °C until RNA extraction. Desiccated plants were watered and rehydrated samples collected after 48 h. The percentage RWC was determined using the leaf tissues and calculated according to Barrs, Weatherley [67]. T. loliiformis leaves were weighed upon sampling to get the fresh weight (FW). The leaves were placed in petri dishes containing water in a 4 °C fridge for 4–6 h. The leaves were blotted dry with a paper towel and weighed to get their turgid weight (TW). The leaves were dried overnight in a vacuum oven at 80 °C. The following day, the samples were cooled at room temperature in an aspirator to avoid error due to condensation, after which the dry weight (DW) was weighed. The percentage RWC of the leaf tissue was calculated using the formula
RWC (%) = ((Fresh Weight − Dry Weight)/(Turgid Weight − Dry Weight)) × 100.

4.2. Total RNA Extraction and High Throughput Sequencing

Total RNA was extracted from shoot and root tissues harvested from hydrated, dehydrating (60%, 40% RWC), desiccated (<10% RWC), and rehydrated plants using the Trizol Reagent (Invitrogen) according to the manufacturer’s instructions with modifications. Briefly, 50 mg of sample was ground in liquid nitrogen and transferred into a microfuge tube containing 1 mL of Trizol reagent, mixed thoroughly, and incubated for 5 min at room temperature. A total of 200 µL of chloroform was added, mixed by vortex, and centrifuged for 15 min at 4 °C, 14,000 rpm. Then, 350 µL of the top aqueous phase was homogenized in a Qiagen QIAshredder spin column and centrifuged at maximum speed for 2 min, and the flow-through was transferred into a new 2 mL collection tube for ethanol precipitation by adding 0.5 times 96% ethanol. SmallRNAs enriched total RNA bidding was done by transferring the mixture into a miRNeasy™ minElute™ spin column. Total RNA quality and purity were checked with the NanoDrop® 2000 spectrophotometer (Thermo Scientific, Wilmington, DE, USA) and the integrity and quality were verified using a Bioanalyser (Agilent technologies, Santa Clara, CA, USA) (Supplemental Figure S5). Five triplicate shoot and root small RNAs libraries were prepared using the TruSeq™ Small RNA Sample Preparation protocol from Illumina® and 50 bp single-end reads sequenced at Texas A&M AgriLife Genomics and Bioinformatics service, USA, using an Illumina HiSeq 2500 Sequencer (Illumina Inc., San Diego, CA, USA). The reads have been deposited in the Sequence Read Archive (SRA) at NCBI, Accession number SRP113187 (

4.3. Small RNAs Data Analysis and MiRNAs Identification

Small RNA reads were pre-processed for quality and trimmed for removal of the 3′ adapter sequences using CLC genomics workbench 6.52 [68]. The pre-processed reads were mapped against the plant miRNA sequences in the miRBase release 21 [36] using CLC genomics workbench 6.52 [68]. Due to the absence of T. loliiformis genomic information at the time of this study, annotated miRNA sequences from 71 plant species in miRBase [36] were used as proxy references against which the miRNAs were annotated. A mismatch allowance of two was used in the conserved miRNA search. The 5′ mature sequences in the size range of 20–22 nt were filtered from the resultant hits as potential conserved miRNAs.

4.4. MiRNAs Expression Analysis

The expression profiles of identified miRNAs were determined using CLC genomics Workbench. The raw small RNA reads were mapped against the identified miRNAs to determine miRNA expression values in the shoot and root tissues across respective dehydration and rehydration states. To determine the differential expression of miRNAs throughout dehydration, desiccation, and rehydration, the expression values were enumerated and normalized against total read counts reported as reads per million (RPM). Using the hydrated stage as the control, all hydration stages were compared to identify the miRNAs that were constitutively expressed, induced, or suppressed. MiRNAs with a fold change of ±2 and a Bonferroni and FDR corrected p-value ≤ 0.05 were considered significant.

4.5. MiRNAs Targets and Their Functional Enrichment

Gene targets of the conserved miRNAs were predicted using the plant small RNA Target Analysis Server, psRNATarget [69], with the following parameters; maximum expectation (0–5):3, length of complementarity (15–30):19, and maximum energy to un-pair the target site (UPE, 0–100):25. The Tripogon loliiformis de novo assembled transcriptome dataset [40] and mRNA sequences from the closely related S. italica, as well as Arabidopsis, were used for the targets prediction. To identify the functional categories of the differentially expressed miRNA targets (Table 1), T. loliiformis transcriptome functional mapping encompassing all the plant metabolic pathways and enzyme functions was developed using the MapMan Mercator tool and visualization of predicted miRNA targets against the mapping was conducted using MapMan [70]. For Gene Ontology (GO) enrichment analysis, a BLAST search of T. loliiformis contigs against NCBI non-redundant (nr) Plantae sequences was conducted. The BLAST output was analyzed for GO enrichment with the Fischer exact test and a p-value of 0.05 to identify over-represented GO terms using Blast2GO [42]. The results were visualized using the Cytoscape BiNGO plugin [43].

5. Conclusions

Molecular studies have highlighted significant differences between resurrection plants and other dehydration sensitive species at the gene expression level. Some of the observed differences could be attributed to the post-transcriptional regulatory role of miRNAs. In this study, the results obtained suggest that T. loliiformis, a desiccation tolerant grass, elicits significant stress responses at the post-transcriptional level. T. loliiformis survival under extreme conditions could be attributed to efficient regulatory processes. Our findings in this study will enhance the understanding of T. loliiformis miRNA-mediated regulatory mechanisms and provide a foundation for further investigation of the gene pool of resurrection plants that could be holding many answers to agricultural crops.

Supplementary Materials

The following are available online at, Figure S1: Annotation of Tripogon loliiformis conserved miRNAs using miRBase database, Figure S2: Cross-comparison Venn diagram showing the number of differentially expressed genes between shoots and roots, Figure S3: Gene Ontology of overrepresented GO terms associated with the targets of down-regulated miRNAs, Figure S4: Gene Ontology of overrepresented GO terms associated with the targets of up-regulated miRNAs, Figure S5: Representative Electrophoresis assay image of total RNA used for high-throughput sequencing. RNA with RNA Integrity Number (RIN) above 7.5 was used for sequencing library preparation, Table S1: List of conserved miRNAs identified in Tripogon loliiformis, Table S2: List of differential expressed conserved miRNAs in shoots and roots during dehydration, Table S3: List of predicted miRNAs targets associated with T. loliiformis contigs.

Author Contributions

Conceived and designed the experiments: I.N., B.W., C.C.-G., S.M., M.B.D., and X.Z. Performed the experiments: I.N., B.W., and C.C.-G. Analyzed the data: I.N., B.W., S.M., M.B.D., and X.Z. Wrote the paper: I.N., B.W., and S.M.


S.M. was supported by a QUT Professional Capacity Grant, B.W. was supported by a QUT Vice Chancellor’s Research Fellowship, and I.N. was supported by The Australian Department of Foreign Affairs and Trade (DFAT) under the Australian Awards—Africa PhD scholarship.


This work was supported by an Australia Awards - Africa PhD scholarship (I.N.), QUT Vice Chancellor’s Research Fellowship (B.W.), and a professional capacity development grant (S.M.). Computational resources and services used in this work were provided by the HPC and Research Support Group, QUT, Brisbane, Australia. Library preparation and Illumina sequencing was performed by Genomics and Bioinformatics services at Texas A&M University. The authors also thank Peraj Karbaschi for assistance with the plant propagation.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Höfler, K.; Migsch, H.; Rottenburg, W. Über die Austrocknungresistenz landwirtschaftlicher Kulturpflanzen. Forschungsdienst 1941, 12, 50–61. [Google Scholar]
  2. Rascio, N.; Rocca, N.L. Resurrection Plants: The Puzzle of Surviving Extreme Vegetative Desiccation. Crit. Rev. Plant Sci. 2005, 24, 209–225. [Google Scholar] [CrossRef]
  3. Scott, P. Resurrection Plants and the Secrets of Eternal Leaf. Ann. Bot. 2000, 85, 159–166. [Google Scholar] [CrossRef][Green Version]
  4. Bernacchia, G.; Salamini, F.; Bartels, D. Molecular characterization of the rehydration process in the resurrection plant Craterostigma plantagineum. Plant Physiol. 1996, 111, 1043–1050. [Google Scholar] [CrossRef] [PubMed]
  5. Farrant, J.M. A comparison of mechanisms of desicassion tolerance among 3 angiosperms resurrection plant species. Plant Ecol. 2000, 151, 29–39. [Google Scholar] [CrossRef]
  6. Moore, J.P.; Farrant, J.M. A Systems-Based Molecular Biology Analysis of Resurrection Plants for Crop and Forage Improvement in Arid Environments. In Improving Crop Resistance to Abiotic Stress; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2012; pp. 399–418. [Google Scholar] [CrossRef]
  7. Peters, S.; Mundree, S.G.; Thomson, J.A.; Farrant, J.M.; Keller, F. Protection mechanisms in the resurrection plant Xerophyta viscosa (Baker): Both sucrose and raffinose family oligosaccharides (RFOs) accumulate in leaves in response to water deficit. J. Exp. Bot. 2007, 58, 1947–1956. [Google Scholar] [CrossRef] [PubMed]
  8. Asami, P.; Mundree, S.; Williams, B. Saving for a rainy day: Control of energy needs in resurrection plants. Plant Sci. 2018, 271, 62–66. [Google Scholar] [CrossRef] [PubMed]
  9. Karbaschi, M.R.; Williams, B.; Taji, A.; Mundree, S.G. Tripogon loliiformis elicits a rapid physiological and structural response to dehydration for desiccation tolerance. Funct. Plant Biol. 2016. [Google Scholar] [CrossRef]
  10. Orchard, E.; Wilson, A. Flora of Australia. In Poaceae Australian Biological Resources Study; K Mallett, T.M., Ed.; CSIRO: Canberra, Australia, 2005. [Google Scholar]
  11. Gaff, D.; Pate, J.S. The Biology of Resurrection Plants; Pate, J.S., McComb, A.J., Eds.; The Biology of Australian Plants, University Western Australia Press: Nedlands, Australia, 1981; pp. 114–146. [Google Scholar]
  12. Williams, B.; Njaci, I.; Moghaddam, L.; Long, H.; Dickman, M.B.; Zhang, X.; Mundree, S. Trehalose Accumulation Triggers Autophagy during Plant Desiccation. PLoS Genet. 2015, 11, e1005705. [Google Scholar] [CrossRef] [PubMed]
  13. Gechev, T.S.; Benina, M.; Obata, T.; Tohge, T.; Sujeeth, N.; Minkov, I.; Hille, J.; Temanni, M.-R.; Marriott, A.S.; Bergström, E. Molecular mechanisms of desiccation tolerance in the resurrection glacial relic Haberlea rhodopensis. Cell. Mol. Life Sci. 2013, 70, 689–709. [Google Scholar] [CrossRef] [PubMed]
  14. Rodriguez, M.C.S.; Edsgard, D.; Hussain, S.S.; Alquezar, D.; Rasmussen, M.; Gilbert, T.; Nielsen, B.H.; Bartels, D.; Mundy, J. Transcriptomes of the desiccation-tolerant resurrection plant Craterostigma plantagineum. Plant J. 2010, 63, 212–228. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Zhou, J.; Wang, X.; Jiao, Y.; Qin, Y.; Liu, X.; He, K.; Chen, C.; Ma, L.; Wang, J.; Xiong, L. Global genome expression analysis of rice in response to drought and high-salinity stresses in shoot, flag leaf, and panicle. Plant Mol. Biol. 2007, 63, 591–608. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Zhou, L.; Liu, Y.; Liu, Z.; Kong, D.; Duan, M.; Luo, L. Genome-wide identification and analysis of drought-responsive microRNAs in Oryza sativa. J. Exp. Bot. 2010, 61, 4157–4168. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Khraiwesh, B.; Zhu, J.K.; Zhu, J. Role of miRNAs and siRNAs in biotic and abiotic stress responses of plants. Biochim. Biophys. Acta 2012, 1819, 137–148. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Sunkar, R. MicroRNAs with macro-effects on plant stress responses. Semin. Cell Dev. Biol. 2010, 21, 805–811. [Google Scholar] [CrossRef] [PubMed]
  19. Lagos-Quintana, M.; Rauhut, R.; Lendeckel, W.; Tuschl, T. Identification of novel genes coding for small expressed RNAs. Science 2001, 294, 853–858. [Google Scholar] [CrossRef] [PubMed]
  20. Park, W.; Li, J.; Song, R.; Messing, J.; Chen, X. CARPEL FACTORY, a Dicer Homolog, and HEN1, a Novel Protein, Act in microRNA Metabolism in Arabidopsis thaliana. Curr. Biol. 2002, 12, 1484–1495. [Google Scholar] [CrossRef]
  21. Zhao, T.; Li, G.; Mi, S.; Li, S.; Hannon, G.J.; Wang, X.-J.; Qi, Y. A complex system of small RNAs in the unicellular green alga Chlamydomonas reinhardtii. Genes Dev. 2007, 21, 1190–1203. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Yang, T.W.; Xue, L.G.; An, L.Z. Functional diversity of miRNA in plants. Plant Sci. 2007, 172, 423–432. [Google Scholar] [CrossRef]
  23. Liu, Q.; Chen, Y.Q. Insights into the mechanism of plant development: Interactions of miRNAs pathway with phytohormone response. Biochem. Biophys. Res. Commun. 2009, 384, 1–5. [Google Scholar] [CrossRef] [PubMed]
  24. Shukla, L.I.; Chinnusamy, V.; Sunkar, R. The role of microRNAs and other endogenous small RNAs in plant stress responses. Biochim. Biophys. Acta Gene Regul. Mech. 2008, 1779, 743–748. [Google Scholar] [CrossRef] [PubMed]
  25. Sunkar, R.; Zhu, J.K. Novel and stress-regulated microRNAs and other small RNAs from Arabidopsis. Plant Cell 2004, 16, 2001–2019. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, H.H.; Tian, X.; Li, Y.J.; Wu, C.A.; Zheng, C.C. Microarray-based analysis of stress-regulated microRNAs in Arabidopsis thaliana. RNA 2008, 14, 836–843. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Frazier, T.P.; Sun, G.; Burklew, C.E.; Zhang, B. Salt and Drought stresses induce the aberrant expression of microRNA genes in tobacco. Mol. Biotechnol. 2011, 49, 159–165. [Google Scholar] [CrossRef] [PubMed]
  28. Li, B.; Qin, Y.; Duan, H.; Yin, W.; Xia, X. Genome-wide characterization of new and drought stress responsive microRNAs in Populus euphratica. J. Exp. Bot. 2011, 62, 3765–3779. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Sun, F.; Guo, G.; Du, J.; Guo, W.; Peng, H.; Ni, Z.; Sun, Q.; Yao, Y. Whole-genome discovery of miRNAs and their targets in wheat (Triticum aestivum L.). BMC Plant Biol. 2014, 14, 142. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, L.; Zheng, Y.; Jagadeeswaran, G.; Li, Y.; Gowdu, K.; Sunkar, R. Identification and temporal expression analysis of conserved and novel microRNAs in Sorghum. Genomics 2011, 98, 460–468. [Google Scholar] [CrossRef] [PubMed]
  31. Matts, J.; Jagadeeswaran, G.; Roe, B.A.; Sunkar, R. Identification of microRNAs and their targets in switchgrass, a model biofuel plant species. J. Plant Physiol. 2010, 167, 896–904. [Google Scholar] [CrossRef] [PubMed]
  32. Budak, H.; Akpinar, A. Dehydration stress-responsive miRNA in Brachypodium distachyon: Evident by genome-wide screening of microRNAs expression. OMICS 2011, 15, 791–799. [Google Scholar] [CrossRef] [PubMed]
  33. Zhao, B.; Liang, R.; Ge, L.; Li, W.; Xiao, H.; Lin, H.; Ruan, K.; Jin, Y. Identification of drought-induced microRNAs in rice. Biochem. Biophys. Res. Commun. 2007, 354, 585–590. [Google Scholar] [CrossRef] [PubMed]
  34. Ding, D.; Zhang, L.; Wang, H.; Liu, Z.; Zhang, Z.; Zheng, Y. Differential expression of miRNAs in response to salt stress in maize roots. Ann. Bot. 2009, 103, 29–38. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, B.; Pan, X.; Cannon, C.H.; Cobb, G.P.; Anderson, T.A. Conservation and divergence of plant microRNA genes. Plant J. 2006, 46, 243–259. [Google Scholar] [CrossRef] [PubMed]
  36. Griffiths-Jones, S.; Grocock, R.J.; Van Dongen, S.; Bateman, A.; Enright, A.J. miRBase: MicroRNA sequences, targets and gene nomenclature. Nucleic Acids Res. 2006, 34, D140–D144. [Google Scholar] [CrossRef] [PubMed]
  37. Luo, Y.; Guo, Z.; Li, L. Evolutionary conservation of microRNA regulatory programs in plant flower development. Dev. Biol. 2013, 380, 133–144. [Google Scholar] [CrossRef] [PubMed]
  38. Oliver, M.J.; Guo, L.; Alexander, D.C.; Ryals, J.A.; Wone, B.W.; Cushman, J.C. A sister group contrast using untargeted global metabolomic analysis delineates the biochemical regulation underlying desiccation tolerance in Sporobolus stapfianus. Plant Cell Online 2011, 23, 1231–1248. [Google Scholar] [CrossRef] [PubMed]
  39. Gechev, T.; Dinakar, C.; Benina, M.; Toneva, V.; Bartels, D. Molecular mechanisms of desiccation tolerance in resurrection plants. Cell. Mol. Life Sci. 2012, 69, 3175–3186. [Google Scholar] [CrossRef] [PubMed]
  40. Sra, N. Bioproject: Transcriptome Analysis of Tripogon Loliiformis throughout Dehydration, Desiccation and Rehydration. Available online: (accessed on 22 April 2018).
  41. Whittaker, A.; Bochicchio, A.; Vazzana, C.; Lindsey, G.; Farrant, J. Changes in leaf hexokinase activity and metabolite levels in response to drying in the desiccation-tolerant species Sporobolus stapfianus and Xerophyta viscosa. J. Exp. Bot. 2001, 52, 961–969. [Google Scholar] [CrossRef] [PubMed]
  42. Conesa, A.; Götz, S. Blast2GO: A Comprehensive Suite for Functional Analysis in Plant Genomics. Int. J. Plant Genom. 2008, 2008, 619832. [Google Scholar] [CrossRef] [PubMed]
  43. Maere, S.; Heymans, K.; Kuiper, M. BiNGO: A Cytoscape plugin to assess overrepresentation of gene ontology categories in biological networks. Bioinformatics 2005, 21, 3448–3449. [Google Scholar] [CrossRef] [PubMed]
  44. Mallory, A.C.; Vaucheret, H. Functions of microRNAs and related small RNAs in plants. Nat. Genet. 2006, 38, S31–S36. [Google Scholar] [CrossRef] [PubMed]
  45. Alpert, P.; Oliver, M.J. 1 Drying Without Dying. In Desiccation and Survival in Plants: Drying without Dying; CABI: Wallingford, UK, 2002; p. 3. [Google Scholar]
  46. Farrant, J.; Cooper, K.; Hilgart, A.; Abdalla, K.; Bentley, J.; Thomson, J.; Dace, H.W.; Peton, N.; Mundree, S.; Rafudeen, M. A molecular physiological review of vegetative desiccation tolerance in the resurrection plant Xerophyta viscosa (Baker). Planta 2015, 242, 407–426. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Zhu, J.K. Salt and drought stress signal transduction in plants. Annu. Rev. Plant Biol. 2002, 53, 247–273. [Google Scholar] [CrossRef] [PubMed]
  48. Nelson, D.E.; Repetti, P.P.; Adams, T.R.; Creelman, R.A.; Wu, J.; Warner, D.C.; Anstrom, D.C.; Bensen, R.J.; Castiglioni, P.P.; Donnarummo, M.G. Plant nuclear factor Y (NF-Y) B subunits confer drought tolerance and lead to improved corn yields on water-limited acres. Proc. Natl. Acad. Sci. USA 2007, 104, 16450–16455. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Ferdous, J.; Hussain, S.S.; Shi, B.J. Role of microRNAs in plant drought tolerance. Plant Biotechnol. J. 2015, 13, 293–305. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. Wang, B.; Geng, S.; Wang, D.; Feng, N.; Zhang, D.; Wu, L.; Hao, C.; Zhang, X.; Li, A.; Mao, L. Characterization of Squamosa Promoter Binding Protein-LIKE genes in wheat. J. Plant Biol. 2015, 58, 220–229. [Google Scholar] [CrossRef]
  51. Wang, C.; Deng, P.; Chen, L.; Wang, X.; Ma, H.; Hu, W.; Yao, N.; Feng, Y.; Chai, R.; Yang, G.; et al. A Wheat WRKY Transcription Factor TaWRKY10 Confers Tolerance to Multiple Abiotic Stresses in Transgenic Tobacco. PLoS ONE 2013, 8, e65120. [Google Scholar] [CrossRef] [PubMed]
  52. Li, J.; Besseau, S.; Törönen, P.; Sipari, N.; Kollist, H.; Holm, L.; Palva, E.T. Defense-related transcription factors WRKY70 and WRKY54 modulate osmotic stress tolerance by regulating stomatal aperture in Arabidopsis. New Phytol. 2013, 200, 457–472. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Besseau, S.; Li, J.; Palva, E.T. WRKY54 and WRKY70 co-operate as negative regulators of leaf senescence in Arabidopsis thaliana. J. Exp. Bot. 2012, 63, 2667–2679. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Ruberti, C.; Kim, S.-J.; Stefano, G.; Brandizzi, F. Unfolded protein response in plants: One master, many questions. Curr. Opin. Plant Biol. 2015, 27, 59–66. [Google Scholar] [CrossRef] [PubMed]
  55. Howell, S.H. Endoplasmic reticulum stress responses in plants. Annu. Rev. Plant Biol. 2013, 64, 477–499. [Google Scholar] [CrossRef] [PubMed]
  56. Williams, B.; Verchot, J.; Dickman, M. When Supply Does Not Meet Demand-ER Stress and Plant Programmed Cell Death. Front. Plant Sci. 2014, 5, 211. [Google Scholar] [CrossRef] [PubMed]
  57. Kim, Y.E.; Hipp, M.S.; Bracher, A.; Hayer-Hartl, M.; Ulrich Hartl, F. Molecular chaperone functions in protein folding and proteostasis. Annu. Rev. Biochem. 2013, 82, 323–355. [Google Scholar] [CrossRef] [PubMed]
  58. Gupta, D.; Tuteja, N. Chaperones and foldases in endoplasmic reticulum stress signaling in plants. Plant Signal. Behav. 2011, 6, 232–236. [Google Scholar] [CrossRef] [PubMed][Green Version]
  59. Sarwat, M.; Naqvi, A.R. Heterologous expression of rice calnexin (OsCNX) confers drought tolerance in Nicotiana tabacum. Mol. Biol. Rep. 2013, 40, 5451–5464. [Google Scholar] [CrossRef] [PubMed]
  60. Ghasempour, H.; Gaff, D.; Williams, R.; Gianello, R. Contents of sugars in leaves of drying desiccation tolerant flowering plants, particularly grasses. Plant Growth Regul. 1998, 24, 185–191. [Google Scholar] [CrossRef]
  61. Farrant, J.M.; Moore, J.P. Programming desiccation-tolerance: From plants to seeds to resurrection plants. Curr. Opin. Plant Biol. 2011, 14, 340–345. [Google Scholar] [CrossRef] [PubMed]
  62. Illing, N.; Denby, K.J.; Collett, H.; Shen, A.; Farrant, J.M. The signature of seeds in resurrection plants: A molecular and physiological comparison of desiccation tolerance in seeds and vegetative tissues. Integr. Comp. Biol. 2005, 45, 771–787. [Google Scholar] [CrossRef] [PubMed]
  63. Ried, J.L.; Walker-Simmons, M. Group 3 late embryogenesis abundant proteins in desiccation-tolerant seedlings of wheat (Triticum aestivum L.). Plant Physiol. 1993, 102, 125–131. [Google Scholar] [CrossRef] [PubMed]
  64. Bender, K.W.; Snedden, W.A. Calmodulin-Related Proteins Step Out from the Shadow of Their Namesake. Plant Physiol. 2013, 163, 486–495. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. Ma, Z.; Hu, X.; Cai, W.; Huang, W.; Zhou, X.; Luo, Q.; Yang, H.; Wang, J.; Huang, J. Arabidopsis miR171-Targeted Scarecrow-Like Proteins Bind to GT cis-Elements and Mediate Gibberellin-Regulated Chlorophyll Biosynthesis under Light Conditions. PLOS Genet. 2014, 10, e1004519. [Google Scholar] [CrossRef] [PubMed]
  66. Le, T.T.T. Molecular and Functional Characterisation of an Osmotin Gene from the Resurrection Plant Tripogon Loliiformis. Ph.D. Thesis, Queensland University of Technology, Brisbane, Australia, 2018. Available online: (accessed on 30 August 2018).
  67. Barrs, H.; Weatherley, P. A re-examination of the relative turgidity technique for estimating water deficits in leaves. Aust. J. Biol. Sci. 1962, 15, 413–428. [Google Scholar] [CrossRef]
  68. Qiagen. CLC Genomics Workbench. Available online: (accessed on 22 April 2018).
  69. Dai, X.; Zhao, P.X. psRNATarget: A plant small RNA target analysis server. Nucleic Acids Res. 2011, 39, W155–W159. [Google Scholar] [CrossRef] [PubMed]
  70. Lohse, M.; Nagel, A.; Herter, T.; May, P.; Schroda, M.; Zrenner, R.; Tohge, T.; Fernie, A.R.; Stitt, M.; Usadel, B. Mercator: A fast and simple web server for genome scale functional annotation of plant sequence data. Plant Cell Environ. 2014, 37, 1250–1258. [Google Scholar] [CrossRef] [PubMed]

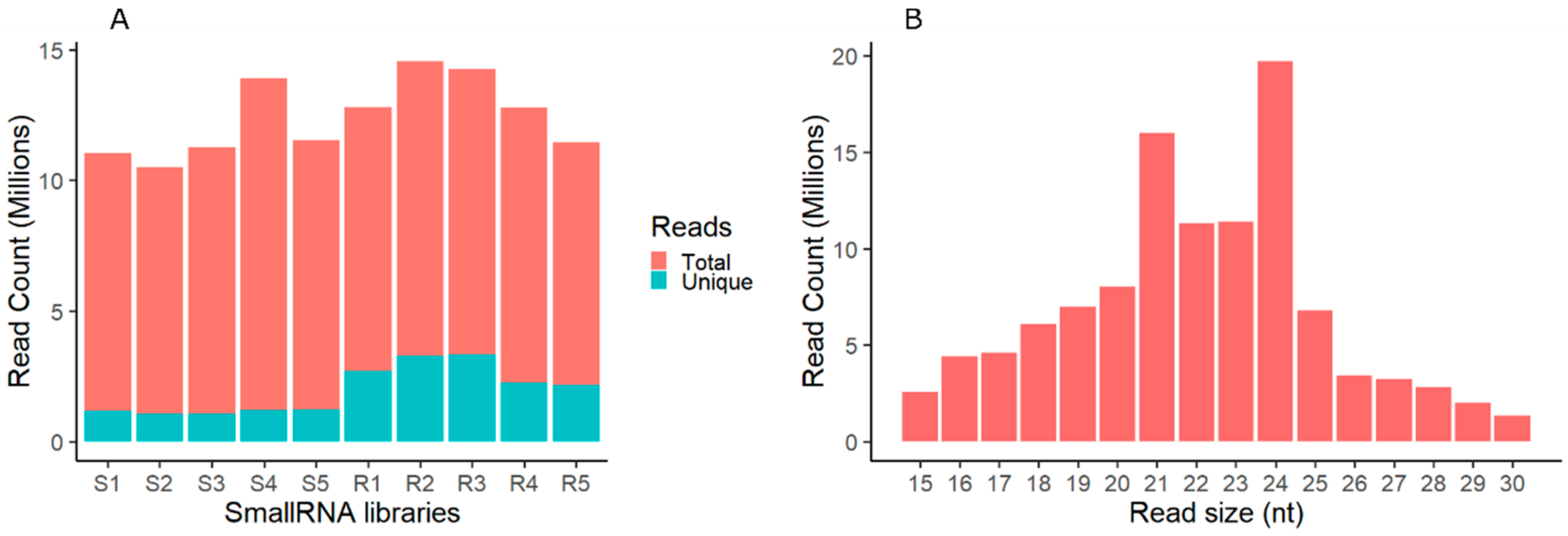

Figure 1. Tripogon loliiformis small RNA reads distribution. (A) Pre-processed reads distribution in shoot and root small RNA libraries; (B) overall reads distribution by size. S1–S5, R1–R5 represent shoot and root libraries at Hydrated (1), 60% RWC (2), 40% RWC (3), <10% RWC (4), and 48 h after rehydration (5), respectively.
Figure 1. Tripogon loliiformis small RNA reads distribution. (A) Pre-processed reads distribution in shoot and root small RNA libraries; (B) overall reads distribution by size. S1–S5, R1–R5 represent shoot and root libraries at Hydrated (1), 60% RWC (2), 40% RWC (3), <10% RWC (4), and 48 h after rehydration (5), respectively.
Plants 07 00068 g001

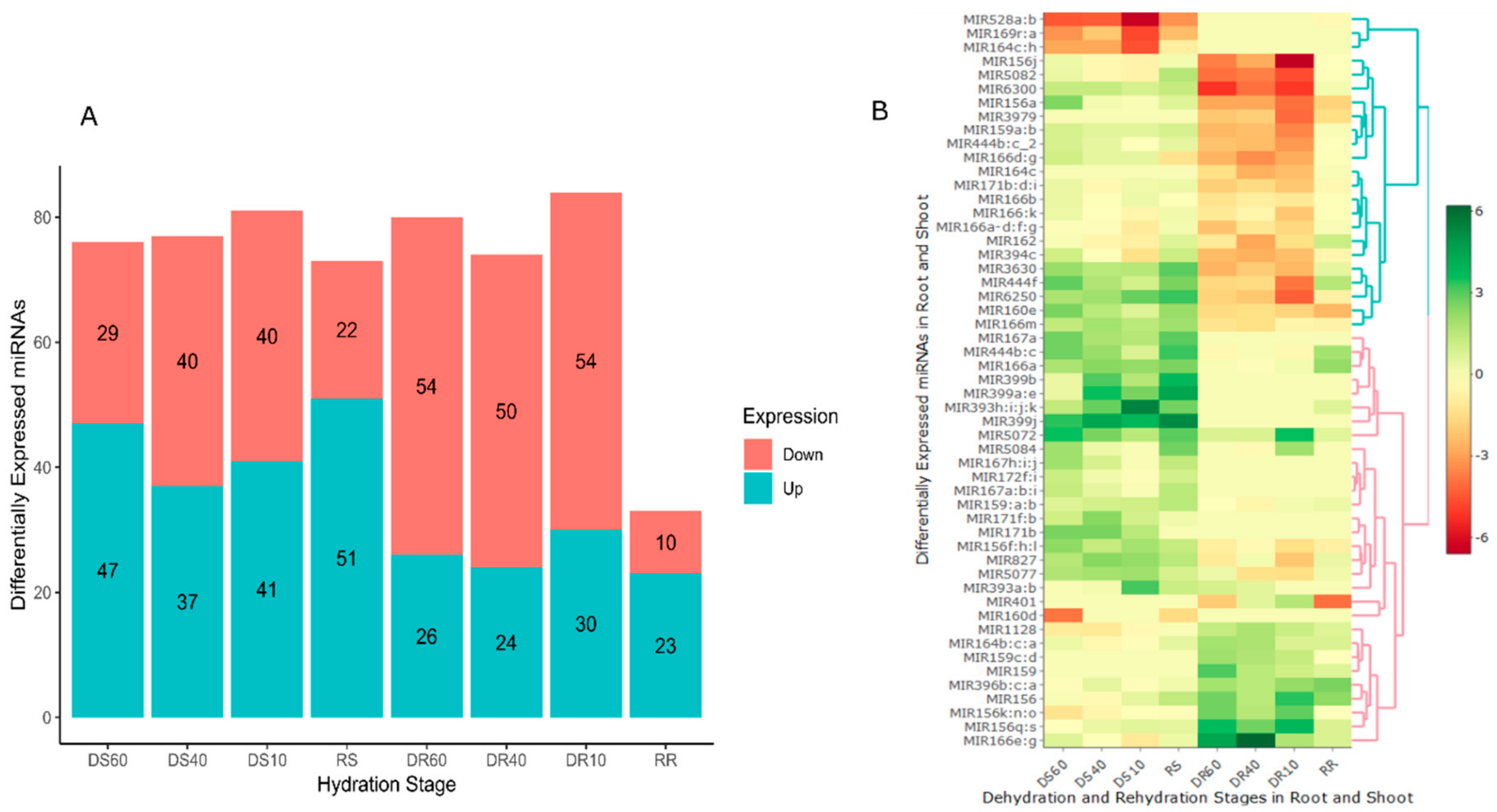

Figure 2. Differentially expressed miRNAs in shoots and roots under dehydration stress. (A) Bar graph showing disparate expression between shoot and roots. (B) Heatmap showing differentially expressed genes between shoots and roots at the different dehydration, desiccation, and rehydration stages. DS: Dehydrated Shoot, DR: Dehydrated Root, RS: Rehydrated Shoot, RR: Rehydrated Root.
Figure 2. Differentially expressed miRNAs in shoots and roots under dehydration stress. (A) Bar graph showing disparate expression between shoot and roots. (B) Heatmap showing differentially expressed genes between shoots and roots at the different dehydration, desiccation, and rehydration stages. DS: Dehydrated Shoot, DR: Dehydrated Root, RS: Rehydrated Shoot, RR: Rehydrated Root.
Plants 07 00068 g002
Table 1. MapMan functional categories of potential targets of differentially expressed conserved miRNAs during dehydration in Tripogon loliiformis.
Table 1. MapMan functional categories of potential targets of differentially expressed conserved miRNAs during dehydration in Tripogon loliiformis.
NameContig NumberAccession NumberTarget Description
MIR408Contig_1263XP_004951273.1BAG family molecular chaperone regulator 6
MIR172jContig_4654EMS50802.1DnaJ homolog subfamily C member 7
MIR3630Contig_195CAA47948.2heat shock protein 70
MIR6250Contig_29066XP_003578630.1hydrophobic protein OSR8-like
MIR166dContig_10495XP_003557818.1probable methyltransferase PMT2-like
MIR172hContig_914XP_004984086.1sucrose synthase 2-like
MIR167cContig_12310XP_004965756.1sucrose-phosphate synthase 3-like
MIR394cContig_1XP_003566746.1callose synthase 7-like
MIR166bContig_1239XP_004984579.1galactinol synthase 2-like
MIR167eContig_3855XP_004958079.1xylose isomerase-like
MIR5021Contig_16313XP_004966491.1senescence-associated protein DIN1-like
MIR172bContig_2082XP_004962343.1serine/threonine-protein kinase TOR-like
MIR528Contig_16524XP_004951509.1serine-threonine kinase receptor protein
MIR156cContig_10275XP_004957197.1squamosa promoter-binding-like protein 17-like
MIR156Contig_10275XP_004957197.1squamosa promoter-binding-like protein 17-like
MIR160dContig_39233EMT29346.11-aminocyclopropane-1-carboxylate synthase 7
MIR167hContig_16664XP_004961973.1ABSCISIC ACID-INSENSITIVE 5-like protein
MIR164aContig_14909XP_004985140.1Allene oxide synthase 2-like
MIR172bContig_975XP_004956401.1auxin transport protein BIG-like
MIR171eContig_10826XP_004976258.1IAA-amino acid hydrolase ILR1-like 5-like
MIR166hContig_3556XP_003576514.1DNA mismatch repair protein Msh6-1-like
MIR167aContig_548XP_004975516.1DNA repair helicase XPB1-like
MIR172aContig_49068NP_001151792.1DNA binding protein
MIR319g:lContig_5793NP_001065884.1HUA enhancer 2
MIR399a:eContig_961XP_004961835.1probable histone H2A.4-like
