Article

Genome-Wide Identification of S1fa Transcription Factors in Brassica napus and Screening of Key Genes BnaS1fa9 and BnaS1fa10 Responsive to Salt, Heat and Cold Stresses

by
Ruisheng Qi
1,†,
Min Mi
2,†,
Chunmiao Xu
3,
Qingfan Guo
1,
Yun Dong
4,
Jingjing Chen
1,
Jianye Wei
5,
Renmei Dang
5,
Zhaonan Wu
5,
Bo Dong
4,
Huizhen Ma
1 and
Zhiyang Ma
1,*
1
Agricultural Technology Extension Service Center of Linxia Hui Autonomous Prefecture, Linxia 731100, China
2
National Key Laboratory of Crop Genetics & Germplasm Innovation and Utilization, Key Laboratory of Biology and Genetic Improvement of Horticultural Crops (East China), Ministry of Agriculture and Rural Affairs of China, Engineering Research Center of Germplasm Enhancement and Utilization of Horticultural Crops, Ministry of Education of China, Nanjing Agricultural University, Nanjing 210095, China
3
Economic Crops Technology Extension Station of Anding District, Dingxi 743000, China
4
Gansu Academy of Agricultural Sciences, Lanzhou 730070, China
5
Linxia Hui Autonomous Prefecture Academy of Agricultural Sciences, Linxia 731100, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2026, 15(12), 1808; https://doi.org/10.3390/plants15121808
Submission received: 6 May 2026 / Revised: 28 May 2026 / Accepted: 9 June 2026 / Published: 12 June 2026
Browse Figures
Versions Notes

Abstract

Brassica napus reproductive development and abiotic stress tolerance are critical for yield and quality, and characterizing key transcription factor families is vital for molecular breeding. Here, based on the B. napus cv. Darmor-bzh V5 reference genome, we systematically identified and analyzed the BnaS1fa gene family, uncovering 12 members. Their encoded proteins are mostly small, alkaline, stable, and hydrophilic, with a few having ultra-long structures. Phylogenetic analysis clustered them into three subfamilies; conserved motif and gene structure analyses revealed high overall family conservation with partial member differentiation. Promoter cis-acting element analysis showed enrichment in light, hormone, and stress-responsive elements. Chromosomal localization and intraspecific collinearity analyses indicated the family mainly derived from homologous fragment retention in A and C subgenomes. Transcriptome data demonstrated high BnaS1fa expression in late seed and silique development, with prominent heat stress responses. RT-qPCR, subcellular localization and transcriptional activity assays confirmed BnaS1fa9 and BnaS1fa10 as nuclear-localized transcription factors with heat stress-induced expression. This study elucidates BnaS1fa molecular characteristics and its potential roles in reproductive development and heat stress response, providing candidate genes for B. napus stress-resistant molecular breeding. Further functional validation of these key genes will facilitate the dissection of their precise regulatory mechanisms governing heat stress tolerance and reproductive growth, which can be ultimately applied to advance the genetic improvement of rapeseed stress resistance and yield performance.

1. Introduction

B. napus L. is one of the most important oilseed crops and potential energy plants worldwide. Its yield and quality are not only determined by vegetative growth, but also tightly regulated by the coordination of reproductive development and adaptive responses to various abiotic stresses, including heat, drought, and salinity. With ongoing global climate change, abiotic stresses have become increasingly severe constraints on the yield stability and production efficiency of B. napus. Therefore, identifying key regulatory factors and their molecular mechanisms underlying reproductive development and stress adaptation is critical for molecular breeding of high-yield and stress-tolerant rapeseed varieties [1,2,3,4].
Transcription factors (TFs) serve as core regulators in plant gene expression networks [5,6,7,8,9]. By binding to specific cis-acting elements in the promoters of target genes, they precisely modulate multiple biological processes, including growth, development, and stress responses [10,11,12,13,14,15,16]. Among these, transcription factor families, which are typically small in size or have relatively few members, are often characterized by compact structures, rapid responsiveness, and high regulatory efficiency. It should be noted, however, that exceptions exist; for example, the peanut genome contains 126 S1Fa-like TFs [17]. During long-term evolution, many small transcription factor families have formed conserved but functionally diverse regulatory modules that enable plants to cope with environmental fluctuations, making them particularly attractive targets for genetic improvement. It should be noted, however, that large families such as the NAM family, which includes more than 100 members in rice and Arabidopsis [3], can also play central roles in stress adaptation and crop improvement.
The S1Fa (S1F-binding factor) family represents a group of plant-specific small transcription factors characterized by a conserved DNA-binding domain and nuclear localization signal [1,18,19]. Initially identified as a repressor of plastid gene transcription in spinach, S1Fa proteins target conserved cis-elements in the promoters of photosynthesis-associated genes such as rbcS and cab [20]. Functional studies in multiple species have revealed that S1Fa genes participate in diverse biological processes, including photomorphogenesis, flowering time control, drought resistance, ROS scavenging, and seed maturation. For instance, OsS1Fa1 enhances drought tolerance by activating stress-responsive genes in rice; PtS1Fa2 improves drought resistance by reducing ROS accumulation in Populus trichocarpa [1,21]. Recent transcript evidence also indicates that several S1Fa-like genes in B. napus are rapidly induced under salt stress, implying their potential roles in early stress signal perception and transduction [22].
B. napus is an allotetraploid species derived from the natural hybridization of Brassica rapa (AA) and Brassica oleracea (CC). Its genome has undergone recurrent whole-genome duplication and structural rearrangement events, leading to extensive expansion and functional divergence of many gene families [23,24,25]. Although the biological importance of the S1Fa family has been validated in several model plants, a comprehensive genome-wide characterization of the S1Fa family in B. napus—including gene identification, phylogenetic relationships, gene structure, cis-element distribution, and expression divergence—remains lacking.
In this study, we performed a genome-wide identification and analysis of the BnaS1fa gene family based on the Darmor-bzh v5 reference genome [26]. We analyzed gene structures, chromosomal locations, phylogenetic relationships, cis-acting regulatory elements, tissue-specific expression patterns, and expression responses to multiple abiotic stresses. Our results reveal the molecular characteristics and potential functions of BnaS1fa genes, and provide valuable candidate genes for further functional studies and stress-resistance molecular breeding in B. napus.

2. Results

2.1. Identification and Characterization of the S1fa Gene Family in B. napus

The BnaS1fa gene family in B. napus was initially identified using the S1fa gene and protein sequences of A. thaliana (AT2G37120, AT3G53370 and AT3G09735) via BLAST (version 2.12.0+) and HMMER software (version 3.3.2). After the initial identification of S1fa family genes using BLASTP (with known Arabidopsis S1fa proteins) and the Pfam HMM (PF04689), we constructed a custom hidden Markov model based on the multiple sequence alignment of the identified B. napus S1fa proteins. This species-specific model, together with the original PF04689 model, was then used to re-annotate and confirm the members of the BnaS1fa gene family. A total of 12 BnaS1fa transcription factors were ultimately identified in the B. napus genome.
Most BnaS1fa proteins were small-molecular-weight proteins (with the exception of BnaA04g04820D and BnaC04g27370D), with their amino acid lengths concentrated in the range of 70 to 76 residues. The isoelectric points (pI) of most of these small proteins ranged from 10.05 to 10.34, classifying them as alkaline proteins; only BnaA04g04820D (pI = 7.67) and BnaC04g27370D (pI = 7.98) were slightly alkaline neutral proteins. The instability indices of all BnaS1fa proteins varied from 21.34 to 39.69, all of which were below 40, indicating that these proteins possessed good stability in vitro. In addition, all BnaS1fa proteins exhibited hydrophilic properties overall (Table 1).

2.2. Phylogenetic Analysis of BnaS1fa Genes

Multiple sequence alignment of the identified BnaS1fa genes was performed using MUSCLE (version 3.8.31), followed by the construction of a phylogenetic tree via FastTree software (version 2.1.11) with the maximum likelihood (ML) method and JTT model to investigate the evolutionary relationships among BnaS1fa genes. Based on the genetic distance to AtS1fas, the BnaS1fa genes were divided into three subfamilies, designated as A, B and C. Subfamily A contained the largest number of BnaS1fa genes, while Subfamily B had the fewest; the two ultra-long BnaS1fa proteins exhibited the closest genetic relationship (Figure 1).

2.3. Motif Analysis, Gene Structure Analysis and Protein Tertiary Structure Prediction of BnaS1fa Genes

Given the inextricable link between protein function, evolutionary relationships, and the types and composition of conserved motifs, we first analyzed ten conserved motifs in the 12 identified BnaS1fa proteins (Figure 2a). We found that the small BnaS1fa proteins basically contained only Motif 1 and Motif 10 (with the exception of BnaA03g30540D), and all BnaS1fa proteins contained Motif 10, indicating that Motif 10 may represent the core functional domain of BnaS1fa proteins. The two ultra-long BnaS1fa proteins (BnaA04g04820D and BnaC04g27370D) possessed extremely similar conserved motifs, including all Motif 1 to Motif 10, with a complex structure, which suggests that they may harbor more abundant functional domains and undertake more complex biological functions.
Analysis of the BnaS1fa gene structures (Figure 2b) showed that most of the small conserved structural genes had a total length of approximately 1000–1200 bp with a compact overall structure, containing only 1–2 CDS fragments. This indicates that these genes have a conserved structure and may play roles in basic physiological processes. In contrast, the two ultra-long genes had a complex structure with a total length of over 3000 bp (2–3 times that of the small genes), containing multiple CDS fragments and longer UTRs. The conserved structure of the small genes suggests that they may retain the core functions of the ancestral genes, while the complex structure of the long genes may have acquired new functions through gene duplication and domain insertion.

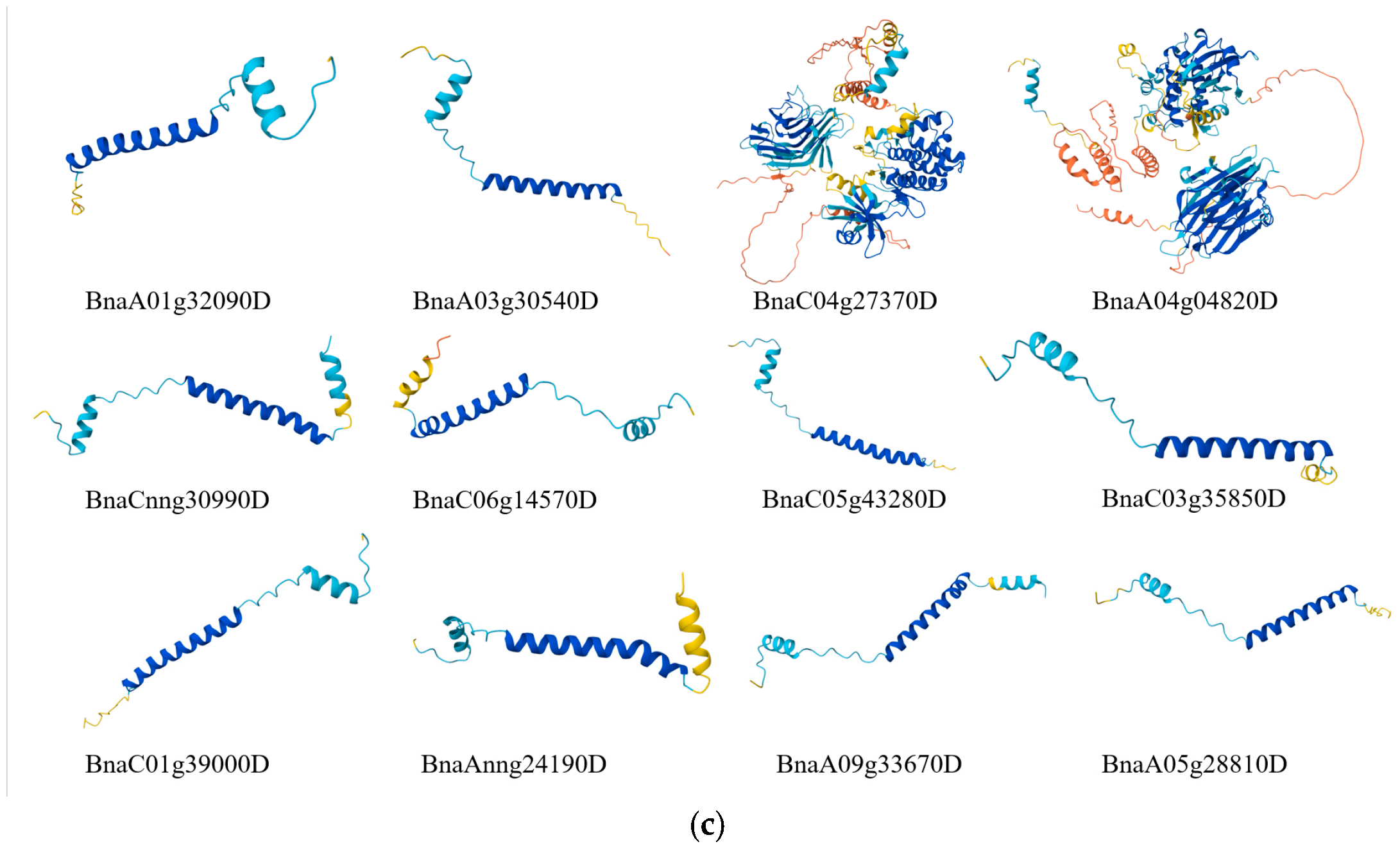

Multiple sequence alignment of the full-length proteins, including the two unusually long candidates (BnaA04g04820D and BnaC04g27370D), with other S1fa family members showed that all proteins share a highly conserved C-terminal domain (Figure S1). The extended N-terminal sequences of the two longer proteins do not affect the conserved family-specific domain structure, supporting their classification as members of the S1fa gene family.
The aforementioned gene structure analysis revealed a trend of functional differentiation within the family. To verify this inference, we predicted the spatial conformations of all BnaS1fa proteins using AlphaFold 3, thereby linking the linear structure of genes to the tertiary functional structure of proteins. The results of tertiary structure prediction demonstrated that the small proteins featured a core structure composed of 1–2 α-helices, with short random coils attached to both ends; they lacked complex folding or domain assembly, and presented an overall linear or slightly curved strip-like conformation. In comparison, the ultra-long complex proteins (BnaA04g04820D and BnaC04g27370D) consisted of alternating arrangements of multiple α-helices and β-sheets, with abundant random coils and loop structures on their surface, forming a tightly folded spherical or elliptical conformation that contained multiple functional domains (Figure 2c).

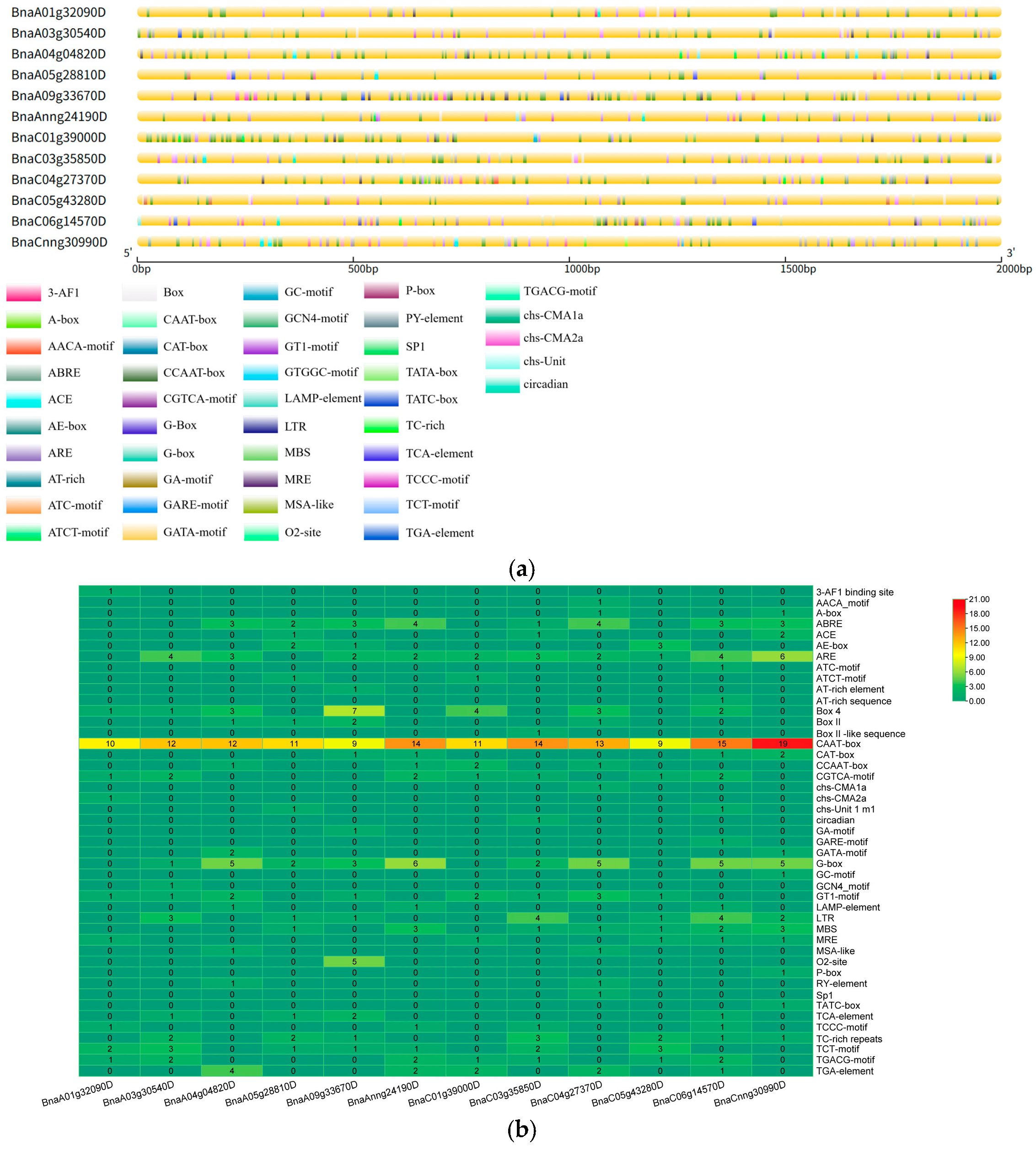

2.4. Prediction of Cis-Acting Elements in the Promoters of BnaS1fa Genes

As the core regulatory region for gene transcription, the composition and analysis of cis-acting elements in promoters constitute a key molecular basis for dissecting gene expression patterns and functional differentiation. To further elucidate the possible transcriptional regulatory mechanisms of the BnaS1fa gene family and their potential roles in abiotic stress responses, the 2000 bp upstream sequences of the 12 identified BnaS1fa members were extracted as promoter sequences for systematic prediction and analysis of cis-acting elements. The results showed that the promoters of BnaS1fa members mainly contained basic transcriptional elements, stress-responsive elements, hormone-responsive elements and light-responsive elements (Figure 3a). Combined with the heatmap of cis-acting elements in the promoters (Figure 3b), anaerobic responsive elements (ARE) were the most numerous (6 copies) in BnaC06g14570D, indicating that this gene may play an important role in hypoxic conditions; light-responsive elements (Box4 and G-box) were present in almost all promoters, suggesting that the whole family is generally regulated by light signals; stress and hormone-responsive elements (e.g., ABRE) were distributed in most genes, which demonstrates that BnaS1fa genes are extensively involved in abiotic stress and hormone signal responses. Notably, the TATC-box element was present only in the promoter of BnaCnng30990D and was absent from all other S1fa gene promoters analyzed (Figure 3b).

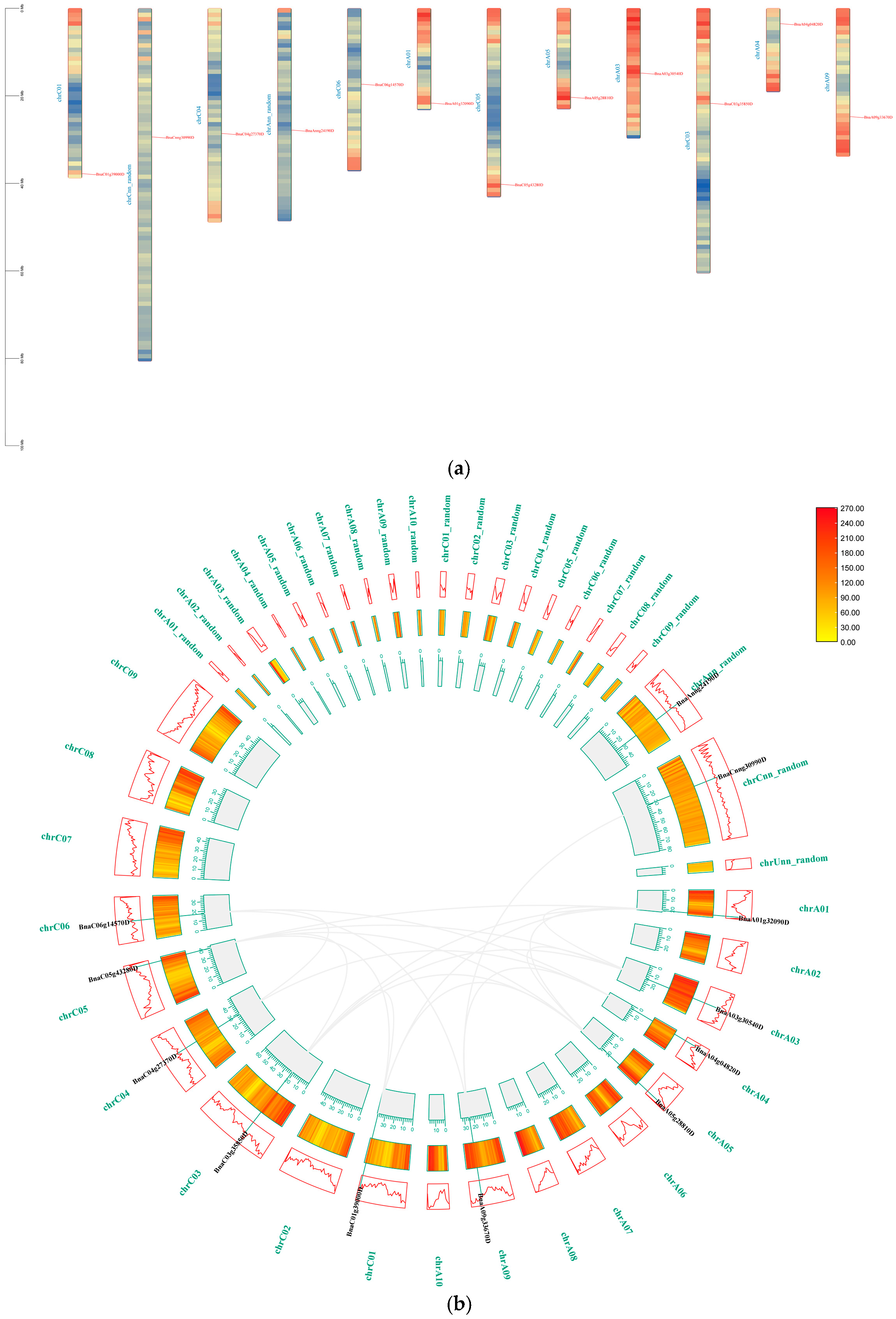

2.5. Chromosomal Localization and Intraspecific Collinearity Analysis of BnaS1fa Genes

Chromosomal localization analysis is a core and fundamental approach for dissecting the origination, evolution, copy number variation and functional differentiation of gene families. To clarify the distribution characteristics and evolutionary patterns of the BnaS1fa gene family in the Brassica napus genome, chromosomal localization analysis was performed (Figure 4a). The results revealed that the family members were scattered across 10 distinct chromosomes and 2 random scaffolds, with no large-scale tandem clustering observed. This indicated that the expansion of this family was mainly dependent on whole-genome duplication or segmental duplication, rather than tandem duplication. Most genes were localized in the upper and middle regions of chromosomes, while only a few were mapped to the pericentromeric regions. This distribution pattern may be attributed to the recombination rate and selective pressure of chromosomes.
Intraspecific collinearity analysis was conducted for the BnaS1fa family genes (Figure 4b), and the results showed that most BnaS1fa genes had one-to-one or one-to-many collinear gene pairs between the A and C subgenomes.

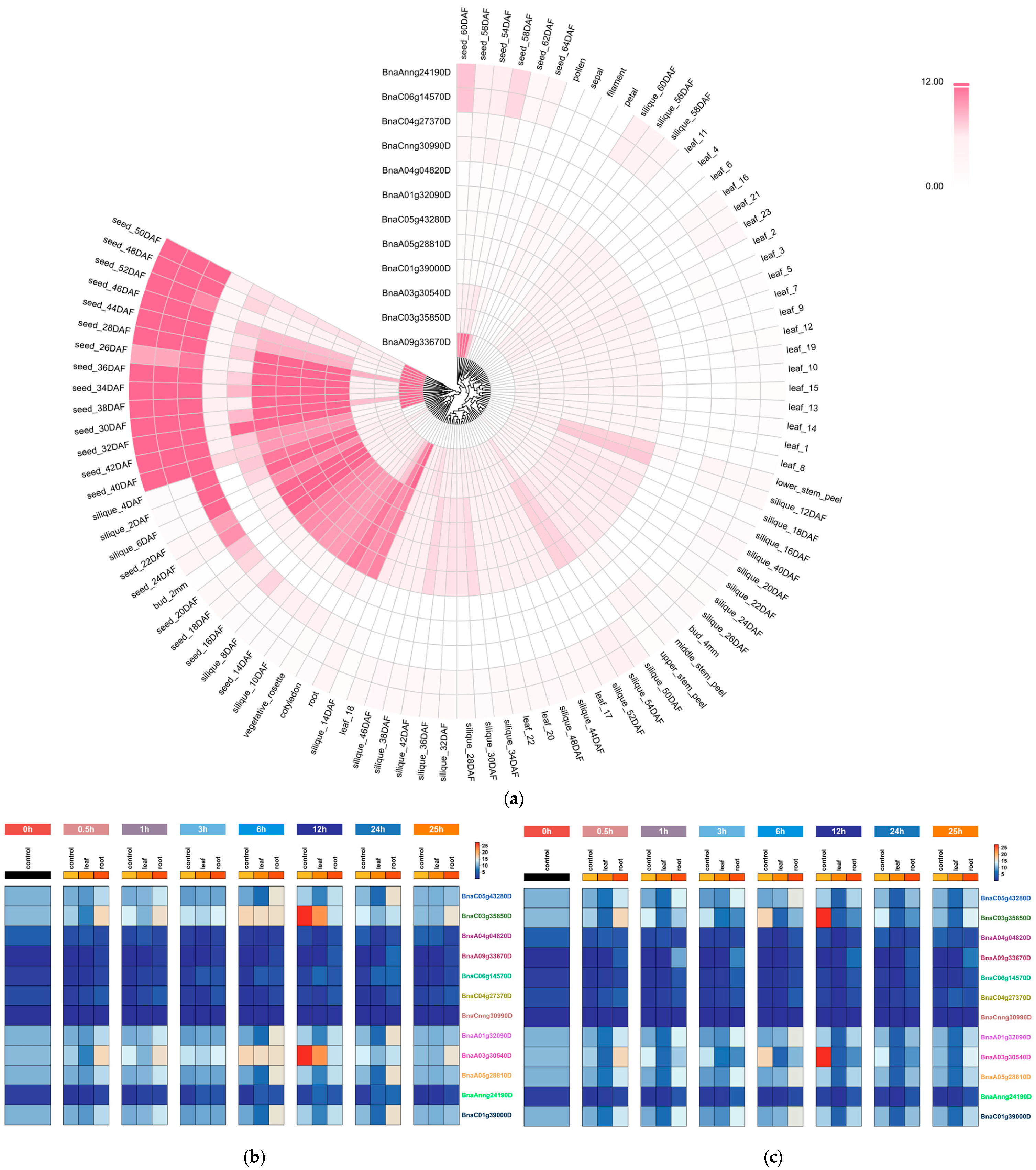

2.6. Analysis of Tissue Expression Specificity and Expression Patterns Under Abiotic Stresses of BnaS1fa Genes

Transcriptome data were used to analyze the expression profiles of BnaS1fa genes in different tissues (Figure 5a). We found that the BnaS1fa family genes exhibited markedly high expression in the late stage of seed development and silique development, with their expression levels peaking particularly at the seed-30DAF to seed-52DAF stages. This result indicated that the core functions of the BnaS1fa family genes may be closely associated with seed maturation and silique development. Interestingly, the expression of BnaS1fa genes was generally low in vegetative organs, which further confirmed that the functions of this family are biased toward the reproductive development stage.

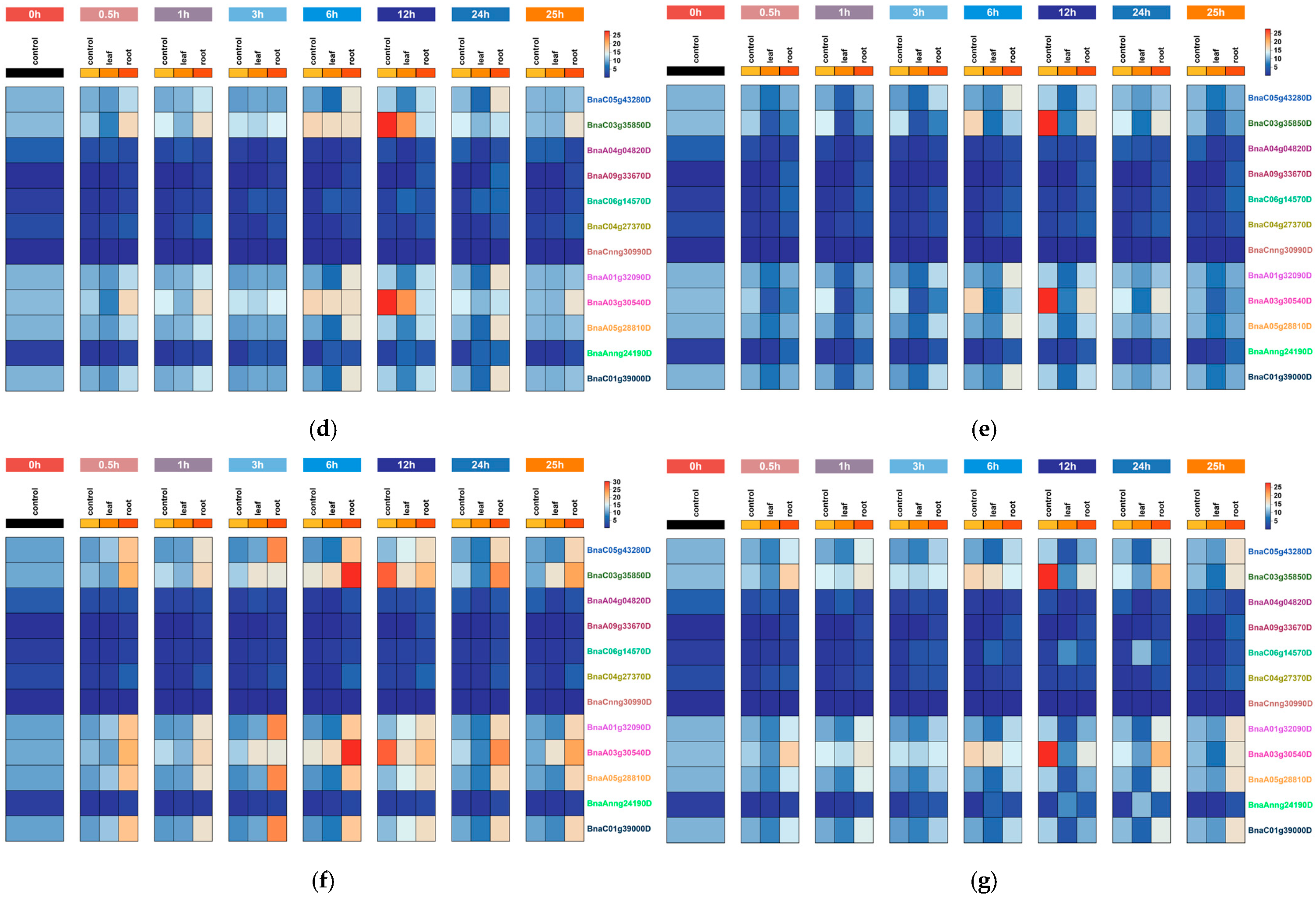

Abiotic stresses (e.g., high temperature, drought, and high salinity) have long been the major environmental factors limiting the yield and quality of B. napus [27]. To investigate the roles of BnaS1fa genes in responding to abiotic stresses, transcriptome data were used to systematically analyze the stress-induced expression patterns of BnaS1fa family members (Figure 5b–g). Under salt stress, the expression of BnaC03g35850D and BnaA03g30540D was significantly downregulated, especially in roots. In the cold treatment group, most BnaS1fa genes showed no significant expression changes, and only a few genes (e.g., BnaC03g35850D and BnaA03g30540D) exhibited obvious downregulation; transcriptome data indicated that the BnaS1fa family had a weak response to cold stress. The expression patterns of BnaS1fa genes under salt and drought stresses were similar. Under heat stress, half of the BnaS1fa genes showed upregulated expression, and BnaC03g35850D and BnaA03g30540D displayed an extremely significant and strong expression at 6 h, demonstrating that the BnaS1fa family has a robust response to heat stress.

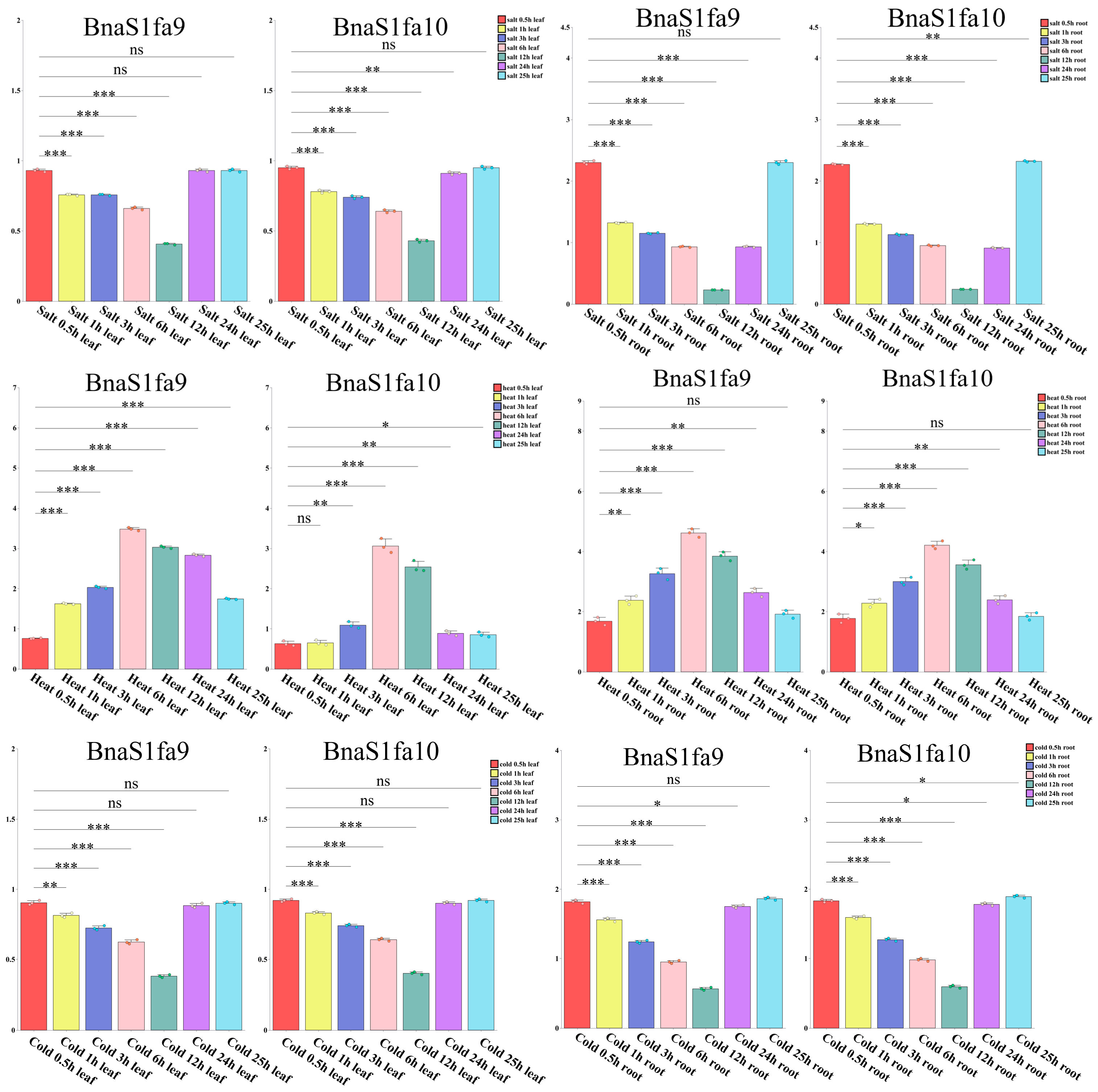

2.7. Validation of BnaS1fa Genes Responses to Abiotic Stresses by qPCR

To validate the expression patterns of BnaS1fa family genes under different abiotic stresses as revealed by transcriptome data, and to further clarify the stress response specificity of core members (BnaC03g35850D and BnaA03g30540D), we selected the aforementioned key genes, along with time points and tissue samples from typical stress treatments (salt, cold and heat stress), to perform quantitative validation of their expression levels via real-time fluorescent quantitative PCR (RT-qPCR) (Figure 6). Based on their chromosomal locations, BnaC03g35850D and BnaA03g30540D were designated as BnaS1fa10 and BnaS1fa9, respectively. Quantitative data demonstrated that the expression levels of BnaS1fa9 and BnaS1fa10 exhibited a high degree of similarity under different abiotic stresses.
Under salt stress, the expression levels decreased gradually with the extension of treatment time, reaching the lowest point at 12 h (only 15–20% of the initial level), and recovered in the late stage of treatment. This indicated that salt stress exerted a predominantly inhibitory effect on the expression of BnaS1fa9 and BnaS1fa10. Under low-temperature stress, the expression levels dropped to a trough at 12 h and then rebounded. Interestingly, under heat stress, BnaS1fa9 and BnaS1fa10 displayed a distinctly different response pattern from that under salt or low-temperature stress: their expression was significantly upregulated in both roots and leaves, with the peak appearing at 6 h, and the upregulation amplitude was significantly higher than the responses under salt or low-temperature stress. This result indicated that heat stress is the strongest signal inducing the expression of BnaS1fa9 and BnaS1fa10, and the responses of BnaS1fa9 and BnaS1fa10 to all stresses were more intense in roots than in leaves.

2.8. BnaS1fa9 and BnaS1fa10 Are Nuclear-Localized Transcription Factors

To further investigate the molecular functions of BnaS1fa9 and BnaS1fa10, their subcellular localization was first determined via the tobacco transient expression system; the results showed that they were predominantly localized in the nucleus (Figure 7a). Subsequently, a yeast assay was performed to verify their transcriptional activity, with PGBKT7 serving as the negative control. The results demonstrated that yeast cells expressing BD-BnaS1fa9 and BD-BnaS1fa10 were able to grow on SD/-Ade/-His/-Trp medium, whereas PGBKT7-transformed yeast cells could not (Figure 7b). Collectively, these results confirm that BnaS1fa9 and BnaS1fa10 are nuclear-localized transcription factors.

3. Discussion

The S1fa gene family represents a group of highly conserved small transcription factors involved in plant growth, development and stress responses [1,22]. In this study, 12 BnaS1fa genes were systematically identified and characterized in B. napus. Combined analyses of phylogeny, gene structure, conserved motifs, cis-elements, collinearity and stress-responsive expression provided insights into the evolutionary conservation and potential functional diversification of the S1fa family in this allotetraploid species.
The core S1Fa domains of BnaS1fa proteins exhibit highly similar amino acid lengths and physicochemical properties, reflecting strong evolutionary conservation within the gene family. Their small molecular weights, alkaline isoelectric points and negative GRAVY values suggest that these proteins are hydrophilic nuclear transcription factors, consistent with previous reports in other plant species [1,21].
Gene structure and conserved motif analyses revealed high structural conservation among BnaS1fa members, particularly the universal presence of Motif 1, suggesting functional conservation within the family. However, several members containing additional conserved motifs may possess more diverse regulatory functions. In addition, the relatively simple exon–intron organization (mainly 1–2 introns) is consistent with the characteristics of rapidly responsive stress-related genes [28].
The multiple sequence alignment confirmed that the two unusually long proteins belong to the S1fa gene family, despite their extended N-terminal regions and overall structural differences compared to other family members. While they exhibit considerable variation in gene structure, non-core motifs, and predicted 3D conformation, their conserved core S1fa domains clearly place them within the family. This structural variation reflects the evolutionary plasticity of the S1fa family, where conserved core domains coexist with lineage-specific extensions and rearrangements. These N-terminal additions and structural differences may contribute to functional diversification, potentially modifying the regulatory or interaction properties of these two proteins relative to other family members.
Cis-element analysis revealed that BnaS1fa promoters contain numerous stress- and light-responsive elements, including ARE, Box4 and G-box motifs, suggesting potential involvement in environmental stress and light signaling pathways [29,30,31,32]. The diversity of cis-elements may contribute to the differential expression patterns of BnaS1fa genes under various conditions [33,34]. The presence of a TATC-box, a cis-acting regulatory element associated with gibberellin (GA) responsiveness, only in BnaCnng30990D may reflect a specific regulatory adaptation of this gene, potentially affecting its expression pattern under specific environmental or developmental conditions, particularly in response to GA signals. This regulatory divergence could contribute to functional specialization among the S1fa gene family members.
Collinearity analysis indicated that the expansion of the BnaS1fa family was mainly associated with allopolyploidization and duplication events. Most homologous gene pairs were retained between the A and C subgenomes, suggesting strong evolutionary conservation of this transcription factor family. Such retention patterns are consistent with previous studies showing that transcription factor genes are preferentially preserved after whole-genome duplication due to their regulatory importance [35,36].
In addition, duplicated gene pairs may contribute to functional redundancy and diversification during evolution [37,38,39].
The preferential expression of BnaS1fa genes during late seed and silique development suggests that they play important roles in reproductive processes. Similar developmental stage-specific expression patterns have been reported for transcription factors involved in seed maturation and reproductive organ development, where precise temporal regulation is essential [40].
The low expression levels in vegetative tissues further support the idea that BnaS1fa genes are not primarily involved in basic vegetative growth, but rather contribute to specialized developmental programs. This tissue-specific expression pattern reflects functional specialization and may indicate that S1fa proteins participate in transcriptional networks regulating reproductive development, possibly in coordination with hormonal or environmental signals.
The differential responses of BnaS1fa genes to various abiotic stresses highlight their functional specificity. Unlike many transcription factor families that exhibit broad-spectrum stress responsiveness, BnaS1fa genes showed relatively weak responses to salt, drought, freezing, and osmotic stresses. This suggests that they are not general stress regulators, but may instead function in specific signaling pathways.
In contrast, the strong induction under heat stress indicates that S1fa genes may play a specialized role in thermotolerance. Similar heat-responsive expression patterns have been reported for certain transcription factors that regulate heat shock proteins and other protective mechanisms [40]. Therefore, BnaS1fa genes may act as upstream regulators or modulators in heat stress signaling pathways, contributing to the adaptation of B. napus to high-temperature environments.
The consistent expression patterns of BnaS1fa9 and BnaS1fa10 under multiple stress conditions provide further evidence for the functional conservation of homeologous gene pairs. Their similar responses suggest that these genes have retained redundant or overlapping functions since the polyploidization event, which is consistent with the collinearity analysis.
However, the subtle differences in expression dynamics may indicate the early stages of functional divergence. Such partial redundancy is commonly observed in duplicated genes, allowing plants to maintain robustness while providing opportunities for evolutionary innovation.
Under salt and cold stress, the downregulation of BnaS1fa9 and BnaS1fa10 suggests that these genes may be negatively regulated or play a limited role in these stress responses. The stronger response observed in roots is consistent with the role of roots as primary sensors of environmental stress.
In contrast, their strong and rapid induction under heat stress, with peak expression at 6 h, indicates that they may function as early response genes in heat signaling pathways. This temporal expression pattern is characteristic of transcription factors that regulate downstream protective genes.
Notably, the stress response profiles of BnaS1fa genes differ substantially from those of S1fa homologs in Chinese cabbage (Brassica rapa) and rice (Oryza sativa). In Chinese cabbage, S1fa genes are significantly induced by heavy metal stresses (Hg, Cd) but repressed by salt stress [22]; in rice, OsS1Fa1 is strongly upregulated by drought and positively regulates drought tolerance, while its homologs negatively modulate heat stress responses [21]. These interspecific divergences indicate that S1fa family genes have undergone functional differentiation during evolution. While the core conserved domains maintain their fundamental roles, the regulatory regions have diverged, leading to distinct stress response specificities across species. This functional divergence may reflect adaptive evolution to species-specific environmental pressures, with BnaS1fa genes evolving a specialized role in heat stress adaptation in allotetraploid rapeseed.
Taken together, these results suggest that BnaS1fa genes exhibit clear stress-type specificity, with a predominant role in heat stress responses rather than general stress adaptation. This specialization may reflect an evolutionary strategy to fine-tune plant responses to different environmental challenges.
The verification of transcriptional activation activity and nuclear localization provides important functional evidence supporting the predicted roles of BnaS1fa proteins as transcription factors. While sequence analysis suggested the presence of nuclear localization signals and conserved DNA-binding motifs, experimental validation confirms that these proteins are not only structurally consistent with transcription factors but are also functionally competent in regulating gene expression.
Although this study provides a comprehensive characterization of the BnaS1fa family, the downstream target genes and regulatory mechanisms of BnaS1fa proteins remain unclear. Future studies combining genetic analysis, protein–protein interaction assays and multi-omics approaches will help elucidate their biological functions, particularly in heat stress responses and stress adaptation in B. napus.

4. Materials and Methods

4.1. Identification of BnaS1fa Genes

The genome of B. napus was downloaded from BRAD [41] (http://brassicadb.cn/#/ (accessed on 2 February 2026)). To identify the S1fa genes in B. napus, we first retrieved the gene sequences and protein sequences of A. thaliana S1fa genes from The A. thaliana Information Resource (TAIR) database [42] (https://www.arabidopsis.org/ (accessed on 4 February 2026)), followed by obtaining the HMM model (PF04689) of the S1fa family from the Pfam website [43] (https://pfam.xfam.org/ (accessed on 4 February 2026)). The initial identification of BnaS1fa genes in B. napus was performed using BLAST (version 2.12.0+) [44] and HMMER (version 3.3.2) [45] software with the S1fa gene sequences and protein sequences of A. thaliana as queries. After taking the intersection of the results from both identification methods, a new model was reconstructed for the prediction of the BnaS1fa gene family. The final set of BnaS1fa genes was obtained by taking the intersection of the two rounds of identification results, ensuring the reliability and completeness of the identified gene family members. The ExPASy ProtParam tool [46] (http://www.expasy.org/ (accessed on 4 February 2026)) was used to predict the amino acid length, molecular weight (MW), theoretical isoelectric point (pI), instability index, and aliphatic index.

4.2. Construction of the BnaS1fa Phylogenetic Tree

The identified BnaS1fa genes were first subjected to multiple sequence alignment using MUSCLE. Subsequently, the phylogenetic tree was constructed via the maximum likelihood (ML) method with the JTT model using FastTree software (version 2.1.11) [47], and finally visualized and polished using iTOL [48] (https://itol.embl.de/ (accessed on 5 February 2026)). Based on the BLAST results, the identified family members were classified into different groups.

4.3. Motif Prediction and Gene Structure Analysis of BnaS1fa Genes

The MEME software (version 5.5.9) was employed to predict the motifs of the identified BnaS1fa genes, and a custom R script was used to generate motif sequence logo plots. Information on the gene family members was extracted from the B. napus genome annotation file, and the gene structure diagrams were constructed using the online GSDS tool [49] (https://gsds.gao-lab.org/index.php (accessed on 7 February 2026)).

4.4. Prediction of Cis-Acting Elements in the Promoters of BnaS1fa Genes

Based on the downloaded genome annotation file, the 2000 bp upstream sequence of the identified BnaS1fa genes was extracted as the promoter region for the prediction of cis-acting elements. Subsequently, the online tool PlantCARE (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 7 February 2026)) [50] was used to predict cis-acting elements in the extracted promoter sequences. After filtering the prediction results, the online GSDS tool [49] (https://gsds.gao-lab.org/index.php (accessed on 7 February 2026)) was employed for visual mapping of the cis-acting elements.

4.5. Chromosomal Localization of BnaS1fa Genes

The positions of the identified BnaS1fa genes on chromosomes and contigs were analyzed and visualized using TBtools (version 1.127) [51] based on the genome annotation file.

4.6. Tissue Expression Specificity and Heat Stress Expression Pattern Analysis of BnaS1fa Genes Based on Transcriptome Data

Transcriptome data of BnaS1fa genes, including tissue-specific expression profiles and expression data under abiotic stress (heat treatment), were retrieved from BnIR [52] (https://yanglab.hzau.edu.cn/BnIR (accessed on 10 February 2026)) for subsequent analysis. A custom R script was utilized to generate heat maps for the visualization of the expression patterns.

4.7. Plant Materials and Growth Conditions

B. napus cv. Darmor-bzh was used as experimental materials in this study. Seeds were surface-sterilized with 75% ethanol for 1 min and 1% sodium hypochlorite for 10 min, followed by 5 washes with sterile distilled water. Sterilized seeds were germinated on 1/2 Murashige and Skoog (MS) (Coolaber, Beijing, China) medium for 7 days, and then the uniform seedlings were transplanted into soil (a 1:1 mixture of peat and vermiculite) and grown in a controlled growth chamber with a 16 h light/8 h dark photoperiod, 22 °C constant temperature, 60% relative humidity, and 300 μmol·m−2·s−1 light intensity. Plants were watered regularly with Hoagland nutrient solution once a week to ensure sufficient nutrient supply, and leaf samples were collected at the 4–5 leaf stage for subsequent experiments.

4.8. RT-qPCR Analysis of BnaS1fa Expression Patterns Under Abiotic Stresses

Following abiotic stress treatments, 2–3 fully expanded leaves and approximately 0.1 g of root tissues (harvested from the root tip zone) were harvested from each sample for total RNA extraction. The expression levels of target genes were quantified via real-time quantitative PCR (RT-qPCR). The 20 μL RT-qPCR reaction system contained 10 μL of 2× TB Green Premix Ex Taq II, 0.4 μL of each primer (10 μM), 2 μL of cDNA template, and 7.2 μL of RNase-free water. The amplification program was 95 °C for 30 s, followed by 40 cycles of 95 °C for 5 s and 60 °C for 30 s, with a melting curve analysis to verify amplification specificity. BnaActin2 was used as the internal reference for normalization. Relative gene expression levels were calculated via the 2−ΔΔCT method. Gene expression was determined at 0 h (initial untreated control), 0.5 h, 1 h, 3 h, 6 h, 12 h, 24 h, and 25 h under continuous stress treatment, with untreated samples collected at each corresponding time point serving as the control to eliminate the interference of circadian rhythm on gene expression. Specifically, cold stress was performed at 4 °C, salt stress was applied with 200 mM NaCl, and heat stress was conducted at 38 °C. All data are presented as the mean ± standard deviation (SD) of three independent biological replicates. All primer sequences are provided in Supplementary Table S1.

4.9. Subcellular Localization

The plasmids pCAMBIA1302, pCAMBIA1302-BnaS1fa9, and pCAMBIA1302-BnaS1fa10 were transformed into Agrobacterium tumefaciens competent cells (strain GV3101 (Coolaber, Beijing, China)). The transformed cells were cultured in liquid LB medium at 28 °C with shaking at 200 rpm for 16–24 h for subsequent use. Bacterial cells were harvested by centrifugation at 6000 rpm for 10 min and resuspended in an infiltration buffer (10 mM MES (Coolaber, Beijing, China), 10 mM MgCl2 (Coolaber, Beijing, China), and 150 μM acetosyringone [As] (Coolaber, Beijing, China)). The optical density at 600 nm (OD600) of the bacterial suspension was adjusted to 0.8. After standing at room temperature in the dark for 3–4 h, the suspension was infiltrated into Nicotiana benthamiana leaves carrying a mCherry-tagged nuclear localization marker. The infiltrated plants were cultured in the dark for 12 h, followed by light cultivation for 36–60 h. Using pCAMBIA1302 empty vector as the control, the fluorescent signals in tobacco leaves were detected and imaged using a high-resolution confocal laser scanning microscope (LSM900, Zeiss, Oberkochen, Germany).

4.10. Analysis of Transcriptional Activation Activity of Transcription Factors

The coding sequence (CDS) of BnaS1fa9 and BnaS1fa10 genes, with the stop codon removed, was inserted into the pGBKT7 vector. The recombinant vectors were then transformed into the yeast strain Y2HGold (Coolaber, Beijing, China), which was spread on a synthetic dropout (SD) medium lacking tryptophan (SD/-Trp) (Coolaber, Beijing, China) and cultured inverted in an incubator at 28 °C for 3–4 days. Yeast colonies were picked and diluted with sterile water to optical density at 600 nm (OD600) values of 0.2, 0.02, 0.002, and 0.0002. The diluted yeast suspensions were spotted onto SD medium deficient in adenine, histidine, and tryptophan (SD/-Ade/-His/-Trp) (Beijing LABLEAD Inc.), and the growth status was observed after incubation at 28 °C for 2–3 days.

5. Conclusions

In this study, we systematically identified 12 S1fa family genes in B. napus and comprehensively analyzed their physicochemical properties, phylogenetic relationships, gene structures, conserved motifs, promoter cis-elements, chromosomal distribution, collinearity, and spatiotemporal expression patterns. The BnaS1fa family was divided into three subfamilies with clear structural differentiation: most members were small, stably expressed, alkaline, and hydrophilic proteins with conserved motifs and compact gene structures, while two exceptionally long proteins exhibited complex domain compositions and tertiary structures.
Promoter analysis revealed abundant stress-, hormone- and light-responsive cis-elements, indicating extensive involvement in environmental adaptation. Expression profiles showed that BnaS1fa genes were predominantly expressed during seed and silique development, and strongly responded to heat, salt, drought, and osmotic stresses.
Two key members, BnaS1fa9 and BnaS1fa10, were further validated by RT-qPCR and functional assays. Both were significantly induced by heat stress but inhibited by salt and cold stress, with stronger responses in roots. Subcellular localization and yeast transcriptional activation assays confirmed that they localize to the nucleus and possess transcriptional activation activity, acting as functional transcription factors.
Overall, this study provides a systematic overview of the BnaS1fa gene family and identifies BnaS1fa9 and BnaS1fa10 as important candidate genes involved in heat and abiotic stress responses in B. napus.
Moving forward, further research is needed to dissect the detailed regulatory mechanisms of these two transcription factors, including their specific binding sites, target genes, and interaction networks under stress conditions. Genetic transformation and field trials are also required to validate their functional roles in improving stress tolerance and agronomic performance in rapeseed. Ultimately, these findings may facilitate the development of stress-tolerant rapeseed varieties through marker-assisted breeding or genetic engineering, contributing to sustainable crop production under changing climates.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants15121808/s1. Table S1: Sequences of RT-qPCR primers used in this study. Table S2: Full-length coding sequences of the identified BnaS1fa family genes in B. napus. Table S3: Gene annotation information of the BnaS1fa family genes. Table S4: Predicted subcellular localization of the BnaS1fa proteins. Figure S1: multiple sequence alignment.

Author Contributions

Z.M. designed the study. R.Q., M.M., Q.G., Y.D., J.C. and J.W. performed the experiments. M.M., R.D., Z.W. and B.D. analyzed the data and wrote the manuscript. M.M., H.M. and C.X. made the figures. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Talent Project of Gansu Province, “Construction of Technical Demonstration Base for Yield Improvement of Major Grain and Oil Crops in Linxia Prefecture and Training of Rural Practical Talents” (No. 2025RCXM104), and the Regional Innovation Special Project of Gansu Academy of Agricultural Sciences (No. 2026GAAS08).

Data Availability Statement

The data presented in this study can be obtained from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhao, H.; Niu, Y.; Dong, H.; Jia, Y.; Wang, Y. Characterization of the Function of Two S1Fa-Like Family Genes From Populus trichocarpa. Front. Plant Sci. 2021, 12, 753099. [Google Scholar] [CrossRef]
  2. Anwar, A.; Liu, Y.; Dong, R.; Bai, L.; Yu, X.; Li, Y. The Physiological and Molecular Mechanism of Brassinosteroid in Response to Stress: A Review. Biol. Res. 2018, 51, 46. [Google Scholar] [CrossRef]
  3. Nuruzzaman, M.; Sharoni, A.M.; Kikuchi, S. Roles of NAC Transcription Factors in the Regulation of Biotic and Abiotic Stress Responses in Plants. Front. Microbiol. 2013, 4, 248. [Google Scholar] [CrossRef]
  4. Anwar, A.; Kim, J.-K. Transgenic Breeding Approaches for Improving Abiotic Stress Tolerance: Recent Progress and Future Perspectives. Int. J. Mol. Sci. 2020, 21, 2695. [Google Scholar] [CrossRef]
  5. Cheng, Y.; Liang, C.; Qiu, Z.; Zhou, S.; Liu, J.; Yang, Y.; Wang, R.; Yin, J.; Ma, C.; Cui, Z.; et al. Jasmonic Acid Negatively Regulates Branch Growth in Pear. Front. Plant Sci. 2023, 14, 1105521. [Google Scholar] [CrossRef]
  6. Liu, C.; Jiang, X.; Liu, S.; Liu, Y.; Li, H.; Wang, Z.; Kan, J.; Yang, Q.; Li, X. Comprehensive Evolutionary Analysis of the SMXL Gene Family in Rosaceae: Further Insights into Its Origin, Expansion, Diversification, and Role in Regulating Pear Branching. Int. J. Mol. Sci. 2024, 25, 2971. [Google Scholar] [CrossRef]
  7. Li, J.; Han, G.; Sun, C.; Sui, N. Research Advances of MYB Transcription Factors in Plant Stress Resistance and Breeding. Plant Signal. Behav. 2019, 14, 1613131. [Google Scholar] [CrossRef]
  8. Sun, S.; Chen, H.; Yang, Z.; Lu, J.; Wu, D.; Luo, Q.; Jia, J.; Tan, J. Identification of WRKY Transcription Factor Family Genes in Pinus massoniana lamb. and Their Expression Patterns and Functions in Response to Drought Stress. BMC Plant Biol. 2022, 22, 424. [Google Scholar] [CrossRef]
  9. Grądzka, K.; Biegańska, M.; Koczyk, G.; Młodzińska, A.; Pawłowicz, I.; Kiełbowicz-Matuk, A. CHIP-Seq and Transcriptomics Reveal a New Role of Circadian-Regulated StBBX24 Protein in Potato Reproduction. BMC Plant Biol. 2025, 25, 1702. [Google Scholar] [CrossRef]
  10. Wang, C.; Lan, M.; Xiao, M.; Peng, Y.; Pan, H.; Deng, J.; Wu, W. Genome-Wide Identification of GATA Family Genes in Sweet Potato (Ipomoea batatas L.) and Their Expression Patterns under Abiotic Stress. Front. Genet. 2025, 16, 1635749. [Google Scholar] [CrossRef]
  11. Xu, S.; Feng, H.; Li, T.; Zhang, Y.; Wu, Z.; Sun, G.; Teng, N. Genome-Wide Analysis of the WRKY Gene Family in Lily and Functional Characterization of LdWRKY87 in Response to Heat Stress. New Crops 2026, 3, 100084. [Google Scholar] [CrossRef]
  12. Ding, X.; Guo, J.; Lv, M.; Wang, H.; Sheng, Y.; Liu, Y.; Gai, J.; Yang, S. The miR156b–GmSPL2b Module Mediates Male Fertility Regulation of Cytoplasmic Male Sterility-based Restorer Line under High-temperature Stress in Soybean. Plant Biotechnol. J. 2023, 21, 1542–1559. [Google Scholar] [CrossRef]
  13. Liu, C.; Fan, E.; Liu, Y.; Wang, M.; Wang, Q.; Wang, S.; Chen, S.; Yang, C.; You, X.; Qu, G. Genome-Wide Identification and Analysis of the EIN3/EIL Transcription Factor Gene Family in Doubled Haploid (DH) Poplar. Int. J. Mol. Sci. 2024, 25, 4116. [Google Scholar] [CrossRef]
  14. Sun, S.; Liu, X.; Zhang, T.; Yang, H.; Yu, B. Functional Characterisation of the Transcription Factor GsWRKY23 Gene from Glycine Soja in Overexpressed Soybean Composite Plants and Arabidopsis under Salt Stress. Plants 2023, 12, 3030. [Google Scholar] [CrossRef]
  15. Song, X.; Hou, X.; Zeng, Y.; Jia, D.; Li, Q.; Gu, Y.; Miao, H. Genome-Wide Identification and Comprehensive Analysis of WRKY Transcription Factor Family in Safflower during Drought Stress. Sci. Rep. 2023, 13, 16955. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Zheng, J.; Linyerera, S.M.; Magwanga, R.O.; Hou, Y.; Wang, Y.; Xu, Y.; Khan, A.; Yu, S.; Zhou, Z.; et al. Overexpression and Knockdown of Cotton GhdadD Gene Reveals Its Drought and Salt Stress Tolerance Role. iScience 2024, 27, 108664. [Google Scholar] [CrossRef]
  17. Chen, X.; Li, H.; Pandey, M.K.; Yang, Q.; Wang, X.; Garg, V.; Li, H.; Chi, X.; Doddamani, D.; Hong, Y.; et al. Draft Genome of the Peanut A-Genome Progenitor (Arachis duranensis) Provides Insights into Geocarpy, Oil Biosynthesis, and Allergens. Proc. Natl. Acad. Sci. USA 2016, 113, 6785–6790. [Google Scholar] [CrossRef]
  18. Zhou, D.-X.; Bisanz-Seyer, C.; Mache, R. Molecular Cloning of a Small DNA Binding Protein with Specificity for a Tissue-Specific Negative Element within the Rps 1 Promoter. Nucleic Acids Res. 1995, 23, 1165–1169. [Google Scholar] [CrossRef]
  19. Wang, T.; Zou, H.; Ren, S.; Jin, B.; Lu, Z. Genome-Wide Identification, Characterization, and Expression Analysis of NF-Y Gene Family in Ginkgo Biloba Seedlings and GbNF-YA6 Involved in Heat-Stress Response and Tolerance. Int. J. Mol. Sci. 2023, 24, 12284. [Google Scholar] [CrossRef]
  20. Zhou, D.-X.; Li, Y.-F.; Rocipon, M. Sequence-specificInteraction between S l F, a Spinach Nuclear Factor, and a Negative &-Element Conserved in Plastid-relatedGenes. J. Biol. Chem. 1992, 267, 23515–23519. [Google Scholar]
  21. Kim, S.-I.; Lee, K.H.; Kwak, J.S.; Kwon, D.H.; Song, J.T.; Seo, H.S. Overexpression of Rice OsS1Fa1 Gene Confers Drought Tolerance in Arabidopsis. Plants 2021, 10, 2181. [Google Scholar] [CrossRef]
  22. Anwar, A.; Zhang, S.; Wang, L.-X.; Wang, F.; He, L.; Gao, J. Genome-Wide Identification and Characterization of Chinese Cabbage S1fa Transcription Factors and Their Roles in Response to Salt Stress. Antioxidants 2022, 11, 1782. [Google Scholar] [CrossRef] [PubMed]
  23. Gill, S.S.; Tuteja, N. Reactive Oxygen Species and Antioxidant Machinery in Abiotic Stress Tolerance in Crop Plants. Plant Physiol. Biochem. 2010, 48, 909–930. [Google Scholar] [CrossRef]
  24. Li, P.; Du, R.; Li, Z.; Chen, Z.; Li, J.; Du, H. An Integrated Nitrogen Utilization Gene Network and Transcriptome Analysis Reveal Candidate Genes in Response to Nitrogen Deficiency in Brassica napus. Front. Plant Sci. 2023, 14, 1187552. [Google Scholar] [CrossRef]
  25. Liang, Y.; Wan, N.; Cheng, Z.; Mo, Y.; Liu, B.; Liu, H.; Raboanatahiry, N.; Yin, Y.; Li, M. Whole-Genome Identification and Expression Pattern of the Vicinal Oxygen Chelate Family in Rapeseed (Brassica napus L.). Front. Plant Sci. 2017, 8, 745. [Google Scholar] [CrossRef]
  26. Chalhoub, B.; Denoeud, F.; Liu, S.; Parkin, I.A.P.; Tang, H.; Wang, X.; Chiquet, J.; Belcram, H.; Tong, C.; Samans, B.; et al. Early Allopolyploid Evolution in the Post-Neolithic Brassica napus Oilseed Genome. Science 2014, 345, 950–953. [Google Scholar] [CrossRef]
  27. Ali, E.; Hussain, S.; Jalal, F.; Khan, M.A.; Imtiaz, M.; Said, F.; Ismail, M.; Khan, S.; Ali, H.M.; Hatamleh, A.A.; et al. Salicylic Acid-Mitigates Abiotic Stress Tolerance via Altering Defense Mechanisms in Brassica napus (L.). Front. Plant Sci. 2023, 14, 1187260. [Google Scholar] [CrossRef]
  28. Dong, Q.; Magwanga, R.O.; Cai, X.; Lu, P.; Nyangasi Kirungu, J.; Zhou, Z.; Wang, X.; Wang, X.; Xu, Y.; Hou, Y.; et al. RNA-Sequencing, Physiological and RNAi Analyses Provide Insights into the Response Mechanism of the ABC-Mediated Resistance to Verticillium Dahliae Infection in Cotton. Genes 2019, 10, 110. [Google Scholar] [CrossRef] [PubMed]
  29. Chosyang, S.; Arya, P.; Kaur, M.; Singh, B. Comparative Analysis of the Aquaporin Gene Family in Cucurbitaceae: Insights into Evolutionary Patterns and Functional Diversity. BMC Plant Biol. 2026, 26, 297. [Google Scholar] [CrossRef]
  30. Eerapagula, R.; Singh, A.; Maurya, A.; Singh, R.; Singh, N.K.; Mahato, A.K. Genome-Wide Analysis of NAC Transcription Factors in Grain Amaranth Reveals Structural Diversity and Regulatory Features. Sci. Rep. 2025, 15, 39968. [Google Scholar] [CrossRef] [PubMed]
  31. Yu, W.; Kong, G.; Ya, H.; He, L.; Wu, Y.; Zhang, H. Comprehensive Analysis of the Catalase (CAT) Gene Family and Expression Patterns in Rubber Tree (Hevea brasiliensis) under Various Abiotic Stresses and Multiple Hormone Treatments. Int. J. Mol. Sci. 2023, 25, 70. [Google Scholar] [CrossRef] [PubMed]
  32. Qi, S.; Liu, S.; Wen, Y.; Zhang, X.; Mu, H. Analysis of Expansin Genes in Cucurbitaceae and Identification of Candidate Genes for Stress Resistance. Sci. Rep. 2025, 15, 36163. [Google Scholar] [CrossRef]
  33. Yu, H.; Liao, J.; Jiang, Y.; Zhong, M.; Tao, S.; Chai, S.; Wang, L.; Lin, L.; Yang, R.; Deng, X.; et al. Ecotype-specific Phenolic Acid Accumulation and Root Softness in Salvia miltiorrhiza Are Driven by Environmental and Genetic Factors. Plant Biotechnol. J. 2025, 23, 2224–2241. [Google Scholar] [CrossRef] [PubMed]
  34. Fernández-Roldán, P.; Moreno-Recio, M.D.; Spadoni-Revol, F.; Molina-Hidalgo, F.J.; Caballero, J.L.; Muñoz-Blanco, J.; Blanco-Portales, R.; Moyano, E. Genome-Wide Identification and Expression Analysis of Tubby-like Proteins (TLPs) in Fragaria × Ananassa Reveals Their Role in Abiotic Stress Responses. Genes 2026, 17, 158. [Google Scholar] [CrossRef]
  35. Ezoe, A.; Shirai, K.; Hanada, K. Degree of Functional Divergence in Duplicates Is Associated with Distinct Roles in Plant Evolution. Mol. Biol. Evol. 2021, 38, 1447–1459. [Google Scholar] [CrossRef]
  36. Chen, E.C.; Buen Abad Najar, C.F.; Zheng, C.; Brandts, A.; Lyons, E.; Tang, H.; Carretero-Paulet, L.; Albert, V.A.; Sankoff, D. The Dynamics of Functional Classes of Plant Genes in Rediploidized Ancient Polyploids. BMC Bioinform. 2013, 14, S19. [Google Scholar] [CrossRef][Green Version]
  37. Hajheidari, M.; Koncz, C.; Bucher, M. Chromatin Evolution-Key Innovations Underpinning Morphological Complexity. Front. Plant Sci. 2019, 10, 454. [Google Scholar] [CrossRef]
  38. Wu, Y.; Wen, J.; Xia, Y.; Zhang, L.; Du, H. Evolution and Functional Diversification of R2R3-MYB Transcription Factors in Plants. Hortic. Res. 2022, 9, uhac058. [Google Scholar] [CrossRef]
  39. Duran, B.O.S.; Garcia De La Serrana, D.; Zanella, B.T.T.; Perez, E.S.; Mareco, E.A.; Santos, V.B.; Carvalho, R.F.; Dal-Pai-Silva, M. An Insight on the Impact of Teleost Whole Genome Duplication on the Regulation of the Molecular Networks Controlling Skeletal Muscle Growth. PLoS ONE 2021, 16, e0255006. [Google Scholar] [CrossRef]
  40. Lee, J.H.; Jin, S.; Kim, S.Y.; Kim, W.; Ahn, J.H. A Fast, Efficient Chromatin Immunoprecipitation Method for Studying Protein-DNA Binding in Arabidopsis Mesophyll Protoplasts. Plant Methods 2017, 13, 42. [Google Scholar] [CrossRef] [PubMed]
  41. Chen, H.; Wang, T.; He, X.; Cai, X.; Lin, R.; Liang, J.; Wu, J.; King, G.; Wang, X. BRAD V3.0: An Upgraded Brassicaceae Database. Nucleic Acids Res. 2022, 50, D1432–D1441. [Google Scholar] [CrossRef] [PubMed]
  42. Reiser, L.; Proia, A.; Bakker, E.; Subramaniam, S.; Khosa, K.; Sawant, S.; Chen, X.; Prithvi, T.; Berardini, T.Z. Recent Major Changes to TAIR: Updates to the Database, Website, and Arabidopsis Genome. Genetics 2026, 232, iyaf248. [Google Scholar] [CrossRef]
  43. Mistry, J.; Chuguransky, S.; Williams, L.; Qureshi, M.; Salazar, G.A.; Sonnhammer, E.L.L.; Tosatto, S.C.E.; Paladin, L.; Raj, S.; Richardson, L.J.; et al. Pfam: The Protein Families Database in 2021. Nucleic Acids Res. 2021, 49, D412–D419. [Google Scholar] [CrossRef]
  44. Ye, J.; McGinnis, S.; Madden, T.L. BLAST: Improvements for Better Sequence Analysis. Nucleic Acids Res. 2006, 34, W6–W9. [Google Scholar] [CrossRef]
  45. Finn, R.D.; Clements, J.; Eddy, S.R. HMMER Web Server: Interactive Sequence Similarity Searching. Nucleic Acids Res. 2011, 39, W29–W37. [Google Scholar] [CrossRef] [PubMed]
  46. Duvaud, S.; Gabella, C.; Lisacek, F.; Stockinger, H.; Ioannidis, V.; Durinx, C. Expasy, the Swiss Bioinformatics Resource Portal, as Designed by Its Users. Nucleic Acids Res. 2021, 49, W216–W227. [Google Scholar] [CrossRef]
  47. Price, M.N.; Dehal, P.S.; Arkin, A.P. FastTree 2—Approximately Maximum-Likelihood Trees for Large Alignments. PLoS ONE 2010, 5, e9490. [Google Scholar] [CrossRef]
  48. Letunic, I.; Bork, P. Interactive Tree of Life (iTOL) v6: Recent Updates to the Phylogenetic Tree Display and Annotation Tool. Nucleic Acids Res. 2024, 52, W78–W82. [Google Scholar] [CrossRef]
  49. Hu, B.; Jin, J.; Guo, A.-Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An Upgraded Gene Feature Visualization Server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef]
  50. Lescot, M. PlantCARE, a Database of Plant Cis-Acting Regulatory Elements and a Portal to Tools for in Silico Analysis of Promoter Sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed]
  51. Chen, C.; Wu, Y.; Li, J.; Wang, X.; Zeng, Z.; Xu, J.; Liu, Y.; Feng, J.; Chen, H.; He, Y.; et al. TBtools-II: A “One for All, All for One” Bioinformatics Platform for Biological Big-Data Mining. Mol. Plant 2023, 16, 1733–1742. [Google Scholar] [CrossRef]
  52. Yang, Z.; Wang, S.; Wei, L.; Huang, Y.; Liu, D.; Jia, Y.; Luo, C.; Lin, Y.; Liang, C.; Hu, Y.; et al. BnIR: A Multi-Omics Database with Various Tools for Brassica Napus Research and Breeding. Mol. Plant 2023, 16, 775–789. [Google Scholar] [CrossRef]
Plants 15 01808 g001

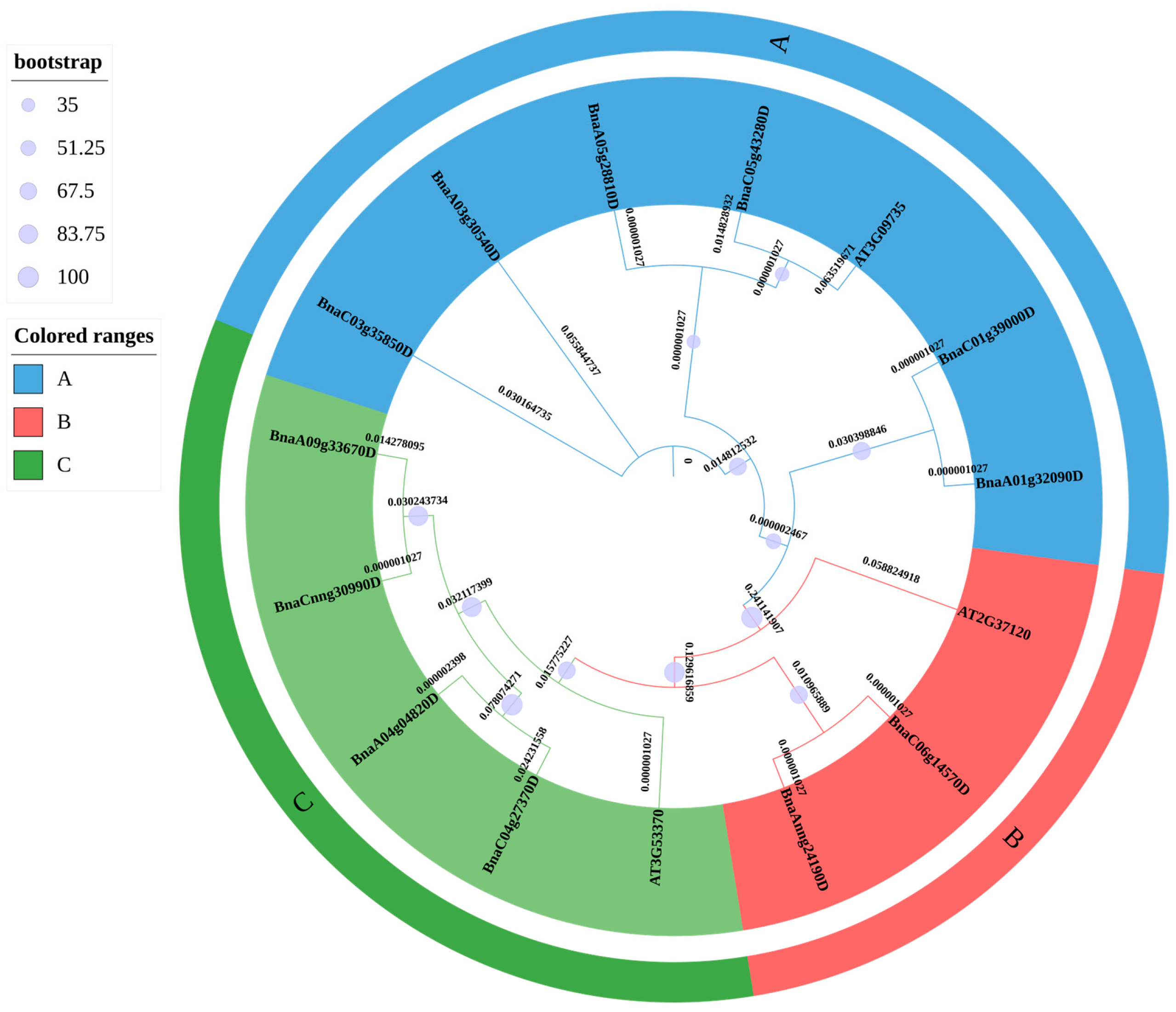

Figure 1. Phylogenetic tree of the S1fa genes in B. napus and A. thaliana. The circular phylogenetic tree was constructed using the neighbor-joining (NJ) method with 1000 bootstrap replicates, based on the full-length amino acid sequences of S1fa proteins from B. napus and A. thaliana. The three colored rings (A, B, C) represent the distinct phylogenetic subfamilies of S1fa genes.
Figure 1. Phylogenetic tree of the S1fa genes in B. napus and A. thaliana. The circular phylogenetic tree was constructed using the neighbor-joining (NJ) method with 1000 bootstrap replicates, based on the full-length amino acid sequences of S1fa proteins from B. napus and A. thaliana. The three colored rings (A, B, C) represent the distinct phylogenetic subfamilies of S1fa genes.
Plants 15 01808 g001
Plants 15 01808 g002aPlants 15 01808 g002b

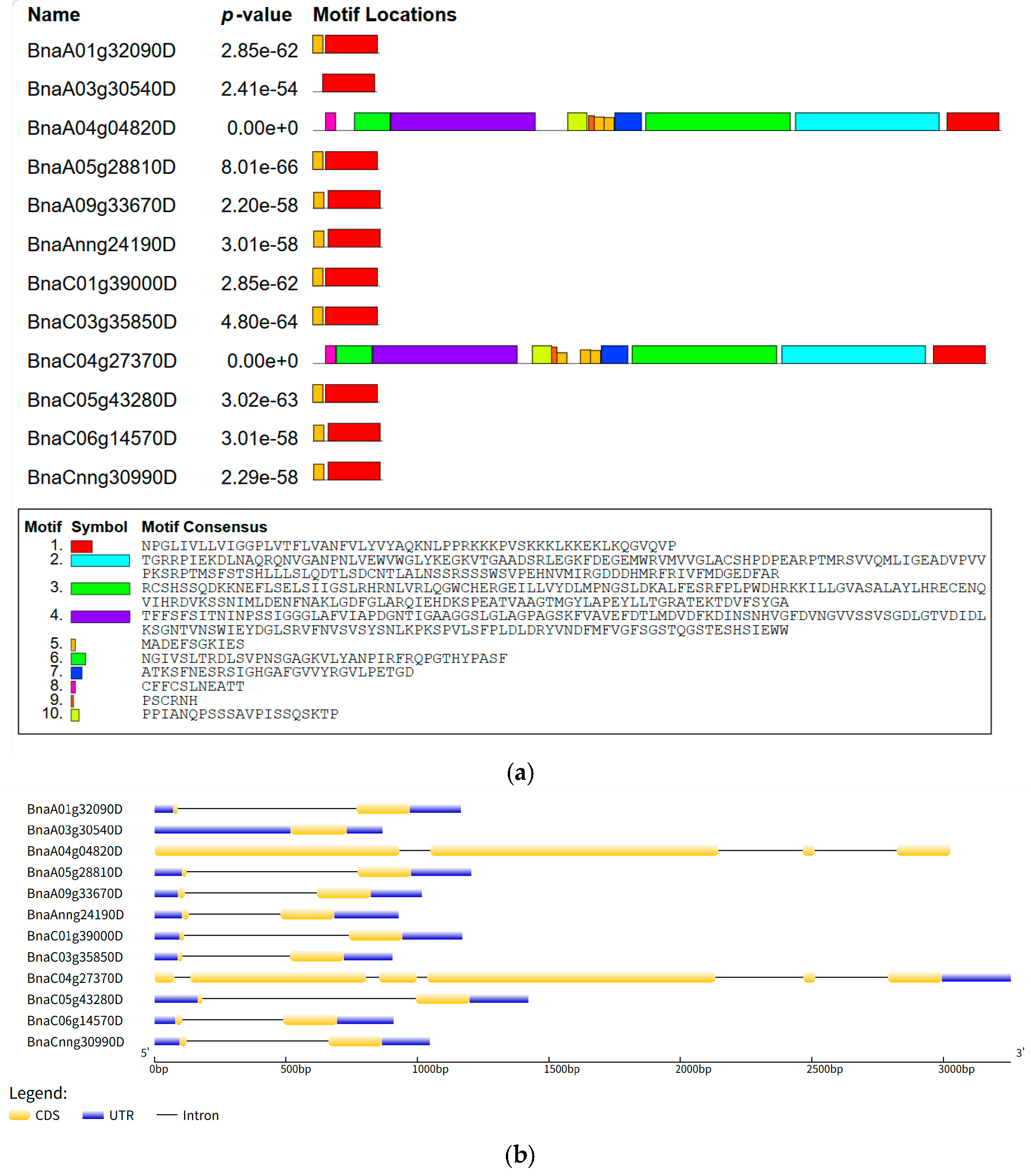

Figure 2. Comprehensive analysis of the BnaS1fa gene family in B. napus. (a) Conserved motif analysis of BnaS1fa proteins. The colored boxes represent conserved motifs (1–10), with specific motif sequences and consensus details provided in the lower table. (b) Gene structure analysis of BnaS1fa genes. The yellow blocks indicate coding sequences (CDS), blue blocks represent untranslated regions (UTRs), and black lines denote introns. The scale bar at the bottom indicates the genomic position in base pairs (bp). (c) Predicted tertiary protein structures of BnaS1fa members. The models are visualized using ribbon diagrams, with α-helices (blue) and random coils (yellow/yellow-red) representing the main secondary structural elements of the proteins.
Figure 2. Comprehensive analysis of the BnaS1fa gene family in B. napus. (a) Conserved motif analysis of BnaS1fa proteins. The colored boxes represent conserved motifs (1–10), with specific motif sequences and consensus details provided in the lower table. (b) Gene structure analysis of BnaS1fa genes. The yellow blocks indicate coding sequences (CDS), blue blocks represent untranslated regions (UTRs), and black lines denote introns. The scale bar at the bottom indicates the genomic position in base pairs (bp). (c) Predicted tertiary protein structures of BnaS1fa members. The models are visualized using ribbon diagrams, with α-helices (blue) and random coils (yellow/yellow-red) representing the main secondary structural elements of the proteins.
Plants 15 01808 g002aPlants 15 01808 g002b
Plants 15 01808 g003
Figure 3. Analysis of cis-acting elements in the promoters of BnaS1fa genes in B. napus. (a) The 2000 bp promoter sequences upstream of the translation start codon (ATG) of all identified BnaS1fa genes were analyzed using the PlantCARE database. Different colored blocks represent distinct types of cis-acting elements, including basic transcriptional elements (e.g., TATA-box, CAAT-box), stress-responsive elements, hormone-responsive elements, and light-responsive elements. The detailed information of all cis-elements is provided in the Supplementary Materials. (b) Heatmap showing the number of each cis-acting element in the promoter of each BnaS1fa gene. The color scale on the right indicates the count of elements, with red representing high abundance and green representing low abundance.
Figure 3. Analysis of cis-acting elements in the promoters of BnaS1fa genes in B. napus. (a) The 2000 bp promoter sequences upstream of the translation start codon (ATG) of all identified BnaS1fa genes were analyzed using the PlantCARE database. Different colored blocks represent distinct types of cis-acting elements, including basic transcriptional elements (e.g., TATA-box, CAAT-box), stress-responsive elements, hormone-responsive elements, and light-responsive elements. The detailed information of all cis-elements is provided in the Supplementary Materials. (b) Heatmap showing the number of each cis-acting element in the promoter of each BnaS1fa gene. The color scale on the right indicates the count of elements, with red representing high abundance and green representing low abundance.
Plants 15 01808 g003
Plants 15 01808 g004
Figure 4. Chromosomal localization and collinearity analysis of the BnaS1fa gene family in B. napus. (a) Chromosomal distribution of BnaS1fa genes. The vertical bars represent the chromosomes of B. napus, with the positions of BnaS1fa genes marked on the corresponding chromosomes. (b) Collinearity analysis of BnaS1fa genes in the B. napus genome. The circular plot shows the collinear relationships between BnaS1fa genes, with the gray lines in the background representing all collinear gene pairs in the genome. The heatmap on the outer ring indicates the gene density distribution along each chromosome.
Figure 4. Chromosomal localization and collinearity analysis of the BnaS1fa gene family in B. napus. (a) Chromosomal distribution of BnaS1fa genes. The vertical bars represent the chromosomes of B. napus, with the positions of BnaS1fa genes marked on the corresponding chromosomes. (b) Collinearity analysis of BnaS1fa genes in the B. napus genome. The circular plot shows the collinear relationships between BnaS1fa genes, with the gray lines in the background representing all collinear gene pairs in the genome. The heatmap on the outer ring indicates the gene density distribution along each chromosome.
Plants 15 01808 g004
Plants 15 01808 g005aPlants 15 01808 g005b
Figure 5. Expression heatmaps of the BnaS1fa gene family in B. napus. (a) Tissue-specific expression profile. (b) Expression under salt stress. (c) Expression under cold stress. (d) Expression under drought stress. (e) Expression under freezing stress. (f) Expression under heat stress. (g) Expression under osmotic stress.
Figure 5. Expression heatmaps of the BnaS1fa gene family in B. napus. (a) Tissue-specific expression profile. (b) Expression under salt stress. (c) Expression under cold stress. (d) Expression under drought stress. (e) Expression under freezing stress. (f) Expression under heat stress. (g) Expression under osmotic stress.
Plants 15 01808 g005aPlants 15 01808 g005b
Plants 15 01808 g006
Figure 6. The expression patterns of BnaS1fa9 and BnaS1fa10 in B. napus leaves and roots under salt, heat, and cold stresses. Relative expression levels were determined by RT-qPCR at 0, 0.5, 1, 3, 6, 12, 24, and 25 h after continuous stress treatment. Untreated samples at each corresponding time point were used as controls to eliminate circadian rhythm interference. Cold stress was imposed at 4 °C, salt stress was treated with 200 mM NaCl, and heat stress was performed at 38 °C. All data are presented as mean ± standard deviation (SD) from three independent biological replicates (* p < 0.05, ** p < 0.01, *** p < 0.001, NS: not significant (p > 0.05) ). BnaActin2 was used as the internal reference gene for expression normalization.
Figure 6. The expression patterns of BnaS1fa9 and BnaS1fa10 in B. napus leaves and roots under salt, heat, and cold stresses. Relative expression levels were determined by RT-qPCR at 0, 0.5, 1, 3, 6, 12, 24, and 25 h after continuous stress treatment. Untreated samples at each corresponding time point were used as controls to eliminate circadian rhythm interference. Cold stress was imposed at 4 °C, salt stress was treated with 200 mM NaCl, and heat stress was performed at 38 °C. All data are presented as mean ± standard deviation (SD) from three independent biological replicates (* p < 0.05, ** p < 0.01, *** p < 0.001, NS: not significant (p > 0.05) ). BnaActin2 was used as the internal reference gene for expression normalization.
Plants 15 01808 g006
Plants 15 01808 g007
Figure 7. Functional analysis of BnaS1fa9 and BnaS1fa10. (a) Subcellular localization of BnaS1fa9 and BnaS1fa10 in Nicotiana benthamiana leaves. The 35S:GFP empty vector was used as the control, and 35S:NLS-mCherry was used as the nuclear marker. The fluorescence signals (GFP, mCherry), bright-field images, and merged images are shown, with a scale bar of 10 μm. (b) Transcriptional activation activity assay of BnaS1fa9 and BnaS1fa10 in yeast. The BD fusion vectors (BD-BnaS1fa9, BD-BnaS1fa10) and the empty BD vector (pGBKT7, negative control) were transformed into yeast cells and cultured on SD/-Ade/-His/-Trp selective medium with 10-fold serial dilutions (100, 10−1, 10−2, 10−3).
Figure 7. Functional analysis of BnaS1fa9 and BnaS1fa10. (a) Subcellular localization of BnaS1fa9 and BnaS1fa10 in Nicotiana benthamiana leaves. The 35S:GFP empty vector was used as the control, and 35S:NLS-mCherry was used as the nuclear marker. The fluorescence signals (GFP, mCherry), bright-field images, and merged images are shown, with a scale bar of 10 μm. (b) Transcriptional activation activity assay of BnaS1fa9 and BnaS1fa10 in yeast. The BD fusion vectors (BD-BnaS1fa9, BD-BnaS1fa10) and the empty BD vector (pGBKT7, negative control) were transformed into yeast cells and cultured on SD/-Ade/-His/-Trp selective medium with 10-fold serial dilutions (100, 10−1, 10−2, 10−3).
Plants 15 01808 g007
Table 1. Physicochemical properties of the identified BnaS1fa proteins in B. napus.
Table 1. Physicochemical properties of the identified BnaS1fa proteins in B. napus.
Sequence IDNumber of Amino AcidMolecular WeightTheoretical pIInstability IndexAliphatic IndexGrand Average
of Hydropathicity
BnaA01g32090D738068.8210.1121.31106.71−0.149
BnaA03g30540D707731.4910.3431.43109.86−0.169
BnaA04g04820D75882,257.487.6739.6985.87−0.137
BnaA05g28810D738054.7510.0628.36105.34−0.138
BnaA09g33670D768324.0310.0524.5698.68−0.150
BnaAnng24190D768144.8410.0626.06102.5−0.045
BnaC01g39000D738068.8210.1121.31106.71−0.149
BnaC03g35850D738038.7110.1226.88105.34−0.116
BnaC04g27370D74380,601.767.9836.6986.42−0.107
BnaC05g43280D738040.7210.0627.2105.34−0.138
BnaC06g14570D768144.8410.0626.06102.5−0.045
BnaCnng30990D76830610.0524.56103.82−0.125
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Qi, R.; Mi, M.; Xu, C.; Guo, Q.; Dong, Y.; Chen, J.; Wei, J.; Dang, R.; Wu, Z.; Dong, B.; et al. Genome-Wide Identification of S1fa Transcription Factors in Brassica napus and Screening of Key Genes BnaS1fa9 and BnaS1fa10 Responsive to Salt, Heat and Cold Stresses. Plants 2026, 15, 1808. https://doi.org/10.3390/plants15121808

AMA Style

Qi R, Mi M, Xu C, Guo Q, Dong Y, Chen J, Wei J, Dang R, Wu Z, Dong B, et al. Genome-Wide Identification of S1fa Transcription Factors in Brassica napus and Screening of Key Genes BnaS1fa9 and BnaS1fa10 Responsive to Salt, Heat and Cold Stresses. Plants. 2026; 15(12):1808. https://doi.org/10.3390/plants15121808

Chicago/Turabian Style

Qi, Ruisheng, Min Mi, Chunmiao Xu, Qingfan Guo, Yun Dong, Jingjing Chen, Jianye Wei, Renmei Dang, Zhaonan Wu, Bo Dong, and et al. 2026. "Genome-Wide Identification of S1fa Transcription Factors in Brassica napus and Screening of Key Genes BnaS1fa9 and BnaS1fa10 Responsive to Salt, Heat and Cold Stresses" Plants 15, no. 12: 1808. https://doi.org/10.3390/plants15121808

APA Style

Qi, R., Mi, M., Xu, C., Guo, Q., Dong, Y., Chen, J., Wei, J., Dang, R., Wu, Z., Dong, B., Ma, H., & Ma, Z. (2026). Genome-Wide Identification of S1fa Transcription Factors in Brassica napus and Screening of Key Genes BnaS1fa9 and BnaS1fa10 Responsive to Salt, Heat and Cold Stresses. Plants, 15(12), 1808. https://doi.org/10.3390/plants15121808

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
