Article

Genome-Wide Identification of the NAC Gene Family in Brassica rapa (L.) and Expression Pattern Analysis of BrNAC2s

by
Weiqiang Li
1,2,
Fan Ping
1,3,
Huixuan Jiang
1,2,
Shuqing Zhang
1,3,
Tong Zhao
1,3,
Kaiwen Liu
1,3,
Hongrui Yu
1,3,
Iqbal Hussian
1,3,
Xiliang Ren
4 and
Xiaolin Yu
1,2,3,*
1
Department of Horticulture, College of Agriculture and Biotechnology, Zhejiang University, Hangzhou 310058, China
2
Group of Vegetable Breeding, Hainan Institute of Zhejiang University, Sanya 572000, China
3
Key Laboratory of Horticultural Plant Integrative Biology Research and Application in Zhejiang Province, Hangzhou 310058, China
4
Institute of Vegetable Science, Ningbo Academy of Agricultural Sciences, Ningbo 315042, China
*
Author to whom correspondence should be addressed.
Plants 2025, 14(6), 834; https://doi.org/10.3390/plants14060834
Submission received: 27 December 2024 / Revised: 4 March 2025 / Accepted: 5 March 2025 / Published: 7 March 2025
(This article belongs to the Section Plant Genetics, Genomics and Biotechnology)
Browse Figures
Versions Notes

Abstract

:
Flowers are one of the most important organs in plants. Their development serves as a key indicator of the transition from vegetative to reproductive growth and is regulated by various internal signals and environmental factors. NAC (NAM, ATAF, CUC) transcription factors (TFs) play a crucial regulatory role in floral organ development; however, research on the analysis and identification of the NAC TF family in Chinese cabbage (Brassica rapa L.) remains limited. In this study, we performed a comprehensive genome-wide analysis of NACs in B. rapa and identified 279 members of the BrNAC gene family. Their physicochemical properties, domain structure, collinearity relation, and cis-regulatory elements were evaluated. Phylogenetic analysis indicates that NAC proteins from Arabidopsis, B. rapa, B. oleracea, and B. nigra can be classified into seven distinct clades. BrNACs exhibit a tissue-specific expression, and nine BrNACs being specifically expressed in the inflorescence. Furthermore, nine flower-related BrNACs were selected for RT-qPCR analysis to validate their expression profiles. BrNAC2s has been cloned to investigate their subcellular localization, and examine the expression patterns of their promoters in Arabidopsis inflorescences. BrNAC2a and BrNAC2c are highly expressed in stamens while BrNAC2b exhibits elevated expression in pistils and pedicel. Collectively, our findings enhance the understanding of the BrNAC family and provide a foundation for future studies on the molecular mechanisms of BrNACs in floral development.

1. Introduction

The formation of flowers and seeds represents an adaptive advantage of plant sexual reproduction. A typical flower consists of four distinct organ types—sepals, petals, stamens, and carpels—arranged concentrically from the periphery to the center. These organs are characterized by their specific structural features and functional roles [1,2]. The four-wheel floral organs differentiate from a self-sustaining stem cell pool known as the floral meristem (FM), which originates from the peripheral regions of the shoot apical meristem (SAM). This differentiation process is governed by a multilayered regulatory network involving numerous transcriptional regulators [3,4]. Flower development is directly associated with normal flowering and fruiting processes in plants. Consequently, studying flower development holds significant theoretical and practical implications for understanding plant reproduction, enhancing crop yields, and improving crop quality [5,6].
NAC (NAM, ATAF1/2, and CUC2), one of the largest transcription factors (TFs) families in plants, is a plant-specific TF and widely present across various terrestrial plant species [7]. The first NAC TF, no apical meristem (NAM), was identified in Petunia in 1996 [8]. Subsequently, two other members of NAC, CUP-SHAPED COTYLEDONS (CUC) and Arabidopsis transcription activation factor 1/2 (ATAF1/2) were identified in Arabidopsis [9,10]. In recent years, members of the NAC family have been identified in A. thaliana, rice, tomato, and other plant species so far [11,12]. It is noteworthy that NAC family members possess a conserved DNA-binding domain of approximately 150 amino acids at the N-terminal, known as the NAC domain, and a variable transcriptional regulatory region at the C-terminus. This C-terminal region plays a crucial role in the transcriptional activation or inhibition of stress-responsive genes and pathways [13]. With the deepening of research on NAC genes, their functions have been elucidated. Most NAC TFs are primarily involved in mediating growth and development, including processes such as plant development, senescence, and morphogenesis, while also playing a significant role in the response to various stresses; the functions and underlying mechanisms of stress-related NACs have been extensively studied [13,14,15]. However, research on the analysis and identification of the NAC TF family in plant flower development remains limited to date.
Flowering is a defining characteristic of angiosperms, representing the transition from the vegetative to the reproductive growth stage. NAC TFs play crucial regulatory roles in various floral organ components and throughout the different stages of flower development in plants [15]. Several NAC genes have been identified as key regulatory factors in the development and maturation of floral organs [16,17,18]. Studies have shown that NAC related to secondary wall thickening promoting factors 1 and 2 (NST1/2) redundantly regulate primary cell wall thickening in the anther endothelium, facilitating anther dehiscence [16]. NAC TF At1g61110 regulates pollen wall biosynthesis through synergistic action with male sterility 1 (MS1) [17]. Additionally, the anther indehiscence factor (AIF) can delay anther dehiscence by inhibiting the expression of jasmonic acid biosynthesis genes [18]. CUC1 and CUC2 are important TFs in the NAC family, involved in flower organ development. They are essential for the initiation of the mating primordium and synergistically promote ovule segregation. Deletion of CUC1 and CUC2 leads to a reduction in the ovule number [19,20]. It was also found that CUCs can promote the expression of the auxin efflux carrier PIN1, which plays a key role in pistil development [21]. In addition, rice OsCUC1 and OsCUC3 mutants exhibit a decreased number of stamens and defects in leaf and filament development [22]. The post-transcriptional regulation of NAC TFs plays a particularly important role in pistil development. For example, ectopic expression of CsNAC2 promotes female organ differentiation in cucumbers [23]. Overexpression of AtNAC074 induces early stigma senescence and premature loss of reproductive potential, while loss-of-function mutations in AtNAC074 extend stigma longevity [24,25]. At present, the role of NAC TFs in flower development has been preliminarily understood through phenotypic analysis; however, the regulatory mechanisms and networks of NACs in governing floral development in different species still require further investigation.
Chinese cabbage (B. rapa L.), which originates from northern China, is an important vegetable crop in the Brassicaceae family. B. rapa is a rich source of vitamins, fiber, and antioxidants, which promote intestinal motility. It is essential to the human diet and has become one of the most important sources of leafy vegetables and rapeseed globally [26,27]. Although NAC TF families have been identified in various plants [11,12], the functions of NACs remain poorly understood in B. rapa, particularly in relation to floral organ development. Fortunately, Zhang et al. [28] presented a near-complete genome assembly of B. rapa Chiifu v4.0 in 2023, which provide valuable tools for genomic and genetic studies in B. rapa.
Herein, we comprehensively identified the NAC TF members in B. rapa based on the v4.0 genome data. Subsequently, we performed a systematic bioinformatics analysis of the BrNAC gene family, including chromosome localization, phylogenetic relationships, gene structures, conserved protein motifs, collinearity features, cis-acting elements, and expression levels in various tissues. Moreover, we validated three NAC TFs specifically expressed during flower development using qRT-PCR and determined the subcellular localization of these proteins. Finally, we utilized the floral dip method to assess the expression patterns of the GUS driven by the promoters of these genes in A. thaliana inflorescences [29]. These results provide a foundation for further studies on the potential roles of BrNACs in the floral development of B. rapa.

2. Results

2.1. Identification of the NAC Gene Family in B. rapa

A total of 279 NAC genes were identified in the latest B. rapa genome (v4.0) using local BLAST (v2.14.0) analysis and HMM searches with the NAC protein sequences of A. thaliana as queries. The basic information of BrNACs, including gene ID, protein length, molecular weight (kDa), isoelectric point (pI), and hydropathicity, is detailed in Table S1. The predicted protein lengths range from 104 amino acids (BraA09g008570.4C.2) to 996 amino acids (BraA05g016310.4C.1), with molecular weights varying from 11.75 to 112.12 kDa. The isoelectric points span from 4.18 to 11.05, suggesting potential functional diversity in distinct microcellular environments. The instability index ranges from 23.43 to 82.47, with the majority of BrNAC proteins (71.3%) exhibiting an instability index above 40, classifying them as unstable. Additionally, grand average hydropathicity (GRAVY) analysis revealed values between −1.256 and −0.249, indicating that BrNAC proteins are predominantly hydrophilic.
All BrNAC genes are unevenly distributed across the 10 chromosomes of B. rapa. Chromosome A04 contains the fewest BrNAC genes, with only 6 members, while chromosome A09 has the highest number, with 47 genes (Figure 1). Gene duplications are considered to be one of the primary driving forces in the evolution of genomes and genetic systems [30], segmental duplication events occur frequently in the BrNAC genes family, with a maximum of nine duplications observed for the gene BraA09g001180.4C (Figure 1).

2.2. Sequence and Structural Analysis of BrNACs

To explore the conservation of these BrNAC genes, we investigated the conserved motifs via the MEME Suite, and visualized the gene structure and domains using TBtools (v2.119) [31]. As shown in Figure S1, a total of ten motifs were identified. The motif analysis revealed that proteins within the same group exhibited significant similarities, and the vast majority of BrNACs contained motifs 1–5 (Figure S1B), indicating a high degree of structural conservation within the BrNAC family. Additionally, the BrNAC genes possess an NAC domain, with gene structures varying from 0 to 9 introns. Notably, 15 BrNAC genes were intronless (Figure S1C,D).

2.3. Evolutionary Relationships of the NAC Gene Family Members

To investigate the evolutionary relationships of NAC genes across different species within the U’s triangle model, we constructed phylogenetic trees using MEGA 11.0. The analysis included four species: B. rapa, A. thaliana, B. oleracea, and B. nigra. As shown in Figure 2, the NAC proteins were categorized into seven subfamilies, with BrNAC present in all groups, demonstrating a close evolutionary relationship in the four species. We observed that Group VII contained the highest number of NAC members, including 51 AtNACs, 119 BrNACs, 95 BoNACs, and 96 BnNACs. In contrast, Group I was the smallest, consisting of only two AtNACs, three BrNACs, three BoNACs, and three BnNACs. The NAC ratios across U’s triangle species subgroups were approximately 1:1, whereas the ratios compared to A. thaliana ranged from 1 to 2.5. These findings suggest the presence of closely related homologous NAC genes between U’s triangle crops and A. thaliana. Given the well-characterized functions of many AtNAC genes, these phylogenetic groupings offer valuable insights for inferring potential functions of BrNAC genes based on their association with AtNAC genes.

2.4. Collinearity Analysis of BrNAC Genes with AtNAC, BoNAC, and BnNAC Genes

To assess the collinearity relationships of the BrNAC gene family with A. thaliana and U’s triangle model species, we conducted a molecular phylogenetic analysis using the One Step MCScanX—Super Fast toolkit in TBtools (v2.119). As shown in Figure 3, the BrNAC gene family exhibits strong collinearity with the NAC genes of three other species, with the highest number of collinear gene pairs observed in B. oleracea (505 pairs), followed by B. nigra (488 pairs) and A. thaliana (239 pairs), suggesting a common ancestral origin and potential functional similarities across these species. Meanwhile, we also analyzed the duplication events associated with the BrNAC genes, and found that a large number of gene replication events occurred between BrNACs (Figure S2). We also performed the Ka/Ks analysis, and the results are summarized in Table S2. All duplicated BrNAC gene pairs exhibited Ka/Ks ratios of less than 1, suggesting that the BrNAC gene family has undergone purifying selection during evolution. These findings provide valuable insights into the evolutionary history and functional conservation of the NAC gene family, both within B. rapa and across different species.

2.5. Analysis of Cis-Elements of BrNAC Genes

Cis-acting elements of BrNAC genes were analyzed using the GXF sequences program in TBtools (v2.119), the promoter sequences were obtained by determining the 2000 bp upstream sequences of the start codons of the BrNAC genes. The potential cis-acting elements were predicted using the PlantCARE database. We focused on five major categories of cis-acting elements, including hormone response elements, stress response elements, development-related elements, biotic and abiotic stress-related elements, and light-responsive elements (Figure 4 and Table S3). Specifically, hormone-related elements included those responsive to abscisic acid (ABA), auxin (IAA), methyl jasmonate (MeJA), and salicylic acid (SA). Growth and development-related elements were associated with meristem and endosperm expression (Figure 4). Stress-related elements encompassed responses to drought, low temperature, wounding, and pathogen defense (Figure 4). This analysis of cis-acting elements enhances our understanding of the potential regulatory mechanisms of BrNAC genes and their roles in the stress response, development, and hormone signaling in B. rapa.

2.6. Expression Profiles of BrNAC Genes in Different Tissues of B. rapa

The BrNAC gene family plays distinct roles in plant growth and development. To further explore the functions of these genes, we examined their expression patterns across different tissues and organs using RNA-seq data. Our analysis revealed that nearly 30 BrNAC genes were not expressed in any of the tissues tested, suggesting that these may be non-functional pseudogenes, or alternatively, that their function is redundant in the tissues analyzed. Interestingly, several BrNAC genes displayed tissue-specific expression patterns (Figure 5). For instance, nearly 30 BrNAC genes exhibited broad expression across various tissues and organs, indicating that they may have roles in multiple biological processes. A total of 20 BrNAC genes were highly expressed in roots, stems, or leaves but showed low expression in the inflorescence, suggesting a potential involvement in growth and developmental processes. Additionally, nine BrNAC genes were expressed exclusively in the inflorescence, indicating a possible role in reproductive development. These findings provide valuable insights into the diverse functional roles and regulatory mechanisms of the BrNAC genes in B. rapa.

2.7. Expression Verification of Floral Development-Related BrNAC Genes

In this study, we utilized the BLAST search to identify direct homologous genes of A. thaliana for the nine BrNAC genes potentially involved in floral organ development (Table S4). These BrNAC genes were renamed based on their Arabidopsis counterparts. To further validate the expression profiles of these genes, RT-qPCR was performed on various floral organs of B. rapa. The results, presented in Figure S3 and Figure 6, revealed that with the exception of BrNAC73 and BrNAC78, the remaining seven BrNAC genes exhibited significantly higher expression levels in different floral organs.
Previous studies have demonstrated that AtNAC2 plays a critical role in the development and degeneration of ovule integuments [32]. Its direct homologous gene in B. rapa has three copies: BrNAC2a (BraA03g037700.4C.1), BrNAC2b (BraA01g038470.4C.1), and BrNAC2c (BraA05g033920.4C.1). Transcriptome results revealed that BrNAC2b was highly expressed in the inflorescence compared to other tissues, while the other two homologs showed no significant expression in the inflorescence (Figure 5). To validate their expression, we conducted RT-qPCR experiments to examine the expression levels of these three genes across different tissues, presenting the results as column charts (Figure 6). These results showed that all three genes were highly expressed in flower organs. Specifically, BrNAC2a and BrNAC2c exhibited significantly higher expression in stamens compared to other tissues (Figure 6A,C), while BrNAC2b showed the highest expression in petals (Figure 6B). These findings suggest that BrNAC2 genes may play critical roles in the development of floral organs in B. rapa.

2.8. Subcellular Localization Analysis of BrNAC2 Proteins

To investigate the subcellular localization of the three BrNAC2 proteins, fusion constructs (pFGC5941-BrNAC2s-eGFP) and a control vector (eGFP) were transiently expressed in tobacco leaf epidermal cells. Confocal laser scanning microscopy revealed that BrNAC2a, BrNAC2b, and BrNAC2c proteins were localized to the nucleus (Figure 7). These localization patterns align with the expected roles of these proteins as transcription factors, supporting their involvement in transcriptional regulation processes.

2.9. Expression Characteristics of BrNAC2s’s Promoters in Arabidopsis Inflorescence

To explore the spatiotemporal expression profiles of BrNAC2’s promoters in the inflorescence, we transformed proBrNAC2s::GUS constructs into A. thaliana and performed GUS staining. The results revealed that the promoters of BrNAC2a, BrNAC2b, and BrNAC2c were capable of activating GUS expression in the inflorescence, with the strongest signals observed in the stamens and pistils (Figure 8). Specifically, BrNAC2a and BrNAC2c are highly expressed in stamens while BrNAC2b exhibits elevated expression in pistils and pedicel. These findings suggest that BrNAC2 genes might potentially function as regulatory factors in the developmental processes of both pistil and stamen.

3. Discussion

The NAC TF family is a key regulator of floral development and one of the most extensively studied groups of transcription factors [33]. While the functions of NAC TFs in floral organogenesis have been examined in numerous species, their roles in B. rapa remain unexplored. Here, we identified and performed a comprehensive bioinformatics analysis of 279 NAC gene family members in B. rapa ‘Youqing 49’. We analyzed their physicochemical properties, chromosome localization, gene structure, conserved motifs, phylogenetic relationships, collinearity, and cis-acting elements. Additionally, we investigated the subcellular localization and inflorescence-specific expression profiles of three BrNAC genes implicated in floral development. These findings provide valuable insights into the regulatory mechanisms of NAC genes in B. rapa, laying the foundation for further functional studies.
We identified 279 NAC genes in the B. rapa genome (v4.0), significantly exceeding the number reported in Chen’s research [34]. This discrepancy is attributed to the more comprehensive nature of the B. rapa genome v4.0, which represents a near-complete genome assembly, compared to the partial genome (v1.5) utilized in previous research [28]. Gene structure analysis revealed variability among BrNAC gene family members, while those within the same subclass exhibited consistent structural patterns (Figure S1). In addition to highly conserved motifs shared across the family, BrNAC genes also contained five subclass-specific motifs. Members of the same subclass were characterized by similar motif patterns (Figure S1). One of the drivers of gene family expansion is the splicing and insertion of fundamental genetic fragments [35]. Variations in sequence length, domain localization, and exon count were observed among members of the same BrNAC family subgroup, likely resulting from splicing and fragment insertion events during the evolution of the BrNAC gene family. These findings suggest that the structural diversity of BrNAC genes may underlie their complex and specialized functions in plants.
Understanding phylogenetic relationships among species forms the foundation of many biological studies, and a precise phylogenetic tree is critical for elucidating evolutionary connections [36]. In the present study, NAC genes from A. thaliana and other two species of the U’s triangle model plants were classified into seven distinct groups. The ratio of NAC genes among different U’s triangle species in each subgroup was approximately 1:1, while the ratio of B. rapa NACs to A. thaliana NACs ranged from 1 to 2.5. These findings align with Chen et al. [34]. After the Arabidopsis-Brassiceae divergence, a whole-genome triplication (WGT) event occurred, resulting in the division of the B. rapa genome into three subgenomes. Consequently, NAC genes in B. rapa often have one–three orthologs [37]. This WGT event may have contributed to functional redundancy among NAC genes in B. rapa. Homologous genes, which perform similar functions across species, understanding the collinear relationships between different species will be important to future studies of gene function and evolution in plant [38,39]. Here, BrNAC genes exhibited strong collinearity among A. thaliana, B. oleracea, and B. nigra, all members of the Brassicaceae family. These findings suggest that most NAC gene family members in these species evolved from a common ancestor.
Cis-acting elements are DNA sequences located upstream of genes that play a crucial role in regulating gene expression. Studying these elements is essential for enhancing our understanding of gene regulation mechanisms [40]. In this study, we predicted the cis-acting elements of the BrNAC gene members, identifying various categories, including hormone-responsive elements, stress-responsive elements, development-related elements, biotic and abiotic stress-related elements, and light-responsive elements (Figure 4). Previous studies have demonstrated that environmental conditions, development-related genes, hormones, and other factors can regulate NAC gene expression, thereby balancing plant growth and development [41,42,43,44]. Our investigation of cis-acting elements in the BrNAC gene family provides valuable insights into their functional roles in plant growth, development, and defense responses, contributing to a deeper understanding of their regulatory mechanisms.
In this study, transcriptome data from various tissues of B. rapa were analyzed to investigate the expression patterns of the BrNAC gene family members. The majority of BrNAC genes displayed tissue-specific expression, with only a few BrNACs exhibiting high expression levels across multiple tissues. These findings are consistent with those of Chen’s research [34]. Whole genome duplication (WGD) results in genome-wide redundancy, which contributes to increased genetic diversity and the divergence in gene expression patterns is often the initial step in the functional divergence between duplicated genes [45,46]. Our subcellular localization analyses revealed that these proteins are predominantly localized in the nucleus. RT-qPCR analysis of floral organ expression patterns for BrNAC2 genes demonstrated high expression levels in stamens and petals. Additionally, promoter activity assays indicated that the promoters of BrNAC2a, BrNAC2b, and BrNAC2c showed similar activity, with the strongest activation in pollen, followed by pistils, with lower expression observed in petals. Studies have shown that NAC FTs play pivotal roles in floral development, including petal fusion, ovule number regulation, and anther dehiscence [47,48]. The above results indicate the functions of BrNAC2a, BrNAC2b, and BrNAC2c may have been preserved throughout the evolution of the B. rapa genome, and these genes maintain essential roles; alternatively, these genes may have evolved to cooperate in a synergistic manner, jointly contributing to the regulation of floral development B. rapa.
Flowering represents a pivotal stage in the plant life cycle, marking the transition to reproductive development. This process is intricately regulated by numerous endogenous and exogenous factors, which collectively influence flower formation and development [49]. Understanding the regulatory networks governing flower development is essential, as this process directly influences agricultural yields and biomass production. The findings of this study provide a foundation for exploring the roles and regulatory mechanisms of the BrNAC gene family in the flowering process of B. rapa. Future research should incorporate phenotypic analyses to deepen our understanding of the specific contributions of BrNAC family members to floral development and their broader implications for crop improvement.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

B. rapa ‘Youqing 49’ were used as plant materials. Seeds were germinated and then sown in plastic seedling trays, the plants were grown in a climate chamber (16/8 h light/dark, 25/22 °C day/night temperature, 60–70% relative humidity, 300 µmol·m−2·s−1 photosynthetic photon flux density) consisting of a 3:1:1 mixture of nutrient soil, vermiculite, and perlite for 6–8 weeks until flowering.

4.2. Identification and Phylogenetics of BrNAC Family Genes in B. rapa

The genome information and related annotation files of B. rapa were downloaded from the Genome Database for Brassicaceae (www.brassicadb.cn/, accessed on 19 May 2024). The Hidden Markov Model (HMM) for the NAC domain (PF02365) was obtained from the Pfam database (http://pfam-legacy.xfam.org/, accessed on 21 May 2024). AtNAC protein sequences were downloaded from TAIR database (http://www.arabidopsis.org/, accessed on 25 May 2024). Firstly, we employed HMM (v3.3.2) software to search for BrNAC in the B. rapa protein database (E-value < 1 × 10−5). Secondly, the BLASTP method was used with the AtNAC protein sequence and B. rapa protein sequence (E-value < 1 × 10−5). Finally, the shared sequences obtained by the two search tools served as candidate BrNAC gene family members. Then, candidate BrNAC protein sequences were submitted to the NCBI-CDD (https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi, accessed on 16 July 2024) to identify the conserved NAC domain.
In addition, the basic physicochemical properties, such as protein length, molecular weight (kDa), isoelectric point (pIs), and hydropathicity of BrNACs, were analyzed using ExPASy website (https://web.expasy.org/compute_pi/, accessed on 20 July 2024).

4.3. Chromosomal Distribution, Gene Structure, and Conserved Motifs Analysis of BrNACs

Based on information from the B. rapa annotation files, the chromosomal distribution and gene structure of BrNAC genes were visualized using TBtools (v2.119). The conserved motifs of BrNACs were predicted by MEME Suite v5.5.5 (https://meme-suite.org/meme/tools/meme, accessed on 25 July 2024) and performed by TBtools (v2.119) [31].

4.4. Phylogeny and Collinearity Analysis of BrNACs

A total of 114 NAC genes from A. thaliana (AtNACs), 279 from B. rapa (BrNACs), 226 from B. oleracea (BoNACs), and 226 from B. nigra (BnNACs) were utilized to construct a phylogenetic tree. Brassicaceae database accession numbers and the corresponding gene classification groups are presented in Table S5. Phylogenetic relationships were inferred using the Maximum Likelihood (ML) method implemented in MEGA v11.0, with 1000 bootstrap replicates.
Collinear gene pairs between BrNAC and AtNAC, BoNAC, and BnNAC genes were identified using TBtools (v2.119). Additionally, segmental and tandem duplications among BrNAC genes were analyzed and visualized using TBtools (v2.119) (Figure S2).

4.5. Analysis of Cis-Acting Elements in BrNACs’ Promoters

PlantCARE website (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 3 August 2024) was used to predict the cis-acting elements of 2000 bp sequences upstream of the start codon of BrNACs obtained from B. rapa [50], and the subsequent results were illustrated using TBtools (v2.119).

4.6. RNA-Seq and RT-qPCR Analysis

The samples of root, stem, leaf, and inflorescence from B. rapa plants in bloom were collected, with tissues immediately frozen in liquid nitrogen and stored at −80 °C for subsequent analysis. Whole transcriptome sequencing was carried out by MK-BIO Bio-Tech (Hangzhou, China). The heatmap of BrNAC gene expression was generated using TBtools (v2.119). The data corresponding to the analysis are presented in Table S6.
Total RNA was extracted using the Plant RNA Extraction Kit (TRIeasy Total RNA Extraction Reagent, Shanghai, China) and reverse transcribed into cDNA using the Reverse Transcription Kit (ABScript III RT Master Mix for qPCR with gDNA Remover, Wuhan, China). Quantitative real-time PCR (qRT-PCR) was performed on a Bio-Rad CFX96 Real-Time PCR Detection System (Bio-Rad Laboratories, Inc., Hong Kong, China) with Hieff UNICON® Universal Blue qPCR SYBR Green Master Mix (Yeasen, Shanghai, China). The relative expression levels of BrNAC2 genes were calculated using the 2−ΔΔCt method [51]. BrUBC10 was used as the reference gene [52], and the primer sequences are listed in Table S7.

4.7. Subcellular Localization Assay of BrNAC2s Proteins

The full-length sequences of BrNAC2a, BrNAC2b, and BrNAC2c genes which contained arms homologous to the expression vector were amplified using the cDNA of wild-type “Youqing 49” flower bud as a template. Then, the sequences were cloned into the BamH I and Xba I sites of the pFGC5941-eGFP vector through homologous recombination. The gene cloning primer sequences are listed in Table S8.
The plasmids were introduced into Agrobacterium tumefaciens (strain GV3101) and injected into 4-week-old N. benthamiana leaves. Photographic observations of the tobacco leaf epidermal cells were carried out in dark culture for 36–48 h after transfection on a Nikon confocal laser scanning microscope (A1-SHS) (Nikon, Tokyo, Japan). For GFP fluorescence and nuclear autofluorescence analysis.

4.8. ProBrNAC2s-GUS Construction and GUS Staining

To generate the ProBrNAC2s-GUS construct, approximately 2000 bp fragments upstream of the ATG start codon of BrNAC2a, BrNAC2b, and BrNAC2c were amplified using specific primers listed in Table S9. These fragments were inserted into the Hind III and Xba I sites of the pCAMBIA1300 vector to fuse with the β-glucuronidase (GUS) reporter gene. The resulting vector was transformed into A. thaliana using the floral dip method [53]. To assess GUS activity, inflorescences from transgenic Arabidopsis plants were stained with GUS buffer (Coolaber, Beijing, China) overnight at 37 °C. The tissue was then decolorized in an ethanol gradient and photographed to visualize GUS expression.

4.9. Statistical Analysis

All experiments in this study were performed with three independent biological replicates. Data are expressed as the standard error (SE) of the mean. Statistical differences between groups were assessed using one-way analysis of variance (ANOVA), with significant differences indicated by different letters.

5. Conclusions

In summary, we performed a genome-wide identification of NAC genes in B. rapa and conducted a comprehensive analysis of their physicochemical properties, gene structures, phylogenetic relationships, collinearity, cis-regulatory elements, and tissue expression patterns. We also characterized the expression profiles of BrNAC2 genes in different floral organs. Notably, BrNAC2a and BrNAC2c are highly expressed in stamens while BrNAC2b exhibits elevated expression in pedicel. Additionally, we investigated the activity of their promoters in Arabidopsis inflorescences. Our findings provide valuable insights into the role of BrNAC genes in floral development and lay the groundwork for future studies on their molecular mechanisms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants14060834/s1, Figure S1: Analysis of phylogenetic relationships, motifs, domain, and gene structure of BrNACs; Figure S2: The duplication events analysis of BrNACs; Figure S3: Expression profiles of 8 BrNAC genes in different tissues and organs; Table S1: Physicochemical properties of NAC family gene in B. rapa; Table S2: Brassicaceae database accession number of genes used to construct the phylogenetic tree; Table S3: qRT-PCR primer sequences; Table S4: Primers list for subcellular localization; Table S5: Primers list for vector construction; Table S6. The data utilized for heatmap construction of BrNAC genes expression; Table S7. qRT-PCR primer sequences; Table S8. Primers list for subcellular localization; Table S9. Primers list for vector construction.

Author Contributions

Conceptualization, X.Y. and W.L.; methodology, W.L.; validation, F.P., S.Z. and K.L.; formal analysis, W.L. and I.H.; investigation, W.L., H.J. and I.H.; resources, X.R.; data curation, H.J. and H.Y.; writing—original draft preparation, W.L.; writing—review and editing, X.Y. and W.L.; visualization, T.Z.; supervision, X.Y.; project administration, X.Y.; funding acquisition, X.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Project of the Sci-tech Foundation of Ningbo City (2022S189), the Basic Public Welfare Research Plan of Zhejiang Province (LTGN23C150008), Zhejiang Province SanNongJiuFang Science and Technology Cooperation Project (2023SNJF009), the Project of Sci-tech Foundation of Zhejiang Province (2022C02030) and the Breeding Project of the Sci-tech Foundation of Zhejiang Province (2021C02065).

Data Availability Statement

All data in this study can be found in the manuscript or the Supplementary Materials.

Acknowledgments

The authors express gratitude to Rimsha Azhar for proofreading the manuscript, and acknowledge the programs that provided financial support.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Herrera-Ubaldo, H.; de Folter, S. Gynoecium and fruit development in Arabidopsis. Development 2022, 149, dev200120. [Google Scholar] [CrossRef] [PubMed]
  2. Shan, H.; Cheng, J.; Zhang, R.; Yao, X.; Kong, H. Developmental mechanisms involved in the diversification of flowers. Nat. Plants 2019, 5, 917–923. [Google Scholar] [CrossRef] [PubMed]
  3. Engelhorn, J.; Moreau, F.; Fletcher, J.C.; Carles, C.C. ULTRAPETALA1 and LEAFY pathways function independently in specifying identity and determinacy at the Arabidopsis floral meristem. Ann. Bot. 2014, 114, 1497–1505. [Google Scholar] [CrossRef]
  4. Wang, G.; Wu, Z.; Sun, B. KNUCKLES regulates floral meristem termination by controlling auxin distribution and cytokinin activity. Plant Cell 2024, 37, koae312. [Google Scholar] [CrossRef] [PubMed]
  5. Zúñiga-Mayo, V.M.; Gómez-Felipe, A.; Herrera-Ubaldo, H.; de Folter, S. Gynoecium development: Networks in Arabidopsis and beyond. J. Exp. Bot. 2019, 70, 1447–1460. [Google Scholar] [CrossRef]
  6. Marsch-Martínez, N.; de Folter, S. Hormonal control of the development of the gynoecium. Curr. Opin. Plant Biol. 2016, 29, 104–114. [Google Scholar] [CrossRef] [PubMed]
  7. Olsen, A.N.; Ernst, H.A.; Leggio, L.L.; Skriver, K. NAC transcription factors: Structurally distinct, functionally diverse. Trends Plant Sci. 2005, 10, 79–87. [Google Scholar] [CrossRef]
  8. Souer, E.; van Houwelingen, A.; Kloos, D.; Mol, J.; Koes, R. The no apical meristem gene of Petunia is required for pattern formation in embryos and flowers and is expressed at meristem and primordia boundaries. Cell 1996, 85, 159–170. [Google Scholar] [CrossRef]
  9. Aida, M.; Ishida, T.; Fukaki, H.; Fujisawa, H.; Tasaka, M. Genes involved in organ separation in Arabidopsis an analysis of the cup-shaped cotyledon mutant. Plant Cell 1997, 9, 841–857. [Google Scholar] [CrossRef]
  10. Delessert, C.; Kazan, K.; Wilson, I.W.; Straeten, D.V.D.; Manners, J.; Dennis, E.S.; Dolferus, R. The transcription factor ATAF2 represses the expression of pathogenesis-related genes in Arabidopsis. Plant J. 2005, 43, 745–757. [Google Scholar] [CrossRef]
  11. Nuruzzaman, M.; Manimekalai, R.; Sharoni, A.M.; Satoh, K.; Kondoh, H.; Ooka, H.; Kikuchi, S. Genome-wide analysis of NAC transcription factor family in rice. Gene 2010, 465, 30–44. [Google Scholar] [CrossRef]
  12. Yang, S.; Zhou, J.; Watkins, C.B.; Wu, C.; Feng, Y.; Zhao, X.; Xue, Z.; Kou, X. NAC transcription factors SNAC4 and SNAC9 synergistically regulate tomato fruit ripening by affecting expression of genes involved in ethylene and abscisic acid metabolism and signal transduction. Postharvest Biol. Technol. 2021, 178, 111555. [Google Scholar] [CrossRef]
  13. Puranik, S.; Sahu, P.P.; Srivastava, P.S.; Prasad, M. NAC proteins: Regulation and role in stress tolerance. Trends Plant Sci. 2012, 17, 369–381. [Google Scholar] [CrossRef]
  14. Singh, S.; Grover, A.; Nasim, M. Biofuel potential of plants transformed genetically with NAC family genes. Front. Plant Sci. 2016, 7, 22. [Google Scholar] [CrossRef] [PubMed]
  15. Han, K.; Zhao, Y.; Sun, Y.; Li, Y. NACs, generalist in plant life. Plant Biotechnol. J. 2023, 21, 2433–2457. [Google Scholar] [CrossRef] [PubMed]
  16. Mitsuda, N.; Iwase, A.; Yamamoto, H.; Yoshida, M.; Seki, M.; Shinozaki, K.; Ohme-Takagi, M. NAC transcription factors, NST1 and NST3, are key regulators of the formation of secondary walls in woody tissues of Arabidopsis. Plant Cell 2007, 19, 270–280. [Google Scholar] [CrossRef]
  17. Yang, C.; Vizcay-Barrena, G.; Conner, K.; Wilson, Z.A. MALE STERILITY1 is required for tapetal development and pollen wall biosynthesis. Plant Cell 2007, 19, 3530–3548. [Google Scholar] [CrossRef]
  18. Shih, C.F.; Hsu, W.H.; Peng, Y.J.; Yang, C.H. The NAC-like gene ANTHER INDEHISCENCE FACTOR acts as a repressor that controls anther dehiscence by regulating genes in the jasmonate biosynthesis pathway in Arabidopsis. J. Exp. Bot. 2014, 65, 621–639. [Google Scholar] [CrossRef]
  19. Gonçalves, B.; Hasson, A.; Belcram, K.; Cortizo, M.; Morin, H.; Nikovics, K.; Vialette-Guiraud, A.; Takeda, S.; Aida, M.; Laufs, P.; et al. A conserved role for CUP-SHAPED COTYLEDON genes during ovule development. Plant J. 2015, 83, 732–742. [Google Scholar] [CrossRef]
  20. Kamiuchi, Y.; Yamamoto, K.; Furutani, M.; Tasaka, M.; Aida, M. The CUC1 and CUC2 genes promote carpel margin meristem formation during Arabidopsis gynoecium development. Front. Plant Sci. 2014, 5, 165. [Google Scholar] [CrossRef]
  21. Cucinotta, M.; Manrique, S.; Cuesta, C.; Benkova, E.; Novak, O.; Colombo, L. CUP-SHAPED COTYLEDON1 (CUC1) and CUC2 regulate cytokinin homeostasis to determine ovule number in Arabidopsis. J. Exp. Bot. 2018, 69, 5169–5176. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, J.; Bao, J.; Zhou, B.; Li, M.; Li, X.; Jin, J. The osa-miR164 target OsCUC1 functions redundantly with OsCUC3 in controlling rice meristem/organ boundary specification. New Phytol. 2020, 229, 1566–1581. [Google Scholar] [CrossRef] [PubMed]
  23. Pan, J.; Wen, H.-F.; Lin, W.-H.; Pan, J.-S. A cucumber NAM domain transcription factor promotes pistil development in Arabidopsis. Mol. Hortic. 2021, 1, 10. [Google Scholar] [CrossRef] [PubMed]
  24. Gao, Z.; Daneva, A.; Salanenka, Y.; Van Durme, M.; Huysmans, M.; Lin, Z.; De Winter, F.; Vanneste, S.; Karimi, M.; Van de Velde, J.; et al. KIRA1 and ORESARA1 terminate flower receptivity by promoting cell death in the stigma of Arabidopsis. Nat. Plants 2018, 4, 365–375. [Google Scholar] [CrossRef]
  25. Kim, H.J.; Hong, S.H.; Kim, Y.W.; Lee, I.H.; Jun, J.H.; Phee, B.-K.; Rupak, T.; Jeong, H.; Lee, Y.; Hong, B.S.; et al. Gene regulatory cascade of senescence-associated NAC transcription factors activated by ETHYLENE-INSENSITIVE2-mediated leaf senescence signalling in Arabidopsis. J. Exp. Bot. 2014, 65, 4023–4036. [Google Scholar] [CrossRef]
  26. Zhang, Y.; Zhao, T.; Wang, Y.; Yang, R.; Li, W.; Liu, K.; Sun, N.; Hussian, I.; Ma, X.; Yu, H.; et al. Expression characterization of ABCDE class MADS-box genes in Brassica rapa with different pistil types. Plants 2023, 12, 2218. [Google Scholar] [CrossRef]
  27. Xu, C.; Huang, H.; Tan, C.; Gao, L.; Wan, S.; Zhu, B.; Chen, D.; Zhu, B. Transcriptome and WGCNA analyses reveal key genes regulating anthocyanin biosynthesis in purple sprout of Pak choi (Brassica rapa L. ssp. chinensis). Int. J. Mol. Sci. 2024, 25, 11736. [Google Scholar] [CrossRef]
  28. Zhang, L.; Liang, J.; Chen, H.; Zhang, Z.; Wu, J.; Wang, X. A near-complete genome assembly of Brassica rapa provides new insights into the evolution of centromeres. Plant Biotechnol. J. 2023, 21, 1022–1032. [Google Scholar] [CrossRef]
  29. Zhang, X.; Henriques, R.; Lin, S.-S.; Niu, Q.-W.; Chua, N.-H. Agrobacterium-mediated transformation of Arabidopsis thaliana using the floral dip method. Nat. Protoc. 2006, 1, 641–646. [Google Scholar] [CrossRef]
  30. Magadum, S.; Banerjee, U.; Murugan, P.; Gangapur, D.; Ravikesavan, R. Gene duplication as a major force in evolution. J. Genet. 2013, 92, 155–161. [Google Scholar] [CrossRef]
  31. Chen, C.; Wu, Y.; Li, J.; Wang, X.; Zeng, Z.; Xu, J.; Liu, Y.; Feng, J.; Chen, H.; He, Y.; et al. TBtools-II: A “one for all, all for one” bioinformatics platform for biological big-data mining. Mol. Plant 2023, 16, 1733–1742. [Google Scholar] [CrossRef]
  32. Kunieda, T.; Mitsuda, N.; Ohme-Takagi, M.; Takeda, S.; Aida, M.; Tasaka, M.; Kondo, M.; Nishimura, M.; Hara-Nishimura, I. NAC family proteins NARS1/NAC2 and NARS2/NAM in the outer integument regulate embryogenesis in Arabidopsis. Plant Cell 2008, 20, 2631–2642. [Google Scholar] [CrossRef] [PubMed]
  33. Singh, S.; Koyama, H.; Bhati, K.K.; Alok, A. The biotechnological importance of the plant-specific NAC transcription factor family in crop improvement. J. Plant Res. 2021, 134, 475–495. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, G.; Pang, X.; Li, G.; Wang, H.; Wu, S.; Wen, H.; Yin, Q.; Yuan, L.; Hou, J.; Tang, X.; et al. Genome-wide identification of NAC gene family in Brassica rapa and its expression analysis of response to vernalization. J. Nanjing Agric. Univ. 2022, 45, 656–665. [Google Scholar]
  35. Stull, G.W.; Qu, X.J.; Parins-Fukuchi, C.; Yang, Y.Y.; Yang, J.B.; Yang, Z.Y.; Hu, Y.; Ma, H.; Soltis, P.S.; Soltis, D.E.; et al. Gene duplications and phylogenomic conflict underlie major pulses of phenotypic evolution in gymnosperms. Nat. Plants 2021, 7, 1015–1025. [Google Scholar] [CrossRef]
  36. Kapli, P.; Yang, Z.; Telford, M.J. Phylogenetic tree building in the genomic age. Nat. Rev. Genet. 2020, 21, 428–444. [Google Scholar] [CrossRef]
  37. Lysak, M.A.; Koch, M.A.; Pecinka, A.; Schubert, I. Chromosome triplication found across the tribe Brassiceae. Genome Res. 2005, 15, 516–525. [Google Scholar] [CrossRef]
  38. Panchy, N.; Lehti-Shiu, M.; Shiu, S.H. Evolution of gene duplication in plants. Plant Physiol. 2016, 171, 2294–2316. [Google Scholar] [CrossRef]
  39. Glover, N.M.; Redestig, H.; Dessimoz, C. Homoeologs: What are they and how do we infer them? Trends Plant Sci. 2016, 21, 609–621. [Google Scholar] [CrossRef]
  40. Marand, A.P.; Eveland, A.L.; Kaufmann, K.; Springer, N.M. cis-regulatory elements in plant development, adaptation, and evolution. Annu. Rev. Plant Biol. 2023, 74, 111–137. [Google Scholar] [CrossRef]
  41. Tao, Y.; Wan, J.X.; Liu, Y.S.; Yang, X.Z.; Shen, R.F.; Zhu, X.F. The NAC transcription factor ANAC017 regulates aluminum tolerance by regulating the cell wall-modifying genes. Plant Physiol. 2022, 189, 2517–2534. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, T.; Ma, X.; Chen, Y.; Wang, C.; Xia, Z.; Liu, Z.; Gao, L.; Zhang, W. SlNAC3 suppresses cold tolerance in tomatoes by enhancing ethylene biosynthesis. Plant Cell Environ. 2024, 47, 3132–3146. [Google Scholar] [CrossRef]
  43. Meng, F.; Zhao, Q.; Zhao, X.; Yang, C.; Liu, R.; Pang, J.; Zhao, W.; Wang, Q.; Liu, M.; Zhang, Z.; et al. A rice protein modulates endoplasmic reticulum homeostasis and coordinates with a transcription factor to initiate blast disease resistance. Cell Rep. 2022, 39, 110941. [Google Scholar] [CrossRef]
  44. Liu, N.; Xu, Y.; Li, Q.; Cao, Y.; Yang, D.; Liu, S.; Wang, X.; Mi, Y.; Liu, Y.; Ding, C.; et al. A lncRNA fine-tunes salicylic acid biosynthesis to balance plant immunity and growth. Cell Host Microbe 2022, 30, 1124–1138.e1128. [Google Scholar] [CrossRef]
  45. Li, W.-H.; Yang, J.; Gu, X. Expression divergence between duplicate genes. Trends Genet. 2005, 21, 602–607. [Google Scholar] [CrossRef] [PubMed]
  46. You, J.; Liu, Z.; Qi, Z.; Ma, Y.; Sun, M.; Su, L.; Niu, H.; Peng, Y.; Luo, X.; Zhu, M.; et al. Regulatory controls of duplicated gene expression during fiber development in allotetraploid cotton. Nat. Genet. 2023, 55, 1987–1997. [Google Scholar] [CrossRef] [PubMed]
  47. Zhong, J.; Powell, S.; Preston, J.C.; Wang, X.Q. Organ boundary NAC-domain transcription factors are implicated in the evolution of petal fusion. Plant Biol. 2016, 18, 893–902. [Google Scholar] [CrossRef] [PubMed]
  48. Barro-Trastoy, D.; Gomez, M.D.; Blanco-Touriñán, N.; Tornero, P.; Perez-Amador, M.A. Gibberellins regulate ovule number through a DELLA–CUC2 complex in Arabidopsis. Plant J. 2022, 110, 43–57. [Google Scholar] [CrossRef]
  49. Teotia, S.; Tang, G. To bloom or not to bloom: Role of microRNAs in plant flowering. Mol. Plant 2015, 8, 359–377. [Google Scholar] [CrossRef]
  50. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 27, 295–296. [Google Scholar] [CrossRef]
  51. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  52. Huang, Y.; Liu, R.; Song, R.; Zhou, D.; Chen, J.; Liu, R.; Chen, W.; Yang, J.; Yu, X.; Cao, J.; et al. Integrative analysis based on transcriptome revealed the relation of auxin to turnip hypocotyl-tuber formation. Sci. Hortic. 2023, 308, 111536. [Google Scholar] [CrossRef]
  53. Steven, J.; Clough, A.F.B. Floral dip a simplified method for Agrobacterium-mediated. Plant J. 1998, 6, 735–743. [Google Scholar]
Plants 14 00834 g001

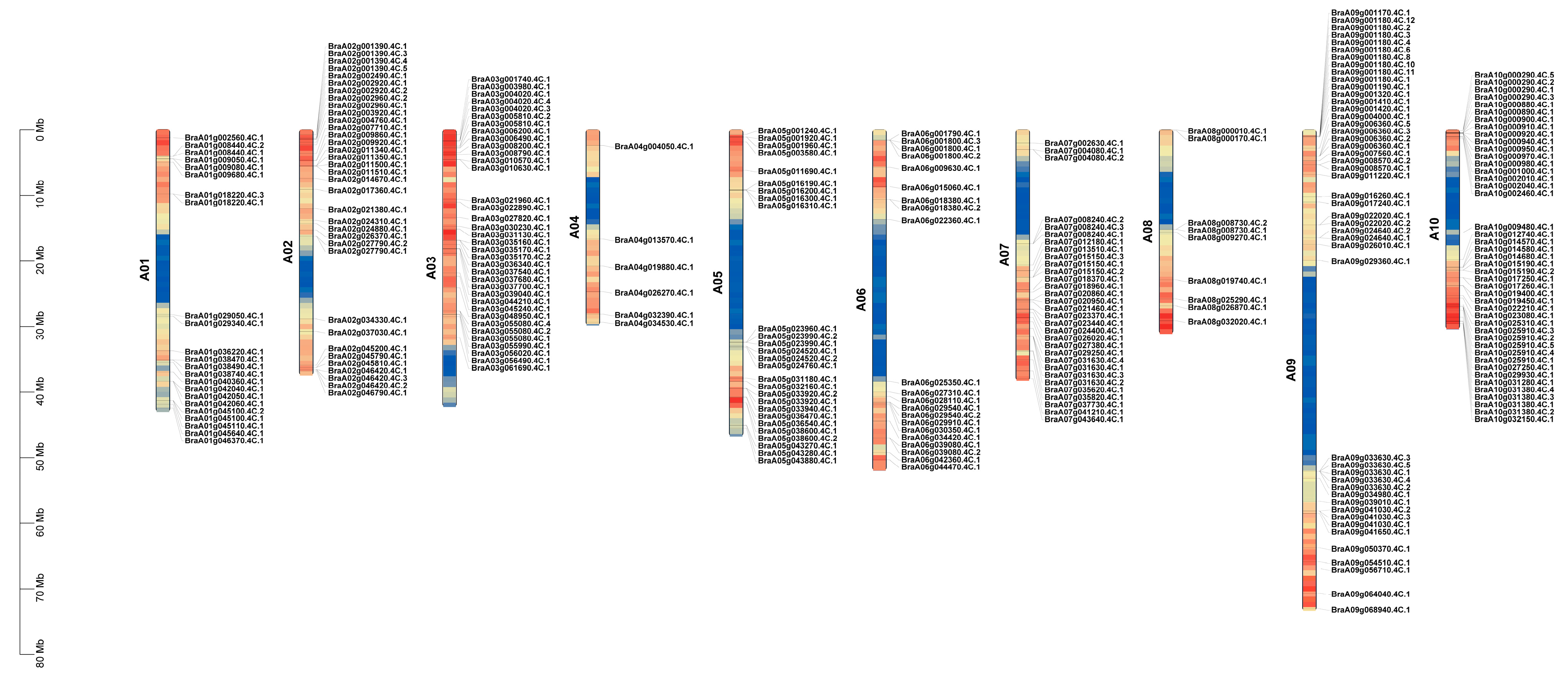

Figure 1. Chromosome distribution of BrNAC genes. The distribution of 279 BrNAC genes on ten B. rapa chromosomes.
Figure 1. Chromosome distribution of BrNAC genes. The distribution of 279 BrNAC genes on ten B. rapa chromosomes.
Plants 14 00834 g001
Plants 14 00834 g002

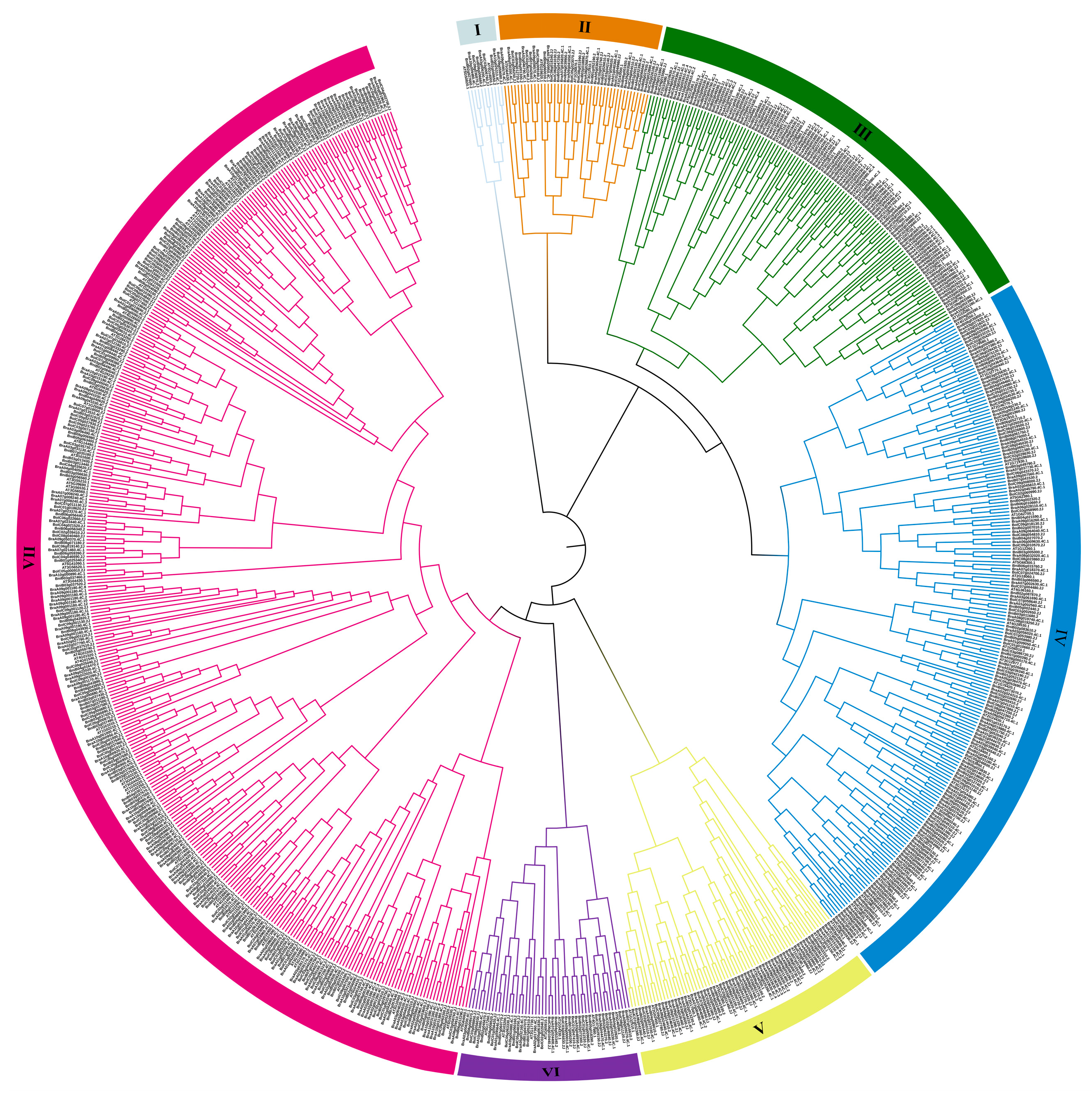

Figure 2. Phylogenetic analysis of NAC proteins in B. rapa. Phylogenetic analyses were conducted on NAC proteins from B. rapa, A. thaliana, B. oleracea, and B. nigra. MUSCLE was used for multiple sequence alignment. Phylogenetic trees were constructed using the Maximum Likelihood (ML) method with 1000 bootstrap repeats. The resulting phylogenetic tree was visualized with the online tool iTOL 6.9.1 (https://itol.embl.de/, accessed on 20 September 2024). Different colors indicate different NAC subgroups.
Figure 2. Phylogenetic analysis of NAC proteins in B. rapa. Phylogenetic analyses were conducted on NAC proteins from B. rapa, A. thaliana, B. oleracea, and B. nigra. MUSCLE was used for multiple sequence alignment. Phylogenetic trees were constructed using the Maximum Likelihood (ML) method with 1000 bootstrap repeats. The resulting phylogenetic tree was visualized with the online tool iTOL 6.9.1 (https://itol.embl.de/, accessed on 20 September 2024). Different colors indicate different NAC subgroups.
Plants 14 00834 g002
Plants 14 00834 g003

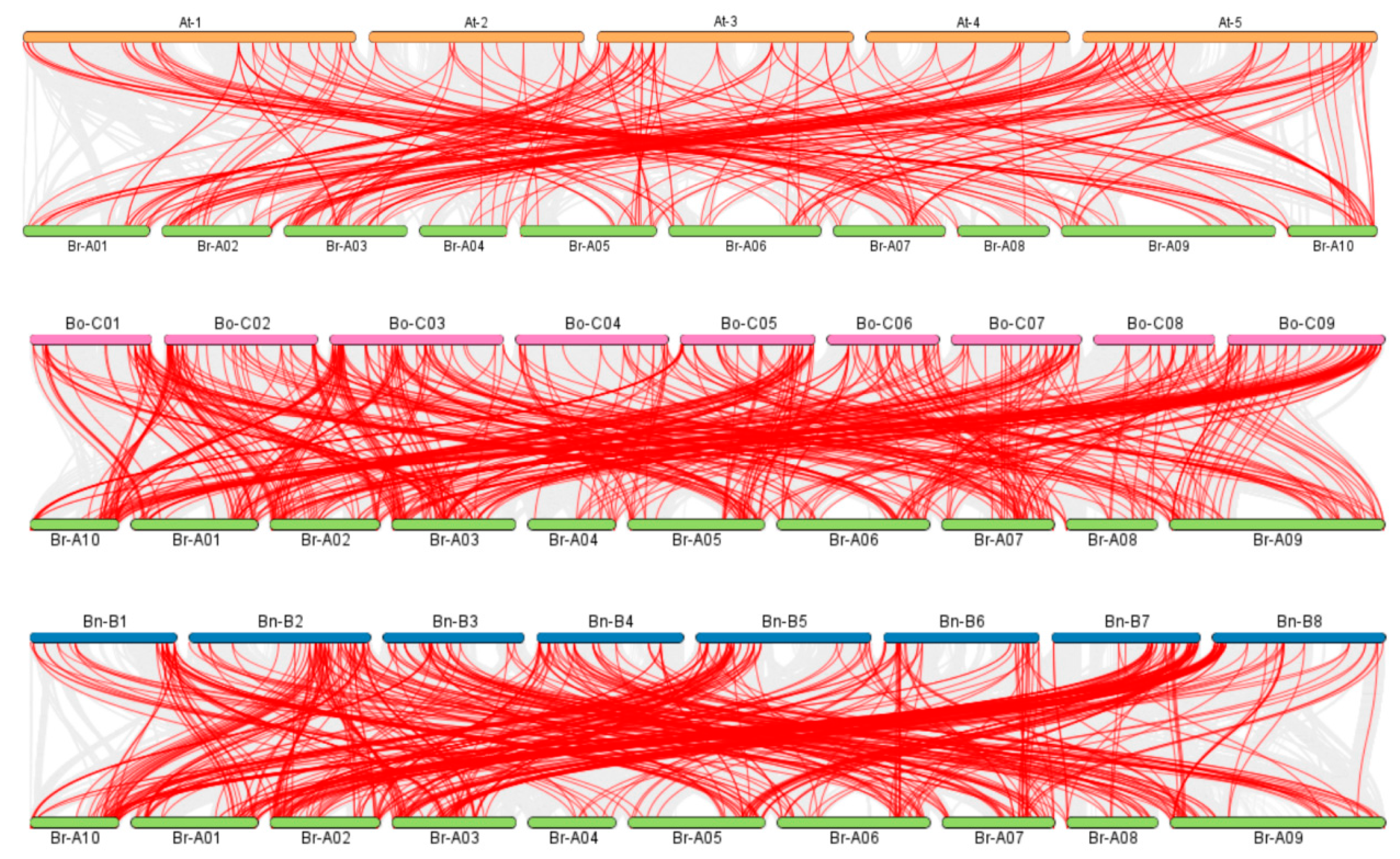

Figure 3. Collinear gene pair analysis of BrNACs between A. thaliana, B. oleracea and B. nigra. The red line represents collinear gene pairs. The orange color represents the A. thaliana chromosome, the green color represents the B. rapa chromosome, and the pink color represents the B. oleracea chromosome, the blue color represents the B. nigra chromosome.
Figure 3. Collinear gene pair analysis of BrNACs between A. thaliana, B. oleracea and B. nigra. The red line represents collinear gene pairs. The orange color represents the A. thaliana chromosome, the green color represents the B. rapa chromosome, and the pink color represents the B. oleracea chromosome, the blue color represents the B. nigra chromosome.
Plants 14 00834 g003
Plants 14 00834 g004

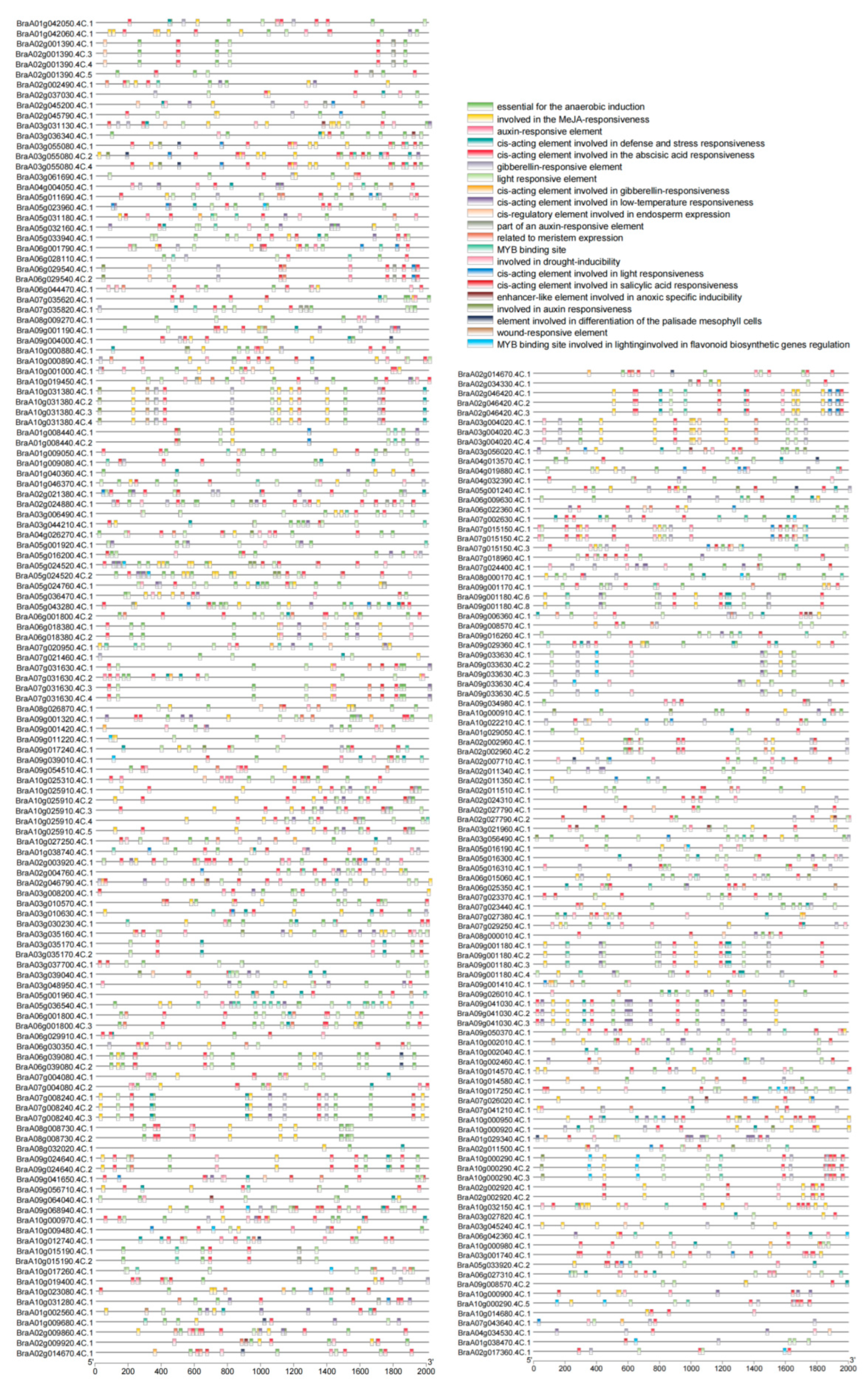

Figure 4. Cis-elements in the 2 kb promoter sequences of BrNAC genes. Different colored rectangles represent various cis-elements, with their positions indicated according to their locations within the promoters.
Figure 4. Cis-elements in the 2 kb promoter sequences of BrNAC genes. Different colored rectangles represent various cis-elements, with their positions indicated according to their locations within the promoters.
Plants 14 00834 g004
Plants 14 00834 g005

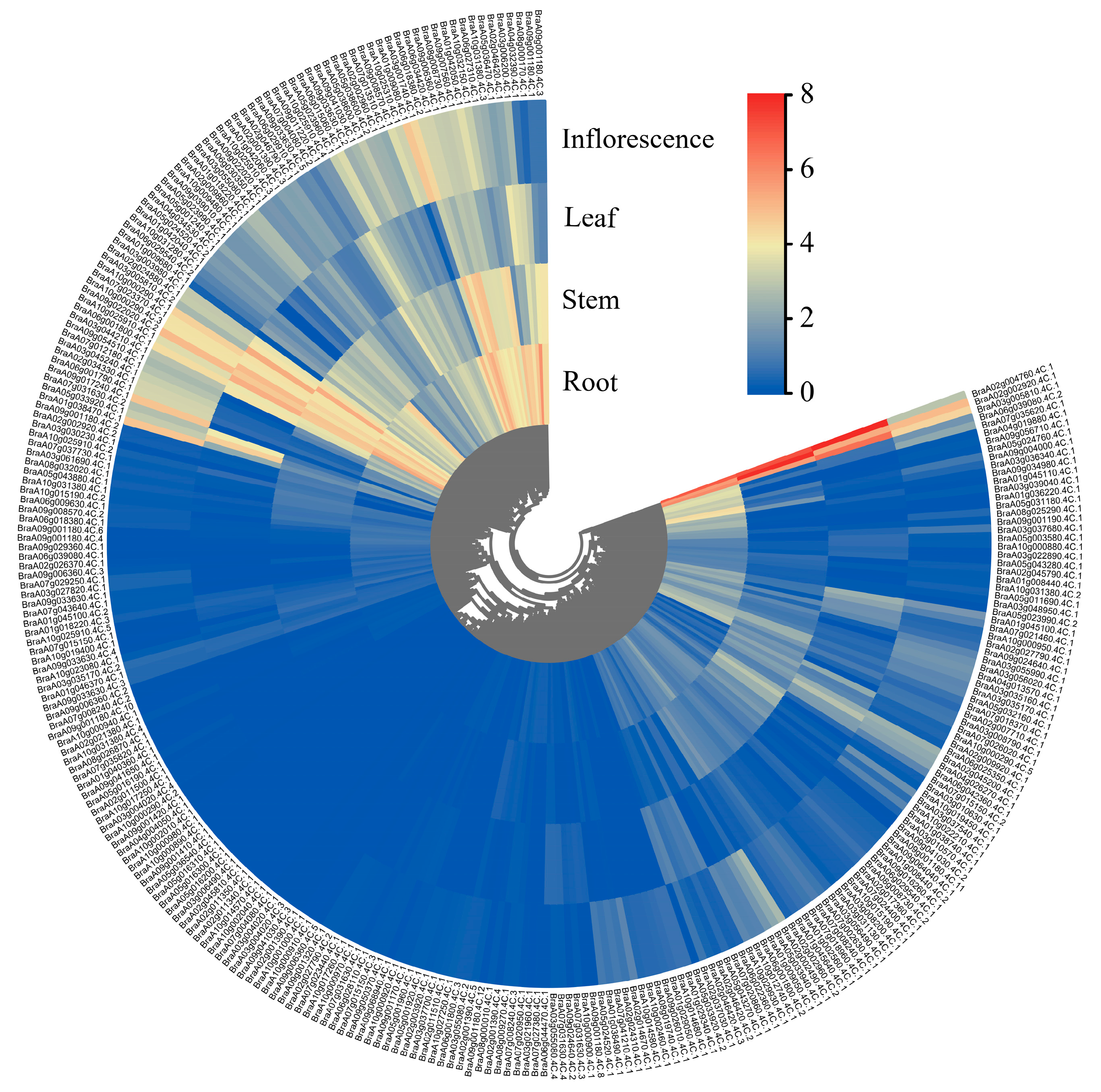

Figure 5. The tissue expression pattern of BrNAC genes in different tissues including root, stem, leaf and inflorescence. Red indicates high expression levels, and blue indicates low expression levels.
Figure 5. The tissue expression pattern of BrNAC genes in different tissues including root, stem, leaf and inflorescence. Red indicates high expression levels, and blue indicates low expression levels.
Plants 14 00834 g005
Plants 14 00834 g006

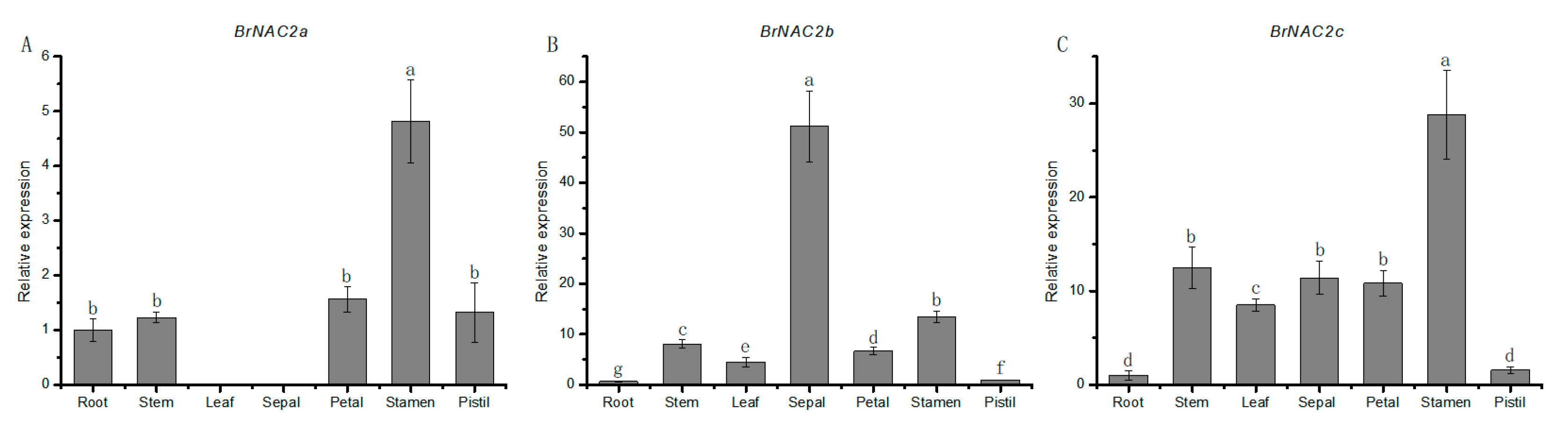

Figure 6. Expression profiles of BrNAC2 genes in different tissues and organs. (A) Expression levels of BrNAC2a; (B) Expression levels of BrNAC2b; (C) Expression levels of BrNAC2c. Different letters represent significant difference (p < 0.05).
Figure 6. Expression profiles of BrNAC2 genes in different tissues and organs. (A) Expression levels of BrNAC2a; (B) Expression levels of BrNAC2b; (C) Expression levels of BrNAC2c. Different letters represent significant difference (p < 0.05).
Plants 14 00834 g006
Plants 14 00834 g007
Figure 7. Subcellular localization of the BrNAC2s-eGFP in Nicotiana benthamiana leaves. pFGC5941-35S-eGFP and pFGC5941-35S-BrNAC2s-eGFP fusion proteins were transiently expressed in N. tabacum leaves. The fields included green fluorescence filed (488 nm), nucleus autofluorescence field (570 nm), bright field, and merged filed. Empty vector control showing the expression of 35S-eGFP in epidermal cells of N. tabacum, and co-localization of 35S-eGFP with BrNAC2 proteins observed by nucleus autofluorescence. Bars = 30 µm.
Figure 7. Subcellular localization of the BrNAC2s-eGFP in Nicotiana benthamiana leaves. pFGC5941-35S-eGFP and pFGC5941-35S-BrNAC2s-eGFP fusion proteins were transiently expressed in N. tabacum leaves. The fields included green fluorescence filed (488 nm), nucleus autofluorescence field (570 nm), bright field, and merged filed. Empty vector control showing the expression of 35S-eGFP in epidermal cells of N. tabacum, and co-localization of 35S-eGFP with BrNAC2 proteins observed by nucleus autofluorescence. Bars = 30 µm.
Plants 14 00834 g007
Plants 14 00834 g008
Figure 8. ProBrNAC2s–GUS expression in transgenic A. thaliana. (A) Expression activity of BrNAC2a promoter in inflorescence. (B) Expression activity of BrNAC2b promoter in inflorescence. (C) Expression activity of BrNAC2c promoter in inflorescence. Scale bars = 1 mm.
Figure 8. ProBrNAC2s–GUS expression in transgenic A. thaliana. (A) Expression activity of BrNAC2a promoter in inflorescence. (B) Expression activity of BrNAC2b promoter in inflorescence. (C) Expression activity of BrNAC2c promoter in inflorescence. Scale bars = 1 mm.
Plants 14 00834 g008
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, W.; Ping, F.; Jiang, H.; Zhang, S.; Zhao, T.; Liu, K.; Yu, H.; Hussian, I.; Ren, X.; Yu, X. Genome-Wide Identification of the NAC Gene Family in Brassica rapa (L.) and Expression Pattern Analysis of BrNAC2s. Plants 2025, 14, 834. https://doi.org/10.3390/plants14060834

AMA Style

Li W, Ping F, Jiang H, Zhang S, Zhao T, Liu K, Yu H, Hussian I, Ren X, Yu X. Genome-Wide Identification of the NAC Gene Family in Brassica rapa (L.) and Expression Pattern Analysis of BrNAC2s. Plants. 2025; 14(6):834. https://doi.org/10.3390/plants14060834

Chicago/Turabian Style

Li, Weiqiang, Fan Ping, Huixuan Jiang, Shuqing Zhang, Tong Zhao, Kaiwen Liu, Hongrui Yu, Iqbal Hussian, Xiliang Ren, and Xiaolin Yu. 2025. "Genome-Wide Identification of the NAC Gene Family in Brassica rapa (L.) and Expression Pattern Analysis of BrNAC2s" Plants 14, no. 6: 834. https://doi.org/10.3390/plants14060834

APA Style

Li, W., Ping, F., Jiang, H., Zhang, S., Zhao, T., Liu, K., Yu, H., Hussian, I., Ren, X., & Yu, X. (2025). Genome-Wide Identification of the NAC Gene Family in Brassica rapa (L.) and Expression Pattern Analysis of BrNAC2s. Plants, 14(6), 834. https://doi.org/10.3390/plants14060834

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
