Filamentous Temperature-Sensitive Z Protein J175 Regulates Maize Chloroplasts’ and Amyloplasts’ Division and Development

by
Huayang Lv
1,†,
Xuewu He
1,†,
Hongyu Zhang
1,
Dianyuan Cai
1,
Zeting Mou
1,
Xuerui He
1,
Yangping Li
2,
Hanmei Liu
1,
Yinghong Liu
3,
Yufeng Hu
2,
Zhiming Zhang
4,
Yubi Huang
2 and
Junjie Zhang
1,*
1
College of Life Science, Sichuan Agricultural University, Yaan 625014, China
2
State Key Laboratory of Crop Gene Exploration and Utilization in Southwest China, Sichuan Agricultural University, Chengdu 611130, China
3
Maize Research Institute, Sichuan Agricultural University, Chengdu 611130, China
4
State Key Laboratory of Crop Biology, College of Life Sciences, Shandong Agricultural University, Taian 271018, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2025, 14(14), 2198; https://doi.org/10.3390/plants14142198
Submission received: 9 June 2025 / Revised: 3 July 2025 / Accepted: 9 July 2025 / Published: 16 July 2025
(This article belongs to the Special Issue Crop Genetics and Breeding)
Browse Figures
Review Reports Versions Notes

Abstract

Plastid division regulatory genes play a crucial role in the morphogenesis of chloroplasts and amyloplasts. Chloroplasts are the main sites for photosynthesis and metabolic reactions, while amyloplasts are the organelles responsible for forming and storing starch granules. The proper division of chloroplasts and amyloplasts is essential for plant growth and yield maintenance. Therefore, this study aimed to examine the J175 (FtsZ2-2) gene, cloned from an ethyl methanesulphonate (EMS) mutant involved in chloroplast and amyloplast division in maize, through map-based cloning. We found that J175 encodes a cell division protein, FtsZ (filamentous temperature-sensitive Z). The FtsZ family of proteins is widely distributed in plants and may be related to the division of chloroplasts and amyloplasts. The J175 protein is localized in plastids, and its gene is expressed across various tissues. From the seedling stage, the leaves of the j175 mutant exhibited white stripes, while the division of chloroplasts was inhibited, leading to a significant increase in volume and a reduction in their number. Measurement of the photosynthetic rate showed a significant decrease in the photosynthetic efficiency of j175. Additionally, the division of amyloplasts in j175 grains at different stages was impeded, resulting in irregular polygonal starch granules. RNA-seq analyses of leaves and kernels also showed that multiple genes affecting plastid division, such as FtsZ1, ARC3, ARC6, PDV1-1, PDV2, and MinE1, were significantly downregulated. This study demonstrates that the maize gene j175 is essential for maintaining the division of chloroplasts and amyloplasts and ensuring normal plant growth, and provides an important gene resource for the molecular breeding of maize.

1. Introduction

Maize, a vital C4 plant, serves as a food crop and an important industrial raw material. Chloroplasts are the primary sites for photosynthesis and numerous metabolic reactions. Chloroplast division is crucial for the survival and reproduction of various plant species in nature [1,2]. The division of amyloplasts significantly influences the size, morphology, and yield of starch granules [3,4]. In cells with varying physiological and developmental states, chloroplasts and amyloplasts undergo different degrees of division. This process is governed by multiple pathways that require further refinement [5,6].
Chloroplasts are photosynthetic organelles in plants that convert energy. They have a double-layered membrane structure [7]. They are believed to have evolved from cyanobacteria and replicate through a process called binary fission [8]. The mechanism responsible for chloroplast division mainly involves four ring-like structures: the FtsZ ring (Z ring), inner and outer plastid-dividing rings, and the DRP5B (Dynamin-related proteins 5B) ring. These components contract and compress the division site to facilitate chloroplast division [7,8,9]. The Z ring, formed by chloroplast FtsZ proteins of cyanobacterial origin, is the first ring structure formed during chloroplast division [9]; it belongs to the GTPase family, which is associated with tubulin and acts as a scaffold protein for the division complex [1,5]. In plants, FtsZ proteins are composed of two subfamilies: FtsZ1 and FtsZ2. These proteins assemble into a polymer and form a ring at the cleavage site [10,11]. The FtsZ proteins in chloroplasts are anchored to the inner membrane through an interaction between the C-terminal domain of FtsZ2 and the N-terminal domain of the transmembrane protein of chloroplast accumulation and replication (ARC6) [7]. In arc6 mutants, filamentous FtsZ proteins are fragmented, indicating that ARC6 is crucial for the assembly and stability of FtsZ rings [1]. The chloroplast outer-envelope membrane protein PDV2 and its paralog PDV1 recruit the cytosolic dynamin-related GTPase ARC5 (accumulation and replication of chloroplasts 5) to the chloroplast division site [12], which determines the rate of chloroplast division [13,14]. Studies have demonstrated that the size of chloroplasts can be altered through either the overexpression or antisense repression of FtsZ [15,16,17]. Overexpression or antisense repression of AtFtsZ1 or AtFtsZ2 in Arabidopsis resulted in the formation of one or few large chloroplasts per cell. A threefold increase in AtFtsZ1-1 protein levels inhibited chloroplast division [16,17]. Higher AtFtsZ1-1 protein levels resulted in more severe phenotypes. The defects in chloroplast division caused by AtFtsZ1-1 overproduction may reflect a stoichiometric imbalance among the components necessary for chloroplast division [17]. Furthermore, a decrease in StFtsZ1 protein levels in potato leaves resulted in a reduction in the number of chloroplasts in guard cells [18]. The role of the FtsZ protein in Z ring assembly during chloroplast division in maize requires further investigation.
The amyloplast reaction in cereals can coordinate with photosynthesis occurring in the leaves, allowing the products of both reactions to be mutually transformed under light induction [19,20]. Ultrastructural, molecular, and genetic data indicate that the components required for the division process are similar across all plastid types [5,17]. The mutant parc6, which affects the splitting of wheat chloroplasts and amyloplasts, exhibited enlarged plastids in leaves and endosperm. Additionally, the endosperm amyloplasts of this mutant contained a higher proportion of A-type and B-type starch particles compared to the wild-type [21]. An increase in StFtsZ1 protein levels results in a significant reduction in the number of starch granules and an increase in their size in tubers [18]. Further analysis is needed to determine whether FtsZ in maize affects grain starch splitting.
Therefore, this study identified, for the first time, the FtsZ (filamentous temperature-sensitive Z) family gene j175 (ZmFtsZ2-2) that regulates chloroplast and amyloplast division in maize. During the seedling stage, white stripes began to emerge on the leaves of the j175 mutant, accompanied by a significant decrease in photosynthesis. Electron microscopy observations revealed abnormal division of chloroplasts and amyloplasts in the mutant, resulting in a significantly lower grain weight compared to that of the wild-type. These research findings not only enhance our understanding of the molecular mechanism underlying chloroplast and amyloplast division in maize, but also provide valuable genetic resources for improving maize germplasm through molecular regulation.

2. Results

2.1. Leaf Phenotypic Identification of j175

The j175 mutant was derived from EMS mutagenesis of the inbred line RP125 and was continuously backcrossed for purification. The leaves of the j175 mutant seedlings were yellowed and grew weaker than those of the WT (Figure S1). During the jointing stage, the leaves changed from yellow to green. At this stage, clear white stripes emerged on the leaves of j175 (Figure 1A), and the j175 plants exhibited a shorter stature compared to the WT plants (Figure 1C–E). The leaf length, width, and thickness of j175 during the jointing stage were significantly lower than those of the WT (Figure S2).

2.2. Chloroplast Division Defect in j175

We observed that the number of chloroplasts decreased, while the volume increased, in the green parts of leaves of the j175 mutant. Furthermore, the white parts of leaves of the j175 mutant had almost no chloroplasts (Figure 1M–O). This suggests that the chloroplast division ability of the j175 mutant is significantly reduced, particularly in the white parts of leaves. The chloroplasts of j175 leaf mesophyll cells during the seedling and mature stages were much larger than those of the WT, indicating that this division defect accompanies the entire growth period of the plant (Figure 1K,L and Figure S3).

2.3. Chlorophyll Content of j175 Decreases

The photosynthetic capacity of leaves is closely related to their chlorophyll content. Almost no chlorophyll was detected in the white parts of leaves of j175. In contrast, the chlorophyll a, chlorophyll b, and total chlorophyll content in the green parts of leaves of j175 were significantly reduced, with chlorophyll a and b decreasing by 15.43% and 27.95%, respectively (Figure 1B).

2.4. j175 Photosynthetic Rate Decreases

The net photosynthetic rate refers to the organic matter accumulated during photosynthesis in plants. The net photosynthetic rate of the green parts of leaves of j175 exhibited a decrease of 22.26%, while the rate for the white parts of leaves decreased substantially, by 97.93% (Figure 1F). The transpiration rate refers to the capacity of plants to regulate water loss through leaf stomata as they adapt to their natural environment. The transpiration rates of the green and white parts of j175 leaves exhibited a decrease of 26.50% and 94.60%, respectively (Figure 1G). The size of stomatal conductance indicates the extent of stomatal opening in plant leaves, which influences the ability of plants to absorb CO2 for photosynthesis. The stomatal conductance of the green and white parts of j175 leaves decreased by 30.10% and 95.11%, respectively (Figure 1H). The intercellular CO2 concentration is inversely proportional to photosynthesis. Compared to the wild-type leaves, no significant change was observed in intercellular CO2 concentration in the green parts of j175 leaves. However, the intercellular CO2 concentration in the white leaf parts increased by 504.38% (Figure 1I). In summary, the mutant showed a significant decrease in the photosynthetic capacity of its green leaf parts, while photosynthetic capacity was nearly absent in the white leaf parts.

2.5. Determinations in Enzyme Activity of j175

The measurements for soluble sugar content, MDA content, and CAT activity showed no significant difference between the green leaf parts of j175 and the WT. In the white leaf parts, the soluble sugar content, MOD content, and CAT activity decreased by 75.60%, 69.70%, and 61.80%, respectively (Figure S4). In contrast, the POD activity in the green and white leaf parts of j175 decreased significantly, by 49.77% and 53.85% (Figure 1J), respectively. These results show a decrease in the ability of j175 to resist abiotic stress.

2.6. Ear Phenotypic Identification of j175

The mature ears of j175 were much shorter than those of the WT, and the kernels were significantly smaller than those of the WT (Figure 2A–C). Additionally, the height of the plant, ear height, hundred-kernel weight, kernel length, kernel width, and kernel thickness of j175 were all reduced to varying degrees. However, no significant change was observed in the number of kernels per ear in j175 (Figure 2D–L).

2.7. J175 Exhibits Abnormal Development of Starch Granules and Amyloplasts

Scanning electron microscopy was utilized to observe the endosperm starch in mature grains of the wild-type and j175. The WT starch granules exhibited smooth, spherical shapes arranged in a regular and orderly manner (Figure 2N). In contrast, the starch granules of j175 existed in the form of oligomers, with a smooth surface and compact arrangement, and their number was significantly reduced (Figure 2O). The total starch content of endosperm cells was measured, and it was found that the total starch content of j175 decreased by 3.85% (Figure 2M).
Amyloplasts and chloroplasts are types of plastids that share similarities in their division processes [17]. Endosperm cells were selected for observation using fluorescence microscopy. The WT endosperm amyloplasts at 12 DAP displayed a smooth spherical shape, whereas the mutant endosperm amyloplasts exhibited a typical bead-on-a-string shape during the powder-making division. However, some of the amyloplasts displayed relatively regular polygon shapes with smooth surfaces (Figure 2P,Q). At 20 DAP, the j175 endosperm amyloplasts developed further into irregular polygons with multiple starch particles clustered together, significantly reducing the number of amyloplasts (Figure 2R,S). These results indicate that the mutation of the J175 gene affects amyloplast division in the grain, ultimately forming a complex of oligomers.

2.8. Positional Cloning and Allelic Testing Confirmed That J175 Encodes the FtsZ2-2 Protein

The homozygous j175 mutant was crossed with the B73 inbred line, and F1 j175/+ plants were self-crossed to create the F2 mapping population. The chi-square test of the F2 population confirmed that the mutant phenotype was a recessive mutation controlled by a single gene (Table S1). BSA-seq analysis, conducted on F2 wild-type and mutant segregant populations, identified the location of the gene near the Bin value of 10.07 on chromosome 10 (RefGen_v4) (Figure S5). Subsequently, using the surrounding insertion-deletion (In Del) markers from the 962 individuals in the F2 mapping population, the candidate interval was narrowed down to 144kb (Figure 3A). This region contains four coding genes. PCR amplification and sequencing identified a single-base mutation (G to A) in exon 4 of Zm00001d026669, resulting in an amino acid change from glycine (GGG) to arginine (AGG), which altered the function of the gene (Figure 3A,D). This functional change likely contributes to the emergence of the j175 phenotype.
To determine the candidate gene Zm00001d026669, we conducted allele tests. The EMS mutants j175-1 and j175-2 of this gene were obtained from maizeEMSDB. The mutations in j175-1 and j175-2 are both C-to-T substitutions, occurring on exon 2 and exon 7, respectively, which results in the transformation of an arginine and asparagine residue to a premature stop codon, leading to the loss of some functional domains in Zm00001d026669 (Figure 3A,D). The leaves of self-pollinated homozygous j175-1 and j175-2 exhibit the same white-striped phenotype as j175, and their agronomic traits have also been measured to have varying degrees of reduction (Figure S6). The chloroplast division of the mesophyll cells of j175-1 and j175-2 was also inhibited, and the morphology of starch granules was also characterized by non-rough polygons, which was quite different from the smooth spherical morphology of the WT (Figure S7). j175 was hybridized with j175-1 and j175-2, and the offspring j175/175-1 and j175/j175-2 both exhibited a white-striped phenotype (Figure 3C). These results confirm that Zm00001d026669 is the causative gene for j175.
Genome sequencing revealed that the protein encoded by J175 consists of 467 amino acids and has a molecular weight of 57.67 kDa. In MaizeGDB, the Zm00001d026669 gene is annotated as a cell division protein FtsZ homolog [22]. In this study, Zm00001d026669 is referred to as J175. Protein sequence analysis indicated that Zm00001d026669 encodes FtsZ2-2 (J175), a homologous protein of the FtsZ family, which is highly conserved in evolution. Maize contains only three FtsZ proteins: FtsZ1, FtsZ2-1, and FtsZ2-2. FtsZ2-2 shares a high degree of sequence similarity (77.8%) with FtsZ2-1, indicating similar functions. J175 exhibits high sequence similarity (79.80%) to AtFtsZ2-2 (Figure 3B). AtFtsZ2-2 is involved in chloroplast division, indicating that J175 may play a role in the process of chloroplast division in maize [17]. Additionally, conservative domain analysis indicated that the missense mutation site (Gly to Arg) of J175 is located at a highly conserved site in the FtsZ protein, with the mutated SNP occurring in the second motif (Figure S8). The glycine at this site is highly conserved. We speculate that the mutation at this site affects the function of the protein, leading to the inhibition of chloroplast division and potentially resulting in a complete loss of division ability.

2.9. Subcellular Localization and Constitutive Expression of j175

To determine the subcellular localization of J175, we fused J175 with GFP and expressed the fusion protein in maize leaf protoplasts. Furthermore, as a control, signals from 35S: GFP were detected in the nucleus and cytoplasm. In contrast, the signal of 35S: J175 GFP overlapped with the plastid marker (Figure 3E), suggesting that J175 functions within the plastid. Protoplasts were obtained from the leaves of etiolated seedlings after 2 weeks of germination. Photos were captured by laser scanning confocal microscopy.
The expression of the J175 gene in different tissues of wild-type RP125 at the V13 stage (the time when the plant rapidly transitions from vegetative to reproductive growth) was examined using qRT-PCR. J175 exhibited constitutive expression and was expressed across various tissues, with the highest expression levels in the bracts and female tassels, and the lowest in the male tassels (Figure 3F). Analysis of j175 expression in seeds at different days after pollination revealed a trend characterized by an initial increase followed by a subsequent decrease, with the peak expression level observed at 10 DAP (Figure 3G).

2.10. Transcriptome Profiling of j175

To analyze the gene expression differences between j175 and the WT, RNA-seq was performed on ear leaves and kernels. A large number of differential genes were detected (Figure 4A). A clustering heatmap analysis of the differential genes reveals that replicates from each sample are grouped closely, indicating similar expression patterns among replicates (Figure S9).
KEGG (Kyoto Encyclopedia of Genes and Genomes) pathway analysis indicated that differentially expressed genes were mainly concentrated in metabolic and photosynthetic pathways, including “sucrose and starch metabolism,” “carbon metabolism,” and “photosynthesis,” with downregulation being more prevalent than upregulation. The upregulated genes were primarily concentrated in pathways such as plant–pathogen interactions, plant hormone signal transduction, and the MAPK signaling pathway. The different leaves of J175 showed varying effects on plant metabolism, hormone signal transduction, and MAPK plant disease resistance signaling pathways (Figure 4B and Figure S10D,F). Similarly to the leaf transcriptome, KEGG analysis of the kernel transcriptome showed that differentially expressed genes are in the pathway sets of “plant hormone signal transduction” and “plant pathway interaction.” However, the difference is that the kernel differential genes are largely enriched in “protein processing in endoplasmic reticulum” (Figure 4C).
The expression of plastid division-related genes in the green and white parts of j175 leaves was inconsistent. Most plastid division-related genes, including j175, were downregulated in the green leaf parts and kernels of j175, while the upregulation of FtsZ2-1 may partially complement the j175 gene mutation. Additionally, the expression levels of ARC3 and GC1, which are negative regulators of chloroplast division, were significantly increased in the mutant (Figure 4E). To further verify the reliability of the transcriptome data, we conducted qPCR validation of several genes, and the results were consistent with the transcriptome data (Figure S11). Many essential genes involved in kernel development were also significantly differentially expressed between the WT kernels and j175 kernels. Among these, genes such as smk9 (small kernel opaque endosperm2), o2 (opaque endosperm2), fl2 (floury endosperm2), fl3, fl4, and bt2 (brittle endosperm) were downregulated in j175 kernels. However, genes such as betl3 (basal endosperm transfer layer3), betl4, betl9, betl10, and bap2 (basal layer antifungal protein 2) were upregulated in j175 kernels (Figure 4D). To explore the significant differences in chlorophyll content between the WT and j175, we analyzed the expression levels of key enzyme genes involved in the chlorophyll synthesis pathway. In Figure 3F, the expression of the CHLH gene, which encodes the H subunit of magnesium chelatase, was significantly downregulated in the white parts of J175 leaves. Together, CHLH, CHLI, and CHLD form a magnesium-chelating enzyme (MgCh) that catalyzes the transformation of protoporphyrin IX into magnesium protoporphyrin IX. This enzyme is crucial in chlorophyll synthesis, and the mutation in the j175 gene also inhibits this process.

2.11. SNPs Associated with ZmFtsZ2-2 Can Increase Starch Content

This study utilized the association population of 280 maize inbred lines to analyze the candidate gene Zmj175 for grain-related traits, in order to investigate the relationship between natural variation in these genes and grain development, and to identify excellent natural alleles, providing valuable gene resources for high-yield molecular breeding of maize.
Candidate gene association analysis of related traits of endosperm starch content in grains showed that multiple natural-variation loci of j175 were significantly associated with grain length; the p values of SNP151150703, SNP151152523, SNP151152541, SNP151152883, and SNP151152954 in the coding region indicated extremely significant relationships, and they were in strong linkage disequilibrium (R2 > 0.9). These five SNP loci divided the maize inbred lines into two haplotypes: Hap1 and Hap2. The average starch content of the Hap1 haplotype in 147 inbred lines was 70.25%, and that of the Hap2 haplotype in 53 inbred lines was 67.69%. The starch content of Hap1 was significantly higher than that of Hap2 (p = 4.11 × 10−3). These four SNPs are all located in the coding region, but only the polymorphic amino acids of SNP151152883 are changed. There are two types of amino acid residues at this site: glutamine and histidine. Hsp1 is glycine and hsp2 is serine, indicating that the glycine at this site may be beneficial for the formation of longer grains, while hsp2 is an excellent haplotype (Figure 5).

3. Discussion

The leaf is the site where photosynthetic products are synthesized, determining the production of assimilates and acting as the “source” of yield formation [23]. As an important C4 plant, 90% of corn yield is derived from leaf photosynthesis [24,25]. Grain serves as the “reservoir” for materials stored in plants, with starch being the most important storage material in grains, accounting for approximately 70% of the total content [26]. We discovered that an SNP mutation in the exon of j175 (Figure 3A) prevented chloroplast division and inhibited chlorophyll synthesis (Figure 1B,K–O). Thus, this reduced the photosynthetic efficiency in j175 (Figure 1F–I). Simultaneously, this mutation limited the division of the amyloplasts (Figure 2P–S), altering the shape of starch granules and decreasing the total starch content (Figure 2M–O). Therefore, the j175 mutation affects the “source” and “sink” of yield composition, resulting in a significant reduction in most agronomic traits of this material (Figure 2D–L). j175-1 and j175-2 are allelic mutants of j175; due to the higher position of the j175-1 mutation site, more structural domain functions are lost, resulting in a more severe reduction in agronomic traits for j175-2 (Figure S6). This result further proves that the j175 mutation has a certain impact on the agronomic traits of maize.
Chloroplast division mutants are essential genetic materials for studying the underlying mechanisms of chloroplast division in plants [2,9]. Partial genes regulating chloroplast division have been identified, and their regulatory mechanisms have been elucidated through studies of Arabidopsis mutants deficient in chloroplast division [13,27,28,29]. This includes FtsZ1, ARC5, ARC6, and PDV1 (plastid division 1). In Arabidopsis, AtFtsZ directly or indirectly affects the localization and assembly of other proteins in the division complex, thereby inhibiting chloroplast division [8,12]. An increase in AtFtsZ1-1 protein levels inhibits chloroplast division, with higher AtFtsZ1-1 protein levels resulting in more severe phenotypes [16]. Arabidopsis FtsZ2-1 and FtsZ2-2 are functionally redundant [30]; we found, through evolutionary tree analysis, that AtFtsZ2-1 and AtFtsZ2-2 have the highest similarity of 83.55%, while ZmFtsZ2-2 and ZmFtsZ2-1 have only 63.11% similarity. ZmFtsZ2-1 has the highest sequence similarity with SbFtsZ2-2 in sorghum. This implies that maize ZmFtsZ2 has different functions compared to Arabidopsis AtFtsZ2 (Figure 3B and Figure S8). The j175 mutant gene found in maize not only affects chloroplast division, as observed in other related genes, but also causes yellowing of j175 seedlings, weak leaf growth, and the formation of white stripes on the leaves, affecting plant growth (Figure 1A–F and Figures S1 and S2). This suggests that the j175 gene may serve different functions across various species. The high expression of j175 gene in green tissues such as the ears, ligules, and bracts further indicate its potential role in regulating plant growth and development (Figure 3F,G). In the mesophyll cells of j175, the chloroplasts were larger and fewer compared to the wild-type chloroplasts (Figure 1K–O), suggesting that mutations in the FtsZ 2-2 protein encoded by j175 cause damage to the Z-ring structure during maize chloroplast division, thereby hindering the division process. Furthermore, the RNA-seq and qPCR results demonstrated that most genes related to chloroplast division are inhibited to varying degrees in the j175 green parts leaves (Figure 4E and Figure S11), supporting this hypothesis. Interference with chloroplast development may affect chlorophyll synthesis, and genes involved in chlorophyll biosynthesis (including ZmHEMD, ZmCHLH, ZmCHLD, and ZmPORD) are inhibited in the mutants (Figure 4F). As the production sites of salicylic and jasmonic acid, which are important mediators of plant immunity, chloroplasts also participate in PAMP (pathogen-associated molecular pattern)-induced defense gene expression, playing a vital role in plant immunity [31,32]. Therefore, in the GO and KEGG pathway analyses, several genes related to hormone signal transduction and plant-pathogen interactions were downregulated (Figure 4B,C and Figure S10). Additionally, the significant reduction in peroxidase activity observed in the enzyme activity assay could also indicate that the stress resistance of j175 was weakened (Figure 1J). Thus, mutations in genes related to chloroplast division may reduce plant immunity.
Arabidopsis FtsZ2-1 and FtsZ2-2 are functionally redundant. Unlike the compound starch granules found in rice endosperm, maize endosperm contains simple starch granules, with only one starch granule per amyloplast [33,34]. Changes in the expression levels of amyloplast division proteins can alter starch granule synthesis [35]. Moreover, the membrane structure of amyloplasts is also affected by the levels of plastid division proteins [36]. In the j175 mutant, amyloplast division was inhibited during growth and maturity, and amyloplasts in the mature grain endosperm existed in the form of oligomers, with a significant decrease in quantity (Figure 2P–S). An increase in StFtsZ1 protein levels in potatoes resulted in a significant reduction in the number and size of starch granules in tubers [37]. Similarly, in FtsZ-deficient Arabidopsis mutants, amyloplasts did not proliferate [38,39]. Meanwhile, the j175 mutant in maize exhibited a change in amyloplast shape, implying that the regulation of the maize j175 gene in amyloplasts differs from that of Arabidopsis and potato. Normal amyloplast division, such as during gravity sensing, is essential for plant growth and development [40,41]. Amyloplasts in Arabidopsis are essential for root gravity sensing and for repolarizing LAZY proteins through sedimentation [42,43,44,45]. Whether the j175 gene in maize regulates gravity sensing in plants still requires further study. The formation of vitreous/opaque endosperm depends on the close interactions between proteosomes (storage gliadin) and amyloplasts [46]. Most opaque and floury genes in maize regulate zein synthesis by influencing the regulatory or structural genes of zein [46,47,48,49]. The upregulation of o2, fl2, fl4, de30, and other genes in the kernels of the j175 mutant may serve as compensation for the deletion of the j175 gene, allowing stable synthesis of gliadin (Figure 4D). Through gene association analysis, it was found that there were several SNPs on zmftsz2-2 that were significantly associated with starch content, which may also suggest that this gene can participate in the regulation of starch (Figure 5). However, this specific interaction requires further investigation. The expression of all basal endosperm transfer layer genes and basal antifungal protein genes in maize was downregulated in the j175-kernel (Figure 4D). This finding implies that the j175 gene plays a critical role in regulating the development and immunity of the maize endosperm transfer layer, which may contribute to the smaller kernel size observed in j175 (Figure 2D–L).

4. Conclusions

The white-stripe mutation of maize is caused by a single-nucleotide substitution in the exon of the filamentous temperature-sensitive Z protein gene, j175. This mutation affects the division of chloroplasts and amyloplasts, thereby affecting agronomic traits.

5. Materials and Methods

5.1. Cultivation of Materials and Investigation of Agronomic Traits

The leaf color-related mutant, isolated from the EMS mutant library with an RP125 background [50], was temporarily named j175 after undergoing continuous self-selection to stabilize its traits. The material was cultivated and managed in the provinces of Wenjiang, Chengdu, Sanya, and Hainan. We observed the phenotypes of j175 plants at different stages. During the maturity period, we measured agronomic traits for mutant and wild-type plants, including plant height, ear height, weight, leaf length, leaf width, leaf thickness, ear length, ear thickness, ear weight, ear shaft thickness, ear shaft weight, grain length, grain width, grain thickness, and hundred-grain weight. The data on these agronomic traits were analyzed using Prism 10.2 software.

5.2. Chlorophyll Content Measurement

To determine the chlorophyll content, we collected 0.1 g of green leaf parts and white leaf parts of j175, as well as wild-type leaves, at the heading stage, and created sets of 6 replicates. Chlorophyll was measured using a UV-visible spectrophotometer (UV-5200, China). We used the following equations to calculate the chlorophyll content:
Chl a (mg g−1) = (12.7D663 − 2.69D645) × (100/0.1 × 1000)
Chl b (mg g−1) = (22.9D645 − 4.68D663) × (100/0.1 × 1000)
Total Chlorophyll (mg g−1) = Chl a (mg g−1) + Chl b (mg g−1)

5.3. Determination of Photosynthetic Rate

A portable photosynthesis analyzer (Li-COR, Li-4800, Lincoln, NE, USA) was used to measure the photosynthetic rates of the white parts and green parts of j175 leaves and that of wild-type leaves during the jointing stage. Measurements included the transpiration rate, net photosynthetic rate, stomatal conductance, and intercellular CO2 concentration. Six biological replicates were established for each measurement.

5.4. Enzyme Activity Assessment

The white parts and green parts of j175 leaves, as well as wild-type ear leaves, were collected during the jointing stage, and sets of 6 replicates were created. The following kits were utilized to measure the enzyme activity in the leaves: a plant-soluble sugar content detection kit (BC0030, Solaibao, Beijing, China), a malondialdehyde (MDA) content detection kit (BC0020, Solaibao, Beijing, China), a catalase (CAT) activity detection kit (BC0200, Solaibao, Beijing, China), and a peroxidase (POD) activity detection kit (BC0090, Solaibao, Beijing, China).

5.5. Chloroplast Morphology Observation

The white parts and green parts of j175 leaves, as well as wt ear leaves, were collected during the jointing stage and subjected to a series of processes, including fixation, dehydration, infiltration, embedding, ultrathin sectioning, and staining. Finally, the fixed leaves were examined under a transmission electron microscope (JEM-1400FLASH, Tokyo, Japan) at various magnifications (200×, 500×, and 1000×).

5.6. Observation of Amyloplast and Starch Granule Morphology

Mutant and wild-type kernels were collected at 12 DAP (Days After Pollination) and 20 DAP. The endosperms were then placed in a culture dish, and a separation solution (50 mmol/L Tris, 0.8 mol/L sucrose, 1 mmol/L disodium EDTA, and 1 mmol/L KCl, at pH 7.5, with 0.1% bovine serum albumin and 1% mercaptoethanol added when used) was added. Furthermore, the endosperm was cut into small particles using a blade and filtered. A pipette was used to absorb the homogenate surrounding the endosperm, and this process was repeated twice before centrifuging the filtrate. The supernatant was discarded, and 5 mL of the separation solution was slowly added while gently flipping the centrifuge tube to suspend the precipitate; this process was repeated once or twice. Following centrifugation, the precipitate obtained was amyloplasts. Subsequently, 2 mL of the separation solution was added dropwise, followed by a drop of 0.5% I2-KI (Liquor Iodi et Kalii Iodidi) solution, and the sample was observed under a fluorescence microscope [51,52,53].
Mature kernels of J175 and wild-type plants were selected from the middle of the ear. Each kernel was cut in half from top to bottom with a blade to reveal the complete embryo and endosperm, and then fixed onto the operating plate with the cutting surface facing upwards. Gold powder was sputtered onto the cut surface of the kernel to enhance its conductivity, and then the kernel was exposed to a vacuum for 30 min. Additionally, the sections were observed at different magnifications (500×, 1000× and 2000×) using a scanning electron microscope (Sigma 500, Zeiss, Jena, Germany).

5.7. Map-Based Cloning and Allelic Test

The inbred line B73 is one of the representative varieties of the maize genome; we hybridized the j175 mutant with B73 to generate an F2 segregating population. Genetic analysis was performed by calculating the segregation rate between plants for the mutant phenotype and wild-type plants in the F2 generation, with a chi-squared test used to confirm the fit. DNA from isolated single plants in the F2 generation was used for positional cloning [54]. For the initial mapping of the J175 gene, an isolated F2 population was utilized to select 50 leaves with significant phenotypes and 50 leaves without phenotypes, creating mixed dominant and recessive pools for BSA-seq analysis. The population was subsequently expanded, and new polymorphic molecular markers were screened to enable more precise mapping of linkage genes related to the mutant phenotype by PCR amplification of RP125, j175, F1, and the aforementioned mixed-pool DNA. Molecular markers were specifically designed to localize accurately based on polymorphisms between the reference genomes of B73 and RP125 (Table S2). To confirm the candidate gene obtained by map-based cloning, we performed an allelic test. An EMS-mutagenized allelic mutant (EMS5-099e01, j175-1; EMS4-0e87c8, j175-2) of j175 with a B73 inbred line background was obtained from maizeEMSDB [55], and the allelic test was conducted using j175, 175-1, and j175-2.

5.8. Protein Sequence Analysis

Protein sequences were aligned using the ClustalW model of MEGA11 [56] (Figure S3). The gene structure diagram was generated using the online website GSDS2.0 [57]. The input protein sequence of the structural domain was conserved for Batch CD Search in NCBI, and the output file was processed for visualization analysis using the TBools-II tool [58]. The protein motif structures were predicted using MEME [59].

5.9. Subcellular Localization

To determine the subcellular localization of the J175 protein, its full-length coding sequence (excluding stop codons) was amplified and cloned into the pCAMBIA2300 subcellular localization expression vector, which includes eGFP tags to construct the C-terminal fusion protein J175-eGFP. The 35S: J175 eGFP and 35S: eGFP plasmids were then introduced into maize protoplasts via a polyethylene glycol (PEG)-mediated transformation method. eGFP fluorescence was subsequently detected using a laser confocal scanning microscope (LSM880, ZEISS, Jena, Germany).
Using NCBI to perform quantitative primer design, we first screened the designed primers for specificity, and used actin as an internal reference to analyze the tissue expression specificity of materials at different time points (Table S4).

5.10. RNA-Seq Analysis

Samples were collected from the middle of the white, green, and wild-type spike leaves of the jointing mutant. Mutant and wild-type kernels at 10 days after pollination (DAP) were selected, and the kernel coat was removed. Three independent replicates were obtained for each sample. Total RNA was extracted with the Trizol reagent (15596026, Solaibao, Beijing, China) and an Ultrapure RNA Kit (R2230, Solaibao, Beijing, China). Library construction and sequencing were completed by Anno by Grand Omics (Wuhan, China). For the gene expression results, the differentially expressed genes among samples were screened out, and GO function significance enrichment analysis and KEGG pathway significance enrichment analysis were carried out.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants14142198/s1, Figure S1. Comparison of seedling plants; Figure S2. Comparison of leaf types between j175 and WT; Figure S3: Observation of chloroplasts in mesophyll cells by projection electron microscopy; Figure S4. Enzyme activity in j175; Figure S5. BSA-seq analysis; Figure S6. Partial agronomic traits of j175-1 and j175-2; Figure S7. Observation of chloroplast morphology in mesophyll cells of j175-1 and j175-2 by projection electron microscopy and starch granule morphology in mature endosperm cells by scanning electron microscopy; Figure S8. Gene Evolution Analysis; Figure S9. The clustering heatmap analysis of differential genes; Figure S10. Gene Ontology Categories and Pathway Enrichment of Differentially Expressed Genes; Figure S11. qPCR of plastid division related genes; Table S1. the chi-square test of the F2 population; Table S2. Molecular markers used for final-mapped of j175; Table S3. Protein sequence information; Table S4. Vector construction and qPCR primers.

Author Contributions

H.L. (Huayang Lv): writing—original draft, data curation. X.H. (Xuewu He): methodology. H.Z.: investigation. D.C.: investigation. Z.M.: investigation. X.H. (Xuerui He): investigation. H.L. (Hanmei Liu): software, visualization. Y.L. (Yangping Li): investigation. Y.L. (Yinghong Liu): investigation. Y.H. (Yufeng Hu): investigation. Z.Z.: resources. Y.H. (Yubi Huang): conceptualization. J.Z.: conceptualization, supervision, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (32272184).

Data Availability Statement

The data presented in this study is available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, C.; MacCready, J.S.; Ducat, D.C.; Osteryoung, K.W. The molecular machinery of chloroplast division. Plant Physiol. 2018, 176, 138–151. [Google Scholar] [CrossRef] [PubMed]
  2. Glynn, J.M.; Miyagishima Sy Yoder, D.W.; Osteryoung, K.W.; Vitha, S. Chloroplast division. Traffic 2007, 8, 451–461. [Google Scholar] [CrossRef] [PubMed]
  3. Kawagoe, Y.Y. Amyloplast Division Progresses Simultaneously at Multiple Sites in the Endosperm of Rice. Plant Cell Physiol. 2009, 50, 1617. [Google Scholar]
  4. Zhao, F.; Jing, L.; Wang, D.; Bao, F.; Wang, G. Grain and starch granule morphology in superior and inferior kernels of maize in response to nitrogen. Sci. Rep. 2018, 8, 6343. [Google Scholar] [CrossRef] [PubMed]
  5. Osteryoung, K.W.; Mcandrew, R.S. The Plastid Division Machine. Annu. Rev. Plant Physiol. Plant Mol. Biol. 2001, 52, 315. [Google Scholar] [CrossRef]
  6. Yang, Y.; Glynn, J.M.; Olson, B.J.; Schmitz, A.J.; Osteryoung, K.W. Plastid division: Across time and space. Curr. Opin. Plant Biol. 2008, 11, 577–584. [Google Scholar] [CrossRef]
  7. Miyagishima, S.Y. Mechanism of Plastid Division: From a Bacterium to an Organelle. Plant Physiol. 2011, 155, 1533–1544. [Google Scholar] [CrossRef]
  8. Osteryoung, K.W.; Pyke, K.A. Division and Dynamic Morphology of Plastids. Annu. Rev. Plant Biol. 2014, 65, 443–472. [Google Scholar] [CrossRef]
  9. Miyagishima, S.Y.; Takahara, M.; Mori, T.; Kuroiwa, H.; Kuroiwa, T. Plastid Division is Driven by a Complex Mechanism that Involves Differential Transition of the Bacterial and Eukaryotic Division Rings. Plant Cell 2001, 13, 2257–2268. [Google Scholar] [CrossRef]
  10. Vitha, S. FtsZ Ring Formation at the Chloroplast Division Site in Plants. J. Cell Biol. 2001, 153, 111–120. [Google Scholar] [CrossRef]
  11. Sun, Q.; Cao, X.; Liu, Z.; An, C.; Hu, J.; Wang, Y.; Qiao, M.; Gao, T.; Cheng, W.; Zhang, Y. Structural and functional insights into the chloroplast division site regulators PARC6 and PDV1 in the intermembrane space. Proc. Natl. Acad. Sci. USA 2023, 120, e2215575120. [Google Scholar] [CrossRef] [PubMed]
  12. Miyagishima, S.Y.; Froehlich, J.E.; Osteryoung, K.W. PDV1 and PDV2 Mediate Recruitment of the Dynamin-Related Protein ARC5 to the Plastid Division Site. Plant Cell Online 2006, 18, 2517–2530. [Google Scholar] [CrossRef] [PubMed]
  13. Okazaki, K.; Kabeya, Y.; Suzuki, K.; Mori, T.; Ichikawa, T. The PLASTID DIVISION1 and 2 Components of the Chloroplast Division Machinery Determine the Rate of Chloroplast Division in Land Plant Cell Differentiation. Plant Cell 2009, 21, 1769–1780. [Google Scholar] [CrossRef]
  14. Liu, M.; Yu, J.; Yang, M.; Cao, L.; Chen, C. Adaptive evolution of chloroplast division mechanisms during plant terrestrialization. Cell Rep. 2024, 43, 113950. [Google Scholar] [CrossRef]
  15. Osteryoung, K.W.; Stokes, K.D.; Rutherford, S.M.; Lee, P.W.Y. Chloroplast Division in Higher Plants Requires Members of Two Functionally Divergent Gene Families with Homology to Bacterial FtsZ. Plant Cell Online 1998, 10, 1991–2004. [Google Scholar] [CrossRef] [PubMed]
  16. Stokes, K.D.; McAndrew, R.S.; Figueroa, R.; Vitha, S.; Osteryoung, K.W. Chloroplast division and morphology are differentially affected by overexpression of FtsZ1 and FtsZ2 genes in Arabidopsis. Plant Physiol. 2000, 124, 1668–1677. [Google Scholar] [CrossRef]
  17. Mcandrew, R.S.; Froehlich, J.E.; Vitha, S.; Osteryoung, S.K.W. Colocalization of Plastid Division Proteins in the Chloroplast Stromal Compartment Establishes a New Functional Relationship between FtsZ1 and FtsZ2 in Higher Plants. Plant Physiol. 2001, 127, 1656–1666. [Google Scholar] [CrossRef]
  18. de Pater, S.; Caspers, M.; Kottenhagen, M.; Meima, H.; Ter Stege, R.; de Vetten, N. Manipulation of starch granule size distribution in potato tubers by modulation of plastid division. Plant Biotechnol. J. 2006, 4, 123–134. [Google Scholar] [CrossRef]
  19. Balmer, Y.; Vensel, W.; Cai, N.; Manieri, W.; Schurmann, P.; Hurkman, W.; Buchanan, B. A complete ferredoxin/thioredoxin system regulates fundamental processes in amyloplasts. Proc. Natl. Acad. Sci. USA 2006, 103, 2988–2993. [Google Scholar] [CrossRef]
  20. Zhu, Y.S.; Merkle-Lehman, D.L.; Kung, S.D. Light-Induced Transformation of Amyloplasts into Chloroplasts in Potato Tubers. Plant Physiol. 1984, 75, 142–145. [Google Scholar] [CrossRef]
  21. Esch, L.; Ngai, Q.Y.; Barclay, J.E.; Mcnelly, R.; Hayta, S.; Smedley, M.; Smith, A.M.; Seung, D. Increasing amyloplast size in wheat endosperm through mutation of PARC6 affects starch granule morphology. New Phytol. 2023, 240, 224–241. [Google Scholar] [CrossRef] [PubMed]
  22. Jiao, Y.; Peluso, P.; Shi, J.; Liang, T.; Stitzer, M.C.; Wang, B.; Campbell, M.S.; Stein, J.C.; Wei, X.; Chin, C.-S. Improved maize reference genome with single-molecule technologies. Nature 2017, 546, 524–527. [Google Scholar] [CrossRef] [PubMed]
  23. Hofius, D.; Börnke, F.A. Photosynthesis, carbohydrate metabolism and source–sink relations. In Potato Biology and Biotechnology; Elsevier: Amsterdam, The Netherlands, 2007; pp. 257–285. [Google Scholar]
  24. Khanna-Chopra, R. Photosynthesis in relation to crop productivity. In Probing Photosynthesis: Mechanisms, Regulation and Adaptations; CRC Press: Boca Raton, FL, USA, 2000; pp. 263–280. [Google Scholar]
  25. Zhu, X.-G.; Long, S.P.; Ort, D.R. Improving photosynthetic efficiency for greater yield. Annu. Rev. Plant Biol. 2010, 61, 235–261. [Google Scholar] [CrossRef]
  26. Luchese, C.L.; Spada, J.C.; Tessaro, I.C. Starch content affects physicochemical properties of corn and cassava starch-based films. Ind. Crops Prod. 2017, 109, 619–626. [Google Scholar] [CrossRef]
  27. Pyke, K.A.; Rutherford, S.M.; Robertson, E.J.; Leech, R.M. arc6, A Fertile Arabidopsis Mutant with Only Two Mesophyll Cell Chloroplasts. Plant Physiol. 1994, 106, 1169–1177. [Google Scholar] [CrossRef]
  28. Robertson, E.J.; Rutherford, S.M.; Leech, R.M. Characterization of Chloroplast Division Using the Arabidopsis Mutant arc5. Plant Physiol. 1996, 112, 149–159. [Google Scholar] [CrossRef]
  29. Yoder, D.W.; Kadirjan-Kalbach, D.; Olson, B.J.S.C.; Miyagishima, S.Y.; Deblasio, S.L.; Hangarter, R.P.; Osteryoung, W.K. Effects of Mutations in Arabidopsis FtsZ1 on Plastid Division, FtsZ Ring Formation and Positioning, and FtsZ Filament Morphology In Vivo. Plant Cell Physiol. 2007, 48, 775. [Google Scholar] [CrossRef]
  30. Schmitz, A.J.; Glynn, J.M.; Olson, B.J.; Stokes, K.D.; Osteryoung, K.W. Arabidopsis FtsZ2-1 and FtsZ2-2 are functionally redundant, but FtsZ-based plastid division is not essential for chloroplast partitioning or plant growth and development. Mol. Plant 2009, 2, 1211–1222. [Google Scholar] [CrossRef] [PubMed]
  31. Nomura, H.; Komori, T.; Uemura, S.; Kanda, Y.; Shimotani, K.; Nakai, K.; Furuichi, T.; Takebayashi, K.; Sugimoto, T.; Sano, S. Chloroplast-mediated activation of plant immune signalling in Arabidopsis. Nat. Commun. 2012, 3, 926. [Google Scholar] [CrossRef]
  32. Zhang, R.; Wu, Y.; Qu, X.; Yang, W.; Wu, Q.; Huang, L.; Jiang, Q.; Ma, J.; Zhang, Y.; Qi, P. The RING-finger ubiquitin E3 ligase TaPIR1 targets TaHRP1 for degradation to suppress chloroplast function. Nat. Commun. 2024, 15, 6905. [Google Scholar] [CrossRef]
  33. Kawagoe, Y. The characteristic polyhedral, sharp-edged shape of compound-type starch granules in rice endosperm is achieved via the septum-like structure of the amyloplast. J. Appl. Glycosci. 2013, 60, 29–36. [Google Scholar] [CrossRef]
  34. Shannon, J.C.; Echeverria, E.; Boyer, C. Isolation of amyloplasts from developing endosperm of maize (Zea mays L.). In Methods in Enzymology; Elsevier: Amsterdam, The Netherlands, 1987; Volume 148, pp. 226–234. [Google Scholar]
  35. Yun, M.S.; Umemoto, T.; Kawagoe, Y. Rice debranching enzyme isoamylase3 facilitates starch metabolism and affects plastid morphogenesis. Plant Cell Physiol. 2011, 56, 1068–1082. [Google Scholar] [CrossRef]
  36. Wang, H.; Huang, Y.; Xiao, Q.; Huang, X.; Li, C.; Gao, X.; Wang, Q.; Xiang, X.; Zhu, Y.; Wang, J. Carotenoids modulate kernel texture in maize by influencing amyloplast envelope integrity. Nat. Commun. 2020, 11, 5346. [Google Scholar] [CrossRef] [PubMed]
  37. Li, H.-H.; Xue, S.; Le, J.; Zou, J.-J.; Wang, Y.-R. The role of Arabidopsis Actin-Related Protein 3 in amyloplast sedimentation and polar auxin transport in root gravitropism. J. Exp. Bot. 2016, 67, 5325–5337. [Google Scholar]
  38. Miyagishima, S.Y. Origin and evolution of the chloroplast division machinery. J. Plant Res. 2005, 118, 295–306. [Google Scholar] [CrossRef] [PubMed]
  39. Fujiwara, M.T.; Yoshioka, Y.; Kazama, Y.; Hirano, T.; Niwa, Y.; Moriyama, T.; Sato, N.; Abe, T.; Yoshida, S.; Itoh, R.D. Principles of amyloplast replication in the ovule integuments of Arabidopsis thaliana. Plant Physiol. 2024, 196, 137–152. [Google Scholar] [CrossRef] [PubMed]
  40. Sack, F.D. Plant Gravity Sensing. Int. Rev. Cytol. 1991, 127, 193–252. [Google Scholar]
  41. Sack, F.D. Plastids and gravitropic sensing. Planta 1997, 203 (Suppl. S1), S63–S68. [Google Scholar] [CrossRef]
  42. Chen, J.; Yu, R.; Li, N.; Deng, Z.; Zhang, X.; Zhao, Y.; Qu, C.; Yuan, Y.; Pan, Z.; Zhou, Y.; et al. Amyloplast sedimentation repolarizes LAZYs to achieve gravity sensing in plants. Cell 2023, 186, 4788. [Google Scholar] [CrossRef]
  43. Kiss, J.Z.; Sack, H.F.D. Amyloplasts are necessary for full gravitropic sensitivity in roots of Arabidopsis thaliana. Planta 1989, 177, 198–206. [Google Scholar] [CrossRef]
  44. Nishimura, T.; Mori, S.; Shikata, H.; Nakamura, M.; Hashiguchi, Y.; Abe, Y.; Hagihara, T.; Yoshikawa, H.Y.; Toyota, M.; Higaki, T. Cell polarity linked to gravity sensing is generated by LZY translocation from statoliths to the plasma membrane. Science 2023, 381, 1006–1010. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, N.; Guil, S.; Wang, Y. LAZing around: The intricate dance of amyloplast sedimentation and gravity sensing in plants. Mol. Plant 2023, 16, 1887–1889. [Google Scholar] [CrossRef] [PubMed]
  46. Gillikin, J.W.; Zhang, F.; Coleman, C.E.; Bass, H.W.; Larkins, B.A.; Boston, R.S. A defective signal peptide tethers the floury-2 zein to the endoplasmic reticulum membrane. Plant Physiol. 1997, 114, 345–352. [Google Scholar] [CrossRef] [PubMed]
  47. Schmidt, R.J.; Burr, F.A.; Burr, B. Transposon tagging and molecular analysis of the maize regulatory locus opaque-2. Science 1987, 238, 960–963. [Google Scholar] [CrossRef]
  48. Kim, C.S.; Hunter, B.G.; Kraft, J.; Boston, R.S.; Yans, S.; Jung, R.; Larkins, B.A. A defective signal peptide in a 19-kD α-zein protein causes the unfolded protein response and an opaque endosperm phenotype in the maize De*-B30 mutant. Plant Physiol. 2004, 134, 380–387. [Google Scholar] [CrossRef]
  49. Wang, G.; Qi, W.; Wu, Q.; Yao, D.; Zhang, J.; Zhu, J.; Wang, G.; Wang, G.; Tang, Y.; Song, R. Identification and characterization of maize floury4 as a novel semidominant opaque mutant that disrupts protein body assembly. Plant Physiol. 2014, 165, 582–594. [Google Scholar] [CrossRef]
  50. Nie, S.; Wang, B.; Ding, H. Genome assembly of the Chinese maize elite inbred line RP125 and its EMS mutant collection provide new resources for maize genetics research and crop improvement. Plant J. 2021, 108, 40–54. [Google Scholar] [CrossRef]
  51. Echeverria, E.; Boyer, C.; Liu, K.-C.; Shannon, J. Isolation of amyloplasts from developing maize endosperm. Plant Physiol. 1985, 77, 513–519. [Google Scholar] [CrossRef]
  52. Matsushima, R.; Hisano, H. Imaging amyloplasts in the developing endosperm of barley and rice. Sci. Rep. 2019, 9, 3745. [Google Scholar] [CrossRef]
  53. Denyer, K.; Pike, M. Isolation of amyloplasts. Curr. Protoc. Cell Biol. 2008, 38, 21–23. [Google Scholar] [CrossRef]
  54. Aboul, F.; Oraby, S. Extraction of high-quality genomic DNA from different plant orders applying a modified CTAB-based method. Bull. Natl. Res. Cent. 2019, 43, 25. [Google Scholar] [CrossRef]
  55. Lu, X.; Liu, J.; Ren, W. Gene-indexed mutations in maize. Mol. Plant 2018, 11, 496–504. [Google Scholar] [CrossRef] [PubMed]
  56. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular evolutionary genetics analysis version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  57. Hu, B.; Jin, J.; Guo, A.-Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed]
  58. Chen, C.; Wu, Y.; Li, J.; Wang, X.; Zeng, Z.; Xu, J.; Liu, Y.; Feng, J.; Chen, H.; He, Y. TBtools-II: A “one for all, all for one” bioinformatics platform for biological big-data mining. Mol. Plant 2023, 16, 1733–1742. [Google Scholar] [CrossRef]
  59. Bailey, T.L.; Johnson, J.; Grant, C.E.; Noble, W.S. The MEME suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar] [CrossRef]
Plants 14 02198 g001
Figure 1. Leaf phenotypes of j175. (A) Ear leaf phenotypes of WT and j175. Scale bar: 4 cm. (B) From left to right are the chlorophyll a content, chlorophyll b content, and total chlorophyll content; the three samples are a WT ear leaf, the green part of a j175 ear leaf, and the white part of a j175 ear leaf (n = 6). (C) Mature plant phenotypes of WT and j175. Scale bar, 10 cm. (D,E) The plant height (D) and ear height (E) of mature WT and j175 plants (n = 10). (F–I) Photosynthetic rate-related indicators: Pn (net photosynthetic rate) (F), Cond (stomatal conductance) (G), Tr (transpiration rate) (H), and Ci (intercellular CO2 concentration) (I); the three samples are a WT ear leaf, the green part of a j175 ear leaf, and the white part of a j175 ear leaf (n = 6). (J) Enzyme activity assay: POD (peroxidase); the three samples are a WT ear leaf, the green part of a j175 ear leaf, and the white part of a j175 ear leaf (n = 6). (K,L) Statistical analysis of chloroplast surface area in leaf mesophyll cells of WT and j175 plants during the seedling (K) and mature stages (L) (n = 20). (M–O) Observation of chloroplasts in the mesophyll cells of ear-position leaves. From left to right: the WT (M), the green part of j175 leaves (N), and the white part of j175 leaves (O). Scale bar: 2 μm. Data are presented as the mean ± SD and were statistically analyzed using Student’s t-test. * (p < 0.05) denotes a significant difference between the WT and j175, ** (p < 0.01) indicates a highly significant difference, and *** (p < 0.001) indicates an extremely significant difference.
Figure 1. Leaf phenotypes of j175. (A) Ear leaf phenotypes of WT and j175. Scale bar: 4 cm. (B) From left to right are the chlorophyll a content, chlorophyll b content, and total chlorophyll content; the three samples are a WT ear leaf, the green part of a j175 ear leaf, and the white part of a j175 ear leaf (n = 6). (C) Mature plant phenotypes of WT and j175. Scale bar, 10 cm. (D,E) The plant height (D) and ear height (E) of mature WT and j175 plants (n = 10). (F–I) Photosynthetic rate-related indicators: Pn (net photosynthetic rate) (F), Cond (stomatal conductance) (G), Tr (transpiration rate) (H), and Ci (intercellular CO2 concentration) (I); the three samples are a WT ear leaf, the green part of a j175 ear leaf, and the white part of a j175 ear leaf (n = 6). (J) Enzyme activity assay: POD (peroxidase); the three samples are a WT ear leaf, the green part of a j175 ear leaf, and the white part of a j175 ear leaf (n = 6). (K,L) Statistical analysis of chloroplast surface area in leaf mesophyll cells of WT and j175 plants during the seedling (K) and mature stages (L) (n = 20). (M–O) Observation of chloroplasts in the mesophyll cells of ear-position leaves. From left to right: the WT (M), the green part of j175 leaves (N), and the white part of j175 leaves (O). Scale bar: 2 μm. Data are presented as the mean ± SD and were statistically analyzed using Student’s t-test. * (p < 0.05) denotes a significant difference between the WT and j175, ** (p < 0.01) indicates a highly significant difference, and *** (p < 0.001) indicates an extremely significant difference.
Plants 14 02198 g001
Plants 14 02198 g002
Figure 2. Kernel phenotypes of j175. (A,B) The kernel width (A) and kernel length (B) of the WT and j175. Scale bar, 1 cm. (C) Ear phenotypes of the WT and j175. Scale bar: 2 cm. (D–G) Kernel agronomic traits: the kernel length (D), kernel width (E), kernel thickness (F), and hundred-kernel weight (G) of the WT and j175 (n = 20). Ear agronomic traits: the ear length (H), ear diameter (I), cob diameter (J), ear weight (K), and cob weight (L) of the WT and j175 (n = 20). (M) The kernel endosperm starch content of the WT and j175 (n = 6). (N,O) Differences in the shape of starch granules between the WT (N) and j175 (O). (P,Q) Endosperm amyloplasts of the WT (R) and j175 (S) at 12 DAP. (R,S) Endosperm amyloplasts of the WT and j175 at 20 DAP. (N–S) Scale bar: 5 μm. black square: Amyloplasts with different shapes. Data are presented as the mean ± SD and were statistically analyzed using Student’s t-test. * (p < 0.05) denotes a significant difference between the WT and j175, ** (p < 0.01) indicates a highly significant difference, and *** (p < 0.001) indicates an extremely significant difference.
Figure 2. Kernel phenotypes of j175. (A,B) The kernel width (A) and kernel length (B) of the WT and j175. Scale bar, 1 cm. (C) Ear phenotypes of the WT and j175. Scale bar: 2 cm. (D–G) Kernel agronomic traits: the kernel length (D), kernel width (E), kernel thickness (F), and hundred-kernel weight (G) of the WT and j175 (n = 20). Ear agronomic traits: the ear length (H), ear diameter (I), cob diameter (J), ear weight (K), and cob weight (L) of the WT and j175 (n = 20). (M) The kernel endosperm starch content of the WT and j175 (n = 6). (N,O) Differences in the shape of starch granules between the WT (N) and j175 (O). (P,Q) Endosperm amyloplasts of the WT (R) and j175 (S) at 12 DAP. (R,S) Endosperm amyloplasts of the WT and j175 at 20 DAP. (N–S) Scale bar: 5 μm. black square: Amyloplasts with different shapes. Data are presented as the mean ± SD and were statistically analyzed using Student’s t-test. * (p < 0.05) denotes a significant difference between the WT and j175, ** (p < 0.01) indicates a highly significant difference, and *** (p < 0.001) indicates an extremely significant difference.
Plants 14 02198 g002
Plants 14 02198 g003
Figure 3. Zm00001d026669 is j175. (A) Upper part: positional cloning of j175. The four boxes represent four genes, and the candidate gene is in red. Lower part: the gene model of Zm00001d026669 and mutation site of j175. The black boxes represent exons, the black lines represent introns, and the white boxes represent untranslated regions. The red arrows indicate j175, j175-1, and j175-2 mutation sites. (B) Evolutionary tree analysis of FtsZ2-1 and FtsZ2-2. The species involved in the analysis were Zea mays, Arabidopsis thaliana, Oryza sativa, Nicotiana tabacum, Sorghum bicolor, Triticum aestivum, Brachypodium distachyon, and Hordeum vulgare. (C) Allelic testing, from top to bottom, of j175, j175-1, j175-2, j175/j175-1, and j175/j175-2. Scale bar: 5 cm. (D) Sequence peaks of the WT, j175, j175-1 and j175-2 at mutation sites. Red letters, mutant amino acids (up) and bases (below). (E) Subcellular localization. Scale bar: 10 μm. (F) J175 group-forming expression. (G) Kernel expression of j175 at different DAP.
Figure 3. Zm00001d026669 is j175. (A) Upper part: positional cloning of j175. The four boxes represent four genes, and the candidate gene is in red. Lower part: the gene model of Zm00001d026669 and mutation site of j175. The black boxes represent exons, the black lines represent introns, and the white boxes represent untranslated regions. The red arrows indicate j175, j175-1, and j175-2 mutation sites. (B) Evolutionary tree analysis of FtsZ2-1 and FtsZ2-2. The species involved in the analysis were Zea mays, Arabidopsis thaliana, Oryza sativa, Nicotiana tabacum, Sorghum bicolor, Triticum aestivum, Brachypodium distachyon, and Hordeum vulgare. (C) Allelic testing, from top to bottom, of j175, j175-1, j175-2, j175/j175-1, and j175/j175-2. Scale bar: 5 cm. (D) Sequence peaks of the WT, j175, j175-1 and j175-2 at mutation sites. Red letters, mutant amino acids (up) and bases (below). (E) Subcellular localization. Scale bar: 10 μm. (F) J175 group-forming expression. (G) Kernel expression of j175 at different DAP.
Plants 14 02198 g003
Plants 14 02198 g004

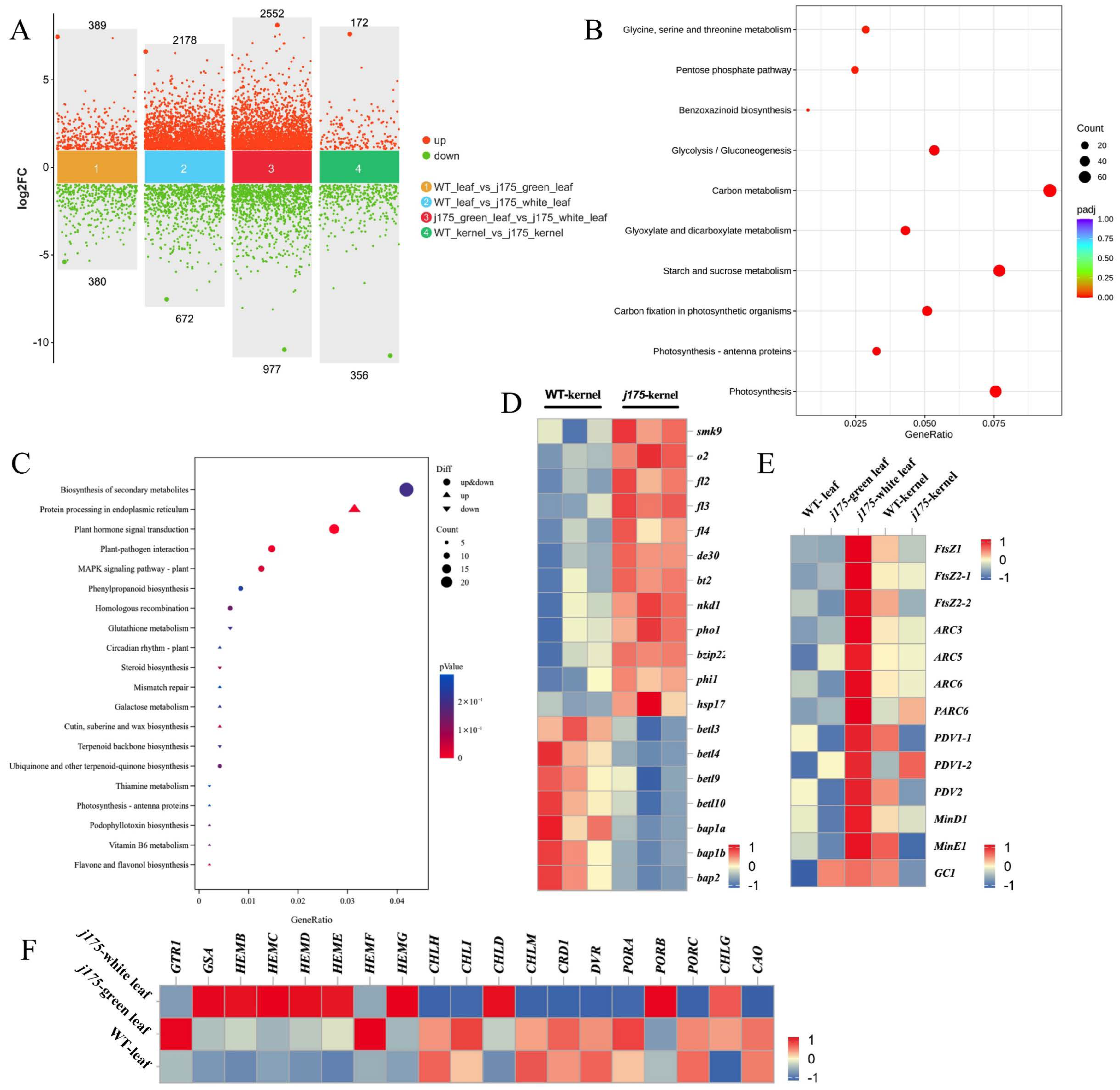

Figure 4. Global transcriptome analysis based on RNA-seq data from leaves and grains of the WT and j175. (A) A scatter diagram of different genes in multiple groups: WT leaf vs. j175 green partial leaf, WT leaf vs. j175 white partial leaf, j175 green partial leaf vs. j175 white partial leaf, and WT kernel vs. j175 kernel. (B) KEGG enrichment analysis of WT leaf vs. j175 green partial leaf (B) and WT kernel vs. j175 kernel (C). (D) Expression levels of genes involved in kernel development. (E) Expression of genes related to chloroplast division. (F) Expression of genes related to chlorophyll synthesis.
Figure 4. Global transcriptome analysis based on RNA-seq data from leaves and grains of the WT and j175. (A) A scatter diagram of different genes in multiple groups: WT leaf vs. j175 green partial leaf, WT leaf vs. j175 white partial leaf, j175 green partial leaf vs. j175 white partial leaf, and WT kernel vs. j175 kernel. (B) KEGG enrichment analysis of WT leaf vs. j175 green partial leaf (B) and WT kernel vs. j175 kernel (C). (D) Expression levels of genes involved in kernel development. (E) Expression of genes related to chloroplast division. (F) Expression of genes related to chlorophyll synthesis.
Plants 14 02198 g004
Plants 14 02198 g005

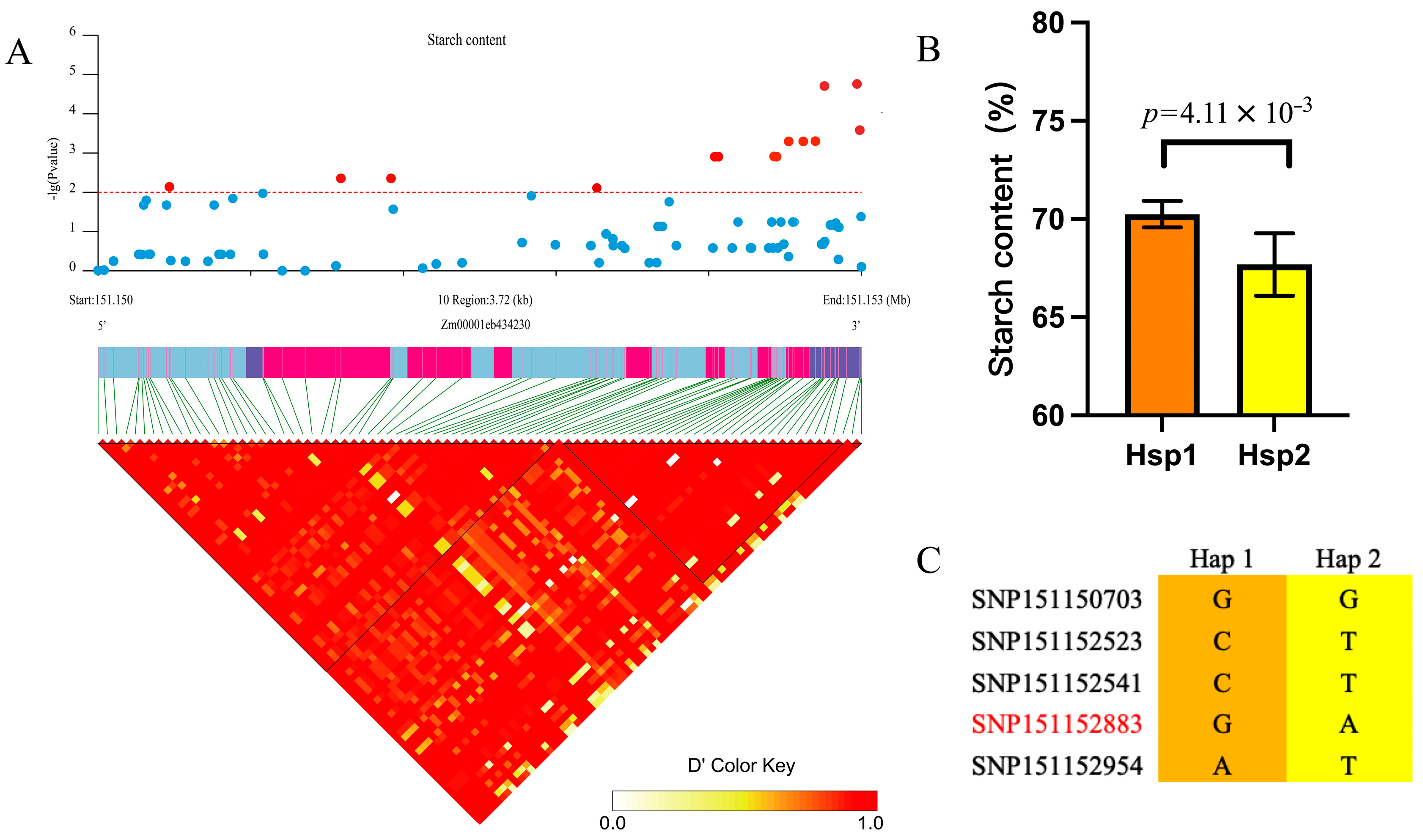

Figure 5. Haplotypes of ZmFtsZ2-2 among natural inbred lines of maize. (A) Association analysis of natural variations in ZmFtsZ2-2. The upper region indicates the gene’s associated SNP sites. The blue dots below the log value are non-significant SNPs, and the red dots above the log value are significant SNPs. The lower part is the pattern of pairwise linkage disequilibrium of the variations. (B) The starch content of the different haplotypes of ZmFtsZ2-2. n = 147 for Hap 1; n = 56 for Hap 2. (C) The haplotype information of ZmFtsZ2-2; black SNPs are the same mutation, and red SNPs are missense mutations. Data are presented as the mean ± SD and were statistically analyzed using Student’s t-test.
Figure 5. Haplotypes of ZmFtsZ2-2 among natural inbred lines of maize. (A) Association analysis of natural variations in ZmFtsZ2-2. The upper region indicates the gene’s associated SNP sites. The blue dots below the log value are non-significant SNPs, and the red dots above the log value are significant SNPs. The lower part is the pattern of pairwise linkage disequilibrium of the variations. (B) The starch content of the different haplotypes of ZmFtsZ2-2. n = 147 for Hap 1; n = 56 for Hap 2. (C) The haplotype information of ZmFtsZ2-2; black SNPs are the same mutation, and red SNPs are missense mutations. Data are presented as the mean ± SD and were statistically analyzed using Student’s t-test.
Plants 14 02198 g005
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lv, H.; He, X.; Zhang, H.; Cai, D.; Mou, Z.; He, X.; Li, Y.; Liu, H.; Liu, Y.; Hu, Y.; et al. Filamentous Temperature-Sensitive Z Protein J175 Regulates Maize Chloroplasts’ and Amyloplasts’ Division and Development. Plants 2025, 14, 2198. https://doi.org/10.3390/plants14142198

AMA Style

Lv H, He X, Zhang H, Cai D, Mou Z, He X, Li Y, Liu H, Liu Y, Hu Y, et al. Filamentous Temperature-Sensitive Z Protein J175 Regulates Maize Chloroplasts’ and Amyloplasts’ Division and Development. Plants. 2025; 14(14):2198. https://doi.org/10.3390/plants14142198

Chicago/Turabian Style

Lv, Huayang, Xuewu He, Hongyu Zhang, Dianyuan Cai, Zeting Mou, Xuerui He, Yangping Li, Hanmei Liu, Yinghong Liu, Yufeng Hu, and et al. 2025. "Filamentous Temperature-Sensitive Z Protein J175 Regulates Maize Chloroplasts’ and Amyloplasts’ Division and Development" Plants 14, no. 14: 2198. https://doi.org/10.3390/plants14142198

APA Style

Lv, H., He, X., Zhang, H., Cai, D., Mou, Z., He, X., Li, Y., Liu, H., Liu, Y., Hu, Y., Zhang, Z., Huang, Y., & Zhang, J. (2025). Filamentous Temperature-Sensitive Z Protein J175 Regulates Maize Chloroplasts’ and Amyloplasts’ Division and Development. Plants, 14(14), 2198. https://doi.org/10.3390/plants14142198

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
