# Simultaneous Quantification and Visualization of Photosynthetic Pigments in Lycopersicon esculentum Mill. under Different Levels of Nitrogen Application with Visible-Near Infrared Hyperspectral Imaging Technology

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

^{2}), root mean square error (RMSE) and ratio performance deviation (RPD) were predicted to be 0.8240, 1.43 and 2.38 for Chla; 0.8391, 0.53 and 2.49 for Chlb; 0.7899, 2.24 and 2.18 for Chls; and 0.7577, 0.27 and 2.03 for Cars, respectively. The combination of these models with the pseudo-color image allowed for a visual inversion of the content and distribution of the pigment. These findings have important implications for guiding pigment distribution, nutrient diagnosis and fertilization decisions in plant growth management.

## 1. Introduction

- The concentration of Chla, Chlb, Chls and Cars were used as the research indexes. The chemical constituents of the leaves were determined using traditional laboratory methods, and the spectrum and image were obtained through VNIR–HSI;
- The software of batch extraction and processing was compiled for selecting the regions of interest (ROI);
- A “coarse-fine” characteristic variable screening strategy was proposed for the pre-treated spectral data to establish quantitative models that could simultaneously predict multiple pigments;
- The distributions and concentrations of pigments at various leaf locations were visualized using prediction models applied to the image. Visual analysis was conducted to determine the appropriate nitrogen concentration for Lycopersicon esculentum Mill. cultivation, as well as the distribution of Chla, Chlb, Chls and Cars.

## 2. Results

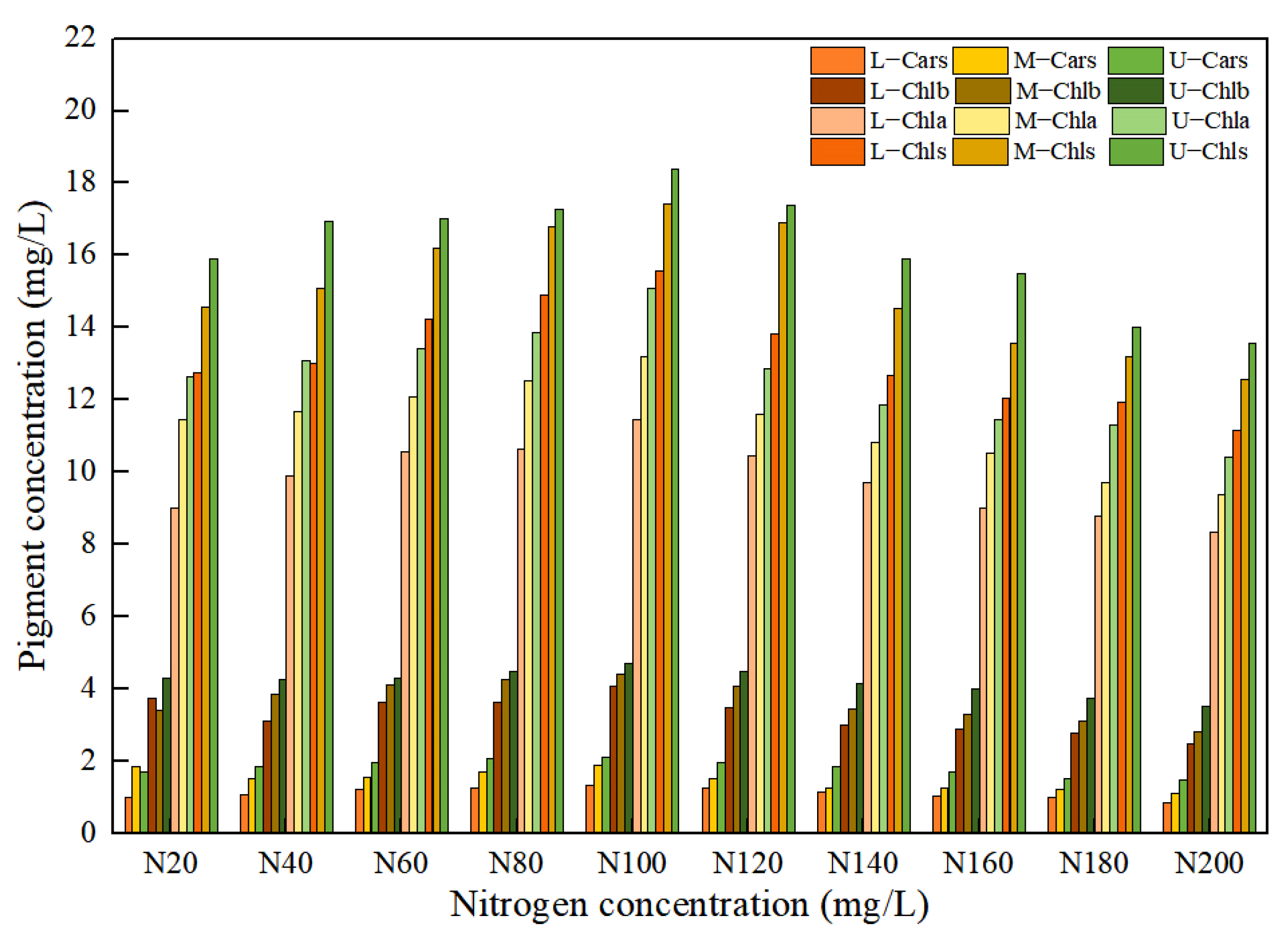

#### 2.1. Statistical Analysis of Measured Pigments Concentration of Leaf Positions

#### 2.2. Sample Partition and Data Preprocessing

_{p}

^{2}= 0.8064, RMSE

_{p}= 1.49 and RPD = 2.27 produced the best results for Chla. The S–G pretreatment with R

_{p}

^{2}= 0.8286, RMSE

_{p}= 0.54 and RPD = 2.42 produced the best results for Chlb. The SNV pretreatment with R

_{p}

^{2}= 0.7776, RMSE

_{p}= 2.29 and RPD = 2.12 produced the best results for Chls. The SNV pretreatment with R

_{p}

^{2}= 0.7294, RMSE

_{p}= 0.29 and RPD = 1.92 produced the best results for Cars. Table 1 displays the statistical reference values for the various pigment indicators in leaves using the best pretreatment strategy. The similarity between the sample mean of the calibration and prediction indicates the rationality of the dataset partitioning.

#### 2.3. Results of CARS–PLSR Modeling

_{cv}) and regression coefficient path (RCs) in the subset as the number of MCS runs increases. As the number of MCS runs increased, the filtered variables declined exponentially at first and then gradually leveled off. The RMSE

_{cv}showed a trend of decreasing and then increasing. This indicated that the variables that were removed at the beginning of the variable screening process were not correlated with the components to be measured. Subsequently, the unrelated variables were added to the subset of variables. More effective wavelengths have been retained in the RCs annotation. At this time, the RMSE

_{cv}reached the minimum value and the selected variables were the optimal variable set. For Chla, the RMSE

_{cv}was at the minimum value when the sampling frequency was 64. The prediction model was created with 16 variables in the subset (R

_{p}

^{2}= 0.8168, RMSE

_{p}= 1.45, RPD = 2.34), as shown in Figure S1 and Table S3 and Table 2. For Chlb, when the sampling frequency was 64, the RMSE

_{cv}was at the minimum value. The prediction model was created with 16 variables in the subset (R

_{p}

^{2}= 0.8302, RMSE

_{p}= 0.54, RPD = 2.43), as shown in Figure S2 and Table S3 and Table 2. For Chls, when the sampling frequency was 61, the RMSE

_{cv}was at the minimum value. The prediction model was created with 19 variables in the subset (R

_{p}

^{2}= 0.7869, RMSE

_{p}= 2.25, RPD = 2.17), as shown in Figure S3 and Table S3 and Table 2. For Cars, when the sampling frequency was 62, the RMSE

_{cv}was at the minimum value. The prediction model was created with 18 variables in the subset (R

_{p}

^{2}= 0.7532, RMSE

_{p}= 0.28, RPD = 2.01), as shown in Figure S4 and Table S3 and Table 2.

#### 2.4. Results of CARS–IRIV–PLSR Modeling

_{p}

^{2}= 0.8240, RMSE

_{p}= 1.43, RPD = 2.38). For Chlb, the prediction model was created to achieve the optimal effect with 10 variables (R

_{p}

^{2}= 0.8391, RMSE

_{p}= 0.53, RPD = 2.49). For Chls, the prediction model was created to achieve the optimal effect with 10 variables (R

_{p}

^{2}= 0.7899, RMSE

_{p}= 2.24, RPD = 2.18). For Cars, the prediction model was created to achieve the optimal effect with 11 variables (R

_{p}

^{2}= 0.7577, RMSE

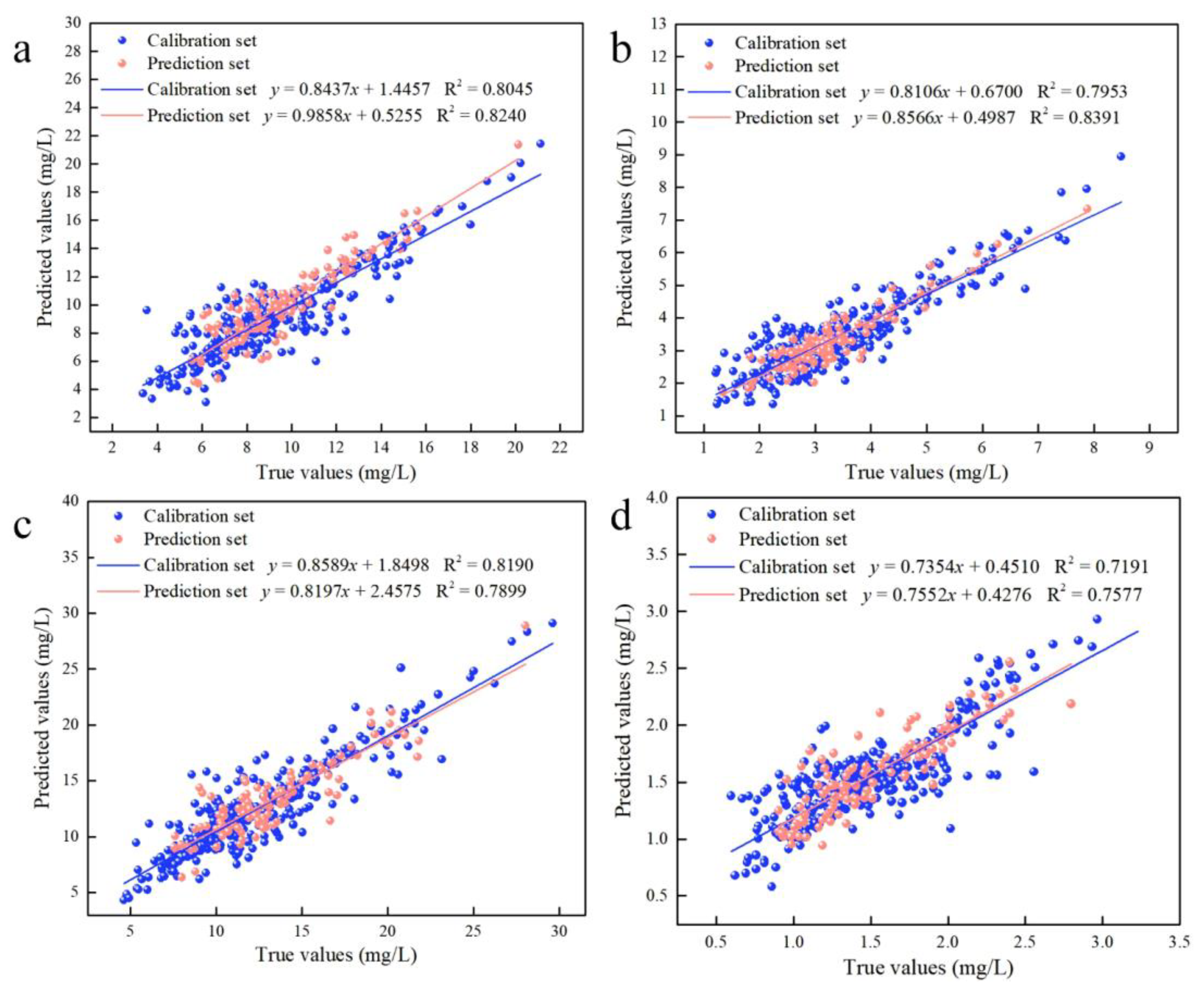

_{p}= 0.27, RPD = 2.03). The CARS–IRIV–PLSR model was created with the intention of directly expressing the pigment concentration through the prediction performance. The predicted and true values of the calibration set (326 samples) and prediction set (109 samples) are shown in Figure 3.

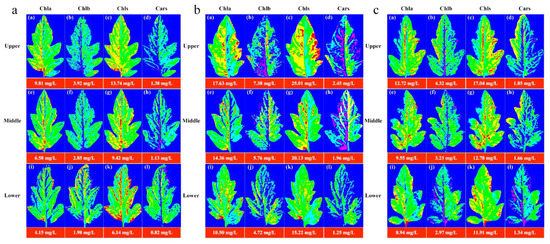

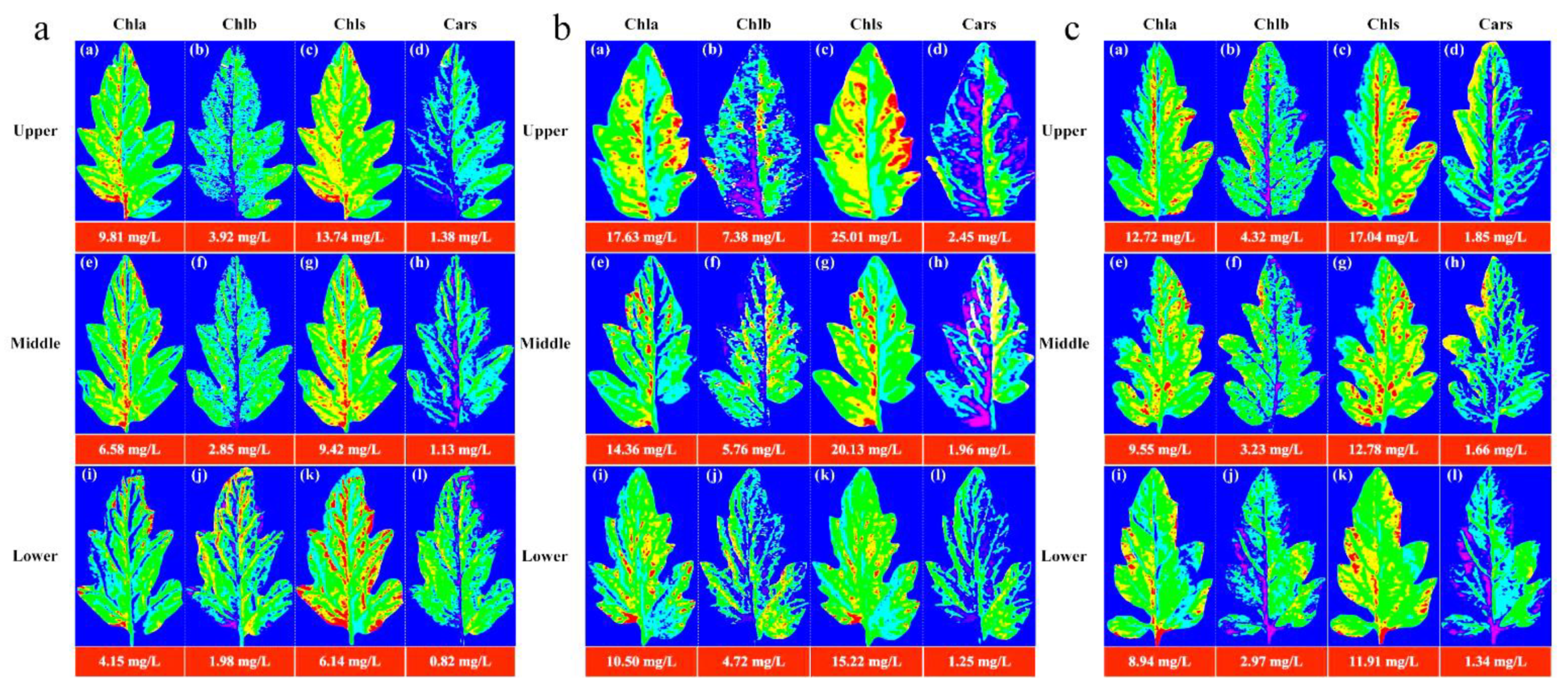

#### 2.5. Visualized Distribution of Leaf Pigments

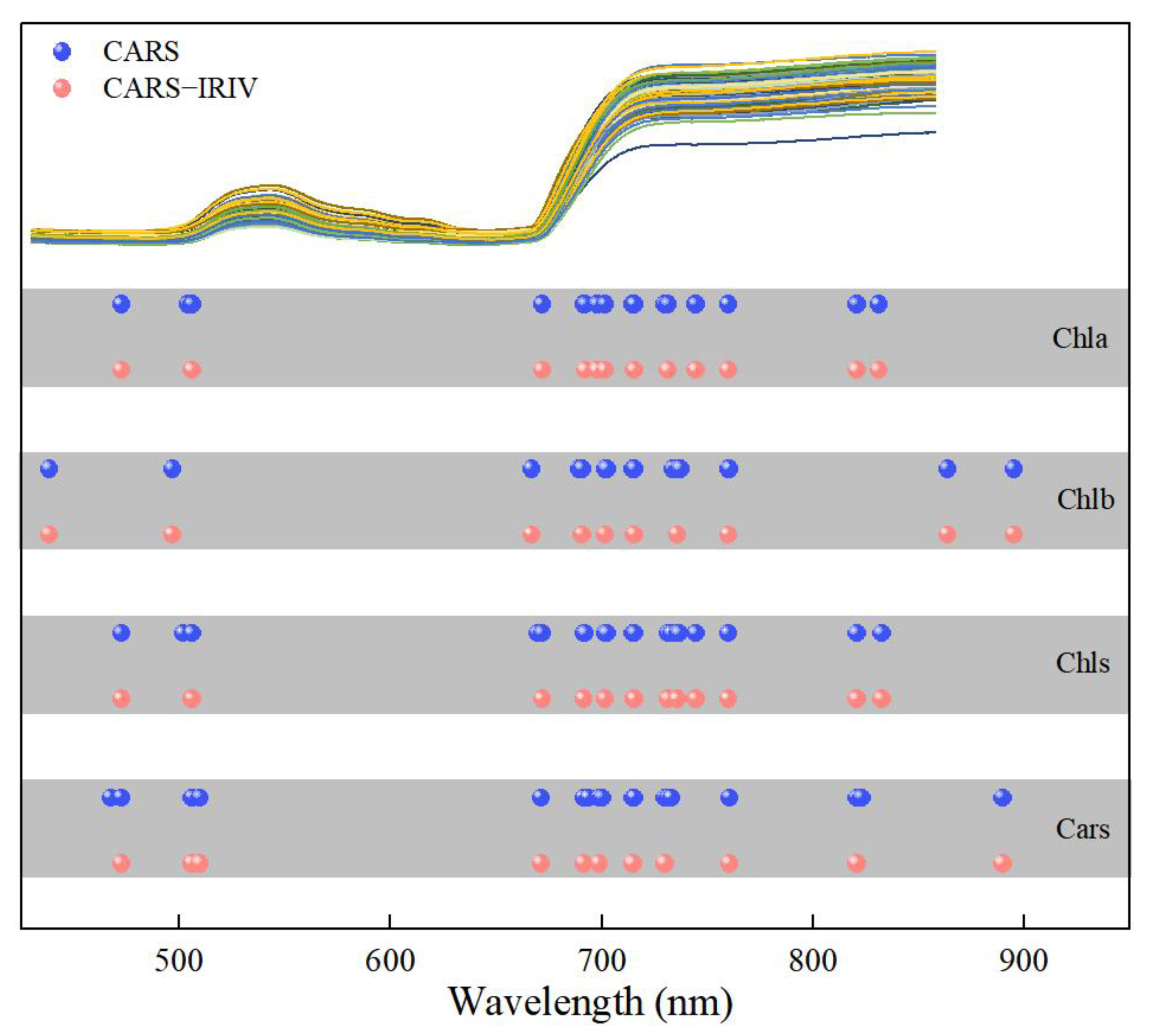

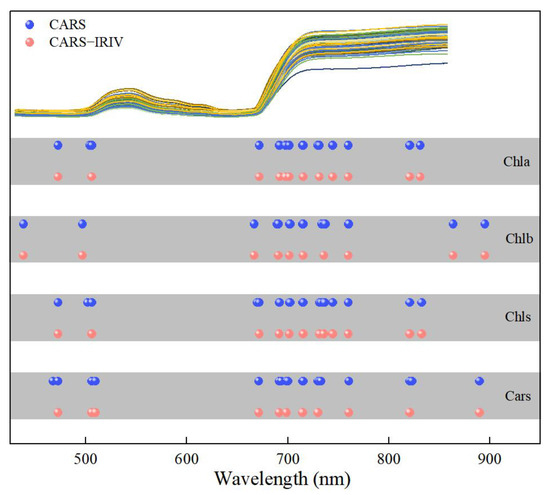

## 3. Discussion

_{2}inside the blade, the double frequency and triple frequency, as well as the combined frequency of the stretching vibration of the C–H group [40].

## 4. Materials and Methods

#### 4.1. Experimental Design and Sample Collection

^{2+}was supplemented with calcium fertilizer (Ca

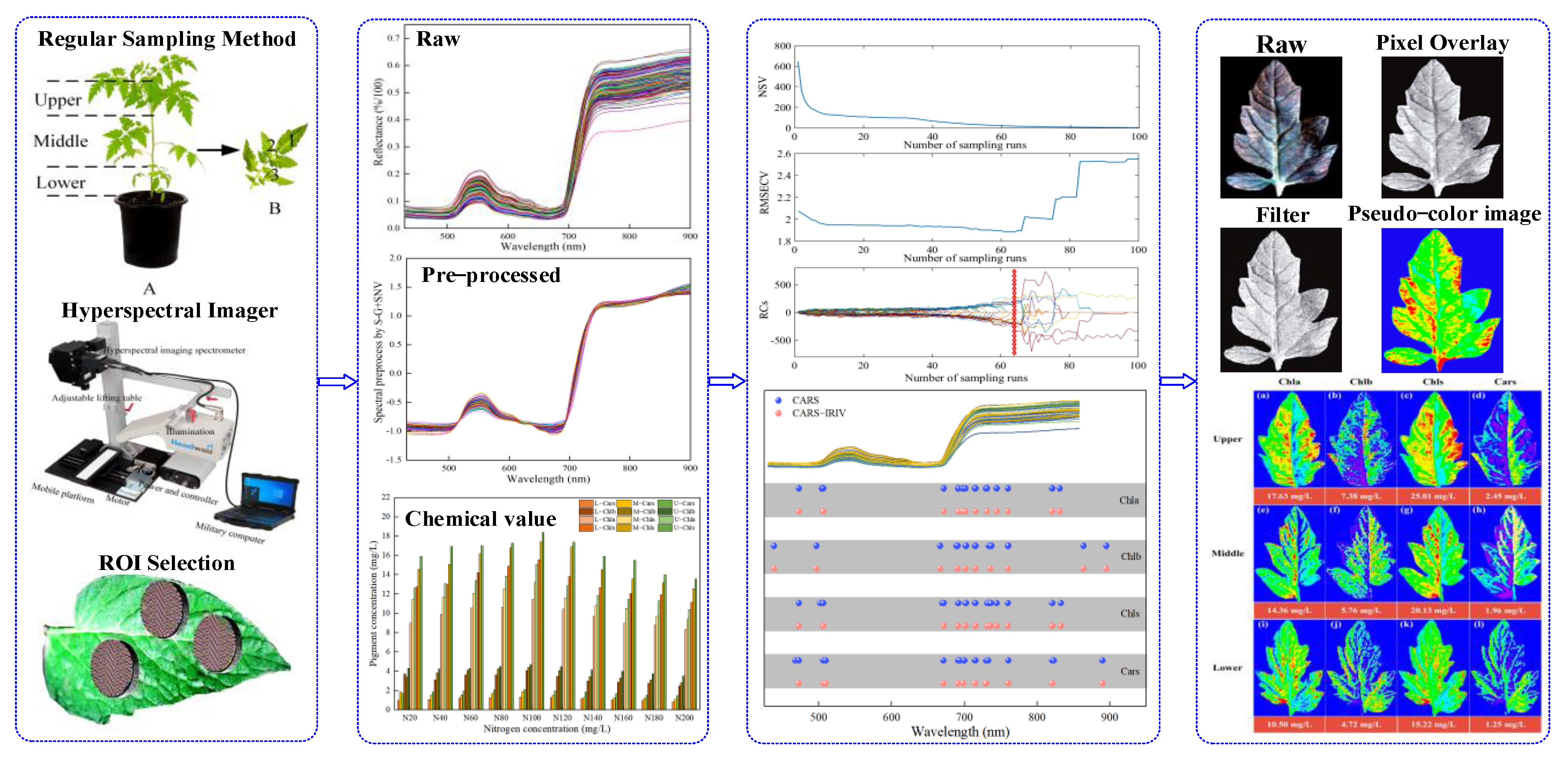

^{2+}≥ 94%, Green-Micro Power Crop Nutrition Co., Northamptonshire, UK) to keep the concentration constant. The nitrogen concentration was regulated using urea, and Table S4 shows its precise addition, EC and pH. The leaves were sampled at the “transplant-bloom” (seedling) stage. At this time, 10–11 branches extended from the main stem. As shown in Figure 1A, the leaves were arranged in descending order, wherein the 9–7 branch blades were classified as the upper leaf location (Upper), the 6–4 branch blades were the middle leaf location (Middle) and the 3–1 branch blades were the lower leaf location (Lower). Lycopersicum esculentum Mill is a “single-branch and leafiness” plant. Therefore, sample collection on each branch is referred to in Figure 1B. The leaves with uniform size and spreading were picked based on the sampling rule, with 6 leaves (1 sample) chosen from each leaf location for a total of 2610 leaves (435 samples). The samples were stored in sealed bags with sequential numbers and kept in a dry ice-filled incubator.

#### 4.2. Hyperspectral Image Acquisition

_{0}is the original hyperspectral image; R

_{w}is the white background image with the standard white calibration plate (>99.9% reflectance); R

_{b}is the dark background image with the lens cap closed (<0% reflectance).

#### 4.3. Chemical Measurement of Pigment Concentration

#### 4.4. Selection of ROI

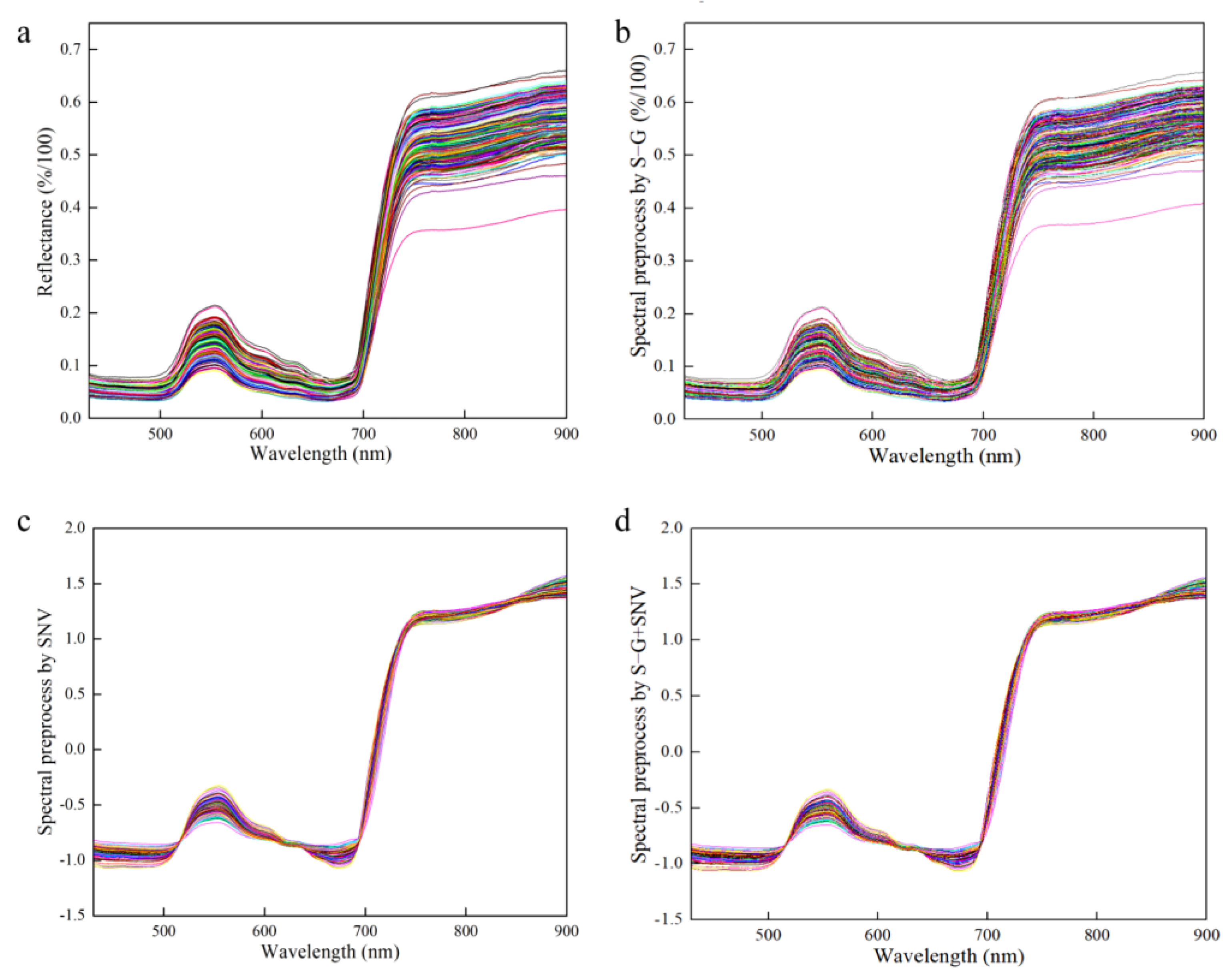

#### 4.5. Spectrum Pretreatment and Model Calibration

- Based on Monte Carlo sampling (MCS), a PLSR model is established by randomly selecting 80% of the calibration set of samples to obtain the regression coefficients |K
_{i}| (i = 1, 2, ⋯, p) for the i-th wavelength; - The exponentially decreasing function (EDF) is applied to eliminate the wavelength with smaller |K
_{i}|, and the retention rate of the variable is r_{j}= ae^{−bj}(j = 1, 2, ⋯, N). Among them, j represents the j-th MCS; N represents the number of MCS; a and b are constants, calculated by r_{1}= 1 and r_{N}= 2/p, the formula are as follows:$$a=(p/2{)}^{1/(N-1)}$$$$b=\mathrm{ln}(p/2)/(N-1)$$ - The variables are further filtered based on the adaptive reweighted sampling (ARS) technique. The variables were filtered by evaluating the weights ${w}_{i}=\left|{K}_{i}\right|/{\displaystyle \sum _{i=1}^{p}\left|{K}_{i}\right|}$ (i = 1, 2, ⋯, p);
- Repeat the above steps until the number of MCS reaches a predetermined value of N;
- The 5-fold root mean square error of cross-validation (RMSE
_{cv}) is used as the evaluation criterion. The values of the subset of variables obtained from each MCS are compared, and the subset of variables corresponding to the minimum RMSE_{cv}is selected as the optimal variable.

- The spectrum bands randomly generate an m × p matrix A containing only 0 and 1 (0 and 1 indicate whether the corresponding variables are involved in performing the modeling), with the same number of 0 and 1. The PLSR model is established in each row of matrix A. The RMSE
_{cv}obtained from the 5-fold cross-validation is used as the evaluation criterion. This obtains an m × 1 vector denoted as RMSE_{cv0}. Replace the 1 with 0 and the 0 with 1 in the i-th (i = 1, 2, ⋯, p) column of the A to obtain the matrix B. Similarly, a PLSR model is established in each row of the B to obtain an m × 1 vector denoted as RMSE_{cvi}; - Define Φ
_{0}and Φ_{i}to assess the importance of each variable with the following equations. The difference between the mean values of Φ_{0}and Φ_{i}is denoted as DM_{i}. If DM_{i}< 0, it is a strong or weak information variable; if DM_{i}> 0, it is an uninformative or interfering variable. A Mann-Whitney U-test is performed by defining p = 0.05 as the threshold. Finally, the variables are classified as strong information, weak information, uninformative and interfering information:$${\Phi}_{0K}=\left(\right)open="\{">\begin{array}{cc}{k}^{th}RMSEC{V}_{0}& if\text{}{A}_{ki}=1\\ {k}^{th}RMSEC{V}_{i}& if\text{}{B}_{ki}=1\end{array};$$ - In each iteration, strong and weak information variables are retained, and uninformative and interfering information variables are eliminated. Return to step 1. for the next iteration until only strong and weak information is left in the set of variables;
- Backward elimination is performed for t retained variables. First, a PLSR model is established for the t variables to obtain RMSE
_{cvt}. Then, a PLSR model is established for the t − 1 variables by eliminating the j-th (j = 1, 2, ⋯, t) variable to obtain RMSE_{cvj}. If RMSE_{cvj}is less than RMSE_{cvt}, the j-th variable is eliminated; otherwise, it is retained. Loop this process, and the remaining variables are the final selected characteristic variables.

_{c}

^{2}) and prediction (R

_{p}

^{2}), root mean square error of calibration (RMSE

_{c}) and prediction (RMSE

_{p}) and ratio performance deviation (RPD). When RPD > 2, it indicates that the model has a good prediction of the indicator. When 1.4 < RPD < 2, it indicates that the model has some ability to predict the indicator. When RPD < 1.4, it indicates that the model is unable to predict the indicator [47]. The MATLAB software (Ver. 2018a, MathWorks, Natick, MA, USA) was used to process and analyze the data.

#### 4.6. Visualization of Leaf Pigment

## 5. Conclusions

- Plants may experience various challenges in addition to nitrogen stress, such as salt stress and water stress. In the future, HSI technology can be integrated with other stress monitoring technologies to realize multi-stress joint diagnosis and to better comprehend the growing stage of plants;
- Combining the hyperspectrum, Raman spectrum and fluorescence spectrum to obtain multi-source data allows for the qualitative and quantitative analysis of the stress mechanism;
- HSI superpixel segmentation mostly targets images with a single scale and one mode. The superpixel segmentation of multi-scale and multi-modal pictures will receive more attention in future studies. Super-pixel segmentation uses end-to-end learning techniques to apply deep learning to enhance the accuracy and efficiency as it adapts to more complex image scenarios;
- HSI technique generates a significant amount of complicated data, necessitating the use of effective data processing and analysis algorithms. Future research can concentrate on streamlining data processing techniques to raise the precision and effectiveness of stress diagnosis;
- The primary focus of the current HSI technology is static images of plants; however, future advancements may provide dynamic monitoring to enable the continuous observation of the plant stress response at various periods and spatial scales;
- The primary requirement of the current HSI technology is massive imaging apparatus, which restricts its applicability in real-world field applications. Future research might concentrate on creating more lightweight imaging equipment that is easier to utilize in various settings.

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zeeshan, M.; Ahmad, W.; Hussain, F.; Ahamd, W.; Numan, M.; Shah, M.; Ahmad, I. Phytostabalization of the heavy metals in the soil with biochar applications, the impact on chlorophyll, carotene, soil fertility and tomato crop yield. J. Clean. Prod.
**2020**, 255, 120318. [Google Scholar] [CrossRef] - Putra, B.T.W.; Soni, P. Enhanced broadband greenness in assessing Chlorophyll a and b, Carotenoid, and Nitrogen in Robusta coffee plantations using a digital camera. Precis. Agric.
**2018**, 19, 238–256. [Google Scholar] [CrossRef] - Zhou, X.; Huang, W.; Zhang, J.; Kong, W.; Casa, R.; Huang, Y. A novel combined spectral index for estimating the ratio of carotenoid to chlorophyll content to monitor crop physiological and phenological status. Int. J. Appl. Earth Obs.
**2019**, 76, 128–142. [Google Scholar] [CrossRef] - Park, M.-H.; Sangwanangkul, P.; Baek, D.-R. Changes in carotenoid and chlorophyll content of black tomatoes (Lycopersicone sculentum L.) during storage at various temperatures. Saudi J. Biol. Sci.
**2018**, 25, 57–65. [Google Scholar] [CrossRef] [PubMed] - Zeb, A.; Imran, M. Carotenoids, pigments, phenolic composition and antioxidant activity of Oxalis corniculata leaves. Food Biosci.
**2019**, 32, 100472. [Google Scholar] [CrossRef] - Sonobe, R.; Miura, Y.; Sano, T.; Horie, H. Estimating leaf carotenoid contents of shade-grown tea using hyperspectral indices and PROSPECT–D inversion. Int. J. Remote Sens.
**2018**, 39, 1306–1320. [Google Scholar] [CrossRef] - Feng, H.; Chen, G.; Xiong, L.; Liu, Q.; Yang, W. Accurate digitization of the chlorophyll distribution of individual rice leaves using hyperspectral imaging and an integrated image analysis pipeline. Front. Plant Sci.
**2017**, 8, 1238. [Google Scholar] [CrossRef] - Soltanikazemi, M.; Minaei, S.; Shafizadeh-Moghadam, H.; Mahdavian, A. Field-scale estimation of sugarcane leaf nitrogen content using vegetation indices and spectral bands of Sentinel-2: Application of random forest and support vector regression. Comput. Electron. Agric.
**2022**, 200, 107130. [Google Scholar] [CrossRef] - Wang, Y.; Suarez, L.; Poblete, T.; Gonzalez-Dugo, V.; Ryu, D.; Zarco-Tejada, P. Evaluating the role of solar-induced fluorescence (SIF) and plant physiological traits for leaf nitrogen assessment in almond using airborne hyperspectral imagery. Remote Sens. Environ.
**2022**, 279, 113141. [Google Scholar] [CrossRef] - Adegoye, G.A.; Olorunwa, O.J.; Alsajri, F.A.; Walne, C.H.; Wijewandana, C.; Kethireddy, S.R.; Reddy, K.N.; Reddy, K.R. Waterlogging Effects on Soybean Physiology and Hyperspectral Reflectance during the Reproductive Stage. Agriculture
**2023**, 13, 844. [Google Scholar] [CrossRef] - Schmilovitch, Z.; Ignat, T.; Alchanatis, V.; Gatker, J.; Ostrovsky, V.; Felföldi, J. Hyperspectral imaging of intact bell peppers. Biosyst. Eng.
**2014**, 117, 83–93. [Google Scholar] [CrossRef] - Anwar, A.; Yu, X.; Li, Y. Seed priming as a promising technique to improve growth, chlorophyll, photosynthesis and nutrient contents in cucumber seedlings. Not. Bot. Hortic Agrobot.
**2020**, 48, 116–127. [Google Scholar] [CrossRef] - Ding, Y.; Zhang, Z.; Zhao, X.; Cai, W.; Yang, N.; Hu, H.; Huang, X.; Cao, Y.; Cai, W. Unsupervised Self-Correlated Learning Smoothy Enhanced Locality Preserving Graph Convolution Embedding Clustering for Hyperspectral Images. IEEE Trans. Geosci. Remote Sens.
**2022**, 60, 1–16. [Google Scholar] [CrossRef] - Ding, Y.; Zhang, Z.; Zhao, X.; Hong, D.; Cai, W.; Yang, N.; Wang, B. Multi-scale receptive fields: Graph attention neural network for hyperspectral image classification. Expert. Syst. Appl.
**2023**, 223, 119858. [Google Scholar] [CrossRef] - Chen, Z.; Wu, G.; Gao, H.; Ding, Y.; Hong, D.; Zhang, B. Local aggregation and global attention network for hyperspectral image classification with spectral-induced aligned superpixel segmentation. Expert. Syst. Appl.
**2023**, 232, 120828. [Google Scholar] [CrossRef] - Wong, C.Y.; D’Odorico, P.; Bhathena, Y.; Arain, M.A.; Ensminger, I. Carotenoid based vegetation indices for accurate monitoring of the phenology of photosynthesis at the leaf-scale in deciduous and evergreen trees. Remote Sens. Environ.
**2019**, 233, 111407. [Google Scholar] [CrossRef] - Yun, Y.-H.; Bin, J.; Liu, D.-L.; Xu, L.; Yan, T.-L.; Cao, D.-S.; Xu, Q.-S. A hybrid variable selection strategy based on continuous shrinkage of variable space in multivariate calibration. Anal. Chim. Acta
**2019**, 1058, 58–69. [Google Scholar] [CrossRef] - Zheng, K.; Li, Q.; Wang, J.; Geng, J.; Cao, P.; Sui, T.; Wang, X.; Du, Y. Stability competitive adaptive reweighted sampling (SCARS) and its applications to multivariate calibration of NIR spectra. Chemometr. Intell. Lab.
**2012**, 112, 48–54. [Google Scholar] [CrossRef] - Li, H.; Liang, Y.; Xu, Q.; Cao, D. Key wavelengths screening using competitive adaptive reweighted sampling method for multivariate calibration. Anal. Chim. Acta
**2009**, 648, 77–84. [Google Scholar] [CrossRef] - Tang, G.; Huang, Y.; Tian, K.; Song, X.; Yan, H.; Hu, J.; Xiong, Y.; Min, S. A new spectral variable selection pattern using competitive adaptive reweighted sampling combined with successive projections algorithm. Analyst
**2014**, 139, 4894–4902. [Google Scholar] [CrossRef] - Yun, Y.-H.; Wang, W.-T.; Tan, M.-L.; Liang, Y.-Z.; Li, H.-D.; Cao, D.-S.; Lu, H.-M.; Xu, Q.-S. A strategy that iteratively retains informative variables for selecting optimal variable subset in multivariate calibration. Anal. Chim. Acta
**2014**, 807, 36–43. [Google Scholar] [CrossRef] - Deng, B.-C.; Yun, Y.-H.; Liang, Y.-Z.; Yi, L.-Z. A novel variable selection approach that iteratively optimizes variable space using weighted binary matrix sampling. Analyst
**2014**, 139, 4836–4845. [Google Scholar] [CrossRef] [PubMed] - Vahtmäe, E.; Kotta, J.; Orav-Kotta, H.; Kotta, I.; Pärnoja, M.; Kutser, T. Predicting macroalgal pigments (chlorophyll a, chlorophyll b, chlorophyll a+ b, carotenoids) in various environmental conditions using high-resolution hyperspectral spectroradiometers. Int. J. Remote Sens.
**2018**, 39, 5716–5738. [Google Scholar] [CrossRef] - Wang, Y.; Hu, X.; Jin, G.; Hou, Z.; Ning, J.; Zhang, Z. Rapid prediction of chlorophylls and carotenoids content in tea leaves under different levels of nitrogen application based on hyperspectral imaging. J. Sci. Food Agric.
**2019**, 99, 1997–2004. [Google Scholar] [CrossRef] [PubMed] - Che, S.; Du, G.; Zhong, X.; Mo, Z.; Wang, Z.; Mao, Y. Quantification of Photosynthetic Pigments in Neopyropia yezoensis Using Hyperspectral Imagery. Plant Phenomics
