Article

Genebanks at Risk: Hazard Assessment and Risk Management of National and International Genebanks

by
Theresa Herbold
1,* and
Johannes M. M. Engels
2
1
Faculty of Agricultural Sciences, University of Hohenheim, 70599 Stuttgart, Germany
2
Alliance of Bioversity International and CIAT, 00153 Rome, Italy
*
Author to whom correspondence should be addressed.
Plants 2023, 12(15), 2874; https://doi.org/10.3390/plants12152874
Submission received: 29 June 2023 / Revised: 30 July 2023 / Accepted: 1 August 2023 / Published: 4 August 2023

Abstract

:
Genebanks are crucial for safeguarding global crop diversity but are themselves exposed to several risks. However, a scientific basis for identifying, assessing, and managing risks is still lacking. Addressing these research gaps, this study provides risk analysis for three key risk groups: natural hazards, political risks, and financial risks, carried out on a sample of 80 important national and international genebanks, comprising at least 4.78 million accessions or roughly 65% of the reported total of ex situ conserved accessions worldwide. The assessment tool of Munich Re “Natural Hazards Edition” allowed a location-specific comparison of the natural hazard exposure. Results showed that genebanks in the Asia-Pacific region are most exposed to natural hazards, while institutions in African and some Asian countries are rather vulnerable to political risks. Financing is a major problem for national genebanks in developing countries, whereas the Global Crop Diversity Trust achieved considerable financial security for international genebanks. Large differences in the risk exposure of genebanks exist, making a location- and institution-specific risk assessment indispensable. Moreover, there is significant room for improvement with respect to quality and risk management at genebanks. Transferring risks of genebanks to third parties is underdeveloped and should be used more widely.

1. Introduction

In the context of protecting agrobiodiversity, the conservation of plant genetic resources (PGR) has become an important pillar whereby ex situ conservation realized off-site in genebanks is the principal approach [1,2]. In about 1750 genebanks and collections, nearly 7.4 million plant accessions are maintained worldwide [3].
Genebanks are essential for conserving and making available PGR not only for current progress in plant breeding but also as a treasure for use by future generations. Despite the growing worldwide awareness of this potential, it is often overlooked that genebanks themselves are subject to several challenges and risks that might jeopardize their physical integrity. Past incidents and events resulting in the partial loss of important crop collections or even entire genebanks have shown this drastically. A recent example is the ICARDA genebank, which was originally located in Aleppo, Syria. As a consequence of the Syrian civil war and severe combat operations in Aleppo starting in 2012, the genebank had to be relocated in 2016 to Lebanon and Morocco. Part of the germplasm collection could be restored, with safety duplicates preserved at international genebanks and at the Svalbard Global Seed Vault (SGSV) in Spitsbergen, Norway [4,5]. In 2011, the national genebank of Thailand was flooded, which caused the loss of some of the 20,000 unique rice accessions maintained there [5]. The national genebank of the Philippines at Los Baños was damaged by flooding due to a typhoon in 2006 and hit again by a fire in 2012 [5,6]. Ukraine’s seed bank in Kharkiv was at high risk as the city has been a staging ground of military operations since the start of the Russian invasion of Ukraine in February 2022 [7]. In a consolidated effort, the collection was relocated in 2023 [8].
Genebanks are exposed to manifold endogenous and exogenous risks. However, a systematic and comparative assessment of their exposure, risks, and vulnerabilities is still missing. Also, risk management at genebanks—an emerging topic—has been barely studied scientifically. This study aims to fill these research gaps based on a selection comprising the world’s most important genebanks.

2. Objectives and Methodology

The objectives of this study were twofold: (1) to compare the most important genebanks worldwide with respect to their exposure to natural hazards and political and financial risks, and (2) based on this risk analysis, to develop risk management strategies for genebanks.
Based on these objectives, two methodological steps have been undertaken:
  • Developing a risk analysis and risk management framework suitable for genebanks;
  • Applying this framework to a selected, representative sample of the most important germplasm holdings worldwide.

2.1. Risk Analysis and Risk Management Framework

A methodology was developed following definitions, concepts, and frameworks for risk analysis and management used in the scientific literature of environmental hazard appraisals [9] and entrepreneurial risk management approaches [10], which were deemed the most suited for evaluating genebanks. The term risk management was used as defined by Wolke [10], involving four steps. These were refined and interpreted for this study as follows:
Step 1: Risk identification
Based on a literature review, expert interviews, and own assessments, the most important risks were classified as follows:
  • Natural hazards (exogenous risks);
  • Political risks (exogenous risks);
  • Financial risks (exo- and endogenous risks).
Step 2: Risk measurement and analysis
The definition of risk as proposed by Dalezios (2017) [9] was used in this study:
r i s k = h a z a r d × v u l n e r a b i l i t y × a m o u n t   o f   e l e m e n t s   a t   r i s k
The term hazard in the above formula is covered by the exposure assessment under Section 3 and is a main part of the study. For exogenous risks, a site-specific quantitative and comparative analysis of the sample of genebanks is provided for natural hazards and a country-specific analysis for political risks. Financing risks are discussed in qualitative and rather general terms due to a lack of data.
The term vulnerability of a genebank, i.e., “the extent to which an element at risk can withstand the impact of the hazard” [11] (p. 7), is strongly influenced by its conservation mandate (crops conserved and conservation methods used), the infrastructure (e.g., adherence to building codes), institutional organization, and on-site management. Assessing the vulnerability for each of the sampled genebanks was beyond the scope of this study; therefore, it is covered only in general terms (please note that the OECD [11] states, “Vulnerability … is even more difficult to quantify. … The scarcity and inconsistencies of vulnerability information often makes it the weakest link in a risk assessment” (pp. 7–8).).
The term amount of elements at risk comprises the buildings and facilities, personnel, and the germplasm collections of a given genebank.
Step 3: Risk steering
In this step, the strategies and instruments to control risks are discussed, especially risk prevention measures and—in case risks cannot be avoided or prevented—risk transfer solutions. Risk transfer means to transfer the financial consequences of a risk from the risk owner to a third party through mechanisms like insurance or funds [12].
Step 4: Risk controlling
This step deals with the question of how risks can be controlled to guarantee that they are properly addressed and managed. However, it is not a focus of this study, but it will be included in order to give a comprehensive overview on the management of risks inside genebanks.
Steps 3 and 4 will be combined under the term risk management and dealt with in Section 4.

2.2. Methodology for the Selection of Genebanks

This study aimed to cover the world’s most important ex situ holdings of plant genetic resources for food and agriculture (PGRFA) in terms of conserved accessions that are maintained by genebanks, including seed and field genebanks, as well as in vitro and cryopreservation facilities at international, regional, and national levels. Currently, only crop-specific rankings of germplasm collections are available, e.g., by the FAO [3] or through the global crop conservation strategies by the Crop Trust [13]), but s no global ranking of the 1750 genebanks worldwide with respect to their overall collection size in terms of number of accessions [14]. Although the number of accessions does not always correspond with the importance of the PGRA stored at a genebank, it is presently one of the least complex and, hence, most operational parameters for a ranking of genebanks and, therefore, used here. Unfortunately, there are still no good measurements for the total diversity that is included in a collection.
To overcome above mentioned challenges, a sampling approach was developed that was orientated towards the organizational structure of genebanks, in particular differentiating between international and regional versus national genebanks. The classification is according to the WIEWS [15]. International genebanks comprise the CGIAR genebanks, the World Vegetable Center and the global safety duplication site SGSV. Regional genebanks have a mandate for conserving PGR in specific geographical world regions (e.g., SADC Plant Genetic Resources Centre (SRGB) in Zambia for Southern Africa). National genebanks refer to holdings at the country level.
Key information for the sampling was compiled from two sources: the WIEWS database [15] and the FAO’s second report on The State of the World’s Plant Genetic Resources for Food and Agriculture [3] as well as the associated country reports. The data analysed in this study stems from the year 2020 and comprises accessions of plant genetic resources (including agricultural crops and its crop wild relatives) conserved under medium- and long-term storage [15]. FAO (2010) and the respective country reports allow identification and confirmation of the relevance of the sampled institutions. In a final step—after the genebanks have been sampled—the precise location of the selected institutions was validated via satellite images of DigitalGlobe/GeoEye.
The identification and selection of genebanks at international and regional levels proved to be without major challenges due to the limited number of institutions worldwide. In contrast to that, the relevant national genebanks were difficult to identify and assess due to the lack of concise and comparable information across the large number of countries, national institutions, and subsidiaries. In the following, the sampling approach of these genebanks is outlined, differentiating between international, regional, and national genebanks.
Selection of international and regional genebanks
International and regional genebanks typically aim for long-term conservation and facilitated access to accessions, predominantly of major food crop genepools that are in the public domain. Consequently, it was deemed most appropriate to comprise in the sample all 13 international genebanks and 8 regional genebanks. In addition, the safety duplication backup facility SGSV at Svalbard in Norway was included and categorized as an international genebank (resulting in 14 international genebanks). Being the world’s largest backup facility for seeds designed with the highest security standards: located at 130 m above sea level in a mountain with permafrost conditions and an additional cooling system bringing the seed storage temperature to minus 18 °C [16]. Electricity is provided by a public power plant or in case of power outage by generators [16]. Despite this, climate change is imposing new threats, e.g., in 2022, ice melted, and water entered the entrance section of the facility [17]. Nevertheless it can be regarded as a benchmark with respect to safety characteristics.
Selection of national genebanks
The selection was performed in different steps following specific criteria:
  • Only state-managed and publicly funded national genebanks were included in the sample.
  • The selection of national genebanks was performed via the identification of the most important agricultural countries using their gross production value for crops (GPV) and the cropping area. The latter was based on two FAO statistics: (1) the total area harvested and (2) the area of land used for agriculture. This approach followed the underlying rationale that a country that is an important agricultural producer is likely to possess a well-established agricultural (research) infrastructure, including facilities for the conservation of plant genetic resources. The first criterium, the GPV, reflects the economic value of the national agricultural sector, while the cropping area refers to the spatial importance of agriculture. The data were accessed via FAOSTAT [18]. Thirty-six countries were selected.
  • After selection of the countries, the most important ex situ holdings for PGRFA at the national level had to be identified. For this step, the WIEWS database, the second report on The State of the World’s Plant Genetic Resources for Food and Agriculture, and relevant country reports were consulted, and an additional web research was conducted, among others, to confirm that the sample comprised only state-managed genebanks. In countries with a decentralized conservation system, more than one location was included in the sample.

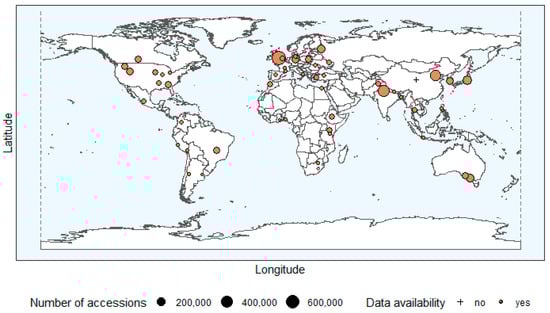

The result of the above sampling approach for national genebanks was 58 national genebanks in the selected 36 countries, comprising a total of at least 3,857,013 accessions (Please note: For the Chinese duplication genebank, information about the collection size was not available. The Nottingham Arabidopsis Stock Center (NASC) was included in the sample due to its importance for research and development in plant genetics and breeding, despite the fact that the majority of the accessions is not PGRFA.), and is shown in Figure 1, which indicates that a relatively good geographical distribution was achieved by this sampling approach. Together with the selected international and regional genebanks, the sample consists of 80 genebanks in total (see Appendix A).

3. Hazard Assessment of Genebanks

3.1. Natural Hazards

The natural hazard assessment was done in cooperation with Munich Reinsurance Company (Munich Re), which provided the results of the location-specific natural hazard assessments of the 80 genebanks using their internal tool “Natural Hazards EditionThe tool allows single-risk assessments for 12 natural hazards and geospatial data analysis. It is based on the database NatCatService [19] and used by Munich Re worldwide for their single risk assessments. (Please note that natural hazard assessment tools are not publicly available. Therefore, presently there is no benchmark available to assess the quality of the “Natural Hazards Edition” tool. In general terms, OECD [11] states in this respect: “The need for better risk assessment data and tools therefore remains high” (p. 3).)
Twelve natural hazards—those considered the most relevant—were analysed and grouped into four categories:
  • Geological hazards: earthquake, volcano;
  • Hydrological hazards: tsunami, storm surge, river, and flash flood;
  • Meteorological hazards: tropical cyclone, extratropical storm, tornado, hailstorm, and lightning;
  • Climatological hazards: wildfire.
The natural hazard assessment was done in cooperation with Munich Reinsurance Company (Munich Re), which provided the results of the location-specific natural hazard assessments of the 80 genebanks using their internal tool “Natural Hazards Edition”. The tool allows single-risk assessments for 12 natural hazards and geospatial data analysis. It is based on the database NatCatService [19] and used by Munich Re worldwide for their single risk assessments. (Please note that natural hazard assessment tools are not publicly available. Therefore, presently there is no benchmark available to assess the quality of the “Natural Hazards Edition” tool. In general terms, OECD [11] states in this respect: “The need for better risk assessment data and tools therefore remains high” (p. 3).)
The hazards are represented as ordinal data in discrete categories following a multinomial distribution. Categories are defined individually for each hazard. The hazard assessment was conducted in three steps: (1) a single hazard assessment, done individually per hazard and aggregated across the sample of genebanks, (2) a hazard assessment per genebank location, and (3) the calculation of a global risk score per genebank location. Here, only the results of steps 2 and 3 are presented and discussed in detail.
Table 1 presents the results of step 2 exemplarily for international genebanks (for all genebanks, see Supplementary Materials). From a risk management perspective, attention must be especially placed on locations with high to extreme exposure to individual hazards. These have considerable exposure to either one major natural hazard (e.g., earthquake for ICARDA in Lebanon and CIP in Peru) or to multiple hazards (e.g., volcano, flood, and tropical cyclones at IRRI, Philippines, or earthquake, volcano, hail, and lightning at ILRI in Ethiopia). However, because the hazard classes are not directly comparable across hazards, step 3 of the analysis is required for a comparative analysis of the hazard exposure across genebank locations.
For a comprehensive overview of a location’s exposure to natural hazards, Munich Re developed a weighted global risk index and a risk score for “ordinary commercial and industrial business” [20]. Because genebanks have similar risk characteristics as “ordinary commercial and industrial business”, the index and score can be used here. The global risk index and risk score build upon the hazard zones of the exposure assessment, loss expectations, and expert knowledge of Munich Re to weigh the hazards adequately [20]). As this is confidential information, Munich Re could not disclose it in detail [20]. Despite this limitation, the risk index and score are considered useful for this analysis, as it allows a quantitative comparison of the risk to natural hazards across locations.
The global risk index is a quantitative value calculated as the sum of three individual risk indices that are considered globally the most important ones: the earthquake risk index (comprising earthquake, volcano, and tsunami risks), the storm risk index (comprising tropical cyclone, extratropical storm, hail, tornado, and lightning risks), and the flood risk index (comprising river flood, flash flood, and storm surge risks) [21]. The global risk index ranges from 0 (no risk) to 300 (extreme risk), whereby a risk index of 300 is of theoretical nature, reached only if all three hazard groups would have the maximum value. Therefore, values above 200 are considered highly unlikely in reality [21].

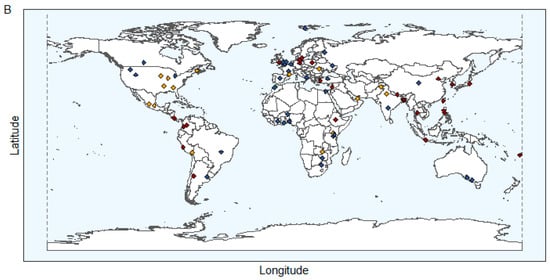

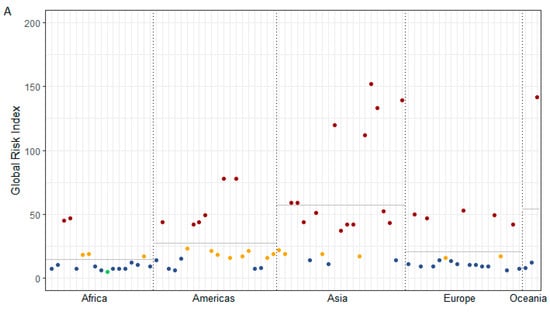

The results of the exposure analysis for the sample of genebanks are shown in Figure 2 (the natural hazard exposure assessment with the respective risk indices and scores are documented for all genebanks in the Supplementary Materials). On average, the analysed genebanks have a risk index of 31.75 (arithmetic mean) and a median of 17. The lowest risk index has been calculated for the subsidiary of the international genebank ICARDA in Morocco (score = 5), and the highest index for the national genebank of the Philippines (PHL129) with a score of 152. Regionally, genebanks in Asia and Oceania are the most exposed, having a global risk index with an arithmetic mean of 57 and 54, respectively. The global risk index for the assessed genebanks on the African continent is the lowest, with an arithmetic mean of 14, followed by Europe with 21 and the American continent with 27. Yet, considerable differences across locations within a given continent exist.
Based on the global risk score, 35 genebank locations (44% of the 80 sampled genebanks) were classified with a low (one location) to medium risk (34 locations); 17 genebank locations (21%) have a high and 28 (35%) an extreme risk score. Most of the genebanks with an extreme risk score are located in Asia (14), followed by the Americas (6) and Europe (5). In percentage terms, two-thirds of the assessed Asian genebank locations are classified with an extreme global risk score. In Oceania, 33% of the genebank locations are rated with an extreme risk; in the Americas, 30%, and in Europe, 26%. The lowest share of institutions exposed to extreme risks can be found in Africa, where only 12% of the African genebank locations are classified with the highest risk score 4.
To conclude, from Figure 2, it is evident that the risk exposure varies spatially to a great extent.

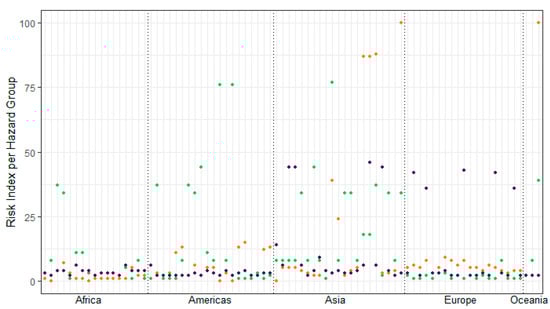

Figure 3 shows the risk indices for the three hazard groups. It illustrates that the exposure to earthquakes is most relevant for genebanks in the Americas and, to a lower extent, for Asian and African locations. In Europa, flood risks are the most important, while Asian and Oceanian genebanks are exposed to all three hazard groups, amongst which storm is classified the highest, with extremely high risk indices.

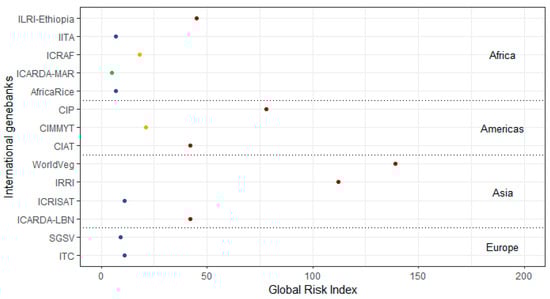

Figure 4 gives a detailed analysis for the respective global risk indexes for international genebanks. Six genebanks are classified with the highest risk. Among these, the WorldVeg in Taiwan is the most exposed institution with a global risk index of 139, followed by IRRI in the Philippines (global risk index = 112) and CIP in Peru (global risk index = 78). In addition to Figure 4, three regional genebanks show an extreme high risk score. For the regional genebank CePaCT in Fiji, an overall risk index of 142 has been calculated, one of the highest exposed institutions of the entire group of sampled genebanks. Also, the regional genebanks CATIE in Costa Rica and NORDGEN in Sweden show a high risk, with an index of 49 and 42, respectively. The safety backup facility SVSG in Svalbard shows a comparable low exposure to natural hazards (with a risk index of 9). As its exposure is mainly driven by storm events, this is of minor relevance because the building’s infrastructure is mostly located underground and, therefore, has a very low vulnerability to storm.

3.2. Political Risks

Due to the complex nature of political risks, they have been analysed at the country level using two indicators: the Worldwide Governance Indicator (WGI), published by the World Bank [22], and the Fragile States Index (FSI), published by The Fund for Peace [23]. To account for possible between-year differences, the six-year average from 2015 to 2020 was calculated for each of the indicators.
The WGI covers six dimensions of governance: (1) voice and accountability, (2) political stability and absence of violence, (3) governance effectiveness, (4) regulatory quality, (5) rule of law, and (6) control of corruption [24]. The indicators are expressed on a scale from −2.5 (weak governance) to +2.5 (strong governance), centred around 0. For this study, all WGI dimensions were considered to be of relevance when assessing political risks for genebanks. Consequently, a total WGI score was calculated as the unweighted average across the six dimensions, also ranging from −2.5 to +2.5.
The FSI by the Fund for Peace assesses the risk of a state failure based on a total score ranging from 1 (low risk) to 120 (high risk). It is calculated as the unweighted sum of twelve indicators covering five aspects of political stability: cohesion, economic, political, social, and cross-cutting indicators [23]. For this study, the total score was used.

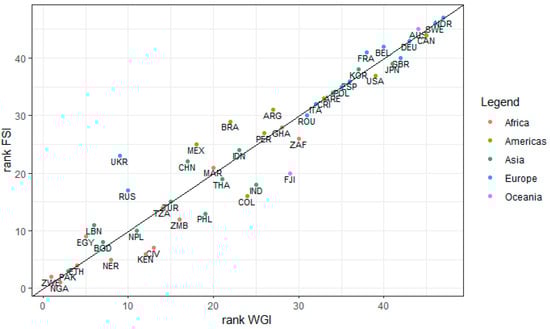

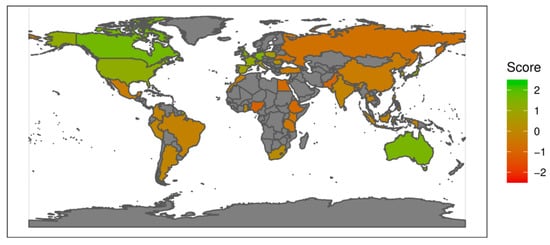

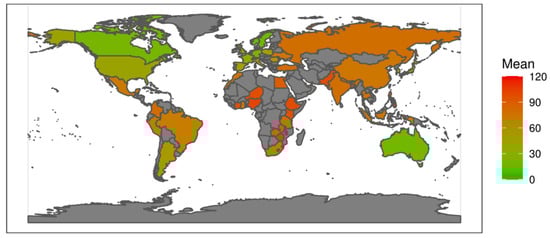

The results are illustrated in Figure 5 for the WGI indicator and in Figure 6 for the FSI indicator, using score colours for all 47 countries where the sampled genebanks are located. This gives a visual impression pointing to a good concurrency of the two indicators, despite the methodological differences of the indicators and general methodological challenges associated with quantifying political risks. The concurrency is further confirmed by Figure 7, providing a ranking of the sampled countries for these two indicators. The countries most at risk are ranked highest (left lower corner in Figure 7), rising to the most stable nations (right upper corner). From this, it becomes apparent that the two indicators coincide for the majority of the countries relatively well, i.e., graphically, the countries are close to the plotted line through the origin.
Overall, African and some Asian countries were assessed with a high political instability, whereas general European (except for Ukraine and the Russian Federation) and North American countries, particularly Canada and USA, show a high political stability. Notably, some important international genebanks are located in countries assessed with a high political risk: IITA in Nigeria, ILRI in Ethiopia, ICARDA in Lebanon, ICRAF in Kenya, and AfricaRice in Côte d’Ivoire.

3.3. Financial Risks

Financing constraints, implying an insufficient level of funding and non-reliability of funds, are a major threat to sustainable PGR conservation, as they adversely affect genebank operations, functioning, and risk management. Based on the literature review and expert interviews, a tentative qualitative exposure ranking (highest to lowest financial risk) can be given as follows:
  • National genebanks in developing countries;
  • National genebanks in emerging economies and some developed countries with decentralized structures (decentralized structures seem to be more vulnerable, as their funding often comes from different sources, e.g., besides central, also regional governments) and weak national coordination;
  • International CGIAR genebanks;
  • National genebanks in developed countries with centralized management or decentralized structures with strong national coordination.
In general, information on the actual and required budget per genebank, as well as on the nature and provenance of funds, is scarce. Therefore, a thorough analysis of the financial situation of the sampled genebanks could not be carried out. However, it can be noted that the international genebanks have—in particular, through the professional work of the Crop Trust operating the Crop Diversity Endowment Fund—a stable financial backbone, whereas the situation of national genebanks is very diverse. It depends on the organizational and management structure (e.g., centralized vs. decentralized), the overall state budget, and the priority-setting of national governments.

4. Risk Management at Genebanks

After the above-described assessment of risks and hazards, in a further step, strategies and instruments to manage risks should be addressed. There is a global tendency toward an increased exposure to hazards—especially to natural hazards, largely as a consequence of climate change and with respect to political risks due to increased international instability. Therefore, risk steering and controlling are becoming more and more critically important and should become a core activity for secured PGR conservation at genebanks. Hence, the development of criteria and standards for an effective and efficient risk management, as well as respective staff training, will be essential. Two areas are of particular importance: (1) risk prevention and mitigation and (2) risk transfer.

4.1. Specific Risk Prevention and Mitigation Strategies for Genebanks

Risk prevention aims at avoiding emerging and existing risks from materializing, while the objective of risk mitigation is to reduce the impact of hazardous events [25]. Hence, both have a prospective character. For managing specifically exogenous risks at genebanks, two important strategies can be identified: (1) increasing resilience of infrastructure and (2) safety duplication of accessions [6,26,27,28].
Increasing resilience of infrastructure
Increasing the resilience of infrastructure, e.g., buildings, technical facilities, and IT infrastructure, mitigates the impact of natural hazards, electricity outages, and malfunctioning of technical devices. Based on the literature review, expert interviews, and own assessments, Table 2 has been compiled, which summarizes the most important risk control measures.
For the twelve assessed natural hazards, the infrastructural standards are suggested according to Table 3. Here, only the genebanks that are part of the sample and have been assessed with the highest exposure to the respective natural hazard are mentioned. Especially for these genebanks, the standards are of high priority. However, the suggested measures are obviously not limited to these genebanks only.
It should be highlighted that most of the above-mentioned risk control measures apply to seed genebanks as well as in vitro and cryopreservation facilities. In addition, for in vitro conservation, a high emphasis needs to be put on the control of technical installations and equipment, as specific temperature and light requirements have to be met. A. W. Ebert (personal communication, 25 July 2022) [39] points to the risk of high temperatures above 40 °C; if the air conditioning is defective, this could put the entire in vitro collection in danger. By contrast, for field genebanks, specific risk control measures are needed, as they are exposed to additional hazards (e.g., pests, diseases, theft and animal damages, drought, and flooding). Most of these are difficult to control in the field, so the location of the genebank and protective infrastructure like fences, hail nets, and irrigation are crucial [33,39,47].
If a genebank will be constructed new or renovated it is recommended that a thorough exposure and vulnerability assessment is conducted beforehand and that the respective building codes are applied. As part of such an assessment, the risk of pathogen pressure at a specific location should also be considered, as this can be mitigated substantially through choosing a genebank’s location; for instance, in no cropping areas or dry areas to lower the disease pressure on seeds.
Safety duplication of orthodox seeds
Maintaining safety duplicates of accessions at two or even three different locations in another country and possibly on another continent [47] is an important risk management strategy in ex situ conservation. It has proven to be effective already in the past to restore lost accessions or even entire collections (e.g., of ICARDA in Syria). Therefore, it is promoted by stakeholders and researchers and widely applied at national and international genebanks—yet at a varying level [3,6,26,28].
As per the FAO Genebank Standards, most genebanks should have safety duplication arrangements with one or more institutions, including international, regional, and national genebanks, as well as the SGSV [3]. Preferably so-called black box agreements are applied, meaning that the recipient institution conserves the duplicate but has neither rights over it nor further obligations (i.e., is not responsible for viability testing and is not allowed to regenerate, use, or distribute the material if not authorized by the depositor) [13,28].
Genebanks have adopted different strategies: either a system of duplicates (e.g., the IPK in Germany where accessions are safety duplicated only at SGSV) [48] or of triplicates (e.g., the Dutch CGN where accessions are safety duplicated at another national genebank and at SGSV) [3,33,35,39]. Moreover, duplication at another active genebank is a valid approach. This means that the collection is not only stored for conservation but also actively used.
These risk mitigation strategies of safety duplicates come at a certain cost, requiring substantial financial resources, sufficient storage capacities, legal and institutional agreements, and a good documentation and information system [28,33,35,49]. This points to an important implication for the global conservation system: the decision of what material should be safety duplicated requires a prioritization (although it is desirable that all or at least the majority of accessions of a collection are safety duplicated, this is often not possible because of financial constraints). This implies a complex value judgment based on a thorough assessment of the importance and value of individual accessions. At the German genebank IPK and at Plant Gene Resources of Canada, this prioritization is purely governed by logistics, i.e., only recently multiplied material is sent to SGSV [33], but over time, the whole collection will be duplicated there.
Another important limitation is the high level of unintended duplicates within collections. The FAO (2010) estimates that only between 25 to 30% of the accessions in ex situ collections are unique. Therefore, despite recognizing that the ultimate goal should be safety duplicating the whole collection, it is recommended to establish guidelines on how to prioritize accessions for safety duplications based on common principles but flexible according to the respective national context and financial resources. An interesting example is Canada, where results of molecular marker analysis such as accession distinctness are taken into account when prioritizing [49].
With the opening of SGSV in 2008, an important milestone with respect to safety duplication and backup of accessions was achieved. This unique storage facility with a capacity of 4.5 million accessions has the highest safety standards and, therefore, is the world’s most important safety backup facility. In February 2023, more than 1.2 million seed samples of more than 5000 plant species coming from 98 institutions in 76 countries have been stored there [16]. The largest numbers of accessions stored are varieties of rice and wheat (each >150,000), followed by barley (close to 80,000), sorghum (>50,000), Phaseolus bean species (>40,000), maize (>35,000), cowpea (>30,000), and soybean (>25,000) [16]. About two-thirds of the presently deposited accessions are from the international genebanks. Among national genebanks, the USA, Germany, Canada, and the Netherlands are the main depositors, while for regional genebanks, NORDGEN is the main depositor [16].
Despite the above-mentioned positive development and the considerable progress made during the last two decades with respect to the percentage of safety-duplicated material, important parts of ex situ collections still “remain inadequately safety duplicated” ([3] p. 87). This applies especially to crops that cannot be maintained as seeds, i.e., vegetatively propagated crops or recalcitrant seeds (see below) and to national seed genebanks in some developing countries due to scarce financial resources [3].
The rate of accessions being safety duplicated is in general higher in CGIAR genebanks than at most national institutions [3,16]. This achievement is especially triggered by the Crop Trust, which links its financial support for genebanks to performance targets, including the rate of safety duplications [50]. However, even there, the external reviews conducted between 2017 to 2021 criticised a lack of sufficient safety duplications at some of the CGIAR genebanks, e.g., the ICRAF in Kenya and ICARDA in Morocco and Lebanon [51].
Safety duplications of vegetatively propagated crops and non-orthodox seeds
Vegetatively propagated crops and non-orthodox seeds, comprising intermediate and recalcitrant seeds, are predominantly maintained in field genebanks. The accessions have a high vulnerability, as risk mitigation through infrastructural means is limited to irrigation facilities, hail nets, and fences for their protection. This, however, is much less effective in comparison to seed genebanks [47]. Notwithstanding this constraint, the level of safety duplication is considerably lower compared to orthodox seeds. Therefore, from a risk management perspective, more efforts to secure field genebank accessions are necessary.
For risk mitigation, there are two main ways of safety duplicating these crops, as detailed by FAO (2014) [47]:
  • Duplication of field collections at another location (not exposed to the similar risks as the original field genebank);
  • Duplication of field genebank accessions under alternative conservation methods, such as in vitro conservation and cryopreservation.
These approaches are especially important, as presently, there is no global backup conservation facility available for field collections, i.e., conserved in vitro or cryopreserved, similar to the SGSV for seed collections.
In vitro conservation and cryopreservation are less susceptible to natural hazards compared to field genebanks, which are directly exposed to environmental risks. In vitro and cryostorage reduce the vulnerability to natural hazards by moving the collection from an exposed outside location to controlled inside conditions. The level of vulnerability, then, depends predominantly on the building infrastructure, the technical facilities securing a controlled environment, and the operating staff. Moreover, a building can be better secured against human-related damages, such as theft, vandalism, and political risks. Furthermore, the accessions maintained in field genebanks are also directly and continuously exposed to pests and diseases. Especially infections with viruses cause severe problems to the genebank, as these might impede their distribution and exchange with other genebanks because of quarantine regulations. During the process of preparing materials for in vitro and cryopreservation storage, viruses can be eliminated through specific treatments; thus, cleaned in vitro/cryopreserved samples can be safely exchanged.
However, there are two major drawbacks to these methods:
  • The costs for setting up and introducing material to in vitro and cryopreservation are considerably higher than for field genebanks. However, in the case of cryopreservation, once the system is established, its running costs are relatively low [52]. (Note that in vitro conservation is not suitable for mid-term and long-term conservation. But in vitro is important in connection with cryopreservation, as the plant tissue material first has to be prepared in vitro before it can be stored in liquid nitrogen [39].)
  • Both alternative methods require a high level of training to manage conservation appropriately [1,52].
According to Panis et al. (2020) [52], duplicating field genebank accessions in in vitro or cryopreservation at another location is recommended. Cryopreservation is especially suitable for secure long-term conservation, as it requires regeneration only after several hundred years [52]. However, if financial resources are scarce, duplicating the field genebank collection at another distant field location might be an appropriate alternative [28].

4.2. Risk Transfer Strategies

Risk transfer is a key strategy to manage risks and is particularly relevant if risks cannot be prevented. It transfers the financial consequences of a risk from the risk owner to a third party through different mechanisms like insurance schemes or funds [12]. Risk transfer solutions are common in different economic sectors, among others in agricultural production. However, in agrobiodiversity conservation, they are currently hardly applied.
Insurance solutions
The most common and widespread risk transfer solutions are insurance coverages [12]. Insurances are financial agreements to transfer defined risks to a third party, the insurer, against the payment of agreed monetary terms (premium)—and this should be done before the risk materializes [12]. The advantages of insurance covers are that there is a legal entitlement for indemnification and that the insurance company normally carries out a risk assessment, including identifying and requesting risk prevention measures.
There is only limited information available if and to what extent genebank assets are covered by insurance schemes. Based on the literature review [53,54,55] and expert interviews (F. Begemann (personal communication, 11 August 2022); A. W. Ebert (personal communication, 25 July 2022); U. Lohwasser (personal communication, 15 July 2022); T. van Hintum (personal communication, 28 July 2022) [33,35,39,56]), it can be concluded that in most countries, genebanks are not insured. This is due to the fact that most genebanks are in public ownership, and in case of an emergency, the state is supposed to bail out and rebuild facilities and infrastructure. This premise, however, seems a questionable strategy for the future, considering three trends:
  • Natural hazards will increase in frequency and intensity due to climate change, augmenting the exposure of genebanks and other infrastructure [57].
  • An increased concentration of ex situ conservation structures at the country and institutional levels, as well as increased numbers of accessions stored, will increase the values at risk in future [3,6].
  • Financial constraints of states and decreasing political support for PGR conservation [6]; with the recent increase in interest rates in important economies like the USA and Europe, governmental budget limitations are likely to become more important while financing debts (e.g., as necessary in the aftermath of disasters) will probably become more difficult in future.
Based on these considerations, it is recommendable to include insurance schemes for genebanks as a complementary risk management strategy in future. The relevant issues and challenges in this process are briefly discussed below.
In most cases, insurance coverages are offered by nationally approved insurance companies. Genebanks can access this insurance capacity. Additionally, for genebanks in developing countries, risk pooling insurance instruments for natural hazards might also be relevant. Interesting examples at the regional level are the Caribbean Catastrophe Risk Insurance Facility (CCRIF) and the African Risk Capacity (ARC) (for further information, see [58,59,60]). Internationally organized facilities like the CGIAR genebanks could potentially also look for an umbrella cover for all its genebanks. This would primarily be offered by globally organized insurance and reinsurance companies.
The insured perils in insurance contracts are usually fire and explosion as well as all major natural hazards (e.g., earthquake, volcano, storm, hail, flood). However, locations with a very high flood exposure, e.g., close to rivers and creeks, might not be eligible for flood coverage. It is important to note that standard exclusions in insurance policies are war, terrorism, and radioactive contamination. As genebanks have been damaged or destroyed by war acts in the past, this is certainly an important limitation.
The most critical insured assets of genebanks are:
  • Buildings and storage rooms;
  • Technical facilities and equipment (e.g., refrigerated storage facilities, control units, alarm systems, laboratory);
  • Germplasm collections.
From a risk management point of view, it is recommendable to insure all asset classes, but it is also possible to select specific ones, e.g., only buildings and storage facilities or germplasm collections. Insured assets are covered for physical loss, damage, or destruction caused by an insured peril.
An essential step in structuring an insurance contract is the valuation of the assets. Based on the valuation, the sums insured per insured asset are defined, and these are the basis for any indemnity paid after a loss event. For the genebank infrastructure (buildings and technical facilities), this is relatively easy to estimate using market or replacement values. However, valuing PGR collections is challenging because PGR accessions are non-tradable items and, hence, do not possess a market or replacement value. For the valuation of PGR collections, two approaches are most suitable:
  • Replacement value: In this approach, the cost to replace and rehabilitate any collection lost is determined. In the case of accessions, a replacement is only possible if the accessions are stored as safety duplicates elsewhere and are accessible and viable. Such a replacement exercise was undertaken in the case of the CGIAR genebank ICARDA in Aleppo, whose collections have been restored in Morocco and Lebanon since 2016 using backed-up accessions at other genebanks and SGSV [4,5]. The costs of this operation are, however, not publicly available at present. Another reference is the Dutch genebank, where replacement costs have been recently estimated at €25 to €30 million overall [35]. This would result in a value of €1040 to €1250 per accession. As replacement operations are complex and costly, the respective figures are on the high side.
  • Costs of conserving accessions: Using the costs of conserving accessions as an approximation for estimating the value of germplasm collections is an indirect approach. The advantage is that costs are relatively easy to establish [61]. Thereby, the costs of conservation in perpetuity should be used, as they focus on the long-term preservation of plant genetic material. As conservation costs are reasonable, this approach results in a relatively low level of valuation. Koo et al. (2003) [62] also used this approach and collected crop-specific in perpetuity costs at five international CGIAR genebanks. These data—even though dating back to the late 1990s and early 2000s—are the best available. Table 4 compiles the data of Koo et al. (2003) [62] and derives from these present values. These authors worked with different interest rates (2%, 4%, and 6%), which have a considerable impact on the value estimation (cf. Table 4).
Additionally, Rabenau (2018) [64] collected in perpetuity cost data at the German national genebank IKP in Gatersleben based on the methodology of Koo et al. (2003) [62] (cf. Table 5).
From both tables, it is obvious that the estimated value per accession varies considerably between crops. Also, the way regeneration is conducted influences the results, e.g., in Table 4, with and without initial regeneration of wheat and maize, and in Table 5, regeneration in open fields vs. greenhouse regeneration for soybean and chickpea.
In summary, to determine the actual value of a specific germplasm collection, it would be best to establish own cost data using the methodology of Koo et al. (2003) [62] and, based on these, to estimate the total value of the collection, e.g., for insurance purposes to establish the insured value of the collection. To account for particular features of the collection, e.g., share of unique accessions, respective loading factors might be used.
Funds
Funds—defined as a pool of money that is allocated for a specific purpose [54]—are another important risk transfer instrument. They can be financed through fees, donations, or financial resources granted by the state and are administered either by state institutions, self-governed bodies, or financial institutions [65,66]. Most funds are designed nationally, but also a supranational or even global scope is possible. Funds are often set up to respond to natural hazards, but any other peril, e.g., nuclear risks or terrorism, can also be covered, depending on the objective of the funders.
Similar to insurance coverages, funds allow the rapid mobilization of financial resources, circumventing time-consuming approval procedures and negotiations for accessing other financing sources after a disaster has occurred [67]. However, as funds are rather difficult and complex to set up, they are usually designed for circumstances where insurance coverages are neither available nor cost-effective.
For designing and implementing a fund, the most critical issues to be addressed include:
  • The geographical scope of the fund;
  • The assets to be covered;
  • Value of the respective assets (as described for insurance solutions);
  • The perils covered;
  • Size and capacity of the fund;
  • Financing of the fund: e.g., either through fees/premiums paid by the participating genebanks, deposits of donors (state or private), or a mixture of both.
In this context, the Global Crop Diversity Trust has taken an active role in establishing in 2021, jointly with the Secretariat of the ITPGRFA, the fund named Emergency Reserve for Genebanks [68]. Although targeting national genebanks in developing countries, the fund is open for national and international seed and field genebank collections, provided a substantial financial need can be demonstrated. Different interventions can be financed, e.g., repairing technical facilities, relocations of collections, or safety duplications of threatened unique accessions [50,69]. This fund, in contrast with the Endowment Fund, uses the financial resources of donors allocated to the fund directly. Therefore, if financial resources are spent, additional money has to be acquired. At present, a target for the financial volume of the fund has not been specified, as the number and scale of future requests are difficult to predict. Notwithstanding the presently limited volume, such a fund is considerable progress towards an improved risk transfer for genebanks.
In addition, other national and regional funds covering the aftermath of natural disasters exist. Two interesting examples that might be of use for genebanks are the Mexican fund FONDEN at the national level and the European Union Solidarity Fund (EUSF) at the regional level (for further information, see European Commission (2019) [70] and World Bank (2012) [71]). FONDEN, established in the late 1990s, is designed to support the quick rehabilitation of public infrastructure after adverse natural events [71]. Exploring the integration of genebanks into these national and regional funds is recommended.
It can be concluded that funds solely or in combination with insurance schemes could be a feasible risk transfer mechanism for genebanks that is worthwhile exploring and developing further.

5. Findings and Conclusions

This study provides a comprehensive risk analysis and risk management framework for genebanks worldwide. Its main findings and recommendations are summarized as follows:
  • The natural hazard exposure analysis for a sample of 80 international, regional, and national genebanks, covering 65% of the world’s accessions, shows that risk exposure is highly location-specific and varies considerably between the analysed genebanks. Overall, 35 genebanks (44% of the sampled institutions) show a low to medium risk, while 17 genebanks (21%) present a high and 28 (35%) an extreme risk. Most of the extremely exposed genebanks are located in the Asia-Pacific region (Philippines, Fiji, Taiwan, Japan, and Bangladesh) as well as in South America (Peru) and Europe (UK, Germany, and Poland) (see Appendix B and Table A3). On the other hand, genebanks in Africa tend to have relatively low exposure to natural hazards. Among the international and regional genebanks, the most exposed are CePaCT in Fiji, WorldVeg in Taiwan, IRRI in the Philippines, and CIP in Peru. In contrast, SGSV, the global backup storage facility of safety duplicates, shows a relatively low risk profile, being only exposed to extratropical storms and rising temperatures affecting the permafrost. As the storage rooms are located underground, the vulnerability of the facility towards storm can be assessed as very low.
    These findings entail the following consequences for risk management:
    • A location- and institution-specific risk assessment is indispensable to define and carry out appropriate risk prevention methods using two main strategies: (1) adequate infrastructural measures like natural hazard-resistant building codes, storage facilities at higher levels (flood prevention), emergency backup generators, and alarm systems; and (2) safety duplication of accessions at another location. Both strategies can be implemented without major obstacles in the conservation of orthodox species but are more complicated when conserving clonal and recalcitrant species in field genebanks.
    • Risk transfer solutions like insurance coverages and funds, at present hardly implemented at genebanks, should be considered when developing holistic risk management strategies of genebanks. An important step in this direction was taken by the Global Crop Diversity Trust with the set-up of the Emergency Reserve Fund in 2021. Prices of these solutions vary significantly in line with the site-specific risk exposure.
  • Vulnerability is very site-specific, depending mainly on the quality of infrastructure and risk prevention measures in place. Furthermore, it differs according to the specific conservation methods. Conservation in seed genebanks is the most resilient method compared to in vitro and cryopreservation, as the latter ones imply high technical and technological requirements. Field genebanks have a distinct risk profile and have, among the common conservation methods, the highest vulnerability with respect to natural hazards as well as pest and disease incidences.
  • Assessing the exposure to political risks is challenging due to the complex nature of political risks. Using the two international indicators, the WGI by the World Bank and FSI by The Fund for Peace, this study identified considerable differences in the political stability of countries. Among the most exposed countries of the sample, predominantly located in Africa and Asia, are countries hosting important international genebanks. From a risk management perspective, it would be essential to establish a centralized monitoring system for political risks (e.g., at FAO or the Crop Trust) to be able to take safety measures proactively and on time.
  • The insufficient level of financing has widely been acknowledged as a key limiting factor for genebanks. Yet, information on the actual and required budget per genebank, as well as on the nature and provenance of funds, is scarce and difficult to obtain. More research is necessary; it is recommended to include in the FAO country reports a section about necessary financial resources. In addition, it can be noted that the international genebanks have—in particular through the professional work of the Crop Trust establishing the Crop Diversity Endowment Fund—a stable financial backbone. In contrast, the situation at national genebanks is very diverse. It depends on the organizational structure (centralized vs. decentralized), the overall state budget, and the priority-setting of national governments.
In summary, progress has been made in the last few years to mainstream and strengthen quality and risk management, in particular at international genebanks, with the Crop Trust being a driving force. The CGIAR genebanks, as well as some national genebanks (e.g., in Germany, the Netherlands, the USA, and Canada), are more advanced regarding risk management. However, at many national genebanks, considerable scope for improvement remains. Therefore, a location-specific hazard and vulnerability assessment is recommended in order to define appropriate risk prevention measures and risk management strategies at the genebank level. Any progress in this respect can only be achieved with adequate human and financial resources as well as political support.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12152874/s1, Table S1: Natural hazard and risk assessment for sampled genebanks.

Author Contributions

The original study was carried out in 2022 by T.H. as a master’s thesis with the title “Hazard assessment and risk management of national and international genebanks for a sustainable conservation of plant genetic resources” at the Institute of Farm Management (supervised by Christian Lippert) and the Institute of Plant Breeding, Seed Sciences and Population Genetics (supervised by Karl Schmid) of the University of Hohenheim. The results summarized in this paper were thoroughly reviewed and amended by J.M.M.E. based on his long-term experience in the conservation of plant genetic resources. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The results of the natural hazard exposure analysis provided by Munich Re are made available in the annex and the supporting materials. Public datasets analysed stem from the WIEWS database (https://www.fao.org/wiews/data/ex-situ-sdg-251/overview/en/), the Worldbank’s database on the Worldwide Governance Indicator (https://databank.worldbank.org/source/worldwide-governance-indicators), and the database on the Fragile States Index by the Fund for Peace (https://fragilestatesindex.org/).

Acknowledgments

Our special thanks go to Munich Reinsurance Company, namely to Rupert Flatscher and Thomas Zerweck, for providing the output of the internal tool Natural Hazards Edition, enabling a location-specific natural hazard assessment. Furthermore, we thank Christian Lippert and Karl Schmid from the University of Hohenheim for their supervision and support in the course of preparing and writing the master’s thesis, as well as Andreas Ebert and the reviewers for critically revising the draft version of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

The following presents tables of the selected supranational genebanks (international and regional) (Table A1) as well as of national genebanks and their collection sizes (Table A2).
Table A1. International and regional genebanks and their collection size in number of accessions.
Table A1. International and regional genebanks and their collection size in number of accessions.
StatusCountryWIEWS Code Institution NameCollection Size
International genebanksBelgiumBEL084Bioversity International Musa Germplasm Transit Centre (ITA)1625
Côte d’IvoireCIV033Africa Rice Center (AfricaRice)21,815
ColombiaCOL003Centro Internacional de Agricultura Tropical (CIAT)66,599
EthiopiaETH013International Livestock Research Institute (ILRI)18,641
IndiaIND002International Crop Research Institute for the Semi-Arid Tropics (ICRISAT)128,691
KenyaKEN056Genetic Resources Unit (ICRAF)15,157
LebanonLBN002International Centre for Agricultural Research in Dry Areas (ICARDA, location Lebanon))151,858
MoroccoMARNA 1International Centre for Agricultural Research in Dry Areas (ICARDA, location Morocco)n.a. 2
MexicoMEX002Centro Internacional de Mejoramiento de Maíz y Trigo (CIMMYT)210,851
NigeriaNGA039International Institute of Tropical Agriculture (IITA)36,531
NorwayNOR051Svalbard Global Seed Vault (SGSV)n.a. 3
PeruPER001Centro Internacional de la Papa (CIP)18,066
PhilippinesPHL001International Rice Research Institute (IRRI)132,141
Taiwan, Province of ChinaTWN001World Vegetable Center (WorldVeg)59,954
Regional genebanksUnited Arab EmiratesARE003International Center for Biosaline Agriculture (ICBA)14,524
Costa RicaCRI085/CRI134/CRI142Centro Agronómico Tropical de Investigación y Enseñanza
(CATIE)
10,972
FijiFJI049Centre for Pacific Crops and Trees (CePaCT)2158
KenyaKENNA 1ICRISAT regional genebankn.a. 2
NigerNER047ICRISAT regional genebankn.a. 2
SwedenSWE054Nordic Genetic Resource Center (NORDGEN)33,272
ZambiaZMB030SADC Plant Genetic Resources Centre (SRGB)11,326
ZimbabweZWENA 1ICRISAT regional genebankn.a. 2
1 Genebank does not possess a WIEWS institutional code. For consistency, the country code + NA was used as a unique identifier. 2 For the ICARDA genebank at Morocco as well as the three regional genebanks of ICRISAT, no collection size was reported at WIEWS [15] or by the FAO [3]. 3 SGSV was included in the study as a benchmark for comparing exposure and risk; hence, information about its collection was due to its exclusive focus on safety backups not being relevant. Source: own representation, data on collection size provided by WIEWS (2020) [15].
Table A2. Selected countries and their assessed national genebanks, including number of sampled genebanks, WIEWS institutional code (if available), and their collection size in number of accessions (of the sampled genebanks).
Table A2. Selected countries and their assessed national genebanks, including number of sampled genebanks, WIEWS institutional code (if available), and their collection size in number of accessions (of the sampled genebanks).
ContinentCountry CodeCountryWIEWS CodeNo. of Selected GenebanksCollection Size
AfricaEGYEgyptEGY087114,610
ETHEthiopiaETH085173,164
GHAGhanaGHA0911418
KENKenyaKEN212151,405
MARMoroccoMAR088169,628
NGANigeriaNGA01017692
ZAFSouth AfricaTZA01616275
TZAUnited Republic of TanzaniaZAF062/ZAF06417279
Total Africa8230,471
AmericasARGArgentinaARG1342, ARG135025025
BRABrazilBRA0031107,537
CANCanadaCAN004, CAN025, CAN0643111,157
COLColombiaCOL017115,776
MEXMexicoMEX208127,100
PERPeruPER014, PER06626542
USAUnited States of AmericaUSA016, USA020, USA022, USA029, USA033, USA9706461,758
Total Americas16734,895
AsiaBGDBangladeshBGD001, BGD002, BGD003322,961
CHNChinaCHN001, CHNNA 12351,332 *
INDIndiaIDN1791410,565
IDNIndonesiaIND00114594
JPNJapanJPN1831224,353
KORRepublic of KoreaKOR0461152,272 *
NPLNepalNPL06916470
PAKPakistanPAK001133,003
PHLPhilippinesPHL129, PHL15826875
THAThailandTHA300131,887
TURTürkiyeTUR001, TUR034238,961
Total Asia161,283,273
EuropeDEUGermanyDEU146, DEU159, DEU2713150,736
ESPSpainESP004120,826
FRAFranceFRA040, FRA139216,143
GBRUnited Kingdom of Great Britain and Northern IrelandGBR004, GBR006, GBR016, GBR140, GBR2475836,237 2
ITAItalyITA43616962
POLPolandPOL003176,751
ROURomaniaROM007116,428
RUSRussian FederationRUS0011200,717
UKRUkraineUKR001134,518
Total Europe161,359,318
OceaniaAUSAustraliaAUS165, AUS1672249,056
Total 583,857,013
1 Genebank does not possess a WIEWS institutional code. For consistency, the country code + NA was used as a unique identifier. 2 The UK genebanks sampled comprise the Nottingham Arabidopsis Stock Center (NASC), which holds—with a collection size of 684,495 accessions—the largest share of the reported collection size of 836,237 accessions. Source: own representation, data on collection size provided by WIEWS (2020) and—if marked with *—by FAO country reports [72,73]. In case of China, the 351,332 accessions refer only to one genebank; as for the other, no information about the collection size was available.

Appendix B

Table A3 provides an exhaustive risk assessment for the sample of 80 genebanks with regard to the 12 selected natural hazards as well as the risk indexes and scores.
Table A3. Natural hazard exposure for sampled genebanks, including exposure for 12 hazards as well as weighted global risk score and index and the risk scores/indexes for the three hazard groups—earthquake, storm, and flood.
Table A3. Natural hazard exposure for sampled genebanks, including exposure for 12 hazards as well as weighted global risk score and index and the risk scores/indexes for the three hazard groups—earthquake, storm, and flood.
WIEWS Code (If Available)StatusOrganization AcronymCountryEarthquakeVolcanoTsunamiStorm SurgeRiverfloodFlash FloodTropical CycloneExtratropical StormTornadoHailstormLightningWildfireGlobal risk ScoreGlobal Risk IndexRisk Score EarthquakeRisk Index EarthquakeRisk Score StormRisk Index StormRisk Score FloodRisk Index Flood
BEL084intITCBelgium1−1−1−103−123221211121513
CIV033intAfricaRiceCôte d’Ivoire0−1−1−103−1−1124227111113
COL003intCIATColombia32−1−102−1−113414424371212
ETH013intILRIEthiopia32−1−104−1−1155−14454371414
IND002intICRISATIndia0−1−1−1040−12232211111414
KEN056intICRAFKenya22−1−105−1−1132−13182111126
LBN002intICARDA-LBNLebanon3−1−1−103−1024234423341213
MARNA 1intICARDA-MARMorocco0−1−1−103−11112−115111113
MEX002intCIMMYTMexico22−1−1040−115413212111514
NGA039intIITANigeria0−1−1−102−1−1124327111112
NOR051intSGSVNorway0−1−1−101−1311−999−129112612
PER001intCIPPeru4−1−1−102−1−1111−14784761012
PHL001intIRRIPhilippines23−1−1054−11241411231848726
TWN001intWorldVegTaiwan, Province of China3−1−1−1035012224139334410013
ARE003regICBAUnited Arab Emirates2−1−1−15002−1−1112−13222810214
CRI134/CRI142/CRI085regCATIECosta Rica33−1−102−1−113414494441212
FJI049regCePaCTFiji3−1500−1−99925−111214142439410012
KENNA 1regICRISAT-KenyaKenya11−1−104−1−1112229131014
NER047regICRISAT-NigerNiger0−1−1−103−1−1114227111113
SWE054regNORDGENSweden0−1−110001−1222214421114436
ZMB030regSRGBZambia2−1−1−104−1−11343317281214
ZWENA 1regICRISAT-
Zimbabwe
Zimbabwe0−1−1−104−1−1133229111214
ARG1342natBBC-INTAArgentina0−1−1−105−113541214112626
ARG1350natBGLACONSULTAArgentina32−1−102−1023324444371312
AUS165natAGGAustralia1−1−1−102−11222228121212
AUS167natAPGAustralia2−1−1−102−11211−1212281212
BGD001natBJRIBangladesh2−1−1−1050−1225−1319281526
BGD002natBRRIBangladesh2−1−1−110040−122524592815444
BGD003natBARIBangladesh2−1−1−110040−122524592815444
BRA003natCENARGENBrazil0−1−1−102−1−1144227111212
CAN004natPGRCCanada0−1−1−102−11322−126111312
CAN025natCCGBCanada0−1−1−102−1144412151121112
CAN064natCPGRCanada2−1−1−10212332−13232821312
CHN001natNCGCChina3−1−1−105−11243−14443341426
CHNNA 1nat/China2−1−1−102−102431214281312
COL017natAGROSAVIAColombia3−1−1−103−1−116414443342613
DEU146natIPKGermany0−1−1−11002−1233214501126442
DEU159natIPKGermany0−1−1−102−12322129111512
DEU271natIPKGermany0−1010002−1332214471228436
EGY087natNGBEgypt2−1−1−101−1−1111−1210281012
ESP004natINIA-CRFSpain0−1−1−103−11232229111313
ETH085natEBIEthiopia30−1−104−1−116524473342714
FRA040natINRAe-
CLERMONT
France12−1−103−122421214151513
FRA139natINRAe-
VASSAL
France1−10−104−13243−1316132914
GBR004natRBGUK0−1−1−102−133222213112812
GBR006natHRIGRUUK1−1−1−102−123321211122612
GBR016natIBERS-GRUUK0−1−1−11003−1331114531128443
GBR140natNASCUK1−1−1−102−123211210121512
GBR247nat/UK0−1−1−102−123222210111512
GHA091natPGRRIGhana0−1−1−102−1−1135127111312
IDN179natICABIOGRADIndonesia33−1−104−1−112514514441214
IND001natNBPGRIndia2−1−1−106−1−1224−1319281229
ITA436natIBBRItaly1−1−1−103−11233−129121413
JPN183natNAROJapan41−1−103322421412047743913
KEN212natGeRRIKenya22−1−104−1−113233192111114
KOR046natNACRepublic of Korea2−1−1−1042134214372832414
MAR 088natINRA CRRASMorocco0−1−1−102−11112226111112
MEX208natCNRGMexico2−1−1−1030−11542318281513
NGA010natNACGRABNigeria0−1−1−103−1−1124227111113
NPL069natNAGRCNepal3−1−1−103−1−125414423341413
PAK001natPGRPPakistan2−1−1−104−1−1256−1317281514
PER014natE.E.A. Illpa-PunoPeru2−1−1−104−1−11531316281314
PER066natUNAPeru4−1−1−102−1−1111−14784761012
PHL129natIPB-NPGRLPhilippines23−1−110054−112414152318487446
PHL158natPhilRicePhilippines32−1−1054−11252413343748826
POL003natIHARPoland0−1−1−11002−1224214491115442
ROM007natBRGV SuceavaRomania2−1−1−103−112432317281413
RUS001natVIRRussian Federation0−1−1−102−11232−126111312
THA300nat/Thailand1−1−1−11004−1−122534521213444
TUR001natAARITürkiye3−1−1−104−1123224433341314
TUR034natFCCRITürkiye2−1−1−102−11233−1214281412
TZA016natNPGRCUnited Republic of Tanzania12−1−105−1−1132−1212151126
UKR001natIRUkraine0−1−1−102−11243−127111412
USA016natS9USA0−1−1−10311354−13171121313
USA020natNC7USA0−1−1−104−1146413211121514
USA022natW6USA0−1−1−102−11222227111212
USA029natNSGCUSA11−1−101−11222128131212
USA033natSOYUSA0−1−1−103−11454−13161121213
USA970natDB NRRCUSA1−1−1−103−1145513191221313
ZAF062/ZAF064natDALRRD/NPGRCSouth Africa0−1−1−104−10354−1210111514
Legend: Earthquakes measured according to the Modified Mercalli scale with −999 = no information available; 0: MM V and below, imperceptible to rather strong; 1 = MM VI, strong; 2 = MM VII, very strong; 3 = MM VIII, destructive; 4 = MM IX and above devastation, major disaster; Volcanoes with the hazard classes −1 = no hazard, 0 = unclassified volcanoes, 1 = minor hazard (>15,000 years return period), 2 = moderate hazard (200 to 15,000 years return period), 3 = high hazard (≤200 years return period); Tsunami with the hazard classes −1 = no hazard, Zone 0 = very low tsunami exposure, Zone 100 = coasts are exposed to a 100-year return period of tsunamis, Zone 500 = coasts are exposed to a 500-year return period, Zone 1000 = coasts are exposed to a 1000-year return period; Storm surge with the hazard classes −1 = no hazard, Zone 100 = coasts are exposed to a 100-year return period (1% annual flood chance), Zone 500 = coasts are exposed to a 500-year return period (0.2% annual flood chance), Zone 1000 = coasts are exposed to a 1000-year return period (0.1% annual flood chance); River flood with the hazard classes −999 = no information available, Zone 0 = minimal flood risk (areas outside the 1% or 0.2% annual flood chance), Zone 100 = areas exposed to a 100-year return period flood event (1% annual flood chance), Zone 500 = areas exposed to a 500-year return period flood event (0.2% annual flood chance); Flash flood with the hazard classes −999 = no information available, Zone 1 = low frequency and intensity of flash floods up to Zone 6 = high frequency and intensity of flash floods; Tropical cyclones with the hazard classes −1 = no hazard with <76 km/h, 0 = 76–141 km/h, 1 = 142–184 km/h, 2 = 185–212 km/h, 3 = 213–251 km/h, 4 = 252–299 km/h, 5 = ≥300 km/h; Extratropical storm with the hazard classes −1 = no hazard, 0 = ≤80 km/h, 1 = 81–120 km/h, 3 = 121–160 km/h, 4 = >200 km/h; Tornado with the hazard classes –999 = no information available, Zone 1 = low frequency and intensity of tornados up to Zone 4 = high frequency and intensity of tornados; Hailstorm with the hazard classes –999 = no information available, Zone 1 = low frequency and intensity of hailstorms up to Zone 6 = high frequency and intensity of hailstorms; Lightning with the hazard classes –999 = no information available, 1 = 0.2–1 lightning strokes per km2 and year, 2 = 1–4 lightning strokes per km2 and year, 3 = 4–10 lightning strokes per km2 and year, 4 = 10–20 lightning strokes per km2 and year, 5 = 20–40 lightning strokes per km2 and year, 6 = 40–80 lightning strokes per km2 and year; Wildfire with the hazard classes −1 = no hazard, zone 1 = low exposure to zone 4 = high exposure; Risk Score: weighted risk score with 1 = low risk, 2 = medium risk, 3 = high risk, 4 = extreme risk; Risk Index: ranging from 0 = no risk to 100 = extreme risk, disaggregated for earthquake, storm, and flood hazards; Global Risk Index: The unweighted sum of the three risk indexes per hazard group (earthquake, storm, and flood), ranging from 0 = no risk to 300 = extreme risk. 1 Genebank does not possess a WIEWS institutional code. For consistency, the country code + NA was used as a unique identifier. Source: own representation, adapted from Munich Re (2022) [19].

References

  1. Engels, J.M.M.; Ebert, A.W. A Critical Review of the Current Global Ex Situ Conservation System for Plant Agrobiodiversity. I. History of the Development of the Global System in the Context of the Political/Legal Framework and Its Major Conservation Components. Plants 2021, 10, 1557. [Google Scholar] [CrossRef] [PubMed]
  2. Louafi, S.; Thomas, M.; Berthet, E.T.; Pélissier, F.; Vaing, K.; Jankowski, F.; Bazile, D.; Pham, J.-L.; Leclercq, M. Crop Diversity Management System Commons: Revisiting the Role of Genebanks in the Network of Crop Diversity Actors. Agronomy 2021, 11, 1893. [Google Scholar] [CrossRef]
  3. FAO (Ed.) The Second Report on the State of the World’s Plant Genetic Resources for Food and Agriculture; Commission on Genetic Resources for Food and Agriculture, Food and Agriculture Organization of the United Nations: Rome, Italy, 2010. [Google Scholar]
  4. Bhattacharya, S. Syrian seed bank gets new home away from war. Nature 2016, 538, 16–17. [Google Scholar] [CrossRef] [PubMed]
  5. Gewin, V. Protecting the Food Protectors: Are Crop Gene Banks in Danger? Greenbiz. Available online: https://www.greenbiz.com/article/protecting-food-protectors-are-crop-gene-banks-danger (accessed on 3 June 2015).
  6. Fu, Y.-B. The Vulnerability of Plant Genetic Resources Conserved Ex Situ. Crop Sci. 2017, 57, 2314–2328. [Google Scholar] [CrossRef] [Green Version]
  7. Angel, M. Ukraine’s Giant Seed Bank at Risk of Being Lost as War Rages. Available online: https://www.croptrust.org/news-events/in-the-media/ukraines-giant-seed-bank-at-risk-of-being-lost-as-war-rages/ (accessed on 1 June 2022).
  8. FAO Ukraine’s National Seed Collection Relocates to a Secure Site. Food and Agriculture Organization of the United Nations. Available online: https://www.fao.org/europe/news/detail/ukraine-s-national-seed-collection-relocates-to-a-secure-site/en (accessed on 8 June 2023).
  9. Dalezios, N.R. Environmental Hazards Methodologies for Risk Assessment and Management; IWA Publishing: London, UK, 2017. [Google Scholar]
  10. Wolke, T. Risk Management; Walter de Gruyter GmbH: Berlin, Germany; München, Germany; Boston, MA, USA, 2017. [Google Scholar]
  11. OECD. Global Modelling of Natural Hazard Risks. Enhancing Existing Capabilities to Address New Challenges; Organisation for Economic Cooperation and Development (OECD) Global Science Forum: Tokyo, Japan, 2012. [Google Scholar]
  12. Hohl, R.M. Agricultural Risk Transfer: From Insurance to Reinsurance to Capital Markets; John Wiley & Sons, Incorporated: Newark, UK, 2019. [Google Scholar]
  13. Crop Trust Global Crop Conservation Strategies. Available online: https://www.croptrust.org/work/projects/global-crop-conservation-strategies/ (accessed on 13 August 2022).
  14. Khoury, C.; Laliberté, B.; Guarino, L. Trends in ex situ conservation of plant genetic resources: A review of global crop and regional conservation strategies. Genet. Resour. Crop Evol. 2010, 57, 625–639. [Google Scholar] [CrossRef]
  15. WIEWS Overview of World Information and Early Warning System on Plant Genetic Resources for Food and Agriculture. Food and Agriculture Organization of the United Nations. Available online: https://www.fao.org/wiews/data/ex-situ-sdg-251/overview/en/ (accessed on 30 April 2022).
  16. SGSV Safeguarding Seeds for the Future. Available online: https://www.seedvault.no/ (accessed on 3 March 2023).
  17. Crop Trust. (n.d.). Crop Trust Svalbard Global Seed Vault. Crop Trust. Available online: https://www.croptrust.org/our-work/svalbard-global-seed-vault/ (accessed on 26 April 2022).
  18. FAOSTAT. (n.d.). FAOSTAT Data. Available online: https://www.fao.org/faostat/en/ (accessed on 5 July 2022).
  19. Munich Re. Output RiskMapper, Tool Natural Hazards Edition, 2022; Unpublished Database.
  20. Zerweck, T.; Munich Re, Munich, Germany. Personal communication, 2022.
  21. Schmieder, J.; Munich Re, Munich, Germany. Personal communication, 2022.
  22. World Bank Worldwide Governance Indicators|DataBank. Available online: https://databank.worldbank.org/source/worldwide-governance-indicators (accessed on 31 October 2021).
  23. The Fund for Peace Fragile States Index|The Fund for Peace. Available online: https://fragilestatesindex.org/ (accessed on 31 October 2021).
  24. Thomas, M.A. What Do the Worldwide Governance Indicators Measure? Eur. J. Dev. Res. 2010, 22, 31–54. [Google Scholar] [CrossRef]
  25. United Nations Office for Disaster Risk Reduction. UNDRR Terminology. Available online: https://www.undrr.org/terminology (accessed on 12 May 2022).
  26. CGIAR Genebank Platform Red Book of Risk. Risk Identification, Mitigation and Monitoring in CGIAR Genebanks; CGIAR Genebank Platform Red Book of Risk: Bonn, Germany, 2020; Volume 1.0-002. [Google Scholar]
  27. Crop Genebank Knowledge Base Risk Management. Available online: https://cropgenebank.sgrp.cgiar.org/index.php/management-mainmenu-433/risk-management-mainmenu-236 (accessed on 6 May 2022).
  28. Engels, J.M.M.; Ebert, A.W. A Critical Review of the Current Global Ex Situ Conservation System for Plant Agrobiodiversity. II. Strengths and Weaknesses of the Current System and Recommendations for Its Improvement. Plants 2021, 10, 1904. [Google Scholar] [CrossRef] [PubMed]
  29. Wilson, G.; Wilson, T.M.; Deligne, N.I.; Cole, J.W. Volcanic hazard impacts to critical infrastructure: A review. J. Volcanol. Geotherm. Res. 2014, 286, 148–182. [Google Scholar] [CrossRef] [Green Version]
  30. Oetjen, J.; Sundar, V.; Venkatachalam, S.; Reicherter, K.; Engel, M.; Schüttrumpf, H.; Sannasiraj, S.A. A comprehensive review on structural tsunami countermeasures. Nat. Hazards 2022, 113, 1419–1449. [Google Scholar] [CrossRef]
  31. Horn, D.P. Chapter 6—Storm Surge Warning, Mitigation, and Adaptation. In Coastal and Marine Hazards, Risks, and Disasters; Shroder, J.F., Ellis, J.T., Sherman, D.J., Eds.; Hazards and Disasters Series; Elsevier: Amsterdam, The Netherlands, 2015; pp. 153–180. [Google Scholar]
  32. BBK Naturgefahr: Hochwasser. Bundesamt für Bevölkerungsschutz und Katastrophenhilfe. Available online: https://www.bbk.bund.de/DE/Themen/Risikomanagement/Baulicher-Bevoelkerungsschutz/Schutz-vor-Naturgefahren/Hochwasser/hochwasser_node.html (accessed on 12 July 2022).
  33. Lohwasser, U.; Leibniz-Institut für Pflanzengenetik und Kulturpflanzenforschung IPK, Gatersleben, Germany. Personal communication, 2022.
  34. USAID. Flood Control Structures. 2012. Available online: https://www.climatelinks.org/sites/default/files/asset/document/Infrastructure_FloodControlStructures.pdf (accessed on 12 July 2022).
  35. van Hintum, T.; Center for Genetic Resources CGN, Wageningen University & Research, Wageningen, The Netherlands. Personal communication, 2022.
  36. Dasgupta, S.; Blankespoor, B. Protection from Cyclones: Benefits of Integrating Green and Gray Infrastructure. Available online: https://blogs.worldbank.org/developmenttalk/protection-cyclones-benefits-integrating-green-and-gray-infrastructure (accessed on 8 April 2019).
  37. English, E.C.; Friedland, C.J.; Orooji, F. Combined Flood and Wind Mitigation for Hurricane Damage Prevention: The Case for Amphibious Construction. J. Struct. Eng. 2017, 143, 13. [Google Scholar] [CrossRef]
  38. Jain, N. Hong Kong’s Preparedness and Resilient Infrastructure Cut Economic losses from Typhoons. Available online: https://www.undrr.org/news/hong-kongs-preparedness-and-resilient-infrastructure-cut-economic-losses-typhoons (accessed on 4 December 2021).
  39. Ebert, A.W.; World Vegetable Center WorldVeg, Tainan, Taiwan. Personal communication, 2022.
  40. BBK Naturgefahr: Sturm. Available online: https://www.bbk.bund.de/DE/Themen/Risikomanagement/Baulicher-Bevoelkerungsschutz/Schutz-vor-Naturgefahren/Sturm/sturm_node.html (accessed on 12 July 2022).
  41. Federal Emergency Management Agency. Safe Rooms for Tornadoes and Hurricanes. In Guidance for Community and Residential Safe Rooms, FEMA P-361, 4th ed.; FEMA: Washington, DC, USA, 2021. [Google Scholar]
  42. Kapur, O.; Mahadevia, A.; Park, J.; Passman, S.; Perotin, M.; Reeder, A.; Seitz, L.; Sheldon, A.; Tezak, S. Wind Retrofit Guide for Residential Buildings. FEMA P-804 2010. Available online: https://www.fema.gov/emergency-managers/risk-management/building-science/publications?name=804&field_keywords_target_id=All&field_document_type_target_id=All&field_audience_target_id=All (accessed on 12 July 2022).
  43. BBK Naturgefahr: Hagel. Available online: https://www.bbk.bund.de/DE/Themen/Risikomanagement/Baulicher-Bevoelkerungsschutz/Schutz-vor-Naturgefahren/Hagel/hagel_node.html (accessed on 12 July 2022).
  44. BBK Naturgefahr: Gewitter. Available online: https://www.bbk.bund.de/DE/Themen/Risikomanagement/Baulicher-Bevoelkerungsschutz/Schutz-vor-Naturgefahren/Gewitter/gewitter_node.html (accessed on 12 July 2022).
  45. Federal Emergency Management Agency. Avoiding Wildfire Damage: A Checklist for Homeowners. Available online: https://www.fema.gov/pdf/hazard/wildfire/wdfrdam.pdf (accessed on 12 July 2022).
  46. McCaffrey, S.; McGee, T.K.; Coughlan, M.; Tedim, F. Understanding wildfire mitigation and preparedness in the context of extreme wildfires and disasters. In Extreme Wildfire Events and Disasters; Elsevier: Amsterdam, The Netherlands, 2020; pp. 155–174. [Google Scholar]
  47. FAO. Genebank Standards for Plant Genetic Resources for Food and Agriculture, Rev. ed.; Food and Agriculture Organization of the United Nations: Rome, Italy, 2014; Available online: https://www.fao.org/3/i3704e/i3704e.pdf (accessed on 28 April 2022).
  48. Lohwasser, U.; Leibniz-Institut für Pflanzengenetik und Kulturpflanzenforschung IPK, Gatersleben, Germany. Personal communication, 2023.
  49. Fu, Y.-B.; Saskatoon Research and Development Centre, Saskatoon, SK, Canada. Personal communication, 2022.
  50. Dempewolf, H.; Global Crop Diversity Trust, Bonn, Germany. Personal communication, 2022.
  51. CGIAR. Genebank Platform Genebank Platform (2017–2021) Reviews. Available online: https://www.genebanks.org/resources/genebank-reviews/ (accessed on 22 July 2022).
  52. Panis, B.; Nagel, M.; Van Den Houwe, I. Challenges and Prospects for the Conservation of Crop Genetic Resources in Field Genebanks, in In Vitro Collections and/or in Liquid Nitrogen. Plants 2020, 9, 1634. [Google Scholar] [CrossRef] [PubMed]
  53. Dixon, L.; Barnosky, J.T.; Clancy, N. Insuring Public Buildings, Contents, Vehicles, and Equipment Against Disasters: Current Practices of State and Local Government and Options for Closing the Insurance Gap; RAND Corporation: Santa Monica, CA, USA, 2020; Available online: https://www.rand.org/pubs/research_reports/RRA332-1.html (accessed on 13 July 2022).
  54. Freeman, P.K.; Martin, L.A.; Linnerooth-Bayer, J.; Mechler, R.; Pflug, G.; Warner, K. Disaster Risk Management: National Systems for the Comprehensive Management of Disaster Risk and Financial Strategies for Natural Disaster Reconstruction; Inter-American Development Bank: Washington, DC, USA, 2003. [Google Scholar]
  55. Klafack, M. Öffentliche Gebäude oft Nicht Versichert. Available online: https://www.pfefferminzia.de/elementarschaeden-oeffentliche-gebaeude-oft-nicht-versichert/ (accessed on 13 July 2022).
  56. Begemann, F.; Bundesanstalt für Landwirtschaft und Ernährung BLE, Bonn, Germany. Personal communication, 2022.
  57. UNDRR; International Science Council. Hazard Definition and Classification Review—Technical Report; United Nations Office for Disaster Risk Reduction, 2020. Available online: https://www.undrr.org/publication/hazard-definition-and-classification-review (accessed on 12 May 2022).
  58. African Risk Capacity Group. Who We Are. African Risk Capacity Group. Available online: https://www.arc.int/about (accessed on 14 July 2022).
  59. African Risk Capacity Group. How ARC Works. African Risk Capacity Group. Available online: https://www.arc.int/how-arc-works (accessed on 14 July 2022).
  60. CCRIF SPC. (n.d.). CCRIF SPC [The Caribbean Catastrophe Risk Insurance Facility]. Available online: https://www.ccrif.org/ (accessed on 14 July 2022).
  61. Smale, M.; Jamora, N. Valuing genebanks. Food Secur. 2020, 12, 905–918. [Google Scholar] [CrossRef]
  62. Koo, B.; Pardey, P.G.; Wright, B.D. Costing the Conservation of Genetic Resources: A Comparison of the CIMMYT and ICARDA Genebanks. In Efficient Conservation Of Crop Genetic Diversity: Theoretical Approaches and Empirical Studies; Virchow, D., Ed.; Springer: Berlin/Heidelberg, Germany, 2003; pp. 77–87. [Google Scholar]
  63. OECD Producer Price Indices. OECD DATA. Organization for Economic Co-Operation and Development. Available online: https://data.oecd.org/price/producer-price-indices-ppi.htm#indicator-chart (accessed on 22 August 2022).
  64. Rabenau, P. Eine Kostenanalyse zur Feldvermehrung Mit Anschließendem Vergleich Zwischen der Saatgutkühllagerung under der Lagerung von Samen unter Tiefsttemperaturen (−196 °C); Justus-Liebig-Universität Gießen: Gießen, Germany, 2018; p. 121. [Google Scholar]
  65. Chen, J. Reserve Fund. Available online: https://www.investopedia.com/terms/r/reservefund.asp (accessed on 14 July 2022).
  66. Kurt, D. Emergency Funds. Available online: https://www.investopedia.com/terms/e/emergency_fund.asp (accessed on 9 February 2022).
  67. Macaskill, K.; Guthrie, P. Funding mechanisms for disaster recovery: Can we afford to build back better? Procedia Eng. 2018, 212, 451–458. [Google Scholar] [CrossRef]
  68. Crop Trust; ITPGRFA. Saving Our Seeds: An Emergency Reserve for Genebanks in Peril. Available online: https://www.croptrust.org/fileadmin/uploads/croptrust/wp/wp-content/uploads/2021/11/Crop-Trust-The-Emergency-Reserve-for-Genebanks.pdf (accessed on 22 July 2022).
  69. Nnadozie, K. Notification: Establishment of the Emergency Reserve for Genebanks 2021. Available online: https://www.fao.org/3/cb7798en/cb7798en.pdf (accessed on 23 November 2021).
  70. European Commission. Ex Post Evaluation of the European Union Solidarity Fund 2002–2016: Final Report; European Commission, Directorate General for Regional and Urban Policy. European Institute, London School of Economics & Political Science: London, UK, 2019. Available online: https://data.europa.eu/doi/10.2776/643843 (accessed on 28 June 2023).
  71. World Bank. FONDEN: Mexico’s Natural Disaster Fund—A Review; World Bank: Washington, DC, USA, 2012. [Google Scholar]
  72. Rural Development Administration. Country Report on the State of Plant Genetic Resources for Food and Agriculture in Republic of Korea; Food and Agriculture Organization of the United Nations: Suwon, Republic of Korea, 2009. [Google Scholar]
  73. The Ministry of Agriculture, People’s Republic of China. Country Report on the State of Plant GEnetic Resources for Food and Agriculture in China (1996–2007); Food and Agriculture Organization of the United Nations: Rome, Italy, 2008. [Google Scholar]
Figure 1. World map of sampled national genebanks and their collection size (circle size corresponds to number of accessions per genebank). If collection size was not available, it is marked with +. Source: adapted from WIEWS (2020) [15] and FAO country reports.
Figure 1. World map of sampled national genebanks and their collection size (circle size corresponds to number of accessions per genebank). If collection size was not available, it is marked with +. Source: adapted from WIEWS (2020) [15] and FAO country reports.
Plants 12 02874 g001
Figure 2. Natural hazard exposure analysis per individual genebank. (A) Global risk index (ranging from 0 (no risk) to 300 (extreme risk)), grouped by continent and coloured by global risk score (green = 1 (low), blue = 2 (medium), yellow = 3 (high), red = 4 (extreme)). Horizontal line means continental arithmetic mean of sample. (B) World map with global risk score: green = risk score 1 (low), blue = risk score 2 (medium), yellow = risk score 3 (high), red = risk score 4 (extreme). Source: adapted from Munich Re (2022) [19].
Figure 2. Natural hazard exposure analysis per individual genebank. (A) Global risk index (ranging from 0 (no risk) to 300 (extreme risk)), grouped by continent and coloured by global risk score (green = 1 (low), blue = 2 (medium), yellow = 3 (high), red = 4 (extreme)). Horizontal line means continental arithmetic mean of sample. (B) World map with global risk score: green = risk score 1 (low), blue = risk score 2 (medium), yellow = risk score 3 (high), red = risk score 4 (extreme). Source: adapted from Munich Re (2022) [19].
Plants 12 02874 g002aPlants 12 02874 g002b
Figure 3. Disaggregated risk index (per hazard group, ranging from 0 (no risk) to 100 (extreme risk)) for sampled genebanks, grouped per continent, and coloured by risk group (green = risk index earthquake, orange = risk index storm, purple = risk index flood). Source: adapted from Munich Re (2022) [19].
Figure 3. Disaggregated risk index (per hazard group, ranging from 0 (no risk) to 100 (extreme risk)) for sampled genebanks, grouped per continent, and coloured by risk group (green = risk index earthquake, orange = risk index storm, purple = risk index flood). Source: adapted from Munich Re (2022) [19].
Plants 12 02874 g003
Figure 4. Global risk index for international genebanks, grouped per continent and coloured by global risk score (green = 1 (low), blue = 2 (medium), yellow = 3 (high), red = 4 (extreme)). Source: adapted from Munich Re (2022) [19].
Figure 4. Global risk index for international genebanks, grouped per continent and coloured by global risk score (green = 1 (low), blue = 2 (medium), yellow = 3 (high), red = 4 (extreme)). Source: adapted from Munich Re (2022) [19].
Plants 12 02874 g004
Figure 5. Mean WGI score: Map of all countries comprising the study’s genebank sample. Coloured according to the country’s average WGI score (six-year average 2015–2020, averaged across the six WGI dimensions) with a scale of −2.5 (low governance) to +2.5 (high governance); in grey = countries not in the sample. Source: adapted from World Bank (n.d.) [22].
Figure 5. Mean WGI score: Map of all countries comprising the study’s genebank sample. Coloured according to the country’s average WGI score (six-year average 2015–2020, averaged across the six WGI dimensions) with a scale of −2.5 (low governance) to +2.5 (high governance); in grey = countries not in the sample. Source: adapted from World Bank (n.d.) [22].
Plants 12 02874 g005
Figure 6. Average FSI total score: Map of all countries comprising the study’s genebank sample. Coloured according to the country’s average FSI total score (six-year average 2015–2020, unweighted sum of the 10 FSI dimensions) with a scale of 0 (low political risk) to 120 (high political risk); in grey = countries not in the sample. Source: adapted from The Fund for Peace (n.d.) [23].
Figure 6. Average FSI total score: Map of all countries comprising the study’s genebank sample. Coloured according to the country’s average FSI total score (six-year average 2015–2020, unweighted sum of the 10 FSI dimensions) with a scale of 0 (low political risk) to 120 (high political risk); in grey = countries not in the sample. Source: adapted from The Fund for Peace (n.d.) [23].
Plants 12 02874 g006
Figure 7. Comparison of the country ranking for political risks by average WGI score and FSI total score for all countries in the study hosting international, regional, and national genebanks, coloured by continent (with 1st rank = high political risk to 49th rank = lowest political risk of the sample). x-axis = country ranking according to the mean WGI score, calculated as the six-year average 2015–2020, averaged across the six WGI dimensions. y-axis = country ranking according to the FSI total score, calculated as the six-year average 2015–2020, unweighted sum of the 12 FSI dimensions. Source: own representation based on data provided by World Bank (n.d.) [22] and The Fund for Peace (n.d.) [23]. Country abbreviations: ARE = United Arab Emirates, ARG = Argentina, AUS = Australia, BEL = Belgium, BGD = Bangladesh, BRA = Brazil, CAN = Canada, CHN = China, CIV = Côte d’Ivoire, COL = Colombia, CRI = Costa Rica, DEU = Germany, EGY = Egypt, ESP = Spain, ETH = Ethiopia, FJI = Fiji, FRA = France, GBR = United Kingdom and Northern Ireland, GHA = Ghana, IDN = Indonesia, IND = India, JPN = Japan, KEN = Kenya, KOR = Republic of Korea, LBN = Lebanon, MAR = Morocco, MEX = Mexico, NER = Niger, NGA = Nigeria, NOR = Norway, NPL = Nepal, PAK = Pakistan, PER = Peru, PHL = Philippines, POL = Poland, POU = Romania, RUS = Russian Federation, SWE = Sweden, THA = Thailand, TUR = Türkiye, UKR = Ukraine, USA = United States of America, ZAF = South Africa, ZMB = Zambia, ZWE = Zimbabwe. Please note: Taiwan (hosting the international genebank WorldVeg) needed to be excluded for the analysis because it is only in the indicator WGI and not in FSI.
Figure 7. Comparison of the country ranking for political risks by average WGI score and FSI total score for all countries in the study hosting international, regional, and national genebanks, coloured by continent (with 1st rank = high political risk to 49th rank = lowest political risk of the sample). x-axis = country ranking according to the mean WGI score, calculated as the six-year average 2015–2020, averaged across the six WGI dimensions. y-axis = country ranking according to the FSI total score, calculated as the six-year average 2015–2020, unweighted sum of the 12 FSI dimensions. Source: own representation based on data provided by World Bank (n.d.) [22] and The Fund for Peace (n.d.) [23]. Country abbreviations: ARE = United Arab Emirates, ARG = Argentina, AUS = Australia, BEL = Belgium, BGD = Bangladesh, BRA = Brazil, CAN = Canada, CHN = China, CIV = Côte d’Ivoire, COL = Colombia, CRI = Costa Rica, DEU = Germany, EGY = Egypt, ESP = Spain, ETH = Ethiopia, FJI = Fiji, FRA = France, GBR = United Kingdom and Northern Ireland, GHA = Ghana, IDN = Indonesia, IND = India, JPN = Japan, KEN = Kenya, KOR = Republic of Korea, LBN = Lebanon, MAR = Morocco, MEX = Mexico, NER = Niger, NGA = Nigeria, NOR = Norway, NPL = Nepal, PAK = Pakistan, PER = Peru, PHL = Philippines, POL = Poland, POU = Romania, RUS = Russian Federation, SWE = Sweden, THA = Thailand, TUR = Türkiye, UKR = Ukraine, USA = United States of America, ZAF = South Africa, ZMB = Zambia, ZWE = Zimbabwe. Please note: Taiwan (hosting the international genebank WorldVeg) needed to be excluded for the analysis because it is only in the indicator WGI and not in FSI.
Plants 12 02874 g007
Table 1. Natural hazard exposure assessment for international genebanks.
Table 1. Natural hazard exposure assessment for international genebanks.
WIEWS Institutional CodeOrganization
Acronym
CountryEarthquake 1VolcanoTsunamiStorm SurgeRiverfloodFlash FloodTropical CycloneExtratropical StormTornadoHailstormLightningWildfire
BEL084ITCBelgium1−1−1−103−123 2221
CIV033Africa RiceCôte d’Ivoire0−1−1−103−1−11242
COL003CIATColombia32−1−102−1−11341
ETH013ILRIEthiopia32−1−104−1−1155−1
IND002ICRISATIndia0−1−1−1040−12232
KEN056ICRAFKenya22−1−105−1−1132−1
LBN002ICARDALebanon3−1−1−103−102423
MARNAICARDAMorocco0−1−1−103−11112−1
MEX002CIMMYTMexico22−1−1040−11541
NGA039IITANigeria0−1−1−102−1−11243
PER001CIPPeru4−1−1−102−1−1111−1
PHL001IRRIPhilippines23−1−1054−11241
TWN001World VegTaiwan, Province of China3−1−1−103501222
NOR051 SGSVNorway0−1−1−101−1311/−1
1 Note: exposure class varies between hazards. In general, the higher the number, the higher the exposure, with 5 presenting the highest and 1 the lowest exposure class. Minus 1 means no exposure to the hazard. For details, see Appendix B. 2 Highest exposure class per hazard in dark red, second-highest exposure class per hazard in light red. Source: adapted from Munich Re (2022) [19].
Table 2. Infrastructural risk control measures for each of the risk sources.
Table 2. Infrastructural risk control measures for each of the risk sources.
Risk SourceRisk Control Measure
Natural hazardsBuilding codes, standards, and practices (e.g., resistance to earthquake, strong wind, and snow load). These are being regulated normally at the national level.
Outage or malfunctioning of technical facilitiesAlarm systems (e.g., for open doors, sudden changes in light, temperature, and humidity); early fire, gas, smoke, or water detection; backup equipment or additional rooms available and ready; essential spare parts in storage; qualified staff for repairs or external standby repair services
Fire (ignition point inside the facility)Detection and mitigation devices: Smoke and fire detection; sprinkler systems; fire extinguishers. Construction measures: fire walls; fire isolation doors; separated compartments; sufficient separation between buildings. Organizational aspects: coordination with external firefighting services like local fire brigades
Fire (ignition point outside the facility, e.g., wildfires)Fire breaks; fuel load control in the vicinity of the genebank
Power supply cut-offsSecond power line, emergency power generator (for storage rooms, monitoring devices, essential lighting, etc.), lightning rods and deflectors
Theft, vandalism, and terrorismAlarm systems, locks, surveillance cameras, and sensors to impede the entry of unauthorized people (in addition to security surveillance)
Cyber-attacks to IT 1High cybersecurity standards
1 IT risks are currently underestimated but are expected to become increasingly important in future due to increased digitalization at the genebank level. Source: adapted from CGIAR Genebank Platform (2020) [26], Crop Genebank Knowledge Base (n.d.) [27], Fu (2017) [6], and expert interviews.
Table 3. Infrastructural risk control measures suggested for genebanks with highest exposure, per natural hazard.
Table 3. Infrastructural risk control measures suggested for genebanks with highest exposure, per natural hazard.
Natural HazardRisk Control MeasuresExamples of Exposed Genebanks 1
EarthquakesEarthquake-proof infrastructure [26]
-
international genebank CIP, Peru (PER001)
-
national genebank of Peru (PER066) in Lima and of Japan (JPN183)
VolcanoesStrengthened roofs and walls, use of shutters on openings and non-flammable materials, fix buildings to foundation, etc. [29]
-
international genebank IRRI, Philippines (PHL001)
-
regional genebank CATIE, Costa Rica (CRI134/CRI142/CRI085)
-
national genebank of Indonesia (IDN179) and of the Philippines (PHL129)
TsunamiTsunami-resistant structures [30]
-
international genebank CePaCT, Fiji (FJI049)
Storm surgeStorm surge gates, flood barriers, floor plans for a quick water outflow, shelving above ground level [26,31]
-
regional genebank NORDGEN, Sweden (SWE054)
-
location Poel of national genebank of Germany (DEU271)
River floodFlood barriers, dikes, spurs, etc., floor plans for a quick water outflow, shelving above ground level, water-proof ink and bags [26,32,33,34,35]
-
national genebanks of Bangladesh (BGD002, BGD003), Germany (location Gatersleben, DEU146), the Philippines (PHL129), Poland (POL003), Thailand (THA300), and Great Britain (GBR016)
Flash floodFlood barriers, dikes, spurs, etc., floor plans for a quick water outflow, shelving above ground level [26,32,34]
-
national genebank of India (IND001)
Tropical cycloneSame as against storm surges and floods (e.g., embankment) [36,37], wind-resistant buildings [38], clearing of surroundings (e.g., cutting of trees in proximity to genebank) [39]
-
international genebanks WorldVeg, Taiwan (TWN001) and CePaCT, Fiji (FIJ049)
Extratropical stormWind-resistant buildings, reinforcing/securing of roofs [40]
-
international genebank SGSV (NOR051)
-
national genebanks of France (FRA139), Germany (DEU271) and Great Britain (GBR004, GBR016)
TornadoWind-resistant buildings, safe rooms (e.g., for seed storage rooms), reinforcing/securing of roofs [41,42]
-
national genebanks of Canada (CAN025) and the United States of America (USA020, USA970, USA033)
HailstormHail-resistant roofs and windows [43]
-
national genebanks of Colombia (COL017), Ethiopia (ETH085), and the United States of America (USA020)
LightningLightning rod [44]
-
national genebank of Pakistan (PAK001)
WildfireFire breaks, non-combustible materials and fire-resistant structures, adequate vegetation [45,46]
-
international genebank IITA, Nigeria (NGA039)
-
regional genebank SRGB, Zambia (ZMB030)
-
national genebanks of Kenya (KEN212) and Thailand (THA300)
1 The genebanks listed here are the most exposed locations per hazard amongst the sample, i.e., falling in the highest or second-highest class. This, however, does not mean that for other institutions, no infrastructural control measures are recommended. Source: adapted from Munich Re (2022) [19], risk control measures compiled from the literature cited in each risk measure cell.
Table 4. Costs for in perpetuity conservation at selected CGIAR genebanks, per crop type, as a proxy for collection value.
Table 4. Costs for in perpetuity conservation at selected CGIAR genebanks, per crop type, as a proxy for collection value.
Crop TypeCGIAR GenebankSize of CollectionPresent Values at Different Interest RatesCollection Value
20012020Reference Year 12021 22021
[No. of Accessions]2%6%2%6%2%6%
[US $ Per Accession][in Million US $]
Common BeanCIAT31,40032,34747.112.976.821.02.4840.680
ForagesCIAT24,18422,69483.722.9136.537.33.0970.847
Wheat *CIMMYT154,912146,50522.76.342.411.86.2081.734
Wheat **CIMMYTsee abovesee above25.99.648.517.97.0982.625
Maize *CIMMYT25,08632,243151.532.3283.260.49.1321.946
Maize **CIMMYTsee abovesee above260.2141.0486.5263.615.6868.500
SorghumICRISAT36,72142,35247.414.381.124.53.4341.038
Pearl MilletICRISAT21,39224,37356.115.295.925.92.3360.632
ChickpeaICRISAT17,25020,76447.814.481.824.61.6990.510
PigeonpeaICRISAT13,54413,78358.715.4100.326.41.3830. 363
GroundnutICRISAT15,32715,62249.714.684.924.91.3270.389
Rice, cultivatedIRRI94,564125,89925.16.342.910.85.3971.358
Rice, wildIRRI4568581337.17.563.412.80.3680.074
* without initial regeneration, ** with initial regeneration. 1 Reference year for CIAT 2000, CIMMYT 1996, ICRISAT and IRRI 1999. 2 Conversion to 2021 figures using OECD producer price index for OECD countries [63]. Source: adapted from Koo et al. (2003) [62]. Collection sizes for 2020 are from WIEWS (2020) [15].
Table 5. Costs of conserving accessions in perpetuity at the IPK Gatersleben, per crop type.
Table 5. Costs of conserving accessions in perpetuity at the IPK Gatersleben, per crop type.
Crop TypeCosts in Perpetuity (2018)
[€ per Accession]
Wheat13.00
Rye13.00
Soybean—open air11.98
Soybean—greenhouse40.77
Chickpea—open air12.26
Chickpea—greenhouse29.57
Cabbage41.88
Cauliflower35.76
Lettuce19.50
Source: own representation, adapted from Rabenau (2018) [64].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Herbold, T.; Engels, J.M.M. Genebanks at Risk: Hazard Assessment and Risk Management of National and International Genebanks. Plants 2023, 12, 2874. https://doi.org/10.3390/plants12152874

AMA Style

Herbold T, Engels JMM. Genebanks at Risk: Hazard Assessment and Risk Management of National and International Genebanks. Plants. 2023; 12(15):2874. https://doi.org/10.3390/plants12152874

Chicago/Turabian Style

Herbold, Theresa, and Johannes M. M. Engels. 2023. "Genebanks at Risk: Hazard Assessment and Risk Management of National and International Genebanks" Plants 12, no. 15: 2874. https://doi.org/10.3390/plants12152874

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
