Comprehensive In Silico Analysis and Transcriptional Profiles Highlight the Importance of Mitochondrial Dicarboxylate Carriers (DICs) on Hypoxia Response in Both Arabidopsis thaliana and Eucalyptus grandis

Abstract

Plant dicarboxylate carriers (DICs) transport a wide range of dicarboxylates across the mitochondrial inner membrane. The Arabidopsis thaliana DIC family is composed of three genes (AtDIC1, 2 and 3), whereas two genes (EgDIC1 and EgDIC2) have been retrieved in Eucalyptus grandis. Here, by combining in silico and in planta analyses, we provide evidence that DICs are partially redundant, important in plant adaptation to environmental stresses and part of a low-oxygen response in both species. AtDIC1 and AtDIC2 are present in most plant species and have very similar gene structure, developmental expression patterns and absolute expression across natural Arabidopsis accessions. In contrast, AtDIC3 seems to be an early genome acquisition found in Brassicaceae and shows relatively low (or no) expression across these accessions. In silico analysis revealed that both AtDICs and EgDICs are highly responsive to stresses, especially to cold and submergence, while their promoters are enriched for stress-responsive transcription factors binding sites. The expression of AtDIC1 and AtDIC2 is highly correlated across natural accessions and in response to stresses, while no correlation was found for AtDIC3. Gene ontology enrichment analysis suggests a role for AtDIC1 and AtDIC2 in response to hypoxia, and for AtDIC3 in phosphate starvation. Accordingly, the investigated genes are induced by submergence stress in A. thaliana and E. grandis while AtDIC2 overexpression improved seedling survival to submergence. Interestingly, the induction of AtDIC1 and AtDIC2 is abrogated in the erfVII mutant that is devoid of plant oxygen sensing, suggesting that these genes are part of a conserved hypoxia response in Arabidopsis.

1. Introduction

Dicarboxylates are required in essential plant metabolic pathways including the metabolism of fatty acids, the synthesis of amino acids and gluconeogenesis [1]. These compounds have also been implicated in the transfer of reducing equivalents for photorespiration [2,3]. The transport of dicarboxylic acids across the inner mitochondrial membrane is commonly mediated by mitochondrial dicarboxylate carriers (DIC) that are members of the mitochondrial carrier family (SLC25) [4,5]. Three plant DIC homologues (namely AtDIC1, AtDIC2 and AtDIC3) showing distinct substrate specificities with regard to their yeast and animal counterparts were identified in the model plant Arabidopsis thaliana [3]. AtDIC1 and AtDIC2 are closely related (70% of identical amino acid residues) and more abundantly expressed than AtDIC3, which shares 55–60% amino acid identity with the other isoforms. AtDIC3 also shows a restricted pattern of expression (flowers and siliques) compared to the almost ubiquitous expression of AtDIC1 and AtDIC2 [3]. Recombinant AtDIC proteins reconstituted into liposomes have been shown to exchange sulfate with malate, oxaloacetate, phosphate and succinate, and to a lesser extent 2-oxoglutarate [3].

Data from publicly available expression databases reveals that the transcripts of AtDIC1 and AtDIC2 accumulate in response to different environmental cues including exposure to cold, drought, phosphate limitation and UV radiation [6]. In line, AtDIC1 figured among the most stress-responsive genes encoding mitochondrial proteins identified [7], while a rapid and potent induction of the AtDIC genes in response to touch-stimulated mechanical stress has been reported [8,9]. The transcriptional up-regulation elicited by touch was proposed to address a physiological change since a significant reduction in DIC substrates such as succinate and citrate was observed in treated plants [9]. In this context, AtDIC2 was recently shown to promote the export of cytosolic malate in exchange for mitochondrial citrate [10], an activity that contributes for the maintenance of metabolic homeostasis, especially under stressful conditions. Interestingly, mutant plants lacking AtDIC2 were impaired in growth [10], a phenotype that further supports the importance of this carrier to normal metabolic function. Collectively, these findings suggest that modulation of DIC activity and expression might be part of the strategy of plant metabolic reprogramming required to overcome adverse growth conditions.

Among different environmental clues, hypoxic stress is known to elicit important changes in cellular metabolism by promoting glycolysis and fermentation pathways [11,12]. Although influenced by different factors, the main metabolic responses to oxygen deficiency involve alterations in the levels of tricarboxylic acid cycle (TCA) intermediates, including the accumulation of succinate and malate. In this regard, given their transport characteristics, DICs have been suggested to contribute to the metabolic adjustments required for plant adaptation to low-oxygen conditions, a feature that is supported by the reported induction of AtDIC2 under hypoxia and anoxia [13].

Despite the reported information, knowledge regarding the function of DICs in plants is still limited. Here, by combining in silico and in vivo analysis, we provide evidence that DICs are partially redundant, important in plant adaptation to environmental stresses and part of a low-oxygen response in both A. thaliana and Eucalyptus grandis, an economically important forestry species. It should be emphasized that eucalyptus plantations in South America have been facing problems associated with short-term hypoxia mainly due to soil compaction [14] and a better understanding of the underlying molecular mechanisms implicated in adaptation to hypoxia in woody plants is of special interest.

2. Results and Discussion

2.1. Dicarboxylate Carriers Are Widely Distributed in the Plant Kingdom

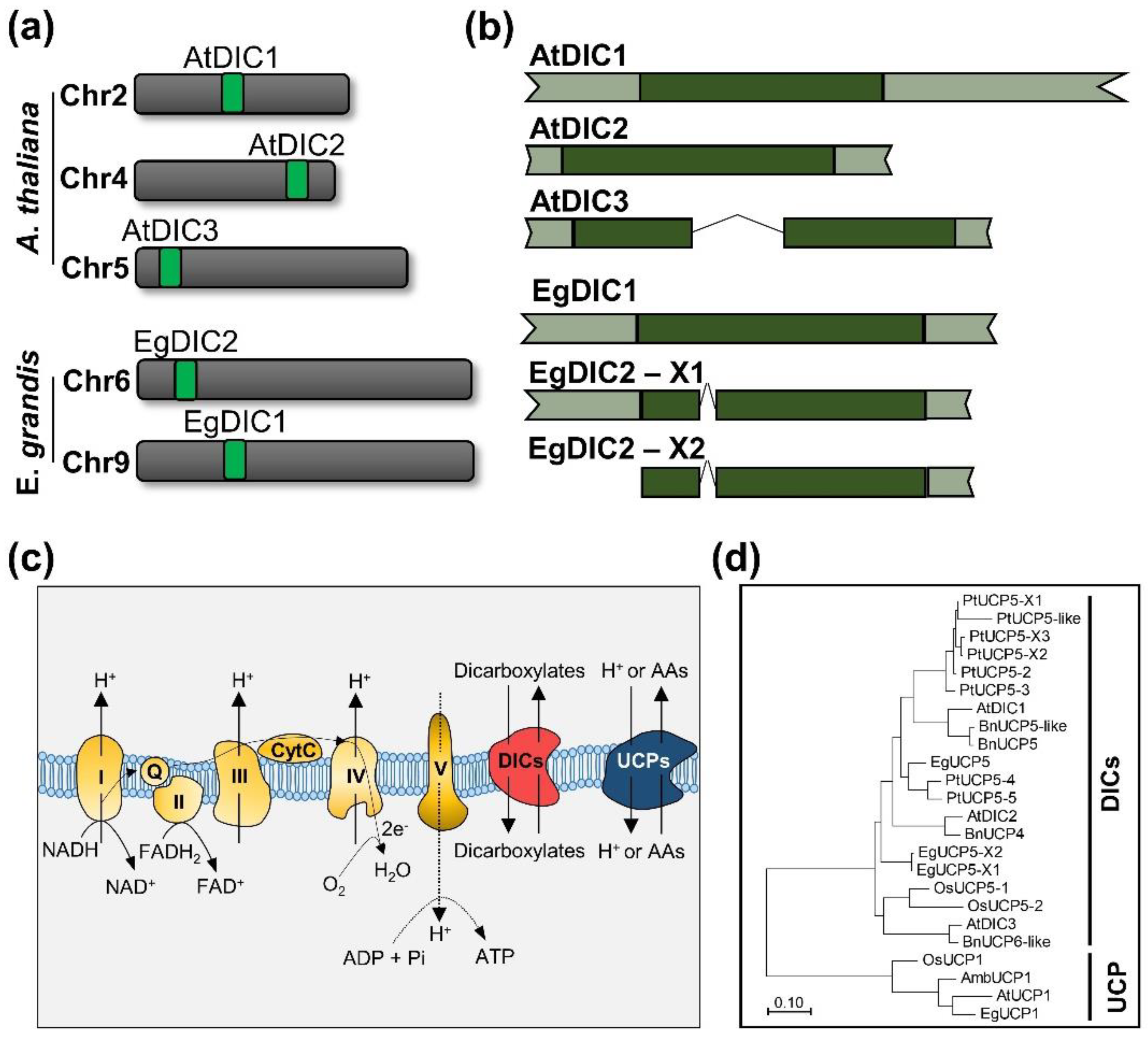

The Arabidopsis DIC sequences (AtDIC1-3) were used as queries to search for the presence of DICs in different species across the plant kingdom. We could find DICs orthologues, inferred by a bi-directional best hit approach, in Chlorophyta, Embryopyite and Tracheophyte phyla in addition to early angiosperms such as Amborella trichopoda (Figure S1). We also searched for DICs in several higher plant species including E. grandis (Table S1). Two genes encoding DICs (hereafter named EgDIC1 and EgDIC2) were identified in the E. grandis genome (Figure 1a). While EgDIC1 is located on chromosome 9 and has a single transcript variant, EgDIC2 is located on chromosome 6 and encodes two distinct transcript variants (EgDIC2 X1 and X2) (Figure 1b). The main difference between these two variants is the presence of a 5′-untranslated region (UTR) in EgDIC2 X1. The presence of introns was exclusively found in AtDIC3 and EgDIC2 (Figure 1b). Intriguingly, eight homologues belonging to the so called AtDIC2 subgroup have been annotated in Populus trichocarpa [15].

Amino acid sequence alignments revealed that the predicted E. grandis proteins are apparently more closely related to AtDIC1 (Table S2). Interestingly, the majority of the DIC orthologues that we found across plant species, including EgDIC1 and EgDIC2, are annotated as Mitochondrial Uncoupling Protein-like or Mitochondrial Uncoupling Protein (UCP). This is mainly because DICs were previously thought to be part of the UCP family due to the high sequence homology among them [16]. It has been demonstrated, however, that recombinant and purified AtDICs transport the characteristic substrates of dicarboxylate carriers by an exchange mechanism [3], whereas UCPs may transport protons and/or amino acids [17] (Figure 1c). In this context, our phylogenetic analysis clearly shows that plant UCP1 orthologues and DICs form two distinct groups (Figure 1d). Interestingly, EgDIC1 is more closely related to AtDIC1, while both variants of EgDIC2 cluster together with AtDIC2. On the other hand, although being clearly distinct from UCPs, AtDIC3 is phylogenetically distant from other DICs. In this regard, AtDIC3 forms a cluster with Oryza sativa UCP5 (OsUCP5) and seems to be a close orthologue of Brassica napus UCP6-like (BnUCP6-like). By using a bi-directional best hit analysis, we confirmed that AtDIC3 is a true orthologue of BnUC6-like, but this is not the case for OsUCP5 (Table S3). True orthologues of AtDIC3 were also found in several species of Brassicaceae such as Arabidopsis lyrata, Brassica oleracea, Capsella rubela and Camelina sativa (Table S3). In addition, we performed an extensive search in public genomic sequences available at Phytozome [18] and could not find AtDIC3 orthologues in any species outside the Brassicaceae, thus suggesting that this gene is an early genomic acquisition of this family during the course of evolution.

2.2. Analysis of Cis-Regulatory Elements in DIC Promoters

The promoter sequences (1.5 kb upstream from the AUG start codon) of each A. thaliana and E. grandis DIC genes were used as queries in PlantCare software [19] for the identification of cis-acting regulatory elements. This allowed us to depict the frequency of occurrence of different cis-elements accordingly to their position in the corresponding promoter regions using both reverse and forward strands (Figure 2). The frequency distribution varied greatly among A. thaliana and E. grandis. The higher frequency of binding sites was found between −800 to −1000 base pairs (bp) and −1000 to −1400 bp from the translation initiation site in the promoter regions of AtDIC1 (Figure 2a) and AtDIC2 (Figure 2b), respectively. On the other hand, the high frequency of regulatory elements found in the promoter of AtDIC3 lies between −200 to −400 bp upstream of the translation initiation site (Figure 2c). Interestingly, the frequency of binding sites at the first 200 bp upstream from the AUG is very low in AtDIC3 when compared to the other AtDICs. Predicted binding sites for different transcription factors (TF) were evenly distributed along the upstream regions of EgDICs (Figure 2d,e). In this context, AtDIC2 (48) and EgDIC2 (47) have the higher number of distinct cis-regulatory elements in their promoters. The functional categorization of these promoter elements revealed that responsiveness to light, abscisic acid (ABA) and hypoxia are common features of A. thaliana and E. grandis DIC genes (Table S4).

The identified cis-regulatory elements were subsequently grouped into their corresponding TF families using AGRIS [20] and PlantPan [21] databases for A. thaliana and E. grandis, respectively. Remarkably, we found an over-representation of binding sites for AT-HOOK containing TFs in the promoter regions of AtDICs (Figure 2a–c). Almost 40% of the cis-regulatory elements found in the AtDIC1 promoter, for example, contained AT-HOOK binding motifs, which are recognized by AT-hook motif nuclear localized (AHL) TFs. AT-hook motif proteins are chromatin modification proteins that participate in a wide array of cellular processes in mammals, including DNA replication, repair and transcription [22]. The Arabidopsis genome encodes 29 AHL proteins that also contain a conserved domain (namely PPC) that directs nuclear localization and contributes to the interaction of AHL with other nuclear proteins [23]. Over the past few years, members of the AHL family have been implicated in plant stress responses and immunity [24,25] and in the regulation of developmental processes such as hypocotyl growth [26], floral transition and development [27,28,29], senescence [30] and vascular tissue patterning [23].

On the other hand, the promoter regions of EgDICs harbored cis-regulatory elements recognized by different TF families, the most representative ones being AP2 (18.13%) and Myb/SANT (17.58%) in EgDIC1 and bHLH (19.05%) and bZip (17.05%) in EgDIC2 (Figure 2d,e). These observations suggest that these isoforms might play distinct roles in E. grandis. There are few studies on the function of TFs in eucalyptus. It has been shown, for example, that EgMyb1 overexpression alters vascular development resulting in fewer lignified fibers and reduced secondary wall thickening in both A. thaliana and P. trichocarpa [31]. Moreover, an extensive characterization of the E. grandis AP2/ERF (APETALA2/Ethylene-Responsive element binding Factor) family of TFs revealed an intriguing over-representation of members of the stress-responsive DREB (Dehydration Responsive Element Binding) subfamily, more specifically of DREB1/CBF and DREB2 genes [32]. There are a large number of studies that report the responsiveness of these genes to various abiotic stresses. In this context, while CBF is reported to participate mainly in Arabidopsis response to low temperature [33], DREB is implicated in drought stress responses in several plant species [34]. Surprisingly, the expression profiles of CBF and DREBs in E. grandis, with regard to other species, revealed a strong responsiveness to heat stress [32]. On the other hand, members of the bHLH (basic helix-loop-helix) and bZIP (basic leucine zipper) TF families have been studied in Poplar revealing a role for bHLH members in drought stress tolerance [35], whereas 45 out of the 96 bZIP coding genes present in the poplar genome are responsive to salt stress [36].

In order to gain further insights into possible regulators of AtDICs expression, we first used the Genevestigator database to search for genes that are co-expressed with AtDICs in a wide range of perturbations. In parallel, a similar analysis was conducted using the data from the Arabidopsis 1001 Genomes Project [37], which represents a valuable tool to investigate natural variation among genes. The co-expressed transcripts were used as queries against the Plant Transcription Factor Database [38] to obtain a list of co-expressed TFs. By combining both datasets, we discovered several potential regulators of AtDICs expression (Figure 2f–i). According to the Genevestigator data, we found 14 TFs that are co-expressed with AtDIC1, while 29 TFs were found as co-expressed using the Arabidopsis 1001 Genomes Project. Interestingly, 11 TFs were in common between the two conducted analyses (Figure 2f). The same procedure was employed for the analysis of AtDIC2 and AtDIC3. By associating the data obtained from Genevestigator and the 1001 Arabidopsis Genomes, we identified 21 TFs that are co-expressed with AtDIC2 (Figure 2g). In contrast, no TFs were found co-expressed with AtDIC3 in the Arabidopsis 1001 Genomes dataset, whereas 10 were found using the Genevestigator dataset (Figure 2h). Interestingly, four TFs were found to be co-expressed with all AtDIC genes, while 6 were in common between AtDIC1 and AtDIC2, two between AtDIC2 and AtDIC3 and none between AtDIC1 and AtDIC3 (Figure 2i; Tables S5 and S6). These four TFs that are co-expressed among all AtDICs include AT1G80840 (WRKY), AT3G23250 (MYB), AT1G28370 (ERF) and AT1G27730 (C2H2) that are all associated with abiotic and biotic stress responses. Interestingly, the Hypoxia Response Factor 2 (HRE2, AT2G47520), a member of the ERF family, was co-expressed with both AtDIC1 and AtDIC2 (Tables S5 and S6). This TF is both part of the plant low oxygen response [39] and a member of the mitochondrial dysfunction stimulon [40]. Overall, these results confirm the presence of several stress-responsive TF-binding sites in the investigated gene promoters. Moreover, the co-expression analysis suggests that AtDIC expression might be co-regulated by several transcription factors during exposure to biotic and abiotic stresses.

2.3. Functional Insights from In Silico Gene Expression Analysis

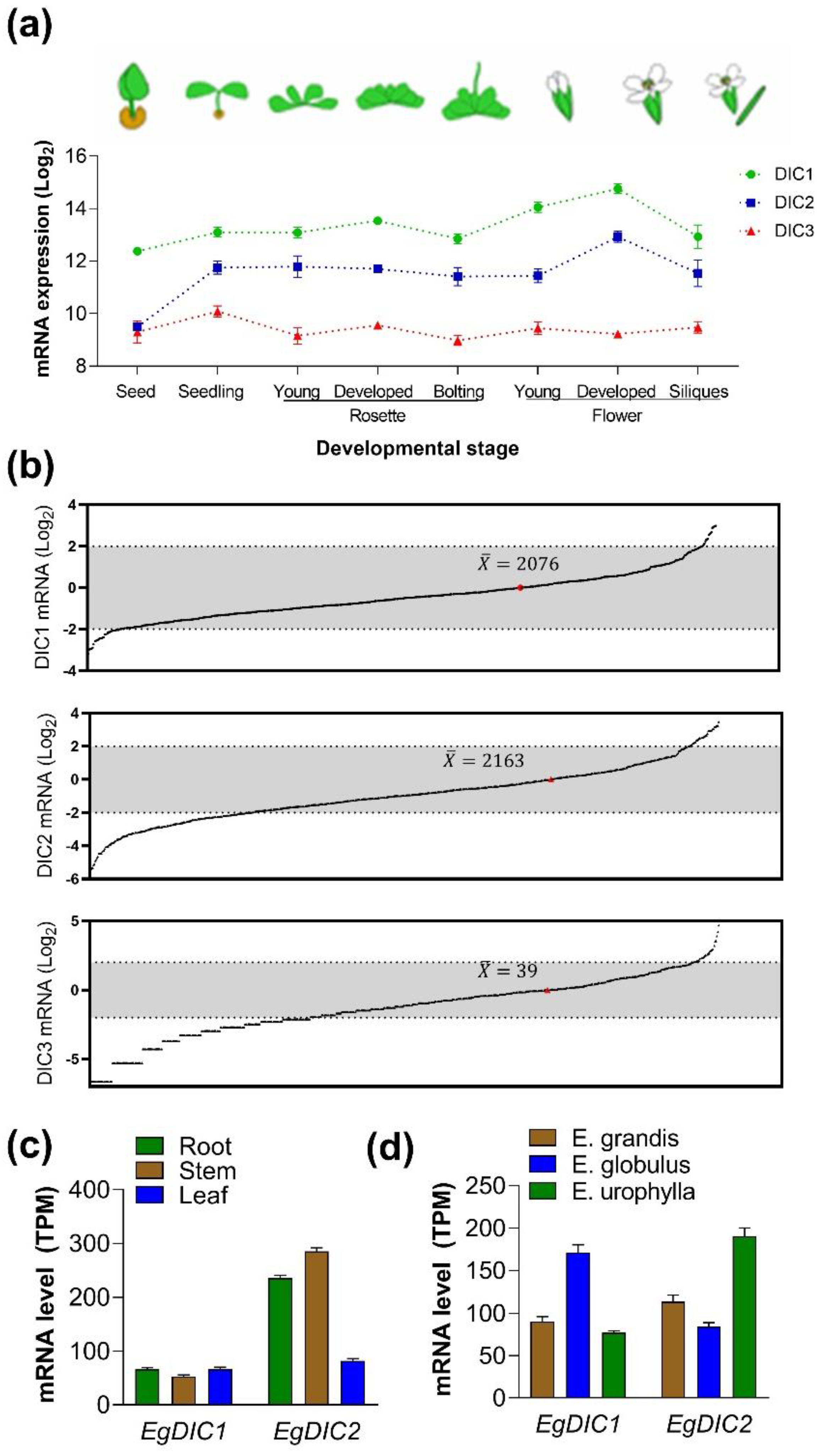

We searched public transcriptomic datasets using Genevestigator software to investigate the expression patterns of A. thaliana DICs along plant development. In contrast to AtDIC2 and AtDIC3, transcripts of AtDIC1 are already present in seeds (Figure 3a). Subsequently, as plants go through the seedling stage, AtDIC2 is induced by at least 4-fold when compared to seeds. During the following developmental stages, the expression patterns of AtDIC1 and AtDIC2 are very similar, remaining constant until the developed flower stage, in which an expression peak is observed for both genes. In contrast, when compared to the other AtDICs, AtDIC3 expression remains very low in all developmental stages. In this regard, although showing in vitro the transport characteristics of other DICs [3], the relatively low expression levels of AtDIC3 in plant tissues argue against a pivotal role for this isoform in A. thaliana development. To further investigate this possibility, we used the transcriptome datasets from 727 distinct A. thaliana ecotypes provided by the Arabidopsis 1001 Genomes Project. The average expression of AtDIC1 (TPM = 2076) and AtDIC2 (TPM = 2163) was found to be very similar among these accessions, while AtDIC3 presented very low average expression values (TPM = 39) (Figure 3b). Interestingly, AtDIC3 expression was absent in at least 25 of the investigated accessions and its highest expression value was 1003, less than half of the detected average expression of AtDIC1 and AtDIC2. In line with these data, a single organelle proteome study retrieved 51 and 29 copies of AtDIC1 and AtDIC2, respectively, per mitochondria, while no copy of AtDIC3 was found [41]. It seems therefore that AtDIC3 activity is required under specific circumstances and at low levels.

In contrast to A. thaliana, publicly available transcriptomic data for E. grandis is sparse. By searching in the EUCANEXT database [42], we found that EgDIC1 has similar expression in roots, stem and leaves, whereas EgDIC2 expression is around 2.5-fold higher in roots and stem when compared to leaves (Figure 3c). We could also observe that EgDIC1 expression was almost 2 times higher in the xylem of E. globulus when compared to E. urophyla and E. grandis, whereas EgDIC2 transcript abundance was higher in E. urophyla (Figure 3d).

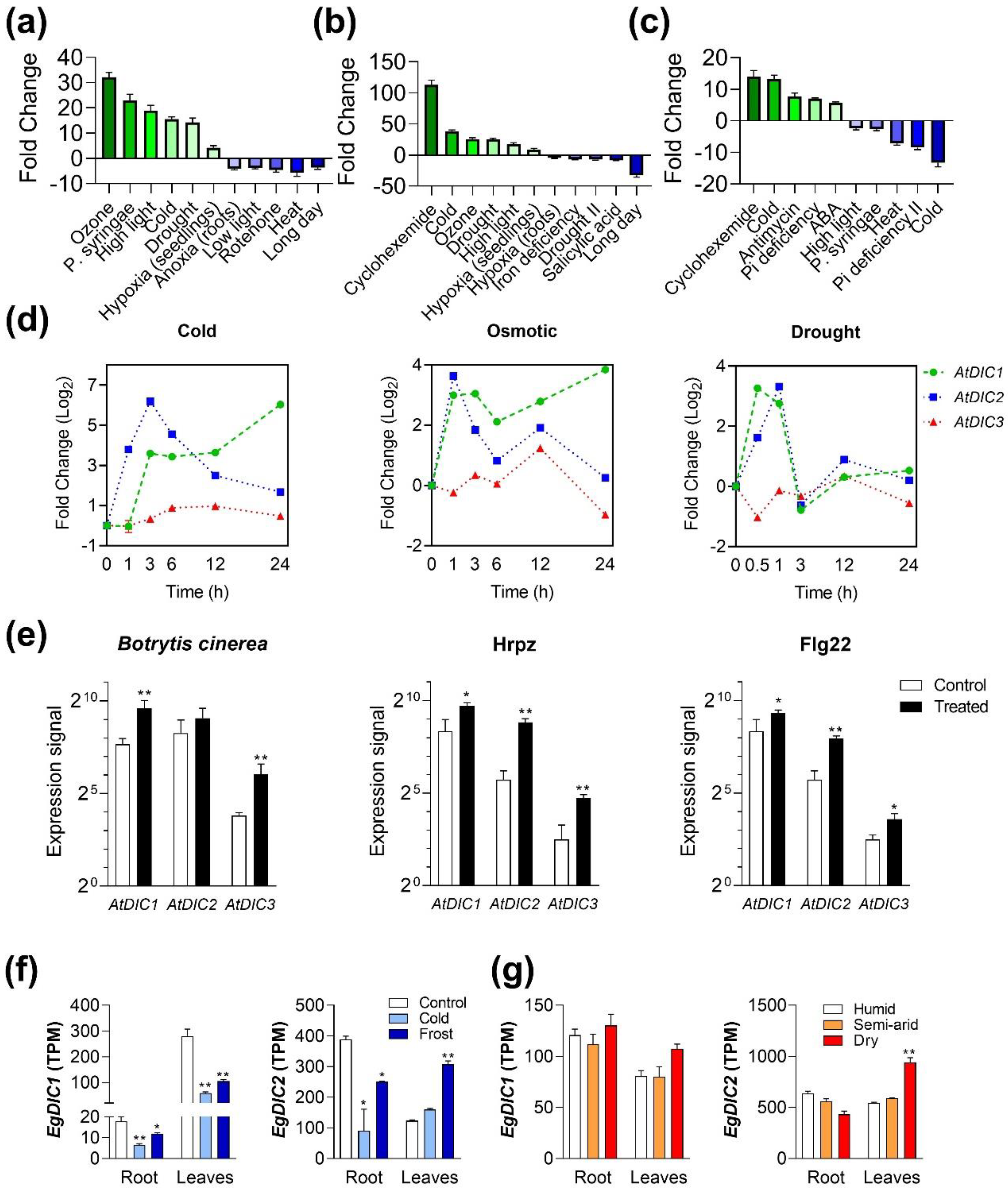

In order to gain further insights into the functionality of the investigated AtDICs, we evaluated their expression patterns across a wide range of A. thaliana perturbations and in response to phytohormones (Figure 4a–c). AtDIC1 was found to be strongly upregulated in plants subjected to ozone (32-fold), Pseudomonas syringae (22-fold), high light (18-fold), cold (15-fold), drought (14-fold) and in whole seedlings subjected to hypoxia (4-fold) (Figure 4a). With the exception of P. syringae, AtDIC2 showed similar responsiveness to the aforementioned treatments, but with detected differences in the magnitude of induction (Figure 4b). Moreover, this gene was also highly induced by treatment with the protein synthesis inhibitor cycloheximide. Interestingly, AtDIC1 and AtDIC2 were downregulated in the roots of seedlings subjected to anoxia (4-fold) and hypoxia (4-fold), respectively (Figure 4a,b). On the other hand, apart from being induced by cycloheximide and cold, AtDIC3 expression was also upregulated by phosphate deficiency (13-fold), antimycin (13-fold) and ABA (5-fold) (Figure 4c). A similar analysis conducted using the BAR database [43] confirmed the responsiveness of AtDIC1 and AtDIC2 to cold, osmotic and drought stresses (Figure 4d). AtDIC3 expression did not differ by more than 2-fold in magnitude among most of the above-mentioned treatments, although it was significantly repressed after 3 h of drought stress by more than 3-fold. Absolute data and statistics for Figure 4d are available at Table S7. Likewise, all three AtDICs were induced after exposure to biotic stresses (Figure 4e). In this regard, infection with Botrytis cinerea provoked a more than 4-fold increase in AtDIC1 and AtDIC3 expression, while all three AtDICs were significantly upregulated after treatment with the bacterial elicitors HrpZ or Flg22 (Figure 4e).

When looking at the EUCANEXT database, we found that EgDIC1 expression in roots was reduced by cold (65%) and frost (35%) treatments (Figure 4f). A similar pattern was found in leaves, where EgDIC1 expression was repressed by 80% and 60% after cold and frost treatment, respectively. A negative impact in EgDIC2 expression in roots in response to cold (77%) and frost (36%) was also detected (Figure 4f). Intriguingly, EgDIC2 expression was not altered by these stresses in leaves. The retrieved data also shows that plants grown under different environmental conditions (humid, semi-arid and dry) presented about the same amount of EgDICs transcripts (Figure 4g). An exception was found in leaves from E. grandis grown in dry environments, in which a 2-fold increase in EgDIC2 transcript abundance was detected.

2.4. Natural Variation of DICs Expression Reveals a High Correlation between DIC1 and DIC2

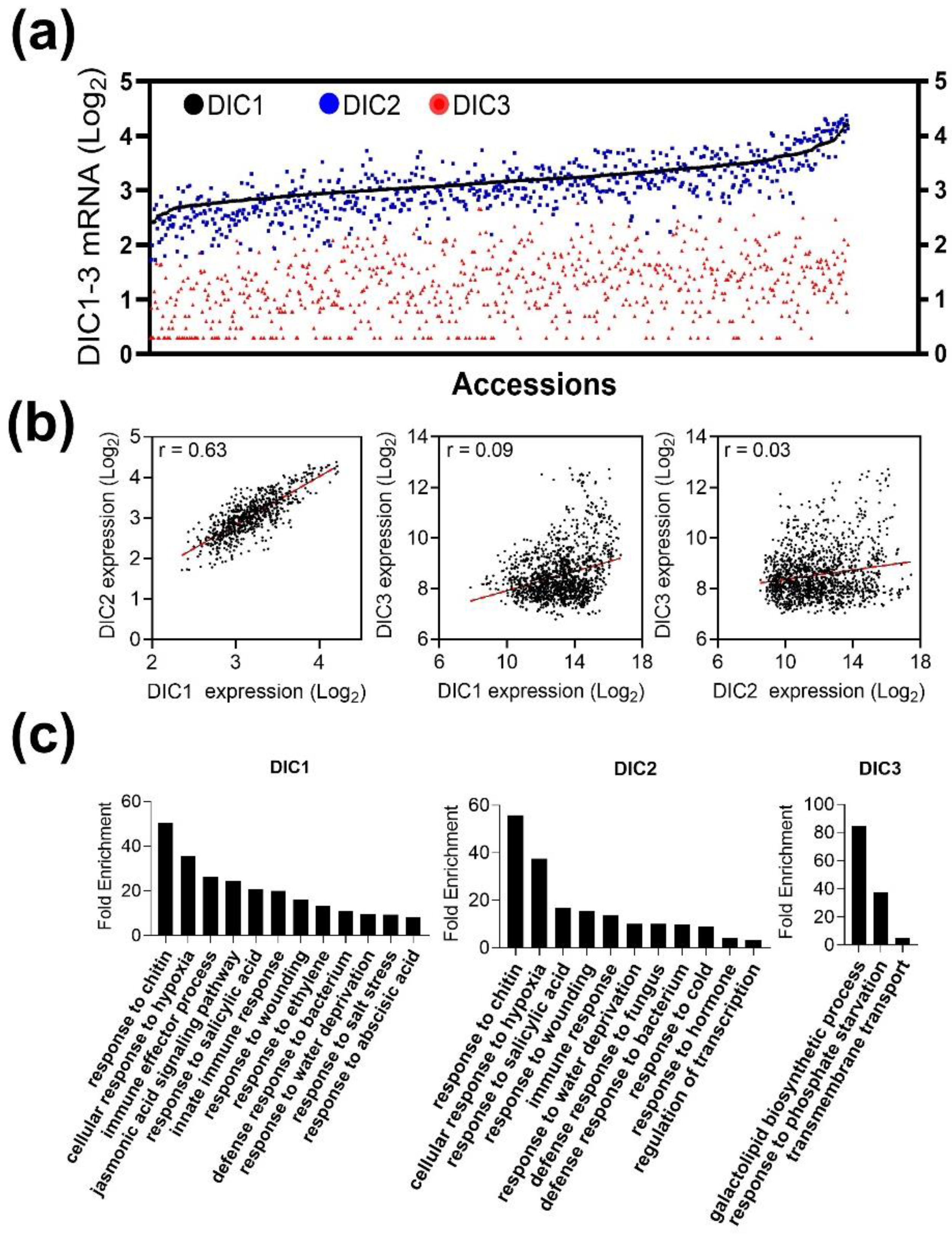

We sought to predict whether the similar expression behavior of AtDIC1 and AtDIC2 during plant development, in response to stresses and in distinct accessions, could be due to co-expression. For that, we calculated the Pearson correlation coefficient (r) using the data from the Arabidopsis 1001 Genomes Project. Notably, we found that AtDIC1 and AtDIC2 are highly co-expressed in the investigated accessions (Figure 5a). The dispersion of AtDIC2 expression strongly resembles the one observed for AtDIC1 (Figure 5a), resulting in a high positive correlation between them (r = 0.63) (Figure 5b). In contrast, AtDIC3 behaved very differently and no correlation with AtDIC1 (r = 0.09) nor AtDIC2 (r = 0.03) could be found (Figure 5b).

A GO enrichment analysis was subsequently performed to determine the biological processes terms associated with the genes presenting elevated correlation coefficients with AtDICs (Figure 5c). It should be emphasized that AtDIC1 and AtDIC2 were highly correlated with 113 and 91 transcripts, respectively (r ≥ 0.75) (Table S8). These transcripts were significantly enriched in several GO terms, being the top 2, “response to chitin” and “response to hypoxia” (Figure 5c). In contrast, very few transcripts were correlated with AtDIC3 (Table S8), a feature that resulted in a small number of GO categories found enriched, i.e., galactolipid biosynthetic processes, response to phosphate starvation and transmembrane transport. It is known that genes that are functionally related are often tightly connected and the co-expression links are frequently conserved across plant networks [44]. These results suggest that AtDIC1 and AtDIC2 may be partially redundant, complementary or act synergistically during A. thaliana development and, specially, in response to stresses.

2.5. DICs Are Responsive to Submergence in A. thaliana and E. grandis

According to our in silico analysis, submergence and hypoxia are among the major perturbations that can alter AtDICs expression (Figure 4a,b). In agreement, AtDIC2 was previously reported to be induced by hypoxia and anoxia [13]. Moreover, several transcripts associated with the term “response to hypoxia” were found co-expressed with AtDIC1 and AtDIC2 (Figure 5c). In view of such evidence, we decided to investigate whether DICs could be also part of the submergence response in E. grandis by waterlogging 2-month-old seedlings (Figure 6a). Seedling biomass, both in terms of Fresh Weight (FW) and Dry Weight (DW), together with Relative Water Content (RWC), were strongly affected by 30 days of waterlogging stress (Figure 6b). Previous reports in waterlogged seedlings of gray poplar (Populus × canescens) revealed that most of the changes in hypoxia-related transcripts occur in the roots rather than leaves [45]. In fact, we found that both EgDIC1 and EgDIC2 are strongly responsive to short term submergence stress in E. grandis roots (Figure 6c). EgDIC1 transcript levels in roots increased 28-fold and 31-fold after 24 h and 48 h of waterlogging. Similarly, EgDIC2 transcript abundance increased approximately 10-fold and 20-fold after 24 h and 48 h under waterlogging conditions. On the other hand, the expression of both genes returned to basal levels after 72 h of waterlogging. Interestingly, hypoxia has been shown to negatively affect the levels of 2-oxoglutarate, a pivotal metabolite of the TCA cycle, in the roots of a Eucalyptus urograndis clone tolerant to oxygen depletion, whereas a significant decrease in citrate levels was observed in the roots of a sensitive clone [14]. In addition, an increase in gamma-aminobutyric acid (GABA) and succinate (2.5-fold) levels were observed in the roots of both clones under hypoxic conditions [14]. These data suggest that modulation of the TCA cycle intermediates is part of the Eucalyptus metabolic adjustments during exposure to short-term hypoxia, a feature that probably requires DIC activity.

Hypoxia response in A. thaliana is regulated by the Group VII Ethylene Transcription Factors (ERFVIIs) [39,46,47,48]. In order to investigate whether ERFVIIs might control AtDICs expression under submergence, we employed the quintuple Arabidopsis mutant rap2.12 rap2.2 rap2.3 hre1 hre2 (erfVII) that lacks hypoxia response. In seedlings of the Col-0 background, both AtDIC1 and AtDIC2 are induced shortly after 10 min of submergence stress, reaching their peak of expression after 30 min (Figure 6d). In contrast, the observed induction is abrogated in the erfVII mutant, suggesting that both AtDIC1 and AtDIC2 could be under the control of ERFVIIs, at least during submergence. On the other hand, AtDIC3 expression is not induced in submerged seedlings of both genotypes.

To provide further support for the involvement of DICs in the hypoxia response, we employed independent Arabidopsis transgenic lines overexpressing AtDIC2 (Figure S2; E#1, E#8 and E#9). It should be emphasized that, according to our results, AtDIC2 and AtDIC1 are responsive to submergence in an ERFVII-dependent manner (Figure 6d). Therefore, a survival assay by submerging seedlings in H₂O for 60 min in the dark was performed. The results show that AtDIC2 overexpression increased seedling survival to submergence compared with the wild-type Col-0 (Figure 6e). As expected, the prt6 line, which has a constitutive hypoxia response due to the lack of PRT6 E3 ligase activity that targets N-end rule pathway substrates for proteasomal degradation [39], also displayed improved seedling survival. In contrast, the erfVII mutant was clearly more susceptible to this stress (Figure 6e). The fact that AtDIC2 overexpression is able to confer tolerance to submergence is indicative of a critical role for DICs during low-oxygen response.

It is known that transcripts encoding TCA cycle enzymes, such as Malate Dehydrogenase, are down-regulated in response to low-oxygen in poplar and Arabidopsis [49]. In agreement with that, several of their corresponding metabolites decrease in abundance under anoxia in rice [12]. A postulated role played by DICs is linked to the metabolic flux of organic acids to or from the mitochondria [3]. In this scenario, AtDICs might be important to export mitochondrial dicarboxylates, especially malate, to the cytosol where it could be oxidized to oxaloacetate and NADH, providing reducing equivalents for ethanolic fermentation [16]. Taken together, these results suggest that AtDIC1 and AtDIC2 in A. thaliana and EgDIC1 and EgDIC2 in E. grandis are part of the low-oxygen response. As EgDICs are responsive to waterlogging, we hypothesize that these genes might be also under control of EgERFVIIs and wonder whether this mechanism might be extrapolated to angiosperms.

3. Material and Methods

3.1. Experimental Model and Subject Details

The prt6 and erfvii mutant line of Arabidopsis thaliana was previously described [39,46,47,48] and kindly provided by Prof. Michael Holdsworth from University of Nottingham. The Col-0 accession was used as wild-type (WT) control in the assays. Arabidopsis thaliana (Col-0) lines overexpressing AtDIC2 under the control of the CaMV 35S promoter were generated using the floral dip method essentially as described [40]. For that, the full-length cDNA of AtDIC2 was PCR-amplified using gene-specific primers (AtDIC2c; Table S9) and cloned into the pBI121 binary vector digested by BamHI and SacI. Transformants were selected on half strength MS media containing 100 μg/mL kanamycin. Three independent transgenic lines (T2) showing distinct levels of AtDIC2 expression (namely E#1, E#8 and E#9; Figure S2) were employed in the submergence assays. A publicly available clone of Eucalyptus grandis (G00510) was employed in all assays.

3.2. Phylogenetic Analysis

The amino acid sequences of A. thaliana (At) DIC1 (NP_179836.1), DIC2 (NP_194188.1) and DIC3 (NP_196509.1) were used as queries for searching DICs in a number of plant species employing BLASTP [50]. Multiple amino acid sequence alignments of DICs and other mitochondrial proteins were performed using MUSCLE [51]. The phylogenetic analyses were conducted using the maximum likelihood algorithm corrected by Poisson distribution on MEGA 7 [52] and tested by the bootstrap method with 1000 replications. Accession numbers for proteins used in the phylogenetic analysis are available at Table S1.

3.3. In Silico Gene Expression and Promoter Analysis

Arabidopsis thaliana gene expression analysis was performed using both Affymetrix and mRNA-seq libraries from Genevestigator (https://genevestigator.com/gv/ (accessed on 1 May 2021) and the Bio-Array Resource [43]. The Arabidopsis 1001 Genomes [37] population data were used for analyzing the expression and correlation among AtDIC family members in distinct Arabidopsis ecotypes. Genevestigator and the Arabidopsis 1001 Genomes databases were also used for the co-expression analyses. A list of co-expressed TFs was obtained by submitting co-expressed transcripts as queries against the Plant Transcription Factor Database [38]. The EUCANEXT [42] database was used to investigate EgDICs expression patterns in E. grandis.

Promoter sequences (1.5 kb upstream of translation start site) were retrieved for each A. thaliana and E. grandis DIC from NCBI. The tools PlantCare (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 15 May 2021) [19], AGRIS (http://arabidopsis.med.ohio-state.edu/AtcisDB/ (accessed on 15 May 2021) [20] and PlantPan (http://plantpan.itps.ncku.edu.tw/ (accessed on 15 May 2021) [21] were employed for scanning for cis-elements present in the promoter regions of the investigated genes. The identified cis-elements were compared with each other and discussed in light of literature available.

3.4. Submergence Assays

Seeds from the erfvii mutant line and WT Col-0 were sowed on half-strength MS medium pH 5.7 containing 1% (w/v) agar, stratified for 96 h at 4 °C and grown in vertical plates at 16 h light conditions for 7 days. Approximately 30 seedlings were submerged in H₂O in a 1.5 mL tube for 0, 10, 30 and 60 min in the dark. Seedlings were removed from the tube and snap-frozen in liquid nitrogen. The same number of seedlings was maintained in a humidity chamber for 0, 10, 30 and 60 min in the dark as controls. Two independent experiments were carried out.

The survival of Arabidopsis seedlings to submergence was determined as previously described [53] with modifications. Seeds were sown on quarter-strength MS medium pH 5.7 containing 1% (w/v) agar, stratified for 96 h at 4 °C and grown in vertical plates at neutral day conditions for 4 days. Seedlings were then submerged in sterile H₂O in a 1.5 mL tube for 60 min in the dark and returned to quarter-strength MS in the growth chamber. After 4 days, the root tips were scored based on survival (continued growth of the primary root). Control plants were submerged in the light for the same amount of time as treated plants and returned to quarter-strength MS in the growth chamber. Three independent experiments were carried out. Each experiment was conducted using 30 seedlings for each tested genotype.

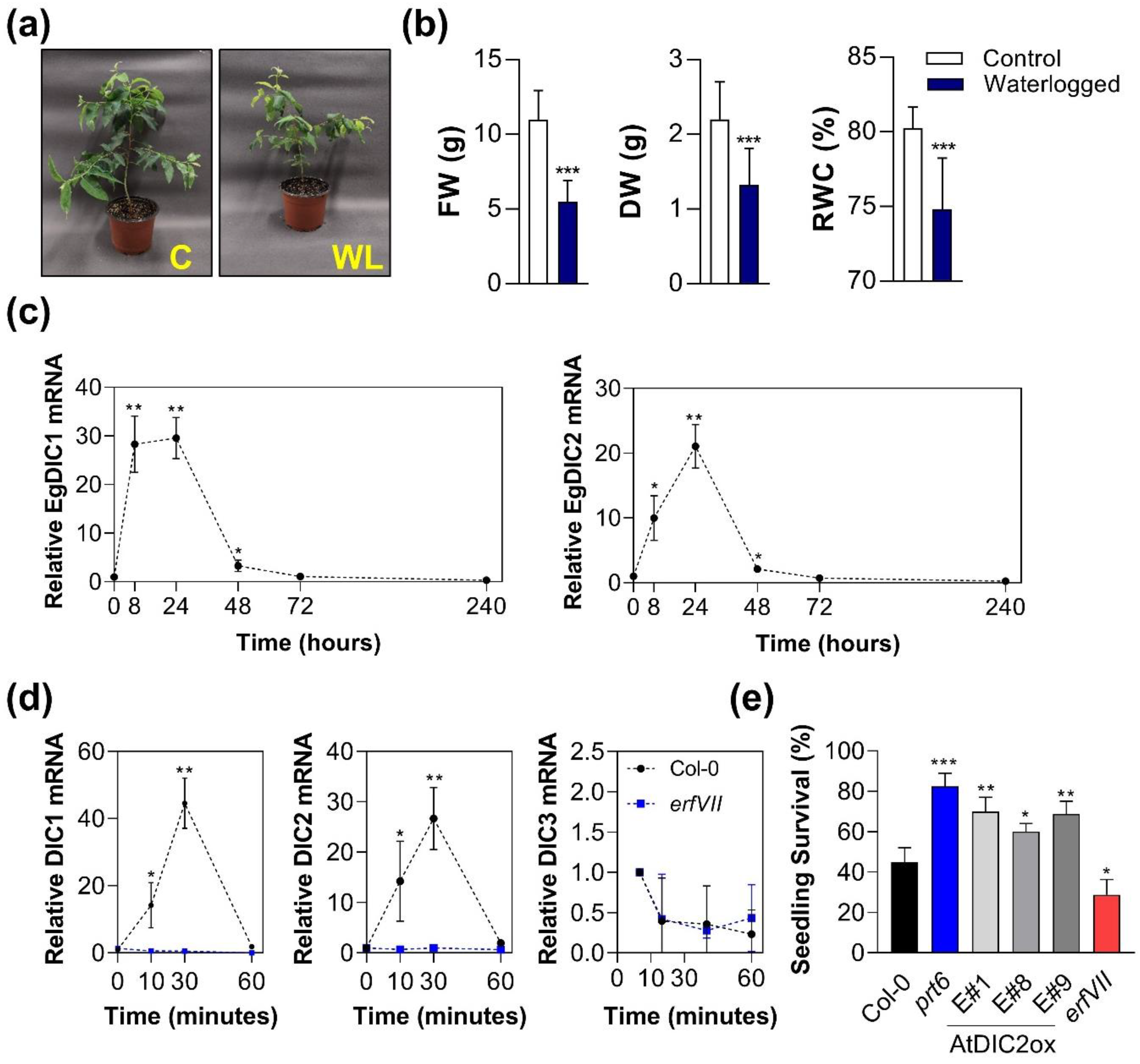

For the submergence assays in E. grandis, two-month-old seedlings (clone G00510) were transferred to 0.5 L pots filled with a mixture of soil-vermiculite (2:1), maintained for 2 weeks in a 16 h light regime at 27 °C for acclimatization, and then placed inside large plastic containers. Submergence was imposed by filling the containers with water until 2 cm above soil. Submerged samples were collected after 0, 24, 48, 72 and 240 h, washed in H₂O and dried with a paper towel. Samples were then snap-frozen in liquid nitrogen and stored at −80 °C. Fresh weight (FW) and dry weight (DW) of aboveground biomass were measured using the seedlings subjected to 30 days of waterlogging and used to calculate the relative water content (RWC) as described [54]. A total of 12 biological replicates were used to evaluate FW, DW and RWC.

3.5. Gene Expression Analysis

Total RNA was isolated from Arabidopsis seedlings using a RNAeasy Plant Mini Kit (Qiagen, Hilden, Germany), whereas a CTAB derived extraction protocol followed by LiCl precipitation with minor modifications was used for isolation of total RNA from Eucalyptus roots [55,56]. One microgram of the extracted RNA samples was treated with RNase-free DNase I (Promega, Madison, WI, USA) and then reverse-transcribed using a High-Capacity cDNA Synthesis kit (Thermo Fisher, Waltham, MA, USA) and random primers according to the manufacturer’s protocol.

Real-time PCR was performed using the Applied StepOne system (Applied Biosystems, Foster City, CA, USA) and carried out in a final volume of 10 μL using the following cycling conditions: initial denaturation at 95 °C for 5 min, followed by 45 cycles of 95 °C for 15 s and 60 °C for 1 min. Each qPCR reaction consisted of 6 µL of GoTaq Colorless qPCR Master Mix (Promega, Madison, WI, USA), 1 µL of cDNA (1/10 dilution) and 0.3 µM of forward and reverse primers, respectively. The reactions were performed in technical triplicates with at least two biological replicates. The results were expressed relative to the expression levels of 40S and TUBULIN genes (for Arabidopsis and Eucalyptus, respectively) using the 2–ΔΔCt method. All values were expressed as fold changes of treated plants relative to the control. A list of the primers used in this study is available at Table S9.

3.6. Statistical Analysis

Results from Real-time PCR were analyzed using Student’s t-test to determine statistical significance (* p < 0.05, ** p < 0.01). Data obtained from Genevestigator were previously filtered using a 2-fold change cutoff and p < 0.01. The statistical significance of data obtained from BAR was determined using a one-way ANOVA and mean values were compared using Tukey’s test.
