Transcriptome Analysis of Eggplant under Salt Stress: AP2/ERF Transcription Factor SmERF1 Acts as a Positive Regulator of Salt Stress

by
Lei Shen
1,†,
Enpeng Zhao
1,†,
Ruie Liu
2 and
Xu Yang
1,*
1
College of Horticulture and Plant Protection, Yangzhou University, Yangzhou 225009, China
2
Shanghai Center for Plant Stress Biology, National Key Laboratory of Plant Molecular Genetics, Center for Excellence in Molecular Plant Sciences, Chinese Academy of Sciences, Shanghai 201600, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2022, 11(17), 2205; https://doi.org/10.3390/plants11172205
Submission received: 5 July 2022 / Revised: 19 August 2022 / Accepted: 23 August 2022 / Published: 25 August 2022
(This article belongs to the Special Issue The Trade-Offs between Growth and Development and Stress in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
Salt stress, a type of abiotic stress, impedes plant growth and development and strongly reduces crop yield. The molecular mechanisms underlying plant responses to salt stress remain largely unclear. To characterize the enriched pathways and genes that were affected during salt treatment, we performed mRNA sequencing (mRNA-seq) in eggplant roots and identified 8509 differentially expressed genes (DEGs) between the mock and 24 h under salt stress. Among these DEGs, we found that the AP2/ERF transcription factor family member SmERF1 belongs to the plant–pathogen interaction pathway, which was significantly upregulated by salt stress. We found that SmERF1 localizes in the nuclei with transcriptional activity. The results of the virus-induced gene silencing assay showed that SmERF1 silencing markedly enhanced the susceptibility of plants to salt stress, significantly downregulated the transcript expression levels of salt stress defense-related marker genes (9-cis-epoxycarotenoid dioxygenase [SmNCED1, SmNCED2], Dehydrin [SmDHN1], and Dehydrin (SmDHNX1), and reduced the activity of superoxide dismutase and catalase. Silencing SmERF1 promoted the generation of H2O2 and proline. In addition, the transient overexpression of SmERF1 triggered intense cell death in eggplant leaves, as assessed by the darker diaminobenzidine and trypan blue staining. These findings suggest that SmERF1 acts as a positive regulator of eggplant response to salt stress. Hence, our results suggest that AP2/ERF transcription factors play a vital role in the response to salt stress.

1. Introduction

With continuous changes in the ecological environment, the area of saline-alkali land worldwide is increasing every year, becoming a global, burning issue [1]. Secondary salinization caused by the excessive use of fertilizers and irrational soil cultivation seriously affects the growth, development, yield, and quality of crops [2,3]. Salt stress affects water absorption, leading to cell dehydration and osmotic stress [4]. The excessive accumulation of salt ions caused by water transpiration triggers ionic stress in plant cells, which affects plant morphology and physiological and biochemical processes and ultimately limits plant growth and development [5]. High salinity also affects plant photosynthesis by regulating gene expression and stomatal closure, ultimately leading to a reduction in crop productivity due to decreased carbon dioxide absorption [6].
mRNA sequencing (mRNA-seq) based on transcriptome profiling has become an efficient, routine technology for the signaling pathway analysis of transcriptional regulation in plant responses to salt stress [7]. Under salt stress, many defense-related genes are activated by transcriptional reprogramming in plants, a process in which transcription factors play vital roles [8,9]. Apetala2/ethylene-responsive factor (AP2/ERF) is a major plant-specific family of transcription factors comprised of four main functional domains: the nuclear localization signal region, DNA-binding domain, transcriptional regulatory domain, and oligomerization site [10]. AP2/ERF transcription factor superfamily members have one or more typical AP2/ERF domains composed of 60–70 highly conserved amino acids that recognize and bind DNA [11]. According to sequence similarity and the number of AP2/ERF domains, the AP2/ERF transcription factor superfamily is divided into three main families: AP2, ERF, and RAV (related to ABI3/VP1). AP2 family members contain two conserved AP2 domains, RAV family members harbor an AP2 domain and a B3 domain, and ERF family members have an AP2 domain and a WLG motif [12]. The ERF transcription factor family can be divided into two subfamilies: dehydration-responsive element-binding protein (DREB) and ERF [13]. The sequences of the AP2/ERF-conserved domains are relatively similar, and they differ in the type of cis-elements within the target gene promoter bound by subtribe members of the AP2/ERF transcription factor [14,15]. DREB proteins recognize and bind to the drought-responsive cis-element harboring the A/GCCGAC core sequence [16], while ERF proteins bind to the GCC box (AGCCGCC) cis-element [17]. ERF transcription factors are mostly involved in ethylene and abscisic acid (ABA) signaling pathways and function in plant responses to salt [18,19,20], cold [21,22,23], heat [24,25], drought [26,27,28,29], and pathogen attacks [30,31,32]. These transcription factors regulate the expression of the downstream stress-response genes by binding to specific cis-elements within the promoters [33,34]. However, the roles and mechanisms of most ERF transcription factors in eggplant responses to salt stress remain largely unknown.
Abscisic acid (ABA) acts as a phytohormone and plays a vital role in plant responses to abiotic stress including salt and drought stress [35,36,37]. Salt or drought stress can cause the endogenous plant ABA level to rise by 40-fold [38]. The activation of ABA biosynthetic enzymes plays a vital role in the plant against salt and drought stresses. During ABA biosynthesis, 9-cis-epoxycarotenoid dioxygenases (NCEDs) can catalyze 9-cis-epoxycarotenoids, the cleavage of 9-cis-epoxycarotenoids, to xanthoxin [39]. In Arabidopsis thaliana, NCED3 acts as a key regulation factor in ABA biosynthesis in plant responses to water deficit and salt stress [40,41]. The transcription factor NGATHA1 can regulate the NCED3 expression level in the Arabidopsis thaliana response to salt stress [42].
Eggplant is an agriculturally vital solanaceous vegetable cultivated worldwide [43]. Salt stress critically affects eggplant yield; however, the mechanisms underlying the salt stress response of eggplant remain unclear. In this study, we aimed to investigate the response mechanisms of eggplant to salt stress and identify the key genes involved in eggplant responses to salt stress. We performed an RNA sequencing assay to screen the differentially expressed genes (DEGs) in the eggplant roots under salt stress and identified the different metabolic pathways involved in eggplant responses to salt stress by gene ontology (GO) annotation and Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis. We selected and characterized an AP2/ERF transcription factor family member, SmERF1, which acts as a positive regulator of the eggplant response to salt stress.

2. Results

2.1. Sequencing Data Summary and DEGs Analysis

Transcriptional assays in the eggplant inbred line ML41 were performed to screen potential target genes involved in the response to salt stress. The roots of ML41 treated with 150 mM NaCl solution were harvested at 0 and 24 h post-treatment for mRNA-seq analysis [7]. Illumina high-throughput sequencing yielded 281.9 million clean reads, corresponding to an average of 47 million sequence reads per sample. Approximately 91.53% of the paired-end clean reads were aligned to the Solanum melongena reference genome (http://eggplant-hq.cn/Eggplant/home/index, accessed on 20 July 2022) using Hisat2 [44,45] (Table S1). The spatiotemporal expression patterns of the samples were investigated using the principal component analysis (PCA). The samples from 0 and 24 h post-treatment formed independent clusters (Figure 1a). Compared to the samples at 0 h post-treatment, 8509 DEGs, comprising 4878 up-regulated and 3631 down-regulated genes, were identified in the samples at 24 h post-treatment. The identified DGEs between the 0 and 24 h post-treatment groups are visualized with the Volcano plot (Figure 1b). The heat map shows that a mass of DEGs was identified in the samples at 24 h post-treatment compared with the samples at 0 h post-treatment (Figure 1c). The results indicated that salt stress led to comprehensive transcriptome changes in the eggplant root cells.

2.2. GO Analysis of DEGs

The functional classification of the DEGs induced by salt treatment was investigated using GO enrichment analysis. The top 20 enriched GO terms included biological processes, molecular functions, and cellular components (Figure 2). The upregulated DEGs were significantly assigned to 127 pathways in biological processes, 82 pathways in molecular functions, and 67 pathways in cellular components; the downregulated DEGs were assigned to 215 pathways related to biological processes, 96 pathways in molecular functions, and 34 pathways in cellular components (Table S2).
Within biological processes, upregulated DEGs were significantly enriched in 127 pathways, including the response to oxygen-containing compounds (GO:1901700) related to ABA responsiveness [46], the response to acid chemicals (GO:0001101) such as pyruvic acid, which is related to the process of ABA biosynthesis [47], and the response to water (GO:0009415) (Table S2). This indicated the role of ABA in plant responses to salt treatment and suggested that the expression of the genes upregulated by salt may involve in these pathways.

2.3. KEGG Analysis of DEGs

KEGG analyses were conducted to further understand the function of the DEGs associated with the salt response. The 14 up-enrichment pathways and 18 down-enrichment pathways were enriched by salt stress treatment in eggplant roots, respectively (Table S3). The up-regulated genes were significantly enriched in the categories “plant-pathogen interaction” and “plant hormone signal transduction” (Figure 3a), whereas the down-regulated genes were enriched for the categories “metabolic pathways”, “biosynthesis of secondary metabolites”, “starch and sucrose metabolism”, and “pentose and glucuronate interconversions” (Figure 3b). These results indicated that salt stress induces multiple biological processes in eggplants at the whole-genome level.
The results of the KEGG analyses showed that salt stress treatment upregulates the transcript expression levels of genes related to plant–pathogen interaction and plant hormone signal transduction (Figure 3a). Therefore, we selected eight plant–pathogen interaction-related genes (Table S4), namely, SmMAPKKK1, SmWRKY20, SmRIN1, SmERF1, SmHSP90-5, SmCNGC17, SmCDPK11, and SmCDPK32, and five ABA signal transduction-related genes (Table S4), including the environmental stress-inducible protein TAS14 (SmTAS14), a late embryogenesis abundant protein family member Dehydrin 1 (SmDHN1) [48], Dehydrin Xero 1 (SmDHNX1), which is regulated by ABA signaling [49], abscisic acid 8′-hydroxylase 3 (SmABA8′HO3) [25], and glutathione S-transferase U10 (SmGSTU10), to detect their transcript expression levels in eggplant roots under salt stress by a quantitative real-time PCR (qPCR) assay. Four biological replications (one plant root as a biological repeat) were used for the detection of above-mentioned genes’ transcript expression levels treated with salt stress at 0, 3, 6, 12, 24, and 48 h post treatment. The transcript expression levels of these genes were significantly upregulated by the salt stress treatment (Figure 4), which is consistent with the mRNA-seq data. Similarly, salt stress significantly upregulated the transcript expression levels of the salt stress defense-related marker genes 9-cis-epoxycarotenoid dioxygenase 1 (SmNCED1) and SmNCED2 [40,50] (Figure 5).

2.4. Sequence Analysis of SmERF1

The KEGG analysis showed that SmERF1 belongs to the plant–pathogen interaction pathway, and its relative transcript expression level was significantly upregulated by salt stress treatment. The fold of the transcript expression level of SmERF1 up-regulated at 48 h post-salt stress treatment was higher than the other seven selected genes. This suggests that SmERF1 may play a role in eggplant responses to salt stress or pathogen attacks. To verify the function of SmERF1 in the eggplant response to salt stress, we first analyzed the sequence of SmERF1. The full-length open reading frame (ORF) sequence of SmERF1 was obtained by searching the Eggplant Genome Database (http://eggplant-hq.cn/Eggplant/home/index, accessed on 20 July 2022) using the gene ID (Smechr0500241.1). The ORF of SmERF1 (711 bp), which encodes a 26 kDa protein, was amplified by PCR and cloned into the plant overexpressing vector pBinGFP2 (containing a green fluorescence protein [GFP] tag). Within the deduced amino acid sequence of SmERF1, there was a conserved APETALA2 (AP2) domain, which is necessary and sufficient for ERF transcription factors to bind to the GCC-box [51] (Figure S1a,b). The multiple sequence alignment showed that SmERF1 shared 86, 83, 70, 70, 60, 55, 53, 53, and 51% sequence identity with its orthologs in Solanum tuberosum ERF1 (XP_006365341.2), Nicotiana tabacum ERF1 (XP_016484768.1), Solanum lycopersicum ERFA.2 (NP_001316388.2), Actinidia chinensis var. chinensis ERF2 (PSS33216.1), Capsicum annuum ERF1 (XP_047262199.1), Gossypium hirsutum ERF2 (XP_016677202.1), Zea mays ERF2 (XP_008646008.1), Arabidopsis thaliana ERF1A (CAB45963.1), and Oryza sativa ERF1 (CAC39058.1), respectively (Figure S1a). Phylogenetic analysis of the SmERF1 amino acid sequence and its orthologs revealed SmERF1 to be most closely related to Solanum tuberosum ERF1 (Figure S1c). In addition, we analyzed cis-elements within the promoter sequence of SmERF1 using PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 20 July 2022) website tools and identified the stress- or pathogen-responsive cis-elements: the CGTCA motif involved in methyl jasmonate (MeJA) responsiveness, the TCA-element involved in salicylic acid (SA) responsiveness, the ABA-responsive element (ABRE), the AAGAA motif related to ABA responsiveness, the TC-rich repeats involved in defense and stress responsiveness, the stress response element (STRE), and the MYB transcription factor binding site (Figure S1d). These results implied that SmERF1 is likely involved in the eggplant response to abiotic stress or pathogenic infection.

2.5. Subcellular Localization of SmERF1

We analyzed the subcellular localization of SmERF1 in the epidermal cells of N. benthamiana leaves. The full-length ORF of SmERF1 was cloned into the destination vector pBinGFP2 to generate the recombinant vector pBinGFP2-SmERF1 (35S:SmERF1-GFP); the empty vector pBinGFP2 (35S:GFP) was used as a control (Figure S2a). Cells of the Agrobacterium tumefaciens strain GV3101 carrying 35S:SmERF1-GFP (containing a GFP tag), 35S:H2B-RFP (containing a red fluorescence protein tag and acting as a marker of nuclear localization), or 35S:GFP constructs were cultivated in liquid Luria–Bertani (LB) medium overnight, and the bacterial fluid was infiltrated into N. benthamiana leaves. Green and red fluorescence signals in the epidermal cells of N. benthamiana leaves were detected at 48 h post-infiltration. Both green fluorescence signals of 35S:SmERF1-GFP and red fluorescence signals of 35S:H2B-RFP were observed in the nuclei, whereas the green fluorescence signals of 35S:GFP appeared throughout the cell (Figure S2b).

2.6. Transcriptional Activation Activity Analysis

Accumulating evidence has demonstrated that ERF transcription factors play a vital role in plant responses to biotic or abiotic stresses by activating the expression of downstream target genes [31,52,53,54,55]. To investigate the SmERF1 activity in transcriptional activation, we performed a transcriptional activation activity assay using the yeast GAL4 system. The full-length ORF of SmERF1 was cloned into the bait vector pGBKT7 to generate the recombinant vector pGBKT7-SmERF1 (Figure 6a). Yeast cells (AH109) containing the pGBKT7-SmERF1 construct and those with pGBKT7 formed colonies on the solid yeast peptone dextrose adenine (YPDA) medium lacking tryptophan (Trp). We further inoculated the yeast cells with pGBKT7-SmERF1 or pGBKT7 on a solid YPDA medium containing X-α-Gal but lacking both Trp and histidine (His). The yeast cells carrying pGBKT7-SmERF1 constructs grew well and formed blue bacterial colonies. In contrast, the yeast cells carrying the pGBKT7 vector did not survive on the solid YPDA medium supplemented with X-α-Gal and lacking Trp and His (Figure 6b), suggesting that SmERF1 has transcriptional activation activity.

2.7. SmERF1 Silencing Enhanced the Susceptibility of Eggplant to Salt Stress

For the silencing of SmERF1, Agrobacterium tumefaciens GV3101 cells transformed with the pTRV1 vector were mixed with the cells carrying pTRV2:SmERF1, pTRV2:00, or pTRV2:SmPDS constructs, and the bacterial fluid was infiltrated into the cotyledon of 2–4 leaf-stage eggplant seedlings. When photobleaching occurred in the eggplant plant leaves infiltrated with Agrobacterium tumefaciens GV3101 cells contenting TRV:SmPDS constructs, four biological repeats (one plant root as a biological repeat) of the control (TRV:00) or SmERF1-silenced (TRV:SmERF1) plants were used to detect the silencing efficiency of SmERF1 using qPCR in the conditions of salt stress treatment. The relative transcript expression levels of SmERF1 in SmERF1-silenced (TRV:SmERF1) eggplant roots were significantly reduced by approximately 85% compared with those in the control plants (Figure 7a). The TRV:SmERF1 and TRV:00 plants were treated with 150 mM NaCl solution to assess their tolerance to salt stress. The TRV:SmERF1 plants displayed more serious wilt symptoms and lower survival rates than the TRV:00 plants at 2 days post-treatment (Figure 7b,c). Compared with the control plants, SmERF1 silencing significantly reduced the relative transcript expression levels of the defense-related marker genes SmNCED1, SmNCED2, SmDHN1, and SmDHNX1, which were respectively reduced by approximately 81%, 86%, 93%, and 92%, in SmERF1-silenced eggplant roots (Figure 7d). We also monitored the enzyme activity of superoxide dismutase (SOD) and catalase (CAT), as well as the content of H2O2 and proline, and four biological repeats at each time point were used to detect the above-mentioned physiological indexes and found that SmERF1 silencing significantly reduced the accumulation of H2O2 and proline and the activity of SOD and CAT compared to the control plants in the 150 mM NaCl solution treatment (Figure 7e). These data suggest that SmERF1 acts as a positive regulator of eggplant responses to salt stress.

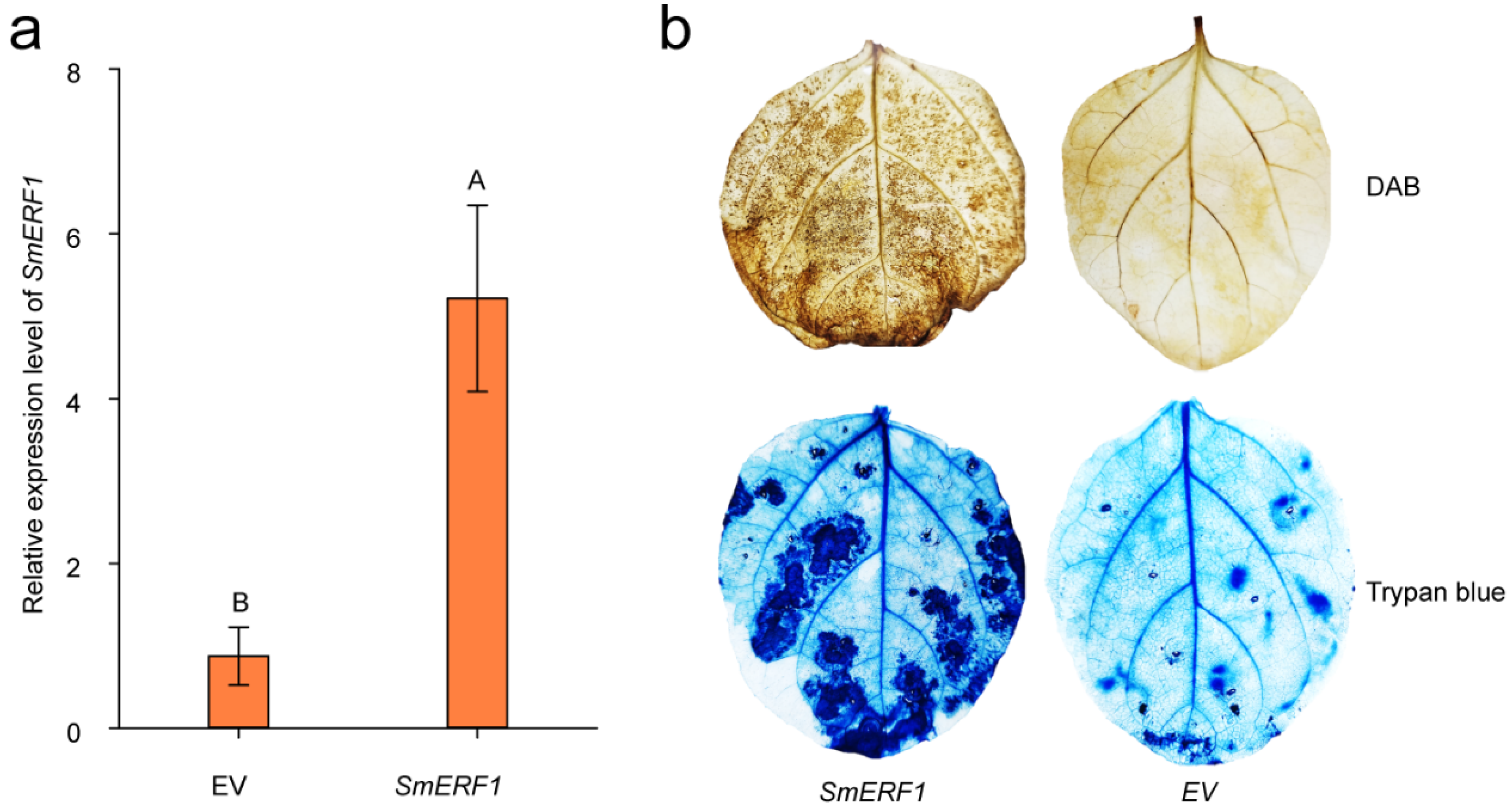

2.8. The Transient Overexpression of SmERF1 Triggers Cell Death in Eggplant Leaves

The analysis of the mRNA-seq data revealed that SmERF1 belongs to the plant immune response pathway. To investigate the role of SmERF1 in the eggplant immune response, we transiently overexpressed 35S:SmERF1-GFP or 35S:00 (empty vector, EV) in eggplant leaves. We first detected the expression of SmERF1 in eggplant leaves (four biological repeats) 48 h post-infiltration by a qPCR assay, thus confirming its successful expression (Figure 8a). In addition, the transient overexpression of SmERF1 accumulated more H2O2, as indicated by the diaminobenzidine (DAB) staining and the darker trypan blue staining of the eggplant leaves with 35S:SmERF1 transient overexpression compared to the leaves with EV transient overexpression at 3 days post-infiltration (Figure 8b). These data indicate that SmERF1 may function in the eggplant immune response.

3. Discussion

Salt stress is one of the most important abiotic stressors in eggplants. It reduces the yield and quality of eggplant by affecting physiological and biochemical processes such as water transport, cell osmotic pressure, and photosynthesis [4,5]. A better understanding of the underlying molecular mechanisms of eggplant response to salt stress will aid the breeding of varieties with improved salt tolerance. Through the mRNA-seq assay, we identified the DEGs in eggplant roots treated with salt stress and investigated the markedly enriched biological processes and pathways by GO and KEGG analyses. Accumulating evidence has demonstrated that AP2/ERF transcription factors play a vital role in plant resistance to salt stress [56,57,58,59]. An AP2/ERF transcription factor superfamily member, SmERF1, belonging to the plant–pathogen interaction pathway, was selected and was confirmed to act as a positive regulator in eggplant responses to salt stress.
SmERF1 (711 bp) encoded a 26 kDa protein and shared the highest sequence identity (86%) and the closest affinity with Solanum tuberosum ERF1 (Figure S1a,c). The promoter of SmERF1 harbored stress− or pathogen-responsive cis−elements, suggesting that SmERF1 may play a role in eggplant responses to biotic or abiotic stresses (Figure S1d). Our data showed that the transcript expression level of SmERF1 in eggplant roots was markedly upregulated by salt stress treatment (Figure 4a). SmERF1 localizes to the nucleus and activates the transcriptional activation (Figure 6 and Figure S2). In the VIGS assay, SmERF1 silencing significantly enhanced the susceptibility of the plants to salt stress (Figure 7b) and down−regulated the transcript expression levels of the salt stress defense−related marker genes SmNCED1 [40,50], SmNCED2, SmDHN1 [48], and SmDHNX1 (Figure 7d). These genes contribute to the plant’s response to salt stress via the ABA signaling pathway, which is accompanied by a reduction in SOD and CAT enzyme activity and an increase in H2O2 and proline content (Figure 7e). These data indicate that SmERF1 positively regulates eggplant responses to salt stress and is closely related to ABA signaling networks. However, it remains unknown how SmERF1 affects the transcript expression levels of the above-mentioned salt stress defense-related marker genes. One possible explanation is that SmERF1 binds to the dehydration-responsive element (DRE) core cis-element within the SmDHN1 promoter, regulating eggplant tolerance to salt stress (Figure 7d and Figure 9). KEGG analyses revealed that SmERF1 belongs to the plant–pathogen interaction pathway (Table S3), and intense cell death was triggered in eggplant leaves by the transient overexpression of SmERF1 (Figure 8b). The AP2/ERF transcription factors CaAP2/ERF064 and CaAIL1 can trigger reactive oxygen species (ROS) burst, leading to intense cell death in pepper and N. benthamiana leaves, as they mediate the immunity of these species [60,61]. Therefore, it can be speculated that SmERF1 positively regulates the plant immune response by mediating ROS signaling networks. In conclusion, our data suggest that SmERF1 acts as a positive regulator of salt stress in eggplants.

4. Materials and Methods

4.1. Plant Material and Salt Treatment

The seeds of the inbred eggplant line ML41 were germinated by wrapping them in moistened gauze and incubating them at 25 °C for 1 week. For mRNA-seq analysis, the roots of 4–6 leaf-stage seedlings with a uniform size were soaked in Hoagland nutrient solution, and the seedlings were grown at 25 °C under a 16 h light/8 h dark photoperiod with 800 μmol m−2 s−2 illumination. For the virus-induced gene silencing and subcellular localization assay, the ML41 and N. benthamiana seedlings were grown in plastic flowerpots filled with sterilized soil in an illumination incubator at 25 °C under a 16 h light/8 h dark photoperiod with 800 μmol m−2 s−2 illumination.
For the salt treatment, the roots of 4–6 leaf-stage eggplant seedlings were soaked in 150 mM NaCl solution for 24 h; ddH2O treatment served as a control. Three different samples were used as biological replicates for the salt treatment. The eggplant roots were washed with ddH2O, frozen in liquid nitrogen, and stored at −80 °C for mRNA-seq analysis.

4.2. Total RNA Extraction, cDNA Library Construction, and Illumina Sequencing

The total RNA was extracted from the NaCl-treated and ddH2O-treated roots of eggplant seedlings using a FastPure Plant Total RNA Isolation Kit (Vazyme, Nanjing, China), according to the manufacturer’s instructions. RNA purity and concentration were examined using a NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA), and RNA integrity and quantity were measured using an Agilent 2100/4200 system (Agilent Technologies, Santa Clara, CA, USA).
cDNA sequencing libraries were constructed using a TruSeq RNA Sample Preparation kit (Illumina, San Diego, CA, USA), following the manufacturer’s instructions. mRNA was purified from the total RNA using poly-T and then fragmented into 300–350 bp fragments. First-strand cDNA was reverse-transcribed using fragmented RNA and dNTPs, and second-strand cDNA was synthesized subsequently. The sequencing adaptors were ligated to cDNA, and the library fragments were purified. The template was enriched by PCR, and the PCR product was purified to obtain the final library.
Paired-end reads of 150 bp were generated by sequencing on an Illumina HiSeq 2000 system after library preparation and the pooling of different samples.

4.3. mRNA-Seq Read Processing and Assembly

Raw data (raw reads) in FASTQ format were generated using an Illumina HiSeq X-ten genome analyzer. Fast Q was used to analyze the raw reads and assess the base quality [62]. Clean data (clean reads) were obtained by removing the reads harboring adaptor sequences and low-quality reads with more than 20% nucleotides with Qphred ≤ 5. The Q20, Q30, and GC contents of the clean data were calculated, and the SILVA database (https://www.arb-silva.de/, accessed on 20 July 2022) was used to map the clean reads. Paired-end clean reads were aligned to eggplant reference genome sequences using HISAT2 with the default settings [44,45].

4.4. Sequencing Data Processing and Analysis

The fragments per kilobase per million mapped reads (FPKM) value was used to assess the transcript expression levels of the genes. The FPKM value was measured using EdgeR to identify DEGs [63]. Genes with a |log2 (Fold Change)| > 1 & a q value < 0.05 were assigned as significantly differently expressed. Hierarchical cluster analysis was performed on the DEGs by using the heatmap package in R language. To investigate the biological function of the DEGs, the pathways enriched under salt stress treatment were identified using GO and KEGG analyses, as described previously [64,65]. The q value < 0.05 was assigned as significant enrichment.

4.5. Vector Construction

For the subcellular localization and transcriptional activation of SmERF1, the full-length ORF of SmERF1 was amplified by PCR and cloned into the destination vector pBinGFP2 or pGBKT7 using a ClonExpress II One Step Cloning Kit (Vazyme), according to the manufacturer’s instructions.
For the VIGS assay, a specific 300 bp DNA fragment from the SmERF1 full-length ORF was amplified and cloned into the entry vector pDONR207 by a BP recombination reaction and then transferred into the destination vector pTRV2 by LR recombination, according to the manufacturer’s instructions.

4.6. Agrobacterium tumefaciens Cultivation and Infiltration and Subcellular Localization Analysis of SmERF1

The recombinant vector pBinGFP2-SmERF1 was transformed into competent cells of the Agrobacterium tumefaciens strain GV3101. Positive GV3101 cells carrying 35S:SmERF1-GFP, 35S:GFP, or 35S:H2B-RFP constructs were cultivated in liquid LB medium containing 50 mg/mL kanamycin and 50 mg/mL rifampicin at 28 °C and 200 rpm overnight. The bacterial culture was centrifuged at 28 °C and 6000 rpm for 10 min and resuspended in an infiltration medium (10 mM MES, 10 mM MgCl2, 200 mM acetosyringone, pH = 5.4) to adjust the OD600 to 0.8. The bacterial fluid of GV3101 cells harboring 35S:H2B-RFP constructs was mixed with cells carrying 35S:SmERF1-GFP or 35S:GFP constructs at a 1:1 ratio. The mixed bacterial fluid was infiltrated into the leaves of N. benthamiana using a disposable sterile syringe without a needle. Fluorescence signals were observed using a laser scanning confocal microscope (TCS SP8; Leica Microsystems, Wetzlar, Germany).

4.7. VIGS Assay

The VIGS assay was performed as previously described [66]. The function of SmERF1 in eggplant responses to salt stress was verified by conducting a VIGS assay. A specific 300 bp DNA fragment from the full-length ORF of SmERF1 was amplified by PCR, cloned into the entry vector pDONR207, and transferred into the destination vector pTRV2. Agrobacterium tumefaciens GV3101 cells carrying the pTRV1 vector were mixed with cells containing pTRV2:SmERF1, pTRV2:00, or pTRV2:SmPDS constructs at a 1:1 ratio. The mixtures were slowly incubated at 28 °C and 60 rpm for 3 h and injected into the cotyledon of 2–4 leaf-stage eggplant seedlings. The infiltrated seedlings were placed at 25 °C without light for 24 h and then transferred to an illumination incubator at 25 °C under a 16 h light/8 h dark photoperiod.

4.8. qPCR Assay

The qPCR assay was performed as previously described to analyze the transcript expression levels of the selected genes [66,67], and four biological repeats were used to detect the transcript expression levels of the target genes. The primer pairs used in this study are listed in Supplementary Table S5.

4.9. Physiological Index Measurement

The contents of proline and H2O2 and the enzyme activities of CAT and SOD were measured as previously described [68].

4.10. Histochemical Staining

Histochemical staining with DAB and trypan blue was performed as previously described [69].

5. Conclusions

In this study, we obtained the DEGs in the roots of eggplant plants treated with salt stress and investigated the biological processes and pathways significantly enriched by salt stress treatment. Eight genes related to the plant–pathogen interaction pathway and five genes associated with the ABA signal transduction pathway were selected, and the transcript expression levels of these genes were notably upregulated in the eggplant roots treated with salt stress. We further confirmed the positive function of SmERF1, which belongs to the plant–pathogen interaction pathway, in eggplant responses to salt stress and found that the transient overexpression of SmERF1 triggered intense cell death in eggplant leaves. These results indicate that SmERF1 acts as a positive regulator of salt stress in eggplant. In summary, our study provides the first report on the role of the ERF transcription factor in eggplant responses to salt stress and will help to further elucidate the mechanisms of SmERF1-regulated stress responses in eggplant. The results presented here lay the foundation for the effective genetic improvement of salt stress tolerance in eggplant.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11172205/s1, Figure S1. Sequence structure and comparison of SmERF1. Figure S2. Subcellular localization of SmERF1. Table S1. Overview of mRNA-Seq data. Table S2. Differentially expressed genes in Solanum melongena GO enrichment analysis. Table S3. The KEGG pathways significantly enriched by salt stress in the eggplant root. Table S4. The selected DEGs for qPCR detection. Table S5. Primer sequences used in this study.

Author Contributions

L.S. and X.Y. designed the research. L.S. and E.Z. conducted the experiments. L.S. and X.Y. analyzed the data and wrote the manuscript. L.S. and R.L. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (32102385), the National Key Research and Development Program of China (2019YFD1000300), and the National Natural Science Foundation of China (31900394).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Munns, R. Comparative physiology of salt and water stress. Plant Cell Environ. 2002, 25, 239–250. [Google Scholar] [CrossRef]
  2. Akrami, M.; Arzani, A. Inheritance of fruit yield and quality in melon (Cucumis melo L.) grown under field salinity stress. Sci. Rep. 2019, 9, 7249. [Google Scholar] [CrossRef]
  3. Munns, R.; Gilliham, M. Salinity tolerance of crops—What is the cost? New Phytol. 2015, 208, 668–673. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, Q.; Dai, X.; Wang, H.; Wang, F.; Tang, D.; Jiang, C.; Zhang, X.; Guo, W.; Lei, Y.; Ma, C.; et al. Transcriptomic Profiling Provides Molecular Insights into Hydrogen Peroxide-Enhanced Arabidopsis Growth and Its Salt Tolerance. Front. Plant Sci. 2022, 13, 866063. [Google Scholar] [CrossRef] [PubMed]
  5. Jiang, D.; Lu, B.; Liu, L.; Duan, W.; Meng, Y.; Li, J.; Zhang, K.; Sun, H.; Zhang, Y.; Dong, H.; et al. Exogenous melatonin improves the salt tolerance of cotton by removing active oxygen and protecting photosynthetic organs. BMC Plant Biol. 2021, 21, 331. [Google Scholar] [CrossRef] [PubMed]
  6. Li, H.; Chang, J.; Chen, H.; Wang, Z.; Gu, X.; Wei, C.; Zhang, Y.; Ma, J.; Yang, J.; Zhang, X. Exogenous Melatonin Confers Salt Stress Tolerance to Watermelon by Improving Photosynthesis and Redox Homeostasis. Front. Plant Sci. 2017, 8, 295. [Google Scholar] [CrossRef]
  7. Lei, P.; Liu, Z.; Hu, Y.; Kim, H.; Liu, S.; Liu, J.; Xu, L.; Li, J.; Zhao, Y.; Yu, Z.; et al. Transcriptome analysis of salt stress responsiveness in the seedlings of wild and cultivated Ricinus communis L. J. Biotechnol. 2021, 327, 106–116. [Google Scholar] [CrossRef]
  8. Negi, P.; Pandey, M.; Dorn, K.M.; Nikam, A.A.; Devarumath, R.M.; Srivastava, A.K.; Suprasanna, P. Transcriptional reprogramming and enhanced photosynthesis drive inducible salt tolerance in sugarcane mutant line M4209. J. Exp. Bot. 2020, 71, 6159–6173. [Google Scholar] [CrossRef]
  9. Bundo, M.; Martin-Cardoso, H.; Pesenti, M.; Gomez-Ariza, J.; Castillo, L.; Frouin, J.; Serrat, X.; Nogues, S.; Courtois, B.; Grenier, C.; et al. Integrative Approach for Precise Genotyping and Transcriptomics of Salt Tolerant Introgression Rice Lines. Front. Plant Sci. 2021, 12, 797141. [Google Scholar] [CrossRef]
  10. Chen, H.; Hu, L.; Wang, L.; Wang, S.; Cheng, X. Genome-wide identification and expression profiles of AP2/ERF transcription factor family in mung bean (Vigna radiata L.). J. Appl. Genet. 2022, 63, 223–236. [Google Scholar] [CrossRef]
  11. Nakano, T.; Suzuki, K.; Fujimura, T.; Shinshi, H. Genome-wide analysis of the ERF gene family in Arabidopsis and rice. Plant Physiol. 2006, 140, 411–432. [Google Scholar] [CrossRef]
  12. Licausi, F.; Giorgi, F.M.; Zenoni, S.; Osti, F.; Pezzotti, M.; Perata, P. Genomic and transcriptomic analysis of the AP2/ERF superfamily in Vitis vinifera. BMC Genom. 2010, 11, 719. [Google Scholar] [CrossRef]
  13. Sakuma, Y.; Liu, Q.; Dubouzet, J.G.; Abe, H.; Shinozaki, K.; Yamaguchi-Shinozaki, K. DNA-binding specificity of the ERF/AP2 domain of Arabidopsis DREBs, transcription factors involved in dehydration- and cold-inducible gene expression. Biochem. Biophys. Res. Commun. 2002, 290, 998–1009. [Google Scholar] [CrossRef]
  14. Masaki, T.; Mitsui, N.; Tsukagoshi, H.; Nishii, T.; Morikami, A.; Nakamura, K. ACTIVATOR of Spomin::LUC1/WRINKLED1 of Arabidopsis thaliana transactivates sugar-inducible promoters. Plant Cell Physiol. 2005, 46, 547–556. [Google Scholar] [CrossRef]
  15. Welsch, R.; Maass, D.; Voegel, T.; Dellapenna, D.; Beyer, P. Transcription factor RAP2.2 and its interacting partner SINAT2: Stable elements in the carotenogenesis of Arabidopsis leaves. Plant Physiol. 2007, 145, 1073–1085. [Google Scholar] [CrossRef]
  16. Sharma, V.; Goel, P.; Kumar, S.; Singh, A.K. An apple transcription factor, MdDREB76, confers salt and drought tolerance in transgenic tobacco by activating the expression of stress-responsive genes. Plant Cell Rep. 2019, 38, 221–241. [Google Scholar] [CrossRef]
  17. Sun, M.; Shen, Y.; Chen, Y.; Wang, Y.; Cai, X.; Yang, J.; Jia, B.; Dong, W.; Chen, X.; Sun, X. Osa-miR1320 targets the ERF transcription factor OsERF096 to regulate cold tolerance via JA-mediated signaling. Plant Physiol. 2022, 189, 2500–2516. [Google Scholar] [CrossRef]
  18. Park, S.J.; Park, S.; Kim, Y.; Hyeon, D.Y.; Park, H.; Jeong, J.; Jeong, U.; Yoon, Y.S.; You, D.; Kwak, J.; et al. Ethylene responsive factor34 mediates stress-induced leaf senescence by regulating salt stress-responsive genes. Plant Cell Environ. 2022, 45, 1719–1733. [Google Scholar] [CrossRef]
  19. Wang, D.; Sun, Z.; Hu, X.; Xiong, J.; Hu, L.; Xu, Y.; Tang, Y.; Wu, Y. The key regulator LcERF056 enhances salt tolerance by modulating reactive oxygen species-related genes in Lotus corniculatus. BMC Plant Biol. 2021, 21, 605. [Google Scholar] [CrossRef]
  20. Huang, S.; Ma, Z.; Hu, L.; Huang, K.; Zhang, M.; Zhang, S.; Jiang, W.; Wu, T.; Du, X. Involvement of rice transcription factor OsERF19 in response to ABA and salt stress responses. Plant Physiol. Biochem. 2021, 167, 22–30. [Google Scholar] [CrossRef]
  21. Zhang, Y.; Ming, R.; Khan, M.; Wang, Y.; Dahro, B.; Xiao, W.; Li, C.; Liu, J.H. ERF9 of Poncirus trifoliata (L.) Raf. undergoes feedback regulation by ethylene and modulates cold tolerance via regulating a glutathione S-transferase U17 gene. Plant Biotechnol. J. 2022, 20, 183–200. [Google Scholar] [CrossRef]
  22. Sun, X.; Zhang, L.; Wong, D.C.J.; Wang, Y.; Zhu, Z.; Xu, G.; Wang, Q.; Li, S.; Liang, Z.; Xin, H. The ethylene response factor VaERF092 from Amur grape regulates the transcription factor VaWRKY33, improving cold tolerance. Plant J. 2019, 99, 988–1002. [Google Scholar]
  23. Bolt, S.; Zuther, E.; Zintl, S.; Hincha, D.K.; Schmulling, T. ERF105 is a transcription factor gene of Arabidopsis thaliana required for freezing tolerance and cold acclimation. Plant Cell Environ. 2017, 40, 108–120. [Google Scholar] [CrossRef]
  24. Li, T.; Wu, Z.; Xiang, J.; Zhang, D.; Teng, N. Overexpression of a novel heat-inducible ethylene-responsive factor gene LlERF110 from Lilium longiflorum decreases thermotolerance. Plant Sci. 2022, 319, 111246. [Google Scholar] [CrossRef] [PubMed]
  25. Huang, J.; Zhao, X.; Burger, M.; Wang, Y.; Chory, J. Two interacting ethylene response factors regulate heat stress response. Plant Cell 2021, 33, 338–357. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, Z.; Zhao, X.; Ren, Z.; Abou-Elwafa, S.F.; Pu, X.; Zhu, Y.; Dou, D.; Su, H.; Cheng, H.; Liu, Z.; et al. ZmERF21 directly regulates hormone signaling and stress-responsive gene expression to influence drought tolerance in maize seedlings. Plant Cell Environ. 2022, 45, 312–328. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, H.; Ni, D.; Shen, J.; Deng, S.; Xuan, H.; Wang, C.; Xu, J.; Zhou, L.; Guo, N.; Zhao, J.; et al. Genome-Wide Identification of the AP2/ERF Gene Family and Functional Analysis of GmAP2/ERF144 for Drought Tolerance in Soybean. Front. Plant Sci. 2022, 13, 848766. [Google Scholar] [CrossRef] [PubMed]
  28. An, J.P.; Zhang, X.W.; Bi, S.Q.; You, C.X.; Wang, X.F.; Hao, Y.J. The ERF transcription factor MdERF38 promotes drought stress-induced anthocyanin biosynthesis in apple. Plant J. 2020, 101, 573–589. [Google Scholar] [CrossRef]
  29. Jin, Y.; Pan, W.; Zheng, X.; Cheng, X.; Liu, M.; Ma, H.; Ge, X. OsERF101, an ERF family transcription factor, regulates drought stress response in reproductive tissues. Plant Mol. Biol. 2018, 98, 51–65. [Google Scholar] [CrossRef]
  30. Qi, Y.; Yang, Z.; Sun, X.; He, H.; Guo, L.; Zhou, J.; Xu, M.; Luo, M.; Chen, H.; Tian, Z. Heterologous overexpression of StERF3 triggers cell death in Nicotiana benthamiana. Plant Sci. 2022, 315, 111149. [Google Scholar] [CrossRef]
  31. Li, Y.; Liu, K.; Tong, G.; Xi, C.; Liu, J.; Zhao, H.; Wang, Y.; Ren, D.; Han, S. MPK3/MPK6-mediated phosphorylation of ERF72 positively regulates resistance to Botrytis cinerea through directly and indirectly activating the transcription of camalexin biosynthesis enzymes. J. Exp. Bot. 2022, 73, 413–428. [Google Scholar] [CrossRef]
  32. Yang, H.; Shen, F.; Wang, H.; Zhao, T.; Zhang, H.; Jiang, J.; Xu, X.; Li, J. Functional analysis of the SlERF01 gene in disease resistance to S. lycopersici. BMC Plant Biol. 2020, 20, 376. [Google Scholar] [CrossRef]
  33. Feng, K.; Hou, X.L.; Xing, G.M.; Liu, J.X.; Duan, A.Q.; Xu, Z.S.; Li, M.Y.; Zhuang, J.; Xiong, A.S. Advances in AP2/ERF super-family transcription factors in plant. Crit Rev. Biotechnol. 2020, 40, 750–776. [Google Scholar] [CrossRef]
  34. Xie, Z.; Nolan, T.M.; Jiang, H.; Yin, Y. AP2/ERF Transcription Factor Regulatory Networks in Hormone and Abiotic Stress Responses in Arabidopsis. Front. Plant Sci. 2019, 10, 228. [Google Scholar] [CrossRef]
  35. Li, Y.; Zhou, J.; Li, Z.; Qiao, J.; Quan, R.; Wang, J.; Huang, R.; Qin, H. SALT AND ABA RESPONSE ERF1 improves seed germination and salt tolerance by repressing ABA signaling in rice. Plant Physiol. 2022, 189, 1110–1127. [Google Scholar] [CrossRef]
  36. Chen, G.; Zheng, D.; Feng, N.; Zhou, H.; Mu, D.; Zhao, L.; Shen, X.; Rao, G.; Meng, F.; Huang, A. Physiological mechanisms of ABA-induced salinity tolerance in leaves and roots of rice. Sci. Rep. 2022, 12, 8228. [Google Scholar] [CrossRef]
  37. Liu, J.; Shu, D.; Tan, Z.; Ma, M.; Guo, N.; Gao, S.; Duan, G.; Kuai, B.; Hu, Y.; Li, S.; et al. The Arabidopsis IDD14 transcription factor interacts with bZIP-type ABFs/AREBs and cooperatively regulates ABA-mediated drought tolerance. New Phytol. 2022. [Google Scholar] [CrossRef]
  38. Verslues, P.E.; Agarwal, M.; Katiyar-Agarwal, S.; Zhu, J.; Zhu, J.K. Methods and concepts in quantifying resistance to drought, salt and freezing, abiotic stresses that affect plant water status. Plant J. 2006, 45, 523–539. [Google Scholar] [CrossRef]
  39. Lefebvre, V.; North, H.; Frey, A.; Sotta, B.; Seo, M.; Okamoto, M.; Nambara, E.; Marion-Poll, A. Functional analysis of Arabidopsis NCED6 and NCED9 genes indicates that ABA synthesized in the endosperm is involved in the induction of seed dormancy. Plant J. 2006, 45, 309–319. [Google Scholar] [CrossRef]
  40. Barrero, J.M.; Rodriguez, P.L.; Quesada, V.; Piqueras, P.; Ponce, M.R.; Micol, J.L. Both abscisic acid (ABA)-dependent and ABA-independent pathways govern the induction of NCED3, AAO3 and ABA1 in response to salt stress. Plant Cell Environ. 2006, 29, 2000–2008. [Google Scholar] [CrossRef]
  41. Nambara, E.; Marion-Poll, A. Abscisic acid biosynthesis and catabolism. Annu. Rev. Plant Biol. 2005, 56, 165–185. [Google Scholar] [CrossRef] [Green Version]
  42. Sato, H.; Takasaki, H.; Takahashi, F.; Suzuki, T.; Iuchi, S.; Mitsuda, N.; Ohme-Takagi, M.; Ikeda, M.; Seo, M.; Yamaguchi-Shinozaki, K.; et al. Arabidopsis thaliana NGATHA1 transcription factor induces ABA biosynthesis by activating NCED3 gene during dehydration stress. Proc. Natl. Acad. Sci. USA 2018, 115, E11178–E11187. [Google Scholar] [CrossRef]
  43. Hannachi, S.; Steppe, K.; Eloudi, M.; Mechi, L.; Bahrini, I.; Van Labeke, M.C. Salt Stress Induced Changes in Photosynthesis and Metabolic Profiles of One Tolerant (‘Bonica’) and One Sensitive (‘Black Beauty’) Eggplant Cultivars (Solanum melongena L.). Plants 2022, 11, 590. [Google Scholar] [CrossRef]
  44. Wei, Q.; Wang, J.; Wang, W.; Hu, T.; Hu, H.; Bao, C. A high-quality chromosome-level genome assembly reveals genetics for important traits in eggplant. Hortic. Res. 2020, 7, 153. [Google Scholar] [CrossRef]
  45. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef]
  46. Di, F.; Wang, T.; Ding, Y.; Chen, X.; Wang, H.; Li, J.; Liu, L. Genetic Mapping Combined with a Transcriptome Analysis to Screen for Candidate Genes Responsive to Abscisic Acid Treatment in Brassica napus Embryos During Seed Germination. DNA Cell Biol. 2020, 39, 533–547. [Google Scholar] [CrossRef]
  47. Zhao, Y.; Ai, X.; Wang, M.; Xiao, L.; Xia, G. A putative pyruvate transporter TaBASS2 positively regulates salinity tolerance in wheat via modulation of ABI4 expression. BMC Plant Biol. 2016, 16, 109. [Google Scholar] [CrossRef]
  48. Mota, A.P.Z.; Oliveira, T.N.; Vinson, C.C.; Williams, T.C.R.; Costa, M.; Araujo, A.C.G.; Danchin, E.G.J.; Grossi-de-Sa, M.F.; Guimaraes, P.M.; Brasileiro, A.C.M. Contrasting Effects of Wild Arachis Dehydrin Under Abiotic and Biotic Stresses. Front. Plant Sci. 2019, 10, 497. [Google Scholar] [CrossRef]
  49. Chung, S.; Parish, R.W. Combinatorial interactions of multiple cis-elements regulating the induction of the Arabidopsis XERO2 dehydrin gene by abscisic acid and cold. Plant J. 2008, 54, 15–29. [Google Scholar] [CrossRef]
  50. Li, S.; Wang, N.; Ji, D.; Zhang, W.; Wang, Y.; Yu, Y.; Zhao, S.; Lyu, M.; You, J.; Zhang, Y.; et al. A GmSIN1/GmNCED3s/GmRbohBs Feed-Forward Loop Acts as a Signal Amplifier That Regulates Root Growth in Soybean Exposed to Salt Stress. Plant Cell 2019, 31, 2107–2130. [Google Scholar] [CrossRef]
  51. Zheng, H.; Jing, L.; Jiang, X.; Pu, C.; Zhao, S.; Yang, J.; Guo, J.; Cui, G.; Tang, J.; Ma, Y.; et al. The ERF-VII transcription factor SmERF73 coordinately regulates tanshinone biosynthesis in response to stress elicitors in Salvia miltiorrhiza. New Phytol. 2021, 231, 1940–1955. [Google Scholar] [CrossRef] [PubMed]
  52. Hong, Y.; Wang, H.; Gao, Y.; Bi, Y.; Xiong, X.; Yan, Y.; Wang, J.; Li, D.; Song, F. ERF Transcription Factor OsBIERF3 Positively Contributes to Immunity against Fungal and Bacterial Diseases but Negatively Regulates Cold Tolerance in Rice. Int. J. Mol. Sci. 2022, 23, 606. [Google Scholar] [CrossRef] [PubMed]
  53. Xing, H.; Jiang, Y.; Zou, Y.; Long, X.; Wu, X.; Ren, Y.; Li, Y.; Li, H.L. Genome-wide investigation of the AP2/ERF gene family in ginger: Evolution and expression profiling during development and abiotic stresses. BMC Plant Biol. 2021, 21, 561. [Google Scholar] [CrossRef] [PubMed]
  54. Jung, S.E.; Bang, S.W.; Kim, S.H.; Seo, J.S.; Yoon, H.B.; Kim, Y.S.; Kim, J.K. Overexpression of OsERF83, a Vascular Tissue-Specific Transcription Factor Gene, Confers Drought Tolerance in Rice. Int. J. Mol. Sci. 2021, 22, 7656. [Google Scholar] [CrossRef]
  55. Zhao, M.J.; Yin, L.J.; Ma, J.; Zheng, J.C.; Wang, Y.X.; Lan, J.H.; Fu, J.D.; Chen, M.; Xu, Z.S. The Roles of GmERF135 in Improving Salt Tolerance and Decreasing ABA Sensitivity in Soybean. Front. Plant Sci. 2019, 10, 940. [Google Scholar] [CrossRef]
  56. Zhang, G.; Chen, M.; Li, L.; Xu, Z.; Chen, X.; Guo, J.; Ma, Y. Overexpression of the soybean GmERF3 gene, an AP2/ERF type transcription factor for increased tolerances to salt, drought, and diseases in transgenic tobacco. J. Exp. Bot. 2009, 60, 3781–3796. [Google Scholar] [CrossRef]
  57. Li, Y.; Zhang, H.; Zhang, Q.; Liu, Q.; Zhai, H.; Zhao, N.; He, S. An AP2/ERF gene, IbRAP2-12, from sweetpotato is involved in salt and drought tolerance in transgenic Arabidopsis. Plant Sci. 2019, 281, 19–30. [Google Scholar] [CrossRef]
  58. Seok, H.Y.; Tran, H.T.; Lee, S.Y.; Moon, Y.H. AtERF71/HRE2, an Arabidopsis AP2/ERF Transcription Factor Gene, Contains Both Positive and Negative Cis-Regulatory Elements in Its Promoter Region Involved in Hypoxia and Salt Stress Responses. Int. J. Mol. Sci. 2022, 23, 5310. [Google Scholar] [CrossRef]
  59. Qu, Y.; Nong, Q.; Jian, S.; Lu, H.; Zhang, M.; Xia, K. An AP2/ERF Gene, HuERF1, from Pitaya (Hylocereus undatus) Positively Regulates Salt Tolerance. Int. J. Mol. Sci. 2020, 21, 4586. [Google Scholar] [CrossRef]
  60. Jin, J.H.; Zhang, H.X.; Ali, M.; Wei, A.M.; Luo, D.X.; Gong, Z.H. The CaAP2/ERF064 Regulates Dual Functions in Pepper: Plant Cell Death and Resistance to Phytophthora capsici. Genes 2019, 10, 541. [Google Scholar] [CrossRef]
  61. Zheng, Y.; He, S.; Cai, W.; Shen, L.; Huang, X.; Yang, S.; Huang, Y.; Lu, Q.; Wang, H.; Guan, D.; et al. CaAIL1 Acts Positively in Pepper Immunity against Ralstonia solanacearum by Repressing Negative Regulators. Plant Cell Physiol. 2021, 62, 1702–1717. [Google Scholar] [CrossRef]
  62. Yang, L.; Jin, J.; Fan, D.; Hao, Q.; Niu, J. Transcriptome Analysis of Jujube (Ziziphus jujuba Mill.) Response to Heat Stress. Int. J. Genomics. 2021, 2021, 3442277. [Google Scholar] [CrossRef]
  63. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef]
  64. Conesa, A.; Gotz, S.; Garcia-Gomez, J.M.; Terol, J.; Talon, M.; Robles, M. Blast2GO: A universal tool for annotation, visualization and analysis in functional genomics research. Bioinformatics 2005, 21, 3674–3676. [Google Scholar] [CrossRef]
  65. Kanehisa, M.; Goto, S. KEGG: Kyoto encyclopedia of genes and genomes. Nucleic Acids Res. 2000, 28, 27–30. [Google Scholar] [CrossRef]
  66. Shen, L.; Yang, S.; Yang, F.; Guan, D.; He, S. CaCBL1 Acts as a Positive Regulator in Pepper Response to Ralstonia solanacearum. Mol. Plant Microbe. Interact. 2020, 33, 945–957. [Google Scholar] [CrossRef]
  67. Shen, L.; Liu, Z.; Yang, S.; Yang, T.; Liang, J.; Wen, J.; Liu, Y.; Li, J.; Shi, L.; Tang, Q.; et al. Pepper CabZIP63 acts as a positive regulator during Ralstonia solanacearum or high temperature-high humidity challenge in a positive feedback loop with CaWRKY40. J. Exp. Bot. 2016, 67, 2439–2451. [Google Scholar] [CrossRef]
  68. Li, Y.; Feng, Z.; Wei, H.; Cheng, S.; Hao, P.; Yu, S.; Wang, H. Silencing of GhKEA4 and GhKEA12 Revealed Their Potential Functions Under Salt and Potassium Stresses in Upland Cotton. Front. Plant Sci. 2021, 12, 789775. [Google Scholar] [CrossRef]
  69. Choi, D.S.; Hwang, I.S.; Hwang, B.K. Requirement of the cytosolic interaction between PATHOGENESIS-RELATED PROTEIN10 and LEUCINE-RICH REPEAT PROTEIN1 for cell death and defense signaling in pepper. Plant Cell 2012, 24, 1675–1690. [Google Scholar] [CrossRef] [Green Version]
Plants 11 02205 g001 550

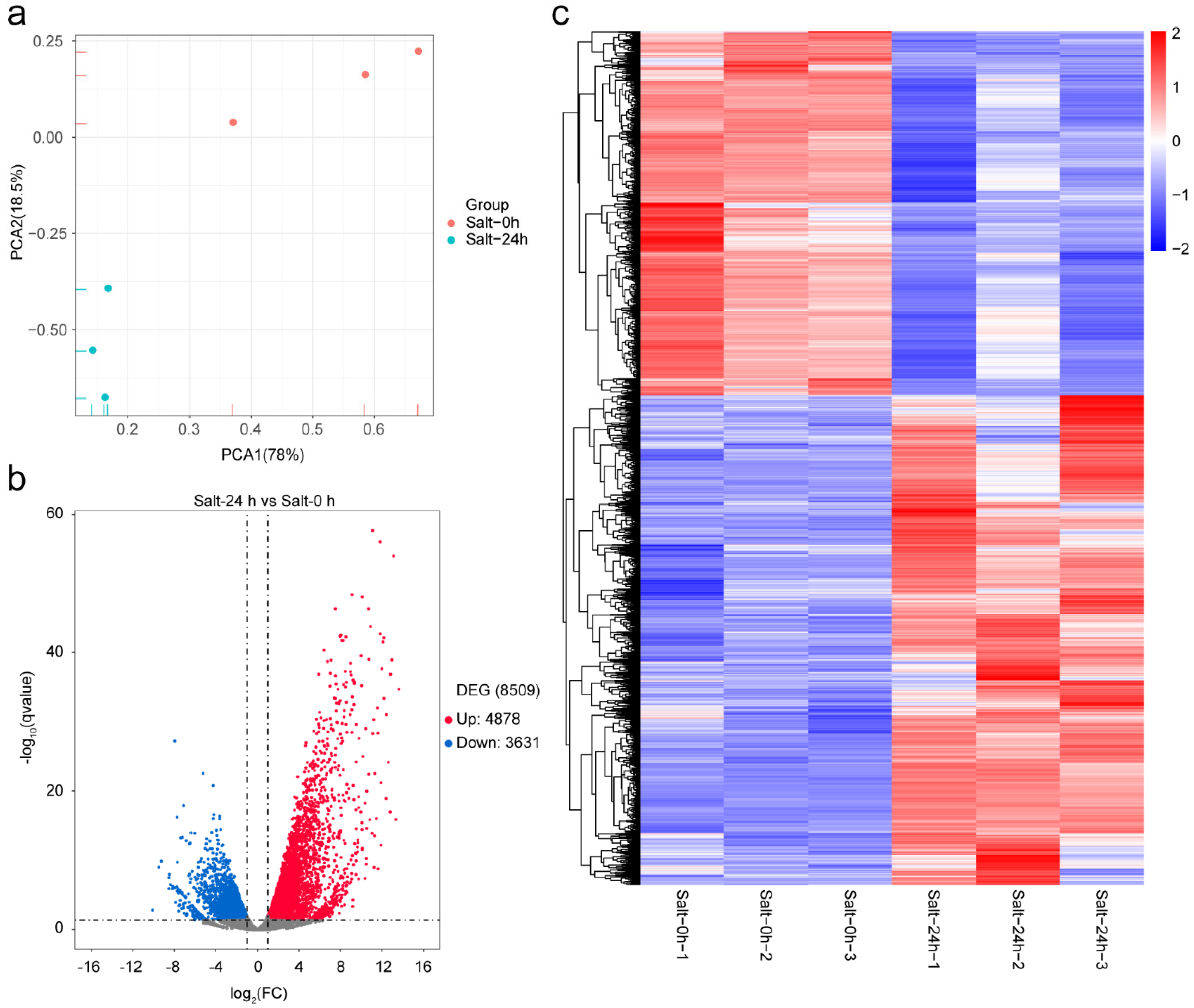

Figure 1. Spatiotemporal gene expression patterns under salt stress treatment. (a) Principal component analysis (PCA) of the samples at 0 and 24 h post−treatment based on the normalized expression levels of differentially expressed genes (DEGs). (b) Volcano plot of the differential expression levels of up-regulated and down−regulated DEGs in eggplant roots under salt stress. (c) Heat map of correlations between the transcript expression levels of DEGs in eggplant roots treated with salt stress. FPKM values were used for the hierarchical cluster analysis after the normalization of FPKM values with Z-score.
Figure 1. Spatiotemporal gene expression patterns under salt stress treatment. (a) Principal component analysis (PCA) of the samples at 0 and 24 h post−treatment based on the normalized expression levels of differentially expressed genes (DEGs). (b) Volcano plot of the differential expression levels of up-regulated and down−regulated DEGs in eggplant roots under salt stress. (c) Heat map of correlations between the transcript expression levels of DEGs in eggplant roots treated with salt stress. FPKM values were used for the hierarchical cluster analysis after the normalization of FPKM values with Z-score.
Plants 11 02205 g001
Plants 11 02205 g002 550
Figure 2. Functional classification of DEGs in eggplant roots under salt stress based on gene ontology (GO) analysis. GO analysis of up-regulated (a) and down-regulated (b) DEGs of the top 20 terms of biological processes (BP), molecular functions (MF), and cellular components (CC).
Figure 2. Functional classification of DEGs in eggplant roots under salt stress based on gene ontology (GO) analysis. GO analysis of up-regulated (a) and down-regulated (b) DEGs of the top 20 terms of biological processes (BP), molecular functions (MF), and cellular components (CC).
Plants 11 02205 g002
Plants 11 02205 g003 550

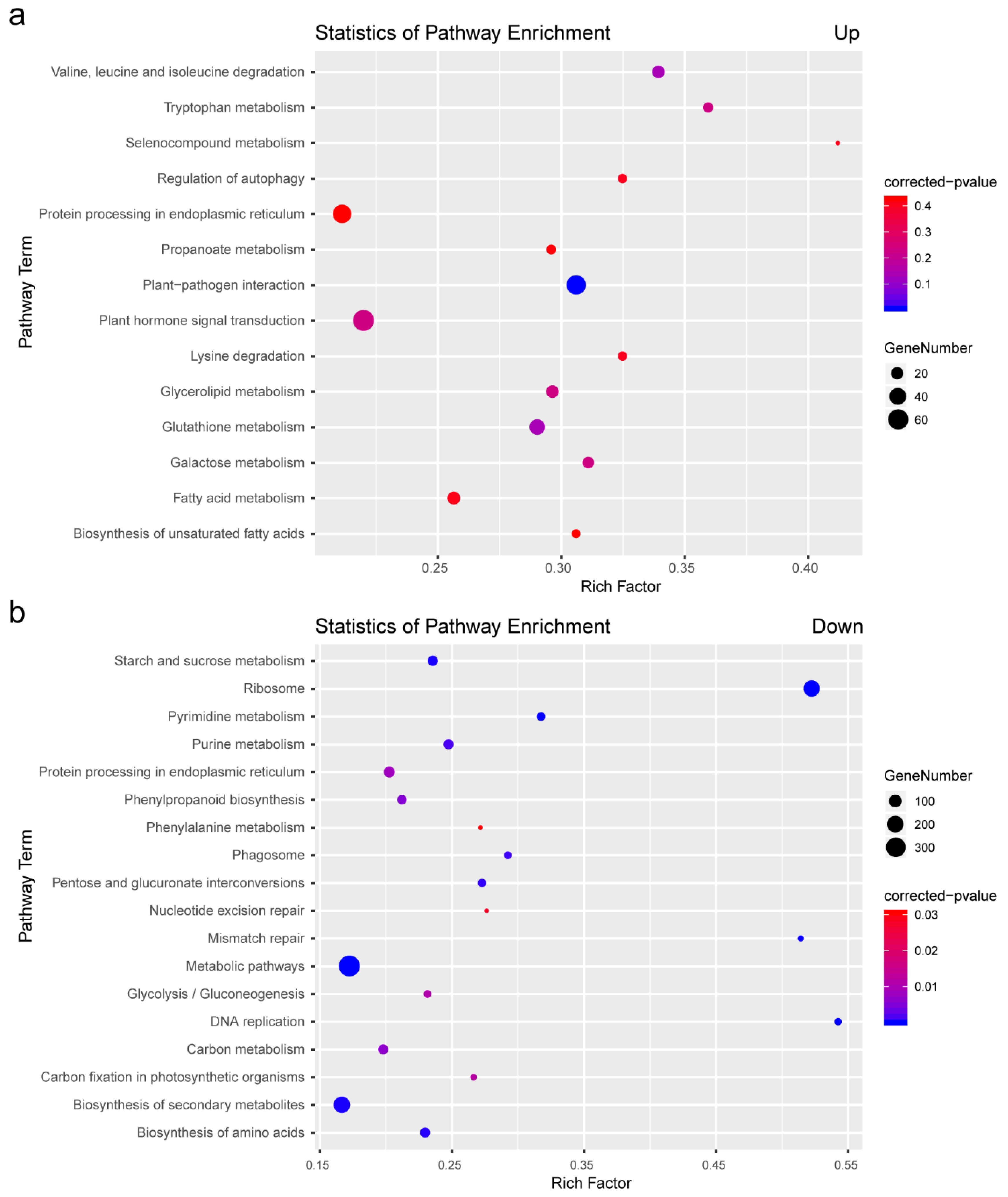

Figure 3. KEGG analysis of DEGs in eggplant roots under salt stress. KEGG analysis of the significantly up-regulated (a) and down-regulated (b) DEGs of the enriched pathways.
Figure 3. KEGG analysis of DEGs in eggplant roots under salt stress. KEGG analysis of the significantly up-regulated (a) and down-regulated (b) DEGs of the enriched pathways.
Plants 11 02205 g003
Plants 11 02205 g004 550
Figure 4. Transcript expression levels of genes associated with the plant–pathogen interaction pathway (a) and the ABA signal transduction pathway (b) in eggplant roots under salt stress detected by a qPCR assay. Data are means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to one-way ANOVA and Tukey’s test (p < 0.01).
Figure 4. Transcript expression levels of genes associated with the plant–pathogen interaction pathway (a) and the ABA signal transduction pathway (b) in eggplant roots under salt stress detected by a qPCR assay. Data are means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to one-way ANOVA and Tukey’s test (p < 0.01).
Plants 11 02205 g004
Plants 11 02205 g005 550

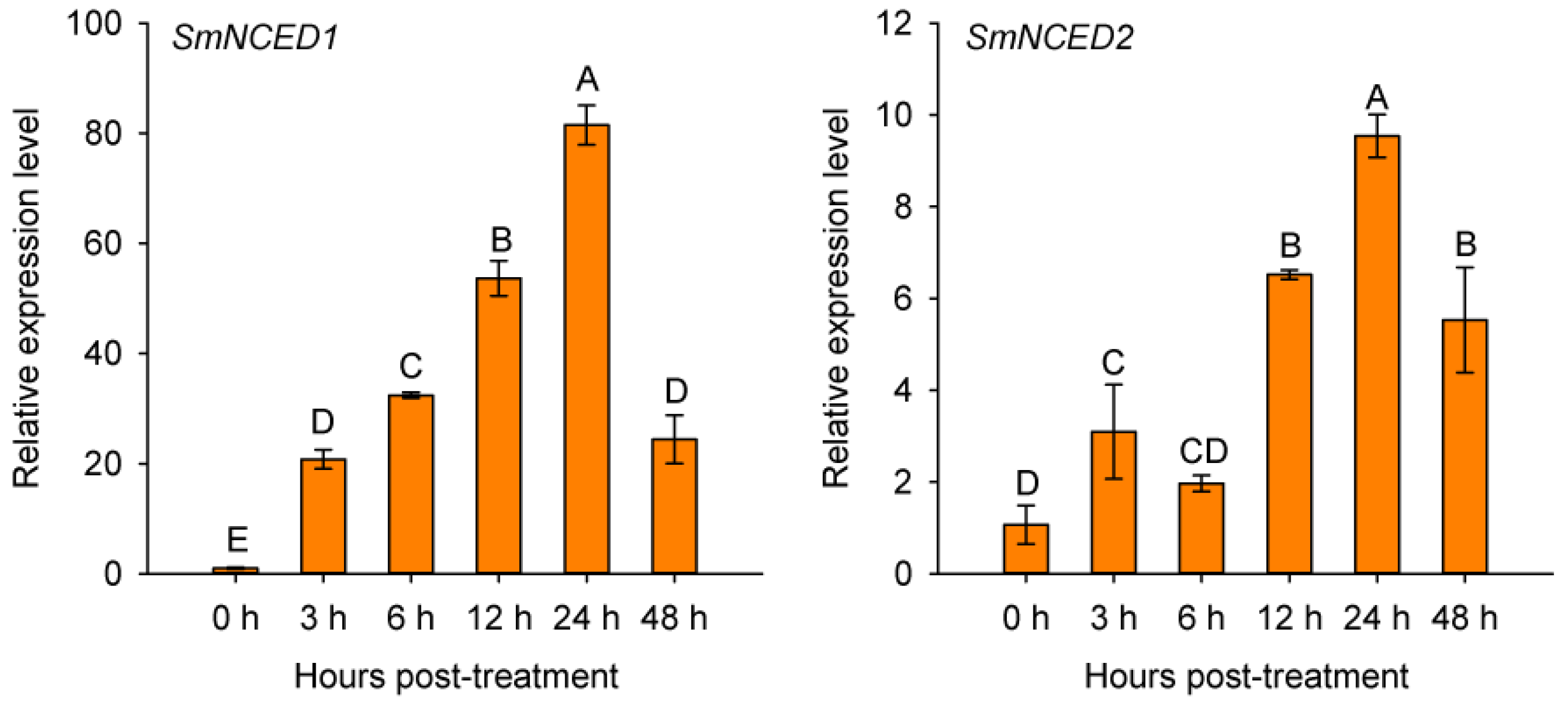

Figure 5. Analysis of the relative transcript expression levels of marker genes related to salt stress responses in eggplant roots under salt stress inferred by a qPCR assay. Data are means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to one-way ANOVA and Tukey’s test (p < 0.01).
Figure 5. Analysis of the relative transcript expression levels of marker genes related to salt stress responses in eggplant roots under salt stress inferred by a qPCR assay. Data are means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to one-way ANOVA and Tukey’s test (p < 0.01).
Plants 11 02205 g005
Plants 11 02205 g006 550
Figure 6. Transcriptional activation activity assay of SmERF1 using the yeast GAL4 system. (a) Diagram of pGBKY7 and the recombinant pGBKT7-SmERF1 vector. (b) Growth of yeast cells transformed with the pGBKT7 empty vector or recombinant pGBKT7−SmERF1 on a medium supplemented with X−α−Gal but lacking His and Trp. Blue color indicates the activation of the transcriptional activity. BD, binding domain.
Figure 6. Transcriptional activation activity assay of SmERF1 using the yeast GAL4 system. (a) Diagram of pGBKY7 and the recombinant pGBKT7-SmERF1 vector. (b) Growth of yeast cells transformed with the pGBKT7 empty vector or recombinant pGBKT7−SmERF1 on a medium supplemented with X−α−Gal but lacking His and Trp. Blue color indicates the activation of the transcriptional activity. BD, binding domain.
Plants 11 02205 g006
Plants 11 02205 g007 550

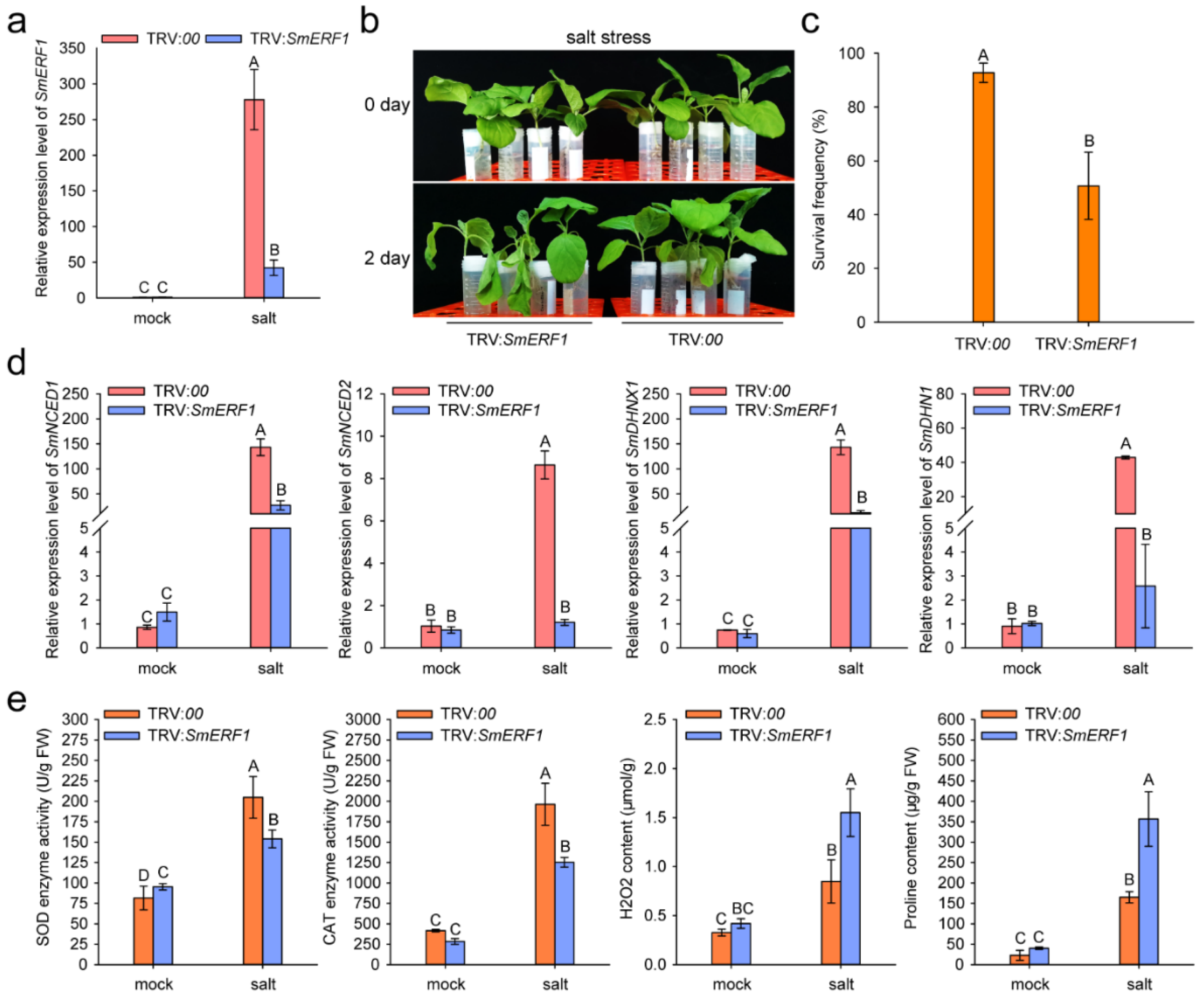

Figure 7. Effects of SmERF1 silencing on eggplant responses to salt stress (TRV:SmERF1, SmERF1-silenced; TRV:00, control). (a) Silencing efficiency of SmERF1 in plants under a salt stress base on a qPCR assay. (b) Phenotype of SmERF1-silenced and control plants challenged with salt stress at 2 days post-treatment. (c) Survival frequencies of SmERF1-silenced and control plants subjected to salt stress at 2 days post-treatment. (d) Relative transcript expression levels of the salt stress defense-related marker genes SmCNGC1, SmCNGC2, SmDHNX1, and SmDHN1 in SmERF1-silenced and control plants under salt stress at 48 h post-treatment. (e) Proline and H2O2 content and catalase (CAT) and superoxide dismutase (SOD) activity in SmERF1-silenced and control plant roots under salt stress at 48 h post-treatment. In (a,c–e), data are the means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to the one-way ANOVA test (p < 0.01).
Figure 7. Effects of SmERF1 silencing on eggplant responses to salt stress (TRV:SmERF1, SmERF1-silenced; TRV:00, control). (a) Silencing efficiency of SmERF1 in plants under a salt stress base on a qPCR assay. (b) Phenotype of SmERF1-silenced and control plants challenged with salt stress at 2 days post-treatment. (c) Survival frequencies of SmERF1-silenced and control plants subjected to salt stress at 2 days post-treatment. (d) Relative transcript expression levels of the salt stress defense-related marker genes SmCNGC1, SmCNGC2, SmDHNX1, and SmDHN1 in SmERF1-silenced and control plants under salt stress at 48 h post-treatment. (e) Proline and H2O2 content and catalase (CAT) and superoxide dismutase (SOD) activity in SmERF1-silenced and control plant roots under salt stress at 48 h post-treatment. In (a,c–e), data are the means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to the one-way ANOVA test (p < 0.01).
Plants 11 02205 g007
Plants 11 02205 g008 550
Figure 8. Transient overexpression of SmERF1 in eggplant leaves. (a) qPCR-based detection of SmERF1 transcript expression levels in leaves with transiently overexpressed SmERF1 and the empty vector (EV) at 48 h post-infiltration. (b) DAB and trypan blue staining of leaves infiltrated with Agrobacterium tumefaciens GV3101 cells transformed with 35S:SmERF1-GFP or 35S:GFP constructs at 3 days post-infiltration. Data are the means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to Student’s test (p < 0.01).
Figure 8. Transient overexpression of SmERF1 in eggplant leaves. (a) qPCR-based detection of SmERF1 transcript expression levels in leaves with transiently overexpressed SmERF1 and the empty vector (EV) at 48 h post-infiltration. (b) DAB and trypan blue staining of leaves infiltrated with Agrobacterium tumefaciens GV3101 cells transformed with 35S:SmERF1-GFP or 35S:GFP constructs at 3 days post-infiltration. Data are the means ± standard deviation from four biological replicates. Different capital letters between samples denote significant differences according to Student’s test (p < 0.01).
Plants 11 02205 g008
Plants 11 02205 g009 550

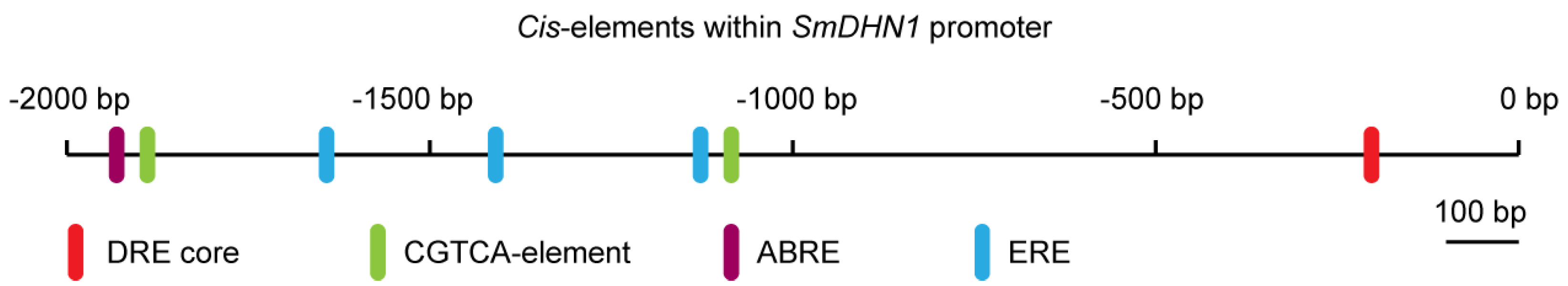

Figure 9. Diagram of cis−elements within the SmDHN1 promoter.
Figure 9. Diagram of cis−elements within the SmDHN1 promoter.
Plants 11 02205 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shen, L.; Zhao, E.; Liu, R.; Yang, X. Transcriptome Analysis of Eggplant under Salt Stress: AP2/ERF Transcription Factor SmERF1 Acts as a Positive Regulator of Salt Stress. Plants 2022, 11, 2205. https://doi.org/10.3390/plants11172205

AMA Style

Shen L, Zhao E, Liu R, Yang X. Transcriptome Analysis of Eggplant under Salt Stress: AP2/ERF Transcription Factor SmERF1 Acts as a Positive Regulator of Salt Stress. Plants. 2022; 11(17):2205. https://doi.org/10.3390/plants11172205

Chicago/Turabian Style

Shen, Lei, Enpeng Zhao, Ruie Liu, and Xu Yang. 2022. "Transcriptome Analysis of Eggplant under Salt Stress: AP2/ERF Transcription Factor SmERF1 Acts as a Positive Regulator of Salt Stress" Plants 11, no. 17: 2205. https://doi.org/10.3390/plants11172205

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
