Article

Identification of microRNAs from Medicinal Plant Murraya koenigii by High-Throughput Sequencing and Their Functional Implications in Secondary Metabolite Biosynthesis

by
Claudia Gutiérrez-García
1,
Shiek S. S. J. Ahmed
2,
Sathishkumar Ramalingam
3,
Dhivya Selvaraj
3,
Aashish Srivastava
4,5,
Sujay Paul
1,* and
Ashutosh Sharma
1,*
1
Tecnologico de Monterrey, Centre of Bioengineering, School of Engineering and Sciences, Queretaro CP 76130, Mexico
2
Omics and Drug Discovery Lab, Faculty of Allied Health Sciences, Chettinad Academy of Research and Education, Kelambakkam 603103, India
3
Plant Genetic Engineering Laboratory, Department of Biotechnology, Bharathiar University, Coimbatore 641046, India
4
Section of Bioinformatics, Clinical Laboratory, Haukeland University Hospital, 5021 Bergen, Norway
5
Department of Clinical Science, University of Bergen, 5021 Bergen, Norway
*
Authors to whom correspondence should be addressed.
Plants 2022, 11(1), 46; https://doi.org/10.3390/plants11010046
Submission received: 7 October 2021 / Revised: 14 December 2021 / Accepted: 18 December 2021 / Published: 24 December 2021
Browse Figures
Versions Notes

Abstract

:
MicroRNAs (miRNAs) are small noncoding RNA molecules that play crucial post-transcriptional regulatory roles in plants, including development and stress-response signaling. However, information about their involvement in secondary metabolism is still limited. Murraya koenigii is a popular medicinal plant, better known as curry leaves, that possesses pharmaceutically active secondary metabolites. The present study utilized high-throughput sequencing technology to investigate the miRNA profile of M. koenigii and their association with secondary metabolite biosynthesis. A total of 343,505 unique reads with lengths ranging from 16 to 40 nt were obtained from the sequencing data, among which 142 miRNAs were identified as conserved and 7 as novel miRNAs. Moreover, 6078 corresponding potential target genes of M. koenigii miRNAs were recognized in this study. Interestingly, several conserved and novel miRNAs of M. koenigii were found to target key enzymes of the terpenoid backbone and the flavonoid biosynthesis pathways. Furthermore, to validate the sequencing results, the relative expression of eight randomly selected miRNAs was determined by qPCR. To the best of our knowledge, this is the first report of the M. koenigii miRNA profile that may provide useful information for further elucidation of the involvement of miRNAs in secondary metabolism. These findings might be crucial in the future to generate artificial-miRNA-based, genetically engineered M. koenigii plants for the overproduction of medicinally highly valuable secondary metabolites.

1. Introduction

Murraya koenigii (L.) Spreng (Rutaceae) is a subtropical medicinal plant native to Asia and distributed throughout the subcontinent of India [1]. This plant has a great commercial value since it produces several important therapeutic compounds, including carbazole alkaloids [2] (only a few plant species can produce carbazole alkaloids, and the most significant one is M. koenigii). Different parts of the M. koenigii plant are widely used for treating a variety of ailments such as fever, diarrhea, diabetes, skin eruptions, venomous bites, renal pain, inflammation, and cholesterol management, among others, and have been used in Ayurvedic, Unani, and homeopathic medicine for centuries [3,4]. However, the leaf (curry leaf) of M. koenigii, which has long been used in Indian cuisine, is the most pharmacologically studied plant part due to its higher phytochemical contents. Consequently, numerous investigations have focused on studying and validating its pharmacological properties, such as antifungal, antibacterial, anti-inflammatory, antioxidant, anticancer, neuroprotective, and hepatoprotective [4]. For example, a recent study showed that hydroalcoholic extract of curry leaf suppressed several inflammatory and nitrosative stress markers, including nitrotyrosine (NT), cyclooxygenase-2 (COX-2), interleukin 1 beta (IL-1β), and intercellular adhesion molecule 1 (ICAM1), and increased the expression of nuclear factor erythroid 2-related factor 2 (Nrf-2), an important antioxidant protein in acute pancreatitis [5]. Additionally, the curry leaves’ methanolic and aqueous extracts were found to be nephroprotective against cyclophosphamide-induced toxicity through the significant increase in the renal levels of glutathione (GSH) and superoxide dismutase (SOD) and the reduction in lipid peroxidation when compared to the control group [6]. Similarly, Husna et al. [7] observed that the ethanolic extract of curry leaves induced an antihyperglycemic effect in nicotinamide–streptozotocin-induced diabetic rats by decreasing the malondialdehyde level, associated with the generation of free radicals, and increasing the GSH level. Nevertheless, these and other potential pharmacological activities of M. koenigii extracts are principally attributed to their secondary metabolites such as alkaloids, terpenoids, and flavonoids, especially their major constituents, the carbazole alkaloids [8]. Currently, more than 80 distinct carbazole alkaloids from different parts of M. koenigii have been reported, such as mahanine, mahanimbine, koenimbine, girinimbine, and murrayafoline. [9]. Intriguingly, the most studied mahanine showed significant anticancer effects on glioma HS 683 cells by induction of apoptosis through the upregulation of Bax, cytochrome c, cleaved caspase 3 and 9, and cleaved poly (ADP-ribose) polymerase (PARP) [10]. Moreover, it was noticed that mahanine caused cell cycle arrest in glioma cancerous cells by the downregulation of M-phase inducer phosphatase 3 (Cdc25c), cell division cycle protein 2 homolog (Cdc2), and cyclin B1 [10].
MiRNAs are short (21–24 nucleotides), noncoding RNA molecules involved in the post-transcriptional regulation of gene expression in eukaryotes [11,12,13]. They are synthesized by RNA polymerase II as a primary transcript (pri-miRNA), which is subsequently processed by the DICER-LIKE1 (DCL1) protein to become the mature miRNAs. The mature miRNAs are loaded onto the ARGONAUTE proteins to form RNA-induced silencing complexes (RISCs) and bind complementarily to their corresponding mRNA target for either its degradation or translation inhibition [14]. Plant miRNAs not only serve as the master regulators of growth and development, but also are involved in many biological processes such as the control of phenotypic plasticity, biotic and abiotic stress responses, symbiotic and parasitism processes, and secondary metabolism [11,15,16,17,18]. Previously, Gou et al. [19] noticed that in Arabidopsis thaliana, miR156 targeted the transcription factor squamosa promoter binding protein-like 9 (SPL 9), which regulates the metabolic flux in the flavonoid biosynthetic pathway [19]. Likewise, in the medicinal herb Picrorhiza kurroa, miR4995 was found to target the mRNA of 3-deoxy-7-phosphoheptulonate synthase, an enzyme involved in the picroside biosynthetic pathway, a relevant compound known to protect from the ischemia/reperfusion injury [20,21]. In addition, in Papaver somniferum, miR2161 and miR13 were reported to target the transcripts of the enzymes 3′-hydroxy-N-methylcoclaurine 4′-O-methyltransferase 2 and 7-O-methyltransferase, implicated in the benzylisoquinoline alkaloid biosynthesis pathway [22]. Additionally, miR5140, miR159, miR477, and miR530 were found to be implicated in the biosynthesis regulation of withanolides, a group of compounds with significant medicinal properties such as anti-inflammatory and immunomodulatory, produced by Withania somnifera [23]. Moreover, in soybean (Glycine max L.), miR159, miR1534, and miR5030 regulate several transcription factors, including MYB65, MYB96, and MYB176, associated with isoflavonoid biosynthesis, such as chalcone synthase, chalcone isomerase, and isoflavone reductase [24]. Recently, Mishra et al. [25] reported that in economically important perennial bunchgrass Chrysopogon zizanioides (L.) Roberty (primarily used in the perfumery industry), miR2102, miR854, and miR5658 targeted enzymes that are involved in the terpenoid biosynthesis pathway.
Due to a significant association of several miRNAs in plant secondary metabolite biosynthesis, plant biotechnologists recently have begun to exploit and/or manipulate different relevant microRNAs as a useful tool for controlling secondary metabolites biosynthetic pathways not only in model plants, but also in economically/medicinally important ones [26,27,28,29]. For example, an artificial inhibition of Sm-miR408 expression in the traditional herb Salvia miltiorrhiza was found to enhance the root accumulation of salvianolic acid B, a chemical compound that has hepatoprotective, cardioprotective, and anticancer properties [30]. Similarly, the production of the commercially used plant-derived sweet compounds steviol glycosides from Stevia rebaudiana was increased 24.5 and 51% by anti-miR319g and miRStv_11 coexpression, which target genes related to its biosynthetic pathway [31]. Furthermore, the synthesis of guaianolides, byproducts of chicory (Cichorium intybus L.), was reduced by an artificial miRNA that targeted germacrene A synthase genes, aiming to improve the extraction of inulin, a commercial compound used in the food industry as a prebiotic and sweetener [32].
Currently, a complete miRNA profile and their expression pattern can be investigated authentically using next-generation sequencing (NGS) technology in medicinal plants [33,34,35], which in turn allows elucidating the functions of their potential target transcripts and their relationship with secondary metabolites biosynthesis, strengthening transgenic research. It is also well established that secondary metabolite production can be enhanced in planta by manipulating target transcripts with artificial miRNAs (amiRNAs). However, in order to exploit them in the metabolic engineering process, a better understanding of their modes of action is required. Thus, the present study aimed to generate for the first time an NGS-based miRNA profile of M. koenigii, and to predict their potential targets associated with the secondary metabolism biosynthesis pathways.

2. Results

2.1. Sequence Analysis of M. koenigii Small RNAs

In this study, utilizing high-throughput Illumina sequencing technology, a total of 8,186,145 raw reads were obtained from the M. koenigii leaf tissue samples. The raw data of small RNA sequencing were uploaded to the NCBI SRA database (Accession number: SRR16796893). After removing the adaptors, low-quality reads, and other small RNAs such as rRNA (156,700), snoRNA (1483), snRNA (1315), and tRNA (18) (Table 1), a total of 343,505 unique reads with lengths ranging from 16 to 40 nt were attained. The size distribution of unique M. koenigii reads showed that 24 nt represented the most abundant one (9.52%) followed by 21 nt (4.94%), 22 nt (4.92%), and 23 nt (4.79%) (Figure 1).

2.2. Identification of Conserved and Novel miRNAs in M. koenigii

To identify conserved miRNAs in M. koenigii, the unique reads were aligned against miRbase-22 using the BLASTn tool, and a total of 142 conserved miRNAs, representing 34 miRNA families, were identified (Table 2). All the conserved miRNAs showed significant homology (no more than one mismatch) with their respective homologs, and their frequency varied widely between families. The most abundant miRNA families were miR166, miR159, miR396, and miR167 with 16, 12, 12, and 10 members, respectively (Figure 2). The read counts of the miRNA families varied from 1 to 2795, where the miR166 family had the highest number of reads (2795), followed by the miR396 (1598) and miR159 (1364) families.
Following the identification of conserved miRNAs, the remaining unaligned 42,658 reads were subjected to predict novel M. koenigii miRNA candidates by applying strict filtering criteria. A total of seven novel miRNAs were identified in this study (Table 3), and their secondary hairpin structures were deduced (Figure 3). The read counts of these novel miRNA candidates varied from 5 to 93. The mko-miRN7-3p displayed the highest number of reads (93), followed by mko-miRN4-5p (15) and mko-miRN1-3p (14). The precursor sequences of these novel miRNA candidates had high Minimum Folding Free Energy Index (MFEI) values ranging from 0.70 to 0.98 with an average of 0.85 ± 0.11, distinguishing them from other types of RNAs such as tRNAs (0.64), rRNAs (0.59), and mRNAs (0.62–0.66) [36].

2.3. Target Prediction of Conserved and Novel M. koenigii miRNAs and Their Functional Analysis

In this study, a total of 6078 corresponding potential target genes of M. koenigii miRNAs were identified (5196 target genes for conserved miRNAs and 882 target genes for novel miRNAs). A total of 83% of the target genes of the conserved miRNAs were found to be regulated by direct cleavage of transcripts, while the remaining targets were by translational repression, whereas 100% of the target genes of the novel miRNAs were regulated by direct cleavage. In the case of conserved miRNAs, mko-miR827-5p (221) had the highest number of potential targets, followed by mko-miR396c (214) and mko-miR396a-3p (203); while for novel miRNAs, mko-miRN7-3p (196) targeted the greatest number of transcripts. Moreover, the Gene Ontology (GO) analysis revealed that for the targets of conserved miRNAs, the main terms in the Biological Process (BP) category were “regulation of transcription, DNA-templated” (9.74%), “carbohydrate metabolic process” (7.73%), and “DNA integration” (5.44%); however, “nitrogen compound metabolic process” (0.57%), “isoprenoid biosynthesis” (0.57%), “secondary metabolites” (0.56%), and “terpenoid biosynthesis” (0.28%) were key terms related to secondary metabolism biosynthesis. Furthermore, regarding the targets of novel miRNAs in the BP category, the principal terms were “regulation of transcription, DNA-templated” (8.66%), “DNA integration” (8%), and “carbohydrate metabolic process” (6.66%), and specifically the “terpenoid biosynthetic process” (0.66%), “shikimate metabolic process” (0.66%), “isoprenoid biosynthetic process” (0.66%), and “nitrogen compound metabolic process” (0.66%) terms were involved in the biosynthesis of secondary metabolites (Figure 4). Furthermore, gene network analysis revealed coregulation of numerous target genes (Figure 5).

2.4. Human Target Gene Prediction of M. koenigii miRNAs

Apart from regulating the secondary metabolism and other biological processes, plant miRNAs are also known to regulate human target genes with the potential for treating human diseases [37,38,39]. In this study, the human target prediction analysis indicated that 48 conserved M. koenigii miRNAs targeted 4362 human genes. Specifically, mko-miR160g, mko-miR160e-5p, and mko-miR477 accounted for the highest number of human targets: 516, 476, and 384, respectively. Interestingly, several M. koenigii miRNAs such as mko-miR5082, mko-miR5368, mko-miR482b, mko-miR156q, and mko-miR396a-5p targeted proteins involved in pathways related to inflammation, cancer, and neurological disorders including Alzheimer’s, Parkinson’s, and Huntington’s. Regarding the novel miRNAs of M. koenigii, mko-miRN6-5p targeted the highest number (161) of human genes, followed by mko-miRN3-3p (75) and mko-miRN2-3p (62), which are related to insulin secretion, cardiomyopathy, and autoimmune thyroid disease pathways, respectively. Nevertheless, the precise implications of M. koenigii miRNAs in human health must be elucidated further with relevant experimental approaches.

2.5. Identification of M. koenigii miRNA Targets Involved in Plant Secondary Metabolite Biosynthesis

The medicinal properties of M. koenigii can be attributed to the presence of secondary metabolites synthesized by specific enzymes. Therefore, in this study, our principal goal was to identify the M. koenigii miRNAs whose target genes coded for enzymes involved in the secondary metabolite biosynthesis. The results revealed a total of 286 target genes of M. koenigii miRNAs associated with ubiquinone and terpenoid-quinone biosynthesis; tropane, piperidine, and pyridine alkaloid biosynthesis; isoquinoline alkaloid, sesquiterpenoid, and triterpenoid biosynthesis; terpenoid backbone biosynthesis; mevalonate biosynthesis; diterpenoid biosynthesis; flavonoid biosynthesis; flavone and flavonol biosynthesis; and isoprenoid biosynthesis. In addition, seven M. koenigii miRNAs (mko-miR156, mko-miR5082, mko-miR167a, mko-miR858, mko-miR396c, mko-miR396g-5p, and mko-miR827b) controlled the key enzymes (1-deoxy-D-xylulose-5-phosphate synthase, acetyl-CoA C-acetyltransferase, diphosphomevalonate decarboxylase, protein-S-isoprenylcysteine O-methyltransferase, geranyl diphosphate synthase, hydroxymethylglutaryl-CoA synthase, and mevalonate kinase) that regulate the terpene backbone pathway (Figure 6), which allows structural diversity to give rise to many types of terpenoids such as monoterpenoids, sesquiterpenes, and diterpenes.
Furthermore, this study revealed that chalcone synthase, which plays a pivotal role in the flavonoid biosynthesis pathway, was targeted by mko-miR168b and mko-miR858; while chalcone isomerase, another important enzyme in the flavonoid synthesis pathway, was also targeted by mko-miR858 only. Additionally, mko-miR858, mko-miR8610.1, and mko-miR5082 targeted shikimate O-hydroxycinnamoyltransferase, an enzyme that produces quinate or shikimate ester using p-coumaroyl CoA as an acyl donor. In a subsequent reaction, this enzyme also was responsible for transferring the caffeoyl moiety of 5-O-caffeoylquinate/5-O-caffeoylshikimate onto coenzyme A, creating caffeoyl CoA, which in turn was methylated by the caffeoyl-CoA O-methyltransferase, an enzyme targeted by mko-miR159b-3p, for yielding feruloyl Co-A, an important precursor for the synthesis of anthocyanins and coumarins. Moreover, mko-miR167c-5p targeted phlorizin synthase, the enzyme that adds a glucose molecule to phloretin, resulting in phlorizin, a dihydrochalcone (Figure 7).
Interestingly, several targets of M. koenigii novel miRNAs were also implicated in several secondary metabolite biosynthetic pathways, including terpenoid backbone biosynthesis; isoquinoline alkaloid biosynthesis; betalain biosynthesis; diterpenoid biosynthesis; indole alkaloid biosynthesis; monoterpenoid biosynthesis; mevalonate biosynthesis; sesquiterpenoid and triterpenoid biosynthesis; tropane, piperidine, and pyridine alkaloid biosynthesis; and ubiquinone and other terpenoid-quinone types of biosynthesis. For example, mko-miRN4-5p targeted both isoprene synthase and 4-diphosphocytidyl-2-C-methyl-D-erythritol kinase genes, which belong to the mevalonate-independent pathway; whereas mko-miRN7-3p targeted hydroxymethylglutaryl-CoA synthase, a crucial enzyme for the downstream synthesis of mevalonate (Figure 8).

2.6. Experimental Validation of M. koenigii miRNAs by qPCR

Four conserved and four novel M. koenigii miRNAs were randomly selected for qPCR analysis to validate the high-throughput sequencing data. The results showed similar expression patterns between the Illumina sequencing and qPCR analysis, except for mko- miRN5-3p. Moreover, the post hoc statistical analysis of the qPCR data indicated that the relative expression of most of the validated miRNAs was similar (as specified by the letters above the bars in Figure 9).

3. Discussion

Plant secondary metabolites are molecules synthesized under specific situations to interact with the environment and to adapt to biotic and abiotic stress conditions [40]. Their biosynthesis is highly energy-consuming, making it a tightly regulated process [11]. Few studies have demonstrated the important regulatory roles of miRNAs in plant secondary metabolism [11,41]. In the present work, the Illumina small-RNA sequencing technology was employed to explore the miRNA profile of the medicinal plant M. koenigii, aiming to understand their implication in secondary metabolism.
It has been stated that miRNAs can either target the transcripts of the enzymes responsible for the biosynthesis of these secondary metabolites or the transcripts of regulatory proteins that control the expression of the former, such as transcription factors [42]. In this study, the conserved M. koenigii miRNAs were distributed in 34 families, with miR166 as the family with the highest number of members (16) and the highest number of total reads (2795) compared to other families. Kajal and Singh [43] reported that miR166i-3p was involved in regulating sesquiterpenes and triterpenoids targeting the squalene synthase in Chlorophytum borivilianum, which produces a type of saponins known as borivilianosides, with several pharmacological activities such as immunomodulatory, antidiabetic, and androgenic. However, in contrast, it has been reported that the miR166 family from blueberry (Vaccinium ashei) can target the transcription factor squamosa promoter binding protein-like (SPL), which prevents the expression of the biosynthetic genes of anthocyanins flavonoid [42].
Several studies investigated the essential oil composition from the leaves of M. koenigii, which varies depending on the type of oil extraction and the sample origin [44,45]. Nevertheless, they coincided in that it contained C10 monoterpenes and C15 sesquiterpenes. For example, Verma et al. [46] reported that α-pinene, sabinene, (E)-caryophyllene, β-pinene, terpinen-4-ol, γ-terpinene, limonene, α-terpinene, (E)-nerolidol, α-humulene, α-thujene, and β-elemene were the major components in the essential oil of M. koenigii from the Western Himalayas. The backbone structure of these terpenoids was built up with C5 isoprenoid units. Intriguingly, the present study showed that both conserved and novel M. koenigii miRNAs were implicated in the terpenoid backbone biosynthesis, which can be synthesized either by the mevalonate pathway (MVA) in the cytoplasm or by the 2C-methyl-d-erythritol-4-phosphate pathway (MEP) in the plastids [47]. The former pathway focuses on synthesizing monoterpenes, diterpenes, and tetraterpenes, while the latter focuses on the sesquiterpenes, sterols, and triterpenes [48]. In this context, the target prediction analysis of M. koenigii miRNAs revealed that mko-miR5082 targeted the enzyme acetyl-CoA C-acetyltransferase, responsible for condensing two molecules of acetyl-CoA into acetoacetyl-CoA, a very first step in terpenoid backbone synthesis; while mko-miR396g-5p and the novel mko-miRN7-3p targeted the enzyme hydroxymethylglutaryl-CoA synthase, which condenses the third acetyl-CoA into 3-hydroxy-3-methylglutaryl-CoA. A similar kind of work has also been reported in Rauvolfia serpentina, where miR396 targeted the secologanin synthase, an oxidoreductase involved in synthesizing the monoterpene secologanin [49]. Additionally, mko-miR827b targeted the mevalonate kinase, whereas mko-miR167a targeted the mevalonate diphosphate decarboxylase, two important enzymes acting sequentially and responsible for supplying the C5 prenyl diphosphates for the downstream terpenoid biosynthesis. It was also found that mko-mir156 targeted 1-Deoxy-d-xylulose 5-phosphate synthase, which performs a committed step in the MEP pathway, controlling its flux. Our results corroborated those of Singh et al. [50], who claimed that miR156 targeted the same aforesaid enzyme in Mentha spp. Likewise, another study showed that miR156 targeted SLP9, a transcription factor that modulates the expression of the sesquiterpene synthase gene TPS21 in Pogostemon cablin (patchouli) [51]. Furthermore, mko-mir396c targeted geranyl diphosphate synthase, the principal enzyme responsible for producing geranyl diphosphate, a crucial molecule for monoterpenoid and diterpenoid biosynthesis [48]. Regarding the novel M. koenigii miRNAs, mko-miRN4-5p targeted both the enzyme 4-diphosphocytidyl-2-C-methyl-D-erythritol kinase and the isoprene synthase, with the latter producing isoprene from dimethylallyl diphosphate in the MEP pathway.
Several well-known flavonoids such as rutin, quercetin, myricetin, kaempferol, and catechin have already been extracted from M. koenigii leaves [52,53]. These kinds of molecules are initially synthesized through the phenylpropanoid pathway, in which phenylalanine is first converted into 4-coumaroyl-CoA and then enters into the flavonoid biosynthesis pathway [54]. The current study revealed that the conserved mko-miR168b, mko-miR858, mko-miR8610.1, and mko-miR5082 targeted three important enzymes: chalcone synthase, chalcone isomerase, and shikimate O-hydroxycinnamoyltransferase, associated with the flavonoid biosynthesis pathway. Specifically, chalcone synthase produces, among other chalcones, naringenin chalcone and pinocembrin chalcone, which in turn are converted into naringenin and pinocembrin by chalcone isomerase. Similarly, in blueberry, chalcone synthase is targeted by miR166 and miR390 families, whereas flavonol synthase is targeted by the miR159, miR171_1, and miR845_1 families [42]. Additionally, studies of A. thaliana and Diospyros kaki showed that miR858 targeted MYB transcription factors, which regulate genes of the flavonoid and proanthocyanidin biosynthesis [55,56]. In addition, miR159b-3p targeted caffeoyl-CoA O-methyltransferase, the enzyme responsible for synthesizing feruloyl-CoA from caffeoyl-CoA; and miR167c-5p targeted phlorizin synthase, which converts phloretin into phlorizin, its glucoside form. Nevertheless, further studies are needed to explain the potential role of these enzymes in the flavonoid biosynthesis pathway of M. koenigii leaves.
The validation analysis was performed for four novel and four conserved M. koenigii miRNAs. It revealed similar expression patterns between the qPCR experiments and the Illumina sequencing. This behavior was also observed for blueberry miRNAs and ramie (Boehmeria nivea) miRNAs [42,57]. However, contrary to the sequencing result, the qPCR data showed that the novel miRNA mko-miRN5-3p resulted in negative relative expression. This could be attributed to either low-quality primers or probable low abundance of the miRNA, as previously reported in G. max (miR393a), Elettaria cardamomum (miR477e), and Catharanthus roseus (cro-novel-71, cro-novel-98, cro-novel-43, cro-novel-38, and cro-novel-58) [58,59,60].
There is growing evidence of the cross-kingdom miRNA transfer between humans and plants [37]. Moreover, studies suggested that plant miRNAs have the potential to treat human diseases [38,39]. For example, it was reported that miR159 not only inhibited the cell proliferation of the breast cancer cell line MDA-MB-231, but also suppressed the growth of mice xenograft breast tumors [61]. Likewise, Li et al. [62] observed that miR167e-5p inhibited the proliferation of enterocytes (IPEC-J2) and human colon carcinoma (Caco-2) cell lines in vitro. The present study found that several M. koenigii miRNAs, including mko-miR8175, mko-miR5368, and mko-miR156, targeted genes encoding proteins involved in colorectal, prostate, and breast cancers, corroborating the report of Xie et al. [63], who showed that val-miR1086 and val-miR1127 from Viscum album (mistletoe) could regulate the expression level of the p53 tumor suppressor gene. In this context, the predicted human targets of M. koenigii might shed light on its pharmacological properties. Nevertheless, further experimental validation is needed.

4. Materials and Methods

4.1. Plant Materials and RNA Extraction

Leaf samples from healthy 5-year-old-M. koenigii plants (grown under natural conditions) were collected, instantly frozen in liquid nitrogen, and subsequently stored at −80 °C until used. Total RNA was isolated from 100 mg of leaf sample using a Spectrum™ Plant Total RNA Kit (Sigma-Aldrich, St. Louis, MO, USA) following the manufacturer’s instructions. The quality and quantity of the RNA were assessed using Nanodrop2000 (Thermo Scientific, Wilmington, DE, USA), Qubit (Thermo Scientific, Wilmington, DE, USA), and Bioanalyzer 2100 (Agilent, Palo Alto, CA, USA).

4.2. Small RNA Library Construction and Sequencing

The small RNA library was constructed using the QIAseq® miRNA Library Kit (Qiagen, Germantown, MD, USA) protocol. Briefly, 100 ng of total RNA was utilized as initial material, and 3′ adapters were ligated to the specific 3′OH group of microRNAs followed by 5′ adapters ligation. Consequently, the adapter-ligated fragments were reverse transcribed with Unique Molecular Index (UMI) assignment, and the cDNA was barcoded and amplified in a single step by PCR. The resulting cDNA library was then quantified by Qubit fluorometer (Thermo Fisher Scientific, Waltham, MA, USA), and the fragment size distribution was analyzed with an Agilent 2200 Tapestation system. Finally, the sequencing was performed for 75 cycles on an Illumina NextSeq 550 High Output sequencing platform following the manufacturer’s protocol.

4.3. Small RNA Sequencing Data Analysis

Following the completion of the sequencing run, the Illumina GA raw data were processed for the removal of adaptors and low-quality reads (<Q30) using sRNA-workbench (V3.0_ALPHA). Sequences smaller than 16 bp and larger than 40 bp, as well as reads matching other ncRNAs (rRNA, tRNA, snRNA, and snoRNAs), were eliminated. The remaining small RNA sequences were aligned against miRbase-22.1 (http://www.mirbase.org, assessed on 10 June 2021) to identify conserved M. koenigii miRNAs. Subsequently, sequences not showing homology were considered for the prediction of novel miRNAs using bowtie [64] and Mireap_0.22b [65]. However, due to the unavailability of the M. koenigii genome, the well-annotated Citrus sinensis (belonging to the same family of M. koenigii) genome was used as the reference. The novel miRNAs with proper precursor secondary structures and MFEI values of ≥0.70 were only considered for this study. The secondary structures of the precursors were predicted using the UNAFold Web Server (http://www.unafold.org, assessed on 10 June 2021), and the MFEI values were calculated as follows:
MFEI = ( MFE / length   of   RNA   sequence ) × 100 %   GC   content

4.4. Prediction of M. koenigii miRNA Targets, Their Functional Annotation, and Pathway Analysis

The conserved and novel miRNAs with copy numbers more than equal to 5 were considered for target gene prediction using the psRNATarget tool (https://www.zhaolab.org/psRNATarget, assessed on 10 June 2021). For human target prediction, the miRanda tool was used, in which the miRNA sequences were analyzed along with the human cDNA list in strict mode (strict alignment of seed regions), and miRNA hits having minimum free energy ≥ −25 were assumed to be potential targets. GO annotation of the potential M. koenigii miRNAs targets was performed in the BP category (considering top 30 and secondary metabolism associated terms). Moreover, to find the coregulation of the potential targets, a biological network was generated using the MFE values of the miRNA–target interaction, and the biological network of the miRNAs and their targets was visualized using Cytoscape 3.2 (https://cytoscape.org/release_notes_3_2_0.html, assessed on 10 June 2021). Finally, miRNA targets associated with the secondary metabolite biosynthetic pathways were analyzed precisely.

4.5. Extraction of Small RNA and Experimental Validation of M. koenigii miRNAs by qPCR

To validate the identified conserved and novel miRNA candidates, small RNAs were isolated from a frozen leaf sample of M. koenigii using the mirVana™ miRNA Isolation Kit (Thermo Fisher Scientific, Waltham, MA, USA) following the manufacturer’s instructions. The quality and quantity of the small RNA samples were measured with a NanoDrop One UV–Vis microvolume spectrophotometer (Thermo Scientific™, Wilmington, DE, USA). Following the quality check, small RNAs were polyadenylated and reverse transcribed using the Mir-X miRNA First-Strand Synthesis kit (Clontech, Mountain View, CA, USA), and finally, the qPCR was performed using the TB Green® Advantage® qPCR Premix (Takara Bio USA, Inc., San José, CA, USA) in a StepOne™ Real-Time PCR System (Applied Biosystems, Carlsbad, CA, USA). The reactions were performed in a 48-well optical plate using the following conditions: an initial polymerase activation step for 10 s at 95 °C, followed by 45 cycles of 5 s at 95 °C for denaturation, and 20 s at 55 °C for annealing and extension. The amplification cycle was followed by a melting curve analysis ranging from 56–95 °C, with temperature increases in steps of 0.5 °C every 10 s. The reactions were performed with two biological replicates and three technical replicates for each sample, and the relative expression of the miRNAs was quantified by the 2−ΔΔCt method utilizing U6 as endogenous control. Additionally, the expression level of miR156a-5p was set as control (taken as 1), and all other miRNA expression was quantified relative to it.

5. Conclusions

In this study, a total of 142 conserved and 7 novel miRNAs from M. koenigii were identified using high throughput sequencing technology. Among the identified miRNAs, seven conserved and two novel miRNAs were found to target enzymes significantly involved in the terpenoid backbone biosynthesis pathway, while six conserved miRNAs were found to target enzymes of the flavonoid biosynthesis pathway. Moreover, the human target prediction analysis revealed that M. koenigii miRNAs potentially targeted genes implicated in human health. Finally, eight miRNAs were experimentally validated using qPCR. Notably, this is the first report of microRNAs from the medicinal plant M. koenigii and their association with secondary metabolite biosynthesis. This study might strengthen the miRNA-mediated transgenic research for the overproduction of medicinally as well as commercially valuable plant secondary metabolites.

Author Contributions

Conceptualization, A.S. (Ashutosh Sharma) and S.P.; methodology, C.G.-G. and D.S.; software, C.G.-G., S.P. and A.S. (Ashutosh Sharma); validation, S.P., A.S. (Ashutosh Sharma) and C.G.-G.; formal analysis, C.G.-G., S.P. and A.S. (Ashutosh Sharma); investigation, C.G.-G.; resources, A.S. (Ashutosh Sharma) and S.S.S.J.A.; data curation, S.R.; writing—original draft preparation, C.G.-G.; writing—review and editing, A.S. (Ashutosh Sharma), S.P., A.S. (Aashish Srivastava) and S.R.; visualization, C.G.-G.; supervision, A.S. (Ashutosh Sharma); project administration, A.S. (Ashutosh Sharma); funding acquisition, A.S. (Ashutosh Sharma). All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to thank to the Regional Department of Bioengineering, South-Central Region of Tecnologico de Monterrey, for their support regarding the equipment and required infrastructure for this project.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Publicly available datasets were analyzed in this study. This data can be found here: https://www.ncbi.nlm.nih.gov/sra/SRR16796893, assessed on 10 June 2021.

Acknowledgments

We thank CONACYT, Mexico, for the scholarship support for the completion of the Ph.D. thesis of Claudia Gutiérrez García (460587).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chauhan, B.; Dedania, J.; Mashru, D.R.C. Review on Murraya Koenigii: Versatile Role in Management of Human Health. World J. Pharm. Pharm. Sci. 2017, 6, 476–493. [Google Scholar] [CrossRef]
  2. Nandan, S.; Singh, S.K.; Singh, P.; Bajpai, V.; Mishra, A.K.; Joshi, T.; Mahar, R.; Shukla, S.K.; Mishra, D.K.; Kanojiya, S. Quantitative Analysis of Bioactive Carbazole Alkaloids in Murraya koenigii (L.) from Six Different Climatic Zones of India Using UPLC/MS/MS and Their Principal Component Analysis. Chem. Biodivers. 2021, 18. [Google Scholar] [CrossRef] [PubMed]
  3. Gupta, P. A review on therapeutic use of Murraya koenigii (L.) Spreng. Int. Res. J. Mod. Eng. Technol. Sci. 2020, 2, 93–97. [Google Scholar]
  4. Balakrishnan, R.; Vijayraja, D.; Jo, S.H.; Ganesan, P.; Su-kim, I.; Choi, D.K. Medicinal profile, phytochemistry, and pharmacological activities of Murraya koenigii and its primary bioactive compounds. Antioxidants 2020, 9, 101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Khurana, A.; Sikha, M.S.; Ramesh, K.; Venkatesh, P.; Godugu, C. Modulation of cerulein-induced pancreatic inflammation by hydroalcoholic extract of curry leaf (Murraya koenigii). Phyther. Res. 2019, 33, 1510–1525. [Google Scholar] [CrossRef]
  6. Mahipal, P.; Pawar, R.S. Nephroprotective effect of Murraya koenigii on cyclophosphamide induced nephrotoxicity in rats. Asian Pac. J. Trop. Med. 2017, 10, 808–812. [Google Scholar] [CrossRef] [PubMed]
  7. Husna, F.; Suyatna, F.D.; Arozal, W.; Poerwaningsih, E.H. Anti-Diabetic Potential of Murraya Koenigii (L.) and its Antioxidant Capacity in Nicotinamide-Streptozotocin Induced Diabetic Rats. Drug Res. 2018, 68, 631–636. [Google Scholar] [CrossRef] [PubMed]
  8. Samanta, S.K.; Kandimalla, R.; Gogoi, B.; Dutta, K.N.; Choudhury, P.; Deb, P.K.; Devi, R.; Pal, B.C.; Talukdar, N.C. Phytochemical portfolio and anticancer activity of Murraya koenigii and its primary active component, mahanine. Pharmacol. Res. 2018, 129, 227–236. [Google Scholar] [CrossRef]
  9. Nalli, Y.; Khajuria, V.; Gupta, S.; Arora, P.; Riyaz-Ul-Hassan, S.; Ahmed, Z.; Ali, A. Four new carbazole alkaloids from Murraya koenigii that display anti-inflammatory and anti-microbial activities. Org. Biomol. Chem. 2016, 14, 3322–3332. [Google Scholar] [CrossRef]
  10. Chen, M.; Yin, X.; Lu, C.; Chen, X.; Ba, H.; Cai, J.; Sun, J. Mahanine induces apoptosis, cell cycle arrest, inhibition of cell migration, invasion and PI3K/AKT/mTOR signalling pathway in glioma cells and inhibits tumor growth in vivo. Chem. Biol. Interact. 2019, 299, 1–7. [Google Scholar] [CrossRef]
  11. Gupta, O.P.; Karkute, S.G.; Banerjee, S.; Meena, N.L.; Dahuja, A. Contemporary understanding of miRNA-based regulation of secondary metabolites biosynthesis in plants. Front. Plant Sci. 2017, 8, 1–10. [Google Scholar] [CrossRef] [Green Version]
  12. Paul, S.; Reyes-Pérez, P.; Angulo-Bejarano, P.I.; Srivastava, A.; Ramalingam, S.; Sharma, A. Characterization of microRNAs from neem (Azadirachta indica) and their tissue-specific expression study in leaves and stem. 3 Biotech 2021, 11, 1–12. [Google Scholar] [CrossRef]
  13. Sharma, A.; Ruiz-Manriquez, L.M.; Serrano-Cano, F.I.; Reyes-Pérez, P.R.; Alfaro, C.K.T.; Andrade, Y.E.B.; Aros, A.K.H.; Srivastava, A.; Paul, S. Identification of microRNAs and their expression in leaf tissues of guava (Psidium guajava L.) under salinity stress. Agronomy 2020, 10, 1920. [Google Scholar] [CrossRef]
  14. Stepien, A.; Knop, K.; Dolata, J.; Taube, M.; Bajczyk, M.; Barciszewska-Pacak, M.; Pacak, A.; Jarmolowski, A.; Szweykowska-Kulinska, Z. Posttranscriptional coordination of splicing and miRNA biogenesis in plants. Wiley Interdiscip. Rev. RNA 2017, 8, 1–23. [Google Scholar] [CrossRef] [PubMed]
  15. Song, X.; Li, Y.; Cao, X.; Qi, Y. MicroRNAs and Their Regulatory Roles in Plant-Environment Interactions. Annu. Rev. Plant Biol. 2019, 70, 489–525. [Google Scholar] [CrossRef] [PubMed]
  16. Paul, S.; Bravo Vázquez, L.A.; Márquez Nafarrate, M.; Gutiérrez Reséndiz, A.I.; Srivastava, A.; Sharma, A. The regulatory activities of microRNAs in non-vascular plants: A mini review. Planta 2021, 254, 1–23. [Google Scholar] [CrossRef] [PubMed]
  17. Naya, L.; Paul, S.; Valdés-López, O.; Mendoza-Soto, A.B.; Nova-Franco, B.; Sosa-Valencia, G.; Reyes, J.L.; Hernández, G. Regulation of copper homeostasis and biotic interactions by microRNA 398b in common bean. PLoS ONE 2014, 9, e84416. [Google Scholar] [CrossRef]
  18. Paul, S. Identification and characterization of microRNAs and their targets in high-altitude stress-adaptive plant maca (Lepidium meyenii Walp). 3 Biotech 2017, 7, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Gou, J.Y.; Felippes, F.F.; Liu, C.J.; Weigel, D.; Wang, J.W. Negative Regulation of Anthocyanin Biosynthesis in Arabidopsis by a miR156-Targeted SPL Transcription Factor. Plant Cell 2011, 23, 1512–1522. [Google Scholar] [CrossRef] [Green Version]
  20. Vashisht, I.; Mishra, P.; Pal, T.; Chanumolu, S.; Singh, T.R.; Chauhan, R.S. Mining NGS transcriptomes for miRNAs and dissecting their role in regulating growth, development, and secondary metabolites production in different organs of a medicinal herb, Picrorhiza kurroa. Planta 2015, 241, 1255–1268. [Google Scholar] [CrossRef]
  21. Li, J.Z.; Xie, M.Q.; Mo, D.; Zhao, X.F.; Yu, S.Y.; Liu, L.J.; Wu, C.; Yang, Y. Picroside II protects myocardium from ischemia/reperfusion–induced injury through inhibition of the inflammatory response. Exp. Ther. Med. 2016, 12, 3507–3514. [Google Scholar] [CrossRef] [Green Version]
  22. Boke, H.; Ozhuner, E.; Turktas, M.; Parmaksiz, I.; Ozcan, S.; Unver, T. Regulation of the alkaloid biosynthesis by miRNA in opium poppy. Plant Biotechnol. J. 2015, 13, 409–420. [Google Scholar] [CrossRef]
  23. Srivastava, S.; Singh, R.; Srivastava, G.; Sharma, A. Comparative Study of Withanolide Biosynthesis-Related miRNAs in Root and Leaf Tissues of Withania somnifera. Appl. Biochem. Biotechnol. 2018, 185, 1145–1159. [Google Scholar] [CrossRef] [PubMed]
  24. Gupta, O.P.; Dahuja, A.; Sachdev, A.; Kumari, S.; Jain, P.K.; Vinutha, T.; Praveen, S. Conserved miRNAs modulate the expression of potential transcription factors of isoflavonoid biosynthetic pathway in soybean seeds. Mol. Biol. Rep. 2019, 46, 3713–3730. [Google Scholar] [CrossRef]
  25. Mishra, A.; Gupta, S.; Gupta, P.; Dhawan, S.S.; Lal, R.K. In Silico Identification of miRNA and Targets from Chrysopogon zizanioides (L.) Roberty with Functional Validation from Leaf and Root Tissues. Appl. Biochem. Biotechnol. 2020, 192, 1076–1092. [Google Scholar] [CrossRef]
  26. Bulgakov, V.P.; Avramenko, T.V. New opportunities for the regulation of secondary metabolism in plants: Focus on microRNAs. Biotechnol. Lett. 2015, 37, 1719–1727. [Google Scholar] [CrossRef]
  27. Paul, S.C.; Sharma, A.; Mehta, R.; Paul, S. In silico Characterization of microRNAs and Their Target Transcripts from Cranberry (Vaccinium macrocarpon). Cytol. Genet. 2020, 54, 82–90. [Google Scholar] [CrossRef]
  28. Paul, S.; de la Fuente-Jiménez, J.L.; Manriquez, C.G.; Sharma, A. Identification, characterization and expression analysis of passion fruit (Passiflora edulis) microRNAs. 3 Biotech 2020, 10, 1–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Paul, S.; Kundu, A.; Pal, A. Identification and expression profiling of Vigna mungo microRNAs from leaf small RNA transcriptome by deep sequencing. J. Integr. Plant Biol. 2014, 56, 15–23. [Google Scholar] [CrossRef]
  30. Zou, H.; Guo, X.; Yang, R.; Wang, S.; Li, L.; Niu, J.; Wang, D. MiR408- SmLAC3 Module Participates in Salvianolic Acid B Synthesis in Salvia miltiorrhiza. Int. J. Mol. Sci. 2021, 22, 7541. [Google Scholar] [CrossRef]
  31. Saifi, M.; Yogindran, S.; Nasrullah, N.; Nissar, U.; Gul, I.; Abdin, M.Z. Co-expression of anti-miR319g and miRStv-11 lead to enhanced steviol glycosides content in Stevia rebaudiana. BMC Plant Biol. 2019, 19, 1–13. [Google Scholar] [CrossRef] [PubMed]
  32. Bogdanović, M.; Cankar, K.; Dragićević, M.; Bouwmeester, H.; Beekwilder, J.; Simonović, A.; Todorović, S. Silencing of germacrene A synthase genes reduces guaianolide oxalate content in Cichorium intybus L. GM Crop. Food 2019, 11, 54–66. [Google Scholar] [CrossRef] [PubMed]
  33. Kolanowska, M.; Kubiak, A.; Jażdżewski, K.; Wójcicka, A. MicroRNA analysis using next-generation sequencing. Methods Mol. Biol. 2018, 1823, 87–101. [Google Scholar] [CrossRef]
  34. Sharma, A.; Bejerano, P.I.A.; Maldonado, I.C.; de Donato Capote, M.; Madariaga-Navarrete, A.; Paul, S. Genome-wide computational prediction and experimental validation of quinoa (Chenopodium quinoa) microRNAs. Can. J. Plant Sci. 2019, 99, 666–675. [Google Scholar] [CrossRef]
  35. Kundu, A.; Paul, S.; Dey, A.; Pal, A. High throughput sequencing reveals modulation of microRNAs in Vigna mungo upon Mungbean Yellow Mosaic India Virus inoculation highlighting stress regulation. Plant Sci. 2017, 257, 96–105. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, B.H.; Pan, X.P.; Cox, S.B.; Cobb, G.P.; Anderson, T.A. Evidence that miRNAs are different from other RNAs. Cell. Mol. Life Sci. 2006, 63, 246–254. [Google Scholar] [CrossRef]
  37. Liu, Y.C.; Chen, W.L.; Kung, W.H.; Huang, H. Da Plant miRNAs found in human circulating system provide evidences of cross kingdom RNAi. BMC Genomics 2017, 18, 1–6. [Google Scholar] [CrossRef] [Green Version]
  38. Lukasik, A.; Zielenkiewicz, P. Plant MicroRNAs-novel players in natural medicine? Int. J. Mol. Sci. 2017, 18, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Cui, J.; Zhou, B.; Ross, S.A.; Zempleni, J. Nutrition, microRNAs, and Human Health. Adv. Nutr. 2017, 8, 105–112. [Google Scholar] [CrossRef] [Green Version]
  40. Yang, L.; Wen, K.S.; Ruan, X.; Zhao, Y.X.; Wei, F.; Wang, Q. Response of plant secondary metabolites to environmental factors. Molecules 2018, 23, 762. [Google Scholar] [CrossRef] [Green Version]
  41. Sabzehzari, M.; Naghavi, M.R. Phyto-miRNAs-based regulation of metabolites biosynthesis in medicinal plants. Gene 2019, 682, 13–24. [Google Scholar] [CrossRef]
  42. Yue, J.; Lu, X.; Zhang, H.; Ge, J.; Gao, X.; Liu, Y. Identification of conserved and novel microRNAs in blueberry. Front. Plant Sci. 2017, 8, 1–10. [Google Scholar] [CrossRef] [Green Version]
  43. Kajal, M.; Singh, K. Small RNA profiling for identification of miRNAs involved in regulation of saponins biosynthesis in Chlorophytum borivilianum. BMC Plant Biol. 2017, 17, 1–14. [Google Scholar] [CrossRef] [Green Version]
  44. Rajendran, M.P.; Pallaiyan, B.B.; Selvaraj, N. Chemical composition, antibacterial and antioxidant profile of essential oil from Murraya koenigii (L.) leaves. Avicenna J. Phytomed. 2014, 4, 200–214. [Google Scholar] [CrossRef]
  45. Sukkaew, S.; Pripdeevech, P.; Thongpoon, C.; Machan, T.; Wongchuphan, R. Volatile constituents of Murraya koenigii fresh leaves using headspace solid phase microextraction-gas chromatography-mass spectrometry. Nat. Prod. Commun. 2014, 9, 1783–1786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Verma, R.S.; Chauhan, A.; Padalia, R.C.; Jat, S.K.; Thul, S.; Sundaresan, V. Phytochemical diversity of Murraya koenigii (L.) Spreng. from Western Himalaya. Chem. Biodivers. 2013, 10, 628–641. [Google Scholar] [CrossRef] [PubMed]
  47. Meena, S.; Rajeev Kumar, S.; Dwivedi, V.; Kumar Singh, A.; Chanotiya, C.S.; Akhtar, M.Q.; Kumar, K.; Kumar Shasany, A.; Nagegowda, D.A. Transcriptomic insight into terpenoid and carbazole alkaloid biosynthesis, and functional characterization of two terpene synthases in curry tree (Murraya koenigii). Sci. Rep. 2017, 7, 1–14. [Google Scholar] [CrossRef]
  48. Bergman, M.E.; Davis, B.; Phillips, M.A. Medically Useful Plant Terpenoids: Biosynthesis, Occurrence, and Mechanism of Action. Molecules 2019, 24, 3961. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Prakash, P.; Rajakani, R.; Gupta, V. Transcriptome-wide identification of Rauvolfia serpentina microRNAs and prediction of their potential targets. Comput. Biol. Chem. 2016, 61, 62–74. [Google Scholar] [CrossRef] [PubMed]
  50. Singh, N.; Srivastava, S.; Shasany, A.K.; Sharma, A. Identification of miRNAs and their targets involved in the secondary metabolic pathways of Mentha spp. Comput. Biol. Chem. 2016, 64, 154–162. [Google Scholar] [CrossRef] [PubMed]
  51. Yu, Z.X.; Wang, L.J.; Zhao, B.; Shan, C.M.; Zhang, Y.H.; Chen, D.F.; Chen, X.Y. Progressive regulation of sesquiterpene biosynthesis in Arabidopsis and patchouli (Pogostemon cablin) by the MIR156-targeted SPL transcription factors. Mol. Plant 2015, 8, 98–110. [Google Scholar] [CrossRef] [Green Version]
  52. Ashokkumar, K.; Selvaraj, K. Reverse phase-high performance liquid chromatography-diode array detector (RP-HPLC-DAD) analysis of flavonoids profile from curry leaf (Murraya koenigii. L). J. Med. Plants Res. 2013, 7, 3393–3399. [Google Scholar] [CrossRef]
  53. Ghasemzadeh, A.; Jaafar, H.Z.E.; Karimi, E.; Rahmat, A. Optimization of ultrasound-assisted extraction of flavonoid compounds and their pharmaceutical activity from curry leaf (Murraya koenigii L.) using response surface methodology. BMC Complement. Altern. Med. 2014, 14, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Falcone Ferreyra, M.L.; Rius, S.P.; Casati, P. Flavonoids: Biosynthesis, biological functions, and biotechnological applications. Front. Plant Sci. 2012, 3, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Luo, Y.; Zhang, X.; Luo, Z.; Zhang, Q.; Liu, J. Identification and characterization of microRNAs from Chinese pollination constant non-astringent persimmon using high-throughput sequencing. BMC Plant Biol. 2015, 15, 1–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Sharma, D.; Tiwari, M.; Pandey, A.; Bhatia, C.; Sharma, A.; Trivedi, P.K. MicroRNA858 is a potential regulator of phenylpropanoid pathway and plant development. Plant Physiol. 2016, 171, 944–959. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Liu, F.; Tang, Y.; Guo, Q.; Chen, J. Identification and characterization of microRNAs in phloem and xylem from ramie (Boehmeria nivea). Mol. Biol. Rep. 2020, 47, 1013–1020. [Google Scholar] [CrossRef]
  58. Li, H.; Dong, Y.; Yin, H.; Wang, N.; Yang, J.; Liu, X.; Wang, Y.; Wu, J.; Li, X. Characterization of the stress associated microRNAs in Glycine max by deep sequencing. BMC Plant Biol. 2011, 11, 1–12. [Google Scholar] [CrossRef] [Green Version]
  59. Anjali, N.; Nadiya, F.; Thomas, J.; Sabu, K.K. Identification and characterization of drought responsive microRNAs and their target genes in cardamom (Elettaria cardamomum Maton). Plant Growth Regul. 2019, 87, 201–216. [Google Scholar] [CrossRef]
  60. Shen, E.M.; Singh, S.K.; Ghosh, J.S.; Patra, B.; Paul, P.; Yuan, L.; Pattanaik, S. The miRNAome of Catharanthus roseus: Identification, expression analysis, and potential roles of microRNAs in regulation of terpenoid indole alkaloid biosynthesis. Sci. Rep. 2017, 7, 1–13. [Google Scholar] [CrossRef] [Green Version]
  61. Chin, A.R.; Fong, M.Y.; Somlo, G.; Wu, J.; Swiderski, P.; Wu, X.; Wang, S.E. Cross-kingdom inhibition of breast cancer growth by plant miR159. Cell Res. 2016, 26, 217–228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Li, M.; Chen, T.; He, J.J.; Wu, J.H.; Luo, J.Y.; Ye, R.S.; Xie, M.Y.; Zhang, H.J.; Zeng, B.; Liu, J.; et al. Plant MIR167e-5p Inhibits Enterocyte Proliferation by Targeting β-Catenin. Cells 2019, 8, 1385. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Xie, W.; Adolf, J.; Melzig, M.F. Identification of Viscum album L. miRNAs and prediction of their medicinal values. PLoS ONE 2017, 12, e0187776. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Langmead, B.; Trapnell, C.; Pop, M.; Salzberg, S.L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009, 10, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Qibin, L.; Jiang, W. MIREAP: microRNA Discovery by Deep Sequencing. 2008. Available online: https://sourceforge.net/projects/mireap/ (accessed on 10 June 2021).
Plants 11 00046 g001 550

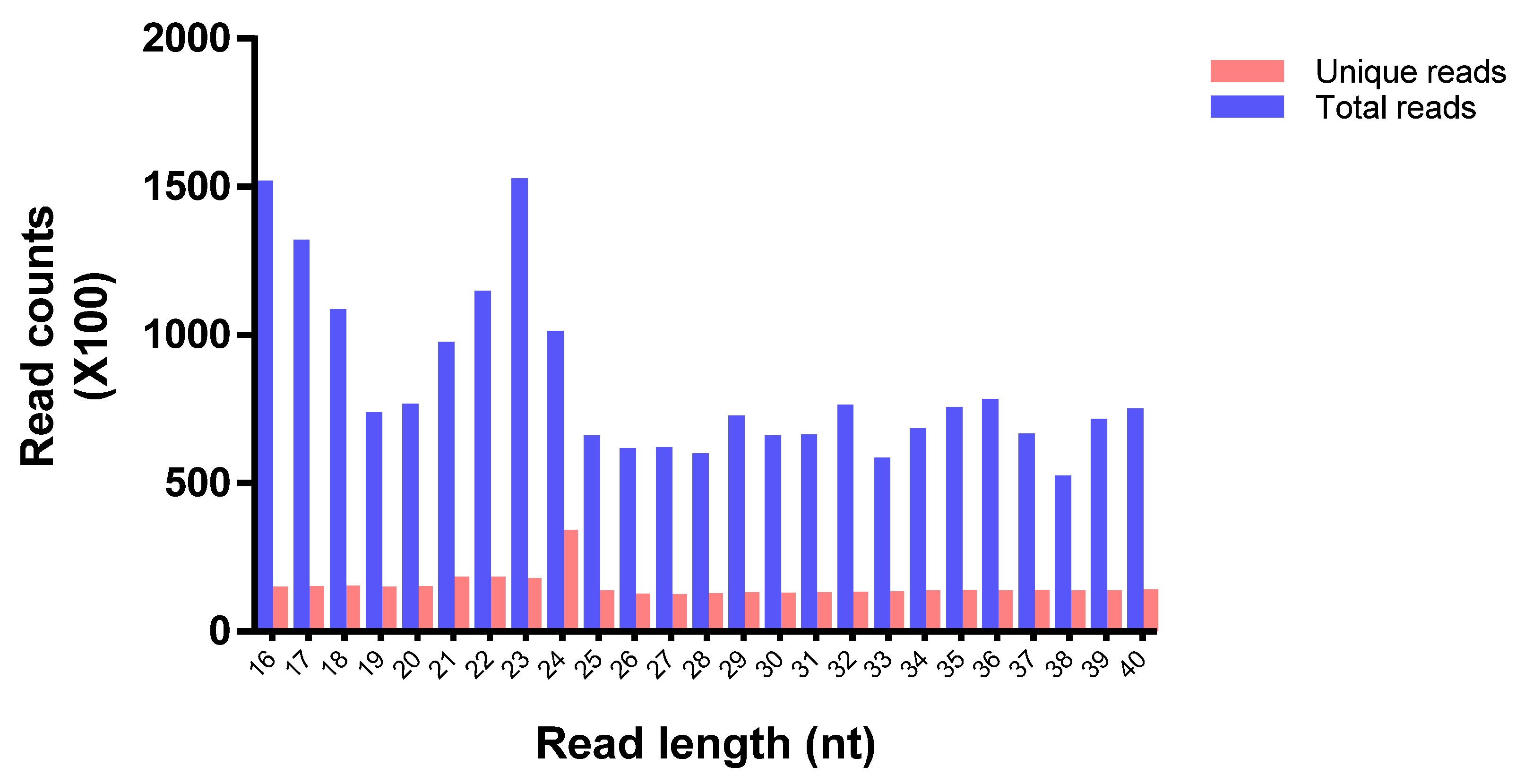

Figure 1. Length distribution and abundance of the small RNA sequences identified in M. koenigii leaves through Illumina sequencing.
Figure 1. Length distribution and abundance of the small RNA sequences identified in M. koenigii leaves through Illumina sequencing.
Plants 11 00046 g001
Plants 11 00046 g002 550

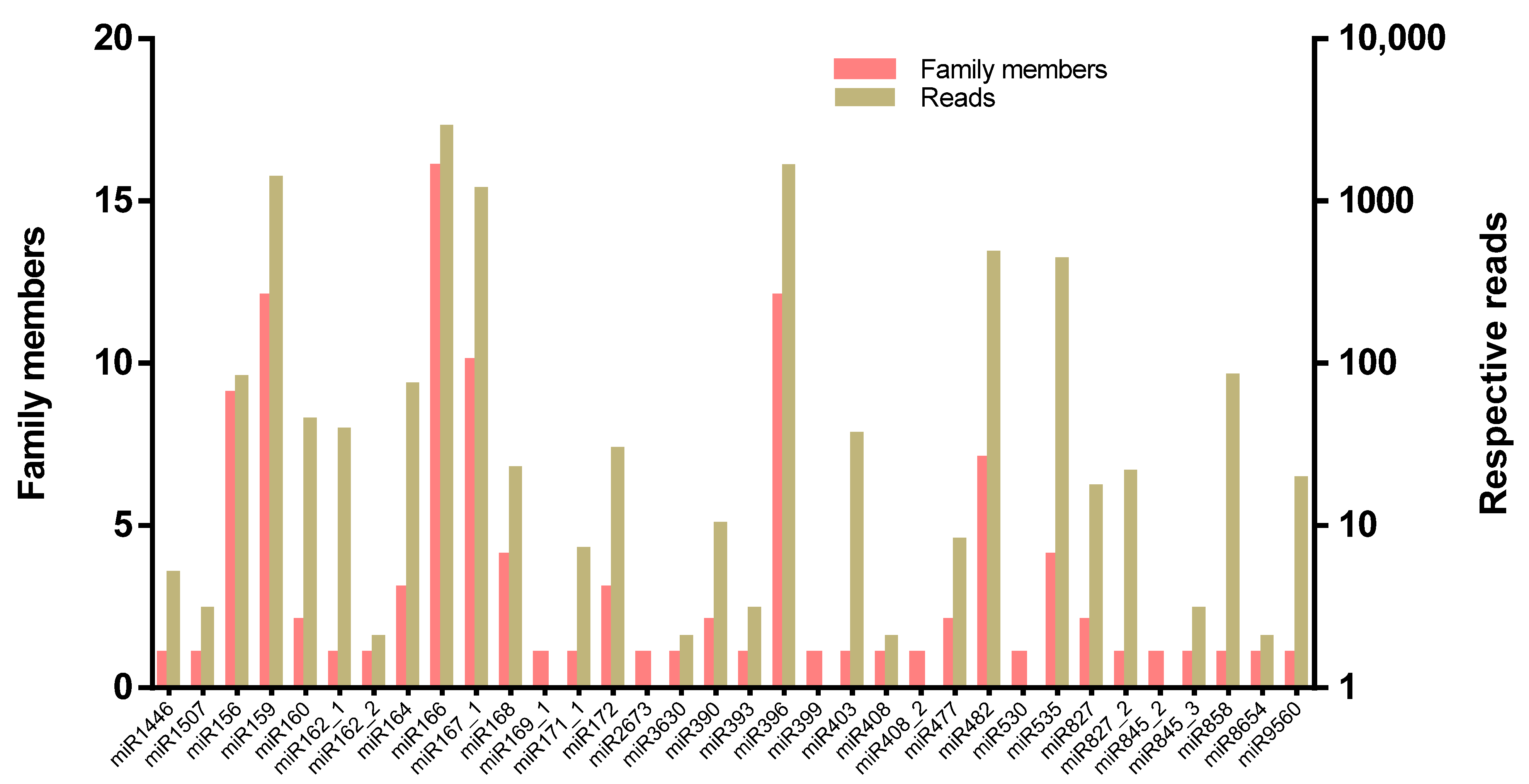

Figure 2. Family members and their respective reads within each miRNA family of M. koenigii.
Figure 2. Family members and their respective reads within each miRNA family of M. koenigii.
Plants 11 00046 g002
Plants 11 00046 g003 550

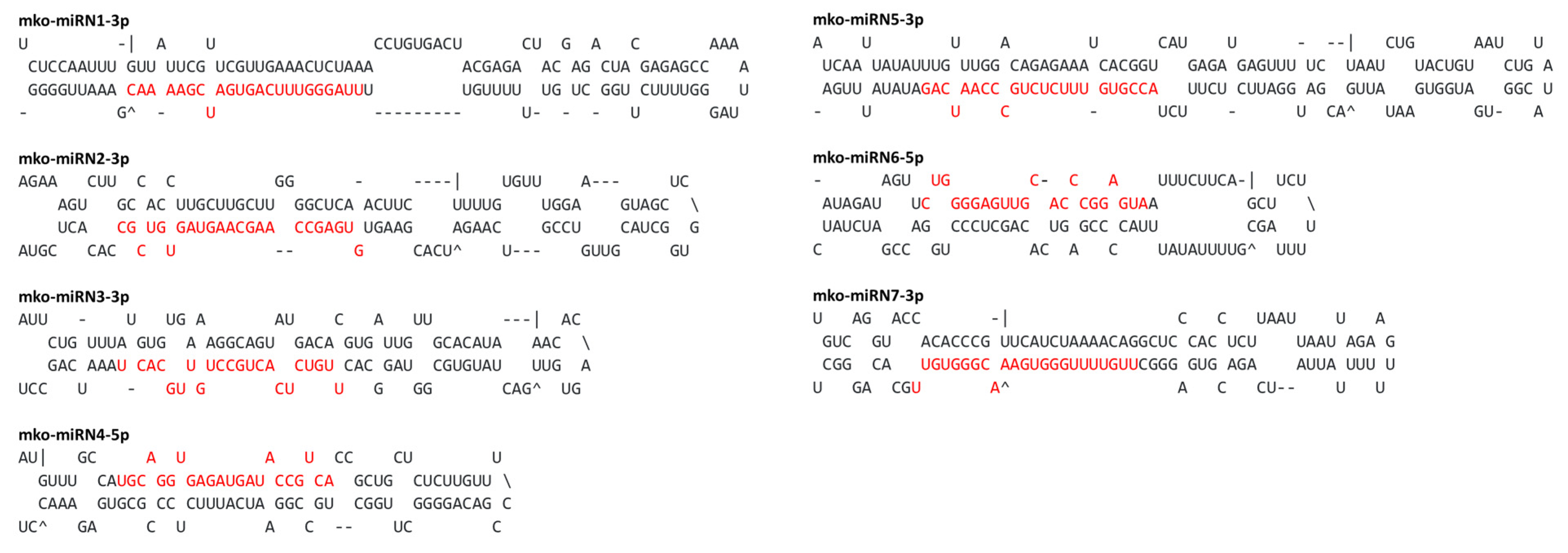

Figure 3. Secondary structures (stem-loops) of M. koenigii novel miRNA precursors. Mature miRNAs are highlighted in red font.
Figure 3. Secondary structures (stem-loops) of M. koenigii novel miRNA precursors. Mature miRNAs are highlighted in red font.
Plants 11 00046 g003
Plants 11 00046 g004 550

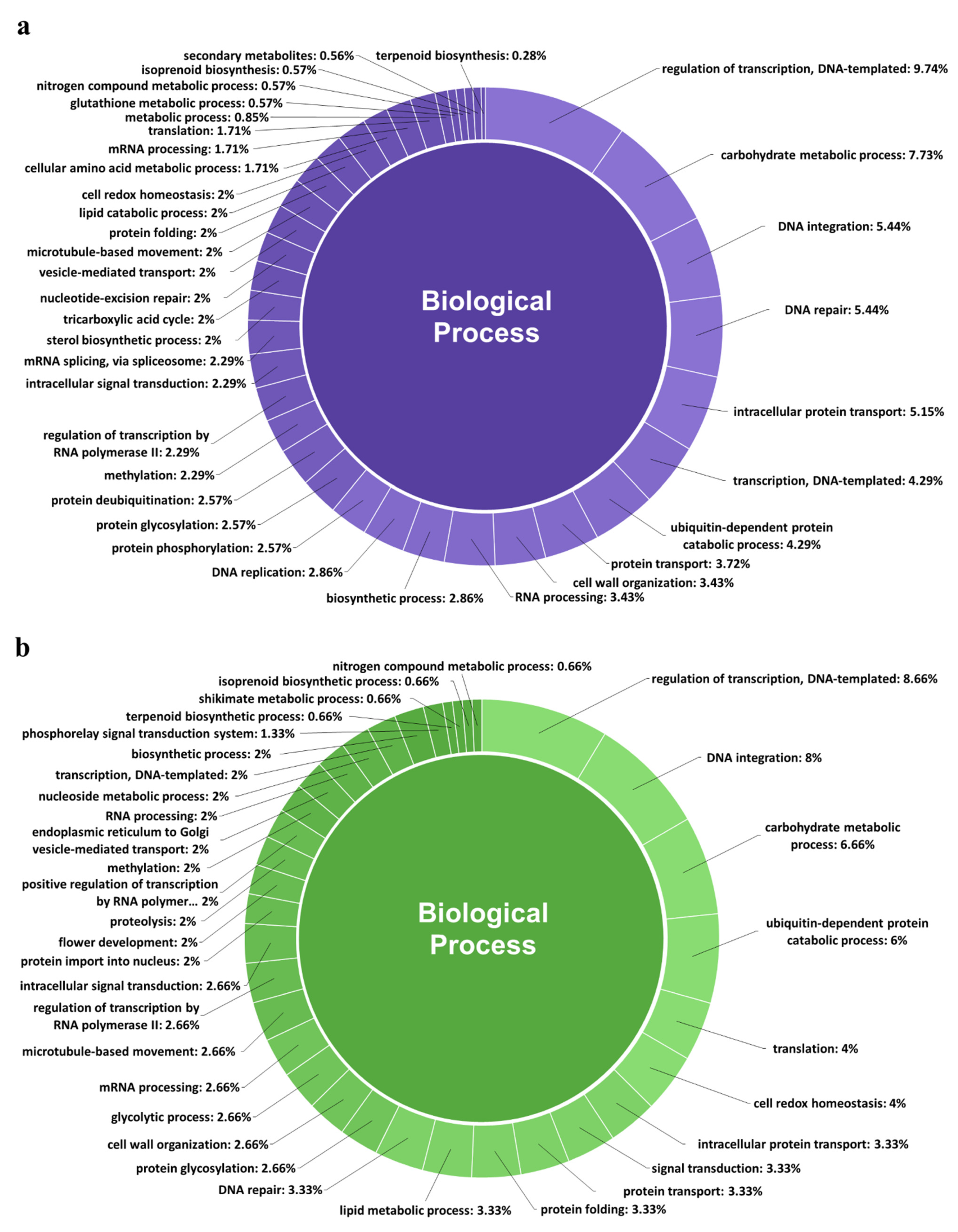

Figure 4. Biological Process categories of the GO analysis of the potential target genes of both conserved (a) and novel (b) miRNAs from M. koenigii.
Figure 4. Biological Process categories of the GO analysis of the potential target genes of both conserved (a) and novel (b) miRNAs from M. koenigii.
Plants 11 00046 g004
Plants 11 00046 g005 550

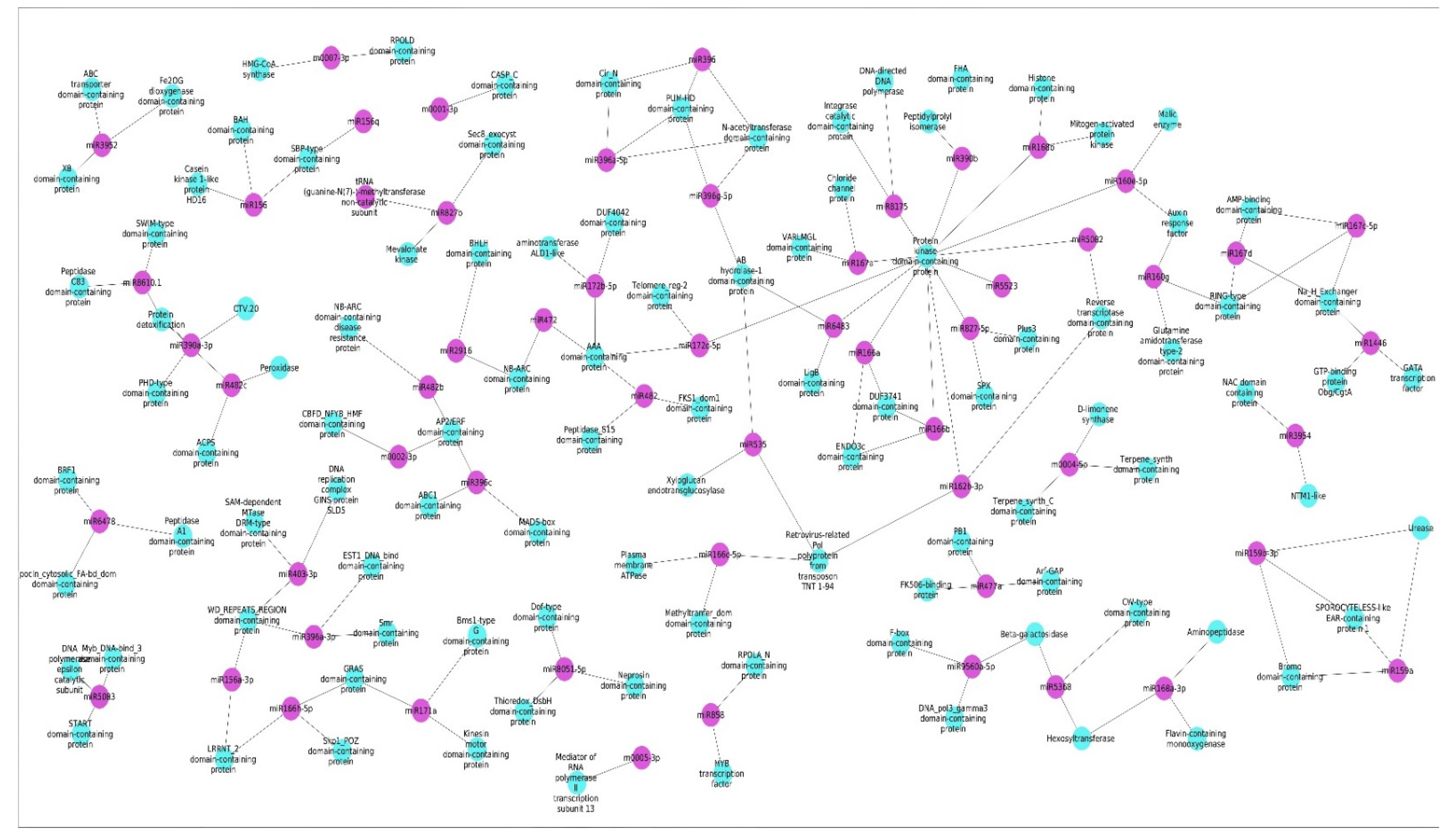

Figure 5. MFE-based network interaction of M. koenigii miRNAs and their corresponding potential targets. Coregulation of multiple targets was observed for several of the identified miRNAs (weaker energy interactions were marked as dotted lines).
Figure 5. MFE-based network interaction of M. koenigii miRNAs and their corresponding potential targets. Coregulation of multiple targets was observed for several of the identified miRNAs (weaker energy interactions were marked as dotted lines).
Plants 11 00046 g005
Plants 11 00046 g006 550

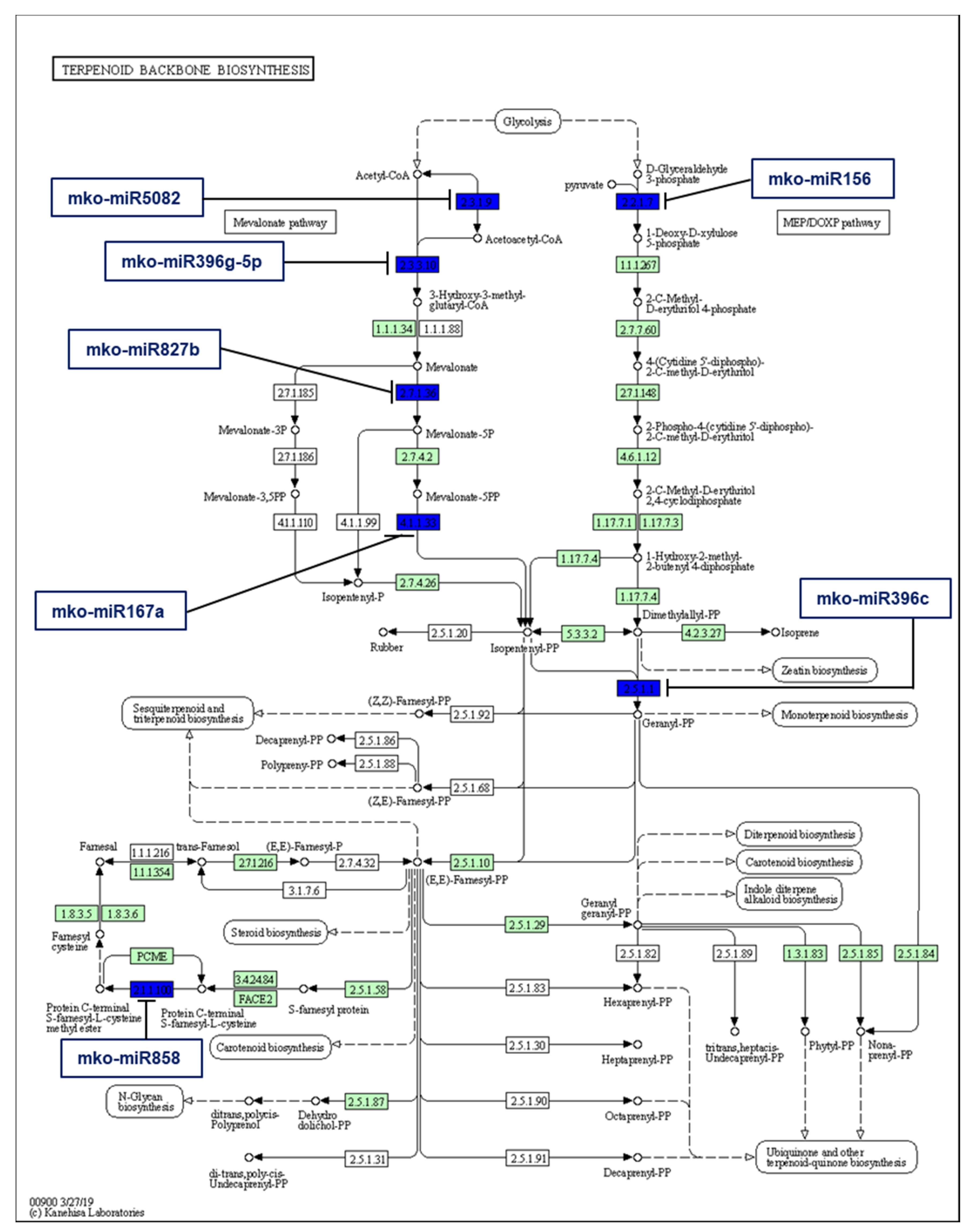

Figure 6. Target enzymes of conserved miRNAs of M. koenigii in the terpenoid backbone biosynthesis pathway. EC:2.2.1.7—1-deoxy-D-xylulose-5-phosphate synthase; EC:2.3.1.9—acetyl-CoA C-acetyltransferase; EC:4.1.1.33—diphosphomevalonate decarboxylase; EC:2.1.1.100—protein-S-isoprenylcysteine O-methyltransferase; EC:2.5.1.1—geranyl diphosphate synthase; EC:2.3.3.10—hydroxymethylglutaryl-CoA synthase; EC:2.7.1.36—mevalonate kinase. The blue boxes represent the targeted enzymes of the corresponding known miRNAs.
Figure 6. Target enzymes of conserved miRNAs of M. koenigii in the terpenoid backbone biosynthesis pathway. EC:2.2.1.7—1-deoxy-D-xylulose-5-phosphate synthase; EC:2.3.1.9—acetyl-CoA C-acetyltransferase; EC:4.1.1.33—diphosphomevalonate decarboxylase; EC:2.1.1.100—protein-S-isoprenylcysteine O-methyltransferase; EC:2.5.1.1—geranyl diphosphate synthase; EC:2.3.3.10—hydroxymethylglutaryl-CoA synthase; EC:2.7.1.36—mevalonate kinase. The blue boxes represent the targeted enzymes of the corresponding known miRNAs.
Plants 11 00046 g006
Plants 11 00046 g007 550

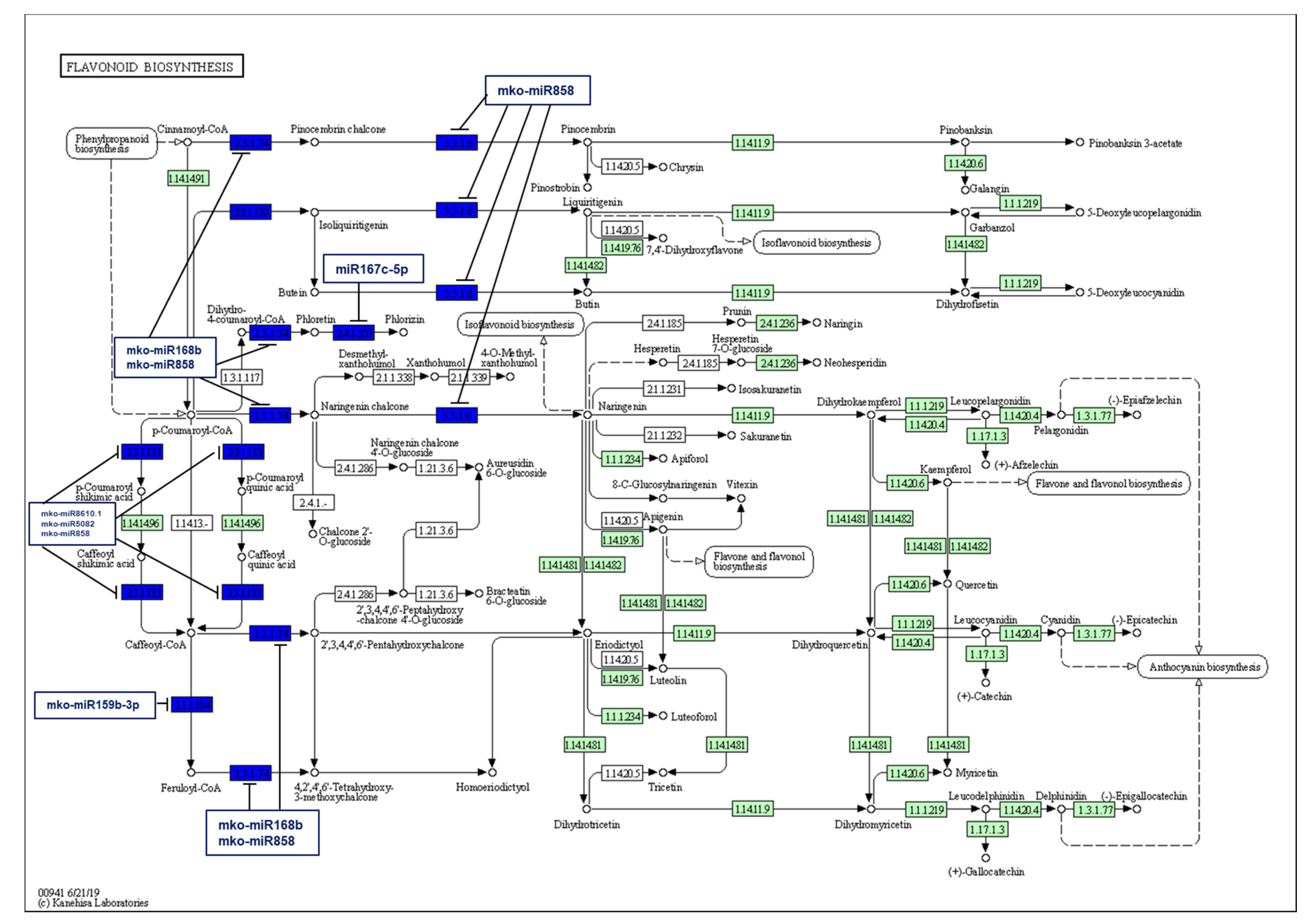

Figure 7. Target enzymes of conserved miRNAs of M. koenigii in the flavonoid biosynthesis pathway. EC:2.3.1.74—chalcone synthase; EC:5.5.1.6—chalcone isomerase; EC:2.1.1.104—caffeoyl-CoA O-methyltransferase; EC:2.3.1.133—shikimate O-hydroxycinnamoyltransferase; EC:2.4.1.357—phlorizin synthase. The blue boxes represent the targeted enzymes of the corresponding known miRNAs.
Figure 7. Target enzymes of conserved miRNAs of M. koenigii in the flavonoid biosynthesis pathway. EC:2.3.1.74—chalcone synthase; EC:5.5.1.6—chalcone isomerase; EC:2.1.1.104—caffeoyl-CoA O-methyltransferase; EC:2.3.1.133—shikimate O-hydroxycinnamoyltransferase; EC:2.4.1.357—phlorizin synthase. The blue boxes represent the targeted enzymes of the corresponding known miRNAs.
Plants 11 00046 g007
Plants 11 00046 g008 550

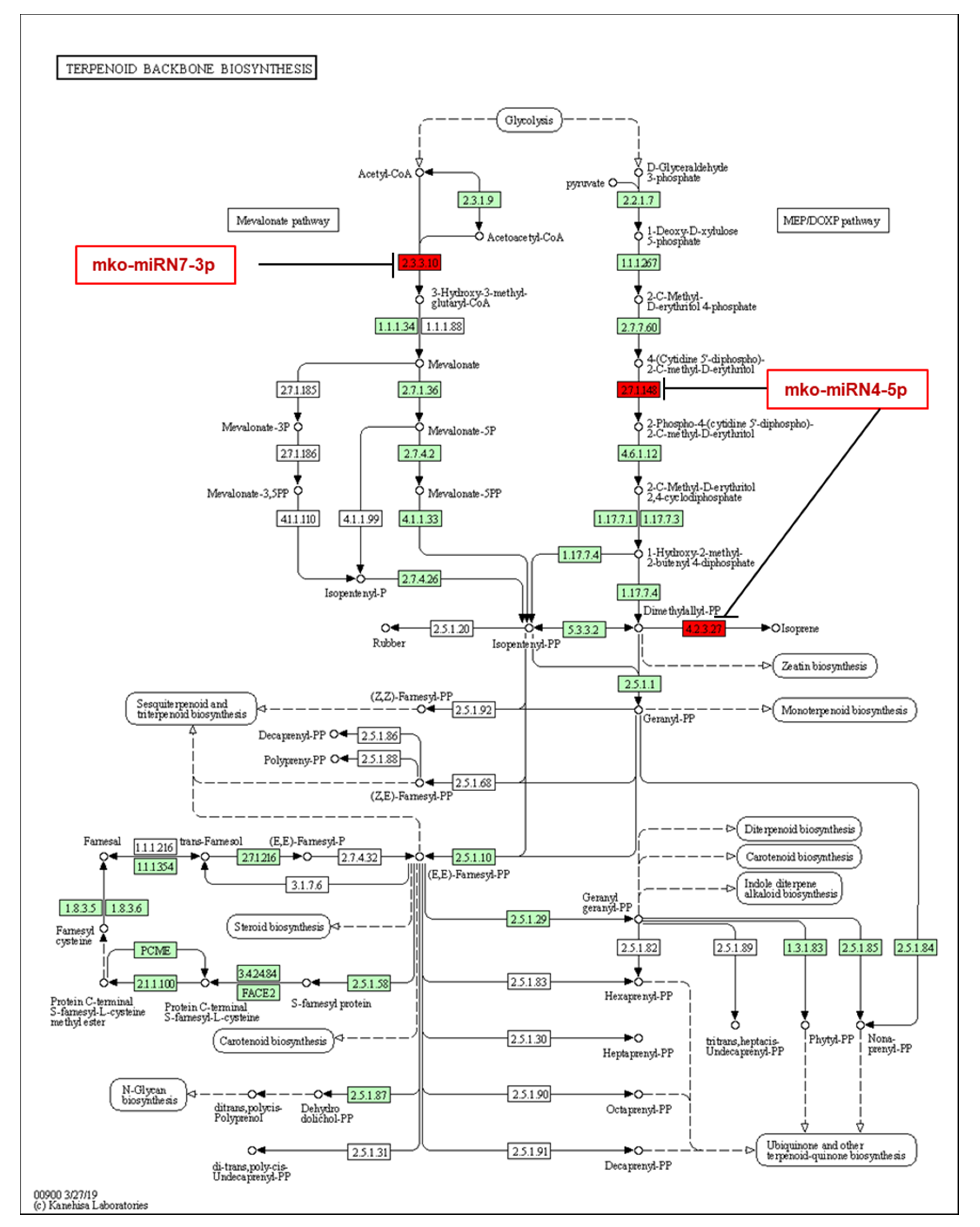

Figure 8. Target enzymes of the novel miRNAs of M. koenigii in the terpenoid backbone biosynthesis pathway. EC:4.2.3.27—isoprene synthase; EC:2.7.1.148—4-diphosphocytidyl-2-C-methyl-D-erythritol kinase; EC:2.3.3.10—hydroxymethylglutaryl-CoA synthase. The red boxes represent the targeted enzymes of the corresponding novel miRNAs.
Figure 8. Target enzymes of the novel miRNAs of M. koenigii in the terpenoid backbone biosynthesis pathway. EC:4.2.3.27—isoprene synthase; EC:2.7.1.148—4-diphosphocytidyl-2-C-methyl-D-erythritol kinase; EC:2.3.3.10—hydroxymethylglutaryl-CoA synthase. The red boxes represent the targeted enzymes of the corresponding novel miRNAs.
Plants 11 00046 g008
Plants 11 00046 g009 550

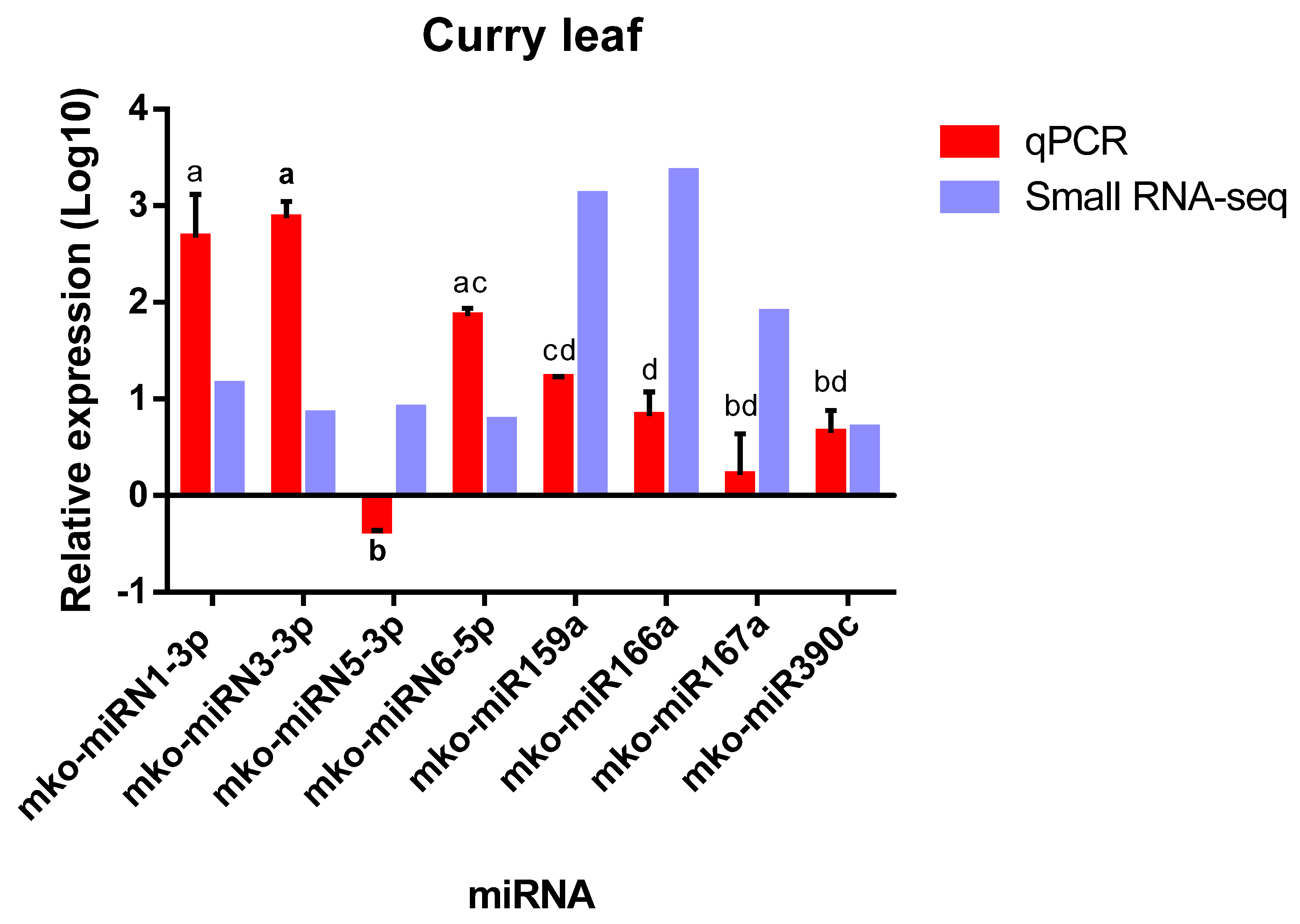

Figure 9. Quantitative PCR analysis of conserved and novel miRNAs of M. koenigii. The relative expression (Log10) of 4 conserved and 4 novel miRNAs was detected by qPCR. U6 was used as an endogenous control. The expression level of miR156a-5p was set as control and taken as 1, and the expression level in all other miRNAs was quantified relative to it. The analysis was performed as triplicates, and the error bars indicate standard deviations. Significant differences between miRNAs at p < 0.05 by ANOVA and Tukey’s test are indicated with different letters.
Figure 9. Quantitative PCR analysis of conserved and novel miRNAs of M. koenigii. The relative expression (Log10) of 4 conserved and 4 novel miRNAs was detected by qPCR. U6 was used as an endogenous control. The expression level of miR156a-5p was set as control and taken as 1, and the expression level in all other miRNAs was quantified relative to it. The analysis was performed as triplicates, and the error bars indicate standard deviations. Significant differences between miRNAs at p < 0.05 by ANOVA and Tukey’s test are indicated with different letters.
Plants 11 00046 g009
Table
Table 1. Categorization of sequencing reads.
Table 1. Categorization of sequencing reads.
CategoryTotal ReadsUnique Reads
Total reads81861453726171
Trimmed reads2052756343505
% reads aligned to ncRNA           46.44%
Reads aligned to ncRNA (rRNA, snoRNA, snRNA, tRNA)1,268,546159,516
Reads aligned to miRBase15,388556
Known miRNA            142
Reads used for novel miRNA41,87923,286
Novel miRNA           7
Putative miRNA726,94379,115
Table
Table 2. Summary of M. koenigii conserved miRNAs.
Table 2. Summary of M. koenigii conserved miRNAs.
miRNA Family NameSequence (5’-3’)Length (nt)Reference miRNANo. of MismatchesRead CountsE Value
MIR156mko-miR156CTGACAGAAGAGAGTGAGCAC21ama-miR1560170.0000002
mko-miR156TTGACGGAAGATAGAGAGCAC22bgy-miR156160.00003
mko-miR156aTGACAGAAGAGAGTGAACACA21bna-miR156a120.00004
mko-miR156a-3pGCTCACTGCTCTTTCTGTCAG22ath-miR156a-3p070.0000001
mko-miR156d-3pGCTCTCTATGCTTCTGTCATCA22stu-miR156d-3p010.00000004
mko-miR156e-5pTGATAGAAGAGAGTGAGCA20sly-miR156e-5p010.000002
mko-miR156f-3pTGCTCACTGCTCTTTCTG23bra-miR156f-3p040.000009
mko-miR156qTGACAGAAGAGAGTGAGCACT21gma-miR156q0390.0000002
mko-miR157d-3pGCTCTCTATTCTTCTGTCATC21aly-miR157d-3p130.00004
MIR159mko-miR159TTTGGGTTGAAGGGAGCTCTA21pde-miR159120.00004
mko-miR159TTTGGACTGAAGGGAGCTCTA21aqc-miR159010.0000002
mko-miR159aTTTGGATTGAAGGGAGCTCTA21ath-miR159a012960.0000003
mko-miR159a-5pGAGCTCCTTGAAGTCCAA21gma-miR159a-5p0210.000009
mko-miR159bTTGCATATCTCTGGAGCTTC21hbr-miR159b110.0001
mko-miR159b-3pTTTGGATTGAAGGGAGCTCTT21ath-miR159b-3p0290.0000002
mko-miR159cTTTGGATTGAAGGGAGCTC21ath-miR159c040.000002
mko-miR159cATTGGATTGAAGGGAGCTC21osa-miR159c010.000002
mko-miR159c-5pTTGGATCGAAGGGAGCTC21zma-miR159c-5p030.000009
mko-miR159dAGCTGCTGAGCTATGGATCCC21gma-miR159d140.00009
mko-miR159eTTTGGATTGAAAGGAGCTCT21sof-miR159e010.0000006
mko-miR159fTTGGATTGAACGGAGCTCTA21osa-miR159f110.0001
MIR160mko-miR160e-5pTGCCTGGCTCCCTGTATGCCG21osa-miR160e-5p0140.0000002
mko-miR160gGCCTGGCTCCCTGTATGCCA23mes-miR160g0300.0000009
MIR162_1mko-miR162b-3pCGATAAACCTCTGCATCCAG21ath-miR162b-3p0380.0000006
MIR162_2mko-miR162bTCGATAAGCCTCTGCATCCAG21osa-miR162b020.0000002
MIR164mko-miR164bTGGAGAAGCAGGGCACGT20gma-miR164b0680.000009
mko-miR164b-5pTGGAGAAGTAGGGCACGTGCA21ath-miR164b-5p120.00004
mko-miR164dTGGAGAAGCAGGGCACATGCT21mtr-miR164d020.0000002
MIR166mko-miR165bTCGGACCAGGCTTCATCCCC21ath-miR165b020.0000006
mko-miR166aTCGGACCAGGCTTCATTCCCC21pta-miR166a022580.0000003
mko-miR166bTCGGACCAGGCTTCATTCCCT22crt-miR166b03620.0000002
mko-miR166bTCGGACCAGGCTTCATTCCT21mtr-miR166b050.0000006
mko-miR166bTCGGANCAGGCTTCATTCCCG22csi-miR166b110.000009
mko-miR166c-5pGGAATGTTGTCTGGCTCGAGG21gma-miR166c-5p01440.0000003
mko-miR166dTCGGGCCAGGCTTCATTCCCC21mtr-miR166d120.00004
mko-miR166e-3pTCGAACCAGGCTTCATTCCCC21osa-miR166e-3p020.0000002
mko-miR166h-5pGGAATGTTGTTTGGCTCGAGG21gma-miR166h-5p060.0000001
mko-miR166iTCGGACCAGGCTTCATTCT20cme-miR166i020.000002
mko-miR166i-3pTCGGATCAGGCTTCATTCC21osa-miR166i-3p010.000002
mko-miR166kTCTCGGACCAGGCTTCGTTCC21gma-miR166k120.00004
mko-miR166k-3pCGGACCAGGCTTCAATCCC21osa-miR166k-3p020.000002
mko-miR166mCGGACTAGGCTTCATTCCCC20gma-miR166m110.0001
mko-miR166pTCGGACCAGGCTCCATTCC21ptc-miR166p020.000002
mko-miR166uTCTCGGACCAGGCTTCATT20gma-miR166u030.000002
MIR167_1mko-miR167aAGATCATCTGGCAGTTTCACC21mdm-miR167a0780.0000002
mko-miR167bTGAAGCTGACAGCATGATCT21tae-miR167b020.0000006
mko-miR167bTGAAGCTGCCAGCATGATCTA22bna-miR167b010.0000001
mko-miR167c-5pTGAAGCTGCCAGCATGATCTGC22tae-miR167c-5p010470.00000004
mko-miR167dTGAAGCTGCCAGCATGATCTGA22cpa-miR167d0190.00000004
mko-miR167dTGAAGCAGCCAGCATGATCTGG22ath-miR167d130.000009
mko-miR167dTGAAGCTGCCATCATGATCT20bna-miR167d120.0001
mko-miR167f-3pATCATGTGGCAGTTTCACC21ptc-miR167f-3p030.000002
mko-miR167h-5pTGAAGCTGCCAACATGATCTG21ptc-miR167h-5p010.0000001
mko-miR167iTGAAGCTGCCAGCAAGATCTTA22mdm-miR167i110.000009
MIR168mko-miR168TCCCGCCTTGCATCAACTG24aau-miR168020.000002
mko-miR168a-3pCCCGCCTTGCATCAACTGAAT21ath-miR168a-3p090.0000001
mko-miR168bTCGCTTGGTGCAGGTCGGG19gma-miR168b090.000002
mko-miR168b-5pTCGCCTGGTGCAGGTCGGGAA21ath-miR168b-5p120.00004
MIR169_1mko-miR169hTAGCCAAGGATGACTTGCCTG21ath-miR169h010.0000002
MIR171_1mko-miR171aTTGAGCCGCGTCAATATCTCC21mdm-miR171a070.0000002
MIR172mko-miR172bGTGTAGCATCATCAAGAT21vvi-miR172b040.000009
mko-miR172b-5pGCAGCACCATCAAGATTCACA21aly-miR172b-5p0180.0000002
mko-miR172c-5pGTAGCATCATCAAGATTCACA21mtr-miR172c-5p070.0000002
MIR390mko-miR390a-3pCGCTATCCATCCTGAGTTTCA21ath-miR390a-3p050.0000002
mko-miR390bAAGCTCAGGAGGGATAGCGCC21ppt-miR390b050.0000002
MIR393mko-miR393CCAAAGGGATCGCATTGATCT22ghr-miR393030.0000001
MIR396mko-miR396TTCCACAGCTTTCTTGAACTT21pta-miR3960350.0000002
mko-miR396-3pGCTCAAGAAAGCTGTGGGA21ama-miR396-3p020.000002
mko-miR396aCACAGCTTTCTTGAACTT21hbr-miR396a010.000009
mko-miR396a-3pGTTCAATAAAGCTGTGGGAAG21ath-miR396a-3p02610.0000003
mko-miR396a-3pTTCAATAAAGCTGAGGGAAG20gma-miR396a-3p110.0001
mko-miR396a-5pTTCCACAGCTTTCTTGAACTG21ath-miR396a-5p011210.0000002
mko-miR396b-3pGTTCAATAAAGCTGTGGGA20osa-miR396b-3p040.000003
mko-miR396cTTCAAGAAATCTGTGGGAAG20csi-miR396c0220.0000006
mko-miR396g-3pCTCAAGAATGCCGTGGGAAA21ptc-miR396g-3p130.0001
mko-miR396g-3pGTTCAAGAAAGCTGTGGAAG21zma-miR396g-3p020.0000007
mko-miR396g-5pTTCCACGGCTTTCTTGAACTT21ptc-miR396g-5p01440.0000001
mko-miR396jTTCCACAGCTATCTTGAA21gma-miR396j020.000009
MIR399mko-miR399eCGCCAAAGGAGAGTTGCCCT21ptc-miR399e010.0000006
MIR403mko-miR403-3pTTAGATTCACGCACAAACTCG21ath-miR403-3p0360.0000002
MIR408mko-miR408-5pGGGGAACAGGCAGAGCATGG21ptc-miR408-5p020.0000006
MIR408_2mko-miR408ATGCACTGCCTCTTCCCTGGC21pta-miR408010.0000002
MIR477mko-miR477aACTCTCCCTCAAGGGCTTCTG21nta-miR477a060.0000002
mko-miR477aATCTCCCTTAAAGGCTTCCAA21vvi-miR477a120.00003
MIR482mko-miR472TTTTCCCACACCTCCCATCCC21csi-miR4720360.0000001
mko-miR482TCTTCCCTACTCCACCCAT22mes-miR4820990.000002
mko-miR482a-3pTCTTCCCTAAGCCTCCCATTCC22csi-miR482a-3p120.000009
mko-miR482bTCTTGCCCAACCCTCCCATTCC22csi-miR482b11920.000009
mko-miR482bTTGCCAACTCCACCCATGCC22ghr-miR482b110.0001
mko-miR482cTTCCCTAGTCCCCCTATTCCTA22csi-miR482c01380.00000004
mko-miR482d-3pTCTTCCCTACACCACCCAT22gma-miR482d-3p110.0005
MIR530mko-miR530-3pAGGTGCAGAGGCAGATGCAAC21osa-miR530-3p010.0000002
MIR535mko-miR535TGACAATGAGAGAGAGCAC21csi-miR53504220.000005
mko-miR535bTGACAAAGAGAGAGAGCACGC21mdm-miR535b130.00003
mko-miR535dTGACGATGAGAGAGAGCACGC21mdm-miR535d110.00004
mko-miR535dTGACAACGAGAGAGAGCACGC21ppt-miR535d010.0000001
MIR827mko-miR827TTTGCTGATTGTCATCTAA21osa-miR827110.0006
mko-miR827-5pTTTGTTGATTGTCATCTAA22bdi-miR827-5p1160.0006
MIR827_2mko-miR827bTTAGATGACCATCAACAAACA21ghr-miR827b0210.0000002
MIR845_2mko-miR845eTGGCTCTGATACCAATTGATG21vvi-miR845e010.0000002
MIR845_3mko-miR845bGCTCTAATACCAATTGATA21vvi-miR845b130.0006
MIR858mko-miR858CTCGTTGTCTGTTCGACCTTG21ppe-miR8580820.0000002
MIR1446mko-miR1446AACTCTCTCCCTCATAGGCT21gra-miR1446150.0001
MIR1507mko-miR1507-3pCCTCGTTCCAAACATCATCT22mtr-miR1507-3p130.0001
MIR2673mko-miR2673bGAAGAGGAAGAGGAAGAGG22mtr-miR2673b010.000005
MIR3630mko-miR3630-3pTGGGAATCTCTCTGATGCA22vvi-miR3630-3p020.000004
MIR8654mko-miR8654cAGGATACTGCTTTGATGGA24gra-miR8654c120.0007
MIR9560mko-miR9560a-5pCAGGAGGTGGAACAAATATGA24bra-miR9560a-5p1190.00004
NAmko-miR156iGACAGAAAAGAGAGAGCAG20ath-miR156i110.0005
mko-miR477bCTCTCCCTCAAGGGCTTCT21nta-miR477b020.000002
mko-miR477hACTCTCCCTCAAGGGCTTCA21mes-miR477h010.0000006
mko-miR845GCTCTGATACCAATTGTTG21bdi-miR845040.000003
mko-miR894CGTTTCACGTCGGGTTCACC20ppt-miR894020.0000006
mko-miR1446TTCTAAACTCTCTCCCTCAT20mes-miR1446130.0001
mko-miR1515ATTTTTGCGTGCAATGATCC22csi-miR1515020.0000006
mko-miR2916TGGGGGCTCGAAGACGATCA23peu-miR29161130.0003
mko-miR3711GCCCTCCTTCTAGCGCCA20pab-miR37110230.00002
mko-miR3948TGGAGTGGGAGTGAGAGTA24csi-miR3948110.0006
mko-miR3950AGAAATCATGTTGCAGAAA21csi-miR3950110.0006
mko-miR3952TGAAGGGCCTTTCTAGAGCAC21csi-miR3952080.0000002
mko-miR3954TGGACAGAGAAATCACGGTCA21csi-miR39540190.0000001
mko-miR4995AGGCAGTGGCTTGGTTAAGGG21gma-miR4995010.0000003
mko-miR5021GAGAAGAAGAAGAAGAAAA20ath-miR5021010.000002
mko-miR5072TTCCCCAGTGGAGTCGCCA22osa-miR5072120.0006
mko-miR5082ATGATGGCCTCGCGGGTTCA24osa-miR50821470.0002
mko-miR5083AGACTACAATTATCTGATCA20osa-miR50830270.000001
mko-miR5368GGACAGTCTCAGGTAGACA19gma-miR536805920.000005
mko-miR5523CTAGTAAATACGTTCCTCCTCA22osa-miR55231220.00002
mko-miR5532ATGGAATATATGACAAGGGTGG22osa-miR5532120.00002
mko-miR5538GCAGCAAGTGATTGAGTTCAGT22osa-miR5538020.00000009
mko-miR5658ATGATGAGGATGATGATGAA21ath-miR5658120.0003
mko-miR5817GAATTTGAAAAAAAAAGGT24osa-miR5817120.0009
mko-miR6173AGCCGTAAACGATGGATACT20hbr-miR6173030.000001
mko-miR6300GTCGTTGTAGTATAGTGG18gma-miR630008030.00002
mko-miR6478CCGACCTTAGCTCAGTTGGT21ptc-miR6478090.000001
mko-miR6483TATTGTAGAAATTTTCGGGATC22hbr-miR64831190.00002
mko-miR6485TAGGATGTAGAAGATCATAA20hbr-miR6485140.0003
mko-miR7767-5pCCCCAAGATGAGAGCTCTCC21bdi-miR7767-5p110.0003
mko-miR8051-5pTGAATCTTTATACCATACTA20stu-miR8051-5p1140.0003
mko-miR8175GATCCCCGGCAACGGCGCCA20ath-miR817506610.000001
mko-miR8610.1TTTTCTGAACAAATCGAAGAA24atr-miR8610.11440.00009
mko-miR9774GAAATACCCAATATCTTG22tae-miR9774010.000009
Table
Table 3. Potential novel miRNA candidates identified from M. koenigii.
Table 3. Potential novel miRNA candidates identified from M. koenigii.
NameSequence (5′-3′)LengthRead CountStrandMFEI of Precursor
mko-miRN1-3pUUAGGGUUUCAGUGAUCGAAAAC2314−0.85
mko-miRN2-3pGUGAGCCAAGCAAGUAGUGUCGC235+0.70
mko-miRN3-3pUUGUCUCACUGCCUGUUGCACU227+0.92
mko-miRN4-5pUGCAGGUGAGAUGAUACCGUCA2215−0.72
mko-miRN5-3pACCGUGUUUCUCUGCCCAAUCAG238−0.98
mko-miRN6-5pCUGGGGAGUUGCACCCGGAGUA226−0.79
mko-miRN7-3pUUGUUUUGGGUGAAACGGGUGUU2393+0.97
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gutiérrez-García, C.; Ahmed, S.S.S.J.; Ramalingam, S.; Selvaraj, D.; Srivastava, A.; Paul, S.; Sharma, A. Identification of microRNAs from Medicinal Plant Murraya koenigii by High-Throughput Sequencing and Their Functional Implications in Secondary Metabolite Biosynthesis. Plants 2022, 11, 46. https://doi.org/10.3390/plants11010046

AMA Style

Gutiérrez-García C, Ahmed SSSJ, Ramalingam S, Selvaraj D, Srivastava A, Paul S, Sharma A. Identification of microRNAs from Medicinal Plant Murraya koenigii by High-Throughput Sequencing and Their Functional Implications in Secondary Metabolite Biosynthesis. Plants. 2022; 11(1):46. https://doi.org/10.3390/plants11010046

Chicago/Turabian Style

Gutiérrez-García, Claudia, Shiek S. S. J. Ahmed, Sathishkumar Ramalingam, Dhivya Selvaraj, Aashish Srivastava, Sujay Paul, and Ashutosh Sharma. 2022. "Identification of microRNAs from Medicinal Plant Murraya koenigii by High-Throughput Sequencing and Their Functional Implications in Secondary Metabolite Biosynthesis" Plants 11, no. 1: 46. https://doi.org/10.3390/plants11010046

APA Style

Gutiérrez-García, C., Ahmed, S. S. S. J., Ramalingam, S., Selvaraj, D., Srivastava, A., Paul, S., & Sharma, A. (2022). Identification of microRNAs from Medicinal Plant Murraya koenigii by High-Throughput Sequencing and Their Functional Implications in Secondary Metabolite Biosynthesis. Plants, 11(1), 46. https://doi.org/10.3390/plants11010046

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
