NSDBSCAN: A DensityBased Clustering Algorithm in Network Space
Abstract
:1. Introduction
2. Basic Idea
3. NSDBSCAN Algorithm
3.1. Generating Density Ordering

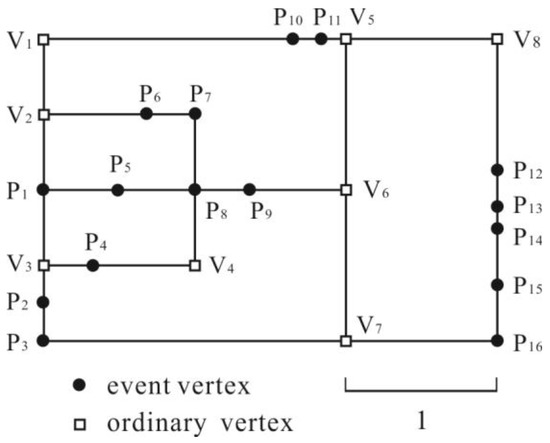

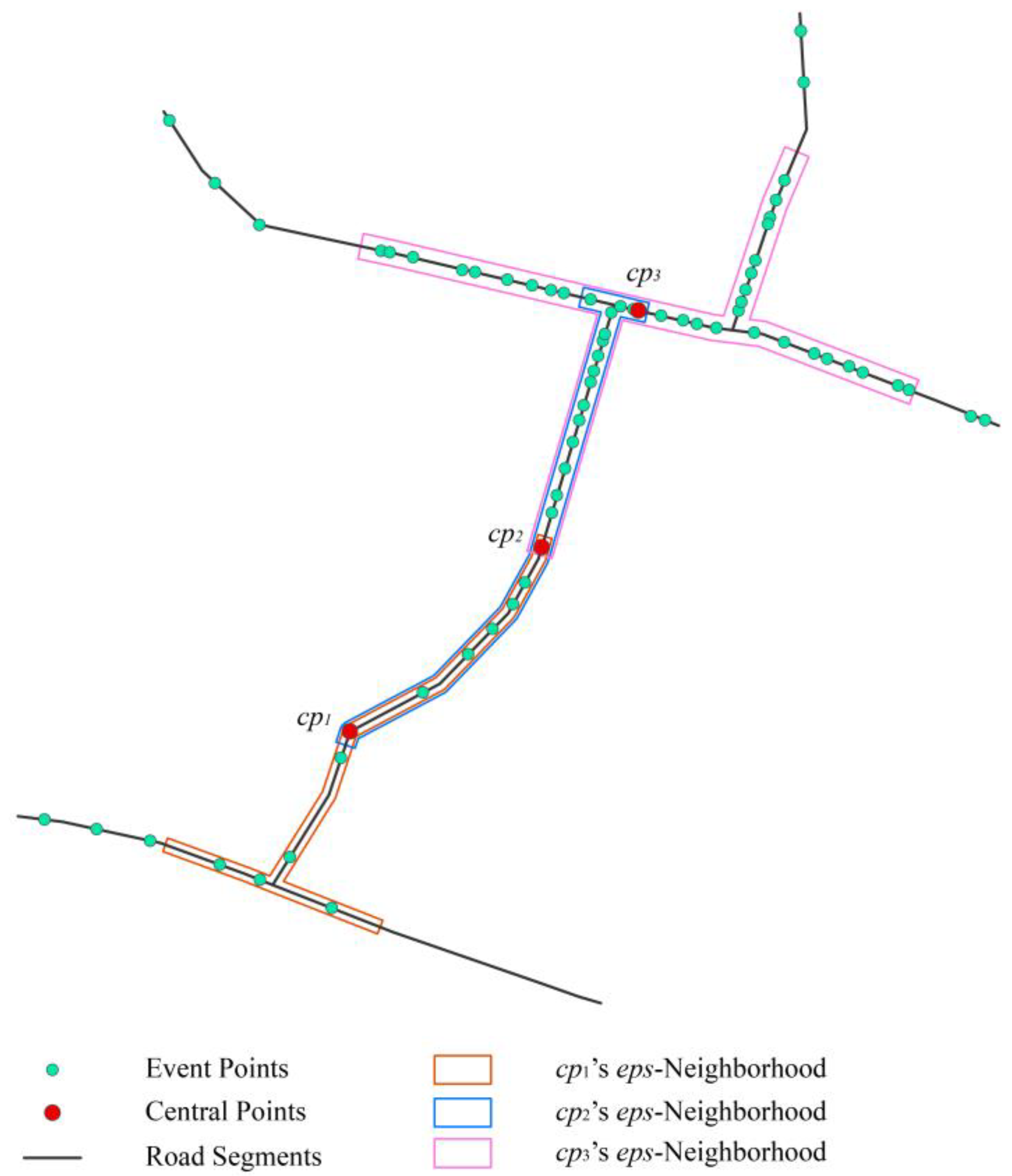

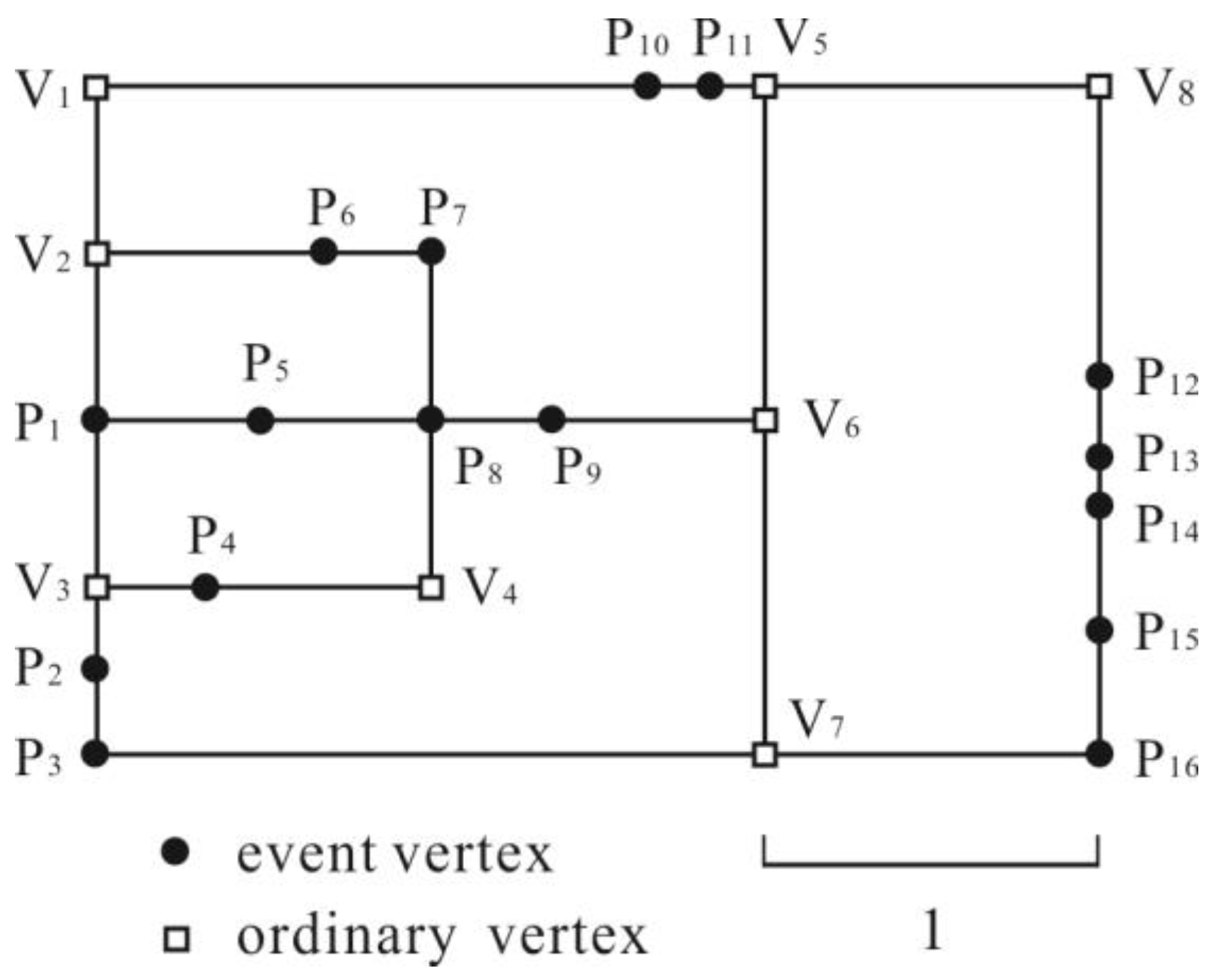

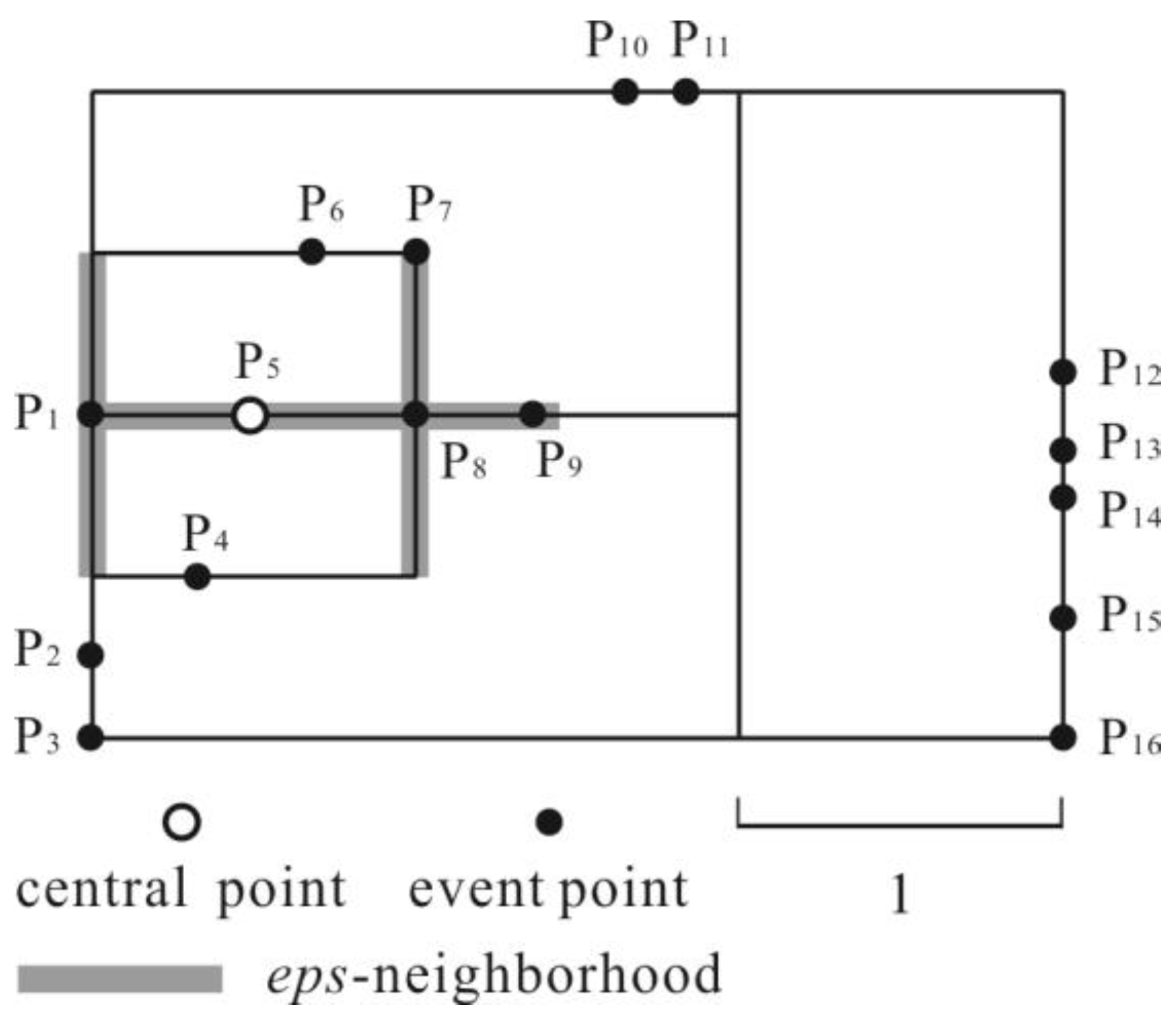

3.1.1. Obtaining EpsNeighbors
 (1)
 Setting CDCV of central vertex to 0 and that of other vertices to ∞.
 (2)

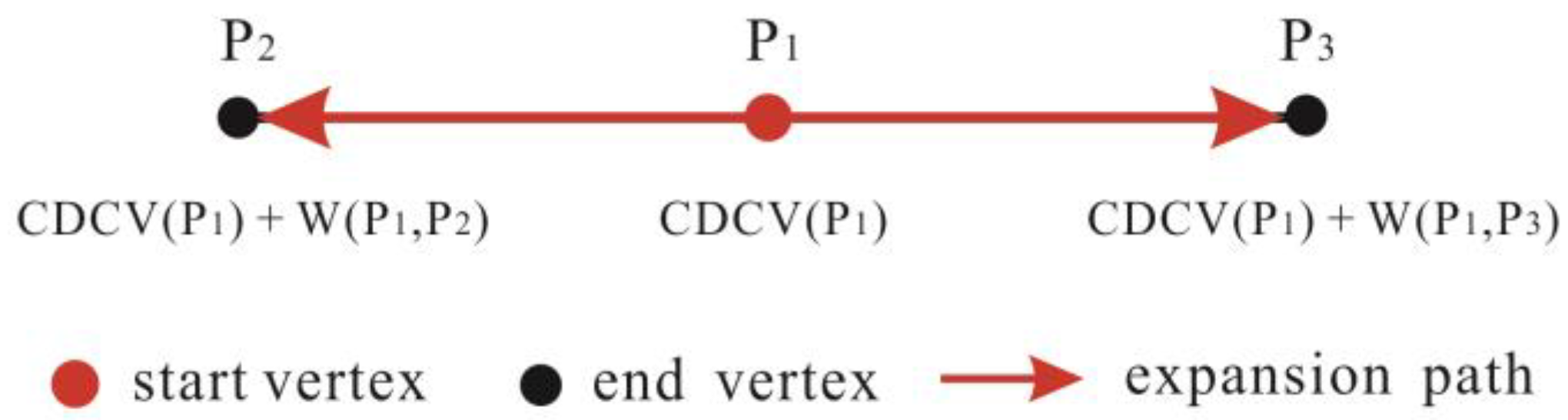

 Performing a basic expansion with the central vertex as the start vertex.
 (3)
 Continuing the expansion from the new vertices, which are actually the end vertices of the last expansion.
 (4)
 Repeating step 3 until all expansion paths are blocked. The vertices whose CDCV are neither ∞ nor 0 consist of epsneighbors of the central vertex.

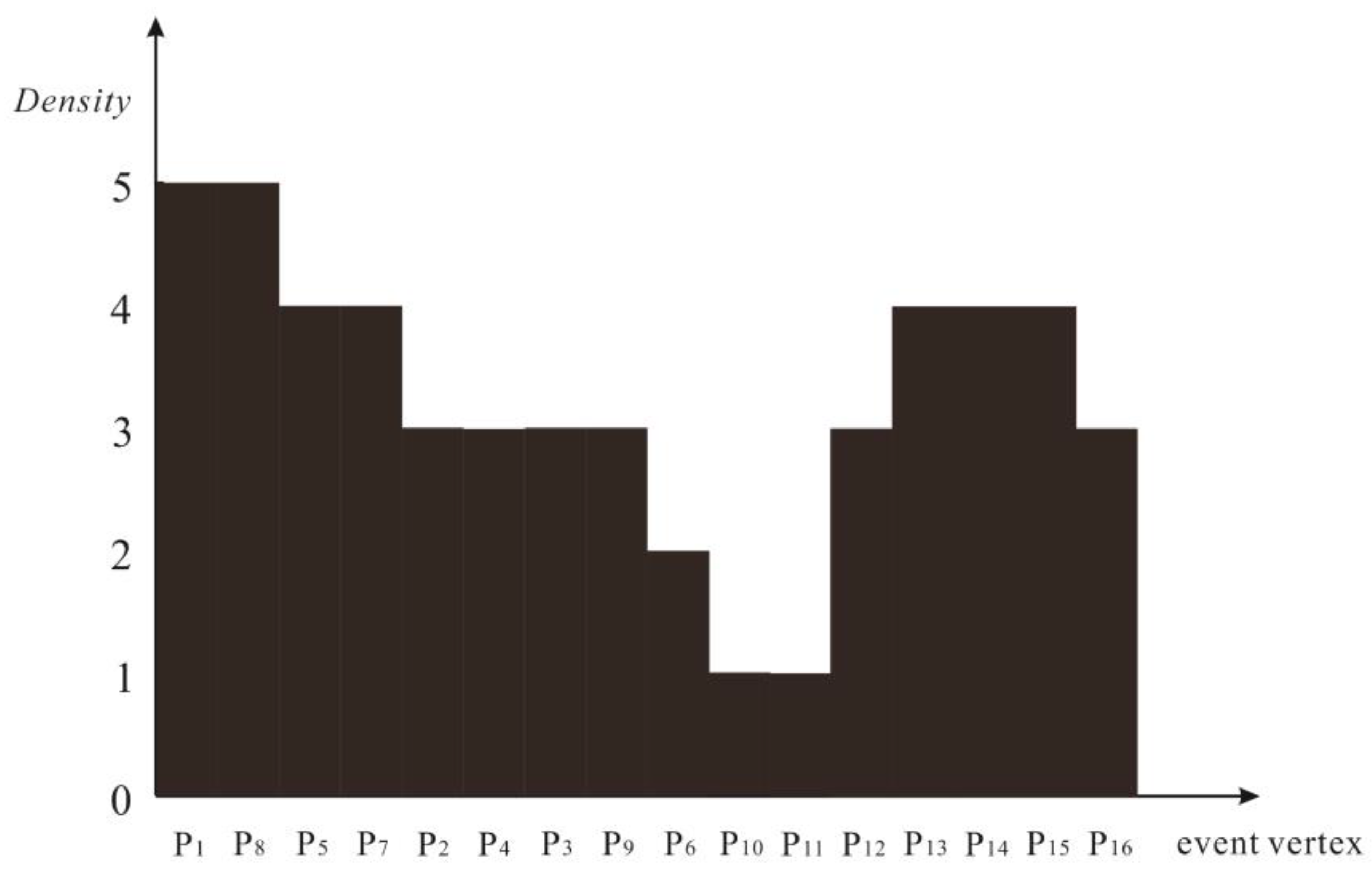

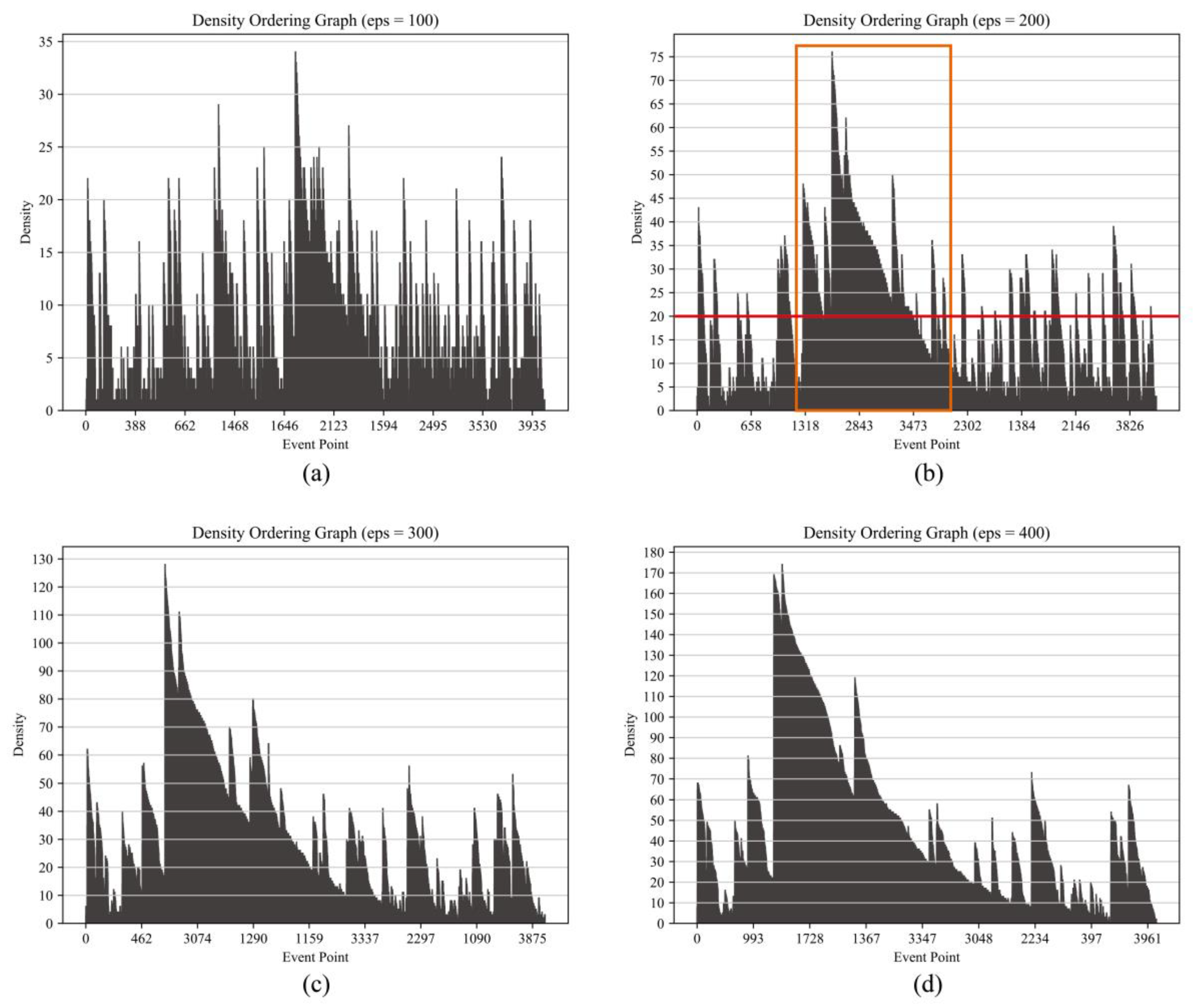

3.1.2. Generating the Density Ordering Table and Graph

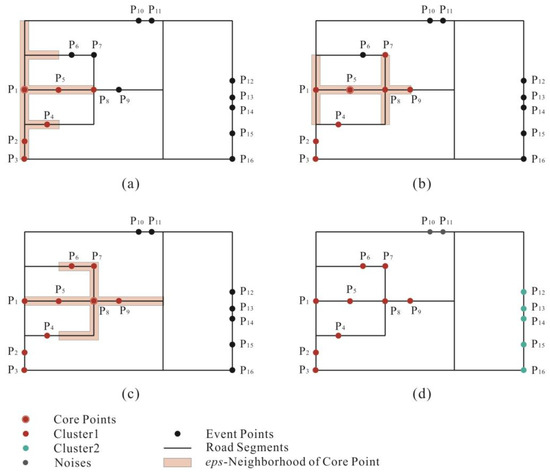

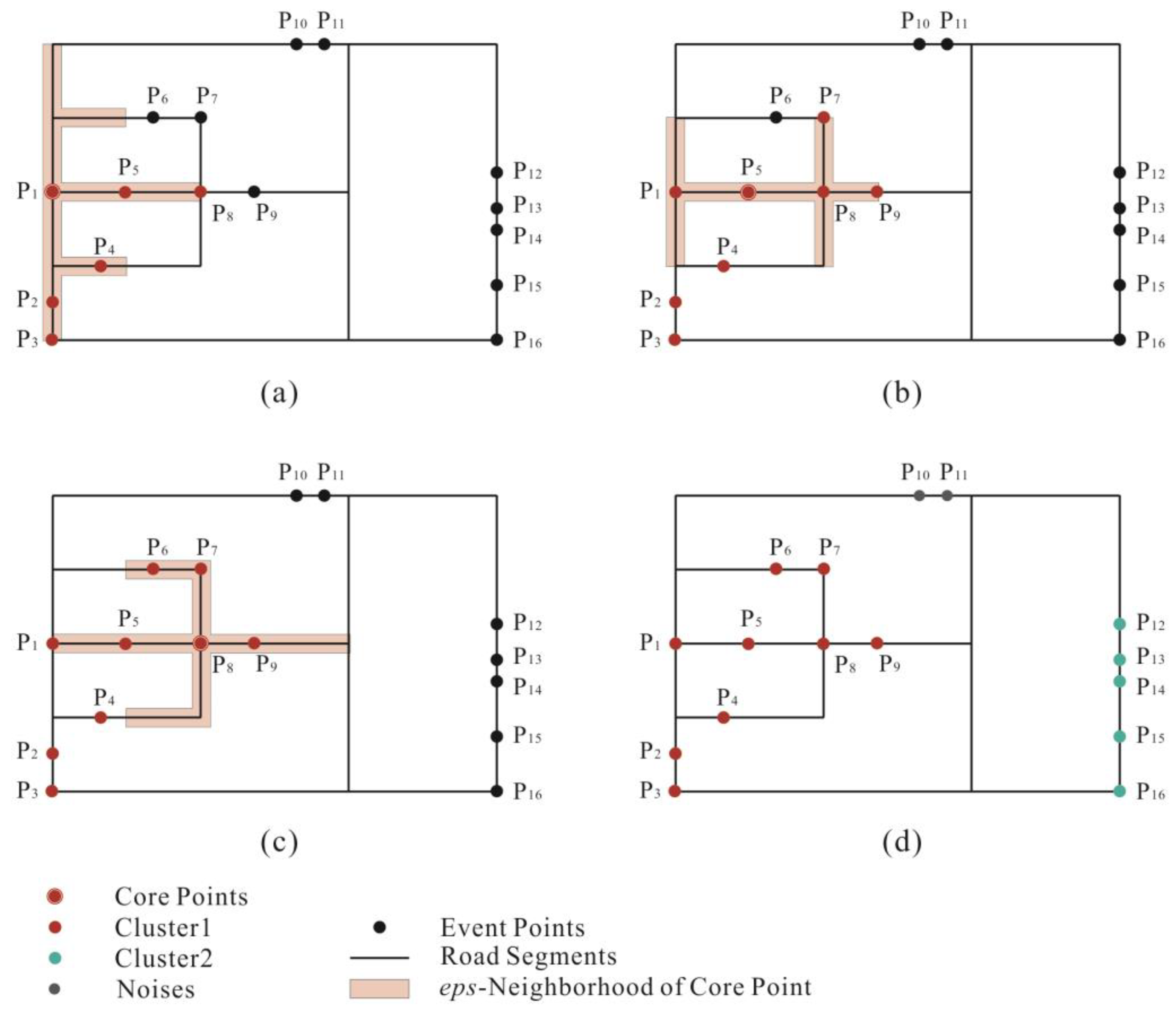

3.2. Forming Clusters
4. Experiment
4.1. Dataset

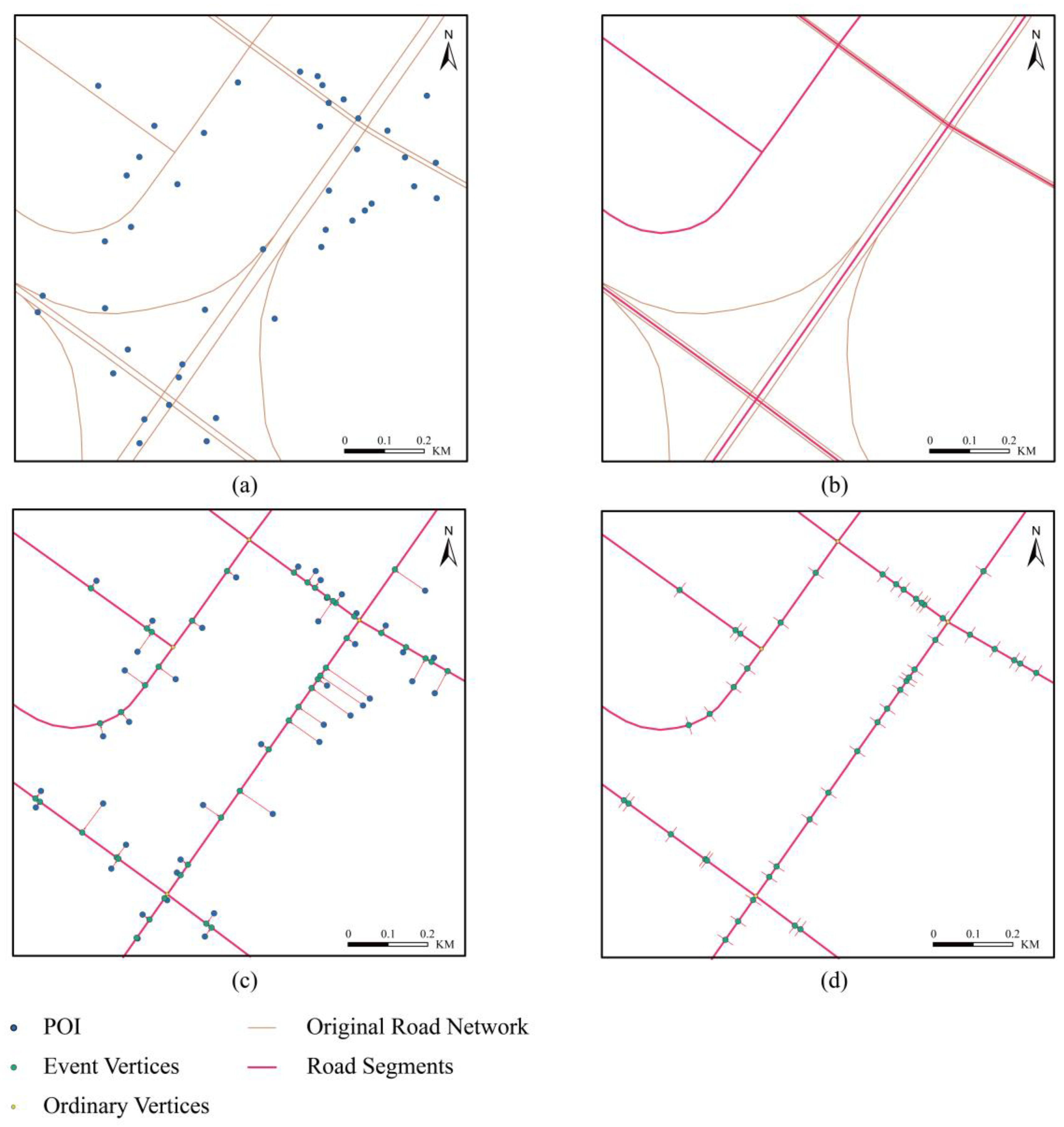

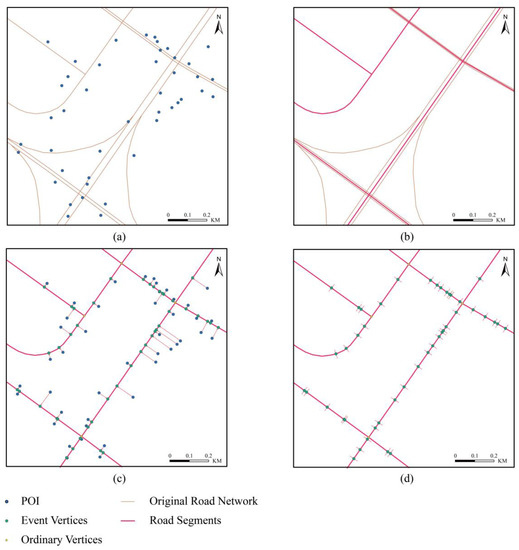

4.2. Preprocessing
 (1)
 Deleting all flyovers and tunnels to make the road network planar.
 (2)
 Extracting the skeletons of divided highways and splitting the road segments where they intersect (Figure 8b).
 (3)
 Moving the point alongside roads to its nearest road segment to create event vertices and establish a correspondence between event vertices and point, followed by creating ordinary vertices where road segments intersect (Figure 8c).
 (4)
 Splitting road segments at event vertices (Figure 8d).

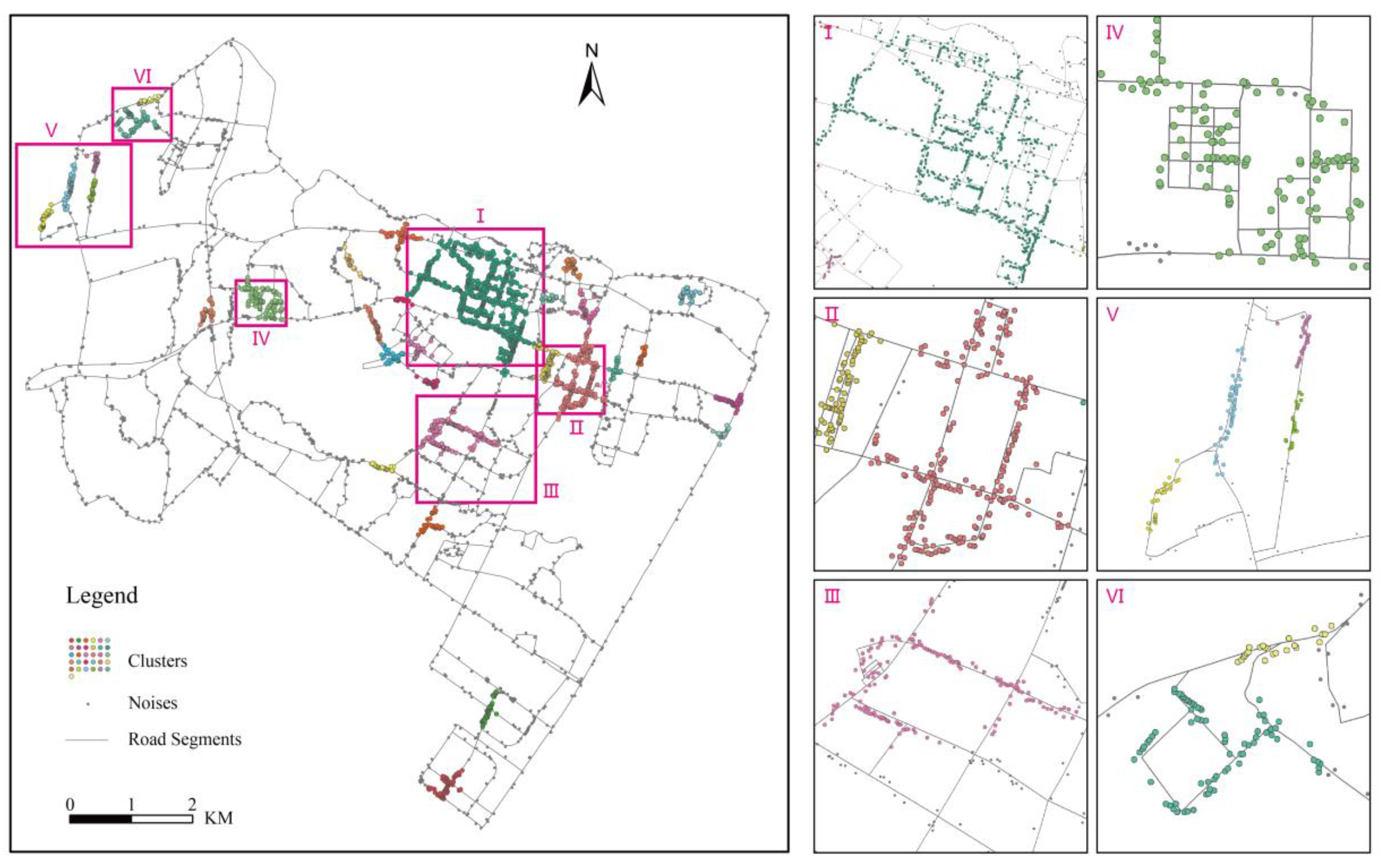

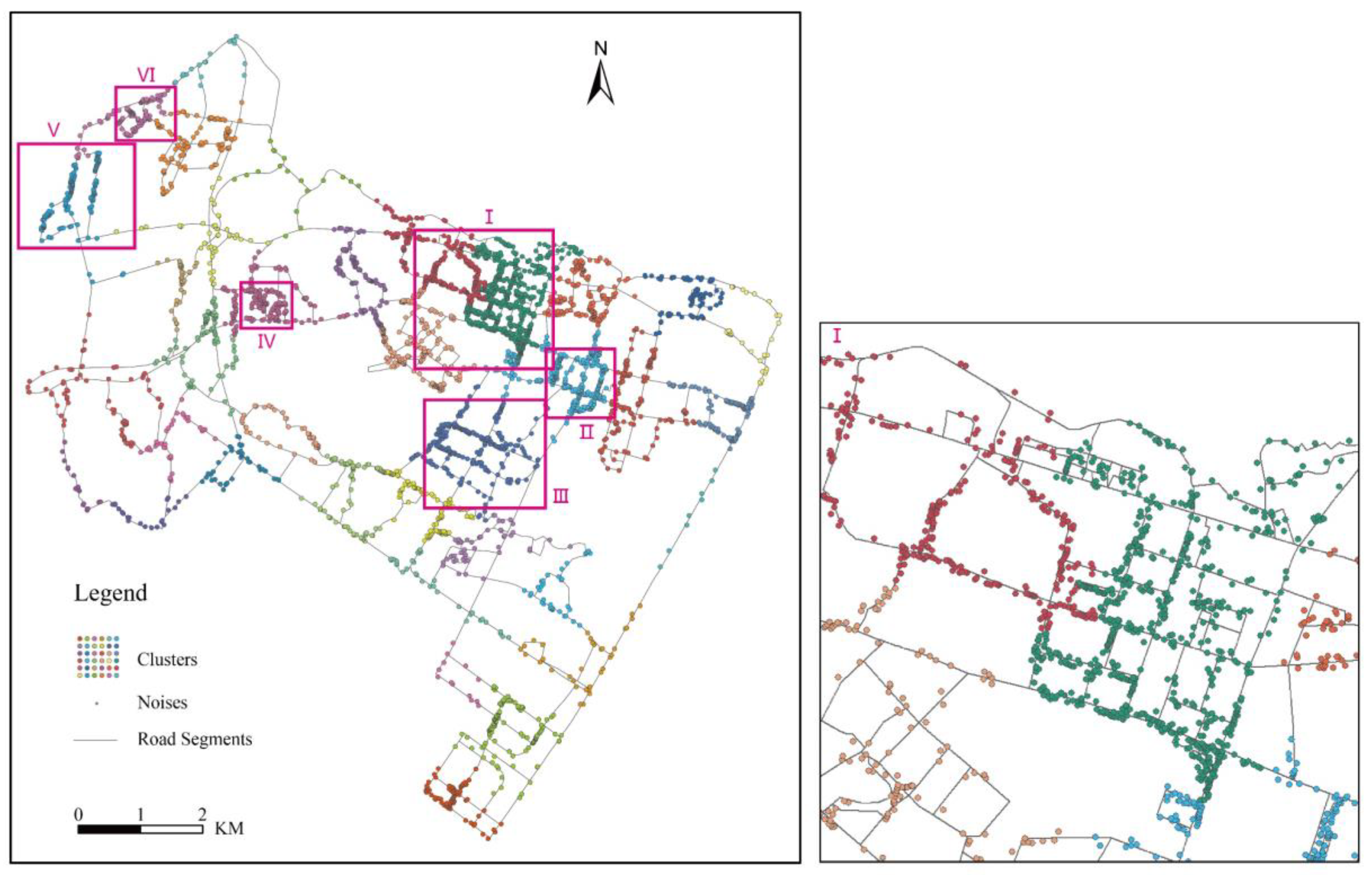

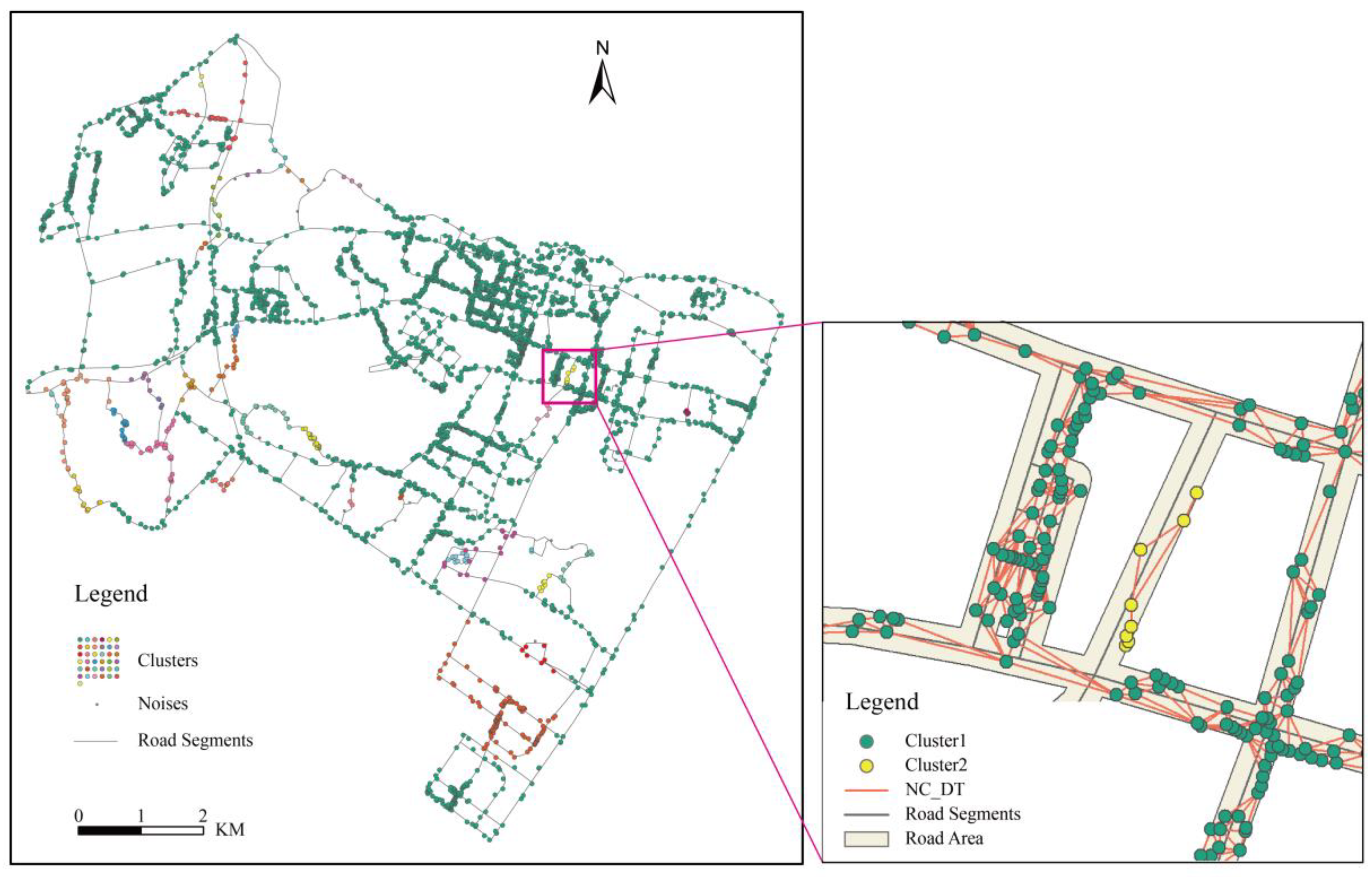

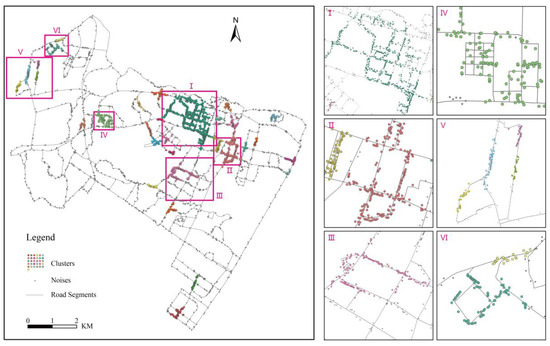

4.3. Results
5. Discussion
5.1. Parameterization

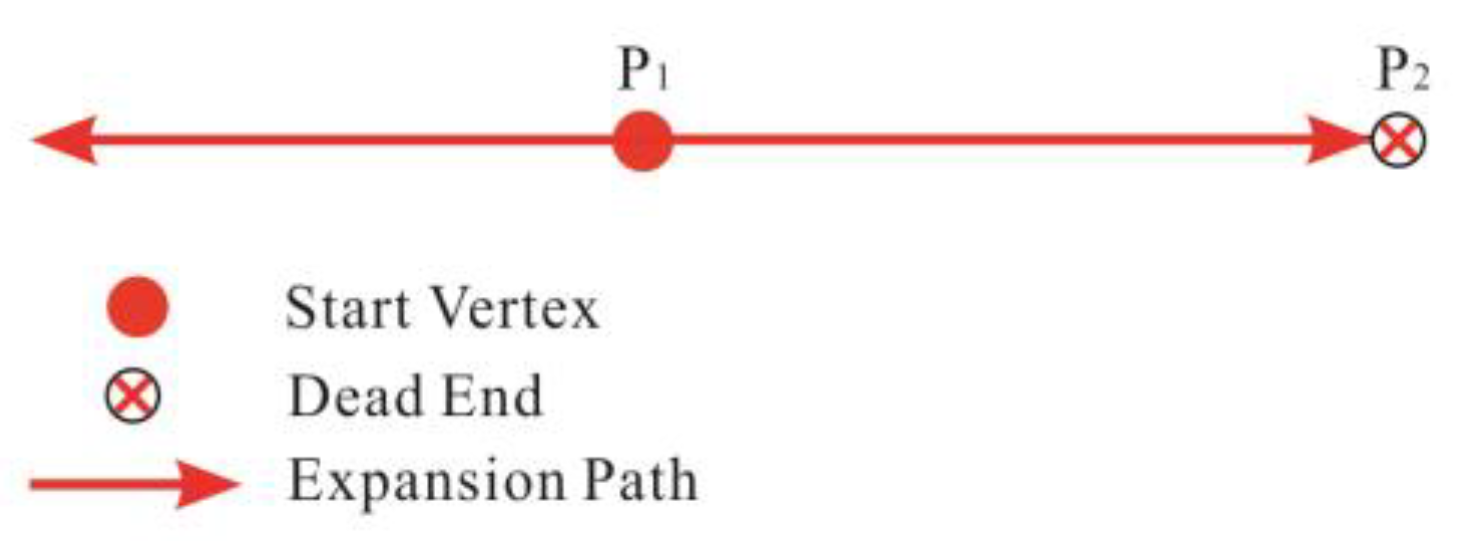

5.2. Oneway and DeadEnd Cases
6. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
 Tobler, W.R. A Computer Movie Simulating Urban Growth in the Detroit Region. Econ. Geogr. 1970, 46, 234–240. [Google Scholar] [CrossRef]
 Waller, L.A. Detection of clustering in spatial data. In The SAGE Handbook of Spatial Analysis; SAGE Publications: Thousand Oaks, CA, USA, 2009; pp. 299–320. [Google Scholar]
 EstivillCastro, V.; Lee, I. Multilevel clustering and its visualization for exploratory spatial analysis. Geoinformatica 2002, 6, 123–152. [Google Scholar] [CrossRef]
 Shiode, S. Streetlevel Spatial Scan Statistic and STAC for Analysing Street Crime Concentrations. Trans. GIS 2011, 15, 365–383. [Google Scholar] [CrossRef]
 He, L.; Páez, A.; Liu, D. Persistence of Crime Hot Spots: An Ordered Probit Analysis. Geogr. Anal. 2017, 49, 3–22. [Google Scholar] [CrossRef]
 Guo, D.; Zhu, X.; Jin, H.; Gao, P.; Andris, C. Discovering Spatial Patterns in OriginDestination Mobility Data. Trans. GIS 2012, 16, 411–429. [Google Scholar] [CrossRef]
 Chen, Y.; Qin, K.; Wang, Y.; Zhao, P.; Ye, X. A trajectory clustering approach based on decision graph and data field for detecting hotspots. Int. J. Geogr. Inf. Sci. 2016, 31, 1101–1127. [Google Scholar] [CrossRef]
 Pei, T.; Wang, W.; Zhang, H.; Ma, T.; Du, Y.; Zhou, C. Densitybased clustering for data containing two types of points. Int. J. Geogr. Inf. Sci. 2015, 29, 175–193. [Google Scholar] [CrossRef]
 Yamada, I.; Thill, J.C. Local Indicators of Network—Constrained Clusters in Spatial Point Patterns. Geogr. Anal. 2007, 39, 268–292. [Google Scholar] [CrossRef]
 Nie, K.; Wang, Z.; Du, Q.; Ren, F.; Tian, Q. A networkconstrained integrated method for detecting spatial cluster and risk location of traffic crash: A case study from Wuhan, China. Sustainability 2015, 7, 2662–2677. [Google Scholar] [CrossRef]
 Liu, Q.; Deng, M.; Shi, Y.; Wang, J. A densitybased spatial clustering algorithm considering both spatial proximity and attribute similarity. Comput. Geosci. 2012, 46, 296–309. [Google Scholar] [CrossRef]
 Nojarov, P. Genetic climatic regionalization of the Balkan Peninsula using cluster analysis. J. Geogr. Sci. 2017, 27, 43–61. [Google Scholar] [CrossRef]
 Pei, T.; Jasra, A.; Hand, D.J.; Zhu, A.X.; Zhou, C. DECODE: A new method for discovering clusters of different densities in spatial data. Data Min. Knowl. Discov. 2009, 18, 337–369. [Google Scholar] [CrossRef]
 Deng, M.; Liu, Q.; Cheng, T.; Shi, Y. An adaptive spatial clustering algorithm based on delaunay triangulation. Comput. Environ. Urban Syst. 2011, 35, 320–332. [Google Scholar] [CrossRef]
 Liu, Q.; Tang, J.; Deng, M.; Shi, Y. An iterative detection and removal method for detecting spatial clusters of different densities. Trans. GIS 2015, 19, 82–106. [Google Scholar] [CrossRef]
 Deng, M.; Yang, X.; Shi, Y.; Gong, J.; Liu, Y.; Liu, H. A densitybased approach for detecting networkconstrained clusters in spatial point events. Int. J. Geogr. Inf. Sci. 2018, 33, 466–488. [Google Scholar] [CrossRef]
 Okabe, A.; Yamada, I. The KFunction Method on a Network and its computational implementation. Geogr. Anal. 2001, 33, 270–290. [Google Scholar] [CrossRef]
 Liu, Q.; Tang, J.; Deng, M.; Shi, Y.; Li, Z.; Liu, Q.; Tang, J.; Deng, M. An adaptive method for clustering spatiotemporal events. Trans. GIS 2018, 22, 82–106. [Google Scholar] [CrossRef]
 Anselin, L. Local indicators of spatial analysis—LISA. Geogr. Anal. 1995, 27, 93–115. [Google Scholar] [CrossRef]
 Jackson, M.C.; Huang, L.; Xie, Q.; Tiwari, R.C. A modified version of Moran’s I. Int. J. Health Geogr. 2010, 9. [Google Scholar] [CrossRef] [PubMed]
 Martin, K.; Neville, N. Spatial disease clusters: Detection and inference. Stat. Med. 2018, 14, 799–810. [Google Scholar] [CrossRef]
 Rey, S.J. Spacetime patterns of rank concordance: Local indicators of mobility association with application to spatial income inequality dynamics. Ann. Am. Assoc. Geogr. 2016, 106, 788–803. [Google Scholar] [CrossRef]
 Fan, Y.; Zhu, X.; She, B.; Guo, W.; Guo, T. Networkconstrained spatiotemporal clustering analysis of traffic collisions in Jianghan District of Wuhan, China. PLoS ONE 2018, 13, e0195093. [Google Scholar] [CrossRef]
 Han, J.; Kamber, M.; Pei, J. Data Mining: Concept and Techniques, 2nd ed.; Elsevier Pte Ltd.: Singapore, 2012. [Google Scholar]
 Kaufman, L.; Rousseeuw, P.J. Finding Groups in Data: An. Introduction to Cluster Anaalysis; Wiley: London, UK, 1990. [Google Scholar]
 Ng, R.T.; Han, J. Efficient and effective clustering methods for spatial data mining. In Proceedings of the VLDB Conference, Santiago, Chile, 12–15 September 1994. [Google Scholar]
 Zhang, T.; Ramakrishnan, R.; Livny, M. BIRCH: An efficient data culatering method for very large databases. In Proceedings of the 1996 ACM SIGMOD International Conference on Management of Data, Montreal, QC, Canada, 4 –6 June 1996; Volume 1, pp. 103–114. [Google Scholar]
 Guha, S.; Rastogi, R.; Shim, K. CURE: An Efficient Clustering Algorithm for Large Databases. In ACM SIGMOD Record; Elsevier: Seattle, WA, USA, 1998; Volume 27, pp. 73–84. [Google Scholar]
 Karypis, G.; Han, E.H.; Kumar, V. Chameleon: Hierarchical clustering using dynamic modeling. Computer 1999, 32, 68–75. [Google Scholar] [CrossRef]
 Ester, M.; Kriegel, H.P.; Sander, J.; Xu, X. A DensityBased Algorithm for Discovering Clusters in Large Spatial Databases with Noise. In Proceedings of the 2nd International Conference on Knowledge Discovery and Data Mining, Portland, OR, USA, 2–4 August 1996; pp. 226–231. [Google Scholar]
 Ankerst, M.; Breunig, M.M.; Kriegel, H.P.; Sander, J. OPTICS: Ordering Points to Identify the Clustering Structure. In ACM SIGMOD’99 International Conference on Management of Data; ACM: New York, NY, USA, 1999; pp. 49–60. [Google Scholar]
 Mai, G.; Janowicz, K.; Hu, Y.; Gao, S. ADCN: An anisotropic densitybased clustering algorithm for discovering spatial point patterns with noise. Trans. GIS 2018, 22, 348–369. [Google Scholar] [CrossRef]
 Deng, M.; Liu, Q.; Li, G.; Cheng, T. Fieldtheory based spatial clustering method. J. Remote Sens. 2010, 14, 694–709. [Google Scholar]
 Marek, L.; Pászto, V.; Tucek, P. Using clustering in geosciences: Examples and case studies. In Proceedings of the 15th International Multidisciplinary Scientific GeoConferenceSGEM, Albena, Bulgaria, 18–24 June 2015. [Google Scholar]
 Park, H.S.; Jun, C.H. A simple and fast algorithm for Kmedoids clustering. Expert Syst. Appl. 2009, 36, 3336–3341. [Google Scholar] [CrossRef]
 Lucasius, C.B.; Dane, A.D.; Kateman, G. On kmedoid clustering of large data sets with the aid of a genetic algorithm: Background, feasiblity and comparison. Anal. Chim. Acta 1993, 282, 647–669. [Google Scholar] [CrossRef]
 van der Laan, M.J.; Pollard, K.S. A New Partitioning Around Medoids Algorithm. Biostatistics 2002, 73, 575–584. [Google Scholar] [CrossRef]
 Liu, Q.; Deng, M.; Shi, Y. Adaptive spatial clustering in the presence of obstacles and facilitators. Comput. Geosci. 2013, 56, 104–118. [Google Scholar] [CrossRef]
 Sander, J.; Ester, M.; Kriegel, H.P.; Xu, X. Densitybased clustering in spatial databases: The algorithm GDBSCAN and its applications. Data Min. Knowl. Discov. 1998, 2, 169–194. [Google Scholar] [CrossRef]
 Wang, X.; Hamilton, H.J. DBRS: A DensityBased Spatial Clustering Method with Random Sampling. In PacificAsia Conference on Knowledge Discovery and Data Mining; Springer: Berlin/Heidelberg, Germany, 2003; Volume 2637, pp. 563–575. [Google Scholar]
 Wang, B.; Wang, X. Spatial entropybased clustering for mining data with spatial correlation. In PacificAsia Conference on Knowledge Discovery and Data Mining; Springer: Berlin/Heidelberg, Germany, 2011. [Google Scholar]
 Yamada, I.; Thill, J.C. Comparison of planar and network Kfunctions in traffic accident analysis. J. Transp. Geogr. 2004, 12, 149–158. [Google Scholar] [CrossRef]
 Okabe, A.; Boots, B.; Sugihara, K. Nearest neighbourhood operations with generalized voronoi diagrams: A review. Int. J. Geogr. Inf. Syst. 1994, 8, 43–71. [Google Scholar] [CrossRef]
 Erwig, M. The graph Voronoi diagram with applications. Networks 2000, 36, 156–163. [Google Scholar] [CrossRef]
 Okabe, A.; Yomono, H.; Kitamura, M. Statistical Analysis of the Distribution of Points on a Network. Geogr. Anal. 1995, 27, 152–175. [Google Scholar] [CrossRef]
 Flahaut, B.; Mouchart, M.; Martin, E.S.; Thomas, I. The local spatial autocorrelation and the kernel method for identifying black zones: A comparative approach. Accid. Anal. Prev. 2003, 35, 991–1004. [Google Scholar] [CrossRef]
 Whiteaker, T.L.; Maidment, D.R.; Gopalan, H.; Patino, C.; McKinney, D.C. Rasternetwork regionalization for watershed data processing. Int. J. Geogr. Inf. Sci. 2007. [CrossRef]
 Tong, D.; Murray, A.T. Spatial Optimization in Geography. Ann. Assoc. Am. Geogr. 2012, 102, 1290–1309. [Google Scholar] [CrossRef]
 Yiu, M.L.; Mamoulis, N. Clustering Objects on a Spatial Network. In SIGMOD Conference; ACM: Paris, France, 2004; pp. 443–454. [Google Scholar]
 Sugihara, K.; Okabe, A.; Satoh, T. Computational method for the point cluster analysis on networks. Geoinformatica 2011, 15, 167–189. [Google Scholar] [CrossRef]
 Okabe, A.; Okunuki, K.; Shiode, S. A Toolbox for Spatial Analysis on a Network. GIS Based Stud. 2005, 38, 57–66. [Google Scholar] [CrossRef]
 Stefanakis, E. NETDBSCAN: Clustering the nodes of a dynamic linear network. Int. J. Geogr. Inf. Sci. 2007, 21, 427–442. [Google Scholar] [CrossRef]
 Chen, J.; Lai, C.; Meng, X.; Xu, J.; Hu, H. Clustering Moving Objects in Spatial Networks. In Proceedings of the 12th International Conference on Database Systems for Advanced Applications, Bangkok, Thailand, 9–12 April 2007; pp. 611–623. [Google Scholar]
 Shi, Y.; Deng, M.; Gong, J.; Lu, C.T.; Yang, X.; Liu, H. Detection of clusters in traffic networks based on spatiotemporal flow modeling. Trans. GIS 2019, 23, 312–333. [Google Scholar] [CrossRef]
 Oliveira, D.; Garrett, J.; Soibelman, L. Spatial clustering analysis of water main break events. In Proceedings of the International Workshop on Computing in Civil Engineering 2009, Austin, TX, USA, 24–27 June 2009; pp. 338–347. [Google Scholar] [CrossRef]
 Oliveira, D.; Garrett, J.; Soibelman, L. A densitybased spatial clustering approach for defining local indicators of drinking water distribution pipe breakage. Adv. Eng. Inform. 2011, 25, 380–389. [Google Scholar] [CrossRef]
 Smaltschinski, T.; Seeling, U.; Becker, G. Clustering forest harvest stands on spatial networks for optimised harvest scheduling. Ann. For. Sci. 2012, 69, 651–657. [Google Scholar] [CrossRef] [Green Version]
 Halkidi, M.; Batistakis, Y.; Vazirgiannis, M. Cluster Validity Methods: Part I. SIGMOD Rec. 2002, 31, 40–45. [Google Scholar] [CrossRef]
 Davies, D.L.; Bouldin, D.W. A Cluster Separation Measure. IEEE Trans. Pattern Anal. Mach. Intell. 1979, PAMI1, 224–227. [Google Scholar] [CrossRef]
 Halkidi, M.; Vazirgiannis, M.; Batistakis, Y.; Ri, H.S.W.; Wkhqv, Q.; Frqrplfv, R.I.; Hoodv, W.U.; Pyd, P.; Dqqlv, L.U.J.; Ju, D. Quality scheme assessment in the clustering process. In Principles of Data Mining and Knowledge Discovery; Springer: Berlin/Heidelberg, Germany, 2000; pp. 265–276. [Google Scholar]
Algorithm1: Local Shortest Path Distance Algorithm Input: undirected planar graph N, central vertex cp, radius eps Output: cp’s epsneighbors N_eps(cp)

Algorithm2: Generating Density Ordering Input: undirected planar graph N, radius eps Output: density ordering table, density ordering graph

Algorithm3: Forming Clusters Input: density ordering table, density threshold MinPts Output: densitybased clusters

Clustering Algorithms  Parameters  Cluster Number  silhouette  RS  DB  SD

NC_DT Algorithm  37  −0.5054  0.2215  0.8167  0.0364
Heirarchical Algorithm  closestpair distance  10  0.0164  0.5517  0.4878  0.0887
farthestpair distance  36  0.3949  0.9739  0.9251  0.0264
averagepair distance  10  0.4466  0.9031  0.7822  0.0866
medianpair distance  23  0.3420  0.9446  0.8121  0.0393
radius distance  16  0.4292  0.9426  0.6821  0.0518
NSDBSCAN Algorithm  eps = 100, MinPts = 10  60  0.4470  0.9968  0.4047  0.0131
eps = 100, MinPts = 15  38  0.4296  0.9978  0.5004  0.0166
eps = 100, MinPts = 20  21  0.6740  0.9999  0.3605  0.0180
eps = 200, MinPts = 15  38  0.2002  0.9719  0.5375  0.0095
eps = 200, MinPts = 20  31  0.4187  0.9913  0.4407  0.0088
eps = 200, MinPts = 25  28  0.4703  0.9952  0.4456  0.0113
eps = 300, MinPts = 20  24  0.2902  0.9628  0.5473  0.0145
eps = 300, MinPts = 25  23  0.2608  0.9666  0.5213  0.0121
eps = 300, MinPts = 30  20  0.3220  0.9681  0.4860  0.0119
eps = 400, MinPts = 25  14  0.3424  0.9307  0.5812  0.0262
eps = 400, MinPts = 30  16  0.3560  0.9564  0.5610  0.0194
eps = 400, MinPts = 35  17  0.3777  0.9625  0.5098  0.0158
