# Mechanical Design of a Biped Robot FORREST and an Extended Capture-Point-Based Walking Pattern Generator

^{*}

## Abstract

**:**

## 1. Introduction

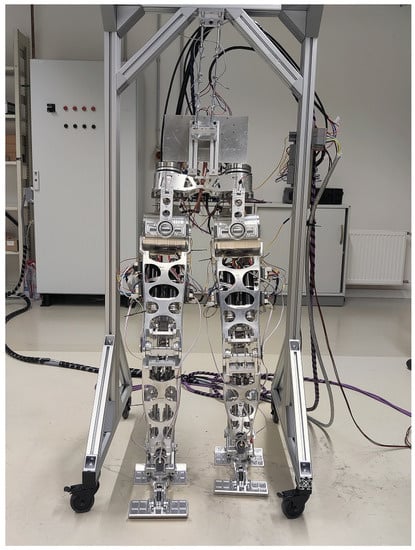

## 2. Overview of FORREST’s Design

## 3. Design of the New Biped Robot

#### 3.1. Hip

#### 3.2. Knee

#### 3.3. Ankle

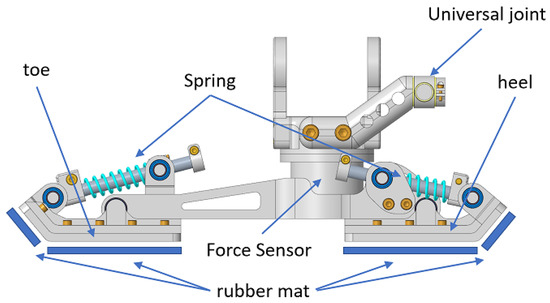

#### 3.4. Foot

## 4. Kinematic/Dynamic Analysis and Dynamic Model

#### 4.1. Kinematic and Dynamic Parameter of FORREST

#### 4.2. Knee

#### 4.3. Ankle

#### 4.4. Dynamic Model

## 5. Extended CP-Based Walking Pattern Generator

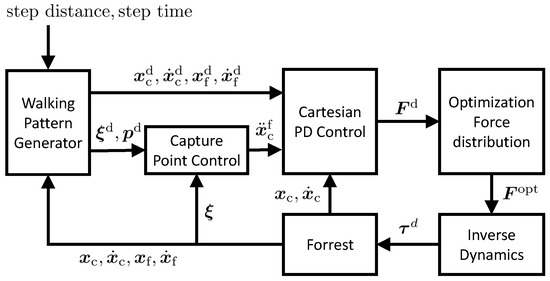

## 6. Control Strategy

#### 6.1. Capture Point Control

#### 6.2. Cartesian PD Controller

#### 6.3. Results

## 7. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

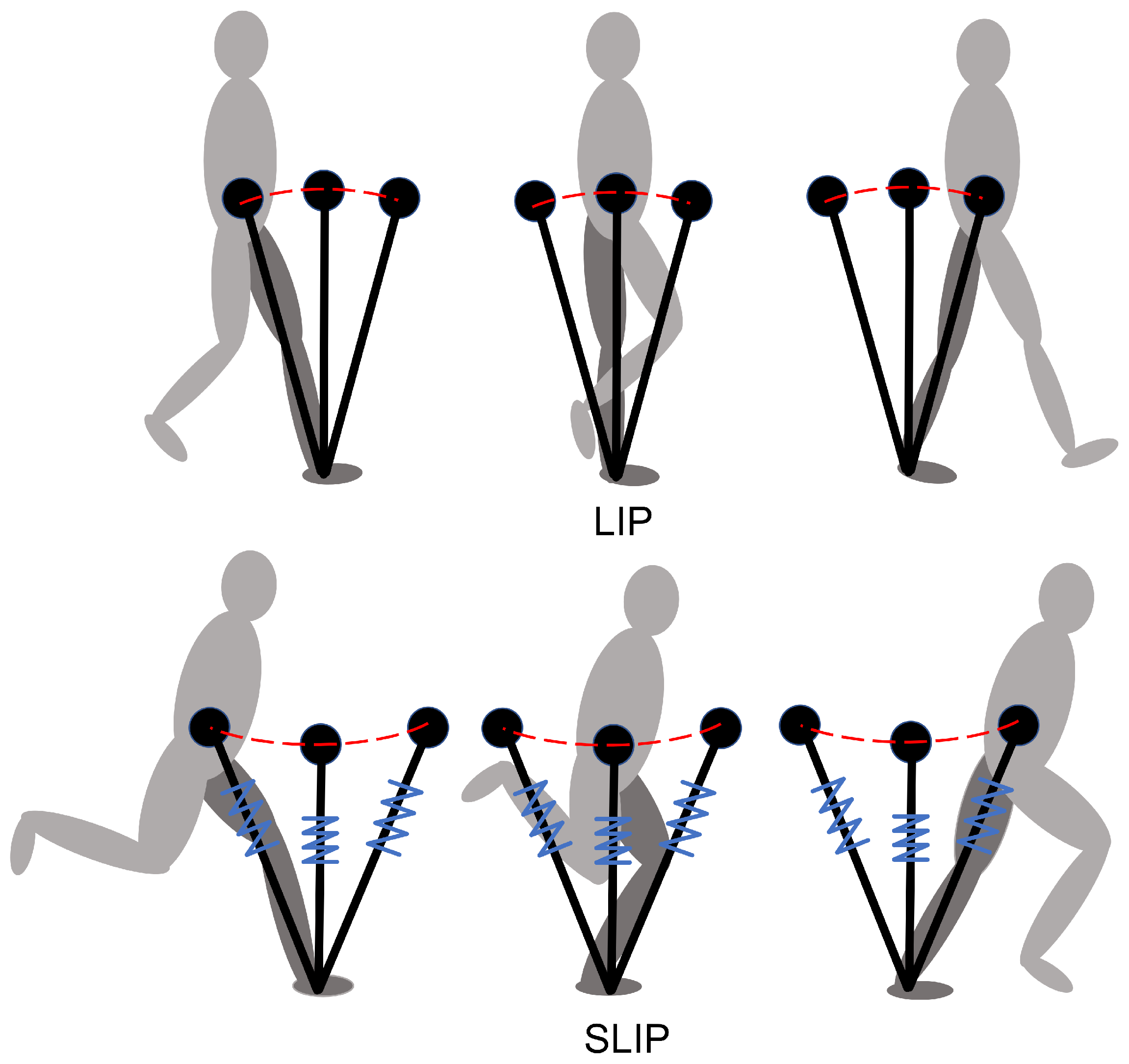

## Appendix A. Comparison between the LIP and SLIP Models

## References

- Sakagami, Y.; Watanabe, R.; Aoyama, C.; Matsunaga, S.; Higaki, N.; Fujimura, K. The intelligent ASIMO: System overview and integration. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems, Lausanne, Switzerland, 30 September–4 October 2002; Volume 3, pp. 2478–2483. [Google Scholar] [CrossRef]
- Hirukawa, H.; Kanehiro, F.; Kaneko, K.; Kajita, S.; Fujiwara, K.; Kawai, Y.; Tomita, F.; Hirai, S.; Tanie, K.; Isozumi, T.; et al. Humanoid robotics platforms developed in HRP. Robot. Auton. Syst.
**2004**, 48, 165–175. [Google Scholar] [CrossRef] - Kaneko, K.; Kanehiro, F.; Kajita, S.; Hirukawa, H.; Kawasaki, T.; Hirata, M.; Akachi, K.; Isozumi, T. Humanoid robot HRP-2. In Proceedings of the IEEE International Conference on Robotics and Automation, ICRA’04, New Orleans, LA, USA, 26 April–1 May 2004; Volume 2, pp. 1083–1090. [Google Scholar] [CrossRef]
- Kaneko, K.; Harada, K.; Kanehiro, F.; Miyamori, G.; Akachi, K. Humanoid robot HRP-3. In Proceedings of the 2008 IEEE/RSJ International Conference on Intelligent Robots and Systems, Nice, France, 22–26 September 2008; pp. 2471–2478. [Google Scholar] [CrossRef]
- Kaneko, K.; Kanehiro, F.; Morisawa, M.; Akachi, K.; Miyamori, G.; Hayashi, A.; Kanehira, N. Humanoid robot HRP-4—Humanoid robotics platform with lightweight and slim body. In Proceedings of the 2011 IEEE/RSJ International Conference on Intelligent Robots and Systems, San Francisco, CA, USA, 25–30 September 2011; pp. 4400–4407. [Google Scholar] [CrossRef]
- Kaneko, K.; Kaminaga, H.; Sakaguchi, T.; Kajita, S.; Morisawa, M.; Kumagai, I.; Kanehiro, F. Humanoid Robot HRP-5P: An Electrically Actuated Humanoid Robot with High-Power and Wide-Range Joints. IEEE Robot. Autom. Lett.
**2019**, 4, 1431–1438. [Google Scholar] [CrossRef] - Toyota Global Newsroom. Toyota Unveils Third Generation Humanoid Robot T-HR3. November 2017. Available online: https://newsroom.toyota.co.jp/en/download/20110424 (accessed on 31 December 2022).
- WABIAN-2R Biped Robot. Available online: http://www.takanishi.mech.waseda.ac.jp/top/research/wabian/ (accessed on 31 December 2022).
- Englsberger, J.; Werner, A.; Ott, C.; Henze, B.; Roa, M.A.; Garofalo, G.; Burger, R.; Beyer, A.; Eiberger, O.; Schmid, K.; et al. Overview of the torque-controlled humanoid robot TORO. In Proceedings of the 2014 IEEE-RAS International Conference on Humanoid Robots, Madrid, Spain, 18–20 November 2014; pp. 916–923. [Google Scholar] [CrossRef] [Green Version]
- Ott, C.; Baumgärtner, C.; Mayr, J.; Fuchs, M.; Burger, R.; Lee, D.; Eiberger, O.; Albu-Schäffer, A.; Grebenstein, M.; Hirzinger, G. Development of a biped robot with torque controlled joints. In Proceedings of the 2010 10th IEEE-RAS International Conference on Humanoid Robots, Nashville, TN, USA, 6–8 December 2010; pp. 167–173. [Google Scholar] [CrossRef]
- Lohmeier, S.; Loffler, K.; Gienger, M.; Ulbrich, H.; Pfeiffer, F. Computer system and control of biped “Johnnie”. In Proceedings of the IEEE International Conference on Robotics and Automation, ICRA’04, New Orleans, LA, USA, 26 April–1 May 2004; Volume 4, pp. 4222–4227. [Google Scholar] [CrossRef]
- Lohmeier, S. Design and Realization of a Humanoid Robot for Fast and Autonomous Bipedal Locomotion. Ph.D. Thesis, Technische Universität München, Munich, Germany, 2010. [Google Scholar]
- Reher, J.; Ma, W.L.; Ames, A.D. Dynamic walking with compliance on a cassie bipedal robot. In Proceedings of the 2019 18th European Control Conference (ECC), Naples, Italy, 25–28 June 2019. [Google Scholar]
- PAL Biped Robot Reem. 2013. Available online: https://pal-robotics.com/robots/reem-c/ (accessed on 31 December 2022).
- PAL Biped Robot Talos. 2017. Available online: https://pal-robotics.com/robots/talos/ (accessed on 31 December 2022).
- Roig, A.; Kothakota, S.K.; Miguel, N.; Fernbach, P.; Hoffman, E.M.; Marchionni, L. On the hardware design and control architecture of the humanoid robot kangaroo. In Proceedings of the 6th Workshop on Legged Robots during the International Conference on Robotics and Automation (ICRA 2022), Philadelphia, PA, USA, 27 May 2022. [Google Scholar]
- Tesla Biped Robot Optimus. 2022. Available online: https://spectrum.ieee.org/robotics-experts-tesla-bot-optimus (accessed on 31 December 2022).
- Feng, S.; Xinjilefu, X.; Atkeson, C.G.; Kim, J. Optimization based controller design and implementation for the atlas robot in the darpa robotics challenge finals. In Proceedings of the 2015 IEEE-RAS 15th International Conference on Humanoid Robots (Humanoids), Seoul, Republic of Korea, 3–5 November 2015. [Google Scholar]
- Hyon, S.H.; Suewaka, D.; Torii, Y.; Oku, N. Design and experimental evaluation of a fast torque-controlled hydraulic humanoid robot. IEEE/ASME Trans. Mechatron.
**2016**, 22, 623–634. [Google Scholar] [CrossRef] - Ugurlu, B.; Tsagarakis, N.G.; Spyrakos-Papastavridis, E.; Caldwell, D.G. Compliant joint modification and real-time dynamic walking implementation on bipedal robot cCub. In Proceedings of the 2011 IEEE International Conference on Mechatronics, Istanbul, Turkey, 13–15 April 2011. [Google Scholar]
- Negrello, F.; Garabini, M.; Catalano, M.G.; Malzahn, J.; Caldwell, D.G.; Bicchi, A.; Tsagarakis, N.G. A modular compliant actuator for emerging high performance and fall-resilient humanoids. In Proceedings of the 2015 IEEE-RAS 15th International Conference on Humanoid Robots (Humanoids), Seoul, Republic of Korea, 3–5 November 2015. [Google Scholar]
- Farley, C.T.; Gonzalez, O. Leg stiffness and stride frequency in human running. J. Biomech.
**1996**, 29, 181–186. [Google Scholar] [CrossRef] [PubMed] - Wolf, S.; Eiberger, O.; Hirzinger, G. The DLR FSJ: Energy based design of a variable stiffness joint. In Proceedings of the 2011 IEEE international conference on robotics and automation, Shanghai, China, 9–13 May 2011. [Google Scholar]
- Radford, N.A.; Strawser, P.; Hambuchen, K.; Mehling, J.S.; Verdeyen, W.K.; Donnan, A.S.; Holley, J.; Sanchez, J.; Nguyen, V.; Bridgwater, L.; et al. Valkyrie: Nasa’s first bipedal humanoid robot. J. Field Robot.
**2015**, 32, 397–419. [Google Scholar] [CrossRef] - Grizzle, J.W.; Hurst, J.; Morris, B.; Park, H.W.; Sreenath, K. MABEL, a new robotic bipedal walker and runner. In Proceedings of the 2009 American Control Conference, St. Louis, MO, USA, 10–12 June 2009. [Google Scholar]
- Radkhah, K.; Lens, T.; von Stryk, O. Detailed dynamics modeling of BioBiped’s monoarticular and biarticular tendon-driven actuation system. In Proceedings of the 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vilamoura-Algarve, Portugal, 7–12 October 2012. [Google Scholar]
- Loeffl, F.; Werner, A.; Lakatos, D.; Reinecke, J.; Wolf, S.; Burger, R.; Gumpert, T.; Schmidt, F.; Ott, C.; Grebenstein, M.; et al. The dlr c-runner: Concept, design and experiments. In Proceedings of the 2016 IEEE-RAS 16th International Conference on Humanoid Robots (Humanoids), Cancun, Mexico, 15–17 November 2016. [Google Scholar]
- Kajita, S.; Kanehiro, F.; Kaneko, K.; Yokoi, K.; Hirukawa, H. The 3D linear inverted pendulum mode: A simple modeling for a biped walking pattern generation. In Proceedings of the 2001 IEEE/RSJ International Conference on Intelligent Robots and Systems. Expanding the Societal Role of Robotics in the the Next Millennium (Cat. No. 01CH37180), Maui, HI, USA, 29 October–3 November 2001; Volume 1. [Google Scholar]
- Kajita, S.; Kanehiro, F.; Kaneko, K.; Fujiwara, K.; Harada, K.; Yokoi, K.; Hirukawa, H. Biped walking pattern generation by using preview control of zero-moment point. In Proceedings of the 2003 IEEE international conference on robotics and automation (Cat. No. 03CH37422), Taipei, Taiwan, 14–19 September 2003; Volume 2. [Google Scholar]
- Park, I.-W.; Kim, J.-Y.; Oh, J.-H. Online biped walking pattern generation for humanoid robot khr-3(kaist humanoid robot-3: Hubo). In Proceedings of the 2006 6th IEEE-RAS International Conference on Humanoid Robots, Genova, Italy, 4–6 December 2006; pp. 398–403. [Google Scholar]
- Takenaka, T.; Matsumoto, T.; Yoshiike, T. Real time motion generation and control for biped robot-1st report: Walking gait pattern generation. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009. [Google Scholar]
- Takenaka, T.; Matsumoto, T.; Yoshiike, T.; Shirokura, S. Real time motion generation and control for biped robot-2nd report: Running gait pattern generation. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009. [Google Scholar]
- Takenaka, T.; Matsumoto, T.; Yoshiike, T. Real time motion generation and control for biped robot-3rd report: Dynamics error compensation. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009. [Google Scholar]
- Englsberger, J.; Ott, C.; Roa, M.A.; Albu-Schäffer, A.; Hirzinger, G. Bipedal walking control based on capture point dynamics. In Proceedings of the 2011 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2011. [Google Scholar]
- Englsberger, J.; Ott, C.; Albu-Schäffer, A. Three-dimensional bipedal walking control using divergent component of motion. In Proceedings of the 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems, Tokyo, Japan, 3–7 November 2013; pp. 2600–2607. [Google Scholar]
- Hopkins, M.A.; Hong, D.W.; Leonessa, A. Humanoid locomotion on uneven terrain using the time-varying divergent component of motion. In Proceedings of the 2014 IEEE-RAS International Conference on Humanoid Robots, Madrid, Spain, 18–20 November 2014; pp. 266–272. [Google Scholar]
- Kajita, S.; Benallegue, M.; Cisneros, R.; Sakaguchi, T.; Nakaoka, S.; Morisawa, M.; Kaneko, K.; Kanehiro, F. Biped walking pattern generation based on spatially quantized dynamics. In Proceedings of the 2017 IEEE-RAS 17th International Conference on Humanoid Robotics (Humanoids), Birmingham, UK, 15–17 November 2017; pp. 599–605. [Google Scholar]
- Caron, S.; Escande, A.; Lanari, L.; Mallein, B. Capturability based pattern generation for walking with variable height. IEEE Trans. Robot.
**2020**, 36, 517–536. [Google Scholar] [CrossRef] [Green Version] - Tazaki, Y.; Hanasaki, S.; Yukizaki, S.; Mitazono, Y.; Nagano, H.; Yokokohji, Y. A continuous-time walking pattern generator for realizing seamless transition between flat-contact and heel-to-toe walking. Adv. Robot.
**2023**, 37, 316–328. [Google Scholar] [CrossRef] - Geyer, H.; Seyfarth, A.; Blickhan, R. Spring-mass running: Simple approximate solution and application to gait stability. J. Theor. Biol.
**2005**, 232, 315–328. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wensing, P.M.; Orin, D.E. High-speed humanoid running through control with a 3D-SLIP model. In Proceedings of the 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems, Tokyo, Japan, 3–7 November 2013. [Google Scholar]
- Kuo, C.-Y.; Shin, H.; Kamioka, T.; Matsubara, T. TDE2-MBRL: Energy-exchange Dynamics Learning with Task Decomposition for Spring-loaded Bipedal Robot Locomotion. In Proceedings of the 2022 IEEE-RAS 21st International Conference on Humanoid Robots (Humanoids), Ginowan, Japan, 28–30 November 2022; pp. 550–557. [Google Scholar] [CrossRef]
- Takenaka, T.; Matsumoto, T.; Yoshiike, T.; Hasegawa, T.; Shirokura, S.; Kaneko, H.; Orita, A. Real time motion generation and control for biped robot-4th report: Integrated balance control. In Proceedings of the 2009 IEEE/RSJ International Conference on Intelligent Robots and Systems, St. Louis, MO, USA, 10–15 October 2009. [Google Scholar]
- Henze, B.; Dietrich, A.; Ott, C. An approach to combine balancing with hierarchical whole-body control for legged humanoid robots. IEEE Robot. Autom. Lett.
**2015**, 1, 700–707. [Google Scholar] [CrossRef] - Henze, B.; Roa, M.A.; Ott, C. Passivity-based whole-body balancing for torque-controlled humanoid robots in multi-contact scenarios. Int. J. Robot. Res.
**2016**, 35, 1522–1543. [Google Scholar] [CrossRef] - Mesesan, G.; Englsberger, J.; Henze, B.; Ott, C. Dynamic multi-contact transitions for humanoid robots using divergent component of motion. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May–3 June 2017. [Google Scholar]
- Henze, B.; Balachandran, R.; Roa-Garzon, M.A.; Ott, C.; Albu-Schäffer, A. Passivity analysis and control of humanoid robots on movable ground. IEEE Robot. Autom. Lett.
**2018**, 3, 3457–3464. [Google Scholar] [CrossRef] - Ding, J.; Xiao, X. Two-stage optimization for energy-efficient bipedal walking. J. Mech. Sci. Technol.
**2020**, 34, 3833–3844. [Google Scholar] [CrossRef] - Liu, C.; Zhang, T.; Liu, M.; Chen, Q. Active balance control of humanoid locomotion based on foot position compensation. J. Bionic Eng.
**2020**, 17, 134–147. [Google Scholar] [CrossRef] - Reher, J.P.; Hereid, A.; Kolathaya, S.; Hubicki, C.M.; Ames, A.D. Algorithmic foundations of realizing multi-contact locomotion on the humanoid robot DURUS. In Algorithmic Foundations of Robotics XII: Proceedings of the Twelfth Workshop on the Algorithmic Foundations of Robotics; Springer International Publishing: Cham, Switzerland, 2020. [Google Scholar]
- Orozco-Soto, S.M.; Ibarra-Zannatha, J.M.; Kheddar, A. Gait Synthesis and Biped Locomotion Control of the HRP-4 Humanoid. In Proceedings of the 2021 XXIII Robotics Mexican Congress (ComRob), Tijuana, Mexico, 27–29 October 2021. [Google Scholar]
- Daneshmand, E.; Khadiv, M.; Grimminger, F.; Righetti, L. Variable horizon mpc with swing foot dynamics for bipedal walking control. IEEE Robot. Autom. Lett.
**2021**, 6, 2349–2356. [Google Scholar] [CrossRef] - García, G.; Griffin, R.; Pratt, J. MPC-based locomotion control of bipedal robots with line-feet contact using centroidal dynamics. In Proceedings of the 2020 IEEE-RAS 20th International Conference on Humanoid Robots (Humanoids), Munich, Germany, 19–21 July 2021. [Google Scholar]
- Galliker, M.Y.; Csomay-Shanklin, N.; Grandia, R.; Taylor, A.J.; Farshidian, F.; Hutter, M.; Ames, A.D. Planar Bipedal Locomotion with Nonlinear Model Predictive Control: Online Gait Generation using Whole-Body Dynamics. In Proceedings of the 2022 IEEE-RAS 21st International Conference on Humanoid Robots (Humanoids), Ginowan, Japan, 28–30 November 2022. [Google Scholar]
- Villa, N.A.; Fernbach, P.; Naveau, M.; Saurel, G.; Dantec, E.; Mansard, N.; Stasse, O. Torque Controlled Locomotion of a Biped Robot with Link Flexibility. In Proceedings of the 2022 IEEE-RAS 21st International Conference on Humanoid Robots (Humanoids), Ginowan, Japan, 28–30 November 2022. [Google Scholar]
- Dantec, E.; Naveau, M.; Fernbach, P.; Villa, N.; Saurel, G.; Stasse, O.; Taïx, M.; Mansard, N. Whole-Body Model Predictive Control for Biped Locomotion on a Torque-Controlled Humanoid Robot. In Proceedings of the 2022 IEEE-RAS 21st International Conference on Humanoid Robots (Humanoids), Ginowan, Japan, 28–30 November 2022. [Google Scholar]
- Ramuzat, N.; Boria, S.; Stasse, O. Passive inverse dynamics control using a global energy tank for torque-controlled humanoid robots in multi-contact. IEEE Robot. Autom. Lett.
**2022**, 7, 2787–2794. [Google Scholar] [CrossRef]

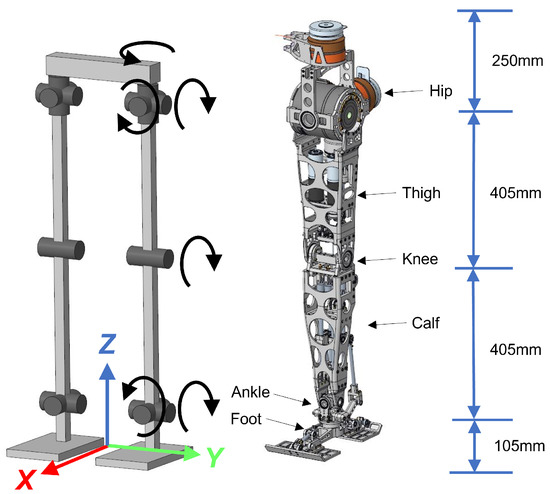

**Figure 2.**Kinematic scheme for the leg and its CAD model. The left picture shows that each leg consists of a three DoF hip, a one DoF knee, and a two DoF ankle. The right picture shows the height of each part.

**Figure 3.**Front (

**left**) and back (

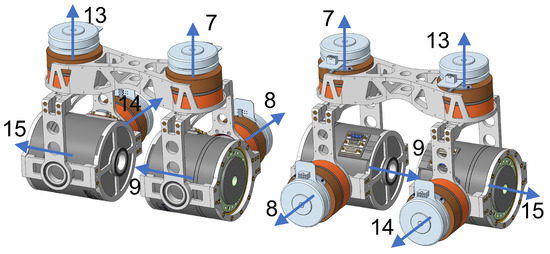

**right**) view of the hip. The blue arrow indicates the z-axis direction of the joint, and the number indicates the joint number, which corresponds to the link id in Table 4.

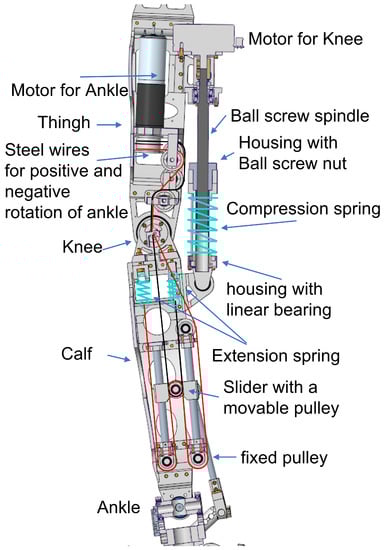

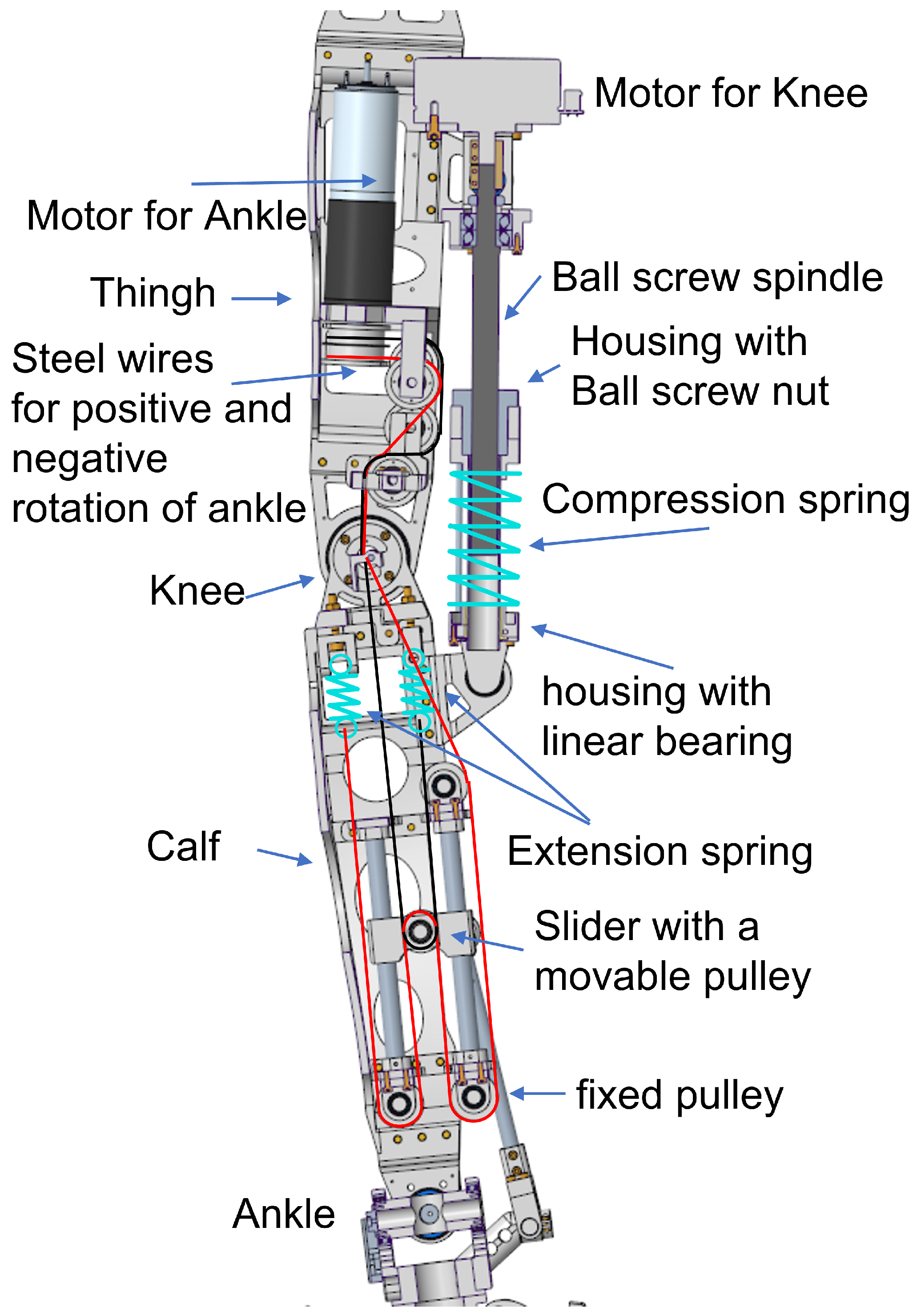

**Figure 4.**The section view of the thigh and calf and the drive system for the knee and ankle. The red and black lines are two wires, which are connected with one motor, to drive the slider on the calf.

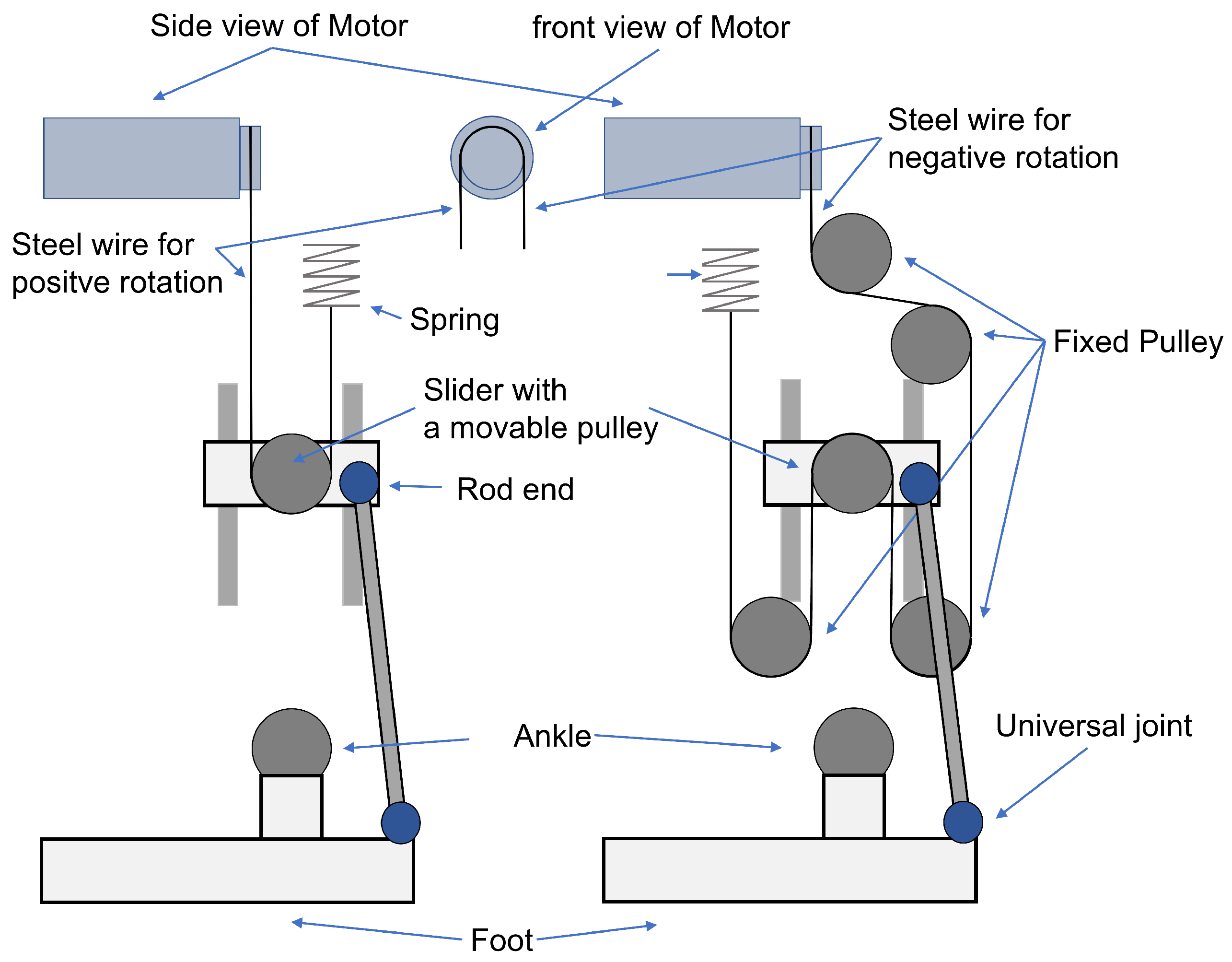

**Figure 5.**Functional principle of the parallel mechanism of the ankle. The picture on the left shows the wire that drives the slider upward. The right picture shows the wire that drives the slider down.

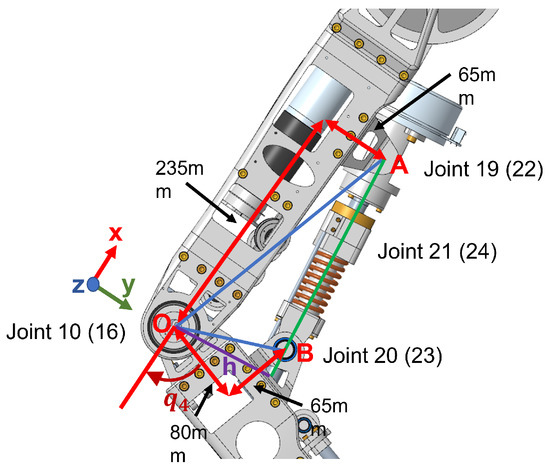

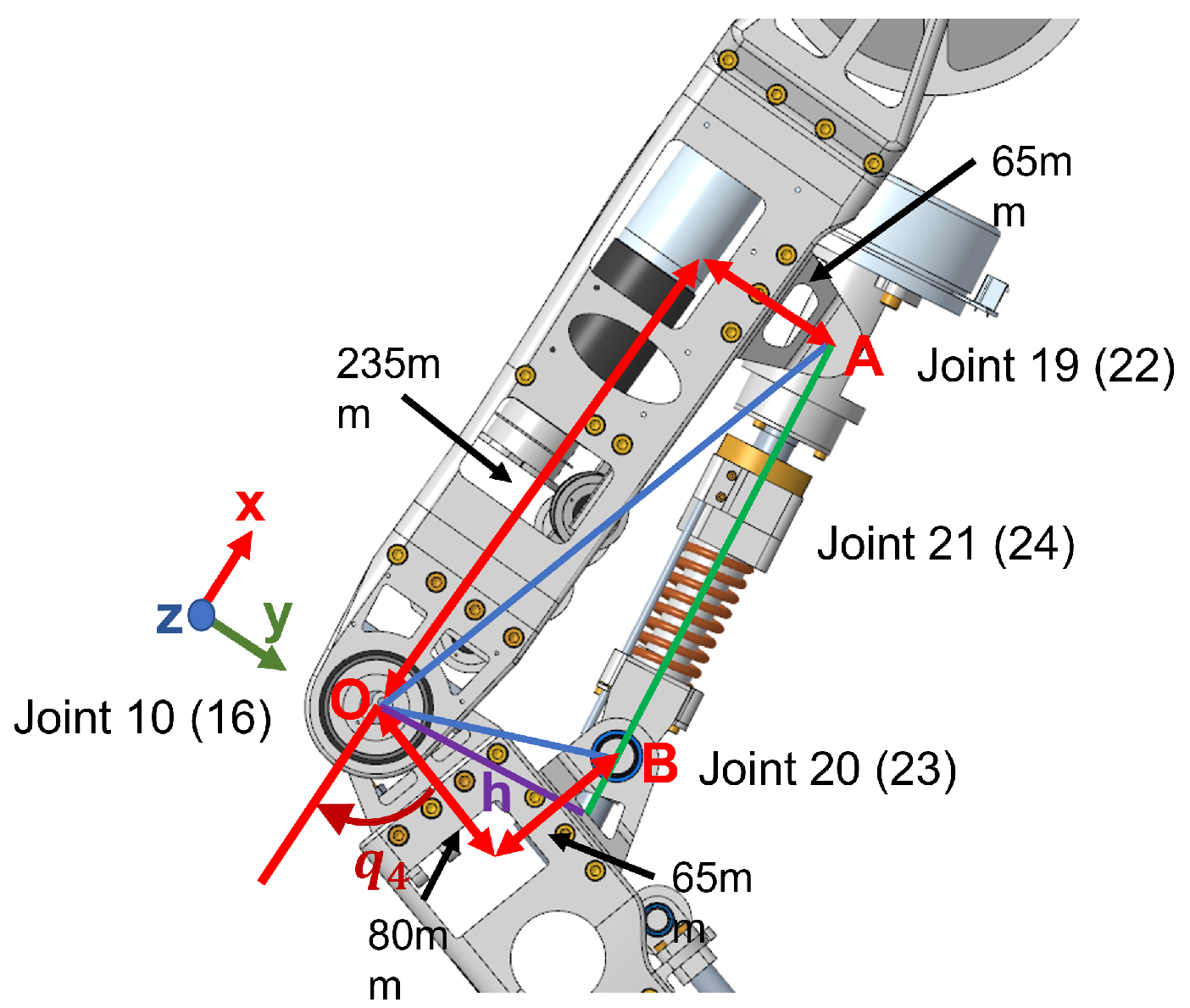

**Figure 7.**The dimension of the drive system of the knee and the joint numbers of left leg; the joint numbers of the right leg are notated in round brackets. A frame O is fixed on the knee. The thigh is fixed on the y-axis.

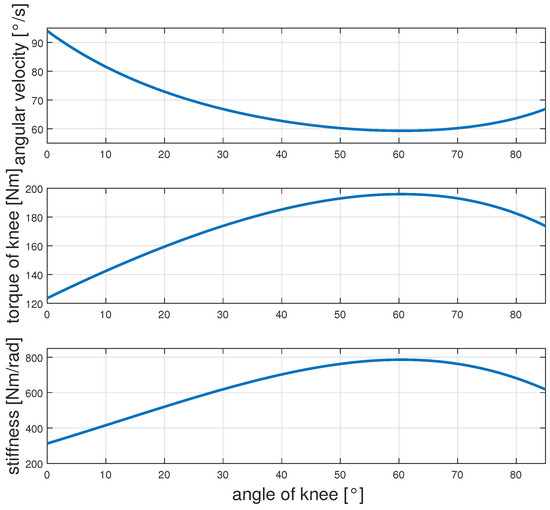

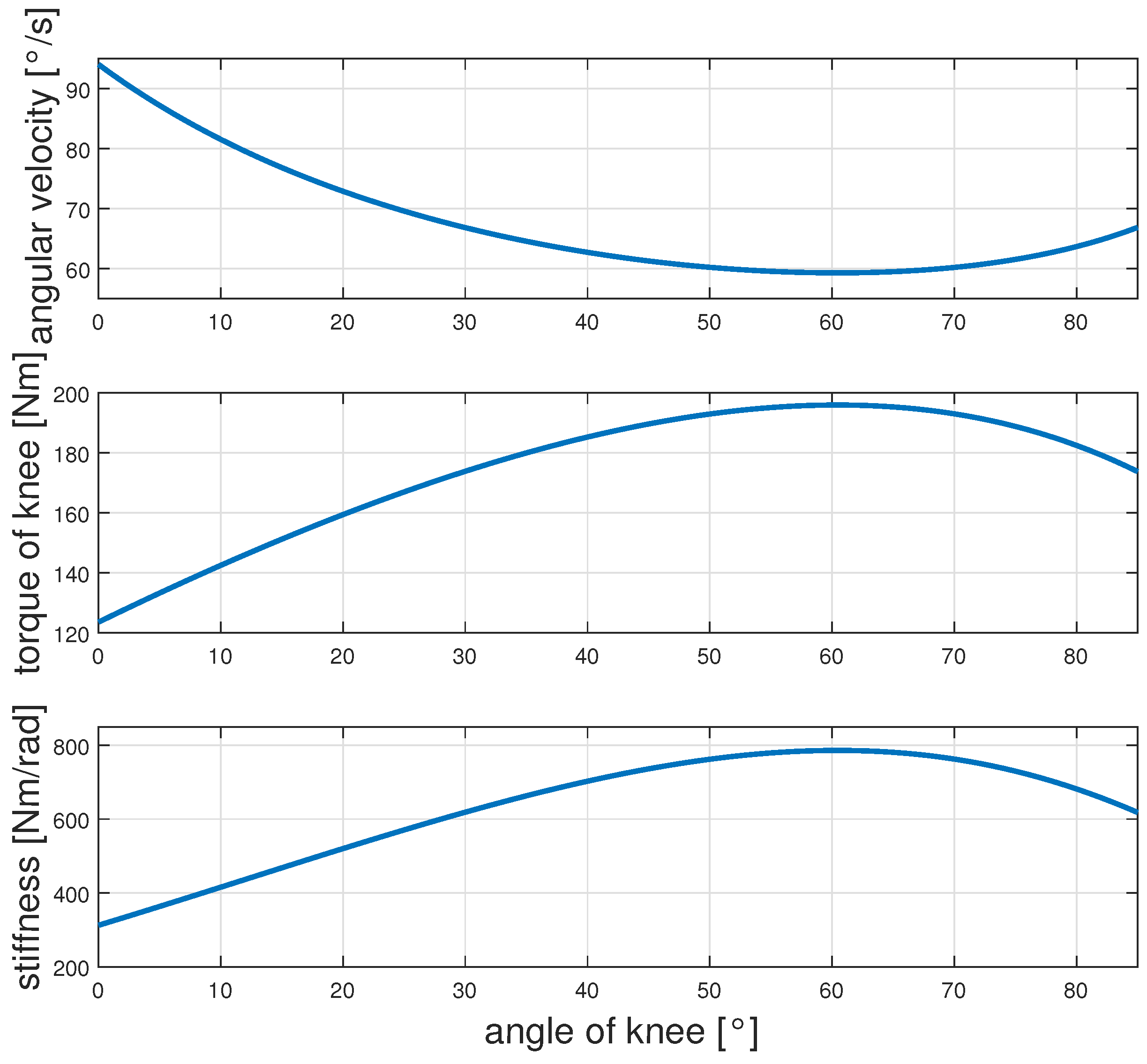

**Figure 8.**The velocity, torque, and compliance performance of the knee joint with respect to the joint angles.

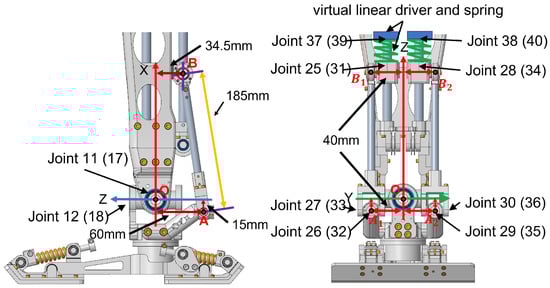

**Figure 9.**The dimensions of the parallel mechanism that drives the ankle joint together with the joint numbers of the left leg; the joint numbers of the right leg are in round brackets.

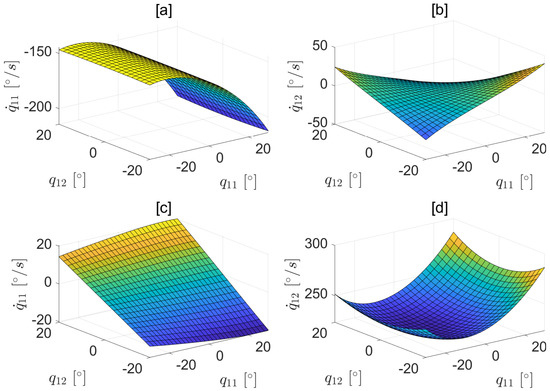

**Figure 10.**The velocity performance of the ankle joint with respect to the relevant joint angles. (

**a**,

**b**) show the velocity performance of the ankle joints ${q}_{11}$ and ${q}_{12}$, when the two motors rotate in the same direction at maximum speed. (

**c**,

**d**) show the velocity performance of ${q}_{11}$ and ${q}_{12}$, when the two motors rotate in the opposite direction to each other at maximum speed.

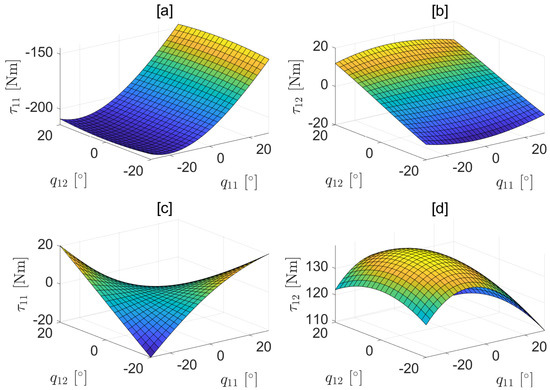

**Figure 11.**The torque performance of the ankle joint with respect to the relevant joint angles. (

**a**,

**b**) show the torque performance of ankle joints ${q}_{11}$ and ${q}_{12}$, when the two motors’ outputs generate the maximum torque in the same direction. (

**c**,

**d**) show the torque performance of ${q}_{11}$ and ${q}_{12}$, when the two motors’ outputs generate the maximum torque in the opposite direction to each other.

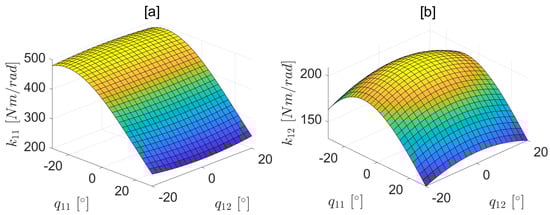

**Figure 12.**The stiffness of the ankle joint with respect to the relevant joint angles. (

**a**) shows the stiffness performance of the ankle joint ${q}_{11}$. (

**b**) shows the stiffness performance of ${q}_{12}$.

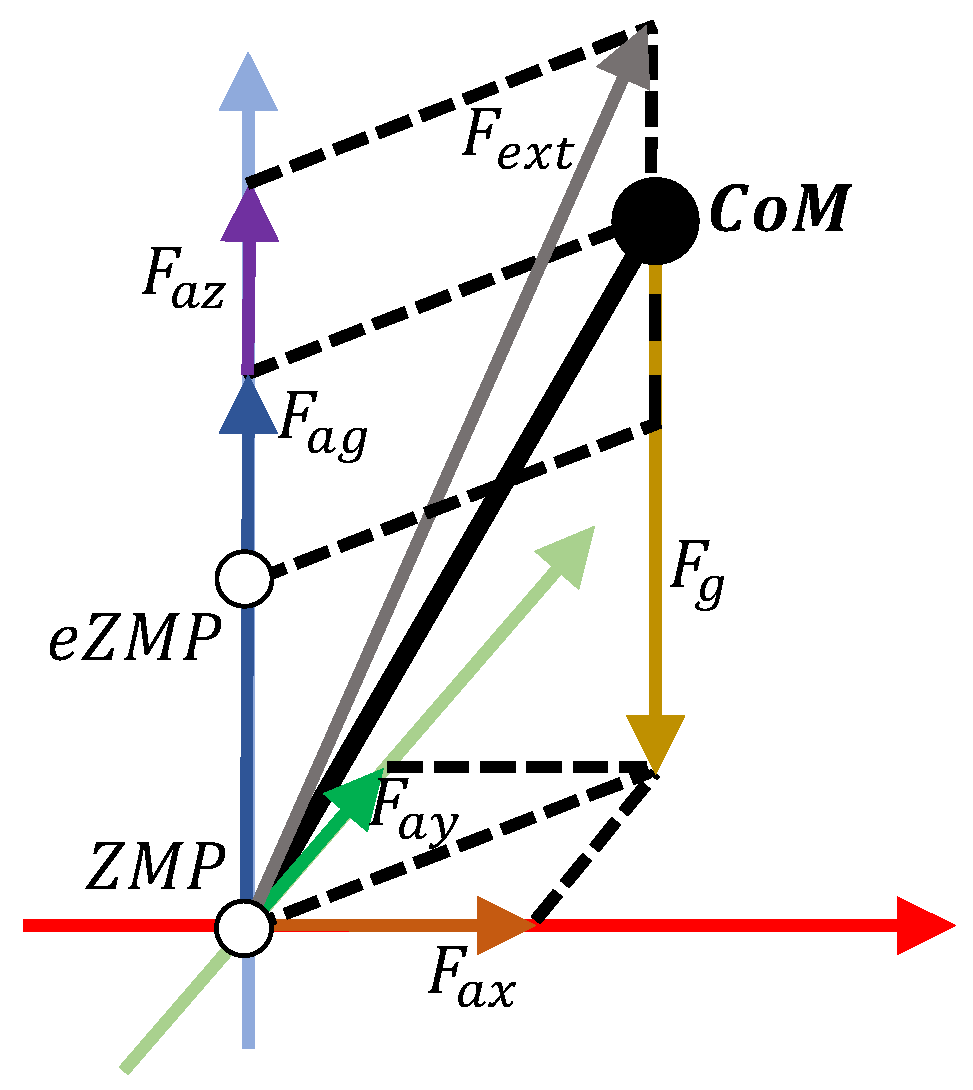

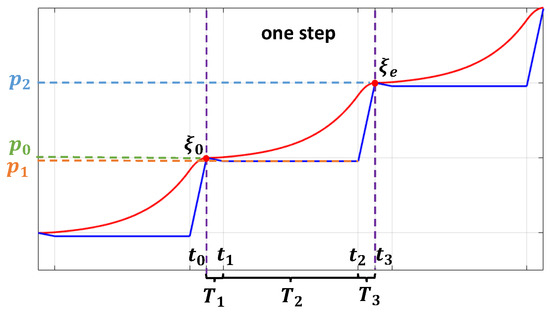

**Figure 14.**Curves of the ZMP and the CP. The blue line represents the ZMP, which is composed of three parts during each step with respective durations of ${T}_{1}$, ${T}_{2}$, and ${T}_{3}$. Conversely, the red line signifies the CP that coincides with the ZMP at the start and end of each step.

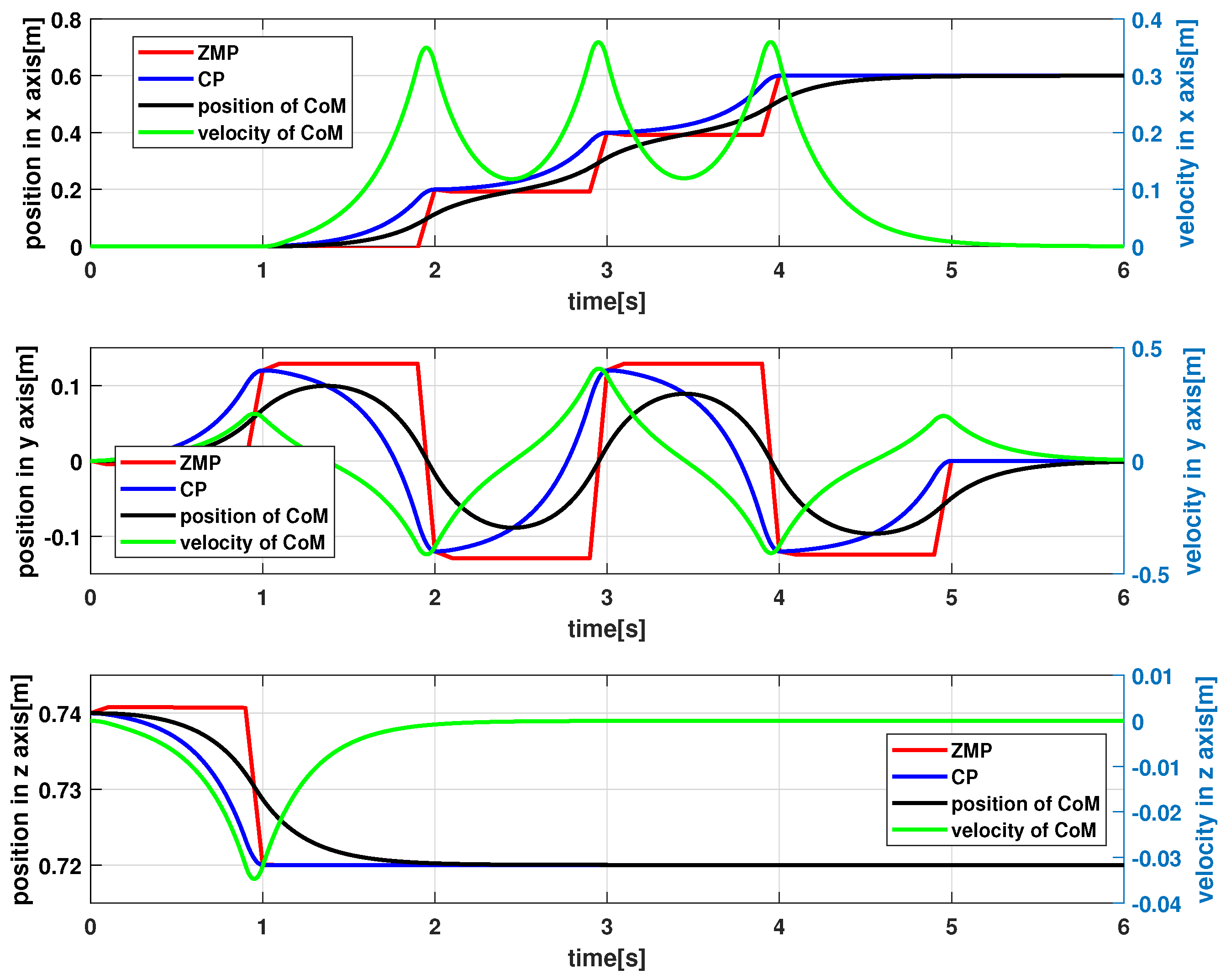

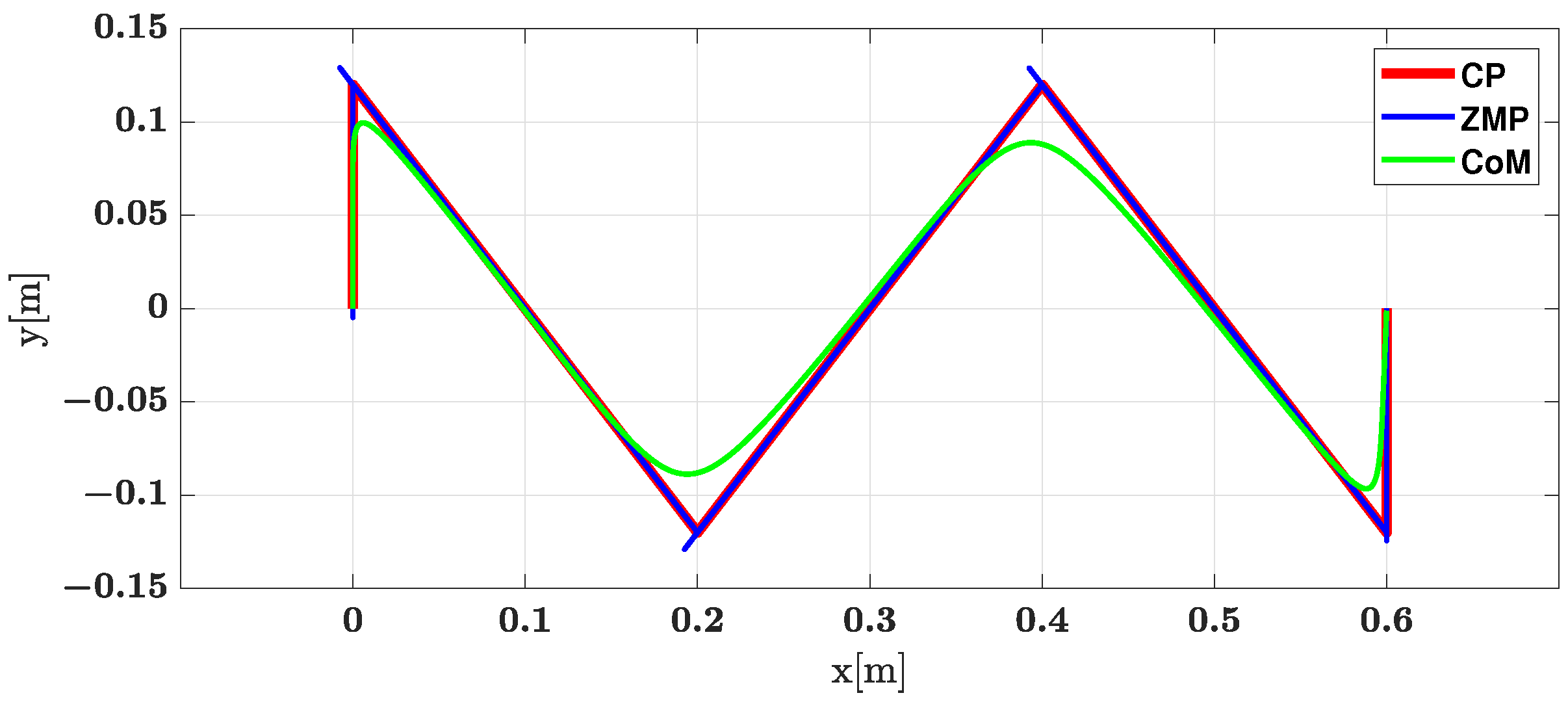

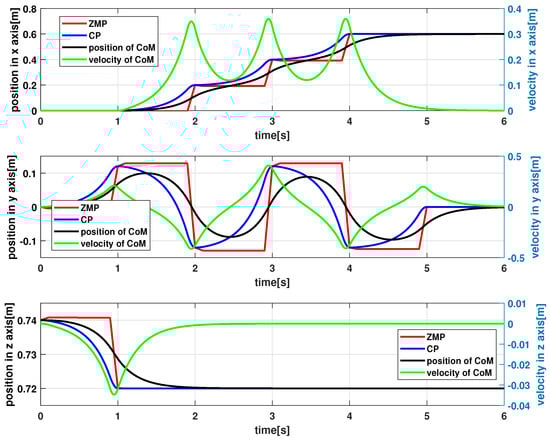

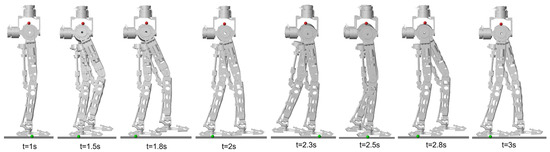

**Figure 18.**Animation of locomotion from 1 s to 3 s. The left foot is the support foot from 1 s to 2 s. The right foot is the support foot from 2 s to 3 s.

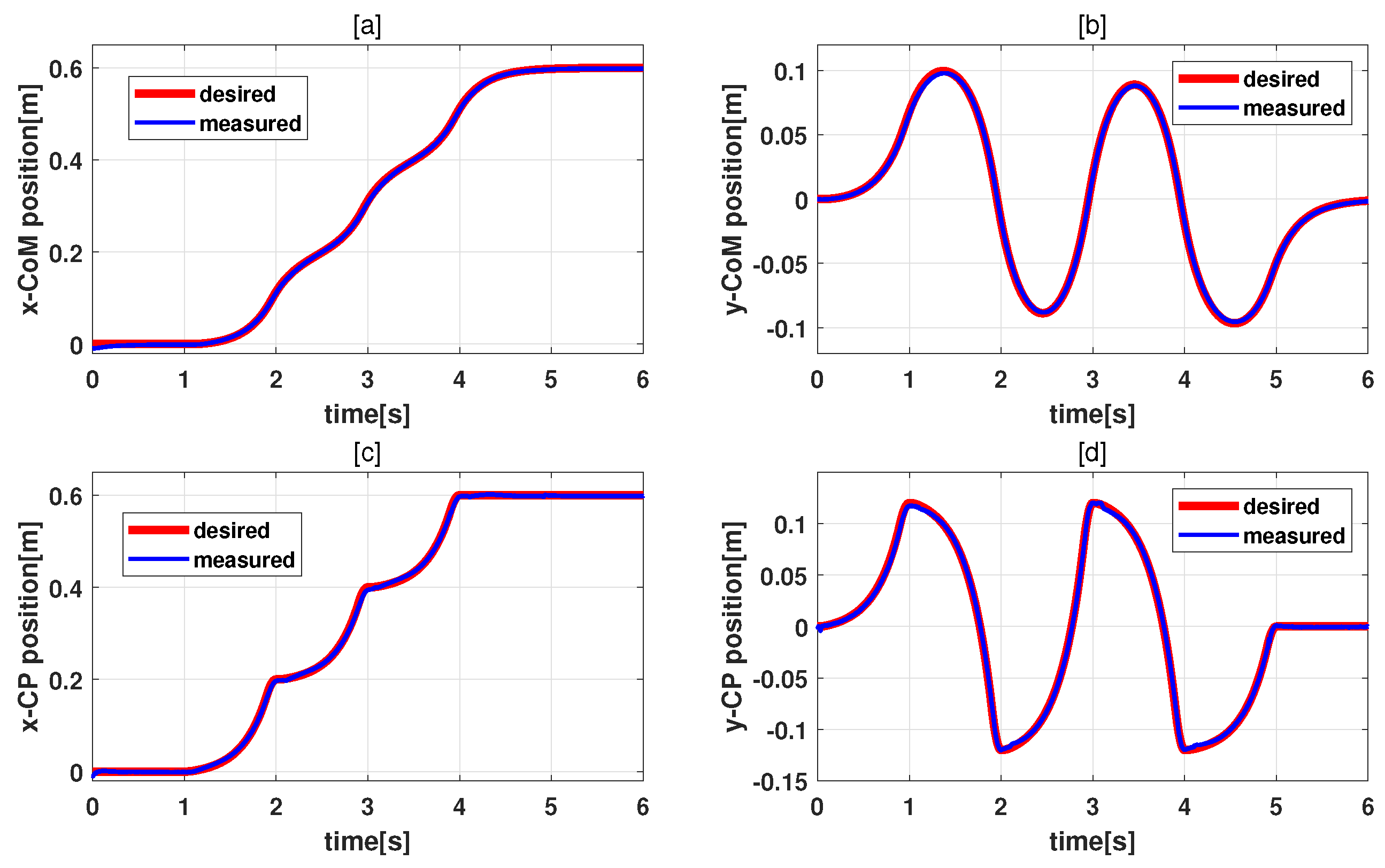

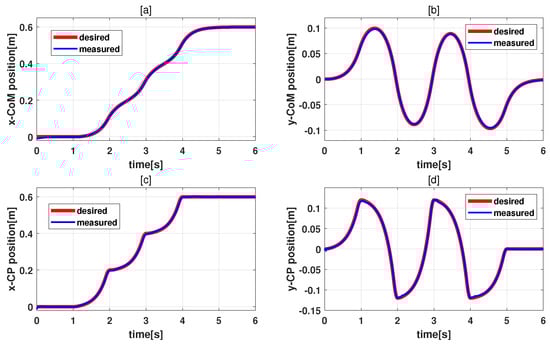

**Figure 19.**Trajectories of the CoM and the CP. (

**a**,

**b**) show the trajectories of the CoM position in the x and y direction. (

**c**,

**d**) show the trajectories of the CP position in the x and y direction.

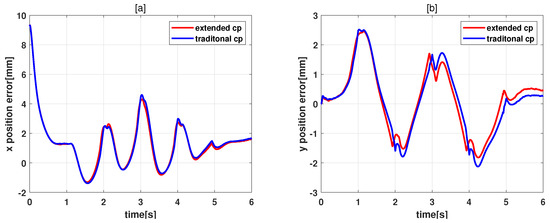

**Figure 20.**Trajectories of the CoM and the CP. (

**a**) Error of the CoM position in the x-direction. (

**b**) Error in the y-direction.

Segment | Weight [kg] | Height [mm] |
---|---|---|

base | 17.14 | 250 |

thigh | 5.83 | 405 |

calf | 2.8 | 405 |

foot | 0.35 | 105 |

total | 35.1 | 1165 |

Joint | Max Toque [Nm] | Max Speed [rpm] |
---|---|---|

hip 1 | 120 | 31.9 |

hip 2 | 107 | 19.9 |

hip 3 | 315 | 29 |

knee | 195 | 15.8 |

ankle 1 | 212 | 35 |

ankle 2 | 138 | 47 |

FORREST | Toro | Lola | TALOS | C-Runner | MABEL | BioBiped | |
---|---|---|---|---|---|---|---|

balance | ◯ | ◯ | ◯ | ◯ | × | × | × |

compliance | active + passive | active | active | active | passive | passive | passive |

Link Id | Child Id | Parent Id | ${\mathit{T}}_{\mathit{i}}^{\mathit{p}}$ | m [kg] | r [m] | ${\mathit{I}}_{\mathit{d}}$ [kg m^{2}] |
---|---|---|---|---|---|---|

1 | 2 | 0 | ${\mathit{T}}_{roty}(\pi /2)$ | |||

2 | 3 | 1 | ${\mathit{T}}_{rotx}(-\pi /2)$ | |||

3 | 4 | 2 | ${\mathit{T}}_{roty}(-\pi /2)$ | |||

4 | 5 | 3 | ${\mathit{T}}_{rotx}(\pi /2)$ | |||

5 | 6 | 4 | ${\mathit{T}}_{roty}(-\pi /2)$ | |||

6 | 7, 13 | 5 | ${\mathit{T}}_{rotx}(-\pi /2){\mathit{T}}_{rotz}\left(\pi \right)$ | $4.45$ | ${\left[\begin{array}{ccc}0& 0& 0.44\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.23& 0.18& 0.06\end{array}\right]$ |

7 | 8 | 6 | ${\mathit{T}}_{trans}\left([0,0.12,0]\right)$ | $2.26$ | ${\left[\begin{array}{ccc}-0.13& 0& 0.02\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.06& 0.05\end{array}\right]$ |

8 | 9 | 7 | ${\mathit{T}}_{roty}(-\pi /2)$ | $4.22$ | ${\left[\begin{array}{ccc}0& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.01& 0.01\end{array}\right]$ |

9 | 10 | 8 | ${\mathit{T}}_{rotx}(\pi /2)$ | $4.06$ | ${\left[\begin{array}{ccc}-0.21& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.22& 0.22\end{array}\right]$ |

10 | 11 | 9 | ${\mathit{T}}_{trans}\left([0,0,-0.405]\right)$ | $1.95$ | ${\left[\begin{array}{ccc}-0.17& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0& 0.1& 0.1\end{array}\right]$ |

11 | 12 | 10 | ${\mathit{T}}_{trans}\left([0,0,-0.405]\right)$ | $0.08$ | ${\left[\begin{array}{ccc}0& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0& 0& 0\end{array}\right]$ |

12 | 11 | ${\mathit{T}}_{rotx}(\pi /2)$ | $1.46$ | ${\left[\begin{array}{ccc}-0.07& 0& 0.01\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.02& 0.01\end{array}\right]$ | |

13 | 14 | 6 | ${\mathit{T}}_{trans}\left([0,-0.12,0]\right)$ | $2.26$ | ${\left[\begin{array}{ccc}-0.13& 0& 0.02\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.06& 0.05\end{array}\right]$ |

14 | 15 | 13 | ${\mathit{T}}_{roty}(-\pi /2)$ | $4.22$ | ${\left[\begin{array}{ccc}0& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.01& 0.01\end{array}\right]$ |

15 | 16 | 14 | ${\mathit{T}}_{rotx}(\pi /2)$ | $4.06$ | ${\left[\begin{array}{ccc}-0.21& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.22& 0.22\end{array}\right]$ |

16 | 17 | 15 | ${\mathit{T}}_{trans}\left([0,0,-0.405]\right)$ | $1.95$ | ${\left[\begin{array}{ccc}-0.17& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0& 0.01& 0.01\end{array}\right]$ |

17 | 18 | 16 | ${\mathit{T}}_{trans}\left([0,0,-0.405]\right)$ | $0.08$ | ${\left[\begin{array}{ccc}0& 0& 0\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0& 0& 0\end{array}\right]$ |

18 | 17 | ${\mathit{T}}_{rotx}(\pi /2)$ | $1.46$ | ${\left[\begin{array}{ccc}-0.07& 0& 0.01\end{array}\right]}^{T}$ | $\left[\begin{array}{ccc}0.01& 0.02& 0.01\end{array}\right]$ |
