# Analyzing Fluctuation Properties in Protein Elastic Networks with Sequence-Specific and Distance-Dependent Interactions

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Elastic Network Normal Mode Analysis

#### 2.1. Comparison to Experiments

#### 2.2. Set of PDB Structures

#### 2.3. Data Analysis

## 3. Results

## 4. Discussion

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A

#### Appendix A.1. Tables of Stiffness Constants

#### Appendix A.2. Set of PDB Crystal Structures (Additional Information)

#### Appendix A.3. Analysis of NMR Protein Data and Comparison with Model Prediction

#### Appendix A.4. Set of PDB Solution NMR Protein Structures

#### Appendix A.5. Data Analysis

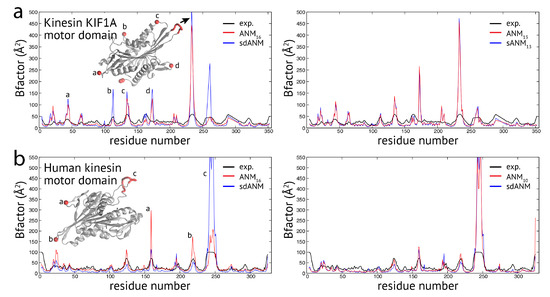

**Figure A1.**Fluctuation dynamics in studied proteins. B-factor profiles for two kinesin protein structures are shown; the motor domain of (

**a**) kinesin KIF1A and of (

**b**) human kinesin. Model predictions are displayed as red and blue lines; corresponding experimental data is shown in black. In the B-factor profiles, positions where model estimates are significantly poor were marked for each protein. The corresponding regions in the respective protein structure are also indicated.

**Figure A2.**Extensive analysis of predictions by ENM variants. The error in MSF prediction for a set of more than 2000 protein structures is shown (in logarithmic scale). Each data point represents the absolute deviation of predicted and experimental MSF obtained for a single residue bead in a protein elastic network, as a function of its relative degree. (

**a**) Red dots are obtained for ANM${}_{10}$ and blue dots correspond to sANM${}_{10}$ predictions. (

**b**) ANM${}_{13}$ is compared with sANM${}_{13}$. In both plots, the average absolute errors are indicated as black lines for sANMs and as green lines for ANMs.

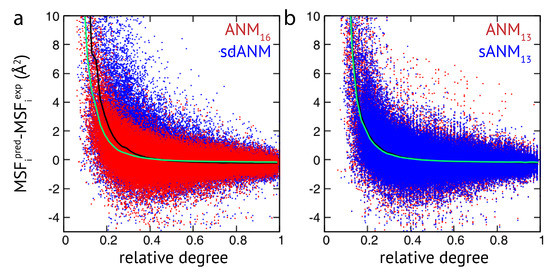

**Figure A3.**Extensive analysis of predictions by ENM variants. The error in MSF prediction for a set of more than 2000 protein structures is shown. Each data point represents the deviation of predicted and experimental MSF obtained for a single residue bead in a protein elastic network, as a function of its relative degree. (

**a**) Red dots are obtained for ANM${}_{16}$ and blue dots correspond to sdANM predictions. (

**b**) ANM${}_{13}$ is compared with sANM${}_{13}$. In both plots, the average errors are indicated as black lines for sANMs and as green lines for ANMs.

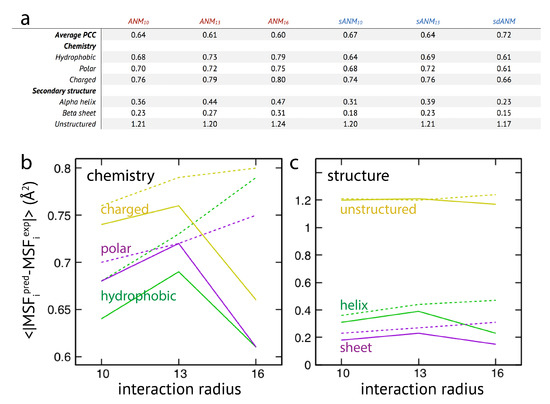

**Figure A4.**Analysis of predictions by ENM variants for the NMR structural data set. (

**a**) The correlation coefficient averaged over all considered proteins is shown for all models (top row). The averaged absolute deviation in MSF predictions for residue beads from groups with different chemical specificity (hydrophobic, polar, and charged) is shown for all models. Also shown is the averaged absolute error for residue beads categorized into different secondary structural elements. In (

**b**,

**c**), corresponding graphs are shown. Solid lines correspond to sANM data, where values for sdANM are displayed at interaction radius abscissa position 16 Å. Dashed lines are used for ANM data.

## References

- Takada, S.; Kanada, R.; Tan, C.; Terakawa, T.; Li, W.; Kenzaki, H. Modeling structural dynamics of biomolecular complexes by coarse-grained molecular simulations. Acc. Chem. Res.
**2015**, 48, 3026–3035. [Google Scholar] [CrossRef] [PubMed] - Pak, A.J.; Voth, G.A. Advances in coarse-grained modeling of macromolecular complexes. Curr. Opin. Struct. Biol.
**2018**, 52, 119–126. [Google Scholar] [CrossRef] [PubMed] - Tirion, M.M. Large amplitude elastic motions in proteins from a single-parameter, atomic analysis. Phys. Rev. Lett.
**1996**, 77, 1905–1908. [Google Scholar] [CrossRef] [PubMed] - Bahar, I.; Atilgan, A.R.; Erman, B. Direct evaluation of thermal fluctuations in proteins using a single-parameter harmonic potential. Fold. Des.
**1997**, 2, 173–181. [Google Scholar] [CrossRef] [Green Version] - Haliloglu, T.; Bahar, I.; Erman, B. Gaussian dynamics of folded proteins. Phys. Rev. Lett.
**1997**, 79, 3090–3093. [Google Scholar] [CrossRef] - Chennubhotla, C.; Rader, A.J.; Yang, L.W.; Bahar, I. Elastic network models for understanding biomolecular machinery: From enzymes to supramolecular assemblies. Phys. Biol.
**2005**, 2, S173–S180. [Google Scholar] [CrossRef] [PubMed] - Erman, B. The Gaussian network model: Precise prediction of residue fluctuations and application to binding proteins. Biophys. J.
**2006**, 91, 3589–3599. [Google Scholar] [CrossRef] [PubMed] - Hinsen, K.; Kneller, G.R. Analysis of domain motions by approximate normal mode calculations. Proteins
**1998**, 33, 417–429. [Google Scholar] [CrossRef] - Hinsen, K.; Kneller, G.R. A simplified force field for describing vibrational protein dynamics over the whole frequency range. J. Chem. Phys.
**1999**, 111, 10766–10769. [Google Scholar] [CrossRef] - Riccardi, D.; Cui, Q.; Phillips, G.N., Jr. Application of elastic network models in the crystalline state. Biophys. J.
**2009**, 96, 464–475. [Google Scholar] [CrossRef] - Yang, L.; Song, G.; Jernigan, R.L. Protein elastic network model and the ranges of cooperativity. Proc. Natl. Acad. Sci. USA
**2009**, 106, 12347–12352. [Google Scholar] [CrossRef] [PubMed] - Hinsen, K.; Petrescu, A.; Dellerue, S.; Bellissent-Funel, M.; Kneller, G.R. Harmonicity in slow protein dynamics. Chem. Phys.
**2000**, 261, 25–37. [Google Scholar] [CrossRef] - Romo, T.D.; Grossfield, A. Validating and improving elastic network models with molecular dynamics simulations. Proteins
**2011**, 79, 23–34. [Google Scholar] [CrossRef] [PubMed] - Leioatts, N.; Romo, T.D.; Grossfield, A. Elastic network models are robust to variation in formalism. J. Chem. Theory Comput.
**2012**, 8, 2424–2434. [Google Scholar] [CrossRef] [PubMed] - Dehouck, Y.; Mikhailov, A.S. Effective harmonic potentials: Insights into the internal cooperativity and sequence-specificity of protein dynamics. PLoS Comput. Biol.
**2013**, 9, e1003209. [Google Scholar] [CrossRef] - Tama, F.; Sanejouand, Y.-H. Conformational change of proteins arising from normal mode calculations. Prot. Eng.
**2001**, 14, 1–6. [Google Scholar] [CrossRef] - Kundu, S.; Melton, J.S.; Sorenson, D.C.; Phillips, G.N., Jr. Dynamics of proteins in crystals: Comparison of experiment with simple models. Biophys. J.
**2002**, 83, 723–732. [Google Scholar] [CrossRef] - Zheng, W.; Doniach, S. A comparative study of motor-protein motions by using a simple elastic-network model. Proc. Natl. Acad. Sci. USA
**2003**, 100, 13253–13258. [Google Scholar] [CrossRef] [Green Version] - Doruker, P.; Atilgan, A.R.; Bahar, I. Dynamics of proteins predicted by molecular dynamics simulations and analytical approaches: Application to α-amylase inhibitor. Proteins
**2000**, 40, 512–524. [Google Scholar] [CrossRef] - Atilgan, A.R.; Durell, S.R.; Jernigan, R.L.; Demirel, M.C.; Keskin, O.; Bahar, I. Anisotropy of fluctuation dynamics of proteins with an elastic network model. Biophys. J.
**2001**, 80, 505–515. [Google Scholar] [CrossRef] - Yang, L.-W.; Eyal, E.; Chennubhotla, C.; Jee, J.; Gronenborn, A.M.; Bahar, I. Insights into equilibrium dynamics of proteins from comparison of NMR and X-ray data with computational predictions. Structure
**2007**, 15, 741–749. [Google Scholar] [CrossRef] [PubMed] - Fuglebakk, E.; Echave, J.; Reuter, N. Measuring and comparing structural fluctuation patterns in large protein datasets. Bioinformatics
**2012**, 28, 2431–2440. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lu, M.; Poon, B.; Ma, J. A new method for coarse-grained elastic normal-mode analysis. J. Chem. Theory Comput.
**2006**, 2, 464–471. [Google Scholar] [CrossRef] [PubMed] - Chen, X.; Poon, B.K.; Dousis, A.; Wang, Q.; Ma, J. Normal-mode refinement of anisotropic thermal parameters for potassium channel KcsA at 3.2 Å crystallographic resolution. Structure
**2007**, 15, 955–962. [Google Scholar] [CrossRef] - Poon, B.K.; Chen, X.; Lu, M.; Vyas, N.K.; Quiocho, F.A.; Wang, Q.; Ma, J. Normal mode refinement of anisotropic thermal parameters for a supramolecular complex at 3.42-Å crystallographic resolution. Proc. Natl. Acad. Sci. USA
**2007**, 104, 7869–7874. [Google Scholar] [CrossRef] [PubMed] - Eyal, W.; Yang, L.-W.; Bahar, I. Anisotropic network model: Systematic evaluation and a new web interface. Bioinformatics
**2006**, 22, 2619–2627. [Google Scholar] [CrossRef] - Kondrashov, D.A.; Cui, Q.; Phillips, G.N., Jr. Optimization and evaluation of a coarse-grained model of protein motion using X-ray crystal data. Biophys. J.
**2006**, 91, 2760–2767. [Google Scholar] [CrossRef] - Kaynak, B.T.; Findik, D.; Doruker, P. RESPEC incorporates residue specificity and the ligand effect into the elastic network model. J. Phys. Chem. B
**2018**, 122, 5347–5355. [Google Scholar] [CrossRef] - Kim, M.H.; Lee, B.H.; Kim, M.K. Robust elastic network model: A general modeling for precise understanding of protein dynamics. J. Struct. Biol.
**2015**, 190, 338–347. [Google Scholar] [CrossRef] - Lu, M.; Ma, J. PIM: Phase integrated method for normal mode analysis of biomolecules in a crystalline environment. J. Mol. Biol.
**2013**, 425, 1082–1098. [Google Scholar] [CrossRef] - Song, G.; Jernigan, R.L. vGNM: A better model for understanding the dynamics of proteins in crystals. J. Mol. Biol.
**2007**, 369, 880–893. [Google Scholar] [CrossRef] [PubMed] - Yang, L.; Song, G.; Jernigan, R.L. Comparison of experimental and computed protein anisotropic temperature factors. Proteins
**2009**, 76, 164–175. [Google Scholar] [CrossRef] [PubMed] - Riccardi, D.; Cui, Q.; Phillips, G.N., Jr. Evaluating elastic network models of crystalline biological molecules with temperature factors, correlated motions, and diffuse X-ray scattering. Biophys. J.
**2010**, 99, 2616–2625. [Google Scholar] [CrossRef] [PubMed] - Tama, F.; Gadea, F.X.; Marques, O.; Sanejouand, Y.-H. Building-block approach for determining low-frequency normal modes of macromolecules. Proteins
**2000**, 41, 1–7. [Google Scholar] [CrossRef] [Green Version] - Hoffmann, A.; Grudinin, S. NOLB: Nonlinear rigid block normal-mode analysis method. J. Chem. Theory Comput.
**2017**, 13, 2123–2134. [Google Scholar] [CrossRef] [PubMed] - Fuglebakk, E.; Reuter, N.; Hinsen, K. Evaluation of protein elastic network models based on an analysis of collective motions. J. Chem. Theory Comput.
**2013**, 9, 5618–5628. [Google Scholar] [CrossRef] [PubMed] - Togashi, Y.; Mikhailov, A.S. Nonlinear relaxation dynamics in elastic networks and design principles of molecular machines. Proc. Natl. Acad. Sci. USA
**2007**, 104, 8697–8702. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Flechsig, H.; Mikhailov, A.S. Tracing entire operation cycles of molecular motor hepatitis C virus helicase in structurally resolved dynamical simulations. Proc. Natl. Acad. Sci. USA
**2010**, 107, 20875–20880. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Togashi, Y.; Flechsig, H. Coarse-grained protein dynamics studies using elastic network models. Int. J. Mol. Sci.
**2018**, 19, 3899. [Google Scholar] [CrossRef] - Flechsig, H.; Mikhailov, A.S. Simple mechanics of protein machines. J. R. Soc. Interface
**2019**, 16, 20190244. [Google Scholar] [CrossRef] [PubMed] [Green Version]

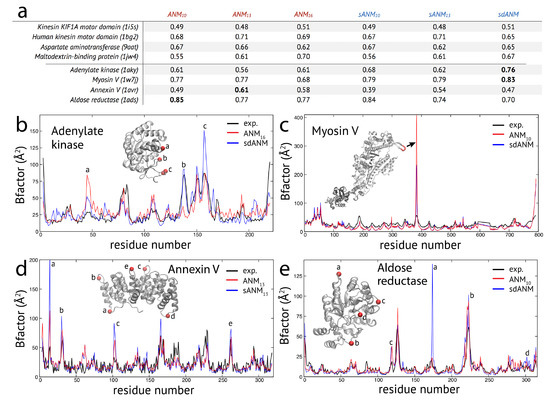

**Figure 1.**Fluctuation dynamics in studied proteins. (

**a**) Table of correlation coefficients for protein structures obtained from the considered model variants. For each of the two identified groups, four examples are shown. In the second group, bold numbers indicate for each protein the highest correlation of experiment and model predictions. (

**b**–

**e**) B-factor profiles for four protein structures are shown. Model predictions are displayed as red and blue lines; corresponding experimental data is shown in black. In the B-factor profiles, positions where model estimates are significantly poor were marked for each protein. The corresponding regions in the respective protein structure are also indicated.

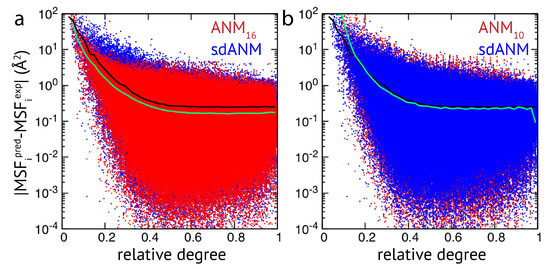

**Figure 2.**Extensive analysis of predictions by ENM variants. The error in MSF prediction for a set of more than 2000 protein structures is shown (in logarithmic scale). Each data point represents the absolute deviation of predicted and experimental MSF obtained for a single residue bead in a protein elastic network, as a function of its relative degree. (

**a**) Red dots are obtained for ANM${}_{16}$ and blue dots correspond to sdANM predictions. (

**b**) ANM${}_{10}$ is compared with sdANM. In both plots, the average absolute errors are indicated as black lines for sdANM and as green lines for ANMs.

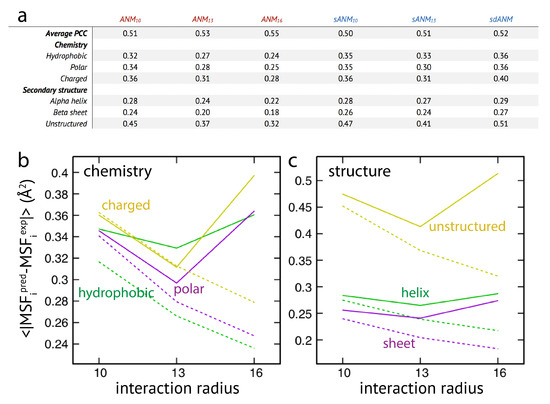

**Figure 3.**Extensive analysis of predictions by ENM variants. (
