Biomolecules 2018, 8(4), 153; https://doi.org/10.3390/biom8040153

Article
Therapeutic Chemical Screen Identifies Phosphatase Inhibitors to Reconstitute PKB Phosphorylation and Cardiac Contractility in ILK-Deficient Zebrafish
1
Department of Internal Medicine II, Ulm University, Albert-Einstein-Allee 23, D-89081 Ulm, Germany
2
Department of Internal Medicine III, University of Heidelberg, D-69120 Heidelberg, Germany
3
Institute of Applied Computer Science, Karlsruhe Institute of Technology, D-76344 Eggenstein-Leopoldshafen, Germany
*
Correspondence: [email protected] (S.J.); [email protected] (W.R.)
These authors contributed equally to this work.
These authors contributed equally to this work.
Received: 20 September 2018 / Accepted: 30 October 2018 / Published: 19 November 2018

Abstract

:
Patients with inherited dilated cardiomyopathy (DCM) often suffer from severe heart failure based on impaired cardiac contractility leading to increased morbidity and mortality. Integrin-linked kinase (ILK) as a part of the cardiac mechanical stretch sensor was found to be an essential genetic regulator of cardiac contractility. Integrin-linked kinase localizes to z-disks and costameres in vertebrate hearts and regulates the activity of the signaling molecule protein kinase B (PKB/Akt) by controlling its phosphorylation. Despite identification of several potential drug targets in the ILK signaling pathway, pharmacological treatment strategies to restore contractile function in ILK-dependent cardiomyopathies have not been established yet. In recent years, the zebrafish has emerged as a valuable experimental system to model human cardiomyopathies as well as a powerful tool for the straightforward high-throughput in vivo small compound screening of therapeutically active substances. Using the ILK deficient zebrafish heart failure mutant main squeeze (msq), which shows reduced PKB phosphorylation and thereby impaired cardiac contractile force, we identified here, in an automated small compound screen, the protein phosphatase inhibitors calyculin A and okadaic acid significantly restoring myocardial contractile function by reconstituting PKB phosphorylation in msq ILK-deficient zebrafish embryos.
Keywords:
dilated cardiomyopathy; integrin-linked kinase-protein kinase B (ILK-PKB) signaling; small chemical compounds; phosphatase inhibitors

1. Introduction

Dilated cardiomyopathy (DCM) is a life-threatening heart disease significantly contributing to systolic heart failure and sudden cardiac death based on reduced cardiac contractility [1,2,3,4]. Molecular and genetic studies have identified more than 30 different DCM disease genes, mainly coding for proteins of the sarcomere, the cardiac Z-disc and the cytoskeleton [5].
To allow adaption of cardiac contractility on changing circulatory demands such as arterial blood pressure or volume preload, the autoregulatory cardiac stretch sensor system translates biomechanical strain of cardiomyocytes into activation of several signaling pathways regulating myocardial contractile force in vertebrates. Congruously, mutations of genes coding for proteins of the cardiac mechanical stress sensor are known to cause DCM in humans [6,7]. However, the detailed genetic and molecular underpinnings of this complex autoregulatory mechanism are not fully understood yet, but of high clinical importance, since impaired adaption of cardiac contractility is considered to cause a sizeable proportion of DCM-related heart failure cases in humans [2,6,8]. Genetic studies of cardiac stretch sensor components in zebrafish, mice and humans identified the integrin-linked kinase (ILK) as an essential regulator of cardiac contractility adaption on changing circulatory demands [7,9].
In a forward genetic screen, we identified the zebrafish DCM mutant main squeeze (msq), carrying a mutation in the kinase domain of ILK (L308P), leading to reduced kinase activity and finally to a loss of cardiac stretch sensor function. Accordingly, homozygous msq mutant embryos are characterized by severely reduced ventricular pump function as well as by decreased expression levels of stretch responsive genes such as the atrial natriuretic factor (anf) and vascular endothelial growth factor (vegf) [10]. Together with PINCH (particularly interesting Cys-His-rich protein) and β-parvin, ILK forms the functional ILK-PINCH-parvin (IPP) complex (Figure 1) [11,12], which is a crucial element of the cardiac stretch sensor [13,14]. Similar to the ILK-deficient msq mutant, ablation of β-parvin or PINCH in wild-type zebrafish leads to severely reduced cardiac contractility emphasizing that ILK as well as its interactors are essential regulators of ventricular pump function [15].
In vertebrates, ILK is mainly expressed in heart and skeletal muscle, where it interacts through integrins with growth factor receptors and signaling molecules such as the protein kinase B (PKB) for signal transduction from the extracellular matrix to the cytoplasm [16,17,18,19,20] (Figure 1). In line with this, PKB phosphorylation as a downstream target of ILK is severely reduced in msq zebrafish. Remarkably, overexpression of constitutive active PKB restores cardiac contractility of msq [10], indicating that PKB phosphorylation is critical for regular heart function. However, efficient pharmacological approaches to enhance PKB phosphorylation and activation have not been established yet, but might be crucial to improve contractile performance in vivo.
In recent years, the zebrafish has emerged as a powerful tool for high-throughput in vivo screening of small chemical compounds allowing biomolecule evaluation with straightforward assessment of essential cardiac parameters such as cardiac development, myocardial contractility and heart rhythm [21,22,23]. Using the zebrafish as drug screening platform, we aimed to identify chemical compounds rescuing heart failure in msq mutant embryos via maintenance of PKB phosphorylation. Hence, by using our automated small compound screening platform, we identified two phosphatase inhibitors, okadaic acid and calyculin A, to significantly improve ventricular pump function by enhancing PKB phosphorylation in ILK-deficient msq mutant zebrafish embryos.

2. Material and Methods

2.1. Zebrafish Strains

Zebrafish care and breeding was performed as described before [24]. All procedures and experiments in this study were carried out after appropriate institutional approvals (Tierforschungszentrum (TFZ) Ulm University, No. 0183), which conform to the EU Directive 2010/63/EU. For all procedures, the zebrafish strain main squeeze, msq (M347), was used [10].

2.2. Genotyping, Western Blot Analysis, and RNA In Situ Hybridization

Genotyping of msq embryos was performed by polymerase chain reaction (PCR) analysis using the satellite markers z7028 (fwd CAACACCAGCATAGCCATGT, rev TGTGACAAGGTCAGTGGAGC) as well as z7504 (fwd AATTGGGCTGCGTTTCATAC, rev TTCCACCTCCTGTAACCTGC) after DNA isolation of whole embryos. Protein extraction for Western blot analysis was performed from whole zebrafish embryos. For immunoblotting the proteins were separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and transferred to a polyvinylidene fluoride (PVDF) membrane. The blots were probed with the primary antibody anti-pPKB S347 (4058, NEB/Cell Signaling, Danvers, MA, USA). Anti-pan-Cadherin (ab16505, Abcam, Cambridge, MA, USA) served as loading control. Signals were detected by chemiluminescence (anti-rabbit-HRP). Ribonucleic acid whole-mount in situ hybridization was used to detect expression of anf transcripts essentially as described elsewhere [10].

2.3. Small Compound Screen and Functional Assessment in Main Squeeze Embryos

Small compound screening was performed using a modified phosphatase inhibitor library with a total of 32 different small molecules (BML-2834, ENZO Life Sciences, Inc., Farmingdale, NY, USA and BIOZOL GmbH, Eching, Germany, Table A1 in the Appendix A). At 48 h post fertilization (hpf) stage-matched wild-type siblings and msq mutant embryos (divided based on the heart failure phenotype) were individually transferred into a 96-well-plate and ten embryos (five mutants and five siblings) tested and analyzed per compound using our established automated small compound screening platform [21]. Small compounds were added with a final concentration of 10 µM except for the compounds A1–A3. To avoid toxic side-effects of the protein phosphatase (PP1 and PP2A) inhibitors, which are associated with tumor promotion as well as impaired liver and gastrointestinal function in animals as well as humans, we applied concentrations for calyculin A (A1), cyclosporine A (A2) and okadiac Acid (A3) referring to previous in vivo studies (A1: 0.1 µM, A2: 0.15 µM, A3: 0.75 µM) [25,26,27]. Dimethyl sulfoxide (DMSO) was used as a solvent control with a concentration of 0.1%. Embryos were treated and incubated for 24 h and kept in an incubator at 29 °C. Since proper cardiac development requires regular myocardial contractions, we expected an additional developmental rescue effect in case of early drug treatment [28]. Hence, incubation period was extended from 4 to 96 hpf in the secondary drug screening for the compounds calyculin A, okadaic acid and cyclosporine A. Impact of small molecules on cardiac contractile function was evaluated by video microscopic movies of zebrafish hearts with the DM IRB (Leica, Wetzlar, Germany) microscope. The functional assessment of cardiac contractility was carried out as described before [24,29]. Fractional shortening (FS) and ventricular diameters were measured with the help of the zebraFS software (http://www.benegfx.de). Only data from experiments where fractional shortening for at least three embryos could be measured, were included in statistical analysis.

2.4. Statistical Analysis

If not further specified, results are expressed as mean and standard deviation (mean ± S.D.). Significance of differences of numeric values between two groups was calculated by t-test if normal distribution with equal variance was given. Normal distribution was determined by Shapiro–Wilk test and equal variance by Brown–Forsythe test. Numeric variables that were not normally distributed were analyzed by Mann–Whitney rank sum test. A p-value <0.05 was considered significant. In case of multiple testing per data-set p-value was adapted by the Bonferroni adjustment method. Statistical assessment was performed with Excel (Version 2016, Microsoft Inc., Redmond, WA, USA) or XLStat software (V 2016.02.28430, Addinsoft, New York, NY, USA).

3. Results

3.1. Primary Small Compound Screen Identifies Phosphatase Inhibitors Restoring Cardiac Contractility in msq Zebrafish

By genetically and molecularly characterizing the zebrafish mutant main squeeze (msq), we identified ILK to be crucial to guarantee cardiac contractile force by controlling PKB phosphorylation and thereby its activity [10,15].
Since PKB activity is significantly reduced in msq embryos, we here performed drug screening of a phosphatase inhibitor library containing 32 different compounds (Table A1 in the Appendix A) solved in DMSO using our established automated screening platform [21] with the aim to restore PKB phosphorylation and subsequently systolic ventricular pump function.
First, to study the impact of the solvent agent DMSO on cardiac contractility, we analyzed fractional shortening in wild-type (wt) and msq zebrafish incubated with 0.1% DMSO. We found that mean ventricular fractional shortening (FS) in wt treated with 0.1% DMSO was 53.2 ± 3.4% (n = 51) compared to 15.3 ± 6.7% (n = 35; p < 0.001) in msq with DMSO (Figure 2C). These findings are in line with previous reported data on ventricular FS in wt and msq zebrafish [10], indicating that cardiac contractility is affected in neither wt nor msq zebrafish by the solvent agent DMSO.
During small compound screening, as many as 8/32 (25.0%) compounds in wild-type zebrafish and 8/32 (25.0%) compounds in msq mutants led to lethality of more than 50% of compound treated zebrafish embryos. Except for the tyrosine phosphatase inhibitor RK-682 (B6) that was lethal in msq, and except for Deltamethrin (B12) that was lethal in wt zebrafish, all compounds leading to death in wild-type zebrafish were also lethal in msq (Table A1). In both study groups, Endothall (B3) was excluded from further statistical analysis, since more than 50% of zebrafish in the DMSO control group died. Thus, fractional shortening data were available for 23 (71.9%) compounds applied in both groups, wild-type siblings and mutant msq zebrafish embryos.
As shown in Figure 3A, none of the applied small compounds led to a significant increase of ventricular FS in wild-type siblings compared to the DMSO control group (Figure 3A). By contrast, 3 out of 32 (9.4%) tested chemicals, namely A1 (calyculin A), A2 (cyclosporin A) and A3 (okadaic acid) showed a significant improvement of ventricular FS in msq mutants compared to msq controls treated with DMSO only at 72 hpf (Figure 3B). All other tested compounds did not show significant changes in FS in msq compared to DMSO treated mutants.
For msq mutants incubated with calyculin A, mean ventricular fractional shortening 24 h after drug administration was 22.2 ± 10.7% compared to 12.0 ± 8.5% in the control group (p = 0.006). Similarly, mean ventricular FS in msq mutants treated with Cyclosporine A was significantly higher (26.3 ± 4.0%) compared to the control group (19.3 ± 3.5%; p = 0.023). For okadaic acid, we found that mean ventricular FS in msq mutants was 43.0 ± 8.1% at 24 h after drug administration in comparison to a mean ventricular FS of 19.3 ± 3.5% in controls (p < 0.001; Figure 3B). Next, we performed a detailed investigation (secondary screen) of the three identified compounds, with the aim to get a more in-depth understanding of the molecular underpinnings leading to significant increase of ventricular FS in msq mutants.

3.2. Calyculin A and Okadaic Acid Reconstitute Cardiac Contractility in msq Cardiomyopathy via Restored PKB Phosphorylation

In order to confirm the findings of the primary drug screening and to evaluate the impact of the three identified compounds on cardiac contractility and PKB phosphorylation in more detail, we analyzed ventricular FS in wild-type siblings and msq mutants that were incubated with the candidate compounds from 4 to 96 hpf compared to 48 to 72 hpf in the initial drug screening.
After 96 hpf, wild-type zebrafish treated with calyculin A present with ventricular FS of 43.6 ± 13.6% compared to 42.6 ± 12.7% in untreated wt embryos, indicating that calyculin A has no adverse effects on cardiac contractility in the wild-type situation. Remarkably, the nearly abolished cardiac contractility observed in untreated msq embryos (ventricular FS: 2.2 ± 5.3%) at 96 hpf was significantly improved in msq mutants (25.4 ± 18.9%; p < 0.001) treated with calyculin A after extended incubation time (Figure 4A). These data confirm the positive impact of calyculin A on ventricular FS in msq mutants and furthermore suggests that earlier drug administration and longer drug treatment leads to stable reconstitution of cardiac contractility also at 96 hpf.
Next, we evaluated the molecular impact of calyculin A, which is known to inhibit protein phosphatases such as PP1 and PP2A. For both, PP1 and PP2A, it has been shown that PKB is a physiological target in different tissues leading to decreased PKB phosphorylation [25,30]. To examine whether calyculin A improves cardiac contractility in msq zebrafish mutants via the reconstitution of PKB phosphorylation, we performed immunoblotting assays to assess the PKB phosphorylation status in msq mutants treated with calyculin A and their respective controls. Interestingly, we found that untreated msq zebrafish present with a weak PKB phosphorylation (pPKB) signal, whereas calyculin A treated msq embryos displayed high pPKB levels comparable to wild-type zebrafish (Figure 4B). These findings demonstrate that calyculin A treatment of ILK-deficient msq embryos effectively inhibits further PKB dephosphorylation, thereby reconstituting phospho-PKB levels and rescuing cardiac contractility in msq heart failure mutants.
To further reveal the effect of enhanced PKB activation by calyculin A on anf expression, which is a final downstream target of ILK-PKB signaling, we performed anf specific whole-mount antisense RNA in situ hybridizations. By in situ hybridization of individual msq embryos, we found that treatment with calyculin A results in a significantly increased anf expression similar to the situation in wild-type zebrafish (Figure 4C–E), further substantiating that calyculin A treatment is able to rescue heart failure of msq mutants on a functional but also molecular level.
Similar to calyculin A, the fatty acid okadaic acid is also known to act as inhibitor of the protein phosphatases PP1 and PP2A [30], insinuating that PKB phosphorylation might also be influenced by this compound.
According to the extended calyculin A screening, we performed incubation of okadaic acid in msq embryos from 4 to 96 hpf. Wild-type zebrafish treated with okadaic acid present with a mean ventricular FS of 45.8 ± 8.2% and were indistinguishable from untreated wild-type embryos (ventricular FS: 51.2 ± 4.4%; p >0.05) four days post compound administration (Figure 5A). As expected, msq embryos of the DMSO-treated control group exhibited a mean ventricular FS of 2.0 ± 3.5%. In contrast, okadaic acid treatment in msq led to significantly increased ventricular FS of 20.8 ± 19.9% at 96 hpf (p = 0.01; Figure 5A).
Next, we performed immunoblotting assays in msq mutants after okadaic acid treatment to determine the levels of PKB phosphorylation at 96 hpf (Figure 5B). Similar to calyculin A treatment, PKB phosphorylation signal intensity was markedly higher in msq treated with okadaic acid compared to msq DMSO controls. Moreover, pPKB signal in okadaic acid treated msq embryos was comparable to their wild-type controls, indicating that this compound is, similar to calyculin A, a strong inhibitor of PKB dephosphorylation and therefore okadaic acid treatment preserved PKB phosphorylation in msq mutants in vivo.

3.3. Cyclosporine A is a Poor Modulator of Ventricular Fractional Shortening and PKB Phosphorylation in msq Mutants

In contrast to the compounds calyculin A and okadaic acid, which are known inhibitors of the protein phosphatases PP1 and PP2A, cyclosporine A is considered to interfere only with PP2A, implying that the impact of this compound on ventricular FS and PKB phosphorylation status in msq might be different to the before-analyzed compounds. According to the secondary screen for calyculin A and okadaic acid, we incubated wild-type zebrafish as well as msq mutants with cyclosporine A from 4 to 96 hpf. For wild-type zebrafish treated with DMSO only and wild-type zebrafish treated with cyclosporine A, we found no significant difference in ventricular FS (wt-DMSO: 48.5 ± 4.4% vs. wt-cyclosporine A: 48.2 ± 6.0%; p = 0.911; Figure 5C). Remarkably, ventricular FS tends to be higher in msq mutants after cyclosporine A treatment from 4 to 96 hpf (16.9 ± 16.2%, Figure 5C) compared to msq controls (7.9 ± 8.7%; p = 0.137). However, level of statistical significance with p < 0.05 was not reached in this experimental setting. In accordance, reconstitution of PKB phosphorylation in msq mutants was less pronounced after cyclosporine A administration than in msq embryos treated with okadaic acid or calyculin A (Figure 5D), indicating that cyclosporine A is a poor inhibitor of PKB dephosphorylation and cardiac contractility in msq mutants.

4. Discussion

Integrin-linked kinase is a key molecule of the mechanical stretch sensor in the vertebrate heart, regulating expression of stretch-responsive genes such as anf and vegf and thereby allowing adaption of cardiac contractility to various hemodynamic demands. As shown in several genetic studies in animal models as well as in humans, mutations in genes encoding for proteins of the mechanical stretch sensor system lead to reduced ventricular FS and finally to dilated cardiomyopathy [2,6,8,10].
Based on a mutation within the kinase domain of ILK homozygous mutant msq embryos display a progressive reduction of myocardial contractility. On molecular level, homozygous msq embryos are characterized by a reduced PKB phosphorylation and a decreased expression of the stretch responsive genes anf and vegf [10,15], making msq a suitable animal model for ILK-dependent DCM. Despite detailed characterization of the ILK-PKB signaling pathway, pharmacological approaches to restore ILK-PKB function are still missing.
With the aim to enhance ILK-PKB signaling pathway in msq, we studied the impact of 32 small compounds derived from a phosphatase inhibitor library on ventricular FS in this heart failure model. We hypothesized that the inhibition of dephosphorylation and consecutive inactivation of PKB by phosphatase inhibitors might lead to restored ILK-PKB signaling and finally to reconstituted cardiac contractility.
In our primary small compound screen using our recently established screening platform [21], we evaluated 32 compounds and found three biomolecules, namely calyculin A, okadaic acid and cyclosporine A significantly improving ventricular FS. Interestingly, these compounds are known to act on the protein phosphatases PP1 and PP2A, which are essential regulators of the phosphorylation status in numerous key signaling pathways [30,31,32]. Drug screening of other PP1/PP2A inhibitors such as the compounds B1 (cantharidic acid) and B2 (cantharidin) led to lethality of both wild-type and msq mutant embryos. We conclude that our straightforward small compound screening approach allows to identify appropriate potential therapeutic biomolecules and to exclude substances with adverse effects from further in vivo evaluation.
As observed in our secondary drug screening, we found that among the three identified compounds calyculin A turned out to have the strongest effect on cardiac contractility and PKB phosphorylation. However, in contrast to okadaic acid, it has been shown that calyculin A inhibits not only PP1 and PP2A but also the myosin light chain (MLC) phosphatase, which is an important regulator of the contractile apparatus in the vertebrate heart [30]. Myosin light chain phosphatase dephosphorylates the regulatory light chain of myosin II and initiates the relaxation process of muscle cells. Whether the inhibition of MLC phosphatase by calyculin A also contributes to restoration of ventricular FS in msq mutants was not analyzed in our experimental setting. However, we conclude that, due to its pleiotropic effects in cardiomyocytes, calyculin A should be considered as a promising biomolecule with the potential to treat ILK-dependent DCM.
Cyclosporine A is an effective immunosuppressive drug that has been prescribed for decades for a vast number of patients, e.g., after organ transplantation to reduce graft-versus-host reactions.
In contrast to calyculin A and okadaic acid, cyclosporine A failed to significantly increase ventricular FS in msq mutants despite recovered PKB phosphorylation. Hence, in our experimental setting cyclosporine A occurred only as an intermediate mediator of the ILK-PKB signaling pathway in comparison to calyculin A and okadaic acid. However, it is known that cyclosporine A has a beneficial myocardial effect by attenuating detrimental hypertrophy of the left ventricle in mice undergoing pressure overload [33]. Hence, based on the protective effect in cardiomyopathy model organisms and the long-term experience with cyclosporine A in daily clinical routine, cyclosporine A is still an interesting target for future investigations in the context of cardiomyopathies.
In recent years, the zebrafish has emerged as a powerful and reliable model organism for the rapid and straightforward in vivo analysis of small molecule bioactivity for a broad range of cardiovascular diseases. Advances in the field like fully-automated high-throughput screenings will be of additional advantage, enabling testing of numerous biomolecules in an effective and time-saving manner [23,34]. Although we show promising results of at least two compounds for the treatment of genetic ILK-dependent cardiomyopathy in a vertebrate model, additional studies in alternative model systems are needed to elucidate the transferability of our results to mammals and humans.
In this context, human-induced-pluripotent-stem-cell-derived cardiomyocytes cells (hiPSC-CM) have been successfully established in recent years for cardiovascular disease modeling as well as drug screening. In contrast to animal models, hiPSC-CM are biologically identical to their human donors, facilitating significantly the transferability of novel genetic and molecular findings. However, hiPSC-CM differ in several important aspects from adult human cardiomyocytes, especially in terms of maturation, gene expression or ion channel function, reducing their field of application [35]. In contrast, large mammalian animal models for cardiomyopathies, such as dogs, render pathomechanistical findings that are easy to transfer to humans based on the high interspecies homogeneities, but large-scale drug screening in a cost and time saving manner is not applicable in this type of model organism. Thus, we conclude that the different disease models, including cell-based approaches as well as vertebrate and mammalian animal models, with their particular strengths and weaknesses, should be seen as complementary in long-term drug discovery rather than exclusionary.

Limitations

Initial drug screening with 32 compounds was partly performed with an arbitrarily predefined biomolecule concentration of 10 µM. This one-concentration-fits-all approach facilitates evaluating numerous compounds in a short time. However, biological impact of compounds that were lethal in our animal model might be overestimated and biological impact of compounds with no obvious effect on ventricular FS might be underestimated in our experimental setting due to inappropriate compound concentration.

5. Conclusions

Heart failure is one of the most frequent reasons for morbidity and mortality in developed countries. Genetic variants in the ILK gene are associated with impaired cardiac contractility in humans. Aided by the ILK-deficient zebrafish heart failure mutant (msq), we identified in an automated small compound screen the protein phosphatase inhibitors calyculin A and okadaic acid leading to significantly restored pump function of the zebrafish heart via reconstituting PKB phosphorylation. To evaluate the therapeutic potential of these promising small compounds in humans, calyculin A and okadaic acid should be further investigated in mammalian model organisms.

Author Contributions

Conceptualization, S.J. and W.R.; Methodology, A.P., M.S., D.K., K.W., C.P, S.J.; Software, C.P.; Validation, A.P., S.J. and W.R.; Formal analysis, A.P., S.J. and W.R.; Investigation, A.P., M.S., D.K.; Resources, S.J. and W.R.; Data curation, A.P. and S.J.; Writing—original draft preparation, A.P., M.S., K.W., S.J. and W.R.; Writing—review and editing, A.P. and S.J.; Visualization, A.P., M.S., D.K.; Supervision, S.J. and W.R.; Project administration, S.J. and W.R.; Funding acquisition, A.P., S.J. and W.R.

Funding

This work was supported by the Deutsche Forschungsgemeinschaft (DFG) [RO2173/3-1 (WR), RO2173/3-2 (WR), JU2859/2-1 (SJ)]; Ministerium für Wissenschaft, Forschung und Kunst Baden-Württemberg (MWK) [Juniorprofessurenprogramm 2013]; German Federal Ministry of Education and Research (BMBF) [e:Med-SYMBOL-HF grant #01ZX1407A and e:Med-coNfirm grant #01ZX1708C]. A. Pott was funded by the Clinician-Scientist-Program (CSP) of the University Ulm Medical School.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Modified ENZO ® library of protein phosphatases inhibitors.
Table A1. Modified ENZO ® library of protein phosphatases inhibitors.
Plate LocationNameTargetLethality
A1Calyculin APP1 and PP2A
A2Cyclosporin APP2A
A3Okaid acidPP1 and PP2A
B1Cantharidic acidPP1 and PP2Awt, msq
B2CantharidinPP1 and PP2Awt, msq
B3EndothallPP2A
B4Benzylphosphonic acidTyrosine phosphatases
B5L-p-Bromotetramisole oxalateTyrosine phosphatases
B6RK-682Tyrosine phosphatasesmsq
B7RWJ-60475CD45 tyrosine phosphatase
B8RWJ-60475 (AM)3CD45 tyrosine phosphatase (cell permeable)
B9Levamisole HClMammalian alkaline phosphatase
B10Tetramisole HClMammalian alkaline phosphatase
B11CypermethrinCalcineurin (PP2B)
B12DeltamethrinCalcineurin (PP2B)wt
C1FenvalerateCalcineurin (PP2B)
C2Tyrphostin 8Calcineurin (PP2B)
C5BN-82002
C6Shikonin
C7NSC-663284CDC25
C9PentamidinePRL1
C10BVT-948Tyrosine phosphatases
C111-(2-Bromobenzyloxy)-4-bromo-2-benzylidene rhodaninePRL3
C12Alexidine·2HClPTPMT1wt, msq
D19,10-PhenanthrenequinoneCD45 tyrosine phosphatasewt, msq
D2BML-260JSP-1wt, msq
D3Sanguinarine chloridePP2Cwt, msq
D4BML-267PTP1B
D5BML-267 EsterPTP1B (cell permeable)
D6OBATyrosine phosphatases
D7OBA EsterTyrosine phosphatases (cell permeable)
D8GossypolCalcineurin (PP2B)wt, msq

References

  1. McKenna, W.J.; Maron, B.J.; Thiene, G. Classification, Epidemiology, and Global Burden of Cardiomyopathies. Circ. Res. 2017, 121, 722–730. [Google Scholar] [CrossRef] [PubMed]
  2. Meder, B.; Katus, H.A. Clinical and genetic aspects of hypertrophic and dilated cardiomyopathy. Der Internist 2012, 53, 408–414, 417–418. [Google Scholar] [CrossRef] [PubMed]
  3. Masarone, D.; Kaski, J.P.; Pacileo, G.; Elliott, P.M.; Bossone, E.; Day, S.M.; Limongelli, G. Epidemiology and Clinical Aspects of Genetic Cardiomyopathies. Heart Fail. Clin. 2018, 14, 119–128. [Google Scholar] [CrossRef] [PubMed]
  4. Thiene, G.; Corrado, D.; Basso, C. Revisiting definition and classification of cardiomyopathies in the era of molecular medicine. Eur. Heart J. 2008, 29, 144–146. [Google Scholar] [CrossRef] [PubMed]
  5. Haas, J.; Frese, K.S.; Peil, B.; Kloos, W.; Keller, A.; Nietsch, R.; Feng, Z.; Muller, S.; Kayvanpour, E.; Vogel, B.; et al. Atlas of the clinical genetics of human dilated cardiomyopathy. Eur. Heart J. 2015, 36, 1123–1135. [Google Scholar] [CrossRef] [PubMed]
  6. Knoll, R.; Hoshijima, M.; Chien, K. Cardiac mechanotransduction and implications for heart disease. J. Mol. Med. 2003, 81, 750–756. [Google Scholar] [CrossRef] [PubMed]
  7. Knoll, R.; Postel, R.; Wang, J.; Kratzner, R.; Hennecke, G.; Vacaru, A.M.; Vakeel, P.; Schubert, C.; Murthy, K.; Rana, B.K.; et al. Laminin-α4 and integrin-linked kinase mutations cause human cardiomyopathy via simultaneous defects in cardiomyocytes and endothelial cells. Circulation 2007, 116, 515–525. [Google Scholar] [CrossRef] [PubMed]
  8. Hoshijima, M. Mechanical stress-strain sensors embedded in cardiac cytoskeleton: Z disk, titin, and associated structures. Am. J. Physiol. Heart Circ. Physiol. 2006, 290, H1313–H1325. [Google Scholar] [CrossRef] [PubMed]
  9. White, D.E.; Coutu, P.; Shi, Y.F.; Tardif, J.C.; Nattel, S.; St Arnaud, R.; Dedhar, S.; Muller, W.J. Targeted ablation of ILK from the murine heart results in dilated cardiomyopathy and spontaneous heart failure. Genes Dev. 2006, 20, 2355–2360. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Bendig, G.; Grimmler, M.; Huttner, I.G.; Wessels, G.; Dahme, T.; Just, S.; Trano, N.; Katus, H.A.; Fishman, M.C.; Rottbauer, W. Integrin-linked kinase, a novel component of the cardiac mechanical stretch sensor, controls contractility in the zebrafish heart. Genes Dev. 2006, 20, 2361–2372. [Google Scholar] [CrossRef] [PubMed][Green Version]
  11. Tu, Y.; Huang, Y.; Zhang, Y.; Hua, Y.; Wu, C. A new focal adhesion protein that interacts with integrin-linked kinase and regulates cell adhesion and spreading. J. Cell Biol. 2001, 153, 585–598. [Google Scholar] [CrossRef] [PubMed]
  12. Qin, J.; Wu, C. ILK: A pseudokinase in the center stage of cell-matrix adhesion and signaling. Curr. Opin. Cell Biol. 2012, 24, 607–613. [Google Scholar] [CrossRef] [PubMed]
  13. Legate, K.R.; Montanez, E.; Kudlacek, O.; Fassler, R. ILK, PINCH and parvin: The tIPP of integrin signalling. Nat. Rev. Mol. Cell Biol. 2006, 7, 20–31. [Google Scholar] [CrossRef] [PubMed]
  14. Meier, R.; Thelen, M.; Hemmings, B.A. Inactivation and dephosphorylation of protein kinase Bα (PKBα) promoted by hyperosmotic stress. EMBO J. 1998, 17, 7294–7303. [Google Scholar] [CrossRef] [PubMed]
  15. Meder, B.; Huttner, I.G.; Sedaghat-Hamedani, F.; Just, S.; Dahme, T.; Frese, K.S.; Vogel, B.; Kohler, D.; Kloos, W.; Rudloff, J.; et al. PINCH proteins regulate cardiac contractility by modulating integrin-linked kinase-protein kinase B signaling. Mol. Cell. Biol. 2011, 31, 3424–3435. [Google Scholar] [CrossRef] [PubMed]
  16. Melchior, C.; Kreis, S.; Janji, B.; Kieffer, N. Promoter characterization and genomic organization of the gene encoding integrin-linked kinase 1. Biochim. Biophys. Acta 2002, 1575, 117–122. [Google Scholar] [CrossRef]
  17. Sakai, T.; Li, S.; Docheva, D.; Grashoff, C.; Sakai, K.; Kostka, G.; Braun, A.; Pfeifer, A.; Yurchenco, P.D.; Fassler, R. Integrin-linked kinase (ILK) is required for polarizing the epiblast, cell adhesion, and controlling actin accumulation. Genes Dev. 2003, 17, 926–940. [Google Scholar] [CrossRef] [PubMed][Green Version]
  18. Hannigan, G.E.; Leung-Hagesteijn, C.; Fitz-Gibbon, L.; Coppolino, M.G.; Radeva, G.; Filmus, J.; Bell, J.C.; Dedhar, S. Regulation of cell adhesion and anchorage-dependent growth by a new β 1-integrin-linked protein kinase. Nature 1996, 379, 91–96. [Google Scholar] [CrossRef] [PubMed]
  19. Mackinnon, A.C.; Qadota, H.; Norman, K.R.; Moerman, D.G.; Williams, B.D. C. elegans PAT-4/ILK functions as an adaptor protein within integrin adhesion complexes. Curr. Biol. 2002, 12, 787–797. [Google Scholar] [CrossRef]
  20. Fukuda, K.; Knight, J.D.; Piszczek, G.; Kothary, R.; Qin, J. Biochemical, proteomic, structural, and thermodynamic characterizations of integrin-linked kinase (ILK): Cross-validation of the pseudokinase. J. Biol. Chem. 2011, 286, 21886–21895. [Google Scholar] [CrossRef] [PubMed]
  21. Spomer, W.; Pfriem, A.; Alshut, R.; Just, S.; Pylatiuk, C. High-throughput screening of zebrafish embryos using automated heart detection and imaging. J. Lab. Autom. 2012, 17, 435–442. [Google Scholar] [CrossRef] [PubMed]
  22. Pylatiuk, C.; Sanchez, D.; Mikut, R.; Alshut, R.; Reischl, M.; Hirth, S.; Rottbauer, W.; Just, S. Automatic zebrafish heartbeat detection and analysis for zebrafish embryos. Zebrafish 2014, 11, 379–383. [Google Scholar] [CrossRef] [PubMed]
  23. Pott, A.; Rottbauer, W.; Just, S. Functional genomics in zebrafish as a tool to identify novel antiarrhythmic targets. Curr. Med. Chem. 2014, 21, 1320–1329. [Google Scholar] [CrossRef] [PubMed]
  24. Rottbauer, W.; Just, S.; Wessels, G.; Trano, N.; Most, P.; Katus, H.A.; Fishman, M.C. VEGF-PLCγ1 pathway controls cardiac contractility in the embryonic heart. Genes Dev. 2005, 19, 1624–1634. [Google Scholar] [CrossRef] [PubMed]
  25. Dawson, J.F.; Holmes, C.F. Molecular mechanisms underlying inhibition of protein phosphatases by marine toxins. Front. Biosci. 1999, 4, D646–D658. [Google Scholar] [CrossRef] [PubMed]
  26. Han, W.; Ming, M.; He, T.C.; He, Y.Y. Immunosuppressive cyclosporin A activates AKT in keratinocytes through PTEN suppression: Implications in skin carcinogenesis. J. Biol. Chem. 2010, 285, 11369–11377. [Google Scholar] [CrossRef] [PubMed]
  27. Honkanen, R.E.; Codispoti, B.A.; Tse, K.; Boynton, A.L.; Honkanan, R.E. Characterization of natural toxins with inhibitory activity against serine/threonine protein phosphatases. Toxicon 1994, 32, 339–350. [Google Scholar] [CrossRef]
  28. Tu, S.; Chi, N.C. Zebrafish models in cardiac development and congenital heart birth defects. Differentiation 2012, 84, 4–16. [Google Scholar] [CrossRef] [PubMed][Green Version]
  29. Meder, B.; Laufer, C.; Hassel, D.; Just, S.; Marquart, S.; Vogel, B.; Hess, A.; Fishman, M.C.; Katus, H.A.; Rottbauer, W. A single serine in the carboxyl terminus of cardiac essential myosin light chain-1 controls cardiomyocyte contractility in vivo. Circ. Res. 2009, 104, 650–659. [Google Scholar] [CrossRef] [PubMed]
  30. Ishihara, H.; Martin, B.L.; Brautigan, D.L.; Karaki, H.; Ozaki, H.; Kato, Y.; Fusetani, N.; Watabe, S.; Hashimoto, K.; Uemura, D. Calyculin A and okadaic acid: Inhibitors of protein phosphatase activity. Biochem. Biophys. Res. Commun. 1989, 159, 871–877. [Google Scholar] [CrossRef]
  31. Verbinnen, I.; Ferreira, M.; Bollen, M. Biogenesis and activity regulation of protein phosphatase 1. Biochem. Soc. Trans. 2017, 45, 89–99. [Google Scholar] [CrossRef] [PubMed]
  32. Baskaran, R.; Velmurugan, B.K. Protein phosphatase 2A as therapeutic targets in various disease models. Life Sci. 2018. [Google Scholar] [CrossRef] [PubMed]
  33. Meguro, T.; Hong, C.; Asai, K.; Takagi, G.; McKinsey, T.A.; Olson, E.N.; Vatner, S.F. Cyclosporine attenuates pressure-overload hypertrophy in mice while enhancing susceptibility to decompensation and heart failure. Circ. Res. 1999, 84, 735–740. [Google Scholar] [CrossRef] [PubMed]
  34. Lessman, C.A. The developing zebrafish (Danio rerio): A vertebrate model for high-throughput screening of chemical libraries. Birth Defects Res. C Embryo Today 2011, 93, 268–280. [Google Scholar] [CrossRef] [PubMed]
  35. Eder, A.; Vollert, I.; Hansen, A.; Eschenhagen, T. Human engineered heart tissue as a model system for drug testing. Adv. Drug Deliv. Rev. 2016, 96, 214–224. [Google Scholar] [CrossRef] [PubMed]

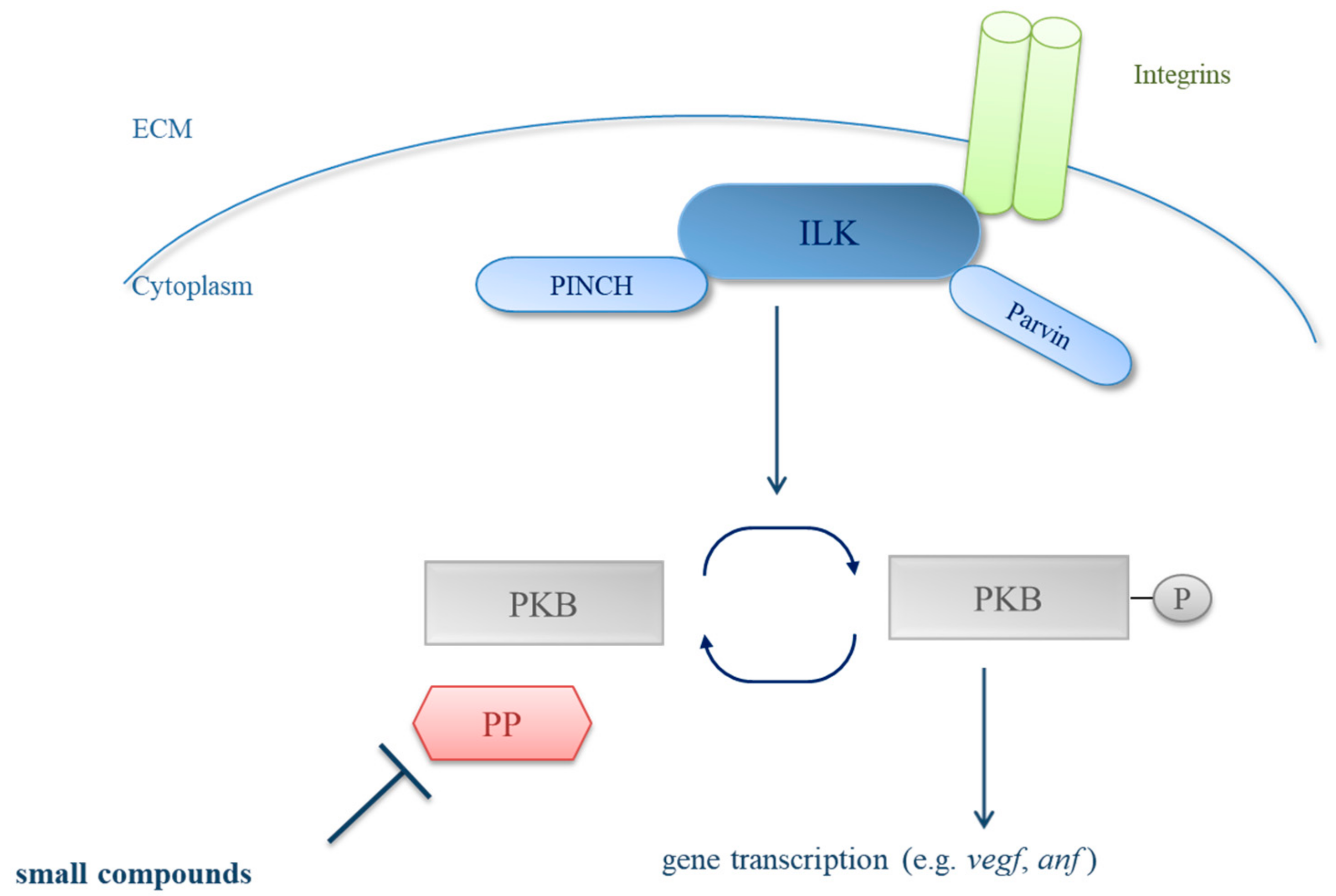

Figure 1. Schematic illustration of the integrin-linked kinase-protein kinase B (ILK-PKB) signaling pathway. Integrin-linked kinase forms, together with PINCH (particularly interesting Cys-His-rich protein) and parvin, the ILK-PINCH-parvin (IPP) complex and mediates signals from the extracellular matrix (ECM) to the cytoplasm through integrins. The phosphorylated downstream target PKB facilitates the expression of stretch responsive genes such as the atrial natriuretic factor (anf), thereby effectively transducing signals from the cardiac stretch sensor. Reduced PKB phosphorylation in ILK deficient main squeeze mutant zebrafish hearts was demonstrated to lead to impaired cardiac contractility and heart failure [10]. In this context, the inhibition of protein phosphatases (PP) by small chemical compounds that results in an increase of PKB phosphorylation might be a promising therapeutic approach to treat ILK-associated cardiomyopathies.
Figure 1. Schematic illustration of the integrin-linked kinase-protein kinase B (ILK-PKB) signaling pathway. Integrin-linked kinase forms, together with PINCH (particularly interesting Cys-His-rich protein) and parvin, the ILK-PINCH-parvin (IPP) complex and mediates signals from the extracellular matrix (ECM) to the cytoplasm through integrins. The phosphorylated downstream target PKB facilitates the expression of stretch responsive genes such as the atrial natriuretic factor (anf), thereby effectively transducing signals from the cardiac stretch sensor. Reduced PKB phosphorylation in ILK deficient main squeeze mutant zebrafish hearts was demonstrated to lead to impaired cardiac contractility and heart failure [10]. In this context, the inhibition of protein phosphatases (PP) by small chemical compounds that results in an increase of PKB phosphorylation might be a promising therapeutic approach to treat ILK-associated cardiomyopathies.
Biomolecules 08 00153 g001

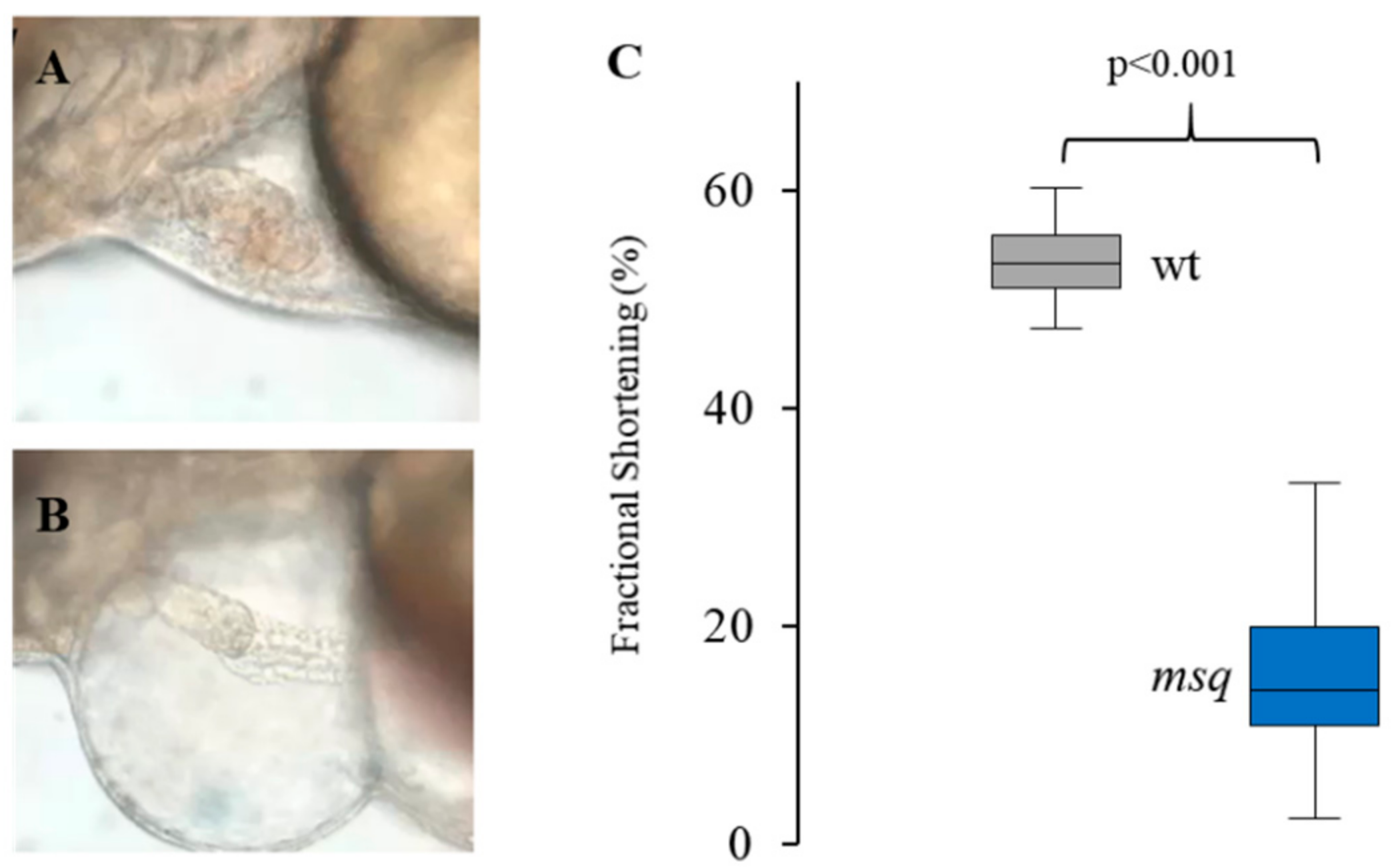

Figure 2. msq mutants show cardiac edema and reduced contractile function. msq mutants can be distinguished from their wild-type siblings at 48 h post fertilization (hpf). (AC) Starting from this developmental stage, msq show cardiac edema (B) compared to wild-type sibling (A) and significantly decreased ventricular fractional shortening compared to wild-type controls at 72 hpf (C).
Figure 2. msq mutants show cardiac edema and reduced contractile function. msq mutants can be distinguished from their wild-type siblings at 48 h post fertilization (hpf). (AC) Starting from this developmental stage, msq show cardiac edema (B) compared to wild-type sibling (A) and significantly decreased ventricular fractional shortening compared to wild-type controls at 72 hpf (C).
Biomolecules 08 00153 g002

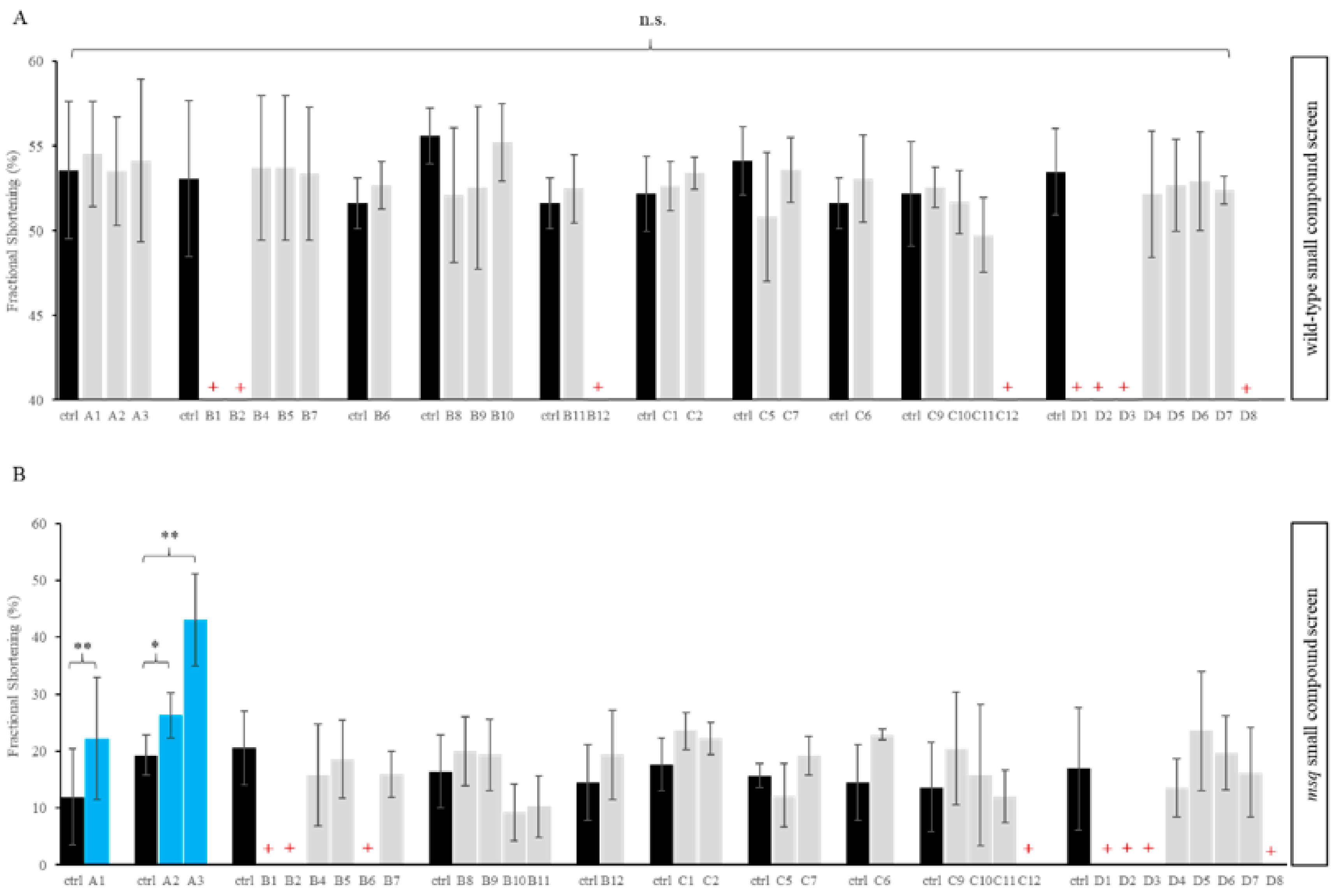

Figure 3. Primary small compound screen in msq mutants revealed three compounds to reconstitute fractional shortening (FS). Impact of tested compounds on ventricular fractional shortening in wild-type siblings as well as msq mutants. The data for average fractional shortening are plotted only for the compounds where at least three embryos could be quantified. (A) None of the embryos showed any increase or decrease in the average fractional shortening in wild-type embryos, whereas (B) compound A1, A2 and A3 results in significantly increased ventricular FS in msq mutants (*: Statistically significant, **: Highly significant, +: Lethal). For the drugs’ names, please refer to the Table A1 in the Appendix A.
Figure 3. Primary small compound screen in msq mutants revealed three compounds to reconstitute fractional shortening (FS). Impact of tested compounds on ventricular fractional shortening in wild-type siblings as well as msq mutants. The data for average fractional shortening are plotted only for the compounds where at least three embryos could be quantified. (A) None of the embryos showed any increase or decrease in the average fractional shortening in wild-type embryos, whereas (B) compound A1, A2 and A3 results in significantly increased ventricular FS in msq mutants (*: Statistically significant, **: Highly significant, +: Lethal). For the drugs’ names, please refer to the Table A1 in the Appendix A.
Biomolecules 08 00153 g003

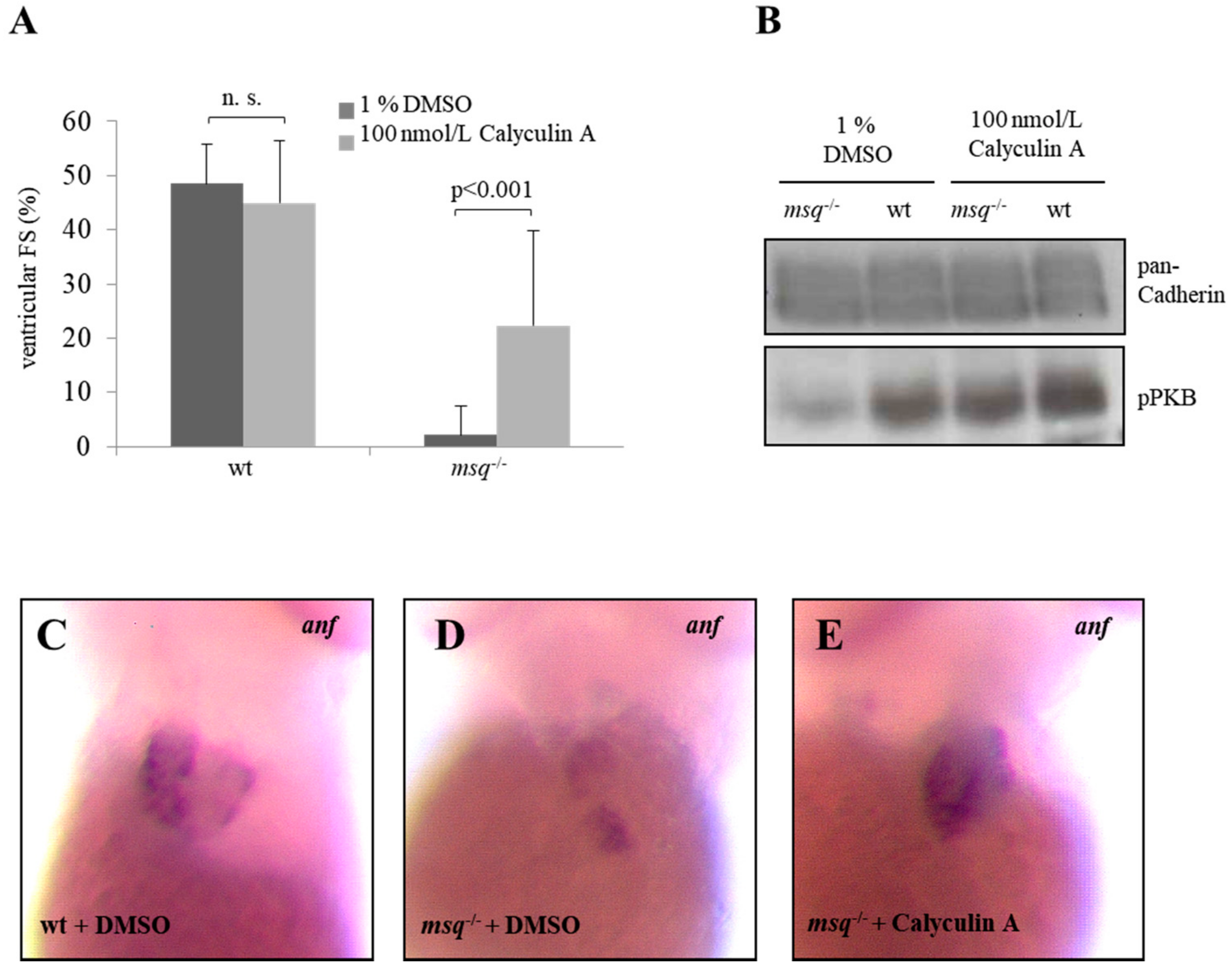

Figure 4. Calyculin A reconstitutes contractile force, PKB phosphorylation and anf expression in msq. (A) Ventricular FS of homozygous mutant msq embryos (msq−/−) in comparison to wild-type (WT) zebrafish. Homozygous msq embryos treated with 100 nmol/L calyculin A during 4–96 hpf displayed improved contractile force (25.4 ± 18.9% (p = 0.00015) compared to embryos incubated with DMSO (2.2 ± 5.3%). (n.s.: Not significant) (B) Treatment of homozygous msq−/− embryos with 100 nmol/L calyculin A displayed an increased PKB phosphorylation (pPKB) in comparison to controls. In situ hybridization revealed that calyculin A treated homozygous msq−/− embryos (E) show, in contrast to DMSO-treated wild-type zebrafish (C) and DMSO-treated msq−/− embryos (D), an almost indistinguishable anf expression.
Figure 4. Calyculin A reconstitutes contractile force, PKB phosphorylation and anf expression in msq. (A) Ventricular FS of homozygous mutant msq embryos (msq−/−) in comparison to wild-type (WT) zebrafish. Homozygous msq embryos treated with 100 nmol/L calyculin A during 4–96 hpf displayed improved contractile force (25.4 ± 18.9% (p = 0.00015) compared to embryos incubated with DMSO (2.2 ± 5.3%). (n.s.: Not significant) (B) Treatment of homozygous msq−/− embryos with 100 nmol/L calyculin A displayed an increased PKB phosphorylation (pPKB) in comparison to controls. In situ hybridization revealed that calyculin A treated homozygous msq−/− embryos (E) show, in contrast to DMSO-treated wild-type zebrafish (C) and DMSO-treated msq−/− embryos (D), an almost indistinguishable anf expression.
Biomolecules 08 00153 g004

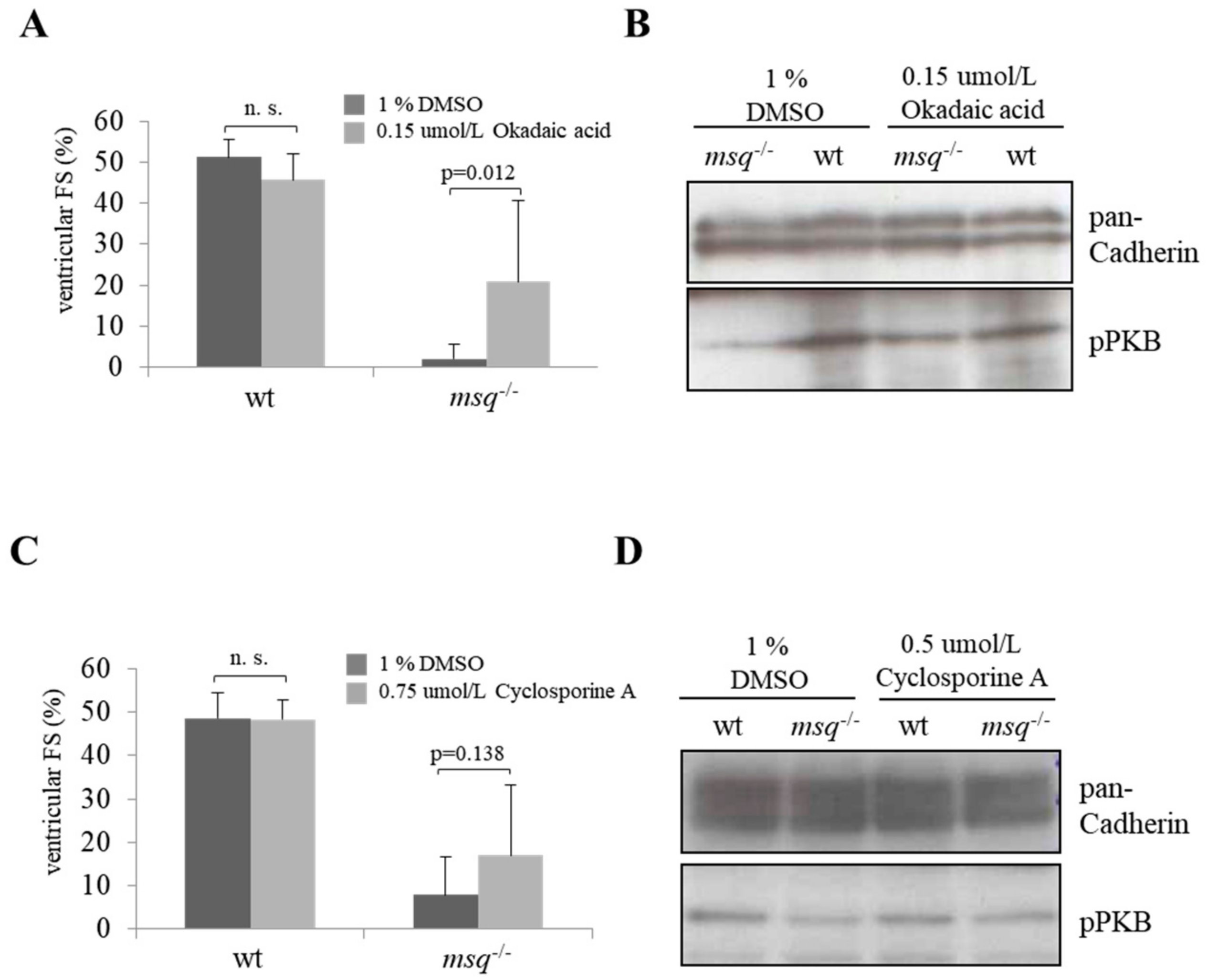

Figure 5. Okadaic acid and cyclosporine A partially reconstitute the contractile force and PKB phosphorylation in msq. (A) After treatment with 0.15 µmol/L okadaic acid during 4–96 hpf homozygous msq−/− embryos showed an increased contractility from 2.0 ± 3.5% to 20.8 ± 19.9%. (B) Immunoblotting indicated that the phosphorylation status of PKB (pPKB) was also slightly increased in 0.15 µmol/L okadaic acid treated msq−/− embryos (incubation during 4–96 hpf). (C) Ventricular fractional shortening of msq−/− embryos treated with 0.75 µmol/L cyclosporine A during 4–96 hpf showed in comparison to DMSO-treated msq−/− embryos (7.9 ± 8.7%) a partially reconstituted contractile force (16.9 ± 16.2%). (D) Correspondingly to fractional shortening, immunoblotting revealed that treatment with 0.5 µmol/L cyclosporine A (incubation during 48–72 hpf) slightly increased the level of phosphorylated PKB in msq−/− embryos compared to controls. (n.s.: Not significant).
