Cj0683 Is a Competence Protein Essential for Efficient Initialization of DNA Uptake in Campylobacter jejuni

Abstract

C. jejuni is an important food-borne pathogen displaying high genetic diversity, substantially based on natural transformation. The mechanism of DNA uptake from the environment depends on a type II secretion/type IV pilus system, whose components are partially known. Here, we quantified DNA uptake in C. jejuni at the single cell level and observed median transport capacities of approximately 30 kb per uptake location. The process appeared to be limited by the initialization of DNA uptake, was finite, and, finalized within 30 min of contact to DNA. Mutants lacking either the outer membrane pore PilQ or the inner membrane channel ComEC were deficient in natural transformation. The periplasmic DNA binding protein ComE was negligible for DNA uptake, which is in contrast to its proposed function. Intriguingly, a mutant lacking the unique periplasmic protein Cj0683 displayed rare but fully functional DNA uptake events. We conclude that Cj0683 was essential for the efficient initialization of DNA uptake, consistent with the putative function as a competence pilus protein. Unravelling features important in natural transformation might lead to target identification, reducing the adaptive potential of pathogens.

1. Introduction

Campylobacter jejuni is the leading cause of bacterial food-borne enteritis with more than 220,000 cases reported in 2019 in the European Union [1]. Human campylobacteriosis is characterized by acute diarrhea, abdominal cramps, fever, and nausea. However, long-term sequelae, such as the Guillain-Barré syndrome, can also occur in few cases [2,3]. C. jejuni displays a high genetic diversity due to its natural transformation capacity. This leads to an increase of the bacterium’s adaptive potential resulting in successful survival including the acquisition of antimicrobial resistances [4,5,6,7]. A prerequisite of natural transformation is the capacity to take up DNA from the environment. Competence development in C. jejuni occurred at neutral pH under microaerobic conditions and was shut-down at slight acidity as well as under atmospheric oxygen levels [8]. This suggested that natural transformation in C. jejuni was most active in its natural habitat, the intestinal tract of warm-blooded animals.

DNA uptake in bacteria is a two-step process and the proteins implicated have been concisely reviewed [9,10]. In C. jejuni, the process of DNA uptake is mediated by homologs of a type II secretion/type IV pilus system [11,12]. C. jejuni harbors a homolog of pilQ (ctsD, cj1474c) [11], shown to encode a pore for the uptake of DNA over the outer membrane into the periplasm, e.g., in Neisseria gonorrhoeae [13,14]. The type IV pilus traverses PilQ [15], and DNA binding and retraction of the pilus fiber was shown to move DNA towards the outer membrane, initializing DNA uptake into the periplasm in Vibrio [16]. A similar mechanism of “grabbing” external DNA or of DNA binding to a pseudopilus, as proposed for Neisseria [17], might also be postulated for C. jejuni.

The periplasmic DNA-binding protein ComE was suggested to be the receptor for incoming DNA in well-studied competent Gram-negative bacteria. ComE was shown to exert force on the DNA molecule, thereby pulling DNA over the outer membrane [18,19]. ComE-mediated import of DNA is a considerably slower process than observed in H. pylori, lacking a comE homolog and displaying fast pilus-like DNA uptake kinetics [20]. The unique ComH protein, only present in H. pylori, was proposed to play a role in the alternative binding of periplasmic DNA [21]. However, ComH accumulation in the periplasm occurred timely after DNA uptake. Thus, the role of this periplasmic protein might be in initialization of DNA uptake and transfer of already imported DNA to the inner membrane ComEC channel. Using ComE for DNA uptake, the binding capacity in the periplasm appeared to be limited to around 40 kb [22] C. jejuni harbors the comE homolog Cj0011c but knockout mutants were only 10–50-fold impaired in natural transformation activity [23]. The overall DNA uptake process was shown to depend on the presence of a methylated RAATTY motif, excluding foreign DNA from uptake into C. jejuni [24]. Upon entry into the periplasm, DNA has to be unzipped while being imported through the inner membrane channel, ComEC, reaching the cytoplasm [10]. A core “competence domain” in ComEC proteins was defined from the analysis of more than 5500 bacteria [25]. Likewise, C. jejuni harbors the comEC homolog cj1211c, and its knockout led to a transformation-deficient mutant strain still able to take up radiolabeled DNA [26].

Extracellular DNA has been shown to serve as a matrix for biofilm formation and it has been suggested that horizontal gene transfer and biofilm formation are interconnected [27]. For example, in Streptococcus, the deletion of the competence protein comGB drastically decreased DNA binding and uptake and reduced biofilm formation [28]. In Clostridioides difficile, the deletion of pilJ and pilW, coding for pilin subunits involved in DNA uptake, impaired biofilm formation [29].

In this study, we compared the DNA uptake capacity of C. jejuni with that of Helicobacter pylori, from which absolute quantitative data are available [30]. Our observations suggested that (i) the median uptake capacity of C. jejuni was 30 kb per focus, (ii) the initialization of DNA uptake might be the limiting factor; (iii) the process was finalized within 30 min of contact with DNA; and that (iv) the process stopped upon transport of a finite DNA amount into the periplasm. Mutants lacking key players for outer and inner membrane DNA transport, PilQ, ComE, and ComEC, were constructed, analyzed in the single cell assay, and their negligible role in biofilm formation was observed. Most interestingly, we identified a novel periplasmic pilus protein, Cj0683, with an important role in the initialization of DNA uptake over the outer membrane.

2. Materials and Methods

2.1. Strains and Growth Conditions

All strains used in this study are listed in Table S1. C. jejuni 81–176 [31] from −80 °C stock cultures (MAST Group Ltd., Bootle, UK) was grown on Columbia blood agar plates supplemented with 5% defibrinated sheep blood (ColbA, Oxoid, Thermo Fisher Scientific Inc., Waltham, MA, USA) under microaerobic conditions (5% O₂, 10% CO₂, rest N₂; Binder, Tuttlingen, Germany). After subculturing under the same conditions, the strain was grown in a liquid shaking culture in Bolton broth (Oxoid, Thermo Fisher Scientific Inc., Waltham, MA, USA) at 3.5% H₂, 6% O₂ and 7% CO₂ (Air Liquide, Paris, France) and 37 °C using a jar with gas replacement capacity (Oxoid Anaerobia System, Thermo Fisher Scientific Inc., Waltham, MA, USA). For the selection of transformants, ColbA was supplemented with kanamycin (20 µg/mL), apramycin (20 µg/mL), streptomycin (20 µg/mL), and/or chloramphenicol (15 µg/mL) (Sigma Aldrich, Merck KGaA, Darmstadt, Germany). Helicobacter pylori J99 [32] was cultured on ColbA or in tryptic soy broth (TSB, Becton Dickinson, Franklin Lakes, NJ, USA) supplemented with 5% fetal calf serum (PAN-Biotech GmbH, Aidenbach, Germany) and 2.5 μg/mL amphotericin B, 0.31 µg/mL polymyxin B, 6.25 µg/mL trimethoprim, and 12.5 µg/mL vancomycin (Sigma Aldrich, Merck KGaA, Darmstadt, Germany). Cells were cultured at 140 rpm under microaerobic conditions (5% O₂, 10% CO₂, rest N₂) and 37 °C.

2.2. DNA Uptake Assay, Quantification and Transformation

The DNA uptake assay was performed as described in [8]. In short, genomic C. jejuni DNA was extracted using the PureLink Genomic DNA Kit (Thermo Fisher Scientific Inc., Waltham, MA, USA) and fluorescently labelled with Label IT reagent (Mirus Label IT Fluorescein or Cy3, Mirus Bio LLC, Madison, WI, USA) in a volume:weight ratio of 1:1. After pre-culturing bacteria on ColbA and, subsequently, in Bolton broth, C. jejuni were subcultured in the same liquid medium but with pH adjustment using 175 µL 1 M sodium hydroxide per 5 mL Bolton broth in order to reach the “ON-status” for natural transformation/competence (pH~7.5 after growth in exponential phase) [8]. H. pylori were grown in TSB without pH adjustment. The cultures were incubated at 140 rpm and 37 °C in an atmosphere containing 3.5% H₂, 6% O₂, 7% CO₂ and rest N₂. After 18 h ± 4 h and generation times of 0.9–1.5 h for C. jejuni or 2.6–2.8 h for H. pylori, 100–800 µL cells were harvested in exponential growth phase at OD = 0.05–0.6 by centrifugation at ~16,000× g for 5 min. The pellet was resuspended in 100 µL BHI supplemented with 100 ng fluorescent genomic C. jejuni DNA (1 mg/mL). Cell suspensions were incubated for 30 min under aerobic (C. jejuni) or microaerobic (H. pylori) conditions (5% O₂, 10% CO₂, rest N₂) at 37 °C before centrifugation at 16,000× g for 5 min and resuspension in 15 µL BHI supplemented with 10 U DNase (Roche, Rotkreuz, Schweiz). After the digestion of external DNA for 5 min at 37 °C, cells were immobilized on a 1.5% agarose surface and mounted on an Axio Observer ZI (Zeiss, Jena, Germany) microscope as described previously [8], using 25–100 ms of exposure time. Cells harboring at least one fluorescent focus were considered competent. The ratio of competent cells was calculated. For the quantification of DNA uptake, regions of interest (ROIs) at the DNA uptake locations and in background cells were manually set and mean fluorescence intensity per pixel and number of pixels per ROI were analyzed. The effect of bleaching was checked by subsequent light exposure (4-times 500 ms) to Cy3-labelled λ DNA upon uptake in H. pylori (Thermo Fisher Scientific Inc., Waltham, MA, USA). The fourth measurement was 96.1% ± 2.8% compared to the first light exposure of 500 ms, indicating that bleaching was negligible under these conditions.

For the determination of transformation rates, all steps were performed under a microaerobic atmosphere at 5% O₂, 10% CO₂, and rest N₂. Bacterial cells were incubated with unlabeled genomic DNA (gDNA) of a strain carrying a point mutation in rpsl (A128G; 81–176-strep). After uptake for 1 h in BHI at 37 °C in the presence of 1 mg/mL gDNA, cells were centrifuged for 5 min at 16,000× g and resuspended in fresh BHI with 10 U DNase. Digestion was performed for 1 h at 37 °C. Cells were again centrifuged, resuspended in fresh BHI, and incubated for 3 h at 37 °C before the selection of transformants on ColbA supplemented with 20 µg/mL streptomycin at 37 °C for 2 days. The transformation rate was calculated as the ratio of the number of transformants grown on streptomycin-containing ColbA versus the total number of colonies on non-selective plates.

2.3. Construction of Deletion Mutants and Respective Complemented Strains

Mutants were constructed using site directed mutagenesis (Figure S1). A nonpolar kanamycin cassette [33] was fused with about 500 bp homologous adjacent regions to recombine into pilQ (ctsD = cj1474c), comE (cj0011c) or comEC (cj1211). For the deletion of cj0683, an apramycin cassette was used instead [34] to further allow the construction of double mutants. Hence, 5′ flanking regions were amplified using primer pair C29/C30 for comEC, C34/C35 for pilQ, C44/C45 for comE, and C98/C99 for cj0683 (Table S2). Cloning primers were purchased as HPLC-grade, PCR verification primers were desalted (Sigma Aldrich, Merck KGaA, Darmstadt, Germany). Primers C30, C35, C45 contained a 15 bp region complementary to the 5′end of the kanamycin cassette. Primers C98/C99 harbored an EcoRI site and 29 bp complementary to the 5′ end of the apramycin cassette. Furthermore, 3′ flanking regions were amplified using C31/C32 for comEC, C36/C37 for pilQ, C46/C47 for comE and C100/C101 for cj0683. Primers C31, C36, and C46 harbored a 24-bp region complementary to the 3′ end of the kanamycin cassette. Primer C100/C101 contained an EcoRI site and 14 bp complementary to the 3′ end of the apramycin cassette. For each PCR genomic DNA of NCTC 11168 [35] was used as a template. The kanamycin resistance gene was amplified from pUC18K2 with H13/H14. Primers H11/H12 were used to amplify the apramycin cassette from pUC1813apra [34]. Using these complementary regions, the kanamycin gene was fused with the flanking regions of pilQ, comE, and comEC by PCR. Accordingly, the apramycin gene was fused with the flanking regions of cj0683. The fusion fragments for the deletion of pilQ, comE, and comEC were cloned into a pCR2.1-TOPO vector and transformed into One Shot TOP10 chemically competent Escherichia coli (Thermo Fisher Scientific Inc., Waltham, MA, USA) according to the manufacturer’s protocol. For the deletion of cj0683, the fusion fragment was methylated by EcoRI methyltransferase (New England Biolabs, Ipswich, MA, USA) for 1 h at 37 °C followed by heat inactivation at 65 °C for 15 min.

The vectors were purified using the GeneJet Plasmid Mini Prep kit (Thermo Fisher Scientific Inc., Waltham, MA, USA) and transferred into strain NCTC 11168 via electroporation modified according to Van Vliet et al. 1998 [36]. Note that electroporation was the method of choice for construction of C. jejuni mutants before the discovery of the methylation motif, essential for DNA uptake [24]. The introduction of DNA into C. jejuni by electroporation, however, is much less efficient than natural transformation. Thus, in this study, only the three mutants, ΔpilQ, ΔcomEC, and ΔcomE, were constructed by electroporation of the pCR2.1-TOPO vectors into NCTC 11168 and 100 ng gDNA of those strains was used for transfer of the respective target deletion to strain 81–176 as described in Section 2.2. The complementation mutants and the Δcj0683 mutant were constructed by direct natural transformation of the fusion fragment or the complementation vectors (see below) into strain 81–176. For this purpose, EcoRI restriction sites were introduced into the constructs and methylated as mentioned above so that the constructs harbored a proper signal for DNA uptake during natural transformation. For construction of the double mutant Δcj0683ΔcomE, 100 ng of the methylated fusion PCR product of Δcj0683 was transformed into 81–176ΔcomE mutant. Transformants were selected on kanamycin and apramycin. Deletion of pilQ, comE, comEC, or cj0683 in 81–176 and insertion of the nonpolar kanamycin cassette or apramycin cassette was verified by PCR (Figure S1).

Complementation of genes was performed by the introduction of the respective wild type gene in the hsdM (cj1553c) locus of 81–176 using the suicide vector pSB3021 as described previously [37] (Figure S1). Since the deletion of pilQ, comEC, and cj0683 abolished or drastically reduced natural transformation, we first introduced a second copy of pilQ, comEC, and cj0683 before deletion of those genes at their native locations. pSB3021 contains a chloramphenicol acetyltransferase gene and the target gene is co-expressed with the resistance cassette. In detail, the complete pilQ was amplified with C113/C114, comEC with C115/C116, and cj0683 with C117/C118, generating each at the 5′ end a 20 bp Shine-Dalgarno region from pglF, preceded by an EcoRI site for methylation and an NcoI-site at the very 5′ end for cloning. Likewise, a second EcoRI site followed by an external XhoI-site was introduced at the 3′ end. PCR products and the vector were digested using NcoI and XhoI and the respective insert was ligated into pSB3021. After transformation of the ligation product into One Shot TOP10 chemically competent E. coli, the resulting vectors were methylated as described above and 100 ng of each vector was transformed into 81–176. The transformants were selected with 15 µg/mL chloramphenicol. After confirmation of the correct insertion of the gene construct in hsdM, the strains were then transformed with genomic DNA of 81–176ΔpilQ, 81–176ΔcomEC, or 81–176Δcj0683 and selected with both chloramphenicol and kanamycin or chloramphenicol and apramycin. The strains were verified by PCR (Figure S1).

2.4. Biofilm Formation Assay

C. jejuni was grown on Mueller-Hinton-Agar supplemented with 5% sheep blood (MHAB; Oxoid, Thermo Fisher Scientific Inc., Waltham, MA, USA) for 72 h under microaerobic conditions (6% O₂, 10% CO₂, rest% N₂) created with the Mart Anoxomat system (Mart Microbiology BV, Advanced Instruments, Norwood, MA, USA). For liquid cultures, colonies were transferred into Brucella broth (Becton Dickinson, Franklin Lakes, NJ, USA) and incubated under the microaerobic conditions mentioned above for 24 h. The control strain Pseudomonas aeruginosa DSM 1117 (DSMZ strain collection, Braunschweig, Germany) was cultured on BHI agar (Merck KGaA, Darmstadt, Germany) for 24 h and 37 °C or in a liquid shaking culture in Luria Bertani (Merck KGaA, Darmstadt, Germany) at 37 °C.

The biofilm assays were performed according to the method described before with slight modifications [38]. Briefly, for generating a 100-fold dilution of the inoculum, the respective amount of overnight culture was transferred into fresh Mueller-Hinton broth (MHB; Oxoid, Thermo Fisher Scientific Inc., Waltham, MA, USA) to achieve a cell count of approximately 1 × 10⁷ CFU/mL, which was checked by drop plating on MHAB. The outer wells of a sterile uncoated 96-well polystyrene microtiter plates (VWR, Dresden, Germany) were filled with 250 µL sterile medium to minimize evaporation in the central wells. For each strain, six wells were inoculated with 100 µL of the respective cell suspension and sterile MHB was used as negative control in one column of 6 wells. The plates were incubated at 37 °C for 72 h under microaerobic conditions, using CampyGen packs (Oxoid, Thermo Fisher Scientific Inc., Waltham, MA, USA) in an anaerobic jar. In order to determine the biofilm mass, the supernatant was carefully removed, and the wells were washed once with 150 µL PBS (Merck KGaA, Darmstadt, Germany) to remove unbound bacterial cells. Afterwards, the plates were dried for 30 min at 60 °C before the addition of 150 µL 0.1% crystal violet (CV) solution (Sigma-Aldrich, Merck KGaA, Darmstadt, Germany) to each well and incubation for 30 min at room temperature. To remove excess CV, the wells were washed with 400 µL and once again with 150 µL PBS. After drying for 30 min at room temperature, bound CV was dissolved in 150 µL of 96% ethanol for 15 min. Hence, 100 µL of the supernatant was transferred to a new microtiter plate and the absorbance was measured at 595 nm using a microplate reader (EL800, Aglient BioTek, Santa Clara, CA, USA). For final analysis, the median absorbance from the respective negative controls was subtracted from each value of the corresponding samples.

2.5. Statistical and Bioinformatic Analysis

Statistical significance was tested using a Mann-Whitney U-test in R version 4.2.2. BLAST analysis was performed with the online tool of the National Center for Biotechnology Information (NCBI; https://blast.ncbi.nlm.nih.gov; last accessed on 9 December 2022). For the calculation of protein secretion signals, Phobius Webtool was used (https://phobius.sbc.su.se/; Stockholm Bioinformatics Center, Sweden; last accessed on 9 December 2022). Calculation of theoretical pI was performed with Expasy (https://www.expasy.org/resources/compute-pi-mw; last accessed on 9 December 2022).

3. Results

3.1. Multiple Fluorescent DNA Molecules Are Located within Distinct Periplasmic Foci during C. jejuni DNA Uptake

C. jejuni can enter a competence phase, in which nearly half of the cells were capable to take up external DNA at one to four distinct locations within a cell [8]. Here, we wanted to know how much DNA was imported at distinct DNA uptake locations and if multiple DNA molecules were imported at one location. For this purpose, we used our established single cell assay to monitor fluorescent DNA uptake in C. jejuni [8]. In order to distinguish different DNA molecules, we prepared two batches of either fluorescein or Cy3 labelled genomic C. jejuni DNA. First, we checked whether C. jejuni DNA uptake was independent of the fluorophore. Indeed, nearly the same number of cells took up either fluorescein or Cy3 labelled DNA, if differently labelled DNA batches were added to separate cell suspensions for 30 min (35.3% ± 2.4% for fluorescein DNA or 36.4 ± 3.0% for Cy3 DNA, Figure 1A, green and orange bars).

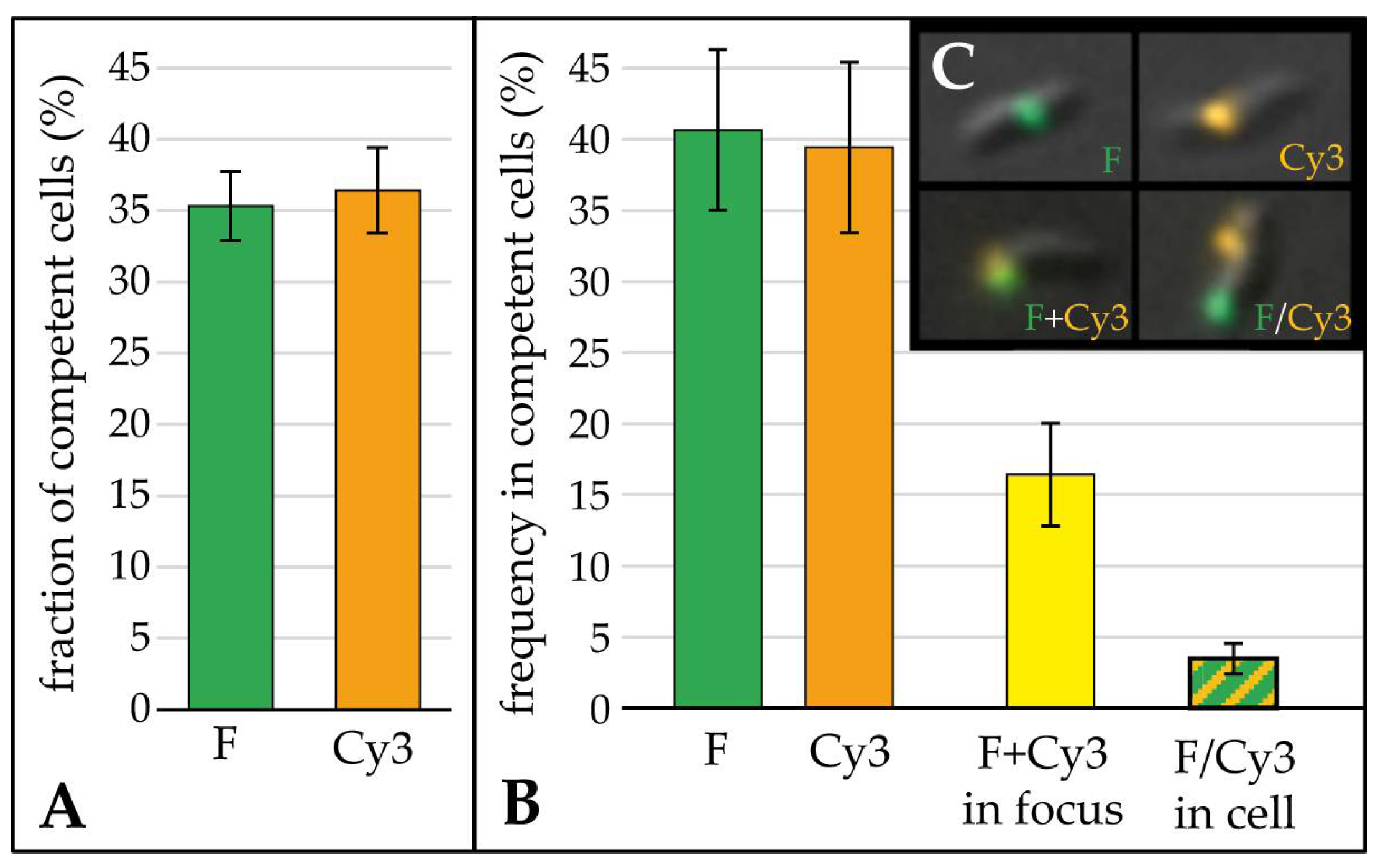

When C. jejuni was incubated with both fluorescein and Cy3 DNA in parallel, we observed that 16.4% ± 3.6% of all cells with active DNA uptake imported at least two DNA molecules at the same location, since both fluorescein DNA and Cy3 DNA were detected in a single focus (Figure 1B, yellow bar). In addition, 3.5% ± 1.1% of competent cells displayed two separate foci with either fluorescein or Cy3 DNA (Figure 1B, green/orange hatched bar). Again, the fraction of cells that solely took up either fluorescein labelled DNA or Cy3 DNA was similar (40.7% ± 5.7% for fluorescein and 39.4 ± 6.0% for Cy3 DNA).

To verify the location of imported fluorescent DNA in the periplams of C. jejuni, we checked the transformation rate using either native unmodified DNA or covalently labelled substrates of a streptomycin resistant strain carrying the A128G point mutation in rpsL. Using unmodified DNA as substrate, transformation rates of 6.6 × 10⁻⁴ ± 6.4 × 10⁻⁴ were observed. In contrast, fluorescein and Cy3 labelled DNA were very poor substrates for transformation in C. jejuni, since transformation rates were nearly at the detection limit of 8.5 × 10⁻⁹ ± 2.4 × 10⁻⁹. The results can be explained by the fact that covalently labelled DNA is situated in the periplasm because of steric hindrance of the covalent fluorophore, inhibiting further transport into the cytoplasm as previously suggested for H. pylori [20]. Very rare events of transformation might be due to very few unlabelled molecules present in the labelled fraction of DNA. We showed before that the fraction of cells importing covalently modified DNA and transformation rates with native substrate correlated well [8], indicating the suitability of the single cell assay for the analysis of natural transformation. The periplasmic trapping of covalently modified DNA is a further advantage of the assay for the quantification of total DNA uptake capacity (see below).

3.2. Estimation of DNA Uptake Capacity of C. jejuni Reveals Imported DNA Amounts in Median of around 30 kb

C. jejuni was able to take up at least two DNA molecules at one distinct location. Previously, we quantified the amount of DNA uptake per focus and per cell in H. pylori [30]. Quantification was performed by analyzing the uptake of Cy3 labelled DNA of the 48.5 kb bacteriophage λ and normalization of fluorescence intensity to single λ molecules of the same labelling batch. For H. pylori J99, a median of 108 kb per DNA focus and 351 kb per cell were observed [30]. C. jejuni only takes up native genomic DNA methylated at RAATTY sites, but no foreign λ DNA. Genomic C. jejuni DNA contains different fragment sizes and sequences. Thus, single molecule fluorescence intensity determination is not suitable. However, on average, the length of genomic C. jejuni DNA was ≥20 kb as estimated by gel electrophoresis. Thus, a similar uptake pattern should be expected for H. pylori in the presence of genomic instead of λ DNA, since unlike C. jejuni, the bacterium is indifferent towards the DNA source. In order to approximate the DNA capacity of C. jejuni, we challenged both C. jejuni and H. pylori cells in parallel with the same batch of freshly labelled genomic C. jejuni DNA (Figure 2).

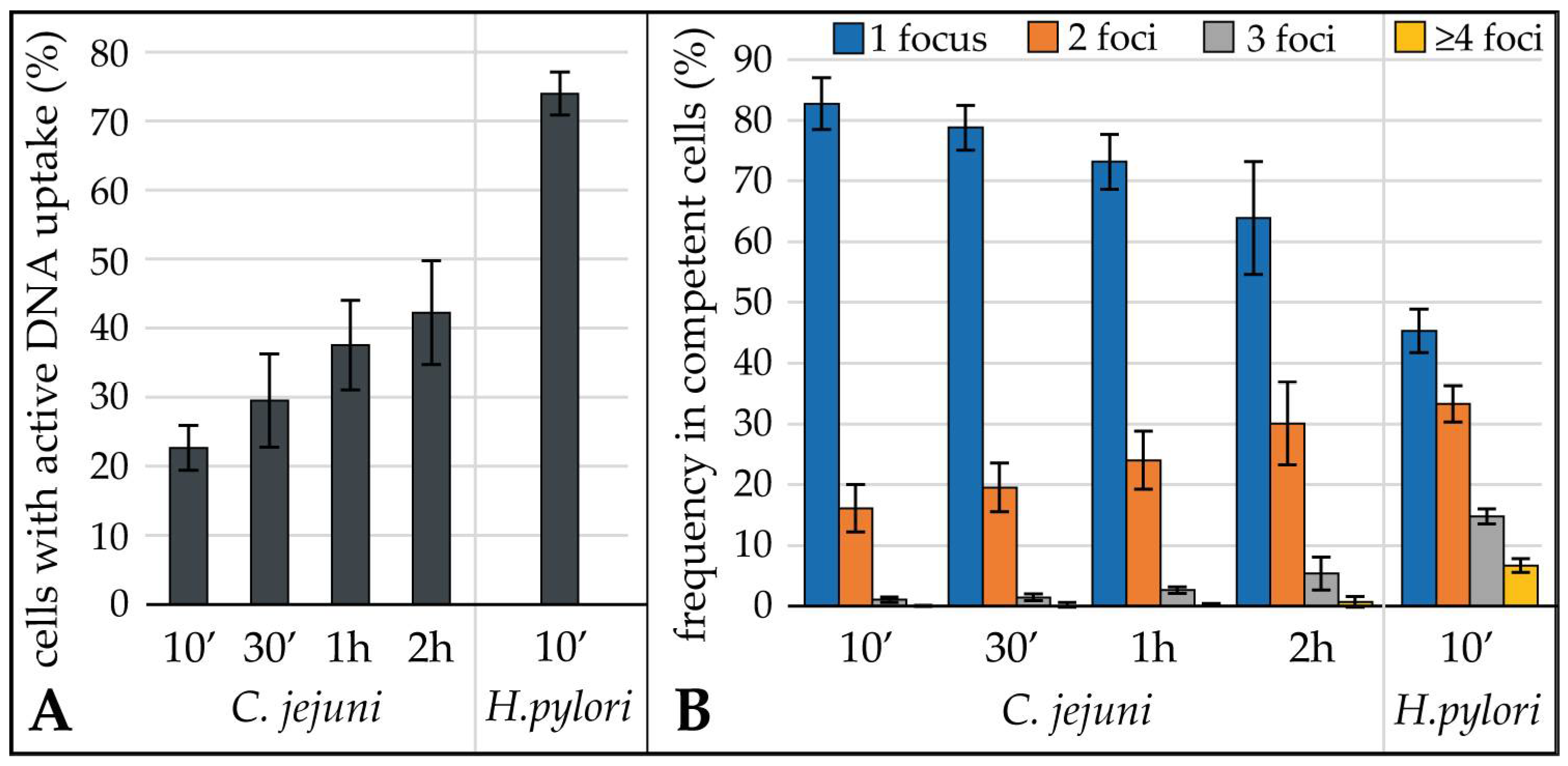

In C. jejuni, the fraction of competent cells increased nearly two-fold from 22.7% ± 3.2% after 10 min to 42.2% ± 7.5% within 2 h of incubation with fluorescent DNA (Figure 2A). In addition, the number of foci per cell increased with time of contact with labelled DNA in C. jejuni (Figure 2B). In comparison, 10-min incubation resulted in 73.9% ± 3.1% of H. pylori with imported fluorescent DNA, from which more than half of the bacteria harbored multiple active DNA uptake locations.

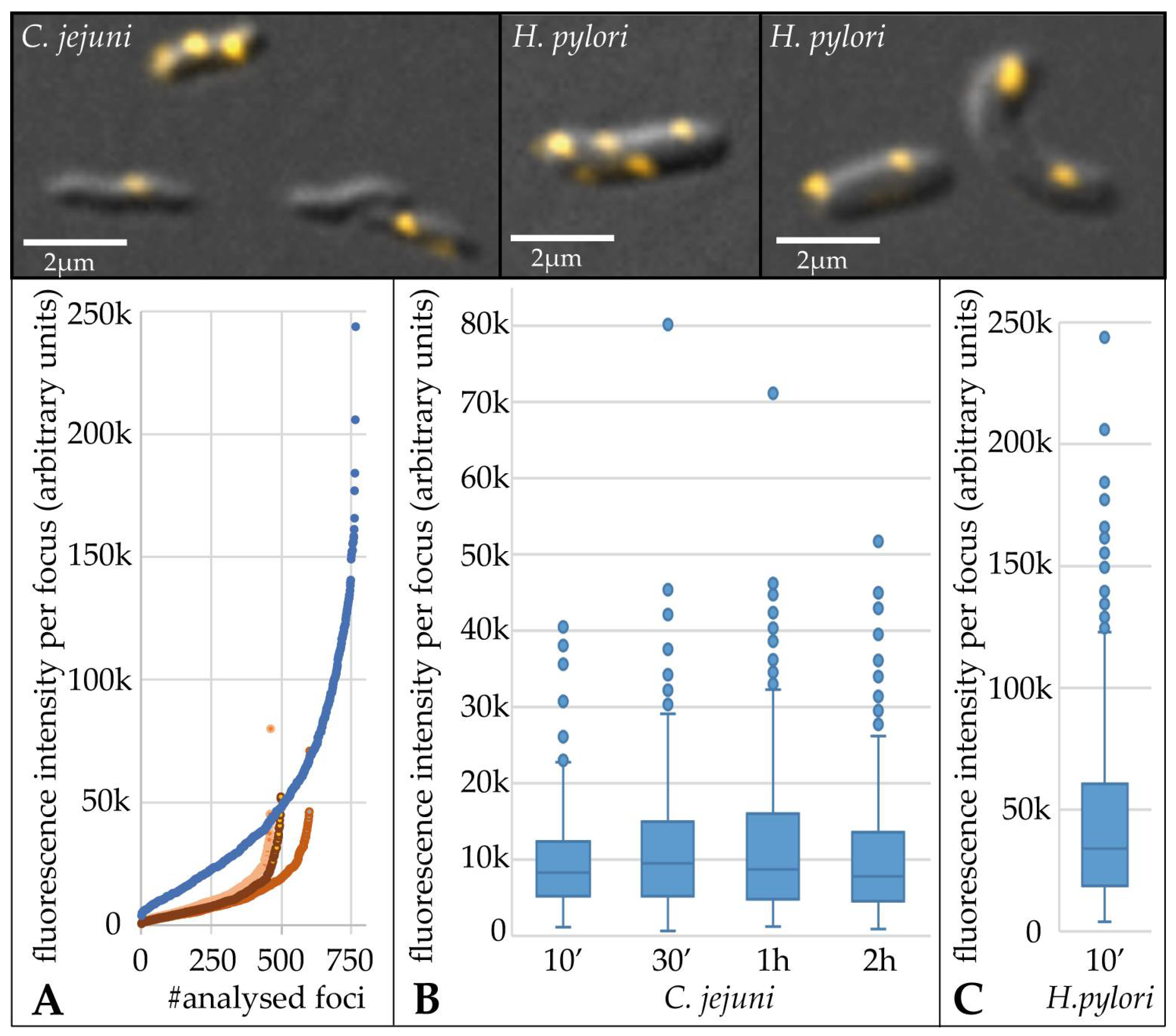

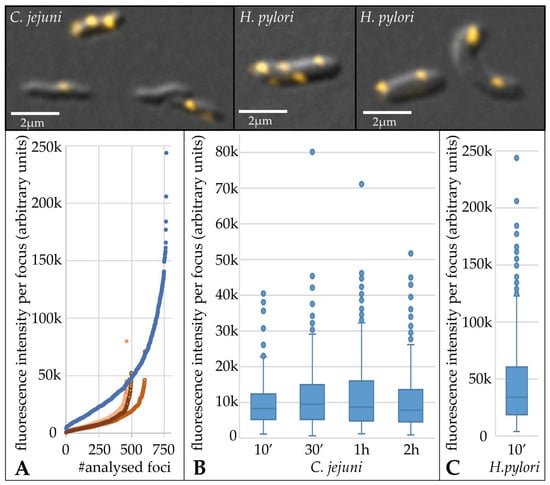

In order to compare the quantitative amount of DNA in distinct uptake locations, we analyzed the total fluorescence intensity of at least 450 DNA foci per condition (Figure 3). For this purpose, the mean fluorescence intensity and the area of regions of interest (ROI) were exported and background values obtained were subtracted from bacteria without DNA uptake. The median fluorescence intensity per focus, i.e., the amount of imported DNA, was 3.7-fold ± 0.5 higher in H. pylori compared to C. jejuni (Figure 3).

This was even “visible to the naked eye”, since for imaging within the limit of the 12-bit camera (below saturation; 4096 grey values), a four-fold lower exposure time had to be used for H. pylori than for C. jejuni to avoid the saturation of grey values. We observed that the distribution of the DNA amount per focus was relatively constant between 10 min and 2 h of uptake time in C. jejuni (Figure 3B). This might indicate that the maximal DNA amount per distinct uptake location was limited. A similar distribution of fluorescence intensities per DNA focus was observed for H. pylori (Figure 3C), with an approximate four-fold shift in absolute fluorescence intensities (Figure 3A,C).

3.3. Essential Roles of pilQ (cj1474c) and comEC (cj1211) but Negligible Contribution of comE (cj0011c) to DNA Uptake in C. jejuni

To gain further insights into the DNA uptake process, we created knock-out mutants by the insertion of a non-polar kanamycin cassette and deletion of genes with roles in natural transformation. The mutants lacked one of the following proteins. The protein Cj1474c has distant homology (25% identity, 43% similarity) to the outer membrane type IV pilus secretin PilQ of N. gonorrhoeae and to GspD (25% identity, 46% similarity) of B. subtilis, which is part of the type II secretion system secretin. Cj0011c shares 54% identity (71% similarity) with ComE of N. gonorrhoeae and 59% identity (83% similarity) with ComEA of B. subtilis. ComE is known as the periplasmic DNA-binding protein, generating the force for DNA uptake over the outer membrane [18,19]. Furthermore, Cj1211 shows homology to H. pylori ComEC protein (34% identity; 56% similarity).

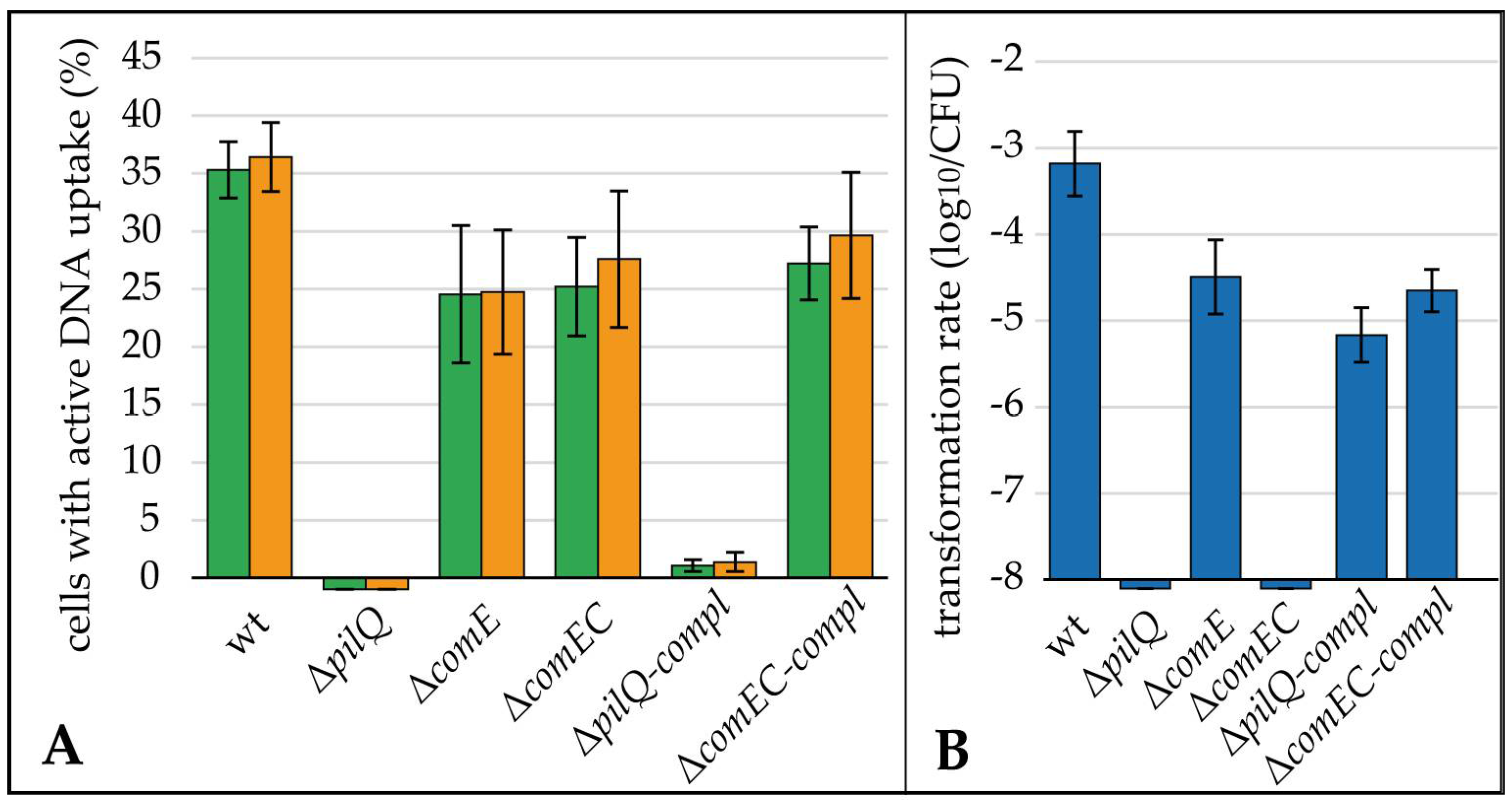

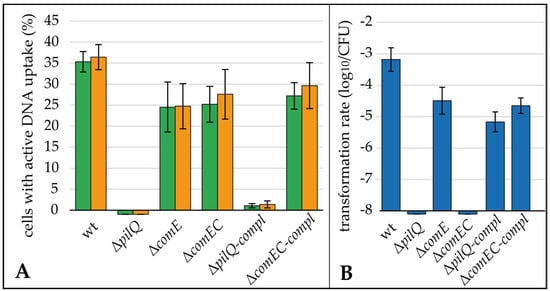

The 81–176ΔpilQ, lacking the putative outer membrane pore, was completely deficient of DNA uptake and, consequently, natural transformation (Figure 4). This means that we did not observe a single DNA uptake focus within ≥10,000 analyzed bacteria, nor any transformant within the detection limit of 8.5 × 10⁻⁹ ± 2.4 × 10⁻⁹.

ΔcomE displayed a marginally reduced fraction of bacteria with active DNA uptake of 24.6% ± 5.5% (n = 12), while the transformation rate was reduced by 1.3 log₁₀ relative to the wild type, indicating a non-essential role of ComE in natural transformation of C. jejuni. As expected for a role in the inner membrane, not disturbing DNA uptake into the periplasm, a similar fraction of cells of 26.2% ± 4.9% (n = 12) showed active DNA uptake in ΔcomEC compared to the wild type. Furthermore, the ΔcomEC mutant was transformation deficient (Figure 4B), supporting its role as an inner membrane channel.

The two mutants with relevant defects in natural transformation, ΔpilQ and ΔcomEC, were genetically complemented. Both mutants showed natural transformation rates, which were 1.5–2 log₁₀ lower than the wild type (Figure 4B). Hence, partial complementation was observed. The lower fraction of cells with active DNA uptake harbored DNA foci with similar fluorescent intensity to the wild type, suggesting the full functionality of these DNA uptake complexes (Figure S2). In theory, there is a possibility of re-integration of the pilQ gene from hsdM into its native location in a subpopulation of cells, putatively explaining the low fraction of competent cells of ΔpilQ-compl. In order to exclude this possibility, we selected ΔpilQ-compl-strep clones which had successfully been transformed with the streptomycin marker and checked that those cells displayed the same phenotype as the parental strain (Figure S3).

3.4. Active DNA Transport Capacity Has No Impact in Biofilm Formation of C. jejuni

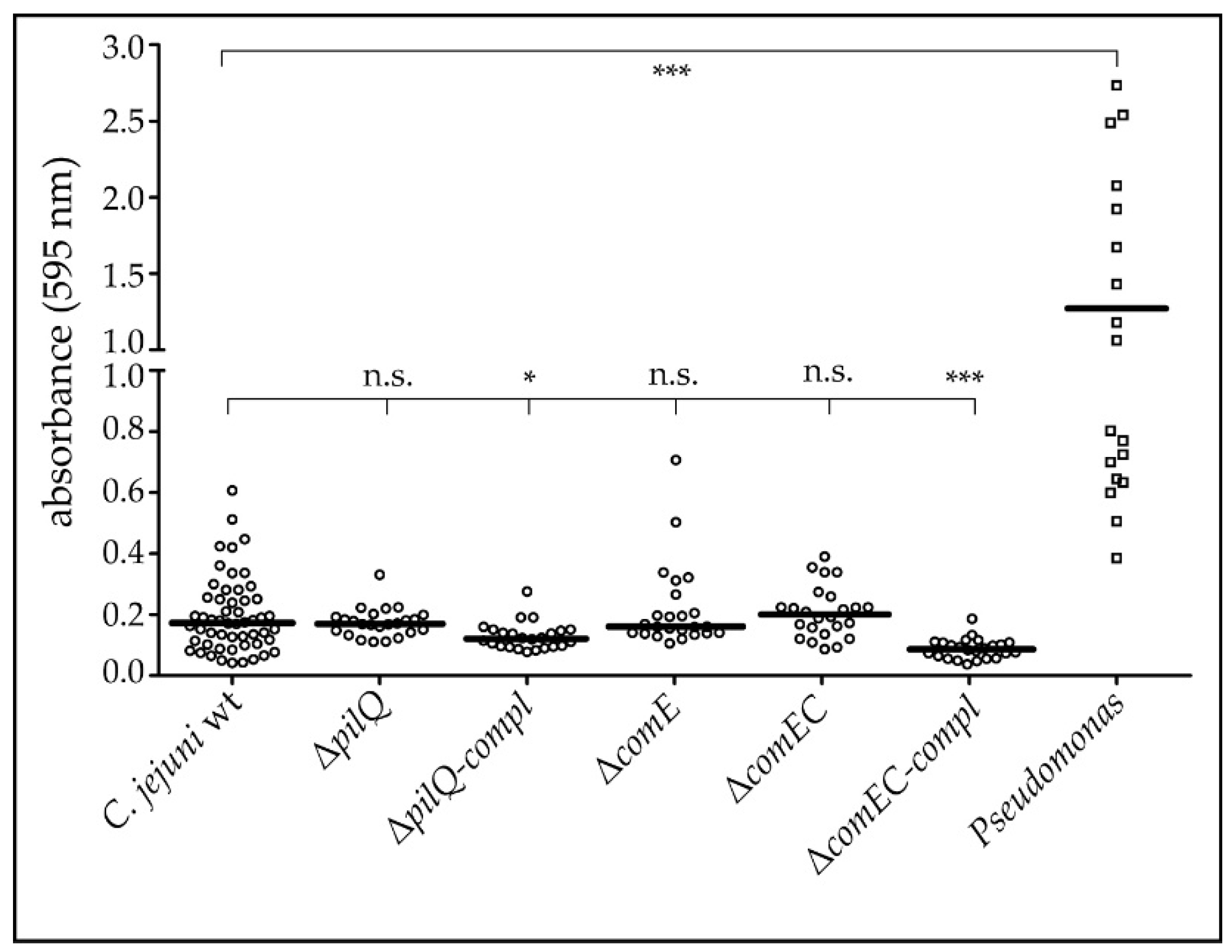

Since extracellular DNA is a well-known matrix for biofilm formation, we wondered if the DNA uptake complex is important for the binding of matrix DNA necessary for biofilm formation in C. jejuni. Therefore, our mutants deficient or hampered in DNA uptake and/or natural transformation were tested for their capacity to produce biofilms. Biofilm formation of the mutant strains ΔpilQ, ΔpilQ-compl, ΔcomE, ΔcomEC, and ΔcomEC-compl was generally low but similar to the wild type strain (Figure 5). As a control, we used Pseudomonas aeruginosa DSM 1117, which produced on average approximately 6.5-fold more biomass attached to the abiotic surface than C. jejuni. From these experiments, we concluded that biofilm formation in C. jejuni is generally weak and independent of active DNA uptake.

3.5. Cj0683 Is a Novel Periplasmic Protein Essential for Efficient Initialization of DNA Uptake in C. jejuni

A mutant lacking the periplasmic DNA-binding protein ComE, involved in DNA uptake in most other Gram-negative bacteria, showed nearly wild type DNA uptake capacity and natural transformation in C. jejuni (Figure 4). In addition, BLAST analysis revealed the absence of a comE homolog in Campylobacter spp. except for C. jejuni and C. cuniculorum isolated from rabbits. ComE unspecifically binds to DNA in the periplasm, generating force on the macromolecule, which in turn leads to the import of DNA. ComE is a small protein, harboring a classical N-terminus for secretion into the periplasm and an alkaline isoelectric point, rendering the protein positively charged at pH 7.

Hence, we initially wondered whether another periplasmic protein could take over the function of ComE in C. jejuni. Therefore, we searched for putative periplasmic proteins in C. jejuni by screening annotated Genebank files and verifying the putative secretion signal using Phobius Webtool. The putative periplasmic protein Cj0683 has similar properties as ComE. A secretion signal calculated using the Phobius Webtool predicted amino acid residues 27–145 to be secreted from the cytoplasm. The N-terminus additionally harbors a motif, including a phenylalanine residue predicted to be methylated during pilin biogenesis. The theoretical pI of the mature protein was calculated to be 8.3. BLAST analysis revealed that Cj0683 is unique for Campylobacter spp., since no homolog was found in other bacteria. Gene context analysis showed that cj0683 is situated in an operon preceding the gene priA in C. jejuni, C. coli and C. lari. PriA had been shown to be involved in natural transformation in Neisseria, putatively acting as helicase for the import of DNA from the periplasm into the cytoplasm [39]. In addition, Cj0683 was shown to interact in a yeast two-hybrid system with CtsE [40], a protein with a nucleotide binding motif, essential for natural transformation of C. jejuni [12]. Thus, Cj0683 was a good candidate for implication in DNA uptake in C. jejuni.

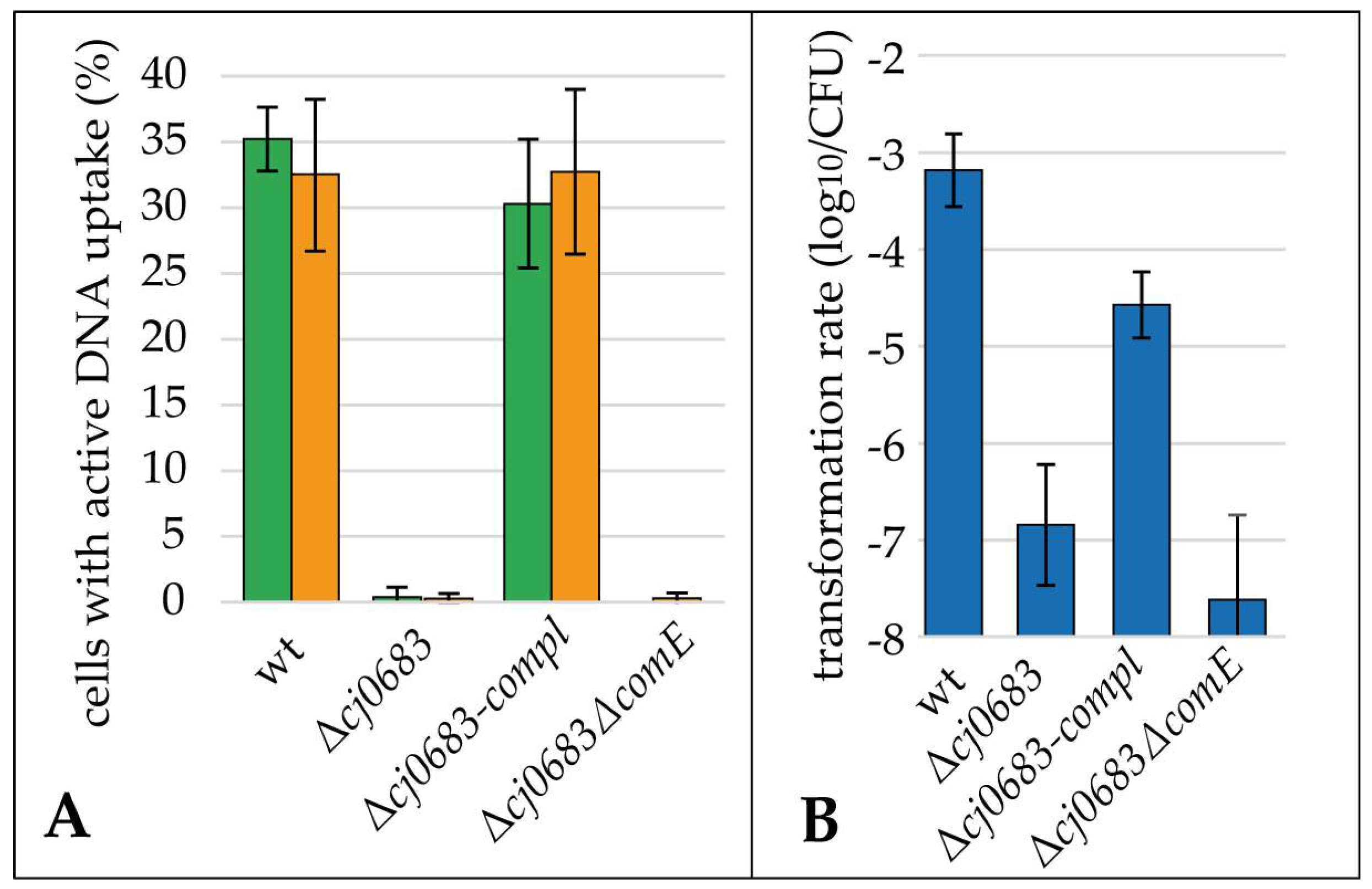

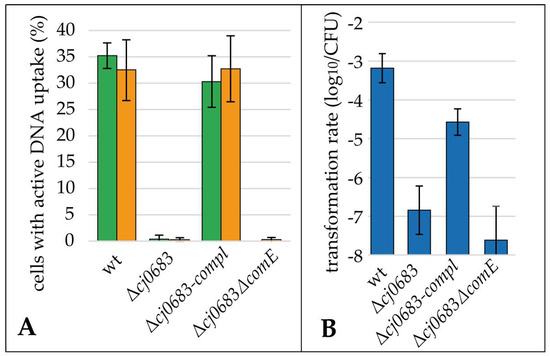

For this reason, a deletion mutant was constructed by the insertion of a non-polar apramycin cassette into cj0683. In addition, a complemented mutant was constructed by the first introduction of a second copy of cj0683 in the hsdM locus and subsequent deletion of cj0683 in its native locus. As performed for the other mutants, Δcj0683 and the complemented mutant Δcj0683-compl were incubated with fluorescent DNA for 30 min. Interestingly, the Δcj0683 mutant, lacking the unique periplasmic protein, was nearly completely deficient of DNA uptake, as expected from its in silico characteristics. Only a minor fraction of 0.09% ± 0.13% (cumulative results of both fluorophores; n = 10) of the cells displayed a DNA focus, and the transformation rate was accordingly reduced by more than 3.7 log₁₀ (Figure 6).

To exclude that these rare events were due to suppression mutations in Δcj0683, we transformed the Δcj0683 with the streptomycin resistance marker and selected the rare streptomycin-resistant transformants (Δcj0683-strep). If suppression mutations had occurred in the bacteria displaying functional DNA uptake, we expected a wild type phenotype of DNA uptake in the Δcj0683-strep clones. Indeed, we identified similar rare events (0.04% ± 0.03%; cumulative results; n = 9) as observed in the parental Δcj0683 strain (Figure S3).

We further wondered whether ComE can partially take over the function of Cj0683 and whether the remaining DNA uptake and transformation rate of the Δcj0683 mutant was dependent on ComE. Therefore, we constructed a double mutant Δcj0683ΔcomE. A comparable fraction of 0.11% ± 0.21% of bacteria displayed functional DNA uptake in the double mutant, suggesting that ComE was not involved in these rare events (Figure 6A). Δcj0683ΔcomE-strep clones obtained after the transformation of the streptomycin resistance marker maintained the same phenotype of rare events of DNA uptake as observed in the parental strain (Figure S3). However, as already observed for the ΔcomE mutant relative to the wild type, the transformation rate in the double mutant was slightly (five-fold) reduced compared to the single Δcj0683 mutant (Figure 6B), hinting at a minor downstream role of ComE in either DNA protection and/or delivery to the inner membrane channel.

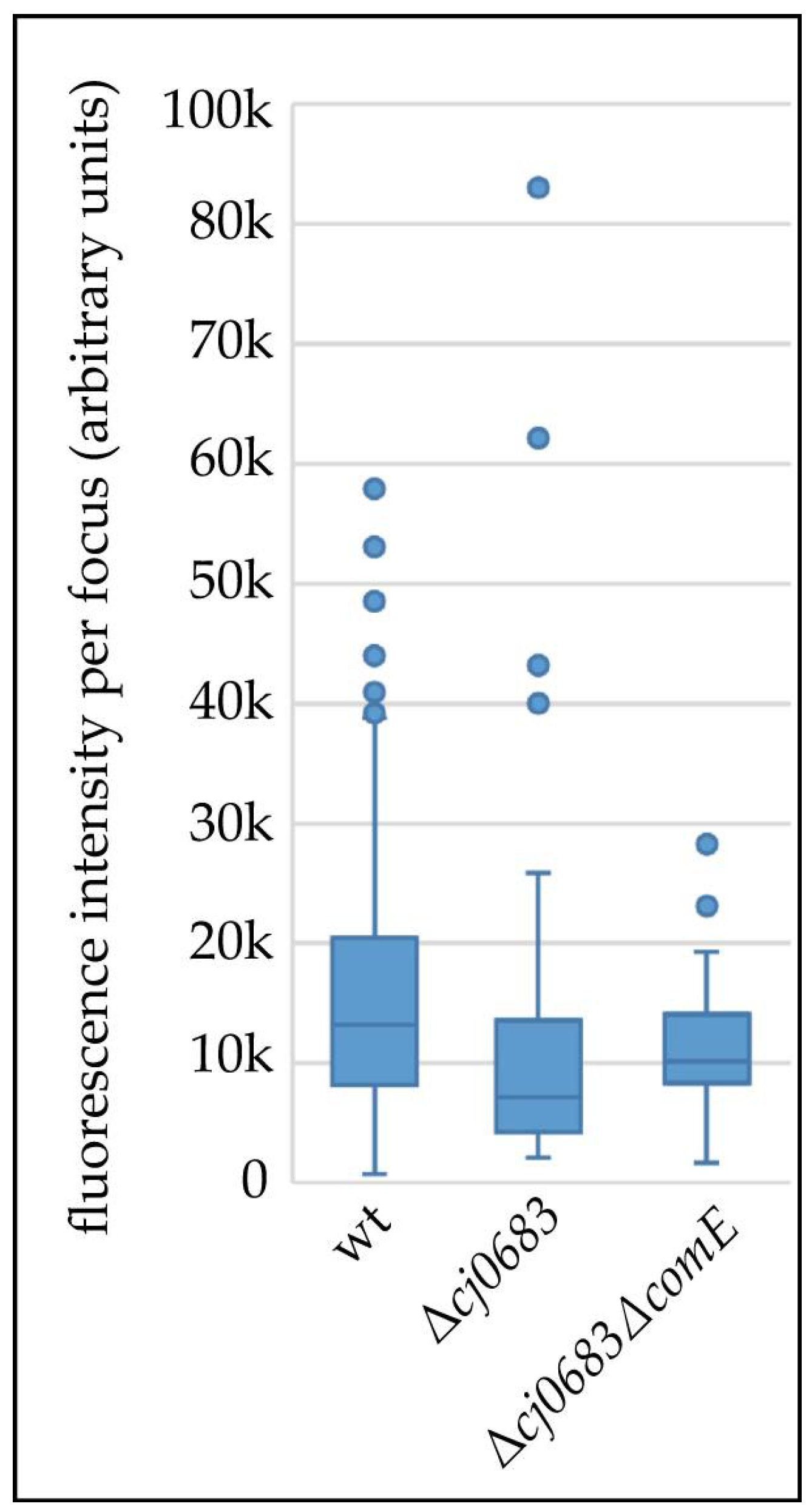

We further quantified the DNA uptake capacity of rare events observed in Δcj0683 and Δcj0683ΔcomE compared to the wild type (Figure 7). A maximal two-fold reduction of median imported DNA amounts was observed in rare events, with some outliers harboring similar or even higher DNA amounts per focus compared to the wild type. Hence, we conclude that the rare DNA uptake events were caused by fully functional DNA uptake over the outer membrane. The absence of Cj0683 led to drastically decreased DNA uptake probability, consistent with a putative role of Cj0683 as part of the (pseudo-) pilus involved in the acquisition and initiation of DNA uptake but not in force-generation as proposed for ComE in other bacteria.

4. Discussion

4.1. DNA Uptake Capacity in C. jejuni Is around Four-Fold Lower than in H. pylori

We previously observed that the fraction of cells displaying at least one active DNA uptake location correlated well with transformation rate using a point mutation resistance marker [8]. By challenging C. jejuni cells with fluorescein and Cy3 labelled DNA, we showed that (i) cells were able to take up both substrates at one visually distinct location and (ii) multiple locations of DNA uptake were present per cell (Figure 1).

C. jejuni only imports DNA which is methylated by the CtsM methylase at the N6-methyladenine residue of the RA^m6ATTY motif [24]. This is why the 48.5 kb DNA of bacteriophage λ, which was used for absolute quantification in H. pylori [30], was not a suitable substrate for C. jejuni. Instead, genomic C. jejuni DNA is imported with molecule sizes of ≥20 kb. Thus, we incubated C. jejuni and H. pylori with the same batch of Cy3 labelled C. jejuni DNA in parallel for the relative estimation of DNA capacity in C. jejuni compared to H. pylori.

Three main results were obtained. The first result was that the fraction of cells with imported fluorescent foci and with multiple DNA uptake locations per cell increased by around two-fold between 10 min and 2 h of incubation of C. jejuni with DNA. Second, the amount of DNA per focus increased slightly from 10 to 30 min but was quite stable in time. We can exclude that competence was developed during the 2 h of incubation, since we used aerobic conditions, under which DNA transport is unaffected but competence development is suppressed [8]. Thus, these first two observations suggested that (i) the initialization of a DNA uptake event might be the limiting factor, that (ii), once the DNA process started, the molecule can be incorporated within 10 min (process completed after 30 min), and that (iii) the process stops upon transport of a finite DNA amount into the periplasm. The third main result revealed that the median fluorescence intensity was 3.7-fold lower than for H. pylori J99. H. pylori J99 imported a median DNA amount of 108 kb per focus, i.e., per visually resolved uptake location [30]. Assuming that H. pylori does not differentiate between λ DNA and genomic C. jejuni DNA, we estimate that C. jejuni imported a median amount of 30 kb DNA per focus. In a few DNA uptake locations (outliers in Figure 3), 5–6-fold more fluorescent DNA was detected. Intriguingly, the distribution of DNA amounts in H. pylori uptake locations was quite similar (Figure 3C) but shifted up by ~4-fold relative to the C. jejuni distribution with also very few outliers, harboring an excess of DNA. Hence, we conclude that those rare events, leading to outliers, reflected multiple DNA uptake complexes, by chance situated in unresolvable proximity.

4.2. The Periplasmic Protein ComE Is Negligible for DNA Uptake in C. jejuni While ComEC and PilQ Play Essential Roles in Natural Tansformation

We showed that a mutant lacking the putative outer membrane pore PilQ was completely deficient of DNA uptake and natural transformation (Figure 4A,B). This confirmed its essential role for DNA uptake over the outer membrane. The ΔcomEC mutant was completely transformation deficient but took up DNA into the periplasm (Figure 4A,B), being consistent with its proposed essential role as an inner membrane channel.

Complementation of ΔcomEC and ΔpilQ led to the partial recovery of transformation rates (1.5 log₁₀ and 2 log₁₀ reduced compared to the wild type, respectively). The ΔpilQ-compl strain was also similarly restored concerning the fraction of competent cells (1.5 log₁₀ reduction compared to the wild type). Partial and not full complementation is expected if stoichiometry of membrane proteins is essential for functional complex formation. This might be the case for our complemented genes, which were under artificial control at a different genetic location. Partial complementation of ctsX and ctsP, involved in natural transformation, was also observed previously [11].

N. gonorrhoeae was shown to maximally take up 40 kb into the periplasm [22]. This limitation was attributed to the finite binding capacity of the periplasmic protein ComE. Interestingly, in C. coli and C. lari, close relatives of C. jejuni, a comE homolog is absent from the genomes, although both species are naturally competent and harbor homologs of comEC and pilQ. We created a ΔcomE knock-out mutant in C. jejuni. As observed before [23], transformation levels were slightly reduced by 1.3 log₁₀. In our single cell assay, uptake of DNA into the periplasm was comparable to the comEC mutant. Thus, the outer membrane transport of DNA was nearly unaffected compared to the wild type. These results suggested that ComE does not play an important role in the DNA uptake of C. jejuni, particularly not as a driving force for the uptake of the macromolecule over the outer membrane, as shown for N. gonorrhoeae or Vibrio cholera [18,19]. However, the slight reduction in the transformability of the ΔcomE mutant might hint at putative downstream effects of ComE in C. jejuni, e.g., the protection of incoming DNA.

4.3. DNA Uptake Does Not Influence Biofilm Formation in C. jejuni

In other bacteria, the lack of proteins involved in DNA uptake was shown to impact natural transformation and biofilm formation [28,29]. However, for C. jejuni, we did not observe that the capacity to take up DNA from the environment has any effect on biofilm formation under our conditions (Figure 5). The statistically significant difference between wild type and the complemented strains has no biological relevance since there were no significant differences between wild type and mutants. Generally, biofilm formation in C. jejuni was weak, which is in-line with previous data. Using a similar assay, Reeser and colleagues showed comparable levels of biofilm formation in C. jejuni, with absorption levels after staining with crystal violet of ≤0.2 [38]. In addition, a recent study showed that C. jejuni biofilm formation was increased in the presence of already existing Pseudomonas biofilms, in particular under flow conditions [41]. This might hint at the fact that initial attachment to an abiotic surface is challenging for C. jejuni.

4.4. The Unique Periplasmic Protein Cj0683 Is Essential for Efficient Initialization of DNA Import into the Periplasm

The periplasmic DNA-binding protein ComE, mediating DNA uptake over the outer membrane in well-studied competent Gram-negative bacteria [18,19], apparently did not play a major role for transformation in C. jejuni (Figure 4).

We tried to find an alternative periplasmic protein in C. jejuni, suitable for DNA binding and important for the process of DNA uptake. Hence, with Cj0683, we deciphered a good candidate, since (i) the protein seemed positively charged and able to bind DNA at physiological pH, (ii) it harbored a secretion signal to be exported into the periplasm, (iii) the N-terminus of Cj0683 shared homology with type IV pilus proteins, and (iv) the protein interacted in a yeast two-hybrid assay with CtsE, a soluble protein with a nucleotide binding site shown to be important for natural transformation in C. jejuni [12].

Indeed, a Δcj0683 mutant showed a near absence of DNA uptake. Residual DNA uptake capacity was independent of ComE presence, since the double mutant Δcj0683ΔcomE displayed the same phenotype of rare DNA uptake events. Our experimental approach also excluded suppression mutations in these bacteria with functional DNA uptake.

Which role might be attributable to Cj0683? We considered in detail the rare events of DNA uptake in the Δcj0683 and the Δcj0683ΔcomE mutants. We observed similar median DNA amounts per uptake location in both mutants as compared to the wild type (maximally two-fold less, Figure 7). These results suggest that the probability of DNA import was drastically reduced, while subsequent DNA uptake into the periplasm was unaffected. Hence, Cj0683 probably does not play the same role as ComE (force generation) or as ComH (transfer of already imported DNA to the ComEC channel) [21]. In contrast, it is tentative to speculate that Cj0683 might be part of the competence (pseudo)-pilus, grabbing external DNA, thereby initializing DNA import events over the outer membrane in C. jejuni. This hypothesis would also be consistent with Cj0683 N-terminal homology to pilus proteins.

5. Conclusions

C. jejuni is an important food-borne pathogen with a high capacity for genetic diversity via natural transformation. The unravelling of the mechanism of DNA uptake is important to reveal unique proteins important for this process for targeted control strategies. Our results showed the high DNA uptake capacity of C. jejuni on a single cell level and we identified a novel competence protein, Cj0683, with important implications in the number of DNA uptake events over the outer membrane.
