Review

The Role of Membrane Lipids in Light-Activation of Drosophila TRP Channels

by
Rita Gutorov
,
Ben Katz
,
Elisheva Rhodes-Mordov
,
Rachel Zaguri
,
Tal Brandwine-Shemmer
and
Baruch Minke
*
Department of Medical Neurobiology, Institute for Medical Research Israel-Canada (IMRIC), Faculty of Medicine and Edmond and Lily Safra Center for Brain Sciences (ELSC), The Hebrew University, Jerusalem 91120, Israel
*
Author to whom correspondence should be addressed.
Biomolecules 2022, 12(3), 382; https://doi.org/10.3390/biom12030382
Submission received: 31 January 2022 / Revised: 21 February 2022 / Accepted: 23 February 2022 / Published: 28 February 2022
(This article belongs to the Special Issue Lipid-Gating and Lipid-Protein Interactions in Ion Channels)
Browse Figures
Review Reports Versions Notes

Abstract

:
Transient Receptor Potential (TRP) channels constitute a large superfamily of polymodal channel proteins with diverse roles in many physiological and sensory systems that function both as ionotropic and metabotropic receptors. From the early days of TRP channel discovery, membrane lipids were suggested to play a fundamental role in channel activation and regulation. A prominent example is the Drosophila TRP and TRP-like (TRPL) channels, which are predominantly expressed in the visual system of Drosophila. Light activation of the TRP and TRPL channels, the founding members of the TRP channel superfamily, requires activation of phospholipase Cβ (PLC), which hydrolyzes phosphatidylinositol 4,5-bisphosphate (PIP2) into Diacylglycerol (DAG) and Inositol 1, 4,5-trisphosphate (IP3). However, the events required for channel gating downstream of PLC activation are still under debate and led to several hypotheses regarding the mechanisms by which lipids gate the channels. Despite many efforts, compelling evidence of the involvement of DAG accumulation, PIP2 depletion or IP3-mediated Ca2+ release in light activation of the TRP/TRPL channels are still lacking. Exogeneous application of poly unsaturated fatty acids (PUFAs), a product of DAG hydrolysis was demonstrated as an efficient way to activate the Drosophila TRP/TRPL channels. However, compelling evidence for the involvement of PUFAs in physiological light-activation of the TRP/TRPL channels is still lacking. Light-induced mechanical force generation was measured in photoreceptor cells prior to channel opening. This mechanical force depends on PLC activity, suggesting that the enzymatic activity of PLC converting PIP2 into DAG generates membrane tension, leading to mechanical gating of the channels. In this review, we will present the roles of membrane lipids in light activation of Drosophila TRP channels and present the many advantages of this model system in the exploration of TRP channel activation under physiological conditions.

1. Introduction

The Transient Receptor Potential (TRP) superfamily, which is conserved through evolution, consists of seven subfamilies (TRPC, TRPV, TRPM, TRPA, TRPN, TRPML, and TRPP) and its members are expressed in many cell types, including excitable as well as non-excitable cells [1]. These channels participate in many sensory modalities (e.g., vision, taste, temperature, pain, and pheromone detection) and they either open directly in response to ligands or physical stimuli (e.g., temperature, osmotic pressure) or open indirectly, downstream of receptor activation (e.g., Rhodopsin, Histamine, and Bradykinin [2,3]) and the inositol-lipid signaling cascade. In addition to the wide variety of activation mechanisms, the activity of TRP channels is modulated by numerous factors, including the lipid environment in which the channel is embedded, posttranslational modifications such as phosphorylation, nitrosylation and glycosylation, ligand biding such as Ca2+ and ATP and by interaction of the channels with different binding partners [4]. Despite many efforts over the years, the gating mechanism of the founding members of the TRP channel superfamily, the Drosophila TRP and TRP-like (TRPL) channels is still elusive.
Visual systems of animals are characterized by high sensitivity to light and this property is obtained by a high expression level of the signaling components within the retinal cells. The retina of Drosophila is an excellent example of this principle as revealed by expression of huge amounts of signaling components and by achieving the ultimate sensitivity to light–single photon detection. Drosophila utilizes the phosphoinositide cascade for phototransduction with TRP channels as its target [2,3]. Hence, the Drosophila retina is a unique tissue with regard to TRP channels, as most tissues do not express high amounts of TRP channels. This TRP-enriched tissue enables robust biochemical analysis combined with the power of the Drosophila molecular genetics and the accuracy of light activation and constitutes a valuable preparation for investigating the complex mechanism of TRP channel gating under physiological conditions. Despite having many advantages, the Drosophila photoreceptor preparation still has several limitations, including the polarity of the Drosophila photoreceptor cells and the dense membrane of the signaling compartment (rhabdomere), which limits pipette accessibility to the channels, making it difficult to directly determine the single channel properties under physiological conditions ([5], but see below).
Lipid regulation of channels is mostly thought as ligand-protein interaction with a defined binding site at the channel surface. However, recent in-silico lipid docking analysis using solved channel structures suggests that some lipid binding sites enable binding of multiple lipid “poses” [6]. Another interesting theory developed for the gating mechanism of Drosophila TRP/TRPL channels proposed that the TRP/TRPL channels are mechanically gated. Accordingly, the measured force generated by changes in membrane lipid packing and the generation of membrane tension during the enzymatic activity of PLC and the conversion of PIP2 into DAG, gate the mechanical sensitive TRP/TRPL channels. This theory emphasizes that the lipid environment in which the channels are embedded is crucial for their performance.
In the present review we summarize the evidence supporting the involvement of lipids in light-activation of the TRP/TRPL channels. Moreover, we will discuss conflicting and missing data required for elucidating the mechanism underlying lipid-activation of the TRP/TRPL channels.

2. The Involvement of the Inositol-Lipid Signaling in TRP Channel Activation

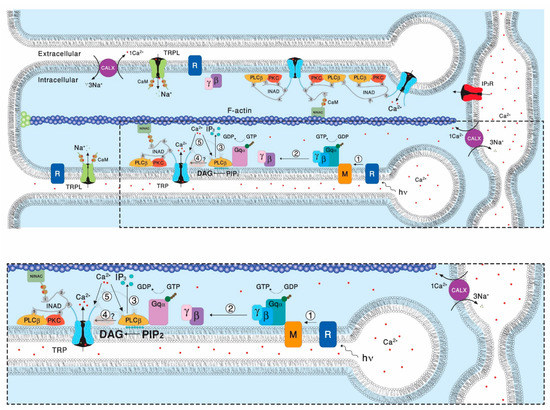

One of the most important contributions of the Drosophila retinal preparation to the study of TRP channels in general and of the TRPC channels subfamily in particular is the discovery that Gq-mediated phospholipase Cβ (PLC) has an essential role in physiological activation of the TRP channels (Figure 1). Evidence for possible participation of PLC in Drosophila phototransduction arose from initial biochemical studies, showing that highly reduced PLC enzymatic activity was found in the no receptor potential A (norpA) mutants [7,8,9]. Further detailed functional evidence for a light-dependent Gqα-mediated PLC activity in fly photoreceptors came from combined biochemical and electrophysiological experiments. These experiments revealed coupling of photoexcited rhodopsin to phosphatidylinositol 4,5-bisphosphate (PIP2) hydrolysis [10]. Furthermore, using temperature-sensitive norpA mutant allele [11], correlation between light-activated PIP2 hydrolysis and the electrical response to light was demonstrated [12]. The findings of the biochemical and electrophysiological studies were strongly supported by a genetic study, resulting in the isolation and analysis of the Drosophila gene, norpA, which was found to encode a β-class PLC, predominately expressed in the rhabdomeres and has high amino acid homology to a PLC extracted from bovine brains [13]. The norpA mutant thus provides essential evidence for the critical role of PLC and the inositol-lipid signaling in fly phototransduction, by showing that no light excitation takes place in the absence of a functional PLC. However, the events required for light excitation downstream of PLC activation remain unresolved.
A reduction in the levels of PLC in mutant flies affect the amplitude and activation kinetics of the light response [15], but surprisingly also induce the slow response termination. This slow response termination of most norpA mutant alleles had no explanation for many years. Later biochemical and physiological studies conducted in Drosophila revealed the requirement for PLC in GTPase-activating proteins (GAP) activity in vivo [16], suggesting that the PLC enzyme also acts as a GAP [17]. The virtually complete dependence of GAP activity on PLC provides an efficient mechanism for ensuring the one photon, one single photon response (quantum bump) relationship [18], which is critical for the fidelity of phototransduction at dim light [16]. PLC activity is known to be regulated by Ca2+ [19]. It has been shown that Ca2+ is bound to the catalytic site of PLC and is required as a co-factor for the catalytic reaction [20]. These studies showed that the positive charge of Ca2+ is used to counterbalance local negative charges formed in the active site during the course of the catalytic reaction. Accordingly, Ca2+ electrostatically stabilizes both the substrate and the transition state, thus providing a 2-fold contribution to lower the energy of the enzymatic reaction [21]. In Drosophila, both in vitro [22] and in vivo [23] measurements revealed Ca2+ dependence of PLC activity. This activity shows a bell-shaped dependence of PLC catalytic activity on Ca2+ concentration ([Ca2+]), with maximal basal activity in the range of 10−7–10−5 M [Ca2+]. This complex dependency affects both excitation and adaptation of the photoresponse. While at physiological conditions cellular Ca2+ levels are sufficient for the activation of PLC, it was demonstrated that highly reduced Ca2+ levels eliminated excitation completely [24]. Furthermore, it was shown that during the light response, rhabdomeric Ca2+ concentration can reach mM levels [25,26]. At this high Ca2+ level, PLC activity is attenuated, raising the possibility of physiological relevance [23]. Later studies have shown that the inhibition of PLC activity by high Ca2+ concentration participates in the mechanism of fast light adaptation and prevents depletion of membrane PIP2. Accordingly, the high Ca2+ concentration, reached at the peak response, attenuates PLC activity, preventing PIP2 depletion and adapting the cells by reducing excitation [27]. The transient response phenotype observed in trp mutants was explained by this same mechanism [28]. Accordingly, the reduced Ca2+ permeability in the trp mutant, results in reduced Ca2+ influx during illumination through the low Ca2+ permeable TRPL channels. This reduced Ca2+ influx becomes insufficient to attenuate PLC activity, thereby depleting the pool of PIP2 and causing the attenuation of the light response [28,29]. Indeed, the response to light of WT flies under low Ca2+ conditions also showed a trp phenotype [30,31]. The trp phenotype was also observed in null rdgB mutants in which the PI-cycle (Figure 2) is defective and PIP2 depletion is expected after intense light illumination ([32], but see [33]).
Initially, models of light-activated TRP/TRPL channels assumed that the IP3 branch of the inositol-lipid signaling leads to IP3-induced Ca2+ release from intracellular stores (Figure 1) mediating light-induced TRP/TRPL channels opening [34,35], whereby the released Ca2+ functions as a second messenger of excitation acting either in a store depletion mechanism (SOC, [36]) or as a receptor-activated channel (ROC, [37]). However, in Drosophila these mechanisms were not supported by experimental evidence [38,39,40] and therefore were abandoned and the lipid branch of PLC-dependent signaling was adopted [41,42]. Recently, a rapid light-induced release of Ca2+ from the ER by the Na+/Ca2+ exchanger (CALX, [41]) was demonstrated (Figure 1). However, This CALX-dependent Ca2+ release was too slow to be involved in channel activation and there is no information on ER Na+ levels. Thus, the physiological role of this mechanism is still unknown.

3. Lipid Composition of the Drosophila Head/Retina and the Effects of Its Modification

There is mounting evidence that lipids have profound effects on the activity of ion channels in general and on members of the TRPC subfamily in particular [44]. Lipids of Drosophila head membranes have been analyzed using thin layer chromatography, gas liquid chromatography [45,46], and nano-electrospray ionization tandem mass spectrometry (ESI-MS/MS) [47]. These studies revealed the presence of ~50% phosphatidyl-ethanolamine (PE), ~25% phosphatidyl-choline (PC), and ~12% phosphatidyl-inositol (PI). Contrary to vertebrate photoreceptors, long chain polyunsaturated fatty acids (more than 18 carbons) were not detected in Drosophila phospholipids [46]. In addition to phospholipids, Drosophila head membranes contain sphingolipids and, instead of cholesterol, ergosterol [47,48]. The ergosterol content of Drosophila head membranes was determined by ESI-MS/MS and revealed ~26 nmol ergosterol per mg of membrane proteins [47]. The sphingolipids are composed of a tetradeca-4-sphingenine and a saturated fatty acid [48]. Since these studies used membranes of entire Drosophila heads, the obtained quantitative results may not mirror the exact lipid composition of photoreceptor membranes.
Lipidomic analysis of fly heads raised on a yeast-free diet showed that the lack of Poly Unsaturated Fatty Acids (PUFAs) in this diet was reflected in marked differences in fatty acids composition of all the major phospholipids in the heads. In particular, while mono-saturated lipid species were little affected, polyunsaturated (with 3 or more double bonds) were greatly reduced in all classes of phospholipids. Interestingly PIP2, the PLC substrate in heads of flies reared on normal diet was in order of abundance 36:2 > 36:3 > 34:2 = 36:4 > 34:1 (carbon number: number of double bonds). In flies raised on the yeast-free diet, PUFAs of 36:4 and 36:3 were almost eliminated and 34:1 increased accordingly. The results obtained from fly heads were compared to results obtained from dissected retinae and a closely overlapping profile was observed [49]. To conclude, in flies reared on yeast-free diet lacking PUFAs, mass spectrometry showed that the proportion of polyunsaturated phospholipids was seven-fold reduced (from 38 to 5%) but rescued by adding a single species PUFA to the diet. The yeast free diet caused a 2- to 3-fold increase in light response latency and time to peak, but had no effect on the waveform of the single photon responses (quantum bumps). Interestingly, in flies raised on yeast-free diet a reduction in light sensitivity of ~10-folds was observed in WT flies under low Ca2+ conditions and in trp mutant flies in which Ca2+ influx is reduced. It is important to note that this diet had virtually no effect on PLC activity [49]. The effect of the membrane phospholipids manipulation under a yeast-free diet is expected to change the stiffness and elasticity of the membrane. Hence, the authors suggested that a 2- to 3-fold increase in response latency, which appeared to be mediated downstream of PLC and was correlated with a slowing of the light-induced contractions in accordance with mechanical gating of the channels (see below).

4. Evidence for Lipids Action as Second Messengers

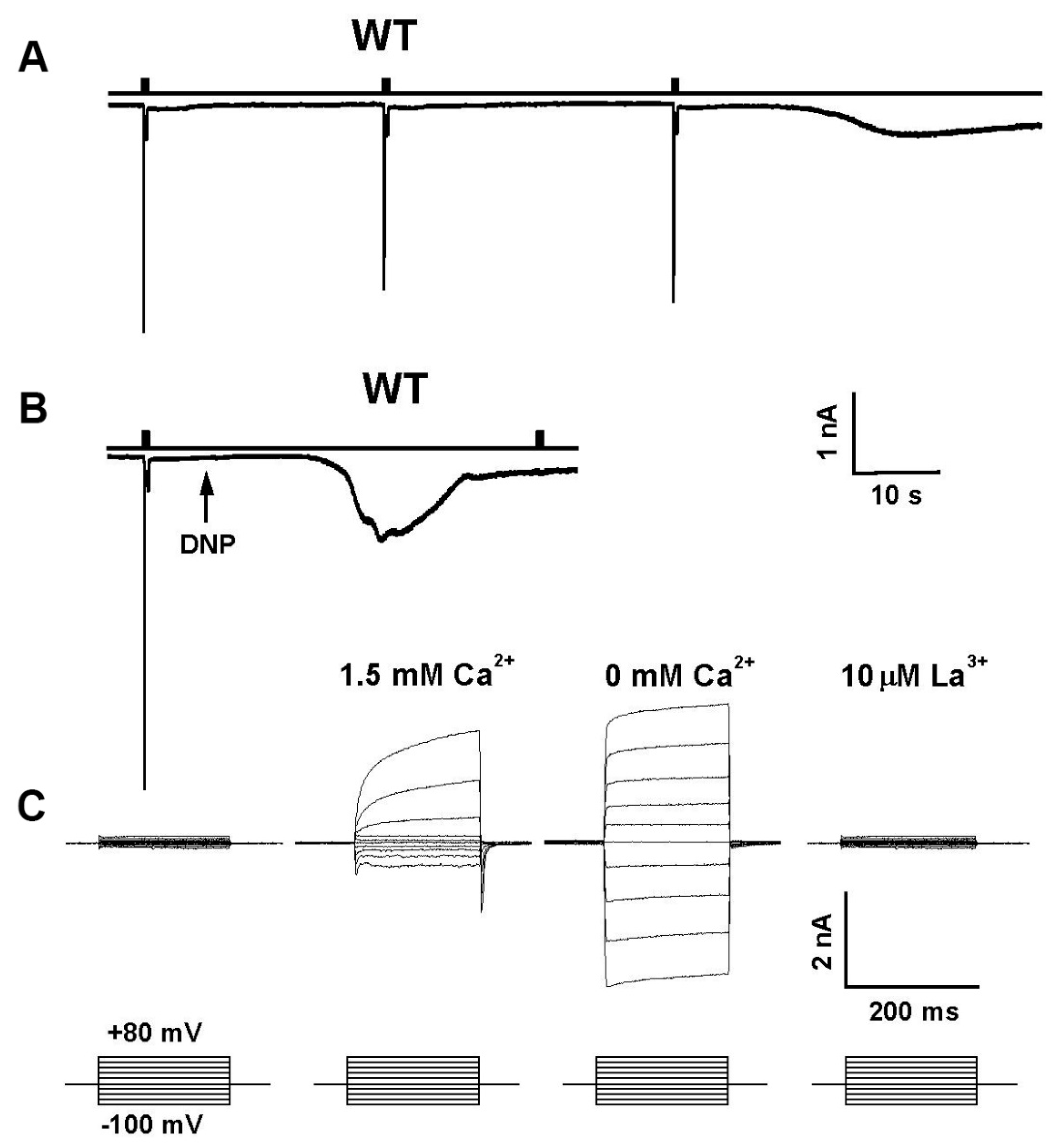

Many mammalian TRP channels can be characterized as ionotropic receptors since they can be activated directly under physiological conditions by physical stimuli such as heat, cold, mechanical, or by natural chemicals such as capsaicin, menthol, or mustard oil [50]. One of the key features of presumably all members of the TRPC subfamily is their indirect physiological activation via PLCβ-mediated signal transduction cascades. Since PLC activity is essential for activation of the TRP/TRPL channels, recycling its substrate, PIP2, is essential for proper light response. PLC catalyzes hydrolysis of the membrane phospholipid PIP2 into water soluble IP3 and membrane-bound diacylglycerol (DAG, [51]). This enzymatic reaction is enhanced by illumination and initiates a cyclic enzymatic pathway called the PI cycle (Figure 2). Many enzymatic components of the complex PI cycle were discovered using genetic dissection by screening for mutations and utilizing the power of the Drosophila molecular genetics [52]. Following PLC activation, the phospholipid branch of the PI cycle begins by DAG transport through endocytosis to the endoplasmic reticulum designated submicrovillar cisternae (SMC, but see below). Subsequently, DAG is inactivated by phosphorylation and converted into phosphatidic acid (PA, [53,54] via DAG kinase (DGK), encoded by the retinal degeneration A (rdgA) gene that was discovered as a mutant causing rapid retinal degeneration in the dark [53,54]. Then, CDP-DAG synthase enzyme encoded by the cds gene [55] produces CDP-DAG from PA (Figure 2). Subsequently, CDP-DAG is converted into phosphatidylinositol (PI), which is transferred back to the microvillar membrane, by the PI transfer protein (PITP), encoded by the retinal degeneration B (rdgB gene [56]) located to the SMC. This mutant was discovered as a mutant causing rapid light-induced retinal degeneration [57,58,59]. PIP and PIP2 are produced at the microvillar membrane by PI kinase and PIP kinase, respectively. PA can be reconverted back to DAG by lipid phosphate phosphohydrolase, LPP, also designated phosphatidic acid phosphatase, PAP, encoded by the laza gene [60,61] or produced from phosphatidylcholine (PC) by phospholipase D (PLD), encoded by the pld gene [62,63]. Light-regulated PLD activity is required to maintain PA levels during illumination and support the maintenance of apical membrane (rhabdomere) size. Thus, PLD is a key regulator of plasma membrane turnover during receptor activation and signaling in photoreceptors [63], while the PA level is tightly regulated by phosphorylation-dephosphorylation enzymatic reactions carried out by the LPP phosphatase (laza), and DAG kinase (rdgA), both localized to the ER (Figure 2, but see below). PLD also works in coordination with retromer function and ADP-ribosylation factor 1 (Arf1) activity to regulate apical membrane size during illumination [63].

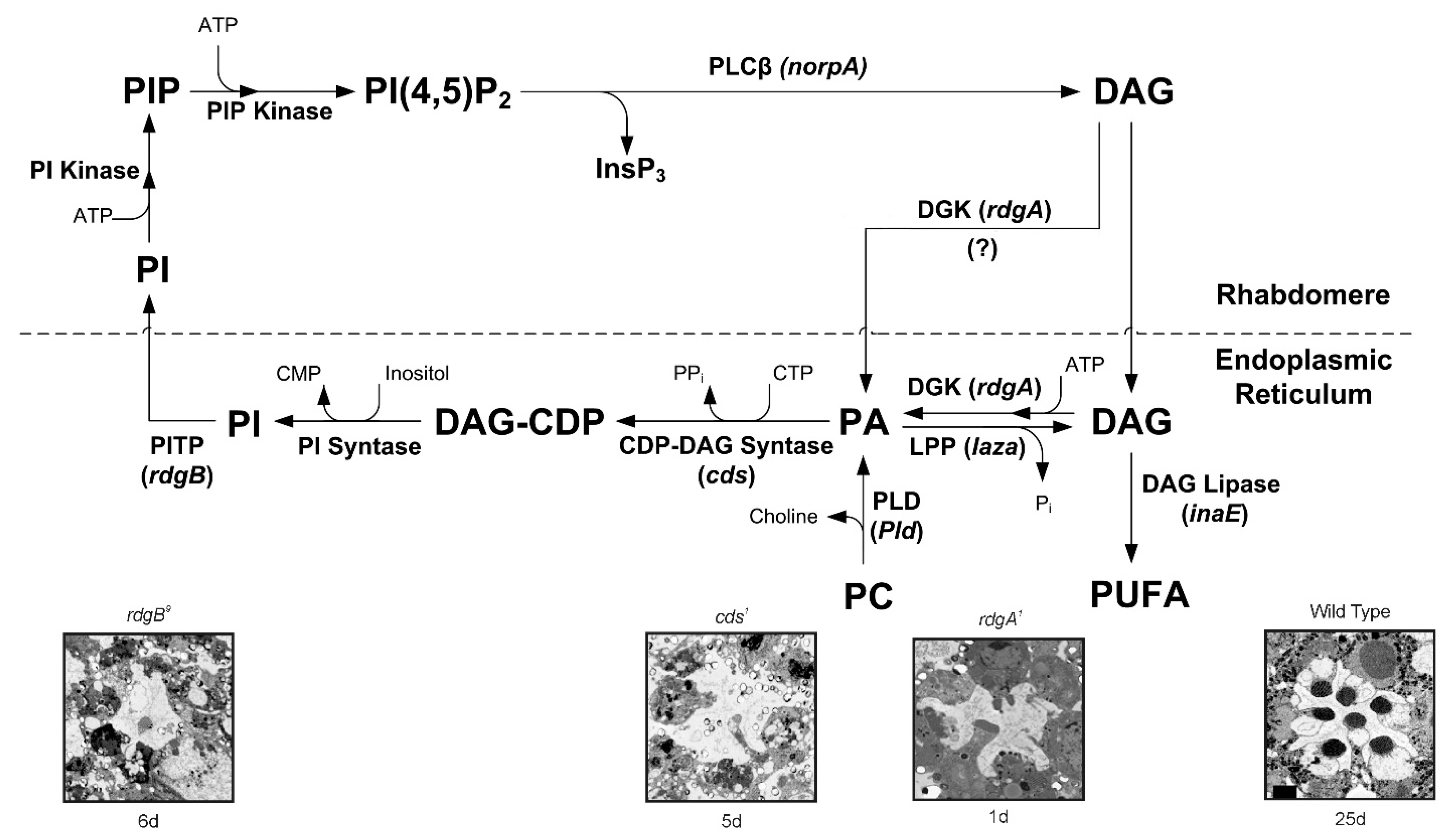

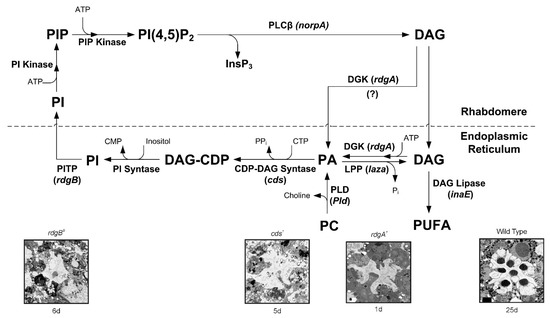

Mutations in several enzymes of the PI cycle result in retinal degeneration. For example, mutations in RDGA result in a light-independent retinal degeneration, while mutations in RDGB and CDS result in light-dependent degeneration (Figure 2). The mechanism underlying light-dependent degeneration of the rdgB and cds mutants is unknown. However, for the light-independent retinal degeneration of the rdgA mutant flies, a mechanism for the degeneration was proposed. Accordingly, the degeneration occurs due to a sustained Ca2+ influx through the light-activated TRP and TRPL channels. Since mutations affecting proteins of the PI cycle downstream to PLC activation lead to retinal degeneration due to toxic increasing cellular Ca2+ (rdgA, [64]), or possibly due to PIP2 depletion [28], the PI cycle is relevant for understanding phototransduction and TRP channel activation. A detailed analysis of the rdgA mutant encoding DAG kinase established the importance of the DAG branch in channel activation. In addition to light independent retinal degeneration, this mutant shows constitutive activity of the light activated channels, while a partial rescue of the degeneration was observed, when rdgA was crossed into a trp mutant background (rdgA1;trpP343, [64]). Furthermore, it has been shown that light response is partially rescued in hypomorphic mutant flies with severe reduction in light sensitivity, such as norpAP16 and Gqα1 on the background of rdgA (norpAP16, rdgA1 and rdgA1/+;Gqα1), while rdgA amplifies the light response, thus supporting the hypothesis that DAG is involved in channel activation [65]. This hypothesis is consistent with a recent observation reporting that the human TRPC5 channel exhibits a binding site for DAG near the pore region, commensurate with a key role of DAG for TRPC5 channel activation [66,67]. Omission of ATP from the whole-cell recording pipette combined with application of metabolic inhibitors activate the TRP and TRPL channels in the dark [68,69,70] (Figure 3). This dark activation of the channel [71] by metabolic inhibition [68] was effectively mimicked by the rdgA mutation in DAG kinase (DGK, [64]), suggesting that ATP depletion mainly inhibits DGK activity. It furthermore suggests that DGK normally suppresses spontaneous dark activity of PLC-mediated production of DAG [70]. Indeed, a considerable spontaneous Gqα activity inducing spontaneous PLC activity in the dark was observed in Drosophila photoreceptors [29,72]. Accordingly, relatively large currents were reversibly induced within only a few seconds of application of mitochondrial uncouplers (either 10 μm CCCP or 0.1 mm DNP) to WT Drosophila photoreceptors in recordings made soon after establishing the whole-cell configuration (Figure 3). The light-sensitive channels were invariably activated by DNP or CCCP either with or without ATP in the electrode, although activation was quicker and not indefinitely reversible when no ATP was included. However, when DNP or CCCP were applied after the spontaneous dark current was eliminated by strong Gqα or PLC hypomorph mutants, no current activation by metabolic inhibition was observed, indicating that the dark current induced by metabolic inhibition is generated by Gqα-mediated PLC activity [70]. The most obvious interpretation of these results is that metabolic inhibition activates the TRP/TRPL channels via the same molecular mechanism by which light activates these channels, namely by generation of DAG that, in a still unclear manner, is involved in channel activation. Several lines of evidence challenge this hypothesis. (a) Application of DAG to intact ommatidia or to tissue culture cells expressing TRPL did not activate the channels (our unpublished data, Hardie personal communication), while application of DAG to TRPC3 channels expressed in these tissue culture cells did activate the TRPC3 channels serving as a positive control [73]. Nevertheless, application of DAG analogues 1-oleoyl-2-acetyl-sn-glycerol (OAG) at low concentration (2 µM) to inside-out patches excised from the microvilli of dissociated Drosophila ommatidia resulted in activation of the TRP and TRPL [74,75]. However, channels activation was slower by 3 orders of magnitude (~60 s after application, (Delgado and Bacigalupo, 2009)) compared to the ms fast light activation [29]. (b) Immuno-gold EM localization of DAG kinase (the rdgA gene product) was confined to the smooth endoplasmic reticulum (SMC [54]), a relatively distant cellular compartment from the transduction machinery and this localization was consistent with detailed biochemical studies of the PI cycle using Drosophila mutants [52,63] making DGK localization inconsistent with controlling a second messenger level. However, a recent immunofluorescence localization showed that DGK is localized to the rhabdomeres [76], while biochemical assays revealed a light-induced increase of DAG in the Drosophila retina [74]. Thus, the role of DAG as a possible light-generated second messenger of excitation remains unresolved.

5. PUFAs Activation of TRP and TRPL Channels in the Dark

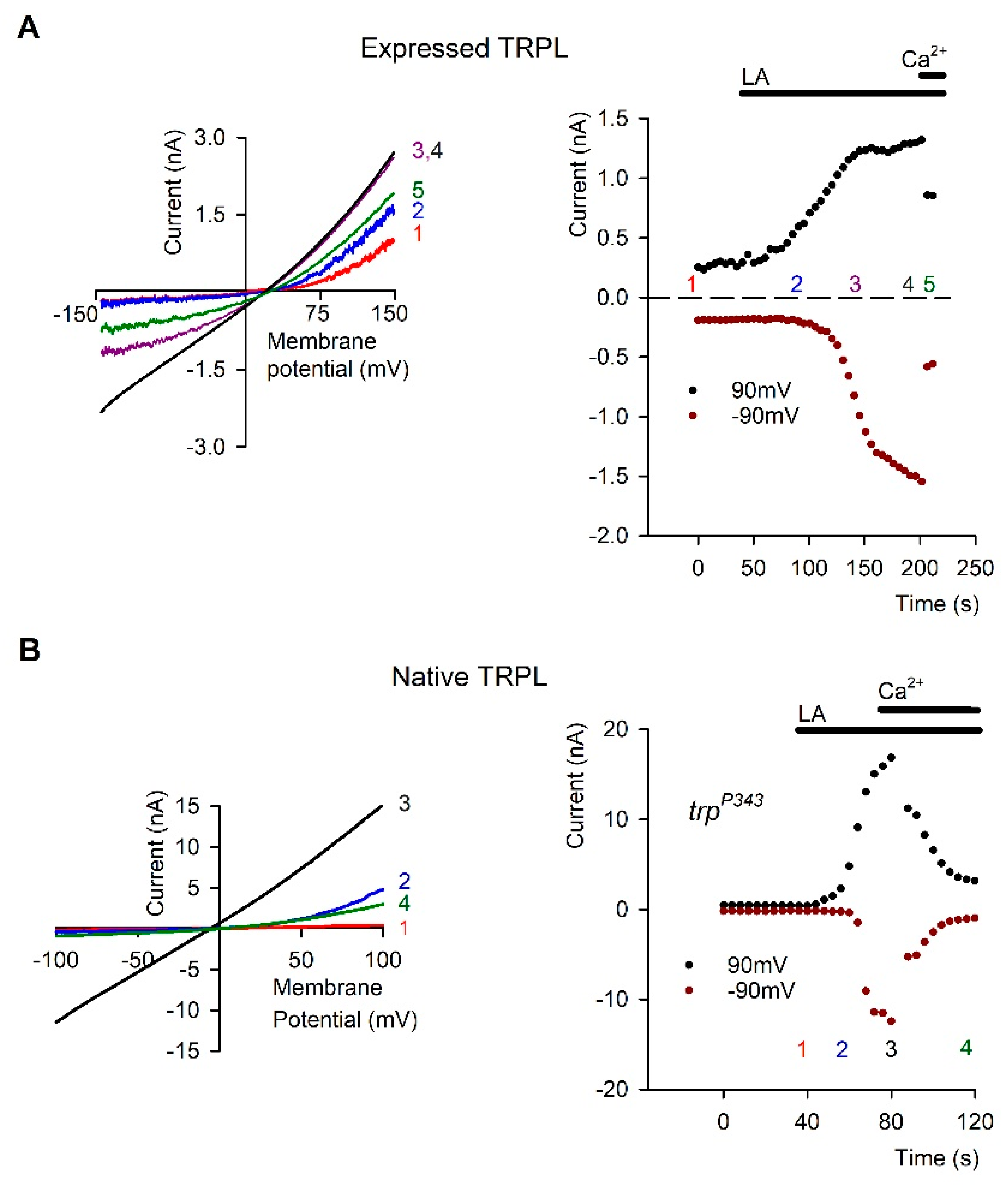

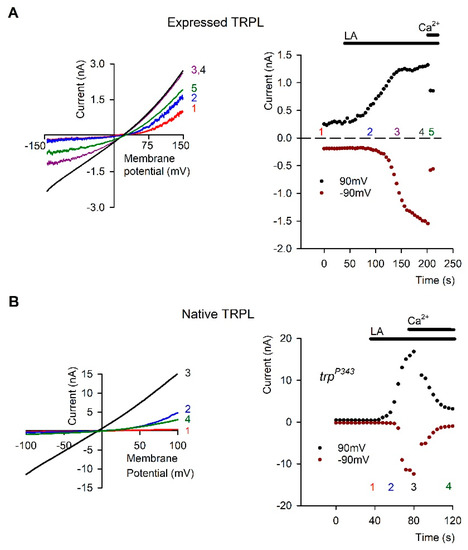

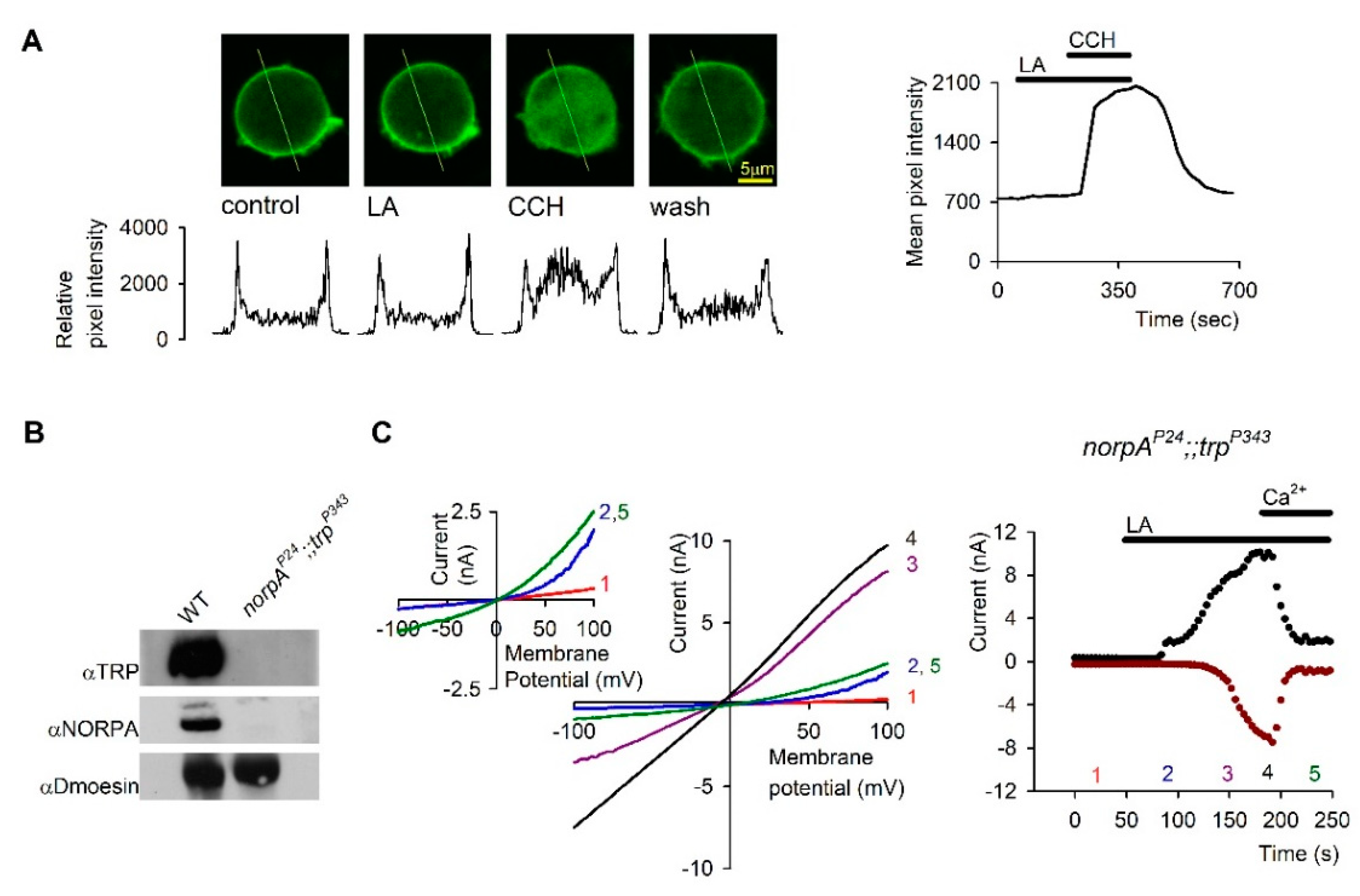

One of the striking findings of Hardie and colleagues in studies of Drosophila photoreceptors was the demonstration that PUFAs such as linolenic or linoleic acid (LA) are potent activators of the TRP/TRPL channels in the dark. This robust, but still slower activation relative to light activation was demonstrated in both photoreceptor cells [77,78] and in cultured S2 cells ([77,78], Figure 4) and HEK cells [73] heterologously expressing TRPL channels. Direct activation of the channels by PUFAs without the need for PLC was demonstrated by showing that PUFAs can activate blind Drosophila mutants virtually lacking Gqα [77] or PLC [77,78] in a similar manner to activation of WT flies (Figure 5). In cultured S2 cells heterologously expressing TRPL channels, PUFA activation of the channels was not accompanied by PIP2 hydrolysis, as demonstrated by the lack of fluorescence translocation from the plasma membrane to the cytosol of GFP-PHPLCδ1 domain. Activation of the muscarinic receptor, which is coupled to PLC induced fluorescence translocation to the cytosol, served as a positive control ([73], Figure 5).
Most of the studies on PUFA activation of the Drosophila channels have been carried out in tissue culture cells. We and others have performed a significant part of the research on TRPL channels in cell culture expression systems with the aim of gaining insight into channel activation mechanism directly by single channel analysis. Extensive effort was devoted to express functional Drosophila TRP channels in tissue culture cells with no success. The few studies reporting functional heterologous TRP expression failed to capture the typical physiological properties of TRP as illustrated in whole cell recordings of the native photoreceptor cells ([5,79] see Figure 3 and Figure 4) and showed linear leak currents [80,81,82]. In contrast, heterologous expression of the TRPL channels accurately captured the physiological response of the native photoreceptor cells [83,84] (Figure 4). The use of expression systems for TRPL channel research has several advantages: (1) the channels are, for the most part, easily expressed in a functional manner. (2) Biophysical properties such as conductance, mean open time, and permeability are readily obtained [85]. These rigorous studies revealed that the typical outward rectification of the TRPL channels [84] results from a voltage dependent divalent open channel block mechanism [78,85]. Interestingly, application of PUFA (e.g., linoleic acid, LA) removed this divalent open channel block in the presence of divalent cations by a still unclear voltage independent mechanism (Figure 4). In general, it is important to compare the activity of a specific TRP channel in a native system with that obtained from an expression system. Indeed, many of the physiological properties observed in the photoreceptors were readily obtained and verified in expression systems. Functional expression of the TRPL channels was shown in a variety of cells including Spodoptera frugiperda 9 (Sf9; [86,87], Schneider 2 (S2; [77,85], and COS [88] cells and resulted in constitutively active channels, whereas the expression of the channels in Human Embryonic Kidney (HEK) cells resulted in channels that are in their closed state [88,89], mimicking the state of the TRPL channels in photoreceptor cells, in the dark. The constitutive activity of the expressed TRPL channel can be further enhanced by activation of the endogenous transduction cascade and might be related to the gating of this channel. However, it is still unclear what leads to this spontaneous activity of the TRPL channel in these expression systems, which might be important for understanding channel activation. Constitutive activity of channels can be attributed to the direct activation of the channel, for example via the lipid composition of the plasma membrane [90], or to the constitutive activation of a known or unknown element upstream to the channel. In this respect, the Drosophila TRPL channel expressed in S2 cells might be affected by constitutively active endogenous phospholipase C (PLC). However, PLC inhibition (with U-73122 or by a PLC mutation) did not abolish the constitutive activity of TRPL expressed in S2 cells. In addition, high expression levels of the channel also result in deregulation of the channels and may result in constitutive activity. The observation that the TRP/TRPL channels readily undergo a constitutively active state both in tissue culture cells and in vivo (e.g., spontaneously, or by DAG accumulation, respectively) may suggest that the threshold for channel activation is low, thereby having an important implication on photomechanical activation of the channels (see below).
A question arises as to whether PUFA activation of the channels in the photoreceptor cells reflects the physiological mechanism of channel activation. Supporting evidence was provided by isolation of the Inactivation No Afterpotential E (inaE) mutant by Pak and colleagues [91]. The inaE gene was identified as encoding a homologue of the mammalian sn-1 type DAG lipase, which, rather than PUFAs, releases mono-acyl glycerol (MAGs) and, are at best, weak and slowly acting channel agonists when applied exogenously (Hardie, unpublished results, see [49]). Furthermore, the inaE gene product immunolocalizes to the cell body with occasional puncta in the rhabdomere [91]. Mutant flies, expressing low levels of the inaE gene product, have an abnormal light response, while the activation of the light sensitive channels was not prevented [91]. The discovery of the InaE gene was an important step in the endeavor to elucidate lipids regulation of the channels (see reviews by and [52]). However, for PUFA generation, either an sn-2 DAG lipase or an additional enzyme (MAG lipase) would be required, but there is no evidence of either in Drosophila photoreceptors and there is also no evidence that PUFAs are even generated in response to illumination [74].

6. Photomechanical Gating of the TRP/TRPL Channels

Many studies have shown that membrane-protein function is regulated by the composition of the lipid bilayer in which the proteins are embedded. The commonality of the changes in protein function by changes in their lipid environment suggests an underlying physical mechanism, and at least some of the changes are caused by altered bilayer physical properties [92]. Although TRP/TRPL channel activation by PUFA is most likely not a physiological mechanism, it provides an important insight into mechanisms by which membrane lipid modulation by a variety of PUFAs causes dramatic effects on TRP/TRPL channel gating and its properties. Accordingly, we previously showed that removal of open channel block (OCB) from TRP/TRPL channels by PUFA resulted from an increased flow rate of the blocking divalent cations through the channel pore [78]. Modulation of the interface of the channel and its surrounding membrane lipids might underlie the increase in the flow rate of the blocking cations and the removal of the OCB. We applied various methods to modify membrane lipid properties around the TRPL channel, including: stretch of the plasma membrane by hypoosmotic solutions, sequestration of PIP2 by polylysine, and application of various lipids. Alternatively, we blocked PUFA action by the GsMTx-4 tarantula toxin, a specific inhibitor of mechanosensitive channels, which acts on the channel-membrane lipid interface [93,94]. These results thus suggested that lipids do not affect the TRPL channel as second messengers but rather as modifiers of membrane lipid-channel interactions [78].
Hardie and Franze suggested that light-activated PLC, which hydrolyzes membrane PIP2 and generates DAG activates the TRP/TRPL channels by change in membrane tension. This membrane tension results from the conversion of PIP2 with a large hydrophilic head group into DAG, having a minute hydrophilic head group, causing changes in membrane lipid packing. This conclusion followed from a dramatic observation that light caused a fast contraction in the fly photoreceptors. They quantitated the light induced movement with atomic force microscopy and show that it reaches a peak of ∼400 nm, with an onset that precedes the onset of the light induced current. This photoreceptor contraction depended on the enzymatic activity of PLC that was blocked by the norpA mutation, but not on TRP/TRPL channel activity [95]. To support their hypothesis, Hardie and Franze showed that light can activate a mechanically gated ion channel—gramicidin—when inserted in the photoreceptor plasma membrane. To show that membrane tension gates the TRP/TRPL channels, they exposed the photoreceptors to hypo-osmotic solutions, anticipating that it will exert a similar effect as change in membrane lipid packing similar to PIP2 hydrolysis. In addition, similar to the results reported by Parnas et al. [78], hypo-osmotic solutions, though not sufficient to activate the TRPL/TRP channels, potentiated channels openings. Consistent with the interpretation that the generation of membrane tension is required for channels gating, they applied several cationic amphipaths that affected the light induced current in the expected direction. The above studies support the interesting possibility that specific changes in the physical properties of the lipid bilayer generating changes in protein-lipid interaction and an increase in membrane tension constitute a mechanical stimulus that opens TRP/TRPL channels during phototransduction. Furthermore, perhaps because of low activation threshold of TRP channels, changes in membrane tension induced by enzymatic reaction may be sufficient to gate the channels by change in membrane lipid packing, a mechanism that has not been anticipated to have any role in the mechano-sensitivity of these channels.

7. Lipid Rafts and Modulation of TRPL Channel Activity by Cholesterol

Lipid rafts are membrane microdomains rich with sterols, sphingolipids, and specific proteins. Lipid rafts have been found in all types of cells. It has been generally agreed that lipid rafts generate signaling platforms by assembling in close proximity to different signaling molecules for the optimal function of signal transduction cascades [96]. Many signaling proteins including ion channels have been found to localize in lipid rafts, while the association with rafts was required for the regulation of some integral membrane protein activities [97,98]. The actions of lipid rafts are often associated with the effect of cholesterol on membrane structure or directly on membrane proteins (see below). Channels have been found in detergent-resistant membrane (DRM) fractions, indicating the inclusion of channels in lipid rafts [99].
A study in Drosophila revealed dynamic organization of signaling components in DRM of Drosophila photoreceptors. It was found that the Drosophila-specific INAD scaffold protein [100,101] and its target proteins undergo light-induced recruitment to DRM rafts [102]. Reduction of the Drosophila sterol, ergosterol (see below), a key component of lipid rafts in Drosophila, resulted in a loss of INAD-signaling complexes associated with DRM fractions. Genetic analysis demonstrated that translocation of INAD-signaling complexes to DRM rafts required activation of the entire phototransduction cascade, while constitutive activation of the light-activated channels resulted in recruitment of complexes to DRM rafts in the dark. Mutations affecting INAD and TRP showed that INAD–TRP interaction is required for translocation of components to DRM rafts [102].
Unlike mammals, insects are unable to synthesize sterols [103] and Drosophila melanogaster is totally dependent on exogenously provided sterols, in the form of ergosterol obtained from a yeast diet [102,104]. Nevertheless, several enzymes of Drosophila do not differentiate between endogenous ergosterol and exogenous cholesterol [105]. Many studies have shown the involvement of cholesterol in the modulation of ion channels function. An efficient method to modulate the content of plasma membrane sterols is by methyl-β-cyclodextrin (MβCD), which is a cyclic oligosaccharide [106,107]. The β -cyclodextrins (7 glucose units) have high affinity for encapsulating both cholesterol and ergosterol [107]. MβCD is quite specific, allowing enrichment or a relatively rapid sequestration of cholesterol/ergosterol from living cells. Sterol-saturated MβCD is efficient as a sterol donor. The degree of cholesterol enrichment is between ~30% to ~3-fold, according to the type of cell [108,109]. When cells are incubated with high concentration of “empty” MβCD (5–10 mM) for hours (>2 h), 80–90% of total cellular cholesterol can be sequestered [108,110]. The amount of cholesterol sequestration from different cell types is a highly variable parameter [109,110,111,112]. Cholesterol sequestration leads to a dis-association of proteins from lipid rafts [113,114,115] and to a decrease in the clustering of raft-associated molecules [116]. It was shown that βCDs sequestered cholesterol from both cholesterol-rich and cholesterol-poor membrane domains [117,118,119,120]. In silico analysis revealed that cholesterol adopts multiple poses in a “cloud”, rather than occupying a single conformation at a highly flexible binding site of the channel [6], while the high structural similarities between cholesterol and ergosterol suggest that this is also likely to be the case for ergosterol. It was also suggested that cholesterol sequestration leads to perturbation of specific lipid environments. Previous observations have suggested reversible targeting of Drosophila [102] and mammalian TRPC channels to the cholesterol-rich membrane environment of lipid rafts. This led to the suggestion that the relatively fast (many seconds) inhibitory effects of cholesterol depletion by MβCD on mammalian TRPC channel activity may result from disruption of lipid raft architecture [44]. When Drosophila S2 cells heterologously expressing TRPL were perfused with MβCD, the TRPL-dependent current was rapidly abolished in less than 100 s (Figure 6 [121]), which corresponds with the fast kinetic phase of cholesterol sequestration experiments in cells [122]. Modulation of TRP channels function by direct binding of cholesterol to the channels was suggested for mammalian TRPV1 channel [123]. Cholesterol–protein interactions have been extensively studied and specific sterol recognition elements such as the cholesterol recognition amino acid consensus or cholesterol binding pockets have been demonstrated in ion channels [124]. However, these motifs create a bias, compelling researchers to focus solely on these sequences instead of performing a bias-free analyses. Indeed, recent studies on Kir 2.2 channels have shown that these motifs do not always reflect the real interactions of cholesterol with the channels [6].

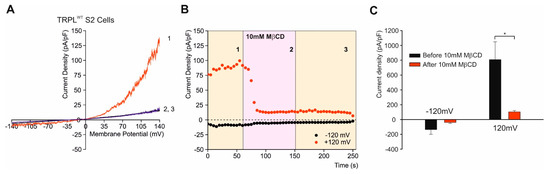

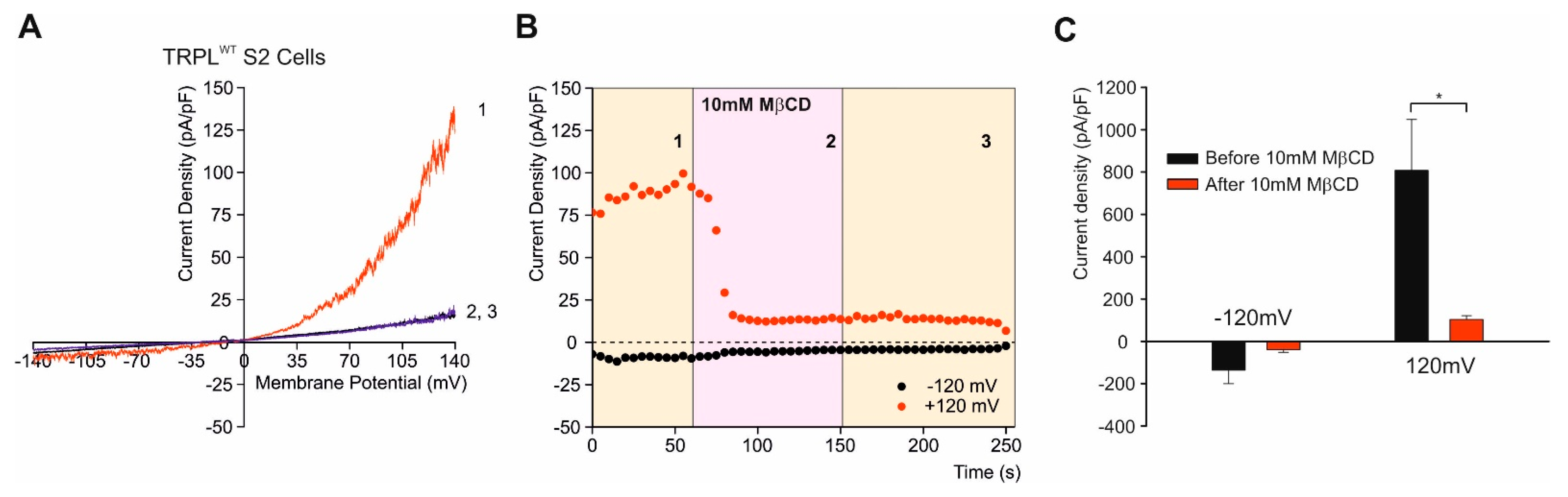

In recent experiments we sequestered cholesterol by MβCD from the plasma membrane of S2 cells stably expressing TRPL. The constitutively active expressed TRPL channels (Figure 4), which showed a current-voltage relationship (I–V curves) with a marked TRPL dependent current at +80 mV were completely suppressed by the sequestration of cholesterol from the plasma membrane by MβCD. When the constitutive activity was suppressed, application of linoleic acid, the potent activator of TRP and TRPL channels [77,78] enhanced channel opening (data not shown). We also examined the effect of ergosterol sequestration from the plasma membrane of Drosophila photoreceptors and found a dramatic effect of ergosterol sequestration on the ability of the channels to open (data not shown).

8. Concluding Remarks

Despite many efforts over the years, the gating mechanism of the Drosophila TRP/TRPL channels still poses a long-standing enigma. The findings that mammalian TRPC channels can be activated by exogeneous application of DAG together with the solved atomic structures of mammalian TRPC channels by cryo-EM constitute major progress towards understanding TRPC channel gating. Nevertheless, Drosophila retina is a highly valued preparation for investigating the roles of TRP/TRPL channels under physiological conditions. This is due to their high expression levels and their known functional role as the light-activated channels. There remains no comparable preparation for the mammalian TRPC channels that contains a TRP-enriched tissue combined with the power of the Drosophila molecular genetics and the accuracy of light activation. Moreover, studies of Drosophila phototransduction revealed that under physiological conditions, Drosophila TRP operates as an essential part of a multimolecular signaling complex. There are indications that mammalian TRPC channels also operate in a similar manner, but it is difficult to study these mechanisms in the native mammalian systems because of the scarcity of these signaling proteins in the native systems.
Crucial unsolved questions in Drosophila photoreceptor physiology are related to the mechanism by which DAG accumulation following DGK inhibition activates the channels. In particular, why exogeneous application of DAG to an excised signaling membrane activates the channels in orders of magnitude slower than light activation in the intact photoreceptor cell. The use of photoactivated DAG analogues [125] may help in solving this question.
An available Drosophila mutant in which the TRP channels are constitutively active (i.e., the trpP365 mutant) is a highly valuable tool for investigating TRP gating in the future, which can be used together with the solved atomic structure of mammalian TRPCs. In addition, even if PUFA is not the native second messenger of excitation, its robust effect of opening the TRP/TRPL channels in the dark in vivo and TRPL in tissue culture cells can be studied in detail and provide useful information on channel gating.
Finally, the photomechanical gating mechanism of TRP/TRPL channels that was put forward by Hardie and colleagues needs to be revisited. According to this model and the supporting evidence, light-induced PIP2 hydrolysis by PLC converts a phospholipid with a large hydrophilic head group (PIP2) into DAG with a minute hydrophilic head group. This enzymatic reaction leads to a generation of a measurable force that may open the channels mechanically.

Funding

This research was funded by Israel Science Foundation (ISF) grant number 368/19 and by United states—Israel Binational Science Foundation (BSF) grant number 201514. The APC was funded by ISF.

Acknowledgments

This research was supported by grants from the Israel Science Foundation (ISF), and the United states—Israel Binational Science Foundation (BSF).

Conflicts of Interest

Authors declare no conflict of interest.
