Article

Polymer-Nanodiscs as a Novel Alignment Medium for High-Resolution NMR-Based Structural Studies of Nucleic Acids

1
Biophysics Program, Department of Chemistry, Biomedical Engineering, and Macromolecular Science and Engineering, Michigan Neuroscience Institute, University of Michigan, Ann Arbor, MI 48109, USA
2
National Magnetic Resonance Facility at Madison, University of Wisconsin-Madison, Madison, WI 53706, USA
3
Department of Biochemistry and Biophysics, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Biomolecules 2022, 12(11), 1628; https://doi.org/10.3390/biom12111628
Received: 29 September 2022 / Revised: 28 October 2022 / Accepted: 31 October 2022 / Published: 3 November 2022
(This article belongs to the Collection Feature Papers in Molecular Structure and Dynamics)

Abstract

:
Residual dipolar couplings (RDCs) are increasingly used for high-throughput NMR-based structural studies and to provide long-range angular constraints to validate and refine structures of various molecules determined by X-ray crystallography and NMR spectroscopy. RDCs of a given molecule can be measured in an anisotropic environment that aligns in an external magnetic field. Here, we demonstrate the first application of polymer-based nanodiscs for the measurement of RDCs from nucleic acids. Polymer-based nanodiscs prepared using negatively charged SMA-EA polymer and zwitterionic DMPC lipids were characterized by size-exclusion chromatography, 1H NMR, dynamic light-scattering, and 2H NMR. The magnetically aligned polymer-nanodiscs were used as an alignment medium to measure RDCs from a 13C/15N-labeled fluoride riboswitch aptamer using 2D ARTSY-HSQC NMR experiments. The results showed that the alignment of nanodiscs is stable for nucleic acids and nanodisc-induced RDCs fit well with the previously determined solution structure of the riboswitch. These results demonstrate that SMA-EA-based lipid-nanodiscs can be used as a stable alignment medium for high-resolution structural and dynamical studies of nucleic acids, and they can also be applicable to study various other biomolecules and small molecules in general.

Graphical Abstract

1. Introduction

Residual dipolar couplings (RDCs), providing long-range angular information within a molecule, are increasingly used to measure atomic-resolution structural and dynamic features for a variety of molecules [1,2,3,4]. They are also useful in validating and refining biomolecular structures determined by X-ray crystallography and nuclear magnetic resonance (NMR) spectroscopy [5]. RDCs are through-space interactions; however, unlike NOEs (1–5 Å) and PREs (10–30 Å), they report on structural information irrespective of distance since RDCs arise from orientations between two magnetically active nuclei with respect to a strong, uniform magnetic field present throughout the sample [6]. However, when molecules tumble isotropically in solution conditions, dipolar couplings are averaged to zero and render such structural information inaccessible. Therefore, a special medium that can partially restrict a molecule’s isotropic tumbling and induce weak alignment in an external magnetic field is needed to capture residuals of dipolar couplings [7]. Various alignment media, including bicelles [8,9,10,11], Pf1 phage [6,12,13,14,15,16], flagella [17], constrained gels (polyacrylonitrile) [18], graphene oxide grafted with polymer brushes [19], and most recently, polymer-based lipid-nanodiscs (polymer-nanodiscs) [20,21], have been used to measure RDCs for various biomolecules [1,2,22,23]. Although bicelles are commonly used as an alignment medium in NMR studies [24,25,26,27,28,29], they can be unstable due to detergents [22]. In contrast, polymer-nanodiscs, similar to protein/peptide-based nanodiscs [30,31,32,33,34,35,36,37,38,39], comprise a planar lipid bilayer surrounded by a polymer belt and can be stable due to a detergent-free environment [40,41]. The ability to use aligned and 90°-flipped polymer-based nanodiscs is another unique advantage [21]. In addition, polymer-nanodiscs are stable against a broad range of pH conditions and resistant to aggregation by divalent metal ions [42,43,44].
Previous studies have demonstrated that a transition from the gel (isotropic) to liquid–crystalline (anisotropic) phase, when the temperature is raised above the phase transition temperature (Tm) of lipids, renders magnetic alignment of nanodiscs such that the bilayer normal is oriented perpendicular to the external magnetic field [38,42,45,46,47,48,49,50]; in addition, a recent solid-state NMR study demonstrated the magnetic alignment of peptoid-based nanodiscs [51]. When water-soluble molecules are placed in liquid-crystalline nanodiscs, their motion is partially restricted due to the anisotropic environment induced by the aligned nanodiscs [21]. Hence, the polymer-nanodiscs can be used to measure RDCs for various molecules, including small molecules, proteins, and nucleic acids. We have previously reported the use of polymer-nanodiscs for RDCs measurement from water-soluble proteins [20,21]. Here, we report the first demonstration of the application of styrene-maleic acid-ethylamine (SMA-EA)-based 1,2-dimyristoyl-sn-glycero-3-phosphocholine (DMPC)-nanodiscs for RDC measurement from the Bacillus cereus fluoride riboswitch aptamer, a non-coding RNA that detects cellular fluoride and activates gene expression involved in fluoride toxicity response [52,53]. The measured RDCs are in excellent agreement with the previously determined solution structure of the riboswitch [54], indicating the suitability of polymer-nanodiscs for high-resolution structural studies of nucleic acids.

2. Materials and Methods

2.1. Preparation of DMPC Liposomes

A total of 120 mg of DMPC (Avanti Polar Lipids; AL, USA) was taken in a 15 mL centrifuge tube and dissolved in a solvent mixture containing 1:1 v/v CH3OH:CHCl3 (600 µL each) (Sigma-Aldrich; St. Louis, MO, USA). The organic solvents were evaporated by applying a low-pressure N2 gas (20 min) onto the lipid–solvents mixture. (Caution: N2 gas at high pressure can spill the sample out of the centrifuge tube). The lipid mixture was then subjected to a vacuum for 1 h to remove all the residual solvents. Finally, the liposome solution was prepared by resuspending the solvent-free lipid mixture in a 10 mM potassium phosphate buffer (pH 7.4) containing 50 mM NaCl, and by subjecting it to the freeze–thaw cycle three times (using liquid N2 and hot water (~70 °C)) and vortexing for 5 s.

2.2. SMA-EA Polymer

The SMA-EA polymer was synthesized, purified, and characterized using the published protocol [42].

2.3. Preparation of Polymer-Nanodiscs

The SMA-EA stock solution was prepared by dissolving the lyophilized polymer in a 10 mM potassium phosphate buffer (pH 7.4) containing 50 mM NaCl at 100 mg/mL concentration. The pH of the solution was checked and adjusted to ~7.4 by adding HCl before using it in nanodisc preparation.
The liposome solution was mixed with SMA-EA solution at a 1:1 (w/w) lipid: polymer ratio and incubated at 30 °C overnight. Then, the nanodiscs solution was purified by size-exclusion chromatography (SEC) using fast protein liquid chromatography (FPLC; GE Healthcare, Chicago, IL, USA) and 10 × 300 Superdex 200 column (GE Healthcare). The fractions (detected at 254 nm) containing polymer-nanodiscs were combined and concentrated to 100 mg DMPC/mL using a 100 kDa cut-off Amicon Centricon membrane filter (Burlington, MA, USA). The polymer-nanodiscs were stored under −20 °C. When needed, the nanodiscs sample was warmed up to room temperature before the addition of RNA and used for NMR measurements.

2.4. Characterization of SMA-EA Nanodiscs

2.4.1. 1H NMR

The 1D 1H and 2D 1H/1H NOESY NMR spectra were recorded on a Bruker 500 MHz NMR spectrometer at 298 K. NMR spectra of SEC-purified polymer-nanodiscs (before concentrating the sample for RDC measurements) were recorded in a 10 mM potassium phosphate buffer (pH 7.4) containing 50 mM NaCl, and processed using Topspin (version 3.6.2, Bruker, Billerica, MA, USA) and calibrated to water proton peak.

2.4.2. Dynamic Light Scattering (DLS)

DLS experiments were performed at 25 °C using Wyatt Technology®, DynaPro®, NanoStar®, and a 1 µL quartz MicroCuvette. The DLS data were collected on the SEC purified polymer-nanodiscs.

2.5. NMR Sample Preparation

Uniformly 13C- and 15N-labeled fluoride riboswitch aptamer samples were prepared as described previously [54]. Briefly, samples were transcribed in vitro using T7 polymerase based on DNA purchased from Integrated DNA Technologies (IDT), Inc., (Coralville, IA, USA). The transcribed samples were ethanol precipitated and gel-purified under denaturing conditions, eluted using the Elutrap system (Whatman), and subsequently purified using a Hi-Trap Q column (GE Healthcare). The purified samples were exchanged to 10 mM sodium phosphate (pH 6.4) (containing 50 mM KCl, 2 mM MgCl2, 10 mM NaF, and 50 μM EDTA) and concentrated to ~0.5–1.0 mM using Amicon filtration systems (Millipore). For preparing samples for residual dipolar coupling (RDC) measurements, the lyophilized powder of 13C- and 15N-isotope-labeled RNA was first dissolved in 100 µL of a 10 mM potassium phosphate buffer (pH 7.4, containing 50 mM NaCl) and followed by the addition of 180 µL of polymer-nanodiscs solution (100 mg/mL of lipids). A total of 10% of 2H2O was included in all NMR samples.

2.6. RDC NMR Measurements

The NMR experiments for RDC measurements were carried out on a Varian VNMRS 600 MHz (1H) spectrometer equipped with a H/C/N cryogenically cooled probe. The NMR experiments were recorded in isotropic (288 K) and anisotropic (308 K) conditions. RDCs were extracted using 2D ARTSY-HSQC experiments with the reference and attenuated spectra were recorded in an interleaved fashion [55]. The amplitude-encoding ARTSY delay was optimized empirically for each experiment and is reported in Table S1, along with acquisition parameters. After recording the spectra in the isotropic condition with the sample at 288 K, the probe temperature was increased to 308 K to allow the alignment of nanodiscs in the magnetic field. In addition, 1D deuterium NMR spectra were recorded using the same sample before and after acquiring the 2D ARTSY-HSQC data.
RDCs for the H1-N1 and H3-N3 imino groups were recorded using an ARTSY BEST-HSQC pulse program that uses band-selective 1H pulses and leaves the water magnetization unperturbed [55]. RDCs for H6-C6, H8-C8, H2-C2 aromatic groups, and H5-C5 and H1′-C1′ groups were recorded using two separate ARTSY-HSQC experiments that employ band-selective 13C pulses to allow for the removal of homonuclear 13C-13C couplings in the 13C-dimension. RDCs for the remaining ribose groups were obtained using an ARTSY-HSQC experiment with constant-time 13C-evolution to remove homonuclear 13C-13C couplings, with the constant-time delay set to 28.6 ms. NMR spectra were processed using NMRPipe [56].

2.7. Measuring Nanodisc-Induced RDCs in Holo Fluoride Riboswitch

Two-dimensional NMR spectra were viewed and analyzed using NMRFAM-Sparky v3.190 [57]. Assigned peak intensities for isotropic reference (IIR), isotropic attenuated (IIA), anisotropic reference (IAR), and anisotropic attenuated (IAA) spectra per chemical group set (C2H2/C6H6/C8H8, C1′C1′/C5H5, N1H1/N3H3) were extracted. Intensity values were used to calculate RDC values (D) according to the following Equation (1):
D = ± 2 π T ( cos 1 I A A I A R 2 cos 1 I I A I I R 2 )
where the mixing time, T, was 5.0 ms for C2H2/C6H6/C8H8, 6.0 ms for C1′H1′/C5H5, and 11.5 ms for N1H1/N3H3. Values from severely overlapped peaks were omitted from further analysis, resulting in a total of 84 nanodisc-induced measured RDCs. A subset of total RDC values (N = 73), omitting the values from the flexible region J1/2 (residues A17, U18, A19, A20, A21, C22), was fit to the lowest energy structure (PDB structure 5KH8) using the program RAMAH [58] to generate the alignment tensor, back-calculate RDCs, and quality (Q) factors [59]. Back-calculated RDCs per alignment medium set were plotted against measured RDCs for both nanodisc- and phage-induced sets. Errors for nanodisc and phage RDCs were estimated from RAMAH, scaling approximately to the range of each RDC set (4 Hz for nanodisc, 2 Hz for phage).

3. Results and Discussion

Since RNA is a polyanion, negatively charged SMA-EA-based DMPC-nanodiscs were used to avoid non-specific coulombic interactions between RNA and the polymer belt of the nanodisc [60,61]. The polymer-nanodiscs were prepared using SMA-EA polymer and DMPC at a 1:1 (w/w) ratio. The turbid DMPC liposome solution turned transparent after mixing and incubating with SMA-EA overnight at ~30 °C, suggesting the formation of aqueous soluble polymer-nanodiscs (Figure 1A). The polymer-nanodiscs sample was then purified by SEC. The SEC chromatogram showed two major peaks: the peak between 9–13.5 mL corresponds to polymer-nanodiscs, and the peak between 14–20.5 mL corresponds to excess-free SMA-EA polymer (Figure 1B). The single symmetric elution peak observed in SEC is an indication of size homogeneity for the nanodiscs. Nanodiscs with such size homogeneity are suitable for high-resolution structural studies of membrane proteins by cryo-EM and NMR spectroscopy. Polymer-nanodiscs were then characterized by 1H NMR under isotropic conditions (~15 mg/mL). The 1H NMR spectrum showed peaks from acyl-chain protons (0.3–0.7 ppm), characteristic quaternary ammonium protons (3.22 ppm) from DMPC lipids, and a broad peak from the aromatic styrene-ring of SMA-EA (6.4–7.6 ppm), indicating the presence of SMA-EA polymer and the DMPC lipids in the SEC-purified sample (Figure 1C). A 2D NOESY spectrum showed internuclear NOEs between the SMA-EA aromatic group and DMPC acyl-chains (Figure S1), confirming the formation of SMA-EA-DMPC assemblies. The size of polymer-nanodiscs was estimated by dynamic light scattering (DLS) at a DMPC concentration of 3 mg/mL, reporting a hydrodynamic radius of ~10.5 ± 1 nm (Figure 1C and Figure S2). The excess-free polymer in the sample (14–20.5 mL of SEC chromatogram (Figure 1B)) was confirmed by 1H NMR (Figure S1).
The lyophilized powder of fluoride-bound 13C/15N-labeled fluoride riboswitch aptamer was dissolved in a 10 mM potassium phosphate buffer (pH 7.4), 50 mM NaCl, and added to the SEC-purified SMA-EA nanodiscs sample. The magnetic alignment of nanodiscs was confirmed by deuterium NMR (Figure 2A). At 288 K (below the Tm of DMPC (~24 °C)), the deuterium NMR spectrum showed a single peak, indicating the isotropic nature of nanodiscs (Figure 2A (bottom) and Figure 2B). In contrast, at 308 K (above Tm), a doublet with a residual quadrupolar coupling (RQC) value of ~8 Hz was observed, indicating the magnetic alignment of polymer-nanodiscs in a strong external magnetic field (Figure 2A (top) and Figure 2C).
To determine one-bond RDCs for different 13C-1H and 15N-1H pairs of nucleotides in fluoride riboswitch aptamer (Figure 3A,B), a series of 2D ARTSY-HSQC NMR experiments [55] (listed in Table S1) were recorded at 288 K (isotropic) and 308 K (anisotropic). Each ARTSY spectrum was acquired twice in an interleaved manner, yielding two separate spectra after processing, where the first one corresponds to the reference spectrum and the second corresponds to the attenuated spectrum. In the attenuated spectrum, the intensity of peaks is modulated by the strength of the coupling (scalar, J, and dipolar, D). After data processing, J or J + D values were obtained by taking the ratio of reference spectra intensities over the attenuated spectra. Finally, the RDCs were obtained by subtracting the couplings measured under isotropic conditions from the anisotropic conditions. Previously reported NMR assignments for the fluoride-bound state [54] were used to assign the cross-peaks in ARTSY spectra (Figure 3C–E, Figure S3 and Figure S4). The RDC values for adenine (C2-H2, C8-H8), guanine (N1-H1, C8-H8), uridine (N3-H3, C5-H5, C6-H6), cytosine (C5-H5, C6-H6), and ribose (C1′-H1′) were extracted using an RD tool in NMRFAM-SPARKY software (Figure 3C–E). In addition, the alignment of polymer-nanodiscs was found to be stable as the 2H NMR spectrum recorded 5 days after the sample preparation showed no change in the RQC value (~8.0 Hz) (Figure 2D). Therefore, the polymer-nanodiscs were stable during the acquisition of all 2D ARTSY-HSQC NMR experiments for the RDC measurements.
A total of 84 RDCs were measured for the fluoride-bound fluoride riboswitch aptamer in polymer-nanodiscs, where severely overlapped peaks were omitted (Figure 4A,B). It was previously shown that the fluoride riboswitch aptamer adopts identical solution structures in the presence and absence of fluoride, where an excellent correlation was observed between RDCs measured in apo and holo riboswitches with Pf1 phage as the alignment medium [54]. To evaluate the quality of the nanodisc-induced RDCs, we employed the program RAMAH [58] and carried out order tensor analysis using the apo- fluoride riboswitch aptamer structure (PDB: 5KH8) [54]. Here, a subtotal of 73 nanodisc-induced RDCs was used, where RDCs from the flexible region J12 (Figure 4A; residues A17, U18, A19, A20, A21, C22) were excluded. An excellent agreement between the measured and back-calculated RDCs was observed with a quality (Q) [59] factor = 14.98% (Figure 4C), which is consistent with a similar RAMAH analysis of previously measured Pf1-phage-induced RDCs of the holo state [54] with Q factor = 14.79% (Figure 4D). A direct comparison between shared RDCs measured from polymer-nanodiscs and those from Pf1 phage (N = 73; including J12) revealed an anti-correlation with a correlation coefficient R2 of 0.97 (Figure 4E). Indeed, order tensor analyses of these two sets of RDCs showed that the nanodiscs-induced alignment is parallel to the magnetic field (Szz = +1.25 ± 0.01 × 10−3), whereas the Pf1-phage-induced alignment is perpendicular to the magnetic field (Szz = −0.77 ± 0.01 × 10−3). Overall, the measured RDCs from polymer-nanodiscs are in excellent agreement with the RDCs back-calculated from the structure and with similar accuracy to those measured from the Pf1 phage medium. This finding successfully demonstrates the suitability of polymer-nanodiscs as an alignment medium for structural studies on RNA and the reproducibility of these measurements across different media [54]. The results also suggest that it is very unlikely that the negatively charged RNA interacts with either negatively charged SMA-EA or zwitterionic DMPC lipids.
It is important to note that the charge of the polymer belt should be the same as the net charge of the molecule to be studied at a given pH to avoid any non-specific electrostatic interactions [20,21,60]. Therefore, nanodiscs prepared using a charged polymer cannot be used to study protein–protein and protein–nucleic acid complexes that are stabilized by electrostatic interactions [62]. On the other hand, non-ionic polymer-nanodiscs can be suitable for studying such complexes constituting differently charged molecules, as demonstrated for the membrane-bound redox complex composed of cationic cytochrome P450 (CYP450) and anionic CYP450 reductase [63]. Another advantage is that the non-ionic polymers do not absorb light in the UV region; therefore, they do not interfere with the UV-based characterization of biomolecules unlike the SMA-based polymers [64]. We also note that zwitterionic polymers may be another alternative to characterize biomolecules with different net charges [65]. Previous studies have shown that magnetically aligned polymer-nanodiscs are excellent tools for high-resolution NMR-based structural studies of membrane proteins and cytosolic proteins [20,21,66]. Together, the results indicate the power of polymer-nanodiscs to extract RDCs for high-resolution structure determination of a wide range of biomolecules and to validate the reported biomolecular structures determined by X-ray crystallography and NOE-based NMR studies.

4. Conclusions

In conclusion, this study demonstrated the application of polymer-nanodiscs as a new weak-alignment medium to measure RDCs for nucleic acids using NMR experiments. It has been shown recently that RNA can adopt alternative conformations upon protonation to direct biological outcomes [67]. The stability of polymer-nanodiscs at low pHs [42,43,44] would enable measuring RDCs as high-resolution structural constraints for pronated RNAs that would be difficult to obtain using other widely used alignment media for nucleic acids, such as Pf1 phage [68]. With their long-term stability, as indicated by deuterium NMR, the polymer-nanodiscs can be used to record multi-dimensional biomolecular NMR experiments that require longer-acquisition times. Furthermore, due to lipid-solubilizing properties, SMA-EA can be used to directly isolate membrane proteins along with native lipids [61,69], and its compatibility with divalent metal ions makes it suitable for studying metalloproteins and metal-bound nucleic acids. Thus, the polymer-nanodiscs are excellent tools for studying the conformation of membrane proteins, soluble proteins, and nucleic acids (current study) and can even extend to characterize natural products and small-molecule drug candidates in drug-development studies [70,71,72,73].

5. Patents

The authors declare that the SMA-EA polymer is US patented.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biom12111628/s1, Figure S1: NMR characterization of polymer nanodiscs; Figure S2: DLS analysis of polymer nanodiscs; Figure S3: 2D ARTSY NMR spectra of fluoride riboswitch aptamer in magnetically aligned SMA-EA DMPC-nanodiscs; Figure S4: Different regions of 2D ARTSY spectra of the fluoride riboswitch aptamer in magnetically-aligned SMA-EA DMPC nanodiscs showing 1D slices for the assigned cross-peaks [54]; Table S1: List of 2D ARTSY-HSQC NMR experiments performed on RNA in magnetically-aligned polymer-nanodiscs.

Author Contributions

T.R., and A.R. conceived the project; T.R. synthesized and characterized the polymer; nanodiscs were prepared and characterized by B.K.; E.M.F. produced the RNA sample; B.K, T.R., and M.T. performed the experiments; B.K., T.R., and E.M.F. processed and analyzed the data; B.K., E.M.F., Q.Z., and A.R. wrote the manuscript; Q.Z., and A.R. obtained the funding support, and the overall project was supervised and directed by A.R. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by NIH grants (R35GM139573 to A.R. and R01GM114432 to Q.Z.). This study made use of the National Magnetic Resonance Facility at Madison, which is supported by the NIH grant R24GM141526.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Prestegard, J.H.; Bougault, C.M.; Kishore, A.I. Residual dipolar couplings in structure determination of biomolecules. Chem. Rev. 2004, 104, 3519–3540. [Google Scholar] [CrossRef]
  2. Tolman, J.R.; Ruan, K. NMR residual dipolar couplings as probes of biomolecular dynamics. Chem. Rev. 2006, 106, 1720–1736. [Google Scholar] [CrossRef]
  3. Chen, K.; Tjandra, N. The use of residual dipolar coupling in studying proteins by NMR. NMR Proteins Small Biomol. 2012, 326, 47–67. [Google Scholar] [CrossRef][Green Version]
  4. Cole, C.A.; Daigham, N.S.; Liu, G.; Montelione, G.T.; Valafar, H. REDCRAFT: A computational platform using residual dipolar coupling NMR data for determining structures of perdeuterated proteins in solution. PLOS Comput. Biol. 2021, 17, e1008060. [Google Scholar] [CrossRef]
  5. Tjandra, N. Residual dipolar coupling. In Encyclopedia of Biophysics; Roberts, G.C.K., Ed.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 2213–2221. [Google Scholar]
  6. Bibow, S.; Carneiro, M.G.; Sabo, T.M.; Schwiegk, C.; Becker, S.; Riek, R.; Lee, D. Measuring membrane protein bond orientations in nanodiscs via residual dipolar couplings. Protein Sci. 2014, 23, 851–856. [Google Scholar] [CrossRef][Green Version]
  7. Bax, A. Weak alignment offers new NMR opportunities to study protein structure and dynamics. Protein Sci. 2003, 12, 1–16. [Google Scholar] [CrossRef]
  8. Sanders, C.R.; Schwonek, J.P. Characterization of magnetically orientable bilayers in mixtures of dihexanoylphosphatidylcholine and dimyristoylphosphatidylcholine by solid-state NMR. Biochemistry 1992, 31, 8898–8905. [Google Scholar] [CrossRef]
  9. Tjandra, N.; Bax, A. Direct measurement of distances and angles in biomolecules by NMR in a dilute liquid crystalline medium. Science 1997, 278, 1111–1114. [Google Scholar] [CrossRef][Green Version]
  10. Ottiger, M.; Bax, A. Characterization of magnetically oriented phospholipid micelles for measurement of dipolar couplings in macromolecules. J. Biomol. NMR 1998, 12, 361–372. [Google Scholar] [CrossRef]
  11. Canlas, C.G.; Ma, D.; Tang, P.; Xu, Y. Residual dipolar coupling measurements of transmembrane proteins using aligned low-q bicelles and high-resolution magic angle spinning NMR spectroscopy. J. Am. Chem. Soc. 2008, 130, 13294–13300. [Google Scholar] [CrossRef]
  12. Hansen, M.R.; Mueller, L.; Pardi, A. Tunable alignment of macromolecules by filamentous phage yields dipolar coupling interactions. Nat. Struct. Biol. 1998, 5, 1065–1074. [Google Scholar] [CrossRef]
  13. Bernadó, P.; Bertoncini, C.W.; Griesinger, C.; Zweckstetter, M.; Blackledge, M. Defining long-range order and local disorder in native α-synuclein using residual dipolar couplings. J. Am. Chem. Soc. 2005, 127, 17968–17969. [Google Scholar] [CrossRef]
  14. Schwieters, C.D.; Suh, J.Y.; Grishaev, A.; Ghirlando, R.; Takayama, Y.; Clore, G.M. Solution structure of the 128 kDa enzyme I dimer from Escherichia coli and its 146 kDa complex with HPr using residual dipolar couplings and small- and wide-angle X-ray scattering. J. Am. Chem. Soc. 2010, 132, 13026–13045. [Google Scholar] [CrossRef][Green Version]
  15. Marchant, J.; Bax, A.; Summers, M.F. Accurate measurement of residual dipolar couplings in large RNAs by variable flip angle NMR. J. Am. Chem. Soc. 2018, 140, 6978–6983. [Google Scholar] [CrossRef]
  16. Robertson, A.J.; Courtney, J.M.; Shen, Y.; Ying, J.; Bax, A. Concordance of X-ray and AlphaFold2 models of SARS-CoV-2 main protease with residual dipolar couplings measured in solution. J. Am. Chem. Soc. 2021, 143, 19306–19310. [Google Scholar] [CrossRef]
  17. Singh, H.; Shukla, M.; Rao, B.J.; Chary, K.V.R. Flagella as a novel alignment medium for the measurement of residual dipolar couplings in proteins. ChemComm 2013, 49, 11403–11405. [Google Scholar] [CrossRef]
  18. Sager, E.; Tzvetkova, P.; Gossert, A.D.; Piechon, P.; Luy, B. Determination of configuration and conformation of a reserpine derivative with seven stereogenic centers using molecular dynamics with RDC-derived tensorial constraints. Chem.–Eur. J. 2020, 26, 14435–14444. [Google Scholar] [CrossRef]
  19. Zong, W.; Li, G.-W.; Cao, J.-M.; Lei, X.; Hu, M.-L.; Sun, H.; Griesinger, C.; Tan, R.X. An alignment medium for measuring residual dipolar couplings in pure DMSO: Liquid crystals from graphene oxide grafted with polymer brushes. Angew. Chem. Int. Ed. 2016, 55, 3690–3693. [Google Scholar] [CrossRef][Green Version]
  20. Ravula, T.; Ramamoorthy, A. Magnetic alignment of polymer macro-nanodiscs enables residual-dipolar-coupling-based high-resolution structural studies by NMR spectroscopy. Angew. Chem. Int. Ed. 2019, 58, 14925–14928. [Google Scholar] [CrossRef]
  21. Ravula, T.; Ramamoorthy, A. Measurement of residual dipolar couplings using magnetically aligned and flipped nanodiscs. Langmuir 2022, 38, 244–252. [Google Scholar] [CrossRef]
  22. Dufourc, E.J. Bicelles and nanodiscs for biophysical chemistry. BBA-Biomembr. 2021, 1863, 183478. [Google Scholar] [CrossRef] [PubMed]
  23. Günsel, U.; Hagn, F. Lipid nanodiscs for high-resolution NMR studies of membrane proteins. Chem. Rev. 2021, 122, 9395–9421. [Google Scholar] [CrossRef]
  24. Ramirez, B.E.; Bax, A. Modulation of the alignment tensor of macromolecules dissolved in a dilute liquid crystalline medium. J. Am. Chem. Soc. 1998, 120, 9106–9107. [Google Scholar] [CrossRef]
  25. Dürr, U.H.; Gildenberg, M.; Ramamoorthy, A. The magic of bicelles lights up membrane protein structure. Chem. Rev. 2012, 112, 6054–6074. [Google Scholar] [CrossRef] [PubMed]
  26. Lorieau, J.L.; Maltsev, A.S.; Louis, J.M.; Bax, A. Modulating alignment of membrane proteins in liquid-crystalline and oriented gel media by changing the size and charge of phospholipid bicelles. J. Biomol. NMR 2013, 55, 369–377. [Google Scholar] [CrossRef][Green Version]
  27. Al-Hashimi, H.M.; Valafar, H.; Terrell, M.; Zartler, E.R.; Eidsness, M.K.; Prestegard, J.H. Variation of molecular alignment as a means of resolving orientational ambiguities in protein structures from dipolar couplings. J. Magn. Reson. 2000, 143, 402–406. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Tolman, J.R.; Al-Hashimi, H.M.; Kay, L.E.; Prestegard, J.H. Structural and dynamic analysis of residual dipolar coupling data for proteins. J. Am. Chem. Soc. 2001, 123, 1416–1424. [Google Scholar] [CrossRef]
  29. Tian, F.; Al-Hashimi, H.M.; Craighead, J.L.; Prestegard, J.H. Conformational analysis of a flexible oligosaccharide using residual dipolar couplings. J. Am. Chem. Soc. 2001, 123, 485–492. [Google Scholar] [CrossRef]
  30. Bayburt, T.H.; Grinkova, Y.V.; Sligar, S.G. Self-assembly of discoidal phospholipid bilayer nanoparticles with membrane scaffold proteins. Nano Lett. 2002, 2, 853–856. [Google Scholar] [CrossRef]
  31. Hagn, F.; Wagner, G. Structure refinement and membrane positioning of selectively labeled OmpX in phospholipid nanodiscs. J. Biomol. NMR 2015, 61, 249–260. [Google Scholar] [CrossRef]
  32. Denisov, I.G.; Sligar, S.G. Nanodiscs in membrane biochemistry and biophysics. Chem. Rev. 2017, 117, 4669–4713. [Google Scholar] [CrossRef][Green Version]
  33. Nasr, M.L.; Baptista, D.; Strauss, M.; Sun, Z.J.; Grigoriu, S.; Huser, S.; Plückthun, A.; Hagn, F.; Walz, T.; Hogle, J.M.; et al. Covalently circularized nanodiscs for studying membrane proteins and viral entry. Nat. Methods 2017, 14, 49–52. [Google Scholar] [CrossRef] [PubMed]
  34. Hagn, F.; Nasr, M.L.; Wagner, G. Assembly of phospholipid nanodiscs of controlled size for structural studies of membrane proteins by NMR. Nat. Protoc. 2018, 13, 79–98. [Google Scholar] [CrossRef] [PubMed]
  35. Barnaba, C.; Sahoo, B.R.; Ravula, T.; Medina-Meza, I.G.; Im, S.-C.; Anantharamaiah, G.M.; Waskell, L.; Ramamoorthy, A. Cytochrome-P450-induced ordering of microsomal membranes modulates affinity for drugs. Angew. Chem. Int. Ed. 2018, 57, 3391–3395. [Google Scholar] [CrossRef] [PubMed]
  36. Gentry, K.A.; Anantharamaiah, G.M.; Ramamoorthy, A. Probing protein–protein and protein–substrate interactions in the dynamic membrane-associated ternary complex of cytochromes P450, b5, and reductase. ChemComm 2019, 55, 13422–13425. [Google Scholar] [CrossRef]
  37. Krishnarjuna, B.; Yamazaki, T.; Anantharamaiah, G.M.; Ramamoorthy, A. Nanodisc reconstitution of flavin mononucleotide binding domain of cytochrome-P450-reductase enables high-resolution NMR probing. ChemComm 2021, 57, 4819–4822. [Google Scholar] [CrossRef]
  38. Anada, C.; Ikeda, K.; Egawa, A.; Fujiwara, T.; Nakao, H.; Nakano, M. Temperature- and composition-dependent conformational transitions of amphipathic peptide–phospholipid nanodiscs. J. Colloid Interface Sci. 2021, 588, 522–530. [Google Scholar] [CrossRef]
  39. Anada, C.; Ikeda, K.; Nakao, H.; Nakano, M. Improvement of thermal stability of amphipathic peptide–phospholipid nanodiscs via lateral association of α-helices by disulfide cross-linking. Langmuir 2022, 38, 6977–6983. [Google Scholar] [CrossRef]
  40. Knowles, T.J.; Finka, R.; Smith, C.; Lin, Y.-P.; Dafforn, T.; Overduin, M. Membrane proteins solubilized intact in lipid containing nanoparticles bounded by styrene maleic acid copolymer. J. Am. Chem. Soc. 2009, 131, 7484–7485. [Google Scholar] [CrossRef]
  41. Oluwole, A.O.; Danielczak, B.; Meister, A.; Babalola, J.O.; Vargas, C.; Keller, S. Solubilization of membrane proteins into functional lipid-bilayer nanodiscs using a diisobutylene/maleic acid copolymer. Angew. Chem. Int. Ed. 2017, 56, 1919–1924. [Google Scholar] [CrossRef]
  42. Ravula, T.; Ramadugu, S.K.; Di Mauro, G.; Ramamoorthy, A. Bioinspired, size-tunable self-assembly of polymer-lipid bilayer nanodiscs. Angew. Chem. Int. Ed. 2017, 56, 11466–11470. [Google Scholar] [CrossRef] [PubMed]
  43. Hall, S.C.L.; Tognoloni, C.; Charlton, J.; Bragginton, E.C.; Rothnie, A.J.; Sridhar, P.; Wheatley, M.; Knowles, T.J.; Arnold, T.; Edler, K.J.; et al. An acid-compatible co-polymer for the solubilization of membranes and proteins into lipid bilayer-containing nanoparticles. Nanoscale 2018, 10, 10609–10619. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Burridge, K.M.; Harding, B.D.; Sahu, I.D.; Kearns, M.M.; Stowe, R.B.; Dolan, M.T.; Edelmann, R.E.; Dabney-Smith, C.; Page, R.C.; Konkolewicz, D.; et al. Simple derivatization of RAFT-synthesized styrene-maleic anhydride copolymers for lipid disk formulations. Biomacromolecules 2020, 21, 1274–1284. [Google Scholar] [CrossRef]
  45. Ravula, T.; Hardin, N.Z.; Ramadugu, S.K.; Cox, S.J.; Ramamoorthy, A. Formation of pH-resistant monodispersed polymer-lipid nanodiscs. Angew. Chem. Int. Ed. 2018, 57, 1342–1345. [Google Scholar] [CrossRef]
  46. Radoicic, J.; Park, S.H.; Opella, S.J. Macrodiscs comprising SMALPs for oriented sample solid-state NMR spectroscopy of membrane proteins. Biophys. J. 2018, 115, 22–25. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Hardin, N.Z.; Ravula, T.; Mauro, G.D.; Ramamoorthy, A. Hydrophobic functionalization of polyacrylic acid as a versatile platform for the development of polymer lipid nanodisks. Small 2019, 15, e1804813. [Google Scholar] [CrossRef]
  48. Ravula, T.; Kim, J.; Lee, D.-K.; Ramamoorthy, A. Magnetic alignment of polymer nanodiscs probed by solid-state NMR spectroscopy. Langmuir 2020, 36, 1258–1265. [Google Scholar] [CrossRef]
  49. Ravula, T.; Ramamoorthy, A. Synthesis, characterization, and nanodisc formation of non-ionic polymers. Angew. Chem. Int. Ed. 2021, 60, 16885–16888. [Google Scholar] [CrossRef]
  50. McCalpin, S.D.; Ravula, T.; Ramamoorthy, A. Saponins form nonionic lipid nanodiscs for protein structural studies by Nuclear Magnetic Resonance Spectroscopy. J. Phys. Chem. Lett. 2022, 13, 1705–1712. [Google Scholar] [CrossRef]
  51. Galiakhmetov, A.R.; Davern, C.M.; Esteves, R.J.A.; Awosanya, E.O.; Guthrie, Q.A.E.; Proulx, C.; Nevzorov, A.A. Aligned peptoid-based macrodiscs for structural studies of membrane proteins by oriented-sample NMR. Biophys. J. 2022, 121, 3263–3270. [Google Scholar] [CrossRef]
  52. Baker, J.L.; Sudarsan, N.; Weinberg, Z.; Roth, A.; Stockbridge, R.B.; Breaker, R.R. Widespread genetic switches and toxicity resistance proteins for fluoride. Science 2012, 335, 233–235. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Li, S.; Smith, K.D.; Davis, J.H.; Gordon, P.B.; Breaker, R.R.; Strobel, S.A. Eukaryotic resistance to fluoride toxicity mediated by a widespread family of fluoride export proteins. Proc. Natl. Acad. Sci. USA 2013, 110, 19018–19023. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Zhao, B.; Guffy, S.L.; Williams, B.; Zhang, Q. An excited state underlies gene regulation of a transcriptional riboswitch. Nat. Chem. Biol. 2017, 13, 968–974. [Google Scholar] [CrossRef] [PubMed]
  55. Fitzkee, N.C.; Bax, A. Facile measurement of ¹H-¹5N residual dipolar couplings in larger perdeuterated proteins. J. Biomol. NMR 2010, 48, 65–70. [Google Scholar] [CrossRef]
  56. Delaglio, F.; Grzesiek, S.; Vuister, G.W.; Zhu, G.; Pfeifer, J.; Bax, A. NMRPipe: A multidimensional spectral processing system based on UNIX pipes. J. Biomol. NMR 1995, 6, 277–293. [Google Scholar] [CrossRef]
  57. Lee, W.; Tonelli, M.; Markley, J.L. NMRFAM-SPARKY: Enhanced software for biomolecular NMR spectroscopy. Bioinformatics 2015, 31, 1325–1327. [Google Scholar] [CrossRef][Green Version]
  58. Hansen, A.L.; Al-Hashimi, H.M. Insight into the CSA tensors of nucleobase carbons in RNA polynucleotides from solution measurements of residual CSA: Towards new long-range orientational constraints. J. Magn. Reson. 2006, 179, 299–307. [Google Scholar] [CrossRef]
  59. Cornilescu, G.; Marquardt, J.L.; Ottiger, M.; Bax, A. Validation of protein structure from anisotropic carbonyl chemical shifts in a dilute liquid crystalline phase. J. Am. Chem. Soc. 1998, 120, 6836–6837. [Google Scholar] [CrossRef]
  60. Ravula, T.; Hardin, N.Z.; Bai, J.; Im, S.C.; Waskell, L.; Ramamoorthy, A. Effect of polymer charge on functional reconstitution of membrane proteins in polymer nanodiscs. ChemComm 2018, 54, 9615–9618. [Google Scholar] [CrossRef]
  61. Krishnarjuna, B.; Ravula, T.; Ramamoorthy, A. Detergent-free extraction, reconstitution and characterization of membrane-anchored cytochrome-b5 in native lipids. ChemComm 2020, 56, 6511–6514. [Google Scholar] [CrossRef]
  62. Campagne, S.; Gervais, V.; Milon, A. Nuclear magnetic resonance analysis of protein–DNA interactions. J. R. Soc. Interface 2011, 8, 1065–1078. [Google Scholar] [CrossRef] [PubMed]
  63. Krishnarjuna, B.; Im, S.C.; Ravula, T.; Marte, J.; Auchus, R.J.; Ramamoorthy, A. Non-ionic inulin-based polymer nanodiscs enable functional reconstitution of a redox complex composed of oppositely charged CYP450 and CPR in a lipid bilayer membrane. Anal. Chem. 2022, 94, 11908–11915. [Google Scholar] [CrossRef] [PubMed]
  64. Krishnarjuna, B.; Ravula, T.; Ramamoorthy, A. Detergent-free isolation of CYP450-reductase’s FMN-binding domain in E. coli lipid-nanodiscs using a charge-free polymer. ChemComm 2022, 58, 4913–4916. [Google Scholar] [CrossRef] [PubMed]
  65. Fiori, M.C.; Jiang, Y.; Altenberg, G.A.; Liang, H. Polymer-encased nanodiscs with improved buffer compatibility. Sci. Rep. 2017, 7, 7432. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Park, S.H.; Wu, J.; Yao, Y.; Singh, C.; Tian, Y.; Marassi, F.M.; Opella, S.J. Membrane proteins in magnetically aligned phospholipid polymer discs for solid-state NMR spectroscopy. BBA-Biomembr. 2020, 1862, 183333. [Google Scholar] [CrossRef]
  67. Baisden, J.T.; Boyer, J.A.; Zhao, B.; Hammond, S.M.; Zhang, Q. Visualizing a protonated RNA state that modulates microRNA-21 maturation. Nat. Chem. Biol. 2021, 17, 80–88. [Google Scholar] [CrossRef]
  68. Hansen, M.R.; Hanson, P.; Pardi, A. Filamentous bacteriophage for aligning RNA, DNA, and proteins for measurement of nuclear magnetic resonance dipolar coupling interactions. Methods Enzymol. 2000, 317, 220–240. [Google Scholar] [CrossRef]
  69. Krishnarjuna, B.; Ramamoorthy, A. Detergent-free isolation of membrane proteins and strategies to study them in a near-native membrane environment. Biomolecules 2022, 12, 1076. [Google Scholar] [CrossRef]
  70. Kummerlöwe, G.; Luy, B. Residual dipolar couplings for the configurational and conformational analysis of organic molecules. Annu. Rep. NMR Spectrosc. 2009, 68, 193–232. [Google Scholar] [CrossRef]
  71. Li, G.-W.; Liu, H.; Qiu, F.; Wang, X.-J.; Lei, X.-X. Residual dipolar couplings in structure determination of natural products. Nat. Prod. Bioprospect. 2018, 8, 279–295. [Google Scholar] [CrossRef]
  72. Nath, N.; d’Auvergne, E.J.; Griesinger, C. Long-range residual dipolar couplings: A tool for determining the configuration of small molecules. Angew. Chem. Int. Ed. 2015, 54, 12706–12710. [Google Scholar] [CrossRef] [PubMed]
  73. Chiliveri, S.C.; Robertson, A.J.; Torchia, D.A.; Bax, A. Advances in NMR spectroscopy of weakly aligned biomolecular systems. Chem. Rev. 2022, 122, 9307–9330. [Google Scholar] [CrossRef] [PubMed]

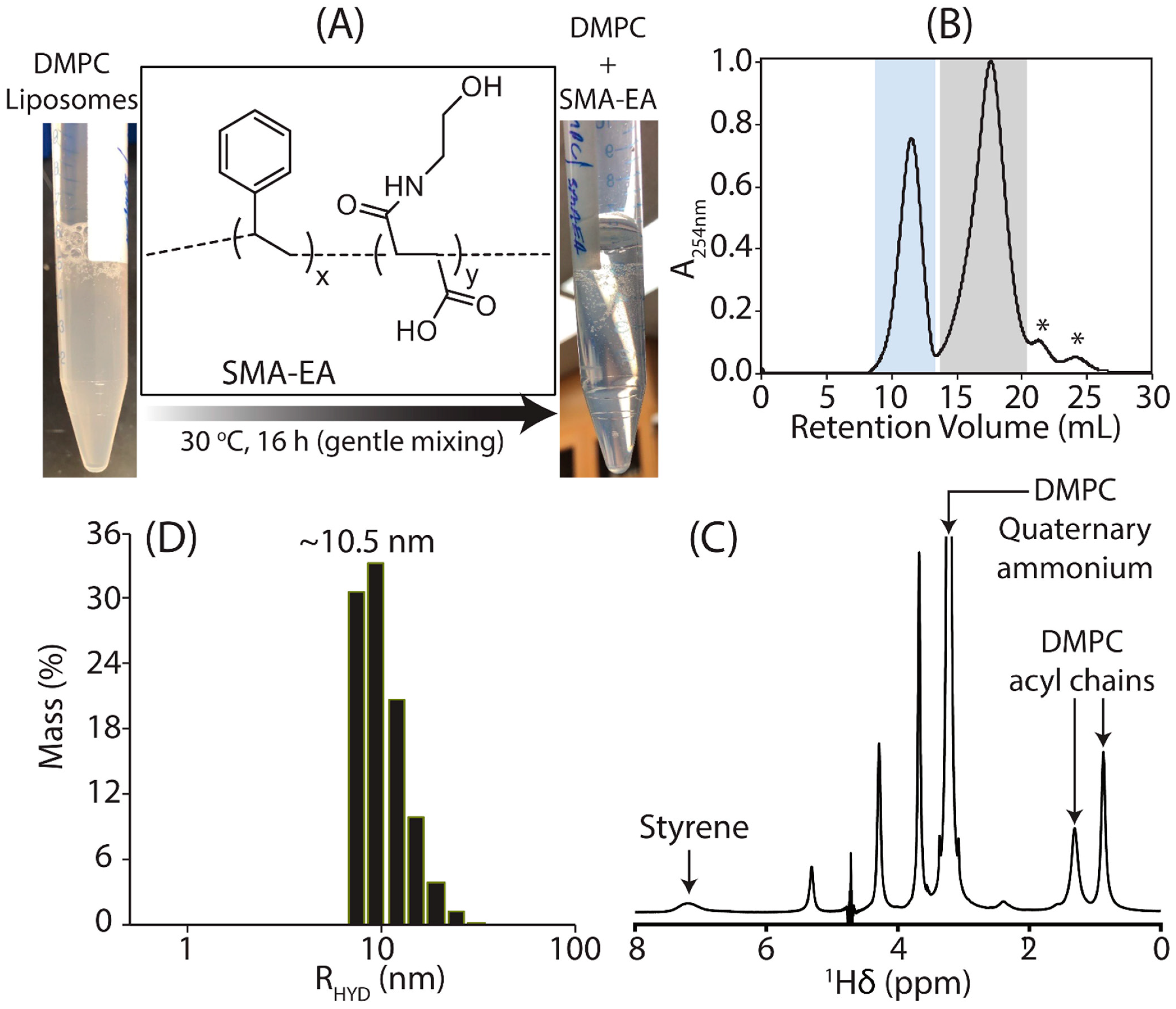

Figure 1. (A) An image of DMPC liposome solution without (left-side; turbid solution) and with (right-side; transparent solution) SMA-EA polymer; SMA-EA chemical structure is shown. (B) SEC chromatogram of the purification of polymer-nanodiscs prepared using a 1:1 (w/w) polymer: lipid ratio. The elution peaks highlighted in blue (9–13.5 mL) and gray boxes (14–20.5 mL) are from polymer-nanodiscs and free polymer, respectively. The fractions covered within each box were combined before characterization. ‘*’ indicates the uncharacterized peaks. (C) 1H NMR spectrum showing the characteristic peaks from DMPC and polymer labeled with assignments. The spectrum was recorded at 298 K with a DMPC concentration of ~15 mg/mL. (D) DLS profile of polymer-nanodiscs showing a hydrodynamic radius of ~10.5 ± 1 nm recorded at 32 °C using a ~3 mg/mL concentration of polymer-nanodiscs.
Figure 1. (A) An image of DMPC liposome solution without (left-side; turbid solution) and with (right-side; transparent solution) SMA-EA polymer; SMA-EA chemical structure is shown. (B) SEC chromatogram of the purification of polymer-nanodiscs prepared using a 1:1 (w/w) polymer: lipid ratio. The elution peaks highlighted in blue (9–13.5 mL) and gray boxes (14–20.5 mL) are from polymer-nanodiscs and free polymer, respectively. The fractions covered within each box were combined before characterization. ‘*’ indicates the uncharacterized peaks. (C) 1H NMR spectrum showing the characteristic peaks from DMPC and polymer labeled with assignments. The spectrum was recorded at 298 K with a DMPC concentration of ~15 mg/mL. (D) DLS profile of polymer-nanodiscs showing a hydrodynamic radius of ~10.5 ± 1 nm recorded at 32 °C using a ~3 mg/mL concentration of polymer-nanodiscs.
Biomolecules 12 01628 g001

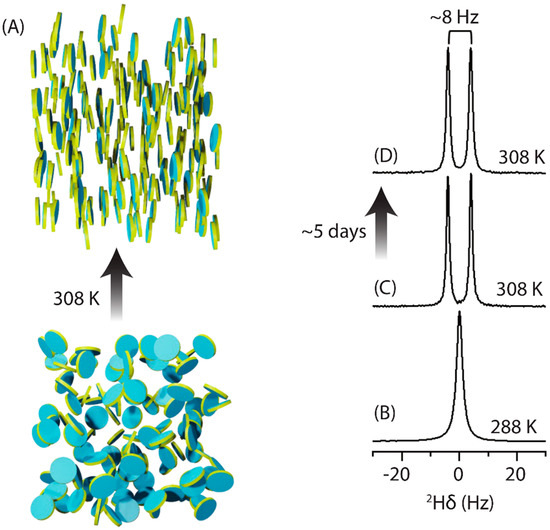

Figure 2. Magnetic alignment of polymer-nanodiscs in an external magnetic field. (A) Schematic of the temperature-dependent isotropic (bottom) and magnetic alignment (top) of polymer-nanodiscs. (BD) Deuterium NMR spectra of the polymer-nanodiscs at 288 K under isotropic condition (B), and at 308 K under aligned (day 1 (C) and day 5 (D)) conditions. The polymer-nanodisc sample was prepared using ~64 mg/mL DMPC concentration in 10 mM potassium phosphate buffer (pH 7.4) containing 50 mM NaCl, and the spectra were recorded using a Varian VNMRS 600 MHz NMR spectrometer.
Figure 2. Magnetic alignment of polymer-nanodiscs in an external magnetic field. (A) Schematic of the temperature-dependent isotropic (bottom) and magnetic alignment (top) of polymer-nanodiscs. (BD) Deuterium NMR spectra of the polymer-nanodiscs at 288 K under isotropic condition (B), and at 308 K under aligned (day 1 (C) and day 5 (D)) conditions. The polymer-nanodisc sample was prepared using ~64 mg/mL DMPC concentration in 10 mM potassium phosphate buffer (pH 7.4) containing 50 mM NaCl, and the spectra were recorded using a Varian VNMRS 600 MHz NMR spectrometer.
Biomolecules 12 01628 g002

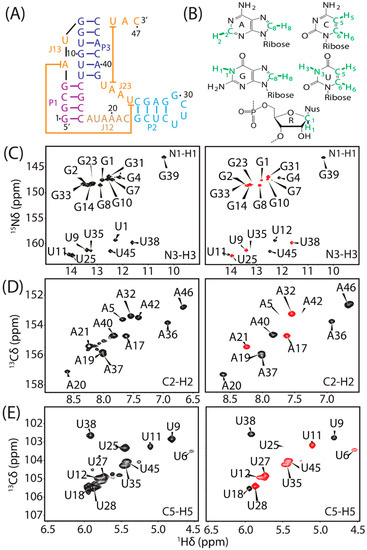

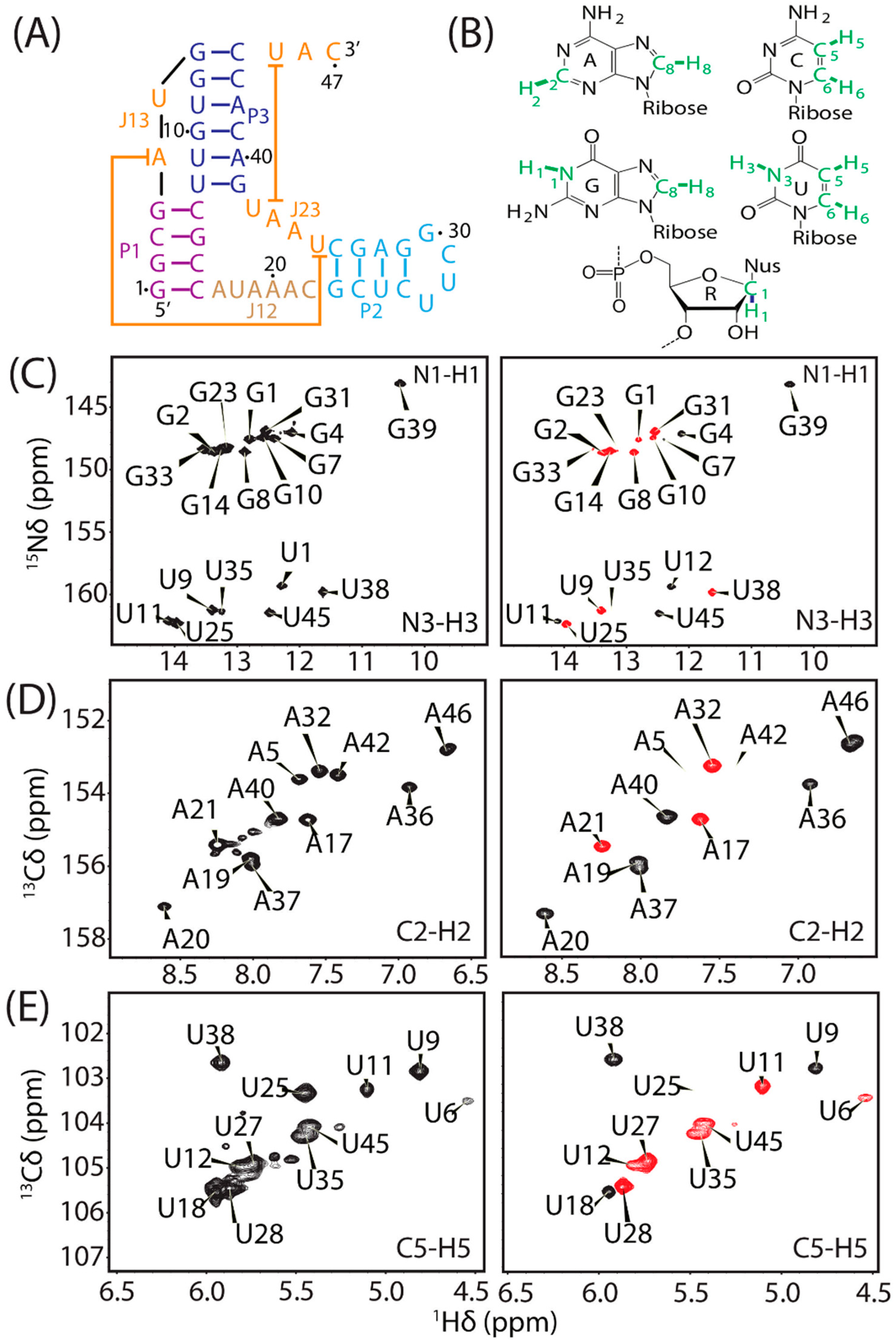

Figure 3. (A) Secondary structure of the fluoride riboswitch aptamer from B. cereus, color-coded by region. (B) Chemical structures of RNA nucleotide moieties. RDCs were measured for the highlighted (green) atom pairs. (CE): Reference (left-side column) and attenuated (right column) 2D ARTSY-HSQC spectral regions displaying cross-peaks from (C) guanine N1-H1, uridine N3-H3; (D) adenine C2-H2; and (E) uridine C5-H5. Positive and negative contours are colored black and red, respectively. All NMR spectra were recorded in the presence of the magnetically aligned polymer-nanodiscs medium. The sample was made up of ~64 mg/mL DMPC in 10 mM potassium phosphate buffer (pH 7.4) and 50 mM NaCl. The NMR data were collected on a Varian VNMRS 600 MHz NMR spectrometer operated with the probe temperature of 308 K.
Figure 3. (A) Secondary structure of the fluoride riboswitch aptamer from B. cereus, color-coded by region. (B) Chemical structures of RNA nucleotide moieties. RDCs were measured for the highlighted (green) atom pairs. (CE): Reference (left-side column) and attenuated (right column) 2D ARTSY-HSQC spectral regions displaying cross-peaks from (C) guanine N1-H1, uridine N3-H3; (D) adenine C2-H2; and (E) uridine C5-H5. Positive and negative contours are colored black and red, respectively. All NMR spectra were recorded in the presence of the magnetically aligned polymer-nanodiscs medium. The sample was made up of ~64 mg/mL DMPC in 10 mM potassium phosphate buffer (pH 7.4) and 50 mM NaCl. The NMR data were collected on a Varian VNMRS 600 MHz NMR spectrometer operated with the probe temperature of 308 K.
Biomolecules 12 01628 g003

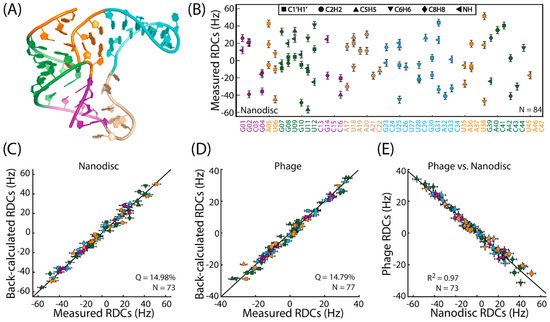

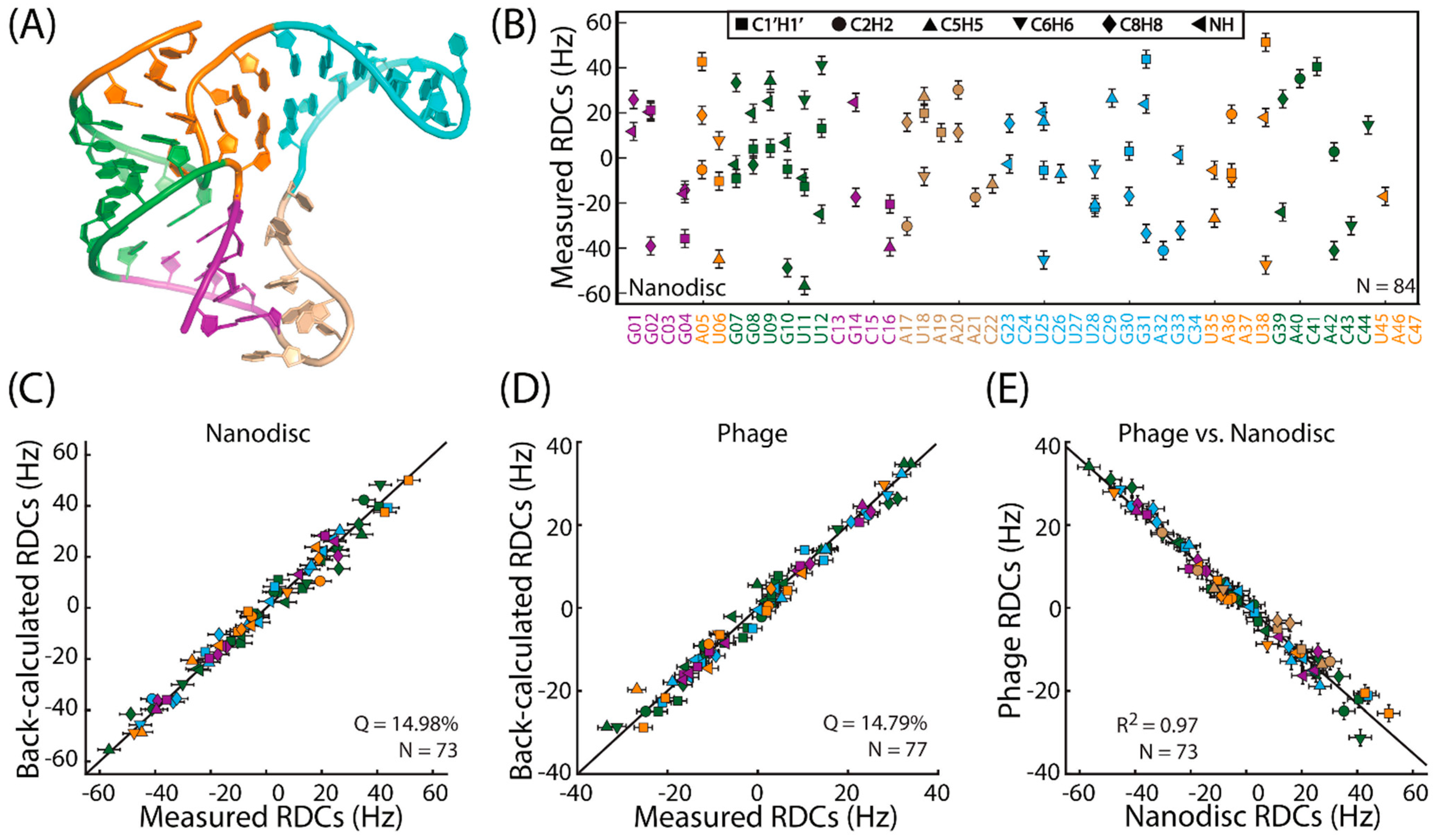

Figure 4. (A) Solution structure of the apo B. cereus fluoride riboswitch aptamer used in the NMR study (PDB: 5KH8) [54]. (B) Experimentally measured RDCs from polymer-nanodiscs alignment medium. (C,D) Correlation of experimentally measured and calculated RDCs for polymer-nanodiscs (C) and Pf1 phage (D) media. (E) Correlation of RDCs measured using polymer-nanodiscs and Pf1 phage alignment media.
