Article

Involvement of Cellular Prion Protein in Invasion and Metastasis of Lung Cancer by Inducing Treg Cell Development

by
Seunghwa Cha
1,
Mi-Ji Sin
1,
Mo-Jong Kim
2,3,
Hee-Jun Kim
2,
Yong-Sun Kim
2,
Eun-Kyoung Choi
2,3,* and
Mi-Yeon Kim
1,*
1
School of Systems Biomedical Science, Soongsil University, Seoul 06978, Korea
2
Ilsong Institute of Life Science, Hallym University, Anyang 14066, Korea
3
Department of Biomedical Gerontology, Graduate School of Hallym University, Chuncheon 24252, Korea
*
Authors to whom correspondence should be addressed.
Biomolecules 2021, 11(2), 285; https://doi.org/10.3390/biom11020285
Submission received: 18 January 2021 / Revised: 10 February 2021 / Accepted: 12 February 2021 / Published: 15 February 2021
(This article belongs to the Special Issue Prions and Prion-Like Mechanisms in Disease and Biological Function)
Browse Figures
Review Reports Versions Notes

Abstract

The cellular prion protein (PrPC) is a cell surface glycoprotein expressed in many cell types that plays an important role in normal cellular processes. However, an increase in PrPC expression has been associated with a variety of human cancers, where it may be involved in resistance to the proliferation and metastasis of cancer cells. PrP-deficient (Prnp0/0) and PrP-overexpressing (Tga20) mice were studied to evaluate the role of PrPC in the invasion and metastasis of cancer. Tga20 mice, with increased PrPC, died more quickly from lung cancer than did the Prnp0/0 mice, and this effect was associated with increased transforming growth factor-beta (TGF-β) and programmed death ligand-1 (PD-L1), which are important for the development and function of regulatory T (Treg) cells. The number of FoxP3+CD25+ Treg cells was increased in Tga20 mice compared to Prnp0/0 mice, but there was no significant difference in either natural killer or cytotoxic T cell numbers. In addition, mice infected with the ME7 scrapie strain had decreased numbers of Treg cells and decreased expression of TGF-β and PD-L1. These results suggest that PrPC plays an important role in invasion and metastasis of cancer cells by inducing Treg cells through upregulation of TGF-β and PD-L1 expression.

1. Introduction

The cellular prion protein (PrPC) is a glycosylphosphatidylinositol (GPI)-anchored cell surface glycoprotein widely expressed in various tissues but predominantly expressed in the central nervous system. PrPC has also been detected on the surface of lymphocytes in humans and mice [1,2,3] and plays an important role in lymphoid cells and spleen structure formation [4,5,6]. Its wide expression in many cell types indicates diverse biological functions. While its exact function is unknown, PrPC contributes to cell adhesion, neurite outgrowth, synaptic transmission, oxidative stress, cell death and survival, and signal transduction [7,8,9,10,11,12,13,14,15,16].
Cancer is a leading cause of death worldwide and metastasis is a major cause of death among cancer patients [17]. An increase in PrPC expression has been associated with a poor prognosis and reported in a variety of human cancers, including pancreatic cancer, breast cancer, gastric carcinoma, osteosarcoma, and melanoma [18,19,20,21,22]. Studies to elucidate the mechanism have been performed by many groups through silencing or overexpressing PrPC in human cancer cell lines. Gil et al. reported that PrPC silencing in MD-MB231 breast cancer cell line led to ERK deactivation and matrix metalloprotease-9 (MMP-9) downregulation, resulting in decreased migration and invasion [19]. Besides, overexpression of PrPC in MCF-7 cells activated the NF-κB and ERK pathway followed by increased MMP-9 expression [19]. Moreover, Wang et al. showed that PrPC silencing or overexpression in pancreatic ductal adenocarcinoma modulated tumour invasion and proliferation by formation of the PrPC-Notch1 complex, resulting in increased Notch1 stability and activation [20]. In addition, PrPC-transfection into the AGS gastric cancer cell line upregulated anti-apoptotic protein Bcl-2 and downregulated p53 and Bax, resulting in slowed down apoptosis [22]. These results suggest that PrPC is involved in increased survival, proliferation, and metastasis of human cancer cells.
The immune system is critical to controlling cancer cell proliferation and invasion. Regulatory T (Treg) cells are a subset of CD4 T cells and play a pivotal role in controlling immune responses by their immunosuppressive activity [23]. They are known to play an important role in the control of allergic inflammation and autoimmune responses [24,25], and increased numbers of Treg cells in cancer patients impede cancer immunotherapy [26,27,28]. Treg cells occur naturally in the thymus, called thymus-derived Treg cells, but are also induced in the periphery through exposure to antigens [24,25]. The key regulatory gene for the development of these Treg cells is a transcription factor, forkhead box P3 (FoxP3) [29], and the most important molecules for their suppressive activity are transforming growth factor-beta (TGF-β) and CD25, which is the IL-2 receptor subunit [30]. FoxP3-negative Treg cells were identified as type 1 Treg cells, which have immunosuppressive activity via high levels of IL-10 production [31]. Many studies in humans and mice have shown that anti-CD25, anti-CD4, or anti–CTLA-4 monoclonal antibody immunotherapies that inhibit the function of Treg cells or deplete them are successful [32,33,34,35,36].
We have previously reported that PrPC is expressed in the secondary lymphoid tissues and has a critical role in the formation and maintenance of the white pulp structure in the spleen [4]. We also demonstrated that mouse-adapted scrapie strain ME7 infection led to an impaired white pulp structure, but follicular helper T cell responses were sustained to aid in the replication and accumulation of pathogenic PrP (PrPSc) in germinal centres [6]. Thus, the suppressive action of the Treg cells is insufficient to control germinal centre responses when PrPC has been converted into PrPSc in prion diseases. The role of PrPC in the development of Treg cells in pathogenic conditions such as prion diseases and cancer is poorly understood. While the inhibition of the activity of Treg cells is a major target in immunotherapy treatments of cancer, the involvement of PrPC in the development and induction of Treg cells has not been studied. Therefore, we investigated the role of PrPC in the invasion and metastasis of cancer, via its induction of Treg cells, using Zürich I Prnp-deficient (Prnp0/0), wild-type C57BL/6J (Prnp+/+), and PrP overexpressing (Tga20) mice. Using the B16F10 melanoma cell system, we studied the metastasis of melanoma cells to the lungs and analysed the distribution of Treg cells and the expression of key genes related to their function in the spleen. We also compared these results to the data obtained from mice injected orally with the mouse-adapted scrapie strain ME7 to understand the effect of accumulation of PrPSc in the development and function of Treg cells.

2. Materials and Methods

2.1. Mice

Mouse strains Zürich I Prnp0/0 [37] and Tga20 [38], which overexpressed mouse PrP, were kindly provided by Dr. A Aguzzi (Institute of Neuropathology, University Hospital of Zürich, Zürich, Switzerland) and Dr. C Weissmann (The Scripps Research Institute, Scripps Florida, Jupiter, FL, USA), respectively. The backgrounds of all mice are C57BL/6J (Prnp+/+), and the breeding stocks of C57BL/6J mice were originally purchased from the Jackson Laboratory (Bar Harbor, ME, USA). All mice were maintained as inbred strains in the animal facility of the Ilsong Institute of Life Science, Hallym University. The mice were housed in a clean facility with a 12 h light/12 h dark cycle and examined at 6–8 weeks of age.

2.2. Cancer Development

The Prnp0/0, Prnp+/+, and Tga20 mice were randomly divided into two groups: The negative control (NC) and the B16F10 melanoma cell injected (B16F10) groups (n = 4 for each group). B16F10 melanoma cells injected into the mouse tail vein resulted in a primary tumour around the injected area within 20 days. Circulating tumour cells in the blood enter the spleen, which is the secondary lymphoid organ and the main filter for blood-borne antigens [23,39]. If the antigens are not removed by the immune response and evade immune surveillance in the spleen, they invade through the endothelial cells of the blood vessel and reach other organs, commonly the lungs in the case of melanoma cells. Approximately three weeks after injection, the B16F10 cells implant, grow, and form metastatic foci in the lungs [17]. The NC group was injected with 200 μL phosphate-buffered saline (PBS), and the B16F10 group was injected intravenously with 5 × 105 B16F10 melanoma cells in 200 μL PBS to induce the development of lung cancer. These experiments, using the same number of mice, were repeated three times (total n = 12 for each group). B16F10 cells were purchased from the Korean Cell Line Bank (Seoul, Korea) and cultured in DMEM containing 10% FBS, 0.1 mg/mL streptomycin, and 100 U/mL penicillin at 37 °C under 5% CO2. After injection, the mice were observed several times daily for clinical signs of cancer. When the mice showed the terminal stage symptoms, which included weight loss, unresponsiveness to stimuli, and lack of movement, they died within 24 h. After the mice were sacrificed, the lungs were examined for evidence of metastasis (Figure 1A), and the spleen was collected for further analysis.

2.3. Scrapie Infection

The original stock of the ME7 scrapie strain was kindly provided by Dr. Alan Dickinson of the Agriculture and Food Research Council and Medical Research Council Institute (Neuropathogenesis Unit, Edinburgh, UK). For scrapie infection, 8 wild-type C57BL/6J mice were divided into two groups: The control and ME7-infected groups (n = 4 for each group). The ME7-infected group was orally infected by gavage with 100 μL of 1% brain homogenate from wild-type mice infected with the mouse-adapted ME7 scrapie strain. The mice were observed several times each week for clinical signs of scrapie, which included weight loss, kyphosis, and ataxia. The terminal stage of scrapie was reached in about 260 days. These experiments, using the same number of mice, were repeated three times (total n = 12 for each group).

2.4. Quantitative PCR Analysis

mRNA was isolated using the Ribospin system (Geneall, Seoul, Korea) according to the manufacturer’s recommendations. cDNA preparation and quantitative real-time PCR (Takara, Shiga, Japan) were performed as previously described [40,41]. The relative expression of the Actb control was calculated as 2−ΔCt × 102. Expression of each target was normalised to Actb expression (Actb = 100%). The primer sequences were synthesised by Bioneer (Daejeon, Korea) and are listed in Table 1.

2.5. Confocal Images

Immunofluorescence and confocal microscopy imaging were performed as described previously [4]. The primary antibodies used in our analyses were: FITC-conjugated anti-mouse FoxP3 (FJK-16s, eBioscience, San Diego, CA, USA), APC- conjugated anti-mouse CD3e (145-2C11, eBioscience), and rhodamine-conjugated anti-mouse IgM (Jackson ImmunoResearch, West Grove, PA, USA). Sections were mounted using ProLong Gold Antifade Reagent (Molecular Probes, Carlsbad, CA, USA), and confocal images were obtained using an LSM 700 Meta microscope (Carl Zeiss, Oberkochen, Germany), equipped with 488, 568, and 633 nm lasers. Images were analysed using Zeiss LSM microscopy software Zen 2.6 (Carl Zeiss).

2.6. Flow Cytometry

Monoclonal antibodies for CD25 (PC61.5) and FoxP3 (150D/E4) were purchased from eBioscience (San Diego, CA, USA). Anti-CD3e (145-2C11), anti-CD4 (RM4-5), anti-CD279 (PD1) (J43), anti-CD8a (53-6.7), and anti-CD49b (DX5) antibodies were purchased from BD Biosciences (San Jose, CA, USA). Data were collected with FACSCaliber (BD Biosciences) and analysed using Flowjo software 8.7 (TreeStar, San Carlos, CA, USA).

2.7. Statistical Analysis

For all experiments, significance was calculated using the Student’s t-test and one-way analysis of variance (ANOVA), with p < 0.05 considered significant; * p < 0.05 and ** p < 0.01, as compared to the control.

3. Results

3.1. Effect of PrPC Expression on Lung Cancer Development

To evaluate the role of PrPC in invasion and metastasis of lung cancer, we intravenously injected B16F10 melanoma cells into Prnp0/0, Prnp+/+, and Prnp−overexpressing (Tga20) mice. When the mice reached the terminal stage of cancer, the lungs were taken and examined for melanoma cell invasion, indicating that metastasis had occurred (Figure 1A). Compared to Prnp0/0 mice, which required 31.4 days to reach the end-stage disease, Prnp+/+ and Tga20 mice required 24.6 and 23.7 days, respectively (Figure 1B). Basal level of Prnp expression compared to Prnp0/0 mice was 7.2% in Prnp+/+ and 88.0% in Tga20 mice (Figure 1C). In addition, the Prnp levels at the end-stage of cancer were upregulated in both Prnp+/+ and Tga20 mice (Figure 1C). These results indicate that PrPC expression is associated with survival time and lung cancer development.

3.2. Increased Numbers of Treg Cells in Prnp+/+ and Tga20 Mice

Since Treg cells are elevated in cancers and suppress anti-tumour immune response [26,27,28,42], we analysed the distribution of Treg cells in spleens from mice that had B16F10 melanoma cells (Figure 2). At the terminal stage of cancer, FoxP3-expressing Treg cells were found in white pulp from all three strains (Figure 2B,D,F), but Tga20 mice showed increased numbers of the cells (Figure 2F(f-1)). As previously reported, Prnp0/0 mice showed impaired T and B cell zone structure [4] but did not show a significant difference in Treg cell numbers before and after B16F10 cell injection (Figure 2A,B). The number of Treg cells was determined by flow cytometric analysis of FoxP3 and CD25 expression (Figure 3A). In the Prnp0/0 mice, there was no difference in the ratio of FoxP3 and CD25 expressing CD4 T cells to all CD4 T cells between the NC mice and the B16F10 mice in the terminal stage of cancer. In the Prnp+/+ mice, the ratio of FoxP3 and CD25 expressing CD4 T cells was 15.0% in the NC mice and 21.0% in the B16F10 mice, while the ratio for Tga20 mice was 18.5% in the NC mice and 27.3% in the B16F10 mice (Figure 3A,B).

3.3. Increased Expression of TGF-β and PD-L1 in Tga20 Mice

Expression of Tgfb, which is required for Treg cell activity, increased in Prnp+/+ and Tga20 mice from 9.4% to 11.9%, and 9.5% to 12.2%, respectively, in the B16F10 mice compared to the NC mice (Figure 3C), which indicates that PrPC may have an important role in the development of Treg cells. While the Treg cell numbers in Prnp0/0, Prnp+/+, and Tga20 mice in the NC group did not show significant differences, PrPC may have a role in inducing Treg cells after antigen stimulation. Analysis of the expression of programmed death ligand-1 (Pdl1), a regulator of the development, maintenance, and function of induced Treg cells [43], revealed similar levels in all NC mice; however, Pdl1 was upregulated from 16.8% to 21.7% in Tga20 mice in the B16F10 mice compared to the NC mice (Figure 3D). The expression of programmed cell death protein 1 (PD1), a receptor for PD-L1, was upregulated 1.5- and 1.6-fold, respectively, in both Prnp+/+ and Tga20 B16F10 mice relative to the NC mice (Figure 3E). The expression of another important cytokine, IL-10, did not show any significant differences among groups (data not shown). These results suggest the possible involvement of PrPC for the induction of peripherally derived FoxP3+CD25+ Treg cells through upregulation of TGF-β and PD-L1 expression.

3.4. No Effect of PrPC Expression on Natural Killer or CD8 T Cell Numbers

Natural killer (NK) and CD8 T cells, which play a pivotal role in anti-cancer immunity [44], were analysed by flow cytometry but did not show differences among Prnp0/0, Prnp+/+, and Tga20 mice (Figure 4A,B). NK cells were slightly decreased in all of the B16F10 mice compared to NC mice (Figure 4A), but the small changes between the mice groups for CD8 T cells were not statistically significant (Figure 4B).

3.5. Decreased Numbers of Treg Cells by introducing PrPSc through ME7 Scrapie Infection

We previously reported that mice inoculated intraperitoneally with the mouse- adapted scrapie strain ME7 have significantly diminished T cell zones and increased follicular helper T cell responses in the spleen [6]. Because PrPSc is frequently obtained from food, we infected mice with ME7 orally and investigated the spleen structure and Treg cells (Figure 5). At the terminal stage of the prion disease caused by ME7 infection, the spleen had an impaired white pulp structure (Figure 5A(c,d)), similar to the spleens of mice inoculated intraperitoneally with ME7 [6]. The spleens of ME7-infected mice showed decreased numbers of Foxp3-expressing Treg cells: 8.5% in the control and 4.2% in the ME7-infected mice (Figure 5A,B). The expression levels of Tgfb, Il10, and Pdl1 also decreased after ME7 infection: For Tgfb, from 9.9% in the control to 7.1% in ME7-infected mice; for Il10, from 3.2% to 2.2% after infection; and for Pdl1 from 2.7% to 1.7% after infection (Figure 5C). From these results, ME7-infected mice had decreased numbers of Treg cells and decreased expression of key genes related to their function.

4. Discussion

We investigated the role of PrPC in the development and function of Treg cells in cancer using the B16F10 melanoma cell system to induce lung metastasis in Prnp0/0, Prnp+/+, and Tga20 mice. Prnp+/+ and Tga20 mice reached end-stage cancer more quickly (about 24 days) than did Prnp0/0 mice (about 31 days) suggesting that PrPC promoted invasion and metastasis of lung cancer; however, the amount of PrPC did not affect the time it took for mice to reach end-stage cancer. These results support the hypothesis that PrPC promotes the invasion and metastasis of lung cancer; however, the survival time of the mice did not correlate with the amount of PrPC.
Since the relationship between PrPC and cancer progression was first reported in pancreatic cancer cells [45], increasing evidence has been suggesting the involvement of PrPC in tumourigenesis through interacting and activating binding partners and signaling pathways [46]. Moreover, PrPC in the extracellular space, due to proteolytic cleavage or lack of glycosylation, has been found to complex with anthracycline followed by reducing its chemotherapeutic activity to a large extent [47]. PrPC has been discovered to be present in a Pro-PrP form, neither having the GPI anchor nor being glycosylated in different human cancer cell lines and tissues [46,48,49]. Interestingly, the Pro-PrP isoform continues to possess the GPI anchor peptide signal sequence which is able to provide a binding motif for filamin A, which participates in modulating cancer cell proliferation and migration in colorectal cancer cells and the expression of BRCA1 in breast cancer [48,50,51]. However, the involvement of PrPC itself or its various forms in different vital pathways that control cancer cell migration, tumour invasion and metastasis, and immune responses during cancer development still needs to be elucidated.
Treg cells have an important role in immune response through their immunosuppressive activity, and high numbers of Treg cells impede cancer immunotherapy [26,27,28]. We determined the effect of PrPC on Treg cells and the time to metastasis. At the end-stage of cancer, Treg cell numbers had increased about 1.5-fold in B16F10-treated Prnp+/+ and Tga20 mice compared to untreated control mice; however, there was no increase in Prnp0/0 mice. PrPC seems to be essential for the induction of peripherally derived Treg cells; however, since the untreated Prnp0/0, Prnp+/+, and Tga20 control mice all had similar numbers of Treg cells, PrPC is not required for thymus-derived Treg cell development. We measured the expression of TGF-β and PD-L1, which are critical for inducing peripherally derived Treg cells, and found that TGF-β expression was increased in Prnp+/+ and Tga20 mice after B16F10 treatment, while PD-L1 expression was upregulated only in Tga20 mice. This suggests that PrPC promotes peripherally derived Treg cell development after antigen exposure through increased expression of TGF-β (independent of the amount of PrPC) and induces more Treg cells through PD-L1 upregulation (which is dependent on the amount of PrPC). However, PrPC is not involved in the development of thymus-derived Treg cells.
Expression of PD1, a receptor for PD-L1, was highly upregulated on CD3 T cells in Prnp+/+ and Tga20 mice, but not in Prnp0/0 mice. PD1 is a negative regulator of T cell activity [52,53], and its interaction with PD-L1 on normal cells prevents overstimulation, mediated by activated T cells; however, its interaction with PD-L1 on cancer cells suppresses the anti-tumour effector activity of the T cell [54]. Therefore, the upregulation of PD1 on T cells in Prnp+/+ and Tga20 mice and its interaction with PD-L1 on B16F10 melanoma cells, which express PD-L1 [55], could help melanoma cells to evade immune surveillance, thereby facilitating invasion and metastasis.
Our previous study showed that infection with the mouse-adapted scrapie strain ME7 led to an impaired splenic white pulp structure, but follicular helper T cell responses were prolonged to aid in the replication and accumulation of PrPSc [6]. When cellular PrPC has been converted to create an abundance of PrPSc, the suppressive action of the Treg cells cannot control germinal centre responses. In this study, we also analysed the spleens of Prnp+/+ mice infected orally with ME7 to determine whether Treg cells were decreased at the end stage of prion disease when PrPC had been converted to PrPSc. In agreement with previous studies in which mice were infected with ME7 intracerebrally [5] or intraperitoneally [6], mice infected orally with ME7 showed impaired white pulp structure and disturbed segregation of T and B cell zones. Treg cells were decreased in the spleens of ME7 infected mice, as were the expression levels of TGF-β, IL-10, and PD-L1. Therefore, the reduced Treg cells were insufficient to suppress follicular helper T cell responses, which promoted the replication and accumulation of PrPSc in ME7-infected mice. These results, along with those from the cancer metastasis study, support the important role of Treg cells in lung cancer invasion and metastasis processes, whose growth is associated with expression of PrPC, which enhances cancer progression.

5. Conclusions

This study provides insights into the role of PrPC in the development and function of Treg cells. During the invasion and metastasis stages of cancer progression, increased expression of PrPC induces the development of Treg cells via the upregulation of TGF-β and PD-L1, thereby accelerating cancer progression by suppressing immune response. In contrast, the pathogenic state of prion diseases inhibits the development of Treg cells via the downregulation of TGF-β, IL-10, and PD-L1, clearly correlating the involvement of PrPC in Treg cell development. Taken together, our results have revealed a novel role of PrPC in the development and function of Treg cells that may be a future target for additional therapeutics in cancer treatment.

Author Contributions

All authors have contributed fairly to this study. E.-K.C. and M.-Y.K. conceived and designed the experiments. S.C., M.-J.S., M.-J.K., H.-J.K., and Y.-S.K. performed the experiments and data analysis, and all of the authors contributed to the writing and agreed to the published version of the manuscript.

Funding

This work was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education, Science and Technology (NRF- 2016R1D1A1B01011371).

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Korean laws, and approved by the Hallym Medical Center Institutional Animal Care and Use Committee (HMC2018-0-0310-4 and HMC2019-0-0307-6).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

PrPCcellular prion protein
GPIglycosylphosphatidylinositol
PrPScpathogenic prion protein
Prnp0/0PrP-deficient
Tga20PrP-overexpressing
TGF-βtransforming growth factor-beta
IL-10interleukin-10
Tregregulatory T
FoxP3forkhead box P3
PD-L1programmed death ligand-1
PD1programmed cell death protein 1
ERKextracellular signal-regulated kinase
MMP-9metalloprotease-9
NF-κBnuclear factor-κB
actbbeta-actin
IgMimmunoglobulin M
NKnatural killer
NCnegative control
B16F10B16F10 melanoma cells
DMEMDulbecco’s modified Eagle medium
PBSphosphate-buffered saline
FITCfluorescein isothiocyanate
APCallophycocyanin

References

  1. Mabbott, N.A.; Brown, K.L.; Manson, J.; Bruce, M.E. T-lymphocyte activation and the cellular form of the prion protein. Immunology 1997, 92, 161–165. [Google Scholar] [CrossRef]
  2. Antoine, N.; Cesbron, J.Y.; Coumans, B.; Jolois, O.; Zorzi, W.; Heinen, E. Differential expression of cellular prion protein on human blood and tonsil lymphocytes. Haematologica 2000, 85, 475–480. [Google Scholar]
  3. Cashman, N.R.; Loertscher, R.; Nalbantoglu, J.; Shaw, I.; Kascsak, R.J.; Bolton, D.C.; Bendheim, P.E. Cellular isoform of the scrapie agent protein participates in lymphocyte activation. Cell 1990, 61, 185–192. [Google Scholar] [CrossRef]
  4. Kim, S.; Han, S.; Lee, Y.E.; Jung, W.-J.; Lee, H.S.; Kim, Y.-S.; Choi, E.-K.; Kim, M.-Y. Prion protein-deficient mice exhibit decreased CD4 T and LTi cell numbers and impaired spleen structure. Immunobiology 2016, 221, 94–102. [Google Scholar] [CrossRef]
  5. Kim, S.; Han, S.; Lee, H.S.; Kim, Y.S.; Choi, E.K.; Kim, M.Y. Impaired spleen structure and chemokine expression in ME7 scrapie-infected mice. Immunobiology 2016, 221, 871–878. [Google Scholar] [CrossRef]
  6. Kim, S.; Han, S.; Kim, T.; Nam, J.; Kim, Y.-S.; Choi, E.-K.; Kim, M.-Y. Prolonged follicular helper T cell responses in ME7 scrapie-infected mice. Prion 2018, 12, 109–116. [Google Scholar] [CrossRef]
  7. Aguzzi, A.; Lakkaraju, A.K.; Frontzek, K. Toward Therapy of Human Prion Diseases. Annu. Rev. Pharmacol. Toxicol. 2018, 58, 331–351. [Google Scholar] [CrossRef] [PubMed]
  8. Srivastava, S.; Makarava, N.; Katorcha, E.; Savtchenko, R.; Brossmer, R.; Baskakov, I.V. Post-conversion sialylation of prions in lymphoid tissues. Proc. Natl. Acad. Sci. USA 2015, 112, E6654–E6662. [Google Scholar] [CrossRef] [PubMed]
  9. Roucou, X.; LeBlanc, A.C. Cellular prion protein neuroprotective function: Implications in prion diseases. J. Mol. Med. 2005, 83, 3–11. [Google Scholar] [PubMed]
  10. Camandola, S.; Cutler, R.G.; Gary, D.S.; Milhavet, O.; Mattson, M.P. Suppression of calcium release from inositol 1,4,5-trisphosphate-sensitive stores mediates the anti-apoptotic function of nuclear factor-kappaB. J. Biol. Chem. 2005, 280, 22287–22296. [Google Scholar] [CrossRef]
  11. Mattei, V.; Garofalo, T.; Misasi, R.; Circella, A.; Manganelli, V.; Lucania, G.; Pavan, A.; Sorice, M. Prion protein is a component of the multimolecular signaling complex involved in T cell activation. FEBS Lett. 2004, 560, 14–18. [Google Scholar] [CrossRef]
  12. Stella, R.; Massimino, M.L.; Sorgato, M.C.; Bertoli, A. Prion and TNFalpha: TAC(E)it agreement between the prion protein and cell signaling. Cell Cycle 2010, 9, 4616–4621. [Google Scholar] [CrossRef]
  13. Castle, A.R.; Gill, A.C. Physiological Functions of the Cellular Prion Protein. Front. Mol. Biosci. 2017, 4, 19. [Google Scholar] [CrossRef] [PubMed]
  14. Gao, Z.; Peng, M.; Chen, L.; Yang, X.; Li, H.; Shi, R.; Wu, G.; Cai, L.; Song, Q.; Li, C. Prion Protein Protects Cancer Cells against Endoplasmic Reticulum Stress Induced Apoptosis. Virol. Sin. 2019, 34, 222–234. [Google Scholar] [CrossRef] [PubMed]
  15. Roucou, X.; Gains, M. Neuroprotective functions of prion protein. J. Neurosci. Res. 2003, 75, 153–161. [Google Scholar] [CrossRef] [PubMed]
  16. Oh, J.-M.; Choi, E.-K.; Carp, R.I.; Kim, Y.-S. Oxidative stress impairs autophagic flux in prion protein-deficient hippocampal cells. Autophagy 2012, 8, 1448–1461. [Google Scholar] [CrossRef]
  17. Timmons, J.J.; Cohessy, S.; Wong, E.T. Injection of Syngeneic Murine Melanoma Cells to Determine Their Metastatic Potential in the Lungs. J. Vis. Exp. 2016, e54039. [Google Scholar] [CrossRef] [PubMed]
  18. Ke, J.; Wu, G.; Zhang, J.; Li, H.; Gao, S.; Shao, M.; Gao, Z.; Sy, M.-S.; Cao, Y.; Yang, X.; et al. Melanoma migration is promoted by prion protein via Akt-hsp27 signaling axis. Biochem. Biophys. Res. Commun. 2020, 523, 375–381. [Google Scholar] [CrossRef]
  19. Sollazzo, V.; Galasso, M.; Volinia, S.; Carinci, F. Prion proteins (PRNP and PRND) are over-expressed in osteosarcoma. J. Orthop. Res. 2011, 30, 1004–1012. [Google Scholar] [CrossRef]
  20. Gil, M.; Kim, Y.K.; Kim, K.-E.; Kim, W.; Park, C.-S.; Lee, K.J. Cellular prion protein regulates invasion and migration of breast cancer cells through MMP-9 activity. Biochem. Biophys. Res. Commun. 2016, 470, 213–219. [Google Scholar] [CrossRef]
  21. Wang, Y.; Yu, S.; Huang, D.; Cui, M.; Hu, H.; Zhang, L.; Wang, W.; Parameswaran, N.; Jackson, M.; Osborne, B.; et al. Cellular Prion Protein Mediates Pancreatic Cancer Cell Survival and Invasion through Association with and Enhanced Signaling of Notch1. Am. J. Pathol. 2016, 186, 2945–2956. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Liang, J.; Pan, Y.; Ning, X.; Sun, L.; Lan, M.; Hong, L.; Du, J.; Liu, N.; Liu, C.; Qiao, T.; et al. Overexpression of PrPC and Its Antiapoptosis Function in Gastric Cancer. Tumor Biol. 2006, 27, 84–91. [Google Scholar] [CrossRef]
  23. Nishikawa, H.; Sakaguchi, S. Regulatory T cells in cancer immunotherapy. Curr. Opin. Immunol. 2014, 27, 1–7. [Google Scholar] [CrossRef]
  24. Pot, C.; Apetoh, L.; Kuchroo, V.K. Type 1 regulatory T cells (Tr1) in autoimmunity. Semin. Immunol. 2011, 23, 202–208. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, K.; Bi, Y.; Sun, K.; Wang, C. IL-10-producing type 1 regulatory T cells and allergy. Cell. Mol. Immunol. 2007, 4, 269–275. [Google Scholar]
  26. Colombo, M.P.; Piconese, S. Regulatory T-cell inhibition versus depletion: The right choice in cancer immunotherapy. Nat. Rev. Cancer 2007, 7, 880–887. [Google Scholar] [CrossRef]
  27. A Ward-Hartstonge, K.; A Kemp, R. Regulatory T-cell heterogeneity and the cancer immune response. Clin. Transl. Immunol. 2017, 6, e154. [Google Scholar] [CrossRef] [PubMed]
  28. Whiteside, T.L. Regulatory T cell subsets in human cancer: Are they regulating for or against tumor progression? Cancer Immunol. Immunother. 2014, 63, 67–72. [Google Scholar] [CrossRef]
  29. Ziegler, S.F. FOXP3: Of Mice and Men. Annu. Rev. Immunol. 2006, 24, 209–226. [Google Scholar] [CrossRef] [PubMed]
  30. Christoffersson, G.; von Herrath, M. Regulatory Immune Mechanisms beyond Regulatory T Cells. Trends Immunol. 2019, 40, 482–491. [Google Scholar] [CrossRef]
  31. Thompson, C.; Powrie, F. Regulatory T cells. Curr. Opin. Pharmacol. 2004, 4, 408–414. [Google Scholar] [CrossRef]
  32. Byrne, W.L.; Mills, K.H.; Lederer, J.A.; O’Sullivan, G.C. Targeting Regulatory T Cells in Cancer. Cancer Res. 2011, 71, 6915–6920. [Google Scholar] [CrossRef]
  33. Golgher, D.; Jones, E.; Powrie, F.; Elliott, T.; Gallimore, A. Depletion of CD25+ regulatory cells uncovers immune responses to shared murine tumor rejection antigens. Eur. J. Immunol. 2002, 32, 3267–3275. [Google Scholar] [CrossRef]
  34. Hodi, F.S.; O’Day, S.J.; McDermott, D.F.; Weber, R.W.; Sosman, J.A.; Haanen, J.B.; Gonzalez, R.; Robert, C.; Schadendorf, D.; Hassel, J.C.; et al. Improved Survival with Ipilimumab in Patients with Metastatic Melanoma. N. Engl. J. Med. 2010, 363, 711–723. [Google Scholar] [CrossRef] [PubMed]
  35. Jones, E.; Dahm-Vicker, M.; Simon, A.K.; Green, A.; Powrie, F.; Cerundolo, V.; Gallimore, A. Depletion of CD25+ regulatory cells results in suppression of melanoma growth and induction of autoreactivity in mice. Cancer Immun. 2002, 2, 1. [Google Scholar]
  36. Yu, P.; Lee, Y.; Liu, W.; Krausz, T.; Chong, A.; Schreiber, H.; Fu, Y.X. Intratumor depletion of CD4+ cells unmasks tumor im-munogenicity leading to the rejection of late-stage tumors. J. Exp. Med. 2005, 201, 779–791. [Google Scholar]
  37. Büeler, H.; Fischer, M.; Lang, Y.; Bluethmann, H.; Lipp, H.-P.; DeArmond, S.J.; Prusiner, S.B.; Aguet, M.; Weissmann, C. Normal development and behaviour of mice lacking the neuronal cell-surface PrP protein. Nat. Cell Biol. 1992, 356, 577–582. [Google Scholar] [CrossRef] [PubMed]
  38. Fischer, M.; Rülicke, T.; Raeber, A.; Sailer, A.; Moser, M.; Oesch, B.; Brandner, S.; Aguzzi, A.; Weissmann, C. Prion protein (PrP) with amino-proximal deletions restoring susceptibility of PrP knockout mice to scrapie. EMBO J. 1996, 15, 1255–1264. [Google Scholar] [CrossRef]
  39. Mebius, R.E.; Kraal, G. Structure and function of the spleen. Nat. Rev. Immunol. 2005, 5, 606–616. [Google Scholar] [CrossRef] [PubMed]
  40. Kim, M.Y.; Gaspal, F.M.; Wiggett, H.E.; McConnell, F.M.; Gulbranson-Judge, A.; Raykundalia, C.; Walker, L.S.; Goodall, M.D.; Lane, P.J. CD4(+)CD3(-) accessory cells costimulate primed CD4 T cells through OX40 and CD30 at sites where T cells collab-orate with B cells. Immunity 2003, 18, 643–654. [Google Scholar] [CrossRef]
  41. Kim, S.; Han, S.; Kim, M.Y. Effects of interleukin-15 on human CD3(-)CD117(+)CD56(-)OX40L(+) cell differentiation. Hum. Immunol. 2010, 71, 745–750. [Google Scholar] [CrossRef]
  42. Chen, X.; Du, Y.; Lin, X.; Qian, Y.; Zhou, T.; Huang, Z. CD4 + CD25 + regulatory T cells in tumor immunity. Int. Immunopharmacol. 2016, 34, 244–249. [Google Scholar] [CrossRef]
  43. Francisco, L.M.; Salinas, V.H.; Brown, K.E.; Vanguri, V.K.; Freeman, G.J.; Kuchroo, V.K.; Sharpe, A.H. PD-L1 regulates the development, maintenance, and function of induced regulatory T cells. J. Exp. Med. 2009, 206, 3015–3029. [Google Scholar] [CrossRef] [PubMed]
  44. Guillerey, C.; Huntington, N.D.; Smyth, C.G.M.J. Targeting natural killer cells in cancer immunotherapy. Nat. Immunol. 2016, 17, 1025–1036. [Google Scholar] [CrossRef] [PubMed]
  45. Han, H.; Bearss, D.J.; Browne, L.W.; Calaluce, R.; Nagle, R.B.; Von Hoff, D.D. Identification of differentially expressed genes in pancreatic cancer cells using cDNA microarray. Cancer Res. 2002, 62, 2890–2896. [Google Scholar] [PubMed]
  46. Ryskalin, L.; Biagioni, F.; Busceti, C.L.; Giambelluca, M.A.; Morelli, L.; Frati, A.; Fornai, F. The Role of Cellular Prion Protein in Promoting Stemness and Differentiation in Cancer. Cancers 2021, 13, 170. [Google Scholar] [CrossRef]
  47. Wiegmans, A.P.; Saunus, J.M.; Ham, S.; Lobb, R.J.; Kutasovic, J.R.; Dalley, A.J.; Miranda, M.; Atkinson, C.; Foliaki, S.T.; Ferguson, K.; et al. Secreted cellular prion protein binds doxorubicin and correlates with anthracycline resistance in breast cancer. JCI Insight 2019, 4, 5. [Google Scholar] [CrossRef]
  48. Li, C.; Yu, S.; Nakamura, F.; Yin, S.; Xu, J.; Petrolla, A.A.; Singh, N.; Tartakoff, A.; Abbott, D.W.; Xin, W.; et al. Binding of pro-prion to filamin A disrupts cytoskeleton and correlates with poor prognosis in pancreatic cancer. J. Clin. Investig. 2009, 119, 2725–2736. [Google Scholar] [CrossRef]
  49. Li, C.; Yu, S.; Nakamura, F.; Pentikainen, O.T.; Singh, N.; Yin, S.; Xin, W.; Sy, M.S. Pro-prion binds filamin A, facilitating its interaction with integrin beta1, and contributes to melanomagenesis. J. Biol. Chem. 2010, 285, 30328–30339. [Google Scholar] [CrossRef]
  50. Wang, K.; Zhu, T.; Zhao, R. Filamin A regulates EGFR/ERK/Akt signaling and affects colorectal cancer cell growth and migration. Mol. Med. Rep. 2019, 20, 3671–3678. [Google Scholar] [CrossRef]
  51. Guo, Y.; Li, M.; Bai, G.; Li, X.; Sun, Z.; Yang, J.; Wang, L.; Sun, J. Filamin A inhibits tumor progression through regulating BRCA1 expression in human breast cancer. Oncol. Lett. 2018, 16, 6261–6266. [Google Scholar] [CrossRef] [PubMed]
  52. Freeman, G.J.; Long, A.J.; Iwai, Y.; Bourque, K.; Chernova, T.; Nishimura, H.; Fitz, L.J.; Malenkovich, N.; Okazaki, T.; Byrne, M.C.; et al. Engagement of the Pd-1 Immunoinhibitory Receptor by a Novel B7 Family Member Leads to Negative Regulation of Lymphocyte Activation. J. Exp. Med. 2000, 192, 1027–1034. [Google Scholar] [CrossRef] [PubMed]
  53. Ishida, Y.; Agata, Y.; Shibahara, K.; Honjo, T. Induced expression of PD-1, a novel member of the immunoglobulin gene su-perfamily, upon programmed cell death. EMBO J. 1992, 11, 3887–3895. [Google Scholar] [CrossRef] [PubMed]
  54. Postow, M.A.; Callahan, M.K.; Wolchok, J.D. Immune Checkpoint Blockade in Cancer Therapy. J. Clin. Oncol. 2015, 33, 1974–1982. [Google Scholar] [CrossRef] [PubMed]
  55. Derer, A.; Spiljar, M.; Bäumler, M.; Hecht, M.; Fietkau, R.; Frey, B.; Gaipl, U.S. Chemoradiation Increases PD-L1 Expression in Certain Melanoma and Glioblastoma Cells. Front. Immunol. 2016, 7, 610. [Google Scholar] [CrossRef]
Biomolecules 11 00285 g001

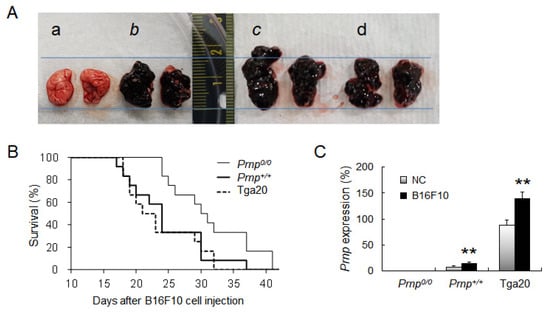

Figure 1. The terminal stage of lung cancer induced by B16F10 melanoma cells of Prnp0/0, Prnp+/+, and Tga20 mice. (A) Representative images of tumours. (a) Negative control. (b–d) The lungs at the terminal stage of cancer from Prnp0/0 (b), Prnp+/+ (c), and Tga20 (d) mice. (B) Survival curve for mice with metastatic lung cancer. (C) mRNA levels for Prnp in whole splenocytes. NC: Negative control group; B16F10: Group with lung cancer induced by B16F10 melanoma cells. mRNA expression was normalised to Actb expression (100%). These results are for an average of 12 mice per group. Error bars represent mean values ± standard deviation. ** p < 0.01.
Figure 1. The terminal stage of lung cancer induced by B16F10 melanoma cells of Prnp0/0, Prnp+/+, and Tga20 mice. (A) Representative images of tumours. (a) Negative control. (b–d) The lungs at the terminal stage of cancer from Prnp0/0 (b), Prnp+/+ (c), and Tga20 (d) mice. (B) Survival curve for mice with metastatic lung cancer. (C) mRNA levels for Prnp in whole splenocytes. NC: Negative control group; B16F10: Group with lung cancer induced by B16F10 melanoma cells. mRNA expression was normalised to Actb expression (100%). These results are for an average of 12 mice per group. Error bars represent mean values ± standard deviation. ** p < 0.01.
Biomolecules 11 00285 g001
Biomolecules 11 00285 g002

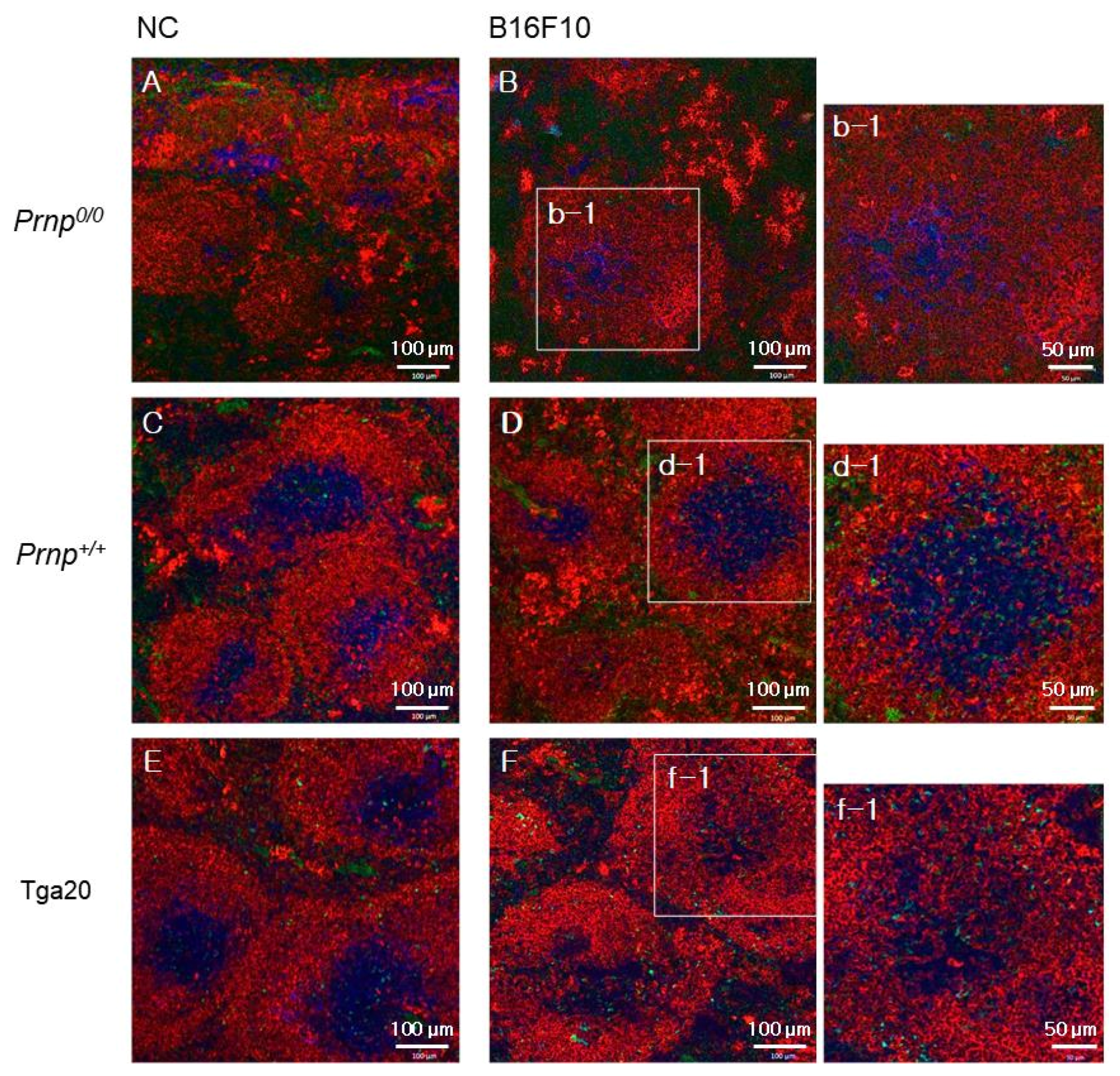

Figure 2. Low power confocal micrographs of Prnp0/0 (A,B), Prnp+/+ (C,D), and Tga20 (E,F) mouse spleen sections showing white pulp. Images show CD3 (blue for T cells), IgM (red for B cells), and FoxP3 (green for Treg cells). (A,C,E) The spleens from normal mice (negative control, NC) and (B,D,F) from B16F10-treated mice (B16F10) at the terminal stage of lung cancer. High-power confocal images (b-1, d-1, and f-1) are from the area in the white boxes in B, D, and F. Data are representative of sections from three mice per group.
Figure 2. Low power confocal micrographs of Prnp0/0 (A,B), Prnp+/+ (C,D), and Tga20 (E,F) mouse spleen sections showing white pulp. Images show CD3 (blue for T cells), IgM (red for B cells), and FoxP3 (green for Treg cells). (A,C,E) The spleens from normal mice (negative control, NC) and (B,D,F) from B16F10-treated mice (B16F10) at the terminal stage of lung cancer. High-power confocal images (b-1, d-1, and f-1) are from the area in the white boxes in B, D, and F. Data are representative of sections from three mice per group.
Biomolecules 11 00285 g002
Biomolecules 11 00285 g003

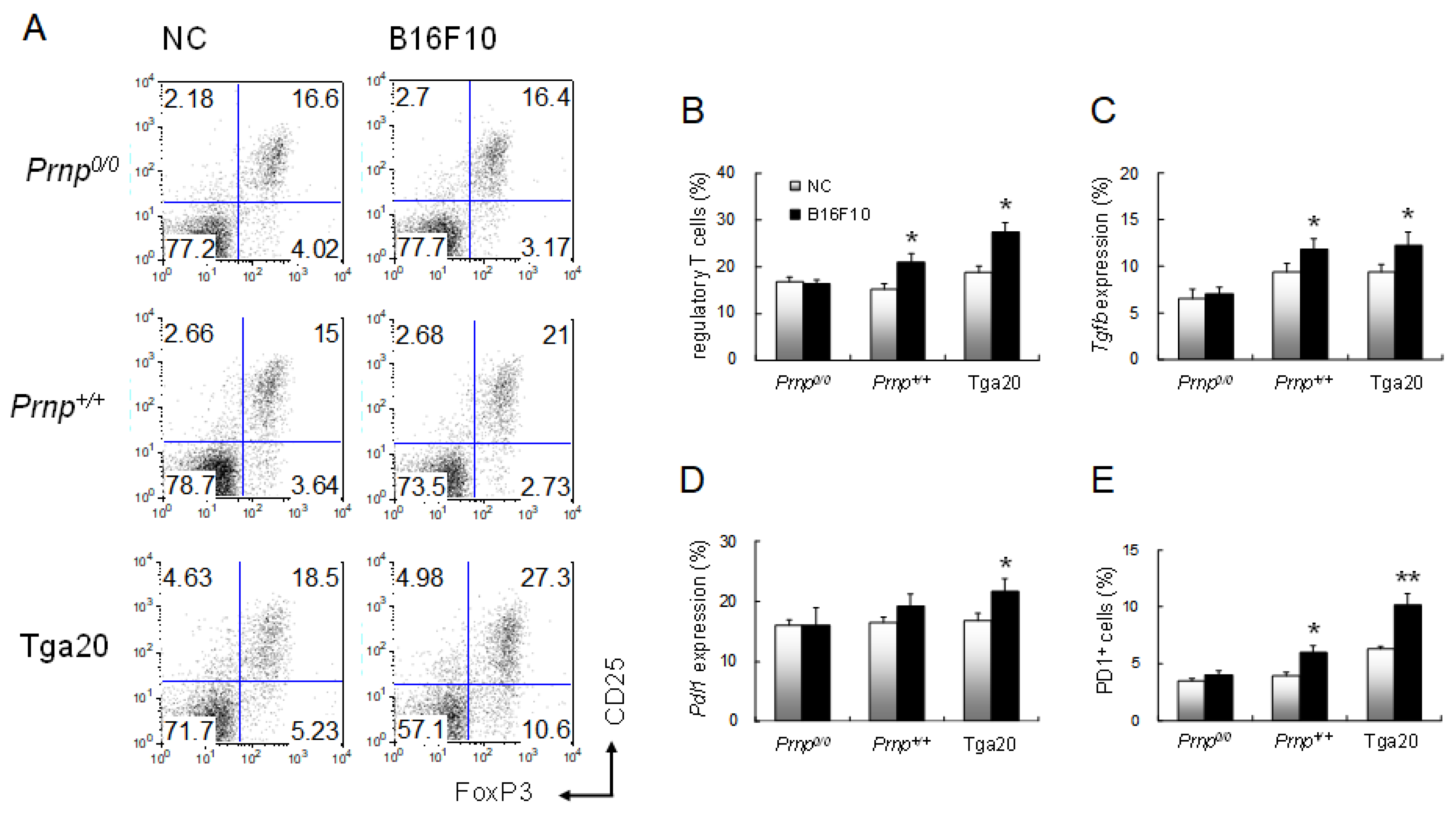

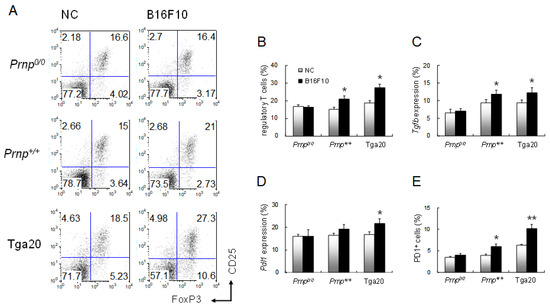

Figure 3. Analyses of Treg cells in the spleens of the negative control (NC) and B16F10-treated groups at the terminal stage of lung cancer. (A) Flow cytometric analysis of FoxP3 and CD25 expression in CD4+CD3+ gated cells. (B) The number of Treg cells calculated from flow cytometric plots. (C) mRNA levels for Tgfb. (D) mRNA levels for Pdl1. Relative mRNA levels were measured by quantitative real-time PCR and normalised to Actb expression (100%). (E) Flow cytometric analysis of CD3+PD1+ cells (%). Data are for an average of 12 mice per group. Error bars represent mean values ± standard deviation. * p < 0.05 and ** p < 0.01.
Figure 3. Analyses of Treg cells in the spleens of the negative control (NC) and B16F10-treated groups at the terminal stage of lung cancer. (A) Flow cytometric analysis of FoxP3 and CD25 expression in CD4+CD3+ gated cells. (B) The number of Treg cells calculated from flow cytometric plots. (C) mRNA levels for Tgfb. (D) mRNA levels for Pdl1. Relative mRNA levels were measured by quantitative real-time PCR and normalised to Actb expression (100%). (E) Flow cytometric analysis of CD3+PD1+ cells (%). Data are for an average of 12 mice per group. Error bars represent mean values ± standard deviation. * p < 0.05 and ** p < 0.01.
Biomolecules 11 00285 g003
Biomolecules 11 00285 g004

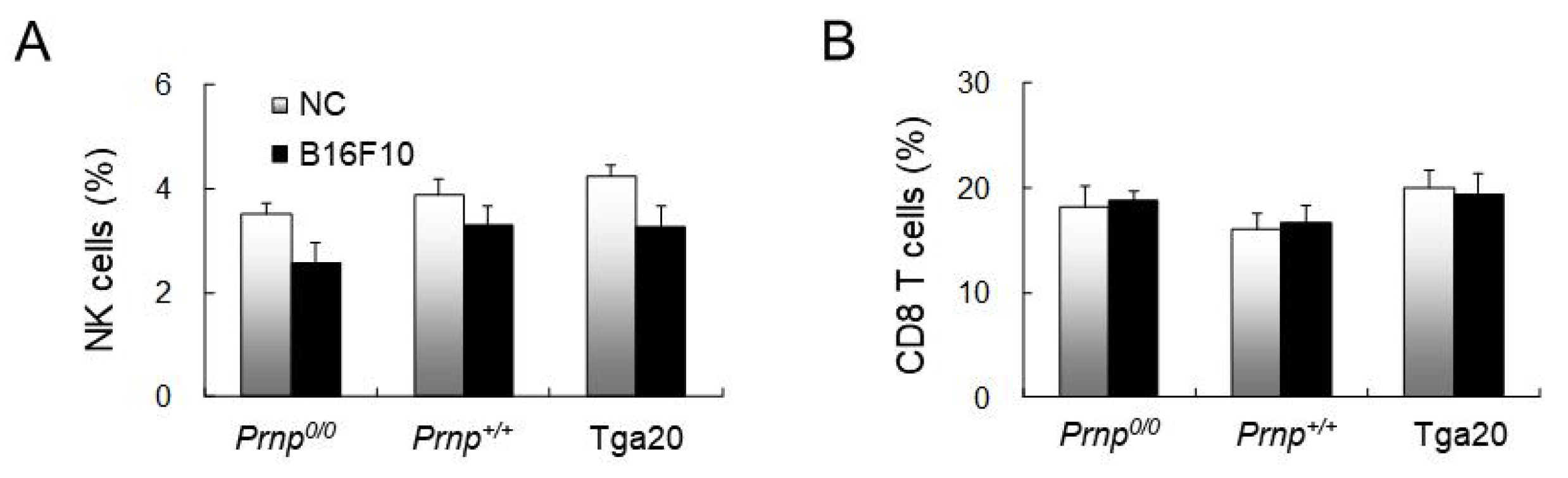

Figure 4. Flow cytometric analysis of cancer-related cells in the spleens of the negative control (NC) and B16F10-treated groups at the terminal stage of lung cancer. (A) DX5+ NK cells (%). (B) CD3+CD8+ cells (%). Data are for an average of 12 mice per group. Error bars represent mean values ± standard deviation.
Figure 4. Flow cytometric analysis of cancer-related cells in the spleens of the negative control (NC) and B16F10-treated groups at the terminal stage of lung cancer. (A) DX5+ NK cells (%). (B) CD3+CD8+ cells (%). Data are for an average of 12 mice per group. Error bars represent mean values ± standard deviation.
Biomolecules 11 00285 g004
Biomolecules 11 00285 g005

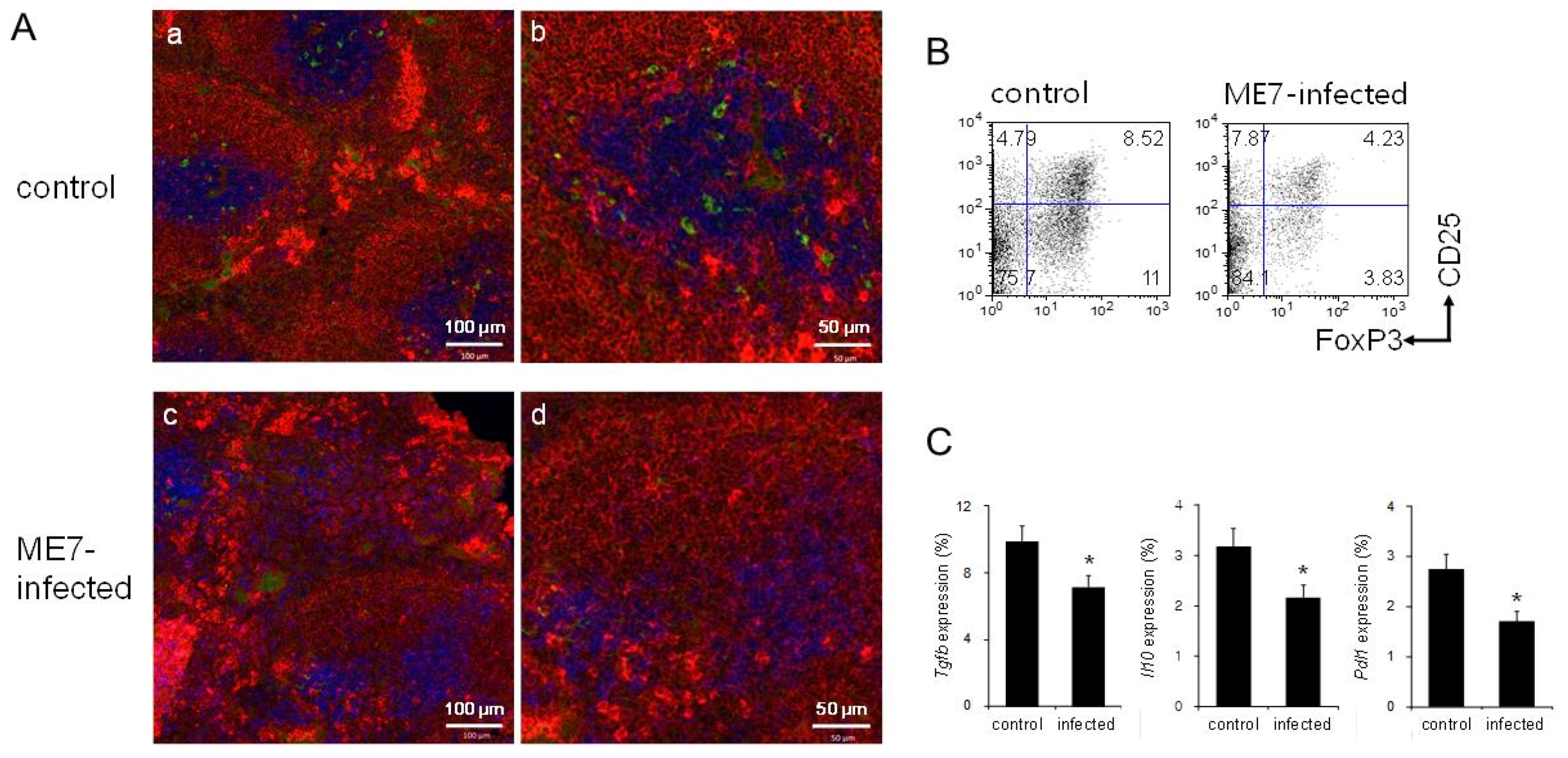

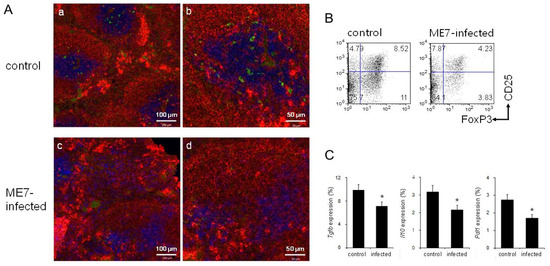

Figure 5. Analyses of FoxP3+ Treg cells from control and ME7-infected mouse spleens. (A) Confocal images of spleen sections: (a,c) Low-power images of white pulp, (b,d) high-power images. Immunofluorescent staining indicates CD3 (blue for T cells), IgM (red for B cells), and FoxP3 (green for Treg cells). (a,b) Control spleen. (c,d) ME7-infected spleen. Data are representative of sections from three mice per group. (B) Flow cytometric analyses of CD25 and FoxP3 expression by CD3+CD4+ gated cells. (C) mRNA levels for Tgfb, Il10, and Pdl1. Relative mRNA levels were measured by quantitative real-time PCR and normalised to Actb expression (100%). Data represent the average expression of 12 mice per group. Error bars represent mean values ± standard deviation. * p < 0.05.
Figure 5. Analyses of FoxP3+ Treg cells from control and ME7-infected mouse spleens. (A) Confocal images of spleen sections: (a,c) Low-power images of white pulp, (b,d) high-power images. Immunofluorescent staining indicates CD3 (blue for T cells), IgM (red for B cells), and FoxP3 (green for Treg cells). (a,b) Control spleen. (c,d) ME7-infected spleen. Data are representative of sections from three mice per group. (B) Flow cytometric analyses of CD25 and FoxP3 expression by CD3+CD4+ gated cells. (C) mRNA levels for Tgfb, Il10, and Pdl1. Relative mRNA levels were measured by quantitative real-time PCR and normalised to Actb expression (100%). Data represent the average expression of 12 mice per group. Error bars represent mean values ± standard deviation. * p < 0.05.
Biomolecules 11 00285 g005
Table 1. List of primer sequences for quantitative PCR analysis.
Table 1. List of primer sequences for quantitative PCR analysis.
GeneForward PrimerReverse Primer
ActbCGTGAAAAGATGACCCAGATCATGGTACGACCAGAGGCATACAG
PrnpATGGCGAACCTTGGCTACTGCCTGAGGTGGGTAACGGTTG
TgfbCCGCAACAACGCCATCTATGCCCGAATGTCTGACGTATTGAAG
Pdl1GCTCCA AAGGACTTGTACGTGTGATCTGAAGGGCAGCATTTC
Il10ACAGCCGGGAAGACAATAACTGCAGCTCTAGGAGCATGTGG
