Biofunctionalization of Natural Fiber-Reinforced Biocomposites for Biomedical Applications

Tânia D. Tavares
Joana C. Antunes
Fernando Ferreira
Helena P. Felgueiras
Centre for Textile Science and Technology (2C2T), Department of Textile Engineering, University of Minho, Campus of Azurém, 4800-058 Guimarães, Portugal
Author to whom correspondence should be addressed.
Biomolecules 2020, 10(1), 148;
Submission received: 30 December 2019 / Revised: 13 January 2020 / Accepted: 15 January 2020 / Published: 16 January 2020
(This article belongs to the Section Biological and Bio- Materials)


In the last ten years, environmental consciousness has increased worldwide, leading to the development of eco-friendly materials to replace synthetic ones. Natural fibers are extracted from renewable resources at low cost. Their combination with synthetic polymers as reinforcement materials has been an important step forward in that direction. The sustainability and excellent physical and biological (e.g., biocompatibility, antimicrobial activity) properties of these biocomposites have extended their application to the biomedical field. This paper offers a detailed overview of the extraction and separation processes applied to natural fibers and their posterior chemical and physical modifications for biocomposite fabrication. Because of the requirements for biomedical device production, specialized biomolecules are currently being incorporated onto these biocomposites. From antibiotics to peptides and plant extracts, to name a few, this review explores their impact on the final biocomposite product, in light of their individual or combined effect, and analyzes the most recurrent strategies for biomolecule immobilization.

1. Introduction

The use of eco-friendly materials has been increasing with time as a result of global environmental awareness. The development of recyclable and environmentally sustainable materials has become an attractive and important field of research. Natural fibers are among these materials and are gradually replacing synthetic fibers made from non-renewable petroleum-based resources [1,2].
Composites are formed of a strong load-carrying material (reinforcement) embedded within a “weaker” material (matrix). Because of the beneficial properties, abundance and low cost of natural fibers, these are considered a new generation of reinforcements for polymer matrices. By themselves, natural fibers are very unpredictable (with properties varying from batch-to-batch) and do not possess the mechanical resilience desirable for most applications; as such, combinations with polymer matrices have been proposed [3,4]. A biocomposite is considered a material that is composed of at least one natural resource. The natural fiber added value endows the biocomposites with a wide range of physical, mechanical and biological properties [5]. Manufacture of biocomposites can be accomplished by different processing techniques, including compression molding, injection molding, resin transfer molding, sheet molding, hand lay-up, filament winding, extrusion and pultrusion. These processes allow the natural fibers, which are presented in the form of loose fibers, nonwoven mats, aligned yarns and/or woven fabrics, to be placed in the desired direction to acquire specific mechanical properties in the final product [6]. There are other factors that must be considered as well to attain desirable properties, such as the type of natural fiber, the chemical compatibility between the fiber and matrix phases, the corresponding surface energies and the quality of the interface [7]. The interfacial bonding between both materials in a biocomposite are affected by the natural fiber’s hydrophilicity and polymer matrix hydrophobicity. Chemical and physical methods are required to treat the surface of the fiber to optimize this interaction [3].
The natural fibers’ abundance, availability and low-cost have made biocomposites very attractive for several industrial applications. However, in biomedicine, specific requirements must be met prior to their use. The most important is to be accepted by the human body without causing any adverse response, namely inflammation, allergies and/or early rejection associated with toxicity. Biocompatibility is, therefore, essential for the successful development of a biomedical device [8,9]. Even though biocomposites on their own have been reported in medical textiles [10], the addition of specialized biomolecules with particular properties, such as antimicrobial, anti-inflammatory, analgesic, sedative, anti-oxidative, UV-protection or chemical stability, to name a few, have demonstrated improved performance on specific biomedical applications. Biomolecules such as peptides, antibiotics, nanoparticles (NPs) or plant extracts functionalized onto biocomposites contribute significantly to their biocompatibility towards host cells, while improving other dormant material properties [11,12,13,14,15]. These combinations have been desirable for prospective applications in sutures, coatings for cell culture and drug delivery matrices, as well as for 3D scaffolds for ligaments, bone, cartilage, skin and vasculature engineering [10]. Still, even though they have demonstrated tremendous potential, research in this field is only now taking the first steps with the use of biocomposites for biomedicine, requiring further study and understanding. The present work explores this subject further by introducing some of the most recent (last ten years) biomolecule–biocomposite combinations and their final product properties. Fiber extraction, separation and chemical and physical processing prior to interfacial bonding with polymer matrices were also discussed. Finally, a detailed and critical analysis of the biomolecule’s inherent characteristics and the most recurrent methods employed for their immobilization onto natural fibers, fabrics and biocomposites was provided.

2. Natural Fibers

Natural fibers can be sourced from plants, minerals and animals [16]. The several physical and mechanical properties that characterize these fibers, such as low cost, low density, high specific strength and stiffness, processing flexibility, biodegradability and non-toxicity, allow an easy replacement of synthetic fibers [17]. Nowadays, plant-based fibers are very commonly used in many industrial sectors, such as textiles, automobiles, packaging, construction, sports equipment and medicine [3,18]. These are also known as ligno-cellulosic fibers, which can be extracted from inexpensive and available natural resources, and depending on the part of the plant from which they are sourced, can be classified into bast fibers (jute, flax, hemp, kenaf and ramie), seed fibers (cotton, milkweed, coir and kapok), leaf fibers (sisal, pineapple, agave, banana and abaca), grass fibers (sugarcane bagasse and bamboo), straw fibers (rice, corn and wheat) or wood fibers (softwood and hardwood) [2,16,18,19]. There are other natural fibers that are considered regenerated fibers, meaning that are produced from natural sources with human interference. Soybean is an example of this type, which undergoes chemical manipulation to be turned from a plant into a fiber [20]. Silk, wool, hair and feathers are examples of animal-based fibers composed mainly of proteins and are the second most important source of natural fibers [2,21]. However, compared to plant-based fibers they are stronger and more bioactive. Because of their high costs and lower accessibility, their use is restricted to biomedical applications [8,22]. In this field, natural fibers have attracted a research interest towards potential applications [23]. Medical textiles can be used from a simple gauze for wound dressings to sutures, reconstruction and repair of tissues and bones [24]. The materials for medical purposes require very specific characteristics, such as biodegradability, biocompatibility, functionability, bioresorbability, sterilizability, manufacturability, as well as mechanical properties [9]. Table 1 shows the mechanical properties of potential natural fibers for biomedical applications compared to human tissues.
In the last years, the use of natural fibers as reinforcement of composites has received considerable attention as substitutes of glass, ceramic and metal-based materials in various industries [1,17,18]. The application of these fibers has started in the automotive and aircraft sectors. However, nowadays they are being used in electrical and railway devices, as well as in civil engineering for structural and infrastructure applications such as roofs and bridges [16,19,26]. Biocomposites consist of a polymer matrix embedded with natural fibers; however, their binding is considered a challenge because of the numerous chemical structures of both the fibers and the polymers. Their performance depends on the properties of the individual components and their interfacial compatibility. Thus, it becomes necessary to modify the natural fibers resorting to specific treatments. Generally, the composition of the fiber structure is changed using reagent functional groups [1]. The reinforcement of a synthetic polymer with treated natural fibers introduces a positive effect on their mechanical and tribological performance. However, this performance depends of type, fraction or treatment of the fibers, type of polymer or manufacturing process [3,22]. Commonly, increasing the natural fiber amount in a polymer matrix leads to increased mechanical properties [8]. The matrix material is responsible for binding and protecting the natural fiber since, due to their fibrous nature, they cannot be used by themselves to sustain considerable loads [26].

Fiber Separation and Extraction

Fiber separation and extraction are very important as they can affect the fibers’ quality, yield, chemical composition, structure, etc. [7,27]. Commonly, the separation of the plant-based fibers from the fiber crops is made by the retting process. This method consists in removing non-fibrous tissues attached to fibers through decomposition and degradation of hemicellulose and pectins, releasing individual fibers [2,28]. Table 2 compares five types of retting processes, namely dew, water, mechanical, enzymatic and chemical retting. Traditional methods, dew and water retting, rely on biological activity of microorganisms from the soil and are the most commonly used [29,30,31]; however, these have several disadvantages (Table 2). To overcome these limitations, improvements in fiber processing techniques are crucial to ensure consistently high-quality fibers and reduced environmental impact in terms of water waste and energy consumption [27,29]. Apparently, there is no single method that can give optimum results in all aspects. Enzymatic retting has been demonstrated to be the most promising solution due to its high enzyme specificity, better controllability, shorter duration and low environmental impact [32,33,34,35]. Nevertheless, the high cost of the process has not yet made it feasible at an industrial scale [7]. After the retting process, non-fibrous materials must be completely removed. For this, the fibers are extracted (breaking, milling, scutching or decortication), cleaned, refined and processed (spinning or weaving) to be used in a specific application [27].
Animal-based fibers come from diverse sources and, as such, the extraction occurs in different ways. The most used, silk, is obtained from silkworm cocoons that are composed of fibroin (fiber) and sericin (gum) proteins endowed with different biological and physicochemical properties [36,37]. Sericin is responsible for coating and protecting the fibroin, which needs to be extracted to release the fibers. Degumming is a process during which sericin is removed by thermo-chemical treatment of the cocoons, by boiling in a mild soap solution that dissolves the sericin gum binding the fibers and untangles them. Lastly, it is washed in cold water to remove the remaining sericin and other contaminations [8,38,39]. Wool fibers from sheep are, probably, the most widely used at an industrial scale and are mainly composed of keratin. Fiber extraction is accomplished manually by shearing and collecting “wool grease”, which has many impurities that must be washed and removed to extract clean wool [2,21]. Chicken feathers are also composed of keratin. The extraction of these fibers, composed of fiber (keratin) and quill, is initiated with a wash in water and ethanol to remove dirt and other particles present on the feather surface and dried under natural light. Then, barbs are mechanically separated from the quill, treated with NaOH, and further washed and dried [40,41,42].

3. Treatments of Natural Fibers for Successful Biocomposite Production

As mentioned earlier, it is important to modify the natural fiber surface to achieve a good interface bonding with the polymer matrix. Because of their low water and moisture absorption, and wettability [45], natural fibers require further chemical and surface treatments to optimize their performance as reinforcement agents.

3.1. Chemical Treatments in Plant-Based Fibers

Plant-based natural fibers are composed of cellulose, hemicellulose, lignin and wax [46]. Table 3 shows the percentage of chemical compounds in some of the most common natural fibers. Cellulose is the strongest and stiffest component of the fibers, endowing the fiber surface with several hydroxyl (-OH) groups and making them hydrophilic in nature. In addition, waxy substances cap the fiber reactive functional groups acting as an interference to interlock with the matrix that results in poor interfacial interaction with the hydrophobic polymer matrix. To turn the fibers less hydrophilic and, consequently, increase their mechanical and physical properties, modifications are necessary. Generally, the fiber structure composition is altered by chemical treatments using functional groups to react with the surface available hydroxyl groups. This can be accomplished through [3,45,46,47,48,49]:
Cellulose alkalization by removing the remaining fiber components (hemicellulose, lignin and wax) with sodium hydroxide (NaOH), cleaning the surface and increasing its roughness to improve adhesion to the polymer matrix;
Silanization treatment forming silane groups that act as a fiber-matrix coupling agent, creating a siloxane bridge between them. Silanol (Si-OH) groups react with -OH groups of the fibers and the matrix functional groups;
Acetylation by introducing an acetyl group on the fiber surface. Here, the -OH groups react with the acetyl groups decreasing their hydrophilic nature;
Peroxide treatment by generating free radicals that react with the -OH groups of both fiber and polymer. This treatment requires an alkaline pre-treatment;
Benzoylation treatment using benzoyl chloride to treat the fibers and decrease their hydrophilic nature by replacing of -OH groups with benzoyl groups. In this method, an alkaline pre-treatment is required;
Potassium permanganate treatment by forming highly reactive permanganate ions that react with the -OH groups, generating cellulose-manganate to initiate graft copolymerization;
Stearic acid treatment by inducing the interaction between reactive carboxyl groups of stearic acid with the fiber -OH groups, and thus improving water resistance properties;
Isocyanate treatment by acting as a coupling agent between the fiber and the matrix. Isocyanate functional groups react with the cellulose and lignin -OH groups, forming a chemical linkage by means of strong covalent bonds;
Maleated coupling treatment by means of maleic anhydride, which is used to modify the fiber surface and the polymeric matrix, ensuring high compatibility between them. Maleic anhydride is grafted onto the polymer, becoming available to react with the cellulose -OH groups by means of hydrogen or covalent bonds.
Many other chemical treatments can be used to treat fibers in order to reduce the number of hydroxyl groups and improve the fiber adhesion to the matrix, including acrylation, acrylonitrile grafting, triazine, zirconate, titanate, sodium chlorite, fungal and enzyme treatment. Chemical treatments comprehend a class of the most important approaches to improve natural fiber adhesion to a polymeric matrix, modifying their microstructure, improving tensile strength, wettability, surface morphology and increasing the number of available chemical groups [46].

3.2. Chemical Treatments in Animal Fibers

Animal-based fibers are mainly composed of structural proteins; hence, specific chemical modifications must be employed to these fibers, including coupling reactions (cyanuric chloride-activated, carbodiimide and glutaraldehyde coupling), amino acid modification (arginine masking, sulfation of tyrosine and azo-modified tyrosine) and grafting reactions (tyrosinase-catalyzed and poly(methacrylate) grafting). The primary structure of silk fibroin (SF), the protein from silkworm, contains a repetitive sequence of glycine-alanine-glycine-alanine-glycine-serine amino acids, which self-assemble into an anti-parallel β-sheet structure. The crosslinking between β-sheets along the protein is done by means of strong hydrogen bonds and Van der Waals interactions that endows silk with excellent mechanical properties [36,54]. SF is widely used in biomedical applications. However, it is essential to modify the SF surface chemistry to better control the interaction between silk and the living systems. SF possesses many reactive functional groups that facilitate crosslinking with other polymers, thus increasing its use as a reinforcing fiber [21]. Due to the presence of several reactive amino acids in SF, chemical modifications via coupling and grafting reactions and amino acid modifications can be applied. Wool and chicken feathers are mainly composed of keratin, a structural protein similar to SF. The chemical structure of keratin is predominantly an α-helix in chicken feathers [55] and a super coiled polypeptide chain with an α-helix and β-sheet in wool [56]. These structures are tightly packed via cross linkages, hydrogen bonds, Van der Waals and electrostatic interactions.
Chemical modifications play an important role in fiber functionalization, improving existing physicochemical properties or incorporating new ones. The fiber protein amino acid residue side chains may be conveniently conjugated with a variety of chemical groups [57]. These modification methods can be classified into coupling reactions, amino acid modification and grafting reactions. Coupling reactions are mainly used to immobilize peptides, molecules and polymers in fiber proteins. Copper-catalyzed azide-alkyne cycloaddition reactions, cyanuric chloride, carbodiimide and glutaraldehyde are very effective coupling agents [58,59]. The amino acid modifications are made through arginine masking, which is used to regulate the surface charge, sulfation/oxidation of tyrosine, which causes the hydrolysis of the fiber protein [58], and azo-modified tyrosine that can be used to install small molecules into fiber protein, resulting in hydrophobic and hydrophilic derivatives [60]. The grafting reactions include tyrosinase-catalyzed grafting and poly(methacrylate) grafting. Still, the chemical treatments discussed in Section 3.1. may also be applied to these protein fibers when used as composite reinforcements due to their several reactive functional groups [61,62].

3.3. Physical Surface Treatments

In addition to the mentioned chemical treatments, it is also very common to improve the fibers’ surface through physical surface treatments. Some of these approaches are used to functionalize the natural fibers’ surface and consist of the use of plasma, ultrasounds and UV-light. Plasma treatment is one of the most common surface modification methods. Cold plasma treatment is required to remove the surface impurities which, consequently, induces modifications in the surface properties, such as wettability, flame resistance, printability, etc., and increases surface roughness leading to better mechanical interlocking and interfacial adhesion between the fiber and polymer [47,63]. The hydrophilic/hydrophobic surface character can also be changed with the incorporation of free radicals capable of reacting with oxygen or other gases [48]. Plasma is a partially ionized gas that reacts with the fiber surface. Plasma is generated by applying an electrical field between two electrodes, which transmit energy, accelerating the gas electrons that collide with neutral gas molecules or atoms under atmospheric pressure or in a vacuum. In the case of a plasma vacuum, the gas is introduced at a low pressure in a vacuum chamber causing ionization by means of atom removal or bond rupture, giving rise to free radicals and crosslinking. However, this method requires an expensive closed system and is considered a batch process [64,65]. The treatment with atmospheric plasma is more attractive for industry, as it allows the samples to be treated in situ rather than restricted to a vacuum chamber. It is a continuous and uniform treatment, reliable and reproducible [66]. The atmospheric plasma technique can be divided into different types of discharge, such as corona-discharge, dielectric barrier discharge, glow discharge and atmospheric pressure plasma jet.
Corona treatment is a process based on low-frequency discharges applied in two opposing electrodes and grounded metal roll. These discharges induce ionization of the nearby atmosphere generating plasma. The fiber is placed in the gap between the electrodes and is bombarded with high-speed electrons, inducing surface oxidation and increasing the amount of high reactive free radicals [64,67]. It is a low-cost process with low energy consumption and exhibits several advantages compared with others plasma treatments [48]. The dielectric barrier discharge (DBD) technique is similar to the corona treatment. However, here, there is one or more dielectric barriers in the path between the electrodes, acting as an insulator. These accumulate the transported charge and distribute it over the entire electrode area. The gas between the electrodes is not ionized and only serves as a reservoir to absorb the energy dissipated. The main disadvantage of DBD is that it is not completely uniform and has a short duration [68,69]. The atmospheric pressure glow discharge (APGD) is a more stable, uniform and homogeneous surface treatment than DBD. This technique is generated in helium or argon by applying low voltages through parallel conductive electrodes at higher frequencies. The glow of the discharge refers to the characteristic luminescence resultant from excitation collisions followed by de-excitation [63,70]. In the atmospheric pressure plasma jet (APPJ) there are two tubular metal electrodes separated by a gap. Between the electrodes, a quartz cylindrical tube is inserted where helium (or other gases) flows. The plasma is launched into the surrounding air in the form of a plume or bullet, directly into the sample. This process can provide a local and very precise treatment [64]. APPJ is suitable for industrial and research applications, namely treatment of heat-sensitive materials, biological material sterilization and several biomedical devices [71].
Ultrasound treatment, while not as common as plasma treatment, is also effective in surface modifications. This method causes the cavitation effect, which is the formation, by ultrasonic irradiation, of small collapsing bubbles that generate powerful shock waves. The impact of the shock waves on the fiber surface leads to surface peeling, erosion and particle breakdown. Cavitation is responsible for the physical and chemical effects of ultrasound in solid/liquid and liquid/liquid systems and is more effective in heterogeneous systems than homogeneous systems. The effect of ultrasound treatment is related to its frequency; at low frequencies, violent cavitation is produced, and the effects are highly localized. On the other hand, with high frequency, the cavitation is less violent due to the shorter lifetime of the bubbles [49,72,73].
Ultraviolet treatment is based on UV-light, an electromagnetic radiation with a potential energy source capable of promoting photochemical reactions in the molecular structure of the fibers’ surface [74]. UV-treatment is a clean and cost-effective process that can be used in industrial applications [48]. In addition to the processes described earlier, there are other physical methods of surface modifications, such as ozone treatment, gamma-ray irradiation treatment, laser treatment and ion beam treatment [47].

4. Biomolecules and Their Immobilization Methods onto Biocomposites

Incorporation of biological cues onto the filament surface, through immobilization of bioactive ligands, peptides, NPs, enzymes, plant extracts or essential oils (EOs), has been used to obtain effective and specific biological functions of the composition. Immobilization of yeast invertase onto polyethylenimine (PEI)-coated cotton flannel for food modifying processes is one of the earliest cases of a biologically functional natural fiber by means of surface modification [75]. On the other hand, cotton and wool fabrics bearing covalently attached alkylated PEI exerted high bactericidal and antifungal activity [76] for wound dressing production, being a first example of the medical use of textiles functionalized with bioactive compounds [77]. Since then, biomolecules of all kinds have been immobilized on and within biocomposite materials for a variety of biomedical applications, including therapeutics, diagnostics, wound healing, tissue engineering, etc. A list highlighting the most recent (last ten years) formulations of biomolecule-modified biocomposites and respective “final product” properties is provided in Table 4. For the purpose of this review, inorganic NPs were considered biomolecules due to the biological and biomedical impact of their combination with selected biocomposites.
In the following sub-sections, a detailed analysis of these promising bioactive molecules applied in the production or modification of natural fiber-reinforced composites (Table 4) is provided together with a brief introduction about the approaches or methodologies required to attain such modified biocomposites.

4.1. Bioactive Biomolecules

4.1.1. Antibiotics

The discovery of penicillin and streptomycin in 1929 and 1943, respectively, foreshadowed the age of antibiotics [117]. In fact, only two years later, the first definition for antibiotics was proposed: “chemical substance of microbial origin that possesses antibiotic powers” [118]. This definition only included those antibiotics produced by microorganisms but did not consider those of synthetic origin or produced by other biological products of non-microbial origin (but still endowed with antagonistic effects on the growth of microorganisms) [119]. As such, acceptable variations of this definition have been proposed over the years.
Currently, the antibiotics available in the marker are either produced by microbial fermentation or are synthetically prepared following the backbone structure of existing antibiotics. They target the physiology and biochemistry of bacteria (Figure 1) by affecting the membrane structure, the peptidoglycans or the cell wall biosynthesis; by interfering with protein synthesis via interaction with ribosomal subunits; by meddling with the DNA and RNA replication and transcription of nucleic acid synthesis and metabolism; and/or by interfering with metabolic pathways and, this way, inhibiting DNA synthesis. Ultimately, the effective action against these targets inhibits bacteria growth, compromises the cell integrity and, finally, leads to cell death [119,120]. The structural and metabolic differences between bacteria and mammalian cells enables antibiotics to induce selective toxicity against pathogens without harming the host cells [121].

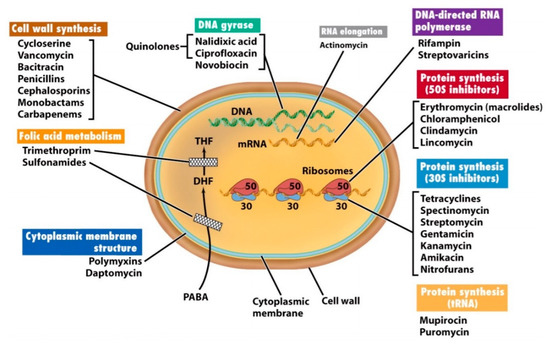

For their efficiency and effectiveness, antibiotics represent a primary treatment method for infections and chronic diseases. However, the increasing and indiscriminate use of antibiotics has led to the development of tolerance and the emergence of antibiotic-resistant pathogens. In fact, this has become a serious global issue with devastating consequences for patient care [122]. The recognition of the correlation between antibiotic use and resistance development has catapulted research devoted to the discovery and design of new compounds effective against multi-drug-resistant pathogens and multi-organism biofilms [117,120,123]. In this context, many efforts have been made towards the design of new drugs, and the development of nanostructured platforms for the local and controlled delivery of antibiotics. One of the most common strategies consists in the immobilization of antibiotics at the surface of inorganic NPs or encapsulated within nano-sized shells [124]. Functionalization or modification of polymer-based composites has also been one of the most recurrent strategies in biomedicine [125].
With the concomitant rising interest in the use of renewable feedstocks, there has been great opportunities for the use of natural-origin materials in medical applications. Cellulose, for instance, is one of the most abundant polymers on Earth that can be harvested from natural fibers (Table 3). Butylparaben and triclosan antibiotics have been incorporated within the cationic β-cyclodextrin cellulose complexes cavities to improve the antibiotic’s solubility and, consequently, release kinetics. The antibiotic-loaded complexes were found to inhibited bacteria action by affecting the bacteria metabolism instead of damaging the cell membrane [126]. The incorporation of the ciprofloxacin hydrochloride antibiotic has also been attempted on a similar cellulose-based fibrous structure. β-cyclodextrin were covalently bonded to the cellulose fibers via citric acid, which prolonged the antibiotic release process and improved its antibacterial activity, particularly against Escherichia coli bacteria [127]. Research on the use of biocomposites as platforms for antibiotic delivery is fairly recent. Feather keratin/polyvinyl alcohol biocomposites have been produced by crosslink with dialdehyde starch for an improved compatibility. Dialdehyde starch was employed with the goal of decreasing the relative crystallinity and enthalpy of the composite, while increasing the water stability. Rhodamine B dye was used as a substitute of a model drug to explore the ability of this composite to sustain prolonged and stable drug release. Data confirmed this premise [128]. Research has continued on this subject and there are now woven cotton/polylactic acid composite systems loaded with amoxicillin [14], sericin (outer layer of silk fibers)/poly(vinyl alcohol) composites modified with tigecycline [78] and even keratin/hydrotalcite nanoparticle composites functionalized with diclofenac [79]. Acquired data shows the promising future of these new formulations and their ability to overcome the limitations of the use of free antibiotics, and their overall potential in biomedicine.

4.1.2. Nanoparticles (NPs)

NPs are defined as solid colloidal particles of 1 to 100 nm in size and have been used in the biomedical field for a variety of purposes, including drug design and delivery, diagnostics and therapeutics. They can be engineered in the form of nanospheres, nanocapsules, liposomes, dendrimers and micelles from a variety of materials, including those from organic and inorganic origins [129,130]. The influence of NP parameters, such as size, shape, charge, colloidal stability, corrosion, stiffness and so forth, on interactions with molecules, living cells and animal models has been researched. However, interfacing inorganic NPs with biological settings have led to the most influential and outstanding discoveries [130,131,132]. For that reason, even though inorganic NPs are not considered biomolecules, their multiple biomedical applications and the various advantages offered when combined with biocomposites has led the authors to open an exception and include them in this section.

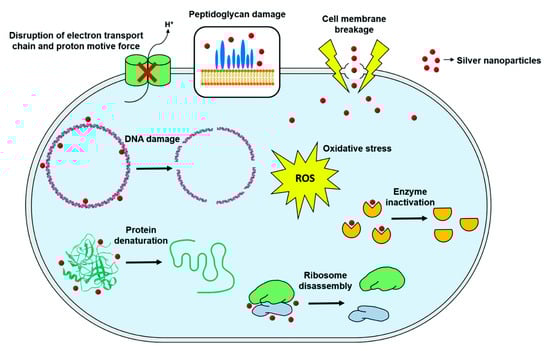

NPs are characterized by a large surface area-to-volume ratio. In the case of inorganic NPs, they can be subdivided into magnetic, metallic, bimetallic or alloy and metal oxide [133]. Much literature has focused on iron oxide NPs because of their superior chemical, biological and magnetic properties, including chemical stability, non-toxicity, biocompatibility, high saturation magnetization and high magnetic susceptibility. Maghemite (γ-Fe2O3) and magnetite (Fe3O4) are the most biocompatible oxidation states of iron. However, these forms tend to oxidize, requiring an additional coating made of other biocompatible materials, e.g., polymers [134]. Gold, silver and their respective compounds are the most widely employed metal NPs in biomedicine. Gold’s unique electronic and optical properties have resulted in important biosensor and bioimaging applications. Further, its easy functionalization with organic molecules allows for active or passive drug delivery systems to be engineered. Silver NPs are endowed with unique physicochemical properties that include high electrical and thermal conductivity, chemical stability, catalytic activity, enhanced optical properties and exceptional antibacterial performance. The antimicrobial activity of NPs, like silver, has been confirmed against a variety of microorganisms, including Gram-positive and Gram-negative bacteria and fungi. Because of their large surface area and reduced sizes, NPs can disrupt the cell wall and provoke membrane damage; penetrate intracellularly and cause protein denaturation, enzyme inactivation, DNA rupture or ribosome disassembly; and even induce oxidative stress (Figure 2) [135]. Silver NPs have contributed significantly to advances in medical textiles that include the production of wound dressings and protective coatings for medic devices [133]. In fact, the combination of these NPs with biocomposites is the most explored, with exceptional bactericidal properties being identified in cotton-, linen-, sugarcane bagasse-, silk- and jute-reinforced composites [13,81,82,83,84,85]. The bimetallic NPs comprehend those NPs that combine more than one metal or are produced from metallic alloys. Silver/copper NPs are a frequent example in this class. They have been used in the modification of cotton–polyester composites at different ratios and oxidation states with excellent antimicrobial properties against bacteria and fungi [86]. Metal oxide NPs are characterized by their unique physical and chemical properties and superior density. Size-related alterations in response to an increasing number of surface and interface atoms have been observed in NPs made of CuO, ZnO, SnO2, Al2O3, MgO, ZrO2, AgO, TiO2, CeO2, etc. Conjugation with biomaterial substrates has proven very effective in stabilizing these NPs and improving their performance. In fact, combinations with biocomposites have shown their harmless activity on human cells and improved antimicrobial action and UV-protection [97,98,99].
Derived from plant- and animal-based sources, organic NPs are highly biocompatible, nontoxic at various concentrations and often inexpensive. Most organic NPs are produced from natural-origin polymers, such as polysaccharides (e.g., chitosan, hyaluronic acid and cellulose) and proteins (e.g., albumin, elastin, collagen and silk). However, contrary to inorganic NPs, whose reproducibility is maintained with production, organic NPs have a significant batch-to-batch variability, displaying a range of physical and chemical properties that result from the poor control over the synthesis and fabrication processes. Because of that, very little reports have been published on the combination of these NPs with biocomposites [99,101,136].

4.1.3. Enzymes: Laccase

Laccases, EC, p-diphenol:dioxygen oxidoreductase (60–100 kDa), are part of a larger group of enzymes termed multicopper enzymes that catalyze the oxidation of organic and inorganic substrates. Laccase is a glycosylated monomer or homodimer protein composed of carbohydrates like hexoamines, glucose, mannose, galactose, fucose and arabinose. To function, laccase depends on Cu atoms distributed among its three different binding sites.
Laccase was first described by Yoshida in 1883 and was then characterized as a metal containing oxidase by Bertrand in 1985, making it one of the oldest enzymes ever studied [137]. Laccases are widely distributed among plants, e.g., trees, cabbages, turnips, beets, apples, asparagus, potatoes, pears and other vegetables; insects of genera Bombyx, Calliphora, Diploptera, Drosophilia, Lucilia, Manduca, Musca, Oryctes, Papilio, Phormia, Rhodnius, Sarcophaga, Schistocerca and Tenebrio; and fungi, such as Monocillium indicum, Cerena maxima, Coriolposis polyzona, Lentinus tigrinus, Pleurotus eryngii and others from the Trametes species. Laccase activity has also been reported in few bacteria, including Bacillus subtilis [138]. Fungal laccase is perhaps the most widely researched, as its presence has been documented in virtually every fungus examined for it. Most fungi produce both intra- and extracellular enzymes, being the phenols, amines and benzoic acid, responsible for inducing the synthesis of laccase. Laccase can oxidize any substrate with characteristics similar to p-diphenol. Some fungal laccases are also capable of oxidizing monophenols and ascorbic acid. However, the primarily role of fungal laccase is to decompose lignin and/or to influence the polymerization of its oxidation by-products [137,139].
The activity of laccase-mediated systems is dependent on the redox potential of the enzyme and the stability and reactivity of the radical groups. Laccases are capable of catalyzing the mono-electronic oxidation of phenols and aromatic/aliphatic amines to reactive radicals and, simultaneously, reduce molecular oxygen to water in a redox reaction. Studies have shown that the phenolic sites of lignin macromolecules can be oxidized to phenoxyl radicals by laccase, and then undergo covalent coupling to initiate the polymerization of lignins. Laccase-oxidized phenols or non-oxidized amines can also be grafted to the radicalized lignins or lignocellulosic surfaces to produce engineered materials with novel functions [102,140,141]. As natural fibers, namely jute, are rich in lignin, the use of laccase to generate novel functions or induce stronger interfacial adhesion between non-polar resins in fiber-reinforced polymer biocomposites has been highly desirable [102,103,104].

4.1.4. Peptides: RGD Motif

Peptides are versatile building blocks that adopt specific secondary structures, providing a unique platform for the design of self-assembling biomaterials with hierarchical 3D macromolecular architectures, nanoscale features and tunable physical properties. Various peptide motifs have been identified and used in biomedical applications [142]. However, the widely occurring arginine-glycine-aspartate amino acid sequence, also known as the RGD motif, is the most investigated. This simple tripeptide (75 kDa) endowed with cell adhesion properties (adhesion peptide) and located in the III10 module of the fibronectin protein is very complex and depends on flanking residues, the protein 3D structure and the individual features of the integrin-binding pockets [143]. For instance, by bonding with integrins, the RGD sequence allows fibronectin to assemble into fibrils and forming the primitive structure of the extracellular matrix. However, this motif is not restricted to fibronectin; indeed, it occurs within more than 100 proteins with either a cell adhesive activity or being functionally silent [143,144,145,146].
As pointed earlier, surface modification of biomaterials is of prime importance for biomedical applications, with biocompatibility being one of the major requirements (the material must be non-toxic to the relevant cells). Introduction of chemical stimuli, in the form of an RGD motif, along the biomaterial surface can facilitate its recognition and reception by the host cells. For that reason, functionalization by either inserting peptides coupled with binding agents or by embedding them into a polymeric matrix has been extensively researched and new bioactive biomaterials developed [147,148]. For instance, a composite of milkweed, polyethylene and polypropylene has been engineered and modified with the RGD peptide for bone replacement. The altered biocomposite was seen to promote MC3T3 osteoblast-like cells recruitment and, thus, to facilitate osteointegration [11]. Because of the particular functions and loads bone substitutes must endure, there is still much to be researched about the synergistic effect of natural fibers and the RGD motif. At this moment, most research on RGD-functionalized surfaces focus on metal-based biomaterials or polymer composites.

4.1.5. Antimicrobial Peptides (AMPs)

AMPs are an integral part of the innate immune system, working as the first line of defense in a variety of organisms. They can be of natural or synthetic origin, are typically very short (5–100 amino acid residues), of low molecular weight (less than 10 kDa), positively charged (cationic with a net charge of +2 to +9) and amphiphilic. Most AMPs reported to date can be characterized as one of the following four types, based on their secondary structures: β-sheet, α-helix, extended and loop. Even though the β-sheet structure is the most common, it is only formed when the peptide comes in contact with a membrane [149,150,151,152,153]. In the case of natural origin AMPs, they can be isolated from both prokaryotes and eukaryotes. Most AMPs are produced by specific cells, at all times; however, there are those whose production is inducible. Still, they are quickly mobilized after microbial infection and act rapidly to neutralize a broad range of microbes (Figure 3) [149,150,153,154,155,156]. To date, hundreds of AMPs have been identified and their importance in the innate immune system explored.

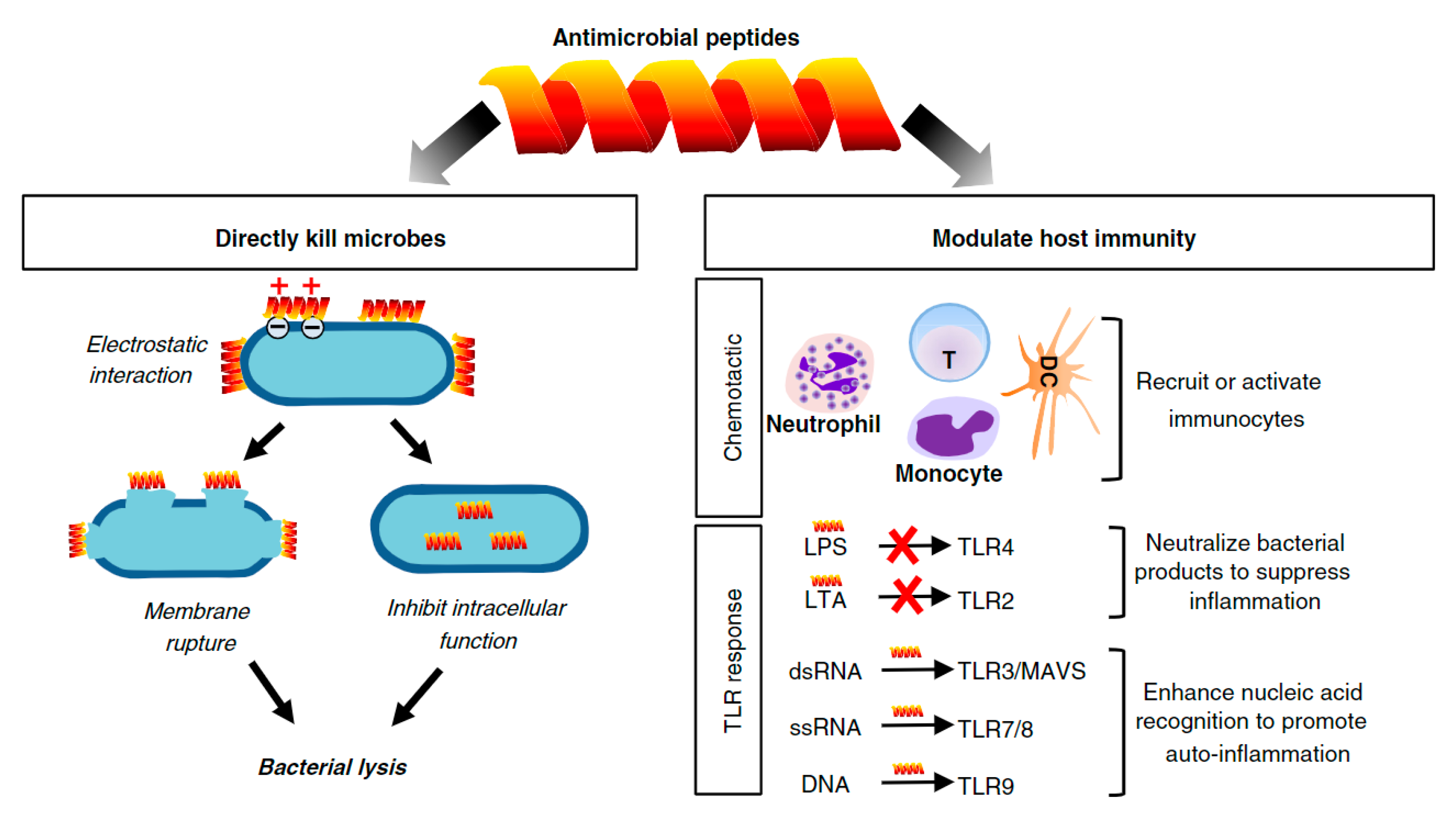

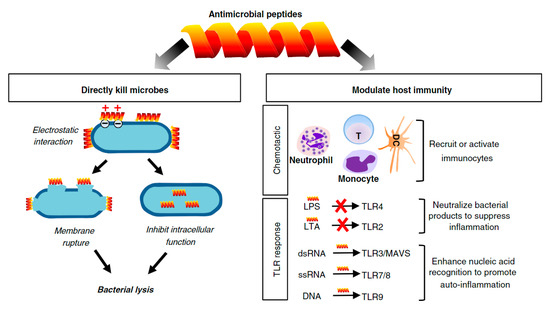

Unlike antibiotics, which target specific bacteria cell functions (Figure 1), most AMPs target the microorganism’s lipopolysaccharide layer, which is exclusive to them. As eukaryotic cells are rich in cholesterol and possess a low anionic charge, they are out of the focus of many AMPs [151,154]. AMPs can be classified based on their target microorganism as antibacterial, which target bacterial cell membranes, compromising the lipid bilayer structure; antiviral, which neutralize viruses by integrating the viral envelope or the host cell membrane; antifungal, which kill by targeting either the cell wall or the intracellular components of fungi; and antiparasitic, which kill through direct interaction with the parasite cell membrane [149,157].
Functionalization of biomaterials with AMPs is a recent practice that is gaining much interest in the biomedical field. However, guaranteeing the antimicrobial performance of these peptides while immobilized remains a challenge, as it is dependent not only on the base substrate’s physical and chemical properties but also on the selected immobilization process. If blended with a polymer solution, for instance, the AMPs solubility can be compromised using organic solvents as they may deteriorate the biomolecules or induce aggregation, hindering their ability to penetrate or bind to the cell membrane. Cellulose acetate/poly(vinyl alcohol) composite films have been produced by solvent-casting followed by phase inversion for prospective applications in wound healing. The produced films were functionalized with LL37 by two methods, blending and surface binding via dopamine. Data reported a significant reduction of the LL37 antimicrobial action when immobilized by blending, proving the immobilization via binding agent more effective [158]. Physical binding methods, which include adsorption and layer-by-layer approaches, require the biomolecules dissolution prior to the physical adsorption by means of non-covalent or multidentate interactions [149]. Yet, this is not always feasible. A synthetic hybrid of cecropin and melittin has shown the tendency to form dimmers when in solution, augmenting its hemolytic activity and, thus, reducing its ability to penetrate the microbial membranes [159]. Still, when immobilized by covalent bonding on polyurethane-based substrates its action was significantly enhanced against Gram-positive bacteria [160]. Compared to physical binding methods, covalent immobilization offers many advantages, including minimizing AMPs leaching, providing long-term stability and lowering toxicity. Here, AMPs can be coupled to the surface via grafting, which requires covalent bonding of intact AMPs to the material surface, or via “surface initiated” methods, in which the synthesis of the AMPs is made through initiators of reactive groups covalently immobilized onto the biomaterials’ surface [149,155]. Because of their expensive and delicate nature, very little reports have been published on the functionalization of biocomposites with AMPs. One of the few works reports the modification of wool-based fibers with the Cecropin-B/[Ala5]-Tritrp7 hybrid AMP via the exhaustion method [12]. This modification improved the natural fibers’ antimicrobial action, both against Gram-positive and Gram-negative bacteria, and revealed the potential of these surfaces for biomedical uses.

4.1.6. Plant Extracts

Plants are the most important source of natural drugs used in conventional medicine. Recent findings have demonstrated that near 72,000 (≈17%) of the 422,000 identified flowering species present a therapeutic potential. These values are continuously increasing since the bioactive molecules present in a plant species have also been identified in other plant species that are related with the former, thus increasing rapidly the diversity of plants that can be used in herbal medicine [161].
Plants produce proteins, lipids, carbohydrates and chlorophyll as the primary metabolic products after photosynthesis. These are easily found in nature, particularly in the seeds and vegetative tissues of tall plants. The secondary metabolites, however, are more difficult to identify and extract, being until recently discarded and their therapeutic potential ignored. These secondary biochemical pathways are capable of synthesizing raft chemicals in response to specific environmental stimuli, such as pathogen attacks [162]. Their roles comprehend the protection of the host by acting as antioxidant, free radical-scavenging, UV-light absorbing and antiproliferative agents, or by defending the plant against microorganisms such as bacteria, fungi and viruses [162,163]. The major classes of antimicrobial compounds extracted from plants are the phenolics, which antimicrobial action includes enzyme inhibition by the oxidized compounds (e.g., reaction with sulfhydryl groups) or through non-specific interactions with the proteins; the terpenoids (EOs), which give the plants their odors and are suggested to disrupt the membrane of bacteria, fungi, viruses and protozoa via lipophilic compounds; the alkaloids, which are heterocyclic nitrogen compounds capable of interfering with the DNA of pathogens by intercalating it; and the lectins and polypeptides, which are often cationic, thus allowing the formation of ion channels in the microbial membrane or inhibiting the adhesion of microbial proteins to host polysaccharide receptors by competing with those [164]. Mainstream medicine is increasingly receptive to the use of antimicrobial agents derived from plants as traditional antibiotics become ineffective [165]. As such, the incorporation of plant extracts onto polymeric-based substrates, natural fibers or even biocomposites are already widely investigated. Some of the most promising examples of the incorporation of plant extracts from different origins are highlighted in Table 4. Special consideration was given to natural fiber fabrics endowed with antimicrobial properties and to biocomposites with potential as regenerative medicine.

4.1.7. Essential Oils (EOs)

Aromatic plants are very common in traditional medicine as antimicrobial agents. EOs are volatile, natural, complex compounds characterized by a strong odor that can be harvested from the essence of these aromatic plants [166]. In nature, EOs play antibacterial, antiviral and antifungal roles, as well as being insecticides, protecting plants against insects and herbivores or by reducing their appetite. They are also responsible for the attraction of specific insects that will then disperse pollens and seeds and promote the plant’s propagation [167,168]. EOs are produced by more than 17,500 species of plants from many angiosperm families, e.g., Lamiaceae, Rutaceae, Myrtaceae, Zingiberaceae and Asteraceae [169]. They are synthesized in the cytoplasm and plastids of plant cells, stored in complex secretory structures like glands or resin conduits, and only then presented as drops in the leaves, stems, flowers, fruits, bark and roots of the plants [170]. EOs are mainly composed of terpenes, terpenoids and phenylpropanoids at the levels of 20%–70% but may also contain fatty acids, oxides and sulfur derivatives [171]. They are generally obtained by steam- or hydro-distillation of plants. Their properties were first investigated by De la Croix in 1881 but since then many other researchers have analyzed the chemical composition and inherent properties of these volatile compounds [167,172]. In fact, the use of EOs in biomedicine has grown over the past four decades, being nowadays considered a potential alternative to antibiotics in the treatment of various infectious diseases. EOs are known for their antiseptic (bactericidal, viricidal and fungicidal), fragrance and medicinal properties, and have been employed in embalmment and preservation of foods and as antimicrobial, analgesic, sedative, anti-inflammatory, spasmolytic and local anesthetic remedies [173].
The EOs antimicrobial properties are frequently evaluated in light of their inhibitory or bacteriostatic effect against the replication of microbial cells or by their lethal or bactericidal activity. Their physiological role against microorganisms in not yet entirely understood; however, it is generally accepted that the spreading of EOs along the bacteria cell membrane enhances membrane permeability, which then leads to the subsequent loss of cell components. The acidification inside the cell blocks the production of ATP and leads to the coagulation of the cytoplasm and destruction of genetic materials (lipids, proteins, etc.) that, ultimately, lead to the cell death [167,173,174].
One of the major drawbacks associated with the use of EOs in biomedicine is their toxicity. It is well known that at high concentrations EOs may induce allergic reactions, thus being strictly regulated by the scientific committee on consumer products (SCCP). However, in the blood stream or in contact with eukaryotic cells the tolerance is even lower. As such alternatives for the controlled release of these volatile oils have been proposed. Recent studies have demonstrated that NPs functionalized with EOs have significant antimicrobial potential against multi-drug-resistant pathogens [175]. Other studies suggest the encapsulation of EOs onto chitosan to improve the antibacterial effect of the oils and their controlled release, without a toxic initial burst [176]. In this context, biocomposites of cotton modified with monochlorotriazinyl β-cyclodextrin, as an eco-friendly encapsulating/hosting compound, have been proposed for the formation of core-shaped hydrophobic cavities for individual loading of EOs [113]. The fibers contained in the peals of fruits like durian and coconuts have also been combined with synthetic polymers for the encapsulation of cinnamon [15] and oregano oils [116], respectively. Aside from enhancing the physical properties of the biocomposite, these EOs demonstrated improved antimicrobial action against Gram-positive and Gram-negative bacteria; this way attesting to the exceptional performance of EO-modified biocomposites.

4.2. Immobilization Methods

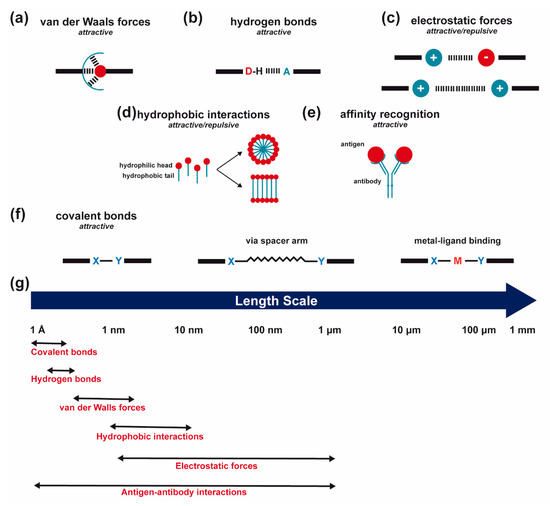

There are three major methods to immobilize biomolecules onto natural fibers: physical adsorption, physical entrapment and covalent attachment [77,177]. Physical adsorption includes: (1) van der Waals interactions, (2) electrostatic interactions, (3) hydrophobic effects and (4) affinity recognition [177,178,179]—all methods that imply self-organization (the molecules or ions adjust their own positions to reach a thermodynamic equilibrium) [180]. However, once adsorbed, the molecules may be further crosslinked to each other [177,178,179]. Van der Waals forces (including hydrogen bonding) are the most ubiquitous form of interaction between two material bodies, being caused by the electromagnetic fluctuations derived from the continuous movements of positive and negative charges within all types of atoms, molecules and bulk materials. They bring the bodies together. Through the use of stabilizing ligands or appropriate solvents, these interactions can be controlled to provide a useful tool with which to guide self-assembly [181]. Electrostatic forces hold ions together in an ionic compound [182]. They can be either attractive (between oppositely charged ions) or repulsive (between like-charged ions) and even directional, as in the case of structures with asymmetric surface-charge distributions or permanent electric polarization [181]. Electrostatic forces offer a type of bond that is low demanding in terms of the directionality and the distance between oppositely charged functional groups, having the least steric demand of all chemical bonds [183], in addition to the possibility of forming multi-center bonds [184]. Furthermore, the magnitude and length scale of these interactions can be regulated, namely by choosing the solvent (e.g., dielectric constant) and/or the concentration and chemical nature (e.g., size and valence) of the surrounding charged counterparts [181]. The use of these forces are a non-specific approach to immobilize biomolecules when the biomolecule has an isoelectric point higher or lower than seven and the surface a positive or negative charge [178]. Hydrophobic interactions involve separation of hydrophobic parts of amphiphilic objects from water molecules [180,181,185,186,187,188,189]. Hydrophobic interactions have been used to functionalize hydrophobic surfaces, using biomolecules like ligands attached to hydrophobic sequences. Surfaces with hydrophobic gradients have also been prepared [177]. But non-specific adsorption tend to provide little control in biomolecule orientation or activity, having low durability [178]. Finally, affinity interactions relate to the principle of complementary biomolecules interactions, by exploiting the selectivity of specific interactions (antibodies and antigens or haptens, lectins and free saccharidic chains or glycosylated macromolecules, nucleic acids and nucleic acid-binding proteins, hormones and their receptors, avidin and biotin, polyhistidine tag and metal ions). A marked advantage is their high selectivity, along with the possibility to control the orientation of immobilized biomolecules, high retention of the bioactive compound activity, mild reaction conditions and relative simplicity of the immobilization processes [178,181].
On the other hand, physical “entrapment” systems comprehend imprisonment of the bioactive compound within (1) microcapsules, (2) hydrogels, and (3) physical mixtures, such as matrix drug delivery systems [177]. Main advantages include simplicity, ability to use similar protocols for different biomolecules and simultaneous immobilization, stability and protection of the bioactive agent against degradation; while limitations comprise diffusion constraints (particularly with larger molecules) and the possibility of biomolecule leakage (if the entrapped molecule is small) [190,191]. The process of physical entrapment itself may also be harmful to the bioactive molecule [190].
Finally, covalent attachment comprises short-range intermolecular attractive forces at the molecular scale. Two electrons are shared by two atoms [181,182]. Covalent attachment may occur within a polymeric chain (water-soluble polymer conjugates), onto a solid surface or within hydrogels [177]. Chemical coupling reactions should achieve very high yields under mild conditions with few side reactions and little denaturation of the bioactive compounds [190]. Numerous covalent bonding chemistries exist. Regardless, a main advantage of a covalent bond is that the molecule is tethered at a site on its surface rather than in contact over a significant part of its surface as in the case of physical adsorption. The molecule is therefore generally more remote from the binding surface. Notwithstanding, covalent binding may excessively constrain the biomolecule or at least increase the probability of involving the bioactive site in the interaction with the surface. The proximity of the surface may also hinder the interaction between the bound molecule and other molecules in the solution [192]. For this reason, the inclusion of a spacer group (also called the linker, arm or tether) is often recommended to allow the tethered molecule to be located further from the tethering surface [177,192]. One of the most popular tethers is a poly (ethylene glycol) (PEG) molecule that can be derivatized with different reactive end groups [177,193]. Such spacers can provide greater steric freedom, and thus greater specific activity for the immobilized biomolecule. The spacer arm may also be either hydrolytically or enzymatically degradable, and therefore will release the immobilized biomolecule as it degrades [177]. However, the use of a linker does not always implies higher biomolecule activity, as the linker may adopt a conformation that interferes with the function of the compound [192]. Coatings with PEG, PEG derivatives like PEG-containing surfactants, other hydrogels, saccharides, proteins, choline headgroups and hydrogen bond receptors have also been useful to confer new functionalities to a surface, stabilize and protect the load and provide stealth effect at the host environment [178,194]. Of particular interest is the metal–ligand binding between a soluble metal acceptor center and organic ligand donors: Attractive coordination of covalent bonds that give rise to infinite metallo–organic architectures [195]. Both the metal and the ligand are typically chemically modified during bond activation, which depends on the nature of the metal and ligand structures. A metal–nitrogen bond is the most well-studied cooperation interaction, although metal–oxygen, metal–sulfur and metal–carbon also occur frequently [196]. Indeed, recently, a wide variety of metal−ligand bonds have been formed and used to functionalize metal NPs, beyond the conventional metal–thiolate (M-S) linkages. NP-mediated intraparticle charge delocalization is a unique advantage. In addition, chemical events that occur at a specific site on the NPs surface may be propagated and even amplified to all NPs, resulting in a clear variation of the NPs spectroscopic and electrochemical properties [197]. Metal-centered compounds with endless complex structures and shapes enable new chemistries, like novel mechanisms of action not accessible by organic small molecules, towards the discovery of new drugs. The metal and/or ligands can interact with nucleic acids or amino acid residues, inhibiting the function of a targeted biomolecule. Consequently, metal–ligand interactions are being increasingly studied for therapeutic applications [185,198]. A variety of physical properties (redox, optical and magnetic) are also presented by the metallic donors and allow suitable spatial and electronic arrangement for mild and selective bond activation processes, resembling highly selective bond activation reactions that occur in enzymes under mild conditions [185,196]. Figure 4 represents each of the latest referred intermolecular forces.
But irrespective of the method used, the same biomolecule may be immobilized by many different methods, plus more than one biomolecule may be immobilized to the same support. Major immobilization method trends comprise the exhaustion method, dip–pad–dry–cure method, covalent chemistry and in situ inorganic NP synthesis through the hydrothermal sol-gel method. Of interest is a successful biomolecule immobilization in a sufficient amount, along with retention of an acceptable level of bioactivity over an appropriate time period [177]. Table 5 summarizes recent examples of bioactive molecule immobilization strategies onto clean and/or pre-treated natural fibers.

5. Conclusions and Future Perspectives

Biocomposite materials are a relatively recent addition to the composites class, with desirable properties for biomedical applications. Along this review, the advances on this front were highlighted, and the improvements made by the introduction of attractive biomolecules and respective immobilization processes and the selection of specific fiber and/or surface treatments were analyzed in detail. It is now clear that the success of a biocomposite relies greatly on the compatibility of the individual materials and the interactions formed. Here, the pre-treatment of the natural fibers and the surface modifications are essential. Immobilization of biomolecules onto these biocomposites represents a step forward to their use in specific biomedical applications. Addition of drugs, NPs, peptides or even plant extracts were found to improve the biocompatibility and antimicrobial resistance of the biocomposites, qualities that are fundamental to a successful implantation. Still, challenges remain and should be properly addressed in future works. One of the major challenges lies with the understanding of the material’s individual properties and the proper selection of the processing tools. It is well known that the manufacturing process, and all the inherent stages of production, have an important influence on the final product. Because of their biological origin, the extraction of the natural fibers and their consequent properties are more difficult to predict. Hence, variations between batches are encountered, which may also explain why biocomposites developed in the laboratory have limited success during clinical trials.
Production of biocomposites for biomedical uses relies on a different set of rules than other composites for other applications. They need to be tailored and optimized to fit the desired local and global arrangement of the reinforcement phase so that the implantable biocomposite can become structurally compatible with the host tissues. Efforts should be made to harness the potential of textile biocomposites for the design of implants with improved performance. The modification of materials with a biomolecule of interest has been very important to reach this goal, particularly for external-use medical textiles. Yet, the long-term durability and reliability of internal-use biomaterials made from these biocomposites require further research efforts. In view of their clear potential, which is intimately related to their flexibility in introducing surface modifications via biomolecules, it is expected that biocomposite materials will find increasing uses in biomedicine.
