Diagnostic of Langmuir Solitons in Plasmas Using Hydrogenic Spectral Lines
Physics Department, 206 Allison Lab, Auburn University, Auburn, AL 36849, USA
Received: 15 January 2019 / Accepted: 5 February 2019 / Published: 13 February 2019

Abstract

:
The development of various spectroscopic diagnostics of relatively weak Langmuir waves in plasmas and their successful implementation have a history of over 50 years. As for spectroscopic diagnostics of Langmuir solitons (i.e., relatively strong Langmuir waves) in plasmas, there have only been very few theoretical papers. The most promising result so far was based on using satellites of the dipole-forbidden spectral lines of He, Li, or He-like and Li-like ions. It was shown that, in the case of Langmuir solitons, the peak intensity of the satellites of the dipole-forbidden lines can be significantly enhanced—by orders of magnitude—compared to the case of non-solitonic Langmuir waves. This distinctive feature of satellites under Langmuir solitons allows them to be distinguished from non-solitonic Langmuir waves. In the present paper, we perform a general study of the effects of Langmuir solitons on arbitrary spectral lines of hydrogen or hydrogen-like ions. Then, using the Ly-beta line as an example, we compare the main features of the profiles for the case of the Langmuir solitons with the case of the non-solitonic Langmuir waves of the same amplitude. We also show how the line profiles depend on the amplitude of the Langmuir solitons and on their separation from each other within the sequence of the solitons.
Keywords:
spectroscopic diagnostic; Langmuir solitons; hydrogenic spectral lines

1. Introduction

The development of various spectroscopic diagnostics of relatively weak Langmuir waves in plasmas and their successful implementation have a history of over 50 years (see, e.g., books [1,2,3] and references therein). As for spectroscopic diagnostics of Langmuir solitons (i.e., relatively strong Langmuir waves) in plasmas, there have only been very few theoretical papers, as follows.
In paper [4], the author calculated analytically the shape of satellites of dipole-forbidden lines in a spectrum spatially integrated through a Langmuir soliton (or through a sequence of Langmuir solitons separated by a distance L). The dipole-forbidden lines are the characteristic feature of He and Li spectral lines (or of the spectral lines of He-like and Li-like ions); Langmuir waves can cause the appearance of satellites of the dipole-forbidden lines. The main result of paper [4] (presented also in Section 7.3 of book [1]) is the following.
In the case of Langmuir solitons, the peak intensity of the satellites of the dipole-forbidden lines can be significantly enhanced—by orders of magnitude—compared to the case of non-solitonic Langmuir waves. This distinctive feature of satellites under Langmuir solitons allows them to be distinguished from non-solitonic Langmuir waves.
As for using hydrogenic spectral lines (in distinction to the above method based on the dipole-forbidden spectral lines of He, Li, and He-like and Li-like ions), Hannachi et al. [5] performed simulations to find the effect of Langmuir solitons on the hydrogen Lyα line. The effect was an additional broadening. However, even at the low electron density Ne = 1014 cm−3, the effect was very small compared to the Stark broadening by plasma microfields. Moreover, the additional broadening rapidly diminished with the increase of Ne, so there would be practically no additional broadening at Ne > 1015 cm−3. In paper [6], Hannachi et al. added a magnetic field into consideration and performed simulations at the electron density Ne = 1013 cm−3. However, this electron density is unrealistic (too low) for the modern tokamaks (applications to which were hoped by the authors of paper [6]), and again, the additional broadening would rapidly diminish for more realistic (higher) values of Ne. Therefore, it seems that the results by Hannachi et al. [5,6] would not be useful for the experimental diagnostics of Langmuir solitons. 1
Therefore, in the present paper, we perform a general study of the effects of Langmuir solitons on arbitrary spectral lines of hydrogen or hydrogen-like ions. Then, using the Ly-beta line as an example, we compare the main features of the profiles for the case of the Langmuir solitons with the case of the non-solitonic Langmuir waves of the same amplitude. We also show how the line profiles depend on the amplitude of the Langmuir solitons and on their separation from each other within the sequence of the solitons.

2. Brief Overview of the Theory

Langmuir solitons (or a sequence of Langmuir solitons separated by a distance L) have the following form in space [9]:
F(x, t) = E(x) cos ωt, E(x) = E0/ch(x/λ), λ << L
Here,
ω = ω pe 3 T e   / ( 2 m e ω pe λ 2 ) ,
where ωpe is the plasma electron frequency, and λ is the characteristic size of the soliton. For diagnosing solitons, it is necessary not only to find experimentally an electric field oscillating at the frequency ~ωpe but also to make sure that the spatial distribution of the amplitude corresponds to the formfactor E(x) from Equation (1).
We start by considering the splitting of hydrogenic spectral lines at the fixed value of x. Then, we will average the result over the formfactor E(x) from Equation (1) to produce new results.
In 1933, Blochinzew considered the splitting of a model hydrogen line, consisting of just one Stark component, under a linearly polarized electric field E0 cos ωt and showed that it splits in satellites separated by pω (p = ± 1, ± 2, ± 3, …) from the unperturbed frequency ω0 of the spectral line [10]:
S ( Δ ω / ω )   =   p = +   [ J p 2 ( X k ε ) ] ( δ ( Δ ω ω ) p ) ,
where Jp(u) are the Bessel functions, and ε is the scaled amplitude of the field:
ε = 3ħE0/(2Zrmeeω),
Here, Zr is the nuclear charge of the radiating atom/ion and
X k   =   nq n 0 q 0 ,
where n, q and n0, q0 are the principal and electric quantum numbers of the upper and lower energy levels, respectively, involved in the radiative transition. Physically, the larger the product Xkε, the greater is the phase modulation of the atomic oscillator.
In paper [11], Blochinzew’s result was generalized to profiles of real, multicomponent hydrogenic spectral lines in the “reduced frequency” scale as follows (also presented later in book [3], Section 3.1)
S ( Δ ω / ω )   =   p = + I ( p ,   ε )   δ ( Δ ω / ω )     p ) ,
where
I   ( p ,   ε ) = [   f 0   δ p 0   + 2 k = 1 kmax f k J p 2 ( X k ε ) ] / ( f 0 + 2 f k ) ,
Here, f0 is the total intensity of all central Stark components, and fk is the intensity of the lateral Stark component with the number k = 1, 2, …, kmax.
In the practically important case of the strong modulation (Xkε >> 1) from Equations (3), (6), and (7), it follows that there could be numerous satellites of significant intensities. Frequently, the individual satellites merge together by broadening mechanisms, so only the envelope of these satellites can be observed. The most intense part of the satellite envelope has the shape of the Airy function, as shown in paper [11] and reproduced in book [3], Section 3.1. Based on these analytical results, the following practical formula has been derived and presented in [3,11] (Section 3.1) for the position pmax of the satellite having the maximum intensity (and thus corresponding to the experimental peak):
pmax(a) = a + (a/2)1/3dAi = a − 0.809(a)1/3, a = Xkε
where dAi = −1.019 is the first zero of the derivative of the Airy function.

3. New Results

The averaging over the formfactor E(x) from Equation (1) starts by substituting E(x) into the argument of the Bessel function in Equation (3) and integrating over x from −λ to λ, or equivalently:
f ( p , a , b ) = ( 1 / b ) b / 2 b / 2 dy   J p 2 [ a / ch ( y ) ] ,
where we denote
b = L/λ, y = x/λ.
Because the maximum intensity has the satellite at the position pmax(a), given by Equation (8), its spatially integrated intensity from Equation (9) is I = f[pmax(a), a, b]. Figure 1 shows I versus b for a = 10 (solid line), a = 15 (dashed line), and a = 20 (dotted line). It can be seen that the integrated intensity of the most prominent satellite decreases as either a increases (e.g., the field amplitude E0 increases) or as b increases (i.e., the distance L between Langmuir solitons in the sequence increases).
Figure 2 presents a three-dimensional plot of the spatially integrated intensity of the most prominent satellite versus both a and b.
Figure 3 shows a three-dimensional plot of the ratio f[pmax(a), a, b]/ f[0, a, b] versus a and b. This is the ratio of the spatially integrated intensity of the most prominent satellite to the spatially integrated intensity of the “zeroth” satellite, the latter being the intensity at the unperturbed position of the one-component spectral line. It can be seen that this ratio is generally a non-monotonic function of the scaled amplitude a of the solitons electric field.
Now, we proceed to real, multicomponent hydrogenic spectral lines. As an example, we use the Ly-beta line in the observation perpendicular to the solitons electric field.
Figure 4 presents the profile of the Ly-beta line versus the scaled distance Δω/ω from the unperturbed position of this line for the (differently) scaled amplitude ε = 3ħE0/(2Zrmeeω) = 1 and the scaled distance b = L/λ = 2 between the Langmuir solitons in the sequence (solid line). Also shown is the corresponding profile for the case of the non-solitonic Langmuir waves for the same value of ε = 1 (dashed line). The direction of the observation is perpendicular to vector E0. The profiles are continuous (rather than being a set of satellites isolated from each other) because additional broadening mechanisms (the Stark broadening by plasma microfields and the Dopler broadening) were taken into account in amount of δω = 2ω. An example of the fulfillment of the latter relation could be plasmas of multicharged ions produced by a powerful Nd-glass laser, where, at the surface of the critical density, the electron density is Ne = 1021 cm−3 (or slightly higher due to relativistic effects), and the temperature would be up to T ~ 103 eV.
It can be seen that, in the case of the solitons, the profile is narrower than in the non-solitonic case. It can also be seen that both profiles have practically the bell shape without any significant features.
Figure 5 shows the same as Figure 4 but for stronger Langmuir waves, corresponding to ε = 3. Both profiles have features. In the non-solitonic case (dashed line), the profile has two maxima, both in the red and blue sides; in the case of solitons, the primary maximum in each side remains, but the secondary maximum in each side transforms into a shoulder.
Figure 6 shows the same as Figure 5 but for even stronger Langmuir waves, corresponding to ε = 6. Both profiles have more features than in Figure 5: three maxima both in the red and blue sides. In the case of solitons, the second maximum in each side is more pronounced than for the non-solitonic case. For the third maximum, the situation is opposite; in the case of solitons, the third maximum is less pronounced than for the non-solitonic case.
Now, we demonstrate how the Ly-beta profiles for the case of the Langmuir solitons depend on the scaled distance b = L/λ between Langmuir solitons in the sequence. In Figure 7, the Ly-beta profiles corresponding to ε = 3 are presented for b = 2 (solid line), b = 4 (dashed line), and b = 6 (dash-dotted line). It can be seen that, as the scaled distance b = L/λ between Langmuir solitons in the sequence increases, the features (such as maxima, minima, shoulders) gradually disappear.
Therefore, the diagnostic of Langmuir solitons while employing, for example, the Ly-beta line, can be based on the following observation. In the non-solitonic case, there could be distinct secondary maxima in each wing of the line, whereas in the case of solitons, the would-be secondary maxima look more or less like shoulders (see Figure 5 and Figure 6, and the solid line in Figure 7).

4. Conclusions

We studied the general effects of Langmuir solitons on arbitrary spectral lines of hydrogen or hydrogen-like ions. We showed that the integrated intensity of the most prominent satellite in the spectrum of a line component decreases as either the Langmuir field amplitude increases or as the separation between Langmuir solitons in the sequence increases.
For real, multicomponent hydrogenic lines, we used the Ly-beta line as an example to compare the main features of the profiles for the case of the Langmuir solitons with the case of the non-solitonic Langmuir waves of the same amplitude. The outcome was that, for the case of the Langmuir solitons, some maxima in the line profile became less pronounced or even transformed into shoulders.
Finally, we demonstrated that, as the amplitude of the Langmuir solitons increases, more features (such as maxima and minima) appear in the line profiles. We also showed that as the separation between the solitons within their sequence increases, there are less features in the line profiles.
The above results can be used for detecting the Langmuir solitons. They can also be used for determining the amplitude of the Langmuir solitons and their separation from each other in the sequence of solitons.

Funding

This research received no external funding.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Oks, E. Diagnostics of Laboratory and Astrophysical Plasmas Using Spectral Lines of One-, Two-, and Three-Electron Systems; World Scientific Publishing Company: Singapore, 2017. [Google Scholar]
  2. Griem, H.R. Principles of Plasma Spectroscopy; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar]
  3. Oks, E. Plasma Spectroscopy: The Influence of Microwave and Laser Fields; Springer: Berlin, Germany, 1995. [Google Scholar]
  4. Oks, E.J. Latest advances in the semiclassical theory of the Stark broadening of spectral lines in plasmas. J. Phys. Conf. Ser. 2017, 810, 012006. [Google Scholar] [CrossRef][Green Version]
  5. Hannachi, I.; Stamm, R.; Rosato, J.; Marandet, Y. Effect of nonlinear wave collapse on line shapes in a plasma. Europhys. Lett. 2016, 114, 23002. [Google Scholar] [CrossRef][Green Version]
  6. Hannachi, I.; Meireni, M.; Rosato, J.; Stamm, R.; Marandet, Y. Possible spectroscopic signature of wave collapse in edge plasmas. Contrib. Plasma Phys. 2018, 58, 583–588. [Google Scholar] [CrossRef]
  7. Stamm, R.; Hannachi, I.; Meireni, M.; Capes, H.; Godbert-Mouret, L.; Koubiti, M.; Rosato, J.; Marandet, Y.; Dimitrijevic, M.; Simic, Z. Line shapes in turbulent plasmas. Europ. Phys. J. D 2017, 71, 68. [Google Scholar] [CrossRef]
  8. Oks, E.; Dalimier, E.; Faenov, A.Y.; Angelo, P.; Pikuz, S.A.; Tubman, E.; Butler, N.M.H.; Dance, R.J.; Pikuz, T.A.; Skobelev, I.Y.; et al. Using X-ray spectroscopy of relativistic laser plasma interaction to reveal parametric decay instabilities: a modeling tool for astrophysics. Opt. Express 2017, 25, 1958–1972. [Google Scholar] [CrossRef] [PubMed]
  9. Kadomtsev, B.B. Collective Phenomena in Plasma; Pergamon: Oxford, UK, 1982. [Google Scholar]
  10. Blochinzew, D.I. Zur Theorie des Starkeffektes im Zeitveränderlichen Feld. Phys. Z. Sov. Union 1933, 4, 501–515. [Google Scholar]
  11. Oks, E. Plasma spectroscopy with quasimonochromatic electric fields. Sov. Phys. Doklady 1984, 29, 224–226. [Google Scholar]
1
The results from paper [5] were also presented in one section of paper [7]. It should be noted that paper [7] had a broad title “Line Shapes in Turbulent Plasmas”. Regrettably, the authors of paper [7] seem to be ignorant of dozens and dozens of theoretical and experimental papers on the subject of line shapes in turbulent plasmas that started in Sholin’s group as early as 1970s and was continued by various theoretical and experimental groups around the world through 2017 (see, e.g., paper [8], book [1] and references from [1,8]).

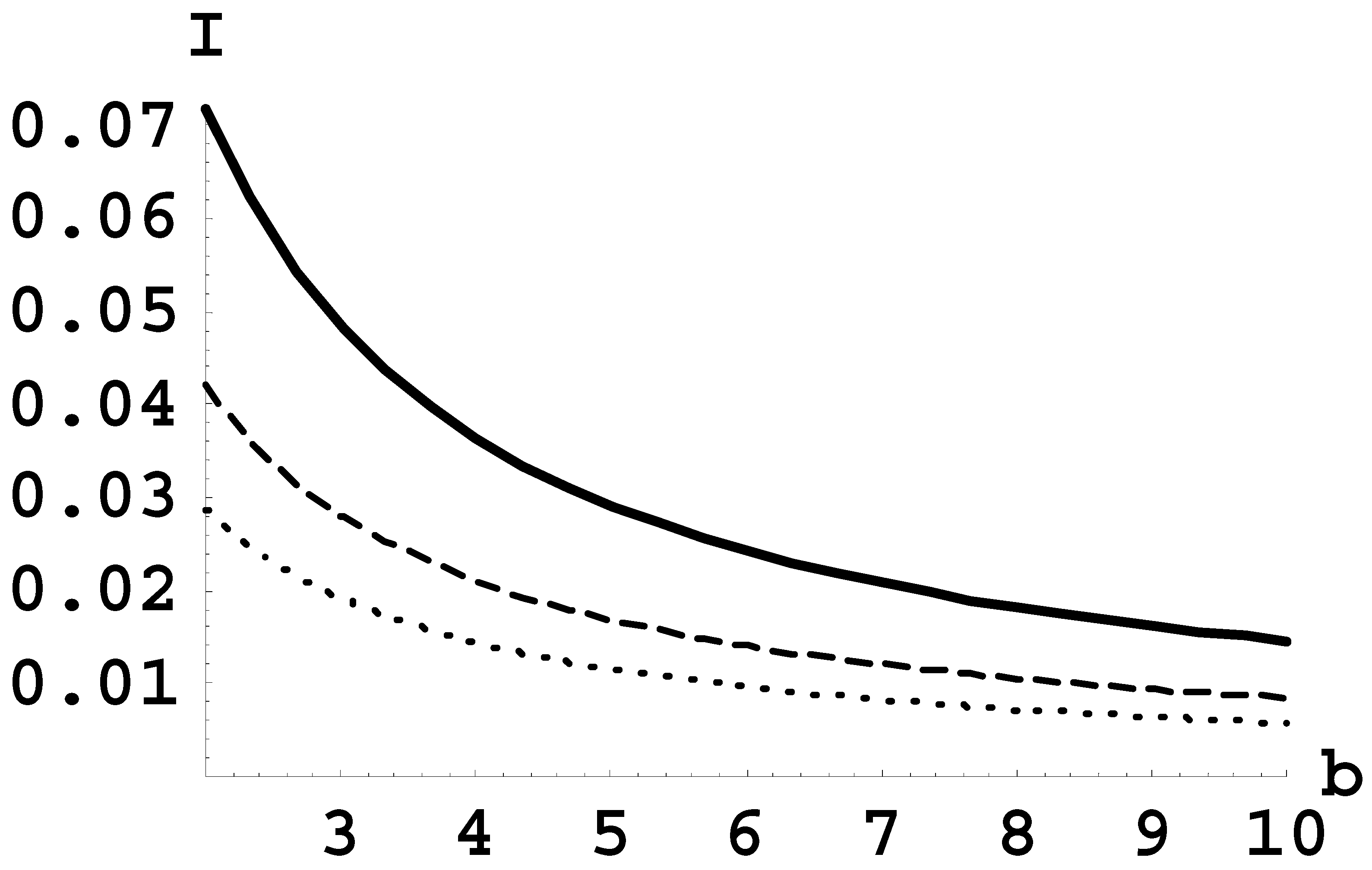

Figure 1. Spatially integrated intensity I of the most prominent satellite versus the scaled distance b. = L/λ of Langmuir solitons in the sequence for three values of the scaled amplitude a = 3ħXkE0/(2Zrmeeω) of the solitons electric field: a = 10 (solid line), a = 15 (dashed line), and a = 20 (dotted line).
Figure 1. Spatially integrated intensity I of the most prominent satellite versus the scaled distance b. = L/λ of Langmuir solitons in the sequence for three values of the scaled amplitude a = 3ħXkE0/(2Zrmeeω) of the solitons electric field: a = 10 (solid line), a = 15 (dashed line), and a = 20 (dotted line).
Atoms 07 00025 g001

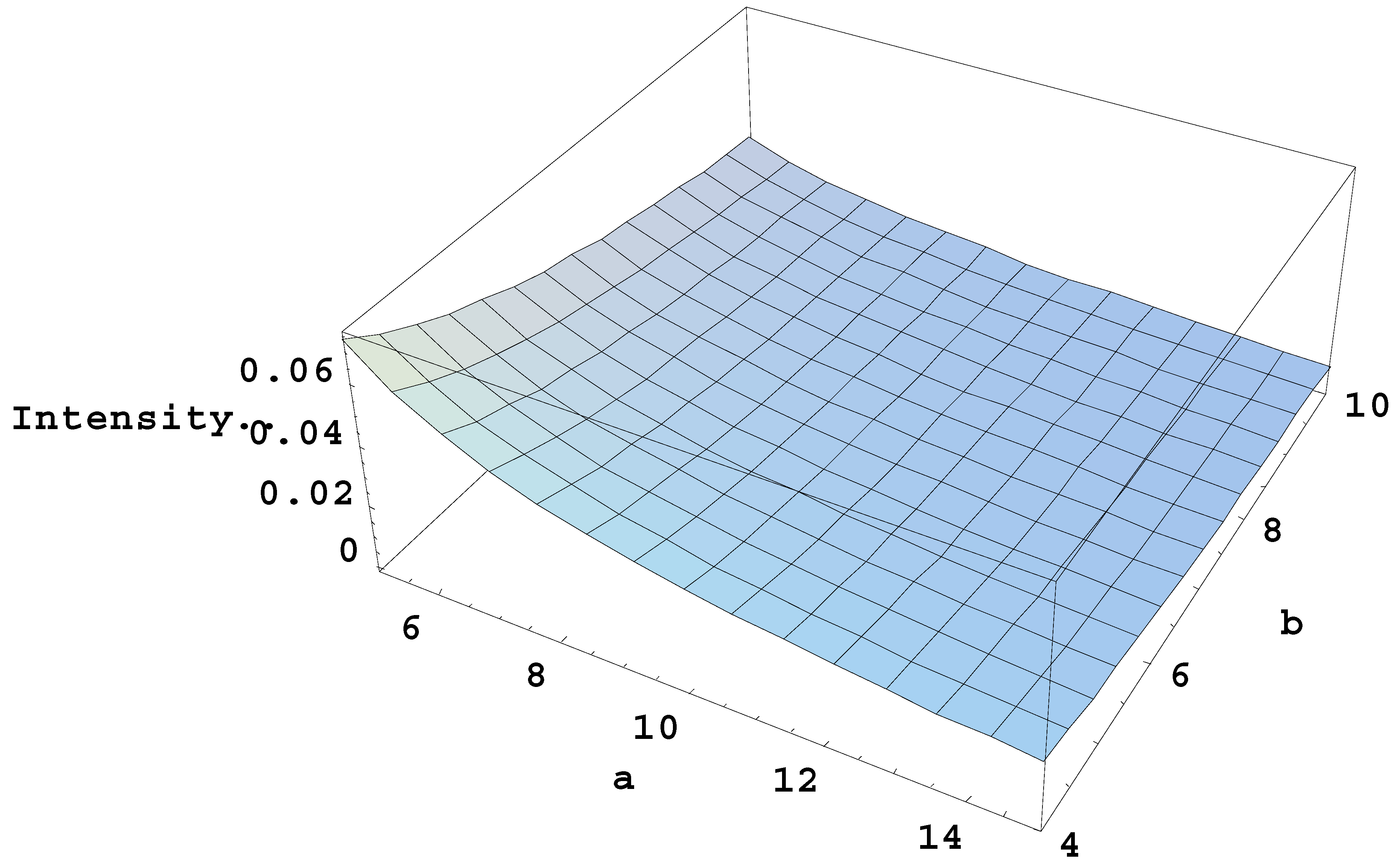

Figure 2. Spatially integrated intensity of the most prominent satellite versus the scaled amplitude a = 3ħXkE0/(2Zrmeeω) of the solitons electric field and versus the scaled distance b = L/λ of Langmuir solitons in the sequence.
Figure 2. Spatially integrated intensity of the most prominent satellite versus the scaled amplitude a = 3ħXkE0/(2Zrmeeω) of the solitons electric field and versus the scaled distance b = L/λ of Langmuir solitons in the sequence.
Atoms 07 00025 g002

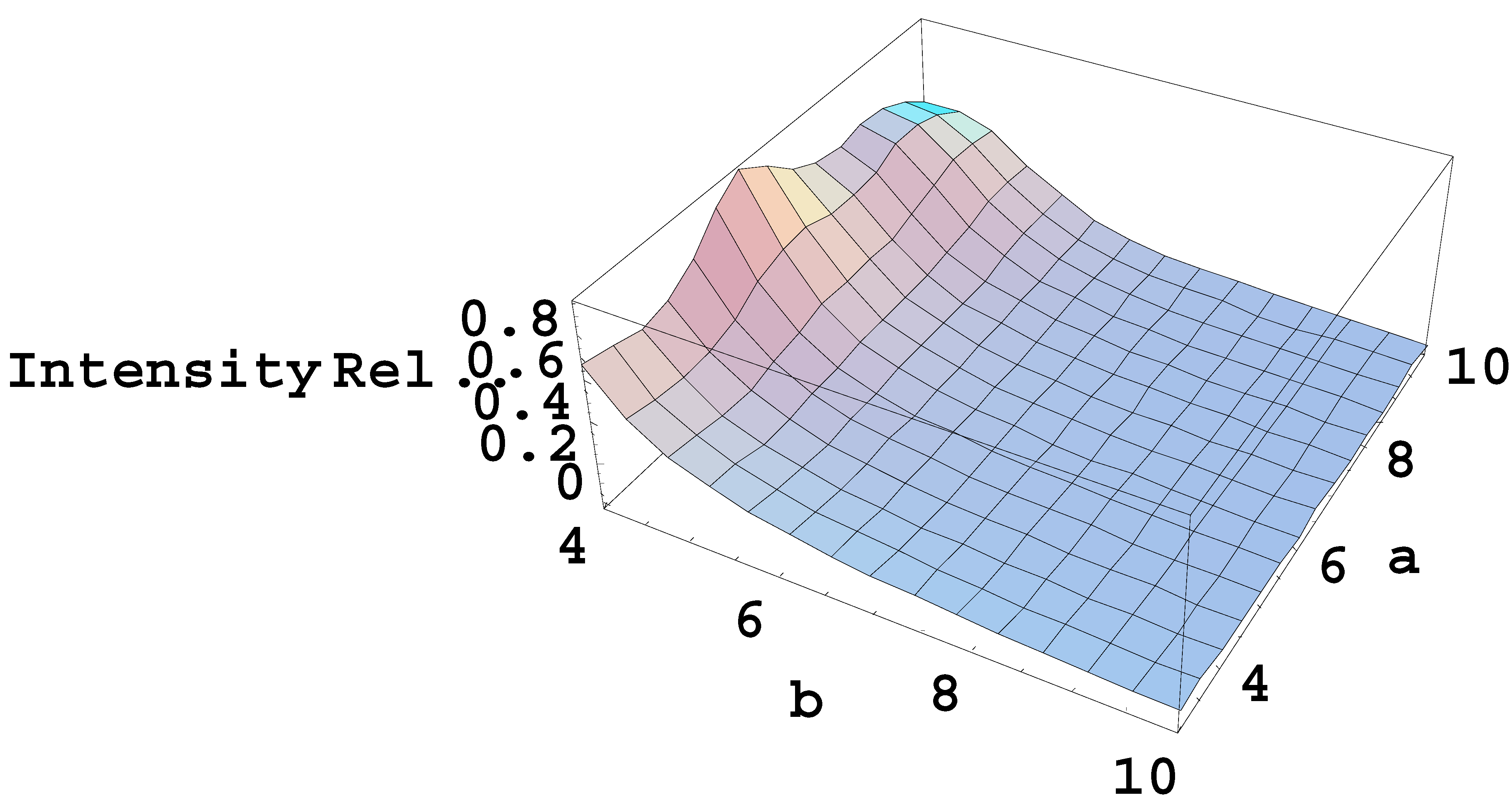

Figure 3. The ratio f[pmax(a), a, b]/ f[0, a, b] of the spatially integrated intensity of the most prominent satellite to the spatially integrated intensity of the “zeroth” satellite versus the scaled amplitude a = 3ħXkE0/(2Zrmeeω) of the solitons electric field and versus the scaled distance b = L/λ of Langmuir solitons in the sequence.
Figure 3. The ratio f[pmax(a), a, b]/ f[0, a, b] of the spatially integrated intensity of the most prominent satellite to the spatially integrated intensity of the “zeroth” satellite versus the scaled amplitude a = 3ħXkE0/(2Zrmeeω) of the solitons electric field and versus the scaled distance b = L/λ of Langmuir solitons in the sequence.
Atoms 07 00025 g003

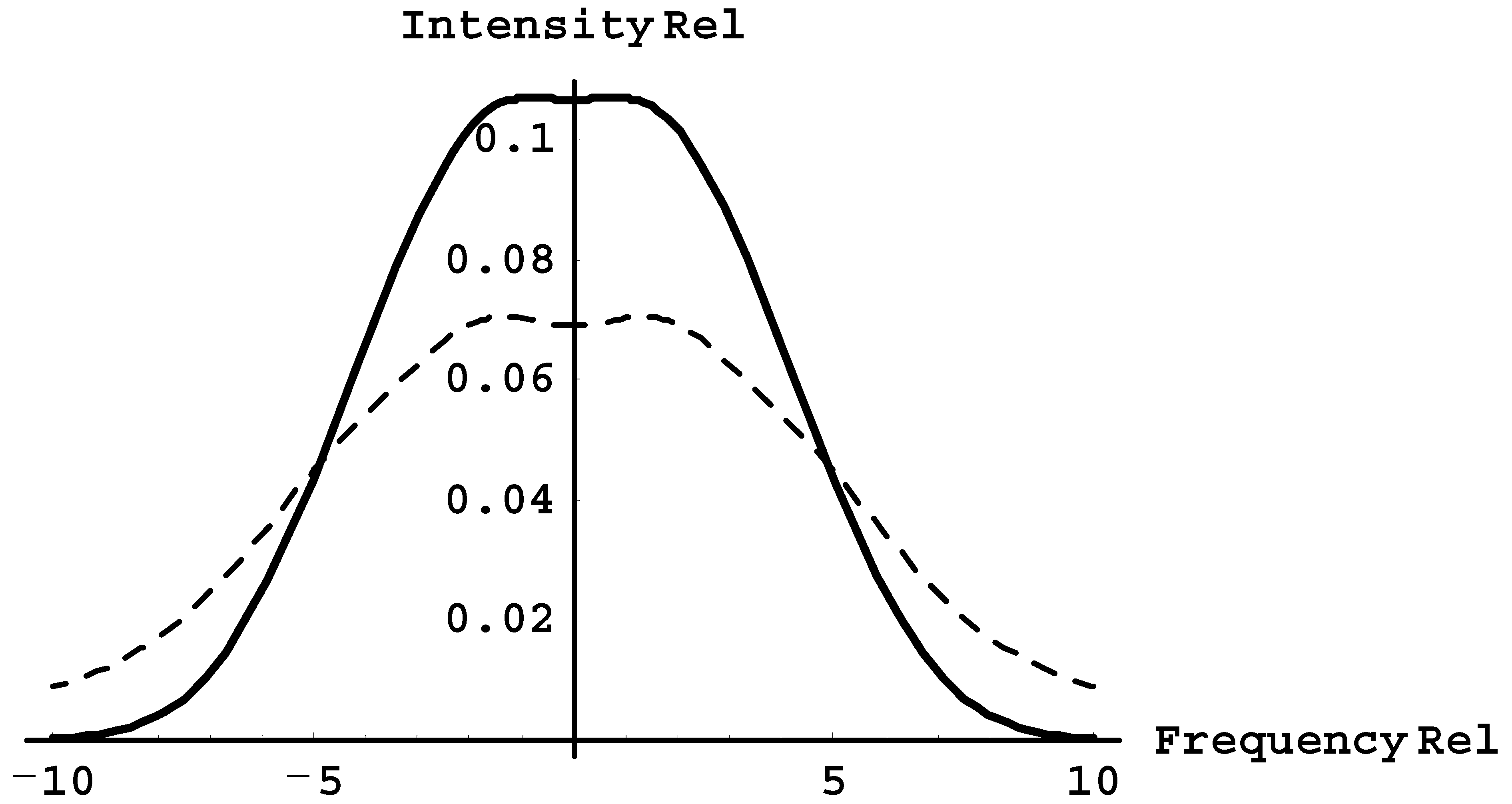

Figure 4. The profile of the Ly-beta line versus the scaled distance Δω/ω from the unperturbed position of this line for the (differently) scaled amplitude ε = 3ħE0/(2Zrmeeω) = 1 and the scaled distance b = L/λ = 2 of Langmuir solitons in the sequence (solid line). Also shown is the corresponding profile for the case of the non-solitonic Langmuir waves for the same value of ε = 1 (dashed line). The direction of the observation is perpendicular to vector E0.
Figure 4. The profile of the Ly-beta line versus the scaled distance Δω/ω from the unperturbed position of this line for the (differently) scaled amplitude ε = 3ħE0/(2Zrmeeω) = 1 and the scaled distance b = L/λ = 2 of Langmuir solitons in the sequence (solid line). Also shown is the corresponding profile for the case of the non-solitonic Langmuir waves for the same value of ε = 1 (dashed line). The direction of the observation is perpendicular to vector E0.
Atoms 07 00025 g004

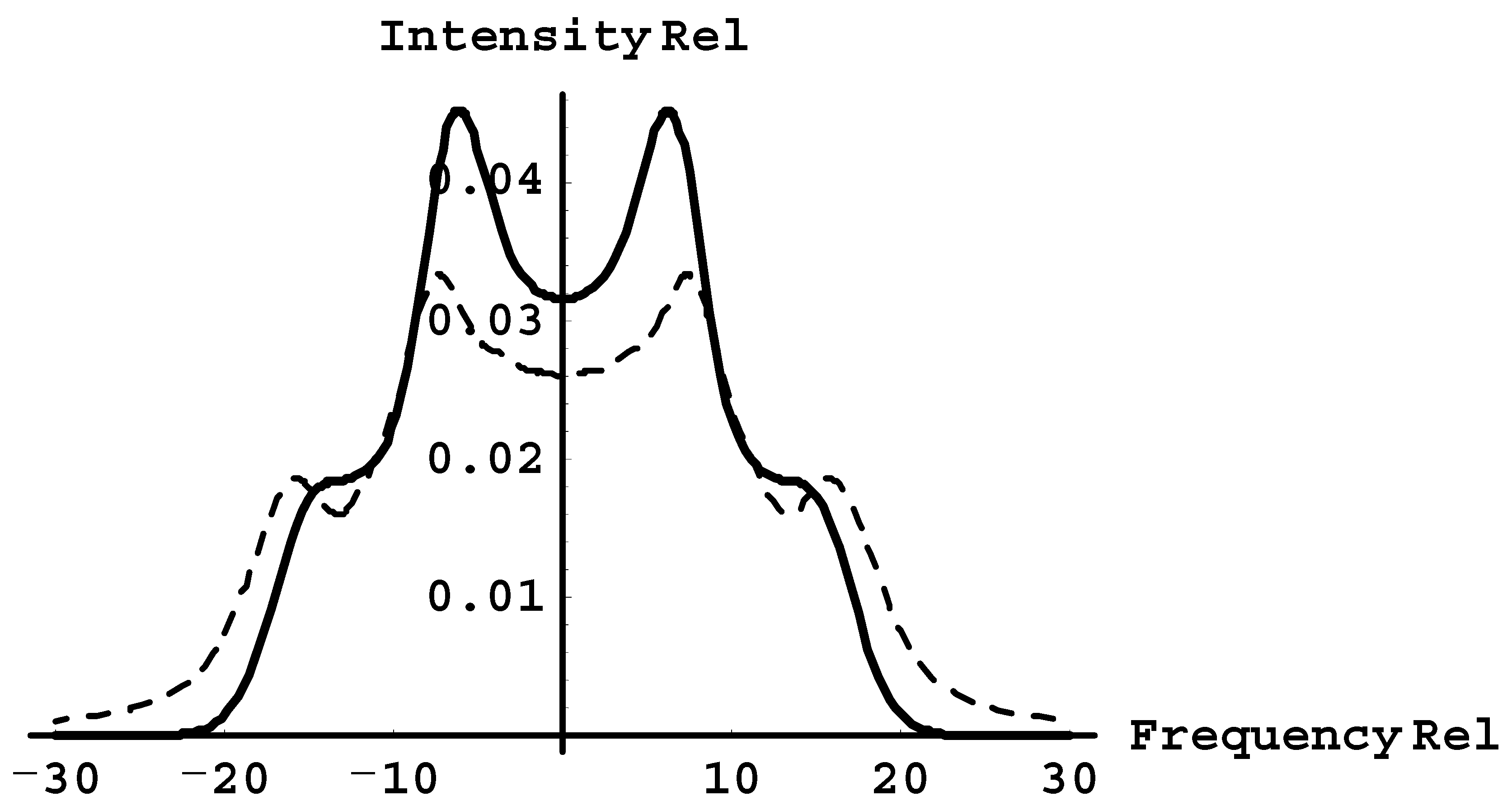

Figure 5. The same as Figure 4 but for stronger Langmuir waves, corresponding to ε = 3.
Figure 5. The same as Figure 4 but for stronger Langmuir waves, corresponding to ε = 3.
Atoms 07 00025 g005

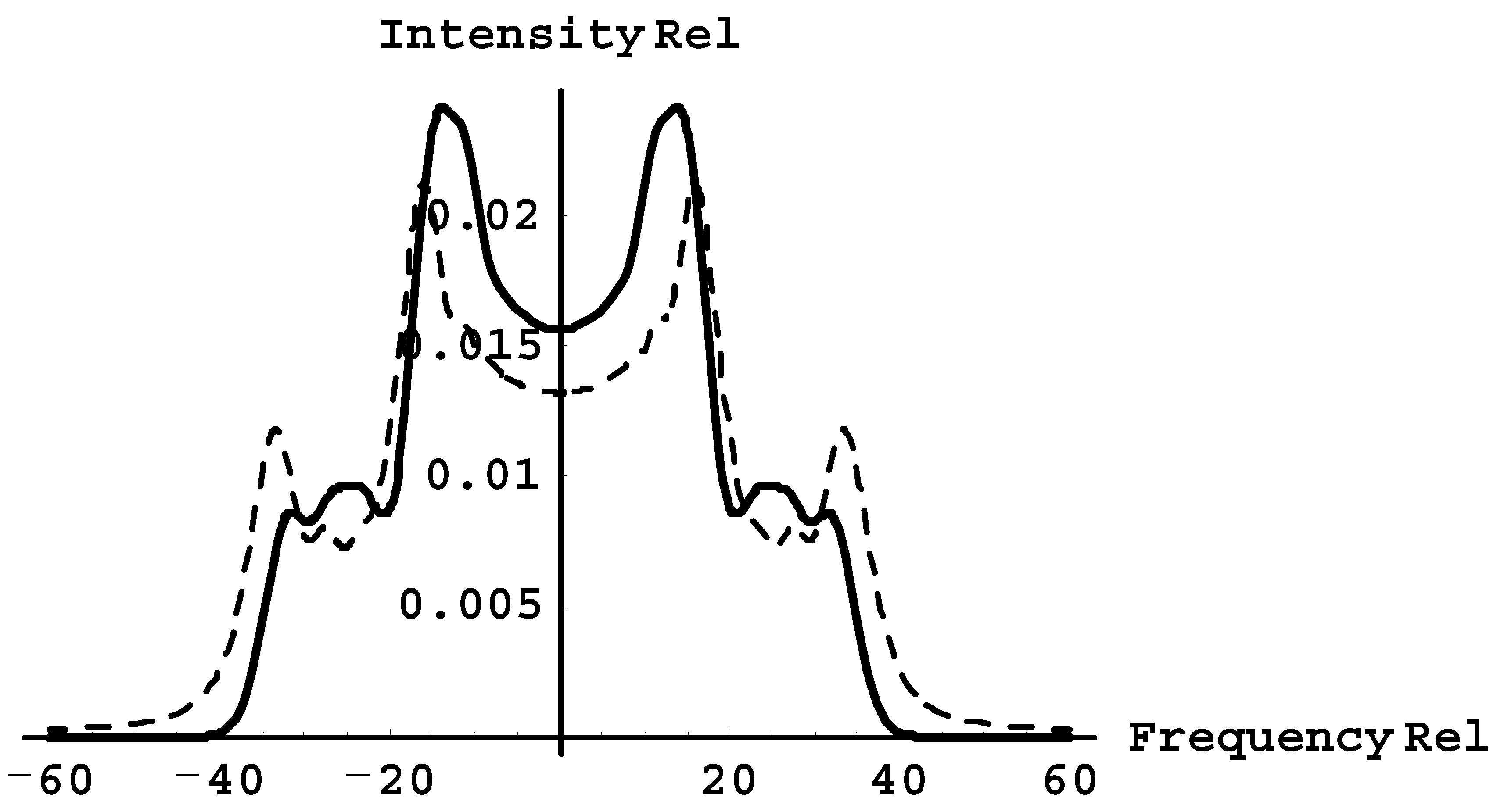

Figure 6. The same as Figure 5 but for even stronger Langmuir waves, corresponding to ε = 6.
Figure 6. The same as Figure 5 but for even stronger Langmuir waves, corresponding to ε = 6.
Atoms 07 00025 g006

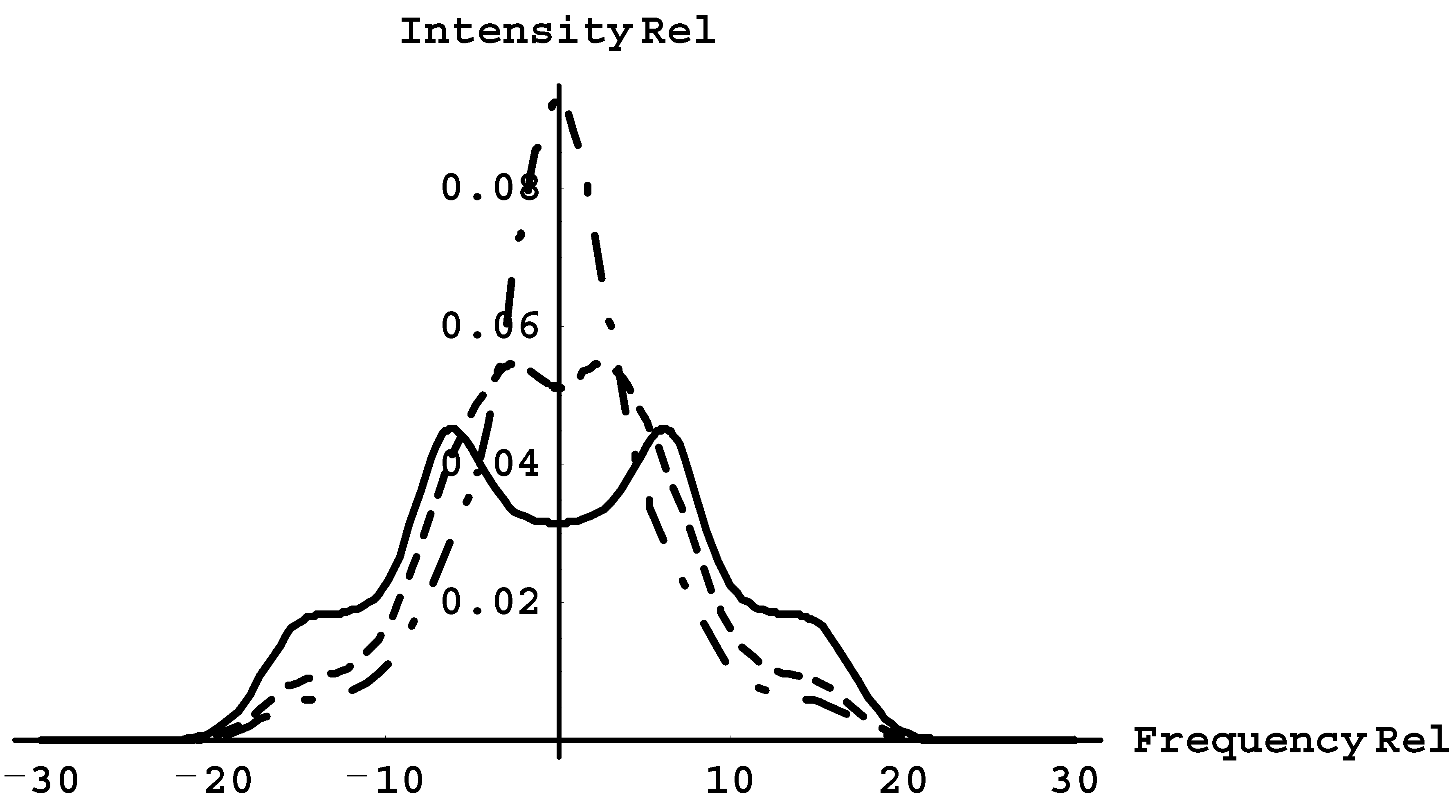

Figure 7. Dependence of the Ly-beta profiles for the case of the Langmuir solitons on the scaled distance b = L/λ between the Langmuir solitons in the sequence for b = 2 (solid line), b = 4 (dashed line), and b = 6 (dash-dotted line).
Figure 7. Dependence of the Ly-beta profiles for the case of the Langmuir solitons on the scaled distance b = L/λ between the Langmuir solitons in the sequence for b = 2 (solid line), b = 4 (dashed line), and b = 6 (dash-dotted line).
Atoms 07 00025 g007

© 2019 by the author. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
