# Ion Dynamics Effect on Stark-Broadened Line Shapes: A Cross-Comparison of Various Models

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory, Models and Simulations

- to find the time evolution of ${U}_{l}\left(t\right)$ for a given microfield configuration, which means solving the following equation:$$\frac{d{U}_{l}\left(t\right)}{dt}=-i[{L}_{0}-\mathbf{d}\xb7{\mathbf{F}}_{l}\left(t\right)]\phantom{\rule{3.33333pt}{0ex}}{U}_{l}\left(t\right),\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{3.33333pt}{0ex}}{U}_{l}\left(0\right)=1$$
- and to average it over a statistical ensemble of the microfields ${\left\{\phantom{\rule{3.33333pt}{0ex}}\right\}}_{l\in F}$.

#### 2.1. The Numerical Simulations

**ER-simulation**, the simulated plasma is an electrically neutral ensemble of statistically independent charged particles made of ${N}_{i}$ ions and ${N}_{e}$ electrons moving along straight line trajectories within a spherical volume. An emitter is assumed to be placed at the center of such a box. The temporal evolution of the whole system is measured along a discrete time axis from zero to a definite number of times of a fixed increment. Every temporal state is given by the set of values of the positions and velocities of the particles in the system. At every time step, the electric field produced by ions and electrons is calculated using Coulomb’s law or a Debye-screened field. This electric field is an input to the Schrödinger equation that computes the emitter time evolution operator. For hydrogen and when the no-quenching approximation is considered, the atom state is described with the Euler–Rodrigues parameters [24].

**HSTRK**and

**HSTRK_FST**codes also use the Gigosos–Cardeñoso approach [25]. Both codes rely on the Hegerfeld–Kesting–Seidel method of collision-time statistics [26] and compute $C\left(t\right)$. Depending on the appropriate option, HSTRK can do an electron only, ion only or joint simulation, but one can also do combinations, e.g., electron simulation and quasi-static ions or impact electrons and ion simulation. For the Fourier transform, if a long-time exponential behavior is detected for times $t>\tau $, then the contribution to the Fourier transform of the ($\tau ,\infty $) region is computed analytically using the detected exponential decay and added to ${\int}_{0}^{\tau}dtC\left(t\right){e}^{\u0131\omega t}$. τ is determined via start-up runs, e.g., a run with a small number of configurations is done to obtain a rough idea of the HWHM and τ is adjusted to cover at least a number of inverse HWHMs. The integral is done by Filon’s rule [27].

**SimU**is a combination of two codes: a molecular dynamics (MD) simulation of variable complexity and a solver for the evolution of an atomic system with the MD field history used as a (time-dependent) perturbation. A technical difference from other numerical simulation methods is the way the spectrum is calculated. Instead of employing the dipole autocorrelation function via Equation (1), SimU calculates the Fourier transform of the dipole matrix:

**Xenomorph**, is based on the models of Gigosos and González [30], where a straight line assumption is made. A general Schrödinger solver described in [31] is used to obtain the eigenvalues ${E}_{n}\left(t\right)$ and eigenvectors $\left|n\right(t)\rangle $ at every time step of the simulation. The emitter time evolution operator is then evaluated:

#### 2.2. The Models

**QuantSt.MMM**, MMM (for ions) is combined with a quantum-statistical approach to calculate pressure broadening due to plasma electrons. The perturbation by electrons is considered to second order in the potential [34,35].

**MELS**and

**MERL**are based upon the

**BID**model. The latter derives from the MMM, but its formulation is based on statistical mechanics [36] and provides a unified description of radiative and transport properties for charged emitters [20]. The stochastic line shape is written as:

**FFM**), on which the

**PPP**code and, recently, the

**QC-FFM**code rely. The latter is a hybrid model using the quasi-contiguous approximation [37] for H-like transitions and the FFM for modeling the microfield dynamics effect. The FFM relies on a different idealization of the stochastic process than MMM and BID. Here, the quantum system perturbed by a time-dependent microfield behaves like a set of field-dressed two-level transitions (SDT) subject to a collision-type mixing process. More precisely, the fluctuation mechanism of these SDT obeys a stationary Markov process defined by the instantaneous probability of states ${p}_{j}={a}_{j}/{\sum}_{k}{a}_{k}$ (${a}_{j}$ being the intensity of the SDT, j) and the transition rates between these states ${\mathbf{W}}_{k,j}=-{\Gamma}_{j}{\delta}_{k,j}+{W}_{k,j}$, where ${\Gamma}_{k,j}=\nu {\delta}_{i,j}$ and ${W}_{k,j}=\nu {p}_{j}$.

**ST-PST**model is based on the standard theory with a number of options. Specifically, apart from the pure ST results, ST-PST can (and by default does) also compute the results of ST with penetrating collisions correctly accounted for analytically [18]. In addition, an

**FST-FFM**calculation is also done [8]: first, an Ω is determined, exactly as described above for HSTRK_FST. Next, the FFM is applied to the field that excludes the fast, impact part. Last, the two profiles are convolved. As a result, the impact limit is correctly built in and recovered, hence extending the FFM validity without sacrificing its speed. Note, however, that with the current FST implementation, which uses the completed collision assumption for the impact phase space, the far wings are not accurate, as already discussed.

**UTPP**code is devoted to the calculation of hydrogen line shapes in regimes where the impact approximation for ions is reasonably accurate. Such a regime is attained for lines with a low principal quantum number in magnetic fusion experiments in the absence of Doppler broadening (Doppler-free line shape models were required for radiation transport simulations, e.g., [40]). In UTPP, a line shape is calculated using the following formula:

## 3. Comparisons and Discussion

#### 3.1. Hydrogen Lyman-α and Lyman-β Lines

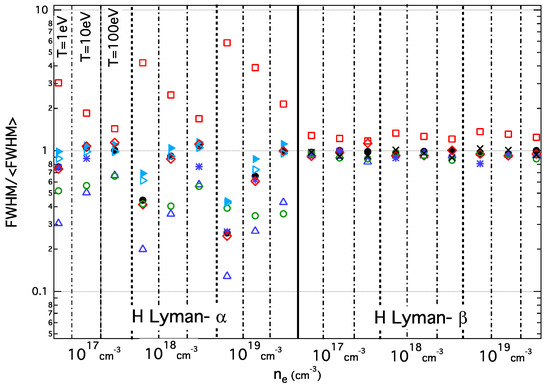

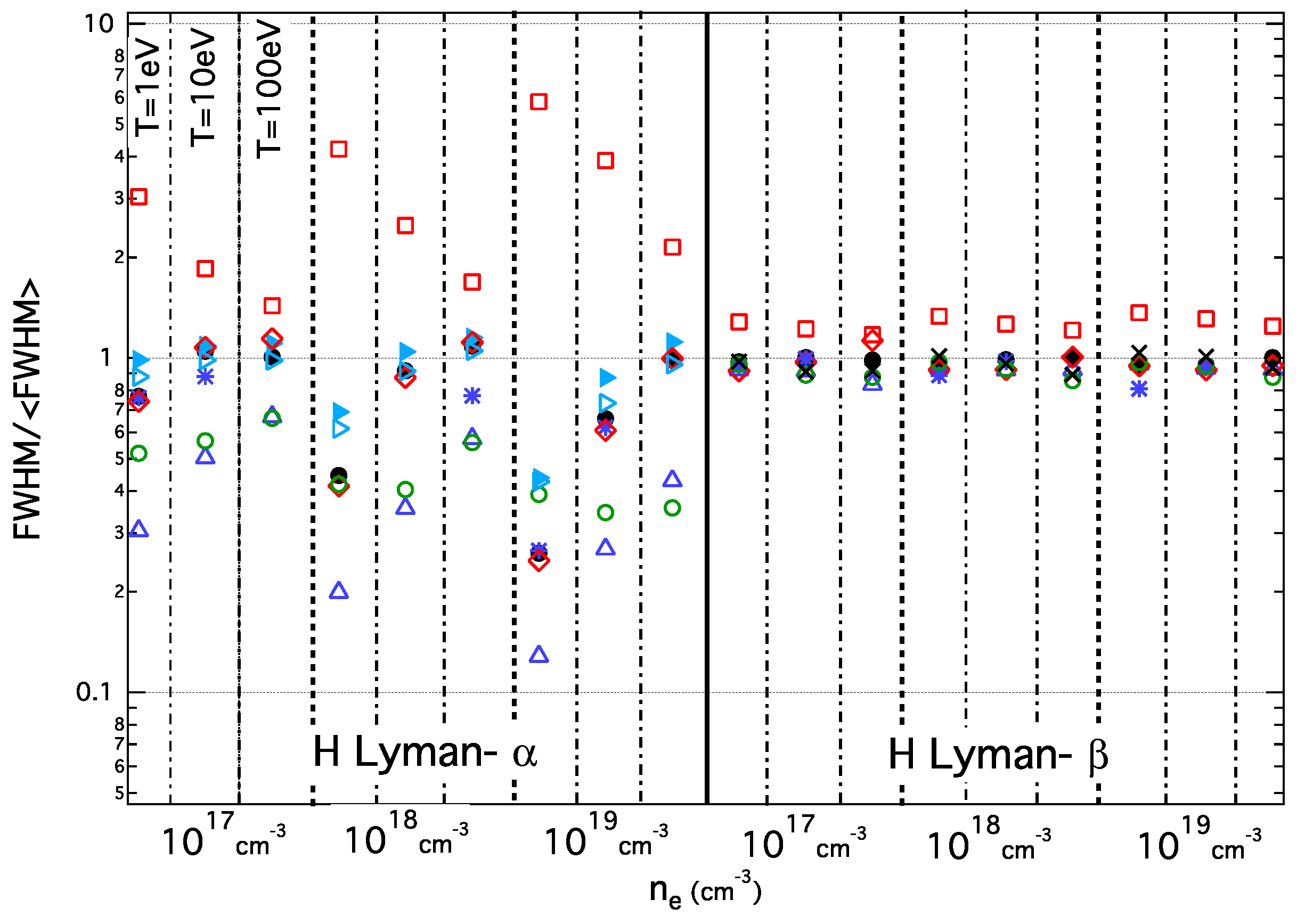

**Figure 1.**Overall comparison of the workshop results of the ion dynamics effect on Lyman-α and -β hydrogen lines. For each subcase, i.e., different pairs of $({n}_{e},T)$, the scatter of ratios between the different results and an average value is plotted. The different symbols correspond to: (black dot) SimU; (red square) UTPP; (blue triangle) PPP; (blue asterisk) Xenomorph; (cyan open triangle) HSTRK; (cyan triangle) HSTRK_FST; (red diamond) ER-simulation; (green circle) QuantST.MMM; (black cross) QC-FFM.

#### 3.1.1. The Lyman-α Line

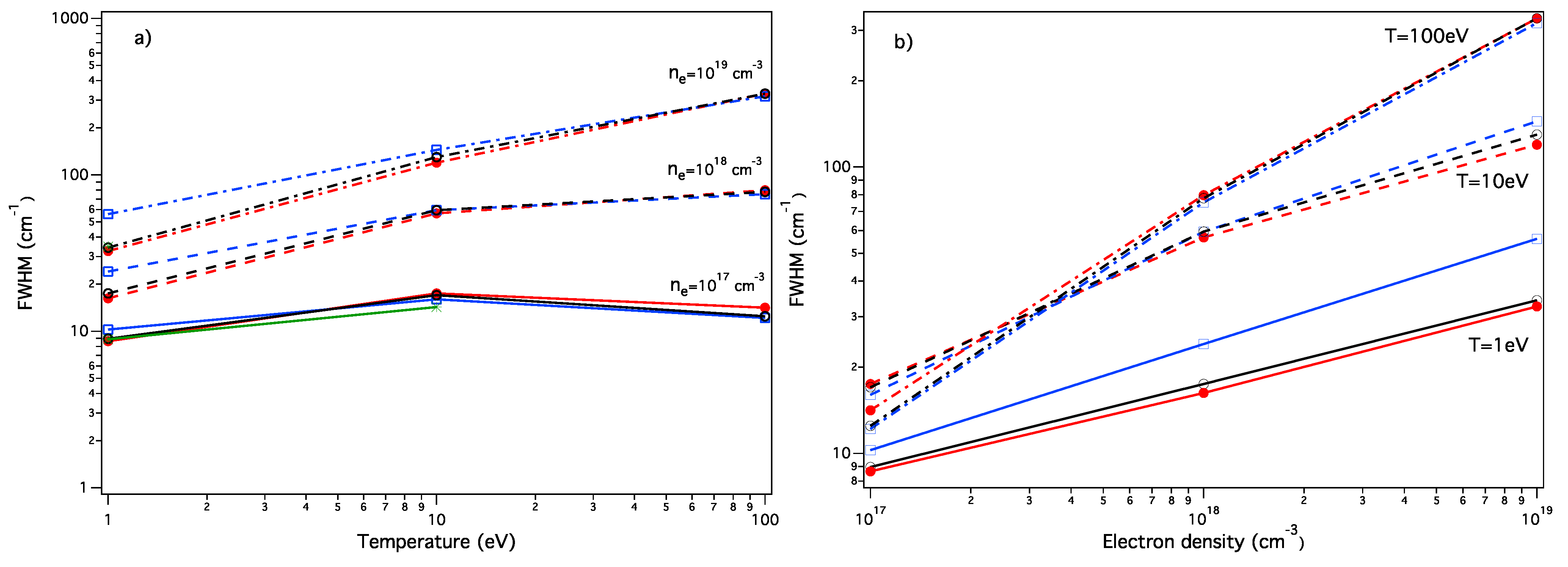

**Figure 2.**Lyman-α ion FWHMs as a function of (

**a**) of T at fixed densities and (

**b**) of ${n}_{e}$ at fixed temperatures. The ideal, one-component plasma consisting of protons is assumed. Only results from numerical simulations are presented: (red circle) ER-simulation; (blue square) HSTRK; (black dot) SimU; (green asterisk) Xenomorph.

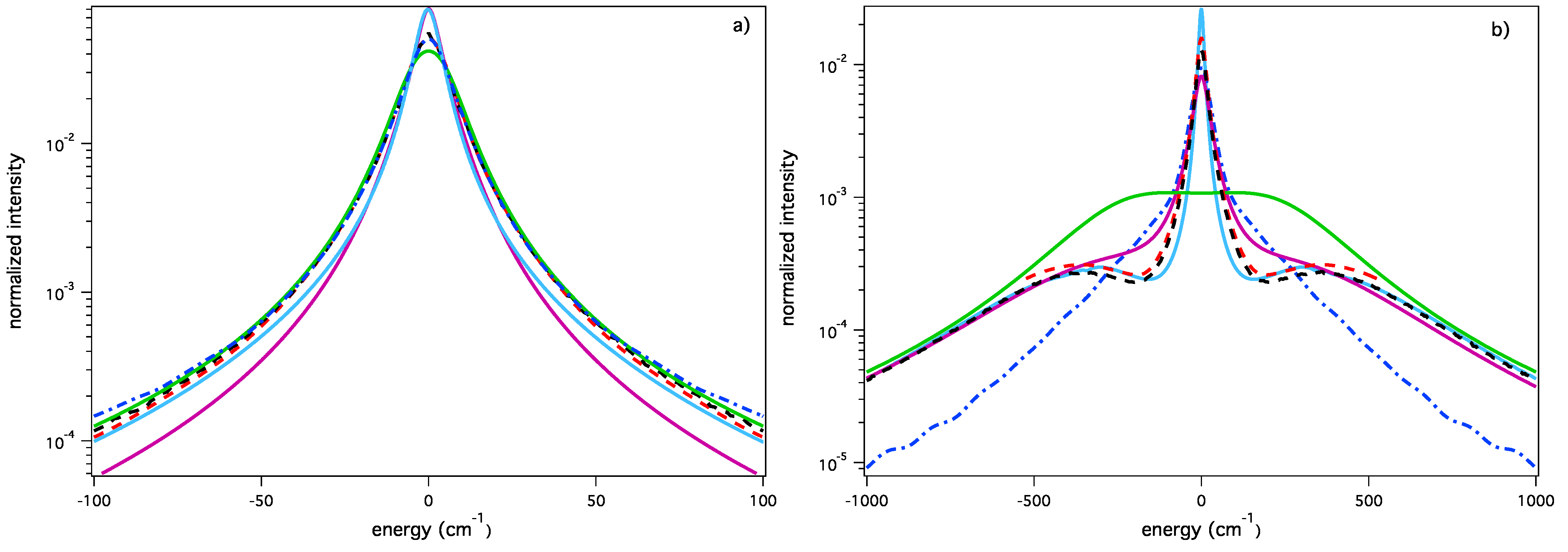

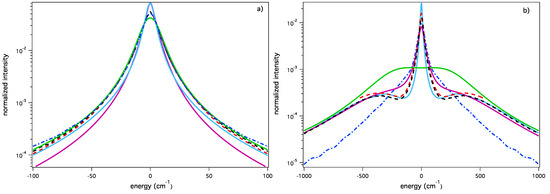

**Figure 3.**Lyman-α line shape in ideal ionic one component plasma (OCP) calculated for (

**a**) the more dynamical regime (${n}_{e}={10}^{17}$ cm${}^{-3}$ and $T=100$ eV) and (

**b**) the more static regime (${n}_{e}={10}^{19}$ cm${}^{-3}$ and $T=1$ eV): SimU (black dash); ER-simulation (red dash); HSTRK_FST (blue dot-dash); PPP (solid cyan); QuantST.MMM (solid purple); UTPP (solid green).

#### 3.1.2. The Lyman-β Line

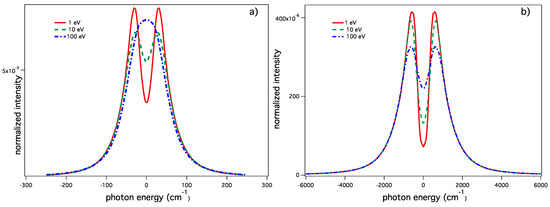

**Figure 4.**The ion dynamics effect on the Lyman-β line for different values of T obtained by SimU: (solid red $T=1$ eV; (green dash) $T=10$ eV and (blue dot-dash) $T=100$ eV at a fixed (

**a**) ${n}_{e}={10}^{17}$ cm${}^{-3}$ and (

**b**) ${n}_{e}={10}^{19}$ cm${}^{-3}$. The ideal one-component plasma consisting of protons is assumed.

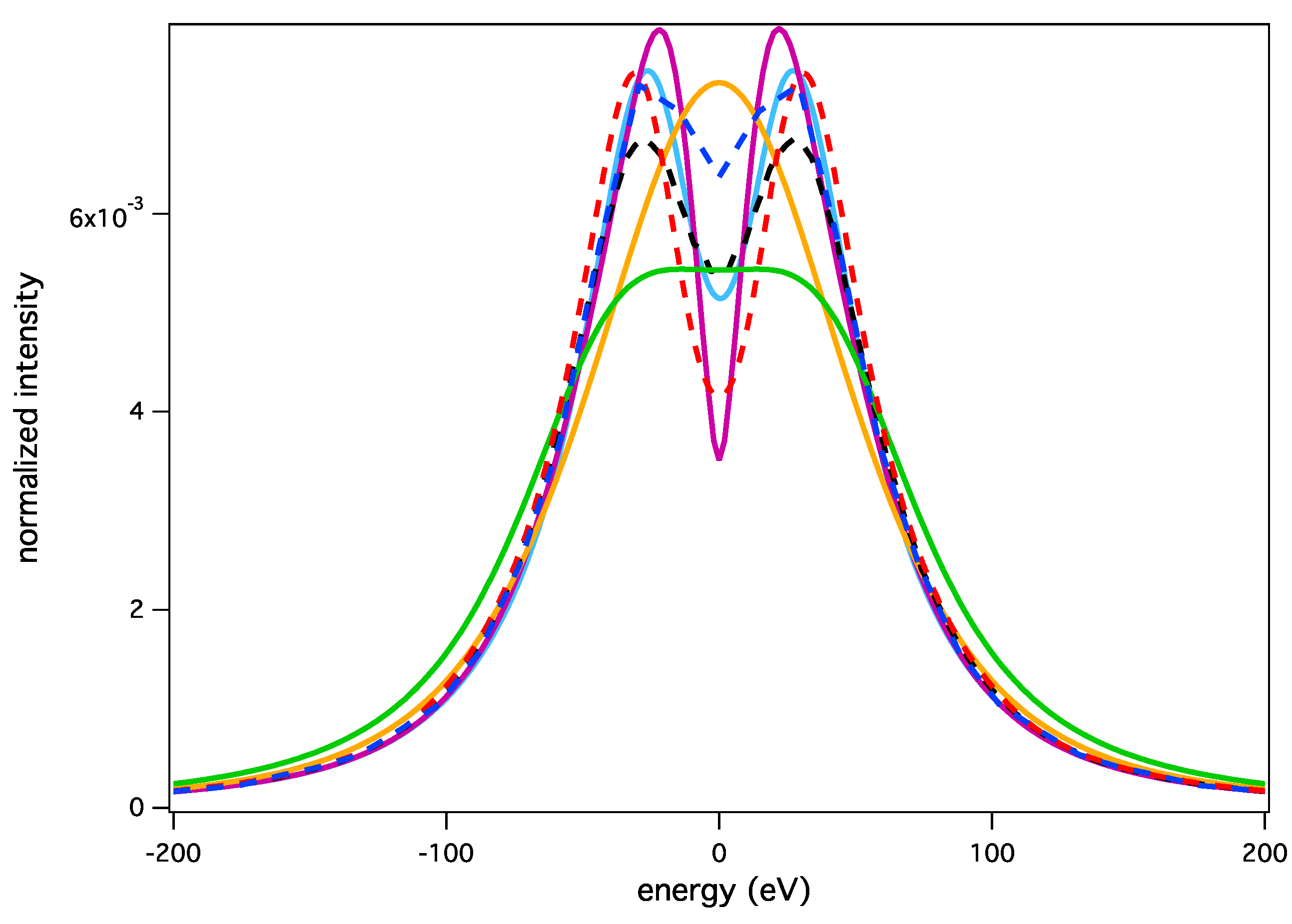

**Figure 5.**Lyman-β line for ${n}_{e}={10}^{17}$ cm${}^{-3}$ and $T=10$ eV: SimU (black dash); ER-simulation (red dash); Xenomorph (blue dot-dash); PPP (solid cyan); QC-FFM (solid orange); QuantST. MMM (solid purple); UTPP (solid green).

**Table 1.**The relative dip (%) measured on the Lyman-β line from the different codes for ${n}_{e}={10}^{17}$ cm${}^{-3}$.

T (eV) = | 1 | 10 | 100 |

ER-simulation | 75 | 44 | 10 |

SimU | 56 | 19 | 0 |

Xenomorph | 56 | 14 | / |

PPP | 70 | 31 | 0 |

QuantSt.MMM | 71 | 55 | 32 |

UTPP | 0.6 | 0.6 | 0 |

#### 3.2. Argon He-α and He-β Lines

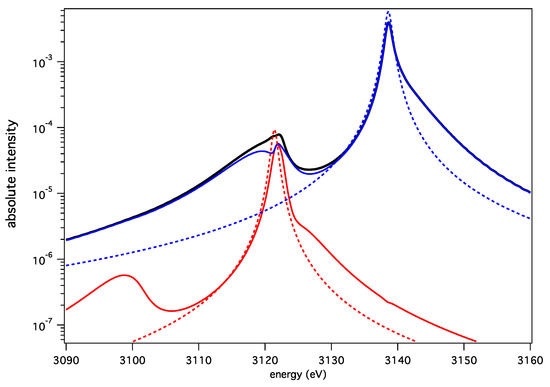

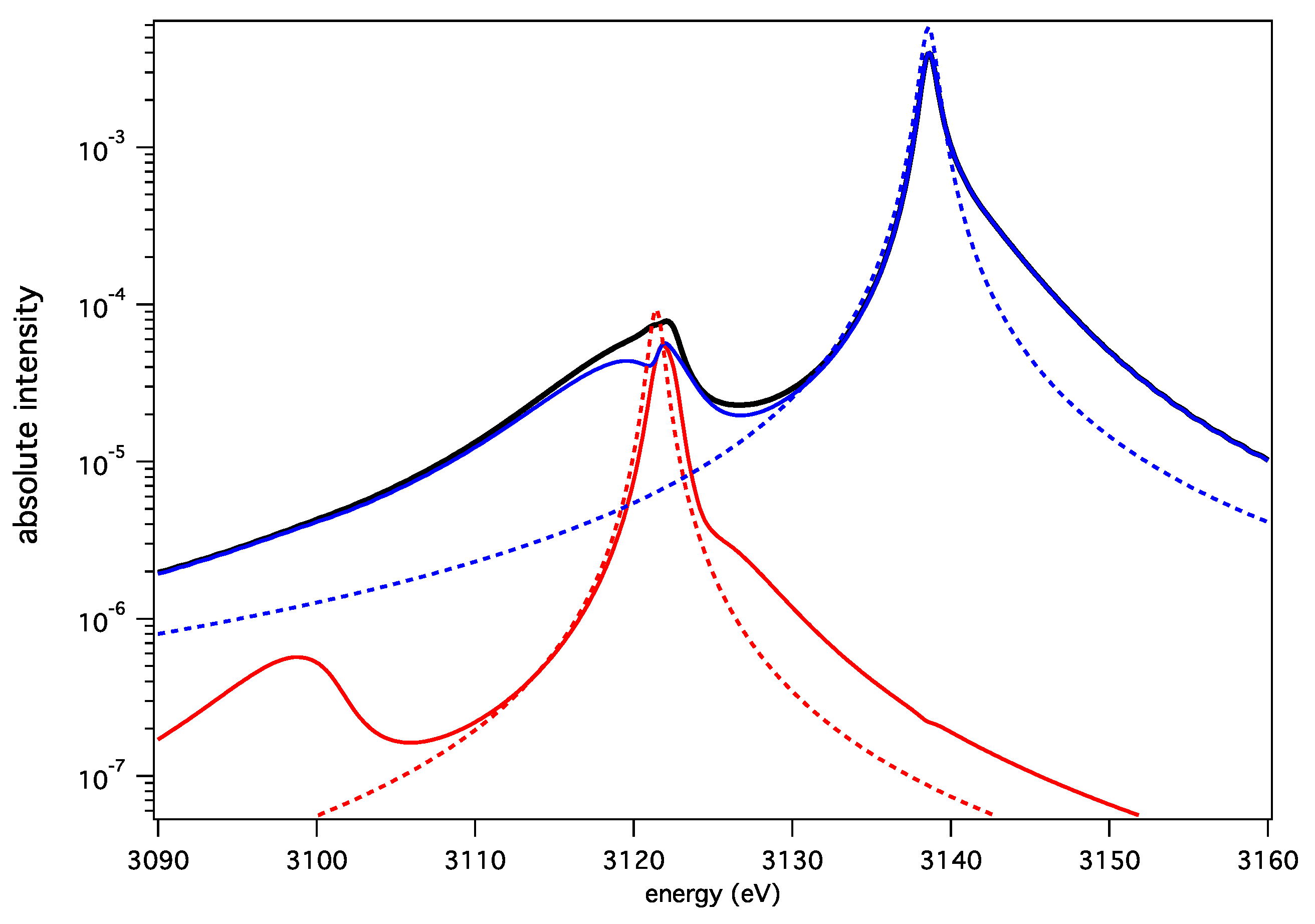

**Figure 6.**The He-α line calculated within the quasi-static approximation for $T=1$ keV and ${n}_{e}=2\times {10}^{24}$ cm${}^{-3}$. (Black line) the entire profile; (blue line) resonant line profile; (red line) intercombination line profile. The pure electron-broadened profiles are plotted in dashed lines for each component.

**Figure 7.**The He-α line for $T=1$ keV and ${n}_{e}=5\times {10}^{23}$ cm${}^{-3}$: static ions MELS (grey dash); ion dynamics BID (solid red); FFM (solid blue) and SimU (black dot).

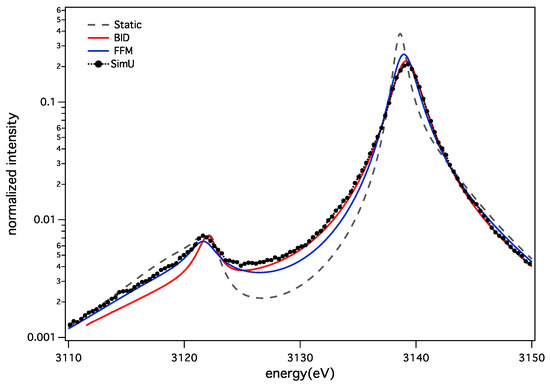

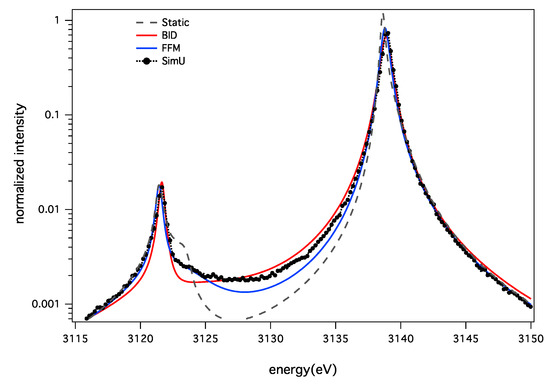

**Figure 8.**The He-α line for $T=1$ keV and ${n}_{e}=2\times {10}^{24}$ cm${}^{-3}$: static ions (grey dash); ion dynamics BID (solid red); FFM (solid blue); and SimU (black dot).

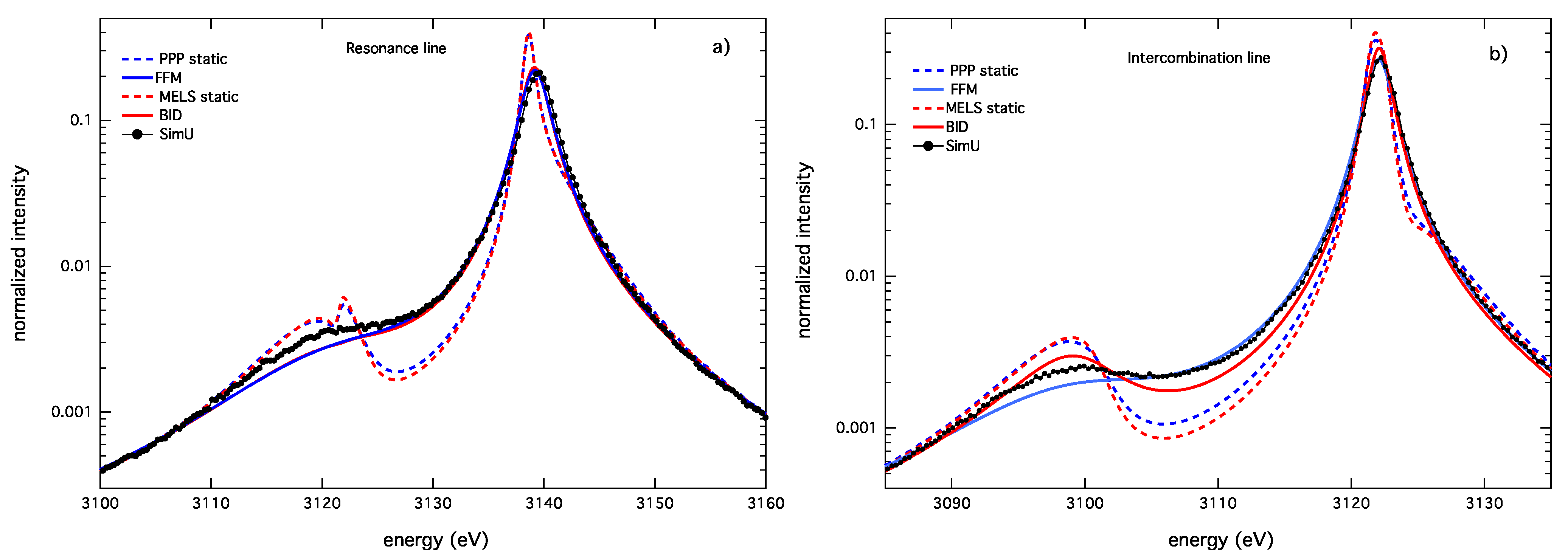

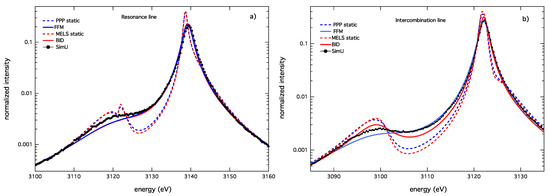

**Figure 9.**The He-α line for $T=1$ keV and ${n}_{e}=2\times {10}^{24}$ cm${}^{-3}$: (

**a**) resonance line and (

**b**) intercombination line. Static ions MELS (red dash) and PPP (blue dash); ion dynamics BID (solid red); FFM (solid blue); and SimU (black dot).

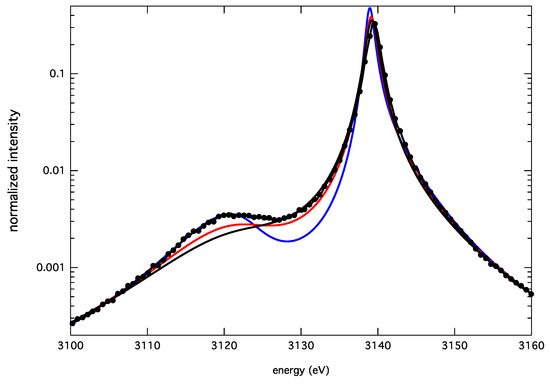

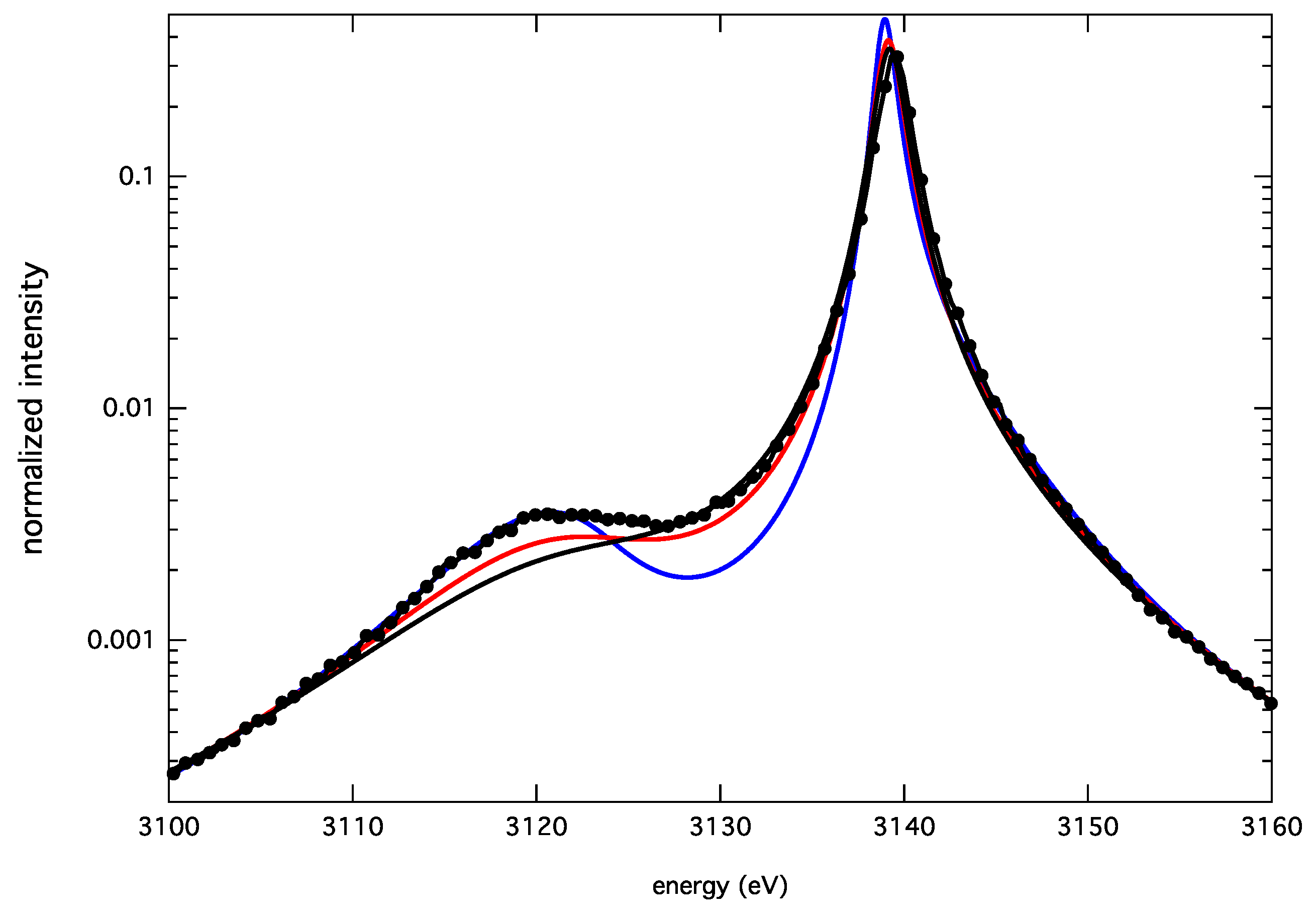

**Figure 10.**The He-α line, the strong component for $T=1$ keV and ${n}_{e}=5\times {10}^{23}$ cm${}^{-3}$: SimU (black circles); FFM with $\nu =3$ eV (solid blue); $\nu =5.62$ eV (solid red); and $\nu =8$ eV (solid black).

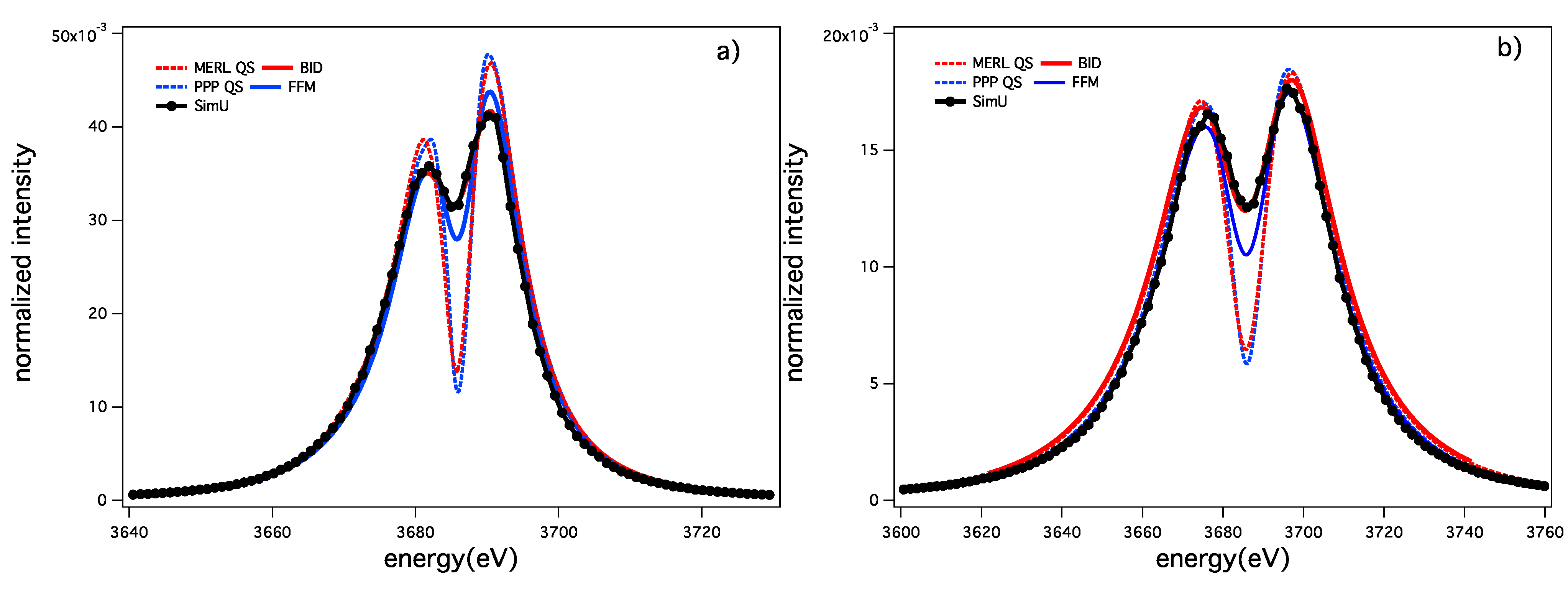

**Figure 11.**The He-β line for $T=1$ keV and (

**a**) ${n}_{e}=5\times {10}^{23}$ cm${}^{-3}$; (

**b**) ${n}_{e}=2\times {10}^{24}$ cm${}^{-3}$. Static ions: MERL (red dot), PPP (blue dot); SimU (black dot); BID (solid red); FFM (solid blue).

Models | BID | FFM |
---|---|---|

${N}_{e}=5\times {10}^{23}$ cm${}^{-3}$ | 58 | 57 |

${N}_{e}=1\times {10}^{24}$ cm${}^{-3}$ | 50 | 51 |

${N}_{e}=2\times {10}^{24}$ cm${}^{-3}$ | 47 | 48 |

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Griem, H.R. Principles of Plasma Spectroscopy; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar]
- Griem, H.R. Spectral Line Broadening by Plasmas; Academic Press: New York, NY, USA, 1974; ISBN 0-12-302850-7. [Google Scholar]
- Stambulchik, E.; Maron, Y. Plasma line broadening and computer simulations: A mini-review. High Energy Density Phys.
**2010**, 6, 9–14. [Google Scholar] [CrossRef] - Calisti, A.; Mossé, C.; Ferri, S.; Talin, B.; Rosmej, F.; Bureyeva, L.A.; Lisitsa, V.S. Dynamic Stark broadening as the Dicke narrowing effect. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2010**, 81, 016406. [Google Scholar] [CrossRef] - Stambulchik, E. Review of the 1st Spectral Line Shapes in Plasmas code comparison workshop. High Energy Density Phys.
**2013**, 9, 528–534. [Google Scholar] [CrossRef] - Gigosos, M.A.; Gonzalez, M.A. Comment on “A study of ion-dynamics and correlation effects for spectral line broadening in plasmas: K-shell lines”. J. Quant. Spectrosc. Radiat. Transf.
**2007**, 105, 533–535. [Google Scholar] [CrossRef] - Alexiou, S. Stark broadening of hydrogen lines in dense plasmas: Analysis of recent experiments. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2005**, 71, 066403. [Google Scholar] [CrossRef] - Alexiou, S. Implementation of the Frequency Separation Technique in general lineshape codes. High Energy Density Phys.
**2013**, 9, 375–384. [Google Scholar] [CrossRef] - Stambulchik, E.; Maron, Y. A study of ion-dynamics and correlation effects for spectral line broadening in plasma: K-shell lines. J. Quant. Spectrosc. Radiat. Transf.
**2006**, 99, 730–749. [Google Scholar] [CrossRef] - Stambulchik, E.; Alexiou, S.; Griem, H.R.; Kepple, P.C. Stark broadening of high principal quantum number hydrogen Balmer lines in low-density laboratory plasmas. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2007**, 75, 016401. [Google Scholar] [CrossRef] - Gomez, T.A.; Mancini, R.C.; Montgomery, M.H.; Winget, D.E. White dwarf line shape theory including ion dynamics and asymmetries.
**2014**. in preparation. [Google Scholar] - Lorenzen, S. Comparative Study on Ion-Dynamics for Broadening of Lyman Lines in Dense hydrogen Plasmas. Contrib. Plasma Phys.
**2013**, 53, 368–374. [Google Scholar] [CrossRef] - Stambulchik, E.; Maron, Y. Quasicontiguous frequency-fluctuation model for calculation of hydrogen and hydrogen-like Stark-broadened line shapes in plasmas. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2013**, 87, 053108. [Google Scholar] [CrossRef] - Iglesias, C.A.; Vijay, S. Robust algorithm for computing quasi-static Stark broadening of spectral lines. High Energy Density Phys.
**2010**, 6, 399–405. [Google Scholar] [CrossRef] - Woltz, L.A.; Hooper, C.F., Jr. Calculation of spectral line profiles of multielectron emitters in plasmas. Phys. Rev. A
**1988**, 38, 4766–4771. [Google Scholar] [CrossRef] [PubMed] - Mancini, R.C.; Kilcrease, D.P.; Woltz, L.A.; Hooper, C.F. Calculational Aspects of the Stark Line Broadening of Multielectron Ions in Plasmas. Comput. Phys. Commun.
**1991**, 63, 314–322. [Google Scholar] [CrossRef] - Calisti, A.; Khelfaoui, F.; Stamm, R.; Talin, B.; Lee, R.W. Model for the line shapes of complex ions in hot and dense plasmas. Phys. Rev. A
**1990**, 42, 5433–5440. [Google Scholar] [CrossRef] [PubMed] - Alexiou, S.; Poquérusse, A. Standard line broadening impact theory for hydrogen including penetrating collisions. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2005**, 72, 046404. [Google Scholar] [CrossRef] - Rosato, J.; Capes, H.; Stamm, R. Influence of correlated collisions on Stark-broadened lines in plasmas. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2012**, 86, 046407. [Google Scholar] [CrossRef] - Boercker, D.B.; Iglesias, C.A.; Dufty, J.W. Radiative and transport properties of ions in strongly coupled plasmas. Phys. Rev. A
**1987**, 36, 2254–2264. [Google Scholar] [CrossRef] [PubMed] - Talin, B.; Calisti, A.; Godbert, L.; Stamm, R.; Lee, R.W.; Klein, L. Frequency-fluctuation model for line shape calculations in plasma spectroscopy. Phys. Rev. A
**1995**, 51, 1918–1928. [Google Scholar] [CrossRef] [PubMed] - Holtsmark, J. Über die Verbreiterung von Spektrallinien. Ann. Phys.
**1919**, 58, 577–630. [Google Scholar] [CrossRef] - Iglesias, C.A.; Boercker, D.B.; Iglesias, C.A. Electric field distributions in strongly coupled plasmas. Phys. Rev. A
**1985**, 31, 1681–1686. [Google Scholar] - Gigosos, M.A.; Gonzalez, M.A.; Cardeñoso, V. Computer simulated Balmer-alpha, -beta and -gamma Stark line profiles for non-equilibrium plasmas diagnostics. Spectrochim. Acta Part B
**2003**, 58, 1489–1504. [Google Scholar] [CrossRef] - Gigosos, M.A.; Cardeñoso, V. New plasma diagnostics table of hydrogen Stark broadening including ion dynamics. J. Phys. B-At. Mol. Opt. Phys.
**1996**, 29, 4795–4838. [Google Scholar] [CrossRef] - Hegerfeldt, G.; Kesting, V. Collision-time simulation technique for pressure-broadened spectral lines with applications to Ly-α. Phys. Rev. A
**1988**, 37, 1488–1496. [Google Scholar] [CrossRef] [PubMed] - Filon, L.N.G. On a quadrature formula for trigonometric integrals. Proc. R. Soc. Edinb.
**1928**, 49, 38–47. [Google Scholar] - Pfennig, H. On the Time-Evolution Operator in the Semiclassical Theory of Stark-Broadening of hydrogen Lines. J. Quant. Spectrosc. Radiat. Transf.
**1972**, 12, 821–837. [Google Scholar] [CrossRef] - Lisitsa, V.S.; Sholin, G.V. Exact Solution of the Problem of the Broadening of the hydrogen Spectral Lines in the One-Electron Theory. Sov. J. Exp. Theor. Phys.
**1972**, 34, 484–489. [Google Scholar] - Gigosos, M.A.; González, M.A. Calculations of the polarization spectrum by two-photon absorption in the hydrogen Lyman-α line. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**1998**, 58, 4950–4959. [Google Scholar] [CrossRef] - Djurović, S.; Ćiris̎an, M.; Demura, A.V.; Demchenko, G.V.; Nikolić, D.; Gigosos, M.A.; Gonzalez, M.Á. Measurements of H
_{β}Stark central asymmetry and its analysis through standard theory and computer simulations. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.**2009**, 79, 046402. [Google Scholar] [CrossRef] [PubMed] - Frisch, U.; Brissaud, A. Theory of Stark broadening—I soluble scalar model as a test. J. Quant. Spectrosc. Radiat. Transf.
**1971**, 11, 1753–1766. [Google Scholar] [CrossRef] - Frisch, U.; Brissaud, A. Theory of Stark broadening—II exact line profile with model microfield. J. Quant. Spectrosc. Radiat. Transf.
**1971**, 11, 1767–1783. [Google Scholar] - Günter, S.; Hitzschke, L.; Röpke, G. Hydrogen spectral lines with the inclusion of dense-plasma effects. Phys. Rev. A
**1991**, 44, 6834–6844. [Google Scholar] [CrossRef] [PubMed] - Lorenzen, S.; Omar, B.; Zammit, M.C.; Fursa, D.V.; Bray, I. Plasma pressure broadening for few-electron emitters including strong electron collisions within a quantum-statistical theory. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2014**, 89, 023106. [Google Scholar] [CrossRef] - Dufty, J.W. Spectral Lines Shapes; Wende, B., Ed.; De Gruyter: New York, NY, USA, 1981. [Google Scholar]
- Stambulchik, E.; Maron, Y. Stark effect of high-n hydrogen-like transitions: Quasi-contiguous approximation. J. Phys. B-At. Mol. Opt. Phys.
**2008**, 41, 095703. [Google Scholar] [CrossRef] - Mossé, C.; Calisti, A.; Stamm, R.; Talin, B.; Lee, R.W.; Klein, L. Redistribution of resonance radiation in hot and dense plasmas Phys. Rev. A
**1999**, 60, 1005–1014. [Google Scholar] [CrossRef] - Iglesias, C. Efficient algorithms for stochastic Stark-profile calculations. High Energy Density Phys.
**2013**, 9, 209–221. [Google Scholar] [CrossRef] - Rosato, J.; Reiter, D.; Kotov, V.; Marandet, Y.; Capes, H.; Godbert-Mouret, L.; Koubiti, M.; Stamm, R. Progress on radiative transfer modelling in optically thick divertor plasmas. Contrib. Plasma Phys.
**2010**, 50, 398–403. [Google Scholar] [CrossRef] - Rosato, J.; Capes, H.; Stamm, R. Divergence of the Stark collision operator at large impact parameters in plasma spectroscopy models. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**2013**, 88, 035101:1–035101:3. [Google Scholar] [CrossRef] - Rosato, J.; Capes, H.; Stamm, R. Ideal Coulomb plasma approximation in line shape models: Problematic issues. Atoms
**2014**, 2(2), 277–298. [Google Scholar] [CrossRef] [Green Version] - Lisitsa, V. Private communication.
- Calisti, A.; Demura, A.V.; Gigosos, M.A.; GonzÃ¡lez-Herrero, D.; Iglesias, C.A.; Lisitsa, V.S.; Stambulchik, E. Influence of Microfield Directionality on Line Shapes. Atoms
**2014**, 2, 259–276. [Google Scholar] [CrossRef] - Chung, H.-K.; Lee, R.W. Application of NLTE population kinetics. High Energy Density Phys.
**2009**, 5, 1–14. [Google Scholar] [CrossRef] - Woolsey, N.C.; Hammel, B.A.; Keane, C.J.; Asfaw, A.; Back, C.A.; Moreno, J.C.; Nash, J.K.; Calisti, A.; Mossé, C.; Stamm, R.; et al. Evolution of electron temperature and electron density in indirectly driven spherical implosions. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**1996**, 56, 2314. [Google Scholar] [CrossRef] - Haynes, D.A.; Garber, D.T.; Hooper, C.F.; Mancini, R.C.; Lee, Y.T.; Bradley, D.K.; Delettrez, J.; Epstein, R.; Jaanimagi, P.A. Effects of ion dynamics and opacity on Stark-broadened argon line profiles. Phys. Rev. E Stat. Nonlin. Soft Matter Phys.
**1996**, 53, 1042–1050. [Google Scholar] [CrossRef] - Mancini, R.C.; Iglesias, C.A.; Ferri, A.; Calisti, S.; Florido, R. The effects of improved satellite line shapes on the argon Heβ spectral feature. High Energy Density Phys.
**2013**, 9, 731–736. [Google Scholar] [CrossRef]
