# Rydberg Interaction-Induced Distortion of the Autler–Townes Spectra in Cold Lithium Atoms

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Setup and Methods

## 3. Results

## 4. Conclusions and Outlook

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

AT | Autler–Townes |

BBR | Blackbody radiation |

EIT | Electromagnetically induced transparency |

FWHM | Full width at half maximum |

MOT | Magneto-optical trap |

RE | Rate equation |

UV | Ultraviolet |

## References

- Adams, C.S.; Pritchard, J.D.; Shaffer, J.P. Rydberg atom quantum technologies. J. Phys. B At. Mol. Opt. Phys.
**2019**, 53, 012002. [Google Scholar] [CrossRef] [Green Version] - Cheinet, P.; Pham, K.L.; Pillet, P.; Beterov, I.I.; Ashkarin, I.N.; Tretyakov, D.B.; Yakshina, E.A.; Entin, V.M.; Ryabtsev, I.I. Three-body Förster resonance of a new type in Rydberg atoms. Quantum Electron.
**2020**, 50, 213–219. [Google Scholar] [CrossRef] - Yakshina, E.A.; Tretyakov, D.B.; Entin, V.M.; Beterov, I.I.; Ryabtsev, I.I. Observation of the Dipole Blockade Effect in Detecting Rydberg Atoms by the Selective Field Ionization Method. J. Exp. Theor. Phys.
**2020**, 130, 170–182. [Google Scholar] [CrossRef] - Letscher, F.; Thomas, O.; Niederprüm, T.; Fleischhauer, M.; Ott, H. Bistability versus metastability in driven dissipative Rydberg gases. Phys. Rev. X
**2017**, 7, 021020. [Google Scholar] [CrossRef] [Green Version] - Wüster, S.; Ates, C.; Eisfeld, A.; Rost, J.M. Excitation transport through Rydberg dressing. New J. Phys.
**2011**, 13, 073044. [Google Scholar] [CrossRef] [Green Version] - Gross, C.; Vogt, T.; Li, W. Ion imaging via long-range interaction with Rydberg atoms. Phys. Rev. Lett.
**2020**, 124, 053401. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Piotrowicz, M.J.; MacCormick, C.; Kowalczyk, A.; Bergamini, S.; Beterov, I.I.; Yakshina, E.A. Measurement of the electric dipole moments for transitions to rubidium Rydberg states via Autler–Townes splitting. New J. Phys.
**2011**, 13, 093012. [Google Scholar] [CrossRef] - Günter, G.; Robert-de-Saint-Vincent, M.; Schempp, H.; Hofmann, C.S.; Whitlock, S.; Weidemüller, M. Interaction enhanced imaging of individual Rydberg atoms in dense gases. Phys. Rev. Lett.
**2012**, 108, 013002. [Google Scholar] [CrossRef] - Anderson, D.A.; Miller, S.A.; Raithel, G.; Gordon, J.A.; Butler, M.L.; Holloway, C.L. Optical measurements of strong microwave fields with Rydberg atoms in a vapor cell. Phys. Rev. Appl.
**2016**, 5, 034003. [Google Scholar] [CrossRef] [Green Version] - Duarte Gomes, N.; da Fonseca Magnani, B.; Massayuki Kondo, J.D.; Marcassa, L.G. Polarization Spectroscopy Applied to Electromagnetically Induced Transparency in Hot Rydberg Atoms Using a Laguerre–Gaussian Beam. Atoms
**2022**, 10, 58. [Google Scholar] [CrossRef] - Zhang, H.; Wang, L.; Chen, J.; Bao, S.; Zhang, L.; Zhao, J.; Jia, S. Autler–Townes splitting of a cascade system in ultracold cesium Rydberg atoms. Phys. Rev. A
**2013**, 87, 033835. [Google Scholar] [CrossRef] - Zhang, H.; Zhang, L.; Wang, L.; Bao, S.; Zhao, J.; Jia, S.; Raithel, G. Autler–Townes spectroscopy with interaction-induced dephasing. Phys. Rev. A
**2014**, 90, 043849. [Google Scholar] [CrossRef] - Beterov, I.I.; Ryabtsev, I.I.; Tretyakov, D.B.; Entin, V.M. Quasiclassical calculations of blackbody-radiation-induced depopulation rates and effective lifetimes of Rydberg nS, nP, and nD alkali-metal atoms with n ⩽ 80. Phys. Rev. A
**2009**, 79, 052504. [Google Scholar] [CrossRef] [Green Version] - Beterov, I.I.; Ryabtsev, I.I.; Tretyakov, D.B.; Bezuglov, N.N.; Ekers, A. Ionization of nS, nP, and nD lithium, potassium, and cesium Rydberg atoms by blackbody radiation. J. Exp. Theor. Phys.
**2008**, 107, 20–27. [Google Scholar] [CrossRef] - Amthor, T.; Reetz-Lamour, M.; Westermann, S.; Denskat, J.; Weidemüller, M. Mechanical effect of van der Waals interactions observed in real time in an ultracold Rydberg gas. Phys. Rev. Lett.
**2007**, 98, 023004. [Google Scholar] [CrossRef] [Green Version] - Bounds, A.D.; Jackson, N.C.; Hanley, R.K.; Bridge, E.M.; Huillery, P.; Jones, M.P.A. Coulomb anti-blockade in a Rydberg gas. New J. Phys.
**2019**, 21, 053026. [Google Scholar] [CrossRef] - Robert-de Saint-Vincent, M.; Hofmann, C.S.; Schempp, H.; Gunter, G.; Whitlock, S.; Weidemüller, M. Spontaneous avalanche ionization of a strongly blockaded Rydberg gas. Phys. Rev. Lett.
**2013**, 110, 045004. [Google Scholar] [CrossRef] [Green Version] - Siercke, M.; Oon, F.E.; Mohan, A.; Wang, Z.W.; Lim, M.J.; Dumke, R. Density dependence of the ionization avalanche in ultracold Rydberg gases. Phys. Rev. A
**2014**, 89, 022701. [Google Scholar] [CrossRef] [Green Version] - DeSalvo, B.J.; Aman, J.A.; Gaul, C.; Pohl, T.; Yoshida, S.; Burgdörfer, J.; Hazzard, K.R.A.; Dunning, F.B.; Killian, T.C. Rydberg-blockade effects in Autler–Townes spectra of ultracold strontium. Phys. Rev. A
**2016**, 93, 022709. [Google Scholar] [CrossRef] [Green Version] - Vidal, C.R.; Cooper, J. Heat-Pipe Oven: A New, Well-Defined Metal Vapor Device for Spectroscopic Measurements. J. Appl. Phys.
**1969**, 40, 3370–3374. [Google Scholar] [CrossRef] - Olivares, I.E.; Gonzalez, I.A. Diode laser absorption spectroscopy of lithium isotopes. Appl. Phys. B
**2016**, 122, 1–7. [Google Scholar] [CrossRef] - Schünemann, U.; Engler, H.; Grimm, R.; Weidemüller, M.; Zielonkowski, M. Simple scheme for tunable frequency offset locking of two lasers. Rev. Sci. Instrum.
**1999**, 70, 242–243. [Google Scholar] [CrossRef] - Sautenkov, V.A.; Saakyan, S.A.; Bobrov, A.A.; Vilshanskaya, E.V.; Zelener, B.B.; Zelener, B.V. Differential two-photon spectroscopy for nondestructive temperature measurements of cold light atoms in a magneto-optical trap. J. Opt. Soc. Am. B
**2018**, 35, 1546–1551. [Google Scholar] [CrossRef] - Sautenkov, V.A.; Saakyan, S.A.; Bobrov, A.A.; Kudrinskiy, D.A.; Vilshanskaya, E.V.; Zelener, B.B. Optical Dipole Trap for Laser-Cooled Lithium-7 Atoms. J. Russ. Laser Res.
**2019**, 40, 230–236. [Google Scholar] [CrossRef] - Bobrov, A.A.; Saakyan, S.A.; Sautenkov, V.A.; Vilshanskaya, E.V.; Zelener, B.V.; Zelener, B.B. Determination of characteristics of a magneto-optical trap by the spectral width of coherent two-photon resonance. Quantum Electron.
**2018**, 48, 438–442. [Google Scholar] [CrossRef] - Das, D.; Natarajan, V. Absolute frequency measurement of the lithium D lines: Precise determination of isotope shifts and fine-structure intervals. Phys. Rev. A
**2007**, 75, 052508. [Google Scholar] [CrossRef] [Green Version] - Magnus, F.; Boatwright, A.L.; Flodin, A.; Shiell, R.C. Optical pumping and electromagnetically induced transparency in a lithium vapour. J. Opt. B Quantum Semiclassical Opt.
**2005**, 7, 109–118. [Google Scholar] [CrossRef] - Saakyan, S.A.; Sautenkov, V.A.; Zelener, B.B. Long-term frequency stabilized and linewidth-narrowed cw-laser system for excitation of lithium Rydberg states. J. Phys. Conf. Ser.
**2018**, 946, 012128. [Google Scholar] [CrossRef] - Robertson, E.J.; Šibalić, N.; Potvliege, R.M.; Jones, M.P.A. ARC 3.0: An expanded Python toolbox for atomic physics calculations. Comput. Phys. Commun.
**2021**, 261, 107814. [Google Scholar] [CrossRef] - Raitzsch, U.; Heidemann, R.; Weimer, H.; Butscher, B.; Kollmann, P.; Löw, R.; Büchler, H.P.; Pfau, T. Investigation of dephasing rates in an interacting Rydberg gas. New J. Phys.
**2009**, 11, 055014. [Google Scholar] [CrossRef] - Singer, K.; Stanojevic, J.; Weidemüller, M.; Côté, R. Long-range interactions between alkali Rydberg atom pairs correlated to the ns–ns, np–np and nd–nd asymptotes. J. Phys. B At. Mol. Opt. Phys.
**2005**, 38, S295–S307. [Google Scholar] [CrossRef]

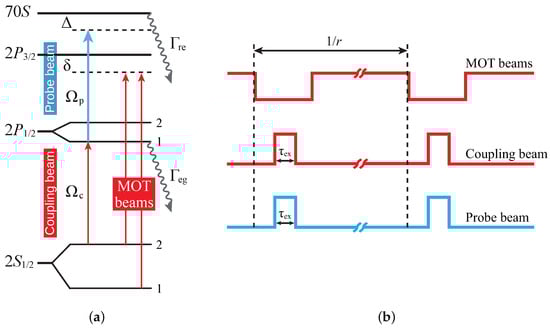

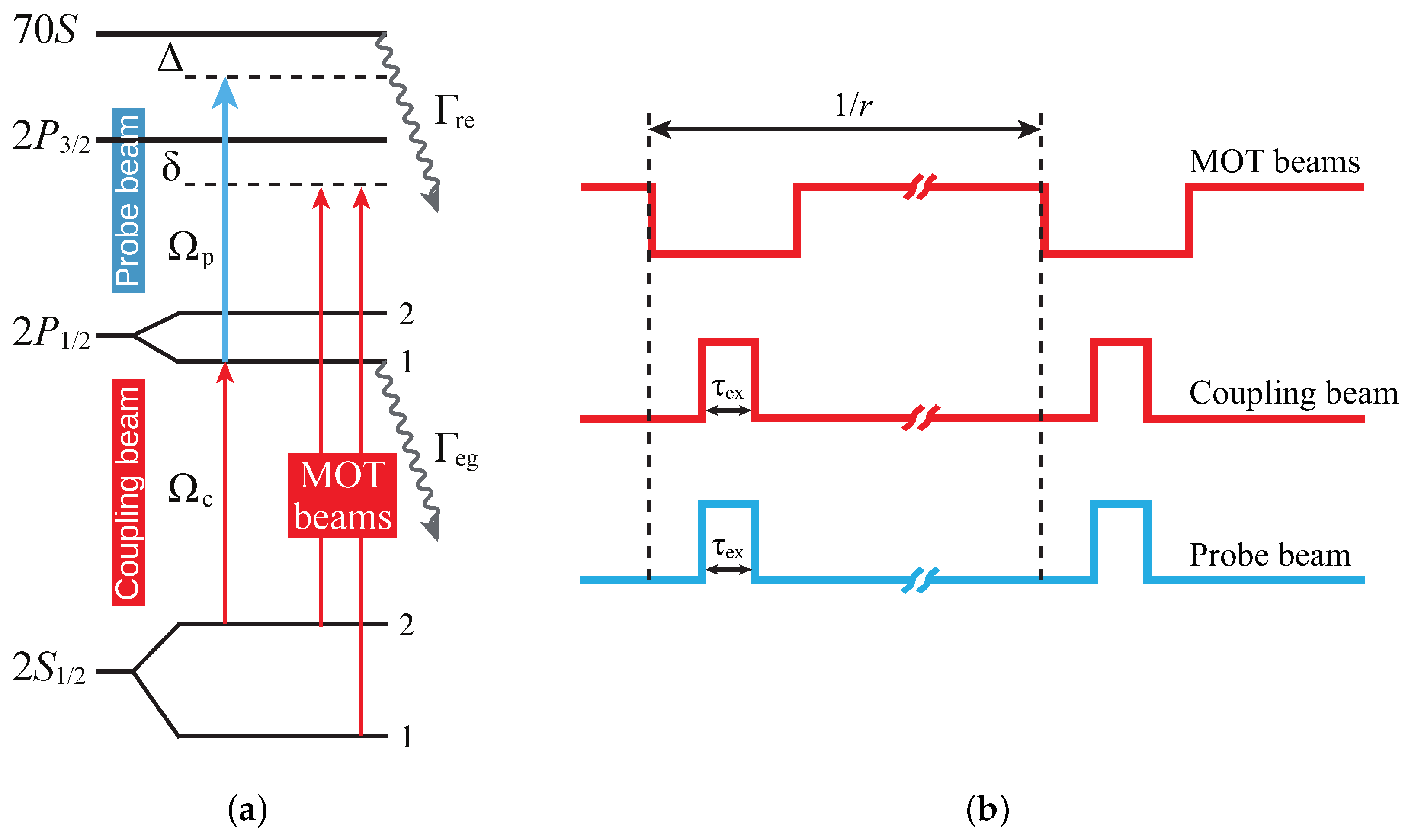

**Figure 1.**(

**a**) Relevant level scheme in ${}^{7}$Li. (

**b**) Excitation time sequence. Here r is the pulse repetition rate, ${\tau}_{\mathrm{ex}}$ is duration of the coupling and probe beams. The relative timings between pulses are not in scale.

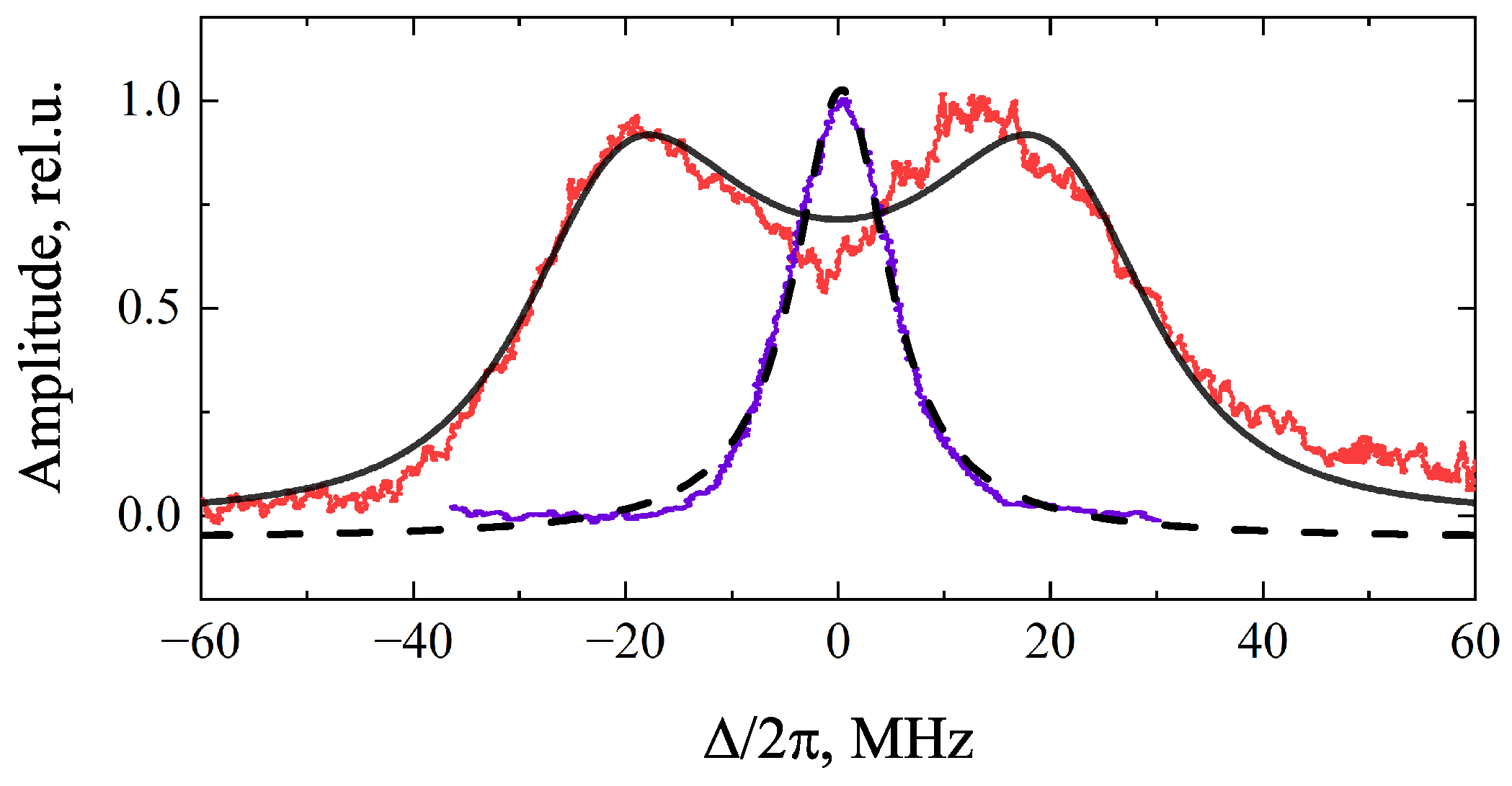

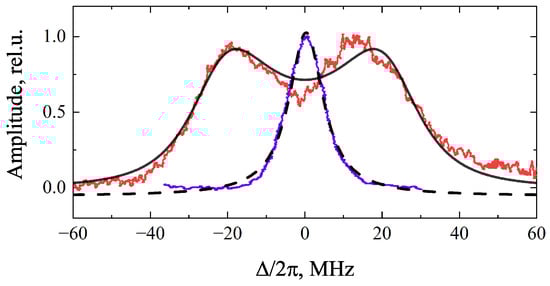

**Figure 2.**Two-step $2{S}_{1/2}$–$2{P}_{1/2}$–$70S$ transition spectra for the low Rabi frequency (blue curve) and the high Rabi frequency (red curve) of the coupling beam. The dashed curve is the best fit by means of a Lorentzian distribution with full width at half maximum $\mathrm{FWHM}=10.8$ MHz; the black solid curve is the best fit by means of Equation (6) with the dephasing rate ${\gamma}_{3}=2\pi \times 43$ MHz and ${\Omega}_{\mathrm{c}}=2\pi \times 47$ MHz. The separation of AT peaks (the distance between two maximum values) is ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}=2\pi \times 34$ MHz, and the measured Rabi frequency determined from intensity of the coupling beam is ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}=2\pi \times 52\left(20\right)$ MHz.

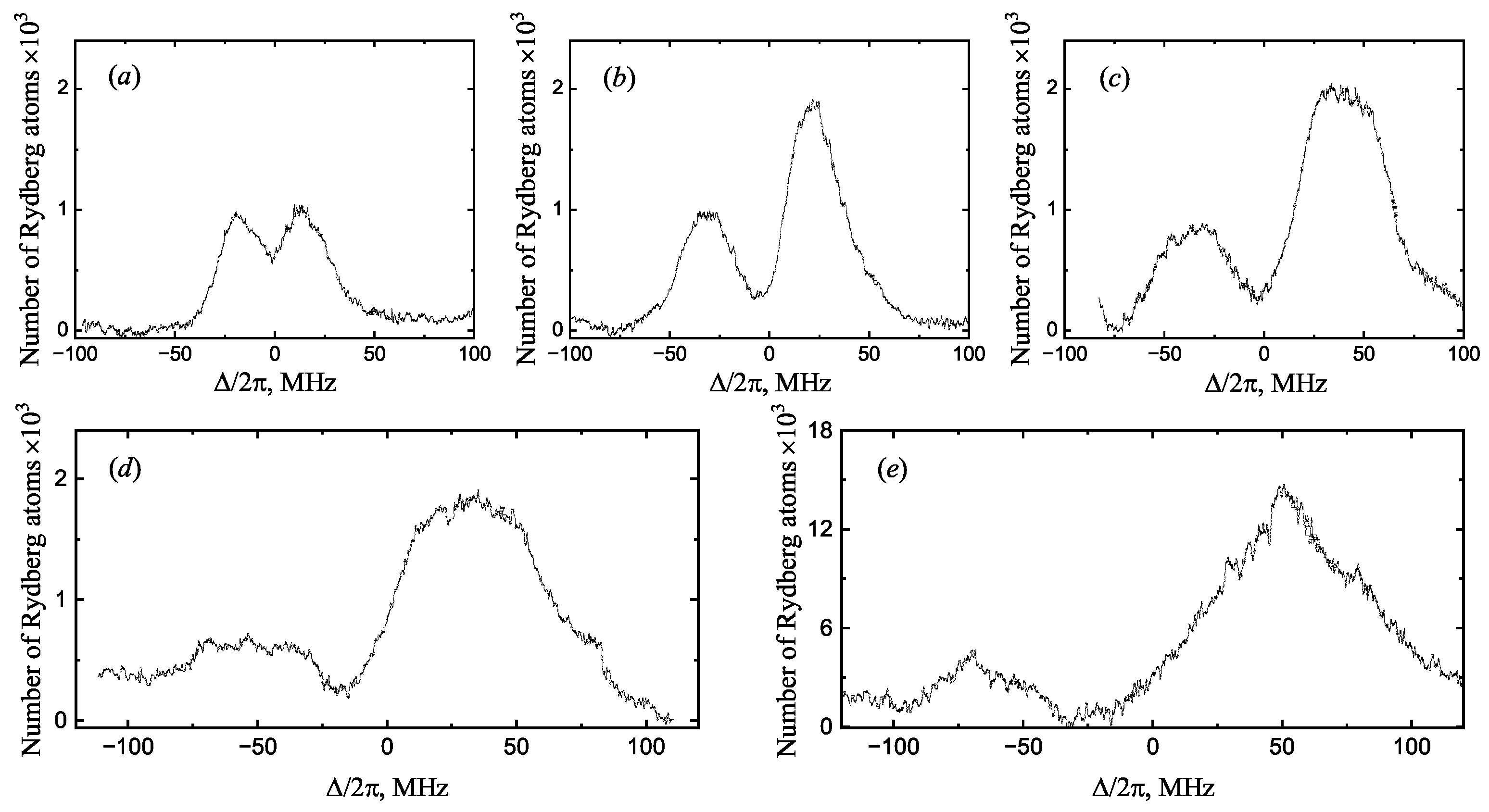

**Figure 3.**Number of Rydberg atoms excited by application of single pulse with duration ${\tau}_{\mathrm{ex}}$ vs. probe beam detuning $\Delta $: (

**a**) ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}=2\pi \times 34$ MHz, ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}=2\pi \times 52$ MHz, ${\tau}_{\mathrm{ex}}=0.1$ $\mathsf{\mu}$s; (

**b**) ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}=2\pi \times 54$ MHz, ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}=2\pi \times 71$ MHz, ${\tau}_{\mathrm{ex}}=0.1$ $\mathsf{\mu}$s; (

**c**) ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}=2\pi \times 73$ MHz, ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}=2\pi \times 71$ MHz, ${\tau}_{\mathrm{ex}}=0.2$ $\mathsf{\mu}$s; (

**d**) ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}=2\pi \times 81$ MHz, ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}=2\pi \times 97$ MHz, ${\tau}_{\mathrm{ex}}=3$ $\mathsf{\mu}$s; (

**e**) ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}=2\pi \times 119$ MHz, ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}=2\pi \times 97$ MHz, ${\tau}_{\mathrm{ex}}=20$ $\mathsf{\mu}$s. The frequencies ${\Omega}_{\mathrm{c}}^{\mathrm{AT}}$ are determined by the separation of AT peaks. The measured Rabi frequencies ${\Omega}_{\mathrm{c}}^{\mathrm{exp}}$ are determined from intensity of the coupling beam.
