Fused Triazole-Azepine Hybrids as Potential Non-Steroidal Antiinflammatory Agents

Abstract

Non-steroidal anti-inflammatory drugs (NSAIDs) are one of the oldest and most widely used groups of drugs nowadays. However, the problem of searching for and creating new NSAIDs remains open, primarily due to the risks owing to their short- and long-term use. In this context, triazole-azepine hybrid molecules are attractive and prospective objects for the rational design of novel potential NSAIDs. In the present work studies of 3-aryl-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepines as potential non-steroidal anti-inflammatory agents are reported. Evaluation of drug-like properties for all tested triazole-azepine hybrids was performed in silico using SwissADME. The screening of analgesic and anti-inflammatory activities was performed in vivo using acid-induced writhing and carrageenin-induced hind paw oedema models in mice. Derivatives with activity levels more potent compared with reference drugs ketorolac and diclofenac sodium were identified. Preliminary SAR was performed based on the screening results.

1. Introduction

Non-steroidal anti-inflammatory drugs (NSAIDs) present a widely used and therapeutically important pharmacological group with a large number of individual and combined approved drugs [1,2,3]. These drugs belong to chemically different/unrelated compounds and possess common therapeutic features such as anti-inflammatory, analgesic, and antipyretic activity. The analgesic effect is a very important component of the pharmacological profile of NSAIDs and this group of drugs provides effective and generally safe options for mild to moderate pain [4]. At the same time, there exists an unmet need for the development of new non-steroidal anti-inflammatory agents as well as for optimization of the properties of the known NSAIDs focused on efficacy increasing and adverse effects decreasing [5,6].

Heterocyclic scaffolds play a leading role in the process of research and development of new potential NSAIDs [7,8]. Among the variety of heterocyclic compounds, the derivatives with triazole and azepine rings are attractive and prospective objects for the focused and rational design of novel molecules with pharmacological profiles characterized for NSAIDs [8,9,10]. Azepine-bearing derivative A (Figure 1) was reported in [11] as a potential agent with a high level of anti-inflammatory and analgesic activity and with selective inhibition of COX-2. Derivative B (Figure 1) with 1,2,4-triazole-3-thiol scaffold in the molecule showed an equal level of anti-inflammatory activity compared with classic NSAID sodium diclofenac [12] in vivo on the carrageenin model. The anti-inflammatory activity of diarylsubstituted 1,2,4-triazoles with hydroxamic acid or N-hydroxyurea moieties in the molecules has been evaluated [13] and it was found that all the compounds of the series showed dual inhibitory activity in vitro toward COX-2/LOX-5 and the most active derivative C (Figure 1) was more potent than celecoxib in the xylene edema model in vivo.

Methods and strategies of molecular hybridization are convenient tools for achieving the desired properties of heterocyclic molecules which have been successfully applied to the above-mentioned types of heterocycles for obtaining potential pharmacological agents with antitumor activity [14,15,16,17,18].

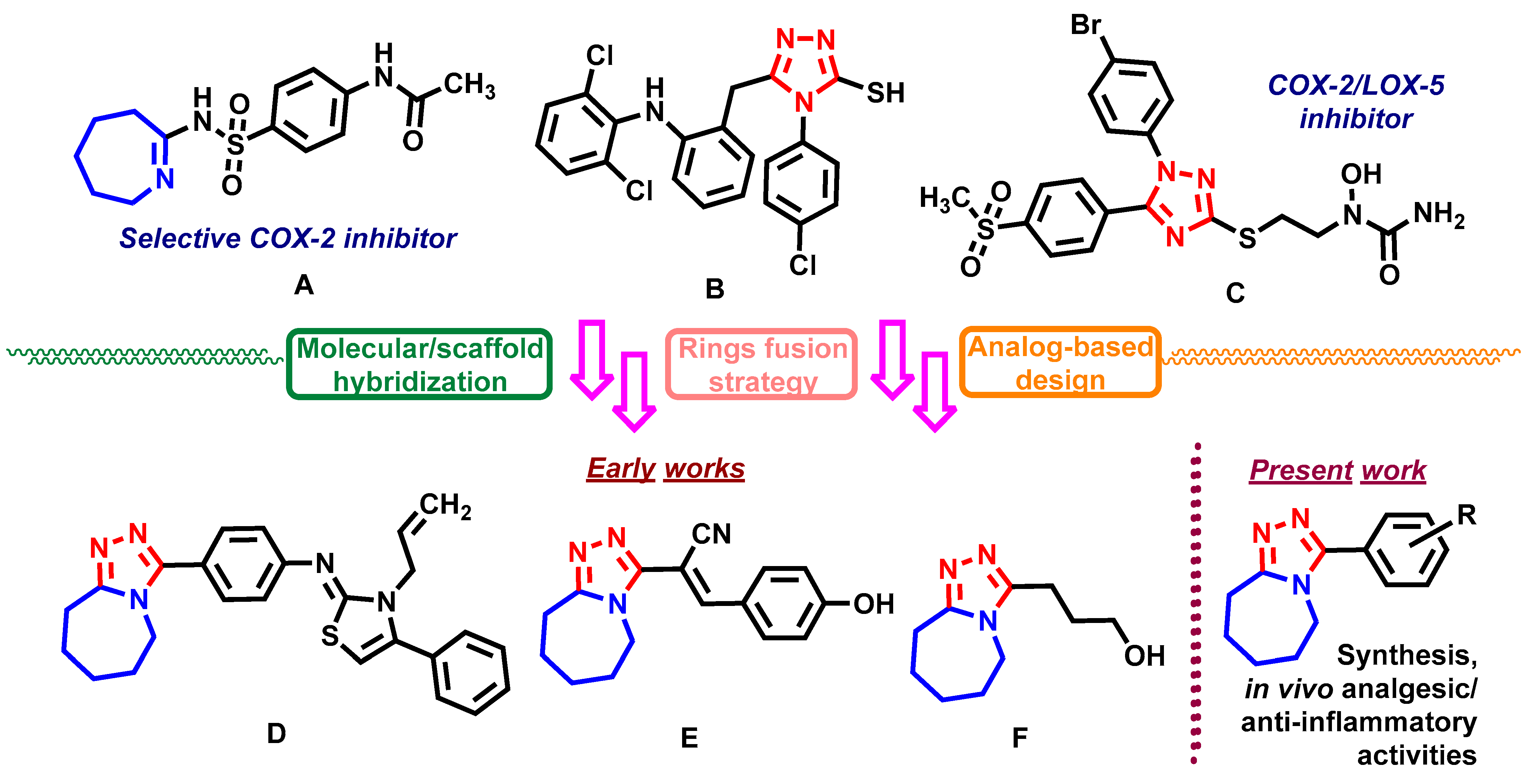

In our previous studies, we used the above-mentioned approaches in the design of novel analgesics among fused triazole-azepine hybrid molecules [19,20,21,22,23]. As result, a series of hit-compounds (D–F, Figure 1) with high activity levels equal to ketorolac and diclofenac sodium were identified in the in vivo models (“hot-plate” and “acetic acid-induced writhing test”). Herein we present the novel results of our studies dedicated to the design of potential non-steroidal anti-inflammatory agents and report about the synthesis of new 3-aryl-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepines, evaluation of their drug-like properties in silico, analgesic and anti-inflammatory activities in vivo.

2. Materials and Methods

2.1. General Information

All materials were purchased from commercial sources and used without purification. Melting points were measured in open capillary tubes and are uncorrected. The elemental analyses (C, H, N) were performed using the Perkin–Elmer 2400 CHN analyzer (Perkin–Elmer, Norwalk, CT, USA) and were within 0.4% of the theoretical values. The ¹H and ¹³C NMR spectra were recorded on a Bruker AVANCE-400 spectrometer (Bruker, Bremen, Germany). All spectra were recorded at room temperature, except where indicated otherwise, and were referenced internally to solvent reference frequencies. Chemical shifts (δ) are quoted in ppm, and coupling constants (J) are reported in Hz. LC–MS spectra were obtained on a Finnigan MAT INCOS-50 (Thermo Finnigan LLC, San Jose, CA, USA). The reaction mixture was monitored by thin layer chromatography (TLC) using commercial glass-backed TLC plates (Merck Kieselgel 60 F254, Merck, Darmstadt, Germany). Solvents and reagents that are commercially available were used without further purification.

2.2. Synthesis and Characterization of Compounds

Starting compound 3 was prepared according to protocol described in [24]. Derivatives 6a–g were synthesized following the protocol described in [25].

2.2.1. General Procedure of Synthesis of 3-aryl-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepines 7a–g

A mixture of 10 mmole of corresponding hydrazide 6a–g and 10 mmole of 7-methoxy-3,4,5,6-tetrahydro-2H-azepine 3 was refluxed for 3 h in 100 mL of toluene. The obtained solution was left for 12 h at room temperature. Subsequently, obtained solid products of derivatives 7a–g were collected by filtration, washed with benzene, and recrystallized from the appropriate solvent.

2.2.2. Characterization of Compounds 7a–g

3-Phenyl-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepine (7a). Yield 75%, mp 167–168 °C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.65–1.71 (m, 4H, 7,8-CH₂CH₂-), 1.75–1.81 (m, 2H, 6-CH₂), 2.96–3.00 (m, 2H, 9-CH₂), 3.97–4.00 (m, 2H, 5-CH₂), 7.50–7.54 (m, 5H, arom.). ¹³C NMR (100 MHz, DMSO-d₆, δ): 25.1, 25.9, 27.9, 29.7, 45.1, 127.5, 128.8, 128.9, 129.6, 153.8, 157.3. LCMS (ESI+) m/z 214.2 (100%, [M+H]⁺). Anal. calc. for C₁₃H₁₅N₃: C 73.21%, H 7.09%, N 19.70%. Found: C 73.40%, H 7.20%, N 19.90%.

2-(6,7,8,9-Tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepine-3-yl)-phenol (7b). Yield 73%, mp 242–243 °C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.65–1.69 (m, 4H, 7,8-CH₂CH₂-), 1.78–1.81 (m, 2H, 6-CH₂), 2.94–2.98 (m, 2H, 9-CH₂), 3.76–3.80 (m, 2H, 5-CH₂), 6.80 (t, 1H, J = 7.4 Hz, arom), 7.00 (d, 1H, J = 7.8 Hz, arom), 7.30 (d, 1H, J = 7.8 Hz, arom), 7.40 (t, 1H, J = 7.4 Hz, arom), 10.1 (s, 1H, OH). ¹³C NMR (100 MHz, DMSO-d₆, δ): 25.1, 25.9, 27.9, 29.7, 45.0, 115.6, 116.6, 119.4, 128.6, 129.9, 153.8, 157.2, 157.5. LCMS (ESI+) m/z 230.2 (100%, [M+H]⁺). Anal. calc. for C₁₃H₁₅N₃O: C 68.10%, H 6.59%, N 18.33%. Found: C 68.30%, H 6.80%, N 18.50%.

3-(6,7,8,9-Tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepine-3-yl)-phenol (7c). Yield 70%, mp 239–240 °C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.64–1.70 (m, 4H, 7,8-CH₂CH₂-), 1.75–1.79 (m, 2H, 6-CH₂), 2.90–2.94 (m, 2H, 9-CH₂), 3.96–3.99 (m, 2H, 5-CH₂), 6.90–6.95 (m, 3H, arom), 7.33 t, 1H, J = 7.3 Hz, arom), 9.84 (s, 1H, OH). ¹³C NMR (100 MHz, DMSO-d₆, δ): 25.1, 25.9, 27.9, 29.7, 45.0, 115.6, 116.6, 119.4, 128.6, 129.9, 153.8, 157.2, 157.5. LCMS (ESI+) m/z 230.2 (100%, [M+H]⁺). Anal. calc. for C₁₃H₁₅N₃O: C 68.10%, H 6.59%, N 18.33%. Found: C 68.20%, H 6.70%, N 18.40%.

3-(4-Methoxyphenyl)-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepine (7d). Yield 77%, mp 167–168°C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.64–1.69 (m, 4H, 7,8-CH₂CH₂-), 1.79–1.81 (m, 2H, 6-CH₂), 2.90–2.93 (m, 2H, 9-CH₂), 3.82 (s, 3H, OCH₃), 3.95–3.99 (m, 2H, 5-CH₂), 7.09 (d, 2H, J = 8.3 Hz, arom), 7.46 (d, 2H, J = 8.3 Hz, arom). ¹³C NMR (100 MHz, DMSO-d₆, δ): 25.2, 25.9, 27.9, 29.8, 45.0, 55.3, 114.2, 119.7, 130.4, 153.7, 157.0, 160.1. LCMS (ESI+) m/z 244.2 (100%, [M+H]⁺). Anal. calc. for C₁₄H₁₇N₃O: C 69.11%, H 7.04%, N 17.27%. Found: C 69.30%, H 7.20%, N 17.40%.

3-(3,4,5-Trimethoxyphenyl)-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepine (7e). Yield 71%, mp 116–117 °C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.64–1.68 (m, 4H, 7,8-CH₂CH₂-), 1.79–1.82 (m, 2H, 6-CH₂), 2.90–2.94 (m, 2H, 9-CH₂), 3.72 (s, 3H, OCH₃), 3.83 (s, 6H, 2*OCH₃), 3.99–4.03 (m, 2H, 5-CH₂), 6.79 (s, 2H, arom). ¹³C NMR (100 MHz, DMSO-d₆, δ): 25.2, 25.9, 27.8, 29.7, 45.1, 56.0, 60.1, 106.4, 122.8, 138.4, 153.0, 153.9, 157.1. LCMS (ESI+) m/z 304.0 (100%, [M+H]⁺). Anal. calc. for C₁₆H₂₁N₃O₃: C 63.35%, H 6.98%, N 13.85%. Found: C 63.60%, H 7.00%, N 14.00%.

3-p-Tolyl-6,7,8,9-tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepine (7f). Yield 77%, mp 157–158 °C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.64–1.69 (m, 4H, 7,8-CH₂CH₂-), 1.78–1.81 (m, 2H, 6-CH₂), 2.38 (s, 3H, CH₃), 2.91–2.94 (m, 2H, 9-CH₂), 3.98–4.01 (m, 2H, 5-CH₂), 7.35 (d, 2H, J = 8.0 Hz, arom), 7.42 (d, 2H, J = 8.0 Hz, arom). ¹³C NMR (100 MHz, DMSO-d₆, δ): 20.9, 25.2, 25.9, 27.9, 29.7, 45.0, 124.7, 128.8, 129.4, 139.2, 153.8, 157.1. LCMS (ESI+) m/z 304.0 (100%, [M+H]⁺). Anal. calc. for C₁₄H₁₇N₃: C 73.98%, H 7.54%, N 18.49%. Found: C 74.10%, H 7.70%, N 18.60%.

N-[4-(6,7,8,9-Tetrahydro-5H-[1,2,4]triazolo[4,3-a]azepin-3-yl-phenyl]acetamide (7g). Yield 81%, mp 219–220 °C. ¹H NMR (400 MHz, DMSO-d₆, δ): 1.64–1.70 (m, 4H, 7,8-CH₂CH₂-), 1.78–1.81 (m, 2H, 6-CH₂), 2.08 (s, 3H, CH₃), 2.91–2.94 (m, 2H, 9-CH₂), 3.97–4.01 (m, 2H, 5-CH₂), 7.46 (d, 2H, J = 8.4 Hz, arom), 7.74 (d, 2H, J = 8.4 Hz, arom), 10.2 (s, 1H, NH). ¹³C NMR (100 MHz, DMSO-d₆, δ): 24.0, 25.2, 25.9, 27.9, 29.7, 45.0, 118.9, 121.8, 129.4, 140.1, 153.7, 157.1, 168.6. LCMS (ESI+) m/z 271.0 (100%, [M+H]⁺). Anal. calc. for C₁₅H₁₈N₄O: C 66.64%, H 6.71%, N 20.73%. Found: C 66.80%, H 6.90%, N 20.90%.

2.3. Pharmacology Studies

2.3.1. Animals

Female non-linear mice (18–22 g) were used for the experimental studies. The animals were housed in a quarantine facility for 7 days before the experiment was started. Throughout the experiment, the animals were randomized in groups (n = 6) per cage with bedding composed of wood shavings (exchanged daily). The animals had free access to a standard commercial diet and water. The animals were kept under a stable regimen of 12 h light/12 h darkness. The animals were treated humanely throughout the study period adhering to the guideline for the use and care of animals in the Declaration of Helsinki (National Research Council, 2011). The experiment design and study protocol were approved by the Animal Ethics Committee of the Institute of Pharmacology and Toxicology of the National Academy of Medical Sciences of Ukraine, protocol No. 14, 20 June 2022.

2.3.2. Analgesic Activity

The acetic acid-induced writhing model in mice was used for studying the analgesic activity of synthesized compounds. Compounds 7a–g were administered once orally (p.o.) at the dose of 25 mg/kg [26] in the form of an aqueous-ethanol emulsion using Twin-80 as an emulgator. Ketorolac (Ketorolac tromethamine (JSC “Lek-Chem”, Ukraine), was administered once orally (p.o.) in the form of an aqueous solution at the dose of 25 mg/kg. Tested compounds and reference drug were administrated 60 min before the administration of 0.6% acetic acid solution. The number of writhing behaviors produced were determined in each group for the following 10 min [27]. Inhibition of writhing was calculated by the formula below and compared with the standard drug (ketorolac):

Inhibition of writhing, % = {(Wc − Wt) × 100%}/Wc

where, Wc = number of writhing in the control group; Wt = number of writhing of the experimental group.

2.3.3. Anti-Inflammatory (Antiexudative) Activity

The carrageenin-induced hind paw oedema was produced by the method of Winter et al. [28]. The synthesized compounds were intraperitoneally injected in a dose 25 mg/kg (in saline solution with one drop of Tween-80™). Diclofenac (tablets “Diclofenac sodium”, “Zdorovja narodu”, Ukraine) in dose 25 mg/kg was used as reference drug. The antiexudative activity (inflammation inhibition) was expressed as a decrease of rats-paw oedema, was calculated using the equation and was given in percentage:

Inhibition, % = (∆Vcontrol − ∆Vexperiment)/∆Vcontrol × 100%

where, ΔVcontrol and ΔVexperiment—the mean values of the volume difference for control and experimental animals hinds respectively.

3. Results and Discussion

3.1. Synthesis and Characterization of Derivatives 7a–g

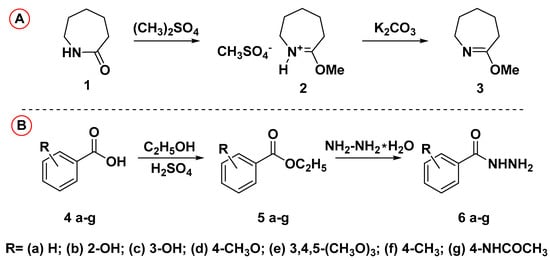

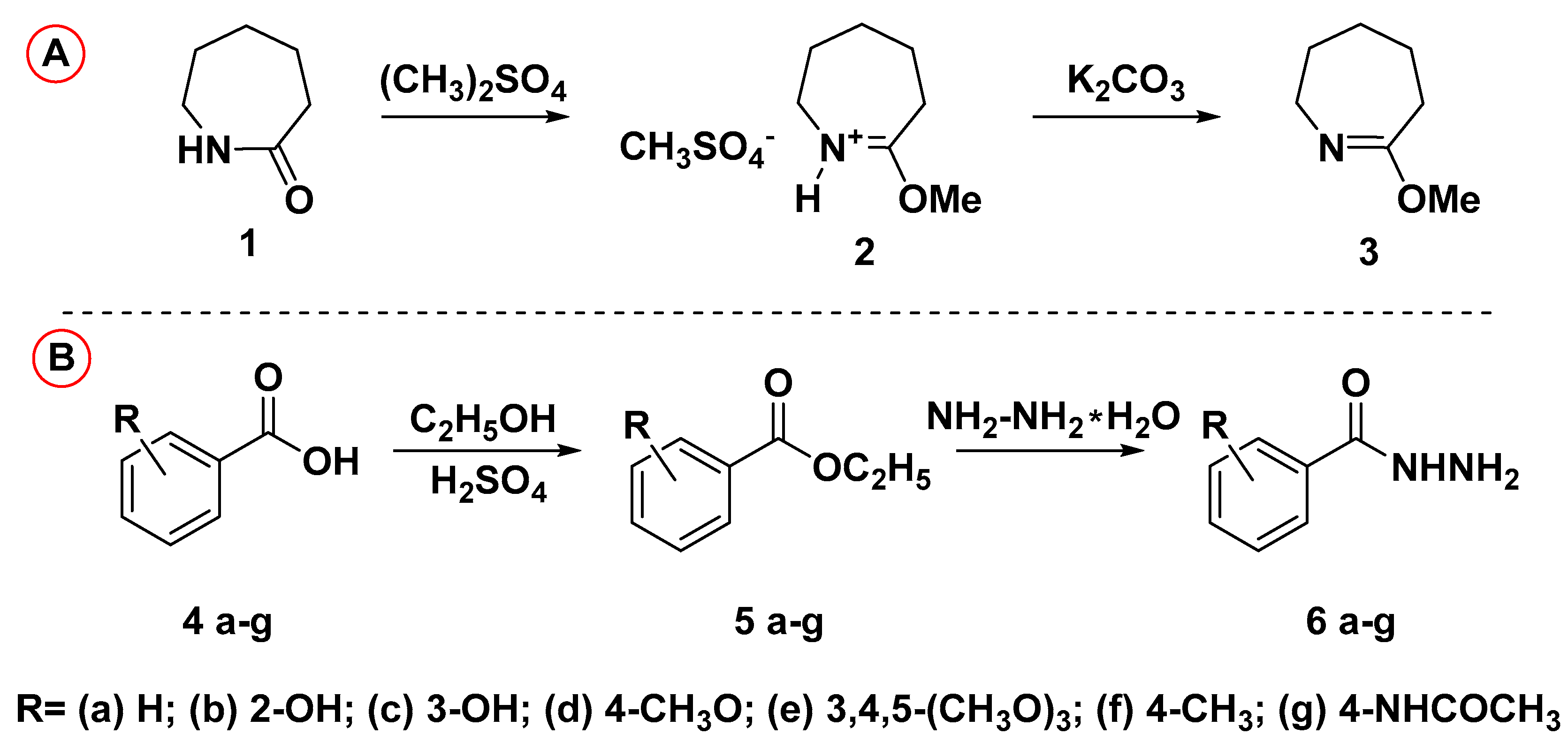

Commercially available azepan-2-one (caprolactam) 1 and aromatic carboxylic acids 4a–g were used as initial compounds for the construction of the target derivatives 7a–g. Azepan-2-one 1 was transformed to the 7-methoxy-3,4,5,6-tetrahydro-2H-azepine 3 following the protocol reported in [24] (Scheme 1A), whereas the routine scheme including esterification with the next hydrazinolysis by hydrazine hydrate of corresponding acids 4a–g was used for obtaining hydrazides 6a–g (Scheme 1B).

Physicochemical properties and spectral characteristics of the synthesized derivatives 6a–g correspond to literature data [29,30,31,32].

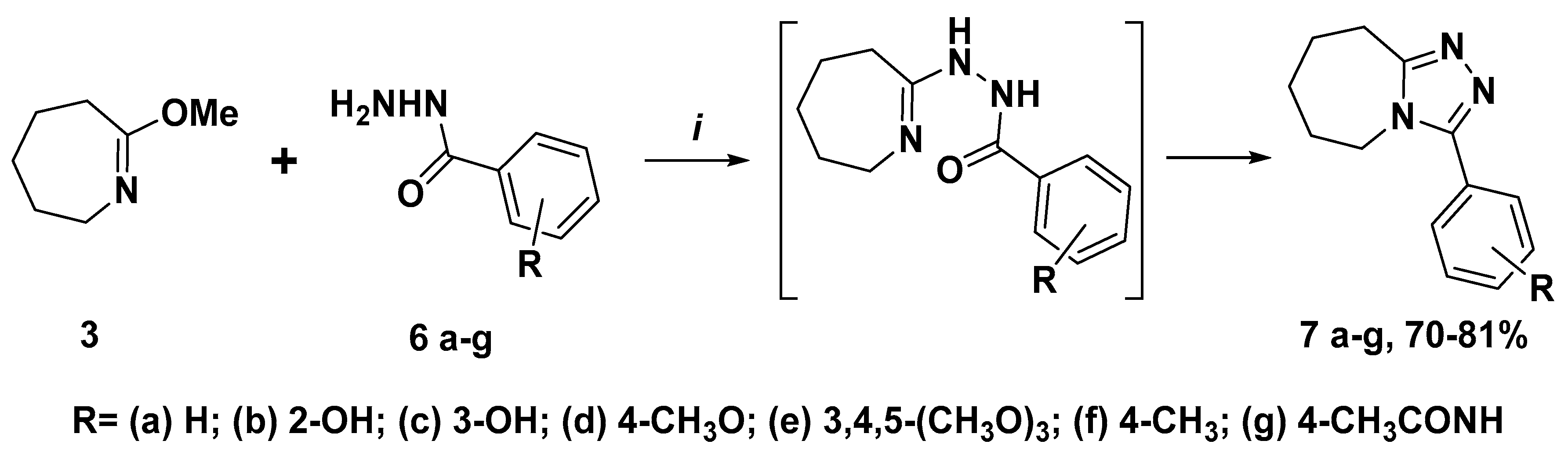

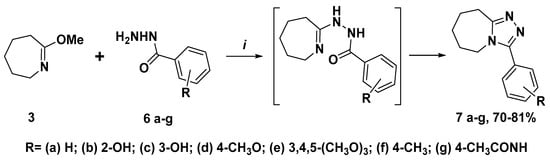

Targeting triazole-azepine hybrids 7a–g were obtained with a yield of 70–81% via the condensation of 3 with hydrazides 6a–g and subsequent cyclization of the intermediate products following the method reported in [25] (Scheme 2).

The structure of synthesized hybrid molecules 7a–g was confirmed using ¹H, ¹³C NMR and LC-MS spectra (copies of spectra are presented in the Supplementary Materials). In the ¹H NMR spectra of compounds 7a–g protons of the azepine ring give a complex pattern with four multiplets at ~1.65–1.70, ~1.81–1.84, ~2.93–2.96, and ~3.80–4.03 ppm. The protons of OH-groups of compounds 7b and 7c were resonated as singlets at 10.10 and 9.84 ppm, respectively. The molecular ion peaks observed in the mass spectra for the m/z values of the synthesized compounds in the positive ionization mode corresponded to Mr+1 which confirmed the formation of the derivatives 7a–g.

3.2. In Silico Evaluation of Drug-Likeness Parameters and Pharmacokinetics Properties of Compounds 7a–g Using the SwissAdme

The series of drug-likeness and pharmacokinetics properties of the compounds 7a–g were evaluated in silico using the SwissAdme of the Swiss Institute of Bioinformatics website [33]. The calculated prognostic data are highlighted in Table (

Table 1. Drug-likeness and pharmacokinetics properties of derivatives 7a–g calculated in silico.

Compound/Parameter	Lipinski Rules				Veber Rules		Fraction Csp3 ≥0.25	GI Absorption	BBB Permeant	P-gp Substrate
	MW ≤500	Log P ≤5	NHD ≤5	NHA ≤10	NBR ≤10	TPSA ≤140
7a	213.28	1.96	0	2	1	30.71	0.38	High	Yes	Yes
7b	229.28	2.10	1	3	1	50.94	0.38	High	Yes	Yes
7c	229.28	2.04	1	3	1	50.94	0.38	High	Yes	Yes
7d	243.30	2.45	0	3	2	39.94	0.43	High	Yes	Yes
7e	303.36	2.43	0	5	4	58.40	0.50	High	Yes	Yes
7f	227.30	2.79	0	2	1	30.71	0.43	High	Yes	Yes
7g	270.33	2.04	1	3	3	59.81	0.40	High	Yes	Yes

GI—gastrointestinal; BBB—blood-brain barrier; P-gp—P-glycoprotein1.

).

Accordingly, with obtained data, all derivatives 7a–g correspond to the Lipinski and Veber rules. Moreover, all the molecules possess predicted satisfactory pharmacokinetic parameters such as a high level of gastrointestinal absorption, the ability to pass through the blood-brain barrier and to be a substrate for P-glycoprotein1. Additionally, should be noted that calculated by the SwissAdme fraction of Csp³ for all the molecules were in the range from 0.38 to 0.50.

3.3. In Vivo Studies of Analgesic and Anti-Inflammatory Activity of Compounds 7a–g and Emprical SAR

All the derivatives 7a–g were tested in vivo for their analgesic and anti-inflammatory activity using the acetic acid-induced writhing model and carrageenin-induced inflammation models in mice, respectively. Ketorolac and diclofenac sodium, nonselective inhibitors of both cyclooxygenase-1 (COX-1) and cyclooxygenase-2 (COX-2), were used as a reference drugs in the experiments. The study results are presented in Figure 2A,B.

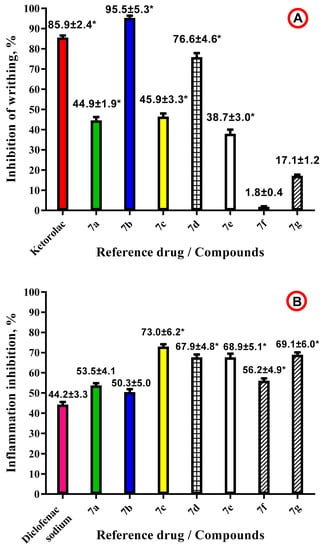

Analgesic activity screening results revealed that among derivatives 7a–g only two compounds (7b and 7d) showed significant activity levels compared with the reference drug (Figure 2A). Derivative 7b was more potent than ketorolac in the experimental conditions with inhibition of writhing value 95.5% compared with the 85.9% value for ketorolac. Compound 7d possesses lower analgesic activity with inhibition of writhing value 76.6%. Synthesized hybrid molecules 7a,c,e,g were characterized with inhibition of writhing values in the range of 17.1%–45.9%, whereas for the derivative 7f analgesic activity was not observed at all.

Anti-inflammatory activity screening results revealed that tested derivatives 7a–g possess promising anti-exudative effects, and all the compounds were more potent than the reference drug diclofenac sodium (Figure 2B). The inflammation inhibition index for compounds 7a–g was in the range of 50.3%–73.0%, whereas for the reference drug diclofenac sodium it was 44.2% in the experimental conditions.

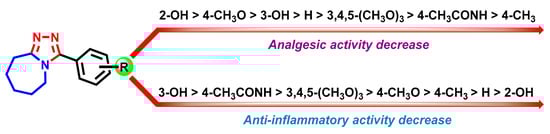

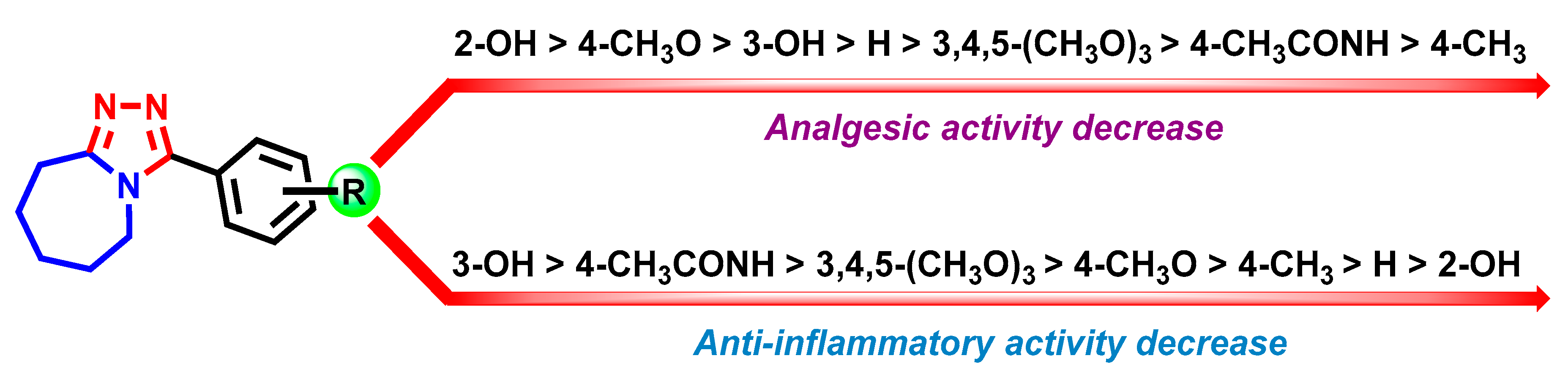

From the point of view of structure–activity relationships (SAR), it is worth noting that the derivatives with a hydroxyl group in the phenyl ring (7b, 7c) were the most active both in the case of analgesic and anti-inflammatory activity (Figure 3). The change of OH-group position from ortho (7b) to meta (7c) leads to a significant decrease in analgesic activity level compared with the ketorolac effect. Whereas the same structural change in the case of anti-inflammatory activity keeps the effect at a more potent level compared with the reference drug. Also, in the context of SAR, should be noted that the presence of methoxy-group (7d) contributed to the significant analgesic activity, whereas the presence of other substituents does not lead to the appearance of an analgesic effect. Summarizing the pharmacological screening results, compound 7b is of interest for further development and optimization as a potential non-steroidal anti-inflammatory agent.

4. Conclusions

In the present work, the evaluation of triazole-azepine hybrid molecules as potential NSAIDs is reported. All the studied hybrid molecules correspond to key drug-likeness parameters and possess predicted satisfactory pharmacokinetic properties according to the in silico evaluation performed using SwissADME. Analgesic and anti-inflammatory activities were studied in vivo using acid-induced writhing and carrageenin model of inflammatory oedema on white mice for the synthesized hybrids. Highly active derivatives with a promising effect that exceeds the activity level of reference drugs ketorolac and sodium diclofenac were identified. According to the obtained results, compound 7b represents an interest for in-depth studies as a potential non-steroidal anti-inflammatory agent. Preliminary SARs contributing to the medicinal chemistry of triazole and azepine derivatives and their hybrid molecules are presented. The polypharmacological profile of studied hybrids is an argument for in-depth studies of these types of molecules applying classic pharmacological as well as computational chemistry methods with the aim of identifying their potential molecular targets.
