Review

Primary Biliary Cholangitis and Bile Acid Farnesoid X Receptor Agonists

by
Ludovico Abenavoli
1,*,
Anna Caterina Procopio
1,
Sharmila Fagoonee
2,
Rinaldo Pellicano
3,
Marco Carbone
4,5,
Francesco Luzza
1 and
Pietro Invernizzi
4,5
1
Department of Health Sciences, University “Magna Graecia”, 88100 Catanzaro, Italy
2
Institute of Biostructures and Bioimaging (CNR) c/o Molecular Biotechnology Center, 10126 Turin, Italy
3
Unit of Gastroenterology, Molinette Hospital, 10126 Turin, Italy
4
Division of Gastroenterology, Center for Autoimmune Liver Diseases, Department of Medicine and Surgery, University of Milano-Bicocca; 20126 Milan, Italy
5
European Reference Network on Hepatological Diseases (ERN RARE-LIVER), San Gerardo Hospital, 20900 Monza, Italy
*
Author to whom correspondence should be addressed.
Diseases 2020, 8(2), 20; https://doi.org/10.3390/diseases8020020
Submission received: 12 May 2020 / Revised: 4 June 2020 / Accepted: 5 June 2020 / Published: 10 June 2020
(This article belongs to the Special Issue Exclusive Papers of the Editorial Board Members (EBMs) of Diseases)

Abstract

:
Primary biliary cholangitis (PBC) is a chronic autoimmune liver disease characterized by the progressive destruction of the intrahepatic bile ducts. Currently, the first line drug for PBC is ursodeoxycholic acid (UDCA) characterized by anti-apoptotic, anti-inflammatory and protective actions on cholangiocytes. Despite its recognized therapeutic action, 30–40% of PBC patients only partially benefit from UDCA therapy. This has led to the identification of the role of the farnesoid x receptor (FXR) in cholestatic liver diseases and, consequently, to the development of obeticholic acid (OCA), a steroid FXR agonist that has been recently approved for the treatment of PBC. OCA though is not effective in all patients and can cause itch, which eventually induces treatment drop out. Therefore, the search for new therapeutic strategies for PBC has begun. This review, in addition to summarizing the current treatments for PBC, provides overview of the chemical characteristics of new steroid FXR agonist candidates that could represent a future perspective for the treatment of PBC.

1. Introduction

Primary biliary cholangitis (PBC) is a chronic autoimmune liver disease characterized by the progressive destruction of the intrahepatic bile ducts and progression, if not treated, to fibrosis and cirrhosis [1,2,3]. PBC predominantly affects women over the age of 40 (woman/man rate of 9–10:1). Recent epidemiological data point to an increase in cases in men (woman/man rate of 2–3:1) [4]. The disease is characterized by a yearly incidence and prevalence rate of 0.33–5.8/100.000 and 1.91–40.2/100.000 individuals, respectively [4,5,6]. Most of the affected subjects are asymptomatic throughout the initial phase of the disease, which is often diagnosed by chance following an increase in alkaline phosphatase (ALP). Diagnosis is made when at least two of the following criteria are met: (1) positivity for antimitochondrial antibodies (AMA), (2) increase in ALP, (3) chronic non-suppurative cholangitis of small and medium caliber bile ducts [7,8].
Although the etiopathogenesis of PBC is still uncertain, multifactoriality represents a crucial element in the onset of the pathology. The development of PBC has been linked to genetic predisposition of the affected subjects. In particular, PBC susceptibility has been shown to be associated with polymorphisms in the Human Leucocyte Antigen (HLA) region especially in the alleles DRB1*08, DRB1*11, DRB1*14, DPB1*03:01 and DQB1 [9,10,11,12].
One of the determining factors is the loss of tolerance for the PDC-E2 autoantigen (component E2 of pyruvate dehydrogenase complex). It seems that PDC-E2 plays a fundamental role in activating Th1 cells response through interleukin (IL)-12. T cells start producing interferon (INF)-γ and tumor necrosis factor (TNF)-α, which trigger a cytotoxic action. In addition, IL-4 activates B cells causing the release of AMA, which promote senescence and apoptosis of bile epithelial cells (BEC) [13,14,15]. In addition, another element contributing to the onset of PBC is the presence of a defective “bicarbonate umbrella”. This “bicarbonate umbrella” is essential for protection against the accumulation of bile acids and their cytotoxic effects. In PBC, the impairment of this protective “umbrella” increases the sensitivity of cholangiocytes to bile acids, which accumulate in the BEC generating reactive oxygen species thus further promoting senescence and apoptosis [14].
Those observations have prompted research efforts to identify compounds that could promote the elimination of bile acids regulating their synthesis, absorption and excretion. In this context, particularly important are the farnesoid X receptor (FXR) agonists, such as OCA, which has recently been approved for the treatment of PBC as a second-line drug [14]. Currently, several other therapeutic agents are undergoing evaluation in order to identify new pharmacologically active compounds.
The purpose of this review is to offer an overview of the compounds showing promising activities in PBC, and above all, it aims to highlight the chemical characteristics of new steroid FXR agonists in order to clarify their structure-activity relationship.

2. The First-and Second-Line Therapies for PBC

The first-line pharmacological treatment in PBC patients is ursodeoxycholic acid (UDCA), and in those with inadequate response to UDCA treatment, the FXR agonist OCA, which represents the second-line treatment for PBC, is used. Despite the therapeutic efficacy of UDCA and OCA, interesting pharmacological alternatives are being evaluated as reported below.

2.1. UDCA

UDCA represents the first line therapy in the treatment of PBC, and for a long time, it has been the only drug approved by the Food and Drug Administration (FDA) for this syndrome [16]. Therapy with UDCA involves long-term treatment with a dose of 13–15 mg/kg/day [17]. UDCA can be administered as a single oral dose, and in case of poor tolerability, the dose can be divided [14]. UDCA owes its effectiveness in the treatment of PBC, to a series of effects such as the protective action on cholangiocytes, anti-apoptotic and anti-inflammatory activities and a post-translational stimulation of synthesis of liver export pumps [1,2]. Indeed, it has been shown that one of the protective mechanisms of UDCA against cholestasis is the disposal of accumulated bile acids. However, the secretory capacity of the hepatocytes is closely related to the presence of transport proteins in the canalicular membrane. In this regard, UDCA induces an increase in expression for bile salt export pumps (BSEP), proteins associated with multi-drug resistance (MDR3) and multidrug resistance associated protein 4 (MRP4) thus facilitating the elimination of bile acids [18,19,20]. Furthermore, timely diagnosis and early treatment with UDCA delay the progression of PBC. In particular, it was found that treatment with UDCA of PBC patients at advanced stages (extensive liver fibrosis) led to a considerably reduced rate of disease progression. Moreover, after 4 years of therapy, an arrest in the initial state of the syndrome has been observed in 76% of cases. Despite the high efficacy demonstrated by UDCA therapy, about 40% of the subjects do not benefit from its use [2]. In this case, the combined regimen, UDCA plus OCA, has been proposed.

2.2. OCA

OCA is a semisynthetic derivative of chenodeoxycholic acid (CDCA) and represents a second-line therapy in case of non-responsiveness to UDCA [1,16,17]. OCA is an FXR agonist with 100 times higher affinity for the receptor with respect to CDCA, the endogenous ligand [16]. FXR is a member of the nuclear receptor superfamily, comprising endocrine, metabolic and orphan receptors [21]. FXR is highly expressed in the liver, gallbladder, intestines and kidneys [22,23]. In particular, upon activation, FXR regulates the synthesis, excretion, transport, absorption and metabolism of bile acids [24]. Furthermore, OCA increases the expression of fibroblast growth factor 19 (FGF-19) thus leading to a reduction in the synthesis of biliary acids. In the ileum, OCA reduces the reabsorption of biliary acids by down-regulating the apical transporter (apical sodium dependent bile acid transporter or ABST) [16]. OCA, unlike UDCA that interacts at a post-transcriptional level, acts directly on the synthesis, absorption and secretion of bile acids [14].The efficacy of OCA was assessed in the POISE study, a double-blind phase 3 study of 12-month duration [25]. In this study, 217 patients with inadequate response to UDCA were divided into three groups and were treated with OCA, respectively, with a daily dose of 10 mg, 5 mg with an adjustment to 10 mg when applicable, or with placebo in addition to UDCA treatment (13–15mg/kg/day). The primary end point, represented by an ALP level of less than 1.67 × upper limit normal, occurred in 46% of patients in 5–10 mg OCA treatment and in 47% of those in 10 mg OCA treatment compared to 10% in the placebo group. In addition, improvements in cholestasis, hepatocellular damage, inflammation and apoptosis were observed. The most commonly observed side effect was pruritus, noted in 56% of the 5–10 mg group and 68% of the 10mg group versus 38% of the placebo group. Currently, in the clinical setting, OCA is used in combination with UDCA in subjects who do not respond to UDCA treatment alone; this combination allows to reduce the incidence of liver complications [2]. OCA is considered as a safe treatment, albeit itching is the more common side effect [26].

3. New Compounds for the Treatment of PBC

The peroxisome proliferator-activated receptor agonists (PPAR) have shown promising therapeutic activity in PBC. In fact, the activation of PPAR is associated to an anti-cholestatic action and a reduction in the synthesis of bile acids with a decrease in the liver inflammation (Figure 1) [27,28]. Among the most promising PPAR activators that are currently being evaluated for the treatment of PBC, there are bezafibrate, fenofibrate and seladelpar. In the BEZURSO study (NCT01654731), a phase 3 double blind study of 24 months duration evaluated the efficacy of bezafibrate [29]. In this study, 100 patients with an inadequate response to UDCA, according to the Paris 2 criteria, were enrolled. The patients were randomized into two groups; one group was treated with 400 mg of bezafibrate and UDCA and the other with placebo and UDCA. The primary outcome was defined by a complete biochemical response with normal levels of total bilirubin, ALP, aminotransferase, albumin and a normal prothrombin index. The primary outcome occurred in 31% of patients assigned to bezafibrate/UDCA treatment and in 0% of those in the placebo/UDCA group. In addition, normal levels of ALP were observed in 67% of patients treated with bezafibrate/UDCA and in only 2% of those in the placebo/UDCA group [29]. In a recent study, 118 patients previously treated with UDCA for at least 1 year were enrolled and treated with combined bezafibrate/UDCA therapy for 1 year [30]. The GLOBE and UK-PBC scores generated with UDCA monotherapy were compared with those obtained after 1 year of bezafibrate/UDCA therapy. The mean GLOBE score determined by UDCA therapy alone was 0.504 ± 0.080 while, after one year of bezafibrate/UDCA combination therapy, this value was 0.115 ± 0.085. Furthermore, the addition of bezafibrate did not ameliorate the real rates of liver transplantation or liver-related death with respect to the predicted UK-PBC risk score before the addition of bezafibrate, while the predicted risk was significantly reduced by addition of bezafibrate (p < 0.0001) [30].
Fenofibrate has also been evaluated for its effects in patients with CBP. In particular, a retrospective study was conducted on 120 non-responder patients to UDCA [31]. Patients were divided into two groups: one group was treated with fenofibrate and UDCA (FF group), the other group was treated with UDCA only (UDCA group). Significant improvements in the biochemical parameters were observed in the FF group, in particular the final average ALP in the FF and UDCA groups was 184 ± 98 and 274 ± 172 IU/L, respectively (p = 0.002). Furthermore, the fenofibrate-treated group had a significantly lower level of alanine aminotransferase (ALT) (78 ± 47 IU/L versus 43 ± 34 IU/L, p = 0.001) and aspartate aminotransferase (AST) (60 ± 25 IU/L versus 44 ± IU/L, p = 0.05) at baseline [31]. Moreover, fenofibrate was evaluated in a retrospective cohort study consisting of 23 PBC patients with an inadequate response to UDCA monotherapy [32]. All patients were treated with fenofibrate and UDCA combination. With respect to the baseline values, a significant decrease in median serum ALP levels after 3 months (p = 0.0002), 6 months (p < 0.0001) and 12 months (p < 0.0001) of treatment with fenofibrate/UDCA was observed. The side effects more frequently reported were nausea, vomiting and abdominal pain, but the therapy was stopped in six patients for intolerance or fenofibrate-induced liver injury [32].
Seladelpar a selective PPAR-δ agonist, previously referred to as MBX-8025, has also shown promise in the treatment of PBC. In particular, in a double-blind phase 2 study of 12-week duration (NCT02609048) the efficacy of seladelpar was evaluated in patients with an inadequate response to UDCA [33]. Patients were divided into three groups and were treated respectively with 50 mg or 200 mg of seladelpar or with placebo. The results indicated that patients treated with seladelpar 50 mg or 200 mg presented an ALP reduction, compared to baseline, of 53% and 63%, respectively, while in the placebo group the reduction was only 2% [33]. Despite this promising activity, during the study, a grade 3 increase in ALT was observed among side effects, and for this reason, the study had been interrupted.

3.1. NGM282

The NGM282 (aldafermin) is an engineered analogue of FGF19, a growth factor which is produced following the activation of FXR and acts in the liver by regulating the synthesis of bile acids. In a double-blind study of 28-day duration (NCT02026401), the efficacy of NGM282 was assessed in 45 PBC patients with inadequate UDCA response [34]. Patients were randomized into three groups and were treated with 0.3 mg, 3 mg of NGM282 or placebo, respectively. The reported results indicated that at the end of the treatment, ALP levels decreased at both 0.3 mg (least squares (LS) mean –51.0 IU/L (standard error (SE) 15.4)) and 3 mg (–66.0 IU/L (SE 16.0)) NGM282 compared to placebo (3.3 IU/L (SE 14.8)). Furthermore, significant changes were observed in γ-glutamyl transferase (GGT) values and C4 levels, the metabolite produced during the synthesis of 7-α-hydroxycholesterol [34].

3.2. Non-Bile Acids FXR Agonists

Cilofexor, previously referred to as (GS-9674), is a non-bile acid FXR agonist. In the double-blind phase II study (NCT02943460), the effects of cilofexor (30 mg, 100 mg or placebo orally for 12 weeks) were evaluated in 52 PSC patients [35]. Promising results in terms of reduction in biochemical markers of cholestasis were observed in the study. In particular, a significant decrease in serum ALP (median reduction −21%; p = 0.029 versus placebo) and GGT (−30%; p < 0.001) was observed after 12 weeks of treatment with 100 mg of cilofexor. Furthermore, in both groups treated with cilofexor, there was a reduction in the metabolite produced by the conversion of cholesterol to 7-α-hydroxolesterol by CYP7A1, and it was only after treatment with 100 mg of cilofexor that there was a reduction in total bile acids, primary and secondary bile acids compared to placebo [35]. Tropifexor is a recently identified FXR agonist that has demonstrated promising steatohepatitis reduction activity [36,37]. The safety of tropifexor administration was assessed in a study on healthy volunteers, and the results indicated that the drug is well tolerated with an acceptable safety profile [38]. A clinical trial on the efficacy of tropifexor in patients with non-alcoholic steatohepatitis is nearly completed (NCT02855164).

3.3. Immunomodulatory Strategies

PBC is an autoimmune disease that affects the bile ducts; nevertheless, the immunomodulatory therapies have not been well characterized. In this regard, ustekinumab, a monoclonal antibody directed against interleukin-12 and inteleukina-23, has been evaluated in a phase two study on PBC patients [39]. The subjects enrolled in the study, characterized by an inadequate response to UDCA, received subcutaneous treatment with ustekinumab, but no therapeutic activity was observed. In addition, abatacept, a fusion protein formed by the Fc region of immunoglobulin IgG1 molten into the extracellular domain of cytotoxic T-lymphocyte antigen 4 (CTLA-4), was tested in a 24-week study on PBC patients with inadequate response to UDCA [40]. This study indicated that abatacept is inefficacious for this pathology since almost all patients did not reach the primary endpoint. In fact, the study showed that the treatment did not induce changes in ALT, albumin, bilirubin and immunoglobulin levels.

4. Structure–Activity Relationship of Bile Acid FXR Agonists

Since in PBC a protective effect conferred by the activation of FXR has been observed, several attempts were made to identify compounds with great selectivity for FXR without or with few side effects. The design and synthesis of new FXR agonists are based on the use, as the starting scaffold, of an endogenous bile acid, the CDCA. Several modifications in the structure of CDCA were made in order to devise highly specific compounds.
CDCA is a molecule, resulting from the fusion of four rings denominated A, B, C and D. The main scaffold of CDCA, which consists of a cyclopentanofenanthrenic unit, is characterized by the presence of two α OH in C- 3 and C-7, two β methyl in C-10 / C-13 and from a side chain on carbon C-17. This structure plays a fundamental role in the chemical-pharmacological activity of the molecule and was the starting point for the design of new, more powerful and selective FXR agonists. Some changes made to the CDCA scaffold led to the identification of pharmacological agents currently used in therapy such as OCA and promising new bile FXR agonists (Figure 2, Table 1). Specifically, it has been observed that the introduction of an alkyl group on the C-6 of ring B significantly improved the activity [41]. In particular, in OCA, and in compounds 1, 2 and 3, ethyl, methyl, propyl and butyl groups were introduced respectively in C-6. The optimal activity was observed for OCA with an ethyl group in C-6. On the contrary, the insertion of a butyl moiety in C-6 as in compound 3 resulted in the formation of an inactive compound [41]. Thus, it was shown that the introduction of a small alkyl function in C-6 can improve the functionality of the compounds and assisted in designing compounds like OCA. A study carried out by Festa et al. evaluated the activity of FXR agonists following modifications on C-3 and C-7 [42]. It was observed that the elimination of α-OH in C-3 in compound 4 did not lead to activity loss for FXR, indicating that the presence of α-OH in C-3 was not essential for interaction at the receptor level. Moreover, compound 5 (Table 1), which lacked α-OH in C-3 and bore a -NHCH2CH2SO3Na group in position C-24, was devoid of FXR activity [42]. Compounds 6 and 7, which had no α OH in C-3 but were endowed with β OH in C-7 were also inactive on FXR. This suggests that the presence of the α-OH group in C-7, unlike the α-OH in C-3, is fundamental for the agonism towards FXR. Compound 8 characterized by an epimerization of OH in C-3 and bearing α-OH in C-7 had higher capacity than CDCA in activating the FXR [42].
Pellicciari et al. evaluated the effects of further modifications on the C-6 with the introduction of alkyl chains and polar groups as shown in Table 1 [43]. The compounds 9 and 11, characterized respectively by an allyl and 2-propionyl in C-6, demonstrated a discrete activity towards FXR, while the compound 10 characterized by a 2-hydroxyethyl in C-6 demonstrated a low activity towards FXR. This is consistent with the observation that the presence of an alkyl chain in C-6 improves the affinity for FXR. On the contrary, compounds 12 and 13 with α-OH and α-OCH3 in C-6 presented reduced activity [43]. The importance of an apolar group in C-6 is thus important. Furthermore, the compounds 14 and 15, characterized by α/β fluorine in C-6, exhibited an intermediate behavior due to the peculiarities of the hydrophilic–lipophilic character of the fluorine [43].
In Figure 3 and in Table 2 were reported the characteristics of a series compounds in which the C-24 carboxylic function has been modified. In particular, Festa et al. observed that compound 16 maintained the FXR agonist activity despite the elimination of the OH group in C-3 and the reduction of the carboxyl function in C-24 [42]. Compound 17, devoid of OH in C-3 and characterized by a -OSO3Na group in C-24, showed a low activity for the FXR [42]. Thus, the replacement of the carboxylic function in C-24 with -OSO3Na may be crucial in generating powerful FXR agonists. Unlike compounds 16 and 17, compound 18, which was devoid of OH in C-3 and endowed with -OSO3Na in C-7 and C-24 did not demonstrate activities for FXR [42]. Compound 19, which had β-OH in C-7, was inactive, unlike compound 16, which represented its epimer in C-7. This evidence once again underlines the importance of the α-OH group in C-7, which is necessary to maintain the agonist activity for FXR. In support of these observations, compounds 20 and 21, characterized by a β-OH in C-7, showed no activity. Compound 22 devoid of OH in both C-3 and C-7 confirmed the poor activity on FXR [42]. On the contrary, compound 23, despite the absence of OH in C-3 and C-7, showed good activity on FXR. However, on the whole, the elimination of OH group in C-7 proved to be harmful to the activity of the agonists [42]. D’Amore et al. proposed a series of compounds with -OSO3Na on C-24 and substitutions on C-6 carbon [44]. More specifically, the compounds 24, 25, 26 and 27 (Table 2), with α-OH in C-3 and C-7 and an -OSO3Na group in C-24, were evaluated following the addition of an ethyl chain in C -6. This study showed that compound 25 with an ethyl chain on C-6 had an activity comparable to that of CDCA. In particular, INT-767, which represents the sodium salt of compound 25, has been employed in a completed phase 1 clinical study to evaluate its safety and pharmacokinetics in healthy subjects. On the other hand, the compound 24 without a chain on C-6 did not have significant activities. Therefore, this confirms the importance of the presence of an ethyl chain in the C-6 position. Moreover, compounds 26 and 27 characterized by -OSO3Na in C-3, C-7 and C-24 did not demonstrate significant activity on FXR [44]. Compounds 28, 29, 30 and 31 without the C-6 alkyl chain and characterized by a β-OH/-OSO3Na group in C-7 have shown little activity on FXR. These evidences confirm the importance of the alkylic chain in C-6 and of α-OH group in C-7 [44].
Pellicciari et al proposed a series of derivates, the characteristics of which are shown in Figure 4 and in Table 3. [45]. These molecules are characterized by the introduction of a hydroxyl group in C-11 for compounds TC-100 and 32, and in C-12 for compounds 33 and 34 [45]. The results reported by this study indicate that these derivatives have a good agonistic activity on FXR. Of note, in the case of compound TC-100, the introduction of a β OH C-11 group, led to the formation of a compound with high activity and selectivity towards FXR characterized by an EC50 = 0.14µM [45]. Thus, the introduction of polar functions in the C ring is important and can contribute to the creation of bonds at the receptor site level [45].
Pellicciari et al. proposed two derivatives in which a OH was inserted on C-23, the characteristics of which are shown in Figure 5 and in Table 4 [43]. The functionalization of C-23, seen in the compounds 35 and 36, was found to reduce or abolish the agonist activity. These results suggest that replacing C-23 with polar or apolar groups reduce the affinity for FXR [43].
The Authors also proposed a series of modifications in CDCA resulting in the formation of carbamate derivatives, the characteristics of which are shown in Figure 6 and in Table 5 [46]. As indicated in Table 5, these carbamate derivatives were functionalized through alkyl groups, cycloalkyl and aromatic rings. From the cell-based luciferase assay carried out, it was shown that the compound 42 presented a higher activity than CDCA on FXR. In particular, compound 42 had the highest score as FXR agonist [46]. Compounds 37, 38, 39, 40 and 41 showed partial activity on FXR. Thus, the functionalization of the side chain with the formation of carbamate derivatives may lead to particularly effective compounds and warrants further analysis [46].

5. Conclusions

Our review provides a summary of the therapies currently used in PBC patients and summarizes the efforts made in finding compounds with promising agonistic activities on FXR. Different changes made to the CDCA scaffold in order to identify improved FXR agonists useful in PBC are reported. In particular, the importance of the α-OH group in C-7 and an alkyl group in position C-6 is highlighted. Furthermore, a series of carbamate and sulfonate derivatives, which present interesting perspectives for new pharmacologically active compounds as well as the most interesting chemical characteristics of the steroid FXR agonists, are reported herein.

Author Contributions

Conceptualization, L.A. and P.I.; methodology, M.C.; validation, L.A., P.I. and M.C.; resources, A.C.P.; data curation, L.A., R.P. and M.C.; writing—original draft preparation, L.A., A.C.P. and M.C.; writing—review and editing, R.P., S.F. and P.I.; visualization, L.A.; supervision, F.L. All authors have read and agree to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Etherington, R.E.; Millar, B.J.M.; Innes, B.A.; Jones, D.E.J.; Kirby, J.A.; Brain, J.G. Bile acid receptor agonists in primary biliary cholangitis: Regulation of the cholangiocytesecretome and downstream T cell differentiation. FASEB Bioadv. 2019, 1, 332–343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Gao, L.; Wang, L.; Woo, E.; He, X.; Yang, G.; Bowlus, C.; Leung, P.S.C.; Gershwin, M.E. Clinical Management of Primary Biliary Cholangitis-Strategies and Evolving Trends. Clin. Rev. Allergy Immunol. 2019, in press. [Google Scholar] [CrossRef] [PubMed]
  3. Dyson, J.K.; Hirschfield, G.M.; Adams, D.H.; Beuers, U.; Mann, D.A.; Lindor, K.D.; Jones, D.E. Novel Therapeutic Targets in Primary Biliary Cirrhosis. Nat. Rev. Gastroenterol. Hepatol. 2015, 12, 147–158. [Google Scholar] [CrossRef] [PubMed]
  4. Podda, M.; Selmi, C.; Lleo, A.; Moroni, L.; Invernizzi, P. The limitations and hidden gems of the epidemiology of primary biliary cirrhosis. J. Autoimmun. 2013, 46, 81–87. [Google Scholar] [CrossRef] [PubMed]
  5. Lleo, A.; Jepsen, P.; Morenghi, E.; Carbone, M.; Moroni, L.; Battezzati, P.M.; Podda, M.; Mackay, I.R.; Gershwin, M.E.; Invernizzi, P. Evolving Trends in Female to Male Incidence and Male Mortality of Primary Biliary Cholangitis. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  6. Manno, V.; Gerussi, A.; Carbone, M.; Minelli, G.; Taruscio, D.; Conti, S.; Invernizzi, P. A National Hospital-Based Study of Hospitalized Patients with Primary Biliary Cholangitis. Hepatol. Commun. 2019, 3, 1250–1257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Carey, E.J.; Ali, A.H.; Lindor, K.D. Primary biliary cirrhosis. Lancet 2015, 386, 1565–1575. [Google Scholar] [CrossRef]
  8. Lindor, K.D.; Gershwin, M.E.; Poupon, R.; Kaplan, M.; Bergasa, N.V.; Heathcote, E.J.; American Association for Study of Liver Diseases. Primary biliary cirrhosis. Hepatology 2009, 50, 291–308. [Google Scholar] [CrossRef] [PubMed]
  9. Zhang, H.; Carbone, M.; Lleo, A.; Invernizzi, P. Geoepidemiology, Genetic and Environmental Risk Factors for PBC. Dig. Dis. 2015, 2, 94–101. [Google Scholar] [CrossRef] [PubMed]
  10. Liu, X.; Invernizzi, P.; Lu, Y.; Kosoy, R.; Lu, Y.; Bianchi, I.; Podda, M.; Xu, C.; Xie, G.; Macciardi, F.; et al. Genome-wide meta-analyses identify three loci associated with primary biliary cirrhosis. Nat. Genet. 2010, 42, 658–660. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Invernizzi, P.; Ransom, M.; Raychaudhuri, S.; Kosoy, R.; Lleo, A.; Shigeta, R.; Franke, A.; Bossa, F.; Amos, C.I.; Gregersen, P.K.; et al. Classical HLA-DRB1 and DPB1 alleles account for HLA associations with primary biliary cirrhosis. Genes Immun. 2012, 13, 461–468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Invernizzi, P. Human leukocyte antigen in primary biliary cirrhosis: An old story now reviving. Hepatology 2011, 54, 714–723. [Google Scholar] [CrossRef] [PubMed]
  13. Lleo, A.; Zhang, W.; McDonald, W.H.; Seeley, E.H.; Leung, P.S.; Coppel, R.L.; Ansari, A.A.; Adams, D.H.; Afford, S.; Invernizzi, P.; et al. Shotgun proteomics: Identification of unique protein profiles of apoptotic bodies from biliary epithelial cells. Hepatology 2014, 60, 1314–1323. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. European Association for the Study of the Liver. EASL Clinical Practice Guidelines: The diagnosis and management of patients with primary biliary cholangitis. J. Hepatol. 2017, 67, 145–172. [Google Scholar] [CrossRef] [PubMed]
  15. Beuers, U.; Trauner, M.; Jansen, P.; Poupon, R. New Paradigms in the Treatment of Hepatic Cholestasis: From UDCA to FXR, PXR and Beyond. J. Hepatol. 2015, 62, S25–S37. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Abenavoli, L.; Falalyeyeva, T.; Boccuto, L.; Tsyryuk, O.; Kobyliak, N. Obeticholic Acid: A New Era in the Treatment of Nonalcoholic Fatty Liver Disease. Pharmaceuticals 2018, 11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Corpechot, C.; Abenavoli, L.; Rabahi, N.; Chrétien, Y.; Andréani, T.; Johanet, C.; Chazouillères, O.; Poupon, R. Biochemical response to ursodeoxycholic acid and long-term prognosis in primary biliary cirrhosis. Hepatology 2008, 48, 871–877. [Google Scholar] [CrossRef] [PubMed]
  18. Ikegami, T.; Matsuzaki, Y. Ursodeoxycholic acid: Mechanism of action and novel clinical applications. Hepatol. Res. 2008, 38, 123–131. [Google Scholar] [CrossRef]
  19. Beuers, U. Drug insight: Mechanisms and sites of action of ursodeoxycholic acid in cholestasis. Nat. Clin. Pract. Gastroenterol. Hepatol. 2006, 3, 318–328. [Google Scholar] [CrossRef] [PubMed]
  20. Marschall, H.U.; Wagner, M.; Zollner, G.; Fickert, P.; Diczfalusy, U.; Gumhold, J.; Silbert, D.; Fuchsbichler, A.; Benthin, L.; Grundström, R.; et al. Complementary Stimulation of Hepatobiliary Transport and Detoxification Systems by Rifampicin and Ursodeoxycholic Acid in Humans. Gastroenterology 2005, 129, 476–485. [Google Scholar] [CrossRef]
  21. Pellicciari, R.; Costantino, G.; Fiorucci, S. Farnesoid X receptor: From structure to potential clinical applications. J. Med. Chem. 2005, 48, 5383–5403. [Google Scholar] [CrossRef] [PubMed]
  22. Sepe, V.; Marchianò, S.; Finamore, C.; Baronissi, G.; Di Leva, F.S.; Carino, A.; Biagioli, M.; Fiorucci, C.; Cassiano, C.; Monti, M.C.; et al. Novel Isoxazole Derivatives with Potent FXR Agonistic Activity Prevent Acetaminophen-Induced Liver Injury. ACS Med. Chem. Lett. 2018, 10, 407–412. [Google Scholar] [CrossRef] [PubMed]
  23. Han, C.Y. Update on FXR Biology: Promising Therapeutic Target? Int. J. Mol. Sci. 2018, 19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Di Leva, F.S.; Di Marino, D.; Limongelli, V. Structural Insight Into the Binding Mode of FXR and GPBAR1 Modulators. Handb. Exp. Pharmacol. 2019, 256, 111–136. [Google Scholar] [CrossRef] [PubMed]
  25. Nevens, F.; Andreone, P.; Mazzella, G.; Strasser, S.I.; Bowlus, C.; Invernizzi, P.; Drenth, J.P.; Pockros, P.J.; Regula, J.; Beuers, U.; et al. A Placebo-Controlled Trial of Obeticholic Acid in Primary Biliary Cholangitis. N. Engl. J. Med. 2016, 18, 631–643. [Google Scholar] [CrossRef] [PubMed]
  26. Hirschfield, G.M.; Mason, A.; Luketic, V.; Lindor, K.; Gordon, S.C.; Mayo, M.; Kowdley, K.V.; Vincent, C.; Bodhenheimer, H.C., Jr.; Parés, A.; et al. Efficacy of obeticholic acid in patients with primary biliary cirrhosis and inadequate response to ursodeoxycholicacid. Gastroenterology 2015, 148, 751–761. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Ghonem, N.S.; Assis, D.N.; Boyer, J.L. Fibrates and cholestasis. Hepatology 2015, 62, 635–643. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Hong, F.; Xu, P.; Zhai, Y. The Opportunities and Challenges of Peroxisome Proliferator-Activated Receptors Ligands in Clinical Drug Discovery and Development. Int. J. Mol. Sci. 2018, 19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Corpechot, C.; Chazouillères, O.; Rousseau, A.; Le Gruyer, A.; Habersetzer, F.; Mathurin, P.; Goria, O.; Potier, P.; Minello, A.; Silvain, C.; et al. A Placebo-Controlled Trial of Bezafibrate in Primary Biliary Cholangitis. N. Engl. J. Med. 2018, 7, 2171–2181. [Google Scholar] [CrossRef] [PubMed]
  30. Honda, A.; Tanaka, A.; Kaneko, T.; Komori, A.; Abe, M.; Inao, M.; Namisaki, T.; Hashimoto, N.; Kawata, K.; Takahashi, A.; et al. Bezafibrate Improves GLOBE and UK-PBC Scores and Long-Term Outcomes in Patients with Primary Biliary Cholangitis. Hepatology 2019, 70, 2035–2046. [Google Scholar] [CrossRef] [PubMed]
  31. Cheung, A.C.; Lapointe-Shaw, L.; Kowgier, M.; Meza-Cardona, J.; Hirschfield, G.M.; Janssen, H.L.; Feld, J.J. Combined ursodeoxycholic acid (UDCA) and fenofibrate in primary biliary cholangitis patients with incomplete UDCA response may improve outcomes. Aliment. Pharmacol. Ther. 2016, 43, 283–293. [Google Scholar] [CrossRef] [PubMed]
  32. Hegade, V.S.; Khanna, A.; Walker, L.J.; Wong, L.L.; Dyson, J.K.; Jones, D.E.J. Long-Term Fenofibrate Treatment in Primary Biliary Cholangitis Improves Biochemistry but Not the UK-PBC Risk Score. Dig. Dis. Sci. 2016, 61, 3037–3044. [Google Scholar] [CrossRef] [PubMed]
  33. Jones, D.; Boudes, P.F.; Swain, M.G.; Bowlus, C.L.; Galambos, M.R.; Bacon, B.R.; Doerffel, Y.; Gitlin, N.; Gordon, S.C.; Odin, J.A.; et al. Seladelpar (MBX-8025), a selective PPAR-δ agonist, in patients with primary biliary cholangitis with an inadequate response to ursodeoxycholic acid: a double-blind, randomised, placebo-controlled, phase 2, proof-of-concept study. Lancet Gastroenterol. Hepatol. 2017, 2, 716–726. [Google Scholar] [CrossRef] [Green Version]
  34. Mayo, M.J.; Wigg, A.J.; Leggett, B.A.; Arnold, H.; Thompson, A.J.; Weltman, M.; Carey, E.J.; Muir, A.J.; Ling, L.; Rossi, S.J.; et al. NGM282 for Treatment of Patients With Primary Biliary Cholangitis: A Multicenter, Randomized, Double-Blind, Placebo-Controlled Trial. Hepatol. Commun. 2018, 2, 1037–1050. [Google Scholar] [CrossRef] [PubMed]
  35. Trauner, M.; Gulamhusein, A.; Hameed, B.; Caldwell, S.; Shiffman, M.L.; Landis, C.; Eksteen, B.; Agarwal, K.; Muir, A.; Rushbrook, S.; et al. The Nonsteroidal Farnesoid X Receptor Agonist Cilofexor (GS-9674) Improves Markers of Cholestasis and Liver Injury in Patients With Primary Sclerosing Cholangitis. Hepatology 2019, 70, 788–801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Tully, D.C.; Rucker, P.V.; Chianelli, D.; Williams, J.; Vidal, A.; Alper, P.B.; Mutnick, D.; Bursulaya, B.; Schmeits, J.; Wu, X.; et al. Discovery of Tropifexor (LJN452), a Highly Potent Non-bile Acid FXR Agonist for the Treatment of Cholestatic Liver Diseases and Nonalcoholic Steatohepatitis (NASH). J. Med. Chem. 2017, 60, 9960–9973. [Google Scholar] [CrossRef] [PubMed]
  37. Hernandez, E.D.; Zheng, L.; Kim, Y.; Fang, B.; Liu, B.; Valdez, R.A.; Dietrich, W.F.; Rucker, P.V.; Chianelli, D.; Schmeits, J.; et al. Tropifexor-Mediated Abrogation of Steatohepatitis and Fibrosis Is Associated With the Antioxidative Gene Expression Profile in Rodents. Hepatol. Commun. 2019, 3, 1085–1097. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Badman, M.K.; Chen, J.; Desai, S.; Vaidya, S.; Neelakantham, S.; Zhang, J.; Gan, L.; Danis, K.; Laffitte, B.; Klickstein, L.B. Safety, Tolerability, Pharmacokinetics, and Pharmacodynamics of the Novel Non-Bile Acid FXR Agonist Tropifexor (LJN452) in Healthy Volunteers. Clin. Pharmacol. Drug. Dev. 2020, 9, 395–410. [Google Scholar] [CrossRef] [PubMed]
  39. Hirschfield, G.M.; Gershwin, M.E.; Strauss, R.; Mayo, M.J.; Levy, C.; Zou, B.; Johanns, J.; Nnane, I.P.; Dasgupta, B.; Li, K.; et al. PURIFI Study Group. Ustekinumab for patients with primary biliary cholangitis who have an inadequate response to ursodeoxycholic acid: A proof-of-concept study. Hepatology 2016, 64, 189–199. [Google Scholar] [CrossRef] [PubMed]
  40. Bowlus, C.L.; Yang, G.X.; Liu, C.H.; Johnson, C.R.; Dhaliwal, S.S.; Frank, D.; Levy, C.; Peters, M.G.; Vierling, J.M.; Gershwin, M.E. Therapeutic Trials of Biologics in Primary Biliary Cholangitis: An Open Label Study of Abatacept and Review of the Literature. J. Autoimmun. 2019, 101, 26–34. [Google Scholar] [CrossRef] [PubMed]
  41. Pellicciari, R.; Fiorucci, S.; Camaioni, E.; Clerici, C.; Costantino, G.; Maloney, P.R.; Morelli, A.; Parks, D.J.; Willson, T.M. 6alpha-ethyl-chenodeoxycholic acid (6-ECDCA), a potent and selective FXR agonist endowed with anticholestatic activity. J. Med. Chem. 2002, 45, 3569–3572. [Google Scholar] [CrossRef] [PubMed]
  42. Festa, C.; Renga, B.; D’Amore, C.; Sepe, V.; Finamore, C.; De Marino, S.; Carino, A.; Cipriani, S.; Monti, M.C.; Zampella, A.; et al. Exploitation of cholane scaffold for the discovery of potent and selective farnesoid X receptor (FXR) and G-protein coupled bile acid receptor 1 (GP-BAR1) ligands. J. Med. Chem. 2014, 57, 8477–8495. [Google Scholar] [CrossRef] [PubMed]
  43. Pellicciari, R.; Costantino, G.; Camaioni, E.; Sadeghpour, B.M.; Entrena, A.; Willson, T.M.; Fiorucci, S.; Clerici, C.; Gioiello, A. Bile acid derivatives as ligands of the farnesoid X receptor. Synthesis, evaluation, and structure-activity relationship of a series of body and side chain modified analogues of chenodeoxycholicacid. J. Med. Chem. 2004, 47, 4559–4569. [Google Scholar] [CrossRef] [PubMed]
  44. D’Amore, C.; Di Leva, F.S.; Sepe, V.; Renga, B.; Del Gaudio, C.; D’Auria, M.V.; Zampella, A.; Fiorucci, S.; Limongelli, V. Design, synthesis, and biological evaluation of potent dual agonists of nuclear and membrane bile acid receptors. J. Med. Chem. 2014, 57, 937–954. [Google Scholar] [CrossRef] [PubMed]
  45. Pellicciari, R.; Passeri, D.; De Franco, F.; Mostarda, S.; Filipponi, P.; Colliva, C.; Gadaleta, R.M.; Franco, P.; Carotti, A.; Macchiarulo, A.; et al. Discovery of 3α,7α,11β-Trihydroxy-6α-ethyl-5β-cholan-24-oic Acid (TC-100), a Novel Bile Acid as Potent and Highly Selective FXR Agonist for Enterohepatic Disorders. J. Med. Chem. 2016, 59, 9201–9214. [Google Scholar] [CrossRef] [PubMed]
  46. Pellicciari, R.; Gioiello, A.; Costantino, G.; Sadeghpour, B.M.; Rizzo, G.; Meyer, U.; Parks, D.J.; Entrena-Guadix, A.; Fiorucci, S. Back door modulation of the farnesoid X receptor: design, synthesis, and biological evaluation of a series of side chain modified chenodeoxycholic acid derivatives. J. Med. Chem. 2006, 49, 4208–4215. [Google Scholar] [CrossRef] [PubMed]

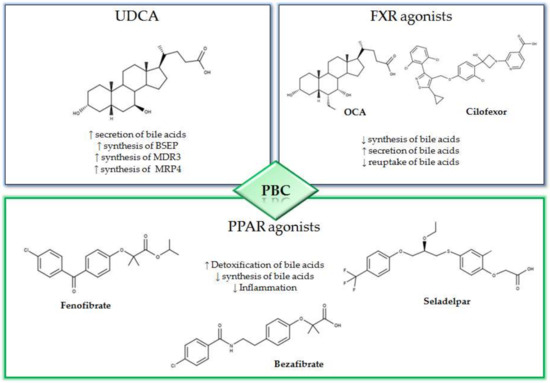

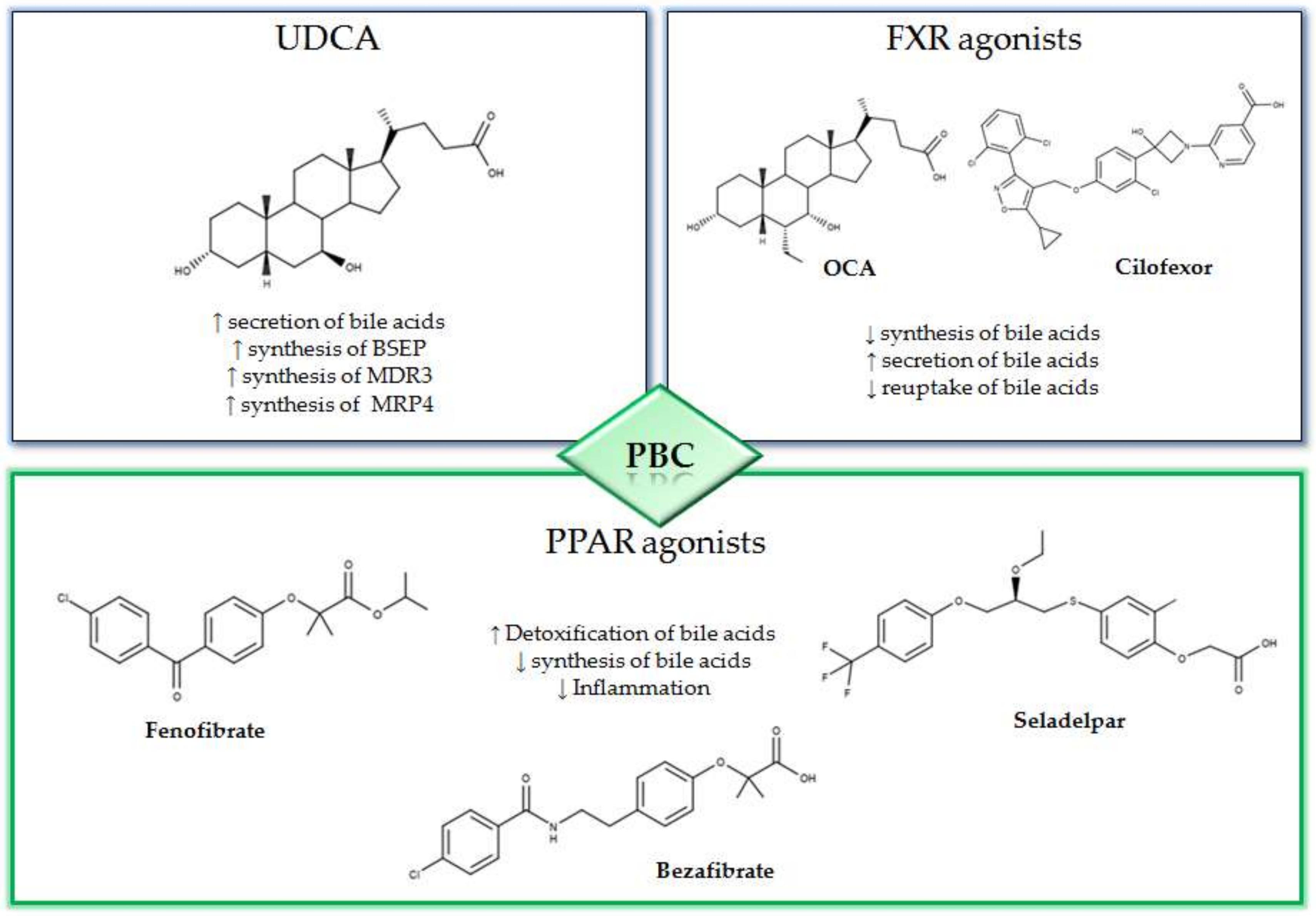

Figure 1. Mechanisms and 2D structures of Ursodeoxycholic acid (UDCA), Obeticholic acid (OCA), Cilofexor, Fenofibrate, Bezafibrate and Seladelpar.
Figure 1. Mechanisms and 2D structures of Ursodeoxycholic acid (UDCA), Obeticholic acid (OCA), Cilofexor, Fenofibrate, Bezafibrate and Seladelpar.
Diseases 08 00020 g001

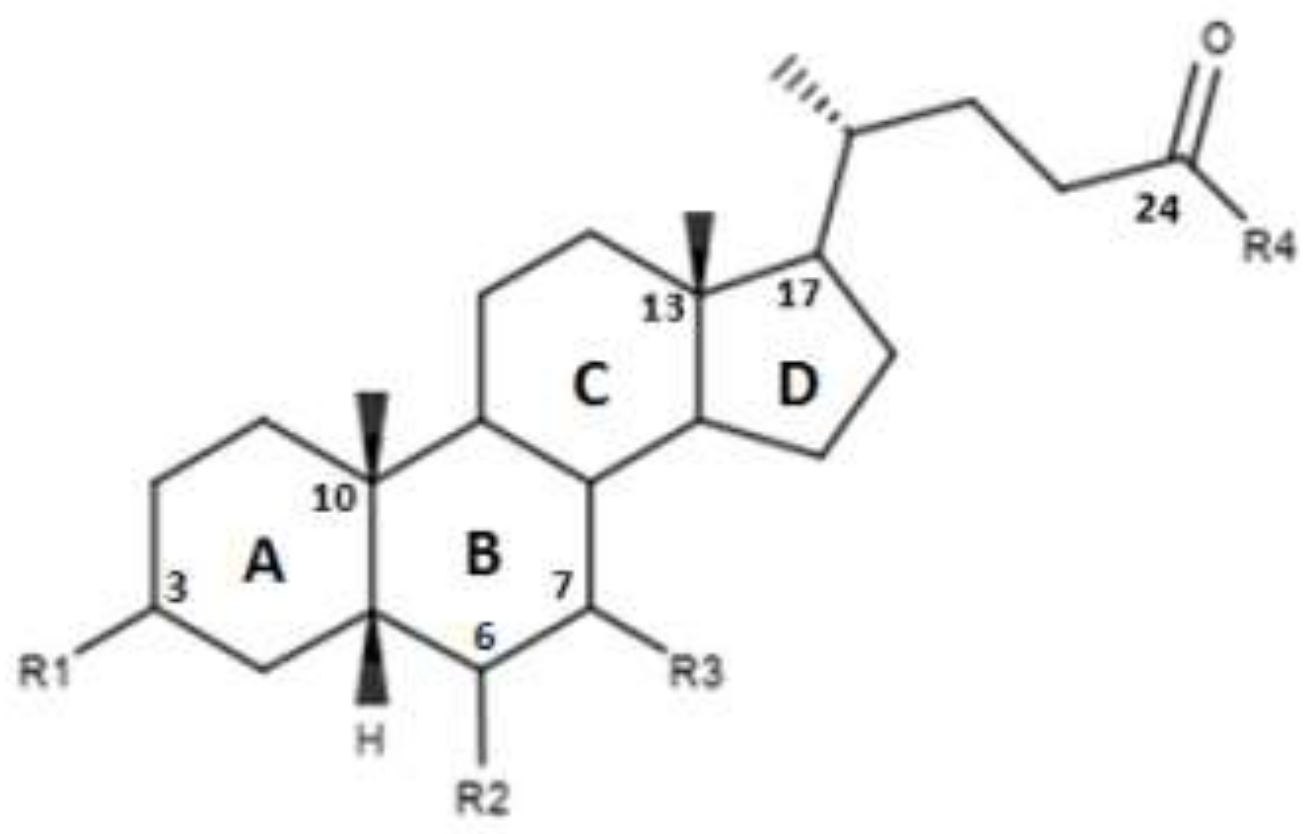

Figure 2. 2D image of the changes to bile acids scaffold reported in Table 1.
Figure 2. 2D image of the changes to bile acids scaffold reported in Table 1.
Diseases 08 00020 g002

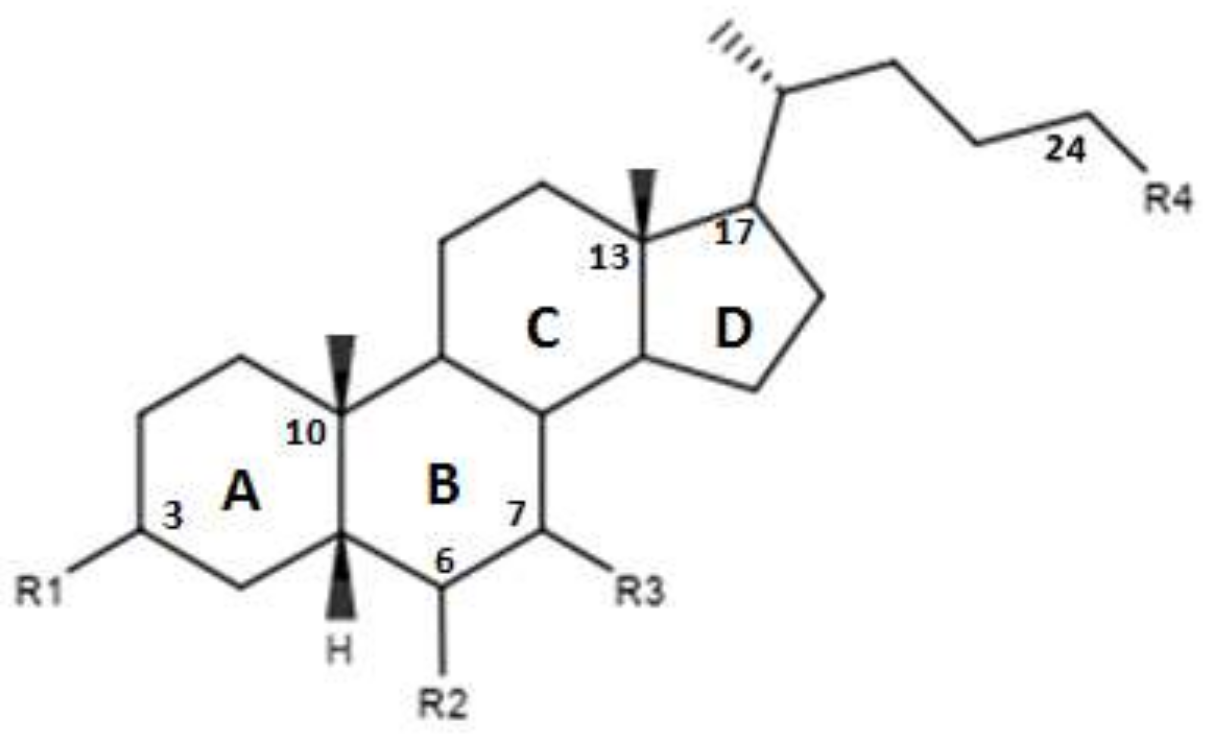

Figure 3. 2D image of the changes to bile acids scaffold reported in Table 2.
Figure 3. 2D image of the changes to bile acids scaffold reported in Table 2.
Diseases 08 00020 g003

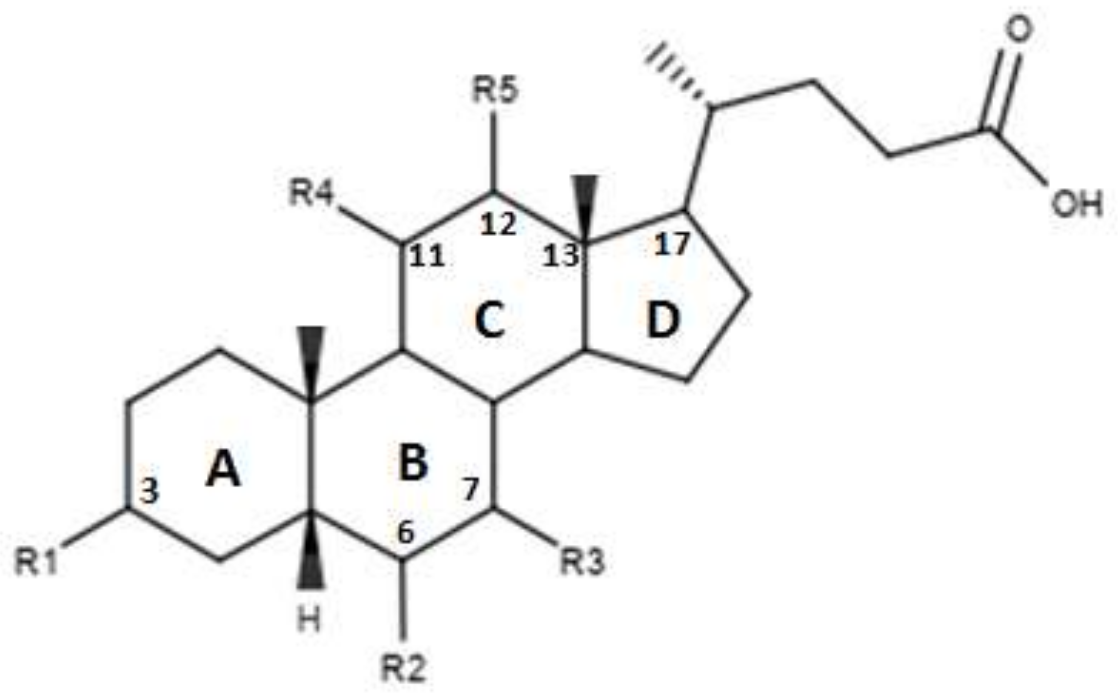

Figure 4. 2D image of the changes to bile acids scaffold reported in Table 3.
Figure 4. 2D image of the changes to bile acids scaffold reported in Table 3.
Diseases 08 00020 g004

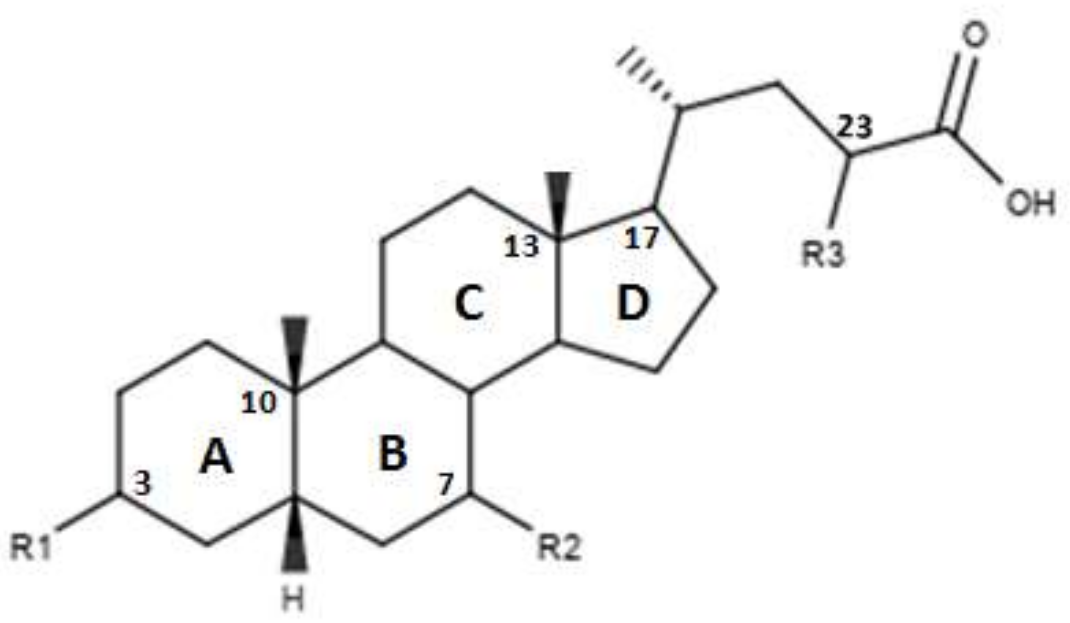

Figure 5. 2D image of the changes to bile acids scaffold reported in Table 4.
Figure 5. 2D image of the changes to bile acids scaffold reported in Table 4.
Diseases 08 00020 g005

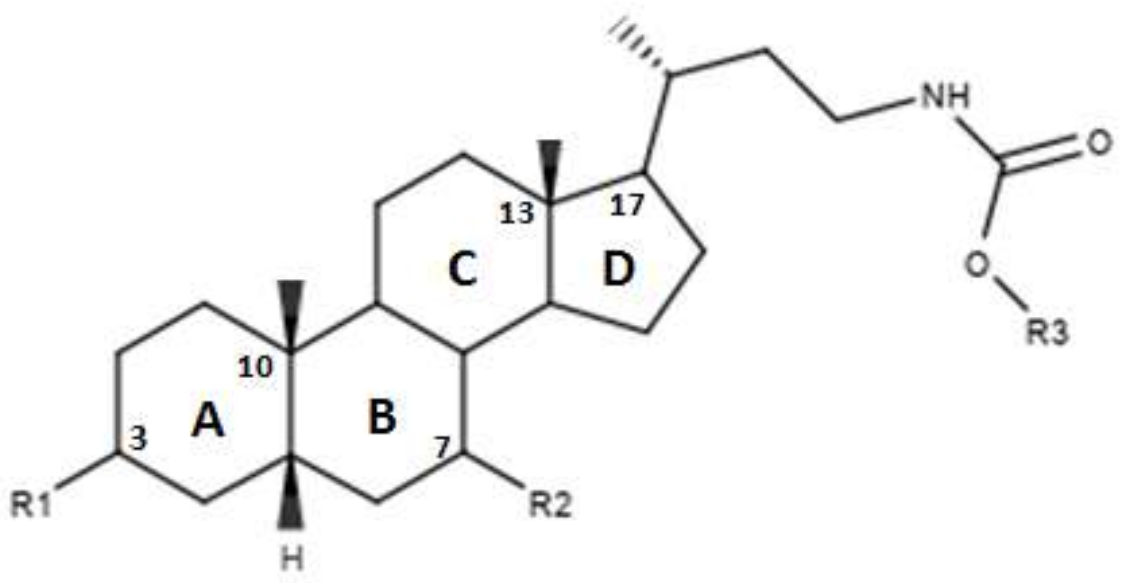

Figure 6. 2D image of the changes to bile acids scaffold reported in Table 5.
Figure 6. 2D image of the changes to bile acids scaffold reported in Table 5.
Diseases 08 00020 g006
Table 1. Modifications made on bile acids scaffold.
Table 1. Modifications made on bile acids scaffold.
CompoundsR1R2R3R4EC50 (µM)
OCAα-OHα-ethylα-OHOH0.099 ± 0.01
1α-OHα-methylα-OHOH0.75 ± 0.08
2α-OHα-propylα-OHOH1.11 ± 0.13
3α-OHα-butaneα-OHOH>30
4HHα-OHOH-
5HHα-OHNHCH2CH2SO3Na-
6HHβ-OHOH-
7HHβ-OHNHCH2CH2SO3Na-
8β-OHHα-OHOH-
9α-OH Diseases 08 00020 i001α-OHOH0.48
10α-OH Diseases 08 00020 i002α-OHOH61.15
11α-OH Diseases 08 00020 i003α-OHOH0.54
12α-OHα-OHα-OHOH>30
13α-OHα-OCH3α-OHOH14.73
14α-OHα-Fα-OHOH15.11
15α-OHβ-Fα-OHOH1.21
Table 2. Modifications made on bile acids scaffold.
Table 2. Modifications made on bile acids scaffold.
CompoundsR1R2R3R4Ec50 (µM)
16HHα-OHOH-
17HHα-OHOSO3Na~9
18HHα OSO3NaOSO3Na-
19HHβ-OHOH-
20HHβ-OHOSO3Na-
21HHβ-OSO3NaOSO3Na-
22HHHOH-
23HHHOSO3Na-
24α-OHHα-OHOSO3Na-
25α-OHα-ethylα-OHOSO3Na~1
26α-OSO3NaHα-OSO3NaOSO3Na-
27α-OSO3Naα-ethylα-OSO3NaOSO3Na-
28α-OHHβ-OHOSO3Na-
29α-OSO3NaHβ-OSO3NaOSO3Na-
30α-OSO3NaHβ-OHOSO3Na-
31α-OSO3NaHβ-OHOH-
Table 3. Modifications made on bile acids scaffold.
Table 3. Modifications made on bile acids scaffold.
CompoundsR1R2R3R4R5EC50 (µM)
TC-100α-OHα ethylα-OHβ-OHH0.14 ± 0.05
32α-OHα ethylα-OHα-OHH3 ± 2
33α-OHα ethylα-OHHβ-OH4.7 ± 3.0
34α-OHα ethylα-OHHα-OH7.0 ± 2.3
Table 4. Modifications made on bile acids scaffold.
Table 4. Modifications made on bile acids scaffold.
CompoundsR1R2R3EC50 (µM)
35α-OHα-OHβ-OH13.20
36α-OHα-OHα-OH10.23
Table 5. Modifications made on bile acids scaffold.
Table 5. Modifications made on bile acids scaffold.
CompoundsR1R2R3EC50 (µM)
37α OHα OH Diseases 08 00020 i0042.50
38α OHα OH Diseases 08 00020 i0051.14
39α OHα OH Diseases 08 00020 i0060.79
40α OHα OH Diseases 08 00020 i0071.48
41α OHα OH Diseases 08 00020 i0087.11
42α OHα OH Diseases 08 00020 i0090.41
