A Review on MIMO Wireless Signals over Fibre for Next Generation Fibre Wireless (FiWi) Broadband Networks

by , *, and
College of Computer Science and Information Systems, Najran University, Najran 61441, Saudi Arabia
*
Author to whom correspondence should be addressed.
Electronics 2020, 9(12), 2014; https://doi.org/10.3390/electronics9122014
Received: 2 October 2020 / Revised: 17 November 2020 / Accepted: 24 November 2020 / Published: 28 November 2020
(This article belongs to the Section Networks)

Abstract

:
Next-generation access/mobile networks have set high standards in terms of providing wireless services at high data rates in order to keep up with the vast demands for other mobility and multiple services. Wireless-optical broadband access network (WOBAN) technology, also known as fibre-wireless (FiWi), has uncovered incredible opportunities for the future of next-generation networks because it gets the best of both domains: huge bandwidth provided by the optical fibre and high ubiquity of the wireless domain. The objective of FiWi networks is to integrate the high data rate and long reach provided by optical networks and the ubiquity and mobility of wireless networks, with the target to decrease their expense and complexity. Multiple-input–multiple-output (MIMO) is an inevitable technique for most of the new mobile/wireless networks that are driven by the huge data rates required by today’s users. Consequently, to construct any FiWi system for next-generation (NG) access/broadband networks, an MIMO technique has to be considered. This article presents a comprehensive, contemporary review of the latest subsystems, architectures and integrated technologies of MIMO wireless signals backhauling using optical fibre or fibre access networks, such as passive optical networks (PONs). An overview for FiWi, PONs and MIMO wireless systems is provided. In addition, advanced techniques of accommodating the MIMO wireless signals over optical fibre are explained and compared. Different types of wireless MIMO signals over fibre, such as 5G, WiFi and related transport technologies, are reviewed. Moreover, future research trends are also discussed.

1. Introduction

With the increasing number of smartphones and their broadband demanded applications [1], there is a huge need for high bandwidth broadband infrastructure. Moreover, the rapidly growing demands on bandwidth and end users’ new data rates consuming applications such as YouTube, Netflix, peer-to-peer downloading and cloud computing, call for the combination of the fibre and wireless domains in a unified infrastructure. FiWi networks merge wireless networks with optical networks. The wireless networks have the availability, flexibility and coverage, while optical networks support transmission speeds and overcome distance limitations [2]. FiWi systems have started to draw in broad research enthusiasm as they offer great potential for tackling the issues of high-speed Internet access “over the last mile”. Specifically, FiWi systems with a passive optical network (PON) as the optical system have been seriously concentrated in the previous years as a PON can give high transmission bit rates for today’s bandwidth killing applications [2].
One of the best schemes to deliver the wireless signals over optical fibre is radio-over-fibre (RoF) [3]. The RoF technique has shown a promising solution for the future of mobile and access networks because of its seamless integration of the large capacity provided by the optical fibre and the flexibility, mobility and freedom of radio systems [4] and, as such, RoF has become an appealing answer for the high data rate demands and overall cost reduction of wireless systems [5].
MIMO is a foreseeable technique for most of the new mobile/wireless networks that are driven by the huge data rate required by today’s users [6]. The MIMO technique is intended to enhance transmission distance, data rate and reliability compared to the performance offered by a single-input single-output (SISO) system [7,8]. Consequently, in order to build any FiWi system to provide wireless connectivity for next generation (NG) broadband networks, the MIMO technique has to be considered [9].
In this paper, we present a comprehensive, contemporary review of the latest subsystems, architectures and integrated technologies of MIMO wireless signals backhauling using optical fibre or fibre access networks, such as passive optical networks (PONs). Section 2, Section 3 and Section 4 introduce PONs, FiWi and MIMO wireless systems, respectively, with the basic technologies and concepts enabling these systems and networks. Section 5 addresses more specific topics in wireless MIMO signals over fibre techniques. Section 6 focuses on more specific technologies for the transport of different types of wireless MIMO signals over fibre. Integrated technologies and backhauling of MIMO wireless signals over PONs are reviewed in Section 7, Section 8, suggests future work and, finally, the conclusion is presented in Section 9.

2. Introduction to PONs

Different types of multiplexing techniques are used when many users share a point-to-multipoint PON-based topology. There are four types of PONs, which can be classified based on the used multiplexing technique: time division multiplexing (TDM), optical code division multiplexing (OCDM), wavelength division multiplexing (WDM), and orthogonal frequency division multiplexing (OFDM). Of these various approaches, two of them are highly recommended to see broad future use, which are TDM-PON and WDM-PON techniques [10,11]. Moreover, Pure WDM-PON, OCDM-PON, or OFDM-PON techniques are not as standardised and studied as TDM-PON today [12]. In addition, other WDM schemes (based on OFDM or OCDM) do not offer advantages over the WDM/TDM hybrid PON [13]. Here, a brief overview is provided for these two types of multiplexing techniques (TDM and WDM) and then the hybrid techniques between them, because they are related to this paper.

2.1. TDM-PON

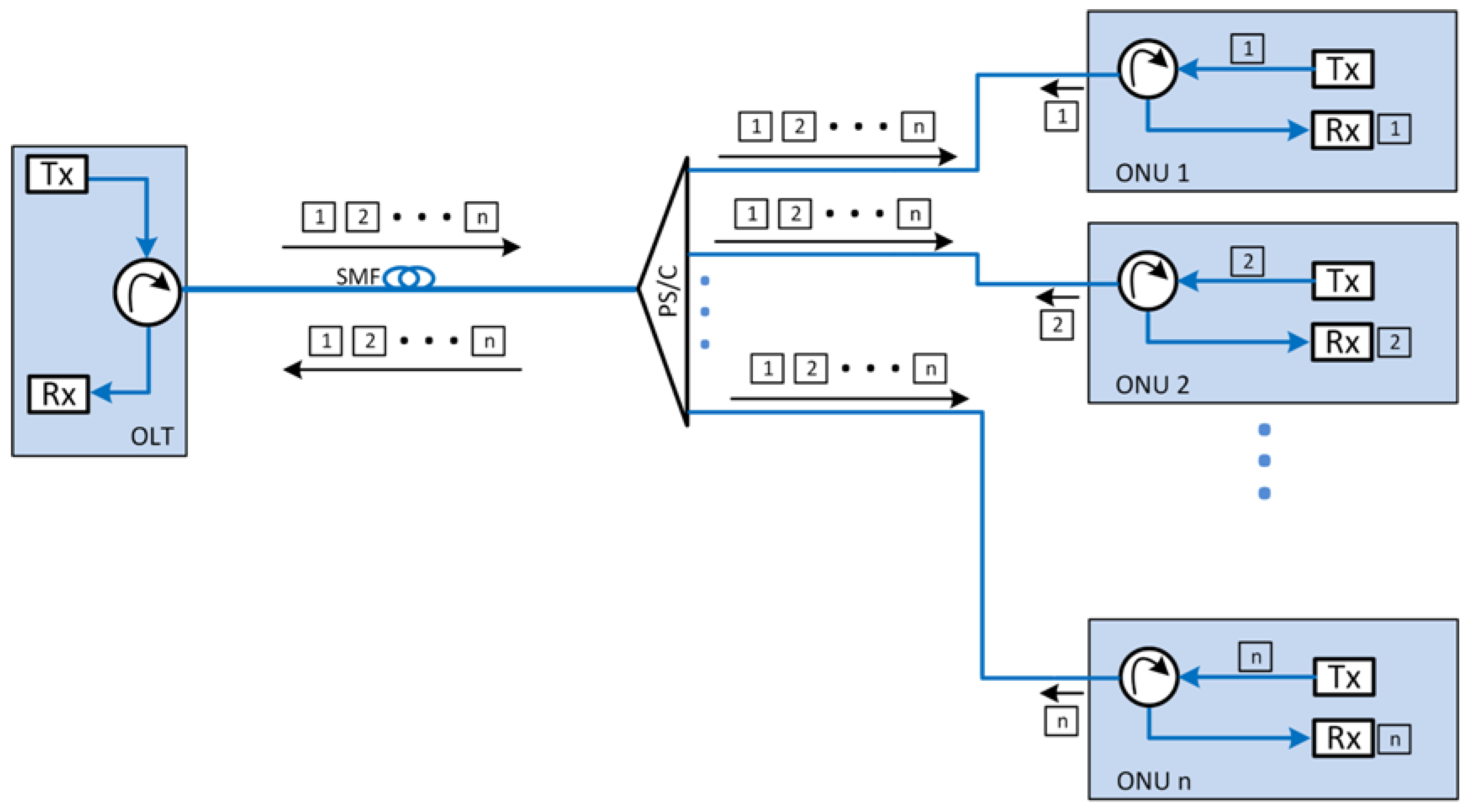

TDM-PON is a widely used PON technique and is beginning to see huge implementations in different places over the world. In TDM-PON, Optical Line Terminal (OLT) assigns time slots to Optical Network Unit (ONUs) according to their bandwidth demands, which allows centralised resource allocation. Each ONU utilises the full Upstream (US) bandwidth of optical networks within its period of the allocated time slot. The Downstream (DS) uses a broadcast and select scheme; that is, the DS data and video are broadcast to each user with media access control (MAC) addresses, and the user selects the data packet-based MAC addresses [14]. Figure 1 shows the operation of a TDM process. To attach the multiple ONUs to a single feeder fibre, a passive optical power splitter/combiner PS/C is used at the Remote Node (RN). Since the TDM-PON can service N = 32 or more subscribers, the overall allocated bandwidth to separate ONU is typically a small percent of the total data rate. In addition, current TDM-PON tree topology compromises its protection and restoration [15].

2.2. WDM-PON

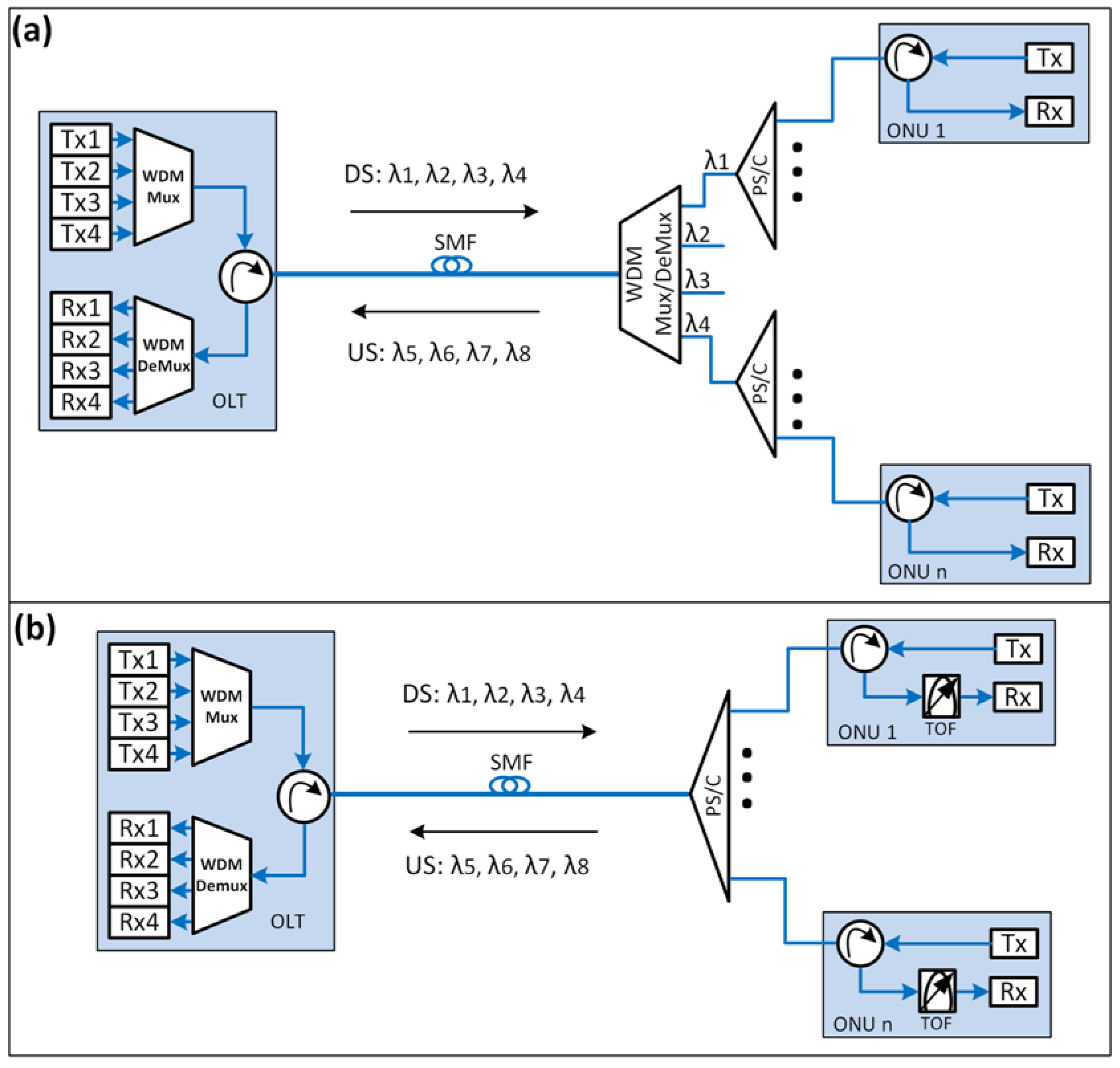

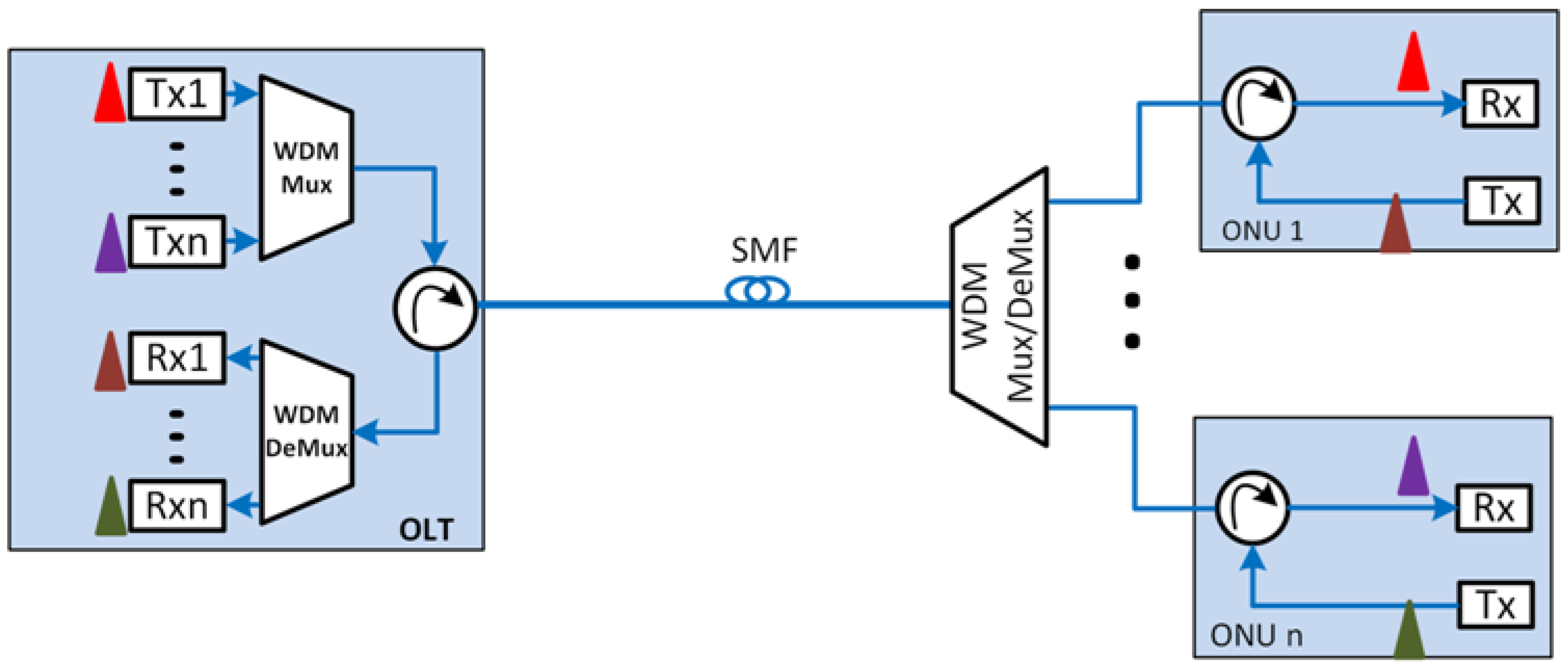

WDM-PON allows a virtual optical point-to-point transmission by assigning two wavelengths (for DS and US) to each ONU. The difference in the Optical Distribution Network (ODN) between WDM-PON and TDM-PON is changing the PS/C in a TDM-PON with an arrayed waveguide grating (AWG) or WDM multiplexer/demultiplexer (Mux/DeMux), as shown in Figure 2. WDM-PON has many advantages, such as scalability, very low optical power loss and protocol transparency [16,17]. In addition, it provides high data rate, long reach and excellent privacy since each user receives its own wavelength. However, it has high components costs compared to TDM-PON. Moreover, each user requires a dedicated transmitter and receiver in the OLT.

2.3. Hybrid WDM/TDM-PON

Lately, many solutions have been proposed and even developed to cope with the disadvantages of WDM-PONs and TDM-PONs by using hybridisation methods. The hybrid WDM/TDM-PON aims to obtain the better of the two options [18]. Embedding TDM-PONs within different wavelengths of a WDM-PON leads to a high density network that is able to offer connectivity to a large number of subscribers. Figure 3a shows an example for this hybrid technique (considering four wavelengths for each direction).
Since changing the ODN of the currently deployed TDM-PON is very costly, a solution which keeps the current ODN unchanged is highly desirable. Therefore, enabling the use of WDM should be realised using the same infrastructure [13]. Stacked TDM-PON, which is also called also broadcast-and-select WDM-PON, time and wavelength-division multiplexed PON (TWDM-PON) or multi-wavelength TDM-PON, is a most promising infrastructure for NG-PON. Figure 3b depicts the architecture of stacked TDM-PON, which is proposed as a solution for reusing the currently deployed (TDM-PON) ODNs. In the broadcast-and-select WDM-PON architecture, the wavelength filtering is not implemented as a typical WDM-PON on the RN. Instead, the filtering stage is moved to the ONUs where each ONU chooses its wavelength by a tunable optical filter. In the proposed solutions for this function are a liquid crystal tunable filter, angle-tuned FP filter and thermally tuned Fabry–Perot (FP), and filter injection-tuned silicon ring [19,20]. Moreover, the ONUs needs either a fixed-wavelength laser, a laser-array, or a tunable laser [12]. For NG-PON, TWDM-PON (stacked TDM-PON) is selected by the Full-Service Access Network (FSAN) group as the main solution [21].

3. Introduction to FiWi Systems

NG networks need huge data rates to deliver in a quadruple-play manner (broadband Internet access, television, telephone and wireless) for the increasing high data rate demands of video, gaming and, smartphones [22]. Thus, mobility and high data rates are essential requirements for NG access networks for satisfying the bandwidth greedy applications of today’s smartphones and other devices. RoF technology is considered to be one of the greatest reliable candidates for the future of broadband access networks, since it takes the best of the two worlds by integrating the huge bandwidth provided by the optical fibre and the high mobility of wireless communication [4].
Basically, two main transmission schemes are used to transport the wireless signals in the hybrid wireless optical systems: baseband over fibre (BBoF), and RoF schemes [23].

3.1. BBoF

The BBoF technique is implemented to deliver RF wireless signals as a baseband signal over fibre. After the baseband signal is transmitted over fibre, at the access point (AP) the baseband signal is modulated and decoded to the desired wireless signal, as depicted in Figure 4. In this technique, the sent DS signal is upconverted by direct modulation using an optical modulator and then propagated as a baseband signal over optical fibre. The AP receives the transmitted signal and performs direct detection using photodiode (PD), a low pass filter (LPF), and decoder. Therefore, the output of the PD is then modulated using the RF modem at the required carrier frequency f R F . In the other direction (upstream), the received wireless signal from the AP is converted to BB signal and sent back to the Central Office (CO). This technique has many advantages, such as chromatic dispersion effects reduction, and using well-known methods for signal processing at the AP. Further, there is no need for high bandwidth photodiode detectors at the AP [24,25]. However, this technique can be considered a complicated scheme compared to the RoF technique where no BB to radio signal conversion is required at the AP [25].

3.2. RoF

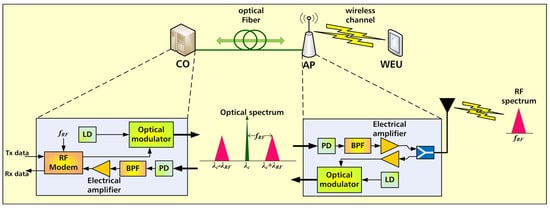

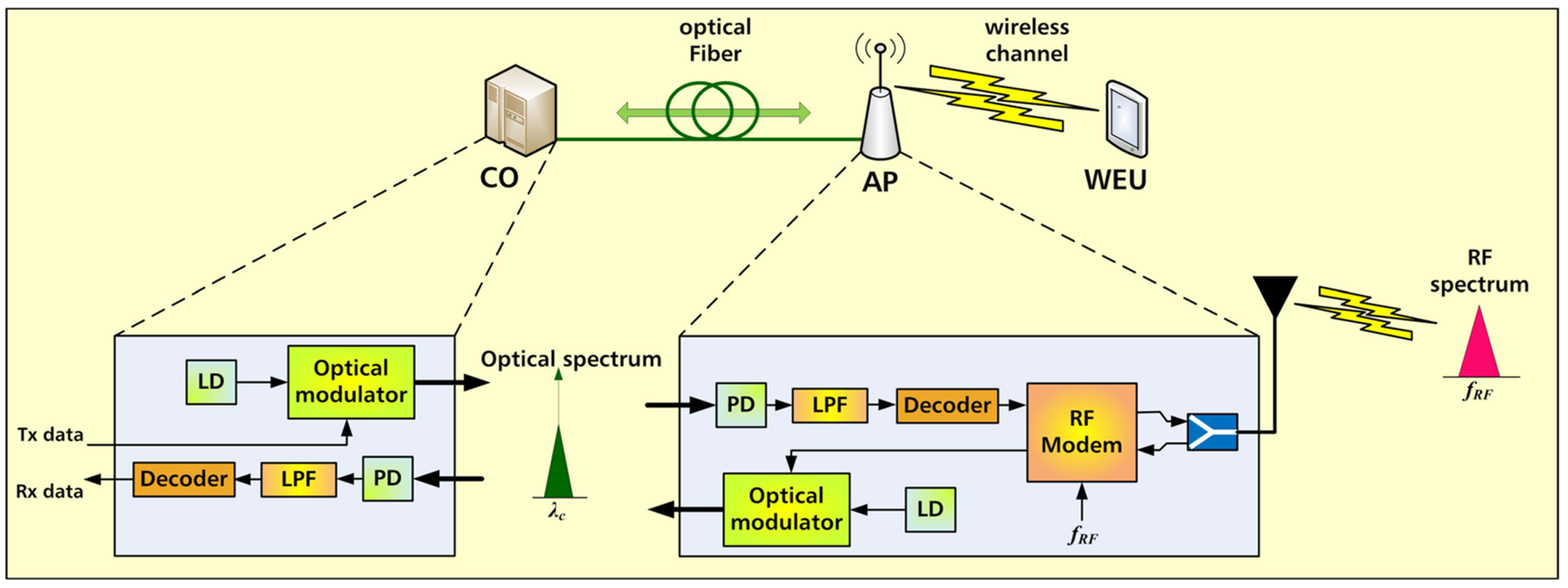

RoF technology distributes RF signals from a central location (CO) to remote antenna units (RAUs)/APs through an optical fibre link. Since the RF wireless signal is formatted into its last shape at the CO, this removes all the RF signal processing functions to a centralised shared location. In such way, the cost of the RAUs is greatly reduced, since the signal after the optical to electrical conversion is directly fed into the antenna, and other signal processing functions, for example, carrier modulation, frequency up-conversion and multiplexing are achieved in the CO. This cost reduction in the RAU has a great impact on the total cost, because the RAU is installed at each subscriber’s premises [26].
In this technique, the data meant to be transmitted are first modulated using the RF modem at the required RF carrier frequency f R F . Then the data that are mixed with the RF carrier frequency are upconverted using an optical modulator, which is driven by a laser diode (LD) at an optical carrier frequency ( λ c ) . An optical double sideband (ODSB) signal is generated at the CO, as shown in Figure 5. Just a single high-speed PD, trailed by a bandpass filter (BPF), is sufficient to regenerate the wireless signal directly. Then, amplification is performed on the wireless signal and then send to the wireless end user (WEU) through the wireless medium. The RF signal optical modulation is not necessary to be an ODSB. Currently, there are three dissimilar modulation schemes existing for generation and distribution of RF signals over a fibre link using an external modulator: ODSB, optical single sideband with carrier (OSSB+C), and optical carrier suppression (OCS) technique [25,26,27,28,29].
The main two types of RoF transmission are: analogue digital RoF (DRoF) and digital RoF (DRoF) [30]. The major disadvantage of using ARoF is it gets nonlinear effects such as distortion caused by an optical transmitter. On the other hand, when it comes to nonlinearity, DRoF transmission is very robust [31]. Since the distortion requirements in the mobile standards are tougher than the wireless standards, DRoF is the preferred choice. DRoF formats are used extensively in 5G, such as the common public radio interface (CPRI) [32]. In a DRoF system, the radio frequency signal is converted to a digital signal using an analogue-to-digital converter. The generated digital signal is modulated with the required optical wavelength using a direct modulation done by an optical modulator such as the Mach–Zehnder modulator (MZM) [33].

4. Introduction to MIMO Wireless Systems

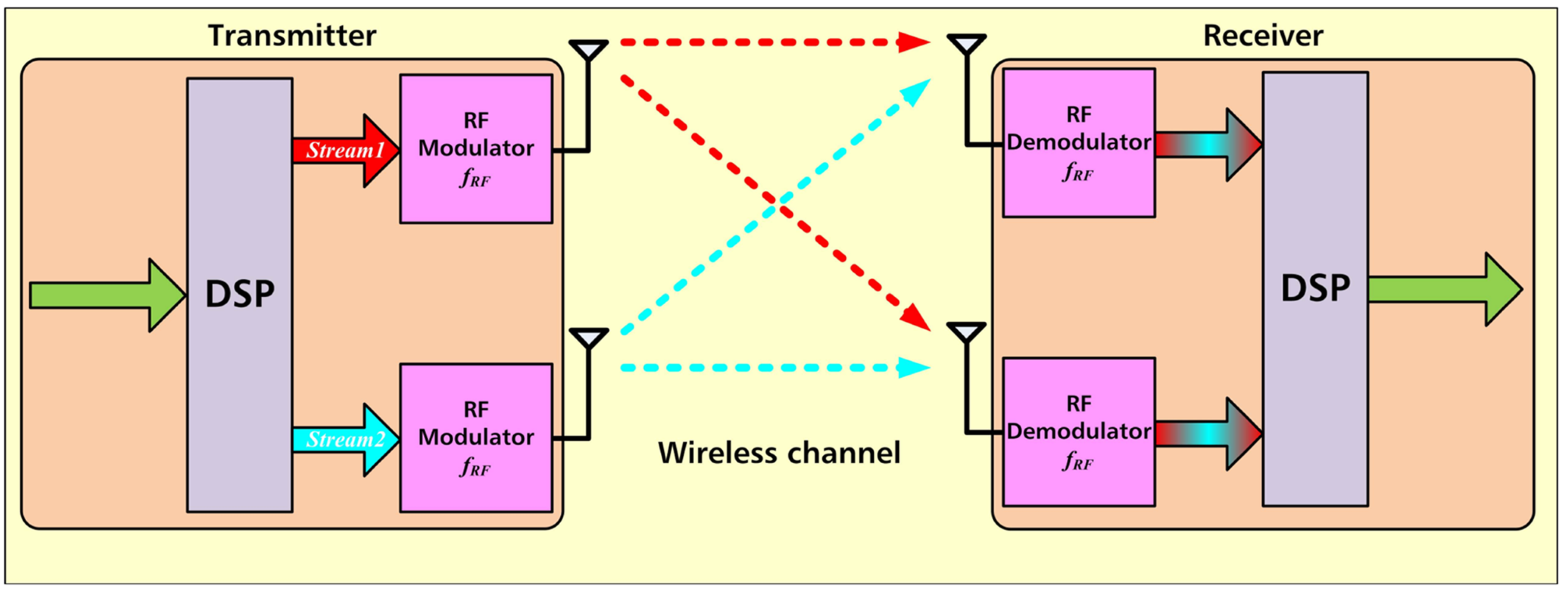

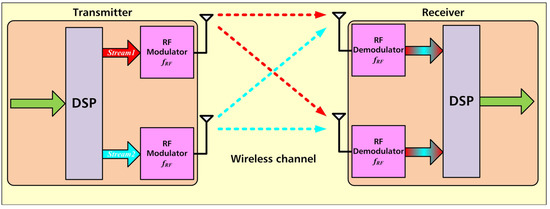

MIMO technology has been exploited and considered as the finest way to solve the bottleneck of traffic capacity in future wireless networks [34]. Moreover, MIMO constitutes a breakthrough in the design of wireless communication systems, and is already at the core of many existing and emerging wireless standards [35]. MIMO transmission is very significant in 4G and future 5G/6G networks, as it raises the capacity for end users [36].
The MIMO system enhances the traditional SISO system by many factors, such as improved transmission range, reliability and delivery of higher data rate [7]. Figure 6 shows the MIMO wireless communication system and how this system works. The MIMO technique takes advantage of a multipath wireless channel to enhance data rate, range and reduce the interference [37]. Therefore, the MIMO system can use multiple MTx transmit antennas at the transmitter side to propagate multiple parallel wireless signals along the wireless channel to multiple MRx receive antennas at the receiver side. The MIMO system usually is distinguished by an M T x × M R x MIMO system, such as the 2 × 2 MIMO system in Figure 6. There are two types of multiple antenna techniques: spatial multiplexing technique and diversity technique [38].

5. Wireless MIMO Signals over Fibre Techniques

This section addresses the challenges of manipulating different MIMO wireless signals with the same carrier frequency to fit in the same optical wavelength. The main problem in sending MIMO signals that have similar carrier frequency over a single optical wavelength directly is that they overlap in the frequency domain. There are several solutions that are proposed to solve this problem, which are discussed and compared in this section. On the other hand, in the case of sending the MIMO wireless signals in different wavelengths, there is the challenge of how to make good utilisation of the unlimited wavelength capacity and not waste it on a single MIMO stream. This challenge is also addressed by many researchers, which are discussed here. In addition, the techniques of sending MIMO signals as BBoF and its advantages and disadvantages are also presented in this section. In the next section (Section 6), the focus will be on sending different types of MIMO wireless signals over fibre.

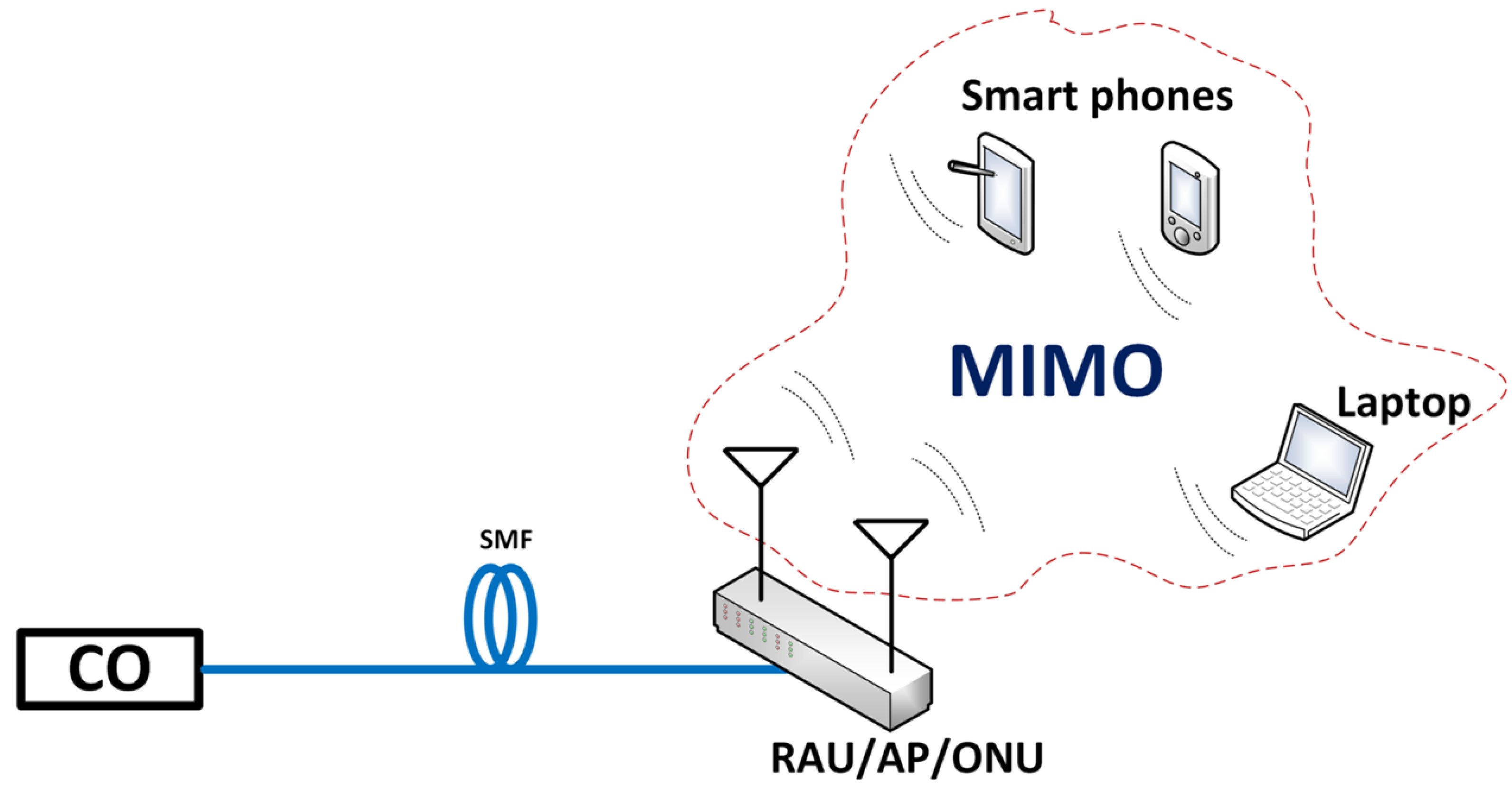

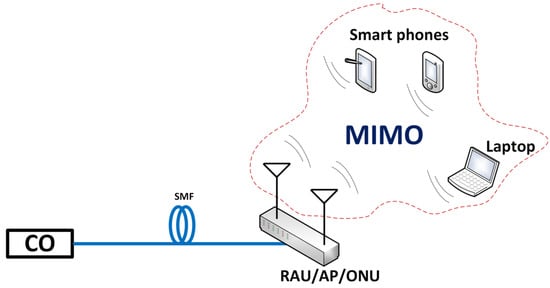

Figure 7 shows the concept of sending MIMO signals over fibre. Depending on the configuration type, we can define the user interface with the MIMO transmission unit as AP/RAU or ONU. If the transmitted MIMO wireless signals are sent as BBoF, we can call the MIMO transmission unit an ONU. When the transmitted MIMO wireless signals are sent as RoF we can call the MIMO transmission unit RAU or AP.
Sending the MIMO wireless signals as BBoF is a very simple scheme for transmitting MIMO signals over fibre, as proposed in [39]. However, it is not cost-effective, since the ONU has to be associated with a wireless modem to transfer the baseband signal to its final MIMO wireless format before the wireless transmission. Therefore, it is more appealing and less expensive to deploy RoF for the transmission of MIMO wireless signals over fibre [40,41,42,43,44,45]. Moreover, analogue signal transmission leads to simpler RAUs and the analogue signals generally obtain less bandwidth than their baseband equivalents [43]. Moreover, all the advantages of the RoF scheme will be gained, such as simple configuration and no frequency up-conversion is needed at the RAU.
In the case of sending the MIMO wireless signals (spatial multiplexed) over fibre as RoF signals, the main problem in sending MIMO signals that have similar carrier frequency over a single optical wavelength directly is that they overlap in the frequency domain. There are several solutions that are proposed to solve this problem, such as using WDM [42,46]. However, it adds more cost, since, for each MIMO wireless signal, an optical source and photodetector is mandatory.
In [42], a 4 × 4 MIMO-RoF system is proposed for NG wireless-communication systems. To handle the MIMO signals over a single optical fibre, nine-channel coarse wavelength-division-multiplexed (CWDM) optical channels are utilised: one for link delay measurement and signal transmission control, four for downlink, and the others for uplink. This means that each MIMO stream needs a separate wavelength widely separated from the adjacent wavelength since CWDM is used. This will limit the number of users, especially if the system is used in a PON environment. The same drawback (cost) is associated with subcarrier multiplexing (SCM), in addition to its low data rate [47]. Transmission of multiple wireless MIMO signals over an optical fibre is proposed and explained using an electrical single sideband frequency-translation (ESSB-FT) technique [48]. In this approach, local oscillators at the transmitting and receiving ends are required, which is a drawback. In [49], transmission of two wireless MIMO signals with similar carrier frequency over fibre using an optical single sideband frequency-translation (OSSB-FT) technique has been proposed and demonstrated. The major disadvantage of this approach is using one wavelength for each sent MIMO stream. This consumes the optical spectrum domain, which limits the total number of users. For example, in the case of 4 × 4 MIMO, each RAU will need four wavelengths. In [40,50], polarisation division multiplexing (PDM) is implemented to carry each MIMO stream at a different polarisation of similar wavelength taking advantage of the wavelength’s two polarisations, as shown in Figure 8a. However, this method limits the number of MIMO streams per wavelength to only two. Among these methods, the most used and proven to be successful are: PDM [6,40,50,51,52,53,54,55,56,57,58,59,60], using comb techniques to generate multiple wavelengths [49,61,62,63,64] and also hybrid method between them as shown in Figure 8c [6]. It takes benefit from the optical frequency comb techniques and high bandwidth optical modulators (up to 100 GHz) as shown in Figure 8b [64,65,66,67], and multiple widely separated wavelengths can be produced from one continuous-wave (CW) laser. Figure 8 illustrates these three methods of transmission of wireless MIMO signals over fibre.

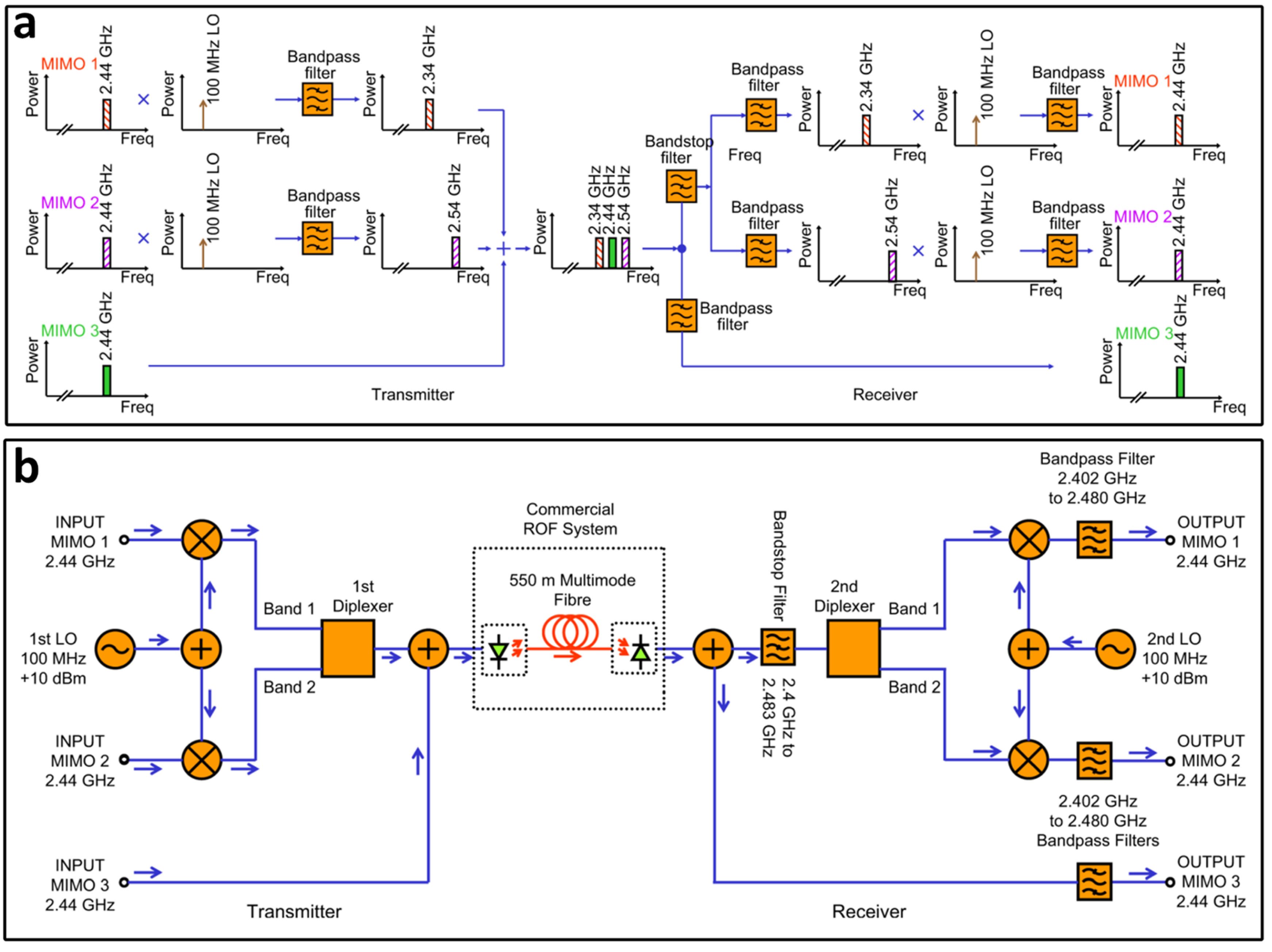

Sending MIMO signals with different frequencies (MIMO diversity technique) over fibre as RoF is easy since there is no overlap in the frequency domain. However, sending MIMO signals with the same frequency (MIMO spatial technique) over fibre as RoF is not straightforward. The problem with sending MIMO signals that have similar frequency over a single optical wavelength directly is that they overlap in the frequency domain. A diversity technique can be implemented with a stable antenna transmission technique, such as space diversity [68,69] as explained earlier. Also, the diversity technique can be implemented optically by using optical delay before the wireless transmission. For example, in [62], one of the optical signals was delayed using an additional 6 km single-mode fibre to be de-correlated with the other. In [70], the two techniques have been extensively compared for MIMO-RoF systems and it was found that, in a wireless or optical channel, the technique of spatial multiplexing is less reliable in terms of BER, which means doubling the data rate using spatial multiplexed MIMO-RoF signals will come with a cost of increasing the BER and high reception power will also be required to perform, compared with the diversity technique [70]. In can be considered that, in future implementation, a hybrid technique will be used to realise the advantages of the two techniques in the same MIMO-RoF system. In such case, the reception of the signal and separation will be a challenge in the digital signal processing (DSP) domain since it has been degraded during the optical and wireless transmission.
Table 1 summarises some of the previously proposed approaches to handle wireless MIMO signals over fibre and their disadvantages and advantages.

6. Different Types of MIMO Wireless Signals over Fibre

The previous section presents the insertion techniques of MIMO signals inside the optical fibre regardless of the wireless signal type. This section focuses on different types of MIMO wireless signals over fibre. Since each wireless signal type has its own characteristics, each type will exhibit different behaviour when it is sent over fibre.

6.1. WiFi MIMO Signals over Fibre

WiFi based on IEEE 802.11 standards has grown widely over the most recent 15 years for local area networks (WLANs). The ubiquity of 802.11-based WLAN is because of ease of installation, speed and low cost [23]. All the new WiFi standards support the use of the MIMO technique, for example, the latest WiFi standard (IEEE 802.11ax) supports the use of up to eight MIMO streams.
In [45,63,72], comb techniques are used to generate separated wavelengths instead of requiring several optical sources (such as the one shown in Figure 8b to carry the WiFi MIMO signals). For example, in [45], multiple wavelengths are produced using a microring resonator (MRR) system. Then, each wavelength is used to carry IEEE802.11n MIMO signal. RF power degradation because of the fibre dispersion can be overcome by implementation of the OSSB modulation technique. In this scheme, the transmission of MIMO RF signals is feasible for up to a 50 km single Mode Fibre (SMF) path length and a wireless distance of 15 m.
In [48], the ESSB-FT technique is used to shift the frequency of each IEEE802.11n MIMO signal at the transmitter side to a different frequency and to shift them again at the receiver side to the same frequency before the wireless transmission. In such way, the MIMO signals can be combined electrically and modulated directly into the optical fibre, as presented in Figure 9b. The principle of this method is also shown in Figure 9a.

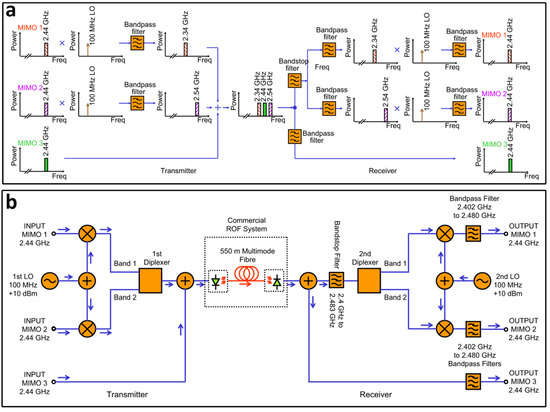

The use of 3 × 3 MIMO wireless signals (IEEE 802.11 n/ac) over a single MMF is proposed in [73]. The three main advantages of the proposed system are: using commercial IEEE 802.11 n/ac APs, using MMF instead of SMF (with comparable performance), and it may encounter tight MMF bending conditions. However, each MIMO signal will need a dictated laser diode (LD) and photodiode (PD). Table 2 summarises some of the previously proposed approaches to handle WiFi MIMO signals over fibre.

6.2. UWB MIMO Signals over Fibre

Ultrawide band (UWB) technology has grown quickly in the previous decade due to its remarkable advantages, for example, transmitting high data rates at low power consumption [74].

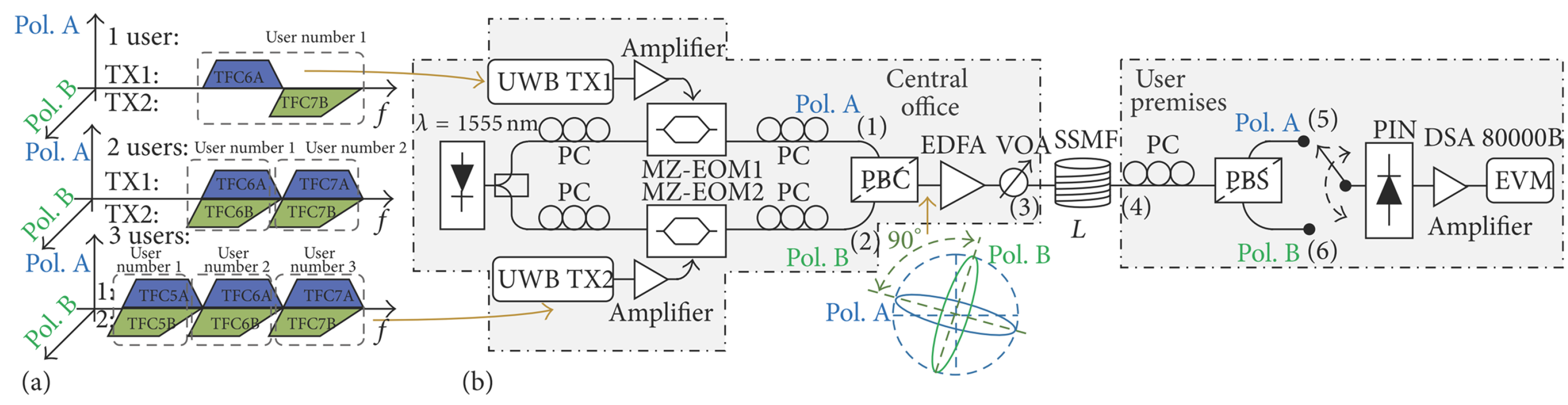

Experimental representation of transmitting OFDM signals following ECMA-368 UWB standard in RoF system is reported [75] as shown in Figure 10 Combining PDM and OFDM modulation allows maximising the optical transmission capacity. Successful MIMO-RoF transmission of multiuser OFDM-UWB over 25 km SMF reach is demonstrated. However, due to the fact that the transmitted UWB covers a wide range of frequencies (occupying large bandwidth), frequency selectivity causes inter-symbol interference [76]. Further research will be needed to overcome this issue in the UWB MIMO signals over fibre transmission. Table 3 summarises some of the previously proposed approaches to handle UWB MIMO signals over fibre.

6.3. LTE MIMO Signals over Fibre

Long-term evolution (LTE) standards need to rethink mobile radio access networks with packet switching to address the demands for high data rate and low delay [77].
Successful long-reach optical transmission of LTE-Advanced (LTE-A) signals using 2 × 2 MIMO spatial diversity is experimentally demonstrated in [51]. The LTE-A MIMO signals are combined optically using PDM technique. Transmission of five LTE-A transmits over 25 km, three LTE-A carriers over 75 km and an LTE-A carrier over 100 km of standard single mode fibre to deliver pervasive MIMO wireless service to many users is demonstrated, as shown in Figure 11. For long-reach transmission (longer than 35 km), EDFA is needed, as shown in Figure 11.
Another LTE-A system is proposed in [78], which can support up to 4 × 4 MIMO LTE-A spatially multiplexed signals on Multicore Fibre (MCF). However, four Mach–Zehnder (MZ) electro-optical modulators are needed in the transmission side and four optical detectors are needed in the reception side, which will increase the overall cost of the proposed system. The main advantage is the system’s ability to provide more MIMO signals in similar or dissimilar frequency bands employing the proposed radio-over-multicore fibre, which makes the system a good candidate for massive MIMO implementations. A demonstration of 2 × 2 MIMO LTE signals transmission of fibre is presented in [79]. It is suitable for short distance and indoor transmission, since multi-mode fibre (MMF) is used. The main advantage of this system is the combination of the LTE signal with IEEE 802.11g signal, which makes the system a good option for supporting multiple services in indoor environments. Table 4 summarises some of the previously proposed approaches to handle LTE MIMO signals over fibre.

6.4. MMW MIMO Signals over Fibre

Millimetre-wave (MMW) frequencies have many advantages and applications, such as outdoor point-to-point backhauling or high speed indoor wireless demanding applications, such as 4K streaming [80].

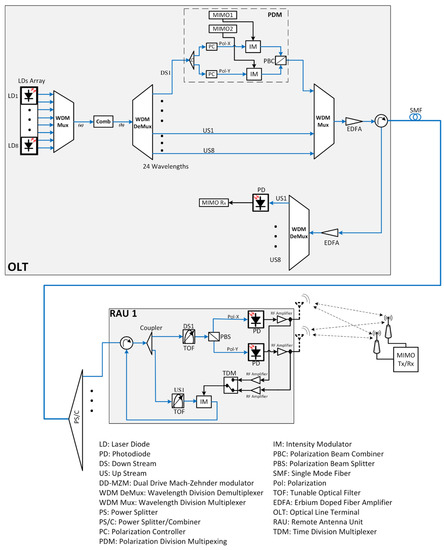

In [34,54,58], the MMW MIMO signals are multiplexed using PDM technique. In [34], a 48 Gb/s PDM-QPSK RoF system over 2 × 2 MIMO wireless transmission is demonstrated. The baseband PDM-QPSK signal is up-converted to 40 GHz mm-wave and broadcasted through the 2 × 2 MIMO wireless system. The transmission distance is 400 km fibre link and 1m wireless link and the PDM method is deployed to combine the two MIMO signals. Every single polarisation component and a heterodyne carrier frequency optical source with 0.32 nm wavelength spacing are joined and detected at the PD for up-conversion to 40 GHz MMW. However, performing the up-conversion in the RAU optically will add additional cost, since an optical source will be required in the RAU for this purpose.

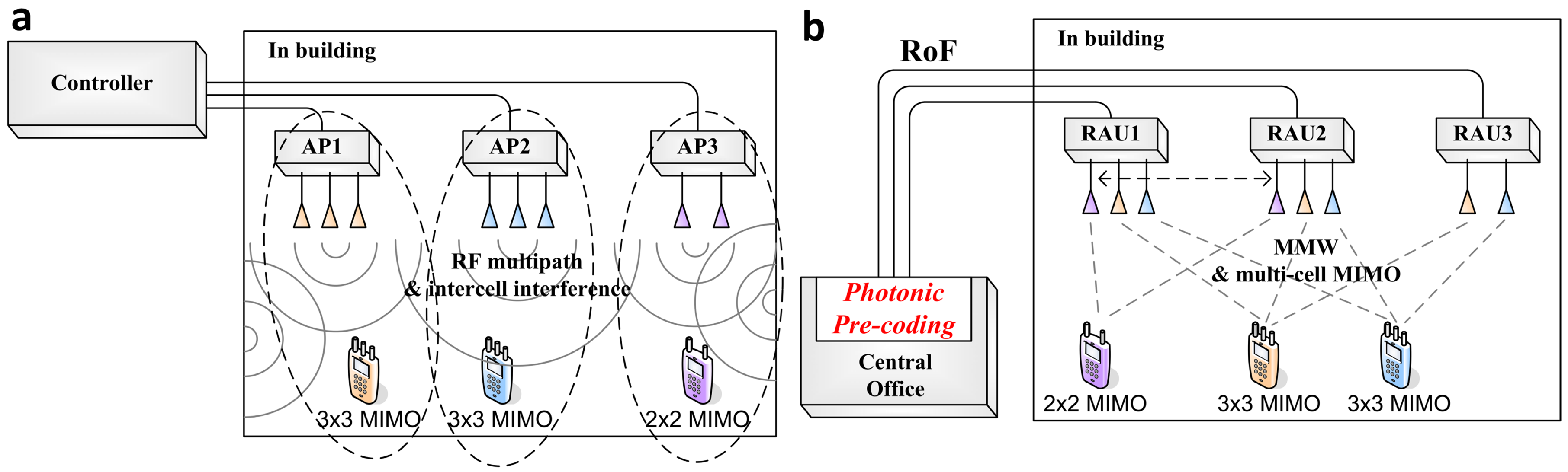

The centralised photonic precoding technique for MMW multicell MIMO wireless communications is proposed [81]. Through applying the multicell MIMO and later exploiting the spatial multiplexing gain over MMW, the system capacity is improved compared with the conventional SISO system. By using this technique, the diversity gain is increased using multicell MIMO to deliver desired transmitter antenna spacing, as shown in Figure 12. However, in the CO, each MIMO stream requires an LD at different wavelengths. Also, EDFAs are required for each MIMO-RoF signal amplification.
RoF downlink design for spatial modulation and multi-set space-time shift-keying (MS-STSK) with optical up-conversion to an MMW carrier frequency is proposed in [82]. The proposed system leverages the advantages of MS-STSK, optical up-conversion and beamforming. No electronic oscillators, mixers, phase shifters or ADC-and-DAC are needed and a bit rate of 10 Gbps and 10 km is achieved. Table 5 summarises some of the previously proposed approaches to handle MMW MIMO signals over fibre.

6.5. Terahertz MIMO Signals over Fibre

The forecasted demand for wireless data rates has been driving the research progress of terahertz (THz) technologies at an accelerating pace from both the device and the system level. Researchers have recently been seeking the use of THz waves in which the frequency is over 100 GHz for ultrahigh-speed wireless links [83,84].
In [85], hybrid THz photonic-wireless transmission based on a THz orthogonal polarisation dual-antenna scheme that features high data rate MIMO streams is proposed. The drawback of the proposed system is its low MIMO order, which is 2 × 1 . The high data rate is achieved due to the use of optical PDM besides a high-order modulation of 64-QAM. Moreover, combining the 64-QAM with OFDM gave the system a high spectral efficiency of 4.445 bit/s/Hz.
A 2 × 2 MIMO wireless transmission system at THz-band is proposed in [86]. The proposed system takes advantage of PDM as in [85], but it realises a 2 × 2 MIMO wireless transmission. In this system, a 6 × 20 -Gb/s six-channel PDM-QPSK THz-wave signal can be delivered over a 10-km SMF link and 142-cm wireless 2 × 2 MIMO link.

6.6. Optical MIMO Signals over Fibre

Instead of using RF-MIMO signals, optical-MIMO signals can be used for the wireless transmission, such as free-space optics (FSO) and infrared (IR) light. Optical wireless communication (OWC) systems depend on optical radiations to transmit information with wavelengths ranging from infrared to ultraviolet [87].
FSO has many advantages and among these are the lower costs related with the system, no RF license is required and the ability to exploit the massive potential bandwidth of OWC [88,89]. Using the MIMO technique in these types of systems has revealed great potential to improve the system performance [90,91].
An effective indoor optical wireless system is proposed in [90] using space-time block (STB) MIMO coding techniques coherently to provide gigabit level of indoor broadband communication. A straightforward extension of the SISO is proposed to provide a 2 × 2 optical IR MIMO system. It is discovered that coherent IR optical systems take benefit of the diversity gain offered by STB MIMO coding methods.

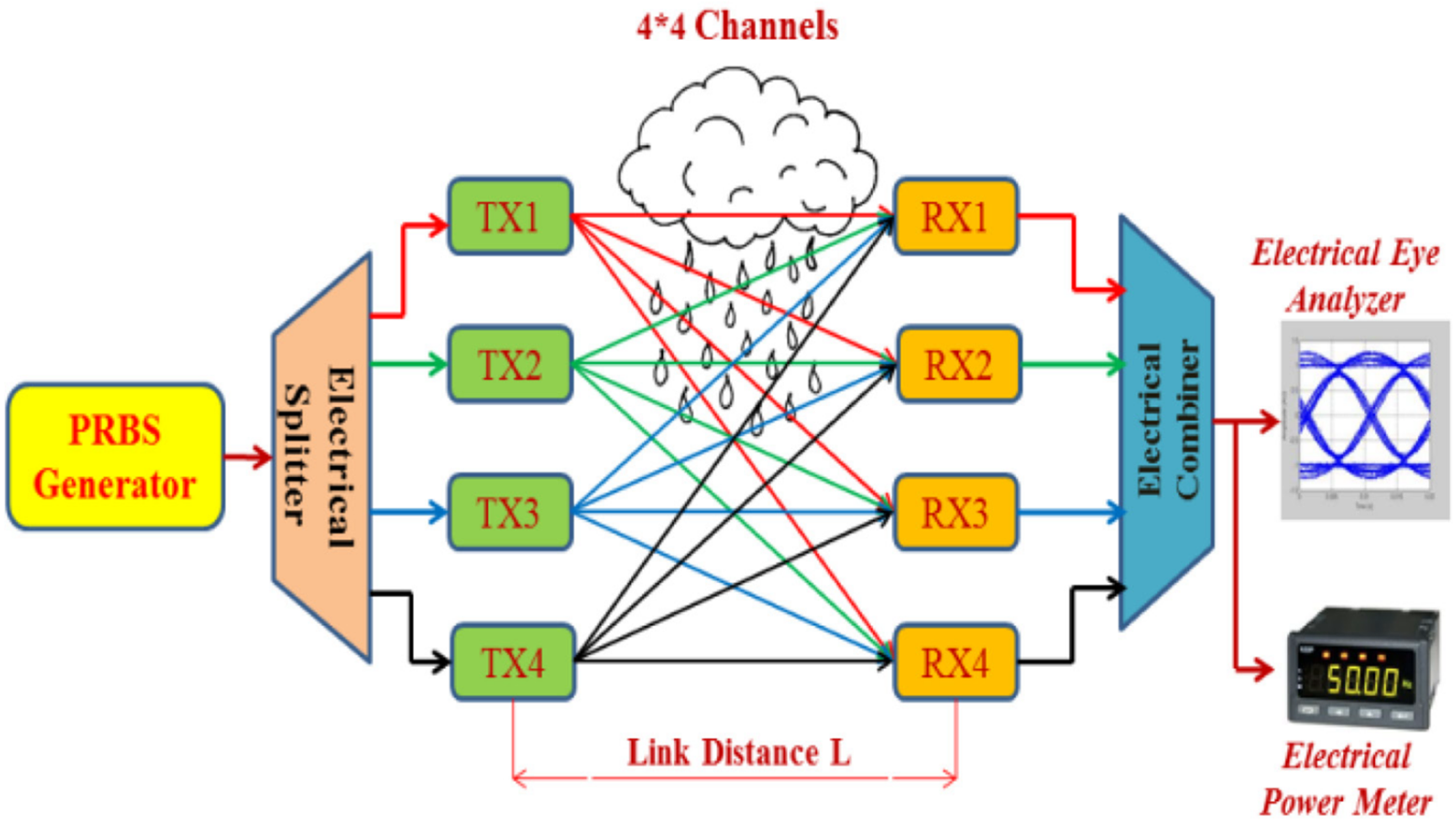

FSO systems gain the advantages of MIMO technique by the use of multibeam. In the FSO multibeam system, the same signal is sent from different LDs all using the same wavelength, as shown in Figure 13. In [92], the evaluation of the conventional 1-beam FSO system and 4-beam FSO (Figure 13) system are compared under heavy rain events from the point of view of BER versus link distance L, and SNR. Figure 14 illustrates the relationship among BER and reached distance when the BER is 10 9 , when multiple transceivers are used. Clearly, the various FSO transceivers framework gives a major improvement in reached distance and data rate [93].

6.7. 5G MIMO Signals over Fibre

It is observed that 5G network technology would enable 20 Gb/s peak rate per cell and 1000 times data traffic compared to the existing 4G LTE [94]. 5G systems can support MIMO technology, enhancing the spectral efficiency and satisfying the high data rate requirements for today’s mobile devices [67]. Moreover, the RoF is the qualifying technology for the future 5G cellular networks [95,96], which can be used in combination with the MIMO technology.
A unique 5G architecture for the backhaul of 5G MIMO signals over an optical network that is based on UDWDM is proposed in [67]. A big number of OLTs is unified through a ring architecture permitting them to communicate, exchange information and deliver access to ultra-dense mm-wave networks, as shown in Figure 15. One of the main advantages of this system is the use of a comb generator to generate multiple wavelengths from a single laser source. However, multiple LDs and PDs are still needed in the ONU. In addition, the wireless transmission in only over 2.2 m. The extreme bit rate is equal to 4.8 Gbit/s over a bandwidth of 1.96 GHz.
An analogue indoor dispersed antenna system (DAS) for 5G mobile communications, which supports 4 × 4 MIMO, is demonstrated in [94]. The maximum bit rate is identical to 5.3 Gbit/s. CWDM is utilised in order to multiplex the different 5G MIMO signals, which means each MIMO stream needs a separate wavelength widely separated from the adjacent wavelength. This will limit the number of users especially if the system is used in a PON environment as in [42,97].
In [96], a high capacity MIMO-enabled all-optical analogue-millimetre-wave-over fibre (A-MMWoF) fronthaul architecture is demonstrated for 5G. WDM is for transporting MMW MIMO signals in the optical domain.

6.8. DRoF MIMO Signals over Fibre

Both ARoF and DRoF solutions have been studied to provide the last-mile wireless coverage [98]. ARoF based systems also suffer from chromatic dispersion, nonlinearity, and losses in the optical sources, detectors, links, and other passive or active components [99]. On the other hand, DRoF system can completely remove these effects on the analogue carrier for long-distance transmission by conveying digital bits, which present the radio frequency (RF) carriers over optical fibre with an error-free transmission till bit error rate (BER) is intolerable. However, for short distances, the traditional ARoF will be more practical, since no digital to analogue is required and the fibre dispersion effect is not high. In [100], both ARoF and DRoF are compared as fronthaul for 5G 8 × 8 MIMO signals. The ARoF reduces the cost of the infrastructure. However, it is not as future proof as to the DRoF system. The study concludes that there is a trade-off between Capital Expenditure (CAPEX) and Operational Expenditure (OPEX) for a given deployment. For example, if there is no plan for future expenditure or other types of traffic to be introduced to the network in the future, then ARoF is the right choice in this case.

7. MIMO Wireless Signals over PON

For wireless broadband transmission, MIMO is an indispensable technique for all the new wireless standards and systems that require a high data rate. On the other hand, PONs are well established as high broadband speed access networks. The integration of the MIMO technique with the existing PONs is highly desirable to get the better of the two worlds. In this section, integrated technologies and backhauling of MIMO wireless signals over different types of PONs are reviewed.

7.1. MIMO Wireless Signals over TWDM-PON

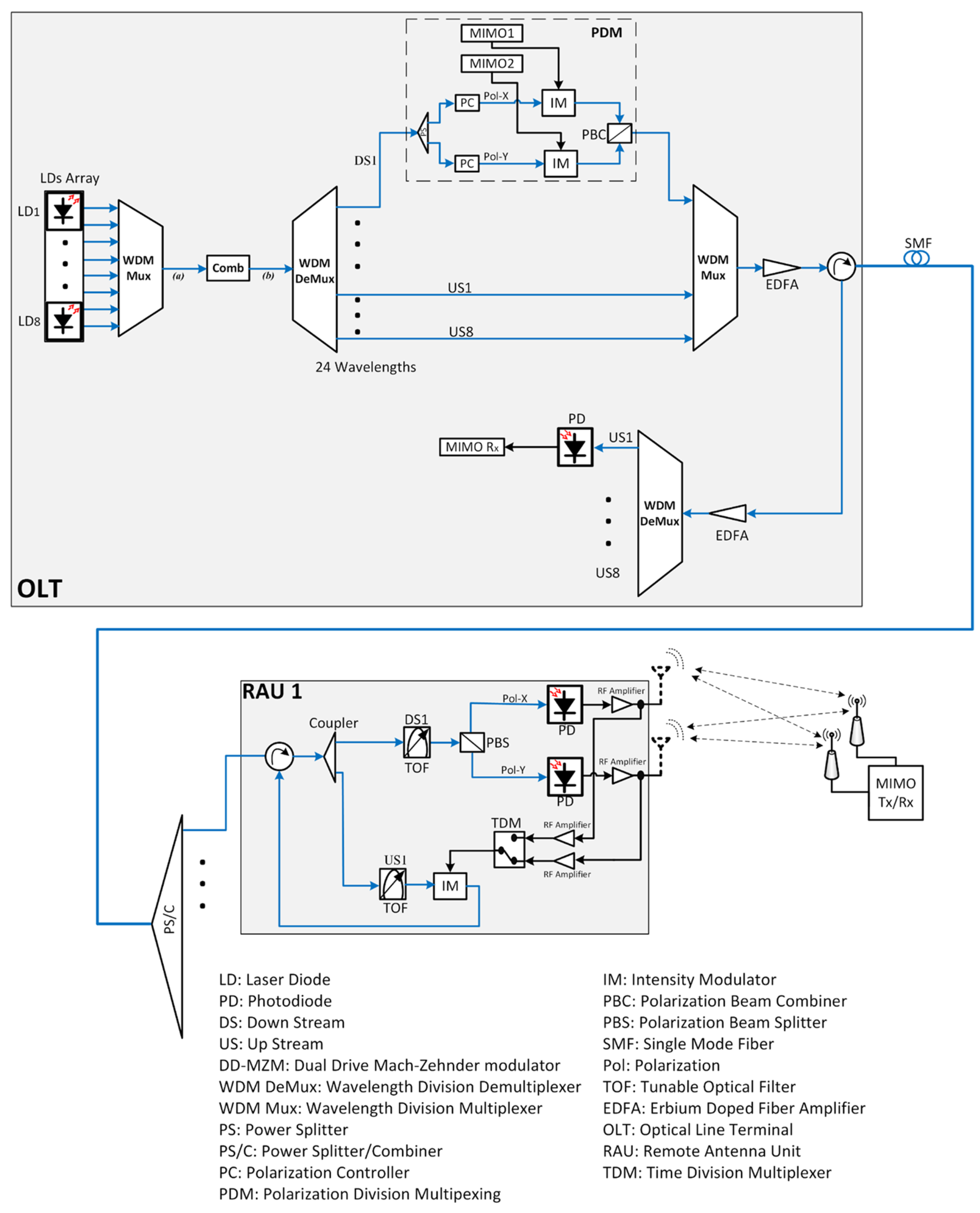

In [6], a bidirectional RoF-PON capable of manging MIMO streams at slight cost, high spectral efficiency and backward compatibility with currently installed PON is proposed. The major advantage of this work is the compatibility with currently deployed PON. Reusing the existing deployed ODNs is extremely beneficial and cost-effective for providing the original high data rate wireless demands, as shown in Figure 16. Moreover, most of the existing PON are based on TDM-PON ODN and FSAN has designated TWDM-PON (TDM-PON ODN with WDM operation) as a primary solution for NG-PON.
This architecture is a bidirectional asymmetric RoF-PON with whole 40/10Gb/s DS/US transmission for 32 RAUs at a distance of 20 km. Figure 17 illustrates the RoF-PON architecture that is able to handle multiple MIMO streams. The OLT has eight LDs and, using the comb technique (Figure 8b, twenty-four wavelengths are produced from these. Sixteen of them (upper and lower sidebands) are used to transmit the DS traffic and the other eight wavelengths are used to transmit the US traffic. Each two MIMO wireless signals in the DS transmission are optically merged using PDM, as shown in Figure 17.

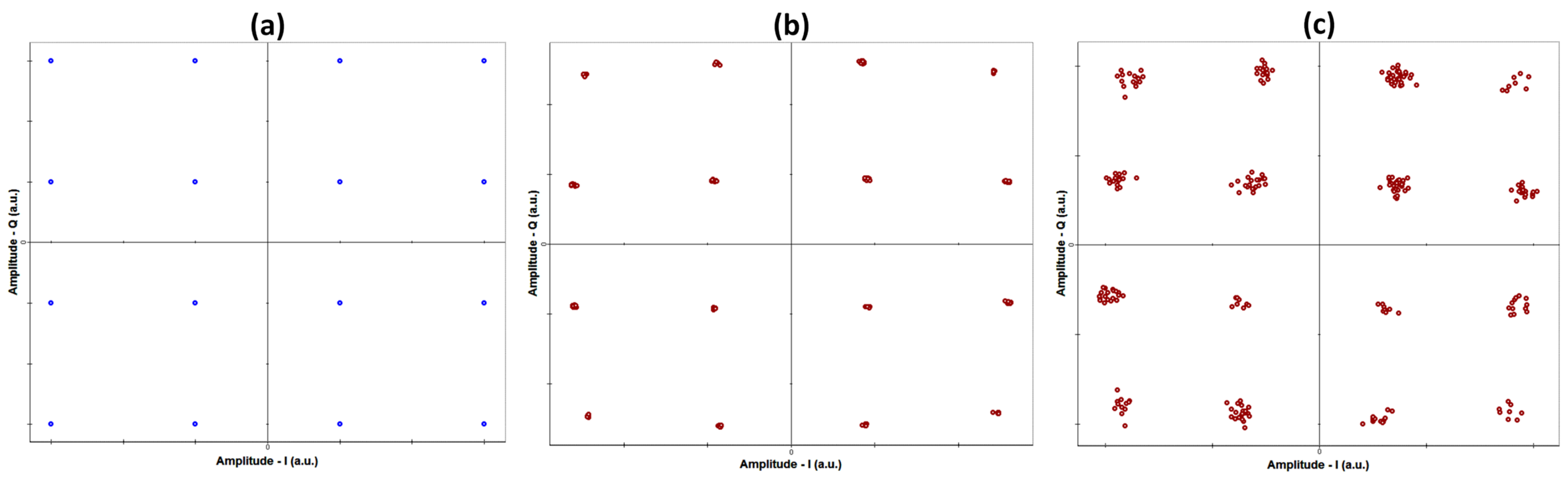

Figure 18 illustrates the constellation diagrams of the US wavelengths, which are still clearly separated even after a transmission of 20 km SMF. Hence, there is still a possibility for improvement in this system since NG-PON requires a reach higher than 40 km [101]. Also, the number of ONUs/RAUs is required to be 64 RAUs or above [102].
In [103], Massive MIMO over TWDM-PON is proposed with a support for beamforming. Three heuristic algorithms were proposed to optimise the fronthaul bandwidth and radio resource utilisation. This study’s concern is on resources utilisation, such as antennas, optical wavelength and radio frequency. It is found that the optimisation is heavily dependent on the number of antennas in an ONU.

7.2. MIMO Wireless Signals over WDM-PON

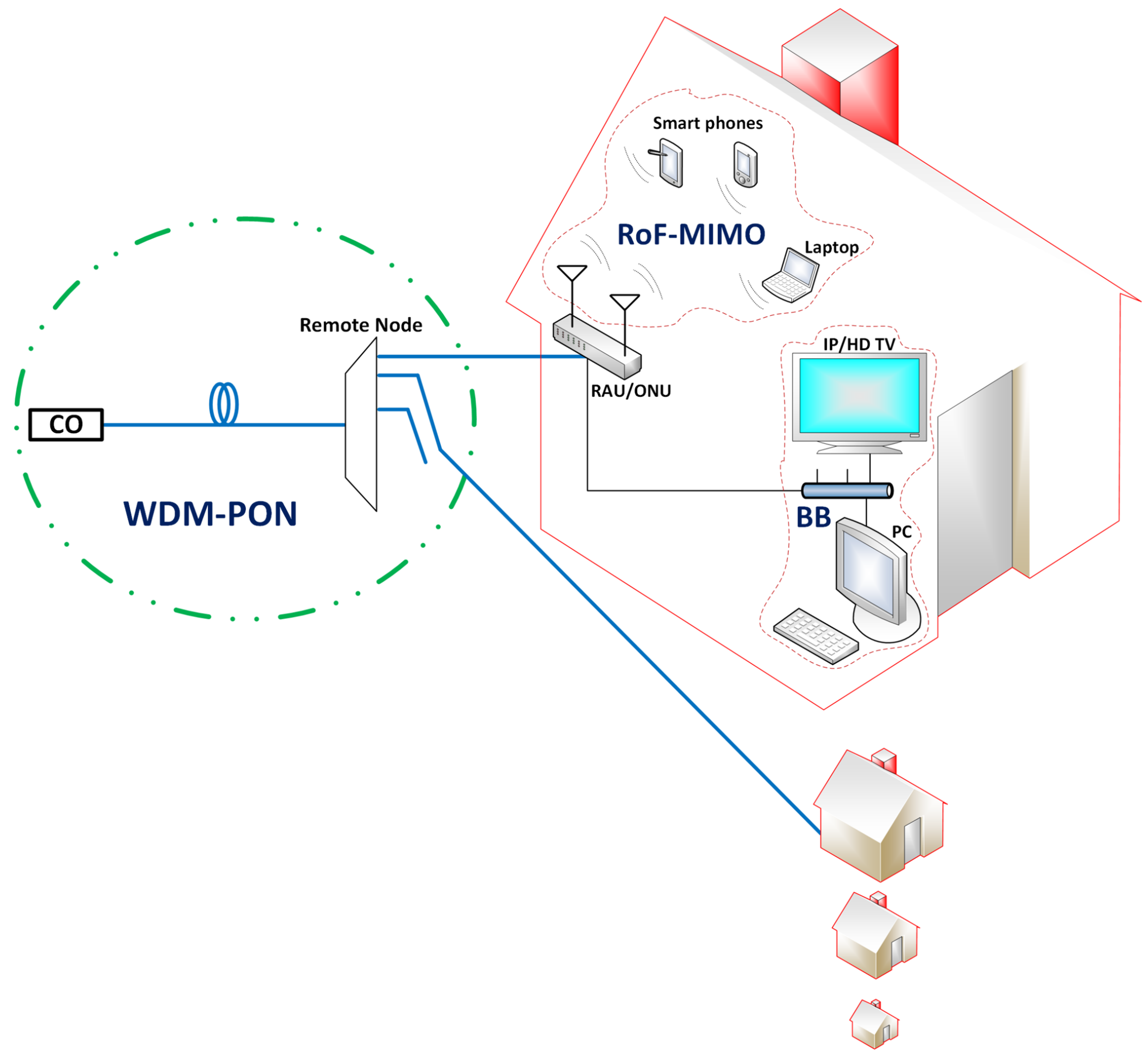

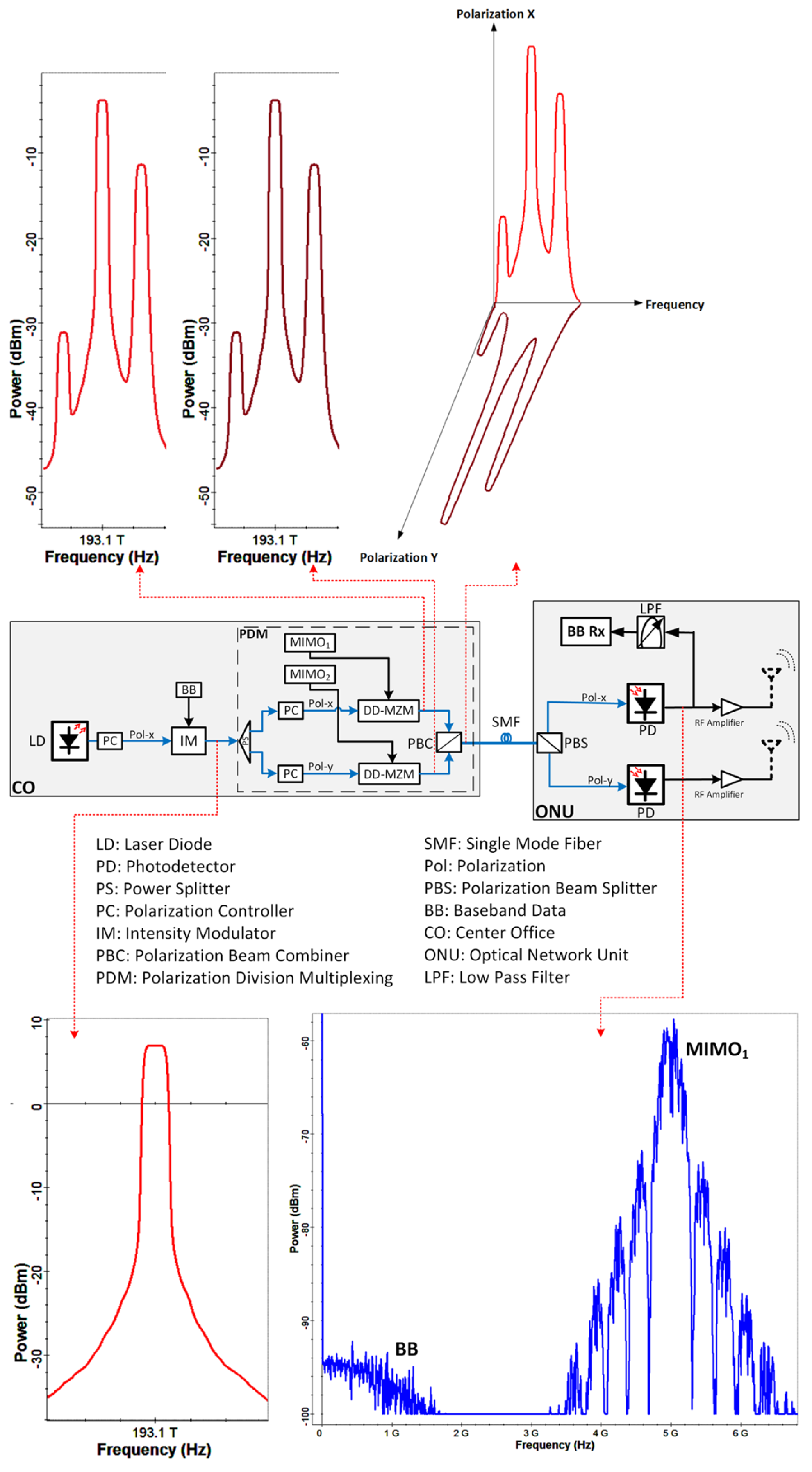

In [40], a novel technique is proposed to carry two MIMO streams along with one BB wired signal in a single wavelength. This system can upgrade the conventional WDM-PON to support MIMO wireless transmission besides the extant wired signal, as shown in Figure 19.
First, the BB wired signal is modulated at a low extinction ratio (ER). Then, the same optical signal is reused to modulate two wireless MIMO streams, which are multiplexed optically using PDM.

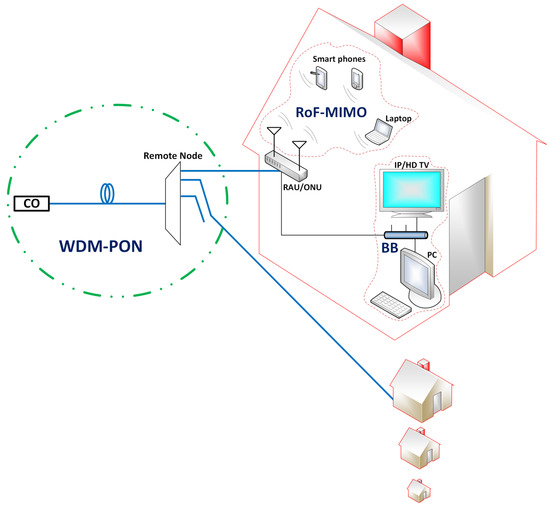

Figure 20 illustrates the schematic diagram of the proposed system with the relevant spectra where the signal transmitter in the CO and a receiver in the ONU (or RAU) are organised, which can be implemented using a WDM-PON architecture. Figure 21 shows the constellations of one of the MIMO signals in the three cases (BtB, 20 km and 60 km) when the signal is transmitted and received. Even after a transmission of 60 km, the system is still maintaining a good performance as well as the BB signal, which also has a wide-open eye diagram, as shown in Figure 22. Hence, the overall system performance is extremely dependent on the BB signal’s ER. Integration between the MIMO signals and the BB signal without BB signal’s ER dependency is more preferable.

7.3. MIMO Wireless Signals over Hybrid TDM-WDM PON

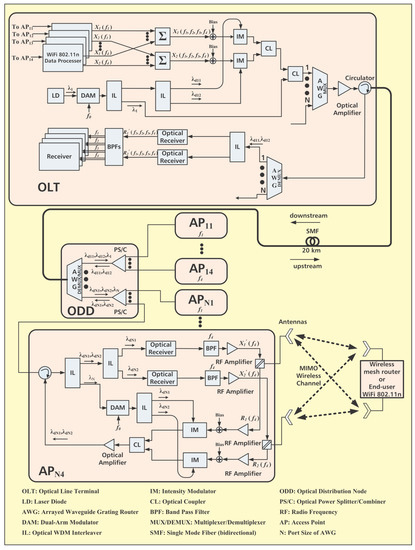

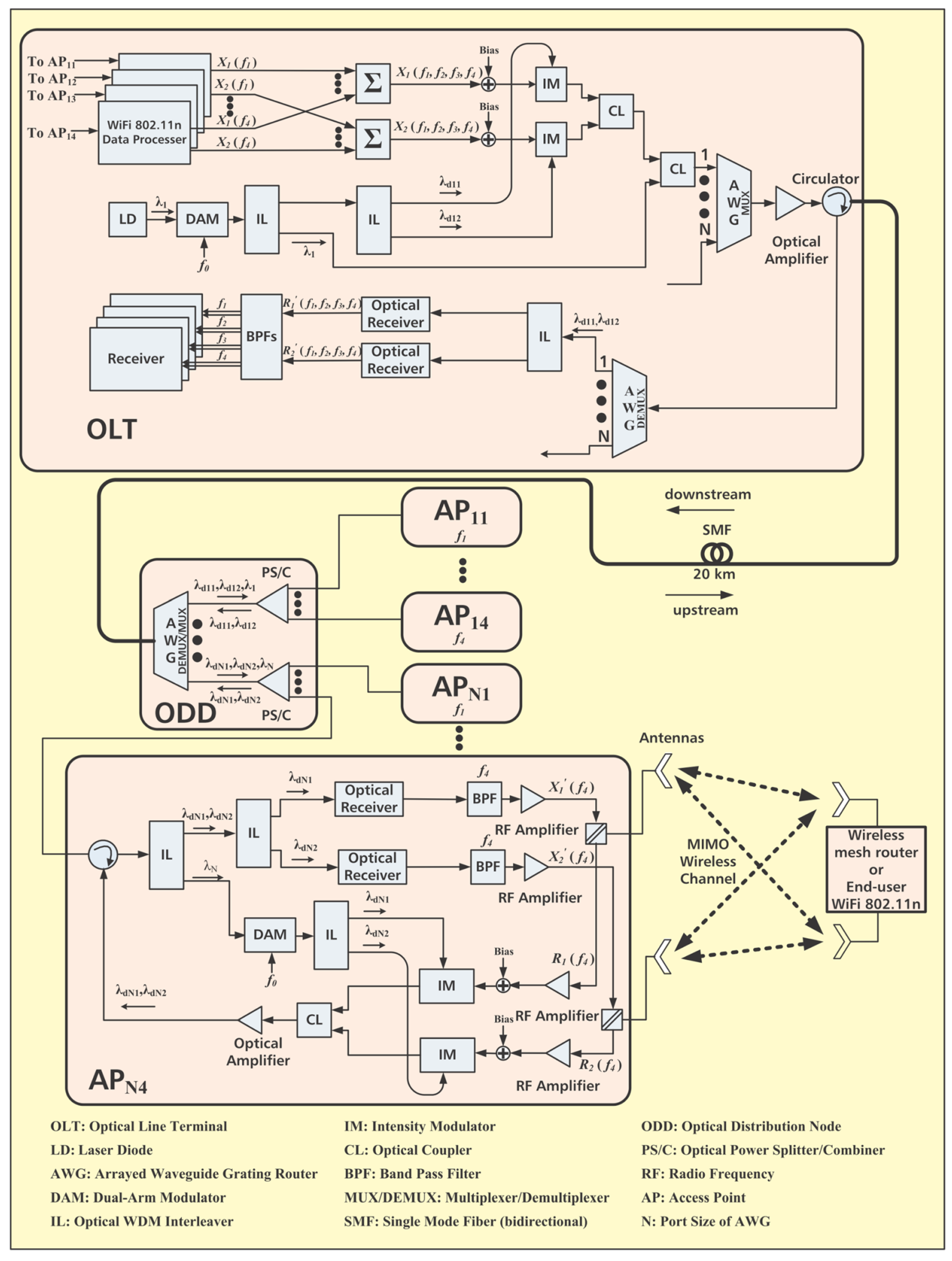

A spectral efficient hybrid wireless optical broadband access network (WOBAN) is demonstrated and proposed based on the transmission of wireless MIMO OFDM signals (WiFi type) over hybrid TDM–WDM PON, as shown in Figure 23. WOBAN consists of an OLT, which sends the traffic to different wireless APs using bidirectional SMF. The tasks of assigning the different wavelengths and time frames to the APs are performed in the OLT. Each LD at the OLT generates three wavelengths using the comb technique (Figure 8a). The first and the second are used to carry X 1 and X 2 signals and the third is reused in the AP for the upstream, as shown in Figure 23.

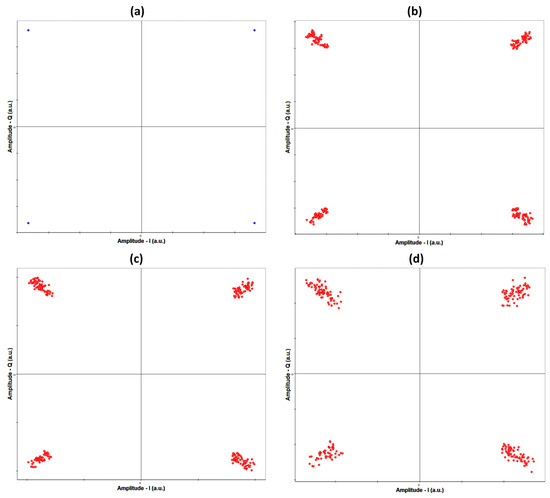

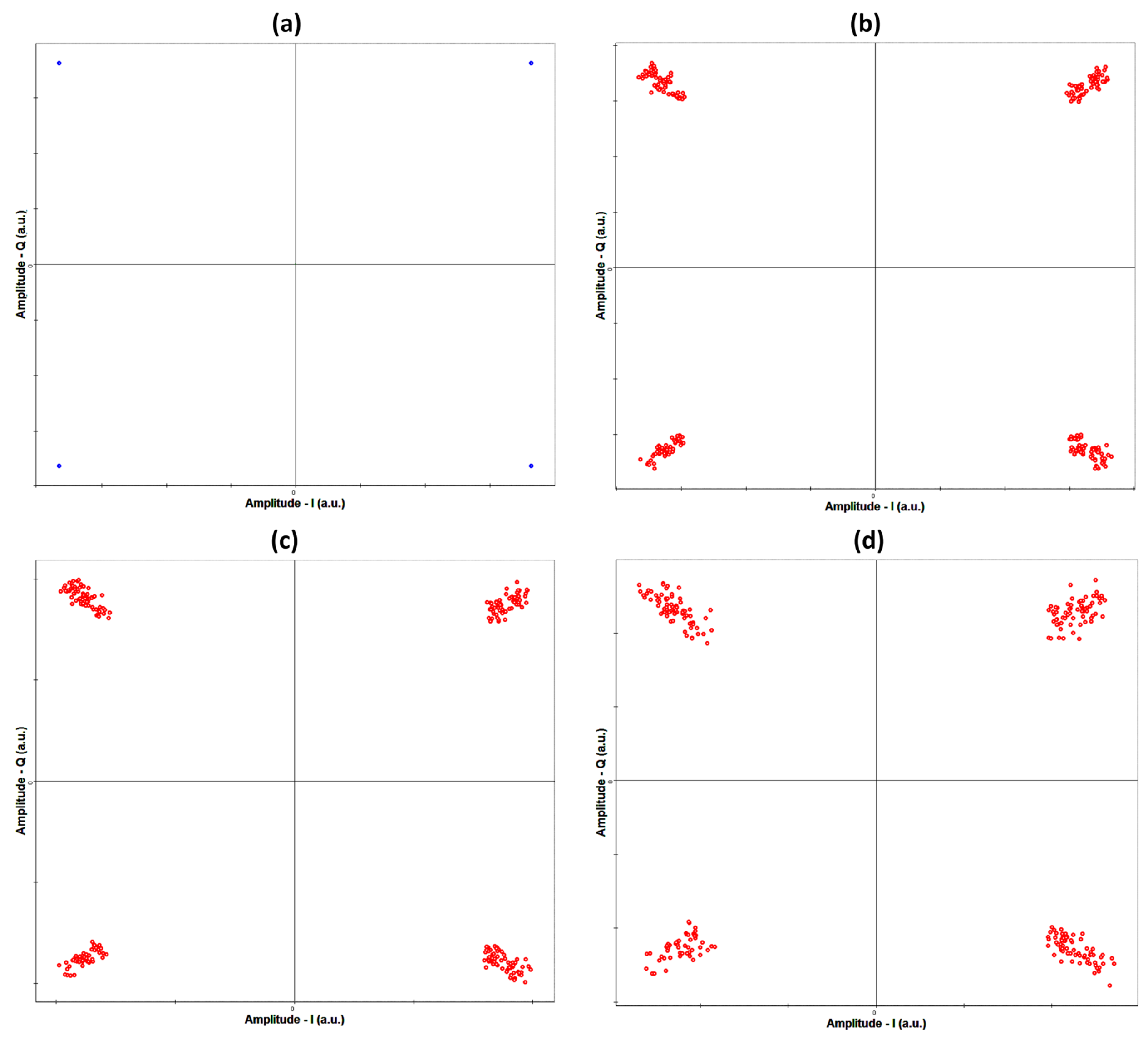

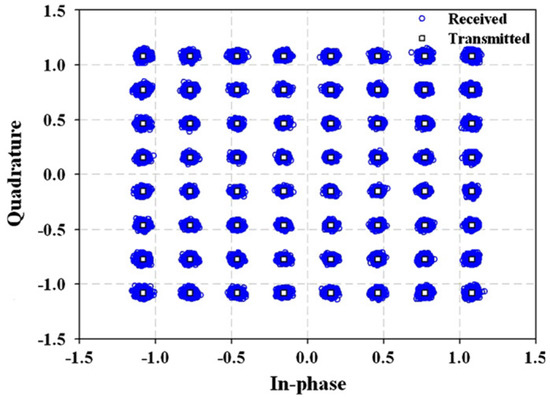

The constellation diagrams of the received and transmitted signals for one of the APs are shown in Figure 24. It is clear that, after the WiFi wireless transmission and 20 km SMF transmission, a clear scatter-plot is achieved.
This system can be improved by introducing high-density modulation or a higher order QAM modulation, such as 256-QAM as proposed in the new WiFi standards. Another possible way to improve is to introduce massive MIMO and study the trade-off between increasing the modulation order and increasing the MIMO streams.

8. Future Research Trends

The research directions given below are likely to be important for future FiWi MIMO access networks:
  • Most of the proposed MIMO-RoF systems are considering low order MIMO streams. Since Massive MIMO (high order MIMO streams) is a key point in the future of broadband wireless transmission and 5G networks [80,104], it has to be considered in the upcoming research of MIMO-RoF systems.
  • In 5G technology, besides using Massive MIMO, the “mobile communication systems need to support the digital baseband modulation techniques with large constellation size in order to provide higher data transmission rates. However, realising the attractive benefits of the massive MIMO and higher order QAM modulation in practice faces some challenges in wireless transmission, and one of which is the uplink multiuser signal detection due to the increased multiuser interference and the shrunk spacing among the modulation constellation points” [105]. The optimised solution has not been studied for Massive MIMO signals and high-order modulation over fibre. In spite of the importance of this topic and that it is a bottleneck for cost-effective next-generation wireless coverage, it is not studied for wireless MIMO signals over fibre transmission.
  • Even though OFDM-PON is a very promising technology for NG-PON [106,107], so far there are no proposed integrations for MIMO-RoF wireless transmission over OFDM-PON.
  • Low-cost solutions for integrated transport of diverse MIMO wireless technologies, for example, multiband OFDM-UWB and WiFi IEEE 802.11ax, are particularly important for infrastructure consolidation through long-reach PONs [77].
  • Also, from an economical point of view, it is very desirable for operators to upgrade current PONs to deliver wireless services by the least changes in the deployed infrastructure [12,108]. Therefore, reusing the existing ODNs is highly valuable and cost-effective for providing the new high data rates demands. More research studies are needed for seamless integration and compatibility of underlying MIMO wireless transmission over deployed ODNs (as proposed in [6]). Moreover, backhauling of 5G/6G signals has not yet been studied enough as RoF signals over PONs.
  • 5G and beyond will implement small cells; therefore, it is highly desirable to lower the cost of the RAU/AP, since multiple RAUs/APs will be used in a relatively small area.

9. Conclusions

In this paper, we focused on hybrid optical–wireless networks, mainly MIMO wireless signals over optical fibre. We discussed numerous promising solutions for MIMO-RoF and hybrid MIMO FiWi networks. The transport schemes of MIMO wireless signal over fibre were also reviewed and compared. Both basic and advanced transport techniques have been discussed. Integration and backhauling of MIMO wireless signals over PONs are also presented. Using the MIMO technique with FSO/OWC systems for wireless transmission was also reviewed. The MIMO technique can improve future performance of FiWi bandwidth-demanding networks.

Author Contributions

Conceptualisation, M.A.E., and A.S.; methodology, M.A.E., A.S., and A.A.; formal analysis, M.A.E., A.S., and K.R.; software, validation, writing—original draft preparation, M.A.E., and A.S.; writing—review and editing, M.A.E., A.S., A.A., and K.R.; supervision, project administration, and funding acquisition, M.A.E., and K.R. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to express their gratitude to the Ministry of Education and the deanship of scientific research—Najran University—Kingdom of Saudi Arabia, for their financial and technical support under code number NU/ESCI/17/084.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gordon, G.S.; Crisp, M.J.; Penty, R.V.; Wilkinson, T.D.; White, I.H. Feasibility demonstration of a mode-division multiplexed MIMO-enabled radio-over-fiber distributed antenna system. J. Light. Technol. 2014, 32, 3521–3528. [Google Scholar] [CrossRef]
  2. Dashti, Y.; Mercian, A.; Reisslein, M. Grouping by Cycle Length (GCL) for long-range FiWi networks. Opt. Switch. Netw. 2016, 21, 43–57. [Google Scholar] [CrossRef]
  3. Gu, Y.; Zhao, J.; Hu, J.; Kang, Z.; Zhu, W.; Fan, F.; Han, X.; Zhao, M. All optical up-converted signal generation with high dispersion tolerance using frequency quadrupling technique for radio over fiber system. Opt. Laser Technol. 2016, 79, 153–157. [Google Scholar] [CrossRef]
  4. Xiang, Y.; Chen, C.; Zhang, C.; Qiu, K. Wired/wireless access integrated RoF-PON with scalable generation of multi-frequency MMWs enabled by polarization multiplexed FWM in SOA. Opt. Express 2013, 21, 1218–1225. [Google Scholar] [CrossRef]
  5. Zhang, C.; Ning, T.; Li, J.; Chen, H.; Li, C.; Liu, Z. Optical up-conversion for WDM-RoF transmission using multiple optical carrier suppression in OFCG. Opt. Laser Technol. 2016, 77, 91–97. [Google Scholar] [CrossRef]
  6. Elmagzoub, M.; Mohammad, A.B.; Shaddad, R.Q.; Al-Gailani, S.A. New RoF-PON architecture using polarization multiplexed wireless MIMO signals for NG-PON. Opt. Commun. 2015, 344, 55–64. [Google Scholar] [CrossRef]
  7. Shaddad, R.; Mohammad, A.; Al-Gailani, S.; Al-Hetar, A. Optical frequency upconversion technique for transmission of wireless MIMO-type signals over optical fiber. Sci. World J. 2014, 2014. [Google Scholar] [CrossRef]
  8. Li, J.; Xu, Y.; Shi, J.; Wang, Y.; Ji, X.; Ou, H.; Chi, N. A 2 × 2 imaging MIMO system based on LED Visible Light Communications employing space balanced coding and integrated PIN array reception. Opt. Commun. 2016, 367, 214–218. [Google Scholar] [CrossRef][Green Version]
  9. Elmagzoub, M.; Mohammad, A.; Shaddad, R.; Al-Gailani, S. Simultaneous provision of two MIMO wireless and baseband wired services in a single wavelength. In Proceedings of the 2014 IEEE 5th International Conference on Photonics (ICP), Kuala Lumpur, Malaysia, 2–4 September 2014; pp. 172–175. [Google Scholar]
  10. Lee, C.H.; Sorin, W.V.; Kim, B.Y. Fiber to the home using a PON infrastructure. J. Light. Technol. 2006, 24, 4568–4583. [Google Scholar] [CrossRef]
  11. Bock, C.; Prat, J.; Walker, S.D. Hybrid WDM/TDM PON using the AWG FSR and featuring centralized light generation and dynamic bandwidth allocation. J. Light. Technol. 2005, 23, 3981. [Google Scholar] [CrossRef]
  12. Kramer, G.; De Andrade, M.; Roy, R.; Chowdhury, P. Evolution of optical access networks: Architectures and capacity upgrades. Proc. IEEE 2012, 100, 1188–1196. [Google Scholar] [CrossRef]
  13. Li, Z.; Yi, L.; Zhang, Y.; Dong, Y.; Xiao, S.; Hu, W. Compatible TDM/WDM PON using a single tunable optical filter for both downstream wavelength selection and upstream wavelength generation. IEEE Photonics Technol. Lett. 2012, 24, 797–799. [Google Scholar] [CrossRef]
  14. Kazovsky, L.G.; Cheng, N.; Shaw, W.T.; Gutierrez, D.; Wong, S.W. Broadband Optical Access Networks; Wiley Online Library: Hoboken, NJ, USA, 2011. [Google Scholar]
  15. Choudhary, M.; Kumar, B. Analysis of Next Generation PON Architecture for Optical Broadband Access Networks. Opt. Fiber Commun. 2006, 9, 607–608. [Google Scholar]
  16. Banerjee, A.; Park, Y.; Clarke, F.; Song, H.; Yang, S.; Kramer, G.; Kim, K.; Mukherjee, B. Wavelength-division-multiplexed passive optical network (WDM-PON) technologies for broadband access: A review. J. Opt. Netw. 2005, 4, 737–758. [Google Scholar] [CrossRef]
  17. Jeon, S.W.; Kim, Y.; Park, C.S. Long-reach transmission experiment of a wavelength division multiplexed-passive optical networks transmitter based on reflective semiconductor optical amplifiers. Opt. Eng. 2012, 51, 015008. [Google Scholar] [CrossRef]
  18. Prat, J. Next-Generation FTTH Passive Optical Networks; Springer: Berlin, Germany, 2008; Volume 5. [Google Scholar]
  19. Luo, Y.; Zhou, X.; Effenberger, F.; Yan, X.; Peng, G.; Qian, Y.; Ma, Y. Time-and wavelength-division multiplexed passive optical network (TWDM-PON) for next-generation PON stage 2 (NG-PON2). J. Light. Technol. 2012, 31, 587–593. [Google Scholar] [CrossRef]
  20. Liang, D.; Fiorentino, M.; Srinivasan, S.; Bowers, J.E.; Beausoleil, R.G. Low threshold electrically-pumped hybrid silicon microring lasers. IEEE J. Sel. Top. Quantum Electron. 2011, 17, 1528–1533. [Google Scholar] [CrossRef]
  21. Yi, L.; Li, Z.; Bi, M.; Wei, W.; Hu, W. Symmetric 40-Gb/s TWDM-PON with 39-dB power budget. IEEE Photonics Technol. Lett. 2013, 25, 644–647. [Google Scholar] [CrossRef][Green Version]
  22. Zhang, L.; Hu, X.; Cao, P.; Chang, Q.; Su, Y. Simultaneous generation of independent wired and 60-GHz wireless signals in an integrated WDM-PON-RoF system based on frequency-sextupling and OCS-DPSK modulation. Opt. Express 2012, 20, 14648–14655. [Google Scholar] [CrossRef]
  23. Shaddad, R.Q.; Mohammad, A.B.; Al-Gailani, S.A.; Al-Hetar, A.; Elmagzoub, M.A. A survey on access technologies for broadband optical and wireless networks. J. Netw. Comput. Appl. 2014, 41, 459–472. [Google Scholar] [CrossRef]
  24. Nirmalathas, A.; Gamage, P.A.; Lim, C.; Novak, D.; Waterhouse, R. Digitized radio-over-fiber technologies for converged optical wireless access network. J. Light. Technol. 2010, 28, 2366–2375. [Google Scholar] [CrossRef]
  25. Lim, C.; Nirmalathas, A.; Bakaul, M.; Gamage, P.; Lee, K.L.; Yang, Y.; Novak, D.; Waterhouse, R. Fiber-wireless networks and subsystem technologies. J. Light. Technol. 2009, 28, 390–405. [Google Scholar] [CrossRef]
  26. Ng’oma, A. Radio-over-Fibre Technology for Broadband Wireless Communication Systems. Ph.D. Thesis, Eindhoven University of Technology, Eindhoven, The Netherlands, 28 June 2005. [Google Scholar]
  27. Wiberg, A.; Perez-Millan, P.; Andres, M.V.; Andrekson, P.A.; Hedekvist, P.O. Fiber-optic 40-GHz mm-wave link with 2.5-Gb/s data transmission. IEEE Photonics Technol. Lett. 2005, 17, 1938–1940. [Google Scholar] [CrossRef]
  28. Yu, J.; Jia, Z.; Yi, L.; Su, Y.; Chang, G.K.; Wang, T. Optical millimeter-wave generation or up-conversion using external modulators. IEEE Photonics Technol. Lett. 2005, 18, 265–267. [Google Scholar]
  29. Jia, Z.; Yu, J.; Ellinas, G.; Chang, G.K. Key enabling technologies for optical–wireless networks: Optical millimeter-wave generation, wavelength reuse, and architecture. J. Light. Technol. 2007, 25, 3452–3471. [Google Scholar] [CrossRef]
  30. Hori, S.; Yamase, T.; Tanio, M.; Kaneko, T.; Tawa, N.; Motoi, K.; Kunihiro, K. A digital radio-over-fiber downlink system based on envelope delta-sigma modulation for multi-band/mode operation. In Proceedings of the 2016 IEEE MTT-S International Microwave Symposium (IMS), San Francisco, CA, USA, 22–27 May 2016; pp. 1–4. [Google Scholar]
  31. Heim, P.J.; McClay, C.P. Frequency division multiplexed microwave and baseband digital optical fiber link for phased array antennas. IEEE Trans. Microw. Theory Tech. 1990, 38, 494–500. [Google Scholar] [CrossRef]
  32. Yan, J.H.; Wang, C.W.; Lin, K.H.; Feng, K.M. A Timing-synchronization-free WDM-compatible Colorless DRoF Uplink System for 5G Mobile Fronthaul Employing Gold Sequence Multiplexing. In Proceedings of the 2019 Conference on Lasers and Electro-Optics (CLEO), San Jose, CA, USA, 5–10 May 2019; pp. 1–2. [Google Scholar]
  33. Abdollahi, S.R.; Al-Raweshidy, H.S.; Owens, T.J. Data regeneration for an all-photonic digital radio over fibre. IET Optoelectron. 2014, 8, 256–263. [Google Scholar] [CrossRef]
  34. Tao, L.; Dong, Z.; Yu, J.; Chi, N.; Zhang, J.; Li, X.; Shao, Y.; Chang, G.K. Experimental demonstration of 48-Gb/s PDM-QPSK radio-over-fiber system over 40-GHz mm-wave MIMO wireless transmission. IEEE Photonics Technol. Lett. 2012, 24, 2276–2279. [Google Scholar] [CrossRef]
  35. Biglieri, E.; Calderbank, R.; Constantinides, A.; Goldsmith, A.; Paulraj, A.; Poor, H.V. MIMO Wireless Communications; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
  36. Dat, P.T.; Kanno, A.; Yamamoto, N.; Kawanishi, T. Performance Evaluation of Full-Duplex MIMO Seamless Fiber–Wireless System in W-Band. IEEE Photonics Technol. Lett. 2018, 30, 1175–1178. [Google Scholar] [CrossRef]
  37. Paulraj, A.J.; Gore, D.A.; Nabar, R.U.; Bolcskei, H. An overview of MIMO communications-a key to gigabit wireless. Proc. IEEE 2004, 92, 198–218. [Google Scholar] [CrossRef][Green Version]
  38. Cho, Y.S.; Kim, J.; Yang, W.Y.; Kang, C.G. MIMO-OFDM Wireless Communications with MATLAB; John Wiley & Sons: Hoboken, NJ, USA, 2010. [Google Scholar]
  39. Shao, Y.; Chi, N. A novel scheme for seamless integration of RZ-DPSK-DWDM optical links with MIMO-OFDM system. Microw. Opt. Technol. Lett. 2012, 54, 1676–1679. [Google Scholar] [CrossRef]
  40. Elmagzoub, M.; Mohammad, A.B.; Shaddad, R.Q.; Al-Gailani, S.A. Polarization multiplexing of two MIMO RoF signals and one baseband signal over a single wavelength. Opt. Laser Technol. 2016, 76, 70–78. [Google Scholar] [CrossRef]
  41. Hwang, S.; Kim, H.; Kim, B.; Kim, S.K.; Lee, J.; Lee, H.; Kim, Y.; Lee, G.; Kim, S.; Oh, Y. RoF technologies for in-building wireless systems. IEICE Trans. Electron. 2007, 90, 345–350. [Google Scholar] [CrossRef]
  42. Kim, H.; Cho, J.H.; Kim, S.; Song, K.U.; Lee, H.; Lee, J.; Kim, B.; Oh, Y.; Lee, J.; Hwang, S. Radio-over-fiber system for TDD-based OFDMA wireless communication systems. J. Light. Technol. 2007, 25, 3419–3427. [Google Scholar]
  43. Hekkala, A.; Lasanen, M.; Harjula, I.; Viera, L.C.; Gomes, N.J.; Nkansah, A.; Bittner, S.; Diehm, F.; Kotzsch, V. Analysis of and compensation for non-ideal RoF links in DAS [coordinated and distributed MIMO]. IEEE Wirel. Commun. 2010, 17, 52–59. [Google Scholar] [CrossRef]
  44. Alavi, S.; Amiri, I.; Ahmad, H.; Supa at, A.; Fisal, N. Generation and transmission of 3 × 3 w-band multi-input multi-output orthogonal frequency division multiplexing-radio-over-fiber signals using micro-ring resonators. Appl. Opt. 2014, 53, 8049–8054. [Google Scholar] [CrossRef]
  45. Amiri, I.; Alavi, S.; Fisal, N.; Supa’at, A.; Ahmad, H. All-optical generation of two IEEE802. 11n signals for 2 × 2 MIMO-RoF via MRR system. IEEE Photonics J. 2014, 6, 1–11. [Google Scholar] [CrossRef]
  46. Zelst, A. System for Transporting Multiple Radio Frequency Signals of a Multiple Input, Multiple Output Wireless Communication System to/from a Central Processing Base Station. U.S. Patent 10/195,504, 29 January 2004. [Google Scholar]
  47. Seto, I.; Shoki, H.; Ohshima, S. Optical subcarrier multiplexing transmission for base station with adaptive array antenna. IEEE Trans. Microw. Theory Tech. 2001, 49, 2036–2041. [Google Scholar] [CrossRef]
  48. Liu, C.P.; Seeds, A.J. Transmission of wireless MIMO-type signals over a single optical fiber without WDM. IEEE Trans. Microw. Theory Tech. 2010, 58, 3094–3102. [Google Scholar] [CrossRef]
  49. Shaddad, R.Q.; Mohammad, A.B.; Al-Hetar, A.M.; Al-Gailani, S.A. A novel optical single-sideband frequency translation technique for transmission of wireless MIMO signals over optical fiber. In Proceedings of the 2012 IEEE 3rd International Conference on Photonics, Penang, Malaysia, 1–3 October 2012; pp. 360–364. [Google Scholar]
  50. Deng, L.; Pang, X.; Zhao, Y.; Othman, M.B.; Jensen, J.B.; Zibar, D.; Yu, X.; Liu, D.; Monroy, I.T. 2 × 2 MIMO-OFDM Gigabit fiber-wireless access system based on polarization division multiplexed WDM-PON. Opt. Express 2012, 20, 4369–4375. [Google Scholar] [CrossRef][Green Version]
  51. Morant, M.; Prat, J.; Llorente, R. Radio-over-fiber optical polarization-multiplexed networks for 3GPP wireless carrier-aggregated MIMO provision. J. Light. Technol. 2014, 32, 3721–3727. [Google Scholar] [CrossRef]
  52. Zhao, Y.; Pang, X.; Deng, L.; Othman, M.B.; Yu, X.; Zheng, X.; Zhang, H.; Monroy, I.T. Experimental demonstration of 5-Gb/s polarization-multiplexed fiber-wireless MIMO systems. In Proceedings of the 2011 International Topical Meeting on Microwave Photonics Jointly Held with the 2011 Asia-Pacific Microwave Photonics Conference, Singapore, 18–21 October 2011; pp. 13–16. [Google Scholar]
  53. Pang, X.; Zhao, Y.; Deng, L.; Othman, M.B.; Yu, X.; Jensen, J.B.; Zibar, D.; Monroy, I.T. Seamless translation of optical fiber PolMux-OFDM into a 2 × 2 MIMO wireless transmission enabled by digital training-based fiber-wireless channel estimation. In Proceedings of the 2011 Asia Communications and Photonics Conference and Exhibition (ACP), Shanghai, China, 13–16 November 2011; pp. 1–6. [Google Scholar]
  54. Fan, S.H.; Chien, H.C.; Chowdhury, A.; Chang, G.K. Spectrally efficient 60-GHz xy-MIMO data transport over a radio-over-fiber system for gigabit wireless local area networks. In Proceedings of the 2010 IEEE Global Telecommunications Conference GLOBECOM 2010, Miami, FL, USA, 6–10 December 2010; pp. 1–4. [Google Scholar]
  55. Kong, M.; Yu, J. Performance improvement on a MIMO radio-over-fiber system by probabilistic shaping. Opt. Commun. 2018, 407, 87–91. [Google Scholar] [CrossRef]
  56. Li, X.; Yu, J. Over 100 Gb/s ultrabroadband MIMO wireless signal delivery system at the D-band. IEEE Photonics J. 2016, 8, 1–10. [Google Scholar] [CrossRef]
  57. Kong, M.; Zhou, W. Delivery of 12QAM single carrier signal in a MIMO radio-over-fiber system at 60 GHz. IEEE Photonics J. 2017, 9, 1–7. [Google Scholar] [CrossRef]
  58. Puerta, R.; Yu, J.; Li, X.; Xu, Y.; Olmos, J.J.V.; Monroy, I.T. Single-carrier dual-polarization 328-Gb/s wireless transmission in a D-Band millimeter wave 2 × 2 MU-MIMO radio-over-fiber system. J. Light. Technol. 2018, 36, 587–593. [Google Scholar] [CrossRef]
  59. Huang, H.T.; Sun, C.S.; Lin, C.T.; Wei, C.C.; Zeng, W.S.; Chang, H.Y.; Shih, B.; Ng’oma, A. Direct-Detection PDM-OFDM RoF System for 60-GHz 2 × 2 MIMO Wireless Transmission Without Polarization Tracking. J. Light. Technol. 2018, 36, 3739–3745. [Google Scholar] [CrossRef]
  60. Li, X.; Yu, J.; Wang, K.; Zhou, W.; Zhang, J. Photonics-aided 2 × 2 MIMO wireless terahertz-wave signal transmission system with optical polarization multiplexing. Opt. Express 2017, 25, 33236–33242. [Google Scholar] [CrossRef]
  61. Fang, W.J.; Huang, X.G.; Yang, K.; Zhang, X.M. Transmission of 100 GHz w-band frequency MIMO-OFDM signals with 90 Gbps downstream and 30 Gbps upstream using radio over fiber system. Microw. Opt. Technol. Lett. 2013, 55, 93–99. [Google Scholar] [CrossRef]
  62. Ma, J.; Zhou, M.; Zhan, Y.; Liang, H.; Yu, C. A novel ROF link scheme with frequency quadrupling optical millimeter-wave carrying dual-stream of 10 Gbit/s 16-QAM signals. Opt. Laser Technol. 2013, 46, 81–87. [Google Scholar] [CrossRef]
  63. Shaddad, R.Q.; Mohammad, A.B.; Al-Hetar, A.M.; Al-Gailani, S.A. A novel optical single-sideband frequency translation technique for transmission of wireless MIMO signals over fiber-wireless system. Opt. Laser Technol. 2013, 47, 347–354. [Google Scholar] [CrossRef]
  64. Torres-Company, V.; Weiner, A.M. Optical frequency comb technology for ultra-broadband radio-frequency photonics. Laser Photonics Rev. 2014, 8, 368–393. [Google Scholar] [CrossRef][Green Version]
  65. Raza, A.; Ghafoor, S.; Butt, M.F.U. MIMO-enabled integrated MGDM–WDM distributed antenna system architecture based on plastic optical fibers for millimeter-wave communication. Photonic Netw. Commun. 2018, 35, 265–273. [Google Scholar] [CrossRef]
  66. Deng, J.; Li, G.; Xin, S.; Huang, X. A full duplex DWDM-RoMCF system at 60 GHz based on four quadruple frequency between 28 micro base stations. Opt. Commun. 2019, 452, 74–82. [Google Scholar] [CrossRef]
  67. Konstantinou, D.; Bressner, T.A.; Rommel, S.; Johannsen, U.; Johansson, M.N.; Ivashina, M.V.; Smolders, A.B.; Monroy, I.T. 5G RAN architecture based on analog radio-over-fiber fronthaul over UDWDM-PON and phased array fed reflector antennas. Opt. Commun. 2020, 454, 124464. [Google Scholar] [CrossRef]
  68. Zhu, K.; Crisp, M.; He, S.; Penty, R.; White, I. MIMO system capacity improvements using radio-over-fibre distributed antenna system technology. In Proceedings of the Optical Fiber Communication Conference/National Fiber Optic Engineers Conference 2011, Los Angeles, CA, USA, 6–10 March 2011. [Google Scholar] [CrossRef]
  69. Othman, M.B.; Deng, L.; Pang, X.; Caminos, J.; Kozuch, W.; Prince, K.; Jensen, J.B.; Monroy, I.T. Directly-modulated VCSELs for 2 × 2 MIMO-OFDM radio over fiber in WDM-PON. In Proceedings of the 2011 37th European Conference and Exhibition on Optical Communication, Geneva, Switzerland, 18–22 September 2011; pp. 1–3. [Google Scholar]
  70. El Yahyaoui, M.; El Moussati, A.; El Zein, G. On the capacity of MIMO-OFDM based diversity and spatial multiplexing in Radio-over-Fiber system. Opt. Commun. 2017, 402, 252–259. [Google Scholar] [CrossRef]
  71. Tashiro, T.; Miyamoto, K.; Iwakuni, T.; Hara, K.; Fukada, Y.; Kani, J.; Yoshimoto, N.; Iwatsuki, K.; Higashino, T.; Tsukamoto, K.; et al. 40 km fiber transmission of time domain multiplexed MIMO RF signals for RoF-DAS over WDM-PON. In Proceedings of the Optical Fiber Communication (OFC) Conference, Los Angeles, CA, USA, 4–8 March 2012; pp. 1–3. [Google Scholar]
  72. Shaddad, R.; Mohammad, A.; Al-Hetar, A. Spectral efficient hybrid wireless optical broadband access network (WOBAN) based on transmission of wireless MIMO OFDM signals over WDM PON. Opt. Commun. 2012, 285, 4059–4067. [Google Scholar] [CrossRef]
  73. Lei, Y.; Li, J.; Meng, Z.; Wu, R.; Wan, Z.; Fan, Y.; Zhang, W.; Yin, F.; Dai, Y.; Xu, K. Feasibility of space-division-multiplexed transmission of ieee 802.11 n/ac-compliant wireless mimo signals over om3 multimode fiber. J. Light. Technol. 2018, 36, 2076–2082. [Google Scholar] [CrossRef]
  74. Zhu, J.; Feng, B.; Peng, B.; Deng, L.; Li, S. A dual notched band MIMO slot antenna system with Y-shaped defected ground structure for UWB applications. Microw. Opt. Technol. Lett. 2016, 58, 626–630. [Google Scholar] [CrossRef]
  75. Morant, M.; Pérez, J.; Llorente, R. Polarization division multiplexing of OFDM radio-over-fiber signals in passive optical networks. Adv. Opt. Technol. 2014, 2014. [Google Scholar] [CrossRef]
  76. Shibahara, K.; Mizuno, T.; Lee, D.; Miyamoto, Y. Advanced MIMO signal processing techniques enabling long-haul dense SDM transmissions. J. Light. Technol. 2017, 36, 336–348. [Google Scholar] [CrossRef]
  77. Kazovsky, L.; Wong, S.W.; Ayhan, T.; Albeyoglu, K.M.; Ribeiro, M.R.; Shastri, A. Hybrid optical–wireless access networks. Proc. IEEE 2012, 100, 1197–1225. [Google Scholar] [CrossRef]
  78. Morant, M.; Llorente, R. Performance analysis of carrier-aggregated multiantenna 4 × 4 MIMO LTE-A fronthaul by spatial multiplexing on multicore fiber. J. Light. Technol. 2018, 36, 594–600. [Google Scholar] [CrossRef]
  79. Yang, Y.; Crisp, M.J.; Penty, R.V.; White, I.H. Low-cost MIMO radio over fiber system for multiservice DAS using double sideband frequency translation. J. Light. Technol. 2016, 34, 3818–3824. [Google Scholar] [CrossRef][Green Version]
  80. Bogale, T.E.; Le, L.B. Massive MIMO and mmWave for 5G wireless HetNet: Potential benefits and challenges. IEEE Veh. Technol. Mag. 2016, 11, 64–75. [Google Scholar] [CrossRef]
  81. Cheng, L.; Zhu, M.; Wang, J.; Xu, M.; Lu, F.; Chang, G.K. Photonic precoding for millimeter-wave multicell MIMO in centralized RoF system. IEEE Photonics Technol. Lett. 2014, 26, 1116–1119. [Google Scholar] [CrossRef]
  82. Li, Y.; Hemadeh, I.A.; El-Hajjar, M.; Hanzo, L. Radio over fiber downlink design for spatial modulation and multi-set space-time shift-keying. IEEE Access 2018, 6, 21812–21827. [Google Scholar] [CrossRef]
  83. Pang, X.; Jia, S.; Ozolins, O.; Yu, X.; Hu, H.; Marcon, L.; Guan, P.; Da Ros, F.; Popov, S.; Jacobsen, G.; et al. 260 Gbit/s photonic-wireless link in the THz band. In Proceedings of the 2016 IEEE Photonics Conference (IPC), Waikoloa, HI, USA, 2–6 October 2016; pp. 1–2. [Google Scholar]
  84. Nagatsuma, T.; Ducournau, G.; Renaud, C.C. Advances in terahertz communications accelerated by photonics. Nat. Photonics 2016, 10, 371–379. [Google Scholar] [CrossRef]
  85. Jia, S.; Zhang, L.; Wang, S.; Li, W.; Qiao, M.; Lu, Z.; Idrees, N.; Pang, X.; Hu, H.; Zhang, X.; et al. 2 × 300 Gbit/s Line Rate PS-64QAM-OFDM THz Photonic-Wireless Transmission. J. Light. Technol. 2020, 38, 4715–4721. [Google Scholar] [CrossRef]
  86. Li, X.; Yu, J.; Wang, K.; Kong, M.; Zhou, W.; Zhu, Z.; Wang, C.; Zhao, M.; Chang, G.K. 120 Gb/s wireless terahertz-wave signal delivery by 375 GHz–500 GHz multi-carrier in a 2 × 2 MIMO system. J. Light. Technol. 2019, 37, 606–611. [Google Scholar] [CrossRef]
  87. Sun, C.; Gao, X.; Wang, J.; Ding, Z.; Xia, X.G. Beam Domain Massive MIMO for Optical Wireless Communications With Transmit Lens. IEEE Trans. Commun. 2018, 67, 2188–2202. [Google Scholar] [CrossRef][Green Version]
  88. Al-Gailani, S.A.; Mohammad, A.B.; Shaddad, R.Q.; Jamaludin, M.Y. Single and multiple transceiver simulation modules for free-space optical channel in tropical malaysian weather. In Proceedings of the 2013 IEEE Business Engineering and Industrial Applications Colloquium (BEIAC), Langkawi, Malaysia, 7–9 April 2013; pp. 613–616. [Google Scholar]
  89. S Hussein, H.; Hagag, M.; Farrag, M. Extended Spatial-Index LED Modulation for Optical MIMO-OFDM Wireless Communication. Electronics 2020, 9, 168. [Google Scholar] [CrossRef][Green Version]
  90. Ntogari, G.; Kamalakis, T.; Sphicopoulos, T. Analysis of indoor multiple-input multiple-output coherent optical wireless systems. J. Light. Technol. 2012, 30, 317–324. [Google Scholar] [CrossRef]
  91. Noor, N.H.M.; Naji, A.W.; Al-Khateeb, W. Performance analysis of a free space optics link with multiple transmitters/receivers. IIUM Eng. J. 2012, 13. [Google Scholar]
  92. Al-Gailani, S.; Mohammad, A.; Shaddad, R. Enhancement of free space optical link in heavy rain attenuation using multiple beam concept. Optik 2013, 124, 4798–4801. [Google Scholar] [CrossRef]
  93. Berenguer, P.W.; Hellwig, P.; Schulz, D.; Hilt, J.; Kleinpeter, G.; Fischer, J.K.; Jungnickel, V. Real-time optical wireless mobile communication with high physical layer reliability. J. Light. Technol. 2019, 37, 1638–1646. [Google Scholar] [CrossRef]
  94. Kim, J.; Sung, M.; Kim, E.S.; Cho, S.H.; Lee, J.H. 4 × 4 MIMO architecture supporting IFoF-based analog indoor distributed antenna system for 5G mobile communications. Opt. Express 2018, 26, 28216–28227. [Google Scholar] [CrossRef]
  95. Noweir, M.; Helaoui, M.; Tittel, W.; Ghannouchi, F.M. Carrier aggregated radio-over-fiber downlink for achieving 2Gbps for 5G applications. IEEE Access 2018, 7, 3136–3142. [Google Scholar] [CrossRef]
  96. Zeb, K.; Zhang, X.; Lu, Z. High capacity mode division multiplexing based mimo enabled all-optical analog millimeter-wave over fiber fronthaul architecture for 5g and beyond. IEEE Access 2019, 7, 89522–89533. [Google Scholar] [CrossRef]
  97. Kim, J.; Sung, M.; Cho, S.H.; Won, Y.J.; Lim, B.C.; Pyun, S.Y.; Lee, J.K.; Lee, J.H. MIMO-Supporting Radio-Over-Fiber System and its Application in mmWave-Based Indoor 5G Mobile Network. J. Light. Technol. 2019, 38, 101–111. [Google Scholar] [CrossRef]
  98. Noweir, M.; Zhou, Q.; Kwan, A.; Valivarthi, R.; Helaoui, M.; Tittel, W.; Ghannouchi, F.M. Digitally linearized radio-over fiber transmitter architecture for cloud radio access network’s downlink. IEEE Trans. Microw. Theory Tech. 2018, 66, 3564–3574. [Google Scholar] [CrossRef]
  99. Li, W.; Chen, A.; Li, T.; Penty, R.V.; White, I.H.; Wang, X. Novel Digital Radio Over Fiber (DRoF) System With Data Compression for Neutral-Host Fronthaul Applications. IEEE Access 2020, 8, 40680–40691. [Google Scholar] [CrossRef]
  100. Perry, P.; Browning, C.; Scotney, B.; Delmade, A.; McClean, S.; Barry, L.; Peters, A.; Morrow, P. Comparison of Analogue and Digital Fronthaul for 5G MIMO Signals. In Proceedings of the ICC 2020–2020 IEEE International Conference on Communications (ICC), Dublin, Ireland, 7–11 June 2020; pp. 1–6. [Google Scholar]
  101. Elmagzoub, M.; Mohammad, A.B.; Shaddad, R.Q.; Al-Gailani, S.A. Physical layer performance analysis of hybrid and stacked TDM–WDM 40G-PON for next generation PON. Optik 2014, 125, 6194–6197. [Google Scholar] [CrossRef]
  102. Bindhaiq, S.; Supa, A.S.M.; Zulkifli, N.; Mohammad, A.B.; Shaddad, R.Q.; Elmagzoub, M.A.; Faisal, A. Recent development on time and wavelength-division multiplexed passive optical network (TWDM-PON) for next-generation passive optical network stage 2 (NG-PON2). Opt. Switch. Netw. 2015, 15, 53–66. [Google Scholar] [CrossRef]
  103. Zhang, J.; Xiao, Y.; Song, D.; Bai, L.; Ji, Y. Joint Wavelength, Antenna, and Radio Resource Block Allocation for Massive MIMO Enabled Beamforming in a TWDM-PON Based Fronthaul. J. Light. Technol. 2019, 37, 1396–1407. [Google Scholar] [CrossRef]
  104. Kim, K.J.; Choi, K.J.; Lee, S.R.; Kim, K.S. Multi-user massive MIMO for next-generation WLAN systems. Electron. Lett. 2015, 51, 792–794. [Google Scholar] [CrossRef][Green Version]
  105. Jing, X.; Wen, J.; Liu, H. Low-complexity soft-output signal detector for massive MIMO with higher order QAM constellations. Digit. Signal Process. 2020, 108, 102886. [Google Scholar] [CrossRef]
  106. Songlin, Z.; Yong, G.; Yongjia, Y. ZTE’s perspective on applying OFDM-PON in next converged optical and wireless networks. China Commun. 2015, 12, 50–57. [Google Scholar] [CrossRef]
  107. Cano, I.N.; Escayola, X.; Schindler, P.C.; Santos, M.C.; Polo, V.; Leuthold, J.; Tomkos, I.; Prat, J. Experimental demonstration of a statistical OFDM-PON with multiband ONUs and elastic bandwidth allocation. J. Opt. Commun. Netw. 2015, 7, A73–A79. [Google Scholar] [CrossRef][Green Version]
  108. Chanclou, P.; Cui, A.; Geilhardt, F.; Nakamura, H.; Nesset, D. Network operator requirements for the next generation of optical access networks. IEEE Netw. 2012, 26, 8–14. [Google Scholar] [CrossRef]
Figure 1. Operation of a time-division multiplexing process in time division multiplexing (TDM)-passive optical network (PON).
Figure 1. Operation of a time-division multiplexing process in time division multiplexing (TDM)-passive optical network (PON).
Electronics 09 02014 g001
Figure 2. Network architecture of wavelength division multiplexing (WDM)-PON.
Figure 2. Network architecture of wavelength division multiplexing (WDM)-PON.
Electronics 09 02014 g002

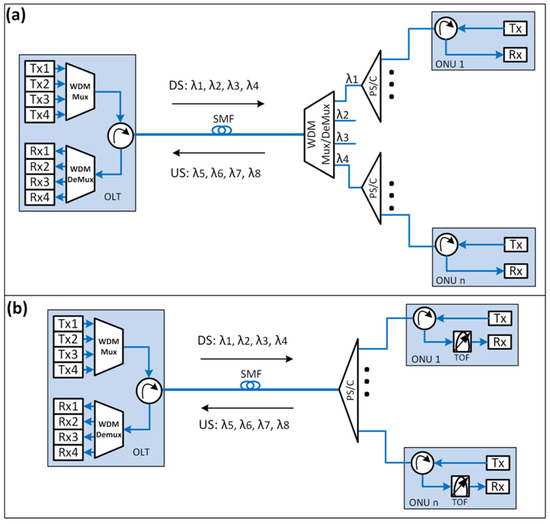

Figure 3. (a) Hybrid TDM/WDM-PON architecture and (b) stacked TDM-PON (TWDM-PON) architecture.
Figure 3. (a) Hybrid TDM/WDM-PON architecture and (b) stacked TDM-PON (TWDM-PON) architecture.
Electronics 09 02014 g003
Figure 4. Baseband over fibre (BBoF) transmission scheme.
Figure 4. Baseband over fibre (BBoF) transmission scheme.
Electronics 09 02014 g004
Figure 5. RoF transmission scheme.
Figure 5. RoF transmission scheme.
Electronics 09 02014 g005
Figure 6. Multiple-input–multiple-output (MIMO) wireless system.
Figure 6. Multiple-input–multiple-output (MIMO) wireless system.
Electronics 09 02014 g006
Figure 7. Wireless MIMO signals over a simple fibre system.
Figure 7. Wireless MIMO signals over a simple fibre system.
Electronics 09 02014 g007
Figure 8. Three wireless MIMO signals over fibre transmission techniques: (a) PDM, (b) comb, (c) hybrid.
Figure 8. Three wireless MIMO signals over fibre transmission techniques: (a) PDM, (b) comb, (c) hybrid.
Electronics 09 02014 g008

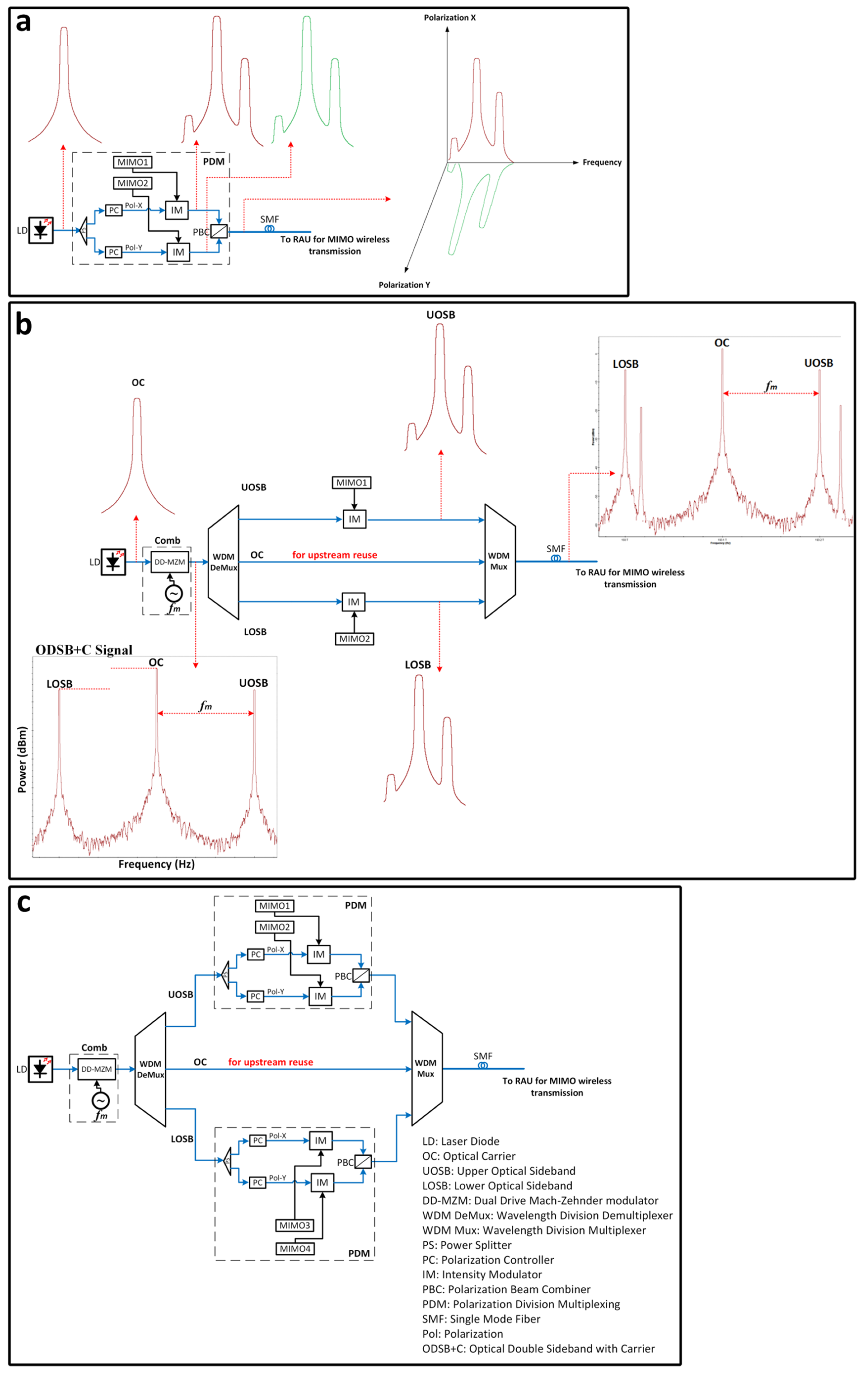

Figure 9. (a) Principle of the electrical single sideband frequency-translation (ESSB-FT) technique proposed in [48] (b) experimental setup in [48].
Figure 9. (a) Principle of the electrical single sideband frequency-translation (ESSB-FT) technique proposed in [48] (b) experimental setup in [48].
Electronics 09 02014 g009
Figure 10. (a) Ultrawide band (UWB) multiuser configurations using two polarisations, (b) experimental setup for MIMO-UWB transmission with PDM [75].
Figure 10. (a) Ultrawide band (UWB) multiuser configurations using two polarisations, (b) experimental setup for MIMO-UWB transmission with PDM [75].
Electronics 09 02014 g010

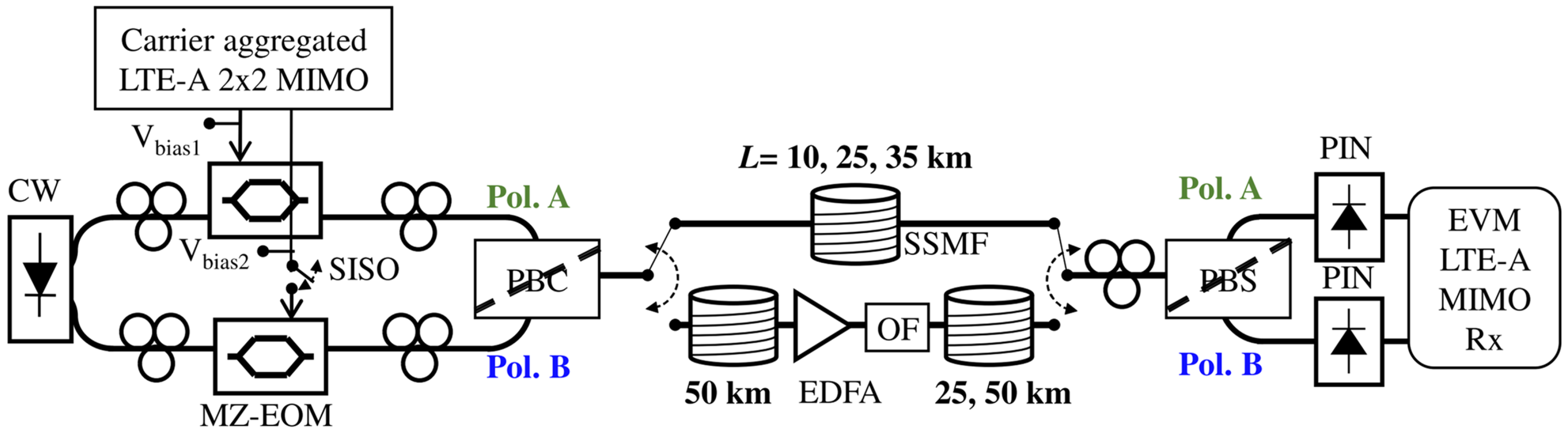

Figure 11. Experimental setup for MIMO LTE-A PDM RoF transmission in optical networks [51].
Figure 11. Experimental setup for MIMO LTE-A PDM RoF transmission in optical networks [51].
Electronics 09 02014 g011
Figure 12. (a) Conventional intra-cell MIMO in low-frequency RF communications taking advantage of multipath (b) multicell MIMO in MMW communications using centralised photonic precoding based on the RoF system [81].
Figure 12. (a) Conventional intra-cell MIMO in low-frequency RF communications taking advantage of multipath (b) multicell MIMO in MMW communications using centralised photonic precoding based on the RoF system [81].
Electronics 09 02014 g012

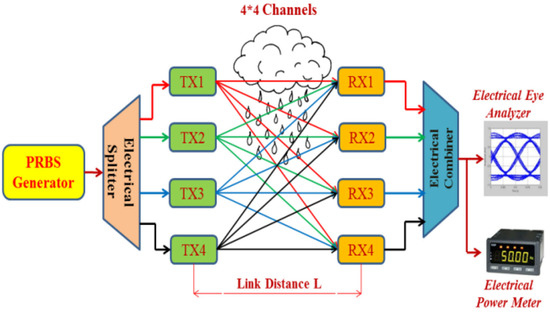

Figure 13. Block diagram for four beam free-space optics (FSO) system [88].
Figure 13. Block diagram for four beam free-space optics (FSO) system [88].
Electronics 09 02014 g013

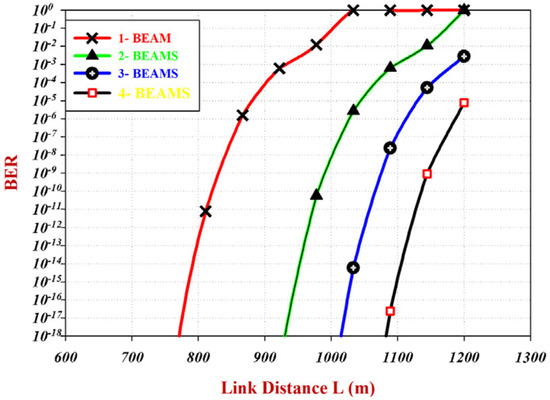

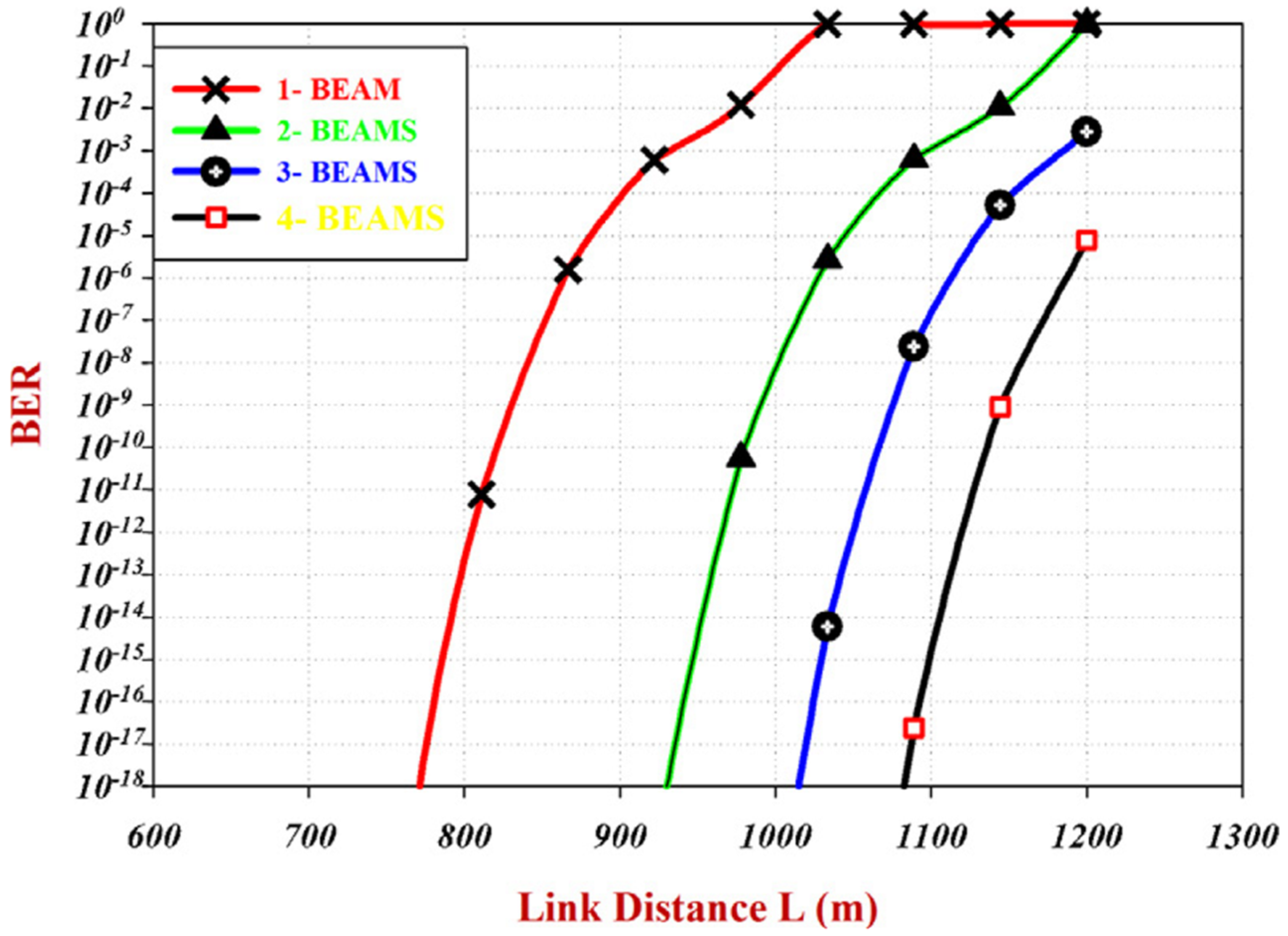

Figure 14. Bit error rate (BER) versus L for one-beam, two-beam, three-beam, and four-beam FSO system [92].
Figure 14. Bit error rate (BER) versus L for one-beam, two-beam, three-beam, and four-beam FSO system [92].
Electronics 09 02014 g014

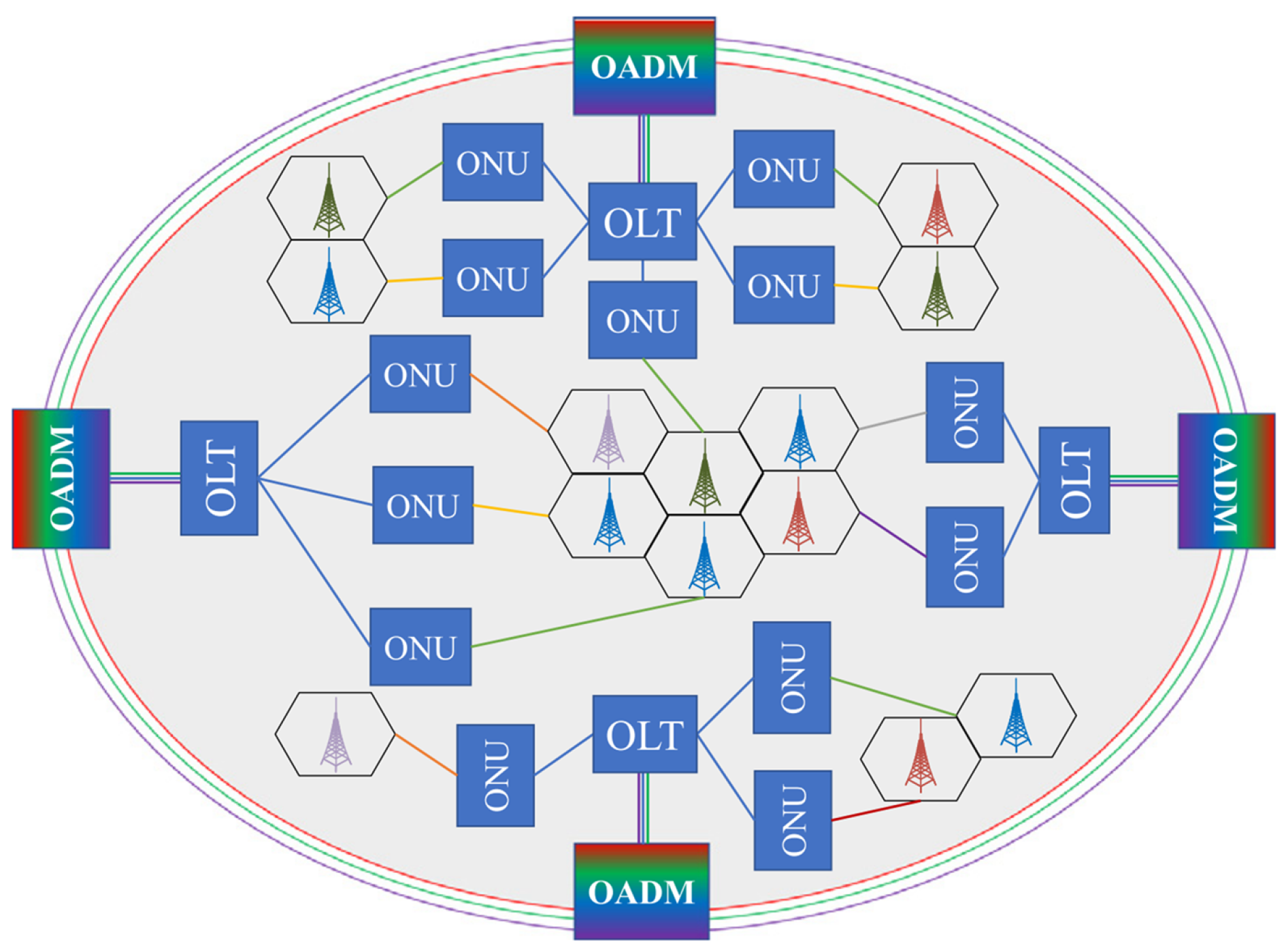

Figure 15. The ring infrastructure of the UDWDM PON based on the approach of 5G over PON presented in [67].
Figure 15. The ring infrastructure of the UDWDM PON based on the approach of 5G over PON presented in [67].
Electronics 09 02014 g015

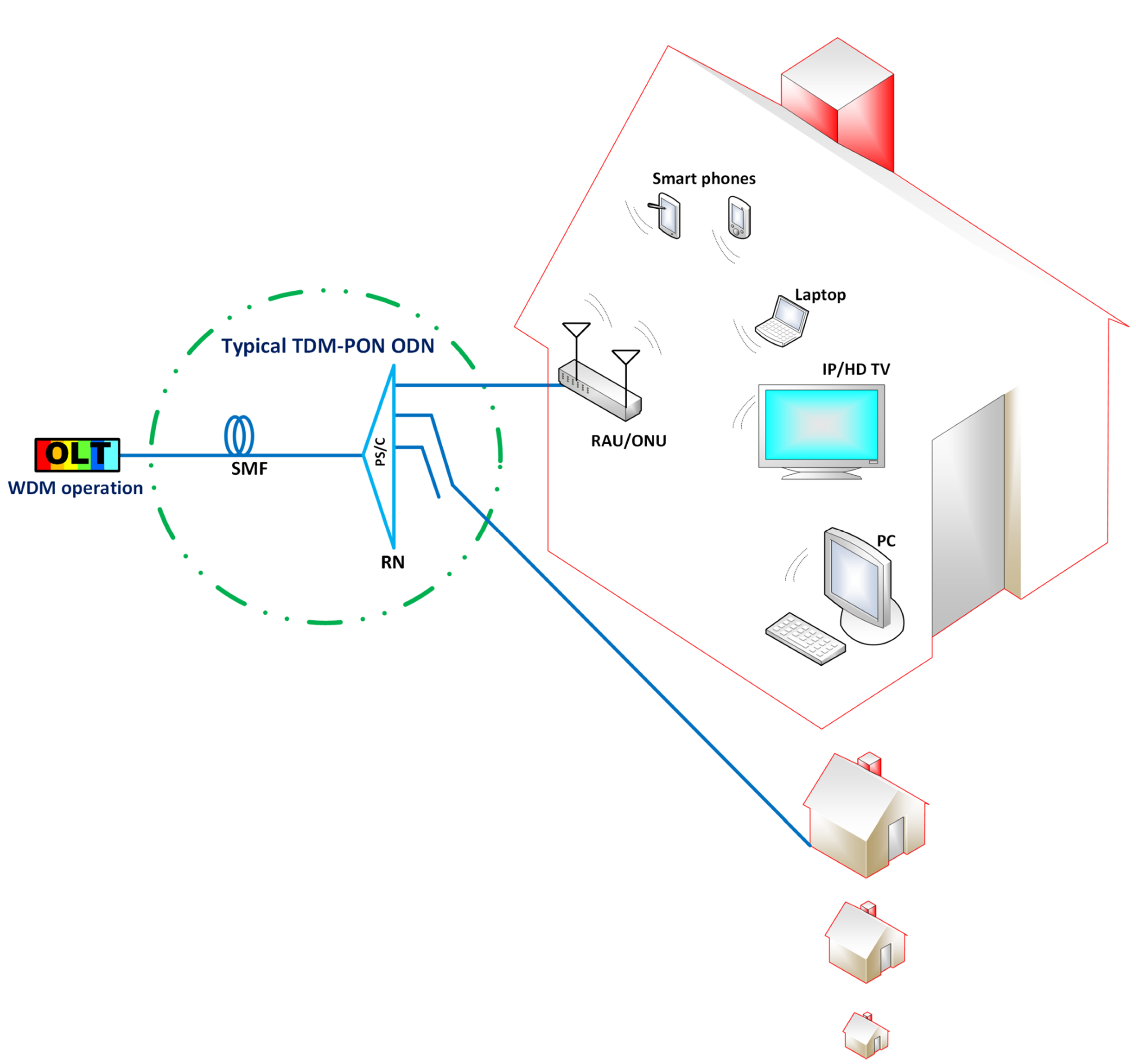

Figure 16. Generic architecture of compatible MIMO RoF-PON.
Figure 16. Generic architecture of compatible MIMO RoF-PON.
Electronics 09 02014 g016
Figure 17. Detail block diagram of the proposed MIMO ROF-PON design [6].
Figure 17. Detail block diagram of the proposed MIMO ROF-PON design [6].
Electronics 09 02014 g017
Figure 18. Constellation diagrams of one of the US wavelengths for (a) transmitted signal, (b) BtB, and (c) 20 km [6].
Figure 18. Constellation diagrams of one of the US wavelengths for (a) transmitted signal, (b) BtB, and (c) 20 km [6].
Electronics 09 02014 g018
Figure 19. Generic architecture of the BB and MIMO-RoF WDM-PON.
Figure 19. Generic architecture of the BB and MIMO-RoF WDM-PON.
Electronics 09 02014 g019
Figure 20. Schematic diagram of the proposed system with the corresponding spectra [40].
Figure 20. Schematic diagram of the proposed system with the corresponding spectra [40].
Electronics 09 02014 g020
Figure 21. Constellation diagrams of MIMO 1 for (a) transmitted signal, (b) BtB, (c) 20 km, and (d) 60 km [40].
Figure 21. Constellation diagrams of MIMO 1 for (a) transmitted signal, (b) BtB, (c) 20 km, and (d) 60 km [40].
Electronics 09 02014 g021

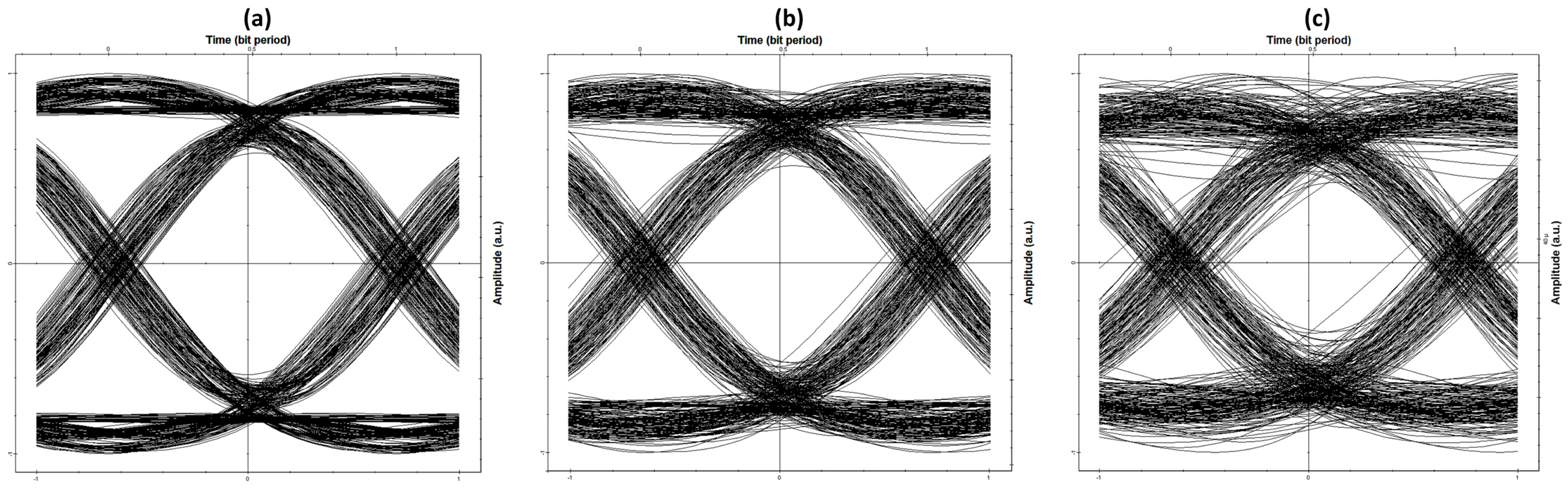

Figure 22. Eye diagrams of the BB signal for (a) BtB, (b) 20 km, and (c) 60 km [40].
Figure 22. Eye diagrams of the BB signal for (a) BtB, (b) 20 km, and (c) 60 km [40].
Electronics 09 02014 g022
Figure 23. Detail block diagram of the proposed wireless optical broadband access network (WOBAN) [72].
Figure 23. Detail block diagram of the proposed wireless optical broadband access network (WOBAN) [72].
Electronics 09 02014 g023
Figure 24. The constellation diagram of the transmitted and received power signal from the data processor of the AP11 at OLT to the wireless end-user [72].
Figure 24. The constellation diagram of the transmitted and received power signal from the data processor of the AP11 at OLT to the wireless end-user [72].
Electronics 09 02014 g024
Table 1. Wireless MIMO signals over fibre schemes.
Table 1. Wireless MIMO signals over fibre schemes.
RefApproachExplanationDisadvantagesAdvantages
[34,50]Polarisation-division-
multiplexing (PDM)
Carrying each MIMO
stream at different polarisation
of the same wavelength, taking
advantage of the wavelength
two polarisations (x and y).
It is applicable just for 2 × 2
MIMO streams. The studies
do not consider
complete PON, just PtP
communication system.
One wavelength
for two MIMO streams.
High data rate.
[39]Formatting the MIMO
streams at the RAU
MIMO streams are sent as
baseband RZ-DPSK signals
over optical fibre then at the
RAU converted into binary
form and then upconverted
(BBoF), so that it can be
adopted as an input to the
transmitter of the
MIMO-OFDM system.
Complex RAU due to
the MIMO traffic
formation process.
Very high data rate.
Long distance
transmission.
[71]Time Domain
Multiplexed MIMO
Each MIMO RF signal is
multiplexed by optical TDM
into one wavelength channel.
Using pure WDM-PON at the
backhaul, which is costly for this
particular application.
Low cost RAU.
[42,46]WDMEach MIMO stream is
carried at different
wavelength channel.
It is not cost-effective,
since for each MIMO signal
an opticalsource and
photodetector are required.
Very high data rate.
Long distance
transmission.
[47]Optical Subcarrier-
Multiplexing (SCM)
Using SCM to multiplex
different MIMO streams.
Using local oscillators
at the transmitting
and receiving sides.
Low data rate.
Low cost.
Applicable for
more than
two MIMO streams.
[48]ESSB-FTUsing an electrical single-sideband
frequency-translation (ESSB-FT)
the technique to shift the
frequency of each MIMO stream
at the transmitter side to a
different frequency and to shift
them again at the receiver side
to the same frequency.
Using local oscillators
at the transmitting
and receiving sides.
Low data rate.
Low cost.
Applicable for
more than
two MIMO streams.
[49]OSSB-FTOSSB-FT technique is used to
generate multi-wavelength
from a single laser diode,
then the MIMO streams carried
at these wavelengths.
Dedicating a wavelength
for each MIMO stream.
Low cost.
Applicable for
more than
two MIMO streams.
High data rate.
Table 2. WiFi MIMO signals over fibre schemes.
Table 2. WiFi MIMO signals over fibre schemes.
RefCapacityDistanceWiFi Standard/
MIMO Stream Order
Infrastructure CostLink Performance
[45]300 Mb/s50-km SMF

15 m wireless
IEEE802.11n

2 × 2
Relatively high. Due to
the use of two PDs ant
the base station.
Also, two MZM is
required for only
two MIMO streams.
For a BER threshold of
3.8 × 10 3 , the power
the penalty is 5.2 dB for
50 km SMF transmission.
[63]240 Mb/s20-km SMF

100 m wireless
IEEE802.11n

2 × 2
Low. One wavelength/
LD for two
MIMO streams.
Achieved BER 10 5 .
[72]7.68 Gb/s
(optical back-end,
aggregated
capacity for
multiple users)
240 Mb/s for the
outdoor wireless
front-end.
20-km SMF

100 m wireless
IEEE802.11n

2 × 2
Low. One wavelength/
LD for two
MIMO streams.
Achieved BER 10 5 .
[48]240 Mb/s550-m MMF
(Wireless transmission
is not available,
the paper focuses
on the optical
backhaulperformance.)
IEEE802.11n

3 × 3
Very low.
One wavelength/LD
and one PD for
three MIMO streams.
The maximum crosstalk
level between the different
MIMO channels was 67 dB.
[73]1 Gb/s1 km MMF
(Wireless transmission
is not available,
the paper focuses
on the optical backhaul
performance.)
IEEE802.11n/ac

3 × 3
High. Three LDs and
three PDs for
three MIMO streams.
With all fibre bending radii
tested, within each 5 min
measurement time, the fibre
the channel is found to be
good enough to provide
throughput greater than
twice the average SISO
value for more than 87.66%
of the time (the main
the concern of the paper
is to study the effect of
MMF bending when
MIMO streams are sent).
Table 3. UWB MIMO signals over fibre schemes.
Table 3. UWB MIMO signals over fibre schemes.
RefCapacityDistanceUWB Standard/
MIMO Stream Order
Infrastructure CostLink Performance
[75]1.2 Gb/s25-km SMF

(Wireless transmission is
not available, the paper
focuses on the optical
backhaul performance.)
UWB ECMA-268

3 × 3
Low. One LD/PD for
three MIMO streams.
The results indicate that
the SCM-UWB multiuser
signal transmitted on both
polarisations achieve
successful communication
(EVM under −14.5 dB)
over a distance up to 25 km.
[63]128 Gb/s80-km SMF

0.6 m wireless
No specific standard
is used.

2 × 2
Low. One LD/PD for
two MIMO streams.
After 80-km SMF transmission
and 0.6-m wirelessdelivery
the Achieved BER is 3.8 × 10 3
Table 4. Long-term evolution (LTE) MIMO signals over fibre schemes.
Table 4. Long-term evolution (LTE) MIMO signals over fibre schemes.
RefDistanceLTE Standard/
MIMO Stream Order
Infrastructure CostLink Performance
[51]100-km SMF

(Wireless transmission is not
available, the paper focuses on
the optical backhaul performance.)
LTE-A

2 × 2
Relatively low.
One wavelength/LD
for two MIMO streams.
However, two PDs
are required.
The experimental results
demonstrate successful 2 × 2
MIMO Pol-Mux RoF
transmission over 100 km
employing QPSK mapping.
[79]550-m MMF

(Wireless transmission is not
available, the paper focuses on
the optical backhaul performance.)
LTE

2 × 2
Very low.
One wavelength/LD and
one PD for two LTE MIMO
streams and one WiFi signal.
In the wide-band signal
transmission experiment,
it is verified that
the system can achieve
a good EVM. The average EVM
(5.1% for 20 MHz
LTE and 1.2% for IEEE802.11 g)
is well within the requirements
set by the standards.
[78]150 MCF

(Wireless transmission is not
available, the paper focuses on
the optical backhaul performance.)
LTE-A

4 × 4
High. Each MIMO stream
required dedicated MZM,
LD and PD.
The four-antenna LTE-A system
implementing 4 × 4 MIMO spatial
multiplexing over MCF is
received within the LTE-A EVM
recommendation. The proposed
system enablesproviding almost
four times the bitrate of
a single-antenna system
overthe same bandwidth
with 5 dB extra powermargin
between the optical paths.
Table 5. Millimetre-wave (MMW) MIMO signals over fibre schemes.
Table 5. Millimetre-wave (MMW) MIMO signals over fibre schemes.
RefCapacityDistanceMMW Standard/
MIMO Stream Order
Infrastructure CostLink Performance
[34]48 Gb/s400-km SMF

100 cm wireless
No specific standard is used

2 × 2
Relativity low. One LD and
two PDs for two MIMO streams.
Also, considering the high
data rate and the long
reach, the system can be
considered as cost
effective system.
The BER performance after
over 400-km fibre link and
100-cm wireless link clearly
demonstrates the feasibility
of the proposed
PDM-QPSK RoF system
over 2 × 2 MIMO
wireless link.
[81]2 Gb/s20-m fibre

0.61 m wireless
No specific standard is used

2 × 2
High. Each MIMO stream
required dedicated MZM,
LD and PD.
A two cell MIMO downlink
transmission using
the proposed method is
demonstrated experimentally
and its capacity is doubled
without obvious penalty
compared with
SISO transmissions.
[58]324 Gb/s25-km SMF

80 cm wireless
No specific standard is used

2 × 2
Relatively low.
One wavelength/LD for
two MIMO streams.
However, two PDs
are required.
The BER is below the 7%
forward error correction
(FEC) threshold of
3.8 × 10 3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Elmagzoub, M.A.; Shaikh, A.; Alghamdi, A.; Rajab, K. A Review on MIMO Wireless Signals over Fibre for Next Generation Fibre Wireless (FiWi) Broadband Networks. Electronics 2020, 9, 2014. https://doi.org/10.3390/electronics9122014

AMA Style

Elmagzoub MA, Shaikh A, Alghamdi A, Rajab K. A Review on MIMO Wireless Signals over Fibre for Next Generation Fibre Wireless (FiWi) Broadband Networks. Electronics. 2020; 9(12):2014. https://doi.org/10.3390/electronics9122014

Chicago/Turabian Style

Elmagzoub, M. A., Asadullah Shaikh, Abdullah Alghamdi, and Khairan Rajab. 2020. "A Review on MIMO Wireless Signals over Fibre for Next Generation Fibre Wireless (FiWi) Broadband Networks" Electronics 9, no. 12: 2014. https://doi.org/10.3390/electronics9122014

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
