KQI Performance Evaluation of 3GPP LBT Priorities for Indoor Unlicensed Coexistence Scenarios

Departamento de Ingeniería de Comunicaciones, Campus de Teatinos, Universidad de Málaga, Andalucía Tech, 29071 Málaga, Spain
*
Author to whom correspondence should be addressed.
Electronics 2020, 9(10), 1701; https://doi.org/10.3390/electronics9101701
Received: 9 September 2020 / Revised: 30 September 2020 / Accepted: 6 October 2020 / Published: 16 October 2020
(This article belongs to the Special Issue Access Technology in 5G and Mobile Communication Networks)

Abstract

The rapid proliferation of user devices with access to mobile broadband has been a challenge from both the operation and deployment points of view. With the incorporation of new services with high demand for bandwidth such as video in 4K, it has been deemed necessary to expand the existing capacity by including new bands, among which the unlicensed 5-GHz band is a very promising candidate. The operation of future 3GPP (Third Generation Partnership Project) mobile network standards deployments in this band implies the coexistence with other technologies such as WiFi, which is widespread. In this context, the provision of Quality of Service (QoS) or Quality of Experience (QoE) becomes an essential asset and is a challenge that has yet to be overcome. In this sense, 3GPP has proposed a traffic prioritization method based on the Listen Before Talk access parameters, defining a series of priorities. However, it does not specify how to make use of them, and even less so in potentially conflicting situations. This paper assesses the end-to-end performance of downlink unlicensed channel priorities in dense scenarios via implementing a novel simulation setup in terms of both multi-service performance and coexistence.
Keywords: unlicensed band; Coexistence; NR-U; LAA; eLAA; WiFi; simulation; signalling unlicensed band; Coexistence; NR-U; LAA; eLAA; WiFi; simulation; signalling

1. Introduction

The fourth generation of mobile telephony Long-Term Evolution (LTE) seems to have reached its maturity in commercial deployments. However, the sharp increase in the forecasted capacity demand for mobile networks [1] combined with the upgrade of devices and services with higher requirements make the expansion of spectral resources inevitable. Following this trend, cellular network operators see in the unlicensed bands the ideal solution to support the capacity gain necessary to compensate the new demands.
While a further extension of the operational spectrum is foreseen, the free bands currently available in Europe for this purpose are 2.4 and 5 GHz. Within this framework, 3GPP (Third Generation Partnership Project) created the Licensed Assisted Access (LAA) standard [2] so that LTE could operate in the downlink in unlicensed bands. To adapt the LTE (and later standards) synchronous operation to a contention-based access channel, the use of Listen Before Talk (LBT) protocol has been established with the added purpose of maintaining equitable access with respect to the WiFi devices [3]. This protocol, as shown in Figure 1, has evolved being included as part of 3GPP developments to adapt mobile technologies to their operation in the unlicensed band.
From this proposal, later versions deepen the capabilities for 3GPP unlicensed spectrum support: LAA included a series of preconfigured values of the access parameters to the unlicensed channel called priority classes that would fulfill the function of providing a certain degree of Quality of Service (QoS) without going into details of its operation. Subsequently, in enhanced LAA (eLAA), the uplink channel is further added and the priorities are defined in the same way for this channel. Afterwards, FeLaa (Further enhanced LAA) becomes the first 5G standard that adapted LAA and eLAA adding new functionalities. In addition, non-3GPP technologies, such as the one proposed by the MulteFire Alliance [4], have been derived from 3GPP to operate exclusively in the unlicensed band.
Finally, the recently completed Release 16 NR-U [5] offers two different flavors for deployment: on the one hand the option of licensed assisted and on the other hand a completely standalone operation as proposed by MulteFire. For all these standards, the use of the LBT priorities initially proposed for LAA is common, however none of these specify which types of traffic or under which conditions their use is appropriate.
Even though 3GPP-based unlicensed standards and WiFi use the same techniques in their physical layer [5], namely Orthogonal Frequency Division Multiplexing (OFDM) and Multiple Input Multiple Output spatial multiplexing (MIMO), they differ in other aspects such as the transmission power, bandwidth, Modulation and Coding Schemes (MCS) or error correction codes, to name a few. Regarding the packet loss recovery mechanisms, although they present similarities, the differences are substantial. While WiFi uses automatic retransmission (ARQ), 3GPP incorporates the Radio Link Control layer (RLC) with hybrid ARQ [6]. Besides, in terms of scheduling, 3GPP acts as a synchronous system, via a centralized scheme. At the same time, WiFi operates half-duplex random access where the receiver must confirm all frame transmissions. Although both approaches can achieve similar performance in terms of data rate, the random access used by WiFi produces persistent collisions when there are several devices connected to the network [7].
At present, although several articles evaluate the coexistence of both mechanisms [8], there is still a need to investigate in this area with end-to-end performance assessment purposes especially in dense environments [9], avoiding, as far as possible, the degradation of pre-existing technologies. Most of the collected works mentioned in [8] choose a certain configuration of the access channel parameters to show the benefits of their proposal or to demonstrate the harmful or beneficial effect on WiFi. Many of these chosen parameters are not sufficiently justified or do not fully comply with the standard. In neither case do they cover the entire range of cases proposed by the 3GPP priorities.
It is important to highlight that, due to the operational differences mentioned above for both standards at the protocol level, a detailed study of all aspects that impact on the quality perceived by the users is necessary. Since an implementation of a coordination mechanism it is not foreseeable, possible ways to improve coexistence become a priority.
Therefore, it is not only a question of comparing the access methods being mutually respectful (LBT in 3GPP standards and CSMA/CA in WiFi) but also to determine how the channel sharing affects the operation of the upper layers (e.g., the MAC) and describe the interaction with themselves and each other as well as the impact on the application layer. In this regard, some works can be found in the literature specially focused on mathematical modeling.
In [10,11], the impact of priorities is assessed with a standardized throughput indicator and assuming ideal propagation conditions. However, the problem of heterogeneity of coexisting systems is identified, while the proposed scenario is far from dense. On the other hand, with respect to simulation works, several outstanding papers have appeared lately, among which it is worth mentioning the one by De Santana et al. [12] where, despite the use of ns3 tool, a simplified scenario that does not reflect any of the problems posed by coexistence in the foreseeable dense indoor environments is proposed. It also focus on a single priority configuration with a fixed traffic load. Lastly, the exhaustive study made by the ns3-based LAA model creators in [13] presents a setting where only FTP traffic is simulated, and the impact of each relevant random access parameter is studied. However, neither video traffic nor the priorities proposed by the 3GPP are included.
In this field, the contribution of the present work is on the end-to-end assessment of the LBT channel access priorities configurations in order to provide QoS and Quality of Experience (QoE). To this end, two types of services were simulated in an indoor dense environment, one of them being real-time (video streaming) and the other non-real-time (FTP) for different levels of traffic intensity. Thus, this is the first time that a multi-service end-to-end performance is assessed in the LBT-based 3GPP standards—WiFi coexistence literature leading to key conclusions on the performance of each priority and recommendations for future QoE-based use of LBT channel access configurations. From these results, a definition is derived and the framework about traffic prioritization for 3GPP standards in unlicensed band is implemented.
The structure of this work can be summarized as follows. In Section 2, the access characteristics to the unlicensed channel in WiFi and 3GPP LBT are described. Section 3 presents the evaluation framework designed for user end-to-end multi-service performance evaluation. Thereafter, a description of the relevant indicators being evaluated is presented in Section 4, followed by Section 5 presenting an exhaustive description of the scenario and parameters of the simulation leading to the performance assessment analysis. Finally, Section 6 summarizes the conclusions of this work.

2. Unlicensed Medium Access Mechanisms

This section summarizes the functioning of the medium access mechanisms implemented in each of the coexisting technologies in the 5-GHz band, describing the parameters that regulate each of them.

2.1. 3GPP Standards

As described in the description of the shared channel download of the 3GPP standards [5] in 5-GHz unlicensed bands (including eLAA, FeLAA and NR-U) the use of Listen Before Talk is mandatory, although it is allowed to include or not the use of the licensed band for signaling in the uplink. To this end, several variants of LBT mechanism have been considered for DSCH unlicensed channel access.
LBT in this context is a contention mechanism where the transmitter has to check the channel state before using it. It relies mainly on two basic processes: the clear channel assessment procedure (CCA) with energy detection (ED) threshold to sense the channel state for a defer period whether any signal (regardless of its kind) is present above a certain power value. As shown in Figure 2, when the channel is detected free, then the LAA station is allowed to transmit for a Maximum Channel Occupancy Time (MCOT). Otherwise enhanced CCA (eCCA) is activated and has to wait for a backoff period of time determined by a Contention Window (CW) measured as a number of time slots.
Before standardization by 3GPP, several variants or categories (CAT) of LBT were considered [14] for its implementation:
  • Category 1: No LBT procedure is performed
  • Category 2: LBT without random backoff with deterministic waiting time when the channel is found free
  • Category 3: LBT with random backoff and fixed contention window size
  • Category 4: LBT with random backoff and variable contention window size
In the above mentioned study of coexistence [15] made by 3GPP, it is concluded that the LBT category allowing a better coexistence with respect to WiFi due to the configuration flexibility of its parameters is Category 4 (CAT4). Under this category, which has finally been standardized, different priorities are defined. Each priority represents a predetermined set of values for the parameters implicated in the LBT process. As shown in Table 1, within this category, four priority classes [5] have been established according to MCOT and Cw size values combinations.
As observed, each of the priorities defines a combination of backoff time (given by Cw) and transmission time. Taking into account this principle, Priority 1, having a lower backoff time, will have a higher probability of transmitting, although each transmission will have less time available. Thus, according to theoretical models proposed [16], Priority 1 should offer a higher performance than Priority 3 or 4.

2.2. WiFi

According to the 802.11 WiFi standards (including its latest versions ad and ax), the primary channel access mechanism used for unlicensed band is the Distributed Coordination Function or DCF [17] based on CSMA/CA (Carrier Sense Multiple Access with Collision Avoidance). WiFi DCF uses aCCA sensing based mechanism similar to LBT (Figure 2) with two related functions: Carrier Sense (CCA-CS) to detect and decode a WiFi preambles and Energy Detect (CCA-ED) for non-WiFi energy in the operating channel and back off data transmission. Although they operate simultaneously, different thresholds are set for each function.
When the channel is empty for a DIFS (DCF Inter Frame Space) period duration, the WiFi station sends the whole frame. In the case of finding the channel busy, a random timer (with backoff count) starts. Such timer only decreases its value when free channel has been sensed during the slot period. Once it expires, the WiFi stations must transmit. Every time a frame is correctly decoded at the receiver, an ACK is sent after SIFS (Short Inter Frame Space). Thus, when such confirmation (ACK) is not received, the backoff period is increased in an exponential way.
In summary, although the mechanism of access to the LBT and CSMA/CA contention channel are very similar. In WiFi, the detection of a collision is done by means of a confirmation frame (ACK). Conversely, in 3GPP standards, there is no such frame, so collision detection is based on the feedback from the hybrid automatic repeat request (HARQ). Thus, according to the standard, if 80% of the HARQ feedbacks from the most recent MCOT are NACKs, a retransmission is required [5].

3. Evaluation Framework

To model both technologies as realistically as possible, the well-known simulator ns3 [18] was chosen. For the evaluation, a simulated setup was developed based on ns3, implementing on top a framework for the simultaneous execution of Real Time Video Streaming (RTVS) and FTP services and the multi-layer monitoring of their performance. This tool has an important acceptance within the wireless research field [19] given the fact that relevant entities in the industry have developed its WiFi and LTE modules.
The scope of ns3 simulations is to include multi-layer interactions of commercial standard deployments. The ns3 Evalvid module [20] was used for the simulation of RTVS service. This module contains a set of tools to generate video traffic based on sender/receiver traces. In this way, it allows the encoding and comparison of the original video versus the received one, from which the differences due to its transit through the network are obtained.
In the proposed evaluation, a 4K AVC MPEG-4 encoded file (3840 × 2160 resolution, 120 fps with 28.3 MB size) containing 20 s of video is sent. To emulate real-time behavior, all frames with an end-to-end delay of more than 150 ms are discarded.
Additionally, for the modeling of the 3GPP downlink unlicensed channel, the LAA ns3-module was used [21]. This includes the indoor scenarios and FTP Model I type of traffic as proposed by 3GPP [22] to evaluate the performance of both systems. The architecture of the proposed simulation is shown in Figure 3.
For link performance computation, the ns3 LAA module uses the [23] model to extract the Mutual Information Effective SINR Metric (MIESM) as a Link-to-System Mapping (LSM) function, as done in [24]. Finally, MIMO was modeled as a gain of SINR over SISO, as specified in [25] where the statistical gain of several MIMO solutions with respect to SISO is argued.
The development of the framework adapted the evalvid module code to work through the LBT protocol in the version that supports it. In addition, the LAA module was modified to support the priorities as well as the performance indicators in the following section. This setup allows a novel multi-service end-to-end simulation of a coexistence environment between 3GPP LBT downlink technology and WiFi.

4. Performance Indicators

The indicators identified for the proper performance analysis of the unlicensed coexistence scenarios are divided into three categories in terms of the quality of experience provided to the users, the background traffic user perceived quality and the level of fairness between WiFi and 3GPP LBT downlink service provision. About this last aspect, it has to be noted that, following the general deployment considerations established by 3GPP [26], coexisting deployments are expected to be provided by different operators and without any coordination between them besides the general collision avoidance mechanisms defined in the previous section.

4.1. Key Quality Indicators

The metrics that determine user-perceived QoE were based on the KQIs defined by ETSI and 3GPP [26] as an objective measure of end-to-end quality perception, distinguishing between the different services. These are classified in several service categories, among which Integrity is the most representative in our assessment. This category measures the degree to which the service is offered with an acceptable quality without major drawbacks once obtained. Thus, the corresponding KQIs relative to the FTP service and RTVS are presented in Table 2.
  • Peak Signal Noise Ratio (PSNR) is a measure that compares the video signal pixel by pixel and frame by frame. It is totally blind to the spatial and temporal relationships between pixels and, as a result, very diverse distortions that clearly produce very different quality perceptions get similar values of PSNR.
  • Frame Loss Ratio (FLR) represents the ratio between the number of frames that have errors and the total number of frames sent.
  • Delay is the time (ms) required to transmit a frame along its entire end-to-end network path.
  • Jitter refers to the variation in delay time in milliseconds between video frames when transmitted over a network.
The delay and jitter (understood as the time differential between video frames) measurements are formally specified in the article that exposes the evalvid module [20].

4.2. Background Traffic User Performance Indicators

In contrast to these, the User Performance Indicators (UPI) are outlined. Such metrics are measured to quantify its performance of the background traffic generated by the users. These are measured in this context from the background FTP traffic: mean throughput, mean delay and mean jitter measured at IP level. Since the MAC to PHY delay is fixed to a value of 2 ms, the resulting delay is computed as the time between the first IP packet of the file was sent until its arrival in the receiver. Finally, the throughput is calculated as the IP packet size divided by its delay [30].

4.3. Fairness

Another crucial aspect highlighted by 3GPP is the concept of fairness with respect to other wireless technologies operating in the same band. In this way, the standard defines it as the capacity of a 3GPP network to not affect the active WiFi networks in one operator rather than an additional WiFi network operating in the same operator, in terms of throughput and latency [2]. In this respect, beyond the aforementioned 3GPP definition, there is no defined unanimity for its objective assessment. In the following, we can find in the literature a survey of different approaches [31] depending on their application in the context of wireless networks (energy consumption, resource allocation, power control, etc.). All these methods have in common the definition of a precise goal (for example, equal video quality) that, in our case, by the definition of 3GPP is not clear. More specifically in the field of WiFi-LBT, Mehrnoush et al. [32] proposed using the average throughput per user with a simple division between the scenario with two WiFi operators and the one of WiFi-3GPP coexistence.
However, this approach only considers one metric and does not give a complete idea of how the behavior is modified when both technologies are used. In this sense, Ali et al. [33] proposed the mapping between fairness and first-order stochastic dominance. Under this premise, the precept of fairness is fulfilled much more faithfully under the authors’ criteria and can thus be extended to various parameters. It is because of this lack of flexibility that the Jain Fair Index, which is quite widespread for scheduling protocols for example, has proven not to be a good candidate in this case [34].
Taking this into account, the performance indicators chosen for the coexistence evaluation of WiFi and LBT scenario (denoted as W+L) [15] are based on UDP file transfer service model following a Poisson arrival process with a fixed file size (FTP Model I), as explained in [22], to generate background traffic.
Therefore, based on comparison given by a scenario with two WiFi operators coexisting (called WiFi-WiFi, W+W), an assessment of fairness based on Experimental CDF comparison using Kolmogorov–Smirnov two-sided tests used as described in [33] follows the procedure in Algorithm 1.
Thus, the distribution of WiFi UPI-based performance (i.e., mean latency and throughput) when coexisting with LBT are considered to be similar to the baseline performance distribution given by W+W scenario when P value (probability of a null hypothesis) being true with a certain significance level α reaches a certain value (i.e., 0.05). Equivalently, its obtained Dmax is at least D α .
Algorithm 1: Fairness evaluation
Input: Performance UPI values (throughput and latency) measured at IP level
Output: Null hypothesis, P-value, Dmax
1 Compute UPI ECDF of the different flows of background traffic through the WiFi network of the operator B, when it coexists with the WiFi network of the operator A, and use it as a baseline (W+L scenario)
2 Perform step 1 for the case when the WiFi network of the Operator B coexists with the LBT network of the Operator A (L+W)
3 Run a two-sided sample Kolgomorov–Smirnov test
4 Calculate P and Dmax values
5 Accept or reject the null hypothesis (both distributions are similar or fair) based on P-value
6 In case of null hypothesis rejection compare Dmax wih D α value
It is important to highlight in this context that, even if this condition is not met, the value of Dmax can be used to assess the degree of fairness as long as its value approaches D α [33]. In this context, a nearby Dmax value will therefore be considered fairer than one whose difference with D α is greater.

5. Performance Assessment

This section evaluates the impact of 3GPP LBT priorities on service performance in coexistence for indoor dense scenarios. The environment defined by 3GPP for this kind of analysis [22] is used. Thus, among all the deployment scenarios for 5G (rural, dense, urban and urban macro outdoor), the one chosen is proposed in TR38.889 [15] as a baseline on coexistence as indoor Hotspot scenario and specified as the most suitable to evaluate the coexistence with 802.11ac WiFi networks whose power and technical characteristics defined by ETSI do not allow exceeding 23 dBm.This criterion is followed by some of the key articles on coexistence of 3GPP-WiFi technologies in unlicensed band [13,16,35,36]. Both LBT and WiFi nodes share the same 20-MHz channel (number 36 within 5-GHz band).

5.1. Scenario

As shown in Figure 4, an indoor layout of 120 m × 50 m where two Operators A and B with four base stations and a total of 20 static users per operator randomly placed all over the layout are coexisting.With this setting established, a hotspot use case where the users have very low or quasi-static mobility is considered. The base station/access points are aligned with 30 m separation between them and at 5 m distance between operators. The results are evaluated by averaging 50 different random user distribution scenarios with 500 s runs each.
Thus, in each run, a randomly selected user who makes use of the FTP/Real Time Video Streaming (RTVS) services is evaluated (“Random User traffic” in Figure 4) while the rest of the user devices (“Background traffic” in Figure 4) generate a download FTP Model I traffic with intensity that varies according to the lambda parameter (from 0.5 to 3 files/s). In this manner, the QoE performance (i.e., KQI) of the user is evaluated in the presence of a background traffic load from low to high.
The interference between WiFi access points and base stations is managed by contention mechanisms (CSMA/CA in WiFi and 3GPP LBT); no further Distributed Control Function is enabled. Unlike the synchronized and collision-free access in which 3GPP technologies operate, the necessary medium access layer given by the CSMA and LBT protocols has some drawbacks associated with it, such as the hidden node or the exposed node. When a terminal has started transmitting for the limited time (in the form of TxOP or MCOT), it is possible that interference may occur in nodes that are not able to detect such transmission (because it is below its energy detection threshold). Thus, in short transmissions, there is more chance of collisions by nodes that cannot detect it. Therefore, when an interference is produced during the transmission of a WiFi Access Point and, given the half-duplex nature of the protocol, the retransmission mechanism is activated trying to resend the interfered frame and causing greater congestion of the air environment and making further collisions of part of the hidden nodes of the co-existing technology more likely.
All the aforementioned performance indicators in Section 4 are analyzed following a top-down approach in order to correctly analyze the interaction phenomena produced in coexistence. The background FTP Model I (UDP) traffic from the application layer is analyzed first, including the total number of files sent and which of these have arrived complete. The average performance figures among all background users are also shown. Then, the KQI obtained by the user taking into account these conditions are shown and compared with the KPI obtained by the network. Next, to explain the results, details of some lower layer parameters are shown to support the explanations. Finally, the fairness of both coexisting mechanisms is evaluated as described in the previous section.

5.2. Background Traffic (Load)

As shown in Figure 5a, WiFi sends a fixed number of files depending on the intensity while 3GPP LBT varies depending on the priority used. More specifically, the use of Priorities 1 and 2 reduces the total number of files sent and losses occur (cut bar). If we look at the metrics of the FTP Background traffic (Figure 5), i.e. File Transfer Mean Throughput and the File Transfer Mean Delay, it can be seen that in Priorities 1 and 2 there is a significant drop in quality. This means that not only are fewer files sent, but also the quality of service offered to the user is of a lower quality than in the case of Priorities 3 and 4 (in principle intended for Best Effort traffic [5]).

5.3. User Traffic

Subsequently, Figure 6 and Figure 7 display the results obtained at the level of KQI indicators for the user of FTP and RTVS services. They are shown in boxplot form taking into account the results of all the iterations and all frames in video streaming (which is why more samples have been captured). The first aspect that can be observed is that the behavior of the priorities is very similar to the one followed by the Background traffic, that is Priorities 1 and 2 present a longer delay (Figure 6b and Figure 7a) and jitter values (Figure 7b) and lower throughput (Figure 6a) and PSNR (Figure 7d) than Priorities 3 and 4.

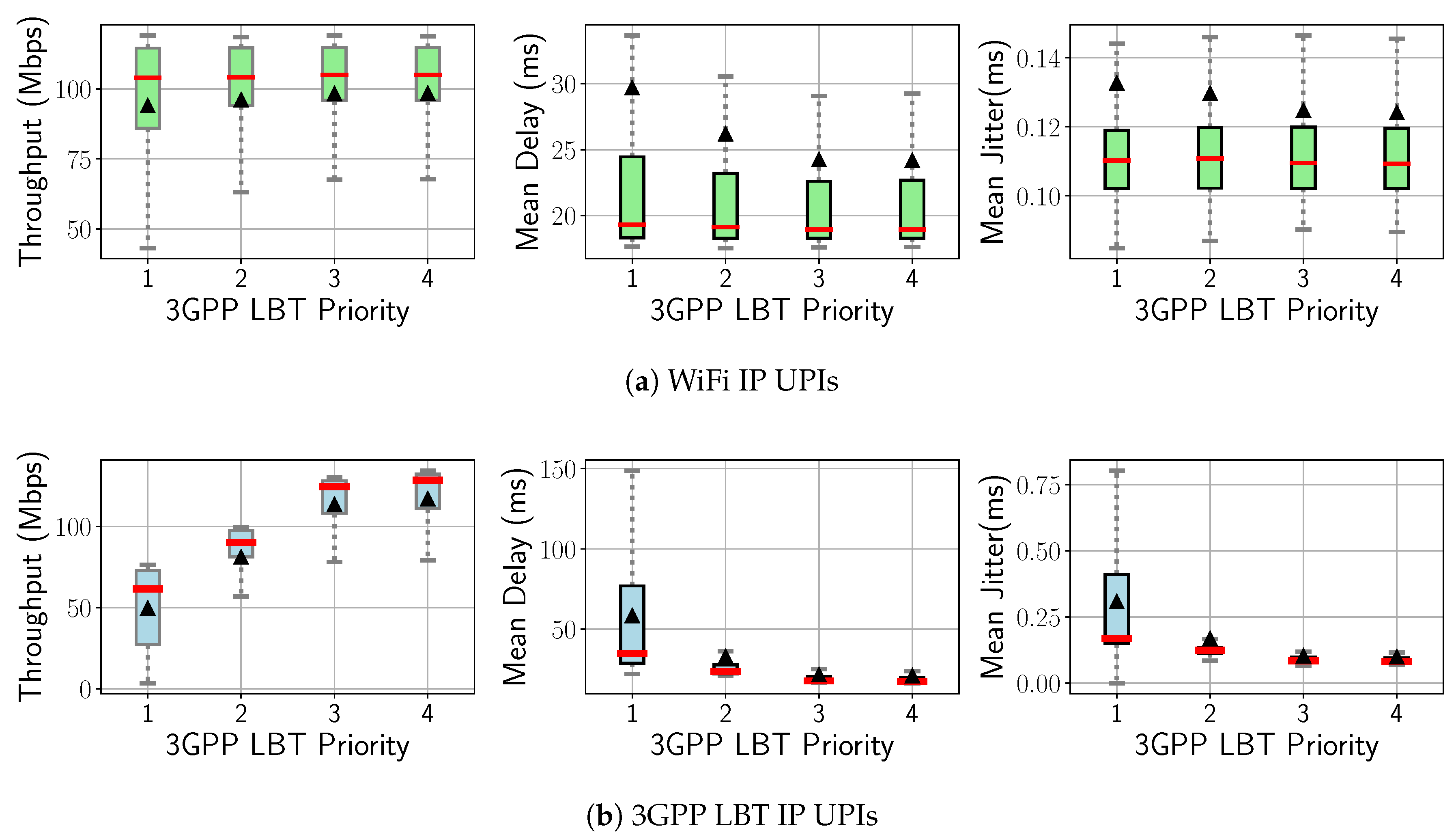

To deepen in these results, in Figure 8, a boxplot of the UPIs for both technologies is presented, measured in terms of the IP packages with prefixed MAC to channel delays so that only the delay introduced by the access to the channel varies. We see that in LBT as the priority is increased the performance improves and the dispersion decreases; this is not so for WiFi, where, although the average follows a linear progression, the dispersion is maintained. This fact means that priorities’ selection influence LBT performance more than WiFi traffic due mainly to two factors: (1) a lower use of the channel as fewer MCOTs are needed; and (2) a higher probability of collision when the contention window and the MCOT are reduced, especially between distant LBT stations as they are synchronized at subframe level [13]. Such phenomenon is proved in Figure 9 which shows how changes in LBT contention window (indicating a collision) imply a very similar lost packets pattern. Unlike what happens in WiFi where collisions are measured based on the number of retransmissions made, it can be seen that a similar behavior is practically maintained (accentuated for Priorities 1 and 2). Hence, in LBT, lost packets do not depend on the configuration but on the traffic load.
The fact 3GPP LBT has the channel for a more considerable amount of time means that, although waiting times are longer in the case of a collision, the transmissions have greater efficiency by having more resources. It is also appreciated in Figure 8a that an LBT performance drop (UPT decrease and higher latency values) is produced with Priorities 1 and 2. This adverse effect (especially in Priority 1) is due to a shorter duration of MCOT and short backoff times Cw, which, in turn, cause an increased number of channel access attempts by WiFi retransmissions. Since WiFi ED-CCA threshold is higher than the one set by LBT (Table 3), such repeated attempts result in a significant increase in the number of collisions produced by the WiFi retransmitted frames causing higher delays in LBT [37]. Nevertheless, in Priority 1, the UPT is constant regardless of the traffic intensity due to a higher probability of accessing the medium but shorter transmission times compared to other priorities.

5.4. Fairness

On the subject of fairness, the results of the K-S test shown in Table 4 confirm that in none of the priority settings does the parameter p reach the proposed alpha (0.05). This means that 3GPP LBT is not a fair method in any of these cases, although by means of the parameter Dmax it can be stated that Priority 4 is the closer to fairness than the rest of options.
Therefore, it can be concluded that the phenomenon that has the most impact, and therefore must be avoided, is the collisions between both technologies. In this manner, the more transmissions there are, the more likely they are to collide, thus it is advisable to make the number of such transmissions as efficient as possible, particularly in the dense scenario that is the subject of this research.
Although in principle the use of a shorter backoff time is more likely to use the channel, as the standard and the literature suggest [16], it is also more likely in this context to interfere with other transmissions that are going unnoticed. Thus, these results raise the need to adopt specific mechanisms for especially dense environments that allow improving the coexistence between both technologies while maximizing 3GPP LBT performance.

6. Conclusions

This article presents an end-to-end multi-service performance evaluation by simulating an indoor dense coexistence environment. In such scenario, two non-cooperative deployments in the unlicensed sub-6-GHz bands coexist. The first is an operator using 3GPP Listen Before Talk access technology and the other is an operator with the WiFi 802.11ac. In this context, the performance and fairness of each priority established by 3GPP for LBT CAT4 proposed for LAA, eLAA and FeLAA and applicable for 5G NR-U were evaluated for a real-time service (FTP) and a non-realtime (Video Streaming) service.
According to the results obtained, and in contrast to the predicted from abstract models, Priorities 3 and 4 show very similar behavior, offering higher levels of user satisfaction measured in KQI for both real-time and non-real-time service compared to Priorities 1 and 2 and greater fairness towards WiFi. Therefore, it is proved that, in indoor dense coexistence scenarios, the 3GPP LBT parameter with the most significant impact is the Maximum Channel Occupation Time (MCOT). As a rule, configurations with longer MCOT provide higher user throughput and lower latencies. Nevertheless, it is essential to note that fairness is always compromised for all priorities, indicating that WiFi is still degraded.
Based on the evaluation made, it is necessary to find ways to optimize user’s performance and fairness in dense scenarios for future 5G NR-U developments in the unlicensed band. In addition, it can be inferred that the use of lower priority values (3 and 4) is recommended to get the best user experience, even if their waiting times are longer. A method to manage the synchronization between 3GPP Listen Before Talk base stations in order to avoid self-collisions when shorter duration signals are sent (1–2 ms) is therefore needed. In this way, an algorithm to dynamically assign priority classes and further elaboration on network metrics (e.g., cell throughput, resource blocks utilization, network power consumption, etc.) are envisioned as future work.

Author Contributions

E.B. developed the simulator add-ons, carried out the simulations, proposed the assessment and wrote the manuscript; S.F. contributed to the interpretation of the results and review of the manuscript; and R.B. reviewed the manuscript and supervised the project. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially funded by Junta de Andalucía (Research Project of Excellence P12-TIC-2905) and the Ministry of Economy and Competitiveness (TEC2015-69982-R).

Acknowledgments

This work was carried out in the framework of the Horizon 2020 project ONE5G (ICT-760809) receiving funds from the European Union. The authors would like to acknowledge the contributions of their colleagues in the project. The views expressed in this contribution are those of the authors and do not necessarily represent the project.

Conflicts of Interest

The authors declare no competing interests.

Abbreviations

The following abbreviations are used in this manuscript:
3GPPThird Generation Partnership Project
AMAcknowledged Mode (RLC)
APAccess Point
ARQAutomatic Repeat Request
BERBit Error Rate
BLERBlock Error Rate
BSBase Station
CCAClear Channel Assessment
CDFCumulative probability Distribution Function
CQIChannel Quality Indicator
CSCarrier Sense
CSIChannel State Information
CSI-RSChannel State Information Reference Signal
CSMACarrier Sense Multiple Access
CWContention Window
DCIDownlink Control Information
DRSDiscovery Reference Signal
DSCHDownlink Shared Data Channel
EDEnergy Detection
eLAAEnhanced Licensed Assisted Access
FeLAAFurther Enhanced Licensed Assisted Access
FTPFile Transfer Protocol
KQIKey Quality Indicator
K-SKolmogorov-Smirnov
LAALicensed Assisted Access
LBTListen Before Talk
LSMLink-to-System-Mapping
LTELong-Term Evolution
MCOTMaximum Channel Occupancy Time
MCSModulation and Coding Scheme
MIESMMutual Information Effective SINR Metric
MIMOMultiple Input Multiple Output
NR-UNew Radio Unlicensed
PFProportional Fair
PDSCHPhysical Downlink Shared Channel
QoEQuality of Experience
QoSQuality of Service
RLCRadio Link Control
RRMRadio Resource Management
RTVSReal Time Video Streaming
SINRSignal to Interference Noise Ratio
SISOSingle Input Single Output
SRSSounding Reference Signal
STAWiFi Station
TxOPTransmission Opportunity
UEUser Equipment
UPIUser Performance Indicator
W+LWiFi and LBT coexistence scenario
W+WWiFi and WiFi coexistence scenario

References

  1. Whitepaper, C. Cisco Visual Networking Index: Global Mobile Data Traffic Forecast Update, 2016–2021. 2016. Available online: http://www.cisco.com/en/US/solutions/collateral/ns341/ns525/ns537/ns705/ns827/white_paper_c11-520862.pdf (accessed on 15 January 2020).
  2. 3GPP. Evolution of LTE in release 13. 3GPP News RP-170848, 3rd Generation Partnership Project (3GPP). 2015. Available online: https://www.3gpp.org/ftp/tsg_ran/TSG_RAN/TSGR_75/Docs/RP-170848.zip (accessed on 15 January 2020).
  3. IEEE. Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications; IEEE: Piscataway, NJ, USA, 1999. [Google Scholar]
  4. MulteFire Release 1.1 Technical Overview. White paper, MulteFire Alliance. 2020. Available online: https://www.multefire.org/wp-content/uploads/MulteFire_Release-1.1_WhitePaper_03DEC2018.pdf (accessed on 15 January 2020).
  5. 3GPP. Physical Layer Procedures for Shared Spectrum Channel Access. Technical specification (TS) 37.213, 3rd Generation Partnership Project (3GPP). 2020. Available online: https://www.3gpp.org/ftp//Specs/archive/37_series/37.213/37213-g30.zip (accessed on 15 January 2020).
  6. 3GPP. LTE Evolved Universal Terrestrial Radio Access (E-UTRA); Radio Link Control (RLC) protocol specification. Technical specification (TS) 36.322, 3rd Generation Partnership Project (3GPP). 2018. Available online: https://www.3gpp.org/ftp//Specs/archive/36_series/36.322/36322-f30.zip (accessed on 15 January 2020).
  7. Bianchi, G.; Tinnirello, I.; Scalia, L. Understanding 802.11e contention-based prioritization mechanisms and their coexistence with legacy 802.11 stations. IEEE Netw. 2005, 19, 28–34. [Google Scholar] [CrossRef]
  8. Zinno, S.; Stasi, G.D.; Avallone, S.; Ventre, G. On a fair coexistence of LTE and Wi-Fi in the unlicensed spectrum: A Survey. Comput. Commun. 2018, 115. [Google Scholar] [CrossRef]
  9. Naik, G.; Liu, J.; Park, J.J. Coexistence of Wireless Technologies in the 5 GHz Bands: A Survey of Existing Solutions and a Roadmap for Future Research. IEEE Commun. Surv. Tutor. 2018, 20, 1777–1798. [Google Scholar] [CrossRef]
  10. Bitar, N.; Al Kalaa, M.O.; Seidman, S.J.; Refai, H.H. On the Coexistence of LTE-LAA in the Unlicensed Band: Modeling and Performance Analysis. IEEE Access 2018, 6, 52668–52681. [Google Scholar] [CrossRef]
  11. Cano, C.; Leith, D.J.; Garcia-Saavedra, A.; Serrano, P. Fair Coexistence of Scheduled and Random Access Wireless Networks: Unlicensed LTE/WiFi. IEEE ACM Trans. Netw. 2017, 25, 3267–3281. [Google Scholar] [CrossRef]
  12. De Santana, P.M.; De Lima Melo, V.D.; De Sousa, V.A. Performance of License Assisted Access Solutions Using ns-3. In Proceedings of the 2016 International Conference on Computational Science and Computational Intelligence (CSCI), Las Vegas, NV, USA, 15–17 December 2016; pp. 941–946. [Google Scholar]
  13. Bojovic, B.; Giupponi, L.; Ali, Z.; Miozzo, M. Evaluating Unlicensed LTE Technologies: LAA vs LTE-U. IEEE Access 2019, 7, 89714–89751. [Google Scholar] [CrossRef]
  14. 67, G.R. RP-150271. Status Report to TSG: Study on Licensed-Assisted Access to Unlicensed Spectrum. Technical report, 3GPP, 2015. Available online: https://www.3gpp.org/ftp/tsg_ran/TSG_RAN/TSGR_67/Docs/RP-150271.zip (accessed on 15 January 2020).
  15. 3GPP. Study on NR-based access to unlicensed spectrum. Technical Report (TR) 38.889, 3rd Generation Partnership Project (3GPP). 2018. Available online: https://www.3gpp.org/ftp//Specs/archive/38_series/38.889/38889-g00.zip (accessed on 15 June 2020).
  16. Ajami, A.; Artail, H. Performance bounds of different channel access priority classes in future Licensed Assisted Access (LAA) LTE networks. Phys. Commun. 2017, 25, 110–127. [Google Scholar] [CrossRef]
  17. Bianchi, G. Performance analysis of the IEEE 802.11 distributed coordination function. IEEE J. Sel. Areas Commun. 2000, 18, 535–547. [Google Scholar] [CrossRef]
  18. Riley, G.F.; Henderson, T.R. The ns-3 network simulator. In Modeling and Tools for Network Simulation; Springer: Berlin, Germany, 2010; pp. 15–34. [Google Scholar]
  19. Kumbhar, F.H.; Saxena, N.; Roy, A. Reliable Relay: Autonomous Social D2D Paradigm for 5G LoS Communications. IEEE Commun. Lett. 2017, 21, 1593–1596. [Google Scholar] [CrossRef]
  20. Klaue, J.; Rathke, B.; Wolisz, A. Evalvid–A Framework for Video Transmission and Quality Evaluation; Springer: Berlin, Germany, 2003; pp. 255–272. [Google Scholar]
  21. Giupponi, L.; Henderson, T.; Bojovic, B.; Miozzo, M. Simulating LTE and Wi-Fi Coexistence in Unlicensed Spectrum with ns-3. arXiv 2016, arXiv:1604.06826. [Google Scholar]
  22. 3GPP. Feasibility Study on Licensed-Assisted Access to Unlicensed Spectrum. Technical Report (TR) 36.889, 3rd Generation Partnership Project (3GPP). 2015. Available online: https://www.3gpp.org/ftp/Specs/archive/36_series/36.889/36889-d00.zip (accessed on 15 January 2020).
  23. Rupp, M.; Schwarz, S.; Taranetz, M. The Vienna LTE-Advanced Simulators: Up and Downlink, Link and System Level Simulation, 1st ed.; Springer: Berlin, Germany, 2016. [Google Scholar] [CrossRef]
  24. Mezzavilla, M.; Miozzo, M.; Rossi, M.; Baldo, N.; Zorzi, M. A Lightweight and Accurate Link Abstraction Model for the Simulation of LTE Networks in Ns-3; Association for Computing Machinery: New York, NY, USA, 2012; MSWiM 12; pp. 55–60. [Google Scholar] [CrossRef]
  25. Catreux, S.; Greenstein, L.J.; Erceg, V. Some results and insights on the performance gains of MIMO systems. IEEE J. Sel. Areas Commun. 2003, 21, 839–847. [Google Scholar] [CrossRef]
  26. 3GPP. Study on Key Quality Indicators (KQIs) for Service Experience. Technical Report (TR) 32.862, 3rd Generation Partnership Project (3GPP). 2016. Available online: https://www.3gpp.org/ftp/Specs/archive/32_series/32.862/32862-e00.zip (accessed on 15 January 2020).
  27. Alliance, N.G.M.N. Recommendations for NGMN KPIs and requirements for 5G. Whitepaper 2016. Available online: https://www.ngmn.org/wp-content/uploads/Publications/2016/160603_Annex_NGMN_Liaison_to_3GPP_RAN_72_v1_0.pdf (accessed on 15 January 2020).
  28. ETSI. Speech and Multimedia Transmission Quality (STQ); QoS Aspects for Popular Services in Mobile Networks. Technical Specification (TS) TS 102 250-1, European Telecommunications Standards Institute (ETSI). 2011. Available online: https://www.etsi.org/deliver/etsi_ts/102200_102299/10225001/02.02.01_60/ts_10225001v020201p.pdf (accessed on 15 January 2020).
  29. Akramullah, S. Digital Video Concepts, Methods, and Metrics: Quality, Compression, Performance, and Power Trade-Off Analysis; Apress: New York, NY, USA, 2014. [Google Scholar]
  30. Carneiro, G.; Fortuna, P.; Ricardo, M. FlowMonitor: A Network Monitoring Framework for the Network Simulator 3 (NS-3). In Proceedings of the Fourth International ICST Conference on Performance Evaluation Methodologies and Tools, Pisa, Italy, 20–22 October 2009; ICST (Institute for Computer Sciences, Social-Informatics and Telecommunications Engineering): Brussels, Belgium, 2009. VALUETOOLS ’09. [Google Scholar] [CrossRef]
  31. SHI, H.; Prasad, R.V.; Onur, E.; Niemegeers, I.G.M.M. Fairness in Wireless Networks: Issues, Measures and Challenges. IEEE Commun. Surv. Tutor. 2014, 16, 5–24. [Google Scholar]
  32. Mehrnoush, M.; Roy, S.; Sathya, V.; Ghosh, M. On the Fairness of Wi-Fi and LTE-LAA Coexistence. IEEE Trans. Cogn. Commun. Netw. 2018, 4, 735–748. [Google Scholar] [CrossRef]
  33. Ali, Z.; Bojovic, B.; Giupponi, L.; Bafalluy, J.M. On Fairness Evaluation: LTE-U vs. LAA. In Proceedings of the 14th ACM International Symposium on Mobility Management and Wireless Access, Malta, 13–17 November 2016; Association for Computing Machinery: New York, NY, USA, 2016; MobiWac 16, pp. 163–168. [Google Scholar] [CrossRef]
  34. Hossfeld, T.; Skorin-Kapov, L.; Heegaard, P.E.; Varela, M. Definition of QoE Fairness in Shared Systems. IEEE Commun. Lett. 2017, 21, 184–187. [Google Scholar]
  35. Kim, C.; Yang, C.; Kang, C. Adaptive Listen-Before-Talk (LBT) scheme for LTE and Wi-Fi systems coexisting in unlicensed band. In Proceedings of the 2016 13th IEEE Annual Consumer Communications and Networking Conference, Las Vegas, NA, USA, 9–12 January 2016; pp. 589–594. [Google Scholar] [CrossRef]
  36. Mehrnoush, M.; Sathya, V.; Roy, S.; Ghosh, M. Analytical Modeling of Wi-Fi and LTE-LAA Coexistence: Throughput and Impact of Energy Detection Threshold. IEEE ACM Trans. Netw. 2018, 26, 1990–2003. [Google Scholar] [CrossRef]
  37. Xia, P.; Teng, Z.; Wu, J. How loud to talk and how hard to listen-before-talk in unlicensed LTE. In Proceedings of the 2015 IEEE International Conference on Communication Workshop (ICCW), London, UK, 8–12 June 2015; pp. 2314–2319. [Google Scholar] [CrossRef]
Figure 1. 3GPP unlicensed standards evolution.
Figure 1. 3GPP unlicensed standards evolution.
Electronics 09 01701 g001

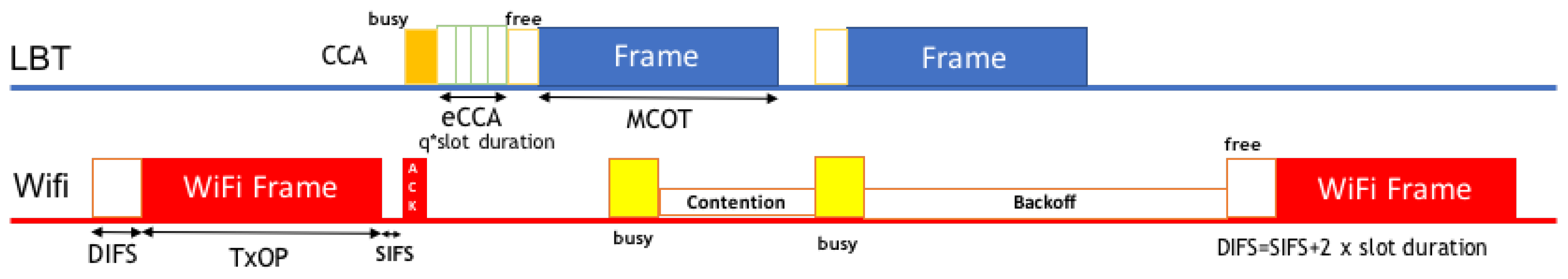

Figure 2. Comparison of WiFi and LBT access mechanisms for the unlicensed band.
Figure 2. Comparison of WiFi and LBT access mechanisms for the unlicensed band.
Electronics 09 01701 g002

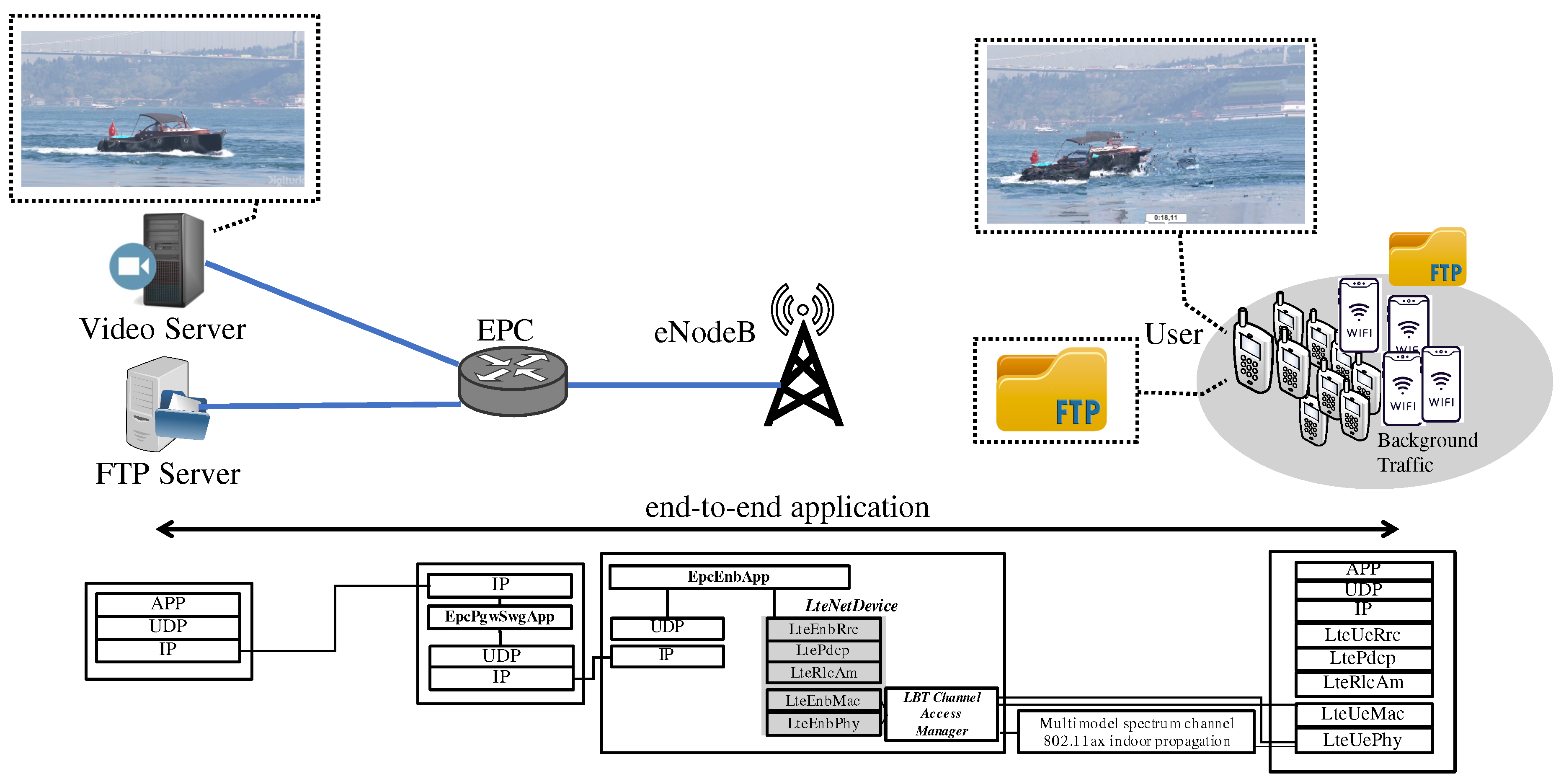

Figure 3. Multiservice end-to-end simulation architecture.
Figure 3. Multiservice end-to-end simulation architecture.
Electronics 09 01701 g003

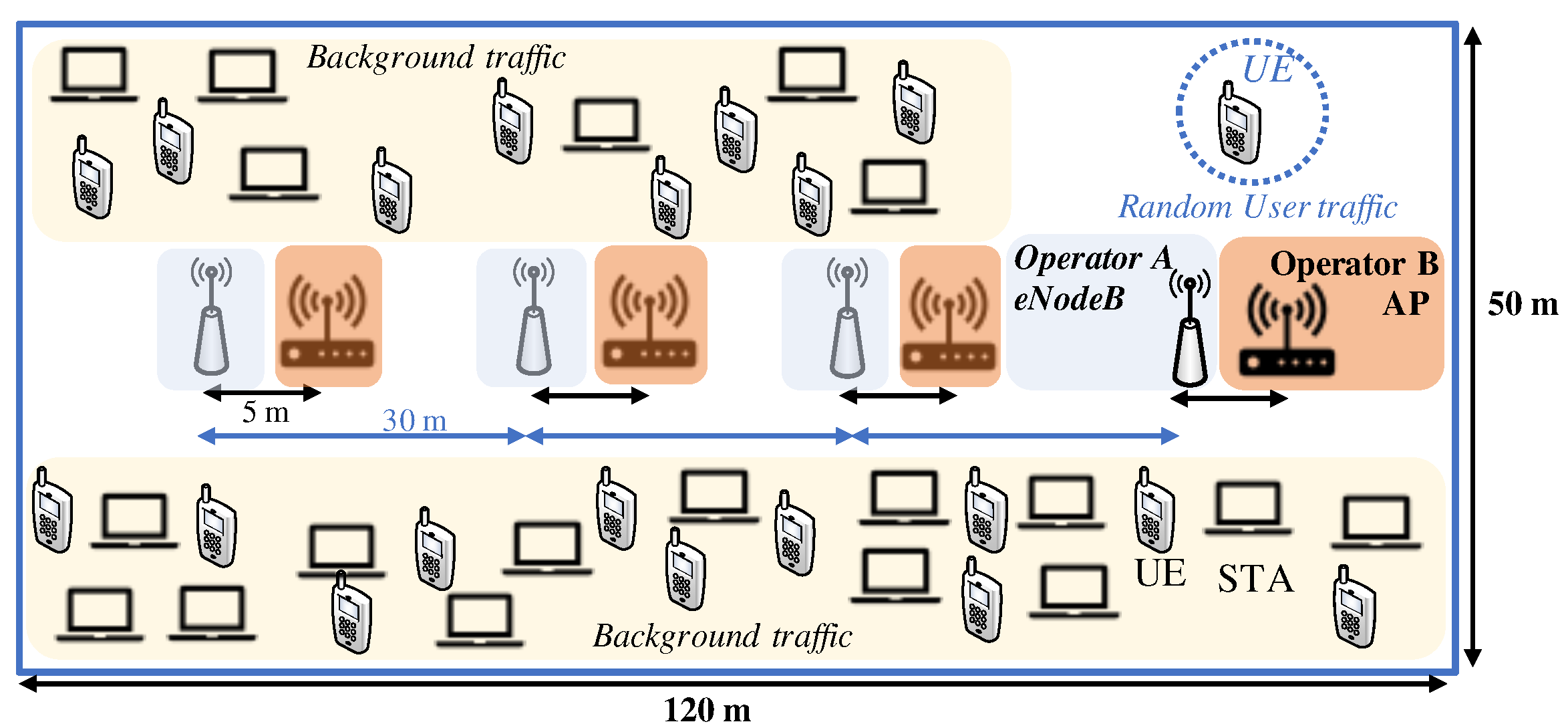

Figure 4. Simulated office indoor coexistence scenario.
Figure 4. Simulated office indoor coexistence scenario.
Electronics 09 01701 g004
Figure 5. Background traffic results.
Figure 5. Background traffic results.
Electronics 09 01701 g005

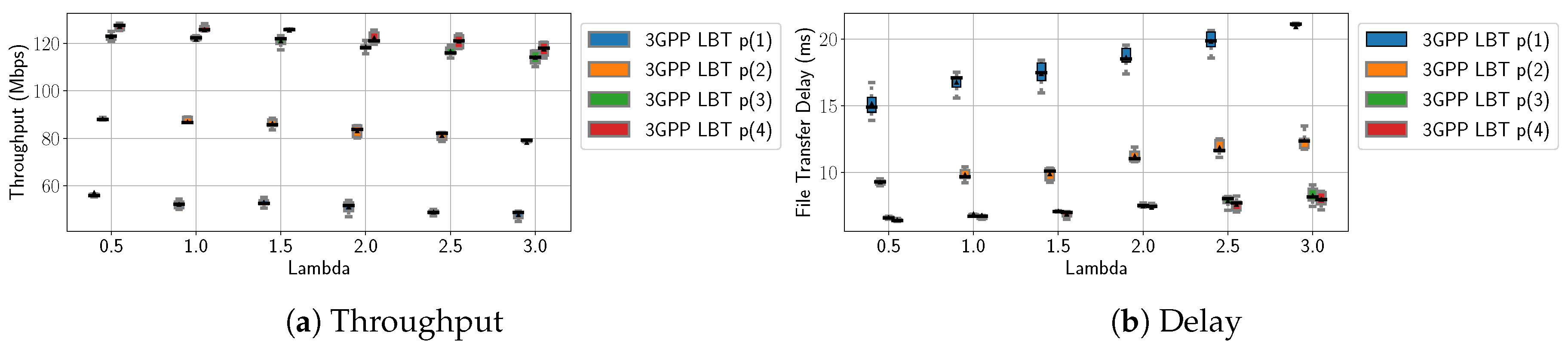

Figure 6. User FTP KQI results obtained.
Figure 6. User FTP KQI results obtained.
Electronics 09 01701 g006

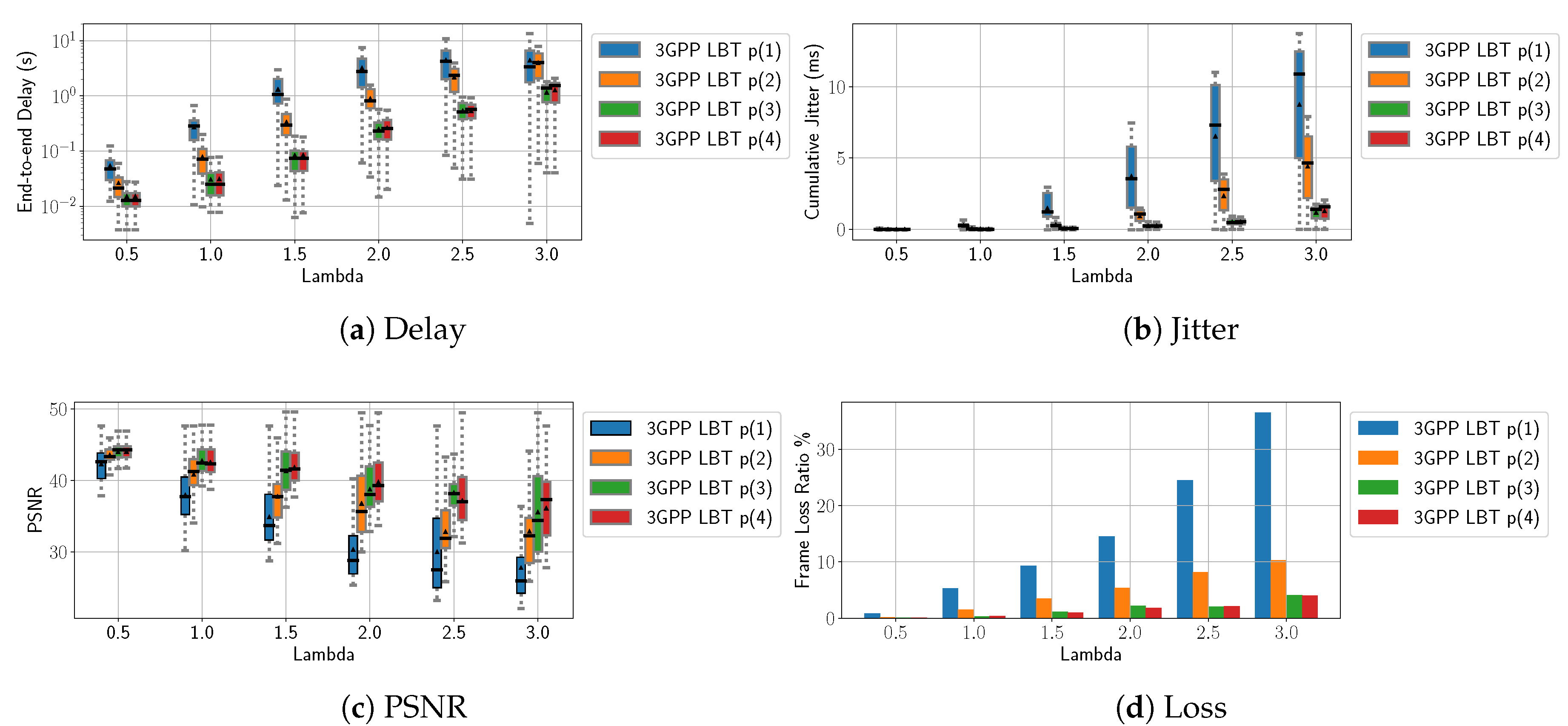

Figure 7. User Real Time Video Streaming KQI results obtained.
Figure 7. User Real Time Video Streaming KQI results obtained.
Electronics 09 01701 g007
Figure 8. FTP UPI results obtained.
Figure 8. FTP UPI results obtained.
Electronics 09 01701 g008

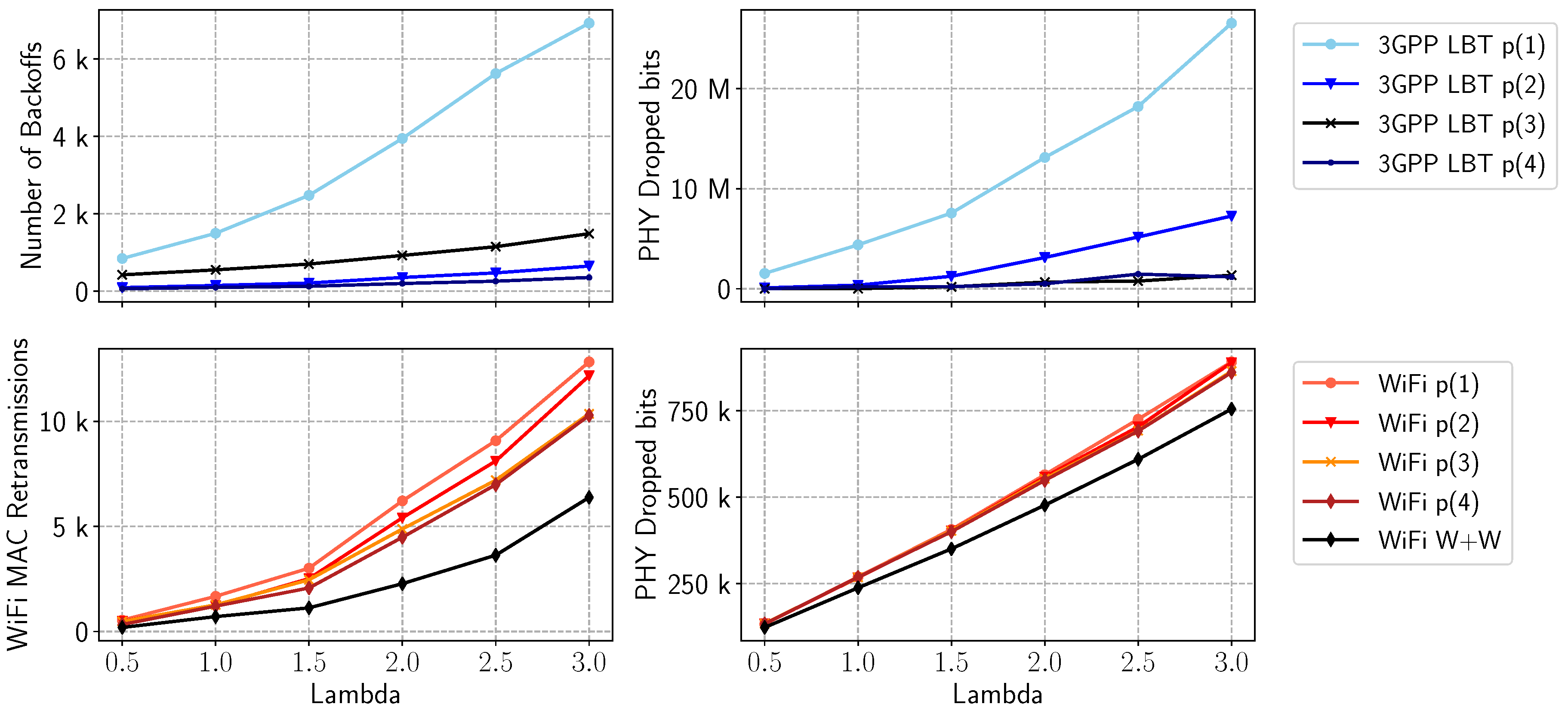

Figure 9. MAC/PHY Layer analysis.
Figure 9. MAC/PHY Layer analysis.
Electronics 09 01701 g009
Table 1. 3GPP LBT CAT4 priority classes.
Table 1. 3GPP LBT CAT4 priority classes.
Priority Class (p)CWminCWmaxMCOT
1372 ms
27153 ms
315638 ms
41510238 ms
Table 2. Service KQIs measured.
Table 2. Service KQIs measured.
ServiceCategoryParameterUnitReference
Real Time Video StreamingKQI-IntegrityFrame Loss Ratio(%)[27]
Cumulative Jitter(ms)[28]
Frame end-to-end delay(ms)[28]
Peak signal-to-noise ratio (PSNR)0–5[29]
File Transfer Protocol (FTP)KQI-IntegrityFile Transfer average throughput(Mbps)[26]
File Transfer Delay(s)[26]
Table 3. Simulation parameters.
Table 3. Simulation parameters.
Parameter3GPP LBTWiFi
Standard versionRel.13802.11ac
MCS selection SchemeAdaptive based on SINR (AMC) with BER= 1 × 10-5
Frequency5180 MHz5180 MHz
Bandwidth20 MHz20 MHz
Max power TX (dBm)18 dBm18 dBm
Antenna gain (dBi)5 dBi base stations
Antenna typeOmnidirectionalOmnidirectional
Thresholds CCA (dBm)ED (−72 dBm)(PD, ED) = (−82, −72) dBm
Antenna configurationMIMO 2 × 2MIMO 2 × 2
Minimum duration of sensing period34 us43 us
Channel modelITU InH IEEE
User distributionUniform random distribution
Noise figure in UE9 dB (−104 dBm noise floor)
DRS, Packet Scheduler80 ms, Proportional FairN/A
CW Updating Rule“any NACK” (to detect collisions)N/A
Table 4. Fairness assessment based on K-S test
Table 4. Fairness assessment based on K-S test
3GPP LBT p(1)3GPP LBT p(2)3GPP LBT p(3)3GPP LBT p(4)D α = 0.05
D-maxp-ValueD-maxp-ValueD-maxp-ValueD-maxp-Value
Throughput0.328605.73e-980.314391.03 e-980.2923401.25 e-780.2941131.44e-770.02371
Latency0.280931.01e-710.258498.68 e-610.245051.13e-540.246821.85e-550.02371
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
