Remote-Controlled Fully Implantable Neural Stimulator for Freely Moving Small Animal

1
Department of Electrical and Computer Engineering, College of Engineering, Seoul National University, Seoul 08826, Korea
2
Inter-University Semiconductor Research Center, Seoul National University, Seoul 08826, Korea
3
Department of Neurosurgery, College of Medicine, Yonsei University, Seoul 03722, Korea
4
Department of Biomedical Engineering, School of Medicine, Pusan National University, Yangsan 50612, Korea
5
Institute on Aging, College of Medicine, Seoul National University, Seoul 08826, Korea
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(6), 706; https://doi.org/10.3390/electronics8060706
Received: 11 May 2019 / Revised: 14 June 2019 / Accepted: 18 June 2019 / Published: 22 June 2019
(This article belongs to the Special Issue Smart Electrical Circuits and Systems for Neural Interface)
  |
PDF [3483 KB, uploaded 22 June 2019]
  |

Abstract

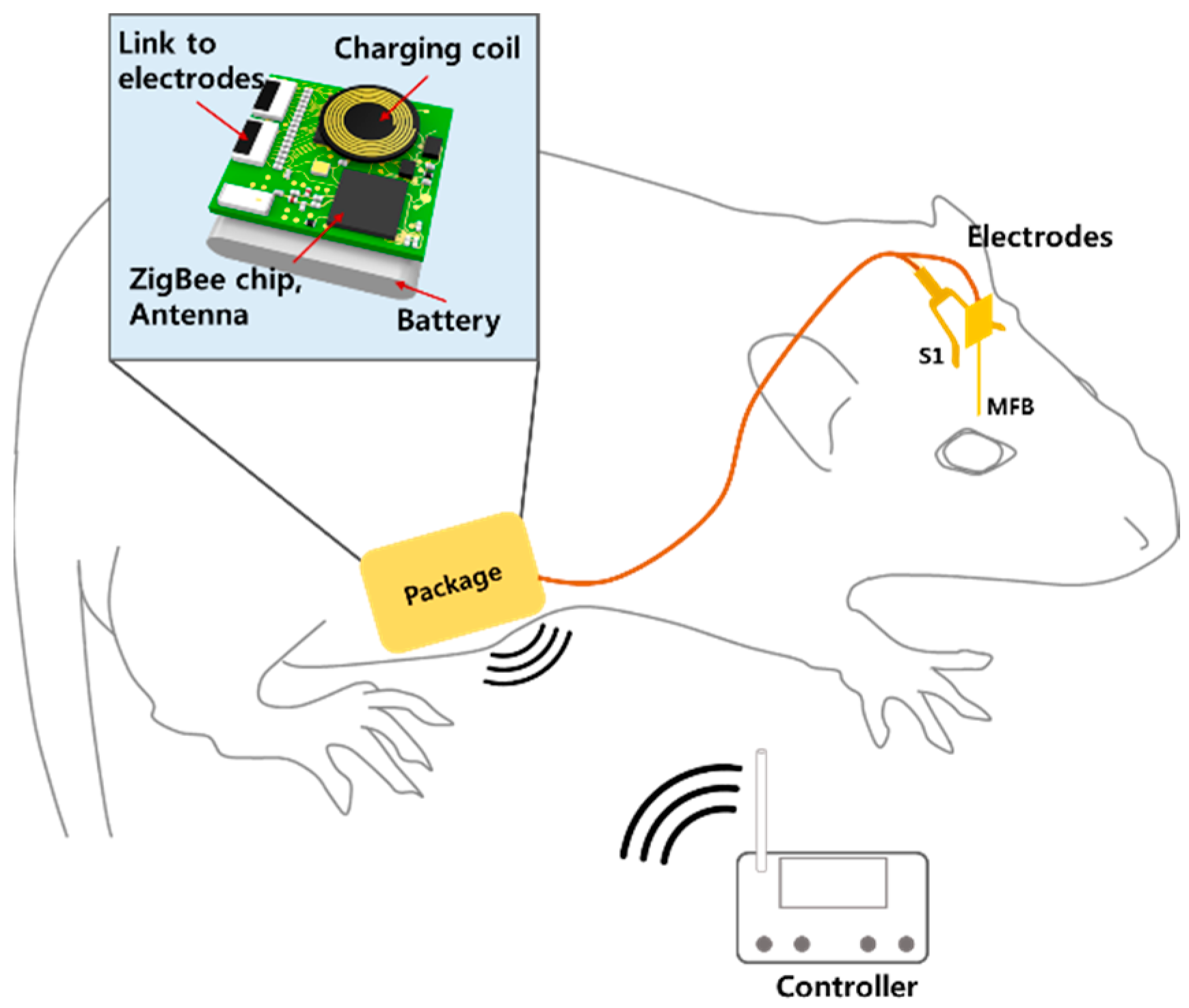

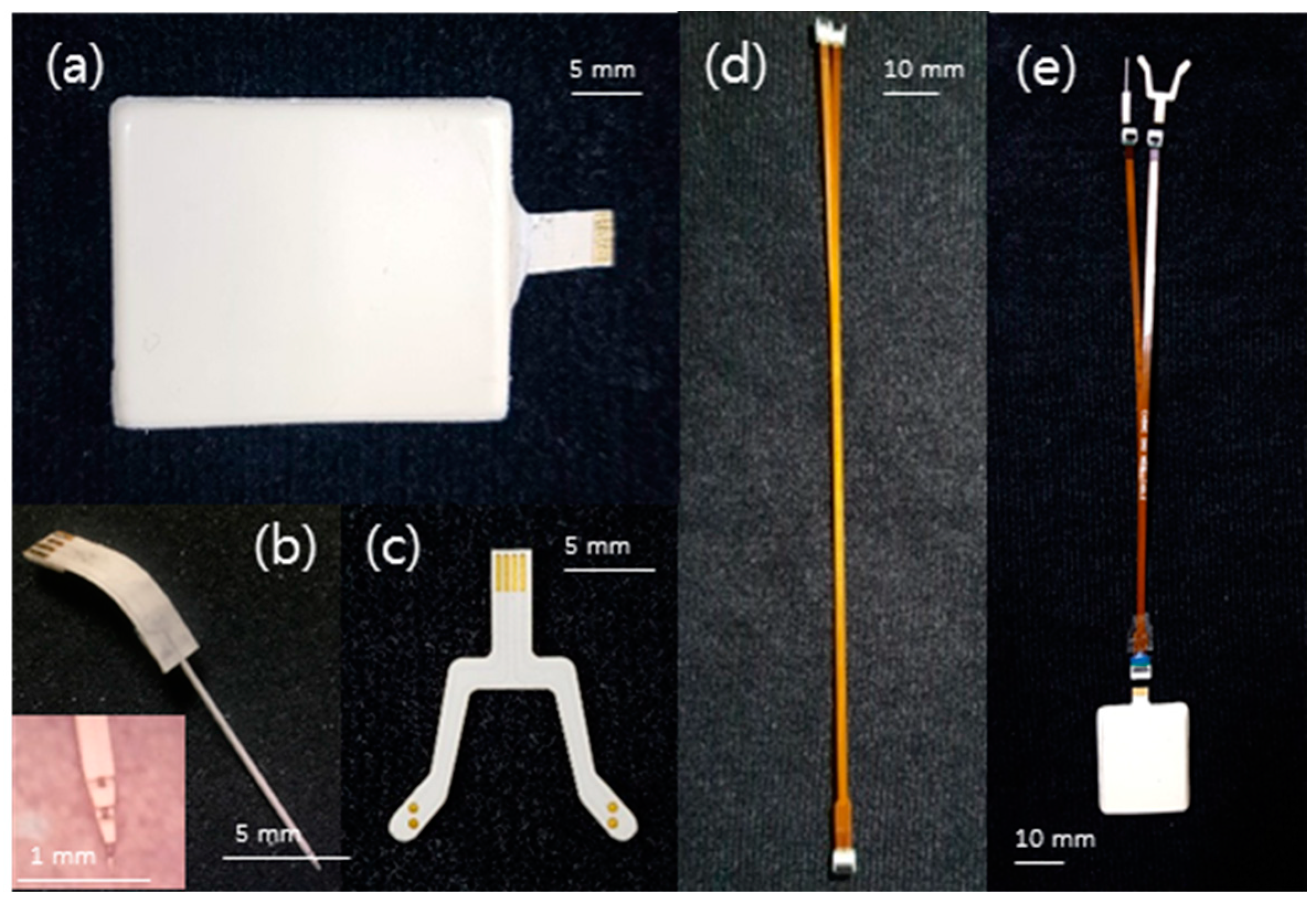

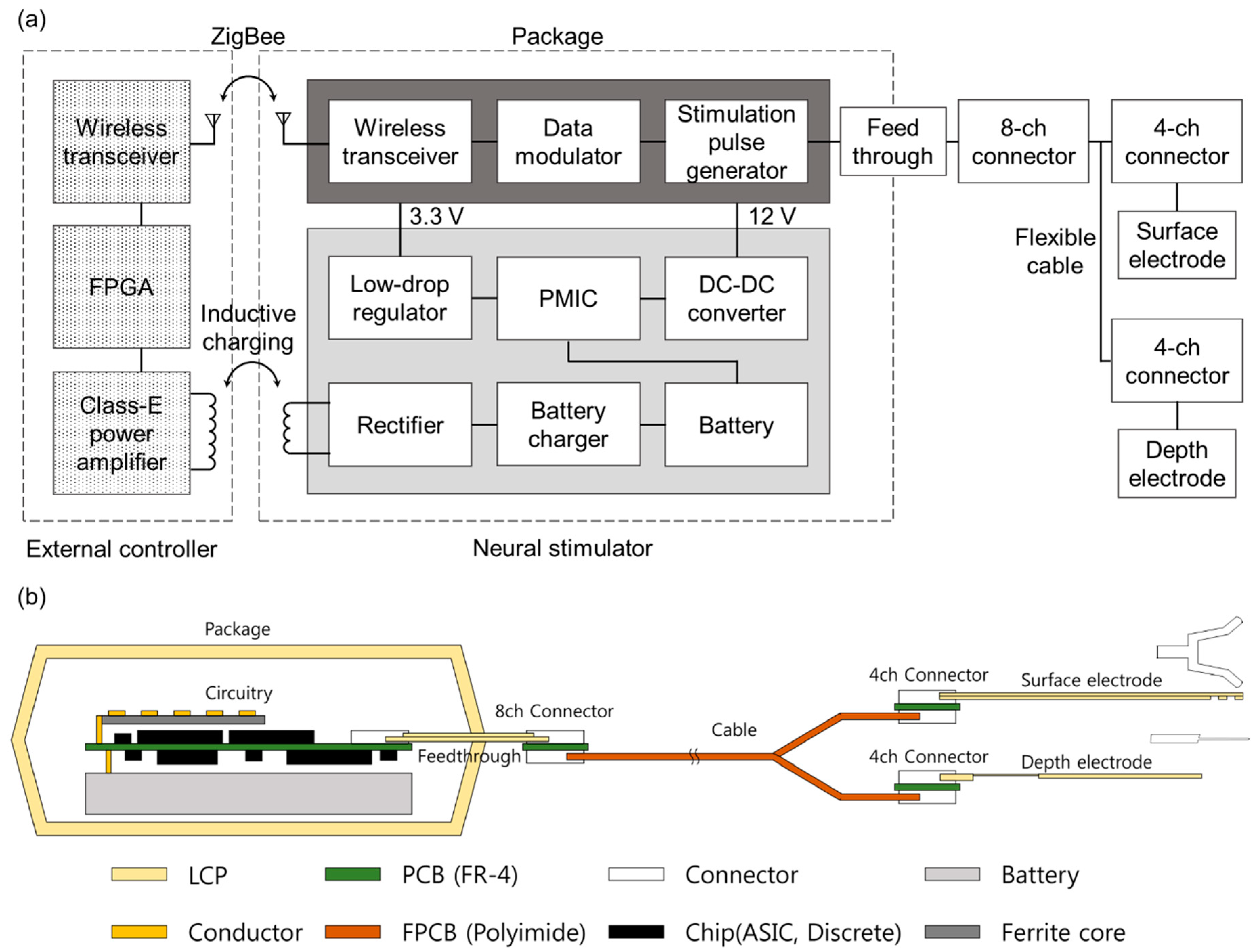

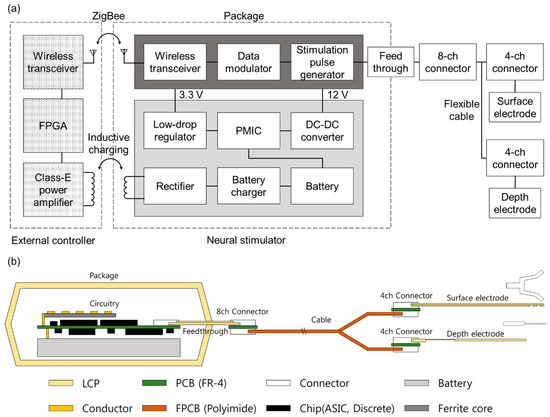

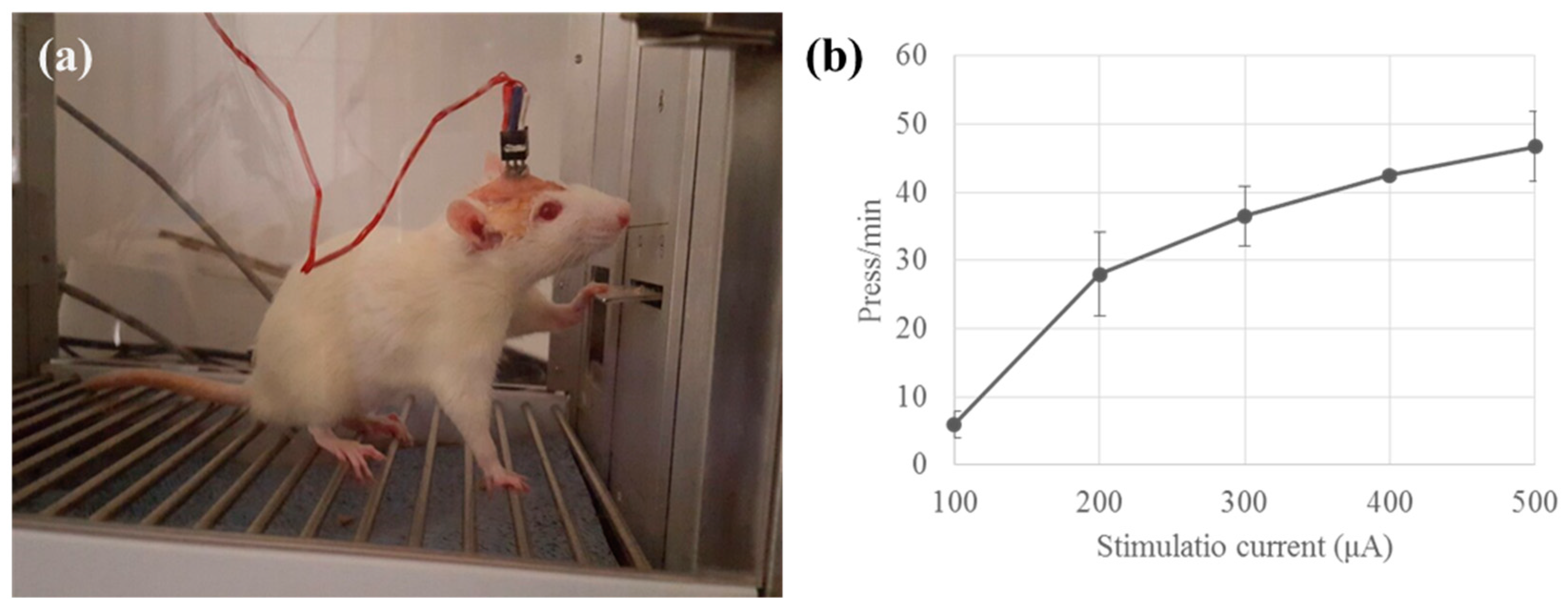

The application of a neural stimulator to small animals is highly desired for the investigation of electrophysiological studies and development of neuroprosthetic devices. For this purpose, it is essential for the device to be implemented with the capabilities of full implantation and wireless control. Here, we present a fully implantable stimulator with remote controllability, compact size, and minimal power consumption. Our stimulator consists of modular units of (1) a surface-type cortical array for inducing directional change of a rat, (2) a depth-type array for providing rewards, and (3) a package for accommodating the stimulating electronics, a battery and ZigBee telemetry, all of which are assembled after independent fabrication and implantation using customized flat cables and connectors. All three modules were packaged using liquid crystal polymer (LCP) to avoid any chemical reaction after implantation. After bench-top evaluation of device functionality, the stimulator was implanted into rats to train the animals to turn to the left (or right) following a directional cue applied to the barrel cortex. Functionality of the device was also demonstrated in a three-dimensional (3D) maze structure, by guiding the rats to better navigate in the maze. The movement of the rat could be wirelessly controlled by a combination of artificial sensation evoked by the surface electrode array and reward stimulation. We could induce rats to turn left or right in free space and help their navigation through the maze. The polymeric packaging and modular design could encapsulate the devices with strict size limitations, which made it possible to fully implant the device into rats. Power consumption was minimized by a dual-mode power-saving scheme with duty cycling. The present study demonstrated feasibility of the proposed neural stimulator to be applied to neuroprosthesis research. View Full-Text
Keywords: electrical stimulation; cortical stimulation; wireless telemetry; implantable neural stimulator; polymer packaging electrical stimulation; cortical stimulation; wireless telemetry; implantable neural stimulator; polymer packaging
Figures

Figure 1
