On the Application of the Raspberry Pi as an Advanced Acoustic Sensor Network for Noise Monitoring
Abstract
:1. Introduction
2. Materials and Methods
2.1. Design and Requirements
- The device has to use low-cost components to create affordable sensor networks of several devices with a relation cost-quality.
- The device has to have reliability for long-term measurements.
- The device should have capability to be connected to the cloud for remote updates of the software and for sharing results.
- The quality of the measurements has to be enough for advanced audio parameters’ calculation.
- The device has to have enough computing power to do on-board calculations.
- The device has to be able to connect to the peripherals needed for the purposes of the project (e.g., a microphone).
- The device has to be able to interpret MATLAB programming language.
- The sound flow acquisition has to have the less noise inputs as possible, for avoiding extra filtering steps.

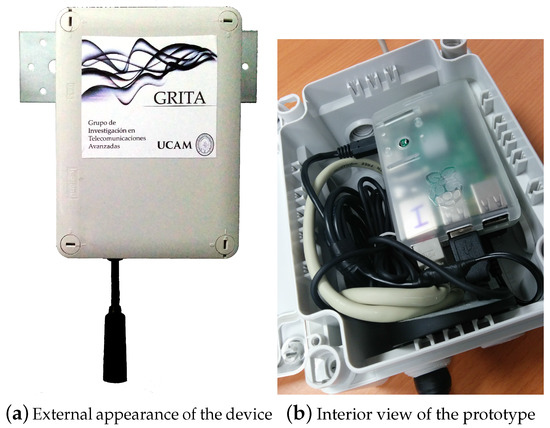

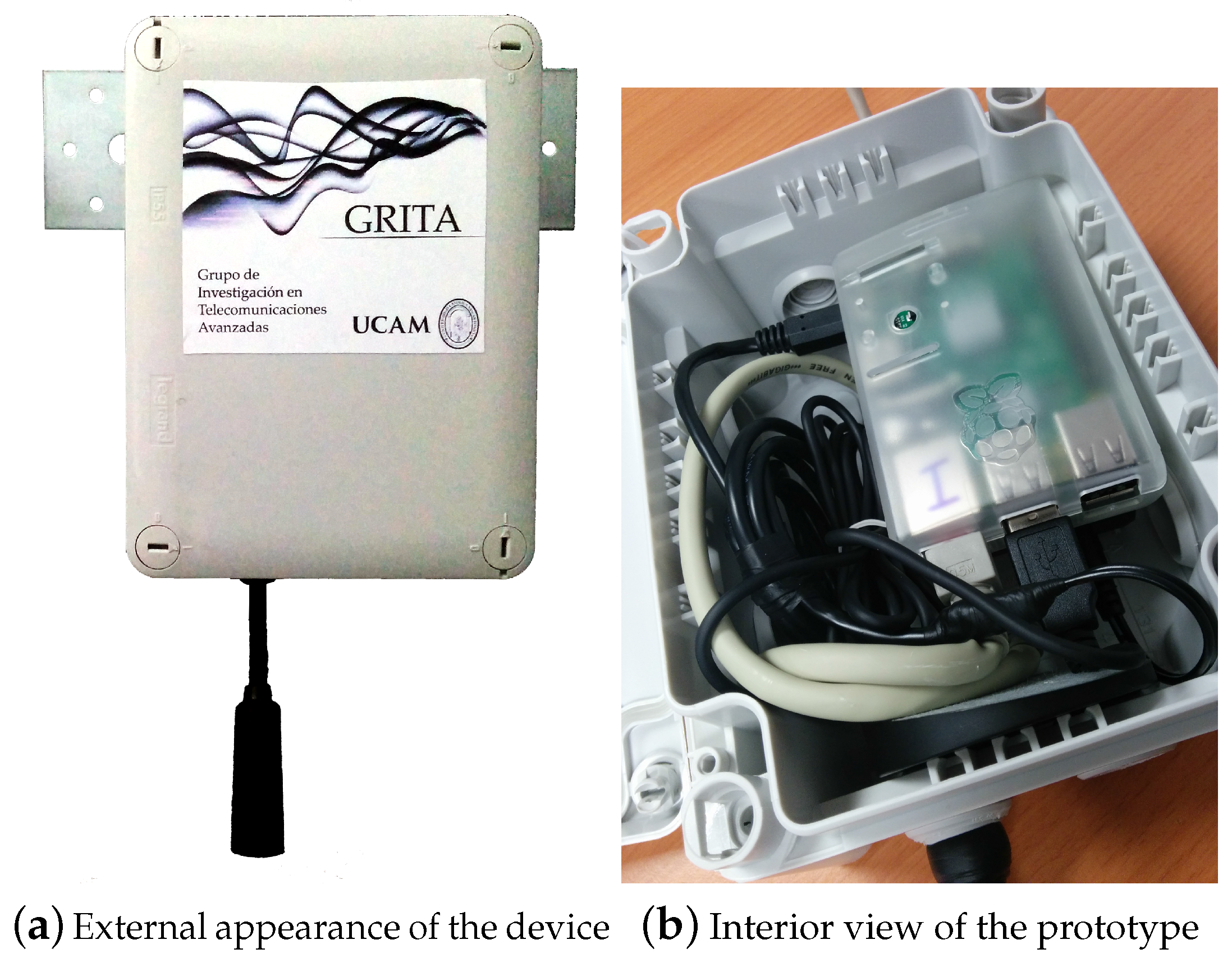

- The final device has to be protected against outdoor conditions using a protective housing.
- The device needs to have different connectivity options (i.e., WiFi or Ethernet).

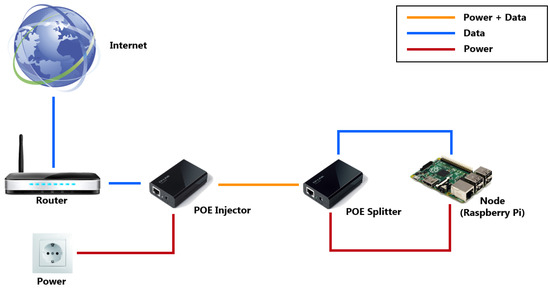

- The distance from the nodes to the power source should be a maximum of 100 m.
2.2. Selection of the Components
2.2.1. The Core: Raspberry Pi
2.2.2. The Acquisition: The Microphone

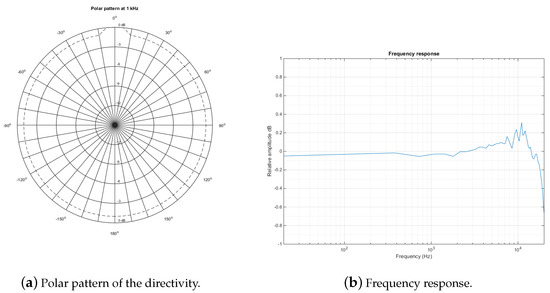

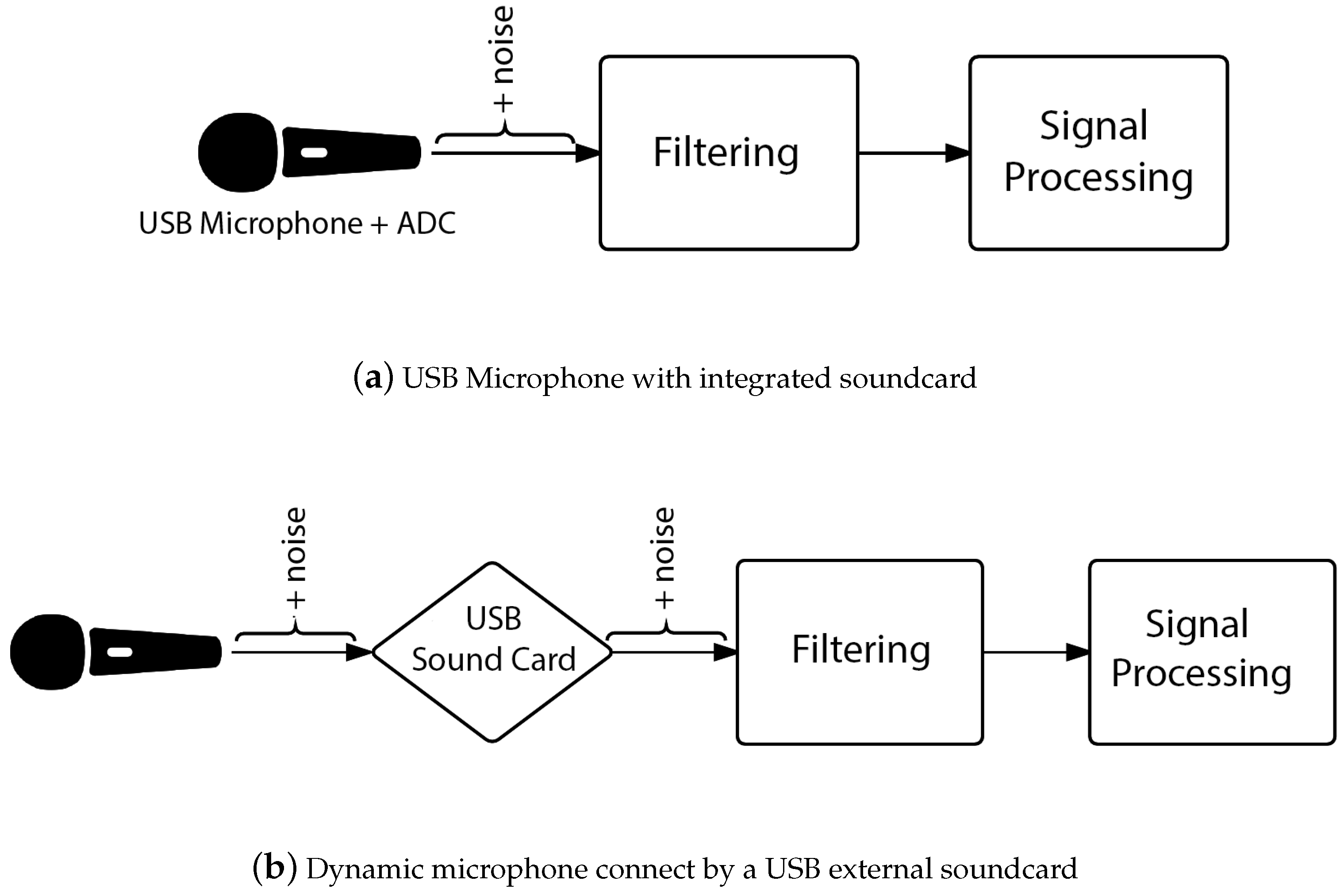

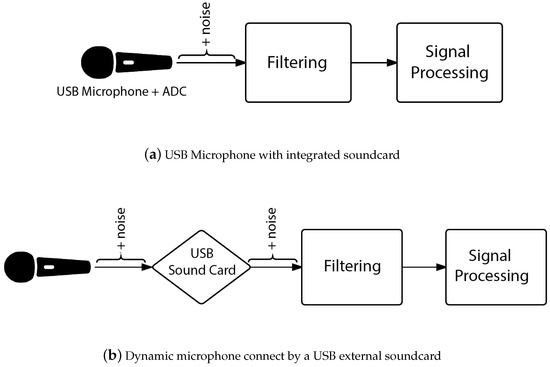

- A low-cost USB sound card together with a dynamic microphone.
- An electrec USB microphone without an external sound card.

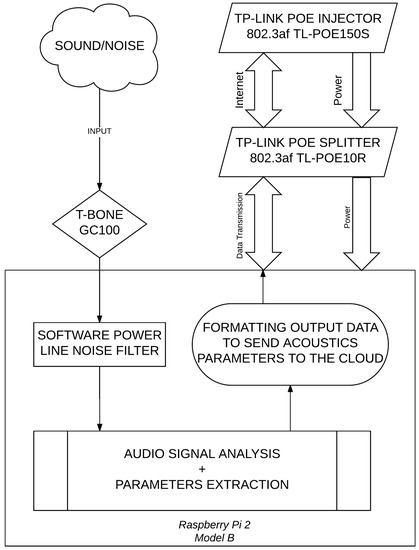

2.3. Algorithms Implementation and Cloud Connection
- Instant sound pressure level, .
- Percentile levels , , .
- Equivalent sound pressure level, .
- , day-evening-night level.
- Third octave sound pressure level (from 125 Hz to 8000 Hz)

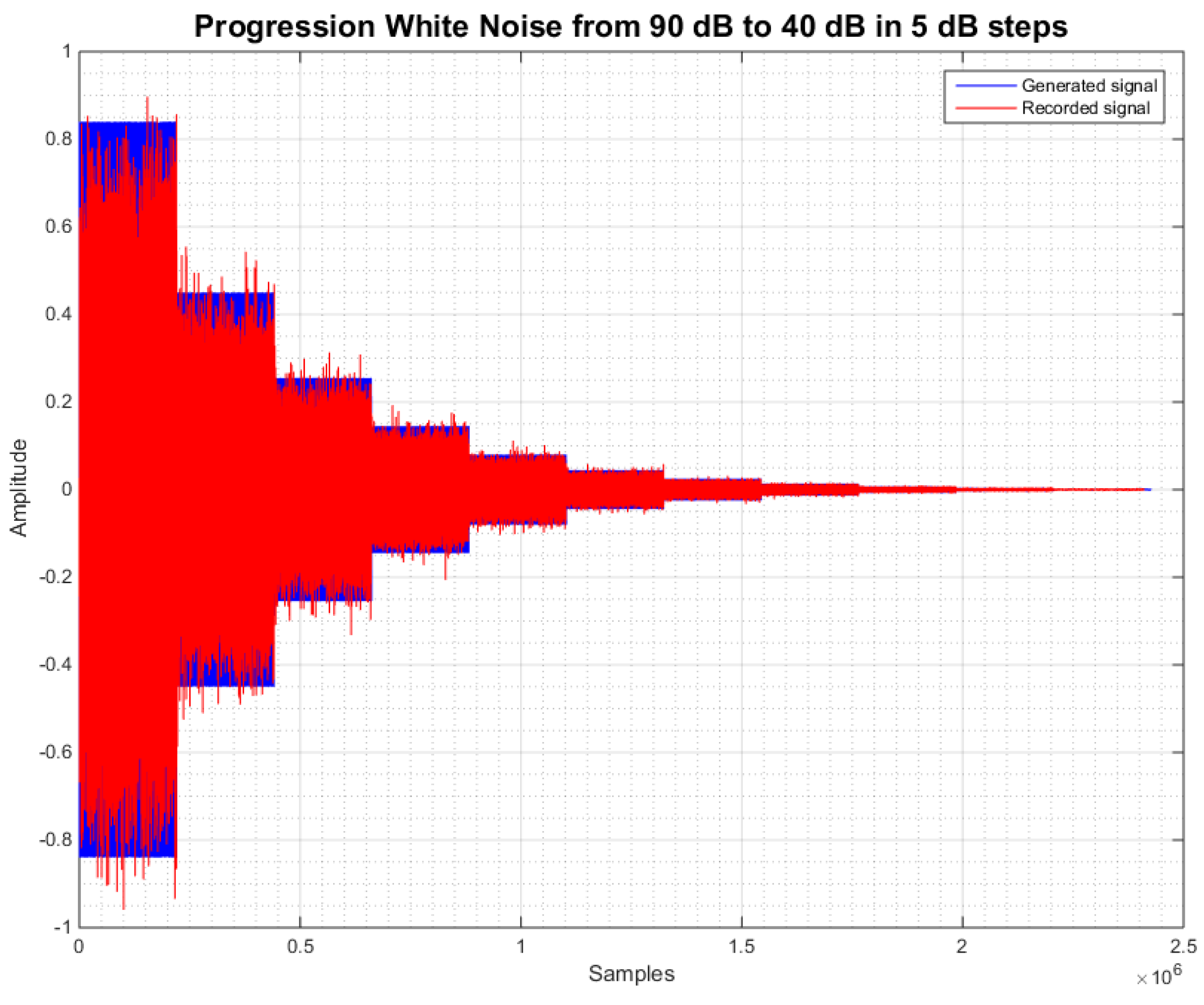

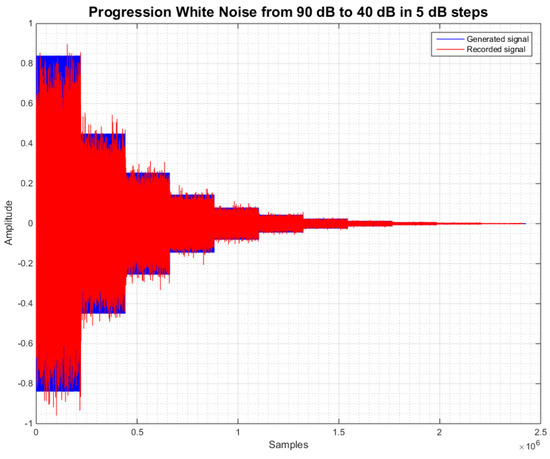

3. Results

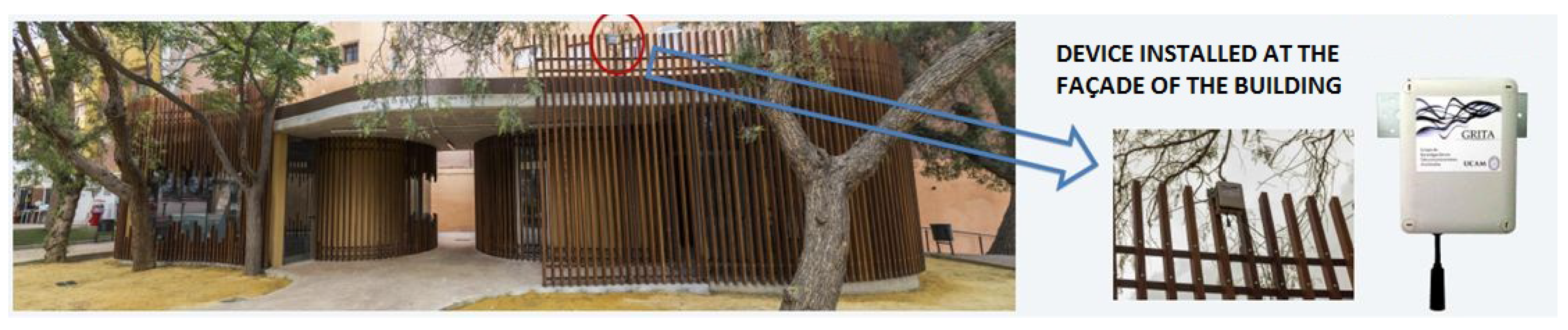

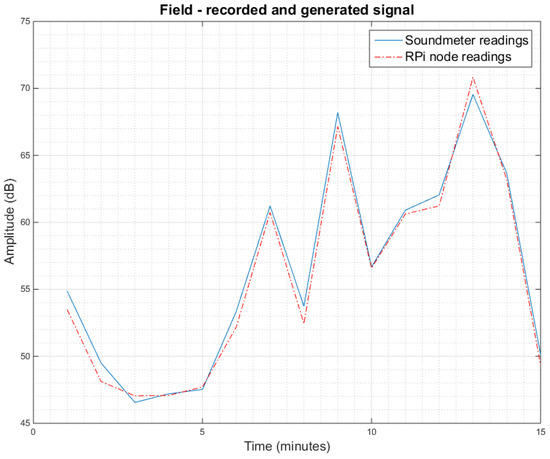

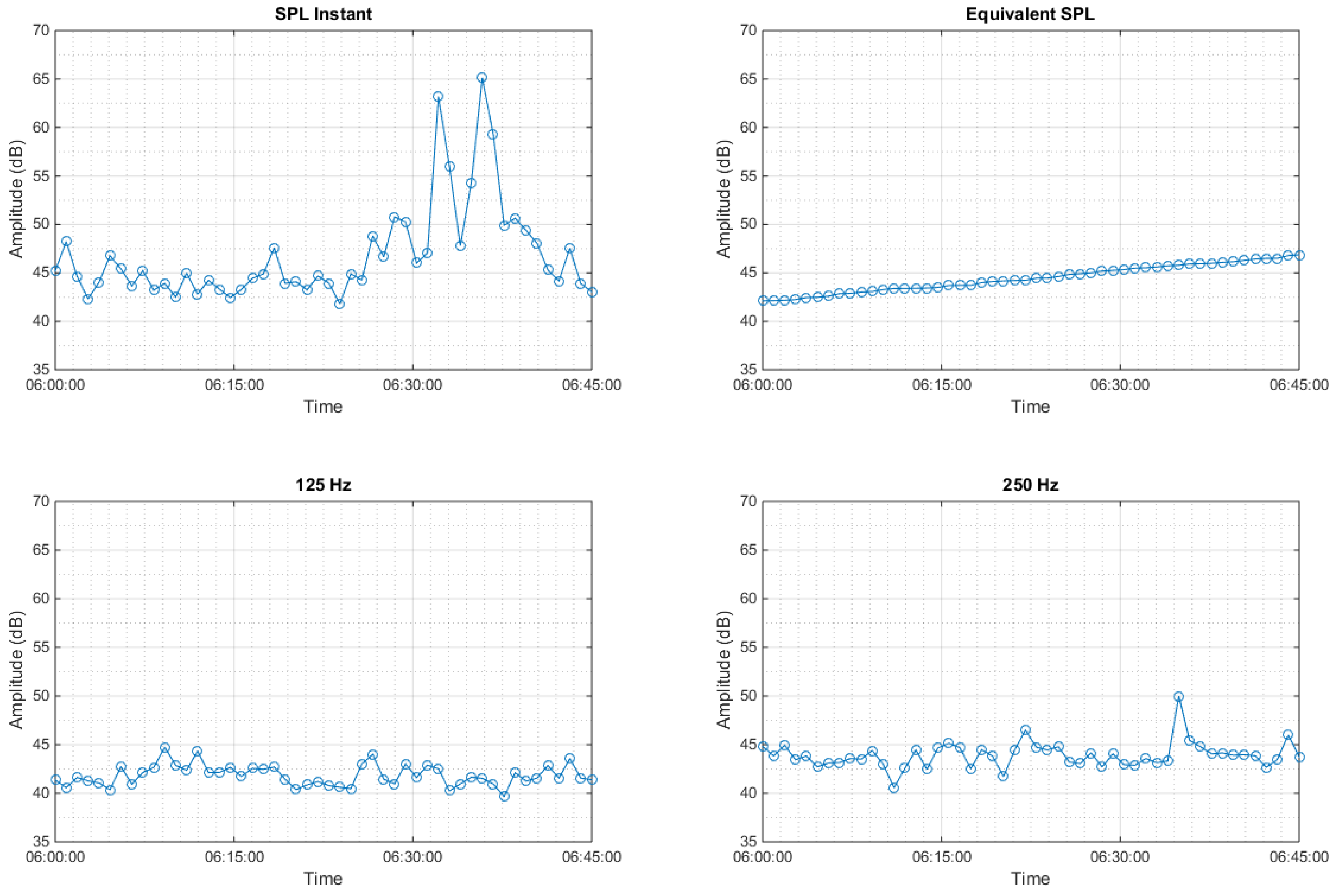

Pilot Test
4. Discussion
Acknowledgments
Author Contributions
Conflicts of Interest
Abbreviations
Carbon Dioxide | |
SBC | Single Board Computer |
IoT | Internet of Things |
USB | Universal Serial Bus |
GNU | GNU is Not Unix |
SO | Operating System |
SSH | Secure Shell |
ALSA | Advanced Linux Sound Architecture |
POE | Power over Ethernet |
dBA | A-weighted Decibels |
ADC | Analog-to-digital converter |
API | Application Programming Interface |
HTTP | Hypertext Transfer Protocol |
JSON | JavaScript Object Notation |
XML | eXtensible Markup Language |
CSV | Comma-Separated Values |
References
