Homogeneous Crystallization of Micro-DispensedTIPS-Pentacene Using a Two-Solvent System toEnable Printed Inverters on Foil Substrates
Abstract
:1. Introduction

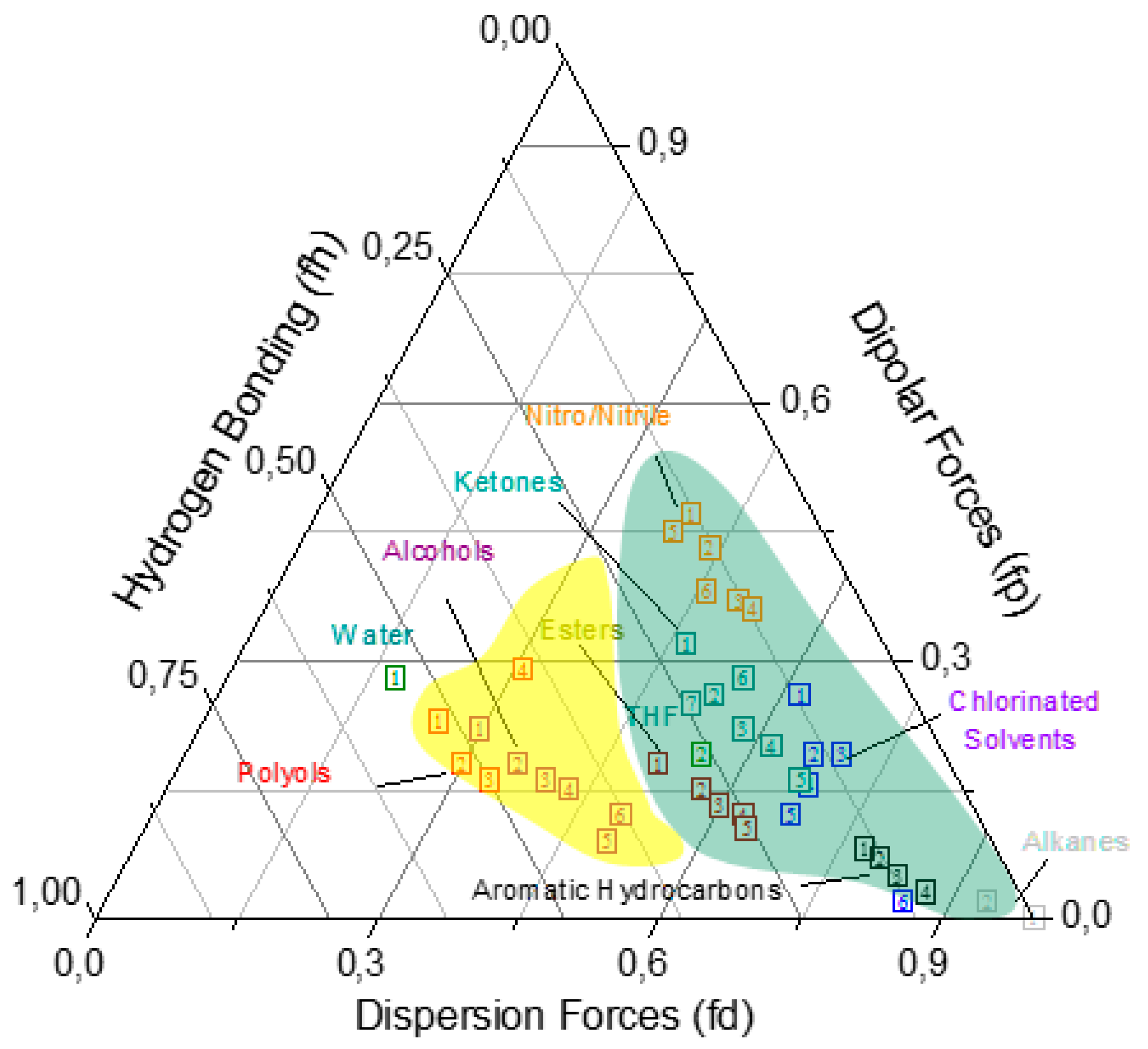

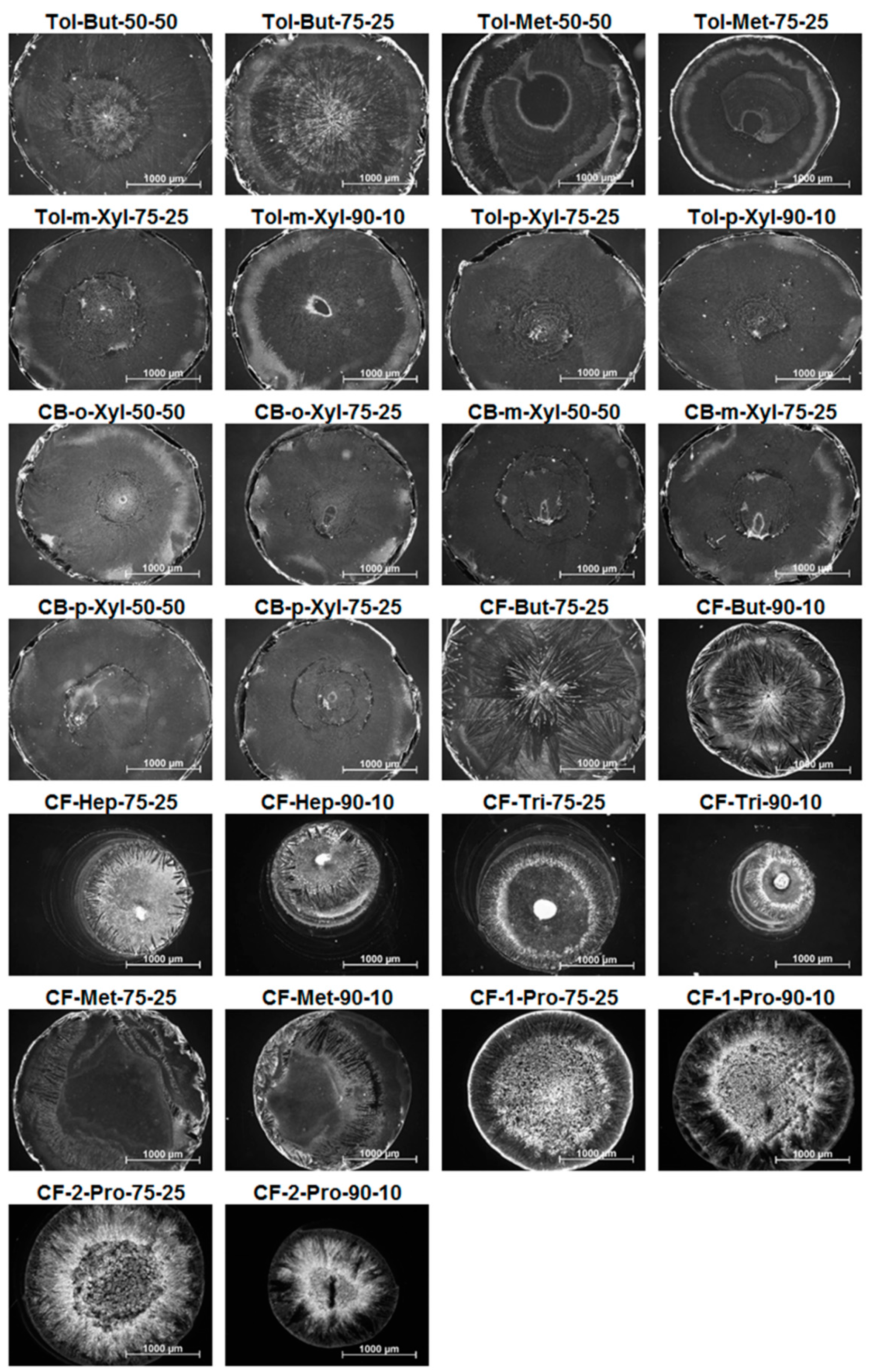

2. Two-Solvent Optimization Process and Its Results
2.1. Experimental Part I
# | Major Solvent | Boiling Point (°C) | Minor Solvent | Boiling Point (°C) | Ratio | Short Name |
---|---|---|---|---|---|---|
A1 | Toluene | 111 °C | n-Butyl acetate | 126 °C | 50%–50% | Tol-But-50-50 |
A2 | Toluene | n-Butyl acetate | 75%–25% | Tol-But-75-25 | ||
A3 | Toluene | 4-Methyl-2-pentanone | 117 °C | 50%–50% | Tol-Met-50-50 | |
A4 | Toluene | 4-Methyl-2-pentanone | 75%–25% | Tol-Met-75-25 | ||
A5 | Toluene | m-Xylene | 139 °C | 75%–25% | Tol-m-Xyl-75-25 | |
A6 | Toluene | m-Xylene | 90%–10% | Tol-m-Xyl-90-10 | ||
A7 | Toluene | p-Xylene | 138 °C | 75%–25% | Tol-p-Xyl-75-25 | |
A8 | Toluene | p-Xylene | 90%–10% | Tol-p-Xyl-90-10 | ||
B1 | Chlorobenzene | 132 °C | o-Xylene | 144 °C | 50%–50% | CB-o-Xyl-50-50 |
B2 | Chlorobenzene | o-Xylene | 75%–25% | CB-o-Xyl-75-25 | ||
B3 | Chlorobenzene | m-Xylene | 139 °C | 50%–50% | CB-m-Xyl-50-50 | |
B4 | Chlorobenzene | m-Xylene | 75%–25% | CB-m-Xyl-75-25 | ||
B5 | Chlorobenzene | p-Xylene | 138 °C | 50%–50% | CB-p-Xyl-50-50 | |
B6 | Chlorobenzene | p-Xylene | 75%–25% | CB-p-Xyl-75-25 | ||
C1 | Chloroform | 61 °C | n-Butyl acetate | 126 °C | 75%–25% | CF-But-75-25 |
C2 | Chloroform | n-Butyl acetate | 90%–10% | CF-But-90-10 | ||
C3 | Chloroform | Heptane | 98 °C | 75%–25% | CF-Hep-75-25 | |
C4 | Chloroform | Heptane | 90%–10% | CF-Hep-90-10 | ||
C5 | Chloroform | 2,2,4-Trimethylpentane | 99 °C | 75%–25% | CF-Tri-75-25 | |
C6 | Chloroform | 2,2,4-Trimethylpentane | 90%–10% | CF-Tri-90-10 | ||
C7 | Chloroform | 4-Methyl-2-pentanone | 117 °C | 75%–25% | CF-Met-75-25 | |
C8 | Chloroform | 4-Methyl-2-pentanone | 90%–10% | CF-Met-90-10 | ||
D1 | Chloroform | 61 °C | 1-Propanol | 97 °C | 75%–25% | CF-1-Pro-75-25 |
D2 | Chloroform | 1-Propanol | 90%–10% | CF-1-Pro-90-10 | ||
D3 | Chloroform | 2-Propanol | 82 °C | 75%–25% | CF-2-Pro-75-25 | |
D4 | Chloroform | 2-Propanol | 90%–10% | CF-2-Pro-90-10 |

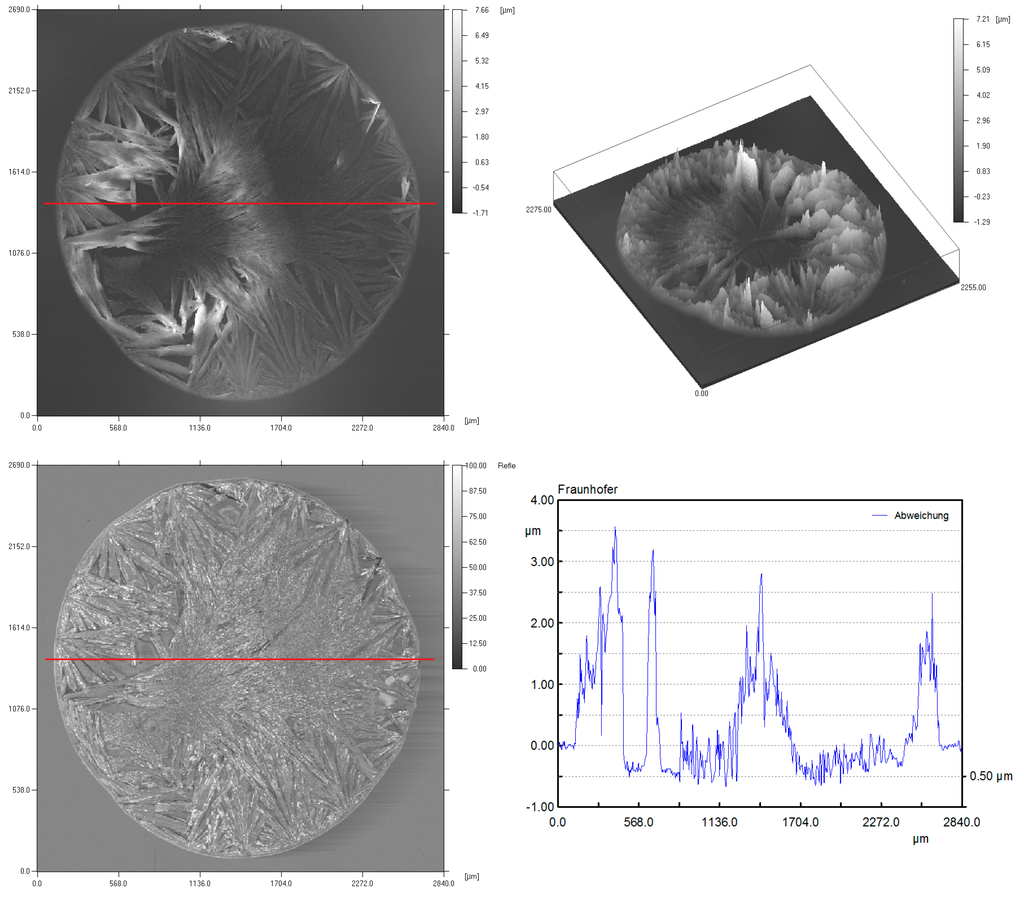

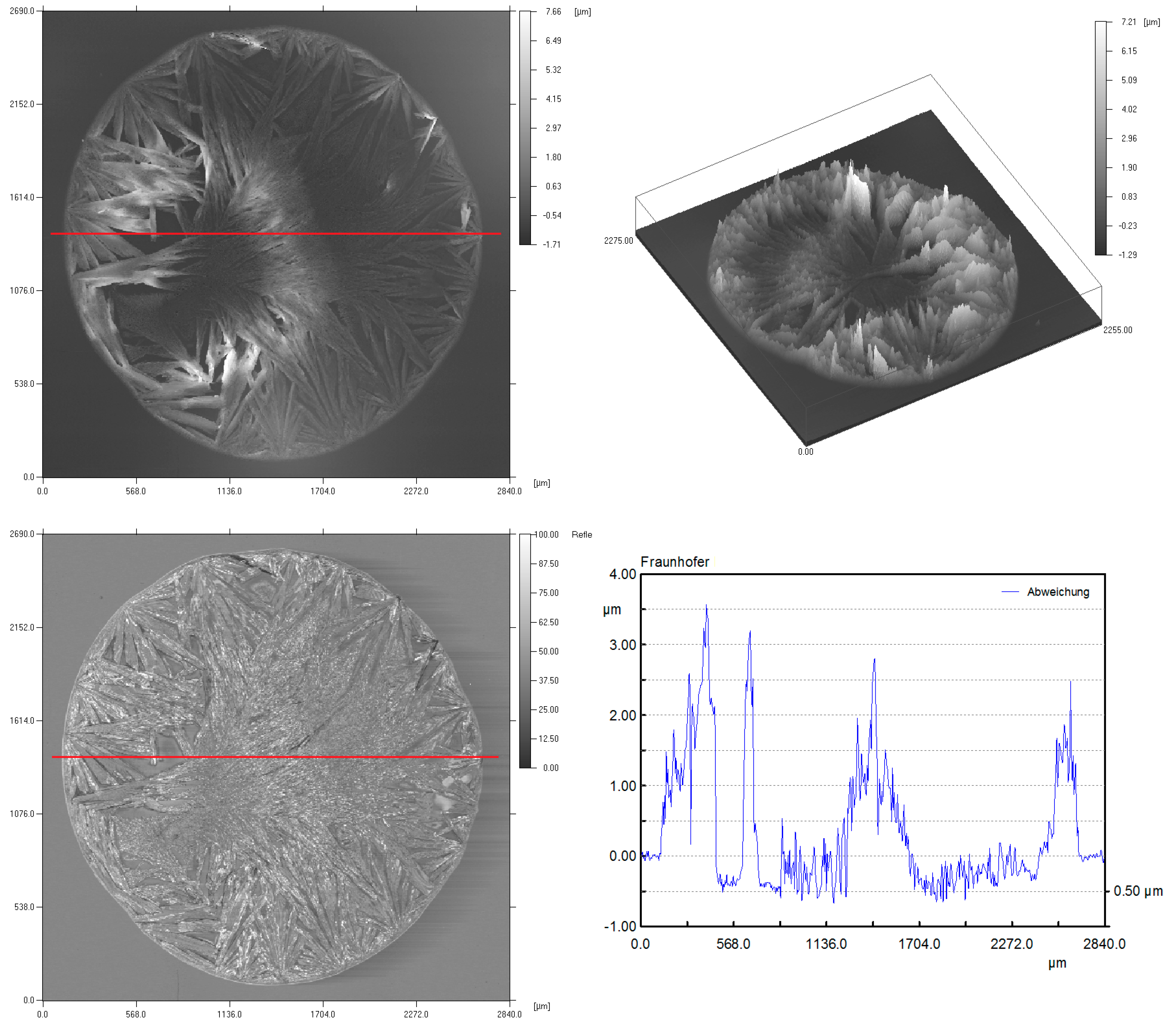

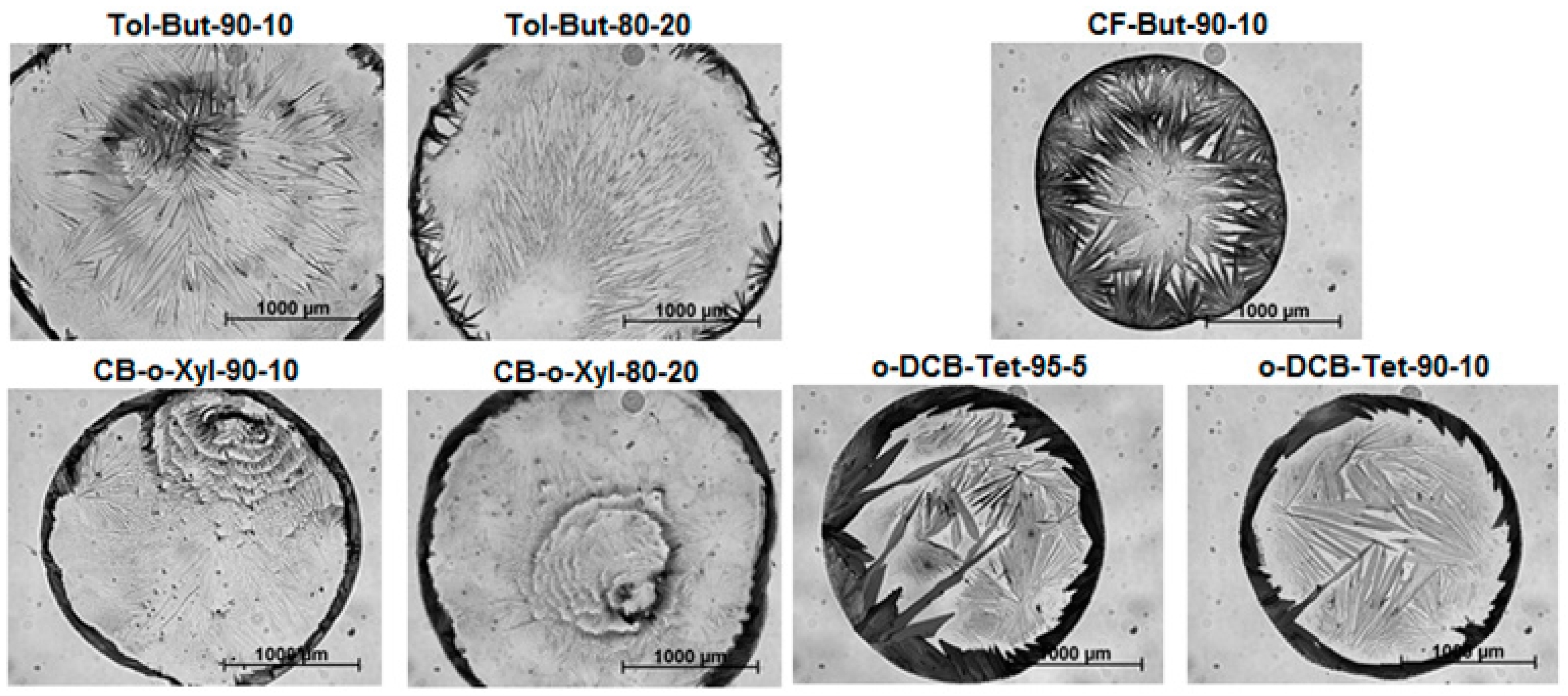

2.2. Experimental Part II
# | Major Solvent | Boiling Point (°C) | Minor Solvent | Boiling Point (°C) | Ratio | Short Name |
---|---|---|---|---|---|---|
A1 | Toluene | 111 °C | n-Butyl acetate | 126 °C | 90%–10% | Tol-But-90-10 |
A2 | Toluene | n-Butyl acetate | 80%–20% | Tol-But-80-20 | ||
B1 | Chlorobenzene | 132 °C | o-Xylene | 144 °C | 90%–10% | CB-o-Xyl-90-10 |
B2 | Chlorobenzene | o-Xylene | 80%–20% | CB-o-Xyl-80-20 | ||
C1 | Chloroform | 61 °C | n-Butyl acetate | 126 °C | 90%–10% | CF-But-90-10 |
D1 | o-Dichlorobenzene | 180 °C | Tetralin | 207 °C | 95%–5% | o-DCB-Tet-95-5 |
D2 | o-Dichlorobenzene | Tetralin | 90%–10% | o-DCB-Tet-90-10 |

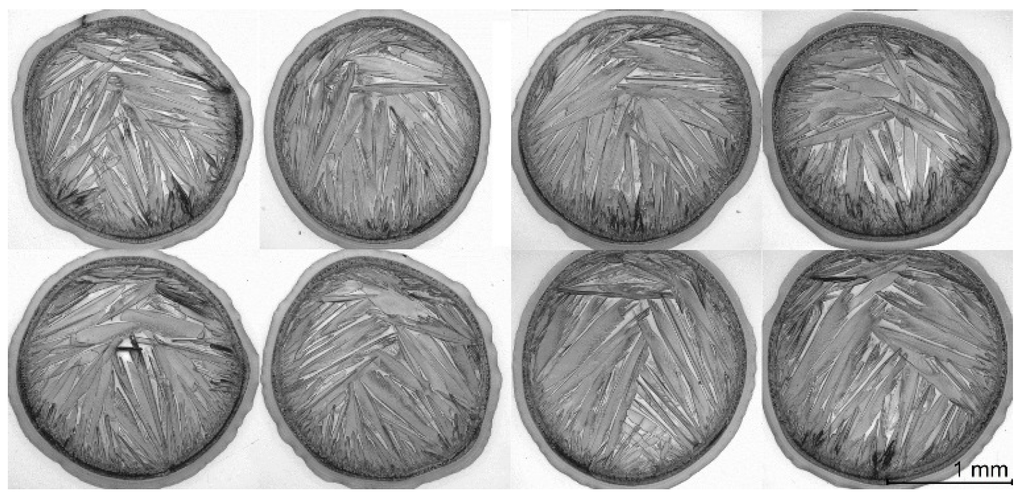

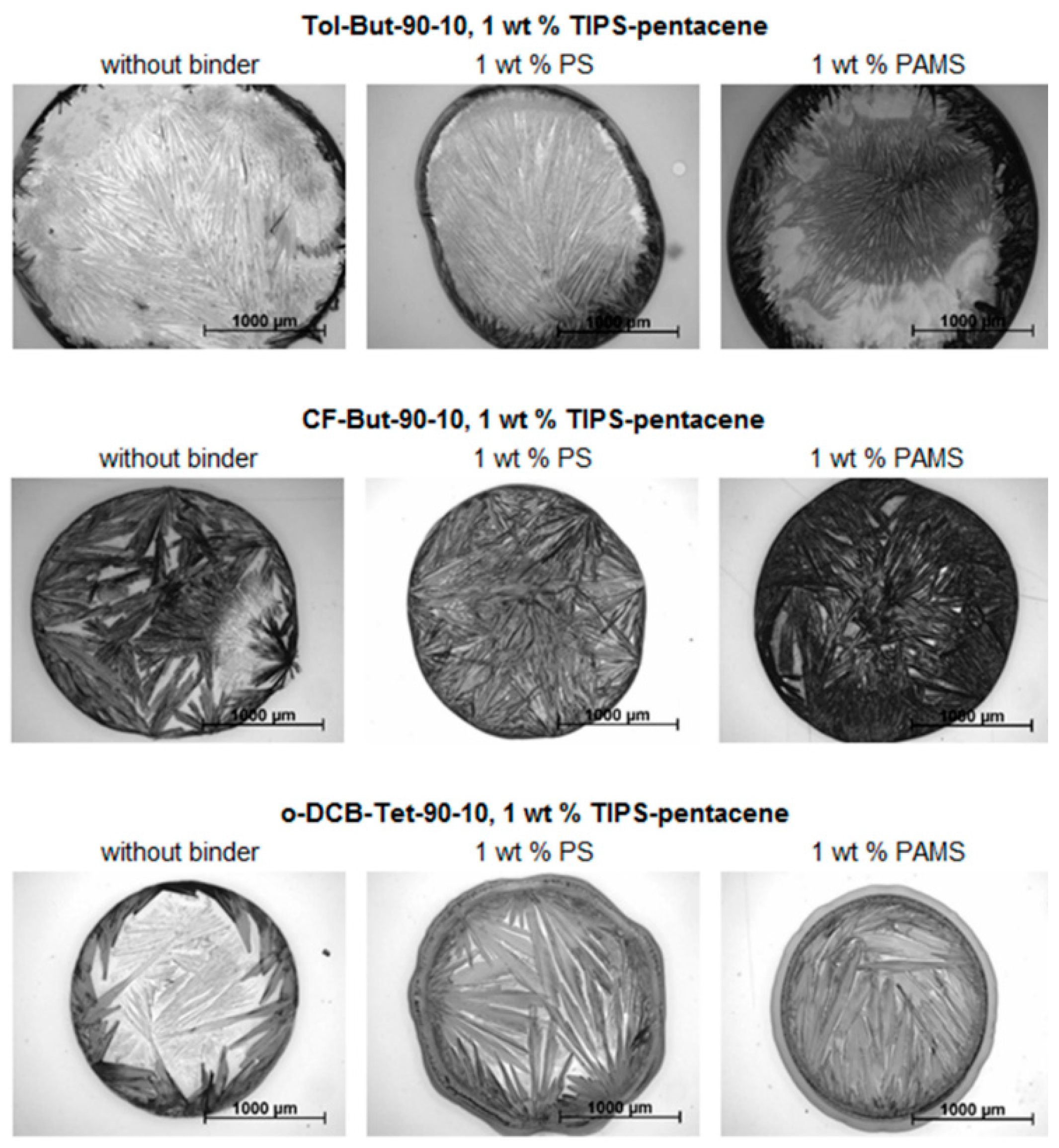

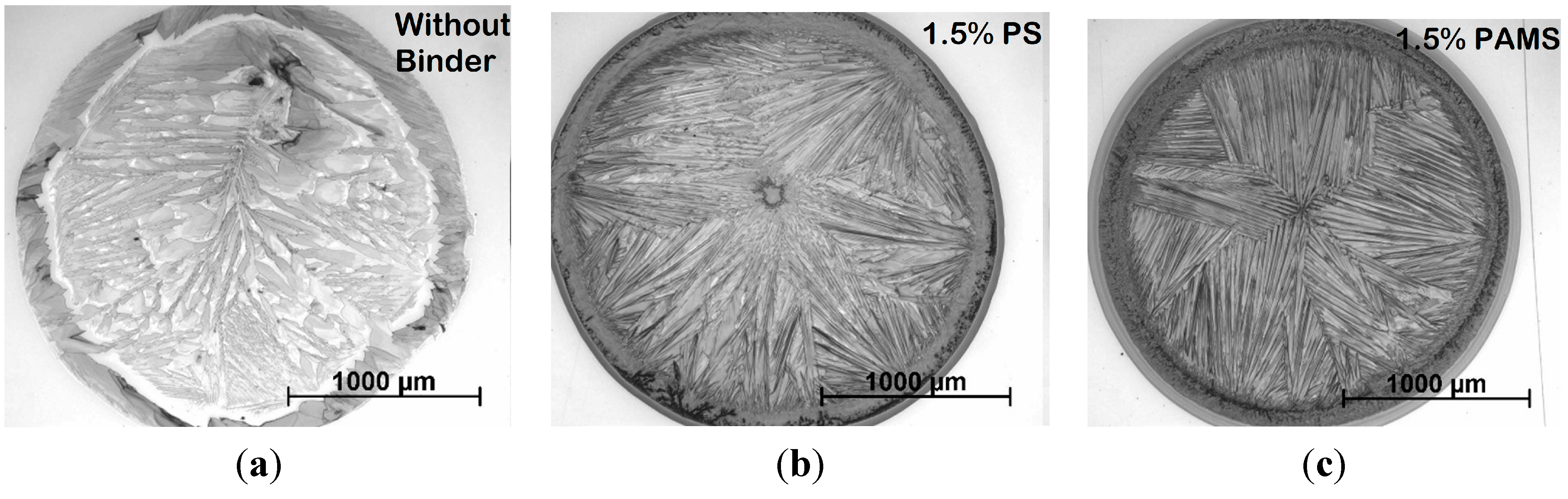

2.3. Experimental Part III
# | Major Solvent | Boiling Point (°C) | Minor Solvent | Boiling Point (°C) | Ratio | TIPS-pentacene | Binder |
---|---|---|---|---|---|---|---|
A1 | Toluene | 111 °C | n-Butyl acetate | 126 °C | 90%–10% | 1% | None |
A1_PS | Toluene | n-Butyl acetate | 90%–10% | 1% | PS (1% wt) | ||
A1_PAMS | Toluene | n-Butyl acetate | 90%–10% | 1% | PAMS (1% wt) | ||
C1 | Chloroform | 61 °C | n-Butyl acetate | 126 °C | 90%–10% | 1% | None |
C1_PS | Chloroform | n-Butyl acetate | 90%–10% | 1% | PS (1% wt) | ||
C1_PAMS | Chloroform | n-Butyl acetate | 90%–10% | 1% | PAMS (1% wt) | ||

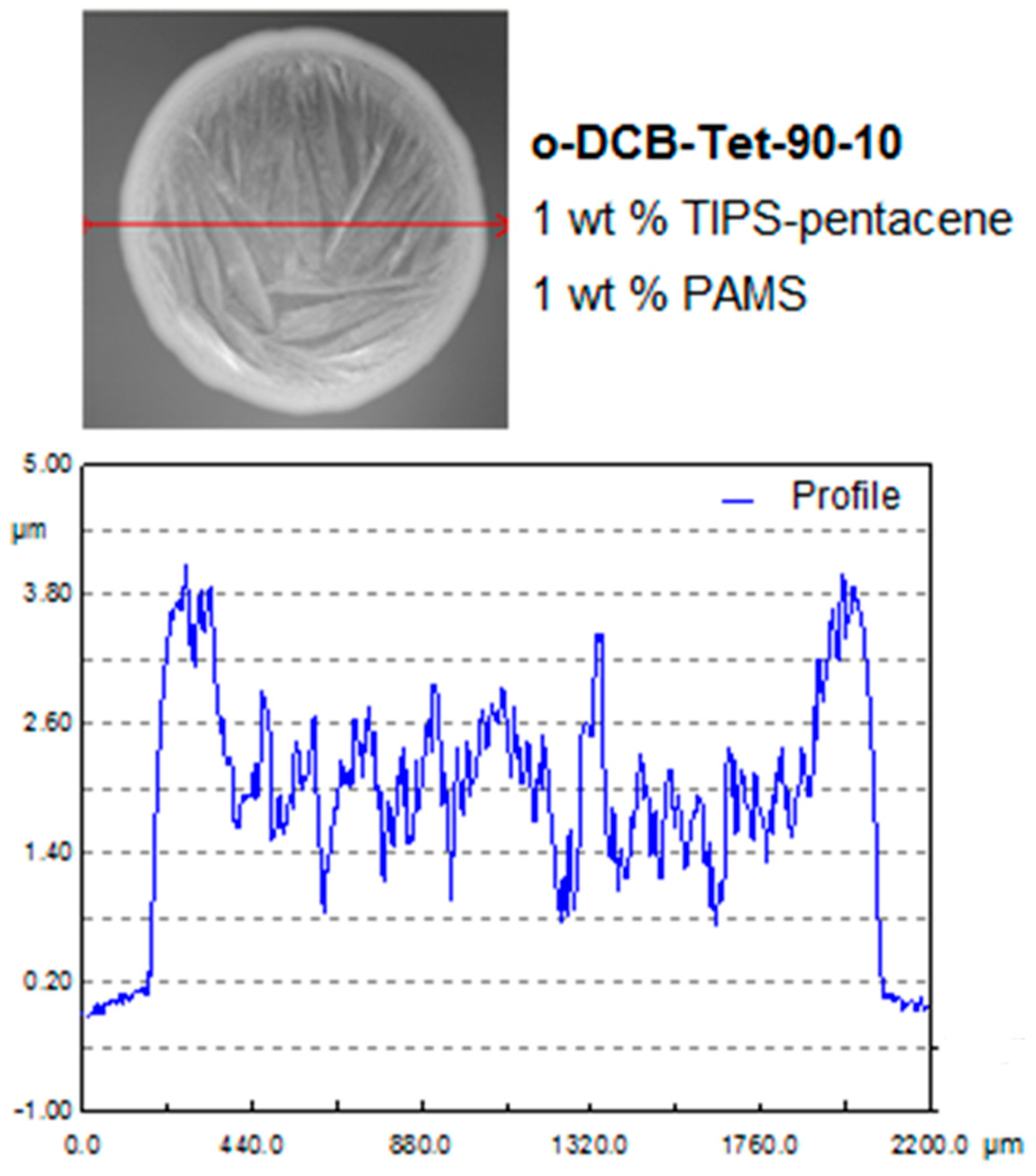

D1 | o-Dichloro benzene | 180 °C | Tetralin | 207 °C | 90%–10% | 1% | None |
D1_PS | o-Dichloro benzene | Tetralin | 90%–10% | 1% | PS (1% wt) | ||
D1_PAMS | o-Dichloro benzene | Tetralin | 90%–10% | 1% | PAMS (1% wt) |
2.4. Experimental Part IV
Type | Name | Boiling Point (°C) | Surface Tension @ 20 °C (dyn/cm) |
---|---|---|---|
Major Solvent (75%) | o-Xylene | 144.4 | 30.53 |
Minor Solvent (25%) | o-Dichlorobenzene | 180.5 | 37 |

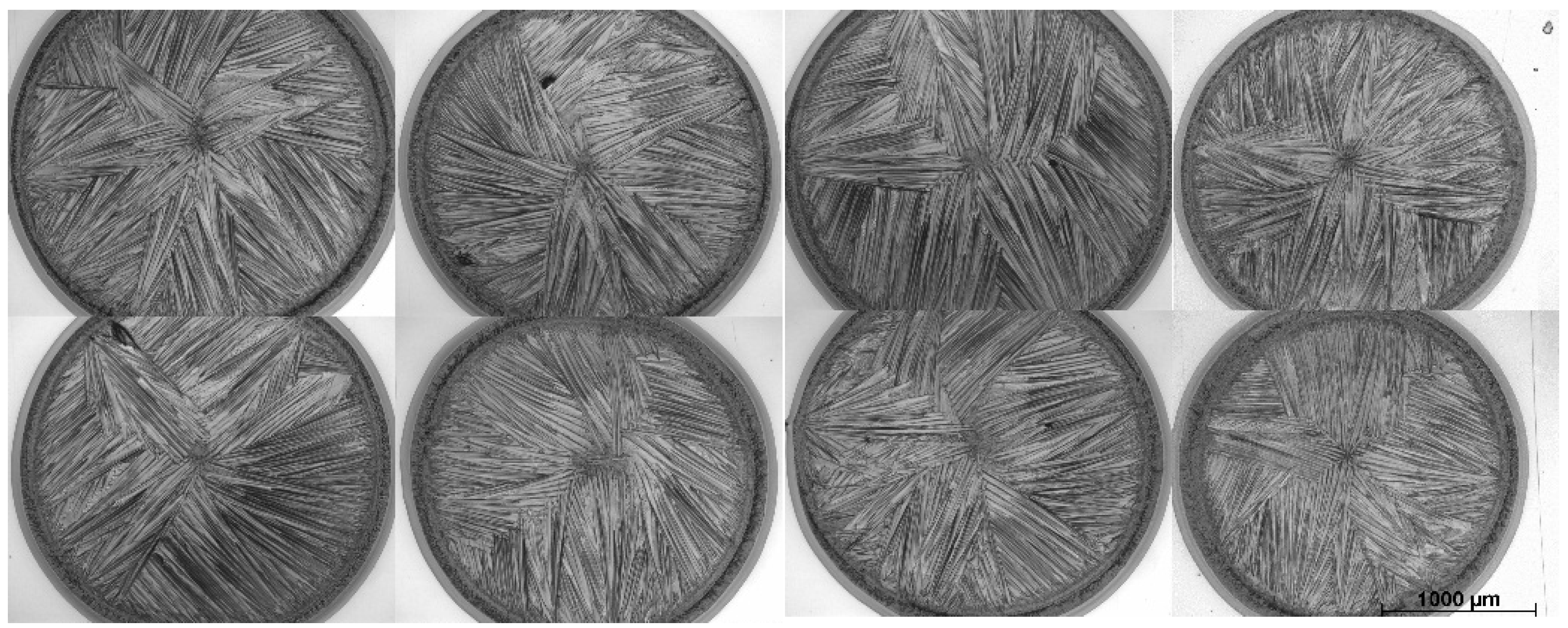

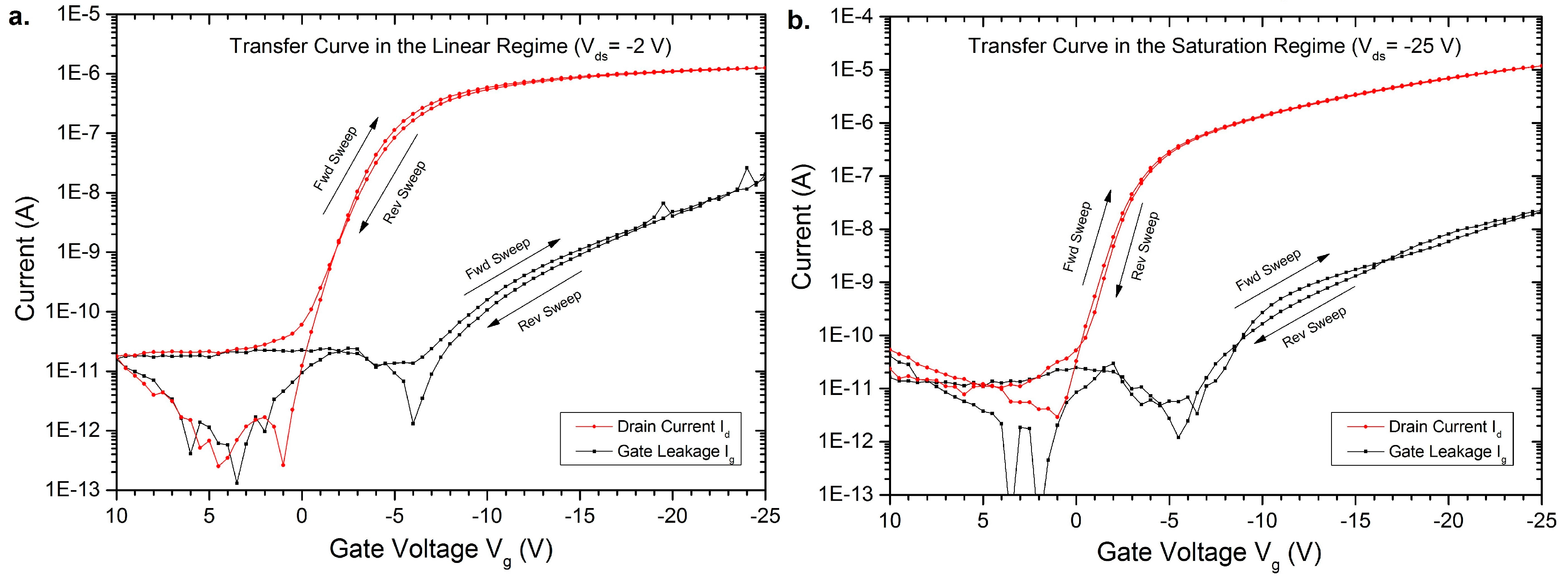

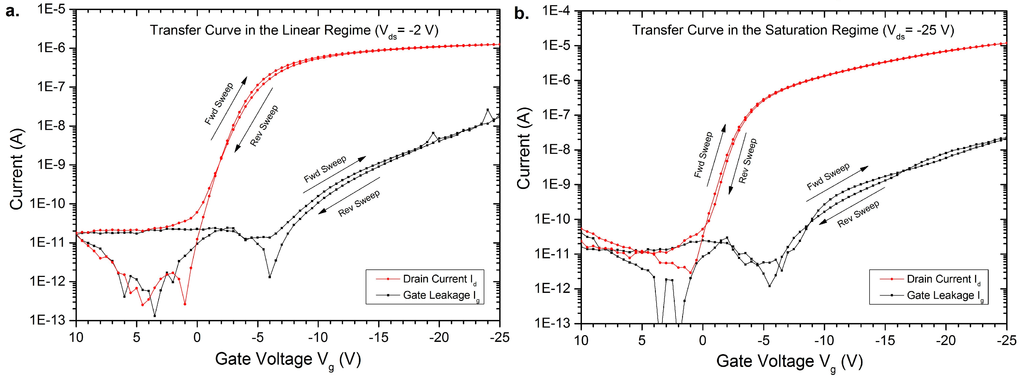

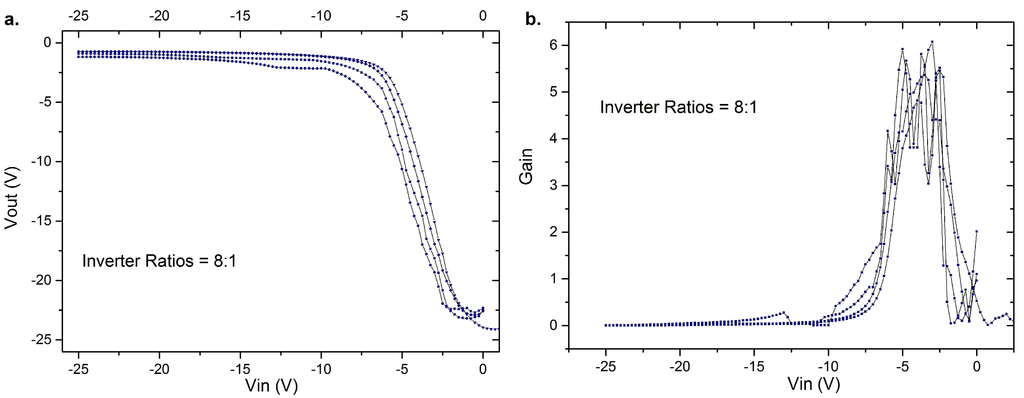

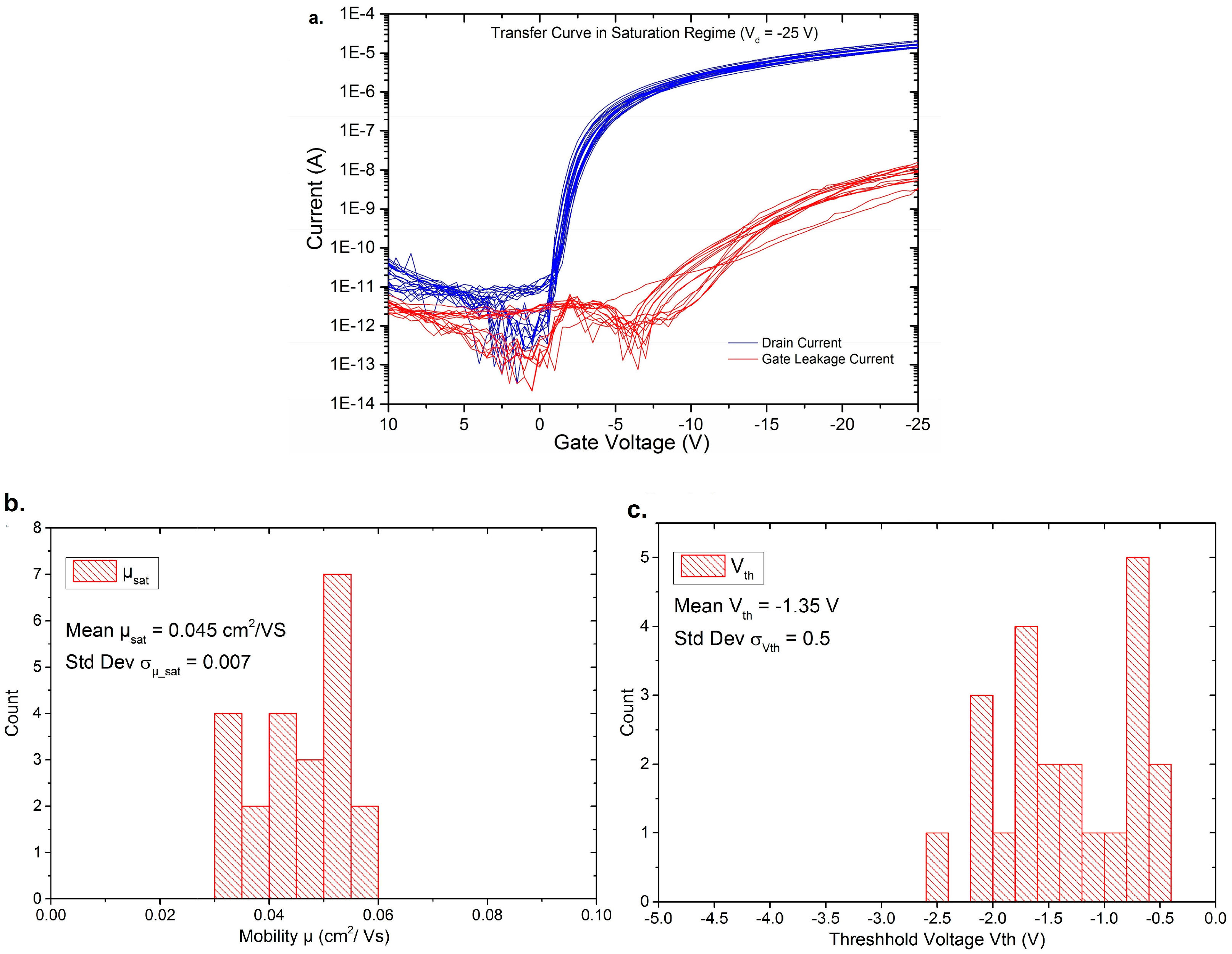

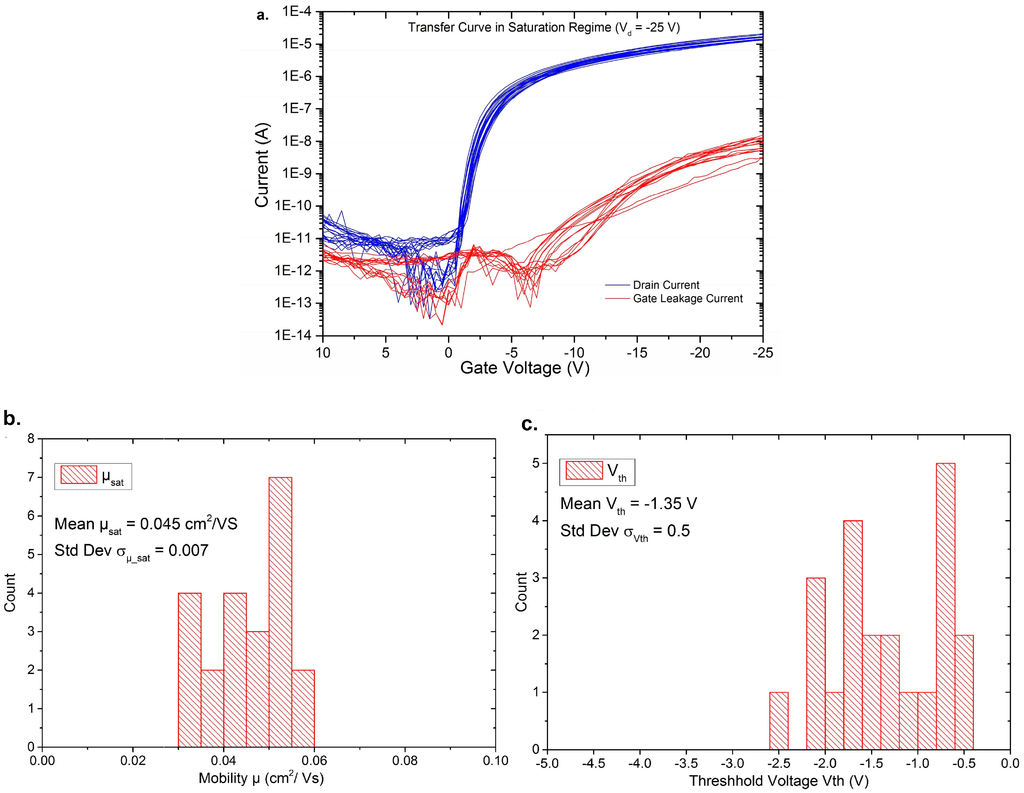

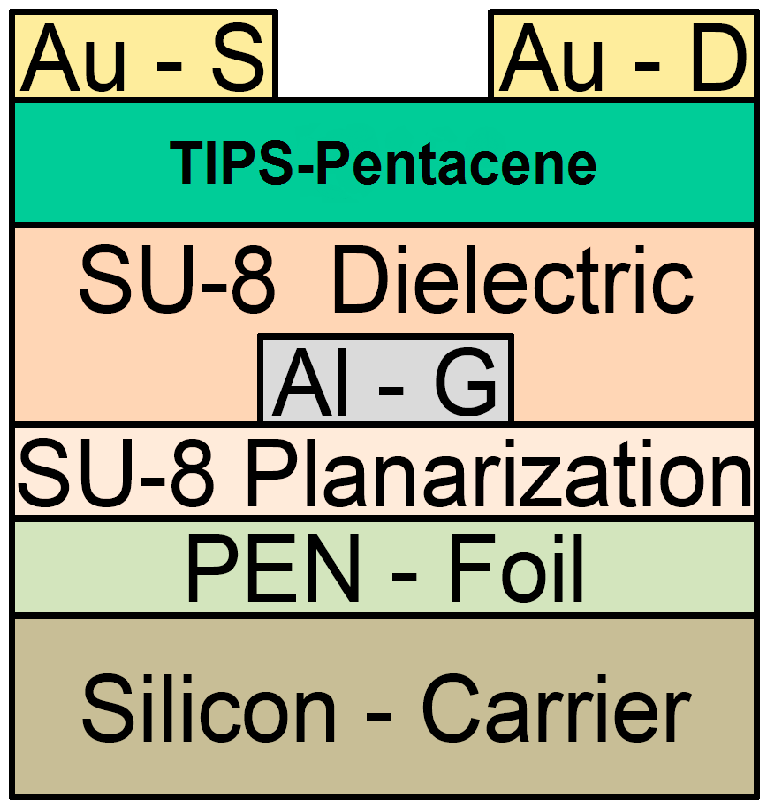

3. Results of the OFETs
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
