Reconfigurable Wideband Bandpass Filter Using Stepped Impedance Resonator Based on Liquid Crystals

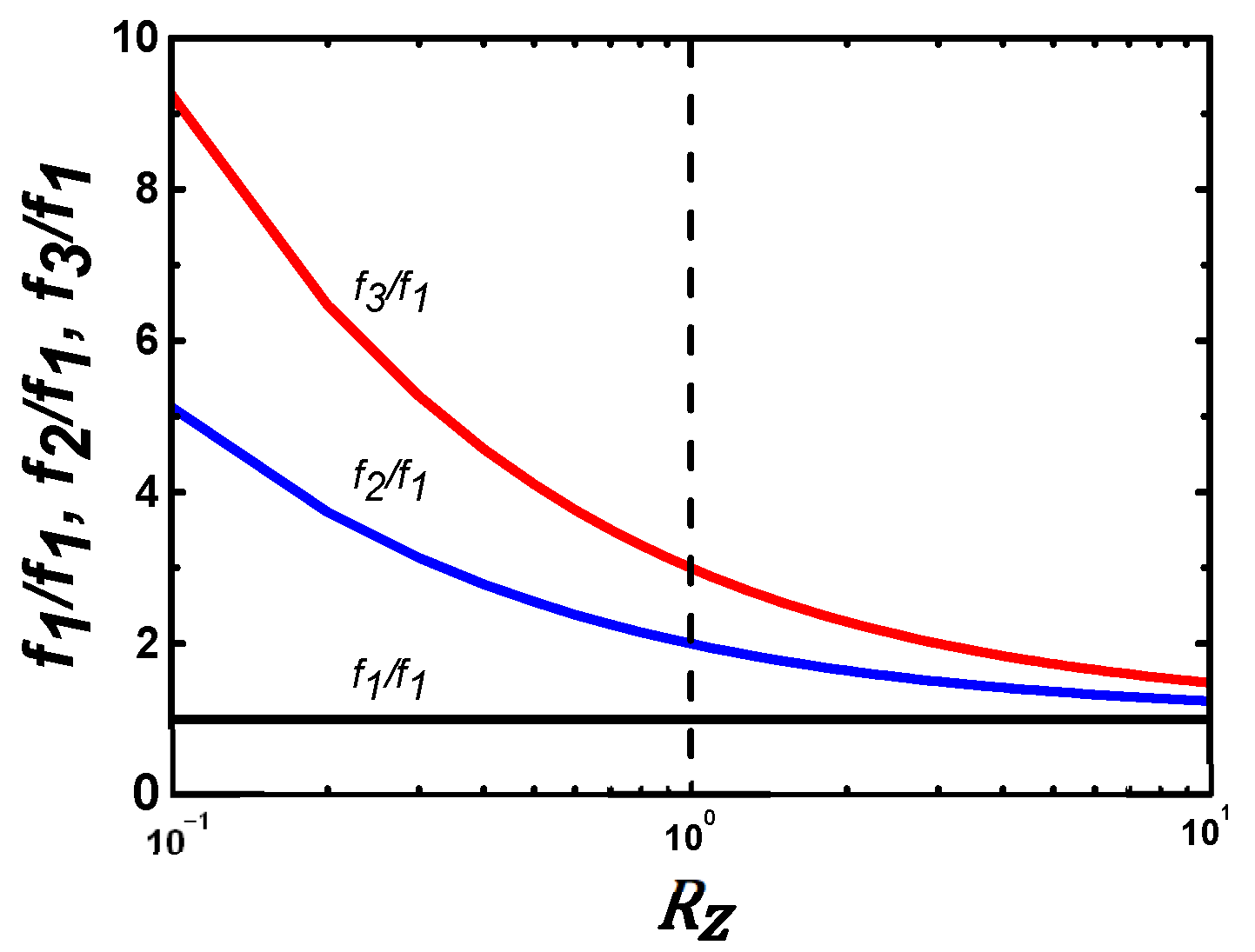

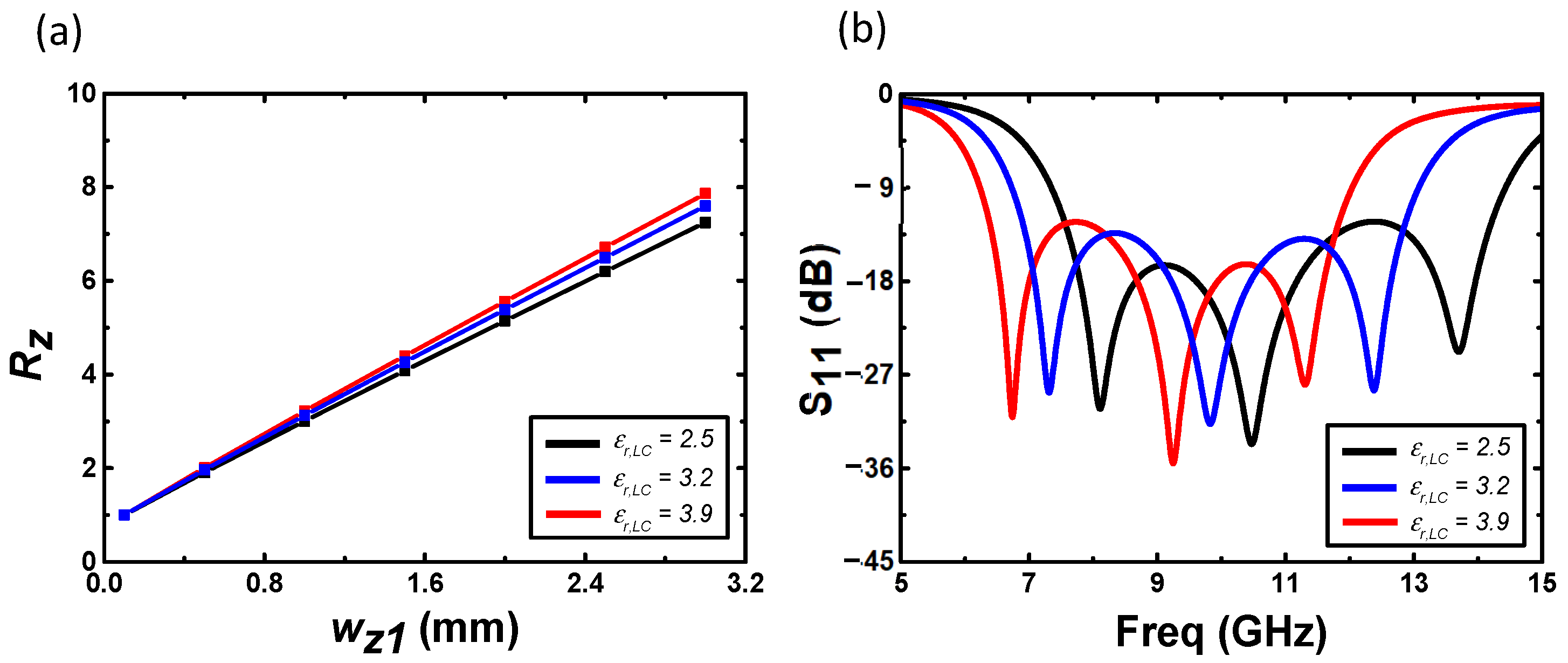

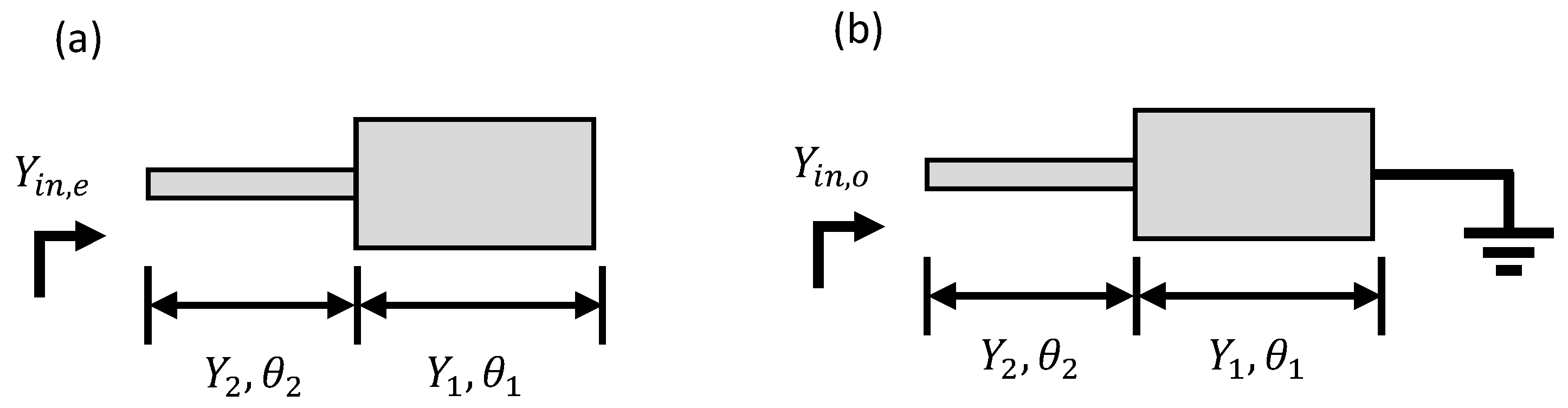

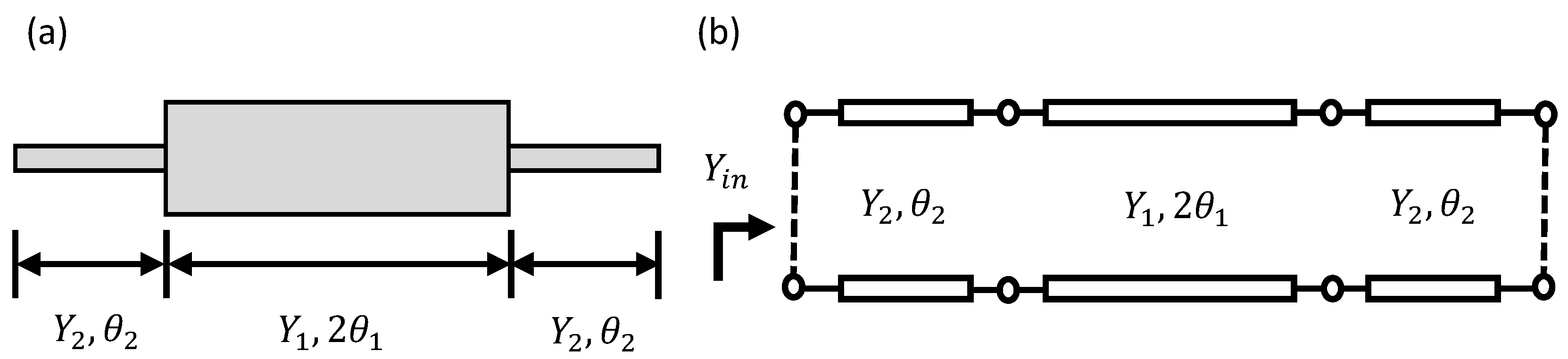

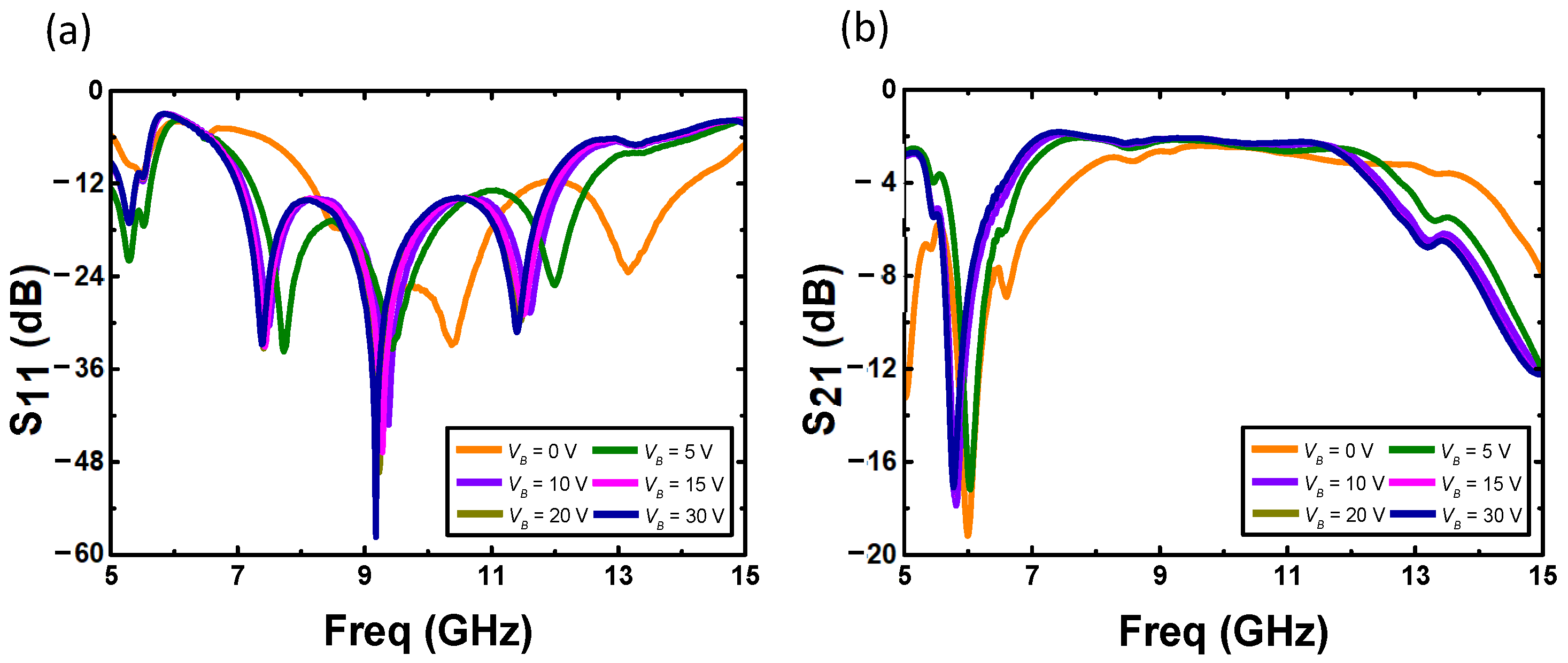

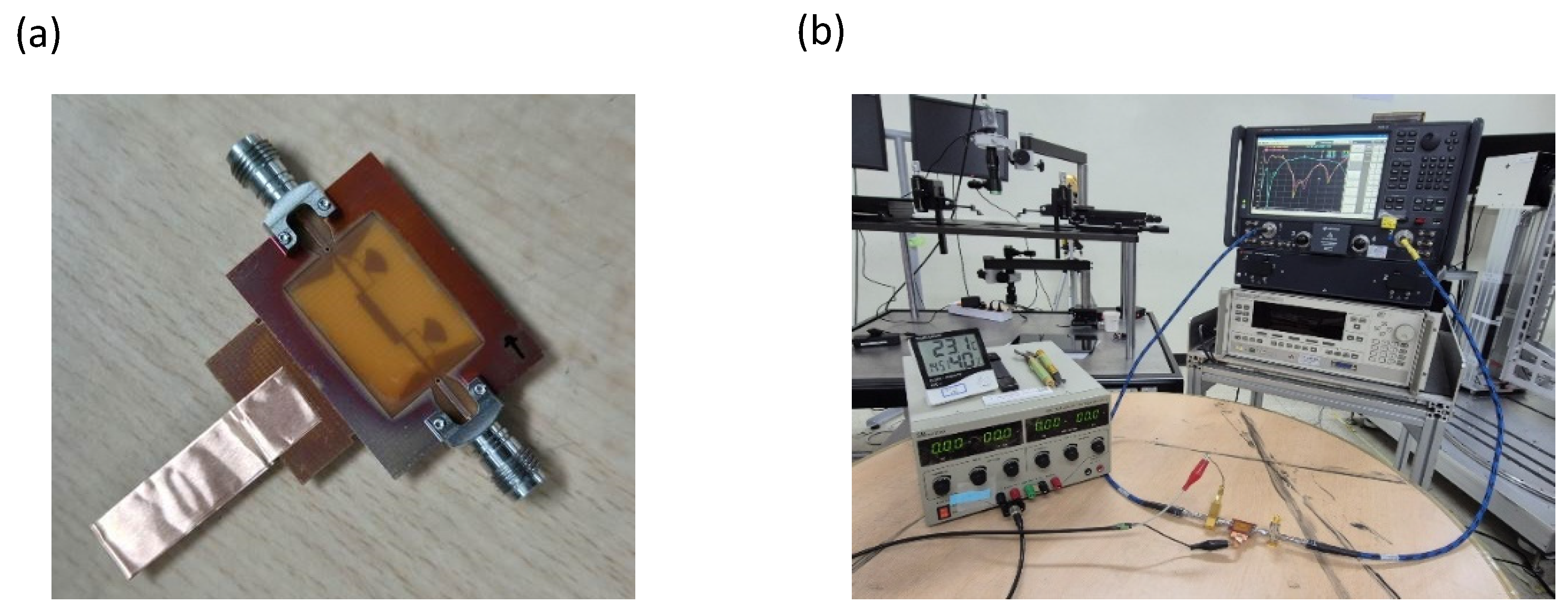

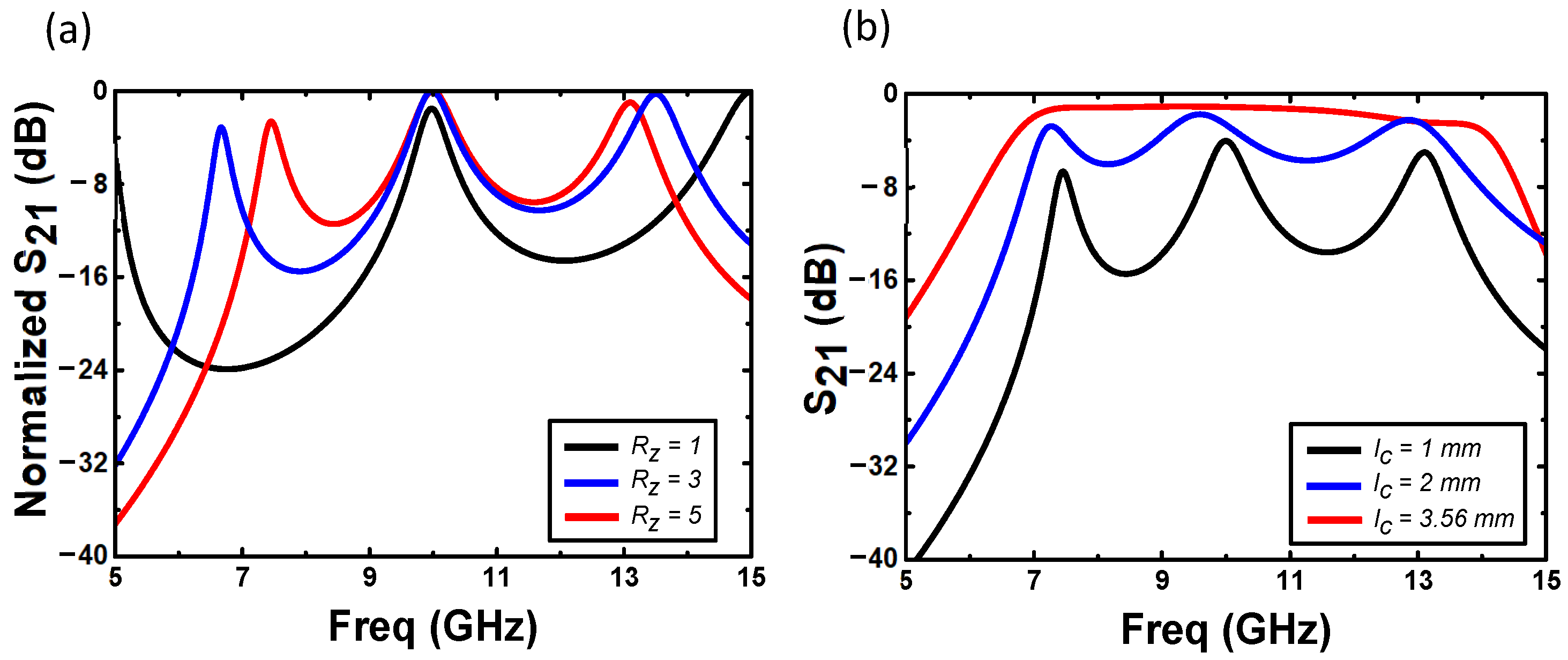

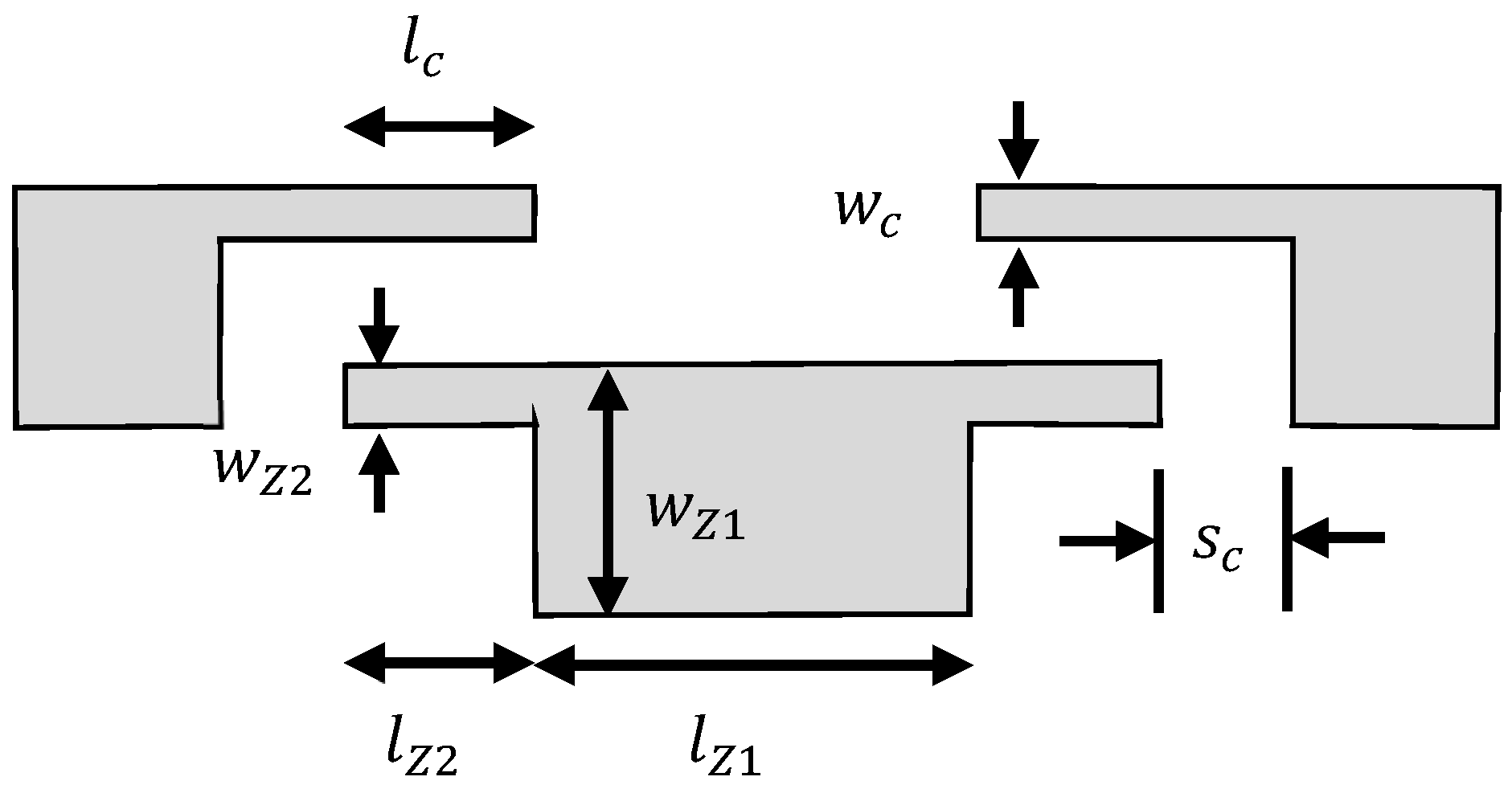

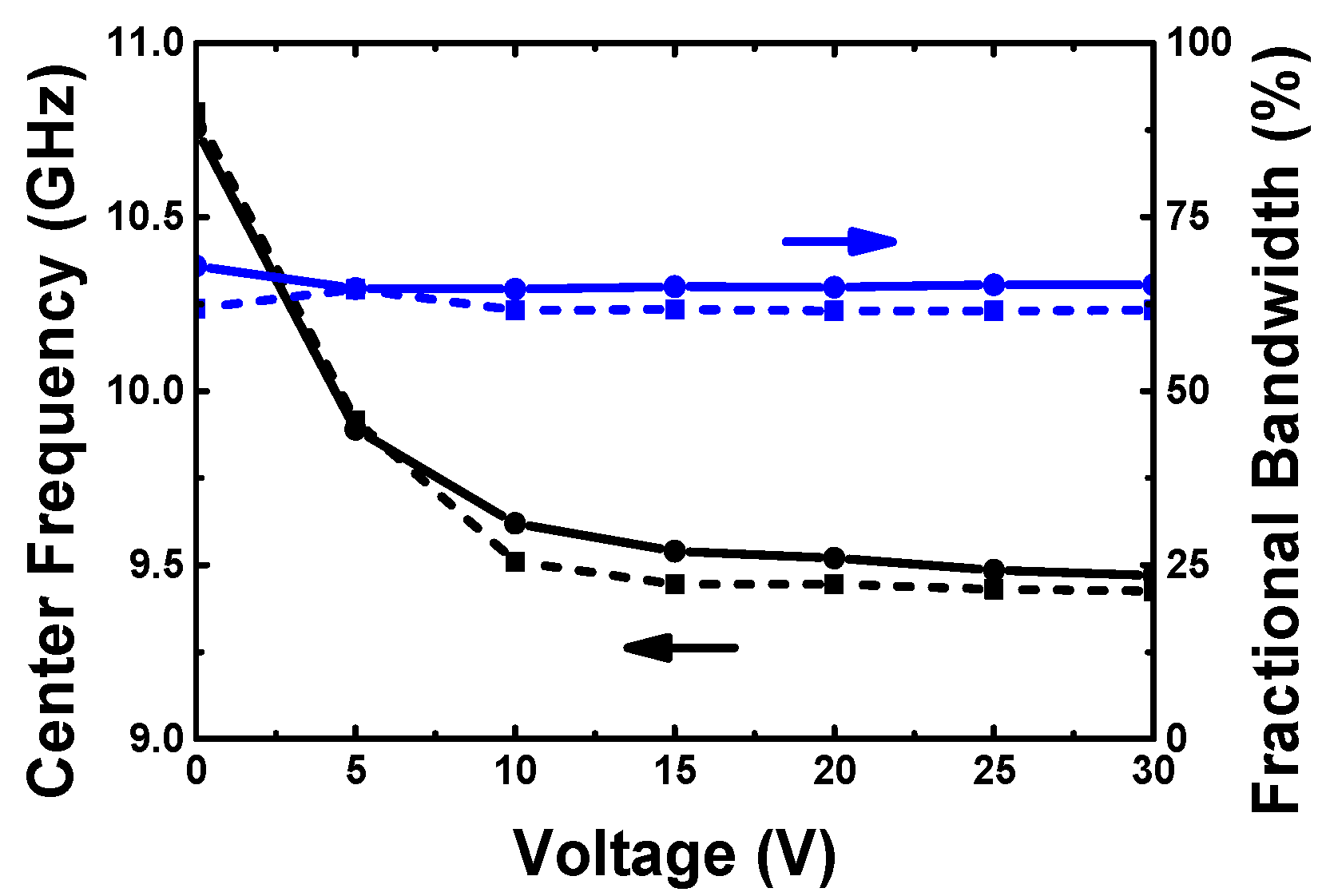

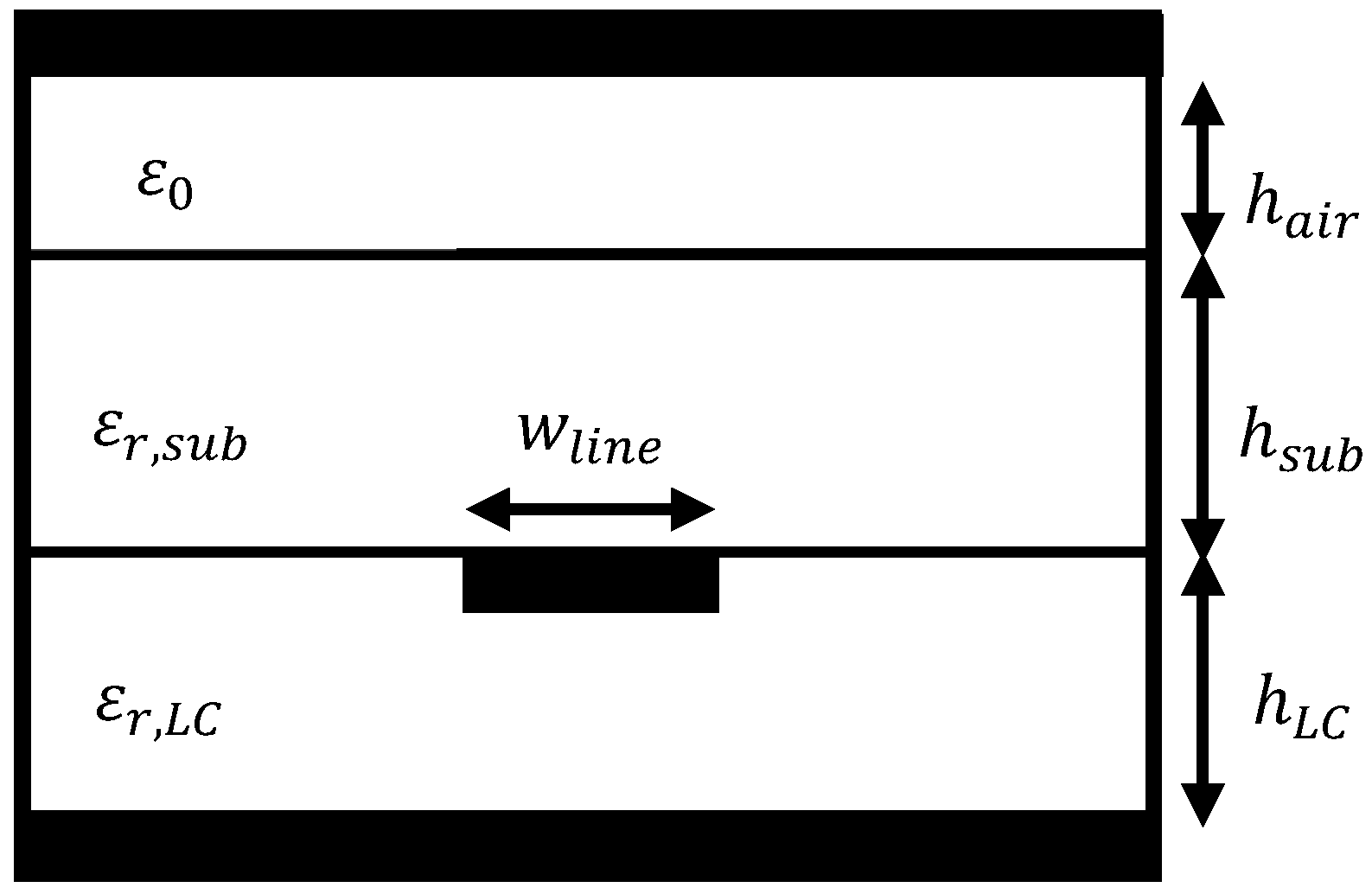

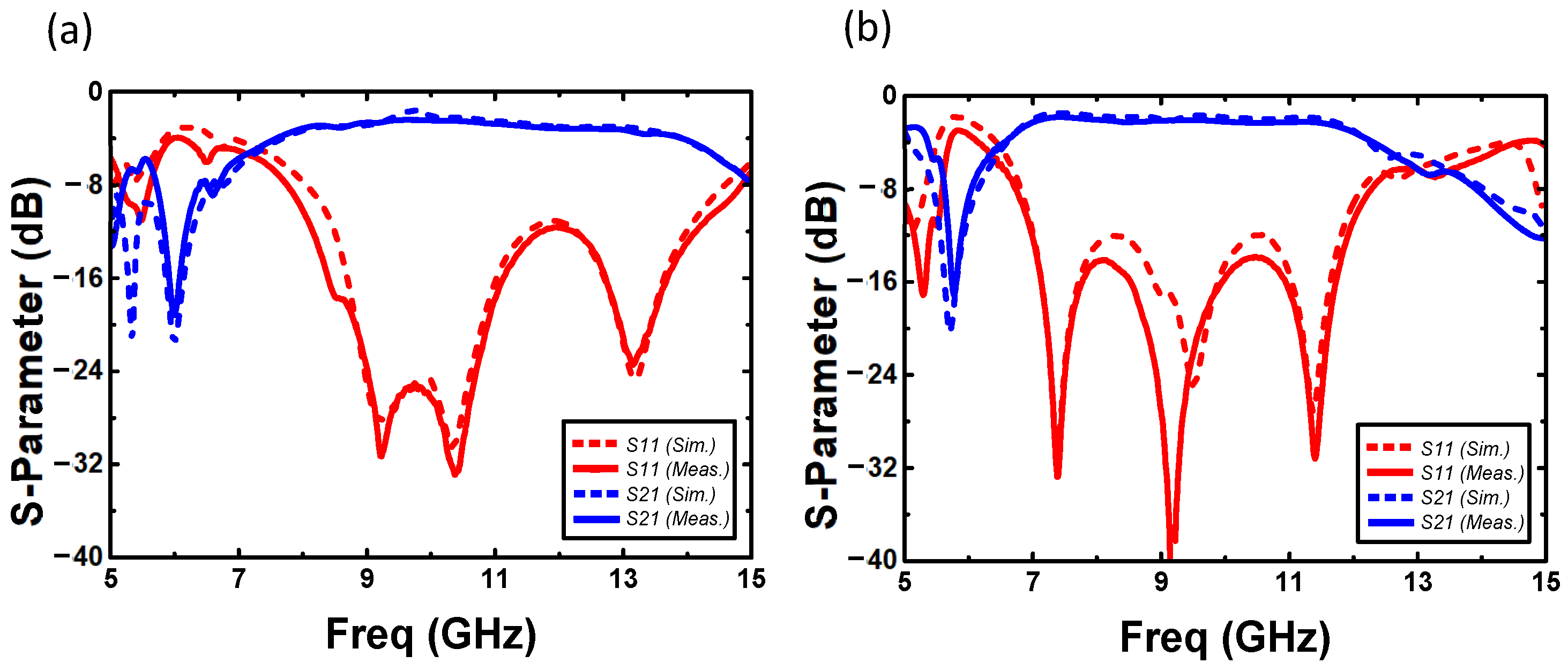

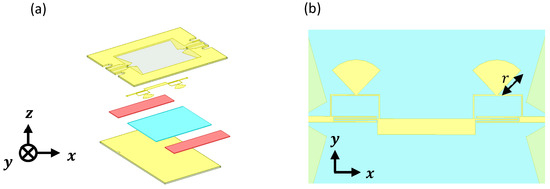

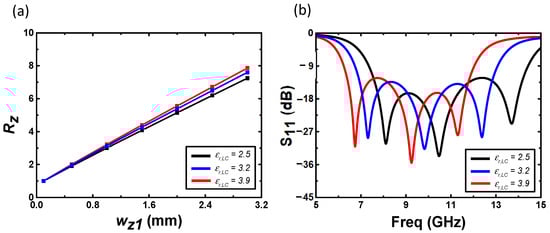

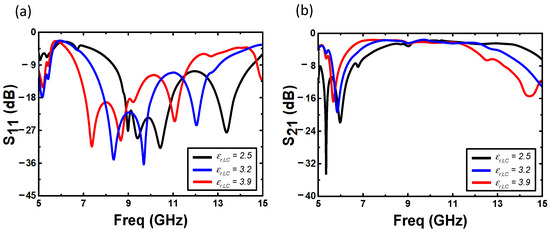

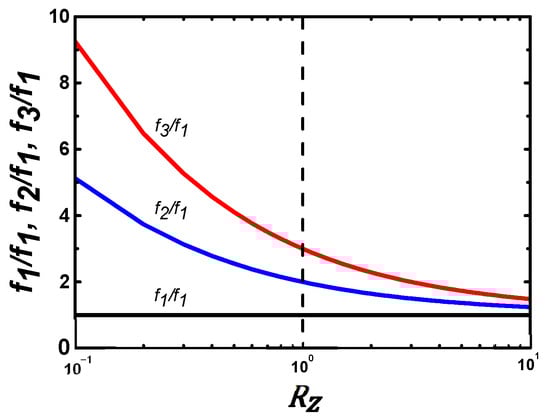

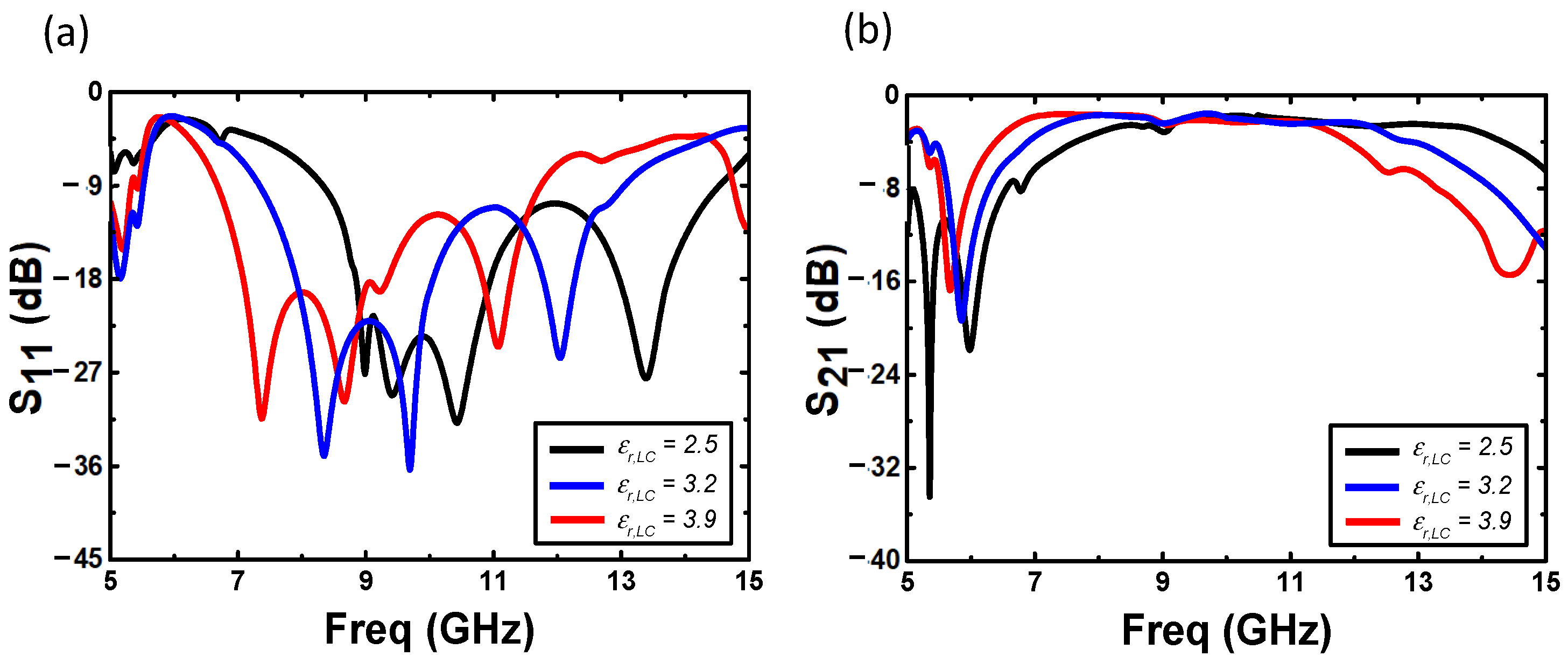

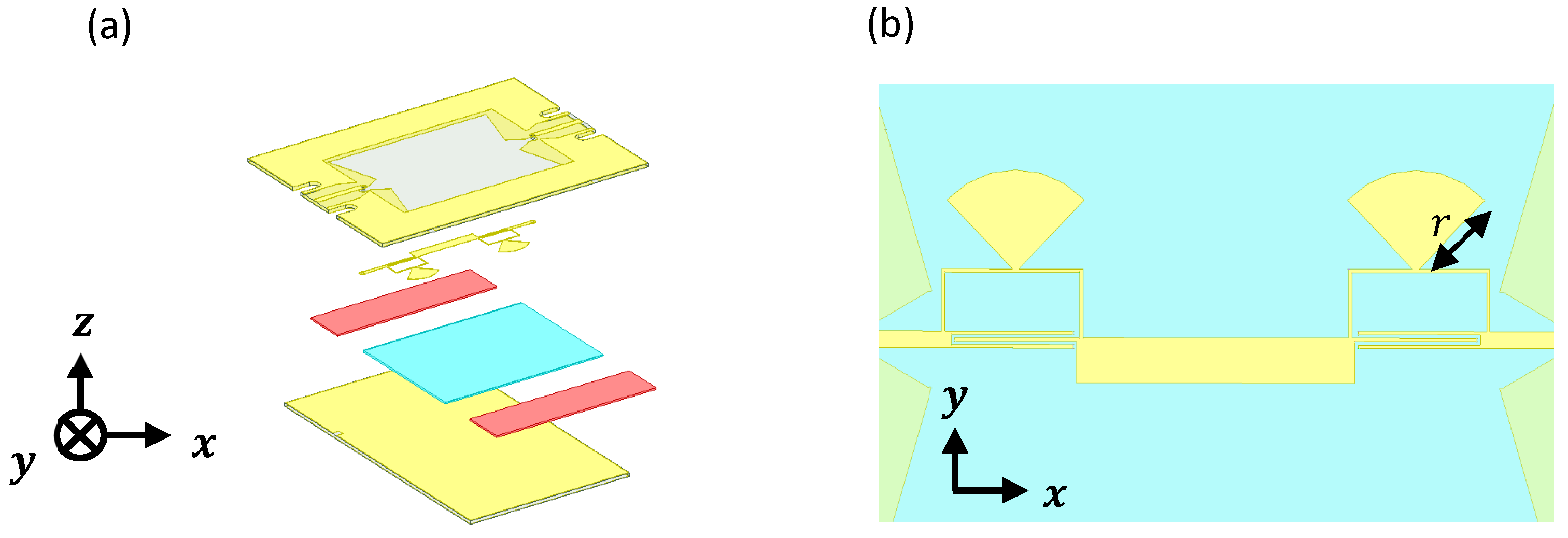

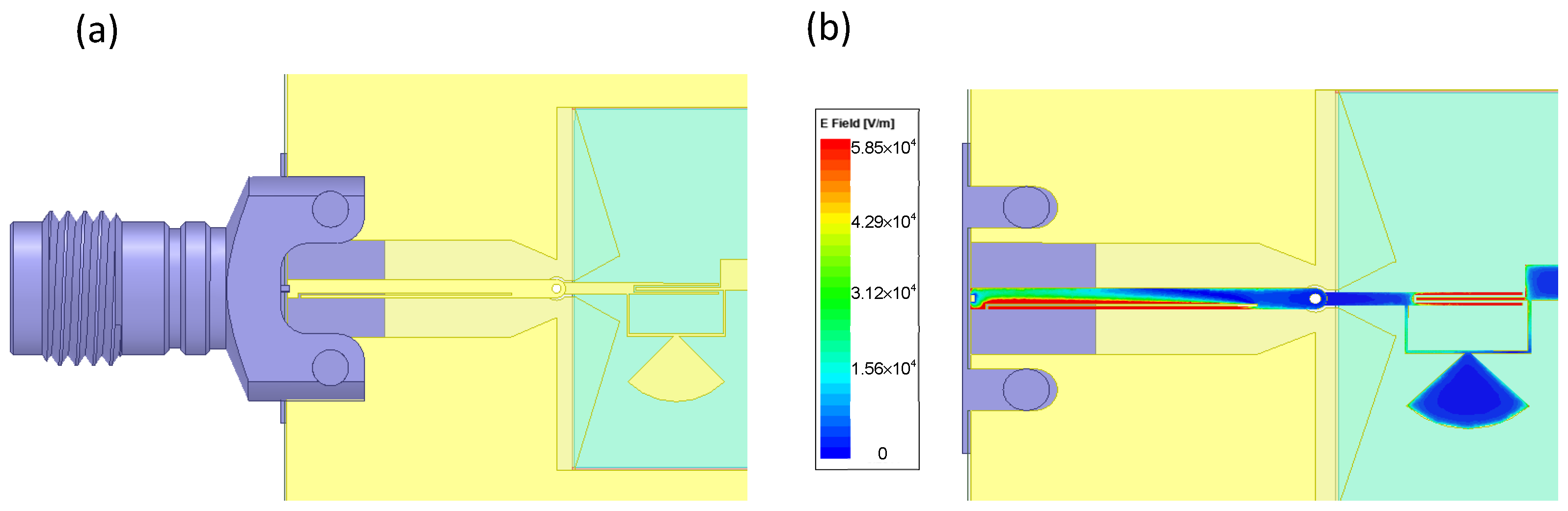

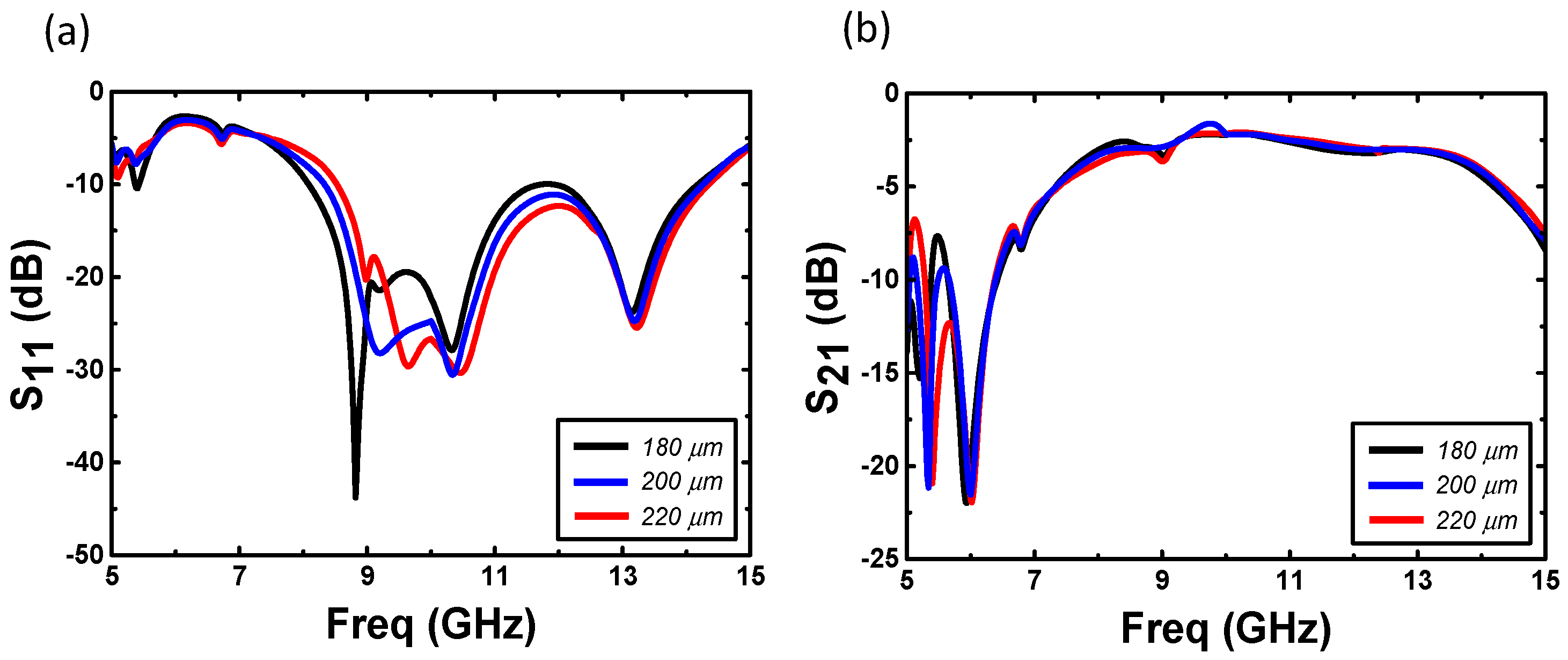

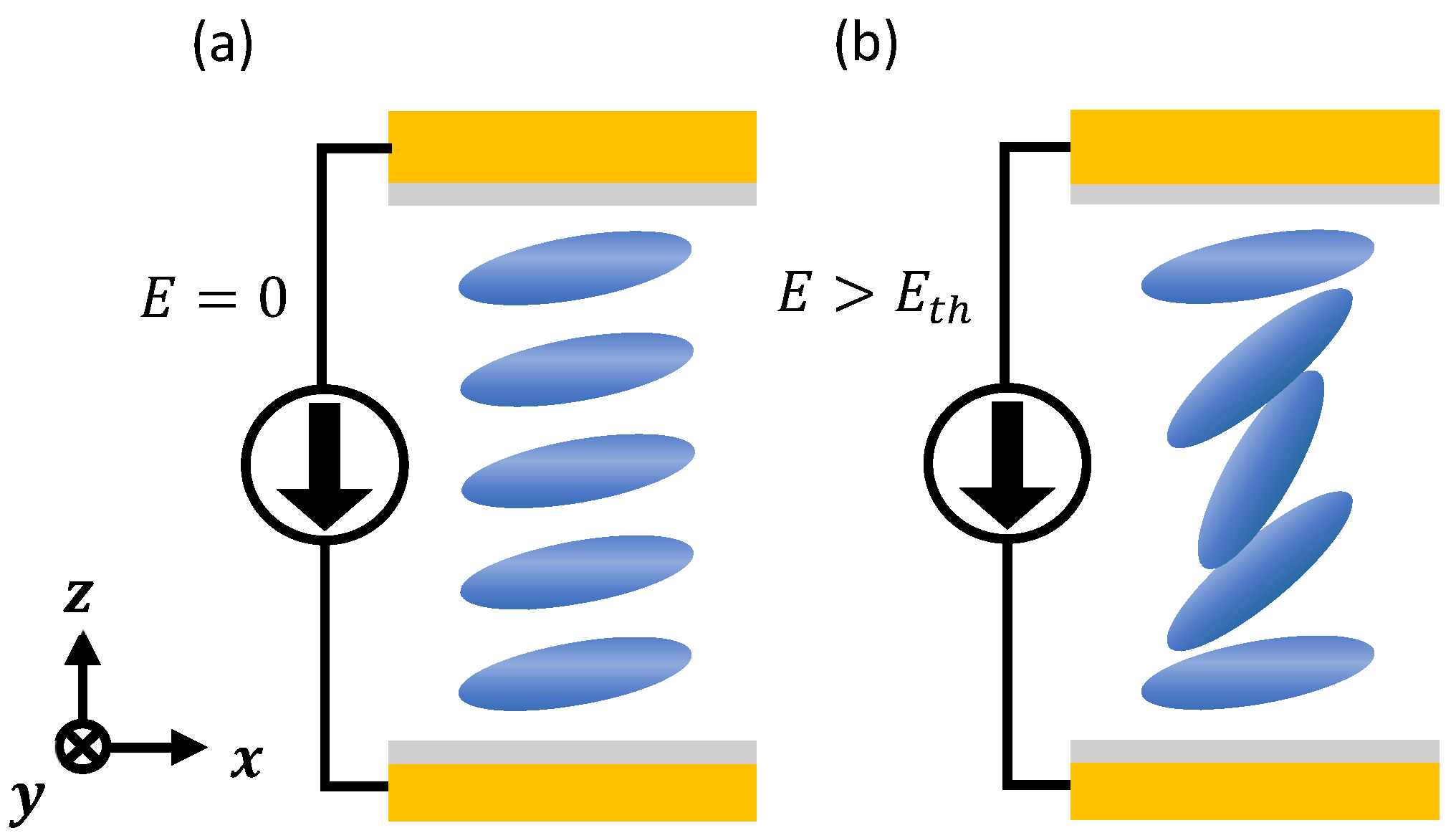

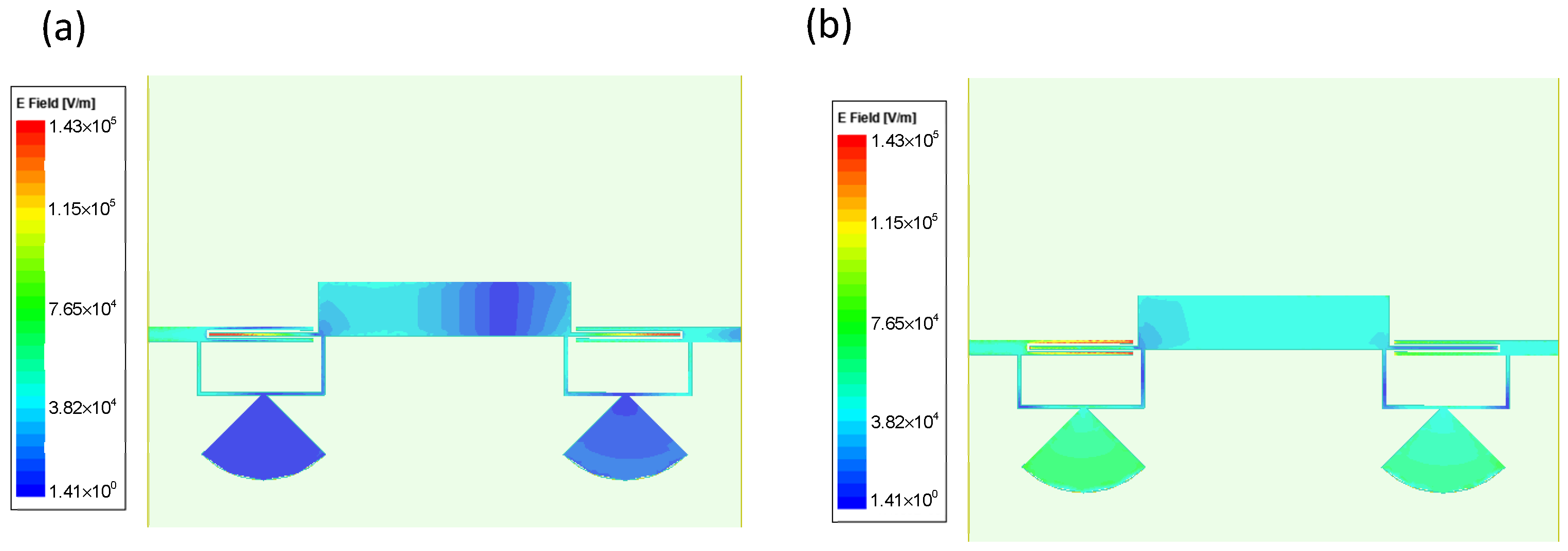

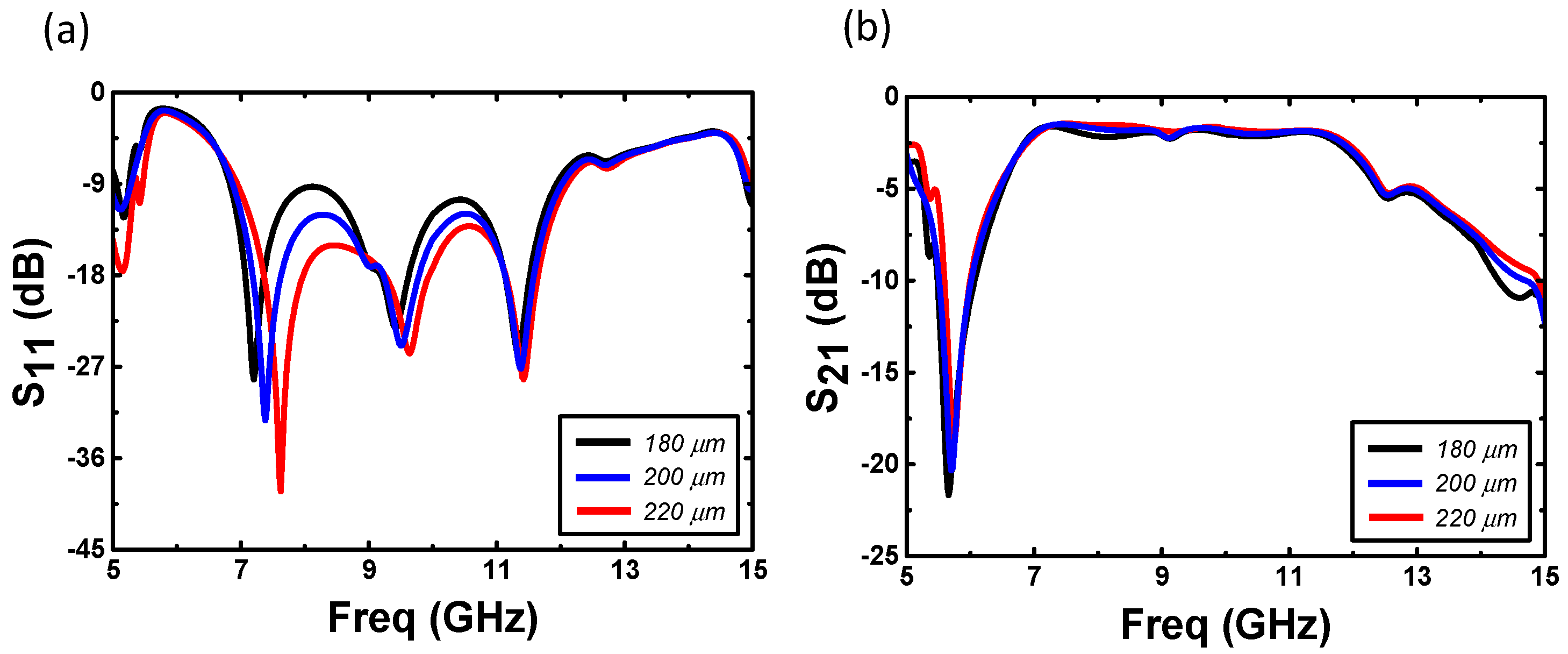

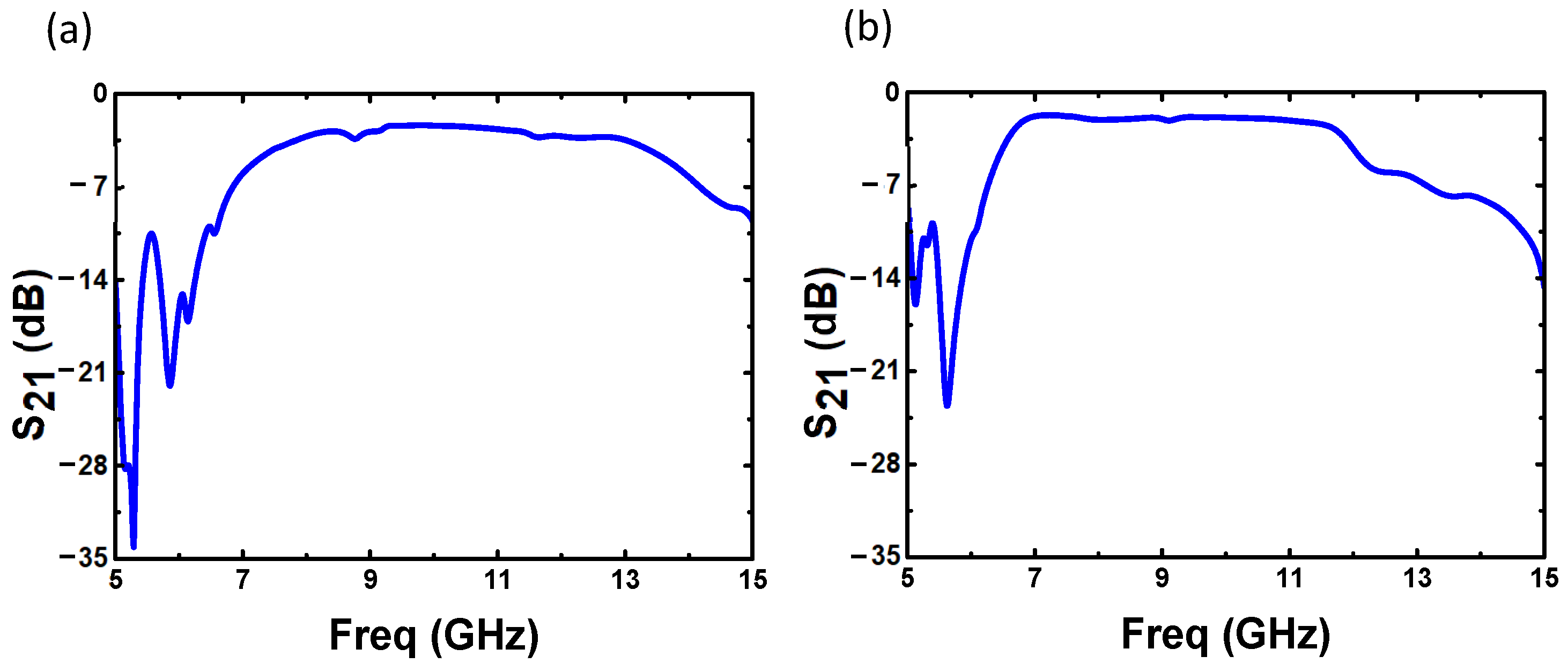

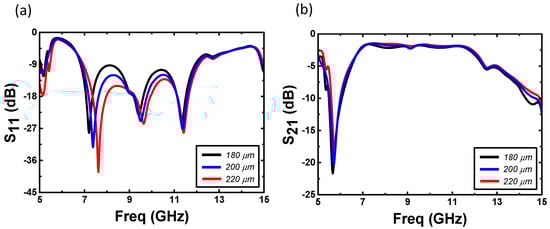

In this paper, a capacitively coupled-fed reconfigurable wideband bandpass filter (BPF) is proposed based on liquid crystal (LC) technology, which achieved three transmission poles across varying bias voltages (V_B). An open-ended stepped impedance resonator configuration enables multi-mode resonance, offering significantly wider bandwidth compared to uniform-impedance resonators. The fractional bandwidth (FBW) and transmission pole positions are determined by the impedance ratio of the two resonators, allowing the filter to meet specific design requirements. An analytical methodology employing multilayer transmission line formulations and resonant frequency ratios was used to predict the modal stability of transmission poles under dielectric constant variation, which was subsequently validated through simulation. Experimental results show that the center frequency can be adjusted from 10.76 to 9.47 GHz with a maximum V_B of 30 V, achieving a tuning range of 12.71%. The normalized 3 dB FBW exceeds 64.66%, and the return loss remains above 10 dB from 0 to 30 V, offering the widest FBW among the reported LC BPFs without pole merging or mode collapse. The frequency response of the fabricated filter shows good agreement with the simulation results.
