# A Strain Rate Dependent Damage Model for Evaluating the Dynamic Response of CFRTP Laminates with Different Stacking Sequence

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

^{−5}s

^{−1}to 1 s

^{−1}and 100 s

^{−1}to 2500 s

^{−1}, respectively. Chen et al. [6] showed the failure strain of PEEK composites increased apparently with the strain rate increasing from 0.001 s

^{−1}to 1000 s

^{−1}. Ou et al. [7] investigated the effect of strain rate on the mechanical properties and failure patterns of GFRP and reported that tensile strength, maximum strain and toughness increase with increasing strain rates from 1/600 s

^{−1}to 160 s

^{−1}. The authors previous research also revealed that the strain rate sensitivity of CFRTP laminates was obvious from strain rate 2 × 10

^{−4}s

^{−1}to 2200 s

^{−1}[8]. The strain rate sensitivity was one of the key factors an accurate assessment of composite tensile strength and fracture toughness under dynamic loadings [9,10].

## 2. Strain Rate Relate Dependent Material Model

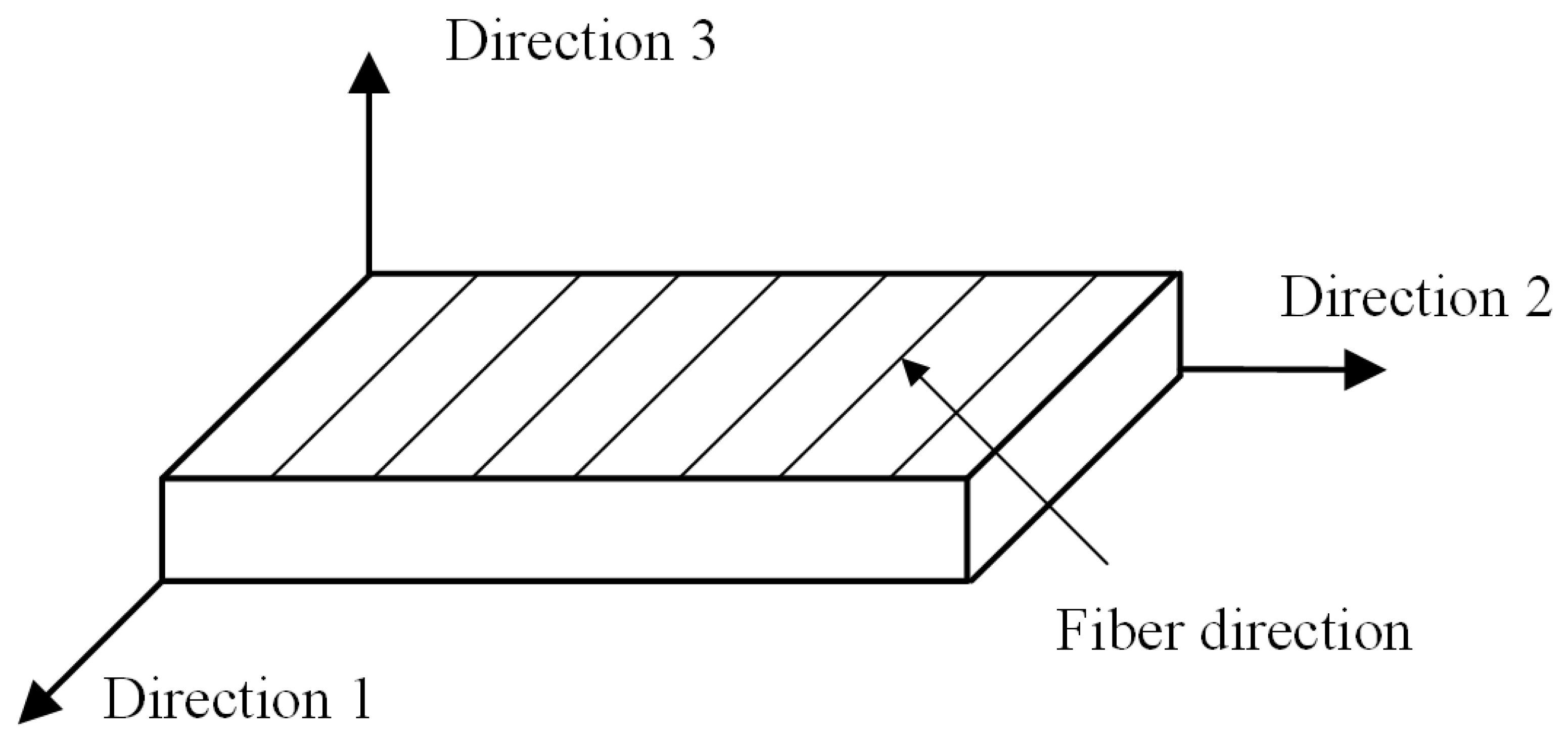

#### 2.1. Constitute Model

#### 2.2. Damage Initiation Model

#### 2.3. Damage Evolution Model

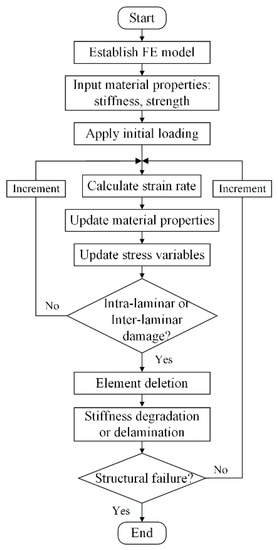

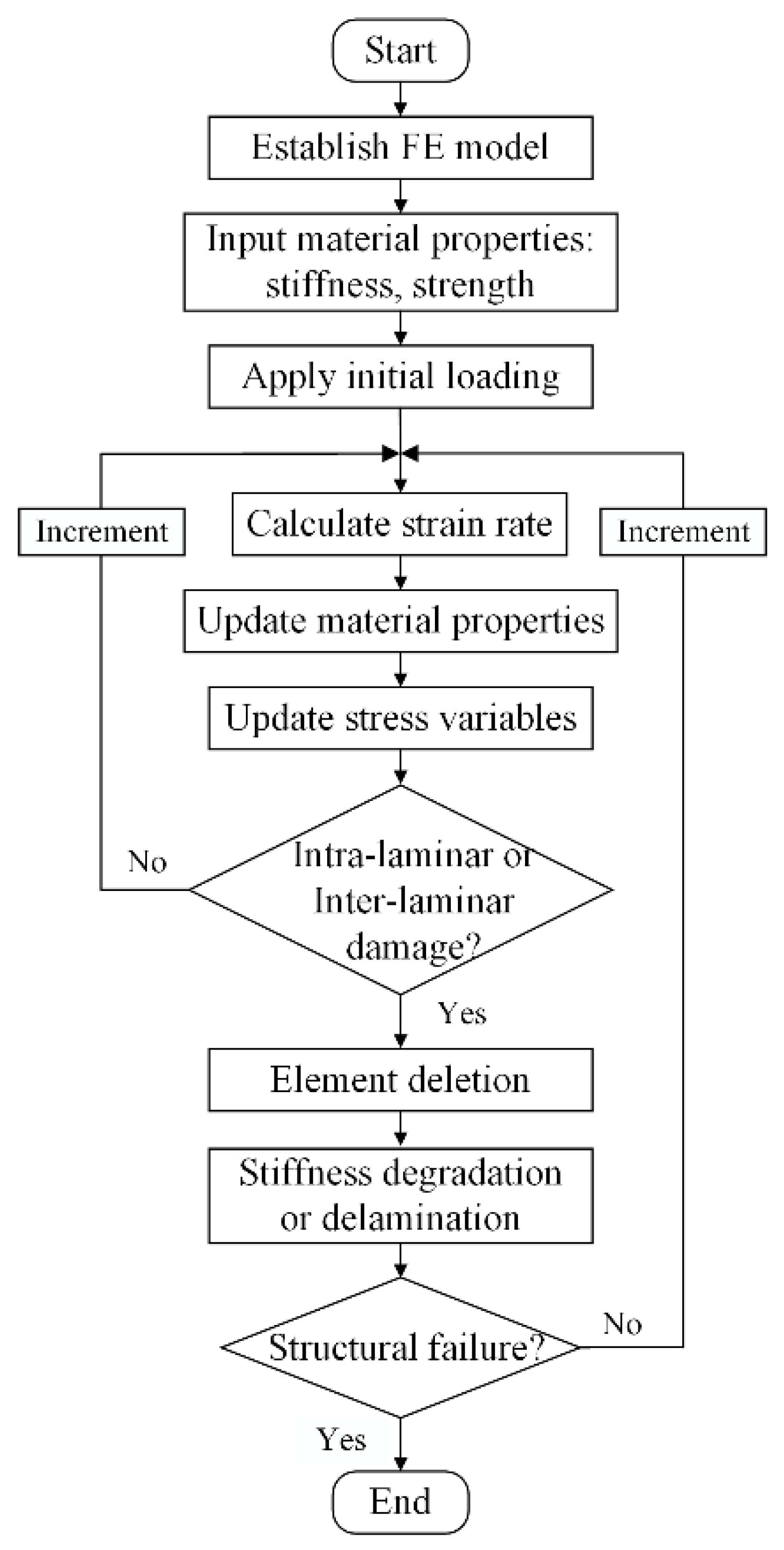

#### 2.4. Model Implementation

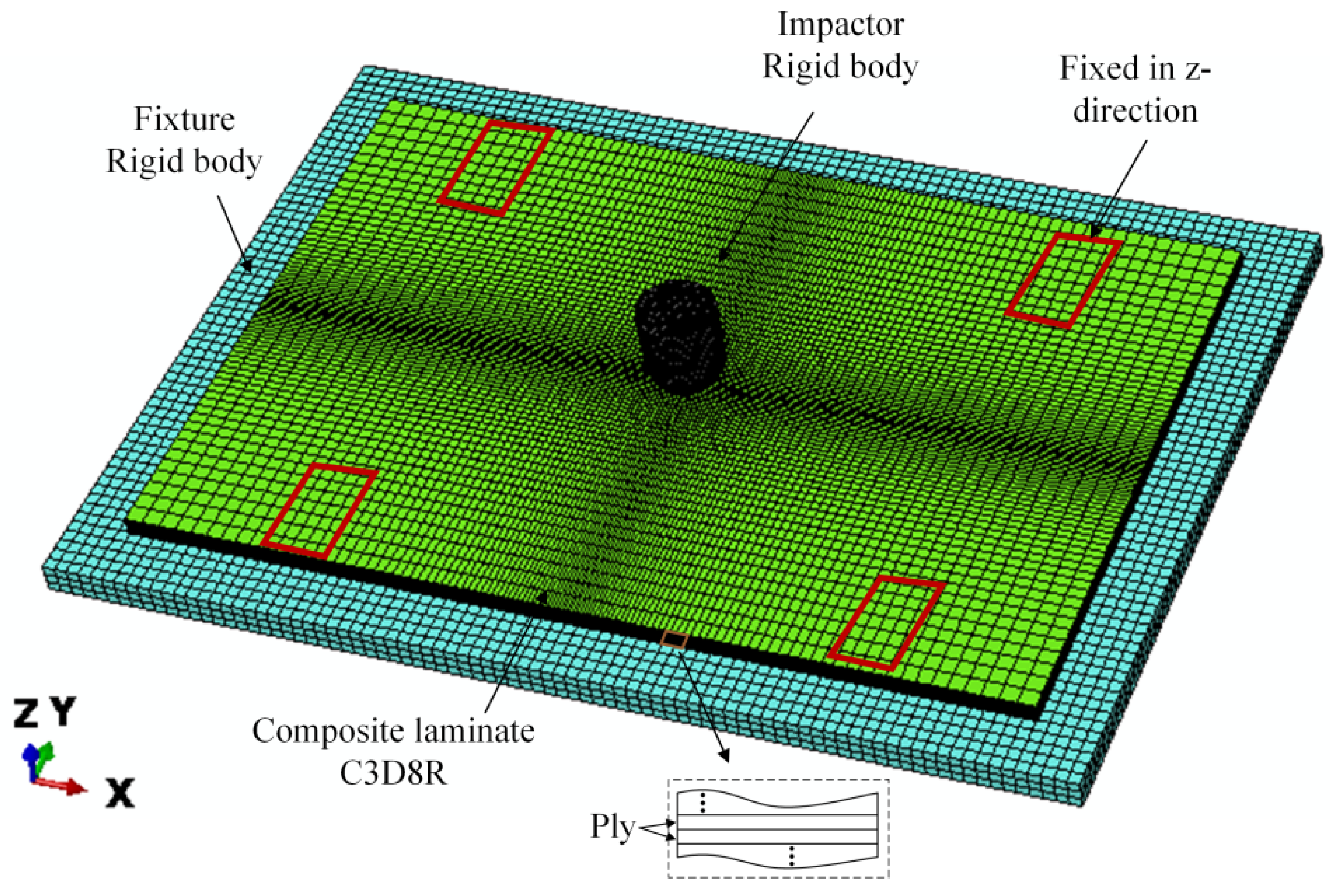

## 3. Experimental Method

## 4. Model Validation

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Che, D.M.; Saxena, I.; Han, P.D.; Guo, P.; Ehmann, K.F. Machining of carbon fiber reinforced plastics/polymers: A literature review. J. Manuf. Sci. Eng.
**2014**, 136, 034001. [Google Scholar] [CrossRef] - Zhang, Y.B.; Sun, L.Y.; Li, L.J.; Xiao, H.Y.; Wang, Y.T. An efficient numerical method to analyze low-velocity impact response of carbon fiber reinforced thermoplastic laminates. Polym. Compos.
**2020**, 41, 2673–2686. [Google Scholar] [CrossRef] - Lu, Y.H.; Zhang, M.S.; Zheng, W.H. Preparation and properties of T300 carbon fiber-reinforced thermoplastic polyimide composites. Appl. Polym. Sci.
**2006**, 102, 646–654. [Google Scholar] [CrossRef] - Quaresimin, M.; Ricotta, M.; Martello, L.; Mian, S. Energy absorption in composite laminates under impact loading. Compos. Part B
**2013**, 44, 133–140. [Google Scholar] [CrossRef] - Massaq, A.; Rusinek, A.; Klosak, M.; Bahi, S.; Arias, S. Strain rate effect on the mechanical behavior of polyamide composites under compression loading. Compos. Struct.
**2014**, 214, 114–122. [Google Scholar] [CrossRef] - Chen, C.Y.; Zhang, C.; Liu, C.L.; Miao, Y.G.; Wong, S.C.; Li, Y.L. Rate-dependent tensile failure behavior of short fiber reinforced PEEK. Compos. Part B
**2018**, 136, 187–196. [Google Scholar] [CrossRef] - Ou, Y.F.; Zhu, D.J. Tensile behavior of glass fiber reinforced composite at different strain rates and temperatures. Constr. Build. Mater.
**2015**, 96, 648–656. [Google Scholar] [CrossRef] - Zhang, Y.B.; Sun, L.Y.; Li, L.J.; Wei, J.L. Effects of strain rate and high temperature environment on the mechanical performance of carbon fiber reinforced thermoplastic composites fabricated by hot press molding. Compos. Part A
**2020**, 134, 105905. [Google Scholar] [CrossRef] - Bie, B.X.; Han, J.H.; Lu, L.; Zhou, X.M.; Qi, M.L.; Zhang, Z.; Luo, S.N. Dynamic fracture of carbon nanotube/epoxy composites under high strain-rate loading. Compos. Part A
**2015**, 68, 282–288. [Google Scholar] [CrossRef] - Wang, S.Y.; Wen, L.H.; Xiao, J.Y.; Lei, M.; Hou, X.; Liang, J. The out-of-plane compression response of woven thermoplastic composites: Effects of strain rates and temperature. Polymers
**2021**, 13, 264. [Google Scholar] [CrossRef] - Zhang, P.; Tan, S.Y.; Hu, X.F.; Yao, W.A.; Zhuang, X.Y. A double-phase field model for multiple failures in composites. Compos. Struct.
**2022**, 293, 115730. [Google Scholar] [CrossRef] - Min, L.; Hu, X.F.; Yao, W.A.; Bui, T.Q.; Zhang, P. On realizing specific failure initiation criteria in the phase field model. Comput. Methods Appl. Mech. Eng.
**2022**, 394, 114881. [Google Scholar] [CrossRef] - Hu, X.F.; Xu, H.Q.; Xi, X.; Zhang, P.; Yang, S.T. Meso-scale phase field modelling of reinforced concrete structures subjected to corrosion of multiple reinforcements. Constr. Build. Mater.
**2022**, 321, 126376. [Google Scholar] [CrossRef] - Zhang, P.; Yao, W.A.; Hu, X.F.; Zhuang, X.Y. Phase field modelling of progressive failure in composites combined with cohesive element with an explicit scheme. Compos. Struct.
**2021**, 262, 113353. [Google Scholar] [CrossRef] - Zhang, P.; Hu, X.F.; Bui, T.Q.; Yao, W.A. Phase field modeling of fracture in fiber reinforced composite laminate. Int. J. Mech. Sci.
**2019**, 161, 105008. [Google Scholar] [CrossRef] - Bui, T.Q.; Hu, X.F. A review of phase-field models, fundamentals and their applications to composite laminates. Eng. Fract. Mech.
**2021**, 248, 107705. [Google Scholar] [CrossRef] - Tsai, S.; Wu, E.M. A general theory of strength for anisotropic materials. J. Compos. Mater.
**1971**, 5, 58–80. [Google Scholar] [CrossRef] - Hashin, Z.; Rotem, A. A fatigue failure criterion for fiber reinforced materials. J. Compos. Mater.
**1973**, 7, 448–464. [Google Scholar] [CrossRef] [Green Version] - Hou, J.P.; Petrinic, N.; Ruiz, C.; Hallett, S.R. Prediction of impact damage in composite plates Compos. Sci. Technol.
**2000**, 60, 273–281. [Google Scholar] - Hou, J.P.; Petrinic, N.; Ruiz, C. A delamination criterion for laminated composites under low-velocity impact. Compos. Sci. Technol.
**2001**, 61, 2069–2074. [Google Scholar] [CrossRef] - Yen, C.F. Ballistic impact modeling of composite materials. In Proceedings of the 7th International LS-DYNA Users Conference, Dearborn, MI, USA, 19–21 May 2002. [Google Scholar]
- Yen, C.F.; Caiazzo, A. Innovative Processing of Multifunctional Composite Armor Forground Vehicles; ARL Technical Report ARL-CR-484; US Army Research Laboratory, Aberdeen Proving Ground, MD, USA. 2001. Available online: http://www.tjprc.org/publishpapers/2-67-1516433007-54.IJMPERDFEB201854.pdf (accessed on 7 November 2022).
- Balkan, O.; Demirer, H.; Kayal, E.S. Effects of deformation rates on mechanical properties of PP/SEBS blends. J. Achiev. Mater. Manuf. Eng.
**2011**, 47, 26–33. [Google Scholar] - Brown, K.A.; Brooks, R.; Warrior, N.A. The static and high strain rate behaviour of a commingled E-glass/ polypropylene woven fabric composite. Compos. Sci. Technol.
**2010**, 70, 272–283. [Google Scholar] [CrossRef] - Wang, K.K.; Zhao, L.B.; Hong, H.M.; Zhang, J.Y. A strain-rate-dependent damage model for evaluating the low velocity impact induced damage of composite laminates. Compos. Struct.
**2018**, 201, 995–1003. [Google Scholar] [CrossRef] - Taniguchi, N.; Nishiwaki, T.; Hirayama, N.; Nishida, H.; Kawada, H. Dynamic tensile properties of carbon fiber composite based on thermoplastic epoxy resin loaded in matrix-dominant directions. Compos. Sci. Technol.
**2009**, 69, 207–213. [Google Scholar] [CrossRef] - Lyu, Q.H.; Wang, B.; Zhao, Z.Q.; Guo, Z.Y. Damage and failure analysis of hybrid laminates with different ply-stacking sequences under low-velocity impact and post-impact compression. Thin-Walled Struct.
**2022**, 180, 109743. [Google Scholar] [CrossRef] - Rafiee, R.; Ghorbanhosseini, A. Investigating interaction between CNT and polymer using cohesive zone model. Polym. Compos.
**2018**, 39, 3903–3911. [Google Scholar] [CrossRef] - Li, X.; Ma, H.F.; Liu, H.F.; Tan, W.; Gong, X.J.; Zhang, C.; Li, T.L. Assessment of failure criteria and damage evolution methods for composite laminates under low-velocity impact. Compos. Struct.
**2019**, 207, 727–739. [Google Scholar] [CrossRef] - Robbins, D.H.; Chopra, I. Modelling of progressive damage in the adhesive bond layers of actuated plates. J. Intell. Mater. Syst. Struct.
**2007**, 18, 893–921. [Google Scholar] [CrossRef] - Linde, P.; Pleitner, J.; Boer, H.D.; Carmone, C. Modelling and simulation of fiber metal laminate. In Proceedings of the ABAQUS Users’ Conference; Abaqus Inc.: Palo Alto, CA, USA, 2004; pp. 421–438. [Google Scholar]
- Lapczyk, I.; Hurtado, A. Progressive damage modeling in fiber-reinforced materials. Compos. Part A

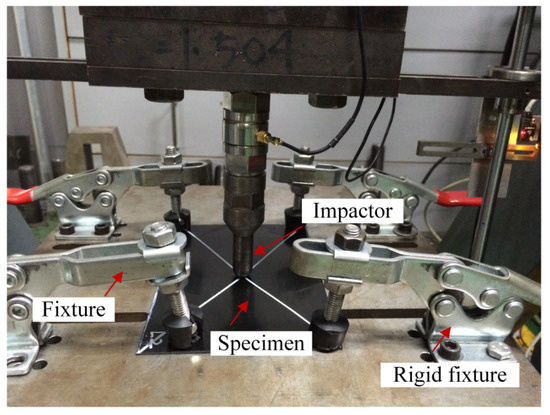

**2007**, 38, 2333–2341. [Google Scholar] [CrossRef] - ASTM D7136–05; Standard Test Method for Measuring the Damage Resistance of a Fibre-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event. ASTM International: West Conshohocken, PA, USA, 2005.

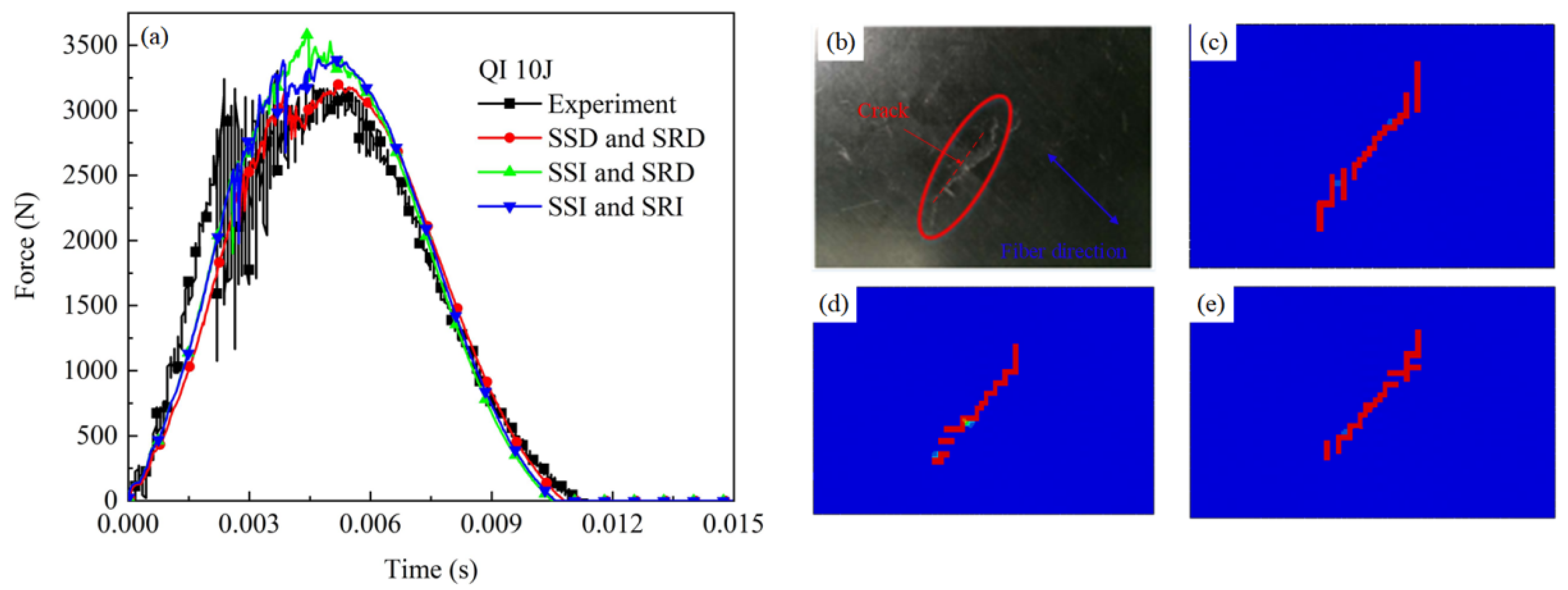

**Figure 6.**Comparison of experimental results and simulation results (

**a**) contact force; (

**b**) experimental failure pattern; (

**c**) SSD and SRD (

**d**) SSI and SRD (

**e**) SSI and SRI simulation result.

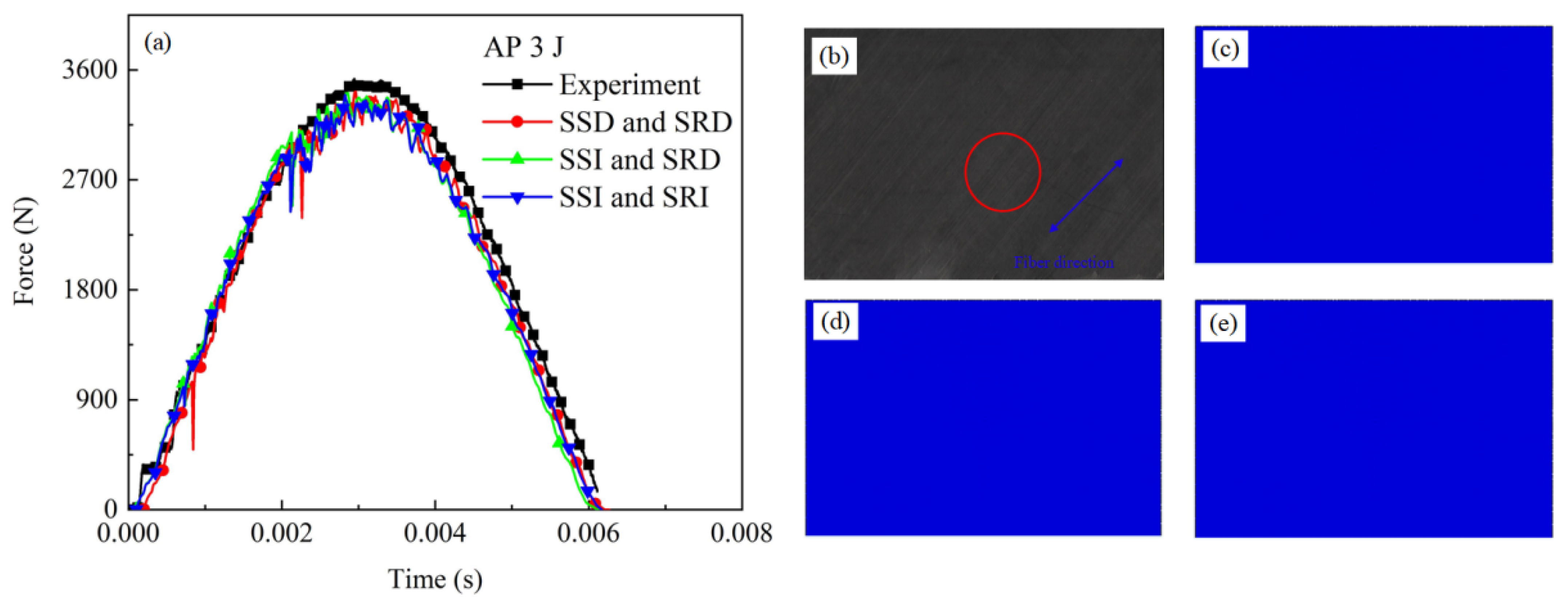

**Figure 7.**Comparison of experimental results and simulation results (

**a**) contact force; (

**b**) experimental failure pattern; (

**c**) SSD and SRD (

**d**) SSI and SRD (

**e**) SSI and SRI simulation result.

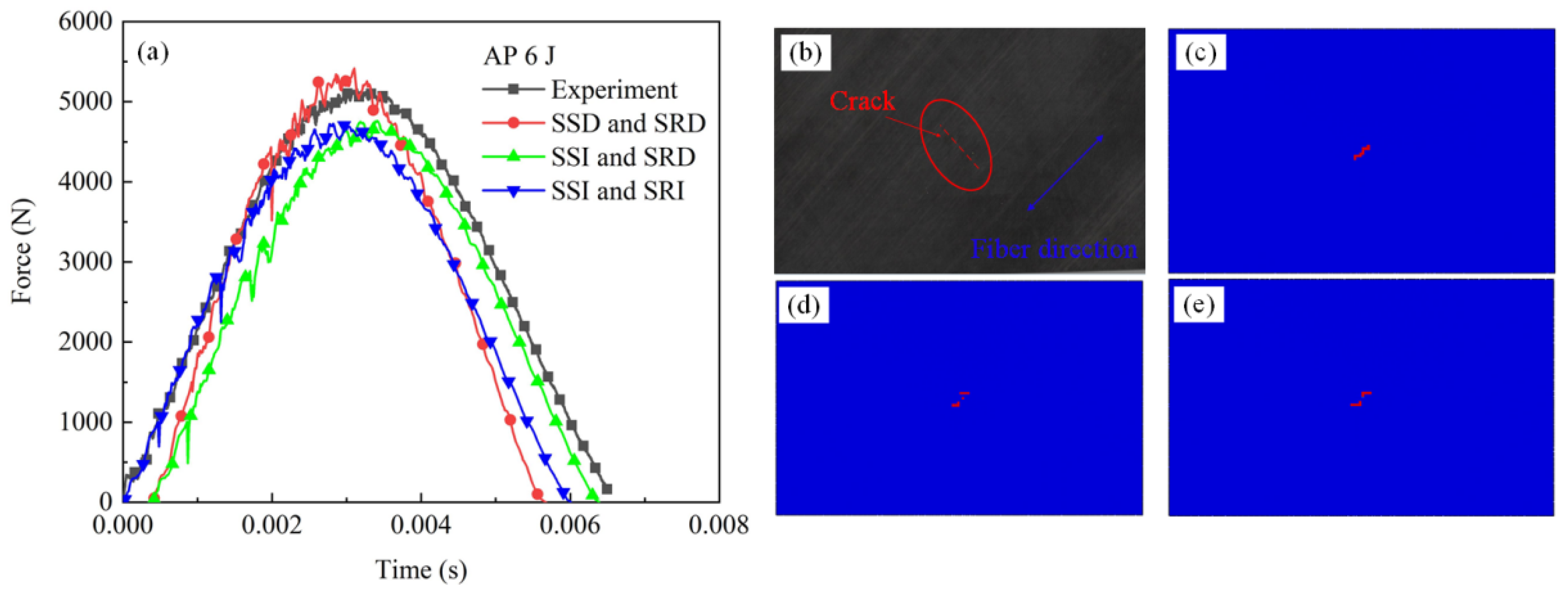

**Figure 8.**Comparison of experimental results and simulation results (

**a**) contact force; (

**b**) experimental failure pattern; (

**c**) SSD and SRD (

**d**) SSI and SRD (

**e**) SSI and SRI simulation result.

Elastic Parameter | Strength Parameter | Fracture Energy | Strain Rate Parameter | ||||||
---|---|---|---|---|---|---|---|---|---|

(GPa) | (MPa) | (N/mm) | |||||||

${E}_{11}$ | 42.9 | ${\sigma}_{11}^{f,t}$ | 850 | ${\sigma}_{12}^{f}$ | 105 | ${G}_{1}$ | 0.3 | ${m}_{1}^{e}$ | 0.005 |

${E}_{22}$ | 4.5 | ${\sigma}_{11}^{f,c}$ | 350 | ${\sigma}_{23}^{f}$ | 105 | ${G}_{2}$ | 0.2 | ${m}_{2}^{e}$ | 0.064 |

${E}_{33}$ | 4.5 | ${\sigma}_{22}^{f,t}$ | 260 | ${\sigma}_{13}^{f}$ | 105 | ${G}_{3}$ | 0.2 | ${m}_{3}^{e}$ | 0.032 |

${E}_{12}$ | 1.2 | ${\sigma}_{22}^{f,c}$ | 275 | ${m}_{1}^{s}$ | 0.003 | ||||

${E}_{23}$ | 1.2 | ${\sigma}_{33}^{f,t}$ | 260 | ${m}_{2}^{s}$ | 0.042 | ||||

${E}_{31}$ | 1.2 | ${\sigma}_{33}^{f,c}$ | 275 | ${m}_{3}^{s}$ | 0.027 |

Elastic Parameter | Strength Parameter | Fracture Energy | Strain Rate Parameter | ||||||
---|---|---|---|---|---|---|---|---|---|

(GPa) | (MPa) | (N/mm) | |||||||

${E}_{11}$ | 115 | ${\sigma}_{11}^{f,t}$ | 1524 | ${\sigma}_{12}^{f}$ | 210 | ${G}_{1}$ | 0.9 | ${m}_{1}^{e}$ | 0.001 |

${E}_{22}$ | 10.5 | ${\sigma}_{11}^{f,c}$ | 945 | ${\sigma}_{23}^{f}$ | 210 | ${G}_{2}$ | 0.6 | ${m}_{2}^{e}$ | 0.018 |

${E}_{33}$ | 10.5 | ${\sigma}_{22}^{f,t}$ | 615 | ${\sigma}_{13}^{f}$ | 210 | ${G}_{3}$ | 0.6 | ${m}_{3}^{e}$ | 0.024 |

${E}_{12}$ | 6.2 | ${\sigma}_{22}^{f,c}$ | 425 | ${m}_{1}^{s}$ | 0.001 | ||||

${E}_{23}$ | 6.2 | ${\sigma}_{33}^{f,t}$ | 615 | ${m}_{2}^{s}$ | 0.012 | ||||

${E}_{31}$ | 6.2 | ${\sigma}_{33}^{f,c}$ | 425 | ${m}_{3}^{s}$ | 0.014 |

Impact Energy (J) | Experiment (N) | SSD and SRD (N) | Error (%) | SSI and SRD (N) | Error (%) | SSI and SRI (N) | Error (%) | |
---|---|---|---|---|---|---|---|---|

QI | 10 | 3203 | 3200 | 0.1% | 3581 | 11.8% | 3408 | 6.4% |

AP | 3 | 3525 | 3423 | 2.9% | 3412 | 3.2% | 3396 | 3.7% |

6 | 5158 | 5416 | 5% | 4759 | 7.7% | 4727 | 8.4% |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Zhang, Y.; Liu, B.
A Strain Rate Dependent Damage Model for Evaluating the Dynamic Response of CFRTP Laminates with Different Stacking Sequence. *Electronics* **2022**, *11*, 3728.
https://doi.org/10.3390/electronics11223728

**AMA Style**

Zhang Y, Liu B.
A Strain Rate Dependent Damage Model for Evaluating the Dynamic Response of CFRTP Laminates with Different Stacking Sequence. *Electronics*. 2022; 11(22):3728.
https://doi.org/10.3390/electronics11223728

**Chicago/Turabian Style**

Zhang, Yiben, and Bo Liu.
2022. "A Strain Rate Dependent Damage Model for Evaluating the Dynamic Response of CFRTP Laminates with Different Stacking Sequence" *Electronics* 11, no. 22: 3728.
https://doi.org/10.3390/electronics11223728
