A Mathematical Modeling Approach for Power Flow and State Estimation Analysis in Electric Power Systems through AMPL

Abstract

This paper presents a mathematical modeling approach by which to solve the power flow and state estimation problems in electric power systems through a mathematical programming language (AMPL). The main purpose of this work is to show the advantages of representing these problems through mathematical optimization models in AMPL, which is a modeling language extensively used in a wide range of research applications. The proposed mathematical optimization models allow for dealing with particular issues in that they are not usually considered in the classical approach for power flow and state estimation, such as solving the power flow problem considering reactive power limits in generation buses, as well as the treatment of errors in state estimation analysis. Furthermore, the linearized mathematical optimization models for both problems at hand are also presented and discussed. Several tests were carried out to validate the proposed optimization models, evidencing the applicability of the proposed approach.

1. Introduction

1.1. Motivation

Determining the steady-state operating point of an electric power system (EPS) is an indispensable activity that must be routinely carried out by power engineers and power system operators. Once the topology and the electrical parameters are known, the operating point of an EPS is given by finding the values of the state variables, represented as the magnitudes and angles of bus voltages. From these values, it is possible to calculate active and reactive power flows through the transmission lines, as well as power losses [1,2,3]. Determining the steady-state operating point of an EPS is the basic step for more complex studies such as vulnerability analysis [4,5,6], voltage stability studies [7,8,9], protection coordination [10,11,12,13], and optimal power flow [14,15,16], among other things. On the other hand, the state estimation consists of providing the best possible estimate of the true state of the system based on real-time bus voltages data [17,18,19].

Several formulations have been proposed in the specialized literature to solve the power flow and state estimation problems in EPS, among which the AC and linearized formulations stand out. Traditionally, the AC power flow and state estimation problems are solved iteratively through the Newton–Raphson method [20] and through the weighted least squares (WLS) method [21], respectively. Furthermore, the linearized power flow and state estimation problems incorporate a series of approximations that makes it possible to determine the operating point of an EPS in a more simplified way by solving a linear system of equations [22,23].

The load flow and state estimation problems have been widely studied in the specialized literature. Most commercial software for power system analysis include several variants of the power flow problem such as the Newton–Raphson, Gauss–Seidel, DC, and other methods. Nonetheless, the majority of commercially available software does not include a state estimation routine as evidenced in

Table 1. Available software for load flow and state estimation.

Commercial Software	Power Flow	State Estimation	Open Source Software	Power Flow	State Estimation
PowerWorld	Yes	No	MATPOWER	Yes	Yes
DIgSILENT	Yes	No	PSAT	Yes	No
PSSE	Yes	No	UWPFLOW	Yes	No
PSCAD	Yes	No	VST	Yes	No
SimPower Syst	Yes	No	PST	Yes	No
ETAP	Yes	Yes	PCFLO	Yes	No
NEPLAN	Yes	No	PowerWorld	Yes	No
DSAToolsYe	Yes	No	PowSysGui	Yes	No
EUROSTAG	Yes	No	pandapower	Yes	Yes
Simpow	Yes	No	PowerModels.jl	Yes	No
CYME	Yes	No	PYPOWER	Yes	No

(adapted from [24]).

A common drawback of most commercial software is the limitation to make changes in their programming to address other well-known problems in EPS such as power loss minimization [25], optimal power flow [26], transmission network expansion planning [27], optimal PMUs allocation [28], and power system observability [29], among other things.

According to the above, the purpose of this work is to show an alternative solution approach to the power flow and state estimation problems through mathematical optimization models. This allows for surpassing the difficulties mentioned above, because a reliable software widely adopted in EPS analysis, such as AMPL, can be used to solve both problems.

Additionally, this work shows that from the proposed mathematical optimization models, it is possible to incorporate new procedures that allow for solving two particular issues in EPS: computing the operating point of a power system considering reactive power limits in generation or PV buses in the power flow analysis, and the treatment of errors in the state estimation analysis. Furthermore, the mathematical optimization models for the linearized power flow and state estimation problems are also presented.

1.2. Literature Review

The state estimation problem has been the focus of several studies in the last few years. This is specially true for dynamic state estimation. The main drivers for research in this area include the lack of accurate models, the increasing availability of time-synchronized measurements, and advances in computational capability and scalability. The advantages of dynamic vs. static state estimation, based on modeling, monitoring, and operation aspects are discussed in [30].

A dynamic state estimation methodology for integrated natural gas and electric power systems is proposed in [31] by using the Kalman filter algorithm with a time-varying scalar matrix to deal with bad data. In this case, the authors combine gas and power systems through gas turbine units. A real-time state estimation approach for combined heat and power systems is also proposed in [32]. A Kalman filter algorithm is also used in [33] for the state estimation problem that evidenced accurate estimation under a variety of abnormal situations. In [34], the authors propose a graph theory-based method that aims to identify critical elements in state estimation. In this case, the authors use conventional measurements, such as branch power flows and bus power injections as well as synchrophasors.

A state estimation model for combined heat and electric networks is proposed in [35] where the Monte Carlo method is used to evaluate the performance of the proposed evaluator. False data injection attacks constitute a real threat to power systems’ reliability. In [36], the authors propose optimal coding schemes that aim to detect false data injection attacks in electric power system state estimation. Inaccurate estimation results may lead to incorrect control decisions by system operators. In [37], the authors develop a dynamic state estimation approach taking into account multi-level false data identification to guarantee accurate estimation despite eventual errors in the dataset. An analysis of bad data processing methodologies in electric power system state estimation is carried out in [38].

AMPL is defined as a high-level mathematical modeling language developed specifically for solving mathematical programming problems (linear programming and nonlinear programming) with discrete or continuous variables [39,40]. The AMPL language allows us to express in a simplified way mathematical optimization models by using a computational syntax similar to the mathematical models that are described in the literature [41]. Basically, AMPL works as an interface that allows one to read the files in which the mathematical model is described and then translated to be interpreted by optimization solvers, so that it is possible to obtain its solution [42]. In [43], it is possible to find a list of the different solvers that can be used to solve mathematical optimization problems by using AMPL.

In the specialized literature, there is a great variety of publications that use AMPL to solve mathematical optimization problems. A summary of some of the most recent academic works in EPS that were implemented in AMPL is shown below.

In [44], a mixed-integer conic programming model is proposed to solve the reconfiguration problem in electric distribution systems with the intention of reducing power losses. The authors emphasize that the proposed mathematical model is characterized by low computational effort, high accuracy, and ease of implementation; furthermore, it can be solved by several commercial and open source solvers.

In [45], the authors transform a mixed-integer nonlinear programming (MINLP) model into a mixed-integer linear programming (MILP) problem to solve the dynamical location problem of a mobile charging station for coverage of electric vehicles. The mathematical model is implemented in AMPL, and the optimal solution of the problem is obtained through the Cplex solver.

In [46], a binary linear programming (LP) model is proposed to optimize restoration actions in the resiliency problem for distribution systems considering uncertain devices and associated asynchronous information. The proposed mathematical model is implemented in AMPL and solved by using the Gurobi solver. The mathematical model was validated by using the IEEE-123 test system with low execution time.

The authors in [47] propose a convex mixed-integer conic programming formulation for the optimal placement of capacitors in electric distribution networks. The proposed model is implemented in AMPL and solved by using the Knitro and Cplex solvers. The model was tested in two benchmark power systems. The results show that the proposed mathematical model is easy to implement and provides solutions in low computational times. In [48], the authors provide optimization models for solving logically constrained AC optimal power flow problems. Because the existing nonlinear solvers are not capable of solving the logically constrained problems, the logical constraints must be recast to solver-friendly terms. Thus, the proposed MINLP models are adapted to the presolving and probing techniques of solvers. In this case, the models are implemented in AMPL and solved by using the Knitro solver.

Despite of the fact that AMPL has been extensively used for solving many problems in EPS, it can be stated that there are scarce works using AMPL as an alternative to solve the problems of load flow and state estimation. However, in [49], the authors propose a mathematical model to solve the optimal load flow problem that could be adapted to perform load flow analysis. This mathematical model is implemented in AMPL and solved through the CPlex and Gurobi solvers. On the other hand, in [50], a nonlinear programming model is presented to solve the state estimation problem. Because this mathematical model does not have an error-handling procedure, some modifications are implemented in the formulation, and a procedure that allows obtaining better results than the conventional state estimation method is proposed.

As indicated in Table 1 there are almost no commercially available software tools that handle both power flow and state estimation analyses. In this sense, this paper proposes the modeling of both power flow and state estimation procedures (in their AC and DC versions) as mathematical optimization problems. It is worth mentioning that the main focus of this paper is not the solution algorithms to the power flow or state estimation problems but instead to envisage them from a different perspective. The main advantage of recasting these procedures from the standpoint of mathematical optimization problems is the fact that different variants or features can be added.

1.3. Article Contributions and Organization

To summarize, the main features and contributions of this paper are provided below:

• The power flow and state estimation problems are modeled as mathematical optimization problems in their AC and DC versions.
• Limits on reactive power injections in generation buses are modeled through a generation to load bus conversion procedure (PV to PQ bus conversion).
• A procedure for decreasing negative impacts of errors (error-handling procedure) is implemented in the state estimation problem.
• The proposed models for solving the load flow and state estimation problems with their corresponding variants are integrated in AMPL. Furthermore, they are easy to implement and obtain satisfactory results quickly and reliably.

Given the aforementioned features, the proposed methods are susceptible to be implemented in real-life applications. On the one hand, the power flow calculation is widely used in the industry and has been sufficiently studied; nonetheless, it is not often modeled from the point of view of an optimization problem, which opens the possibility for other applications. Moreover, the state estimation problem can be adapted not only for power systems alone but also for hybrid applications with natural gas, as explored in [31,32]. Finally, the proposed models open the possibility for exploring dynamic state estimation approaches.

The rest of the document is organized as follows: Section 2 and Section 3 present an overview of the power flow and state estimation problems in EPS, respectively; Section 4 and Section 5 describe the proposed mathematical optimization models for the AC/linearized power flow and AC/linearized state estimation problems, respectively. Section 6 presents the results obtained with several IEEE test systems, and finally, the conclusions of the study are shown in Section 7.

2. Representation of the Power Flow Problem

Several approaches for the power flow problem are proposed in the specialized literature, among which the AC and linearized formulations stand out. The main aspects of these formulations are presented below.

2.1. AC Power Flow

The AC power flow (also known as load flow) consists of obtaining the values of the nodal complex voltages $(V_i,{\theta }_i)$, from the powers injected in the different buses of an EPS related to a specific operating point. The most common procedure by which to solve the AC power flow problem is the Newton–Raphson method. This method iteratively determines the values of $V_i,{\theta }_i$, so that the mismatches of active and reactive power tend to zero ($\Delta P_i\approx 0$ and $\Delta Q_i\approx 0$). In this way, the power balance equations at every bus (slack, $PV$ and $PQ$ nodes) are satisfied. The active and reactive power balance Equations are given by (1) and (2), respectively, where $\Delta P_i$ and $\Delta Q_i$ are the active and reactive mismatches at bus i, respectively, $P_i^G$ and $Q_i^G$ are the active and reactive power generated at bus i, respectively, $P_i^D$ and $Q_i^D$ are the active and reactive power demanded at bus i, respectively, and finally $P_i(V,\theta )$ and $Q_i(V,\theta )$ represent the calculated active and reactive power injections at bus i, respectively:

$$\Delta P_i=P_i^G-P_i^D-P_i(V,\theta )$$

(1)

$$\Delta Q_i=Q_i^G-Q_i^D-Q_i(V,\theta ).$$

(2)

The solution of the AC power flow problem is achieved through the following strategy:

• Subproblem 1. Calculate by an iterative process the values of $V_i$ and ${\theta }_i$ at load nodes (known as $PQ$ nodes); compute ${\theta }_i$ at generation nodes (referred to as $PV$ nodes).
• Subproblem 2. Calculate the values of $P_i^G$ and $Q_i^G$ at the slack bus (known as $V\theta$ bus) and $Q_i^G$ at $PV$ nodes; compute the values of the power flows $P_{ij}$ and $Q_{ij}$ in all circuits of the EPS.

The above procedure refers to the conventional approach used to solve the load flow problem. However, there are other versions of this problem usually referred to as power flow with voltage/reactive power controls and limits.

2.2. Linearized Power Flow

The linearized power flow, also known as DC power flow, incorporates a series of approximations so that obtaining the EPS operating point is calculated in a more simplified way. Thus, the objective of the linearized power flow is to determine the values of the angles of the nodal voltages ${\theta }_i$, using as input information the parameters of the network and the nodal active power injections. To solve the linearized power flow problem, it is sufficient to solve the linear system of equations given by (3), taking into account that ${\theta }_i=0$ at the reference bus and that $\left[B{}^{\prime }\right]$ is a susceptance matrix.

$$\left[P\right]=\left[B{}^{\prime }\right]\left[\theta \right].$$

(3)

Active power losses can also be considered in the linearized load flow. However, in this work the version of the linearized power flow that ignores the active power losses will be used. This is a common practice in this type of electrical studies.

3. Representation of the State Estimation Problem

In the state estimation, unlike the load flow analysis, after estimating the values of the state variables, it is necessary to perform an additional procedure to validate the results. The objective of such a procedure is to debug eventual errors present in the measurements used to determine the EPS operating point, thus allowing the results obtained by the state estimator to be more reliable.

Different methods have been proposed to solve the state estimation problem in EPS, the weighted least squares (WLS) method being one of the most commonly used. Within the WLS state estimation methods, different formulations have been proposed, among which the AC state estimator and the linearized state estimator stand out [51]. The main aspects of these formulations are presented below.

3.1. AC State Estimator

The AC state estimator determines the most probable values of the state variables $\left(\widehat{x}\right)$, represented by the complex voltages $(V_i,{\theta }_i)$, from the values coming from the meter composing the supervisory control and data acquisition (SCADA) system. Therefore, to solve the AC state estimation problem, the WLS state estimator iteratively computes the values of $(V_i,{\theta }_i)$, such that the value of the WLS function $J\left(\widehat{x}\right)$ is minimized, as shown in Equation (4),

$$J\left(\widehat{x}\right)={\left[z-h\left(\widehat{x}\right)\right]}^{t}W\left[z-h\left(\widehat{x}\right)\right],$$

(4)

where z corresponds to the vector containing the values of the input information coming from the SCADA system, $h\left(\widehat{x}\right)$ is the vector containing the values of the variables calculated as a function of the values of $\widehat{x}$, and W is the measurement weighting matrix.

To determine the values of $\widehat{x}$ that minimize the function $J\left(\widehat{x}\right)$, shown in Equation (4), it is necessary to apply the first-order optimality conditions, as indicated by Equation (5):

$$\frac{\partial J\left(\widehat{x}\right)}{\partial \widehat{x}}=H^{t}W(z-h\left(\widehat{x}\right))=0.$$

(5)

In this case, $H=\partial h\left(\widehat{x}\right)/\partial \widehat{x}$ is defined as the Jacobian matrix. The problem indicated by Equation (5) can be solved iteratively by using the normal equation method as follows in Equation (6),

$${\widehat{x}}^{v+1}={\widehat{x}}^v+G^{-1}{H}^t(z-h\left({\widehat{x}}^v\right)),$$

(6)

where $G=H^{t}WH$ is known as the gain matrix and can be used to evaluate the observability of the EPS, and v is the iteration counter.

In ideal conditions, the solution of the state estimation problem allows for finding the values of $\widehat{x}$ in such a way that $J\left(\widehat{x}\right)=0$. However, in real life, reaching this condition is not possible due to several factors, such as the accuracy of the meters, calibration problems, and noises in the SCADA data acquisition system, among others. For this reason, after estimating the values of $\widehat{x}$, it is necessary to perform an additional validation of results, in order to mitigate the negative impact that measurement noises exert on the final results of the state estimator.

3.2. Linearized State Estimator

The linearized state estimator incorporates some approximations in the formulation used in the AC state estimation problem, so that the state variables are calculated by means of a simplified procedure. According to the above, the linearized state estimator presents the following characteristics:

• Vector $\widehat{x}$ contains the angles of the voltages, except the angle of the slack bus which is used as reference.
• Vector z is made up of the measurements of injections and active power flows.
• Matrices H and G are constant.
• The state variables are calculated directly by using Equation (7).

$$\widehat{x}=G^{-1}{H}^{t}Wz$$

(7)

Although this method provides an approximation of the operating point of an EPS, being less accurate than its nonlinear counterpart, it is widely used in various methodologies, such as observability analysis and error treatment [23].

4. Proposed Mathematical Optimization Models for Load Flow and Linearized Load Flow

To represent the EPS load flow problem as a mathematical optimization model, the mathematical formulations implemented in the AC power flow and linearized power flow problems are used as reference.

4.1. Mathematical Model of the AC Load Flow Problem

The mathematical model given by Equations (8)–(11), known as the classical nonlinear power flow model (NLPFM), is proposed to solve the EPS power flow problem:

$$\begin{array}{cc}\mathbf{min}\hfill & P_L=\sum _{(i,j\in \Omega L)}{g}_{ij}\left(t_{ij}^2{V}_i^2+V_j^2-2t_{ij}{V}_i{V}_{j}cos({\theta }_{ij}+{\phi }_{ij})\right)\hfill \\ \mathbf{s}.\mathbf{t}.:\hfill & \end{array}$$

(8)

$$P_i^G-P_i^D-\sum _{(i,j\in \Omega L)}{P}_{ij}=0,{\forall }_i\in \Omega B$$

(9)

$$Q_i^G-Q_i^D+Q_i^{sh}-\sum _{(i,j\in \Omega L)}{Q}_{ij}=0,{\forall }_i\in \Omega B$$

(10)

$$\underline{Q_i^G}\le Q_i^G\le \overline{Q_i^G},{\forall }_i\in \Omega B.$$

(11)

The objective function, given by Equation (8), represents the total active power losses. In this case, $\Omega$ is the set of branches, $g_{ij}$ is the real part of the $ij$ element of the nodal admitance matrix, $t_{ij}$ is the transformation ratio, ${\theta }_{ij}$ is the voltage angle difference between nodes i and j, and ${\phi }_{ij}$ is the angle associated with the nodal admitance matrix. The constraints given by Equations (9) and (10) represent the active and reactive power balance in every node of the system, where $Q_i^{sh}$ is the shunt reactive injection at bus i. Finally, Equation (11) corresponds to the reactive power generation limits at generation buses. In this case, active and reactive power flows in both ways are given by Equations (12)–(15), where $P_{ij}$ and $Q_{ij}$ are the active and reactive power flows in branch $i,j$, respectively, and $b_{ij}$ is the imaginary part of the $i,j$ position of the admitance bus matrix:

$$P_{ij}={\left(t_{ij}{V}_i\right)}^2{g}_{ij}-t_{ij}{V}_i{V}_j\left(g_{ij}cos({\theta }_{ij}+{\phi }_{ij})+b_{ij}sin({\theta }_{ij}+{\phi }_{ij}))\right)$$

(12)

$$Q_{ij}=-V_i^2(t_{ij}^2{b}_{ij}+b_{ij}^{sh})+t_{ij}{V}_i{V}_j\left(b_{ij}cos({\theta }_{ij}+{\phi }_{ij})-g_{ij}sin({\theta }_{ij}+{\phi }_{ij}))\right)$$

(13)

$$P_{ji}=V_j^2{g}_{ij}-t_{ij}{V}_i{V}_j\left(g_{ij}cos({\theta }_{ij}+{\phi }_{ij})-b_{ij}sin({\theta }_{ij}+{\phi }_{ij}))\right)$$

(14)

$$Q_{ji}=-V_j^2(b_{ij}+b_{ij}^{sh})+t_{ij}{V}_i{V}_j\left(b_{ij}cos({\theta }_{ij}+{\phi }_{ij})+g_{ij}sin({\theta }_{ij}+{\phi }_{ij}))\right).$$

(15)

Through the classical NLPFM, it is possible to calculate the values of $V_i$, ${\theta }_i$, $P_i^G$ and $Q_i^G$${\forall }_i\in \Omega B$, $P_{ij}$, $P_{ji}$, $Q_{ij}$ and $Q_{ji}$${\forall }_{ij}\in \Omega L$, as well as the values of $P_{ij}^L$ and $Q_{ij}^L$.

The classical NLPFM obtains the solution of an AC load flow problem satisfactorily, provided that the values of $Q_i^G$ in Equation (11) are within the allowed limits. However, the main drawback of the NLPFM is that if the computed solution does not satisfy Equation (11); then, the operating point is not satisfactorily calculated.

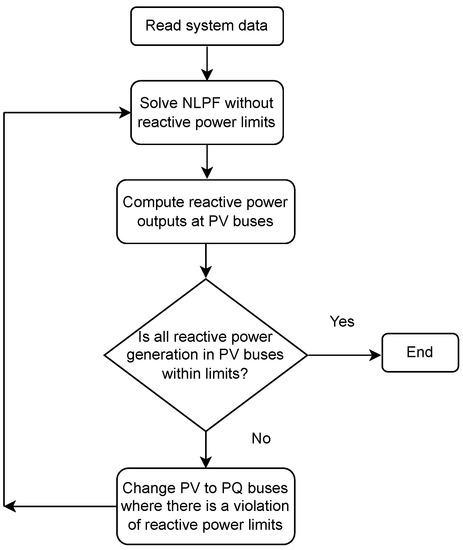

To surpass this inconvenience, the following strategy, known as NLPFM with $PV$ to $PQ$ node conversion procedure, is proposed, which is similar to the procedure used by the iterative AC power flow method:

Step 1. Initialization: Read input data and set iteration counter $v=0$.

Step 2. Solve the classical NLPFM: Determine the EPS operating point without considering the constraint given by Equation (11).

Step 3. Convergence test: If all values of $Q_i^{G^{\left(v\right)}}$ at $PV$ buses satisfy constraint (11), then go to step 5.

Step 4. Update: In case the constraint (11) is not met, make $Q_i^{G^{(v+1)}}=\overline{Q_i^G}$ or $Q_i^{G^{(v+1)}}=\underline{Q_i^G}$ depending on whether the maximum or minimum limit has been exceeded, respectively. Consequently, the EPS database has to be modified so that the corresponding $PV$ bus is transformed into $PQ$ bus. Set $v=v+1$ and return to step 2.

Step 5. Final results: Finish the procedure and print the results of the calculated operating point.

Thus, by means of a simple and easy-to-implement procedure, the NLPFM with $PV$ to $PQ$ bus conversion procedure is able to overcome the limitations of the classical NLPFM. A flowchart of the aforementioned procedure is illustrated in Figure 1.

4.2. Mathematical Model of the Linearized Load Flow Problem

The Linearized Power Flow Model (LPFM) takes into account the following approximations:

• In power transmission lines $r_{ij}<<x_{ij}$, then it can be considered that $r_{ij}=0$. Therefore, $g_{ij}=0$ and $b_{ij}=-1/x_{ij}$.
• Assuming that $V_i\approx 1$${\forall }_i\in \Omega B$ and supposing that the values of ${\theta }_{ij}$ and ${\phi }_{ij}$ are small; then $V_i{V}_{j}cos({\theta }_{ij}+{\phi }_{ij})\approx 1$ and $V_i{V}_{j}sin({\theta }_{ij}+{\phi }_{ij})\approx {\theta }_{ij}+{\phi }_{ij}$.

Therefore, the linearized power flow problem can be solved by using Equations (16) and (17).

$$\begin{array}{cc}\mathbf{min}\hfill & P_L=\sum _{(i,j)\in \Omega L}{P}_{ij}+P_{ji}\hfill \\ \mathbf{s}.\mathbf{t}.:\hfill & \end{array}$$

(16)

$$P_i^G-P_i^D-\sum _{(i,j)\in \Omega L}{P}_{ij}=0{\forall }_i\in \Omega B.$$

(17)

The objective function shown in Equation (16) corresponds to the active power losses of the EPS. This expression will always be zero because there are no power losses. The constraint given by Equation (17) represents the active power balance. The active power flows are calculated by Equations (18) and (19):

$$P_{ij}=\frac{t_{ij}({\theta }_{ij}+{\phi }_{ij})}{x_{ij}}$$

(18)

$$P_{ji}=\frac{-t_{ij}({\theta }_{ij}+{\phi }_{ij})}{x_{ij}}.$$

(19)

Through the LPFM, it is possible to calculate the values of ${\theta }_i$ and $P_i^G$${\forall }_i\in \Omega B$, as well as, $P_{ij}$ and $P_{ji}$${\forall }_{ij}\in \Omega L$.

5. Mathematical Optimization Model of the State Estimation Problem and Linearized State Estimation Problem

To represent the state estimation problem in EPS as a mathematical optimization model, the classical NLPFM, as well as the formulations of the AC state estimator and the linearized state estimator presented in the previous sections, are used as a reference.

5.1. Mathematical Model of the State Estimation Problem AC

To solve the state estimation problem in the EPS, the following mathematical model was proposed in [50], referred to in this paper as the classical nonlinear state estimation model (NLSEM):

$$\begin{array}{cc}\mathbf{min}\hfill & J\left(\widehat{x}\right)=\sum _{(m,i,j)\in \Omega M}{W}_{ij}{r}_{mij}^2+\sum _{(m,i,j)\in \Omega M}\Delta z_{mij}^2\hfill \\ \mathbf{s}.\mathbf{t}.:\hfill & \end{array}$$

(20)

$$r_{mij}=z_{mij}-h{\left(\widehat{x}\right)}_{mij}+\Delta z_{mij},{\forall }_{mij}\in \Omega M$$

(21)

$$-p\left|z_{mij}\right|\le \Delta z_{mij}\le p\left|z_{mij}\right|,{\forall }_{mij}\in \Omega M,$$

(22)

where the first term of the objective function shown in Equation (20) represents the WLS function and the second one represents the maximum allowable deviation for each measurement. The constraint given by Equation (21) corresponds to the residual of each of the available measurements, and Equation (22) indicates the range of allowed values for $\Delta z_{mij}$. In this case, $p=0$ represents an ideal meter.

To compute the value of $h{\left(\widehat{x}\right)}_{mij}$ in Equation (21), the type of measurement $\left(m\right)$ and its location $\left(ij\right)$ must be considered, as shown in Equations (23) and (24). In this case, the authors define $(i=j)$ for subscripts of power injections and voltage measurements.

• Measurements of active and reactive power injections:

$$h{\left(\widehat{x}\right)}_{mij}=P_i=\sum _{k\in \Omega B}{V}_i{V}_k\left(G_{ik}cos({\theta }_{ik}+{\phi }_{ik})+B_{ik}sin({\theta }_{ik}+{\phi }_{ik})\right),{\forall }_{mij}\in \Omega M:m=1$$

(23)

$$h{\left(\widehat{x}\right)}_{mij}=Q_i=\sum _{k\in \Omega B}{V}_i{V}_k\left(G_{ik}sin({\theta }_{ik}+{\phi }_{ik})-B_{ik}cos({\theta }_{ik}+{\phi }_{ik})\right),{\forall }_{mij}\in \Omega M:m=2.$$

(24)

The elements of the $Y_{BUS}$ matrix in (23) and (24) are calculated by using Equations (25) to (28):

$$G_{ii}=\sum _{\left(im\right)\in \Omega L}{t}_{im}^2{g}_{im}$$

(25)

$$B_{ii}=b_i^{sh}+\sum _{\left(im\right)\in \Omega L}(b_{im}^{sh}+t_{im}^2{g}_{im})$$

(26)

$$G_{ik}=-t_{ik}\left(g_{ik}cos{\phi }_{ik}+b_{ik}sin{\phi }_{ik}\right)$$

(27)

$$B_{ik}=t_{ik}\left(g_{ik}sin{\phi }_{ik}-b_{ik}cos{\phi }_{ik}\right).$$

(28)

• Active power flow measurements:

$$\begin{array}{cc}\hfill h_{mij}\left(\widehat{x}\right)& =P_{ij}={\left(t_{ij}{V}_i\right)}^2{g}_{ij}-t_{ij}{V}_i{V}_j\left(g_{ij}cos({\theta }_{ij}+{\phi }_{ij})+b_{ij}sin({\theta }_{ij}+{\phi }_{ij})\right),\hfill \\ \hfill & {\forall }_{mij}\in \Omega M:m=3\hfill \end{array}$$

(29)

$$\begin{array}{cc}\hfill h_{mij}\left(\widehat{x}\right)& =P_{ji}=V_j^2{g}_{ij}-t_{ij}{V}_i{V}_j\left(g_{ij}cos({\theta }_{ij}+{\phi }_{ij})-b_{ij}sin({\theta }_{ij}+{\phi }_{ij})\right),\hfill \\ \hfill & {\forall }_{mij}\in \Omega M:m=3.\hfill \end{array}$$

(30)

• Reactive power flow measurements:

$$\begin{array}{cc}\hfill h_{mij}\left(\widehat{x}\right)& =Q_{ij}=-V_j^2\left(t_{ij}^2{b}_{ij}+b_{ij}^{sh}\right)+t_{ij}{V}_i{V}_j\left(b_{ij}cos({\theta }_{ij}+{\phi }_{ij})-g_{ij}sin({\theta }_{ij}+{\phi }_{ij})\right),\hfill \\ \hfill & {\forall }_{mij}\in \Omega M:m=4\hfill \end{array}$$

(31)

$$\begin{array}{cc}\hfill h_{mij}\left(\widehat{x}\right)& =Q_{ji}=-V_j^2\left(b_{ij}+b_{ij}^{sh}\right)+t_{ij}{V}_i{V}_j\left(b_{ij}cos({\theta }_{ij}+{\phi }_{ij})+g_{ij}sin({\theta }_{ij}+{\phi }_{ij})\right),\hfill \\ \hfill & {\forall }_{mij}\in \Omega M:m=4.\hfill \end{array}$$

(32)

• Voltage measurements:

$$h_{mij}\left(\widehat{x}\right)=V_i,{\forall }_{mij}\in \Omega M:m=5.$$

(33)

By solving the above mathematical model, it is possible to obtain the values of $V_i$ and ${\theta }_i$ at all buses, as well as the value of the function $J\left(\widehat{x}\right)$ and the residuals $r_{mij}$ for each measurement.

It is important to highlight that the classical NLSEM obtains the solution of the AC state estimation problem in a satisfactory way, provided that there are no considerable errors in the set of measurements. However, the main disadvantage of the classical NLSEM is that it does not incorporate an error-handling procedure to reduce the negative impact that errors in the measurement set can have on the estimated results.

To solve this difficulty, the following procedure called NLSEM with error-treatment procedure was proposed in [50], which allows for obtaining more accurate results even if there are errors in the set of measurements:

Step 1. Initialization: Input data and set the iteration counter $v=0$.

Step 2. Solve the classical NLPFM: Calculate the operating point of the EPS.

Step 3. Convergence test: If the value of $J\left(\widehat{x}\right)$ ≤ tolerance then go to step 5.

Step 4. Update: If $J\left(\widehat{x}\right)$ > tolerance then update $z_{mij}^{(v+1)}=z_{mij}^{\left(v\right)}+\Delta z_{mij}^{\left(v\right)}$, set $v=v+1$ and go back to step 2.

Step 5. Final results: Finish the procedure and print the results of the calculated operating point.

Thus, by means of a simple and easy to apply procedure, the NLPFM with errors treatment procedure is able to overcome the limitations of the classical NLSEM.

5.2. Mathematical Model of the Linearized State Estimation Problem

One of the advantages of the NLSEM with the error-treatment procedure is that a number of considerations can be made to represent the linearized state estimation problem. Thus, to determine the solution of the linearized state estimation problem, the equations of the active power injections and flows shown in (34) and (35) must be used.

• Active power injection measurements:

$$h_{mij}\left(\widehat{x}\right)=\sum _{(i,k)\in \Omega L}\frac{t_{ik}\left({\theta }_{ik}+{\phi }_{ik}\right)}{x_{ik}},{\forall }_{m=1}.$$

(34)

• Active power flow measurements:

$$h_{mij}\left(\widehat{x}\right)=\frac{t_{ij}\left({\theta }_{ij}+{\phi }_{ij}\right)}{x_{ik}},{\forall }_{m=3}.$$

(35)

Therefore, by solving this mathematical model given by Equations (34) and (35), known as linearized state estimation model (LSEM) with error treatment procedure, it is possible to obtain the values of ${\theta }_i$${\forall }_i\in \Omega B$, as well as the value of the function $J\left(\widehat{x}\right)$ and the residuals $r_{mij}$ of each measurement.

6. Tests and Results

Initially, several tests were carried out in order to validate the performance of the proposed mathematical models for solving the load flow and state estimation problems. First, a comparison was carried out with Matpower software [52] and a classic state estimation approach implemented in [50] for different IEEE test systems. This first validation proved the effectiveness of the proposed models. Secondly, a detail analysis is carried out by using the IEEE 118-bus test system. In this latter case, The results were divided in two parts according to the formulation of the mathematical models. In the first part, the Knitro solver is used to solve the NLPFM with $PV$ to $PQ$ bus conversion procedure and the NLSEM with error treatment procedure. In the second part, the CPlex solver was used to solve the linear counterparts of these problems. All simulations were performed on a personal computer with a processor of 1.8 GHz, four cores and 8 GB RAM.

6.1. Preliminary Comparison and Validation

A preliminary validation of the proposed models was carried out with different test systems for comparative purposes. Several simulations were performed by using as reference the operating points of the IEEE 14, 30, 57, and 118 bus test systems available at [53]. A summary of the results is presented in

Table 2. Comparison of active power losses (MW) for different IEEE test systems.

Methodology	IEEE-14	IEEE-30	IEEE-57	IEEE-118
Classic approach [50]	13.3929	17.5488	27.8640	132.4280
Matpower [52]	13.3932	17.5118	27.8611	132.4813
NLPFM with PV to PQ conversion	13.3929	17.5488	27.8640	132.4820
NLSEM with error treatment	13.3931	17.5491	27.8635	132.4821

and

Table 3. Comparison of reactive power losses (MVAr) for different IEEE test systems.

Methodology	IEEE-14	IEEE-30	IEEE-57	IEEE-118
Classic approach [50]	54.5358	67.6889	121.6698	782.2816
Matpower [52]	54.5372	67.6996	121.6643	782.2786
NLPFM with PV to PQ conversion	54.5358	67.6889	121.6698	782.2816
NLSEM with error treatment	54.5362	67.6900	121.6692	782.2830

where active and reactive power losses are compared, respectively, for each system. Note that the results obtained with the proposed mathematical models and those computed by Matpower [52] and a classical state estimation approach [50] are quite similar. In this sense, the greatest difference of results was around 0.04%, which can be considered as negligible; furthermore, the computation times were also quite similar and do not constitute a serious issue because they are all within the range of a few tenths of a second.

A detailed discussion of the state estimation problem and a more in-depth comparison among different methodologies can be consulted in [54,55,56].

6.2. Solving the Nonlinear Power Flow and State Estimation Problems Using the Knitro Solver

Considering the nonlinear equation of the proposed models to solve the AC load flow and state estimation problems, the Knitro solver, which is one of the most widely used solvers for this type of mathematical model, was used. The main results obtained are presented below.

6.2.1. Results of the Proposed NLPFM with PV to PQ Bus Transformation Procedure

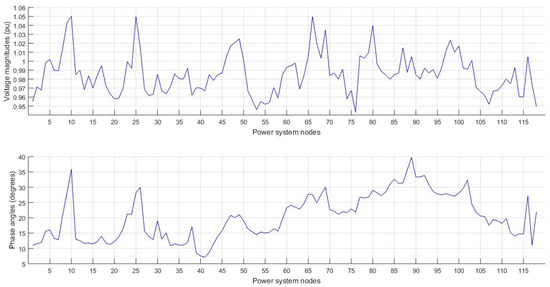

Initially, the operating point of the test system is determined by using the classical NLPFM. In this case, an infeasible solution is obtained, because at buses 19, 32, 34, 92, 103, and 105 the reactive power capacity limits are exceeded. Thus, it is clear that the classical NLPFM cannot determine the solution of the IEEE 118-bus test system, because it does not consider the possibility of converting $PV$ buses into $PQ$ buses.

Table 4. Comparison of results in $PV$ buses with reactive power limit violations.

Bus	Clasical NLPFM			NLPFM with PV to PQ Conversion Procedure
	${\mathit{V}}_{\mathit{i}}(\mathit{p}.\mathit{u})$	${\mathbf{\theta }}_{\mathit{i}}\left(\mathit{deg}\right)$	${\mathit{Q}}_{\mathit{i}}^{\mathit{G}}(\mathit{p}.\mathit{u})$	${\mathit{V}}_{\mathit{i}}(\mathit{p}.\mathit{u})$	${\mathbf{\theta }}_{\mathit{i}}\left(\mathit{deg}\right)$	${\mathit{Q}}_{\mathit{i}}^{\mathit{G}}(\mathit{p}.\mathit{u})$
19	0.9620	11.3147	−0.1427	0.9634	11.3068	−0.0800
32	0.9630	15.0607	−0.1628	0.9636	15.0595	−0.1400
34	0.9840	11.5114	−0.2083	0.9859	11.5059	−0.0800
92	0.9900	33.8808	−0.1396	0.9923	33.8545	−0.0300
103	1.0100	24.3178	0.7542	1.0007	24.4855	0.4000
105	0.9650	20.6436	−0.1833	0.9660	20.6184	−0.0800

shows the values of the variables $V_i$, ${\theta }_i$ and $Q_i^G$ on the PV buses whose reactive power limits were exceeded.

According to the previous results, it can be seen that there is a more significant difference in the values of the variables ${\theta }_i$ and $Q_i^G$.

Finally, the values of the bus voltages for the IEEE 118-bus test system using the NLPFM with $PV$ to $PQ$ bus conversion procedure are presented in Figure 2.

The results obtained by the NLPFM with $PV$ to $PQ$ bus conversion procedure are used as a reference to choose the set of measurements that will be part of the input data of the proposed state estimator.

6.2.2. Results of the Proposed NLSEM with Error Treatment Procedure

Taking into account that for the IEEE 118-bus test system the values of 235 state variables must be estimated, it is necessary to strategically choose a set of measurements to avoid observability problems [29]. Thus, 470 measurements (voltage measurements, power flow and power injections) were chosen from the results obtained of the power flow analyses.

Initially, to perform a validation of the results obtained by the NLSEM with error handling procedure, the operating point of the test system is calculated considering that there are no bad data in the measurement set. For this reason, Figure 3 shows the absolute errors of the voltages and angles (calculated based on the results obtained by NLPFM with $PV$ to $PQ$ conversion procedure).

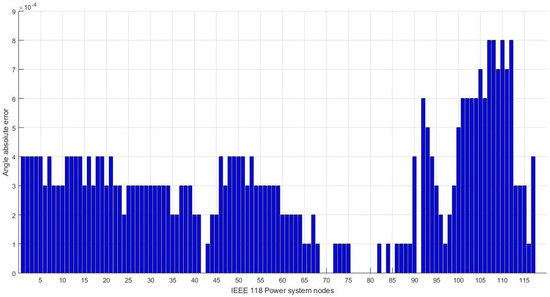

Figure 3 shows that there is a small error in the calculation of voltage angles. In this case, the error in voltage magnitudes are not illustrated because they are lower than $1\times {10}^{-5}$). However, the value of the objective function $J\left(\widehat{x}\right)=1.3461\times {10}^{-7}$ obtained through NLSEM with error handling procedure, indicates that the values of the state variables have been correctly estimated.

On the other hand, in order to compare the performance of the mathematical models proposed to solve the state estimation problem considering multiple bad data in the measurement set, random errors are added to each of the measurements present in the database.

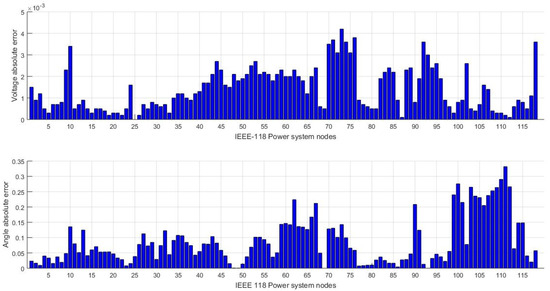

First, the operating point of the test system is estimated by using the classical NLSEM. The impact that the added errors have on the obtained results can be measured through the objective function value $J\left(\widehat{x}\right)=5904.1288$, which indicates that errors are present in the measurement set. Therefore, the estimated operating point using the classical NLSEM cannot be considered valid. Then, the operating point of the test system is determined by using NLSEM with error handling procedure and subsequently, the absolute errors of the voltage magnitudes and angles are calculated, as shown in Figure 4.

The objective function value $J\left(\widehat{x}\right)=4.3492\times {10}^{-7}$ indicates that the errors added in the measurement set have been properly mitigated, and therefore the operating point of the test system was satisfactorily estimated by using the NLSEM with the error-handling procedure.

6.2.3. Performance of the Knitro Solver

To assess the performance of the Knitro solver when dealing with the proposed procedures for solving the power flow and state estimation problems, a summary of results is presented in

Table 5. Final statistics obtained by the Knitro solver.

Mathematical Model Characteristics	NLPFM with PV to PQ Transformation Procedure	NLSEM with Errors Treatment Procedure
Locally optimal solution found?	YES	YES
Number of variables	1061	1638
Number of constraints	1014	940
Final objective function value	5.8412 × 10−18	4.3492 × 10−7
Final feasibility absolute error	3.01 × 10−10	1.39 × 10−10
Final optimally absolute error	9.90 × 10−9	1.38 × 10−8
Number of objective function evaluations	13	90
Total program time (s)	0.0790	0.7220

, which was provided by the Knitro solver for the carried out simulations.

6.3. Solving Power Flow and State Estimation Problems by Using Cplex Solver

Based on the LPFM and LSEM equations proposed to solve the linearized power flow and state estimation problems by using AMPL, it is recommended that one use Cplex solver, which is widely used to solve linear programming, mixed-integer programming, and quadratic programming problems. The main results obtained by using the IEEE-118 system as the test system are presented below.

6.3.1. Results of the LPFM

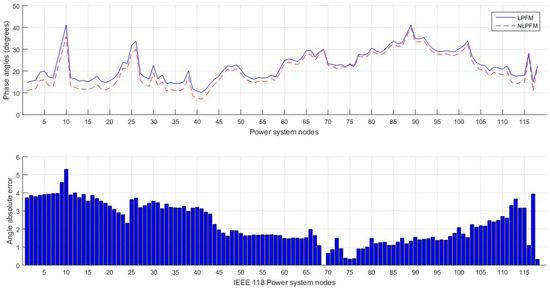

The operating point of the IEEE 118-bus test system is approximately calculated by using the proposed LPFM. The nodal voltage angles as well as the absolute errors of the calculated angles with reference to the values obtained in the NLPF with $PV4$ to $PQ$ bus conversion procedure, are shown in Figure 5.

The results provided by the proposed LPFM are used as a reference in the analyses of the proposed linearized state estimator.

6.3.2. Results of Proposed LSEM with Error-Treatment Procedure

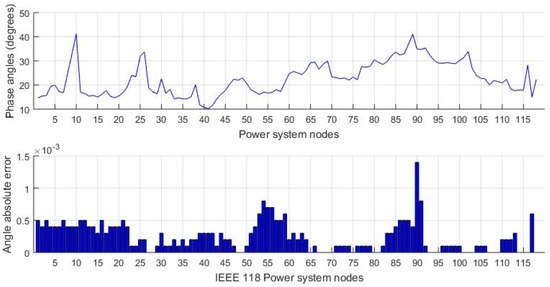

Considering that the IEEE 118-bus test system has 117 state variables to estimate, a total of 176 measurements (injections and active power flow) distributed along the system were selected in order to ensure its observability. Then, the operating point is calculated by using the proposed LSEM with error handling procedure, considering the absence of bad data in the set of measurements, in order to make a comparison of the results obtained with the LPFM. Thus, the values of the angles obtained by using the LSEM and the absolute errors calculated based on the LPFM results are presented in Figure 6.

The previous results show that there is a small difference between the results of the proposed LPFM and the proposed LSEM with the error-handling procedure. Furthermore, the value of the function $J\left(\widehat{x}\right)=2.3146\times {10}^{-8}$ confirms that no errors are present in the measurement set.

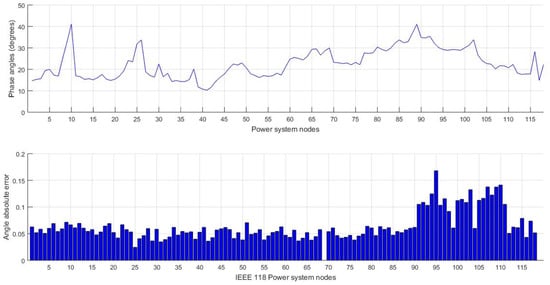

Subsequently, by adding random errors in each of the measurements present in the database, the operating point of the test system is calculated by using the classical LSEM. The value of the function $J\left(\widehat{x}\right)=224.6175$, indicates errors in the set of measurements, and therefore the estimated values of the state variables cannot be considered valid. In this case, an error-handling procedure must be implemented. Therefore, the operating point of the test system is calculated by using LSEM with the error-treatment procedure, the results of which are shown in Figure 7.

According to the objective function value $J\left(\widehat{x}\right)$ = 1.4190 × 10⁻⁶ obtained in the previous simulation, it can be concluded that the errors added to the database have been satisfactorily mitigated.

6.3.3. Performance of the CPlex Solver

The performance CPlex to solve the proposed linearized power flow and state estimation problems by using AMPL is indicated in

Table 6. Final statistics obtained by the CPlex solver.

Mathematical Model Characteristics	LPFM	LSEM with Errors Treatment Procedure
Optimal solution found?	YES	YES
Number of variables	1061	497
Final objective function value	2.314 × 10−8	1.4190 × 10−6
Number of objective function evaluations	8	88
Total program time (s)	0.0100	1.037

. This information was provided by the CPlex solver when running the simulations.

6.3.4. Validation of Results

To validate the results obtained with the Knitro and CPlex solvers, a comparison is made with other solvers that can be used in AMPL, namely Conopt and Snopt (used for nonlinear programming models) as well as Gurobi and Minos (used for linear programming models).

Table 7. Main results of the operating point of the IEEE 118-bus test system calculated by NLPFM with $PV$ to $PQ$ bus conversion procedure using nonlinear solvers.

Simulation Results	Knitro Solver	Conopt Solver	Snopt Solver
Maximum voltage magnitude (p.u)	$V_{10}=1.0500$	$V_{10}=1.0500$	$V_{10}=1.0500$
Minimum voltage magnitude (p.u)	$V_{76}=0.9430$	$V_{76}=0.9430$	$V_{76}=0.9430$
Maximum voltage angle (degrees)	${\theta }_{89}=39.7507$	${\theta }_{89}=39.7507$	${\theta }_{89}=39.7507$
Minimum voltage angle (degrees)	${\theta }_{41}=7.0663$	${\theta }_{41}=7.0663$	${\theta }_{41}=7.0663$
Maximum active power flow (p.u)	$P_{10-9}=4.5000$	$P_{10-9}=4.5000$	$P_{10-9}=4.5000$
Minimum active power flow (p.u)	$P_{75-70}=0.0020$	$P_{75-70}=0.0020$	$P_{75-70}=0.0020$
Maximum reactive power flow (p.u)	$Q_{8-5}=1.2461$	$Q_{8-5}=1.2461$	$Q_{8-5}=1.2461$
Minimum reactive power flow (p.u)	$Q_{105-104}=0.0038$	$Q_{105-104}=0.0037$	$Q_{105-104}=0.0037$
Total active power flow (p.u)	$P_L=1.3262$	$P_L=1.3262$	$P_L=1.3262$
Total reactive power flow (p.u)	$Q_L=7.8295$	$Q_L=7.8295$	$Q_L=7.8295$

shows the main results of the operating point obtained through the NLPFM with PV to PQ bus conversion procedure by using nonlinear solvers. It is possible to verify that the results obtained by Knitro, Conopt and Snopt solvers represent the same operating point for the IEEE 118-bus test system.

On the other hand,

Table 8. Main results of the operating point of the IEEE 118-bus test system calculated by NLSEM with error-treatment procedure by using nonlinear solvers.

Simulation Results	Knitro Solver	Conopt Solver	Snopt Solver
Maximum voltage magnitude (p.u)	$V_{10}=1.0534$	$V_{10}=1.0534$	$V_{10}=1.0534$
Minimum voltage magnitude (p.u)	$V_{76}=0.9392$	$V_{76}=0.9392$	$V_{76}=0.9392$
Maximum voltage angle (degrees)	${\theta }_{89}=39.6941$	${\theta }_{89}=39.6941$	${\theta }_{89}=39.6943$
Minimum voltage angle (degrees)	${\theta }_{41}=7.1594$	${\theta }_{41}=7.1594$	${\theta }_{41}=7.1594$
Maximum active power flow (p.u)	$P_{10-9}=4.4756$	$P_{10-9}=4.4757$	$P_{10-9}=4.4757$
Minimum active power flow (p.u)	$P_{75-70}=0.0092$	$P_{75-70}=0.0092$	$P_{75-70}=0.0092$
Maximum reactive power flow (p.u)	$Q_{8-5}=1.2900$	$Q_{8-5}=1.2900$	$Q_{8-5}=1.2900$
Minimum reactive power flow (p.u)	$Q_{105-104}=0.0056$	$Q_{105-104}=0.0055$	$Q_{105-104}=0.0055$
Total active power flow (p.u)	$P_L=1.3280$	$P_L=1.3280$	$P_L=1.3280$
Total reactive power flow (p.u)	$Q_L=7.8141$	$Q_L=7.8141$	$Q_L=7.8141$

shows a comparison of the results obtained by the nonlinear solvers when solving the NLSEM with errors treatment procedure. It can be verified that the three solvers present the same results.

According to the above, in

Table 9. Main results of the operating point of the IEEE 118-bus test system calculated by LPFM by using linear solvers.

Simulation Results	CPlex Solver	Gurobi Solver	Minos Solver
Maximum voltage angle (degrees)	${\theta }_{10}=41.1854$	${\theta }_{10}=41.1854$	${\theta }_{10}=41.1854$
Minimum voltage angle (degrees)	${\theta }_{41}=10.2004$	${\theta }_{41}=10.2004$	${\theta }_{41}=10.2004$
Maximum active power flow (p.u)	$P_{10-9}=4.5000$	$P_{10-9}=4.5000$	$P_{10-9}=4.5000$
Minimum active power flow (p.u)	$P_{19-34}=0.0020$	$P_{19-34}=0.0020$	$P_{19-34}=0.0020$
Total active power flow (p.u)	$P_L=0.0000$	$P_L=0.0000$	$P_L=0.0000$

and

Table 10. Main results of the operating point of the IEEE 118-bus test system calculated by LSEM with error-treatment procedure by using linear solvers.

Simulation Results	CPlex Solver	Gurobi Solver	Minos Solver
Maximum voltage angle (degrees)	${\theta }_{10}=40.6006$	${\theta }_{10}=40.6006$	${\theta }_{10}=40.6006$
Minimum voltage angle (degrees)	${\theta }_{41}=9.6281$	${\theta }_{41}=9.6280$	${\theta }_{41}=9.6281$
Maximum active power flow (p.u)	$P_{10-9}=4.4754$	$P_{10-9}=4.4754$	$P_{10-9}=4.4753$
Minimum active power flow (p.u)	$P_{19-34}=0.0039$	$P_{19-34}=0.0039$	$P_{19-34}=0.0039$
Total active power flow (p.u)	$P_L=0.0000$	$P_L=0.0000$	$P_L=0.0000$

it is possible to compare the results obtained by the solvers CPlex, Gurobi, and Minos, used in the LPFM and LSEM with error treatment procedure. In both situations, it was verified that the solvers obtained the same results.

7. Conclusions

This paper proposes an alternative to solve the existing limitations in commercial software used to solve the problems of load flow and state estimation in EPS. Considering that both methodologies are closely related to each other, it is important to have a reliable computational tool, such as the mathematical modeling language AMPL, that allows performing both types of studies.

The results obtained show that it is possible to represent the power flow and state estimation problems through mathematical optimization models. Therefore, the mathematical models of the AC load flow and state estimation problems, as well as their linear counterparts were presented. These models were successfully solved by using the Knitro and CPlex solvers, respectively.

Additionally, it was shown that one of the advantages of representing the power flow and state estimation problems through mathematical optimization consists on the possibility of manipulating the mathematical formulation to incorporate new procedures, such as considering reactive power limits in generation buses and error-treatment procedures. Potential applications of the proposed models include the development of a dedicated system, dynamic state estimation with errors and false data input treatment, as well as hybrid applications that combine electric power with gas and heat systems.

With regard to future work, the possibility of solving other optimization problems in electric power systems based on the mathematical models used in this work is proposed. Additionally, it is possible to develop new mathematical optimization models to solve the power flow and state estimation problems in distribution systems.
