Diagnosis of Breast Cancer with Strongly Supervised Deep Learning Neural Network
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

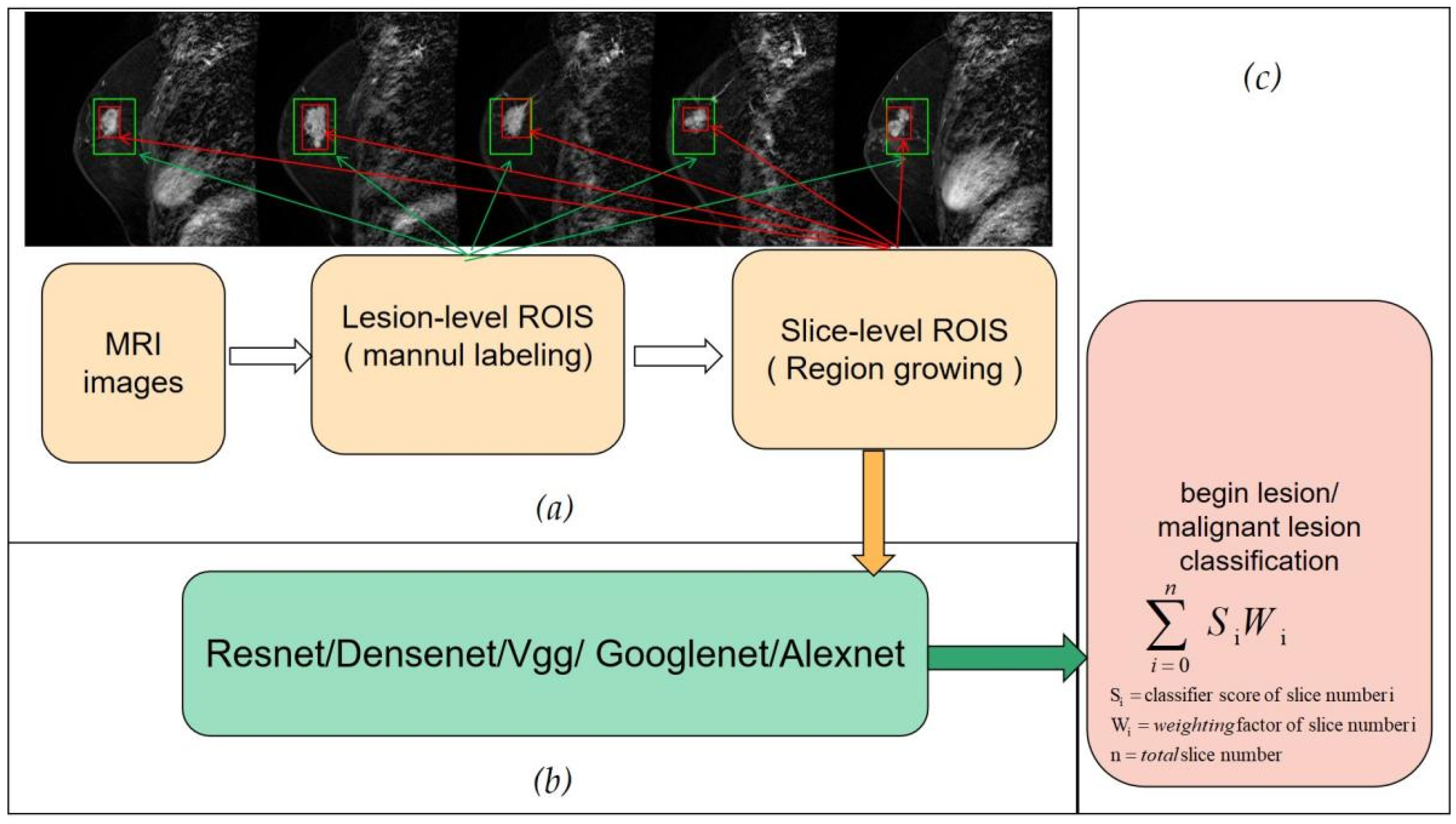

2.2. Methods

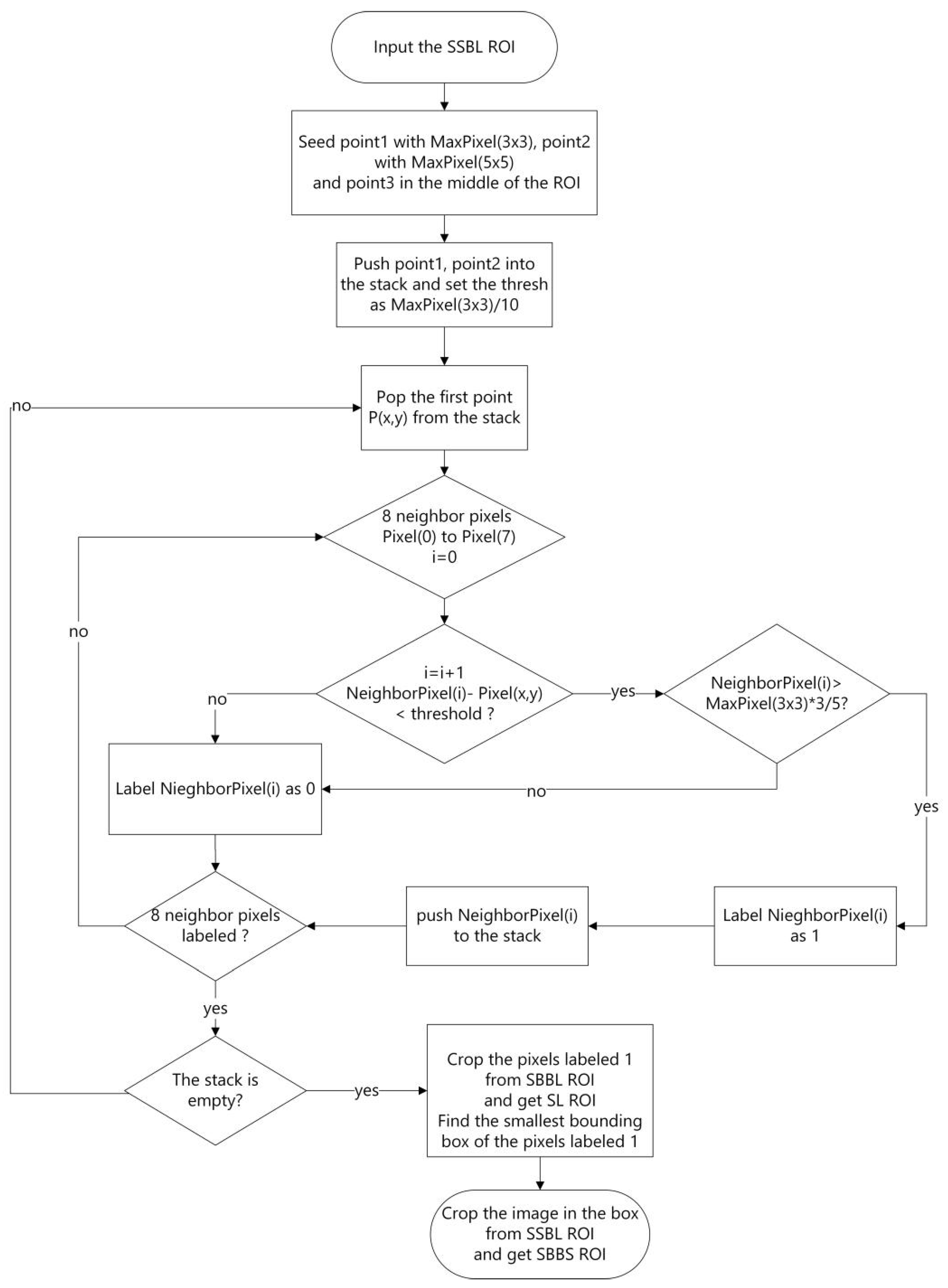

2.2.1. Slice-Level ROI
2.2.2. Slice-Level Training and Classification
2.2.3. Lesion-Level Diagnosis
3. Results
3.1. Performance Metrics
- True positive (TP): predicted positive in positive samples (malignant lesions).
- True negative (TN): predicted negative in negative samples (benign lesions).
- False positive (FP): predicted positive in negative samples.
- False negative (FN): predicted negative in positive samples.
3.2. Slice-Level ROI
3.3. Lesion-Level Diagnosis

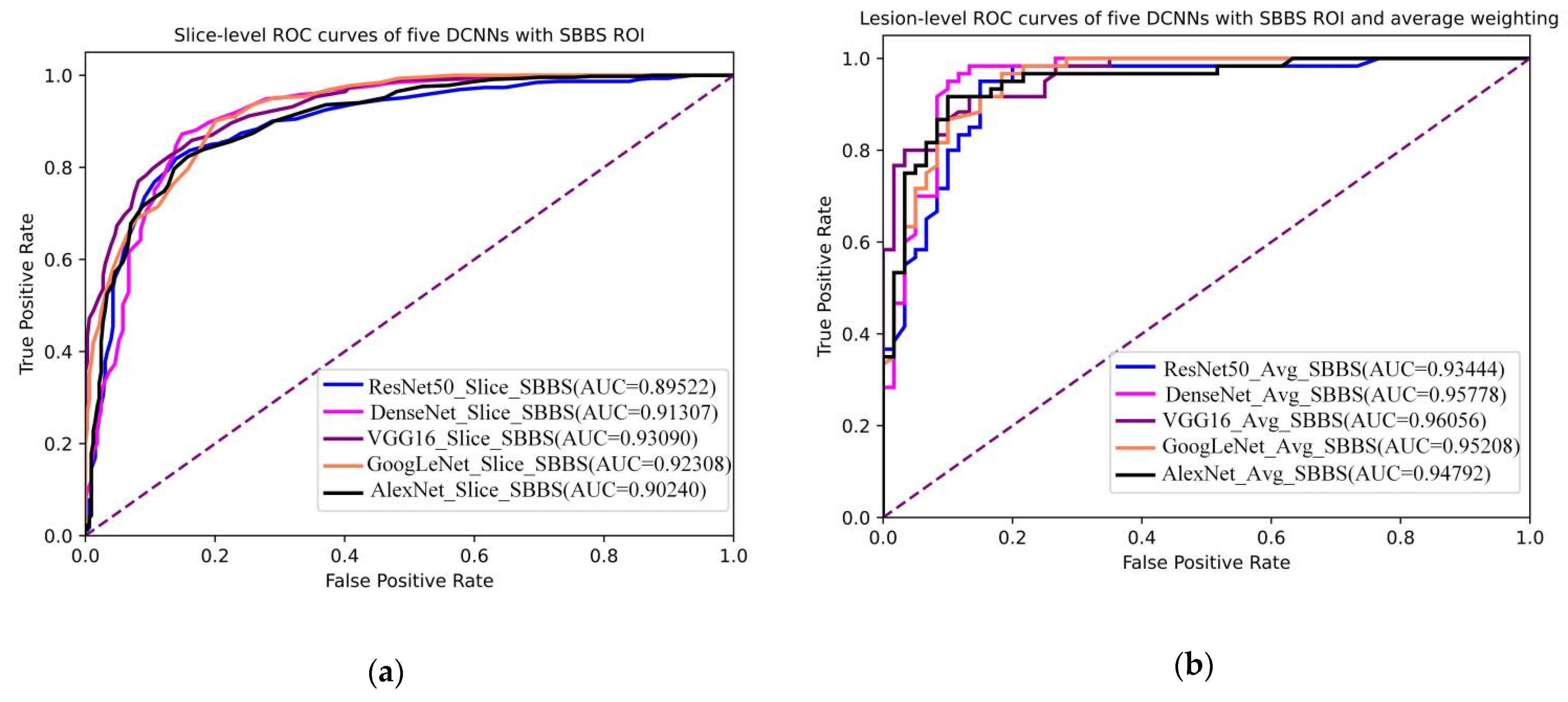

3.4. DCNNs Combined with Slice-Level ROI and Lesion-Level Diagnosis
4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Latest Global Cancer Data: Cancer Burden Rises to 19.3 Million New Cases and 10.0 Million Cancer Deaths in 2020. Available online: https://www.iarc.fr/fr/news-events/ (accessed on 15 December 2020).
- DeSantis, C.E.; Ma, J.; Goding Sauer, A.; Newman, L.A.; Jemal, A. Breast cancer statistics, 2017, racial disparity in mortality by state. CA A Cancer J. Clin. 2017, 67, 439–448. [Google Scholar] [CrossRef] [PubMed]
- Jaglan, P.; Dass, R.; Duhan, M. Breast Cancer Detection Techniques: Issues and Challenges. J. Inst. Eng. India Ser. B 2019, 100, 379–386. [Google Scholar] [CrossRef]
- Elmore, J.G.; Armstrong, K.; Lehman, C.D.; Fletcher, S.W. Screening for breast cancer. JAMA 2005, 293, 1245–1256. [Google Scholar] [CrossRef] [PubMed]
- Zeeshan, M.; Salam, B.; Khalid, Q.S.B.; Sayani, R. Diagnostic Accuracy of Digital Mammography in the Detection of Breast Cancer. Cureus 2018, 10, e2448. [Google Scholar] [CrossRef] [PubMed]
- Pisano, E.D.; Gatsonis, C.; Hendrick, E.; Yaffe, M.; Baum, J.K.; Acharyya, S.; Conant, E.F.; Fajardo, L.L.; Bassett, L.; D’Orsi, C.; et al. Diagnostic Performance of Digital versus Film Mammography for Breast-Cancer Screening. N. Engl. J. Med. 2005, 353, 1773–1783. [Google Scholar] [CrossRef] [PubMed]
- Türkbey, B.; Thomasson, D.; Pang, Y.; Bernardo, M.; Choyke, P.L. The role of dynamic contrast-enhanced MRI in cancer diagnosis and treatment. Diagn. Interv. Radiol. 2010, 16, 186–192. [Google Scholar] [PubMed]
- Liu, P.-F.; Krestin, G.P.; Huch, R.A.; Göhde, S.C.; Caduff, R.F.; Debatin, J.F. MRI of the uterus, uterine cervix, and vagina: Diagnostic performance of dynamic contrast-enhanced fast multiplanar gradient-echo imaging in comparison with fast spin-echo T2-weighted pulse imaging. Eur. Radiol. 1998, 8, 1433–1440. [Google Scholar] [CrossRef]
- Jager, G.J.; Ruijter, E.T.; Van De Kaa, C.A.; De La Rosette, J.J.; Oosterhof, G.O.; Thornbury, J.R.; Ruijs, S.H.; Barentsz, J.O. Dynamic TurboFLASH subtraction technique for contrast-enhanced MR imaging of the prostate: Correlation with histopathologic results. Radiology 1997, 203, 645–652. [Google Scholar] [CrossRef]
- Ocak, I.; Bernardo, M.; Metzger, G.; Barrett, T.; Pinto, P.; Albert, P.S.; Choyke, P.L. Dynamic contrast-enhanced MRI of prostate cancer at 3 T: A study of pharmacokinetic parameters. AJR Am. J. Roentgenol. 2007, 189, 192–201. [Google Scholar] [CrossRef]
- Tartar, M.; Comstock, C.E.; Kipper, M.S. CHAPTER 2—Evaluation of the Symptomatic Patient: Diagnostic Breast Imaging. Breast Cancer Imaging 2008, 2008, 38–75. [Google Scholar]
- Wei, M.; Du, Y.; Wu, X.; Su, Q.; Zhu, J.; Zheng, L.; Lv, G.; Zhuang, J. A benign and Malignant Breast Tumor Classification Method via Efficiently Combining Texture and Morphological Features on Ultrasound Images. Comput. Math. Methods Med. 2020, 2020, 5894010. [Google Scholar] [CrossRef] [PubMed]
- Pang, Z.; Zhu, D.; Chen, D.; Li, L.; Shao, Y. A computer-aided diagnosis system for dynamic contrast-enhanced MR images based on level set segmentation and ReliefF feature selection. Comput. Math. Methods Med. 2015, 2015, 450531. [Google Scholar] [CrossRef] [PubMed]
- Liu, H.; Wang, J.; Gao, J.; Liu, S.; Liu, X.; Zhao, Z.; Guo, D.; Dan, G. A comprehensive hierarchical classification based on multi-features of breast DCE-MRI for cancer diagnosis. Med. Biol. Eng. Comput. 2020, 58, 2413–2425. [Google Scholar] [CrossRef]
- Cai, H.; Peng, Y.; Ou, C.; Chen, M.; Li, L. Diagnosis of Breast Masses from Dynamic Contrast-Enhanced and Diffusion-Weighted MR: A Machine Learning Approach. PLoS ONE 2014, 9, e87387. [Google Scholar] [CrossRef] [PubMed]
- Dalmiş, M.U.; Gubern-Mérida, A.; Vreemann, S.; Bult, P.; Karssemeijer, N.; Mann, R.; Teuwen, J. Artificial Intelligence–Based Classification of Breast Lesions Imaged with a Multiparametric Breast MRI Protocol with Ultrafast DCE-MRI, T2, and DWI. Investig. Radiol. 2019, 54, 325–332. [Google Scholar] [CrossRef] [PubMed]
- Jiao, H.; Jiang, X.; Pang, Z.; Lin, X.; Huang, Y.; Li, L. Deep Convolutional Neural Networks-Based Automatic Breast Segmentation and Mass Detection in DCE-MRI. Comput. Math. Methods Med. 2020, 2020, 2413706. [Google Scholar] [CrossRef] [PubMed]
- Liu, M.Z.; Swintelski, C.; Sun, S.; Siddique, M.; Desperito, E.; Jambawalikar, S.; Ha, R. Weakly Supervised Deep Learning Approach to Breast MRI Assessment. Acad. Radiol. 2021, 29, 166–172. [Google Scholar] [CrossRef]
- Zhou, J.; Luo, L.; Dou, Q.; Chen, H.; Chen, C.; Li, G.; Jiang, Z.; Heng, P.A. Weakly supervised 3D deep learning for breast cancer classification and localization of the lesions in MR images. J. Magn. Reson. Imaging 2019, 50, 1144–1151. [Google Scholar] [CrossRef]
- Zhou, J.; Zhang, Y.; Chang, K.; Lee, K.E.; Wang, O.; Li, J.; Lin, Y.; Pan, Z.; Chang, P.; Chow, D.; et al. Diagnosis of Benign and Malignant Breast Lesions on DCE-MRI by Using Radiomics and Deep Learning with Consideration of Peritumor Tissue. J. Magn. Reson. Imaging 2019, 51, 798–809. [Google Scholar] [CrossRef]
- He, K.; Zhang, Y.; Ren, S.; Sun, J. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; pp. 770–778. [Google Scholar]
- Huang, G.; Liu, Z.; Van Der Maaten, L.; Weinberger, K.Q. Densely connected convolutional networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 4700–4708. [Google Scholar]
- Simonyan, K.; Zisserman, A. Very Deep Convolutional Networks for Large-Scale Image Recognition. arXiv 2014, arXiv:1409.1556. [Google Scholar]
- Szegedy, C.; Liu, W.; Jia, Y.; Sermanet, P.; Reed, S.; Anguelov, D.; Erhan, D.; Vanhoucke, V.; Andrew Rabinovich, A. Going deeper with convolutions. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Boston, MA, USA, 7–12 June 2015; pp. 1–9. [Google Scholar]
- Krizhevsky, A.; Sutskever, I.; Hinton, G.E. Imagenet classification with deep convolutional neural networks. NIPS 2012, 60, 84–90. [Google Scholar]
- Hojjatoleslami, S.A.; Kittler, J. Region growing: A new approach. IEEE Trans. Image Process. A Publ. IEEE Signal Proces. Soc. 1998, 7, 1079–1084. [Google Scholar] [CrossRef] [PubMed]
- Hu, Q.; Whitney, H.M.; Giger, M.L. A deep learning methodology for improved breast cancer diagnosis using multiparametric MRI. Sci. Rep. 2020, 10, 10536. [Google Scholar] [CrossRef] [PubMed]
References | Dataset | Classification Method Used | ROI | Features | Diagnosis Metrics | Limitations |
---|---|---|---|---|---|---|
[12] | Ultrasound images: 184 benign 264 malignant | SVM | Whole Ultrasound | Radiomics features | Lesion-level (one slice) | Professional instruments required Features chosen with subjective bias Discarded the other slices |
[13] | DCE-MRI: 42 benign 78 malignant | SVM | Whole DCE-MRI | Radiomics features | Lesion-level (one slice) | Small dataset Professional instruments required Features chosen with subjective bias Discarded the other slices |
[14] | DCE-MRI: 40 benign 73 malignant | SVM | Whole DCE-MRI | Radiomics features | Lesion-level (one slice) | Small dataset Professional instruments required Discarded the other slices |
[15] | DCE-MRI: 85 benign 149 malignant | SVM | Whole DCE-MRI | DWI Features + Radiomics features | Lesion-level (one slice) | Small dataset Professional instruments required Discarded the other slices |
[16] | DCE-MRI: 149 benign 368 malignant | Random Forest | Whole DCE-MRI | Radiomics features + Feature maps extracted by DCNN | Lesion-level (one slice) | Rough ROI affect the performance (the highest value was 0.85) Discarded the other slices |
[17] | DCE-MRI: 75 lesions | Unet++ and Faster RCNN | Segmented breast | Feature maps extracted by DCNN | Lesion-level (one slice) | Small dataset Without diagnosis |
[18] | DCE-MRI: 438 patients, 3167 slices | ResNet101 | Whole DCE-MRI | Feature maps extracted by DCNN | Slice-level | Rough ROI DCNN training and testing with slice-level data, can not stand for the performance in lesion-level diagnosis |
[19] | DCE-MRI: 506 benign 1031 malignant | 3D DenseNet | Segmented breast | Feature maps extracted by DCNN | 3D lesion-level (one slice) | Rough ROI Discarded the other slices |
[20] | DCE-MRI: 88 benign 139 malignant | ResNet50/Random Forest | Lesion level smallest bounding box | Feature maps extracted by DCNN | 3D lesion-level (slice with max score) | Lesion-level ROI Lesion-level diagnosis with the max score slice (Discarded the other slices) |
Dataset | Training | Validation | Testing | Subtotal |
---|---|---|---|---|
Benign lesions | 162 | 45 | 60 | 267 |
Malign lesions | 115 | 45 | 60 | 220 |
Benign slices | 1278 | 259 | 329 | 1866 |
Malign slices | 1053 | 341 | 453 | 1847 |
Lesion Type | Lesion Name | Number |
---|---|---|
Malignant | ||
Invasive cancer | 142 | |
Ductal carcinoma in situ | 53 | |
Semi-invasive carcinoma in situ | 8 | |
Premium Executive Internal Cancer | 5 | |
Invasive lobular carcinoma | 5 | |
low-grade intraductal carcinoma | 1 | |
Intermediate-grade intraductal carcinoma | 1 | |
Intraductal papillary carcinoma | 1 | |
Invasive intraductal carcinoma | 1 | |
Squamous cell carcinoma | 1 | |
Eczematous breast cancer | 1 | |
Calcified intraductal carcinoma | 1 | |
Benign | ||
Fibroadenoma | 160 | |
Fibrocystic breast disease | 39 | |
Intraductal papilloma | 33 | |
Adenopathy | 7 | |
Papillary hyperplasia | 4 | |
Hyperplastic nodule | 3 | |
Lymphoma infiltration | 3 | |
Lymphoma | 3 | |
Chronic inflammation | 2 | |
Fibroadenosis with lymphoid tissue | 2 | |
Chronic granulomatous inflammation | 1 | |
Complex sclerosing lesions | 1 | |
Glandular hyperplasia with myoepithelial hyperplasia, | 1 | |
Interstitial fibrous collagen hyperplasia | 1 | |
Myoepithelial tumor | 1 | |
Calcified nodules | 1 | |
Dermal fibroma | 1 | |
Compliant with BI-RADS Class II | 1 | |
Compliant with BI-RADS Class III | 1 | |
Fibroadenoma with tubular adenoma | 1 | |
Epithelial hyperplasia | 1 |

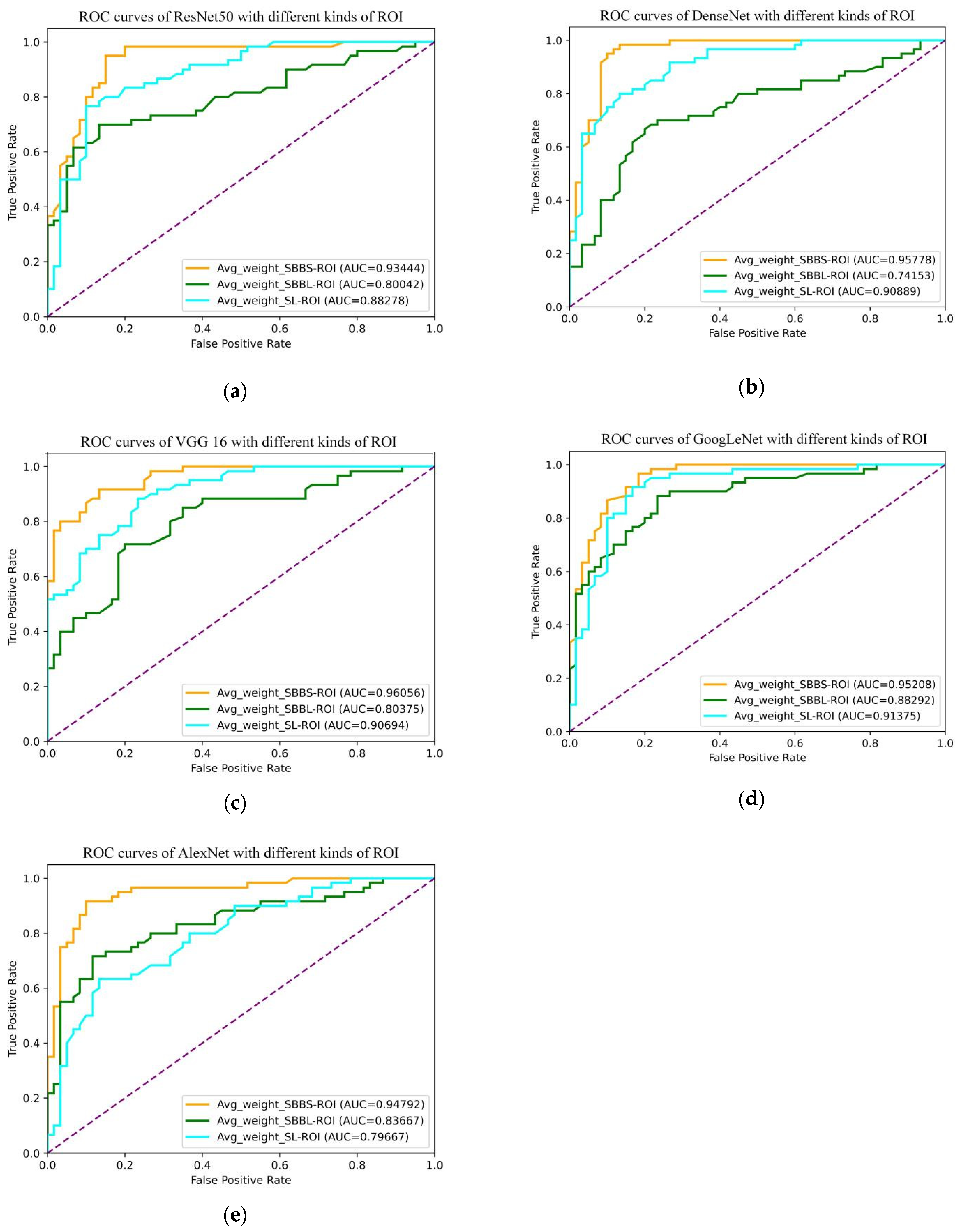

DCNN | ROI Type | Threshold | Sensitivity | Specificity | Accuracy | AUC |
---|---|---|---|---|---|---|
DenseNet | SBBS | 0.520 | 0.950 | 0.900 | 0.925 | 0.958 |
SBBL | 0.500 | 0.700 | 0.767 | 0.733 | 0.742 | |
SL | 0.500 | 0.800 | 0.867 | 0.833 | 0.909 | |
VGG16 | SBBS | 0.480 | 0.917 | 0.867 | 0.892 | 0.961 |
SBBL | 0.510 | 0.717 | 0.783 | 0.750 | 0.804 | |
SL | 0.470 | 0.867 | 0.767 | 0.817 | 0.907 | |
ResNet50 | SBBS | 0.460 | 0.950 | 0.850 | 0.900 | 0.934 |
SBBL | 0.520 | 0.700 | 0.867 | 0.783 | 0.800 | |
SL | 0.490 | 0.767 | 0.900 | 0.833 | 0.883 | |
GoogLeNet | SBBS | 0.490 | 0.967 | 0.817 | 0.892 | 0.952 |
SBBL | 0.450 | 0.883 | 0.767 | 0.825 | 0.883 | |
SL | 0.500 | 0.867 | 0.883 | 0.850 | 0.914 | |
AlexNet | SBBS | 0.470 | 0.917 | 0.900 | 0.909 | 0.948 |
SBBL | 0.530 | 0.700 | 0.883 | 0.792 | 0.837 | |
SL | 0.550 | 0.633 | 0.867 | 0.750 | 0.797 | |
Average | SBBS | 0.484 | 0.940 | 0.867 | 0.903 | 0.951 |
SBBL | 0.502 | 0.740 | 0.813 | 0.777 | 0.813 | |
SL | 0.502 | 0.787 | 0.857 | 0.817 | 0.882 |

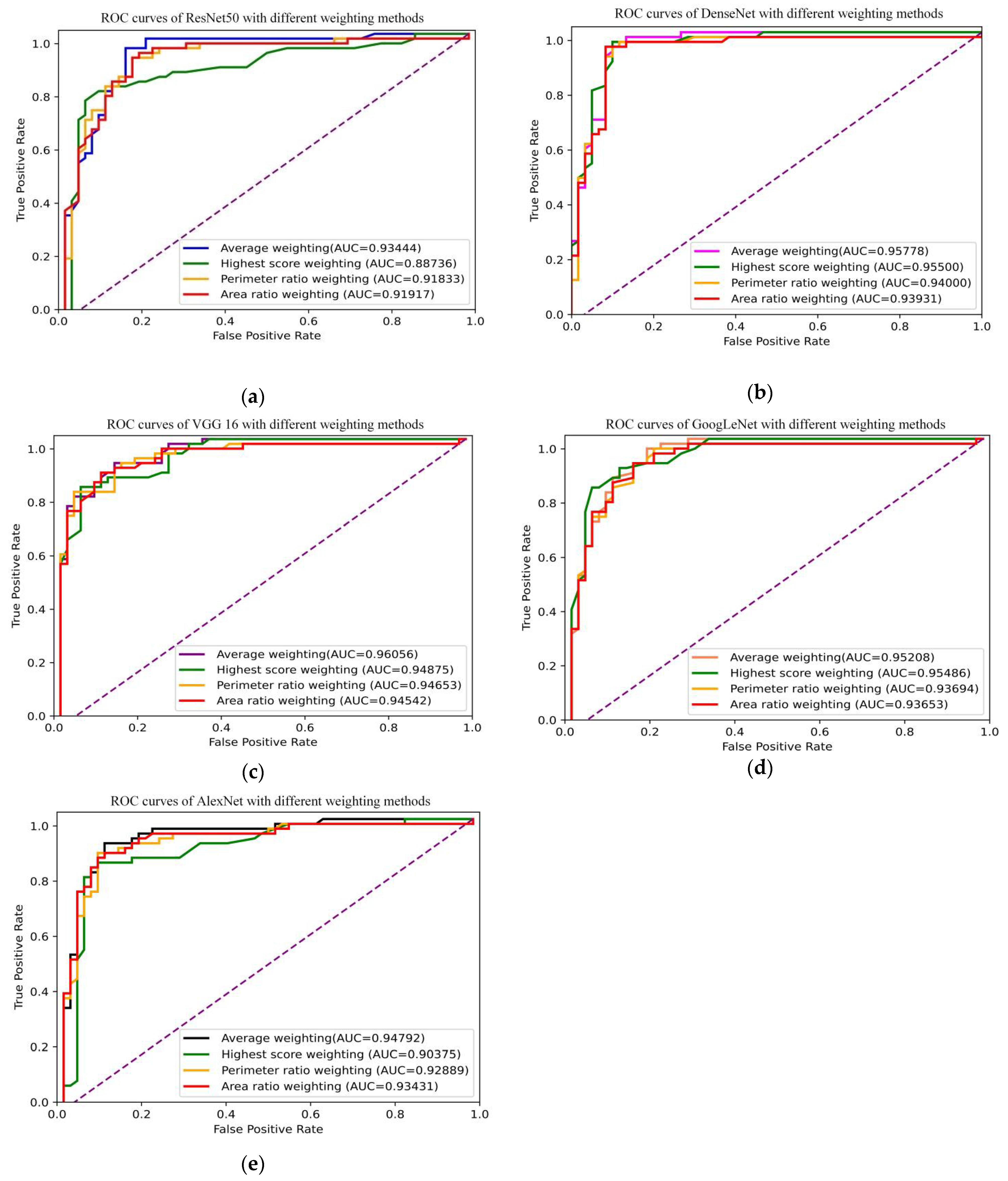

DCNN | Weighting Methods | Threshold | Sensitivity | Specificity | Accuracy | AUC |
---|---|---|---|---|---|---|
ResNet50 | Average | 0.460 | 0.950 | 0.850 | 0.900 | 0.934 |
Highest score | 0.440 | 0.800 | 0.900 | 0.850 | 0.887 | |
Area ratio | 0.440 | 0.917 | 0.833 | 0.875 | 0.919 | |
Perimeter ratio | 0.440 | 0.917 | 0.833 | 0.875 | 0.918 | |
DenseNet | Average | 0.520 | 0.950 | 0.900 | 0.925 | 0.958 |
Highest score | 0.530 | 0.967 | 0.900 | 0.933 | 0.955 | |
Area ratio | 0.520 | 0.950 | 0.917 | 0.933 | 0.939 | |
Perimeter ratio | 0.520 | 0.950 | 0.900 | 0.925 | 0.940 | |
VGG16 | Average | 0.480 | 0.917 | 0.867 | 0.892 | 0.961 |
Highest score | 0.570 | 0.830 | 0.950 | 0.892 | 0.949 | |
Area ratio | 0.480 | 0.900 | 0.867 | 0.883 | 0.945 | |
Perimeter ratio | 0.480 | 0.900 | 0.867 | 0.883 | 0.947 | |
GoogLeNet | Average | 0.490 | 0.967 | 0.817 | 0.892 | 0.952 |
Highest score | 0.600 | 0.900 | 0.883 | 0.892 | 0.959 | |
Area ratio | 0.490 | 0.933 | 0.800 | 0.867 | 0.937 | |
Perimeter ratio | 0.490 | 0.967 | 0.780 | 0.875 | 0.937 | |
AlexNet | Average | 0.470 | 0.917 | 0.900 | 0.909 | 0.948 |
Highest score | 0.480 | 0.850 | 0.917 | 0.883 | 0.904 | |
Area ratio | 0.470 | 0.883 | 0.867 | 0.875 | 0.934 | |
Perimeter ratio | 0.470 | 0.883 | 0.883 | 0.883 | 0.929 | |
Average Score | Average | 0.484 | 0.940 | 0.867 | 0.903 | 0.951 |
Highest score | 0.524 | 0.869 | 0.910 | 0.890 | 0.930 | |
Area ratio | 0.480 | 0.917 | 0.857 | 0.887 | 0.935 | |
Perimeter ratio | 0.480 | 0.923 | 0.853 | 0.888 | 0.934 |
