# Real-Time Drift-Driving Control for an Autonomous Vehicle: Learning from Nonlinear Model Predictive Control via a Deep Neural Network

^{*}

## Abstract

**:**

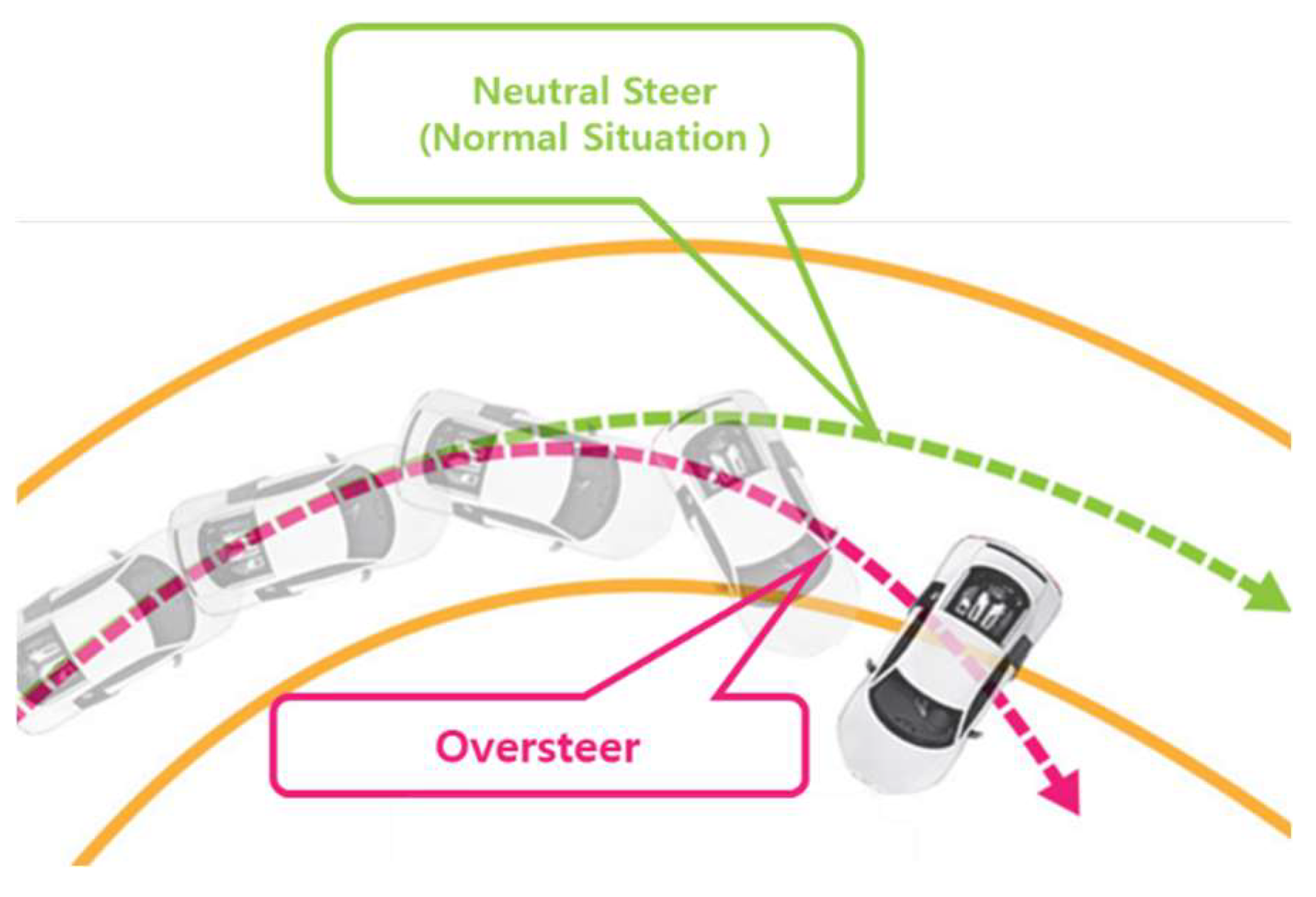

## 1. Introduction

## 2. Vehicle Dynamics Analysis

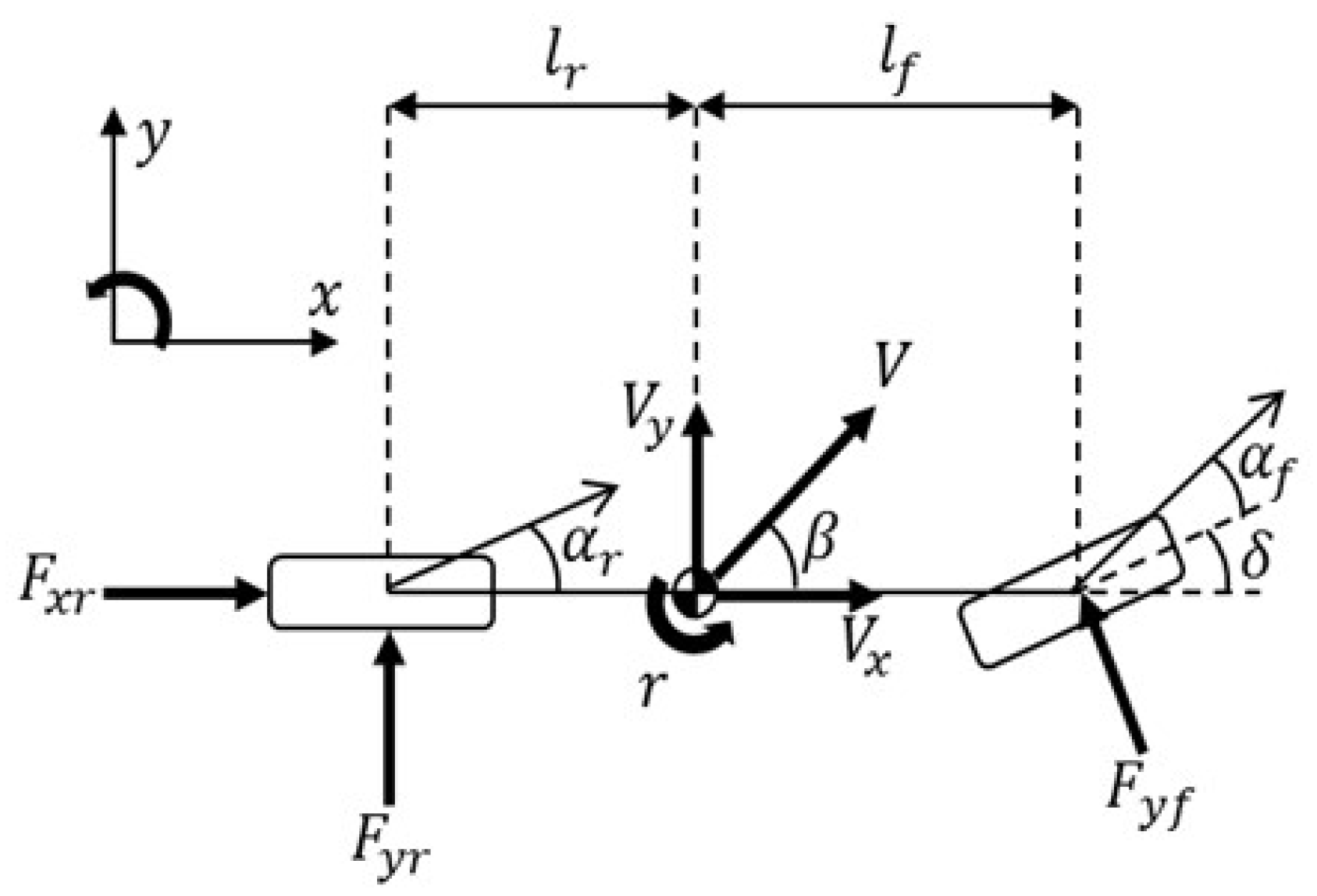

#### 2.1. Three-Degrees-of-Freedom Bicycle Model

#### 2.2. Brush Tire Model

#### 2.3. Drift Equilibrium State Analysis

## 3. Design of the Nonlinear Model Predictive Controller

#### 3.1. Vehicle State Prediction Model

#### 3.2. Nonlinear Model Predictive Controller Cost Function

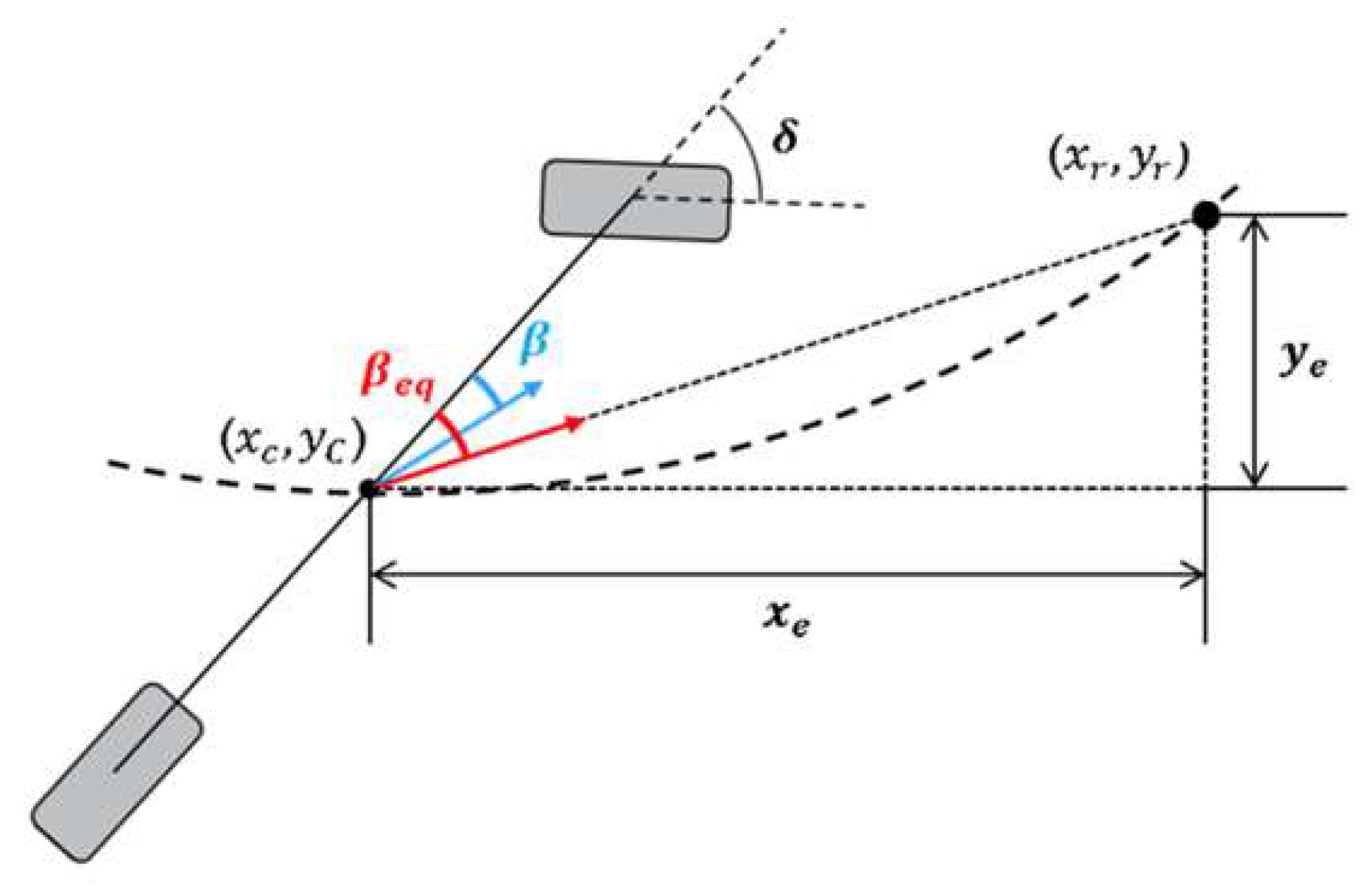

#### 3.3. Nonlinear Model Predictive Controller System for Drift Driving

## 4. Drift-Driving Test of the Nonlinear Model Predictive Controller

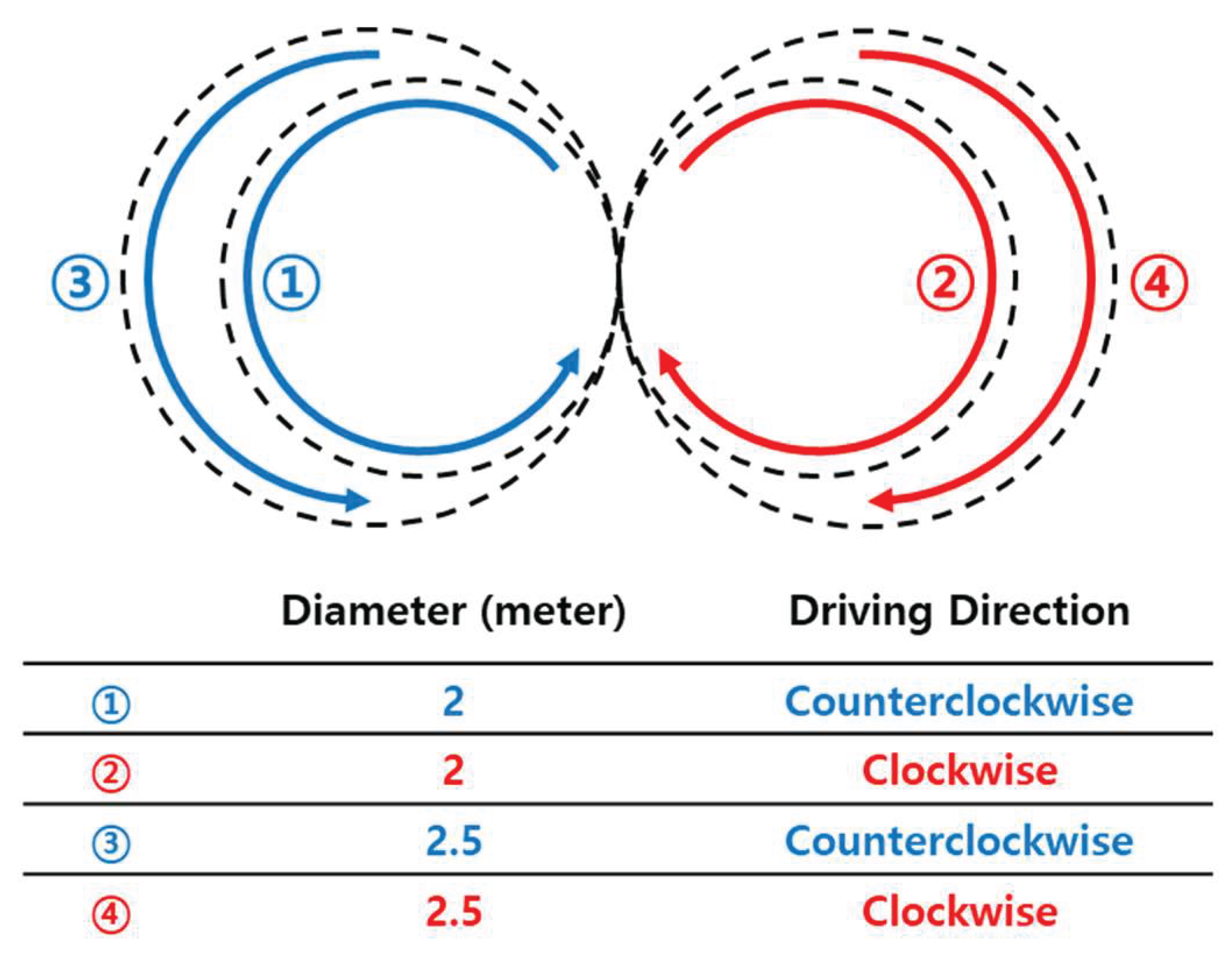

#### 4.1. Test Scenario

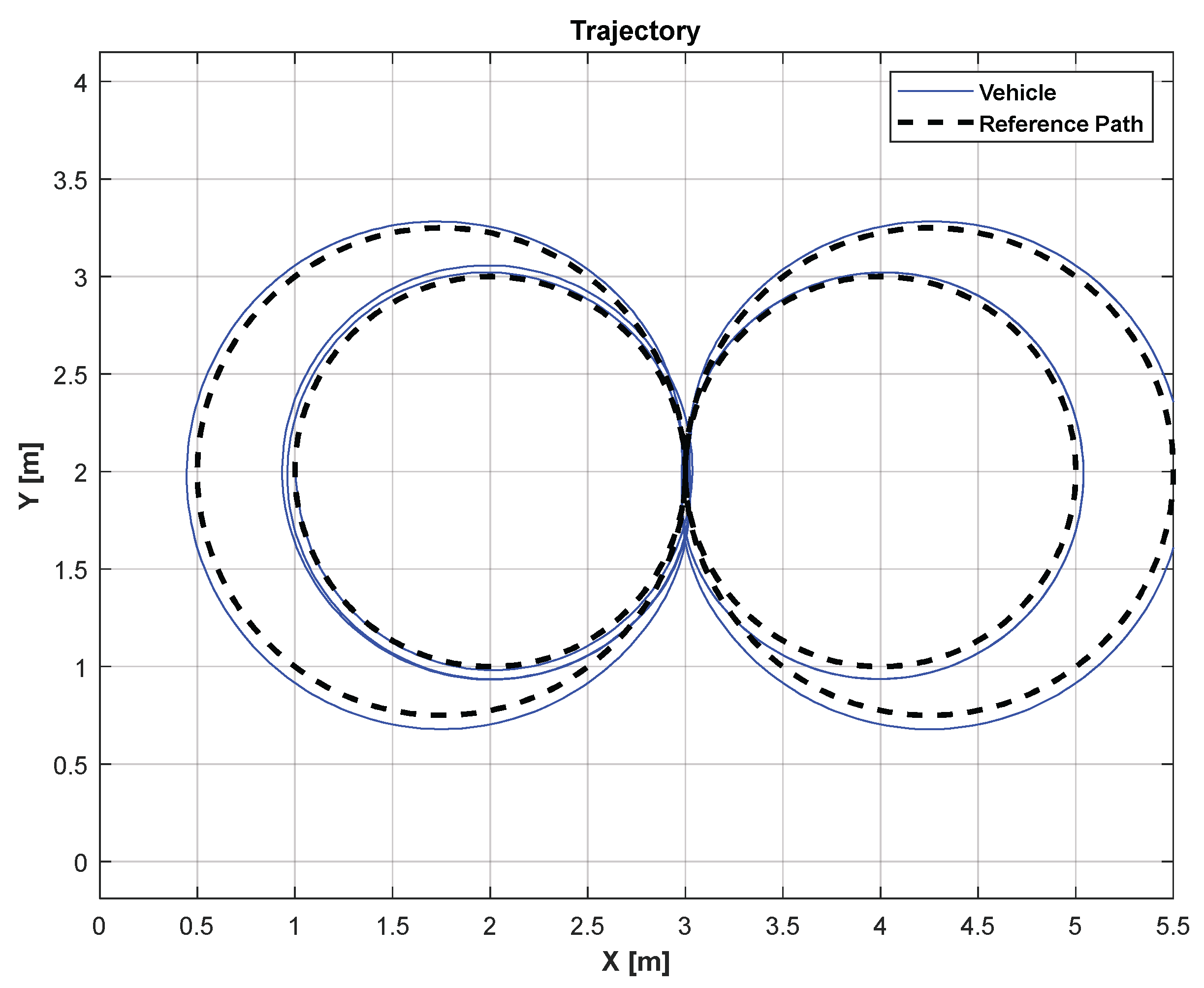

#### 4.2. Drift Test Results

## 5. Design of the Neural Network Drift Controller

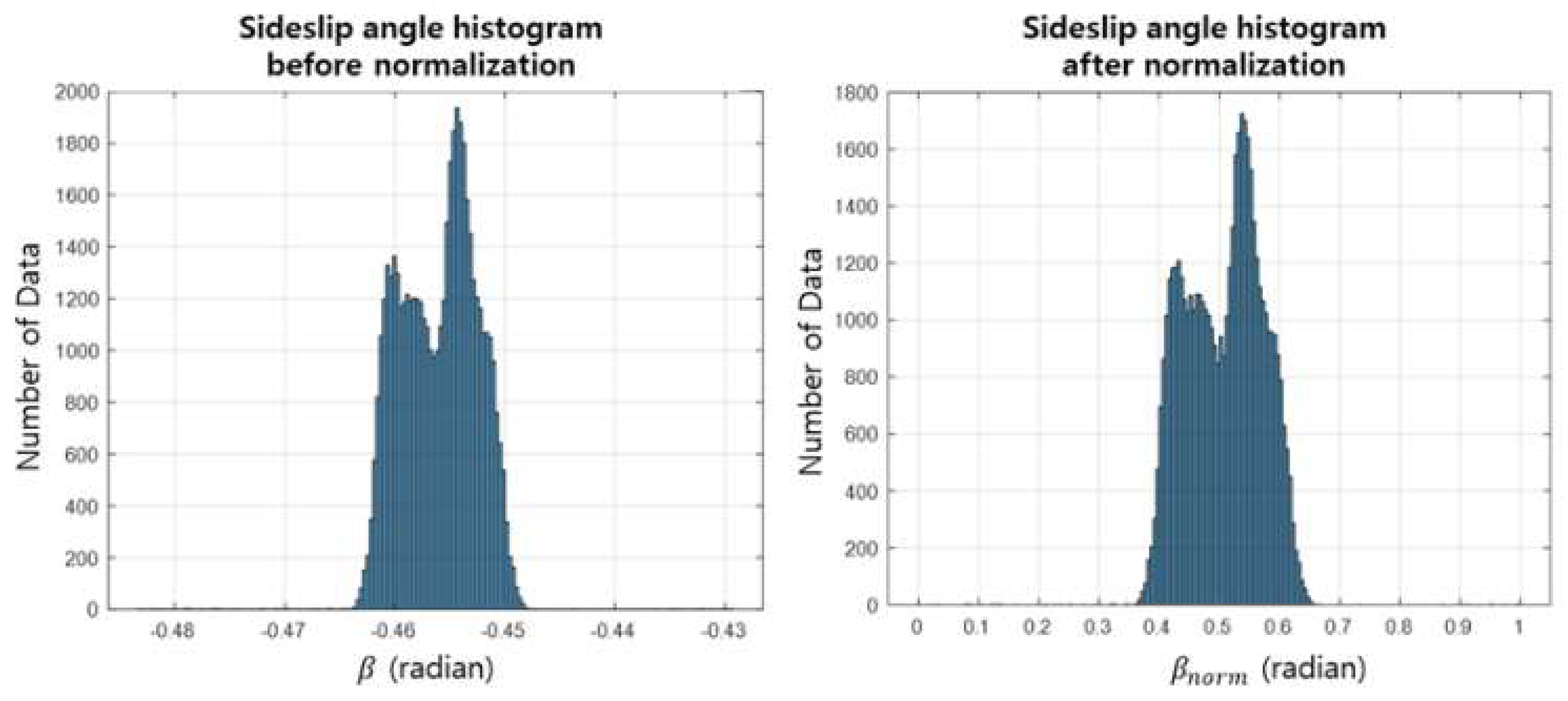

#### 5.1. Training Data Preprocess

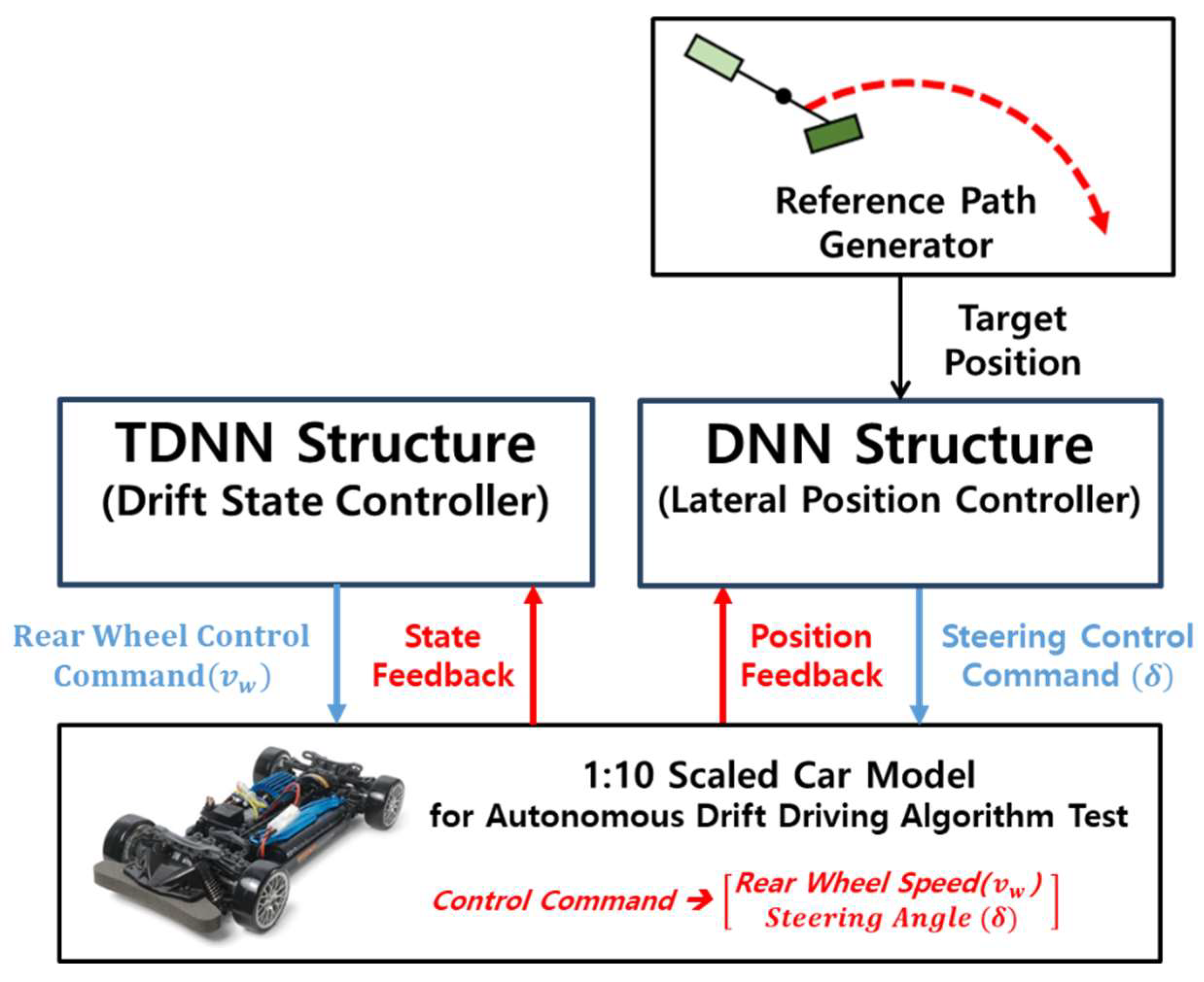

#### 5.2. Neural-Network-Based Controller Architecture

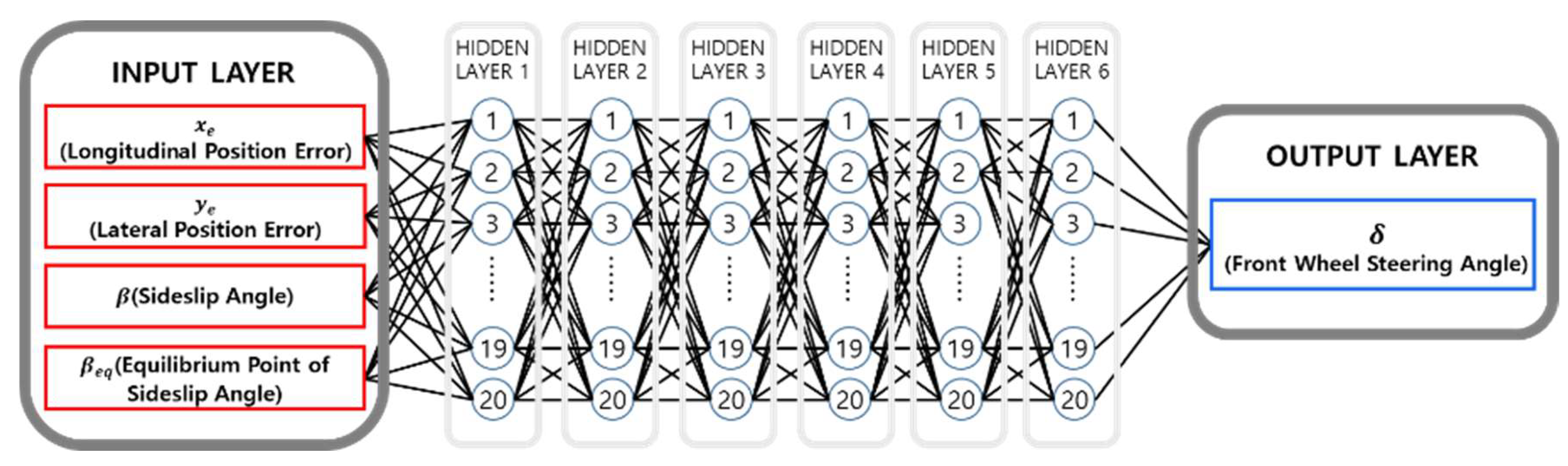

#### 5.2.1. Deep Neural-Network-Based Controller for Steering Control

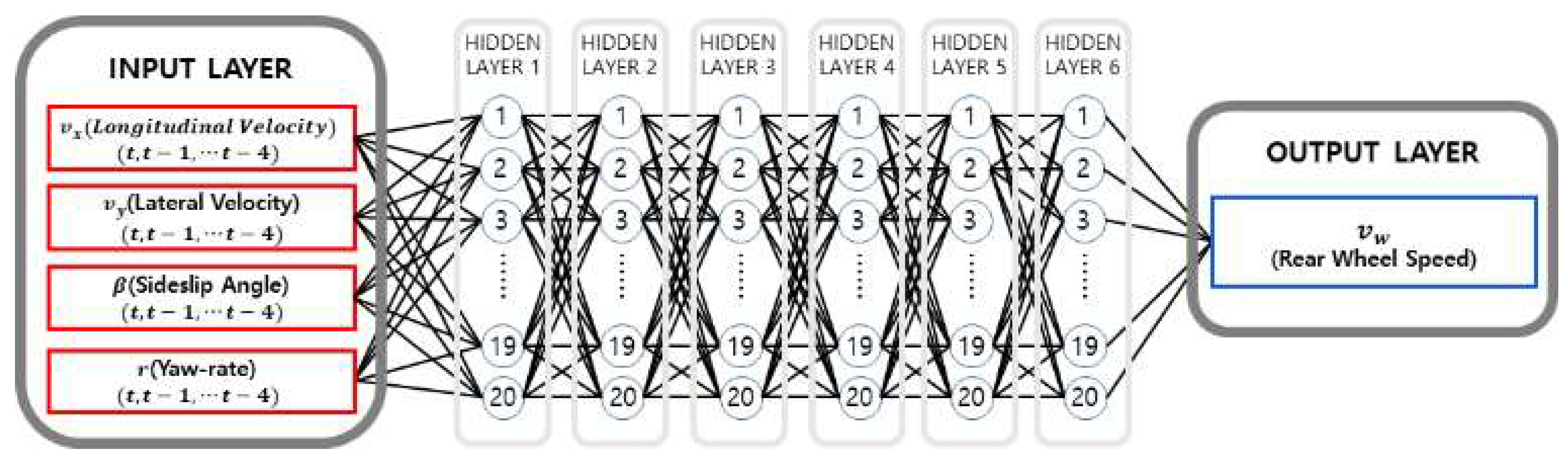

#### 5.2.2. Time Delay Neural-Network-Based Controller for Drift State Control

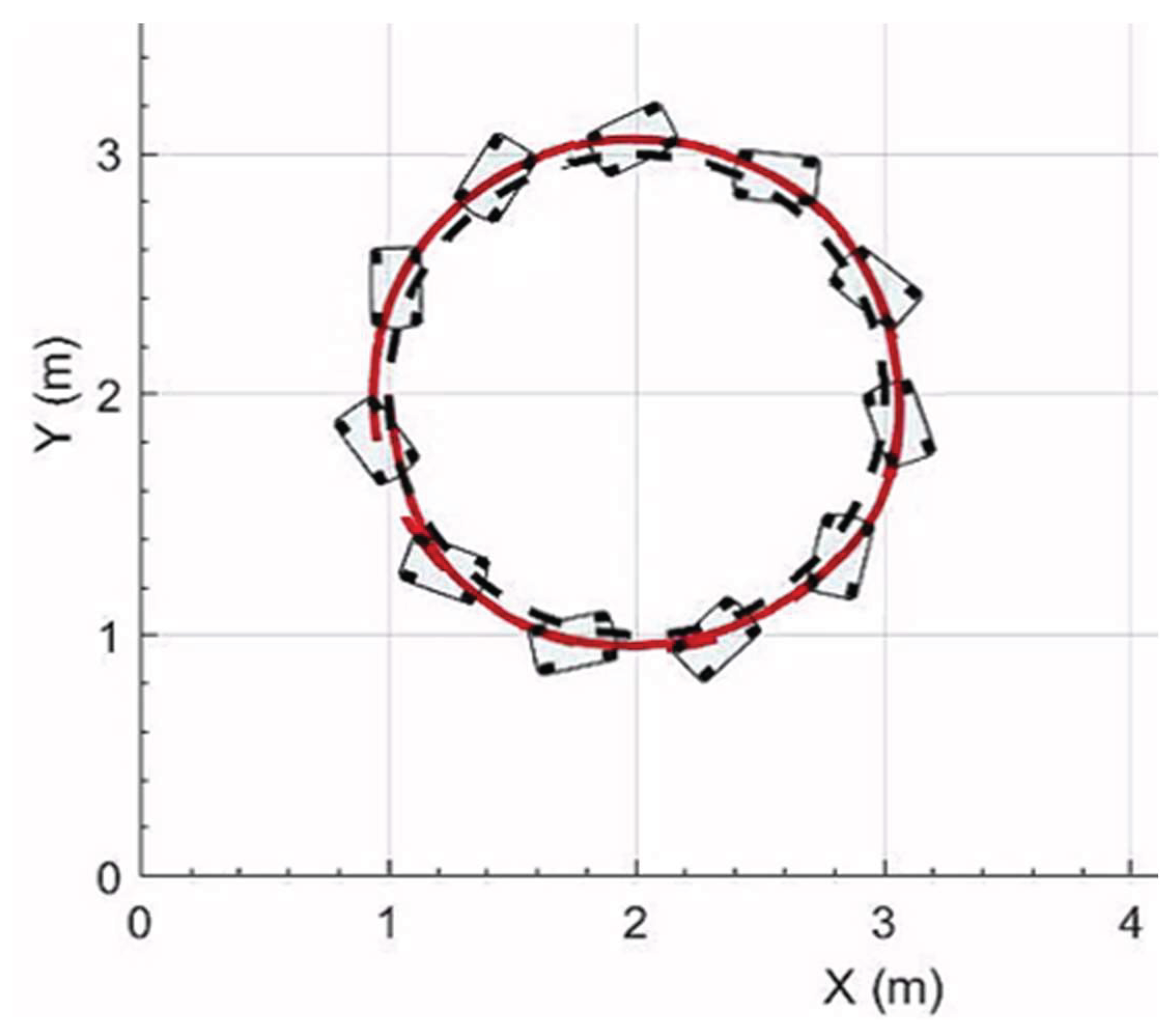

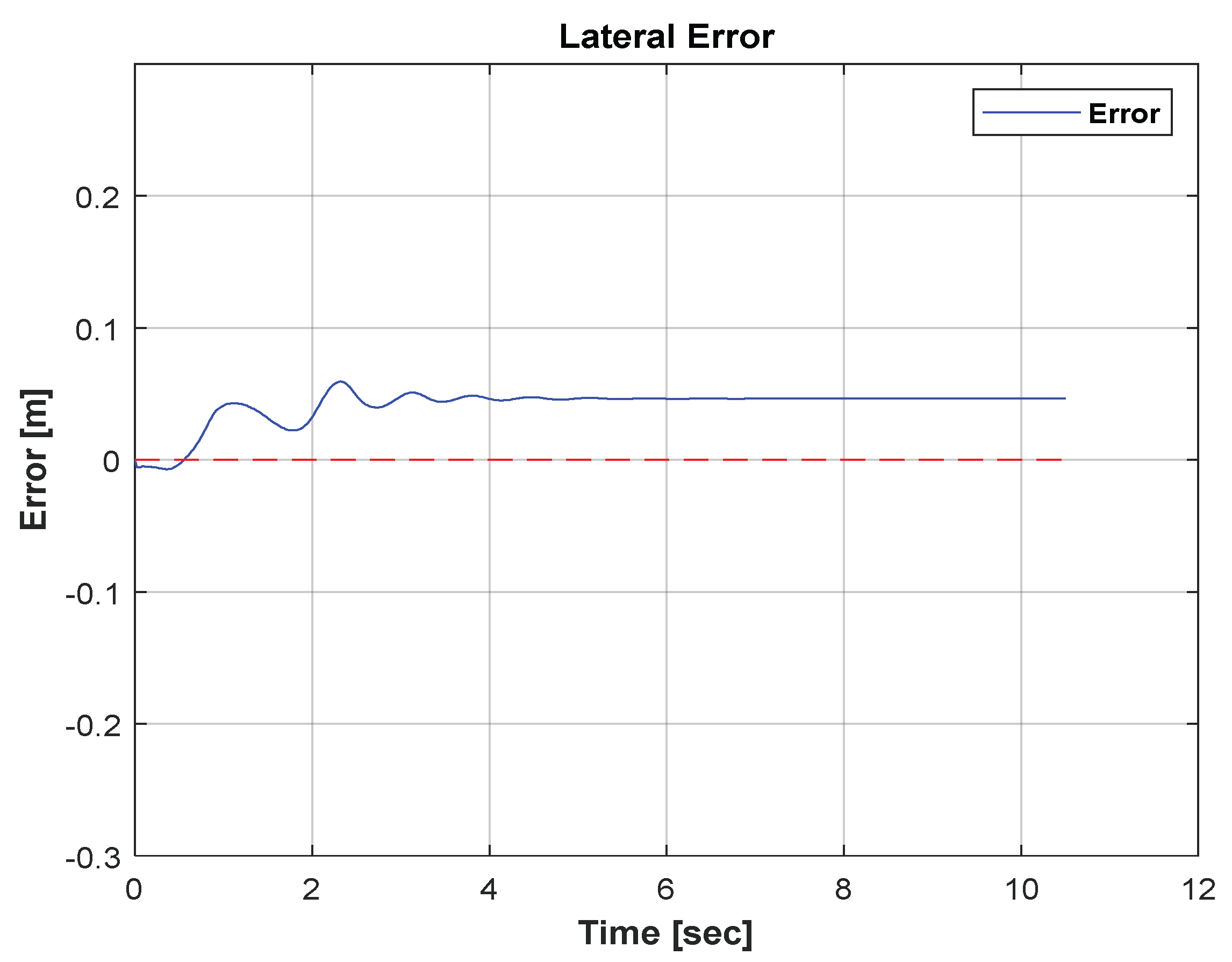

## 6. Simulation Results of the Neural Network Drift Controller

## 7. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Zhang, F.; Gonzales, J.; Li, S.E.; Borelli, F.; Li, K. Drift Control for Cornering Maneuver of Autonomous Vehicle. Mechatronics
**2018**, 54, 164–174. [Google Scholar] [CrossRef] - Hindiyeh, R.Y. Dynamics and Control of Drifting in Automobiles. Ph.D. Thesis, Department of Mechanical Engineering, Stanford University, Stanford, CA, USA, 2013. [Google Scholar]
- Goh, J.Y.; Goel, T.; Gerdes, J.C. Towards Automated Vehicle Control Beyond the Stability Limits: Drifting Along a General Path. J. Dyn. Syst. Meas. Control
**2020**, 142, 02004. [Google Scholar] [CrossRef] - Park, M.; Kang, Y. Experimental Verification of a Drift Controller for Autonomous Vehicle Tracking: A Circular Trajectory Using LQR Method. Int. J. Control Autom. Syst.
**2021**, 19, 404–416. [Google Scholar] [CrossRef] - Kim, M.; Lee, T.; Kang, Y. Experimental Verification of the Power Slide Driving Technique for Control Strategy of Autonomous Race Cars. Int. J. Precis. Eng. Manuf.
**2020**, 21, 377–386. [Google Scholar] [CrossRef] - Cai, P.; Mei, X.; Tai, L.; Sun, Y.; Liu, M. High-Speed Autonomous Drifting with Deep Reinforcement Learning. IEEE Robot. Autom. Lett.
**2020**, 5, 1247–1254. [Google Scholar] [CrossRef] - Guo, H.; Tan, Z.; Liu, J.; Chen, H. MPC-based Steady-state Drift Control under Extreme Condition. In Proceedings of the 33rd Chinese Control and Decision Conference (CCDC), Kunming, China, 22–24 May 2021; pp. 4708–4721. [Google Scholar]
- Xu, D.; Han, Y.; Ge, C.; Qu, L.; Zhang, R.; Wang, G. A Model Predictive Control Method for Vehicle Drifting Motions with Measurable Errors. World Electr. Veh. J.
**2022**, 13, 54. [Google Scholar] [CrossRef] - Hristozov, A. The Role of Artificial Intelligence in Autonomous Vehicles. Available online: https://www.embedded.com/the-role-of-artificial-intelligence-in-autonomous-vehicles/ (accessed on 15 July 2020).
- Hristozov, A. Artificial Intelligence Algorithms and Challenges for Autonomous Vehicles. Available online: https://www.embedded.com/artificial-intelligence-algorithms-and-challenges-for-autonomous-vehicles/ (accessed on 3 August 2020).
- Huang, M.; Gao, W.; Wang, Y.; Jiang, Z. Data-Driven Shared Steering Control of Semi-Autonomous Vehicles. IEEE Trans. Hum.-Mach. Syst.
**2019**, 49, 350–361. [Google Scholar] [CrossRef] - Zribi, A.; Chtourou, M.; Djemel, M. A New PID Neural Network Controller Design for Nonlinear Processes. J. Circuits Syst. Comput.
**2018**, 27, 1850065. [Google Scholar] [CrossRef] - Chertovskikh, P.; Seredkin, A.; Godyzov, O.; Styuf, A.; Pashkevich, M.; Tokarev, M. An Adaptive PID Controller with an Online Auto-tuning by a Pretrained Neural Network. J. Phys. Conf. Ser.
**2019**, 1359, 15–22. [Google Scholar] [CrossRef] - Yaadav, A.; Gaur, P. AI-based Adaptive Control and Design of Autopilot System for Nonlinear UAV. Indian Acad. Sci.
**2014**, 39, 765–783. [Google Scholar] [CrossRef] [Green Version] - Jhang, X.; Bujarbaruah, M.; Borrelli, F. Safe and Near-Optimal Policy Learning for Model Predictive Control Using Primal-Dual Neural Networks. In Proceedings of the IEEE American Control Conference (ACC), Philadelphia, PA, USA, 10–12 July 2019; pp. 354–359. [Google Scholar]
- Rankovic, V.; Radulovic, J.; Grufovic, N.; Divac, D. Neural Network Model Predictive Control of Nonlinear Systems Using Genetic Algorithms. Int. J. Comput. Commun. Control
**2012**, 7, 540–549. [Google Scholar] [CrossRef] - Shi, T.; Wang, P.; Chan, C.; Zou, C. A Data Driven Method of Optimizing Feedforward Compensator for Autonomous Vehicle. IEEE Intell. Veh. Symp.
**2019**, 1901, 2012–2017. [Google Scholar] - Vasikaninová, A.; Bakošová, M. Neural Network Predictive Control of a Chemical Reactor. Acta Chim. Slovaca
**2009**, 2, 21–36. [Google Scholar] - Zhang, Z.; Wu, Z.; Rincon, D.; Christofides, P. Real-Time Optimization and Control of Nonlinear Processes Using Machine Learning. Mathematics
**2019**, 7, 890. [Google Scholar] [CrossRef] - Wong, W.; Chee, E.; Li, J.; Wang, X. Recurrent Neural Network-Based Model Predictive Control for Continuous Pharmaceutical Manufacturing. Mathematics
**2018**, 6, 242. [Google Scholar] [CrossRef] - Ramdane, H. Adaptive Neural Network Model Predictive Control. Int. J. Innov. Comput. Inf. Control
**2013**, 9, 1245–1257. [Google Scholar] - Limon, D.; Calliess, J.; Maciejowski, J.M. Learning-based Nonlinear Model Predictive Control. IFAC-PapersOnLine
**2017**, 50, 7769–7776. [Google Scholar] [CrossRef] - Afram, A.; Sharifi, F.J.; Fung, A.S.; Raahemifar, K. Artificial Neural Network (ANN) Based Model Predictive Control (MPC) and Optimization of HVAC systems: A state of the Art Review and Case Study of a Residential HVAC System. Energy Build.
**2017**, 141, 96–113. [Google Scholar] [CrossRef] - Gonzalez, L.P.; Sanchez, S.S.; Guzuman, J.G.; Boada, M.J.L.; Boada, B.L. Simultaneous Estimation of Vehicle Roll and Sideslip Angles through a Deep Learning Approach. Sensors
**2020**, 20, 3679. [Google Scholar] [CrossRef] - Mohamed, I.; Rovetta, S.; Do, T.; Dragicević, T.; Diab, A. A Neural Network Based Model Predictive Control of Three-Phase Inverter with an Output LC Filter. IEEE Access
**2019**, 7, 124737–124749. [Google Scholar] [CrossRef] - Peng, H.; Song, N.; Li, F.; Tang, S. A Mechanistic-Based Data-Driven Approach for General Friction Modeling in Complex Mechanical System. ASME J. Appl. Mech.
**2022**, 89, 071005. [Google Scholar] [CrossRef] - Peng, H.; Song, N.; Kan, Z. Data-Driven Model Order Reduction with Proper Symplectic Decomposition for Flexible Multibody System. Nonlinear Dyn.
**2022**, 107, 173–203. [Google Scholar] [CrossRef] - Kang, B.; Lucia, S. Learning-based Approximation of Robust Nonlinear Predictive Control with State Estimation Applied to a Towing Kite. In Proceedings of the 18th European Control Conference (ECC), Naples, Italy, 25–28 June 2019; pp. 16–22. [Google Scholar]
- Lee, T.; Kang, Y. Performance Analysis of Deep Neural Network Controller for Autonomous Driving Learning from a Nonlinear Model Predictive Control Method. Electronics
**2021**, 10, 767. [Google Scholar] [CrossRef] - Winkler, D.A.; Le, T.C. Performance of Deep and Shallow Neural Networks, the Universal Approximation Theorem, Activity Cliffs, and QSAR. Mol. Inform.
**2017**, 36, 1–2. [Google Scholar] - Lucia, S.; Karg, B. A Deep Learning-based Approach to Robust Nonlinear Model Predictive Control. IFAC-PapersOnLine
**2018**, 51, 511–516. [Google Scholar] [CrossRef]

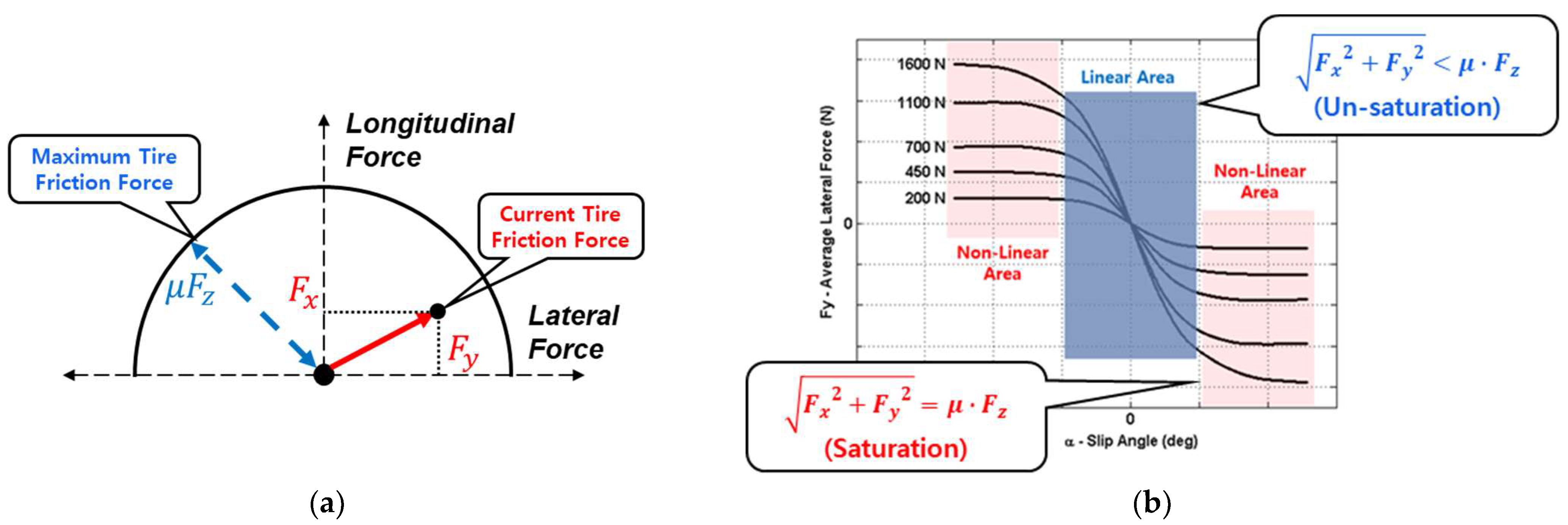

**Figure 4.**Saturation conditions of the brush tire model: (

**a**) longitudinal and lateral forces and (

**b**) slip VS tire force.

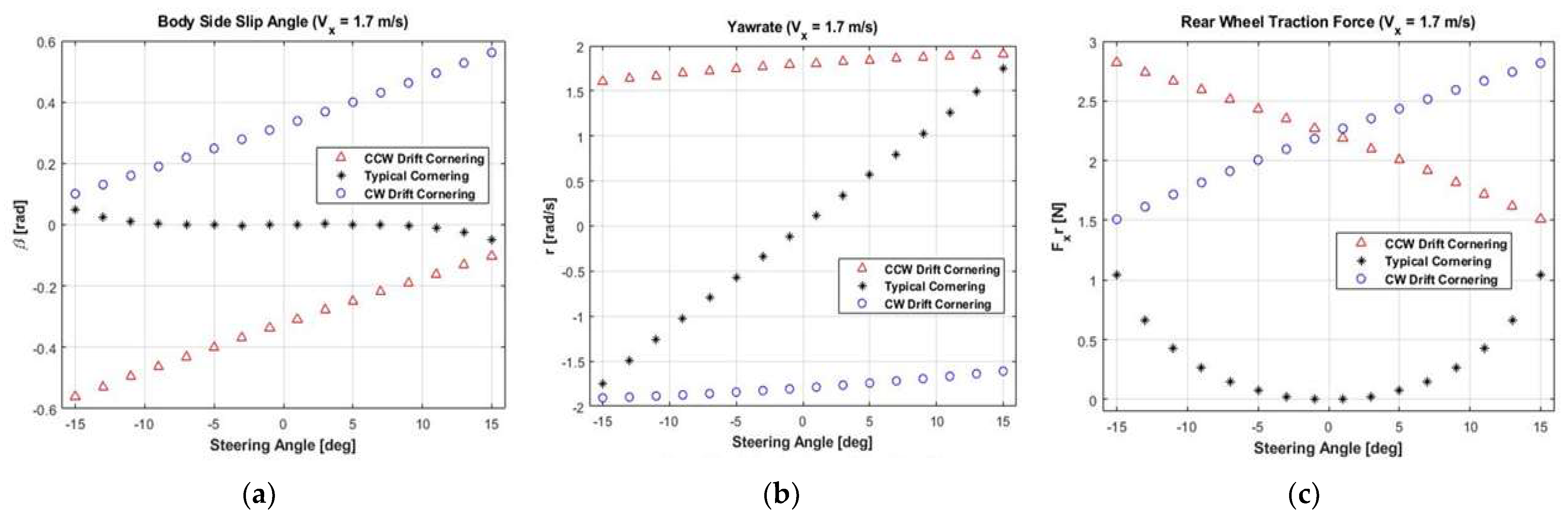

**Figure 5.**Equilibrium states of (

**a**) sideslip angle (β), (

**b**) yaw rate (r), and (

**c**) rear wheel force (${F}_{xr}$) at a vehicle speed of 1.7 m/s.

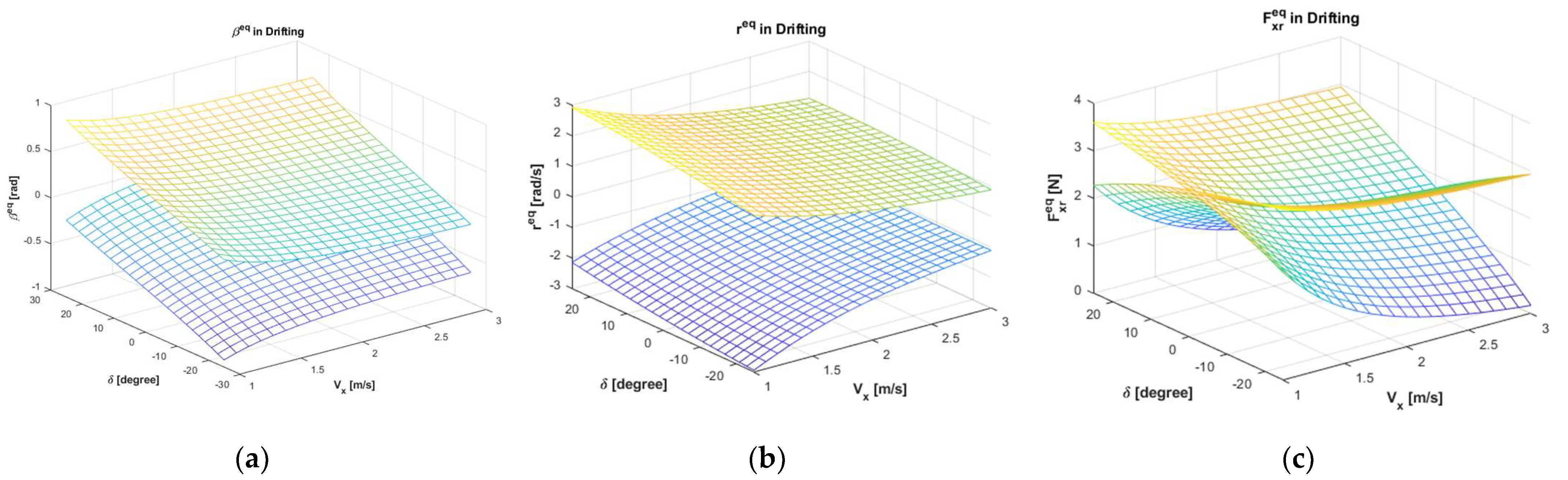

**Figure 7.**3D maps of the equilibrium states of the (

**a**) sideslip angle ($\beta $), (

**b**) yaw rate ($r$), and (

**c**) rear-wheel force (${F}_{xr}$).

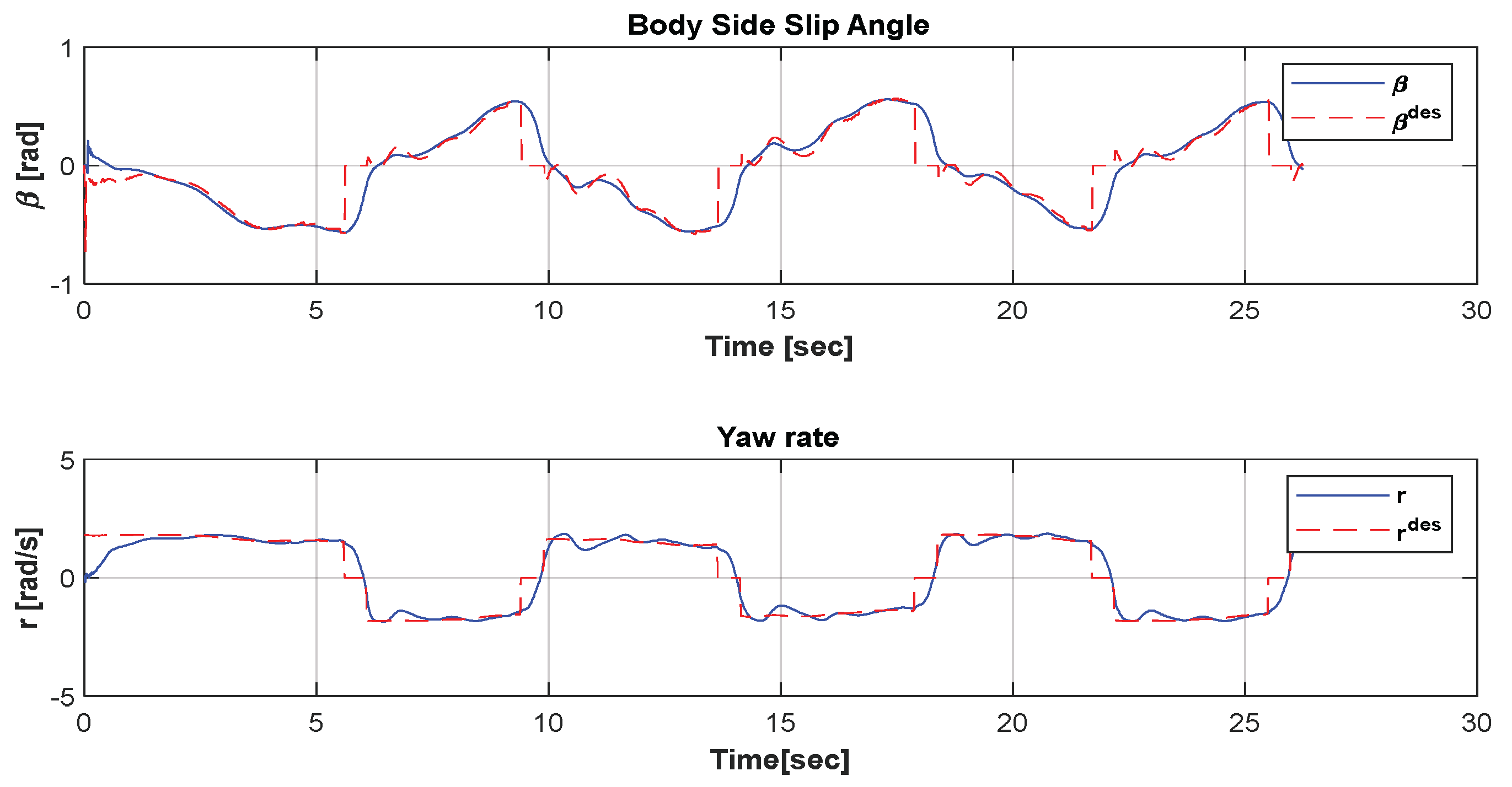

**Figure 10.**Sideslip angle ($\beta $) and yaw rate ($r$) of the vehicle during the drift maneuver. The dotted red lines and solid blue lines trace the control-target point of the drift control and the vehicle state, respectively.

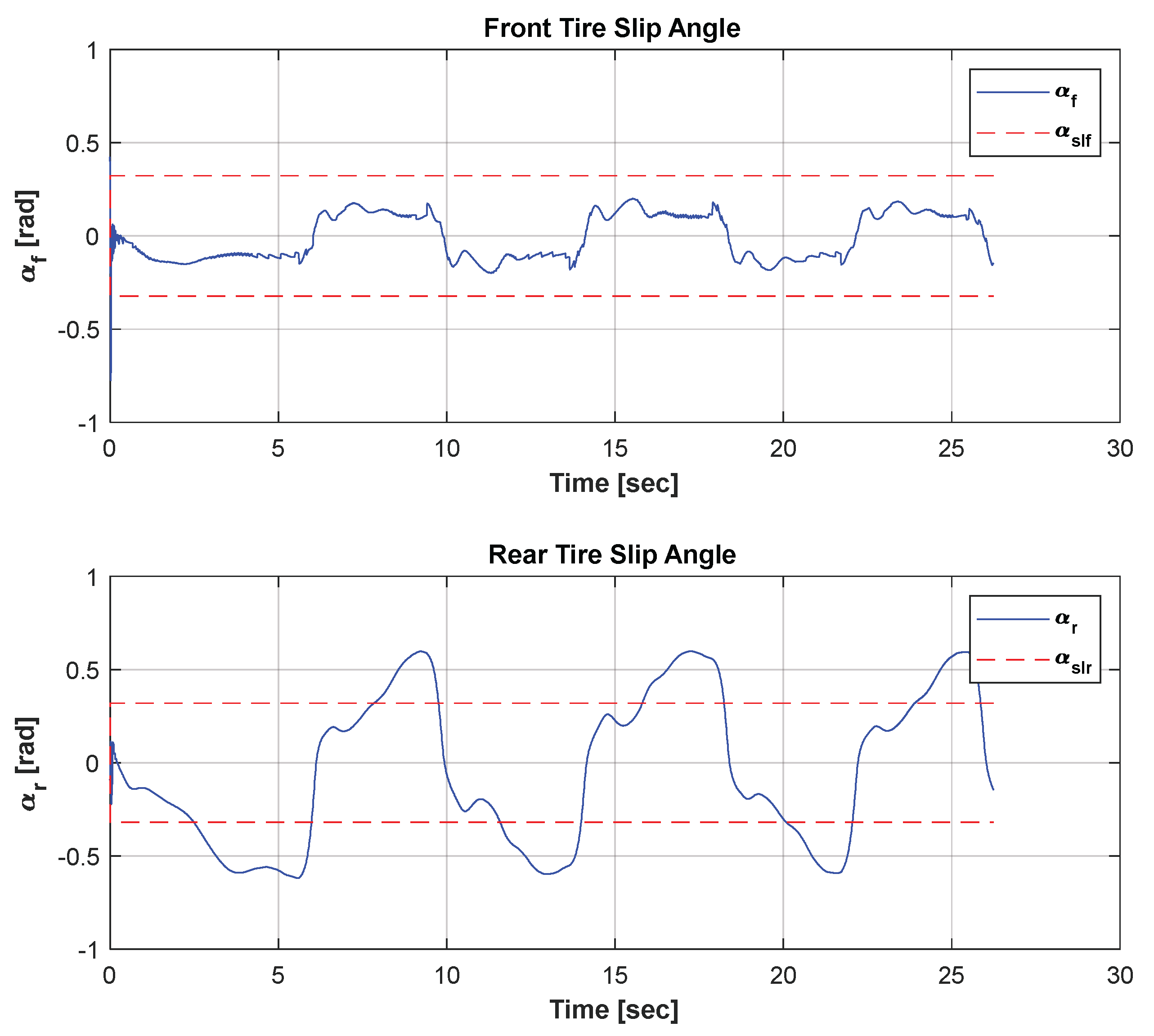

**Figure 11.**Front and rear tire slip angles of the vehicle during the drift maneuver. The solid blue curves in the upper and lower panels represent the front and rear tire slip angles of the vehicle, respectively, and the dotted red lines show the upper and lower saturation limits of the tires.

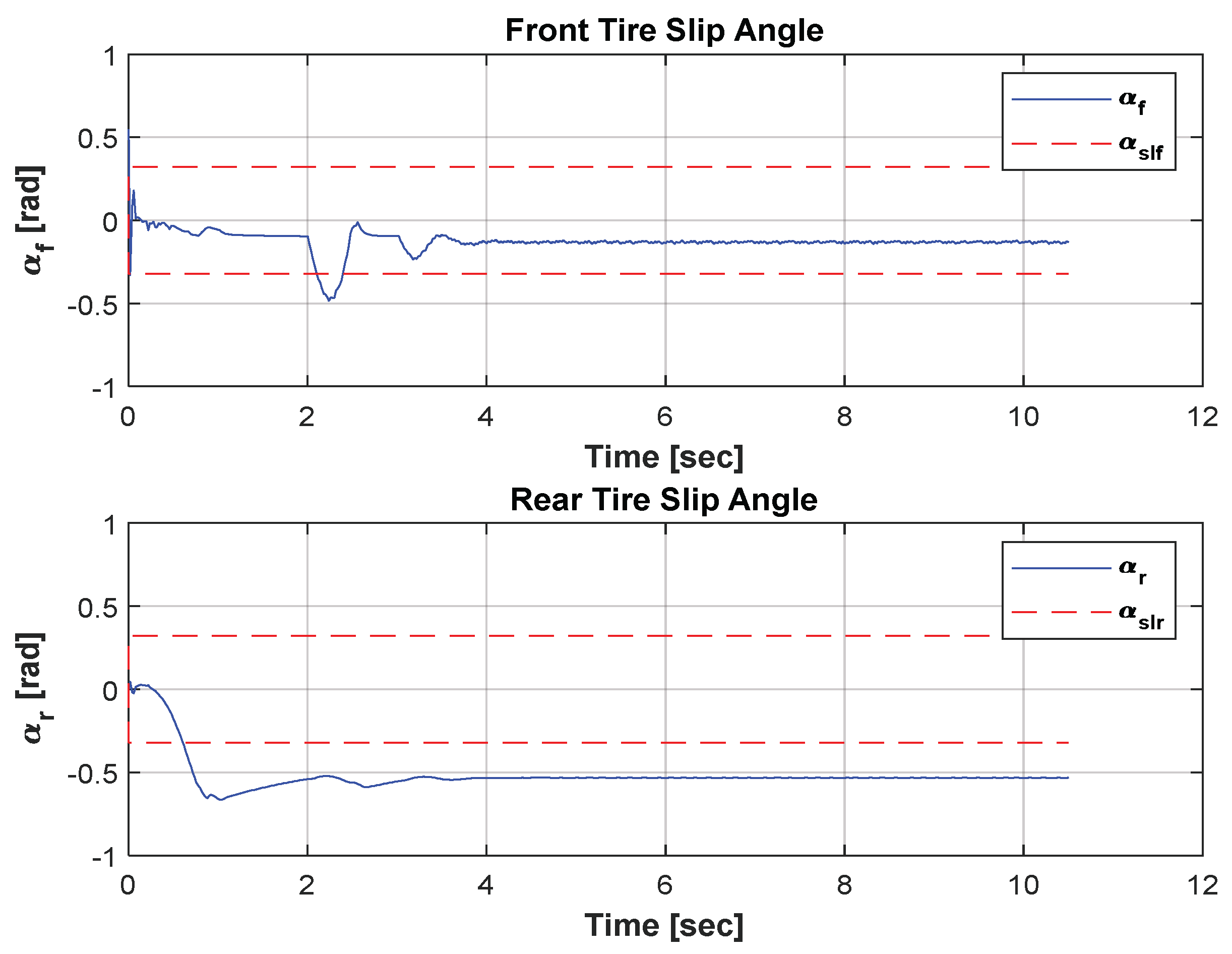

**Figure 17.**Front and rear tire slip angles during the drift maneuver. The solid blue lines in the upper and lower panels present the slip angles of the front and rear wheels, respectively, and the dotted red line shows the tire saturation threshold.

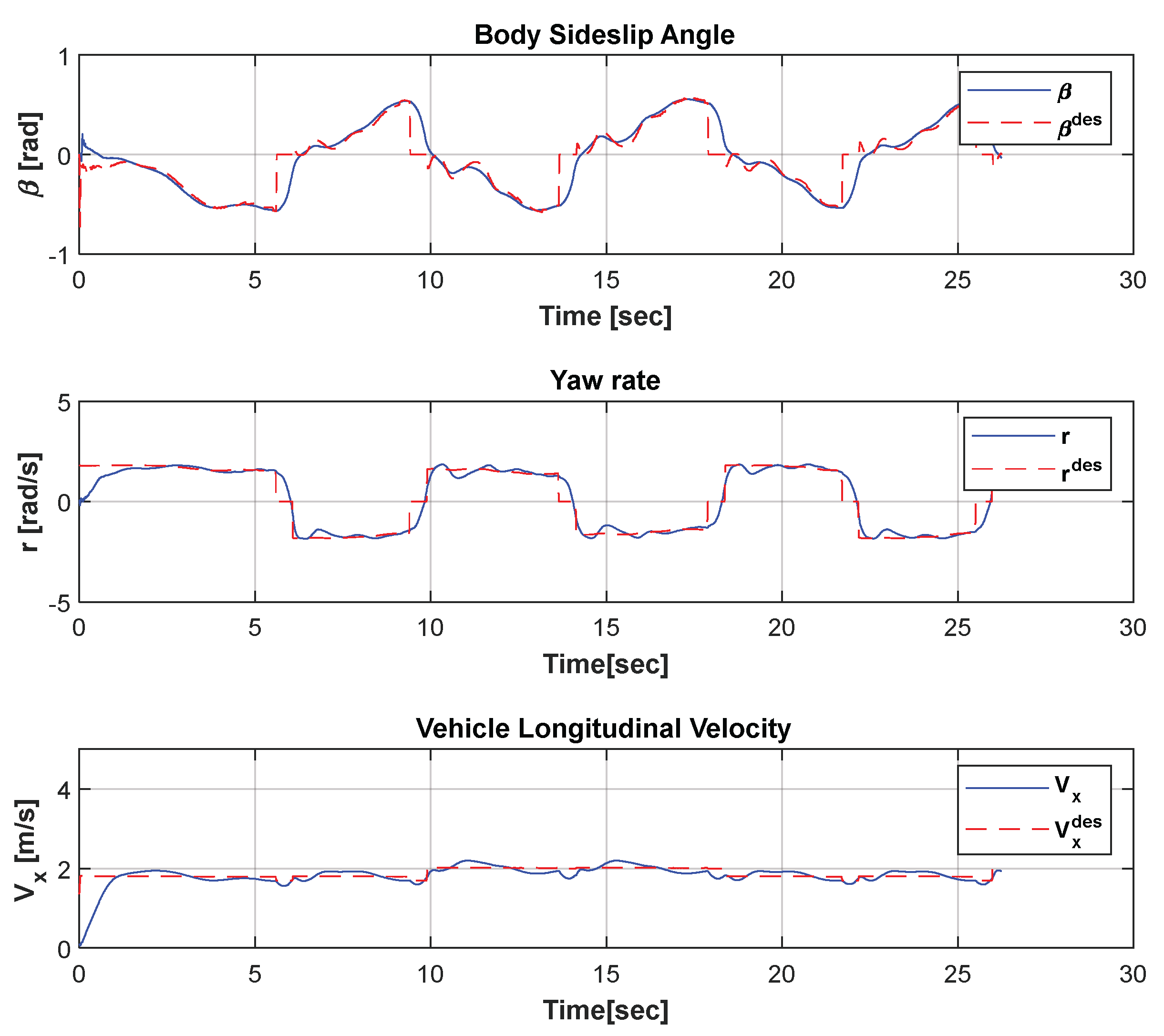

**Figure 18.**Vehicle states during a drift maneuver (solid blue lines). The desired equilibrium points (dotted red lines) are plotted for reference.

Symbol | Meaning | Unit |
---|---|---|

${F}_{yf}$ | Front tire lateral force | N |

${F}_{yr}$ | Rear tire lateral force | N |

$v$ | Vehicle velocity | m/s |

${v}_{w}$ | Rear-wheel velocity | m/s |

${v}_{x}$ | Longitudinal velocity | m/s |

$\mathsf{\alpha}$ | Tire slip angle | rad |

${\alpha}_{f}$ | Front tire slip angle | rad |

${\alpha}_{r}$ | Rear tire slip angle | rad |

$\mu $ | Friction coefficient | - |

${\mu}_{s}$ | Friction coefficient of tire skids | - |

$r$ | Yaw rate | rad/s |

$\delta $ | Steering angle | rad |

$\beta $ | Sideslip angle | rad |

$m$ | Vehicle mass | kg |

${l}_{f}$ | Distance from the center of gravity (CG) to the front axle | M |

${l}_{r}$ | Distance from CG to the rear axle | M |

${I}_{zz}$ | Yaw moment of inertia | N·m/rad^{2} |

${C}_{xr}$ | Rear tire longitudinal slip angle | - |

$\kappa $ | Tire slip ratio | - |

Mean and Standard Deviation | Normalization Variables | ||||
---|---|---|---|---|---|

$\mathit{\mu}$ | $\mathit{\sigma}$ | Min | Max | ||

Input Data | ${x}_{e}$* | −0.0307 | 0.1819 | −0.2697 | 0.2674 |

$y$^{†} | 0.0080 | 0.2070 | −0.2688 | 0.2695 | |

$\beta $ | −0.4278 | 0.1314 | −0.5625 | −0.3534 | |

${\beta}_{eq}$^{o} | −0.4969 | 0.1213 | −0.6379 | −0.2630 | |

Output Data | $\delta $ | −0.1742 | 0.1216 | −0.3876 | 0.0651 |

^{†}Lateral position error with respect to the reference point;

^{o}Sideslip angle equilibrium point.

Mean and Standard Deviation | Normalization Variables | ||||
---|---|---|---|---|---|

$\mathit{\mu}$ | $\mathit{\sigma}$ | Min | Max | ||

Input Data | ${v}_{x}$ | −0.0307 | 0.1819 | −0.2697 | 0.2674 |

${v}_{y}$ | 0.0080 | 0.2070 | −0.2688 | 0.2695 | |

$\beta $ | −0.4278 | 0.1314 | −0.5625 | −0.3534 | |

$r$ | −0.4969 | 0.1213 | 0.6379 | 0.2630 | |

Output Data | ${v}_{w}$ * | −0.1742 | 0.1216 | −0.3876 | 0.0651 |
