1. Introduction
In critical infrastructures that supply crucial services such as water, electricity, or communications, industrial control systems (ICSs) are at the heart of the operation. ICSs provide the foundational services for monitoring and controlling industrial operations. The monitoring section uses sensors to collect data, keep track of the processes, and ensure that they run properly [
1]. On the one hand, the monitoring section oversees operations and ensures that they run correctly. On the other hand, the controlling portion manages the processes and makes decisions that cause actions to be carried out by actuators. If this workflow is disrupted as a result of technological difficulties or cyberattacks, many citizens may be adversely affected, for example, as a result of interruptions in electrical power or communications [
2].
Information technology stacks (ITS) and remote connections are commonly used to link ICS components. An increase in the likelihood of deliberate assaults on physical plants might result from reliance on communication networks to transmit measurements. Authentication, data encryption, and message integrity procedures are just a few methods for keeping network traffic safe. Despite this, these solutions cannot defend all layers of an ICS network from all types of invasions of privacy [
3].
Operational technology (OT) processes, which are critical components of infrastructure, are routinely targeted by criminal organizations. In the past, OT and information technology (IT) networks were kept separate or “air-gapped” from one another [
4]. However, due to increased efficiency gained via digitalization, new business requirements are emerging, increasing the time and money spent on digitalization. However, due to digitalization’s increased efficiency, new business requirements are emerging, increasing the number of organizations using the technology [
5]. Over the Internet of Things (IoT), sensor and actuator data, and multimedia data such as images and videos, are transmitted. It is vital to put security measures in place to protect against malicious behavior and cyber risks. On the one hand, cybersecurity approaches, which are critical to the long-term health of supply chains, are required to ensure the safety of workers and commodities and to protect information passing via their networks, among other things. On the other hand, a cyberattack on an ICS might result in a malfunction, which could cause physical harm to other physical components or even humans [
6]. A cyberattack may result in the theft of confidential information about a company’s business activities; it may also have the unintended consequence of decreasing the degree of competitiveness of the industry in the long term. The percentage of malware threats to ICSs over the last four years is presented in

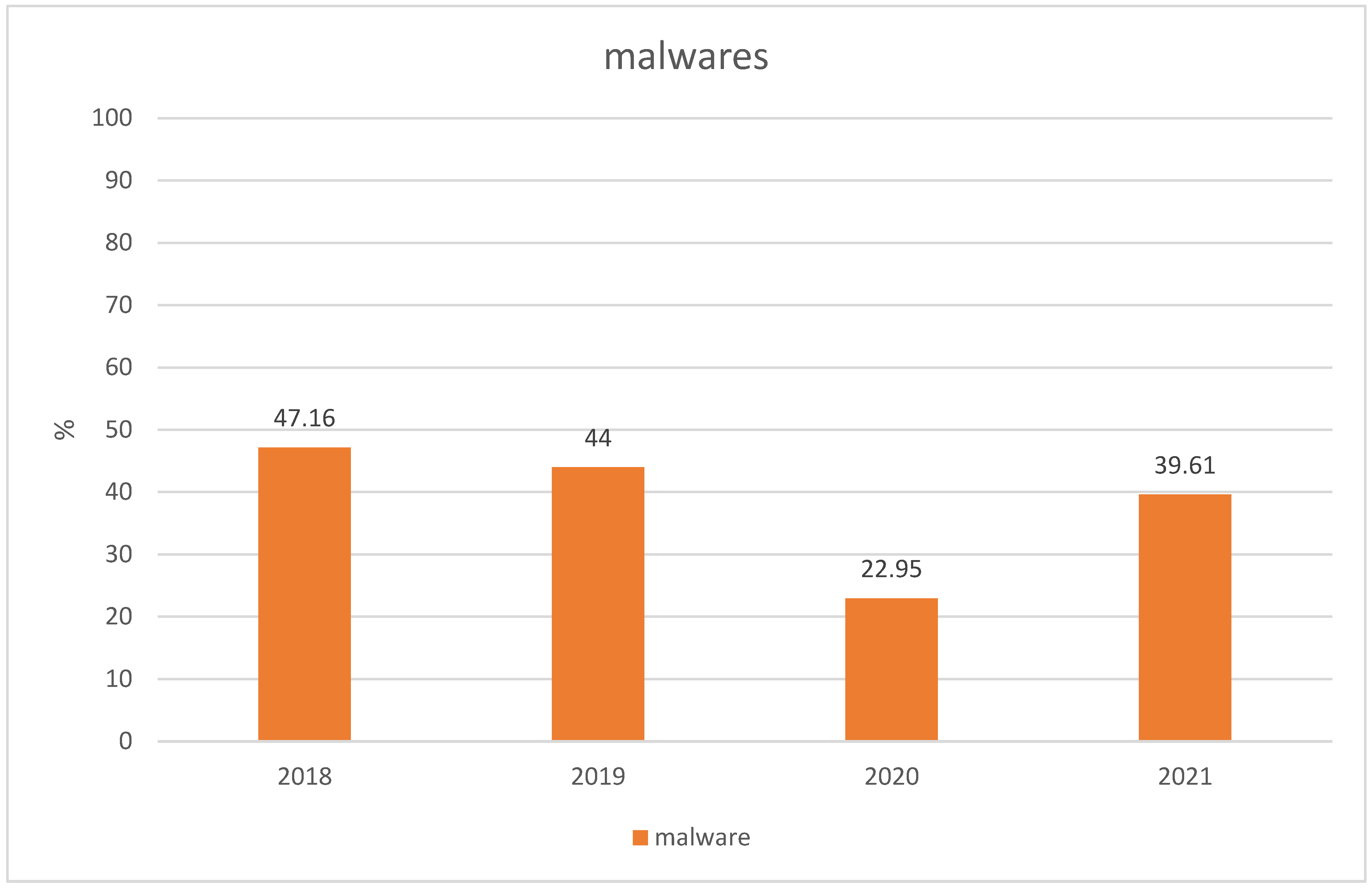

Figure 1.
An intrusion detection system (IDS) is one method of dealing with this problem. The detection methodologies used by signature-based and anomaly-based IDSs are distinct [
7]. The signature-based technique instructs the system to seek specific anomalies. In contrast, the anomaly-based strategy instructs the system to look for any deviation from a previously defined standard of behavior. Most of the time, an IDS examines the network traffic of an ICS to detect irregularities in the incoming data packets. It is possible to safeguard a network from unwanted infiltration attempts by implementing a network intrusion detection system (NIDS), also known as packet filtering. The NIDS model utilized in various studies [
8,
9,
10,
11,
12] was developed using machine learning approaches to detect network traffic intrusions. Because of its capacity to identify and quantify attacks in the network flow, even if its performance against encrypted data packets, fake IP packets, and regular false-positive alerts are not guaranteed, it is becoming increasingly popular.
Anomaly detection in industrial control systems (MADICSs) is a comprehensive technique for identifying abnormalities in ICSS and is presented as a solution. To detect cyber risks in ICSS, MADICSs seeks to provide a consistent and unified approach for comparing data, which any researcher can utilize to compare data from different sources. Although these processes are based on a standard machine learning/deep learning methodology [
13,
14], they have been tailored for industrial settings. They can deal with the unique challenges of these types of scenarios. The statistically significant relationship between the characteristics of an ICS and the repetitiveness of its actions is one of the peculiarities that distinguishes it from other scenarios, such as 5G networks [
15] or clinical information systems [
16]. The primary contributions of the proposed research are as follows:
The development of an intelligence system based on machine learning and deep learning approaches to detect serious attacks on ICSs.
The use of a sensitive analysis to find the critical patterns in an entire dataset.
The primary motivation for the research was to compare the results of the proposed system with existing systems for this dataset. We concluded that the proposed system achieved a high level of accuracy.
The primary goal is the development of a mechanism for detecting anomalies to protect ICSs from any cybersecurity threat to food security.
The remainder of this paper is arranged as follows: In
Section 2, we provide the background for the study; in
Section 3, we explain the methods of data collection; in
Section 4, we describe the analytical findings of the proposed system for detecting ICS attacks; in
Section 5 we discuss the results as well as a comparison with existing ICS systems; in
Section 6, we present the conclusions of the proposed research.
2. Background Studies
Previous research has focused on detecting cyberattacks on ICSs, which has resulted in several publications. An IDS based on rules and deterministic finite automata (DFA) are two examples of this system. The majority of current research has focused on developing new approaches that have taken advantage of cutting-edge technologies, such as big data and machine learning/deep learning. A growing number of machine learning (ML) and deep learning (DL) approaches are being used to detect cyberattacks in the industrial sector. The most significant publications on ML and DL anomaly detection in industrial contexts are evaluated here [
16].
Many academic ICSs use publicly available datasets to investigate ML algorithms, which is becoming increasingly common. The following are some of the drawbacks of the public database system in use today. The architecture proposed is limited to materials based on the Modbus/TCP protocol suite [
17]. There was very little data acquired during online testing activities by [
18], and only multi-ML algorithms were developed due to those activities. A similar issue existed in [
19], where the database used was outdated and did not represent current threats. In contrast, the dataset in [
20] was small (around 1000 occurrences) and was restricted to a single cyberattack. According to another report, the database was out of date and the assaults were linked to the field of IT [
21]. The Singapore University of Technology developed a water treatment testbed that included supervisory control and data acquisition (SCADA) network traffic and assault scenarios for use in water treatment [
22]. To train and test ML systems, real-time datasets, including common cyberattacks and 35 different types of cyberattacks, have recently been generated for training and testing ML systems. The only strategies that have been used to compare the performances of different algorithms are supervised ML techniques. The results have shown that algorithms have a considerable probability of false detection, which is supported by the literature. The performance of ML algorithms on a public dataset may result in a decent output depending on the dataset [
23]. However, the payload/data frame is controlled using dataset labels, and the assaults are manually randomized and parameterized to imitate the operational/attack situation [
24].
Many DL and ML approaches have been reported in the literature, in addition to convolution neural network and long short-term memory (CNN-LSTM) networks. According to [
25], unsupervised ML may be used to identify irregularities in cyber-physical systems (CPS). Among 23 methods, they tested deep neural networks (DNNs) and support vector machine (SVM) techniques, which were both designed specifically to work with time-series data. They used the test dataset’s mean and standard deviation to scale the dataset to a new size. Autoencoders (AE) and 1D convolutional neural networks (CNN) were proposed in [
26] as a DL approach for identifying ICS anomalies. Additionally, the authors recommended filtering features to choose those most suited for anomaly detection from among the DL models they presented. They developed a feature extraction method that used the discrete Fourier transform (DFT) to compute features in the frequency domain. When utilizing DFT to extract features, important information from the remaining signal was lost instead of using only the highest energy bands. In addition, they used a threshold for anomaly detection based on the test dataset’s mean and standard deviation. Unsupervised anomaly detection was presented by the authors of [
27] that focused on large-scale and real-time data processing. The three pillars of this strategy were update triggers, tree growth, and mass weighting methods. Thanks to this combination, random trees could be generated and updated in real time. They described the use of clustering analysis to reveal the dataset’s underlying patterns for another unsupervised anomaly detection. Next, the researchers used cluster intra-distances and inter-distances to extract features from the clusters [
28]. Finally, an inference method was used to determine whether an irregularity was sparked. The authors in [
29] devised an unsupervised learning technique based on stacked denoising autoencoders. Because the original network stream was used in their solution, it did not require any special skills.
Furthermore, several surveys on IDSs have been conducted on IoT networks and their lightweight devices. Nevertheless, the majority of these surveys did not address the deployment of ML or DL approaches as detection mechanisms in IoT networks and their networks in any depth. In several recent studies, it was observed that the emphasis was on studying IoT security difficulties in general and categorizing them into multiple layers related to applications, network security, encryption, authentication, and access controls [
30,
31,
32,
33,
34,
35]. There is still more work to be done in ML and deep learning-based techniques for intrusion detection systems in IoT networks, which is the primary emphasis of this study.
4. Experimental Analysis
In this section, we apply ML and DL algorithms to detect ICS cyberattacks. The effectiveness of each algorithm was tested using a well-known ICS IDS dataset. The questions for the proposed research are as follows:
How can ML and DL algorithms detect anomalies in an ICSs environment?
What are the appropriate algorithms for detecting ICSs attacks?
How can the developed, robustness, and efficiency models protect the ICSs system?
4.1. Splitting the Data
A validation method is essential for evaluating a system. In this study, we divided the data into training and testing the proposed system.
Table 4 shows the split ICS dataset from artificial intelligence algorithms detecting intrusion.
4.2. Experimental Environments
The proposed system was developed in a specific hardware and software environment because we knew the network data were very complex. The platform used to detect intrusion in Android applications is presented in
Table 5.
4.3. Performance Measurements
In order to evaluate the high performance of the ICS security system, evaluation metrics were proposed such as mean square error (MSE), the Pearson’s correlation coefficient (R), the root-mean-square error (RMSE), accuracy, precision, recall and F1 score,
where, the confusion metrics of ICS system such as true positive (TP), true negative (TN), false positive (FP), and false negative (FN) are used as parameters for examining the model, where
is ICSs input data and
is output of the developing ICS system.
4.4. Results
In this section, we present the results of the ML and DL approaches. The proposed system was tested in two stages: binary classification (normal and attacks) and multiclass classification in four classes (MITM attack, Telnet attack, Web-server access attack, and normal). The system was tested using real ICS network datasets, including different types of attacks.
4.4.1. Binary Classification Results
The proposed ML and DL algorithms were applied to test their effectiveness in binary classification. We classified the datasets as normal or attacks. ML algorithms, such as KNN, DT, and logistic function, were considered for classifying ICS attacks.
Table 6 shows the results of these algorithms for detecting ICS attacks. Based on the empirical results, most of the algorithms achieved superior accuracy, but the KNN and DT algorithms both achieved an accuracy of 100%.
The confusion matrix of the ML logistic regression, KNN, linear discriminant, and DT approaches are shown in
Figure 7. The matrix reports the results of this algorithm using different metrics, such as false negatives, true positives, and true negatives. The binary classification is either normal or attacks (0, 1). The logistic regression results were 62.94%, classified as TP, where the TN was 36.18%, and the false-positive was 0.85%. The KNN and DT approaches showed the correct classification of 36.18 classified as TN and 63.80 classified as TP. The linear discriminant was 0.64% FP, 36% normal, and 63.15% attacks.
Table 7 shows the results of the DL CNN-LSTM model for detecting and classifying ICS attacks using the binary dataset. The DL approach achieved an accuracy of 98.89%.
The performance of the CNN-LSTM model for predicting ICS attacks using binary classification is shown in
Figure 8. The accuracy of the CNN-LSTM model in the training process was 99%, whereas the performance of the CNN-LSTM model for detecting ICS attacks as the validation step was 98.89%. The training model varied in each epoch. The validation loss of the CNN-LSTM model was 750–250.
Figure 9 shows the confusion metrics of the CNN-LSTM model using binary classification. The CNN-LSTM model showed promising results; the percentage of the true negative was 36.11%, and the false-positive was 62.79%. The misclassification percentage of the CNN-LSTM model was 1.01%.
4.4.2. Results of Multiclass Classification
In this experiment, ML and DL approaches were examined using the multiclass classification dataset: MITM attack, web-server access attack, Telnet attack, and normal.
Table 8 shows the results of the logistic regression algorithm to detect ICS attacks. The results of the logistic regression method were not satisfactory. The accuracy value in all classes was 30%. We recommend that this algorithm be used for detecting multiclass attacks on ICSs.
The detection results of the KNN algorithm for the multiclass classification on the ICS platform are presented in
Table 9. Based on the confusion metric ICSs, the results were superior, with an accuracy of 100% for the KNN.
The results of the LDA model for detecting ICS attacks using multiclass classification datasets are shown in
Table 10. The accuracy of the LDA model was 94.37%. The weighted averages of the precision, recall, and F1 scores were 95%, 94%, and 94%, respectively.
Table 11 shows the results of the DT algorithm, which achieved superior performance. The accuracy percentage of the DT in all classes was 100%. The weighted average performance of the DT was 100% for all classes.
Figure 10 shows the confusion metric indicators such as actual negative false-positive rate, valid positive rate, and false negative. The logistic regression model results showed 26.36% correctly classified as normal, whereas the model scored 0.26% and was correctly classified as a Telnet attack. The false-positive rate was very high in the MITM attack at 14.74%, with 21.04% for the Web-server attack. The results of the KNN approach showed 63.84% detected as normal; the true positives were 14.74%, 21.31%, and 0.09% correctly classified as MITM attack, Web-server access attack, and Telnet attack, respectively. The misclassification (FP) was 0.00, demonstrating that the KNN algorithm was appropriate for detecting ICS attacks. The confusion metric results for the LDA model were 59.59% correctly classified as normal packets. In contrast, the true positive metrics showed 14.75% classified as MITM attack, 20.03% classified as Web-server attack, and 0.00 classified as Telnet attack. The false positives of the LDA model were slight at 0.01% uncorrected classified MITM attack, 1.28% uncorrected classified as Web-server attack, and 0.091% uncorrected classified as Telnet attack. The decision tree algorithm showed the same performance as the KNN algorithm, with 63.84% detected as normal. The true positives were 14.74%, 21.31%, and 0.09%, correctly classified as MITM attack, Web-server access attack, and Telnet attack, respectively.
A hybrid DL CNN-LSTM model is proposed to detect ICS cyberattacks. The performance of the DL CNN-LSTM classifier according to evaluation metrics such as accuracy, precision, recall, F-score, and classification performance was evaluated using the four classes, i.e., MITM attack, Web-server access attack, Telnet attack, and normal. The results of the CNN-LSTM model were compared with ML approaches.
Table 12 shows the performance of the CNN-LSTM model using the multiclass classification dataset. The CNN-LSTM model achieved the highest accuracy, i.e., 98%. The weighted average performance of the CNN-LSTM model for all four classes was 98%.
Figure 11 shows the confusion metrics of the CNN-LSTM model for detecting anomalies in the ICS system. The graphical representation of the CNN-LSTM model shows that 14.06% (TN) was correctly classified as normal; 62% was correctly classified as MITM attacks, 0.04% was correctly classified as Telnet attacks, and 21.39% was correctly classified as Web-server access attacks. The false-positive rate was high at 0.05% on the Telnet attack. The false-negative rate was high at 0.13% with the normal.
The accuracy performance and loss of the CNN-LSTM model for detecting multiple classes are shown in
Figure 12. The plot shows that the accuracy of training and volition increased from 88% to 98%, whereas the accuracy loss decreased from 0.30 to 0.10 in the testing phase with 20 epochs.
4.5. Sensitivity Analysis
A sensitivity analysis is an approach for measuring the influence of uncertainties of input data variables. Analyzing the input data is very useful for extracting patterns from a dataset. A sensitivity analysis determines the effects of fluctuations in network features with different attacks on the outputs or performance of a mathematical model or system. In other words, a sensitivity analysis may be used to assign changes in system outputs to distinct sources of uncertainty in system inputs, as opposed to a traditional approach. In this study, we determined that there was a strong association between input attributes and class membership using Pearson’s correlation coefficient. Certain traits had strong connections (normal and MITM attacks, Web-server access attacks, and Telnet attacks).
We selected features with high relationships with classes.
Figure 13 shows the results of the Pearson’s correlation coefficient method to determine the significant elements. The destination and source addresses are critical features, with superior corrections among classes of 92%, whereas the length features do not have good connections among the classes.
Moreover, the mean absolute error statistical analysis (MAE), MSE, RMSE, and R
2 were applied to measure the percentage error between the target and prediction values.
Table 13 summarizes the statistical analysis of ML and DL with binary classification. The KNN and DT algorithms had the highest correlations between the target and prediction values, i.e., R
2 = 100% and prediction output of 0.00.
Table 14 compares the prediction results among the target values, ML and DL, using multiclass classification. The KNN and DT algorithms scored the highest (R
2 = 100%), with the prediction error between the target values and prediction output being 0.00. The prediction error of the logistic regression method was very high. Overall, the KNN and DT algorithms were effective in predicting ICS attacks.
5. Results and Discussion
ICSs are part of contemporary critical infrastructures, such as water treatment facilities, oil refineries, power grids, and nuclear and thermal power plants. An ICS is a system developed by merging computational and communication components to govern a physical process. An ICS includes devices and subsystems, such as sensors, actuators, programmable logic controllers (PLC), human-machine interfaces (HMI), and SCADA systems.
A steady rise in the frequency of successful attacks on ICSs has led to an urgent need to develop security systems that can accurately and quickly identify irregularities. A new breed of anomaly detectors based on data-centric methods is gaining traction in this effort. Such techniques may automatically understand the dynamic ICSs of the process and the control strategies used in an ICS using ML and DL algorithms. Anomaly detectors can be created more quickly and easily using these techniques than using design-centric approaches based on plant physics and design.
ML, including logistic regression, KNN, linear discriminant, and DT algorithms, and the CNN-LSTM model, are designed to detect ICS attacks and protect the infrastructure of ICSs. The proposed system was examined using the Sung real dataset from industrial partner Necon Automation. This study conducted two binary classification and multiclass classification experiments to detect and classify ICS attacks. Overall, the KNN and DT algorithms achieved the highest performance with binary classification and multiclass classification of 100% concerning the accuracy metric.
Figure 14 shows a regression plot of the KNN and DT algorithms, including the correlation between input and prediction values. These algorithms scored 100% with respect to R.
The proposed system was compared with that of Sinil Mubarak et al. [
36], who developed the dataset. The authors used logistic regression, KNN, naive Bayes, random forest, and ANN algorithms. However, cross-validation was used to evaluate the algorithm. The results of these algorithms were: logistical regression 95.18%, KNN 95.24%, naive Bayes 94.75%, random forest 95.52%, and ANN = 95.14, according to the accuracy metric. In this study, the KNN and DT algorithms achieved accuracies of 100%; the hybrid DL CNN-LSTM model achieved 98% accuracy.
Table 15 shows the empirical results of the proposed ML and DL model against existing security systems developing the dataset.

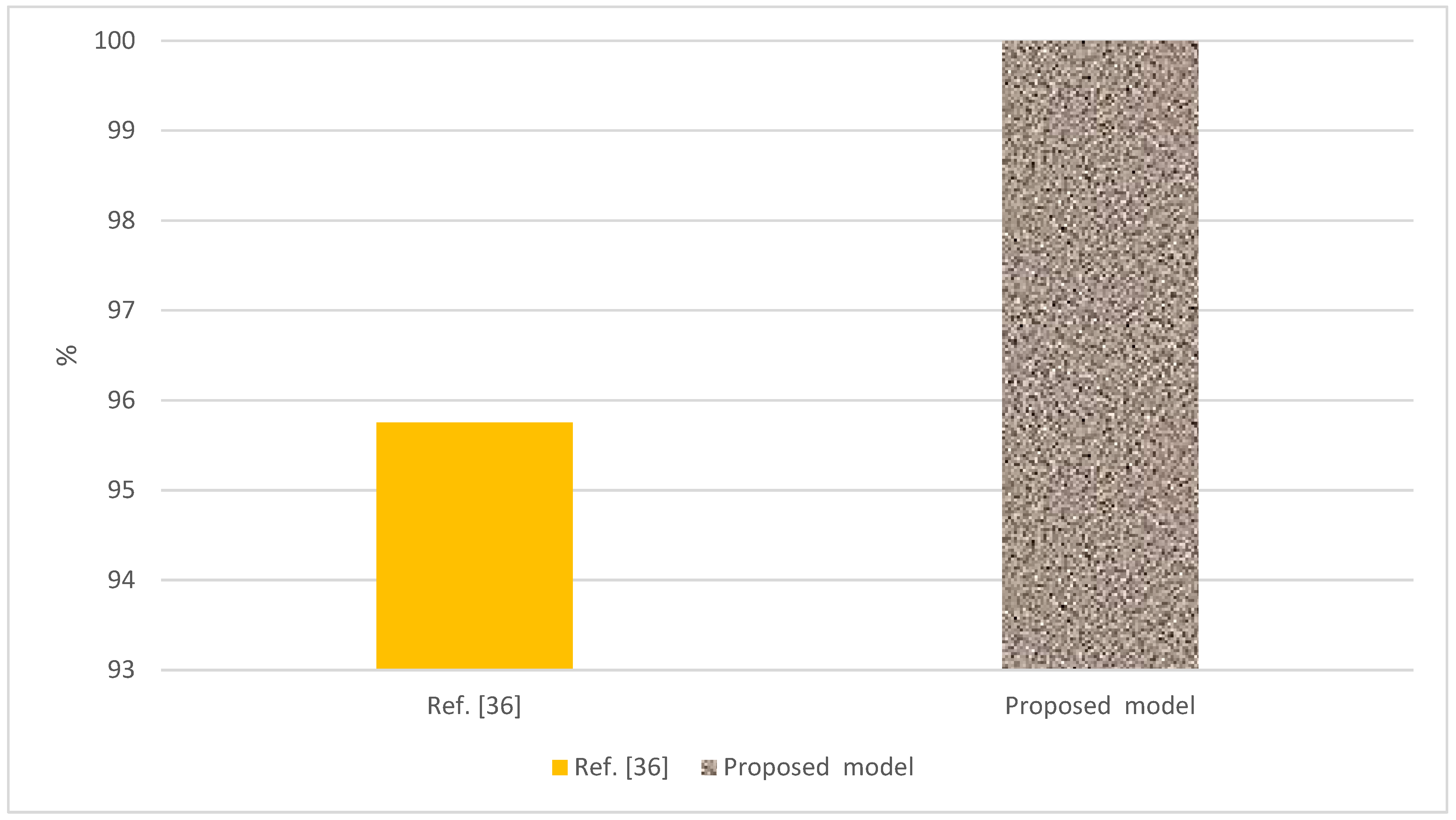

Figure 15 shows a graphical depiction of the results obtained by our system and those obtained by other current methods based on accuracy metrics. In general, the approach we recommend has the highest level of accuracy available.
Table 15.
Comparison of the proposed system with the system that developed the dataset.
Table 15.
Comparison of the proposed system with the system that developed the dataset.
Reference | Year | Datasets | Model | Accuracy (%) |
---|
Ref. [36] | 2022 | Industrial partner (Necon Automation) | Logistic regression | 95.18 |
KNN | 95.24 |
Naive Bayes Random forest | 94.75 |
| 95.52 |
ANN | 95.14 |
Proposed model | 2022 | Industrial partner (Necon Automation) | KNN | 100 |
Decision tree | 100 |
CNN-LSTM | 98 |
A comparison between the proposed system and the existing system using a different dataset is presented in
Table 16. Overall, the proposed system achieved superior accuracy as compared with the existing system for protecting the ICS’s environment.
Figure 16 displays the performance of the proposed system as compared with the existing systems with respect to accuracy metrics.
Table 16.
Comparison of the proposed system to existing systems using different ICS datasets.
Table 16.
Comparison of the proposed system to existing systems using different ICS datasets.
Reference | Year | Datasets | Model | Precision (%) |
---|
Ref. [46] | 2018 | ICSs | CNN | 96 |
Ref. [47] | 2018 | MPL | 96 |
Ref. [48] | 2019 | LSTM | 93 |
Ref. [49] | 2017 | DNN | 98 |
Ref. [50] | 2019 | GAN | 70 |
Proposed model | 2022 | KNN | 100 |
Decision tree | 100 |
CNN-LSTM | 99 |
6. Conclusions
Increasing effective assaults on industrial control systems (ICSs) have prompted the creation of protection measures for accurate and quick process anomaly detection. In contrast to other types of cyberattacks, ICS-oriented intrusions have the potential to disrupt critical infrastructure operations, cause significant economic losses, pollute the environment, and even cost human lives. In this study, a security system was developed to protect and prevent cyberattacks from threatening ICSs. The artificial intelligence algorithms namely regression, KNN, LDA, DT, and the CNN-LSTM model are designed to detect malicious ICS attacks. The following conclusions stem from the encouraging findings of this study:
The machine learning and DL algorithms were tested using a standard dataset collected from industrial partners Necon Automation and IIUM. The algorithms contained MITM attacks, Web-server access attacks, Telnet attacks, and normal packets.
Testing was conducted in two stages, namely binary classification and multiclass classification, to achieve the high-performance mode for detecting ICS attacks.
The ML algorithms KNN, LDA, and DT were examined to find the appropriate algorithm for protecting ICS systems. The KNN and DT algorithms achieved the highest levels of accuracy.
The hybrid DL CNN-LSTM model proved to be the most effective and efficient algorithm for successfully detecting malware in ICS systems.
The inaccuracies between the anticipated output and the target values were discovered during the validation phase using a sensitivity analysis that examined the metrics MSE, RMSE, and R2. The KNN and DT algorithms provide fewer prediction errors in binary classification and multiclass classification.
The ML and DL approaches performed well in the validation phase, with the KNN and DT algorithms outperforming the competition by a wide margin. This study’s findings were compared with those of other recent studies, confirming the validity and efficacy of our findings. We developed ML and DL algorithms and conducted experiments with them to get the best malware detection possible in ICSs. Even though both of the suggested classifiers obtained high accuracy, the KNN and decision accuracy were 100%, demonstrating that they can beat other state-of-the-art classifier models.
In the future, we aim to design our system with a real ICS system for protecting food security.
