1. Introduction
The recent decade has witnessed a tremendous growth of Internet traffic, which is expected to continue climbing for the foreseeable future. Recently, Spectrumsliced Elastic Optical Path (SLICE) networks [
1,
2,
3] have come to light as a promising solution to resolve this traffic explosion. In traditional Wavelength Division Multiplexing (WDM) networks, spectrum resources are coarsely managed at the level of wavelengths (that are separated from each other with fixed guardbands). In SLICE networks, a traffic demand is accommodated with a group of consecutive subcarriers, and neighboring subcarriers can overlap partially in the spectrum domain [
1,
2,
3]. As a single subcarrier has a finer granular than a wavelength and consecutive subcarriers can overlap without the fixed guardbands, SLICE networks can better deliver both subwavelength and superwavelength traffic accommodation [
2]. In addition, SLICE networks have other inherent advantages such as enhanced signal quality and extended reachability [
2].
It remains a challenging but fundamental problem to efficiently allocate lightpaths in SLICE networks to accommodate traffic demands, which is known as the Routing and Spectrum Allocation (RSA) problem [
4]. The challenges originate from three major constraints. First, one has to allocate continuously free subcarriers along a path to fulfill the demand. Second, the chosen free subcarriers should as well be consecutive ones in the spectrum domain (i.e., the
subcarrier consecutiveness constraint). Third, the guardbands between lightpaths are not predetermined and have to be decided at run time. The RSA problem is shown to be NPHard [
4], and the solutions to the RSA problem can be classified into two categories. First, optimal solutions provided by linkbased, pathbased, and channelbased Integer Linear Programming (ILP) models. We note that channelbased models inherently capture the second and third constraints above explicitly, thus leading to a compact formulation. Second, suboptimal heuristic algorithms and metaheuristic algorithms. Overall, ILPbased approaches demand prohibitive computational time, which limits their applicability in reality; and methods that are heuristic in nature lack guaranteed closeness to the optimal solution.
We seek to avoid the above limitations of existing approaches, and propose a novel primaldual solution framework to the RSA problem in this paper. Inspired by a compact channelbased ILP solution, we explore the relaxation and decomposition of the model based on the dual variables or Lagrange multipliers of complex coupling constraints, which leads to an upper bound (UB) of the problem. The dual multipliers obtained from above are then fed into a Primal algorithm for obtaining a lower bound (LB) of the problem. Our framework employs these two processes to update the UB and LB iteratively, resulting in a nearoptimal solution with a perinstance guarantee on its closeness to the optimal solution.
The rest of the paper is organized as follows. In
Section 2, we present the network model, the definition, and a compact ILP model of the studied problem. In
Section 3, we explore relaxation and decomposition of the ILP model, and propose an exact solution to the resulting problem. In
Section 4, we present the primaldual framework. In
Section 5, we evaluate the proposed framework. In
Section 6, we review related literature, and we conclude this work in
Section 7.
2. Network Model, Problem Definition, and a ChannelBased ILP Model
In this section, we present the network model, problem definition and complexity, and a channelbased ILP model of the studied problem.
2.1. Network Model
A SLICE network is modeled as a graph
$G(V,E,S)$:
V consists of nodes of the network;
E contains the set of directional fibers connecting nodes in
V; and
S is the group of subcarriers on each fiber. The set of traffic demands is denoted as
D = {
${d}_{i}$} (
$i=1,2,3\dots ,\leftD\right$), and
${B}_{{d}_{i}}$ denotes the required number of subcarriers for demand
${d}_{i}$.

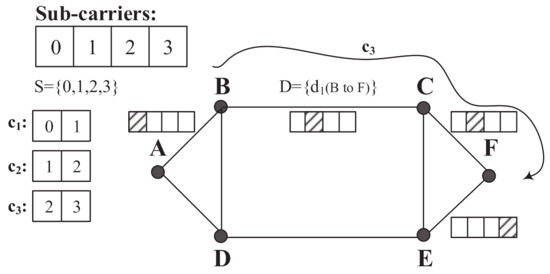

Figure 1 shows an example of the SLICE network with six nodes and
$S=\{0,1,2,3\}$ (i.e.,
$\leftS\right=4$) for each fiber. In
Figure 1, the subcarrier usage of fiber links are only shown for those with partial subcarriers occupied (i.e., in shadow). In addition, for this example, there is only one demand
${d}_{1}$ (from node
B to node
F) in the set
D.
The subcarrier consecutiveness constraint requires the allocation of a block of
${B}_{d}$ consecutive subcarriers for a demand
d. This requirement can be explicitly captured with the concept of channel [
5,
6]. Note that we exclude the consideration of guardbands in this paper since which can as well be treated as part of the channel [
4,
5]. In
Figure 1, for example, assuming that the demand size of
${d}_{1}$ is 2, one can have three channels of
${c}_{1}$,
${c}_{2}$, and
${c}_{3}$, with two subcarriers each. Some of the channels, however, cannot be used to accommodate demands when subcarriers within are occupied. For instance, in
Figure 1, for the request
${d}_{1}$ of size 2 between
B and
F along the path
B
C
F, only channel
${c}_{3}$ can be allocated.
Definition 1. Channel—Achannelis a block of consecutive subcarriers of size ${B}_{d}$ for a request d.
2.2. Problem Definition
The formal definition of the studied problem is stated below.
Definition 2. Routing and Spectrum Allocation with Optimal Revenue (ROR)—given the demand set D, and a SLICE network $G(V,E,S)$, the ROR problem aims to achieve the maximum revenue by satisfying requests from D with available channels along the routes of requests.
Note that our general definition leaves the freedom for exact ways of defining the revenue. Some typical definitions of revenue, however, are addressed in the subsection below. We further note that the ROR problem is NPHard, as shown in Theorem 1.
Theorem 1. The ROR problem is NPHard.
Proof of Theorem 1. One can simply reduce a regular RSA problem [
4] to the ROR problem by setting the revenue of each request to be the same. Thus the ROR problem is NPHard. □
2.3. A ChannelBased Model for the ROR Problem
Next we adapt the channelbased ILP model from [
5] and present it below, which adopts the following variables/notations.
${x}_{d}$:  0 if demand d is not accommodated, 1 otherwise;
${y}_{p,c}$:  1 for the chosen channel c along the chosen path p, 0 otherwise;
$p\left(d\right)$:  the path set for demand d;
$c\left(d\right)$:  the channel set for demand d;
${R}_{d}$:  the revenue factor for accepting demand d;
${\theta}_{p,e}$:  1 if path p includes e (∈ E) as an edge, 0 otherwise;
${r}_{c,s}$:  1 if channel c contains subcarrier s, 0 otherwise.
Each demand is associated with a revenue factor
${R}_{d}$, which may reflect the incentive of accepting demand
d. The resulting objective of maximizing the total revenue is expressed as in Equation (
1). We discuss two typical ways of defining
${R}_{d}$. One can set
${R}_{d}=1$ for
$\forall d\in D$, then revenue is reflected as the total number of accepted requests in Equation (
2). Likewise, one can set
${R}_{d}={B}_{d}\phantom{\rule{3.33333pt}{0ex}}\phantom{\rule{3.33333pt}{0ex}}\forall d\in D$, then revenue is reflected as the total volume of accommodated requests as in Equation (
3).
There are only two groups of constraints in this compact model (and the subcarrier consecutiveness constraint is already taken into account implicitly). The constraints of Equation (
4) ensure that demand
d is accepted when one and only one channel along its route is chosen (i.e.,
${y}_{p,c}=1$). In addition, Equation (
5) is employed to avoid a subcarrier clash, which happens only when two conditions are both satisfied: first, a given subcarrier appears in overlapping channels of multiple requests; the given subcarrier is over a common fiber link that resides in paths of those requests.
One wellknown issue with a model that is pathbased in nature is the potential exponential number of pathrelated variables (i.e., ${y}_{p,c}$). Interestingly, with our proposed framework, we can obtain solutions based on the above model without this issue.
3. Resolve the ChannelBased Model: Relaxation, Decomposition and ChannelGraphBased Algorithm
In this section, we apply relaxation, and decomposition in sequence to the channelbased model, resulting in a simplified model that can be exactly resolved by a ChannelGraphbased algorithm.
3.1. Relaxation of the ChannelBased Model
Note that the most complex constraints of the channelbased ROR model lie in Equation (
5). We take the dual variables of Equation (
5) (i.e.,
${\lambda}_{e,s}$ (≥0)), and apply Lagrange relaxation to the constraints of Equation (
5) (with the aim of simplifying the channelbased model). The revised objective is shown in Equation (
6). The resulting Relaxed model consists of Equation (
6) and Equation (
7), and is referred to as the R model hereafter.
It remains to address two issues to resolve the original ROR problem. First, one needs to find the optimal ${\lambda}_{e,s}$ for the R model, which essentially solves the dual problem of the R model and can be addressed with a Subgradient algorithm. Second, one needs to resolve the R model at any given dual variables ${\lambda}_{e,s}$, namely the R(${\lambda}_{e,s}$) model, which is further elaborated below.
3.2. Decomposition of the R(${\lambda}_{e,s}$) Model
It can be observed that, in the R(
${\lambda}_{e,s}$) model, for a given demand
d, constraints of Equation (
7) are not coupled with that of any other demands. This observation inspires us to further decompose the R(
${\lambda}_{e,s}$) model on a perdemand basis. The resulting model consists of Equation (
8), and Equation (
9) as the objective and constraints, respectively. Note that the term
${\sum}_{e,s}{\lambda}_{e,s}$ in the objective of Equation (
6) is a constant at any fixed dual variables, thus it is excluded in Equation (
8).
We refer to above Decomposed Relaxed model as the DR model. Note that after the DR model for each demand is resolved, one can combine the solutions to resolve the R(${\lambda}_{e,s}$) model.
3.3. ChannelGraphBased Algorithm for the DR Model
Now we design a polynomial time algorithm to resolve the DR model based on the concept of ChannelGraph. A ChannelGraph is a snapshot of the network at a particular channel, thus there are at most
$\leftS\right{B}_{d}+1$ ChannelGraphs for a demand

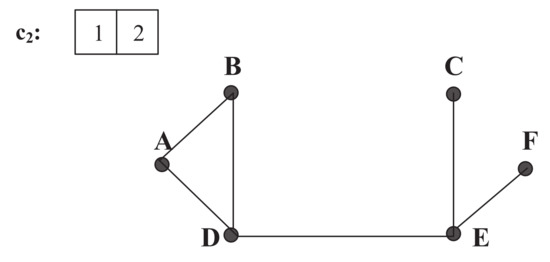

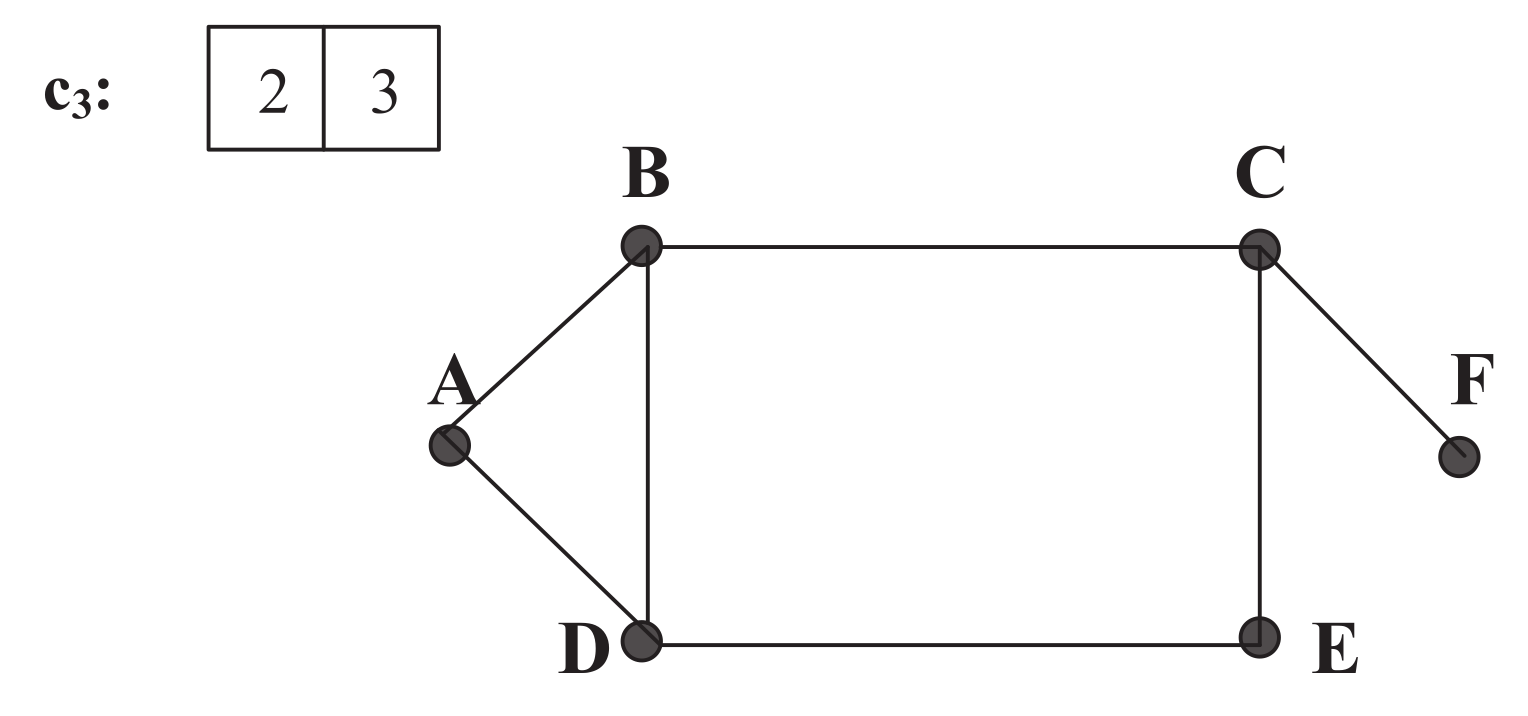

d. An example of the ChannelGraph (CG) construction for the sixnode network in
Figure 1 is shown in
Figure 2,
Figure 3 and
Figure 4. We assume that the demand
${d}_{1}$ has a size of 2, which leads to three possible channels:
${c}_{1}$,
${c}_{2}$, and
${c}_{3}$ in
Figure 1, with respective ChannelGraphs shown in
Figure 2,
Figure 3 and

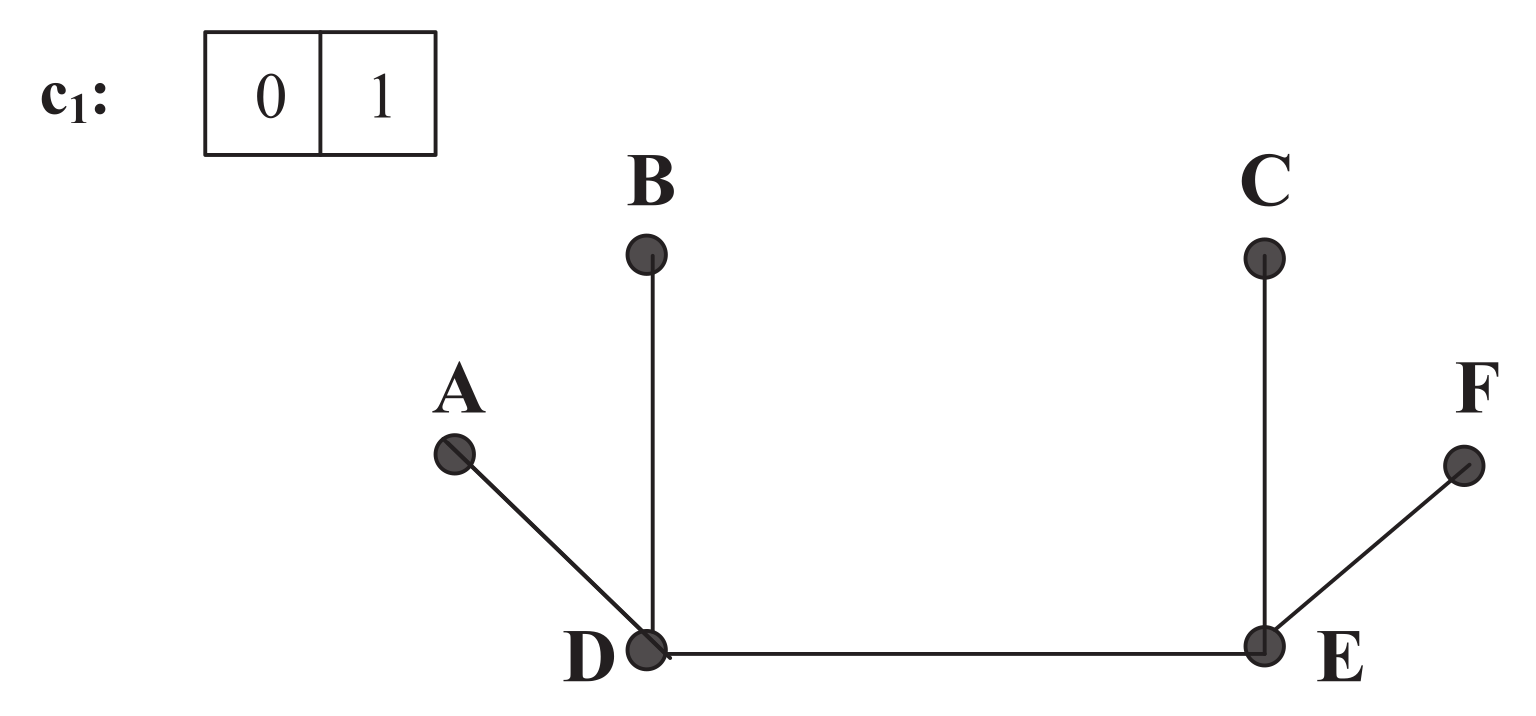

Figure 4. As an example, in
Figure 2 of channel
${c}_{1}$, link
A
B, link
B
C, and link
C
F are removed from the original network due to the occupancy of subcarriers of
${c}_{1}$ (i.e., Subcarrier 0 or 1) on those three links.
Based on the channelgraphs, Algorithm 1 provides an exact solution for the DR model of each demand. Variable i in Line 1 is the index of all possible channels for demand d (i.e., $1\le i\le \leftS\right{B}_{d}+1$). Lines 4 to 7 construct the channelgraph for each channel (say c), and assign the weight of an edge e as ${\sum}_{s\in c}({\lambda}_{e,s}\times {r}_{c,s})$. The rational of this weight assignment is further elaborated below in the proof of Theorem 2. Lines 8 to 12 employ the Dijkstra’s algorithm for the shortest path over all channelgraphs to decide the best channel (i.e., $Ch$) and path (i.e., $Pf$). ${C}_{d}$ represents the weight of the found shortest path. As shown in Lines 14 to 17, a demand is accepted (i.e., ${x}_{d}=1$, and ${y}_{Pf,Ch}=1$) if ${C}_{d}\le {R}_{d}$ (i.e., nonnegative revenue). As shown in Theorem 2, we claim that Algorithm 1 exactly resolves the DR model.
Theorem 2. Algorithm 1 resolves DR model of a demand d optimally.
Proof of Theorem 2. For a given demand
d, note that the corresponding DR model only has a single constraint in Equation (
9). Equation (
9) essentially corresponds to a path and channel selection for demand
d (i.e.,
${y}_{p,c}$). With the constructed channelgraphs, we can separately examine the objective of the model per channel if the weight of the edges in each channelgraph is properly assigned. For a demand
d, the maximization of the objective is equivalent to the minimization of the term
${\sum}_{e\in E,s\in S}({\lambda}_{e,s}\times {\sum}_{p\in p\left(d\right)}{\sum}_{c\in c\left(d\right)}({r}_{c,s}\times {\theta}_{p,e}\times {y}_{p,c}))$. We reformulate this term as
${\sum}_{e\in E,c\in C}{\sum}_{p\in p\left(d\right)}({y}_{p,c}\times {\theta}_{p,e}\times {\sum}_{s\in S}({\lambda}_{e,s}\times {r}_{c,s}))$. This inspires us to assign weight as
${\sum}_{s\in c}({\lambda}_{e,s}\times {r}_{c,s})$ for link
e on the channel
c, thus the minimum weight path over all channelgraphs of demand
d leads to the minimization of the term
${\sum}_{e\in E,s\in S}({\lambda}_{e,s}\times {\sum}_{p\in p\left(d\right)}{\sum}_{c\in c\left(d\right)}({r}_{c,s}\times {\theta}_{p,e}\times {y}_{p,c}))$, and further the optimization of the DR model. □
Algorithm 1 ChannelGraphBased Algorithm for DR Model of Demand d.
 1:
$i\leftarrow 1$  2:
${C}_{d}\leftarrow {R}_{d}$  3:
for $i\le \leftS\right{s}_{d}+1$ do  4:
Make a copy of the original network, namely $C{G}_{i,d}$  5:
for all Link $e\in C{G}_{i,d}$ do  6:
Remove e from $C{G}_{i,d}$ if Channel i is not available on e, otherwise:  7:
${w}_{e}\leftarrow {\sum}_{s\in i}({\lambda}_{e,s}\times {r}_{i,s})$  8:
end for  9:
Obtain the minimum weight path on $C{G}_{i,d}$ using Dijkstra’s algorithm (assume that the found path p has weight W)  10:
if $W\le {C}_{d}$ then  11:
${C}_{d}\leftarrow W$  12:
$Ch\leftarrow i$  13:
$Pf\leftarrow p$  14:
end if  15:
$i\leftarrow i+1$  16:
end for  17:
${x}_{d}\leftarrow 0$  18:
if ${C}_{d}\le {R}_{d}$ then  19:
${x}_{d}\leftarrow 1$  20:
${y}_{Pf,Ch}\leftarrow 1$  21:
end if

With the exact solution of DR model, we can resolve the R(${\lambda}_{e,s}$) by combining the results from each demand $d\in D$. It now remains to find the optimal dual variables ${\lambda}_{e,s}$ to resolve the original problem, which is elaborated in the next section.
4. The PrimalDual Framework for the ROR Problem
We present the solution framework in this section, focusing on two major components of this framework: the Primal algorithm, and a Subgradient algorithm. Note that the Primal algorithm addresses the ROR problem directly (i.e., the primal problem), while the Subgradient algorithm finds the optimal ${\lambda}_{e,s}$ (which essentially resolves the dual problem of ROR). We hence refer to the framework as the primaldual framework.
4.1. The Primal Algorithm
Note that the solution obtained by Algorithm 1 may not be feasible for the ROR problem as Equation (
5) is relaxed. We need an algorithm that directly solves the ROR problem for a definite feasible solution, which is presented in Algorithm 2, namely the Primal algorithm. As the solution found by Algorithm 2 is feasible, the associated revenue is adopted as a
lower bound (LB) for that of the ROR problem.
Algorithm 2 The Primal Algorithm for the ROR Problem.
 1:
for all $d\in D$ do  2:
for all $e\in C{G}_{c,d},c\in c\left(d\right)$ do  3:
${w}_{e,c}^{d}\leftarrow {\sum}_{s\in c}{\lambda}_{e,s}$  4:
end for  5:
end for  6:
Arrange demands in D in descending order based on the value of ${x}_{d}\ast {R}_{d}{C}_{d}$  7:
for all $d\in D$ do  8:
W ← ∞  9:
for all Channel ${c}_{i}\in c\left(d\right)$ do  10:
Obtain the minimumweight path on the current channelgraph of d using Dijkstra’s algorithm (assume that the found path p has weight $wc$)  11:
if $wc$ ≤ W then  12:
W ← $wc$  13:
${P}_{d}$* ← p  14:
$C{h}_{d}$* ← ${c}_{i}$  15:
end if  16:
end for  17:
for all ChannelGraph $C{G}_{{c}^{\prime},{d}^{\prime}},{c}^{\prime}\cap c\ne \varnothing $ do  18:
for all $e\in {P}_{d}$* do  19:
Remove e from $C{G}_{{c}^{\prime},{d}^{\prime}}$  20:
end for  21:
end for  22:
end for

Following the descending order of ${x}_{d}\ast {R}_{d}{C}_{d}$ (i.e., the revenue found by Algorithm 1), Algorithm 2 sequentially accepts demands in D. In Lines 5–7, we assign the weight (${w}_{e,c}^{d}$) of edge e on $C{G}_{c,d}$ as ${\sum}_{s\in c}{\lambda}_{e,s}$. Note that this weight reflects the extent that the corresponding constraints are violated after the relaxation. The minimumweight path found (i.e., path ${P}_{d}$* along channel $C{h}_{d}$*) in Lines 7 to 12 attempts to achieve the least violation of the original constraints. As Channel $C{h}_{d}$* is planned to be reserved along path ${P}_{d}$*, we remove corresponding edges from other channelgraphs to prevent the related subcarriers from being used again in Lines 13 to 15.
4.2. The SubGradient Algorithm for the R Model
The Subgradient Algorithm is an iterative process that is guaranteed to converge to the best dual variable or Lagrange multiplier (i.e.,
${\lambda}_{e,s}$) [
7]. The objective of the found solution with a Subgradient Algorithm is an
upper bound (UB) of that of the original problem [
7]. The Subgradient Algorithm is reflected in Algorithm 3 (excluding Line 11). In Algorithm 3,
i is the iteration number. The dual variable in Iteration
i is denoted as
${\lambda}_{e,s}^{i}$, and hence the
R model of the current iteration is denoted as
$R\left({\lambda}_{e,s}^{i}\right)$. In Lines 8 to 10, Algorithm 1 resolves the decomposed
$R\left({\lambda}_{e,s}^{i}\right)$ model (i.e., the DR model), and updates UB and/or LB (if better UB and/or LB are found). The dual variables are updated in each iteration by taking the violations of the relaxed constraints of the original model into account in Lines 12 to 13, where
$\alpha $ is a standard scalar [
7].
4.3. Summary of the Overall Framework
The PrimalDual framework presented in Algorithm 3 iteratively maintains an upper bound and lower bound for the original ROR problem from the Subgradient algorithm and the Primal algorithm, respectively. Line 11 applies the Primal algorithm to obtain a feasible solution to the ROR problem in each iteration. There are two possible stopping criteria (i.e., Line 16): the maximum iteration number (i.e., $MAX$) and the value of $\Delta $= $\frac{UBLB}{LB}$. The second criteria is reached when the upper bound and lower bound are close enough (e.g., $\Delta \le \epsilon $, and $\epsilon $ is a small number that can be customized as an input).
It is worth noting that the proposed framework bears a few important merits. First, our framework stays away from directly solving any timeprohibitive ILP models (even though it is derived from a channelbased model). Second, our framework avoids exploring the exponential number of potential paths. DR model is exactly solved with the simple Dijkstra’s algorithm following a proper link weight assignment (Line 8 of Algorithm 1). Likewise, in the Subgradient algorithm, only selected paths in the current iteration (i.e., for which ${y}_{p,c}$ = 1) contribute to the updating of the dual variables in Line 13 of Algorithm 3. Third, with either stopping criteria in Line 16 of Algorithm 3, the obtained solution has a guaranteed closeness to the optimal solution as shown in Theorem 3 below, where $OPT$ is the revenue from the optimal solution.
Theorem 3. The framework can obtain a feasible solution with a revenue no less than $(1\Delta )$*$OPT$.
Proof of Theorem 3. First note that the solution found by the Primal algorithm or the one with LB updated in Line 10 of Algorithm 3 is always feasible. We have $LB\le RV\le OPT\le \phantom{\rule{3.33333pt}{0ex}}UB$, where $RV$ denotes the obtained revenue from the framework. As $OPTUB+LB\le UBUB+LB=LB$, we have $RV\ge LB\ge OPTUB+LB=(1\frac{UBLB}{OPT})\ast OPT\ge (1\frac{UBLB}{LB})\ast OPT=(1\Delta )\ast OPT$. □
Algorithm 3 The PrimalDual Framework for the ROR Problem.
 1:
for all $e\in E$, $s\in S$ do  2:
${\lambda}_{e,s}^{0}\leftarrow 0$  3:
end for  4:
$UB\leftarrow $ Revenue of accommodating all demands  5:
$LB\leftarrow 0$  6:
$\alpha \leftarrow 1$  7:
$i\leftarrow 0$  8:
repeat  9:
Apply Algorithm 1 to resolve the decomposed $R\left({\lambda}_{e,s}^{i}\right)$ model, and update the UB if needed  10:
if The solution in the above step is feasible then  11:
Update the LB if needed  12:
end if  13:
Apply the Primal algorithm, and update the LB if needed  14:
for all $e\in E$, $s\in S$ do  15:
${\lambda}_{e,s}^{i+1}\leftarrow {[{\lambda}_{e,s}^{i}+\alpha \ast ({\sum}_{d\in D}{\sum}_{p\in p\left(d\right)}{\sum}_{c\in c\left(d\right)}{r}_{c,s}\times {\theta}_{p,e}\times {y}_{p,c}1)]}^{+}$  16:
end for  17:
$i\leftarrow i+1$  18:
$\alpha \leftarrow \frac{1}{i}$  19:
until $i==MAX\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}or\phantom{\rule{0.166667em}{0ex}}\phantom{\rule{0.166667em}{0ex}}\Delta $ is small enough

5. Performance Evaluation
In this section, the proposed framework is evaluated and analyzed. The NSFNET network is used as the network topology with
$\leftS\right$ = 40. The demand set
D consists of a demand from each nodepair, with
${B}_{d}$ as an integer number uniformly distributed within
$[1,x]$ (
x is an integer number) for each demand
d. For each experiment, average performance based on hundreds of instances (at the same setting) are collected and reported below. Furthermore, the proposed framework does not require an ILP solver such as ILOG CPLEX [
8] as a polynomialtime algorithm (i.e., Algorithm 1) is proposed to address the DR model.
5.1. The Impact of the Stopping Criteria
As we discuss above, we have two stopping criteria: the maximum iteration number, and the closeness of the current solution (i.e., $\Delta $). We investigate the impact of these two criteria to uncover some insights on the choice of these two parameters.

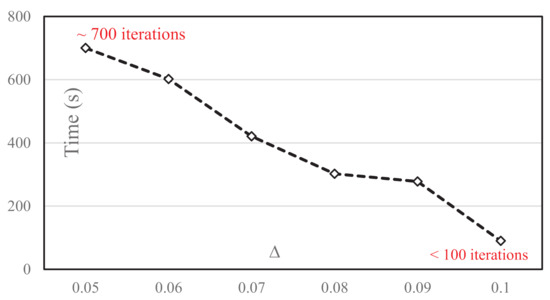

We first investigate the impact of parameter of
$\Delta $ on computational time in
Figure 5 where the Xaxis is the
$\Delta $ value and the Yaxis is the computational time needed to achieve the respective
$\Delta $. Clearly, with the increase of
$\Delta $, the required computational time decreases as the larger
$\Delta $s correspond to lower revenues. Approximately, to achieve
$\Delta =0.05$, 700 iterations are consumed while less than 100 iterations are needed to achieve
$\Delta =0.1$. The best
$\Delta $ achieved in
Figure 5 is
$0.05$. One question arises is:
Do more iterations lead to a further decrease in Δ?. We investigate this problem below.

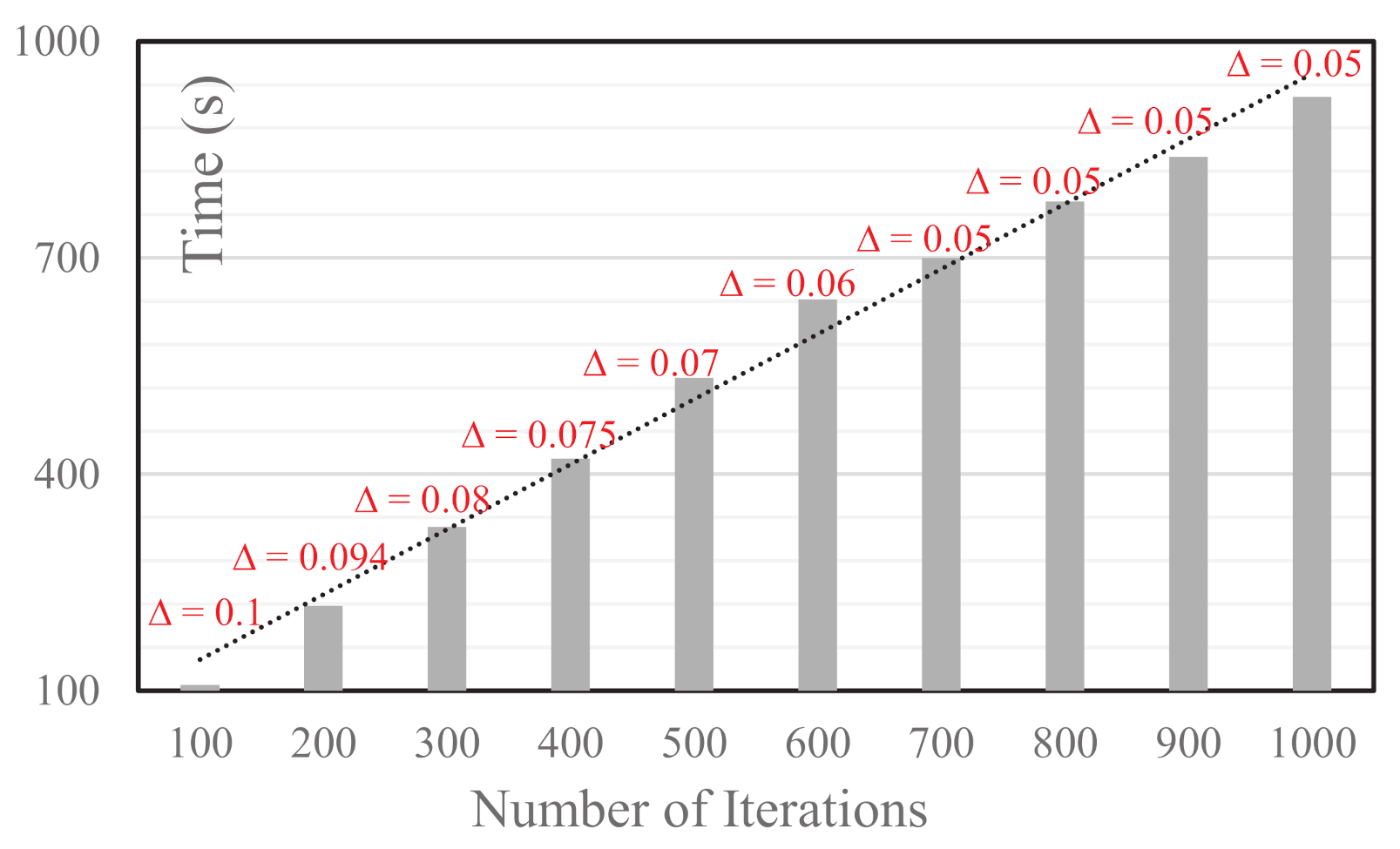

Figure 6 plots the trend of computational time (i.e., the Yaxis) as the number of iterations (i.e., the Xaxis) grows. Evidently, it reveals an almost linear increase of time with the growth of the number of iterations. This observation is to be expected. Note that, however, an increasing number of iterations
does not lead to definite performance improvement based on the labeled
$\Delta $ value in
Figure 6. When the number of iterations is at the lower end, its increase leads to an evident increase in performance (i.e., the decrease in
$\Delta $). When the number of iterations reaches a larger value (e.g., 700 in
Figure 5), a further increase does not lead to revenue increase as
${\lambda}_{e,s}$ already converges to the optimal value. Based on the above discussion, in reality, depending on timesensitivity and the solution quality requirement, one can tradeoff along these two dimensions.
5.2. Performance in Revenue
We further study the performance of the proposed framework by examining the achieved revenue, and the SPSR (Shortest Path with Maximum Spectrum Reuse) and BLSA (Balanced Load Spectrum Assignment) algorithms (which are commonly adopted as benchmark algorithms in the literature) from [
4] are used for comparison. The major difference between SPSR and BLSA lies in the routing: the shortestpath routing is used in the former; and loadbalanced routing is used in the latter. The maximum iteration number (i.e.,

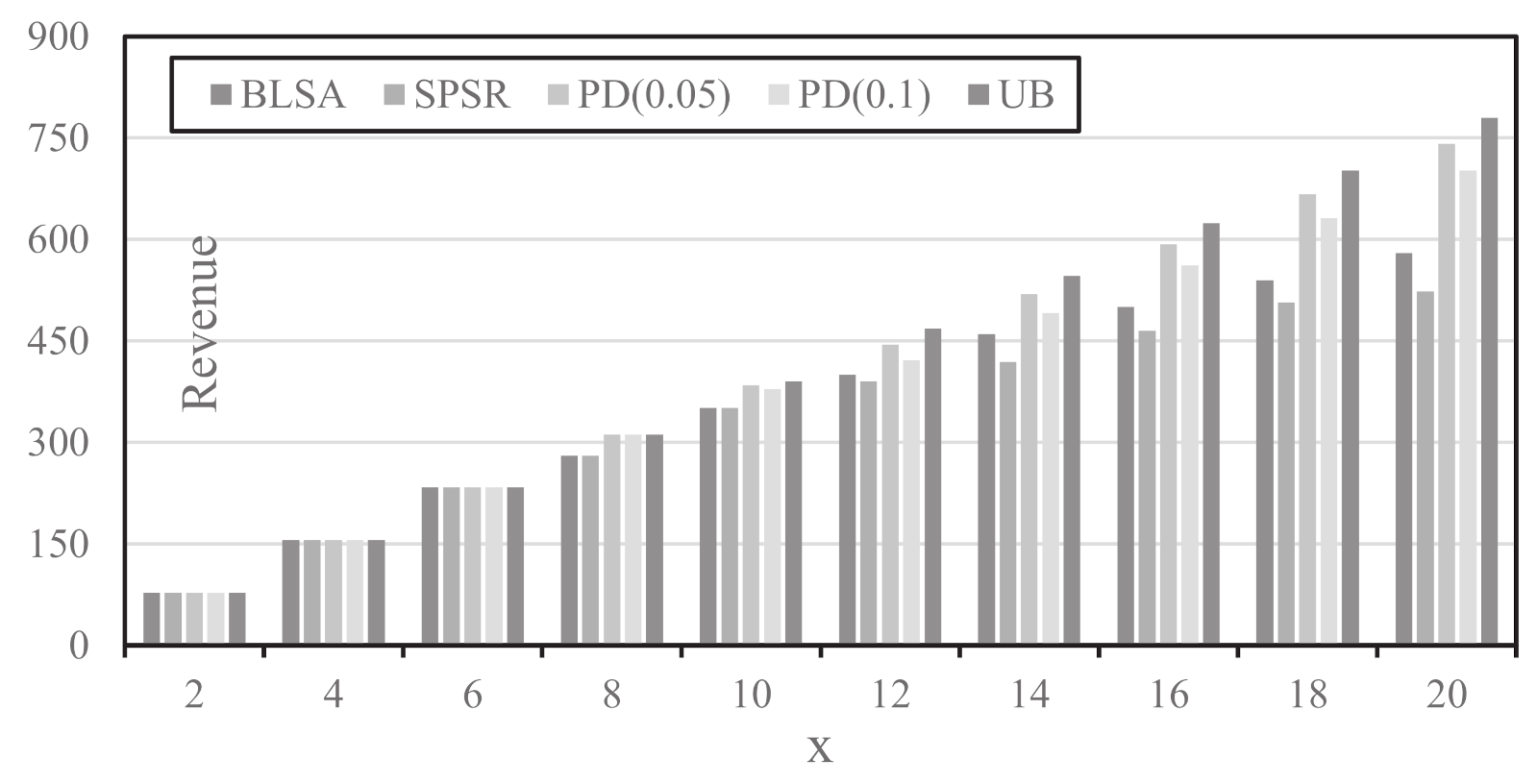

$MAX$) is set to be 700. The performance comparison is shown in
Figure 7 where the Xaxis of
Figure 7 corresponds to
x or the maximum value for demands between nodepairs and the Yaxis shows the revenue by setting
${R}_{d}={B}_{d}$ for each demand
d. In
Figure 7, PD(n) represents the proposed PrimalDual framework when setting
$\Delta \le n$. UB refers to the upper bound that is obtained by the Subgradient algorithm (while LB matches the respective revenue from PD(n) solution). From
Figure 7, with a light traffic load (e.g.,
$x\le 8$), all schemes demonstrate a similar performance as all requests are accommodated with all schemes. With the increase of the load, the proposed schemes achieve higher revenue than that of BLSA and SPSR. The performance difference even enlarges with the further increase of traffic load. The PD(
$0.05$) scheme apparently outperforms the PD(
$0.1$) scheme in most cases at the expense of a possible longer computational time.
6. Related Work
The Routing and Spectrum Allocation (RSA) problem shares similarity with the Routing and Wavelength Assignment (RWA) problem in WDM networks. The latter has been extensively studied in the literature (see, e.g., [
9,
10,
11,
12,
13,
14]), however, the solutions to RWA problem cannot be applied to RSA due to two major reasons. First, in RWA, a traffic demand is typically accommodated as a lightpath at the granular of individual wavelength. In SLICE networks, however, one may have to allocate a group of
consecutive subcarriers [
2]. Second, RWA problem is guardbandoblivious since guardbands are predetermined and fixed in WDM networks. In the RSA problem, however, guardbands between lightpaths have to be determined at run time [
4].
After being introduced by a group of pioneering work [
2,
4,
15,
16], there have been extensive studies on the RSA problem [
17]. We classify those solutions based on two different criteria. According to the nature of the adopted methodologies, those solutions can be broadly classified into two categories. First, optimal ILPbased approaches that provide exact solutions to the RSA problem, which can be further divided into three types: linkbased models [
4], pathbased models [
15], and channelbased models [
5]. ILP models typically are limited to small size RSA problem instances due to the prohibitive computational time. Second, nonoptimal solutions to the RSA problem, which include heuristic algorithm and metaheuristic algorithms. Nonoptimal solutions typically divide the routing and spectrum allocation process into two subproblems (i.e., routing subproblem, and spectrum allocation subproblem) and solves the two problems in sequence [
4,
18]. Metaheuristic approaches employ varieties of methodologies including tabusearch [
19], differential evolution [
20,
21], ant colony optimization [
21], bee colony optimization [
22], Genetic algorithm [
18], as well as AI/ML (Artificial Intelligence/Machine Learning) techniques (e.g., [
23,
24], and see [
25] for a comprehensive discussion). The main drawback of heuristic/metaheuristic algorithms is the lack of a guaranteed closeness to the optimal solution. These limitations of existing approaches partially motivated this work.
Alternatively, we can classify the RSA problem based on the employed physical constraints, resulting in many variations of the RSA problem. When the modulation level of the signal is introduced to RSA, the resulting problem is referred to as the RMLSA (Routing, Modulation Level, and Spectrum Allocation) problem [
26,
27,
28]. The study in [
29] in fact further incorporated the consideration of signal regeneration in RMLSA (as well as survivability). When physical layer security (e.g., eavesdropping) is taken into account, the resulting RSA problem adds in securityawareness [
30]. The RSA problem can also consider the physical layer power spectral density [
31]. With the emerging of Space Division Multiplexing (SDM) technologies, the RSA variant further addresses the assignment of fiber cores, which is referred to as the Routing, Modulation, Spectrum, and Core Allocation (RMSCA) problem in this context [
32,
33,
34]. RSA can also be studied under other assumptions including: RSA for multicast traffic [
35], RSA allowing delayed decision [
36], and RSA with the presence of multiple fibers [
37], to name a few. It is worth mentioning that the RSA problem overlaps with the Optical Virtual Network Embedding (OVNE) problem in SLICE networks [
6,
38,
39,
40]. The OVNE problem contains an instance of the RSA problem in the link mapping process where bandwidth requests between virtual nodes are instantiated as lightpaths of SLICE networks. The framework presented in this work mainly addresses the baseline RSA problem, and extensions to the above variations of the RSA problem will be explored in the future.
