Life-Cycle Assessment of Adsorbents for Biohydrogen Production

Abstract

Adsorbents are used to remove impurities such as carbon monoxide, carbon dioxide, methane, and hydrogen sulfide in the pressure swing adsorption process of biohydrogen production. These impurities are present in the produced gas along with hydrogen and often cause voltage reduction in fuel cells and shorten the lifespan of catalysts. Zeolite A is a typical adsorbent, and more recently, hydroxyl aluminum silicate clay (Has-Clay) and Kanuma clay have been suggested as alternatives. We conducted a life-cycle assessment (LCA) of zeolite A, Has-Clay, and Kanuma clay, and evaluated their environmental impact based on the ReCiPe midpoint method. Kanuma clay had the least impact in all of the environmental categories. The largest contributions for zeolite A and Has-Clay were in the categories of climate change and fossil depletion. In the climate change category, production of 1 kg of Has-Clay and zeolite A was estimated to emit 17.142 kg CO₂ eq and 2.352 kg CO₂ eq, respectively. In the fossil depletion category, the values were estimated to be 3.999 kg oil eq and 1.039 kg oil eq, respectively. These LCA results will be useful in designing and using adsorbents in pressure swing adsorption processes to meet environmental challenges associated with sustainable biohydrogen production.

1. Introduction

Biohydrogen produced from biomass is receiving increasing attention because of its energy-saving, environmentally friendly, and carbon-neutral properties as compared with many conventional hydrogen-producing processes (e.g., water electrolysis and reformation of hydrocarbon fuels) [1,2,3,4]. Current biomass technologies include thermochemical (pyrolysis, gasification) and biological (biophotolysis, biological water gas shift reaction and fermentation) approaches [1]. Biological processes are mostly operated at ambient temperatures and pressures, so they are less energy intensive and more environmentally attractive than thermochemical processes. In terms of energy and exergy efficiency, gasification offers more potential advantages over most currently used technologies [5,6,7]. With gasification, high hydrogen yields have been achieved by reforming dried biomass with superheated steam, but a significant amount of impurities are also present in the product gas [2]. These impurities mix with hydrochloric acid (HCl), carbon monoxide (CO), carbon dioxide (CO₂), methane (CH₄), hydrogen sulfide (H₂S), and other compounds and hamper the production of biohydrogen, and the performance of further applications, such as fuel cells. During exposure to 5, 10, 20 and 50 ppm H₂S/H₂, it took 7.2, 2.9, 2.0 and 1.5 h for cell voltage to fall to 0.3 Volts [8]. Similarly, there is damage due to the influence of HCl contamination. A chloride ion concentration as low as 10 ppm could induce platinum dissolution as chloride complexes, which affects performance [9].

A promising method to remove impurities is pressure swing adsorption (PSA), which performs well from an economic perspective [8,9,10,11,12]. PSA for H₂ purification usually uses multiple beds, and the adsorption and desorption operations are carried out simultaneously. Each bed has a series of layers of different adsorbents. Prior to designing a PSA process, the preferred adsorbent must be chosen. Typical adsorbent is zeolite A, which has often been used to absorb CO and/or CO₂ [10,13,14,15]; it is a synthetic zeolite developed as a detergent builder [16,17]. Zeolite A also has shown higher adsorption capacities for H₂S [18]. To extend the adsorption range in a lower pressure range, hydroxyl aluminum silicate clay (Has-Clay) has been introduced to the PSA process and showed high selectivity for CO₂ and H₂S in 0.1–0.6 MPaG [19]. Has-Clay is a complex of hydroxyl aluminum silicate and low crystalline clay developed as an adsorbent for desiccant air-conditioning systems [20]. Another candidate, Kanuma clay has also been applied to successfully remove HCl in the PSA process [21] (

Table 1. Inventory of zeolite A (1000 kg) [14].

Stage	1000 kg	Unit
Raw materials
Bauxite	762.0	kg
Sand	467.0	kg
Rock salt	222.0	kg
Limestone	40.0	kg
Intermediates for zeolite filter cake + silicate production
Washed sand	467.0	kg
50% aq NaOH	336.0	kg
Na-silicate Na2O-2SiO2	636.0	kg
Al-hydroxide (Al(OH)3)	606.0	kg
Materials for zeolite filter cake + silicate production
Water for steam	1.5	m3
Compressed air	64.7	Nm3
Filter cloths	0.1	kg
Soap	32.4	kg
Energy
Electricity	946.8	kWh
Coal	16.9	kg
Heavy fuel oil	112.6	L
Light fuel oil	21.6	L
Diesel oil	15.6	L
Gas	446.1	m3

). It is named after the Kanuma mining region of Tochigi Prefecture, Japan. It is a pumice formed from weathered volcanic ash and is usually used in Bonsai, cosmetics, and water purification systems due to its high moisture content [22]. It has also been applied in the chemical industry sector to remove phosphorus from aqueous solutions [23].

A few reports have addressed the environmental burden of biohydrogen production associated with the PSA process [24,25]. However, they focused on the performance of adsorbents and system optimization of the PSA process, and did not include a life-cycle assessment (LCA) of the production of adsorbents. For a comprehensive discussion of the environmental impact of biohydrogen production in the PSA process, it is necessary to extend the system boundary to include the production of adsorbents [26].

In this report, we aimed to generate a life-cycle inventory (LCI) for the production of Has-Clay and Kanuma clay, and compare the environmental impact of those to zeolite A by using LCA, which were chosen to consider the application of biohydrogen to fuel cells. We also conducted a sensitivity analysis on Has-Clay, by evaluating three different production volumes under laboratory conditions requiring different amounts of energy.

2. Methods

2.1. Goal and System Definition

The goal of this LCA was to estimate the environmental impacts of the material acquisition and manufacture of three adsorbents (zeolite A, Has-Clay, and Kanuma clay) in the PSA process of biohydrogen production and to identify the processes associated with these adsorbents that have the largest negative impacts. The systems were limited in the material acquisition and manufacture of three adsorbents. The LCA was performed according to ISO 14040 standards [27].

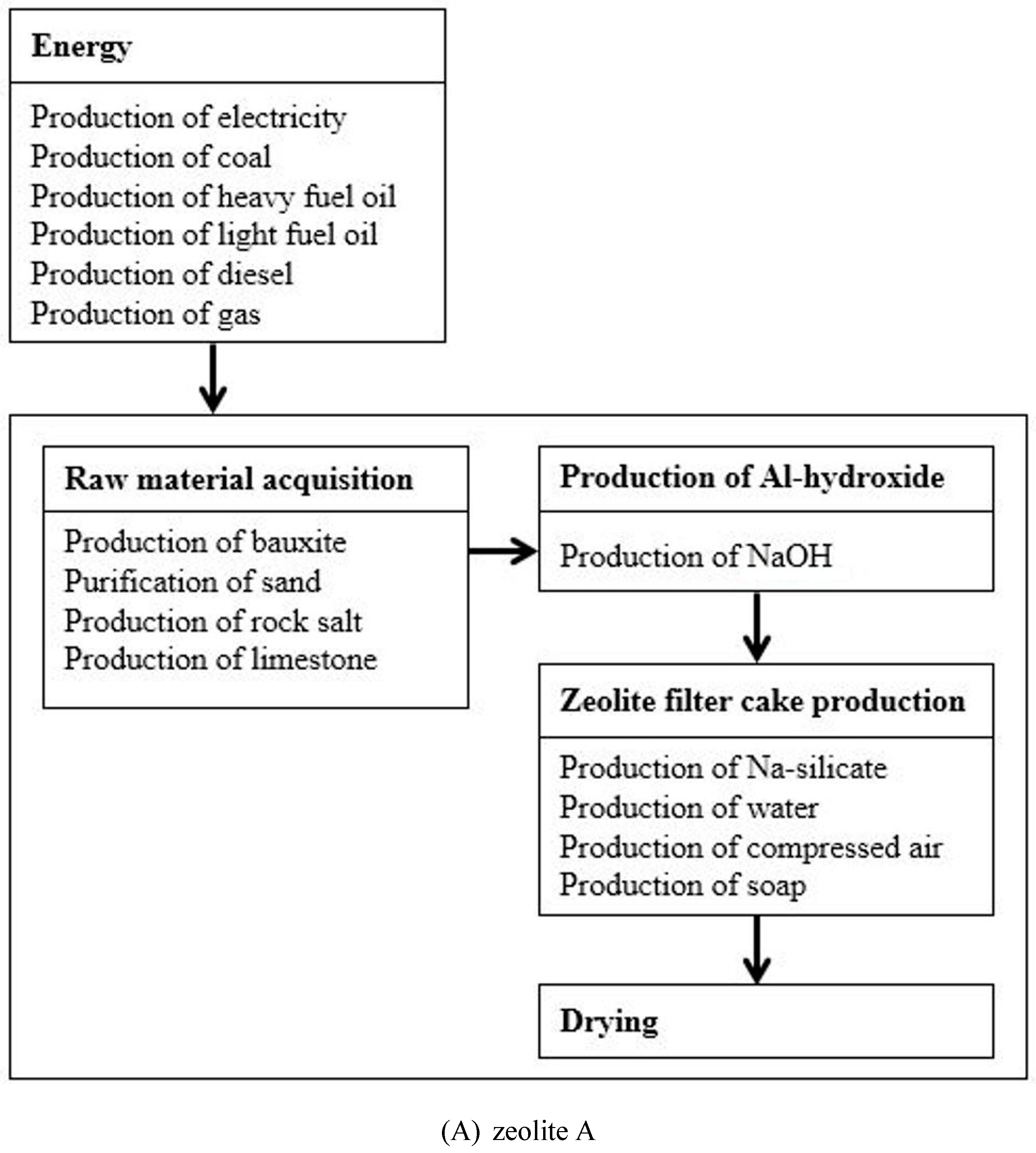

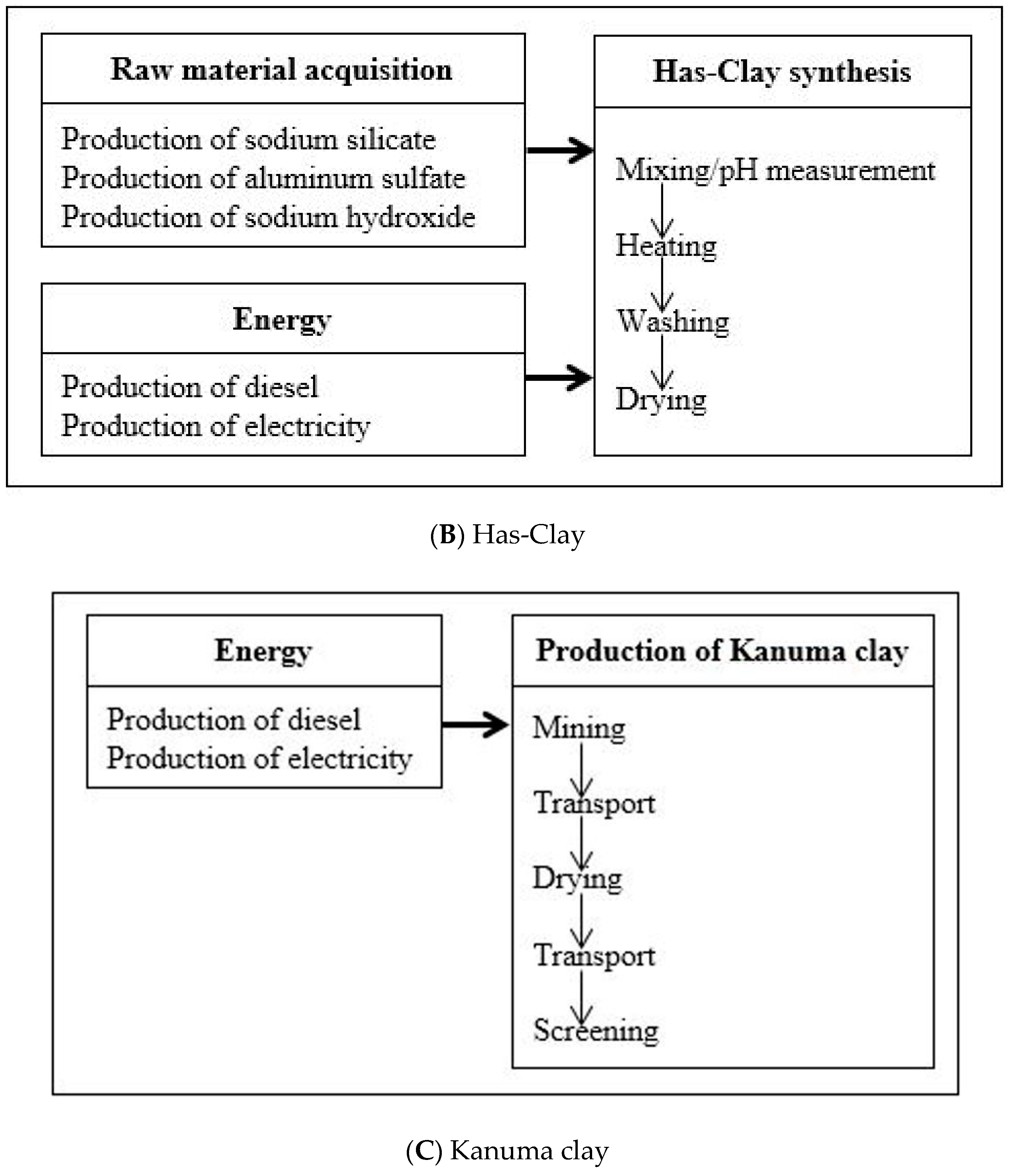

We established the system boundaries and inventories of Has-Clay and Kanuma through interviews and a literature review (Figure 1). Those of zeolite A were obtained from [16]. The functional unit for the comparison among the three adsorbents was defined as 1 kg.

2.2. Life-Cycle Inventory

An LCI of inputs of materials during the material acquisition and the manufacture of the adsorbents was obtained using the Ecoinvent v.3 databases [28], a literature review [16,20], and interviews of relevant personnel at the Kanuma mine, Gunma Prefecture, Japan (Table 1,

Table 2. Inventory of Has-Clay, normalized to three production volumes, 1.1 kg, 5.5 kg, and 11 kg.

Stage	Input			Unit
Production Volume	1.1 kg	5.5 kg	11 kg
Raw materials
Water glass (sodium silicate)	0.9	8.5	12.8	kg
Aluminum sulfate	1.7	16.9	25.4	kg
Water	8.5	85.0	127.5	kg
Mixing/pH measurement
Electricity	0.3	0.3	0.3	kWh
Sodium hydroxide	1.2	11.6	17.3	kg
Heating
Electricity	23.4	46.8	70.2	kWh
Washing
Water	120.0	1200.0	1800.0	kg
Drying
Electricity	3.5	14.0	14.0	kWh

and

Table 3. Inventory of Kanuma clay, normalized to 1 kg.

Stage	Input	Unit
Mining
Light fuel oil	0.6	L
Transportation
Light fuel oil	4.2	L
Drying
Light fuel oil	0.5	L
Electricity	0.6	kWh
Transportation
Light fuel oil	2.3	L
Screening
Electricity	1.4	kWh

). SimaPro v.8.3.0.0 was used to build the life-cycle models. We assumed that infrastructure, such as production facilities that are used repeatedly, were common to all processes and thus did not include them in the assessment.

2.2.1. Zeolite A

The inventory of zeolite A was obtained from [14], which described the commercial production process of 1000 kg anhydrous zeolite A powder (Table 2). Briefly, the raw materials used to produce this amount of zeolite A are bauxite (762 kg), sand (467 kg), rock salt (222 kg), and limestone (40 kg). Sodium chloride is electrolyzed to produce caustic soda (NaOH), which is used to convert bauxite to sodium aluminate and sand to water glass (sodium silicate). The sodium silicate and sodium aluminate solutions are mixed together, resulting in the formation of amorphous sodium aluminosilicate, which is then hydrothermally crystallized and filtered to yield zeolite A filter cake that is further processed to a powder.

2.2.2. HAS-Clay

The following steps are assumed for the process of producing 1.1 kg of Has-Clay: 0.9 kg of water glass is diluted in 4.5 kg of water to make 0.40 mol/L silica (Si) solution, and 1.7 kg of aluminum sulfate is diluted in 4.0 kg of water to make 0.45 mol/L aluminum (Al) solution (the Si/Al mol ratio is set at 0.89). The Si/Al solutions are mixed and adjusted to pH 7.0 by adding sodium hydroxide. After 1 h of mixing, the solution is heated for 18 h at 98 °C, desalted using 120 kg of water, and dried for 1 h at 250 °C [18] to produce the Has-Clay. As shown in Table 3, we estimated the input amounts for three production volumes (1.1, 5.5, and 11 kg).

2.2.3. Kanuma Clay

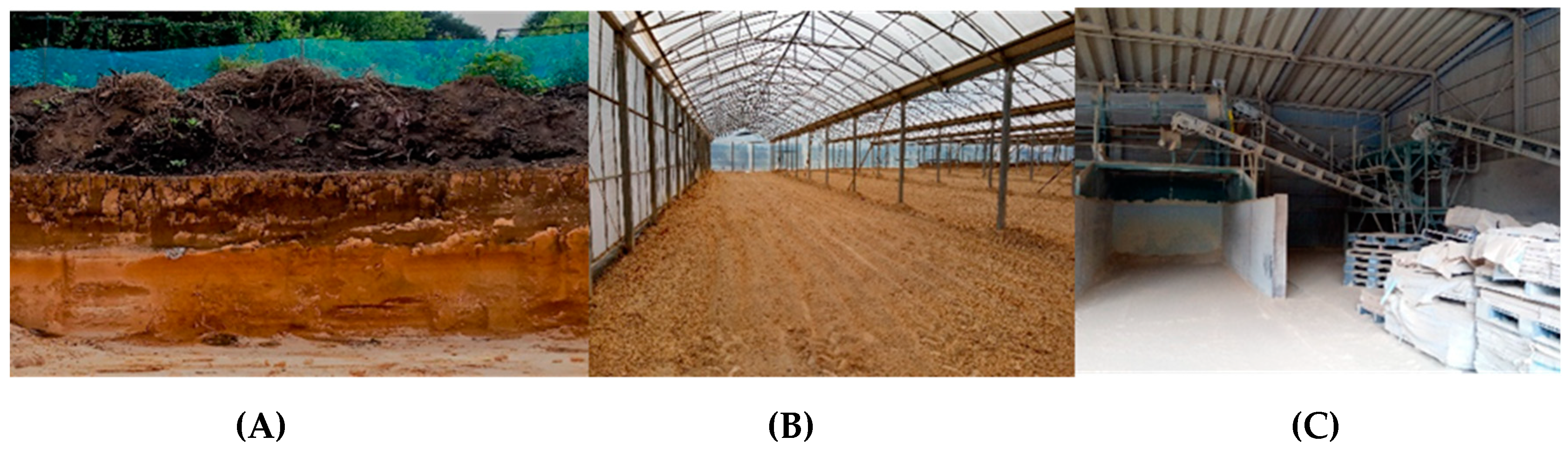

Inventory data were collected from a clay-mining company, Obari Co., Ltd., in Tochigi Prefecture, Japan. The mining area is about 7000 m² and is located in an open field in Kanuma city. A 1.5 m thick layer of Kanuma pumice is below about 50 cm of surface soil and 2 m of Kanto loam (Figure 2A). The pumice is dug up and transported via 10-ton truck to a drying field. The field has 15 plastic greenhouses about 5 m in width and 50 m in length (Figure 2B). The pumice is naturally dried for about a week in the greenhouses, where a loader spreads and mixes the pumice before it is crushed by a crusher. The dried pumice is then transferred to a screening facility where it is sorted by grain size (Figure 2C). The amounts normalized to 1 kg of clay are presented in

Table 4. The life cycle impact assessment from raw material acquisition and production processes for 1 kg of zeolite A, Has-Clay, and Kanuma clay.

Impact Category	Has-Clay	Zeolite A	Kanuma Clay	Unit
Climate change	17.142	2.352	0.004	kg CO2 eq
Ozone depletion	<0.001	<0.001	<0.001	kg CFC-11 eq
Terrestrial acidification	0.092	0.012	<0.001	kg SO2 eq
Freshwater eutrophication	0.001	<0.001	<0.001	kg P eq
Marine eutrophication	0.001	0.001	<0.001	kg N eq
Human toxicity	0.989	0.461	<0.001	kg 1,4 DB eq
Photochemical oxidant formation	0.040	0.006	<0.001	kg NMVOC
Particulate matter formation	0.030	0.004	<0.001	kg PM10 eq
Terrestrial ecotoxicity	0.001	0.021	<0.001	kg 1,4 DB eq
Freshwater ecotoxicity	0.006	0.017	<0.001	kg 1,4 DB eq
Marine ecotoxicity	0.007	0.005	<0.001	kg 1,4 DB eq
Ionizing radiation	0.222	0.062	0.002	kBq U235 eq
Agricultural land occupation	0.174	0.128	<0.001	m2a
Urban land occupation	0.103	0.013	<0.001	m2a
Natural land transformation	<0.001	<0.001	<0.001	m2
Water depletion	0.380	0.031	<0.001	m3
Metal depletion	0.150	0.038	<0.001	kg Fe eq
Fossil depletion	3.999	1.039	0.009	kg oil eq

.

2.3. Impact Assessment Methods and Impact Categories

We estimated impacts on climate change using SimaPro v.8.3.0.0, where background data were acquired from the Ecoinvent 3.0 database [28]. To calculate the impact of the LCI, the ReCiPe midpoint (H) method was used to cover a wide range impact categories, 18 in this case. ReCiPe is a relatively new method developed based on CML 2001 and Ecoindicator 99. The advantage of ReCiPe relative to other methods is it has the broadest set of midpoint impact categories [29].

3. Process Contribution

We evaluated the environmental impacts obtained at the midpoint categories of the ReCiPe method (Table 4). For Has-Clay, the inventory process for producing 5.5 kg was adopted because it was the most efficient. Overall, Kanuma clay had the lowest values in all 18 environmental categories, indicating that it would be the most environmentally friendly adsorbent among the three candidates. The two most notable differences between zeolite A and Has-Clay were in the categories of climate change and fossil depletion, and zeolite A was lower in each case.

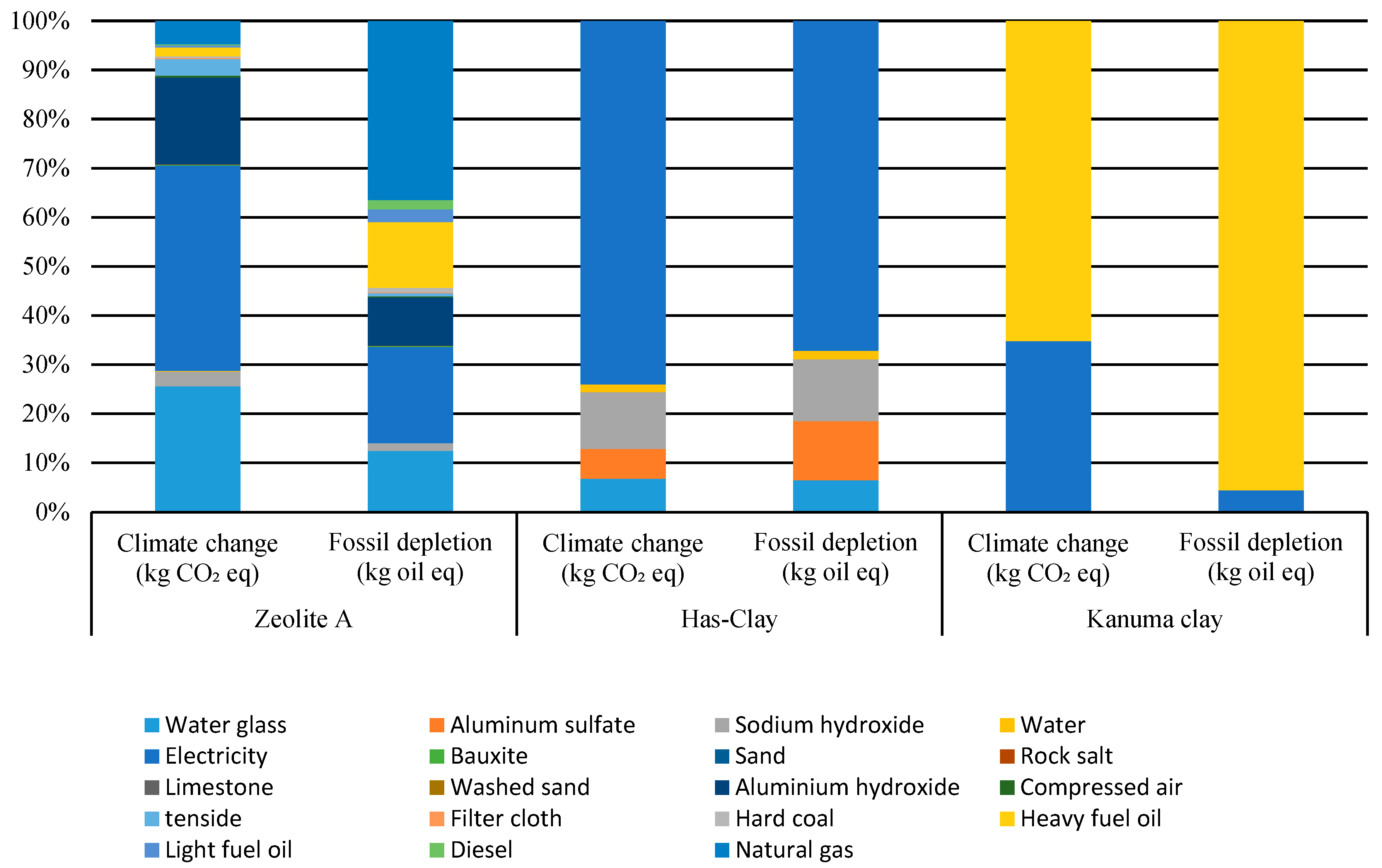

The relative contributions of the specific inputs to the specific impact categories were assessed for each adsorbent. The input contributions describe in detail which processes contribute to each environmental impact. The greatest adverse impacts were in the climate change and fossil depletion categories for each adsorbent (Figure 3).

The life-cycle stage that had the greatest contribution (67% to climate change and 40% to fossil depletion) to adverse impacts for Has-Clay was electricity, which was used in the heating, mixing, and drying stages. In particular, heating the Si/Al solution at 98 °C for 18 h used the most electricity, consuming 23.4 kWh, 46.8 kWh, and 70.2 kWh at the production scales of 1.1 kg, 5.5 kg, and 11 kg, respectively.

The greatest impact from zeolite A was also from electricity (42%) at the adsorbent manufacturing stage for climate change (Table 4, Figure 3). The production of natural gas caused an adverse impact in the fossil depletion category (37%). Of the raw materials acquired, sodium silicate had the greatest contribution to adverse impacts for climate change and fossil depletion.

Kanuma clay had the least impact in the impact categories. The inputs consisted only of light fuel oil and electricity. Light fuel oil was consumed during mining, transportation, and drying and contributed 65% to climate change and 96% to fossil depletion. Transportation accounted for the greatest consumption of light fuel oil, 6.5 L (Table 4). These impacts could be reduced by placing processing facilities closer to the mining operation.

4. Sensitivity Analysis

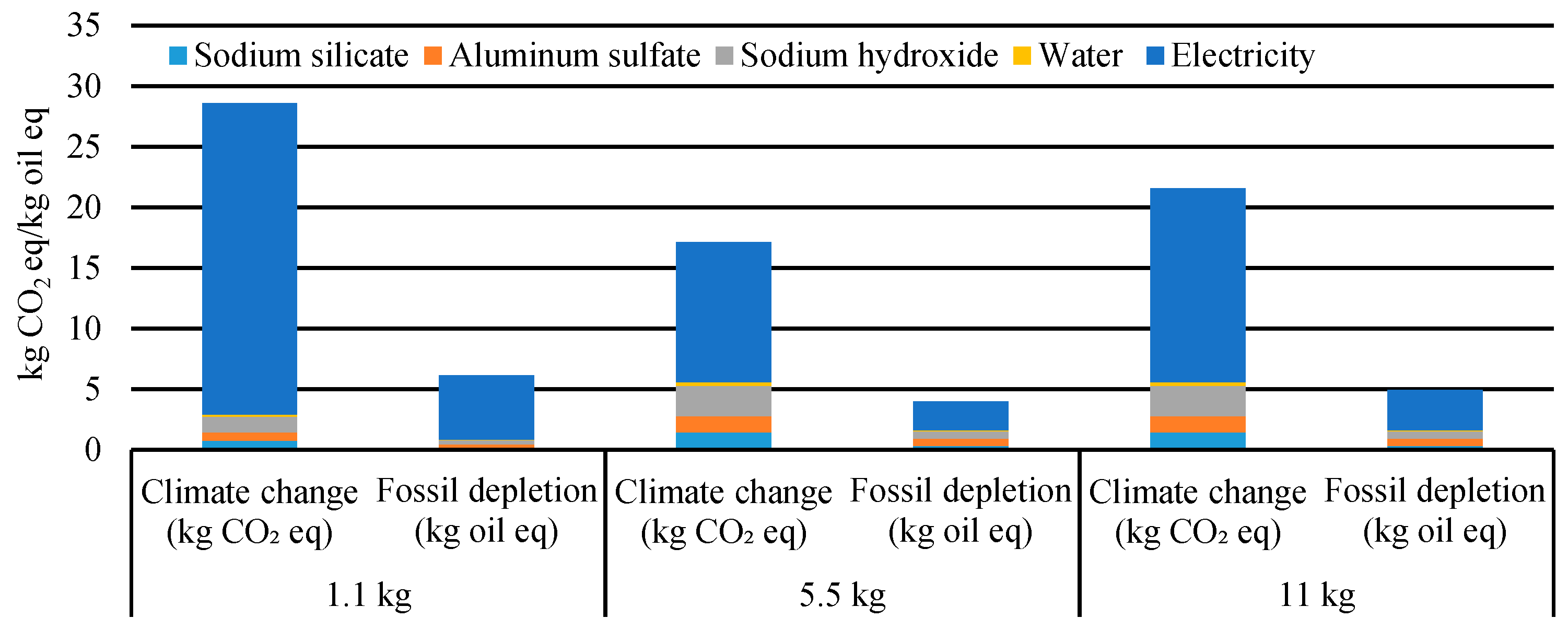

A sensitivity analysis was conducted on the production volume of Has-Clay to evaluate any potential for environmental improvements. Has-Clay was virtually synthesized in three production volumes, 1.1 kg, 5.5 kg, and 11 kg. Figure 4 compares the climate change and fossil depletion for the three scales. Of the three, the 5.5 kg scale showed the least impacts, with values of 17.14 kg CO₂ eq and 4.00 kg oil eq for climate change and fossil depletion, respectively, about one-half of the values for the 1.1 kg production scale.

Even when the production scale was increased, the greatest contribution was still from electricity used, especially in heating. The heating and drying equipment were used more efficiently at the larger production scales, and the relative amount of electricity consumed was reduced, contributing to an overall decreased environmental impact. To further reduce the impacts, an alternative production process involving a more energy-efficient heating process or facility would be necessary.

5. Selection of Adsorbents for Environmentally Friendly Biohydrogen Production

The environmental burden of biohydrogen production is highly impacted by the adsorbents, which affect the operating pressure and temperature related to the energy consumption. That is, it is necessary to consider both the adsorption capacity and the environmental burden of adsorbents for the environmentally friendly biohydrogen production system. In this study, we generated LCI of possible candidates; zeolite A, Has-Clay, and Kanuma clay, under consideration for the application of biohydrogen to fuel cells, and compared environmental impacts of those. Results showed that Kanuma clay would be the most environmentally friendly, followed by zeolite A and Has-Clay. However, Kanuma clay are limited to HCl adsorption at present [21]. Hence, Has-Clay could work at low-pressure operation and be expected to be less of an environmental burden, however it expressed lower H₂S adsorption capacity than zeolite A (zeolite 5A) at certain conditions (

Table 5. Adsorption capacity for hydrogen sulfide and hydrochloric acid, and the environmental impact of zeolite A, Has-Clay, and Kanuma clay.

Adsorbent	Adsorbent Capacity				Environmental Impact
	H2S [g-H2S kg-Sorbent]	Reference	HCl [g-Cl 100 g-Sorbent]	Reference	kg-CO2 g-H2Sadsorbed, HCladsorbed		Reference
Zeolite 5A	0.5	[18]	-		4.7	-	This study
Has-Clay	0.17–1.6 a	[19]	3.3 b	[21]	11–101	0.52	This study
Kanuma clay	-		4.6	[21]	-	<0.01	This study

^a particle size, 2–3 mm, coars; ^b particle size, <0.25 mm, fine.

). Therefore, for further study, the optimization of the PSA process, including the use of multi-bed PSA with less of an environmental burden and high adsorption capacity, is necessary.

6. Conclusions

The LCA results indicate that Kanuma clay is the most environmentally friendly alternative in all of the environmental impact categories, followed by zeolite A and Has-Clay, respectively. The differences among these adsorbents were expressed in the categories of climate change and fossil depletion. The highest impacts were estimated for electricity use in the production processes of zeolite A and Has-Clay and in the production of raw materials such as sodium silicate and sodium hydroxide. For the Has-Clay, optimization of the production volume was required to reduce the environmental impact by optimizing the use of electricity used in heating and drying. To minimize the environmental impacts to a greater extent, it would be necessary to design a production process that uses energy more efficiently.

Additional study is suggested to extend the system to include the transportation of adsorbents to the biohydrogen plant and the production of biohydrogen, where the adsorption capacity of each adsorbent is accounted for to assess environmental impacts throughout the system. A more complete analysis would enable researchers to optimize the adsorbent content to meet a suitable adsorption capacity and various environmental challenges. Regeneration and reuse of adsorbents is a promising strategy to minimize environmental impacts associated with their production and transportation. It would also reduce the impact of the disposal of the adsorbents. The types of LCI data illustrated in this research are imperative to promote more sustainable biohydrogen production.
