WEEE Resource Management System in Costa Rica

Abstract

Costa Rica followed different steps in order to organise and implement a waste of electrical and electronic equipment (WEEE) management system. This paper summarises the challenges, successes, and limitations of its implementation. Two phases were needed to set up the system. The first phase created a baseline followed by the designing of a strategy. The second phase promoted a Decree for WEEE management that prohibits discarding WEEE together with household waste, as well as the creation of a National Executive Committee with representatives of importers, consumers, and government, which will establish the quotes and treatment fees, and so on. Another outcome was the development of a strategy for the implementation of WEEE management for the country, the promotion of population awareness about their responsibility for WEEE management, and an example set up for other Latin American countries. This paper draws conclusions from the regulation and notes the required consistency with the existing national waste legislation in order to reduce approval times. Additionally, the importance of the participation of stakeholders representing different electric and electronic equipment (EEE) sectors with the purpose of obtaining consensus on agreements is highlighted.

1. Introduction

The electronic industry is the largest and fastest-growing manufacturing industry. Meanwhile, the amount of waste of electrical and electronic equipment (WEEE) is growing at an alarming rate, and countries in Latin America are no exception, in some cases being similar to industrialised countries [1,2,3].

The rapid growth of WEEE, lack of prevention and minimisation strategies, indiscriminate dumping and improper disposal, low awareness in society about the environmental hazards and the wide variety of materials they often contain, including many substances potentially harmful to both humans and the environment, has resulted increased attention focussed on how WEEE is generated, and handled, as well as ways in which the production of waste can be prevented [2,4,5]. This situation gave rise to several countries in high-income regions engaging in WEEE policy formulation under principles such as Extended Producer Responsibility (EPR), whereby WEEE manufacturers are assigned the responsibility for environmental impacts throughout the lifecycle of products, including recycling, reuse, and final disposal of waste materials [2]. Simultaneously, this approach was also introduced in some Latin American countries including Costa Rica [3], which has attempted to overcome this rising problem by developing its own method of WEEE management based on the initiative of the Netherlands [6].

This article analyses the different steps followed in Costa Rica in order to develop a WEEE management system based on EPR principles. The term Producer has been extended to the importers of new and used equipment since there is no production of electrical or electronic equipment in the country. On the other hand, WEEE refers to all electrical and electronic equipment, but this initiative was limited to information and communication equipment (ICT) due to their shorter life span and the growth of the market and number of users. Therefore, large household appliances and entertainment equipment were not included in the first approach, although in a later stage of this initiative TVs and flat screens were included due to their technological similarity to computer monitors.

Waste of Electrical and Electronic Equipment in Costa Rica

Costa Rica is a small country in Central America with a surface of 51,100 km² and a population of approximately 4.9 million inhabitants, of which 60% is urban. In the urban areas, 45% have finished primary education, 30% secondary education, and 14% university studies. In the rural areas, 64% have finished primary school and 16% secondary education [6]. Costa Rica is considered to have a middle-income economy, with a Gross Domestic Product per person of 14,914 US$–15,401 US$ in 2015 and 2016 respectively. The country has experienced an increase in the amount of waste due to urbanisation, a rise in population, and changes in consumption patterns. A study in four municipalities of the Great Metropolitan Area showed a generation rate of 0.59 kg/inhabitants-day [7].

In 2003, Costa Rica developed a very important initiative to determine inventories in different materials. The report alerted organisations and institutions to the need of a sustainable management strategy for WEEE. During this study, it was acknowledged that by 2005, 130,000 personal computers (PCs) would be discarded, representing about 2600 tons. The report also warned about the lack of facilities that provide any treatment and safe final disposal for this type of waste [5]. By 2006, a second inventory reported 11,737 tons of WEEE, which shows the magnification of the WEEE generation due to a higher accessibility to computers as well as other information and telecommunication technologies [8].

The process to start developing a WEEE management system started with three organisations: a national non-governmental organisation (NGO) called the Central American Association for the Economy, Health, and the Environment (ACEPESA), supported by a state university, Instituto Tecnologico de Costa Rica (ITCR); the Chamber of Industries of Costa Rica (CICR); and an International NGO called WASTE, Advisers on Urban Environment and Development from the Netherlands.

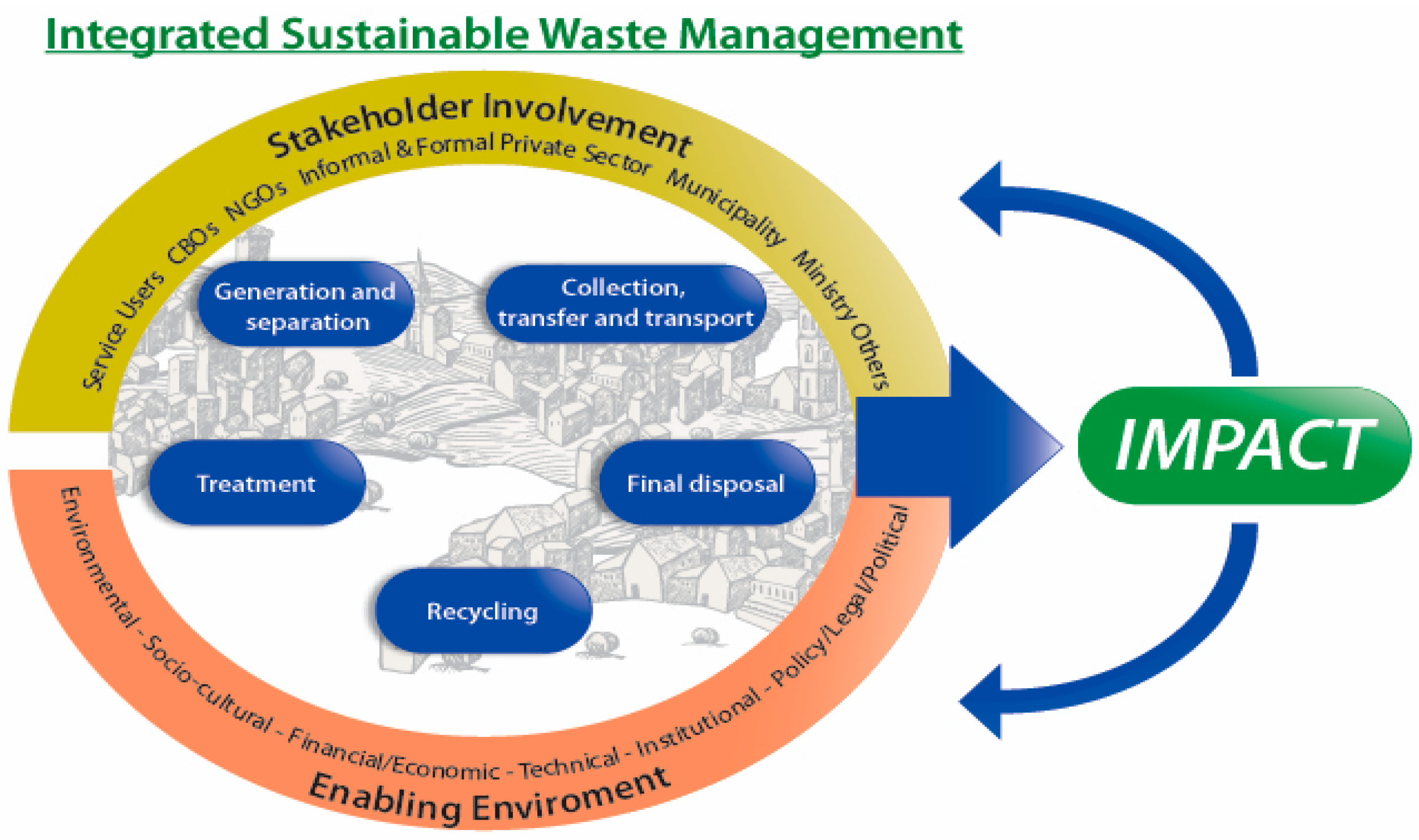

The methodological approach used to develop the EPR system was based on the Integrated Sustainable Waste Management Model (ISWM) (see Figure 1), which considers the stakeholders, the material flow, and other issues grouped around technical, financial-economic, socio-cultural, environmental, institutional, and political/legal aspects that influence the full sustainability of waste management [9].

2. Methodology

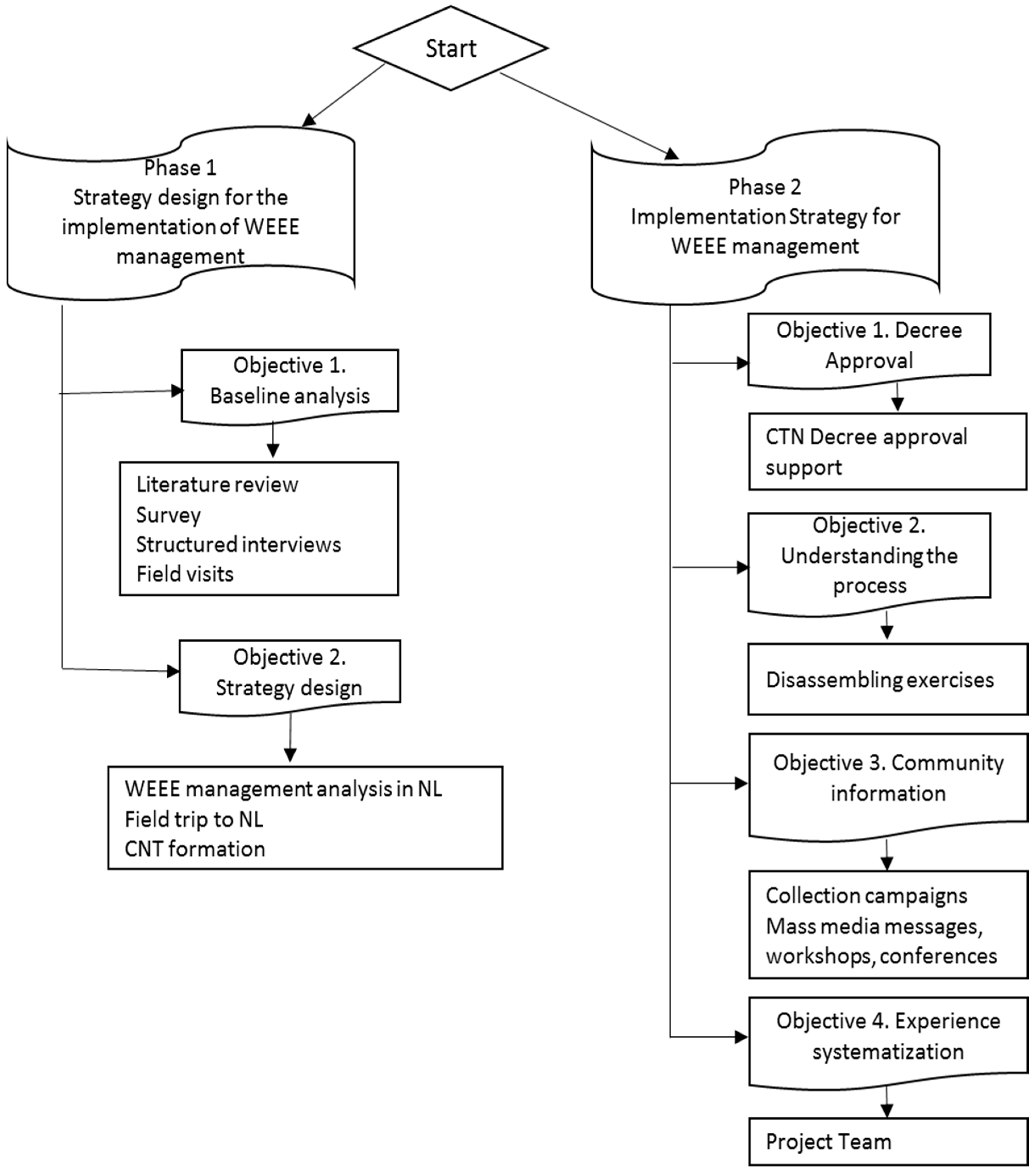

The project was developed in two phases (see Figure 2) from 2003 to 2007. The first phase, planned for one year, had two objectives: (1) To analyse the current situation in Costa Rica in relation to WEEE management; and (2) To develop a national strategy for WEEE management.

An inter-sector working team (Executive team) lead the process by starting with the identification of the main stakeholders around electric and electronic equipment (EEE) as well as gathering the information available for the estimation of WEEE generation, identification of main generators, informal dismantling activities and material recovery, and material flows between the stakeholders. The idea was to be able to describe a WEEE system by identifying the stakeholders and to determine their present roles and possible environmental and social-economic impacts, building up relevant information for the development of a national strategy for WEEE management.

The second phase, planned for three years, was focused on three objectives: (1) To prepare and discuss the regulation proposal for the WEEE management with government, public, and private sectors in order to achieve its approval by presidential decree; (2) To assess technical and financial feasibility for the WEEE process proposed in the management strategy considering strengths and limitations in the country; and (3) To transfer information about WEEE in order to raise awareness in all sectors of Costa Rican community. The Executive team considered that in order to prepare the National Regulation proposal for WEEE management, an open discussion with all stakeholders, central and local governments, and community members was required. From the first phase results, a lack of formal businesses dedicated to suitable WEEE processing in Costa Rica was encountered, therefore actions to promote WEEE recycling companies were taken towards the implementation of a WEEE management system based on the EPR, followed by information transfer and awareness on WEEE impacts, citizen responsibilities, and technical support for WEEE storage and collection strategies [6].

The executive team included four partner organisations: (1) ACEPESA, as the leader of the initiative; (2) ITCR, which supported the initiative with scientific, technical, and environmental aspects; (3) CICR, as a potential organisation that included not only EEE users and WEEE generators but also producers or industries which could later be involved in WEEE treatment or WEEE material recycling; and (4) WASTE in the Netherlands. In order to generate empowerment of all sectors involved, other organisations joined during the development of this phase, including the Ministry of the Environment and Energy (MINAE), Ministry of Health, the Costa Rica Institute of Electricity and Telecommunications (ICE), and the American Chamber of Commerce (AmCham) represented by Intel and RICOH.

A summary of both phases is found in Figure 2. It contains the two phases as well as the objectives and methodologies used in each phase.

2.1. First Phase

The baseline analysis started with a literature review. It provided information on stakeholders involved in WEEE management as well as the findings of similar studies in other parts of the world. Five survey instruments were created to determine the actual situation related to WEEE management in Costa Rica, considering financial, institutional, environmental, technical, socio-cultural, legal, and gender aspects. Two examples can be found in Appendix A. The instruments were oriented to obtain information from the following categories:

(1)

Equipment importers and distributors. Importers and distributors existing in the Great Metropolitan Area (GMA) providing services since 2003 independently of its size;

(2)

Electric and electronic refurbishing workshops. Workshops in the GMA with services since 2003;

(3)

Governmental and private clients. Public and private banks in the GMA, public and private universities with Informatics or Electronic careers, ministries and autonomous institutions, and enterprises that are members of the Industry and Commerce Chambers;

(4)

Municipalities. Municipalities from GMA that have that have the responsibility of managing the disposal sites; and

(5)

Households. Owners of a desk telephone line in the capital city in 2003.

An estimation of the sample size was made based on a finite population in each category, except for the municipalities and the universities, considering aleatory number techniques with 95% confidence. The sample sizes are presented in

Table 1. Total population and sample size.

Population	Total	Sample Framework	Sample Size
Equipment importers and distributors	704	Telephone book, 2003 Commercial Directory, 2003 Industrial Directory, 2003 Database of Ministry of Economic, Industrial, and Commercial Affairs, December 2002	85
Electric and electronic refurbishing workshops	23	Telephone book, 2003	17
Governmental and private clients	1.429	Commercial Directory, 2003 Industrial Directory, 2003 Telephone book, 2003 Internet	131
Municipalities	9	San José, Atenas, Alajuela, Santo Domingo, Curridabat, Tres Ríos, San Pablo de Heredia, San Isidro de Heredia, and Goicoechea.	100
Households	-	Telephone book 2003	9
Total	2.165		342

.

Two hundred and seventy-seven questionnaires were sent to different categories involved with EEE. This amount is lower than the proposed number (342) due to a lower number of existing enterprises in the moment of the study. Additionally, the household survey was conducted to one hundred households referring to their habits and behaviours related to WEEE management in addition to their willingness to pay for its safe treatment and disposal.

Thirty-five structured interviews were implemented to key informants from different organisations such as regulatory boards, collection, transportation, final disposal, and recycling entities. Three tools were prepared for the interviews. An example can be found in Appendix B. The interviews were intended to complement the survey in order to process the results obtained from the questionnaires.

Field visits were conducted after receiving the questionnaire responses and the data collected in the interviews. Observations on processes related to WEEE management were made to material recycling facilities and disposal sites.

The limitations of this phase are related to the collection of quantitative data about the amount of electric and electronic equipment in public and private institutions and the waste generated.

By 2004, the Netherlands WEEE management system was financially and technically well-established. A field trip to the Netherlands coordinated by WASTE allowed the executive team together with government and industry officers to better understand milestones of a Management System based on EPR. The objective was to analyse the WEEE management in the Netherlands (NL), as well as its organisation, challenges, and opportunities in order to adopt a similar system in Costa Rica. A National Technical Committee (CTN from its Spanish acronym) was created after the field trip to the NL. The CTN aimed to plan, monitor, follow-up, and evaluate the project phases. The consolidation of the CTN is considered one of success factors for the establishment of the product of first phase: the National Strategy for integrated WEEE management system by the end of 2005.

2.2. Second Phase

The CTN was strengthened after the field visit to NL. They had the task of lobbying the approval of the regulation. Additionally, a program to support the EEE sector in understanding the Decree and its impact was prepared. The regulation proposed promoted the idea of compliance entities that would facilitate the collection, transportation, and treatment of EEE. Simultaneously, trainings were provided to staff members of governmental institutions in the new system.

Regarding the assessment of the technical and financial feasibility (Objective 2) two pilot dismantling exercises were set up to determine collection procedures, storage and transportation needs, disassembling and separation requirements, local and international material markets, hazardous EEE material export procedures, final treatment, and international logistics.

The first pilot exercise considered the treatment of an equivalent to 1000 central processing units (CPU), monitors, keyboards, and mouse) provided by the Costa Rica Institute of Technology. The basic requirements for labour, working areas, storage sites, required tools, safety equipment, packaging materials, and dismantling times, among others, were studied. It is noteworthy to mention that the staff for the dismantling procedure consisted of four employees from an industrial waste facility; the four employees were men between 20 and 35 years old, with no previous experience in WEEE dismantling, and a level of education from 9th grade to 11th grade (high school completed). ITCR offered a short training program (6 h) to staff, including transportation and forklift truck operators, and the program included occupational safety related to WEEE handling, identification of parts, and dismantling procedures.

The second exercise considered all of the phases starting on the storage of the materials, dismantling process, packaging of the different materials, and local commercialisation of the recycling materials, as well as international commercialisation only for those materials that could not be recycled locally. The cost for the treatment was estimated.

Collection campaigns were introduced during the dismantling exercises, leading to a well-informed community eager to participate intensively during the WEEE collection activities. The community received information through different mass media, workshops, and conferences about the environmental and health impact of WEEE, preventive actions, roles and responsibilities of the different stakeholders, the results expected from the project, and the system that was defined through a voluntarily EPR strategy.

3. Results and Discussion

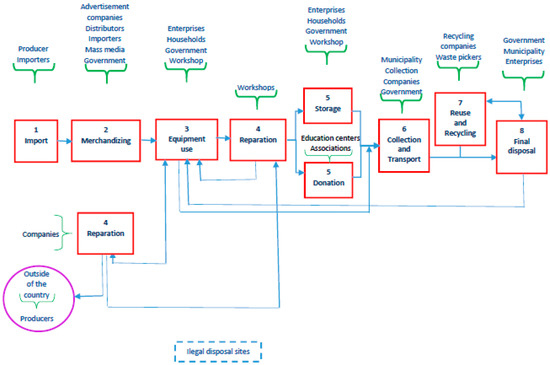

During the first phase, the primary and secondary stakeholders involved in WEEE management (see Figure 3) were contacted. They included municipalities, users of EEE, importers and distributors of EEE, repair shops, material recovery facilities, waste processing companies, ministries of Environment, Health, Science, and Technology, academic institutions, union groups, and non-governmental organisations. In addition, this step allowed identifying the institutions and organisations that could contribute as members of the National Technical Committee.

Furthermore, the study showed that close to 24,000 tons of historical WEEE had been generated since 1996 (first data available) [12]. This amount increased approximately by 4000 tons per year. Although WEEE had started to be dumped in empty lots or river basins, most of it was stored in warehouses in institutions, or closets and garages in the case of individual consumers.

The baseline was set up and the dimension of the problem was better understood; awareness of different sectors about the need to seek options for an environmentally sound system was provided; and the mass media was motivated to actively support the initiative. The strategy design process gave as a result a consolidated and motivated National Technical Committee actively involved as a technical body assuming research, lobbying, and advocacy responsibilities.

The analysis of WEEE management in NL and the field visit to that country provided in-depth information about institutional issues related to WEEE management and the compliance financing system. A national strategy for integrated and sustainable electronic waste management in Costa Rica was formulated and presented to the national authorities, business people in the sector, and households.

During the second phase of the study, the CTN worked on a Decree for WEEE management since the country did not have specific regulation for this type of waste. It was based on the Waste Management Law and the Extended Producer Responsibility principle. The Decree was publicly consulted and approved in May 2010. It was the first one of this nature approved in Latin America [3].

The most relevant statements of the regulation are [13]:

• Prohibits discarding WEEE together with household waste
• Officially creates the National Executive Committee with representatives of importers, consumers, and government which will establish the quotes, treatment fees, etc.
• New electronics will be covered by the management system once implemented, while historical (EEE generated before the Decree approval) and orphan waste (EEE from a producer or importer that is not in the market anymore) must pay a treatment fee
• The compliance entities (individual or collective) must present their plans for WEEE treatment, which must be approved by the Controller (Ministries of Health and Environment)
• The processors must show compliance to the national regulation such as operation, permit, environmental impact assessment, ad labour safety, in addition to transparency concerning local and international materials trade according to the regulations, including the Basel Convention
• International materials trade may vary according to the development of technologies in the national territory
• Enterprises in Free Trade Zones can also contemplate the use of the system
• In the case of equipment donations, the donor can transfer the hardware but not the responsibility of the waste (treatment fee should be covered by the donor organisation)

The first pilot dismantling exercise allowed determining the basic requirements such as power tools, manual screwdrivers, plyers, and most suitable personal protection equipment such as gloves, safety eyeglasses, and powder masks. For example, it was found that a leather glove in one hand to hold metal carcasses and a bare hand to use the power tool worked best for CPU dismantling. Timing the operations required for the dismantling of a complete computer, as well as other required operations such as moving the daily load of WEEE and separated materials in the facility, cleaning up the working area, etc., adding up to the final labour time per computer. The average time for the dismantling for each component for the three operators is shown in

Table 2. Average time for the dismantling of computer devices [14].

Operator	Time (min)
	CPU	CRT * Monitor	Keyboard	Total
1	15.0	14.5	3.5	33.0
2	14.0	16.9	2.5	33.4
3	13.0	14.8	2.5	30.3
Average	14.0	15.4	2.8	32.2

* CRT corresponds to Cathode Ray Tube.

.

For the total costs estimation, other indirect costs were added such as total warehouse area; packaging items such as sacks, wooden pallets, and shipping boxes (1.7 m³ box); international shipping; sales to local marketing; exportation authorisation and documentation; and final process costs and sales due to metal recovery.

Since the first pilot exercise was carried out for a low volume of WEEE and excluded experiences and some costs associated with the public collection campaign and local transportation, a second pilot exercise was developed towards the optimisation of the costs assessment.

Table 3. Costs assessment for the WEEE processing in both pilot exercises [15].

Title	Descriptor	1st Pilot Exercise Costs ($)	2nd Pilot Exercise Costs ($)
Warehouse area	Warehouse renting cost for the processing facility, including a 30% benefit	−6.37	−4.0
Dismantling process	Labour including local transportation and forklift moving of the materials inside the facility	−4.30	−4.30
Packaging	Sacks, shipping boxes	−0.13	0.13
Local market	Sales of copper, aluminium, ferrous metals, and plastics	+0.46	+0.46
Exportation	Shipping logistics services, Basel Convention declaration and permits, shipping and final processing of CRTs and PVC *-covered wiring at certified international processing facilities	−7.91	−3.95
International market	Sales return for precious metal recovery in circuits	+1.23	+1.23
TOTAL		−17.02	−10.69

Note: negative values represent costs, while positive values represent benefit or return. * Polyvinyl chloride polymer.

shows the results of the costs assessment of both pilot exercises, where the second shows lower costs per computer due to the higher volume processed (60 tons), the economy scale factor, and an optimisation of the packaging, resulting in a significantly lower volume to be exported, which was the highest cost found. The fee was found to be 10.69 US$ per computer (about 0.5 US$ per kilogram). This fee should be considered as a baseline, since volumes, technology, and return values of materials can significantly change [15].

Manuals were prepared for equipment disassembly, estimated equipment disassembly times, and working diagrams as a result of the pilot plans and disassembling exercises. The best practices for storage and transportation procedures were evaluated. Packing units were designed and manufactured for testing purposes; however, the high manufacturing cost caused them not to be used in the pilot projects, and a simpler one was prepared. Additionally, information about the possible sites for treating and marketing the separated materials were prepared.

4. Limitations of the Process

• The change of the political party ruling the country and the roles and responsibilities of the state institutions responsible for leading the Decree approval produced a delay of several years, affecting key issues in the strategy implementation.
• It was not possible to motivate municipalities and other related institutions to participate in the two phases in spite of the efforts made.
• There was a lack of knowledge on how to recover, reuse, or recycle materials e.g., Cathode Ray Tubes of monitors.

5. Conclusions

• When installing a recovery and recycling system for WEEE, existing collecting, transporting, and recycling enterprises should be incorporated.
• Regulation on WEEE should be based on existing national legislation to reduce approval times.
• The national strategy must be the result of a consensus among the different stakeholders that are participating in the process through private public partnerships.
• The identification of the possible institutions and organisations related to the EEE and their capacity and accountability were fundamental in setting up the National Technical Committee.
• The participation of institutions and individuals of different backgrounds enriched the National Technical Committee with different points of view. Nevertheless, this also implied having to invest major efforts in negotiation processes to be able to reach agreements through consensus. The leading organisation for the constitution of such a committee should be an independent organisation that is neutral to enable interdisciplinary and inter-institutional exchange.
• When WEEE as a subject was placed on the national agenda, it began to generate a demand for the environmentally safe treatment of EEE.

The process developed in Costa Rica has caught the attention of several regional organisations in both Central America and the rest of Latin America, including some governmental institutions and companies.
