A 0.7 V, Ultra-Wideband Common Gate LNA with Feedback Body Bias Topology for Wireless Applications
Previous Article in Journal
Editorial for the Special Issue on “Quantum-Dot Cellular Automata (QCA) and Low Power Application”
Article Menu

Export Article

Open AccessArticle
J. Low Power Electron. Appl. 2018, 8(4), 41; https://doi.org/10.3390/jlpea8040041

A Novel Approach to Design SRAM Cells for Low Leakage and Improved Stability

1
Department of Electronics and Communications Engineering, Inderprastha Engineering College, Ghaziabad 201010, India
2
GLA University, Mathura 281406, India
3
Department of Electronics and Communication Engineering, ABES Engineering College, Ghaziabad 201009, India
*
Author to whom correspondence should be addressed.
Received: 8 September 2018 / Revised: 9 October 2018 / Accepted: 12 October 2018 / Published: 24 October 2018
Full-Text   |   PDF [6401 KB, uploaded 24 October 2018]   |

Abstract

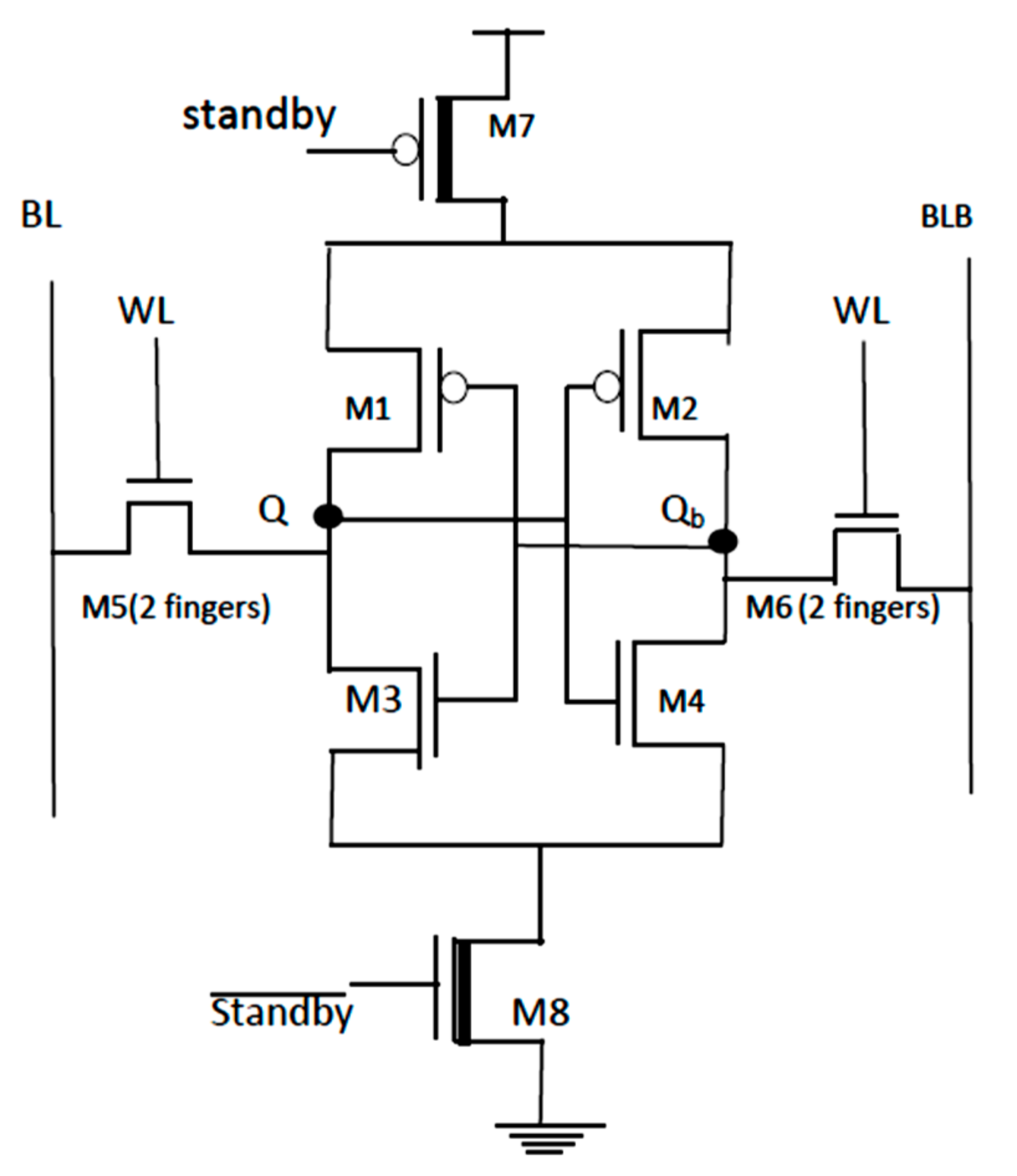

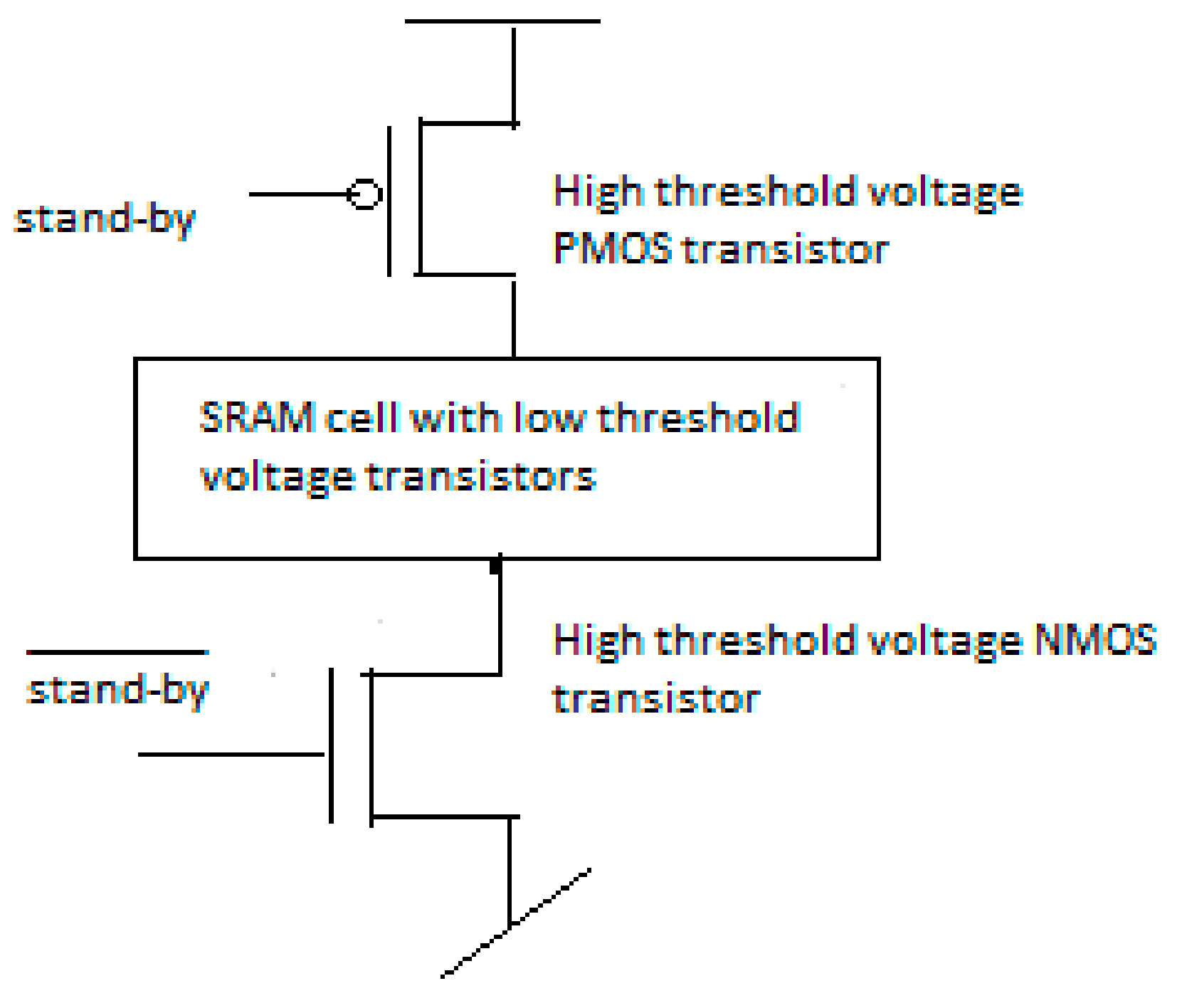

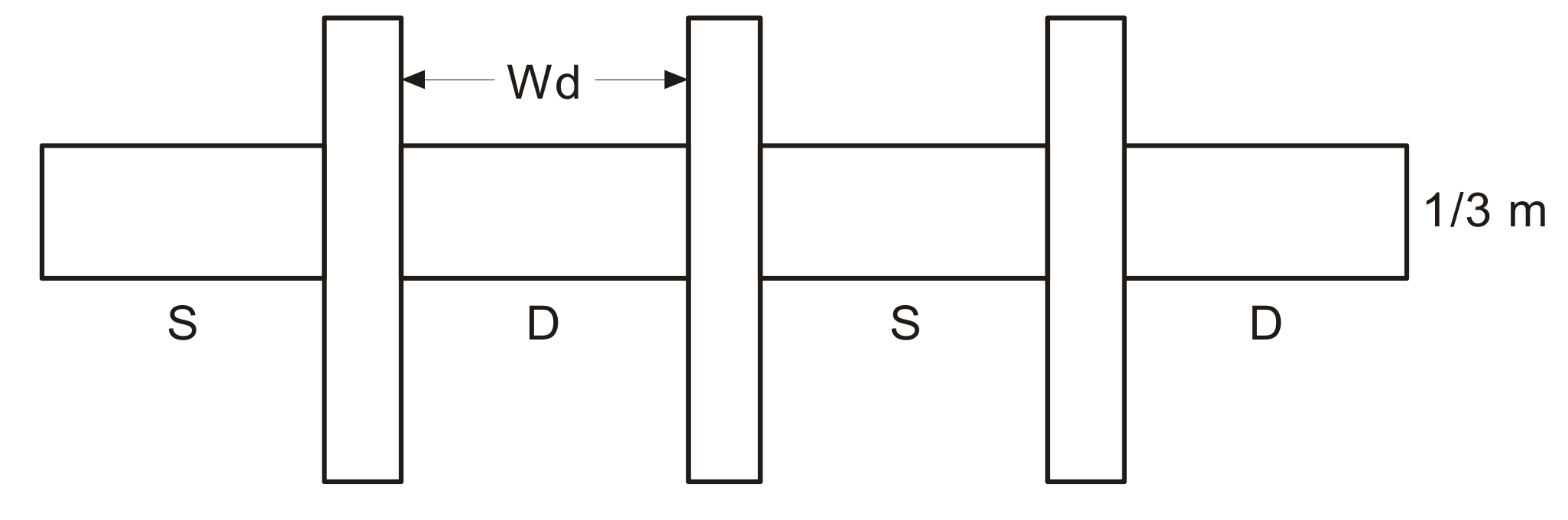

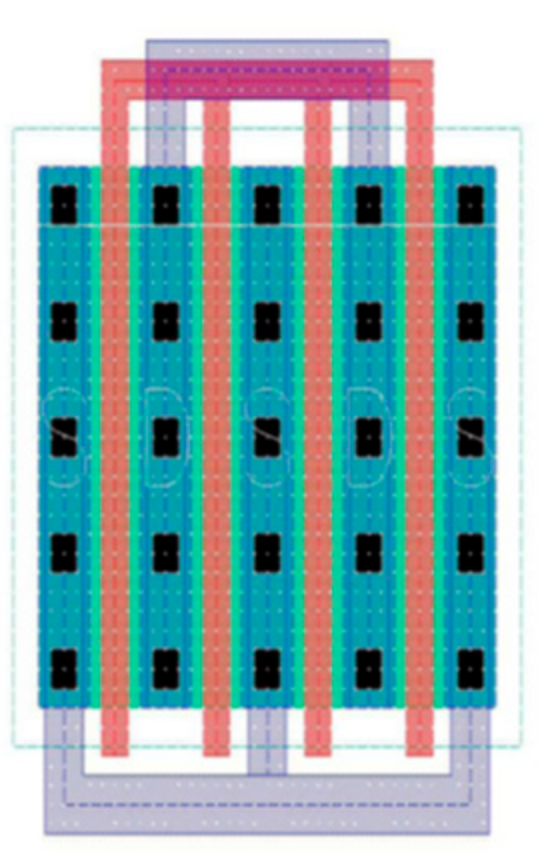

The semiconductor electronic industry is advancing at a very fast pace. The size of portable and handheld devices are shrinking day by day and the demand for longer battery backup is also increasing. With these requirements, the leakage power in stand-by mode becomes a critical concern for researchers. In most of these devices, memory is an integral part and its size also scales down as the device size is reduced. So, low power and high speed memory design is a prime concern. Another crucial factor is the stability of static random-access memory (SRAM) cells. This paper combines multi threshold and fingering techniques to propose a modified 6T SRAM cell which has high speed, improved stability and low leakage current in stand-by mode of the memory cell. The simulations are done using the Cadence Virtuoso tool on UMC 55 nm technology. View Full-Text
Keywords: CMOS technology; SRAM; MTCMOS; fingering; leakage current; SNM CMOS technology; SRAM; MTCMOS; fingering; leakage current; SNM
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
