Open AccessArticle
J. Low Power Electron. Appl. 2016, 6(1), 3;

An Open-Source Tool Set Enabling Analog-Digital-Software Co-Design

Electrical and Computer Engineering (ECE), Georgia Institute of Technology, Atlanta, GA 30332-250, USA
Author to whom correspondence should be addressed.
Academic Editor: David Bol
Received: 5 October 2015 / Revised: 18 December 2015 / Accepted: 14 January 2016 / Published: 4 February 2016
Full-Text   |   PDF [1393 KB, uploaded 4 February 2016]   |

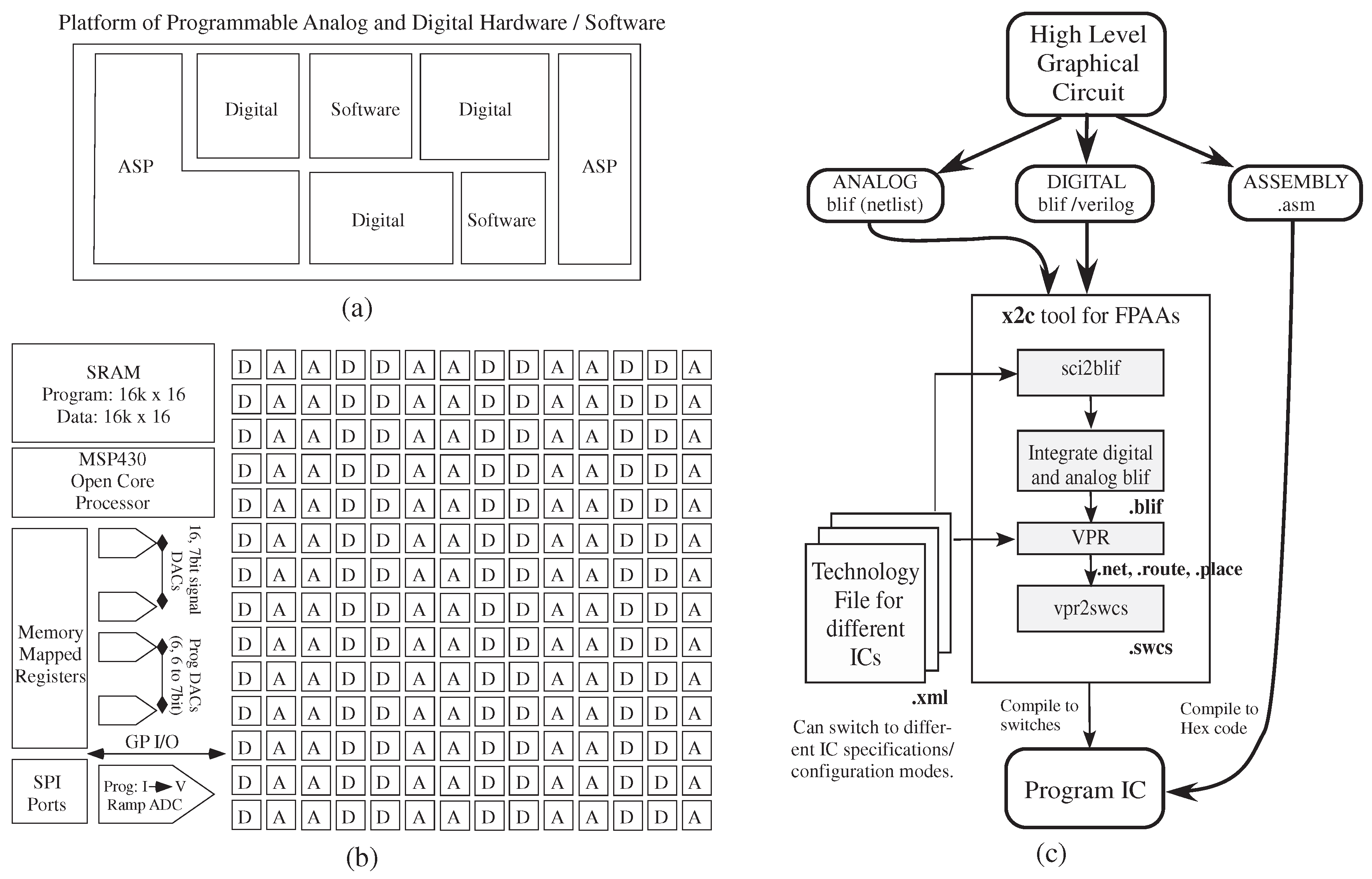

This paper presents an analog-digital hardware-software co-design environment for simulating and programming reconfigurable systems. The tool simulates, designs, as well as enables experimental measurements after compiling to configurable systems in the same integrated design tool framework. High level software in Scilab/Xcos (open-source programs similar to MATLAB/Simulink) that converts the high-level block description by the user to blif format (sci2blif), which acts as an input to the modified VPR tool, including the code v p r 2 s w c s , encoding the specific platform through specific architecture files, resulting in a targetable switch list on the resulting configurable analog–digital system. The resulting tool uses an analog and mixed-signal library of components, enabling users and future researchers access to the basic analog operations/computations that are possible. View Full-Text
Keywords: FPAA; x2c; Scilab FPAA; x2c; Scilab

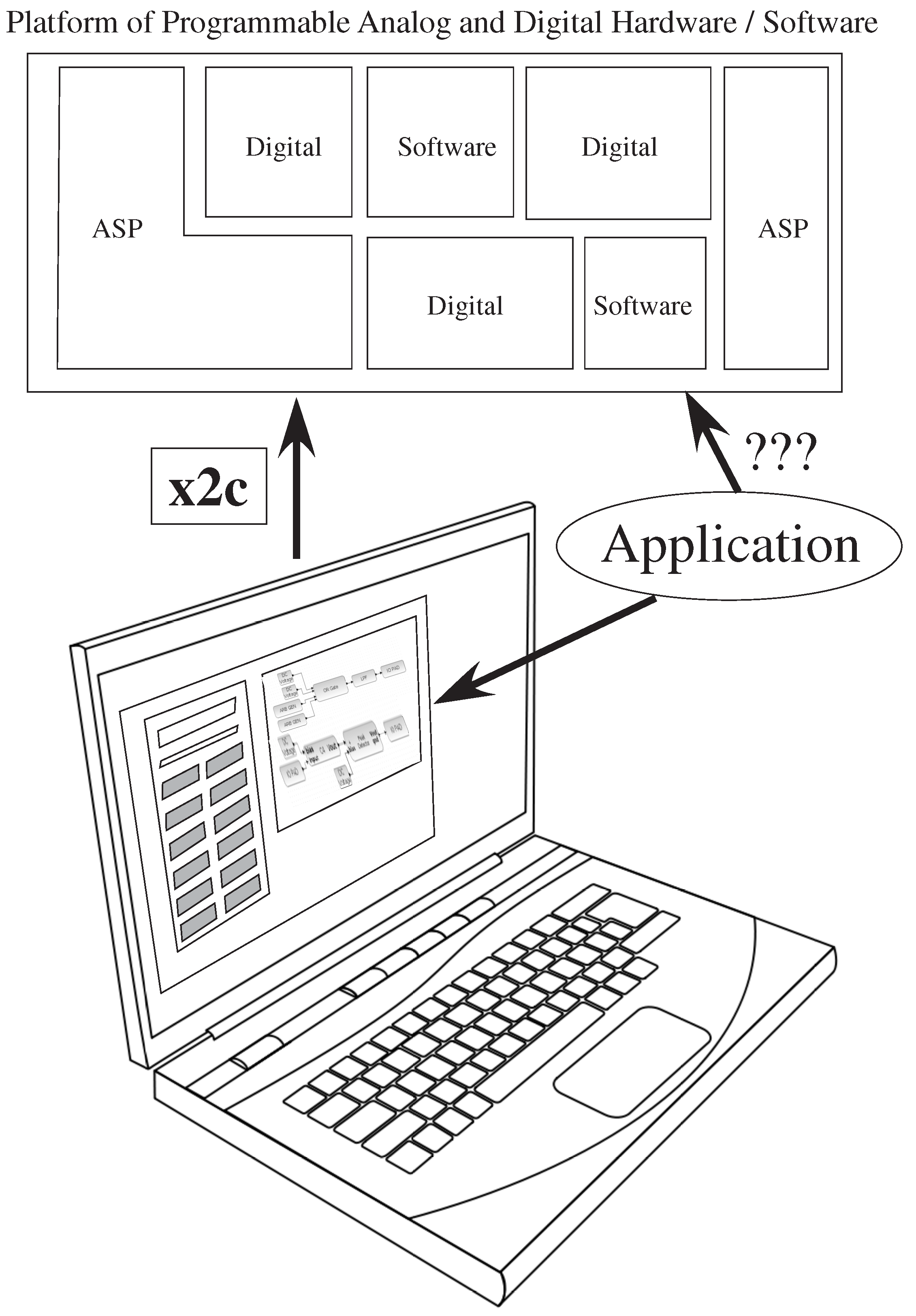

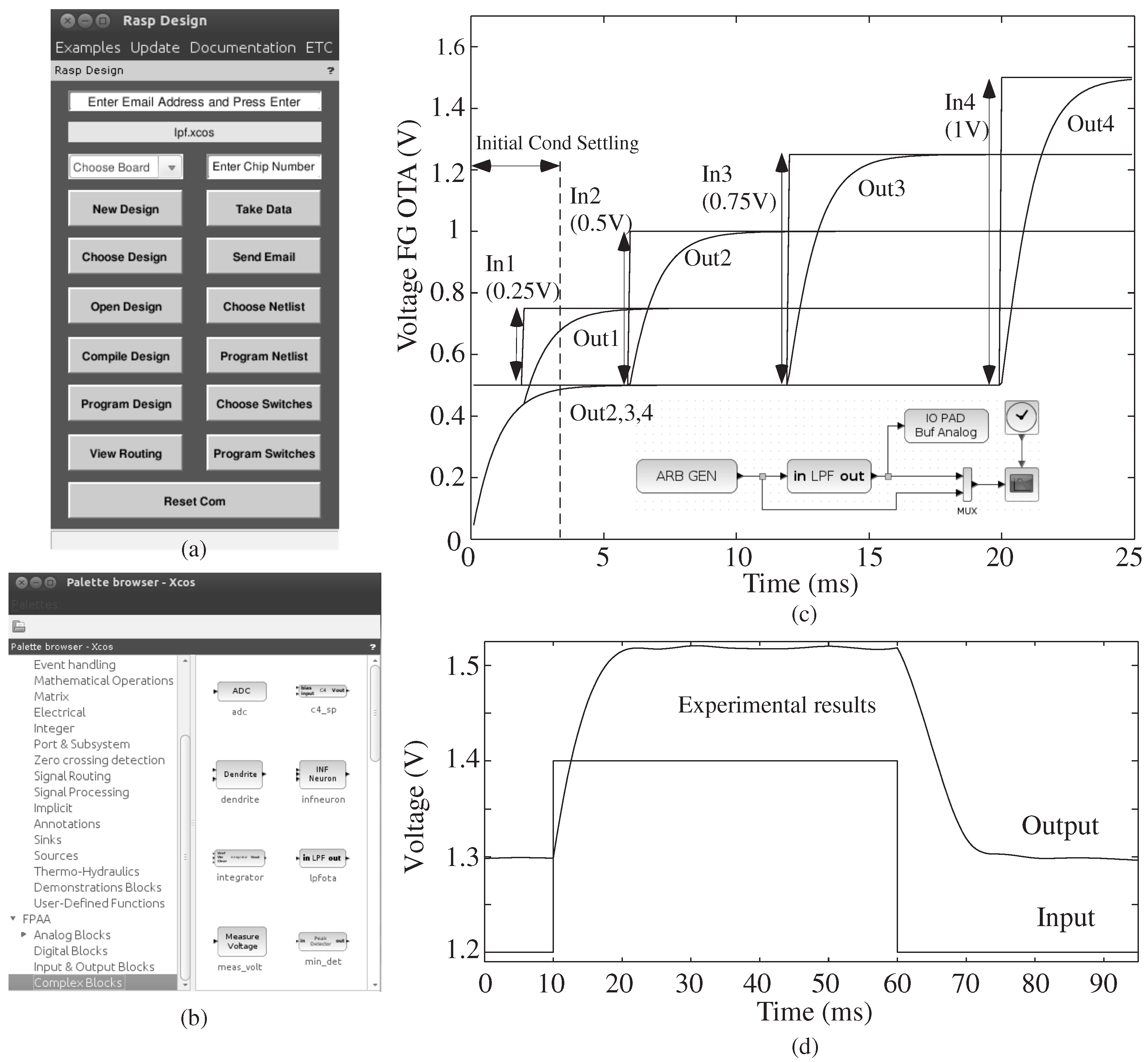

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Collins, M.; Hasler, J.; George, S. An Open-Source Tool Set Enabling Analog-Digital-Software Co-Design. J. Low Power Electron. Appl. 2016, 6, 3.
