# A Hybrid AES with a Chaotic Map-Based Biometric Authentication Framework for IoT and Industry 4.0

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

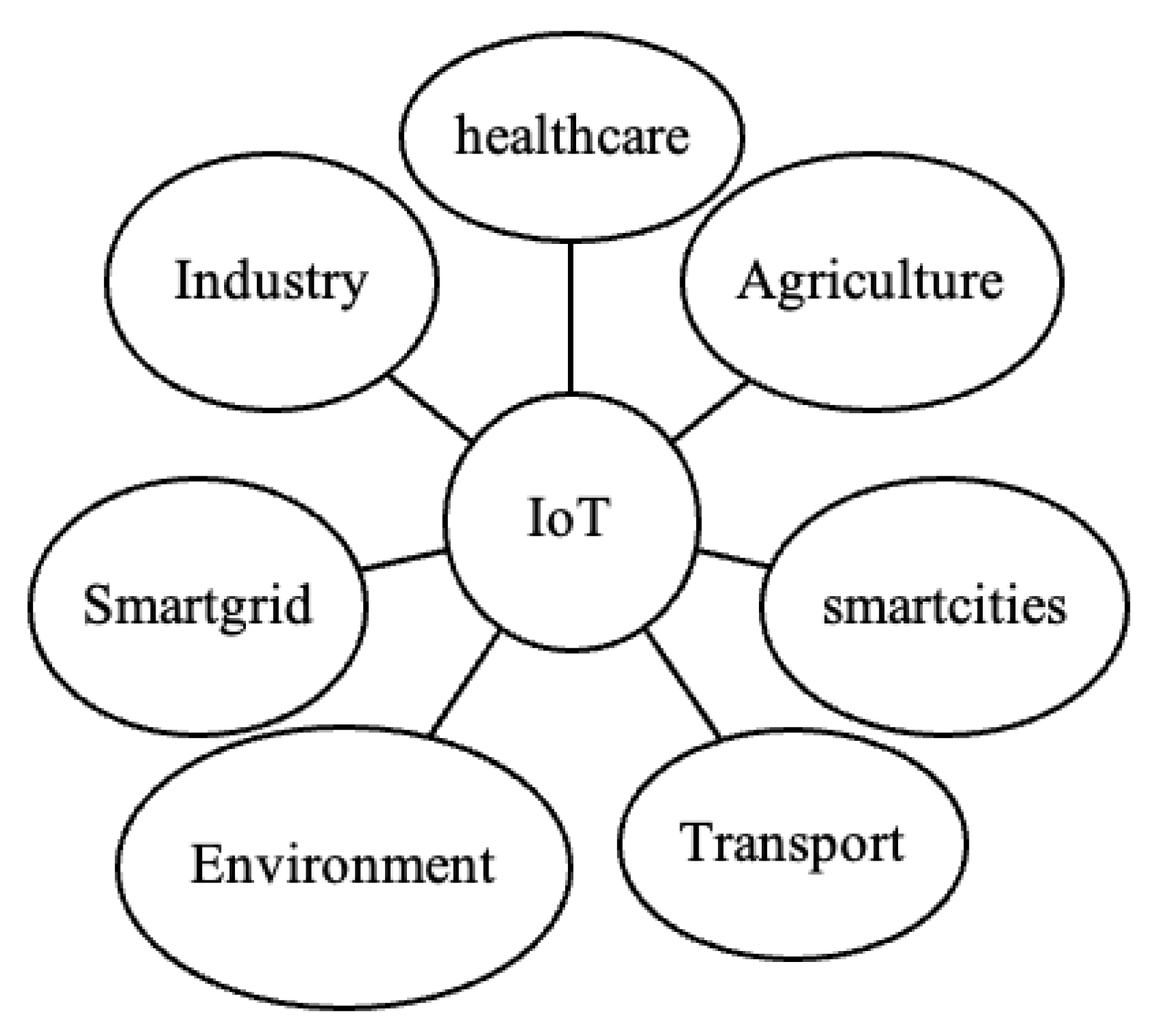

## 1. Introduction

- Users send their fingerprints to systems using fingerprint sensors. After executing necessary image processing tasks, Raspberry Pi extracts biometric templates from the sensor’s fingerprints.
- These biometric templates are encrypted before transmissions and sent to servers by Raspberry Pi for avoiding hackers. Servers compare the received templates with previously saved database templates of users.
- When fingerprints match in these comparisons, servers grant access, the lack of which results in denial of access to systems.
- Here, the proposed AES algorithm is combined with the chaos system to create the encryption key, which is then used to encrypt the image.

## 2. Related Work

**Inference:**The fingerprint was selected as the biometric authentication method in this study. Sensing fingerprints are less costly than other biometric sensors that gather information on iris or hand geometries. In contrast to other works, this study employed the industry’s standard encryption technologies to ensure biometric template secrecy during transmissions and storage. Other investigations, including feature transformations (stenographical encryptions) and biometric cryptosystems (lightweight cryptographies), do not adversely influence performance rates when employed for creating template safeguards. Evaluations of the proposed work scheme with existing encryption techniques show that the proposed HAES-CM encryption scheme beats others in terms of processing speeds.

## 3. Proposed Methodology

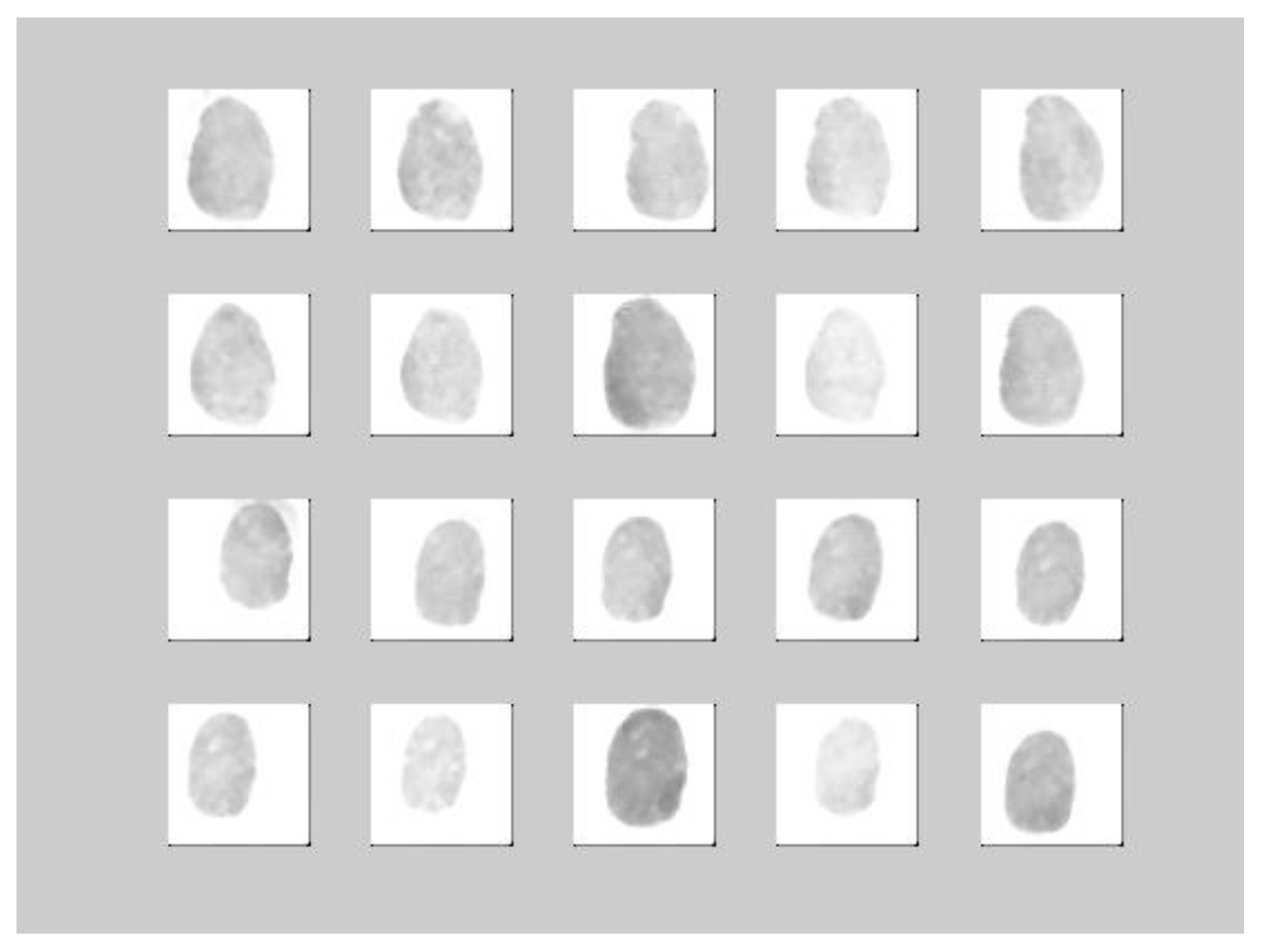

#### 3.1. Fingerprint Enrolment and Client Pat

#### 3.2. Proposed HAES-CM-Based Security Model

Algorithm 1. The steps of the encryption algorithm |

Input:$E\times S\to FI$ // Dactylogram input picture and ${\mathfrak{X}}_{0},a$ // confidential attributesOutput: EFI //Encrypted Fingerprint pictureStep1: Read Dactylogram picture FI Step2: Algorithm to shift FI based on quadrate chaotic map (2). Step3: The shifted picture should be encrypted using the AEScryptography technique. Step4: Publish the encrypted picture EFI. |

Algorithm 2. The steps of the permutation process based on chaotic maps |

Input: Dimension $dim\to E\times S\to FI$ // Dactylogram input picture and ${\mathfrak{X}}_{0},a$ // confidential attributesOutput: $PFI$ // Shifted Fingerprint picture and original text $T$Step1: Let $\mathit{dim}=E\times S$Step2: Take a random pattern $\mathfrak{X}$ by quadratic map$\mathrm{Let}a=0.4,\mathfrak{X}=0.15,{\mathfrak{X}}_{0}=a\times {\mathfrak{X}}_{0}^{2}$ $\mathrm{For}=1todim$ ${\mathfrak{X}}_{i}=a\times {\mathfrak{X}}_{i-1}^{2}$ End Step3: Mapping the range of chaotic map $\mathfrak{X}$$\mathrm{from}[-0.60.6]$$\mathrm{to}[1dim]$, $\mathrm{max}=dim$, $\mathrm{min}=1$$\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{T}_{i}=\frac{\left(Max\u2013Min\right)}{Max-Min}\times \left({\mathfrak{X}}_{i}\u2013Max\right)+Max$ End Step4: $\mathrm{Convert}\mathrm{the}PFI$ from 2D to 1DStep5: FI’s pixel locations should be moved in accordance with T.Step6: Resize the 1D array to create a PFI dectylogram that is 2D permuted. |

- Byte substitution: Each data block’s byte is changed to another block using an S-box.
- Row transformation: Depending on where it is in the state matrix, each row is given a cyclic shift to the right side.
- Each column of the state matrix is multiplied by that of the fixed matrix in the mix transformation of columns, which is a matrix multiplication operation.
- Round Key Addition: An XOR operation is carried out between the round key and the new state matrix.

- Sensitivity to the beginning value: Repetitive calculations on a chaotic map with the parameters result in a completely different sequence depending on small initial value changes.
- Sensitivity to the parameters: Repeated calculations on a chaotic map with the input values result in a completely new sequence for small changes in the parameters.
- Randomness: Most of the chaos sequences produced by chaos maps are pseudorandom sequences, and their structures are extremely difficult to anticipate and analyze.
- The attacker cannot predict the chaos sequence without the proper control parameters and beginning values. To put it another way, chaotic systems can increase the security of picture encryption systems.

## 4. Experimental Results and Discussion

#### 4.1. SSIM Comparison Results

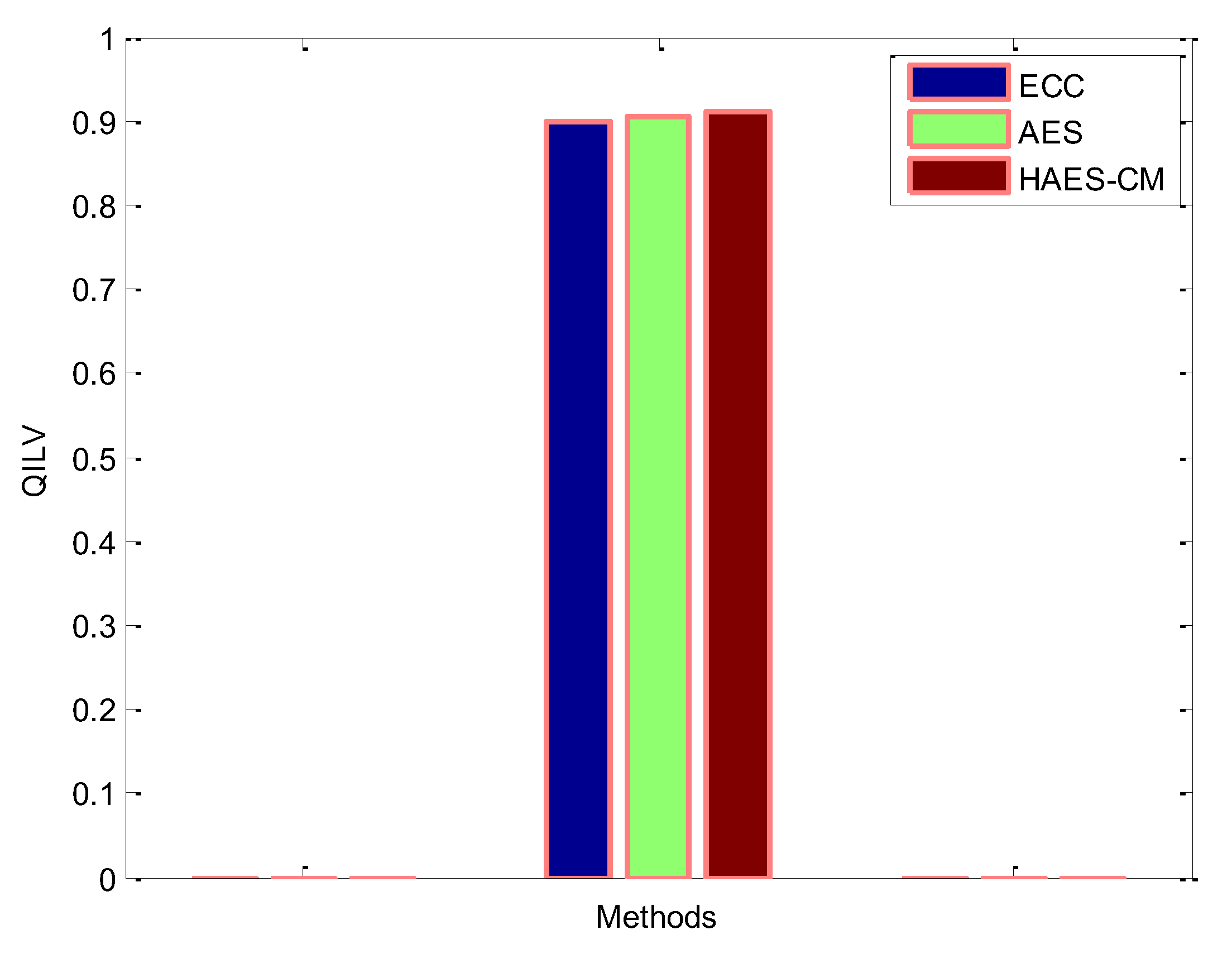

#### 4.2. QILV Comparison Results

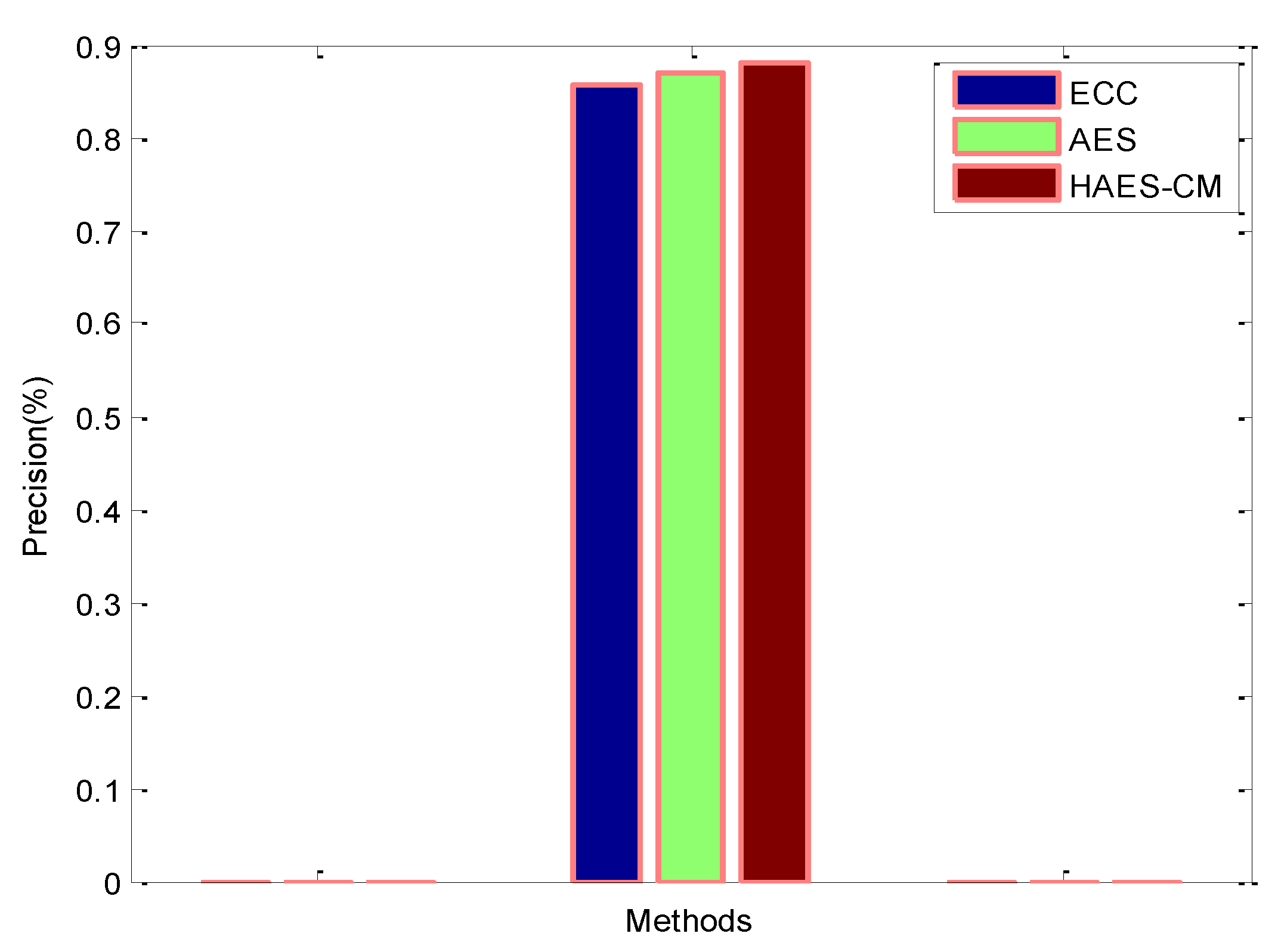

#### 4.3. Precision Comparison Results

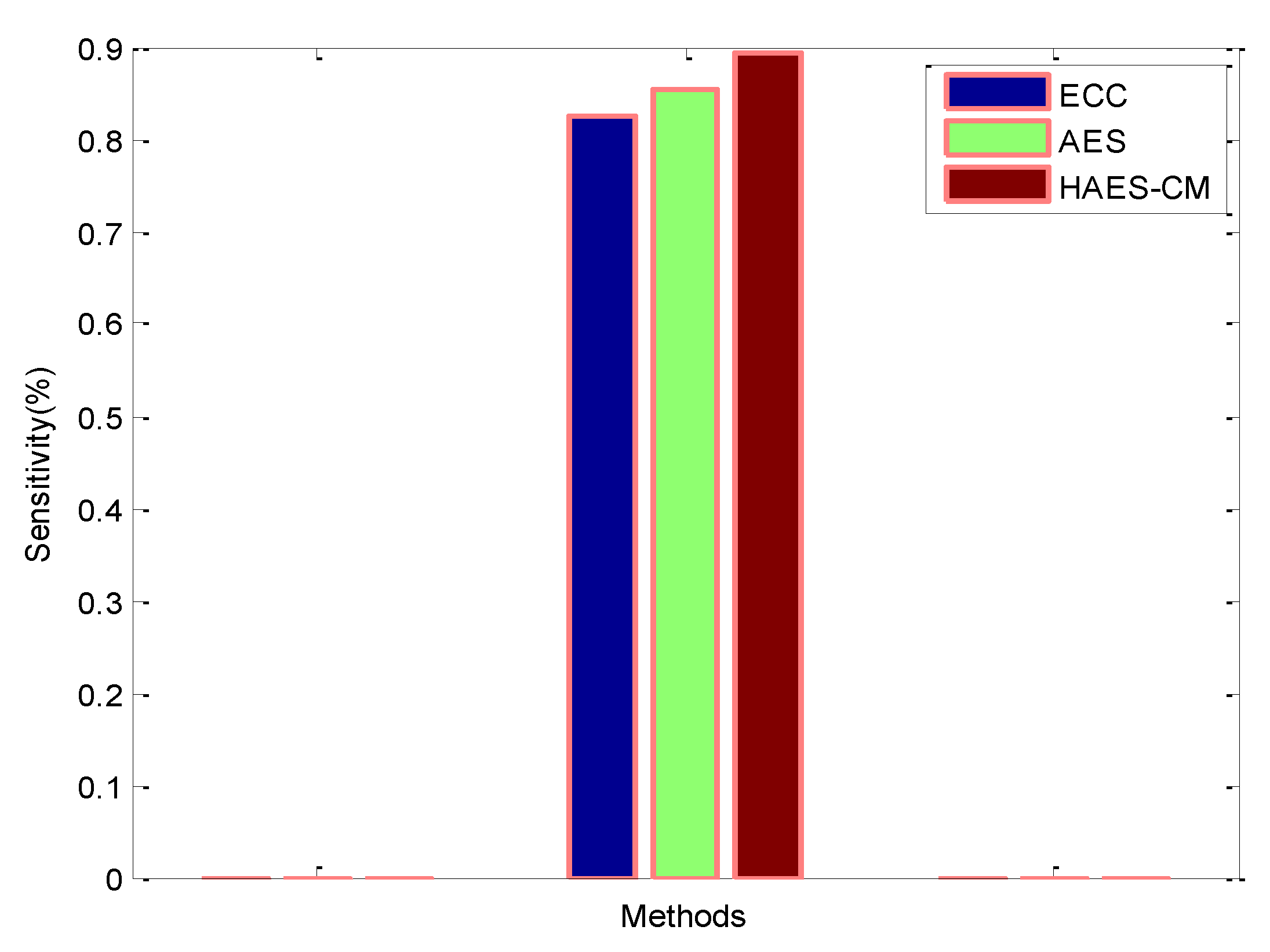

#### 4.4. Sensitivity Comparison Results

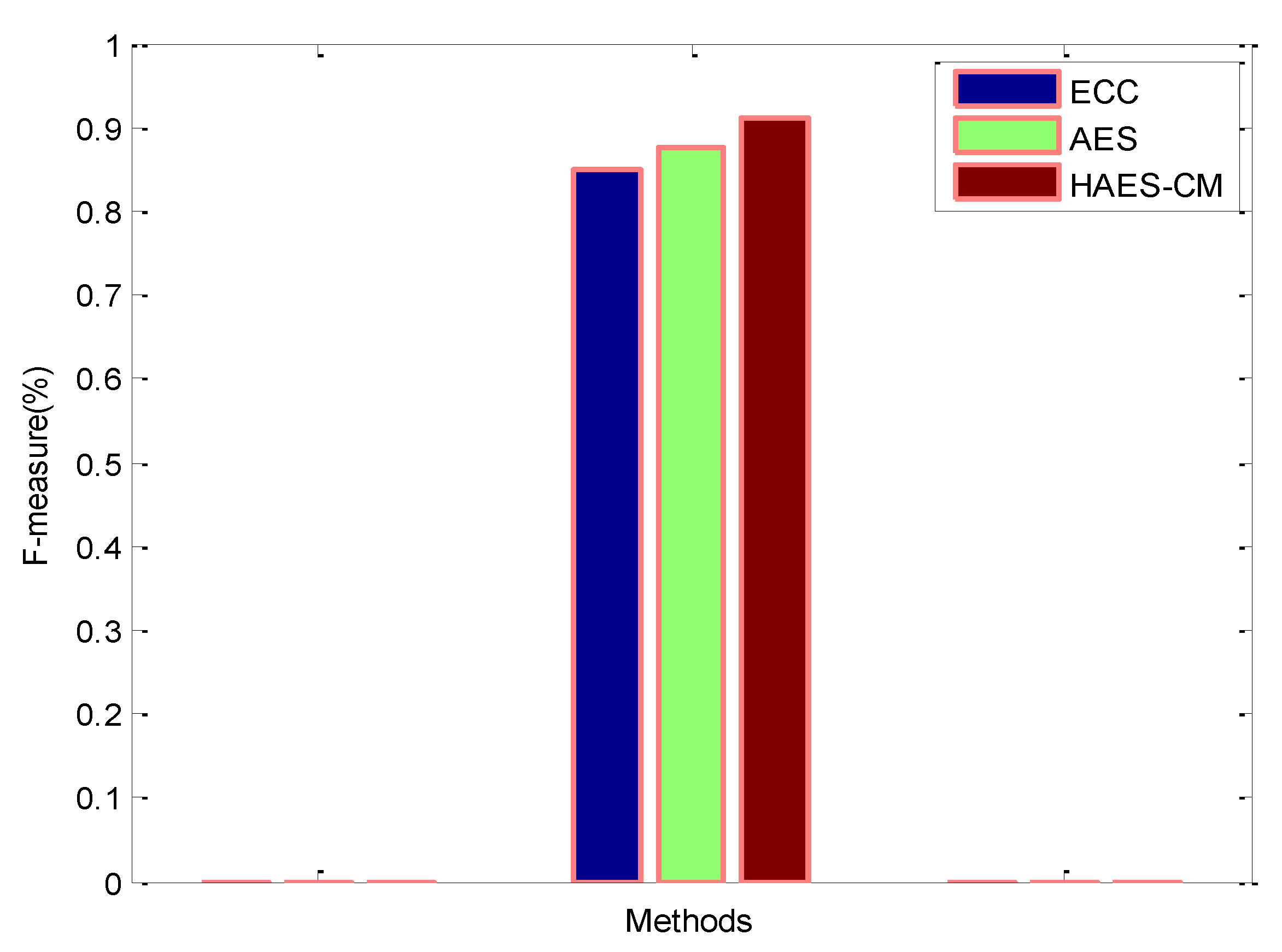

#### 4.5. F-Measure Comparison Results

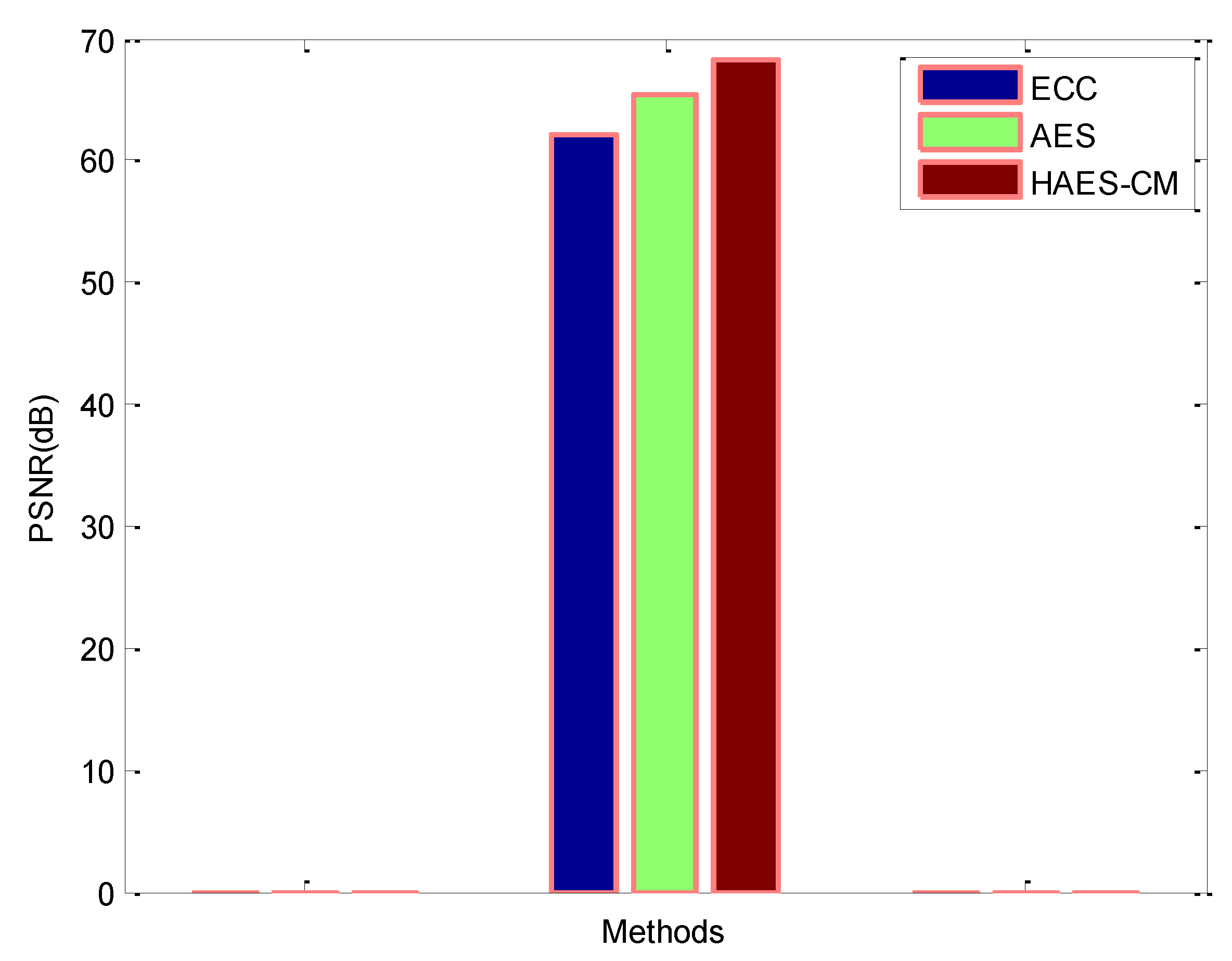

#### 4.6. PSNR Comparison Results

#### 4.7. MSE Comparison Results

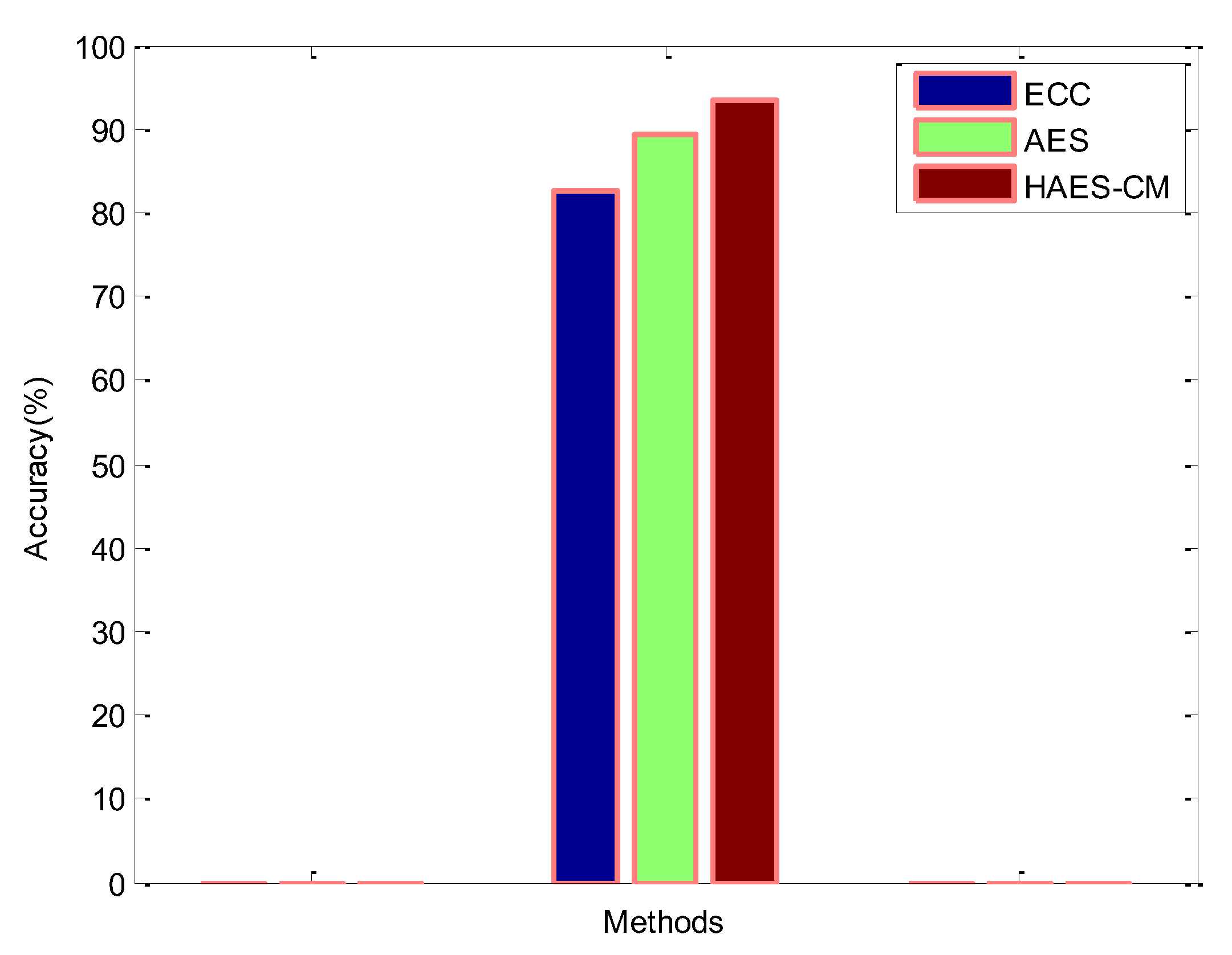

#### 4.8. Accuracy Comparison Results

#### 4.9. Computation Time Comparison

## 5. Conclusions and Future Work

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Miranda, J.; Mäkitalo, N.; Garcia-Alonso, J.; Berrocal, J.; Mikkonen, T.; Canal, C.; Murillo, J.M. From IoTs to the Internet of People. IEEE Internet Comput.
**2015**, 19, 40–47. [Google Scholar] [CrossRef] - Lohiya, R.; Thakkar, A. Application Domains, Evaluation Data Sets, and Research Challenges of IoT: A Systematic Review. IEEE Internet Things J.
**2020**, 8, 8774–8798. [Google Scholar] [CrossRef] - Varga, P.; Plosz, S.; Soos, G.; Hegedus, C. Security threats and issues in automation IoT. In Proceedings of the 2017 IEEE 13th Inter national Workshop on Factory Communication Systems (WFCS), 31 May 2017–2 June 2017; pp. 1–6. [Google Scholar]
- Alferidah, D.K.; Jhanjhi, N.Z. A review on security and privacy issues and challenges in internet of things. Int. J. Comput. Sci. Netw. Secur. IJCSNS
**2020**, 20, 263–286. [Google Scholar] - Li, C.-T. Secure smart card based password authentication scheme with user anonymity. Inf. Technol. Control
**2011**, 40, 157–162. [Google Scholar] [CrossRef] [Green Version] - Yang, W.; Wang, S.; Zheng, G.; Yang, J.; Valli, C. A Privacy-Preserving Lightweight Biometric System for Internet of Things Security. IEEE Commun. Mag.
**2019**, 57, 84–89. [Google Scholar] [CrossRef] - Xu, T.; Wendt, J.B.; Potkonjak, M. November. Security of IoT systems: Design challenges and opportunities. In Proceedings of the 2014 IEEE/ACM International Conference on Computer-Aided Design (ICCAD), San Jose, CA, USA, 2–6 November 2014; pp. 417–423. [Google Scholar]
- Goel, A.K.; Rose, A.; Gaur, J.; Bhushan, B. July. Attacks, countermeasures and security paradigms in IoT. In Proceedings of the 2019 2nd International Conference on Intelligent Computing, Instrumentation and Control Technologies (ICICICT), Kannur, India, 5–6 July 2019; Volume 1, pp. 875–880. [Google Scholar]
- Sandeep, C.H. Security Challenges and Issues of the IoT System. Indian J. Public Health Res. Dev.
**2018**, 9, 744–753. [Google Scholar] [CrossRef] - Lin, H.; Bergmann, N.W. IoT Privacy and Security Challenges for Smart Home Environments. Information
**2016**, 7, 44. [Google Scholar] [CrossRef] [Green Version] - Grabovica, M.; Popic, S.; Pezer, D.; Knezevic, V. Provided security measures of enabling technologies in Internet of Things (IoT): A survey. In Proceedings of the 2016 Zooming Innovation in Consumer Electronics International Conference (ZINC), Novi Sad, Serbia, 1–2 June 2016; pp. 28–31. [Google Scholar] [CrossRef]
- Wazid, M.; Das, A.K.; Odelu, V.; Kumar, N.; Conti, M.; Jo, M. Design of Secure User Authenticated Key Management Protocol for Generic IoT Networks. IEEE Internet Things J.
**2017**, 5, 269–282. [Google Scholar] [CrossRef] - Jiang, X.; Liu, X.; Fan, J.; Ye, X.; Dai, C.; Clancy, E.A.; Farina, D.; Chen, W. Enhancing IoT security via cancelable HD-sEMG-based biometric authentication password, encoded by gesture. IEEE Internet Things J.
**2021**, 8, 16535–16547. [Google Scholar] [CrossRef] - Shomaji, S.; Ghosh, P.; Ganji, F.; Woodard, D.; Forte, D. An Analysis of Enrollment and Query Attacks on Hierarchical Bloom Filter-Based Biometric Systems. IEEE Trans. Inf. Forensics Secur.
**2021**, 16, 5294–5309. [Google Scholar] [CrossRef] - Mandal, S.; Bera, B.; Sutrala, A.K.; Das, A.K.; Choo, K.-K.R.; Park, Y. Certificateless-Signcryption-Based Three-Factor User Access Control Scheme for IoT Environment. IEEE Internet Things J.
**2020**, 7, 3184–3197. [Google Scholar] [CrossRef] - Srinivas, J.; Das, A.K.; Wazid, M.; Kumar, N. Anonymous Lightweight Chaotic Map-Based Authenticated Key Agreement Protocol for Industrial Internet of Things. IEEE Trans. Dependable Secur. Comput.
**2018**, 17, 1133–1146. [Google Scholar] [CrossRef] - Punithavathi, P.; Geetha, S. Partial DCT-based cancelable biometric authentication with security and privacy preservation for IoT applications. Multimed. Tools Appl.
**2019**, 78, 25487–25514. [Google Scholar] [CrossRef] - Sujarani, R.; Manivannan, D.; Manikandan, R.; Vidhyacharan, B. Lightweight Bio-Chaos Crypt to Enhance the Security of Biometric Images in Internet of Things Applications. Wirel. Pers. Commun.
**2021**, 119, 2517–2537. [Google Scholar] [CrossRef] - Sadhukhan, D.; Ray, S.; Biswas, G.P.; Khan, M.K.; Dasgupta, M. A lightweight remote user authentication scheme for IoT communication using elliptic curve cryptography. J. Supercomput.
**2020**, 77, 1114–1151. [Google Scholar] [CrossRef] - Sahoo, S.S.; Mohanty, S.; Majhi, B. A secure three factor based authentication scheme for health care systems using IoT enabled devices. J. Ambient. Intell. Humaniz. Comput.
**2020**, 12, 1419–1434. [Google Scholar] [CrossRef] - Alzahrani, B.A.; Chaudhry, S.A.; Barnawi, A.; Xiao, W.; Chen, M.; Al-Barakati, A. ILAS-IoT: An improved and lightweight authentication scheme for IoT deployment. J. Ambient. Intell. Humaniz. Comput.
**2020**, 13, 5123–5135. [Google Scholar] [CrossRef] - Priyadharshini, T.C.; Geetha, D.M. Efficient Key Management System Based Lightweight Devices in IoT. Intell. Automtion Soft Comput.
**2021**, 31, 1793–1808. [Google Scholar] [CrossRef] - Ashwaq, T.; Amira, K.; Qussay, F. Medical Image Encryption based of AES Chaptic Map. J. Phys. Conf. Ser.
**2021**, 1937, 012037. [Google Scholar] - Moafimadani, S.S.; Chen, Y.; Tang, C. A New Algorithm for Medical Color Images Encryption Using Chaotic Systems. Entropy
**2019**, 21, 577. [Google Scholar] [CrossRef] [Green Version] - Hashim, A.T.; Jalil, B.D. Color image encryption based on chaotic shit keying with lossless compression. Int. J. Electr. Comput. Eng.
**2020**, 10, 5736–5748. [Google Scholar] [CrossRef] - Wadi, S.M.; Zainal, N. High Definition Image Encryption Algorithm Based on AES Modification. Wirel. Pers. Commun.
**2014**, 79, 811–829. [Google Scholar] [CrossRef] - Hashim, A.T.; Jabbar, A.K.; Hassan, Q.F. Medical Image Encryption Based on Hybrid AES with Chaotic Map. J. Phys. Conf. Ser.
**2021**, 1973, 12037. [Google Scholar] [CrossRef] - Loaiza, J.H.; Cloutier, R.J. Analyzing the Implementation of a Digital Twin Manufacturing System: Using a Systems Thinking Approach. Systems
**2022**, 10, 22. [Google Scholar] [CrossRef] - Zhang, G.; Jiang, J. Multimedia Security: A Survey of Chaos-Based Encryption Technology. In Multimedia-A Multidisciplinary Approach to Complex Issues; IntechOpen: London, UK, 2012. [Google Scholar] [CrossRef] [Green Version]
- Arab, A.; Rostami, M.J.; Ghavami, B. An image encryption method based on chaos system and AES algorithm. J. Supercomput.
**2019**, 75, 6663–6682. [Google Scholar] [CrossRef] [Green Version] - Golec, M.; Gill, S.S.; Bahsoon, R.; Rana, O. BioSec: A Biometric Authentication Framework for Secure and Private Communication among Edge Devices in IoT and Industry 4.0. IEEE Consum. Electron. Mag.
**2022**, 11, 51–56. [Google Scholar] [CrossRef] - Vinod, F.; Brindha, M. Privacy preserving biometric authentication using Chaos on remote untrusted server. Measurement
**2021**, 177, 109257. [Google Scholar] - Nezhad, S.Y.D.; Safdarian, N.; Zadeh, S.A.H. New method for fingerprint images encryption using DNA sequence and chaotic tent map. Optik
**2020**, 224, 165661. [Google Scholar] [CrossRef] - Hung, H.I.; Junghsi, L. Fingerprint images cryptography based multiple chaotic systems. Signal Process.
**2015**, 113, 169–181. [Google Scholar] - Gonzalo, Z.; Shujun, L. Some basic cryptographic requirements for chaos based cryptosystems. Int. J. Bifurc. Chaos
**2006**, 16, 2129–2151. [Google Scholar] - Murillo-Escobar, M.A.; Meranza-Castillón, M.O.; López-Gutiérrez, R.M.; Cruz-Hernández, C. Integral Analysis for Chaos-Based Image Cryptosystems. Entrophy
**2019**, 21, 815. [Google Scholar] [CrossRef] [PubMed]

**Figure 4.**The general framework diagram of cipher and decipher using AES [27].

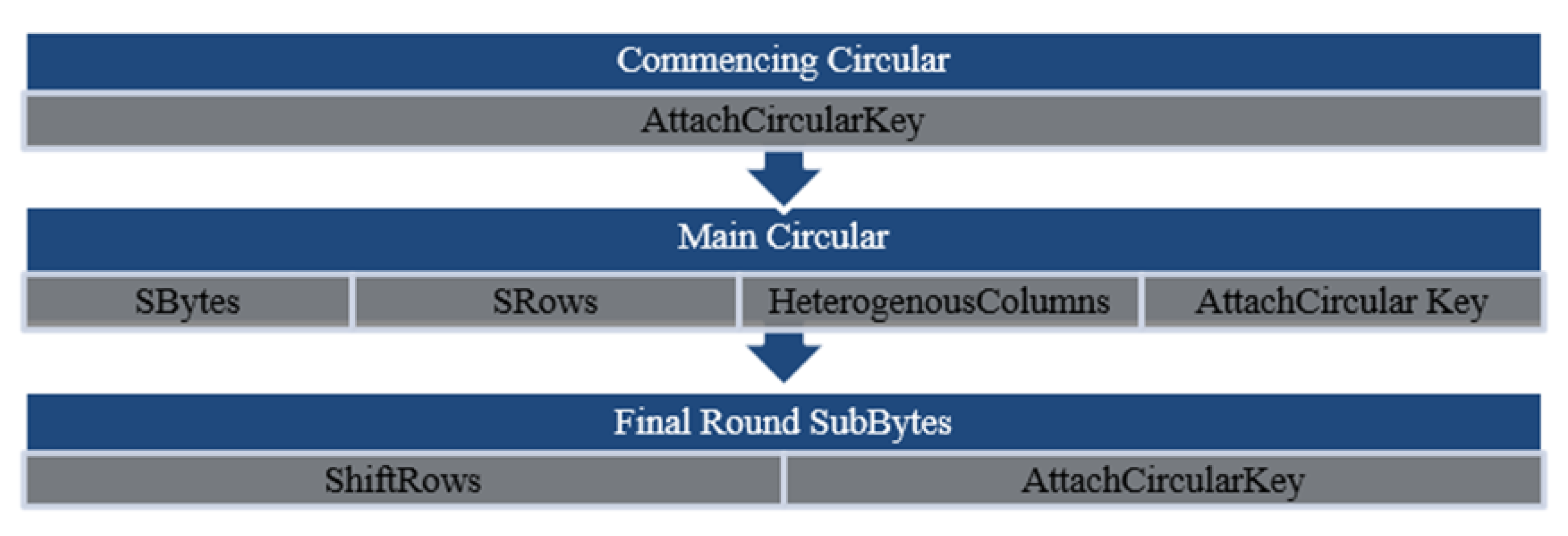

**Figure 5.**Block diagram of the AES method [28].

Methods | SSIM | QILV | Precision (%) | Sensitivity (%) | F-Measure (%) | PSNR (dB) | MSE | Accuracy (%) | Computation Time (s) |
---|---|---|---|---|---|---|---|---|---|

ECC | 0.8241 | 0.8992 | 0.856 | 0.826 | 0.848 | 62.12 | 3.9 | 82.65 | 6.5 |

AES | 0.8564 | 0.9042 | 0.869 | 0.853 | 0.876 | 65.32 | 3.5 | 89.23 | 5.7 |

HAES-CM | 0.8896 | 0.9098 | 0.879 | 0.894 | 0.912 | 68.23 | 3.2 | 93.48 | 3.5 |
