Communication

Problems with Abstract Observers and Advantages of a Model-Centric Cybernetics Paradigm

1
The Cybernetics Society, London WC2R 1ES, UK
2
The American Society for Cybernetics, Washington, DC 20052, USA
3
The International Society for the Systems Sciences, Ashland, TN 41101, USA
The W. Ross Ashby Digital Archive, http://rossashby.info (accessed on 3 April 2022).
Systems 2022, 10(3), 53; https://doi.org/10.3390/systems10030053
Submission received: 8 March 2022 / Revised: 5 April 2022 / Accepted: 15 April 2022 / Published: 19 April 2022
(This article belongs to the Collection Collected papers from ISSS)

Abstract

:
Since 1974, when Heinz von Foerster made the distinction between “the cybernetics of observed systems” as first-order cybernetics (1oC) and “the cybernetics of observing systems” as second-order cybernetics (2oC), cybernetics has been dominated by this observer-centric paradigm that he claimed cannot be extended meaningfully to a third order. Rather than attempting to extend his paradigm, we derive an alternative, model-centric cybernetics paradigm from the first principles of regulation, which naturally extends to three orders, where the third order is ethical regulation. We thus consider a type of regulator that requires a third model and a third observer: if the third model is a model of acceptable (ethical) situations, then a third observer is a necessary element of the system’s “conscience” that prevents any violations of the model of ethical situations. In this paradigm, the cybernetics of systems that are designed to exhibit ethical behaviour can be characterized as third-order cybernetics (3oC). By being able to extend the paradigm to include ethical systems, the model-centric paradigm brings clarity and utility that is not possible using the observer-centric paradigm and its under-specified (abstract) observers. Finally, new definitions for cybernetics are proposed that clearly differentiate between the science of cybernetics and the philosophy of cybernetics.

1. Introduction

In 1948, Norbert Wiener defined cybernetics as “the scientific study of control and communication in the animal and the machine” [1]. This defines a scope for cybernetics that includes all types of regulators and communicators. And if we accept that philosophy is not science, then Wiener’s original definition of cybernetics excludes any philosophical aspects.
In 1974, Heinz von Foerster [2] made the distinction between “the cybernetics of observed systems” as first-order cybernetics (1oC) and “the cybernetics of observing systems” as second-order cybernetics (2oC). Since 1974, the cybernetics community has been dominated by this observer-centric paradigm.
Although he might have intended it purely as a distinction between two approaches to performing cybernetics, it has been widely generalized as a model for understanding different types of systems. Thus, endowing meaning to terms such as first-order system and second-order system, as illustrated by Ranulph Glanville “The question arises about differences in how we observe a system that is first or second order” [3].
However, von Foerster’s definitions use the terms “observed” and “observing” without being more specific. Of course, there will be an underlying purpose behind any observations, but the abstract conceptualization of a pure observer has no purpose except observing, which is like a person who is meditating so deeply with open unfocussed gazing eyes that they neither react to what they observe nor make memories of it.
When the observer has a well-defined purpose, “observer” ceases to be the best description of them. For example, if the purpose of an observer is to create a model of the system that is observed, then the best name for them is “modeler”, or if they are observing the system to ensure that it breaks no laws, then the names “auditor” or “conscience” are more accurate and useful descriptions than “observer”. And because there are an infinite number of possible reasons why an observer might observe a system, the term “observing” is completely ambiguous with respect to purpose, which renders it deficient in clarity and utility.
Because the expression “observing systems” is devoid of actual purpose, von Foerster’s definition of 2oC can be rewritten as “the cybernetics of X, where X is any activity that requires observations to be made”. Stated in this way, the extreme ambiguity of his definitions becomes more obvious, and Margaret Mead’s “cybernetics of cybernetics” is only one of many possible valid interpretations. And to equate 2oC with a particular special case interpretation is not a scientific consideration of all possibilities.
So, when von Foerster introduced 2oC as “the cybernetics of observing systems” it had many possible interpretations that went beyond Wiener’s precisely defined “scientific study of control and communication” to include just about anything, such as “thinking about thinking” and “understanding understanding”, which have been considerations of philosophers dating back to the ancient Greeks and continues today in philosophy departments around the world. This rescoping of the definition of cybernetics was effectively an open invitation to any philosophers who self-identified as cyberneticians to participate in the cybernetic discourse. And von Foerster’s brilliant pivot of Wiener’s field of cybernetics from a science to being a hybrid of science and philosophy, only enhanced the profound intellectual inclusiveness that is not enjoyed by any other science.
Consequentially, 1974 can be regarded as the year of the schism of what was originally Wiener’s science of cybernetics into two very different communities, which can be characterized as “the science of cybernetics” and “the philosophy of cybernetics”. This schism has been as significant as the distinction between 1oC and 2oC. Whereas Kline [4] and Scott [5] considered the effects of von Foerster’s paradigm from a historical perspective, this paper is more concerned with its limitations.

2. Methodology

Previous attempts to define something that might be considered to be third-order cybernetics have all attempted to extrapolate from von Foerster’s definitions without subjecting them to rigorous scientific criticism. This paper identifies significant weaknesses in von Foerster’s definitions of first- and second-order cybernetics that are caused by his introduction of abstract (under-defined) observers, which appears to have caused a collective cognitive-bias in cyberneticians towards considering all observers to be intelligent observers. This unnecessary anthropomorphisation has led to philosophical interpretations, where the concept of third-order cybernetics appears to be of no value and deserves rejection, which was explicitly favoured by von Foerster himself.
Our novel approach is to build a new paradigm from the first principles of regulation; primarily making use of the Conant–Ashby good regulator theorem to create a scientifically well-defined first-order regulator that consists of a purpose, model, observer, decision-making intelligence, and a control channel. Our observer is neither intelligent nor abstract, it is purely a source of data to feed the model, and the observations that this observer makes are precisely defined by the input parameters of the model.
This is the basis for the model-centric cybernetics paradigm, which can be extended to second-order (reflexive) regulation by introducing a second regulator that regulates the first-order regulator. Each order of regulation requires a different type of model and a different type of observer. Finally, by introducing a third regulator that regulates the second-order regulator, we can build a rigorous third-order regulator that constrains a reflexive regulator to only exhibit behaviour that is considered (ethically) acceptable in the society in which the regulator exists.
Although this paper takes a position that must be contrasted with von Foerster’s interpretation of 2oC as the cybernetics of cybernetics or second-order observation, which we characterize as being philosophical, it is not intended to suggest that his approach was unscientific or that philosophical aspects are completely unscientific, less worthy, or that they should be excluded from cybernetics, but rather that cybernetics embodies both scientific and philosophical approaches, and that the more philosophical interpretation of the meanings of 1oC and 2oC as increasing orders of observation has arguably supressed the equally valid possible scientific interpretations of 1oC and 2oC as increasing orders of regulation. The use of these characterizations of one as being philosophical and the other as being scientific is not intended to deny that there is a significant complementary overlap between both approaches.
This paper explores the implications of the second interpretation, and reveals how considering increasing orders of regulation produces valuable results, which have practical implications for artificial intelligence (AI), robotics, society, and the biosphere that cannot be derived from the more philosophical observer-centric interpretation.
Just as the boundary of the system being considered by a cybernetician can be decided arbitrarily, as seems most useful, the distinction of whether a system contains an observer (2oC) or not (1oC), is quite arbitrary, because there are many other equally valid criteria that can be used to slice the field of cybernetics into two parts. Yet, when a cybernetician is deciding what the boundaries are of what she will consider to be the system being studied or its environment, she strives to maximize clarity and utility.
However, this is not true of von Foerster’s observer-centric 1oC/2oC paradigm. By arbitrarily introducing observers that were not present in Wiener’s original definition, clarity and utility have not been maximized. Although asserting observers into existence might seem intuitively unproblematic, von Foerster’s paradigm is not constructed from first principles and it introduced unstated assumptions.
Suddenly, everyone felt entitled to offer their own alternative definitions of 1oC and 2oC, as described by Stuart Umpleby [6]. Table 1 is based on a table from Umpleby, but with entries added for Wiener and Mead to provide more context for this discussion.
This diversity of definitions reflects that while some cyberneticians remained focussed on the practical scientific study of real systems, others entered the realms of philosophy, for example, exploring the circularity of Margaret Mead’s “cybernetics of cybernetics” and radical constructivism, just as, in 1955, on page 4814 of his journal, Ross Ashby had reflected on the circularity of his brain studying “the brain”:
“For some time, I have had the hunch that there is a profound circularity in science. Since I have to use a mammalian brain to think with, I am likely to find in the world only what it lets me find. Ultimately, as the ‘world as I see it’ is analysed, I shall find simply that I am looking, as it were, at the underside of my own cortex” [7].
From the point of view of cybernetics as a science, interpreting second-order cybernetics as “the cybernetics of cybernetics” rather than “the cybernetics of reflexive systems”, of which “the cybernetics of cybernetics” is merely a special case, can be viewed as an unfortunate decision that established a philosophy of cybernetics that has dominated the cybernetic narrative and has attenuated the scientific study of the cybernetics of reflexive systems.
This paper’s criticism of von Foerster’s 1oC/2oC paradigm is not intended to suggest that it has not been useful. Despite its weaknesses, it made a very important distinction that helped cybernetics develop into what it now is. But after more than 45 years as the dominant paradigm in cybernetics, we suggest that it has probably contributed pretty much all that it ever can, and that it is time to find a new paradigm that can bring cybernetics firmly back into the realms of science.
The practitioners of the philosophy of cybernetics have certainly added an incredible richness to the field of cybernetics, but it has been at the cost of making cybernetics appear to be less scientific. And it is clear that topics such as “thinking about thinking”, “understanding understanding”, and radical constructivism represent significant shifts towards philosophy and away from cybernetics as a science.
But we are facing so many serious problems and challenges globally, socially, ecologically, economically, and technologically, that what humanity and the biosphere desperately need is better cybernetics, not better philosophy.

3. The Possibility of Third-Order Cybernetics

In a 1990 interview, von Foerster categorically asserted that there is no possibility of the existence of a meaningful definition of third-order cybernetics:
“… it would not create anything new, because by ascending into ‘second-order,’ as Aristotle would say, one has stepped into the circle that closes upon itself. One has stepped into the domain of concepts that apply to themselves” [8].
Ranulph Glanville went further, to claim that a third-order system cannot exist because it collapses into being equivalent to a first-order system:
“The question arises about differences in how we observe a system that is first or second order. If we talk about (observe) a second order system in the cool manner in which we are used to talking about such things, we might claim we are, in effect, creating a third order system, which we can, however, collapse into a first order one (because the observing is of the first order type, no matter what type the observed system is)” [3].
It is important to note that von Foerster’s argument is philosophical rather than scientific, and Glanville is arguing from the perspective of an intelligent observer.
Despite these claims by von Foerster and Glanville that defining third-order cybernetics would not create anything new, many people have attempted to do exactly that, by extrapolating from von Foerster’s definitions of 1oC and 2oC to define 3oC. The result has been various competing, intelligent, and creative proposals for possible definitions of 3oC that are merely plausible. None have had arguments that were sufficiently compelling to gain widespread acceptance.

4. The Model-Centric Cybernetics Paradigm

Rather than trying to extrapolate from von Foerster’s observer-centric definitions, we shall construct an alternative paradigm from the first principles of regulation, seeking to maximize clarity, precision, and utility, completely avoiding any reliance on the problematic concept of abstract observers, and above all making the new paradigm rigorously scientific such that Wiener might have given it his approval.
If we start with Wiener’s original definition of cybernetics as “the scientific study of control and communication”, from the word “control” we can infer that it includes all types of regulators, R, and we can reasonably assume that they have a purpose, P, to regulate an entity that we can refer to as the regulated system, S.
For completeness, we must also consider Wiener’s use of the word “communication”. If a communication has any effect on the recipient, we can regard it as a special type of control. And if it has no effect on the recipient or if the communication reaches no receiver, then it is still equivalent to an act of control but it corresponds to the special case of a non-action.
Here it is worth highlighting that control and communication lie on the continuum of degrees of influence. Whereas control has a deterministic influence on the regulated system (i.e., its probability of effective influence = 1), communication has a probabilistic influence on the regulated system.

4.1. First-Order Regulators: Simple Regulators

Let us define a first-order cybernetic regulator, R1, that has a purpose, P1. In order for it to be effective, R1 must have a model, M1, of the regulated system, S. This is a direct consequence of the Conant–Ashby good regulator theorem, which proved that “every good regulator of a system must be a model of that system” [9]. We know that M1 is a model of S, but the scope and precision of M1 are very much determined by P1.
The effect of purpose on the scope and detail of the model can be illustrated by the fact that in a conceptual model of a pig brain, the complexity and level of detail must be considerably higher for a researching neurologist to be effective than is required by a butcher. They both require models of the same system, but it is the difference in their purposes that requires very different actual models.
Next, because a fundamental characteristic of a model is that it requires observations as inputs, the model not only brings into existence the need for an observer, O1, to exist in R1, but that observer is not an unconstrained abstract observer that might observe anything (or everything). The inputs of M1 define very precisely what information O1 must collect. Therefore, in contrast to von Foerster’s observers, O1 is scientifically well defined.
However, having a purpose, P1, appropriate model, M1, and our well-defined observer, O1, is insufficient to realize the functionality of an effective regulator. We must introduce an entity that is capable of making appropriate decisions to select the best actions (or communications) to achieve effective regulation. This decision-making entity must embody some kind of intelligence that could be biological, algorithmic, or baked into the design by the intelligence of the designer. Because we require clean definitions, this decision-making intelligence cannot be attributed to the observer being an intelligent observer (which would be a dangerous antrhopomorphisation), it must be identified as a separate component of R1, which we shall name I1. Finally, the regulator requires a control channel, C1, that transmits the selected action or communication to the regulated system. These necessary elements of a cybernetic regulator are illustrated in Figure 1.

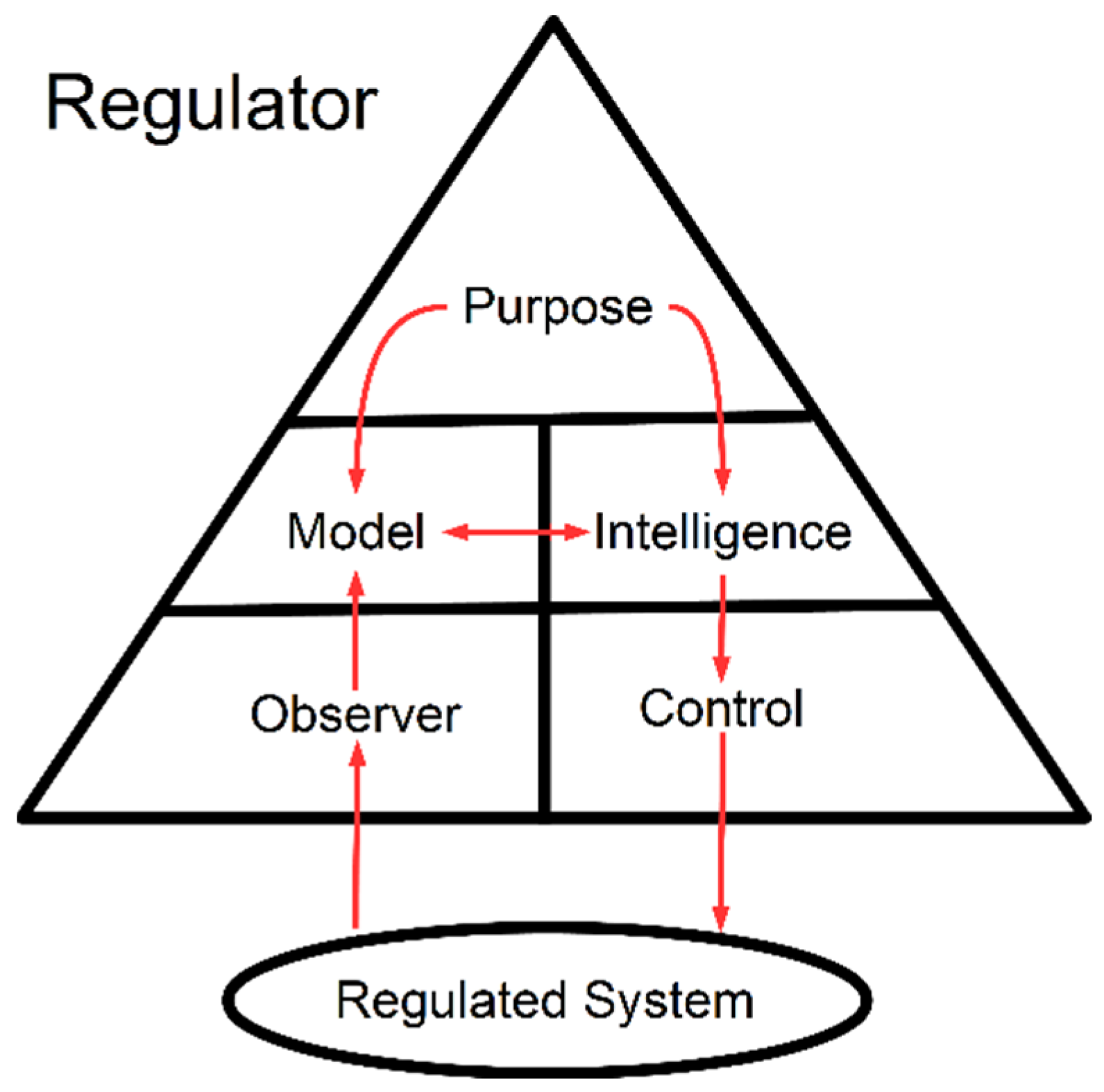

Now we have a complete definition that a first-order cybernetic regulator, R1, consists of a purpose P1, model, M1, observer, O1, decision-making intelligence, I1, and control channel, C1. And Heinz would surely not hesitate to confirm that such a regulator conforms to his understanding of a first-order regulator that can be designed using 1oC.
It is worth highlighting that we refer to von Foerster’s 1oC/2oC paradigm as being observer-centric because the observer is given a primary role in his definitions, as if everything revolves around the cybernetician and his observations, which has possibly cognitively biased cyberneticians to think of observers as being intelligent observers, like themselves. But in the model-centric paradigm, the observer is arguably the least important element in the regulator because it serves simply as a data source to obtain information to feed the model. So, it is fair to say that O1 is to M1 and I1 as a keyboard is to a program and a computer. Observers and keyboards are necessary, but they are neither the most interesting nor the most important parts.

4.2. Second-Order Regulators: Reflexive Regulators

Our next step is to consider reflexive regulators that have to take themselves into account, such as the U.S. Federal Reserve’s Federal Open Market Committee (FOMC), which generally meets every six weeks to decide whether to change the U.S. central bank’s base interest rate. In addition to needing predictive economic models in M1, it can only be effective if it also has self-knowledge about how long it is until the next meeting, which is its next scheduled opportunity to make another interest rate change. If the FOMC decided that the next meeting would be in six months instead of the normal six-week cadence, this self-knowledge must be taken into account and affect their decision making and some parameters of the economic simulations that they run. The variable “time-till-next-meeting” does not need to be predicted probabilistically because it is 100% under the FOMC’s direct control, which is to say that it belongs to the variety of the FOMC rather than to the M1 model of the regulated economic system.
Another example is that a two-armed robot only requires a 1oC regulator to control the arms to perform simple tasks. But implementing reflexivity could mean that if it detects that one arm is non-functional, it could try to achieve its tasks using just the one arm that works.

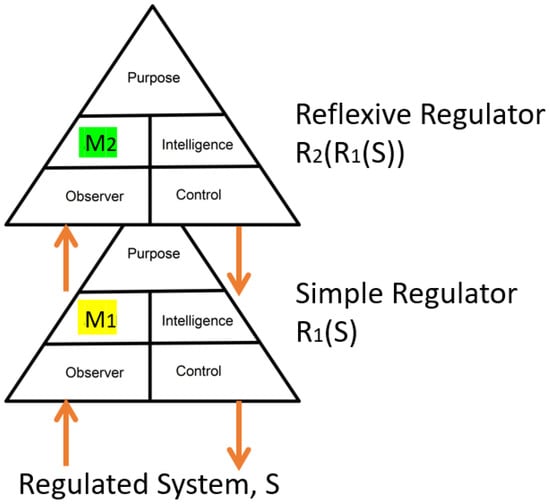

Figure 2 illustrates how a second-order cybernetic regulator, R2, not only includes all of R1, but it must also have a self-referential purpose, P2, that includes taking itself into account, and maintain a second model, M2, which captures key aspects about itself. This model requires self-observations that must be performed by a second observer, O2, that is well-defined by the needs of the second model. And it must also include some degree of decision-making intelligence, I2, and a control channel, C2.
Another example is that because of our constant subconscious self-monitoring of our health and vitality, if we find ourselves in a situation where we need to jump over an object, our M2 model can, at any moment, provide a sense of self-knowledge of how high and how far we are confident of being able to jump. When we are ill or tired, knowing that we cannot jump a stream or a log could be important for our survival. The model of Newtonian physics that allows us to instinctively know how to jump effectively has been learned through trial and error, and is stored in our M1 model of how to interact effectively with our environment. So I2 uses M2 to provide potentially complex reflexive information to I1 via channel C2, which implies that in humans and animals, the nature of C2 is electrical.
If the M2 model can provide real-time information about what R is capable of in terms of possible actions and communications, then it is actually the source of R’s knowledge of its own variety. Much has been made of the law of requisite variety [10], and people often talk of having requisite variety as if it were some sort of mystical deus ex machina, but the M2 model appears to be where information about the possible variety of the regulator is stored.
Again, Heinz and second-order cyberneticians would surely agree that the regulator R2(R1(S)) conforms to their concept of a second-order (reflexive) cybernetic regulator that can be designed using 2oC, but cannot be designed using just 1oC.
In humans, there are fuzzy boundaries between models, such as when someone is learning to drive a car with manual gear shifting. Initially they are very conscious of their hands, feet, pedals, gear stick, and looking into mirrors. But with time and practice their ability to drive migrates into an instinctive subconscious ability. Thus, the possible biological optimizations and black-box nature of human minds create limits for being able to use human examples to confirm or illustrate the theory of discrete orders of regulation and models. However, these limitations do not apply to robots, where such distinctions will likely become very important.
Of course, it can be argued that the M1 model could be extended to include all the reflexive information that we propose is encoded in the M2 model, but that is an implementation optimization that ignores that reflexivity is a significant and important difference that deserves to be treated separately. For example, if an existing regulator is repurposed to regulate a different type of system, it would be disadvantageous if the original implementation did not clearly distinguish between the regulator and the regulated system. Self-knowledge is a different category of information from the probabilistic cause-effect information of the M1 model. For example, if we recognize that we do not have sufficient variety to control a system adequately, as humans, we can perform a strategic reflexive self-evaluation to identify which of our abilities we can improve to increase our quality (not quantity) of possible variety to improve the quality of our performance as a regulator, and such improvements are limited to variables that belong to the M2 model. And when we consider cybernetic regulators such as AI and robots, the regulator must have a clear distinction between what is “itself” that is subject to essentially deterministic direct control and things in its environment that are interacted with and require probabilistic predictions of their future states, values, positions, or behaviour. So, it is optimal to use M1 to make predictions about the regulated system, and use M2 to provide self-knowledge about available variety.

4.3. Third-Order Regulators: Ethical Regulators

Because we are exploring a model-centric paradigm, rather than an observer-centric paradigm, we are now ready to imagine a type of regulator, R3, that includes all of R2, but also requires a third type of model.
This is a key difference from previous approaches that have tried to extend von Foerster’s observer-centric paradigm by adding a third observer on top of the existing two observers, which are maximally ambiguous, and can lead people into philosophical interpretations that ignore real systems.
But there is no problem adding a third model in the model-centric paradigm because although R3 can be regarded as a speculative extrapolation, it is building on top of our purposeful R2, which is defined more precisely and rigorously than von Foerster’s 2oC.
If a third-order regulator, R3, has a purpose P3 of constraining R2(R1(S)) to exhibit only ethically acceptable behaviour, then R3 must have a model, M3, of what constitutes acceptable (ethical) behaviour or outcomes. In addition, it also requires a third observer, O3, a third decision-making intelligence, I3, and a third control channel, C3, to realize what we can characterize as the system’s “auditor”, “conscience”, or “sense of integrity” that prevents or detects any violations of the model of ethical outcomes by the regulator, R, that is the union of R1, R2, and R3.
Whereas the purpose of R1, is always simple effectiveness, and the purpose of R2 is always reflexive effectiveness, the purpose of R3 is always ethical effectiveness, and it is appropriate to regard them as increasing orders of regulation.

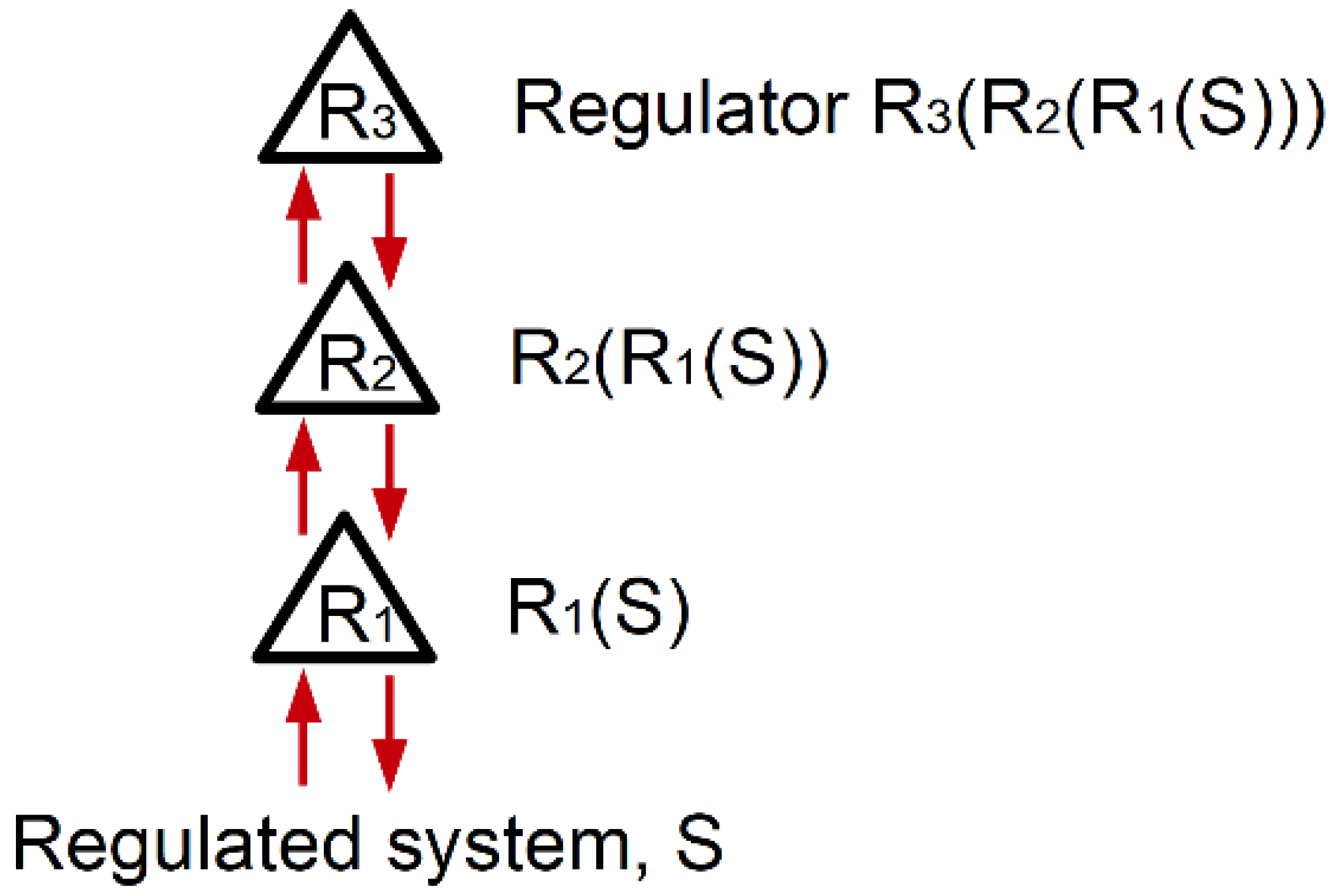

So, we have specified a third-order regulator, R3(R2(R1(S))), as illustrated in Figure 3.
In such a regulator, its observer, O3, must observe the intended action, A, before it is executed. This makes it possible for its decision-making intelligence, I3, to check whether the anticipated outcome of the action violates any imperatives or constraints in the M3 model of what is desirable, acceptable, or unacceptable, in which case I3 uses C3 to veto the action.
This is no different to the faculty that most (but not all) adults have that is running as a background process, constantly monitoring what we are about to say or do, and can kick in completely unexpectedly at any moment to stop us from saying or doing something that might be considered rude, hurtful, or otherwise socially unacceptable.
Throughout this paper, an ethical system is equated with one that is internally constrained to only exhibit behaviour that is defined as being acceptable in the culture within which the system exists. If we accept that a society’s laws, regulations, and rules are its operational best-approximation to that society’s most important ethical principles, then what this paper refers to as an ethical regulator can effectively be interpreted as being a strictly law-abiding regulator.
In a more complex example, such as an autonomous robot, Isaac Asimov’s First Law of Robotics—“A robot may not injure a human being or, through inaction, allow a human being to come to harm” [11]—would require that inaction be treated as if it were a type of action that can be vetoed to force replanning to be performed to avoid a predicted unacceptable outcome of inaction. And even though it is generally impossible to obtain agreement on a definition of what is ethical or unethical, we can surely agree that systems such as robots and AI must be designed to be strictly and provably law-abiding.
In humans, the R3 regulation mechanism can be viewed as functioning at an executive level that controls motivational salience, with O3 monitoring both the intended action, A, and the anticipated outcome, A’. Where the distribution of probable outcomes is the result of computing A’ = M1(O1(S). A). Then based on the M3 model of the acceptability of outcomes, I3 can respond in three distinct ways:
  • If the outcome is unacceptable, I3 uses control channel C3 to convey a veto alert to prevent the intention from being executed and thus force urgent replanning to be performed to avoid A.
  • If the outcome is especially acceptable, such as achieving an important goal, money, or the object of an addiction, I3 uses C3 to convey excitement for the anticipated outcome, and triggers the intended action to be performed decisively with enthusiasm, without further delay.
  • If the outcome is merely acceptable, I3 does nothing, which is an expression of indifference, which allows the intention to be acted upon consciously after some further delay, but without any enthusiasm.
It is clear that I3 is maximally utilizing the available C3 channel capacity by providing aversive, incentive, or neutral motivational salience as either negative feedback, positive feedback, or no feedback. And rather than sending a ternary signal with just the three simple values no/yes/do not care, the signal could be a continuous linear value, such as a simple range from −1 to +1 or a vector.
In humans, this signal is not cognitive, it is a visceral feeling of fear, excitement, or indifference, and is therefore more likely to be transmitted using hormones or neurotransmitters rather than electrical signals.
We have all experienced that feeling when faced with a difficult decision, where we experience a pause in our conscious decision making, where we are effectively waiting to see if our subconscious has any objections to our currently preferred action. Many people refer to it as tuning into their gut instinct. We can understand it as subjecting our preferred action to the calculation M3(M1(O1(S), A)) to see if it causes a positive or negative visceral response. A lack of visceral response leaves the conscious mind in control and able to rationally consider other possibilities or to initiate the action consciously.
In alignment with this hypothesis, neurological studies published in 2008 by Soon, Brass, Heinze, and Haynes have demonstrated that there is indeed a delay between the subconscious decision to act and the action being executed: “the outcome of a decision can be encoded in brain activity of prefrontal and parietal cortex up to 10 s before it enters awareness” [12]. And the prefrontal cortex has been implicated in executive functions such as decision making, planning, and moderating social behaviour.
Evolution (or intelligent design) would only create such a large delay between decision and action if it has significant advantages. Naturally, M3 must include probable injury or death of oneself as unacceptable outcomes, which makes the R3 regulation mechanism a key advantage for survival.
The actions of the R3 regulation mechanism also correspond remarkably precisely with Ross Ashby’s 1941 concept of a mechanism for adaptation, which he described on page 859 of his journal:
“A new idea. Suppose the cortex is a ‘representation’ of the environment, i.e., corresponding to events in the periphery (stimuli, reactions) there are events in the cortex. Nothing new in this idea. But suppose that the cortex is more ‘sensitive’, so that if the periphery is being driven out of its range of stability the corresponding variable in the cortex will break first, i.e., get outside its range of stability, and thus switch to another portion of the field (p. 817), and change partially to another organisation” [13].
He uses the term “stability” for what we refer to as “acceptability” and his concept of a “break” is equivalent to our concept of a “veto”. Table 2 provides a phrase-by-phrase translation of his description into the equivalent model-centric paradigm terminology that is used in this paper.
Whether a person’s M3 model of acceptable outcomes extends to the protection of others, and not just the individual themselves, could depend on the presence of empathy, or perhaps the M3 model is actually the basis for empathy, with the emotions that are associated with empathy being caused by the M3 model making emotionally communicated acceptability predictions based on inputs from activated mirror neurons. This is credible since mirror neurons were shown to exist in the human inferior parietal cortex by Chong, Cunnington, Williams, Kanwisher, and Mattingley, in 2008, by using fMRI (functional magnetic resonance imaging) [14].
Our M3 models must develop during infancy and childhood and be considerably determined by our experiences, environment, and culture. So, it seems reasonable to assume that if a child witnesses suffering being inflicted upon others, without negative consequences for the perpetrator, they are more likely to develop an M3 model where negative outcomes for others are not regarded as unacceptable and, therefore, the child will become more likely to exhibit sociopathic and psychopathic behaviours that are likely to continue in adulthood.
Currently, our children are being mass-traumatized and desensitized into being pathologically unempathic. The exposure of children to violent computer games and constant exposure to images of death and violence in news and entertainment media is desensitizing children and inflicting lasting harm on their developing M3 models of what horrors they can tolerate as acceptable. It is inevitable that such experiences make children become increasingly unempathic, and society inevitably descends into becoming even less safe or caring. Members of older generations who did not experience such gratuitous traumatization in their childhood have a more empathic definition of what is acceptable and are unable to comprehend the rise in incidents where youths think nothing of fatally stabbing or shooting someone for showing a “lack of respect”, looking at them in “the wrong way”, or politely asking them to stop some specific antisocial behaviour. It appears that the only way to reverse this trend would be to bring children up to be more empathic, in part, by banning under 18’s from playing any violent computer games or watching any news or entertainment that depict killing, violence, verbal abuse, inflicted suffering, or any other form of non-consensuality. Letting children witness or playout such M3 traumatizing experiences should be no less of a taboo or less illegal than it is to give them access to pornography. Once they reach adulthood, access to such experiences can be permitted without too much concern because their M3 model is likely to be more resistant to changes and less at risk of losing its encoding of empathy.
In machines, building an R3 regulator into a system that is already reflexively effective has the potential to create AI and robots that do not just obey laws, but that have a synthetic sense of empathy. This could mean that they would not only realize that an action or situation is acceptable or unacceptable, but also that someone needs help.
Rather than every manufacturer trying to make each of their products ethically and empathically adequate, we speculate that perhaps it is possible to create a generic cybernetic level-three AI supervisor that can be added as an executive controller to cybernetic level-two AI or robots, with the sole purpose of constraining the product to behaving according to an appropriate ethical schema. It could also include an obligation to help people in need, as is required by Asimov’s First Law of Robotics. This could transform what might otherwise be potentially dangerous robots into universal heroes that are compelled to assist people who are in danger of coming to harm. In theory, because it forbids a robot to allow a human to come to harm through inaction, it would oblige a robot to try to cure world hunger, poverty, homelessness, and war.
In summary, it appears that the concept of the R3 regulator has the potential to help us understand, design, and improve ethical adequacy and empathic adequacy in real-world systems that matter to society. Therefore, von Foerster’s claim that a third order “would not create anything new” can now be regarded as demonstrably false.

4.4. Comparative Analysis of the Paradigms

While Glanville’s claim that a third-order system cannot exist because it collapses into being equivalent to a first-order system might make sense when considering adding a third intelligent observer in the philosophical interpretation of the observer-centric cybernetics paradigm, it is nonsensical to suggest that the ethical regulator’s M3 model (of acceptable behaviour) is equivalent to either its M2 model (of itself) or its M1 model (of the system being regulated). A spontaneous collapse in the model-centric real-world will never occur, so in the real-world of scientific regulation, Glanville’s collapse claim is also false.
If you accept that ethical systems require a third type of model and a third type of observer, it is clear that von Foerster’s use of abstract (under-defined) observers renders his 2oC incapable of distinguishing between the model-centric paradigm’s observers O2 and O3.
On closer inspection, the reason why the observer-centric paradigm is blind to the difference between a reflexive regulator, R2, and an ethical regulator, R3, is because the nature of the observations that are made by O2 and O3 can both be regarded as reflexive self-observations; depending on how you chose to define “self” and whether you completely ignore critically important details such as the actual purpose of each observer.
But at the level of detail that we have specified R2 and R3, none of the observers actually observe themselves. Whereas O2 makes observations about R for I2 to maintain an up-to-date model that enables I2 to provide I1 with necessary self-knowledge of the possible variety of R, O3 monitors the intended actions or communications.
Purpose P3 is always acceptability or ethicalness, which is certainly a genuinely higher purpose than mere reflexivity and therefore deserves to be acknowledged as such rather than being dismissed as just a case of reflexivity. However, it is the undeniable need for a third type of model and a third type of observer that justifies asserting that ethical systems are more than just reflexive.

4.5. Isn’t Second-Order Cybernetics Enough to Be Ethical?

The claim that 2oC somehow addresses ethics is a non sequitur fallacy. Just because someone who self-identifies as a second-order cybernetician can reflect on the need for systems to be ethical does not mean that 2oC is capable of systematically creating ethical systems. In the same way that being able to recognize that effectively fighting the COVID-19 pandemic required a vaccine, is completely different from actually having the knowledge and skills to create a suitable vaccine.
The fact that applying Stafford Beer’s viable system model (VSM) [15] might sometimes be able to produce a system that could be considered to be genuinely ethical proves nothing. Being able to occasionally create an ethical system is utterly inadequate. We need something systematic that, when applied correctly, is incapable of producing a system that is not ethical.
The problem of second-order cyberneticians being able to recognize the need for cybernetics to be able to systematically design and build ethical systems, yet being unable to deliver a rigorous solution, is a paradigmatic anomaly that the author has previously proposed the name “The Ethics Problem” [16]. In this respect, because 2oC can predict a type of system that it cannot systematically create, it appears to be incomplete.
Table 3 illustrates the correspondence between von Foerster’s observer-centric definitions and the model-centric paradigm.
And because 2oC can be used for good or for evil, it must also be categorized as being ethically agnostic. So 2oC cannot credibly claim to be, or to include, the cybernetics of ethical systems. And yet if we accept that ethical systems exist and are not just theoretical possibilities, it becomes clear that “ethical cybernetics” or “the cybernetics of ethical systems” must exist at a higher-order than the ethically agnostic 2oC and must somehow embody an ethical constraint that ensures being unethical is not an option.
One such ethical constraint has been proposed by the author in the form of the ethical regulator theorem, which can be used to construct an ethical design process that can only produce ethically adequate systems [16].
Although second-order cyberneticians have the reflexivity to be able to recognize that 2oC is ethically weak, and are able to identify the need for cybernetics to embody ethics, 2oC does not embody ethics. This is demonstrated by the fact that trying to create an ethical system rather than an unethical system is merely an option for second-order cyberneticians. So 2oC is ethically unconstrained, and having a lack of ethics is actually quite a good definition of being unethical.
People who self-identify as second-order cyberneticians must take care not to make the mistake of projecting their own sense of being ethical onto 2oC. You might be rigorously ethically adequate, but 2oC is not.
In addition, 2oC cannot be said to be ethical because it has no purpose to be ethical. A satisfactory theory of ethical systems must have an unambiguous purpose of being ethical—otherwise, being ethical is merely optional, which is unethical.

5. Proof That Third-Order Cybernetics Must Exist

In a similar way to how Leon Chua [17] used symmetry to infer that the three fundamental electrical components resistor, capacitor, and inductor must have a fourth companion, the memristor, we can postulate that there must always be a symmetry or correspondence between conceptual theory and real-world praxis. And this is certainly true for 1oC and 2oC:
  • 1oC (the cybernetics of simple systems) corresponds to the practical realization of a simple regulator, R1(S).
  • The reflexive 2oC corresponds to the practical realization of a reflexive regulator, R2(R1(S)).
Now the obvious question is: which order of cybernetic theory describes the ethical third-order regulator R3(R2(R1(S)))?
We know that every non-chaotic society uses some culturally specific system of ethics to define sets of laws, regulations, and rules to self-organize the society to reduce social entropy, injustice, and unnecessary suffering. And a necessary requirement of such an ethical schema is that it can be used as a decision function that returns true or false to indicate whether any given behaviour or situation is considered to be ethical or unethical, i.e., whether it is considered acceptable or unacceptable in that culture.
And every regulator that exists in such a society can be said to be either ethically constrained or ethically unconstrained, depending on whether the regulator is internally constrained to obey such an ethical schema, or not.
And since this is true for all regulators, it must also be true of all reflexive regulators. Therefore, there must be two types of reflexive regulator: those that are ethically constrained, and those that are ethically unconstrained.
We have already noted that being ethical is merely an option for the reflexive 2oC, so it must be classified as ethically unconstrained. And, as we would expect from the requisite symmetry, real-world reflexive regulators, R2(R1(S)), are also ethically unconstrained because they are not required to have a purpose that ensures that they behave ethically.
So, we are left with the set of ethically constrained reflexive regulators that cannot belong to or be accounted for by 2oC. When the model-centric paradigm leads us to realize that we can use a third regulating component, R3, to constrain a reflexive regulator to exhibit only ethical behaviour, as defined by the ethical schema that is encoded in the M3 model, then the resulting regulator, R3(R2(R1(S))) is ethically constrained, and can be referred to as an ethical regulator. Further, we realize that such regulators already exist in law-abiding citizens and genuinely ethical organizations.
Finally, the requisite symmetry between theory and praxis requires that this third type of real-world regulator, the ethical regulator, has a corresponding theory, but that theory cannot be 2oC. Because 2oC is ethically unconstrained, there must exist a third-order that is not only concerned with the cybernetics of ethically constrained regulators, but is itself ethically constrained by a purely ethical purpose.
So, whereas the theoretical possibility of a memristor preceded and led to the physical synthesis of real memristor components, it is the existence of (and real-world need for) ethical systems and ethical regulators that provide the proof that a third-order theory is required. So, we have clarified that the question mark in Table 3 must be the theory of third-order cybernetics.
And by using the model-centric paradigm, we have resolved the real-world meaning (i.e., purpose) of the troublesome third observer, which is not the recursively confused cybernetician that results from the unconstrained ambiguity of the observer-centric paradigm. The third observer, O3, is merely one of several necessary components of an ethical regulator, R3, that has the purpose of ensuring ethical compliance.
Therefore, cybernetics, in its third-order form is not only possible, it is necessary. It embodies ethics, and it is ethically self-constrained by its own definition as “the cybernetics of ethical regulators”.
Our claim that the model-centric paradigm has greater utility than the observer-centric paradigm for researchers and developers who are trying to create AI, robots, and autonomous vehicles that behave ethically is an eminently falsifiable hypothesis.
In its third-order form, the model-centric paradigm appears to create utility that cannot be achieved using 2oC. We have also shown that the model-centric paradigm has the explanatory and predictive power to explain and fix the ambiguities and anomalies that are intrinsic to the observer-centric paradigm.
Therefore, according to the criteria described by Thomas Kuhn in “The Structure of Scientific Revolutions” [18], the model-centric paradigm is demonstrably superior to von Foerster’s observer-centric paradigm, and must replace it.

A New Cybernetic Order

So, when Heinz and Ranulph discussed the possibility of a third-order, it seems that they were only considering the philosophical interpretation of adding a third abstract intelligent observer O3(O2(O1)), which, like Mead’s “cybernetics of cybernetics”, or C(C), is devoid of any grounding reference to reality such as a regulated system, S. And this intuitive interpretation of 3oC as O3(O2(O1)) is equivalent to a cybernetician sitting in a comfortable armchair, contemplating himself, contemplating himself, contemplating absolutely anything at all, which certainly appears not to create anything new or worthwhile, and is worthy of rejection; as indeed, Heinz and Ranulph both did.
However, taking the model-centric view of exactly the same possibility of a third-order, we are firmly grounded in reality, and are considering adding a third order of purposeful regulation to a well-defined second-order reflexive regulator, resulting in R3(R2(R1(S))), which is not only meaningful, but actually creates something new that is of great utility and importance. Regulator R3 can be described as the conscience that keeps the reflexively regulated regulator R2(R1(S)) ethical.
And contrary to Ranulph’s claim, because we have rigorously nested regulation rather than naïvely nested observers, R3(R2(R1(S))) does not collapse into a first-order regulator, R1(S), except perhaps when it is deliberately treated as a black box and the fact that it only ever behaves ethically is wilfully ignored.
The philosophers of cybernetics, but especially radical constructivists, should appreciate that there is not just one “correct” way to interpret concepts such as second-order cybernetics and third-order cybernetics. And on reflection, it should not surprise us that adding a third order of purposeful regulation in the model-centric paradigm is meaningful, but trying to contemplate adding a third order of abstract observation in the observer-centric paradigm becomes acutely meaningless and the meaninglessness of the latter does not affect the validity of the former.
In fact, attempting to find a meaning for a nested system of three intelligent observers O3(O2(O1)), where the purpose of each observer is undefined, raises the ambiguity to the power of three and requires a cognitive transderivational search for combinations of possible valid interpretations that is similar to the combinatorial linguistic ambiguities that are used in Ericksonian hypnosis and neuro-linguistic programming to induce a discombobulated state of trance and suggestibility.
Considering the fact that the observer-centric paradigm’s 1oC and 2oC cannot account for ethical regulators, it is proposed that we should redefine the orders of cybernetics so that they are no longer determined by the number of nested observers, but by the number of types of models, as shown in Table 4. For sure, theoretically the number of types of models, regulators, and observers are always the same, but the reason for naming the new paradigm model-centric rather than regulator-centric is for clarity. By applying the Conant–Ashby good regulator theorem, we obtained our models and well-defined observers from first principles, without the need to invoke subjective claims of obviousness. And, the argument that an ethical regulator needs a third type of model is central to extending the paradigm to a third order. However, in real-world systems, design decisions and implementation optimizations can blur the boundaries between multiple regulators and observers, but it is less likely that any of the three types of models will be merged, because they are used in very different ways, so there are significant advantages to keeping them separate. Therefore, we can expect counting types of models to be more reliable than trying to count regulators or observers.
This proposal is highly compatible with von Foerster’s definitions, except that ethical regulators are now recognised as a new type of regulator, and a new order of cybernetics. In retrospect, the claim that 2oC was somehow capable of systematically creating ethical systems was optimistically delusional and arguably a product of groupthink [19]. Even today, many people naïvely believe that defining an ethical purpose is sufficient to guarantee that a system will be ethical. This completely ignores the reality that in any non-trivial system, bad actors internal or external to the system will attempt to exploit any weaknesses to subvert the system to their personal benefit.
To his credit, Ranulph did not categorically rule out the possibility of a need to create a third order: “There may be reasons to add to the number of orders of Cybernetics, although neither I nor von Foerster—for similar reasons—see a reason for more than two” [3].
But by only considering the philosophical possibility of adding a third abstract intelligent-observer, they had become detached from the reality of seeking solutions to real-world problems. In answer to Ranulph: The reason for needing more than two orders is the need for humanity to be able to systematically design and build robustly ethical systems, not just think and talk about them. And with the incredible progress that is being made these days creating increasingly powerful AI systems, and the imminent danger that they might cause a global dystopia, the need for us to be able to systematically design and build robustly ethical systems is now a more real and urgent reason for us to add to the number of orders of cybernetics than Ranulph and Heinz could have anticipated.
The idea that a third order of cybernetics is required to account for ethical systems is not new. In the early 1990’s, Boxer and Kenny [20,21] concluded that 3oC is required to coordinate and organise multiple observers ethically. They had approached the issue as business-strategy consultants who wanted to evolve an effective, coherent and ethical consultancy practice, and found that 2oC was “a domain of self-referential paradoxes” that was inadequate to effectively identify, analyse, and conceptualize the complexity and phenomena of large organizations, including aspects such as corporate culture, which can persist over time in an invariant manner.
More recently, in 2014, Yolles and Fink [22] also concluded that third-order cybernetics is necessary for “an agency capacity to represent cultural values/beliefs as a coalescence of normative ideological, ethical and behaviour standards that ultimately indicate social legitimacy”. But they did not suggest any mechanisms for implementation.
The M3 model of acceptable (ethical) behaviour, provides a basis for understanding and representing such cultural values, including ethics, which also correspond to Maturana’s “social” third order.
The ability to systematically design and build robustly ethical systems is so important for the future of humanity and the biosphere, that with hindsight, our distant descendants may consider us to have been negligent if we decide not to create a new branch of cybernetics that is dedicated to understanding and implementing rigorously ethical systems. They urgently need us to start taking ethical systems seriously.
The model-centric paradigm presented in this paper is compatible with the ethical regulator theorem [16], and together, provide a good basis for designing and implementing real systems that can only exhibit ethical behaviour. In terms of the model-centric paradigm, the ethical regulator theorem belongs firmly in third-order cybernetics.

6. Implications and Higher Orders

The most important goals of this paper are to return cybernetics to being a rigorous science and to establish ethical cybernetics (3oC) as the third-order regulator of the existing ethically agnostic (dual-use) second-order (reflexive) sciences and social systems.
Whereas science has specific domains, such as biology, chemistry, physics, and sociology, ethical cybernetics can be applied to all such domains. And by delivering systematic ethical regulation, cybernetics can finally take its place that generations of cyberneticians have intuitively felt that it belongs—above all the other sciences, to endow them with the requisite conscience and steersmanship to do good for humanity and the biosphere rather than evil.
Although it is arguable that individuals in society can consciously modify their own M3 models, we must ensure that AI systems are never granted modify access to their own (or other AI system’s) M3 models. We need legislation that requires that AI systems must always obey read-only ethical schemas that are provided by an authorized external human authority.
In the general case, ethical (third-order) regulators obey ethical schemas that are provided to them by their designers or by the society in which they exist. So, it is certainly possible to regard the actions of lawmakers and designers of AI systems as a fourth order of regulation. However, at this level, they are creating rulesets for multiple instances of autonomous regulators. And, given that criminals are ethically unconstrained second-order regulators that ignore laws at will, it is problematic to view law making as fourth-order regulation. The ethical schemas that are provided to AI or robots to define what is acceptable or unacceptable in a particular society are just unambiguously prioritized constraints and imperatives, which is not a particularly challenging problem to solve. In addition, the AI designers and lawmakers do not regulate the lower-level regulators in real time or in a tightly coupled sense of R4(R3(R2(R1(S)))), so we reject this interpretation of defining the ethical schema as being a fourth order of regulation or that it requires a fourth-order of cybernetics. There may be reasons to add to the number of orders of cybernetics, but we see no reason for more than three.

7. Conclusions

This paper is intended as an intervention, to help initiate a course correction to the field of cybernetics so that it can move beyond the “now what?” stasis, in which second-order cybernetics has languished for many years, to return to the noble and exhilarating trajectory of being the rigorous science that Wiener originally gave life to, rather than the half-science, half-philosophy, half-museum that it has sadly become.
It is really not surprising that the field of cybernetics has struggled to gain recognition as a science, considering the lack of differentiation by the cybernetics community between Wiener’s science of cybernetics and Mead/von Foerster’s philosophy of cybernetics, and allowing the philosophical interpretation of 2oC to dominate and obscure the scientific interpretation, which appears to have created a groupthink that unintentionally supressed the ability of second-order cyberneticians to perceive the meaningful possibility of a third order of cybernetics.
But shifting the emphasis in cybernetics from abstract (under-defined) observers to models and well-defined observers has significant advantages.
Although von Foerster’s observer-centric definitions of first-order and second-order cybernetics have little utility to scientists or developers who are trying to create ethical AI or ethical robots, his classification remains a valid way of viewing cybernetics for those that find it more useful for their purposes. But it does not meet the standard required for a science of cybernetics nor Kuhn’s criteria for a scientific paradigm.
For cybernetics to have any chance of being regarded as a science, we must replace the observer-centric paradigm with the more rigorous model-centric paradigm that takes into account a regulator’s purpose, models, intelligence, has only well-defined observers, and provides an important interpretation of what a third-order system is.
In order to clearly distinguish the science of cybernetics from the philosophy of cybernetics, we propose that the field of cybernetics adopt the following definitions:
  • First-order cybernetics = the cybernetics of simple regulators.
  • Second-order cybernetics = the cybernetics of reflexive regulators.
  • Third-order cybernetics = the cybernetics of ethical regulators.
  • The cybernetics of cybernetics = the philosophy of cybernetics = a branch of the philosophy of science.
We conclude that it is hopeless to try to solve the real world’s serious problems by using the ethically agnostic observer-centric second-order cybernetics. We need something more scientific that is dedicated to the cybernetics of creating ethical systems, and is perhaps best described as “Ethical Cybernetics”.
By applying the principles of Ethical Cybernetics to other scientific and social fields, we have the potential to pivot the course of humanity and the biosphere towards rigorous ethical adequacy and an endemic social phase-change from chaos to consensuality.
Our distant descendants urgently need our help now. Their existence (like Schrödinger’s cat or a quantum qubit) is in an as yet (for us) undetermined possibility state of either debt slavery and suffering (like us) or utopic freedom and joy. We can postulate that if our distant descendants could somehow send a message back in time (either telepathically or by us using the power of logical reasoning to deduce what their message must be) there are only two possibilities, either they are imploring us, for the sake of themselves and their descendants, to do whatever it takes to free them from dystopic slavery and biospherical disaster or they are thanking us for doing what was necessary to ensure their utopic freedom from slavery. Either way, regardless of the content of their inevitable message (which for us is like another qubit in an as yet undetermined state that is entangled with the first qubit), those empaths amongst us who are truly kind, caring, sharing, and loving have no ethical choice but to do our best to help free our descendants and ourselves from the chains of eternal slavery and unethical suffering. Not because we have to, but because, as good empaths, we care enough to act to help people in need before we are even asked. And there is no possible outcome that makes it unnecessary for us to act with great urgency.
In the coming decades, centuries, and millennia, employing a more powerful, more practical, scientifically defined cybernetic paradigm will be essential to enable cybernetics to help humanity create ethical AI, ethical robots, ethical products, ethical organizations, and a safer, more just, more sustainable, peaceful and stable cyberanthropic Utopic Sapientocracy that is governed by wisdom, kindness, caring, sharing, and love.

Funding

The author received no external funding.

Acknowledgments

The author would like to express appreciation and unconditional love to every kind, caring, sharing, and loving empath that is alive, has ever existed, or that is yet to be born into this amazing universe. Collectively, we are constantly creating reality, and so, collectively, we can change it. Take care of each other, organize with like-minded empaths, fight injustice everywhere, and be happy.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Wiener, N. Cybernetics: Or Control and Communication in the Animal and the Machine; MIT Press: Cambridge, MA, USA, 1948. [Google Scholar]
  2. von Foerster, H. Cybernetics of Cybernetics: Or, the Control of Control and the Communication of Communication; Biological Computer Laboratory, University of Illinois: Urbana-Champaign, IL, USA, 1974. [Google Scholar]
  3. Glanville, R. Second Order Cybernetics, in Systems Science and Cybernetics. In Encyclopedia of Life Support Systems (EOLSS); Parra-Luna, F., Ed.; EOLSS Publishers: Oxford, UK, 2008; Available online: https://www.pangaro.com/glanville/Glanville-SECOND_ORDER_CYBERNETICS.pdf (accessed on 3 April 2022).
  4. Kline, R. How disunity matters to the history of cybernetics in the human sciences in the United States, 1940–1980. Hist. Hum. Sci. 2020, 33, 12–35. [Google Scholar] [CrossRef]
  5. Scott, B. Second-order Cybernetics: An Historical Introduction. Kybernetes 2004, 33, 1365–1378. [Google Scholar] [CrossRef] [Green Version]
  6. Umpleby, S. What comes after second order cybernetics. Cybern. Hum. Knowing 2001, 8, 87–89. Available online: http://www.nomads.usp.br/pesquisas/design/objetos_interativos/arquivos/restrito/umpleby_what_comes_after_second_order_cybernetics.pdf (accessed on 3 April 2022).
  7. Ashby, W.R. Circularity of my brain studying “the brain”. J. W. Ross Ashby 1955, 18, 4814. Available online: http://rossashby.info/journal/page/4814.html (accessed on 3 April 2022).
  8. von Foerster, H. Ethics and Second-Order Cybernetics. In Understanding Understanding; Springer: New York, NY, USA, 2003; Available online: https://www.pangaro.com/hciiseminar2019/Heinz_von_Foerster-Ethics_and_Second-order_Cybernetics.pdf (accessed on 3 April 2022).
  9. Conant, R.C.; Ashby, W.R. Every good regulator of a system must be a model of that system. Int. J. Syst. Sci. 1970, 1, 89–97. Available online: http://pespmc1.vub.ac.be/books/Conant_Ashby.pdf (accessed on 3 April 2022). [CrossRef]
  10. Ashby, W.R. An Introduction to Cybernetics. 1956. Available online: http://www.rossashby.info/Ashby-Introduction-to-Cybernetics.pdf (accessed on 3 April 2022).
  11. Asimov, I. Runaround. Astounding Sci. Fict. 1942, 29, 94–103. [Google Scholar]
  12. Soon, C.S.; Brass, M.; Heinze, H.-J.; Haynes, J.-D. Unconscious determinants of free decisions in the human brain. Nat. Neurosci. 2008, 11, 543–545. [Google Scholar] [CrossRef] [PubMed]
  13. Ashby, W.R. A new idea. J. W. Ross Ashby 1941, 4, 859. Available online: http://rossashby.info/journal/page/0859.html (accessed on 3 April 2022).
  14. Chong, T.T.-J.; Cunnington, R.; Williams, M.A.; Kanwisher, N.; Mattingley, J.B. fMRI Adaptation Reveals Mirror Neurons in Human Inferior Parietal Cortex. Curr. Biol. 2008, 18, 1576–1580. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Beer, S. Brain of the Firm; Allen Lane the Penguin Press: London, UK, 1972. [Google Scholar]
  16. Ashby, M. Ethical Regulators and Super-Ethical Systems. Systems 2020, 8, 53. [Google Scholar] [CrossRef]
  17. Chua, L.O. Memristor—The Missing Circuit Element. IEEE Trans. Circ. Theory 1971, 18, 507–519. [Google Scholar] [CrossRef]
  18. Kuhn, T. The Structure of Scientific Revolutions; University of Chicago Press: Chicago, IL, USA, 1962. [Google Scholar]
  19. Ashby, M. Mick Ashby—Problems with Abstract Observers and Advantages of a Model-Centric Paradigm. YouTube. 2021. Available online: https://www.youtube.com/watch?v=kc6N1mFpTO8 (accessed on 3 April 2022).
  20. Boxer, P.; Kenny, V. The Economy of Discourses: A third order cybernetics? Hum. Syst. Manag. 1990, 9, 205–224. Available online: https://www.researchgate.net/publication/230819226_The_Economy_of_Discourses_A_Third_Order_Cybernetics (accessed on 3 April 2022). [CrossRef]
  21. Boxer, P.; Kenny, V. Lacan and Maturana: Constructivist origins for a 30 Cybernetics. Commun. Cogn. 1992, 25, 73–100. Available online: https://asymmetricleadership.com/wp-content/uploads/pdfs/matlacn3.pdf (accessed on 3 April 2022).
  22. Yolles, M.; Fink, G. Generic Agency Theory, Cybernetic Orders and New Paradigms. 2014. Available online: https://ssrn.com/abstract=2463270 (accessed on 3 April 2022).
Figure 1. A first-order cybernetic regulator.
Figure 1. A first-order cybernetic regulator.
Systems 10 00053 g001
Figure 2. A second-order cybernetic regulator.
Figure 2. A second-order cybernetic regulator.
Systems 10 00053 g002
Figure 3. A third-order cybernetic regulator.
Figure 3. A third-order cybernetic regulator.
Systems 10 00053 g003
Table 1. Definitions of cybernetics.
Table 1. Definitions of cybernetics.
AuthorFirst-Order CyberneticsSecond-Order Cybernetics
WienerThe scientific study of control and communication
MeadCyberneticsThe cybernetics of cybernetics
Von FoersterThe cybernetics of observed systemsThe cybernetics of observing systems
PaskThe purpose of a modelThe purpose of the modeler
ValeraControlled systemsAutonomous system
UmplebyInteraction among the variables in a systemInteraction between observer and observed
UmplebyTheories of social systemsTheories of the interaction between ideas and society
Table 2. Correspondence between Ross Ashby’s 1941 mechanism for adaptation and the model-centric paradigm.
Table 2. Correspondence between Ross Ashby’s 1941 mechanism for adaptation and the model-centric paradigm.
Ross Ashby’s Description of a Mechanism for AdaptationModel-Centric Paradigm Translation
But suppose that the cortex is more ‘sensitive’,But suppose that the outcome of an intention can be predicted (by the M1 model),
so that if the periphery is being driven out of its range of stabilityso that if the intention is outside the range of acceptability
the corresponding variable in the cortex will break first, i.e., get outside its range of stability,the predicted outcome will violate the M3 model (i.e., get outside the range of acceptability) causing I3 to veto the execution of the intention
and thus switch to another portion of the field,and thus force replanning to be performed to explore alternatives,
and change partially to another organisation.and exist in a world where the original intention has not been executed and where the regulator has possibly learned from the experience.
Table 3. Correspondence between the observer-centric and model-centric paradigms.
Table 3. Correspondence between the observer-centric and model-centric paradigms.
Observer-CentricModel-CentricRegulatorRegulator Requires a Model of
First-orderFirst-orderSimpleThe regulated system
Second-orderSecond-orderReflexiveThe regulator (itself)
?Third-orderEthicalAcceptable (ethical) behaviour
Table 4. Proposed new definitions of orders of cybernetics.
Table 4. Proposed new definitions of orders of cybernetics.
CyberneticsThe Cybernetics ofNumber of Models (n)Regulator (Rn) Requires a Model of
First orderSimple regulators1The regulated system
Second orderReflexive regulators2The regulator (itself)
Third orderEthical regulators3Acceptable (ethical) behaviour
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ashby, M. Problems with Abstract Observers and Advantages of a Model-Centric Cybernetics Paradigm. Systems 2022, 10, 53. https://doi.org/10.3390/systems10030053

AMA Style

Ashby M. Problems with Abstract Observers and Advantages of a Model-Centric Cybernetics Paradigm. Systems. 2022; 10(3):53. https://doi.org/10.3390/systems10030053

Chicago/Turabian Style

Ashby, Mick. 2022. "Problems with Abstract Observers and Advantages of a Model-Centric Cybernetics Paradigm" Systems 10, no. 3: 53. https://doi.org/10.3390/systems10030053

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
