Expression Profile of SARS-CoV-2 Host Receptors in Human Pancreatic Islets Revealed Upregulation of ACE2 in Diabetic Donors

by
Jalal Taneera
1,2,*,
Waseem El-Huneidi
2,
Mawieh Hamad
3,
Abdul Khader Mohammed
1,
Esraa Elaraby
1 and
Mahmood Yaseen Hachim
4
1
Sharjah Institute for Medical Research, University of Sharjah, Sharjah 27272, UAE
2
Department of Basic Medical Sciences, College of Medicine, University of Sharjah, Sharjah 27272, UAE
3
College of Health Sciences, University of Sharjah, Sharjah 27272, UAE
4
College of Medicine, Mohammed Bin Rashid University of Medicine and Health Sciences, Dubai 505055, UAE
*
Author to whom correspondence should be addressed.
Biology 2020, 9(8), 215; https://doi.org/10.3390/biology9080215
Submission received: 7 July 2020 / Revised: 3 August 2020 / Accepted: 3 August 2020 / Published: 7 August 2020
(This article belongs to the Section Bioinformatics)
Browse Figures
Versions Notes

Abstract

:
Cellular entry of SARS-CoV-2 is thought to occur through the binding of viral spike S1 protein to ACE2. The entry process involves priming of the S protein by TMPRSS2 and ADAM17, which collectively mediate the binding and promote ACE2 shedding. In this study, microarray and RNA-sequencing (RNA-seq) expression data were utilized to profile the expression pattern of ACE2, ADAM17, and TMPRSS2 in type 2 diabetic (T2D) and non-diabetic human pancreatic islets. Our data show that pancreatic islets express all three receptors irrespective of diabetes status. The expression of ACE2 was significantly increased in diabetic/hyperglycemic islets compared to non-diabetic/normoglycemic. Islets from female donors showed higher ACE2 expression compared to males; the expression of ADAM17 and TMPRSS2 was not affected by gender. The expression of the three receptors was statistically similar in young (≤40 years old) versus old (≥60 years old) donors. Obese (BMI > 30) donors have significantly higher expression levels of ADAM17 and TMPRSS2 relative to those from non-obese donors (BMI < 25). TMPRSS2 expression correlated positively with HbA1c and negatively with age, while ADAM17 and TMPRSS2 correlated positively with BMI. The expression of the three receptors was statistically similar in muscle and subcutaneous adipose tissues obtained from diabetic and nondiabetic donors. Lastly, ACE2 expression was higher in sorted pancreatic β-cell relative to other endocrine cells. In conclusion, ACE2 expression is increased in diabetic human islets. More studies are required to investigate whether variations of ACE2 expression could explain the severity of COVID-19 infection-related symptoms between diabetics and non-diabetic patients.

1. Introduction

In March 2020, the World Health Organization declared that coronavirus disease 2019 (COVID-19) or severe acute respiratory syndrome coronavirus (SARS-CoV-2) was a global pandemic [1]. The elderly and patients with diabetes mellitus are at higher risk of COVID-19 and developing severe symptoms that are often fatal [2]. The rate of survival in diabetics with COVID-19 is significantly reduced (22–31%) relative to non-diabetic counterparts [3]. Previous work has attributed this to compromised immunity in diabetics; innate and humoral adaptive responses in particular [4]. Additionally, transient hyperglycemia has been documented in 50% of COVID-19 patients in Wuhan, which could be due to SARS-CoV-19 binding to host receptors in pancreatic islets [5]. Indeed, transient impairment of pancreatic islet cell function was reported in 2003 with severe Acute Respiratory Syndrome (SARS) infection [6]. It has been reported that diabetic patients with COVID-19 continued to show uncontrolled hyperglycemic even when blood glucose management strategies were applied [7]. Such uncontrolled hyperglycemic levels will expose those patients to secondary infections along with higher mortality risks.
The mode of cellular entry of the SARS-CoV-2 is thought to occur through the binding of viral spike S1 protein to the angiotensin-converting enzyme 2 (ACE2) on the surface of alveolar epithelial cells and the subsequent endocytosis and translocation of the complex into the cytoplasm [8,9]. The entry process also involves the priming of the S protein by the host serine protease protein (TMPRSS2) and a disintegrin and metalloproteinase 17 (ADAM17), which together mediate SARS-CoV-2 binding to ACE2 on target cells and promote ACE2 shedding from endothelial cells [10]. Stable expression of ACE2 has been shown to protect against COVID-19 infection, especially in lung injury [11].
ACE2 is expressed on different types of cells of kidney, heart, vasculature, gastrointestinal tract, smooth muscle, liver, and pancreatic tissues [12,13]. The receptor plays a crucial role in anti-oxidation and anti-inflammation as it degrades angiotensin-II and—to a lesser extent—angiotensin I into smaller peptides known as angiotensin 1–7 [14]. The fact that this process is likely to be compromised in diabetics makes them more vulnerable to increased risk of severe lung injury and acute respiratory distress syndrome (ARDS) [15]. Although decreased expression of ACE2 could be a helpful strategy to fight the infection, ACE2 has been shown to have a protective effect against virus-induced lung injury by increasing the production of the vasodilator angiotensin 1–7 [14].
ACE2 expression has been reported on humans [6] and rodent pancreatic islets [16] and its role in diabetes and β-cell function is well recognized [17,18]. ACE2 deficient mice exhibit decreased glucose tolerance and reduced first-phase insulin secretion [19]. Moreover, ACE2 gene therapy in the db/db mice resulted in improved fasting blood glucose levels, glucose tolerance along with increased first-phase insulin secretion and β-cell proliferation [20]. However, the exact role of ACE2 in COVID-19 infection in diabetics requires further consideration. Additionally, the expression pattern of TMPRSS2 and ADMA17 needs to be investigated. In this study, we utilized our human islets microarray and RNA-seq expression data to profile the expression of these three receptors in diabetic and non-diabetic samples and correlate their expression with other phenotypes of significance in diabetes including age, sex, BMI and HbA1c levels.

2. Materials and Methods

2.1. Microarray Gene Expression from Human Pancreatic Islets

To profile the expression of the three receptors in human pancreatic islets, we retrieved our previous microarray gene expression data (Publicly available database; GEO, accession number: GSE41762). The microarrays (GeneChip® Human Gene 1.0 ST, Waltham, MA, USA) were performed using the Affymetrix standard protocol as previously described [21]. The raw Affymetrix data were normalized with Robust Multi-array Analysis method using the ligo package from BioConductor. As previously described [21], pancreatic islets were isolated from 76 cadaver donors, of which 67 were non-diabetic and 9 were patients with T2D. Characteristics of human islets donors are showed in Table 1.

2.2. RNA-Seq Data for Human Pancreatic Islets

RNA-seq data (GSE50398) were obtained from 89 cadaver donors (non-diabetic HbA1c < 6%, n = 66 and T2D/hyperglycemic HbA1c ≥ 6.3%, n = 12). Data normalization was processed using a trimmed mean of M-values and presented as Fragments/Kilobase of Exon Per Million Fragments Mapped (FPKM) or transformed into log2 counts per million using the voom-function (edgeR/limma R-packages) as previously described [22]. Pancreatic islets were isolated from 89 cadaver donors, of which 75 were non-diabetic (30 females, 45 males, age 62 ± 10, BMI 25.4 ± 2.8, and HbA1c% 5.5 ± 0.4) and 12 were patients with T2D (6 females, 6 males, age 65 ± 11, BMI 29.4 ± 3.2, and HbA1c% 7.3 ± 1.0).

2.3. Receptor Expression in Other Tissues

To profile the gene expression of the three receptors in muscle and subcutaneous adipose tissues from diabetic versus healthy controls, we explored datasets (GSE40234 and GSE29221) from A Gene Atlas of Type 2 Diabetes Mellitus Associated Complex Disorders (T2DiACoD) using the online tool (http://t2diacod.igib.res.in/tissue_expr.php). The normalized gene expression of the three genes was extracted from each dataset using the GEO2R tool (https://www.ncbi.nlm.nih.gov/geo/geo2r/). For the GSE40234 dataset [23], we explored sixty-two participants that were well matched for age, gender, BMI, and percent fat, but were different for insulin sensitivity. Participants were aged 20 years to 55 years, with a body mass index (BMI) between 19 and 42 kg/m2, and biopsies were obtained during a fasting state. For the GSE29221 dataset, biopsy samples of the skeletal muscle of three T2D male patients and three non-diabetic patients were used for gene expression profiling. The average age of the patients was 58 years (range 37 to 85 years). The levels of glycated hemoglobin (%HbA1c) were 5.75 ± 0.33 and 9.44 ± 0.82 in nondiabetic and diabetic patients, respectively, with a significant difference between the two groups (p = 0.003). The BMI were 24.48 ± 1.2 and 25.00 ± 1.81 of nondiabetic and diabetic patients, respectively, with an insignificant difference between the two groups (p = 0.81) [24].

2.4. Statistical Analysis

Spearman’s correlation test was used to assess the degree of correlation between gene expression and phenotype (age, sex, etc.). Non-parametric unpaired t-test (Mann–Whitney test) was used to assess significance levels in differential gene expression data. Statistical analyses were performed using GraphPad Prism (version 8.0.0 for Windows, GraphPad Software, San Diego, CA, USA, www.graphpad.com). Differences were considered significant at p < 0.05.

3. Results

A complete description of the expression levels of ACE2, ADMA17 and TMPRSS2 in normal non-diabetic human pancreatic islets is still lacking. Therefore, we analyzed the microarray expression of the three receptors in human islets. All the studied receptors were found to be expressed in/on human pancreatic islets and their expression was above background control signal, which was calculated based on the mean values of all negative control probesets on the array [25,26] (Figure 1A). ADAM17 and TMPRSS2 showed a significantly higher expression level (p < 0.01) compared to ACE2 in pancreatic islets (Figure 1A). RNA-seq revealed a relatively high expression of TMPRSS2 and ADAM17 in human islets (Figure 1B). We could not analyze the expression of the ACE2 receptor as it was not aligned in the RNA-sequencing data. Microarray expression analysis of the three receptors revealed a positive correlation between ADAM17 with that of TMPRSS2 (Figure 1C). Similar results were obtained from RNA-seq (Figure 1D). No correlations were observed for ACE2 with ADAM17 or TMPRSS2.
Next, we compared microarray expression data for ACE2, ADAM17 and TMPRSS2 between diabetic versus non-diabetic donors as well as between hyperglycemic (HbA1c ≥ 6%) versus normoglycemic (HbA1c < 6%) donors. As shown in Figure 2, the expression of ACE2 was significantly (p ≤ 0.05) upregulated in diabetic or hyperglycemic islets compared to non-diabetic or normoglycemic (Figure 2A,D). No significant differences were evident regarding the expression of ADAM17 and TMPRSS2 in relation to diabetes status and/or glycemic levels (Figure 2B–F). Likewise, we could not observe any differential expression of ADAM17 and TMPRSS2 in human islets using RNA-seq data (Not shown). Correlation analysis from microarray and RNA-seq expression data showed a positive association between TMPRSS2 and HbA1c (Figure 2G,H); no correlation was evident regarding the expression of ACE2 or ADAM17 with HbA1c levels. No associations were detected between the microarray expression of the three genes and measured insulin secretion of human islets (not shown).
Interestingly, microarray expression of ACE2 showed higher expression levels in islets obtained from females as compared to males (Figure 3A). The expression of ADMA17 or TMPRSS2 was unchanged on gender-based on microarray or RNS-seq expression data (Not shown). To address whether age has any bearing on the expression of ACE2, ADAM17 and/or TMPRSS2, we stratified the donors’ age into young (≤40 years old) and old (≥60 years old). None of the three receptors showed any differential expression relative to age in the microarray dataset (Figure 3B). Similar results were obtained from RNA-seq dataset (not shown). Of the three studied receptors, TMPRSS2 was correlated inversely with age in both microarray and RNA-seq datasets (Figure 3C,D). ACE2 and ADAM17 showed no correlations. Co-expression analysis of ADAM17 and TMPRSS2 with the gene expression of insulin using RNA-seq data showed that both of the genes are inversely correlated with insulin expression (R2 = −0.70; p = 1.4 × 10−13 and R2 = −0.21; p = 0.04, respectively) (Figure 3E,F).
Likewise, we stratified the donors into normal (BMI < 25) and obese (BMI > 30) as a means of testing the effect of obesity on the expression of these receptors. The expression of ADAM17 and TMPRSS2 was significantly (p < 0.05) higher in obese donors compared to non-obese ones (Figure 4B,C). ACE2 showed no correlation (Figure 4A). Additionally, using the microarray and RNA-seq datasets, we found that ADAM17 and TMPRSS2 correlated positively with BMI values (Figure 4D–G).
To test whether the expression of these receptors is influenced by pancreatic cell type, we analyzed the expression of ACE2, ADMA17, and TMPRSS2 using RNA-seq data from sorted endocrine and exocrine cells [27]. As shown in Table 2, ACE2 expression was relatively higher in β-cells (0.27 normalized expression values) as compared with α (0.18) or exocrine cells (0.21). ADMA17 exhibited similar expression levels in β and α cells (1.5 and 1.4, respectively). ADMA17 was highly expressed (3.1) and TMPRSS2 was very highly expressed in exocrine cells (5.1) as compared with that in α (1.02) or β cells (0.55).
Lastly, using the Gene Atlas of Type 2 Diabetes Mellitus Associated Complex Disorders (T2DiACoD), we investigated the impact of diabetes status on the expression of the three receptors in muscles and subcutaneous tissues. As shown in Figure 5, no significant differences were evident in the expression levels of any of these genes in diabetic vs. nondiabetic muscle and subcutaneous tissues.

4. Discussions

In this study, we utilized microarray and RNA-seq expression datasets that were generated using well-characterized pancreatic islets [21] to profile the expression pattern of SARS-CoV-2 host receptors ACE2, ADAM17 and TMPRSS2 in diabetic and non-diabetic human pancreatic islets. To the best of our knowledge, this is the first study to evaluate the expression of these genes using such a large set of human pancreatic islets. It is well documented that COVID-19 might damage several organs, such as the heart, kidneys, and liver [28], and that abundant SRAS-CoV-2 host receptor’s expression, mainly ACE2, in these tissues is crucial for infection [12]. Our study mainly focused on the expression of ACE2, ADAM17, and TMPRSS2 genes in human pancreatic islets as such information is still lacking.
Our microarray data revealed a relatively low expression of ACE2 in human islets. In contrast, Yang et al. have reported abundant expression ACE2 in human islets using immuno-staining [6]. Moreover, RNA-seq from sorted endocrine cells further confirmed the relatively low expression of ACE2 in β-cells [27]. Exocrine and α cells expressed comparable levels of ACE2. Conversely, ACE2 expression in mice pancreatic islets was reported mostly in non-β-cells [16]. Although ADAM17 and TMPRSS2 are abundant in human islets, RNA-seq from sorted endocrine cells showed that both receptors are highly expressed in exocrine cells as compared to β-cells [27]. While the ADMA17 expression pattern was similar in human β and α cells, it was mostly restricted to non-β-cells in mice islets [16]. This finding was not surprising as a degree of species specificity between humans and mice has been indicated [29].
Although the dipeptidyl peptidase 4 (DPP-4) which serves as a receptor for the MERS-CoV [30,31] may enhance the entry of the virus into pancreatic islets, ACE2 seems to be the main receptor for SARS-Cov-2 on pancreatic islet cells. This is based on the finding that ACE2 expression is upregulated in human diabetes/hyperglycemia islets. This is in disagreement with the observation that the expression of ACE2 and ADAM17 does not differ between pancreatic islets from db/db mice as compared with non-diabetic controls [16]. However, the expression of ACE2 and ADAM17 in the liver, skeletal muscle, and adipose tissue in db/db mice were differentially expressed [16]. Increased expression of ACE2 in diabetic mice seems to be a cause rather than a consequence as none of the three receptors showed any differential expression in human islets upon short-term exposure hyperglycemia [32]. Hence, it seems that ACE2, ADAM17, and TMPRSS2 have a stable expression in pancreatic islets.
Obesity is one of the common risk factors for severe complications and mortality in COVID-19. Obese individuals are difficult to intubate and they experience serious difficulties in breathing due to increased pressure on the diaphragm and chronic inflammation [33]. Epidemiological data reported that obese patients (BMI > 35) are more than seven-fold more likely to be admitted to the ICU as compared with those with BMI < 25 Kg/m2 [34]. One explanation of these findings is that COVID-19 has a high affinity for ACE2 in adipose tissue relative to that of lung tissue [35]. Additionally, the high expression of ACE2 makes adipose tissue vulnerable to COVID-19 infection. Typically, obese subjects have more adipose tissue and therefore a greater mass of ACE2-expressing cells. Although we could not find any effect of BMI on ACE2 expression in pancreatic islets, the expression of ADAM17 and TMPRSS2 was relatively higher in obese donors as compared with non-obese ones.
Increased expression of ACE2 in females compared to males was unexpected. It is well accepted that males have higher COVID-19-related mortality rates as compared with females, especially in old age [36]. This could be partially explained by the role of sex hormones such as estrogen, and testosterone on the expression of ACE2 and the pathogenesis of COVID-19. Although our finding is unexplainable, it could be that our female donors were on drugs that caused elevations of ACE2 receptors such as ACE2 inhibitors and angiotensin-receptor blockers (ARBs) [8,37]. It also suggests that increased expression may have a paradoxical protective effect [18,19].
It is also important to acknowledge that several factors might affect gene expression profile in human islets such as donors’ cause of death, the harvest of the organs, preparations of the islets, transportation, and days in cultures.
In conclusion, we introduced the expression profile of SARS-CoV-2 host receptors (ACE2, ADAM17, and TMPRSS2) in human pancreatic islets. Expression of ACE2, but not ADAM17 or TMPRSS2, is increased in diabetic human pancreatic islets. The expression of ADAM17 and TMPRSS2 was upregulated in obese donors. Further functional and clinical investigations are needed to understand if the ACE2 receptor in pancreatic islets makes diabetic patients more vulnerable to severe COVID-19 infection-related symptoms compared to non-diabetic patients.

Author Contributions

Conceived and designed the experiments, J.T.; Analyzed the data, A.K.M., M.Y.H. and E.E.; Contributed to writing and revision of the manuscript, J.T., W.E.-H. and M.H. All authors have read and agreed to the published version of the manuscript.

Funding

J.T. is supported by grants from the University of Sharjah (1701090119-P and 1701090121-P) and the Al-Jalila Foundation (AJF201723).

Acknowledgments

J.T. is supported by grants from the University of Sharjah (1701090119-P and 1701090121-P). The microarray and RNA-seq expression data have been done at the human tissues lab at Lund University diabetes center (LUDC). The authors are thankful for each one in LUDC contributed to produce these datasets.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

SARS-CoV-2Severe acute respiratory syndrome coronavirus
ACE2Angiotensin-converting enzyme 2
TMPRSS2Transmembrane proteases, serine 2
ADAM17A disintegrin and metalloproteinase 17
BMIBody mass index
HbA1cHemoglobin A2c
T2DType 2 diabetes

References

  1. Baud, D.; Qi, X.; Nielsen-Saines, K.; Musso, D.; Pomar, L.; Favre, G. Real estimates of mortality following COVID-19 infection. Lancet Infect. Dis. 2020, 20, 773. [Google Scholar] [CrossRef] [Green Version]
  2. Cuschieri, S.; Grech, S. COVID-19 and diabetes: The why, the what and the how. J. Diabetes Complicat. 2020, 107637. [Google Scholar] [CrossRef] [PubMed]
  3. Singh, A.K.; Gupta, R.; Ghosh, A.; Misra, A. Diabetes in COVID-19: Prevalence, pathophysiology, prognosis and practical considerations. Diabetes Metab. Syndr. 2020, 14, 303–310. [Google Scholar] [CrossRef] [PubMed]
  4. Jafar, N.; Edriss, H.; Nugent, K. The Effect of Short-Term Hyperglycemia on the Innate Immune System. Am. J. Med. Sci. 2016, 351, 201–211. [Google Scholar] [CrossRef]
  5. Chen, N.; Zhou, M.; Dong, X.; Qu, J.; Gong, F.; Han, Y.; Qiu, Y.; Wang, J.; Liu, Y.; Wei, Y. Epidemiological and clinical characteristics of 99 cases of 2019 novel coronavirus pneumonia in Wuhan, China: A descriptive study. Lancet 2020, 395, 507–513. [Google Scholar] [CrossRef] [Green Version]
  6. Yang, J.K.; Lin, S.S.; Ji, X.J.; Guo, L.M. Binding of SARS coronavirus to its receptor damages islets and causes acute diabetes. Acta Diabetol. 2010, 47, 193–199. [Google Scholar] [CrossRef] [Green Version]
  7. Yang, J.K.; Feng, Y.; Yuan, M.Y.; Yuan, S.Y.; Fu, H.J.; Wu, B.Y.; Sun, G.Z.; Yang, G.R.; Zhang, X.L.; Wang, L.; et al. Plasma glucose levels and diabetes are independent predictors for mortality and morbidity in patients with SARS. Diabet. Med. 2006, 23, 623–628. [Google Scholar] [CrossRef]
  8. Gurwitz, D. Angiotensin receptor blockers as tentative SARS-CoV-2 therapeutics. Drug Dev. Res. 2020. [Google Scholar] [CrossRef] [Green Version]
  9. Lu, R.; Zhao, X.; Li, J.; Niu, P.; Yang, B.; Wu, H.; Wang, W.; Song, H.; Huang, B.; Zhu, N. Genomic characterisation and epidemiology of 2019 novel coronavirus: Implications for virus origins and receptor binding. Lancet 2020, 395, 565–574. [Google Scholar] [CrossRef] [Green Version]
  10. Heurich, A.; Hofmann-Winkler, H.; Gierer, S.; Liepold, T.; Jahn, O.; Pöhlmann, S. TMPRSS2 and ADAM17 cleave ACE2 differentially and only proteolysis by TMPRSS2 augments entry driven by the severe acute respiratory syndrome coronavirus spike protein. J. Virol. 2014, 88, 1293–1307. [Google Scholar] [CrossRef] [Green Version]
  11. Furuhashi, M.; Moniwa, N.; Takizawa, H.; Ura, N.; Shimamoto, K. Potential differential effects of renin-angiotensin system inhibitors on SARS-CoV-2 infection and lung injury in COVID-19. Hypertens. Res. 2020, 43, 837–840. [Google Scholar] [CrossRef] [PubMed]
  12. Hamming, I.; Timens, W.; Bulthuis, M.; Lely, A.; Navis, G.; van Goor, H. Tissue distribution of ACE2 protein, the functional receptor for SARS coronavirus. A first step in understanding SARS pathogenesis. J. Pathol. J. Pathol. Soc. Great Br. Irel. 2004, 203, 631–637. [Google Scholar] [CrossRef] [PubMed]
  13. Li, M.-Y.; Li, L.; Zhang, Y.; Wang, X.-S. Expression of the SARS-CoV-2 cell receptor gene ACE2 in a wide variety of human tissues. Infect. Dis. Poverty 2020, 9, 1–7. [Google Scholar] [CrossRef] [PubMed]
  14. Kuba, K.; Imai, Y.; Penninger, J.M. Angiotensin-converting enzyme 2 in lung diseases. Curr. Opin. Pharmacol. 2006, 6, 271–276. [Google Scholar] [CrossRef]
  15. Pal, R.; Bhansali, A. COVID-19, diabetes mellitus and ACE2: The conundrum. Diabetes Res. Clin. Pract. 2020, 162, 108132. [Google Scholar] [CrossRef]
  16. Pedersen, K.B.; Chodavarapu, H.; Porretta, C.; Robinson, L.K.; Lazartigues, E. Dynamics of ADAM17-mediated shedding of ACE2 applied to pancreatic islets of male db/db mice. Endocrinology 2015, 156, 4411–4425. [Google Scholar] [CrossRef] [Green Version]
  17. Bindom, S.M.; Lazartigues, E. The sweeter side of ACE2: Physiological evidence for a role in diabetes. Mol. Cell. Endocrinol. 2009, 302, 193–202. [Google Scholar] [CrossRef]
  18. Shoemaker, R.; Yiannikouris, F.; Thatcher, S.; Cassis, L. ACE2 deficiency reduces β-cell mass and impairs β-cell proliferation in obese C57BL/6 mice. Am. J. Physiol. Endocrinol. Metab. 2015, 309, E621–E631. [Google Scholar] [CrossRef] [Green Version]
  19. Niu, M.-J.; Yang, J.-K.; Lin, S.-S.; Ji, X.-J.; Guo, L.-M. Loss of angiotensin-converting enzyme 2 leads to impaired glucose homeostasis in mice. Endocrine 2008, 34, 56–61. [Google Scholar] [CrossRef]
  20. Bindom, S.M.; Hans, C.P.; Xia, H.; Boulares, A.H.; Lazartigues, E. Angiotensin I–converting enzyme type 2 (ACE2) gene therapy improves glycemic control in diabetic mice. Diabetes 2010, 59, 2540–2548. [Google Scholar] [CrossRef] [Green Version]
  21. Taneera, J.; Fadista, J.; Ahlqvist, E.; Atac, D.; Ottosson-Laakso, E.; Wollheim, C.B.; Groop, L. Identification of novel genes for glucose metabolism based upon expression pattern in human islets and effect on insulin secretion and glycemia. Hum. Mol. Genet. 2015, 24, 1945–1955. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Fadista, J.; Vikman, P.; Laakso, E.O.; Mollet, I.G.; Esguerra, J.L.; Taneera, J.; Storm, P.; Osmark, P.; Ladenvall, C.; Prasad, R.B. Global genomic and transcriptomic analysis of human pancreatic islets reveals novel genes influencing glucose metabolism. Proc. Natl. Acad. Sci. USA 2014, 111, 13924–13929. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Elbein, S.C.; Gamazon, E.R.; Das, S.K.; Rasouli, N.; Kern, P.A.; Cox, N.J. Genetic risk factors for type 2 diabetes: A trans-regulatory genetic architecture? Am. J. Hum. Genet. 2012, 91, 466–477. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Jain, P.; Vig, S.; Datta, M.; Jindel, D.; Mathur, A.K.; Mathur, S.K.; Sharma, A. Systems biology approach reveals genome to phenome correlation in type 2 diabetes. PLoS ONE 2013, 8, e53522. [Google Scholar] [CrossRef]
  25. Aljaibeji, H.S.; Mohammed, A.K.; Dhaiban, S.; Elemam, N.M.; Sulaiman, N.; Salehi, A.; Taneera, J. Reduced expression of PLCXD3 associates with disruption of glucose sensing and insulin signalling in pancreatic β-cells. Front. Endocrinol. 2019, 10, 735. [Google Scholar] [CrossRef] [Green Version]
  26. Taneera, J.; Lang, S.; Sharma, A.; Fadista, J.; Zhou, Y.; Ahlqvist, E.; Jonsson, A.; Lyssenko, V.; Vikman, P.; Hansson, O. A systems genetics approach identifies genes and pathways for type 2 diabetes in human islets. Cell Metab. 2012, 16, 122–134. [Google Scholar] [CrossRef] [Green Version]
  27. Bramswig, N.C.; Everett, L.J.; Schug, J.; Dorrell, C.; Liu, C.; Luo, Y.; Streeter, P.R.; Naji, A.; Grompe, M.; Kaestner, K.H. Epigenomic plasticity enables human pancreatic α to β cell reprogramming. J. Clin. Investig. 2013, 123, 1275–1284. [Google Scholar] [CrossRef] [Green Version]
  28. Yang, X.; Yu, Y.; Xu, J.; Shu, H.; Liu, H.; Wu, Y.; Zhang, L.; Yu, Z.; Fang, M.; Yu, T. Clinical course and outcomes of critically ill patients with SARS-CoV-2 pneumonia in Wuhan, China: A single-centered, retrospective, observational study. Lancet Respir. Med. 2020. [Google Scholar] [CrossRef] [Green Version]
  29. Taneera, J.; Mohammed, I.; Mohammed, A.K.; Hachim, M.; Dhaiban, S.; Malek, A.; Dunér, P.; Elemam, N.M.; Sulaiman, N.; Hamad, M. Orphan G-protein coupled receptor 183 (GPR183) potentiates insulin secretion and prevents glucotoxicity-induced β-cell dysfunction. Mol. Cell. Endocrinol. 2020, 499, 110592. [Google Scholar] [CrossRef]
  30. Kleine-Weber, H.; Schroeder, S.; Krüger, N.; Prokscha, A.; Naim, H.Y.; Müller, M.A.; Drosten, C.; Pöhlmann, S.; Hoffmann, M. Polymorphisms in dipeptidyl peptidase 4 reduce host cell entry of Middle East respiratory syndrome coronavirus. Emerg. Microbes Infect. 2020, 9, 155–168. [Google Scholar] [CrossRef] [Green Version]
  31. Raj, V.S.; Mou, H.; Smits, S.L.; Dekkers, D.H.; Müller, M.A.; Dijkman, R.; Muth, D.; Demmers, J.A.; Zaki, A.; Fouchier, R.A. Dipeptidyl peptidase 4 is a functional receptor for the emerging human coronavirus-EMC. Nature 2013, 495, 251–254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Ottosson-Laakso, E.; Krus, U.; Storm, P.; Prasad, R.B.; Oskolkov, N.; Ahlqvist, E.; Fadista, J.; Hansson, O.; Groop, L.; Vikman, P. Glucose-induced changes in gene expression in human pancreatic islets: Causes or consequences of chronic hyperglycemia. Diabetes 2017, 66, 3013–3028. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Misumi, I.; Starmer, J.; Uchimura, T.; Beck, M.A.; Magnuson, T.; Whitmire, J.K. Obesity Expands a Distinct Population of T Cells in Adipose Tissue and Increases Vulnerability to Infection. Cell Rep. 2019, 27, 514–524.e5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Simonnet, A.; Chetboun, M.; Poissy, J. Lille Intensive Care COVID-19 and Obesity study group. High prevalence of obesity in severe acute respiratory syndrome coronavirus-2 (SARS-CoV-2) requiring invasive mechanical ventilation. Obesity (Silver Spring) 2020, 28, 1195–1199. [Google Scholar] [CrossRef]
  35. Movahed, M.R.; Khoubyari, R.; Hashemzadeh, M.; Hashemzadeh, M. Obesity is strongly and independently associated with a higher prevalence of pulmonary embolism. Respir. Investig. 2019, 57, 376–379. [Google Scholar] [CrossRef]
  36. Mo, P.; Xing, Y.; Xiao, Y.; Deng, L.; Zhao, Q.; Wang, H.; Xiong, Y.; Cheng, Z.; Gao, S.; Liang, K. Clinical characteristics of refractory COVID-19 pneumonia in Wuhan, China. Clin. Infect. Dis. 2020. [Google Scholar] [CrossRef] [Green Version]
  37. Patel, A.B.; Verma, A. COVID-19 and angiotensin-converting enzyme inhibitors and angiotensin receptor blockers: What is the evidence? JAMA 2020, 323, 1769–1770. [Google Scholar] [CrossRef]
Biology 09 00215 g001 550

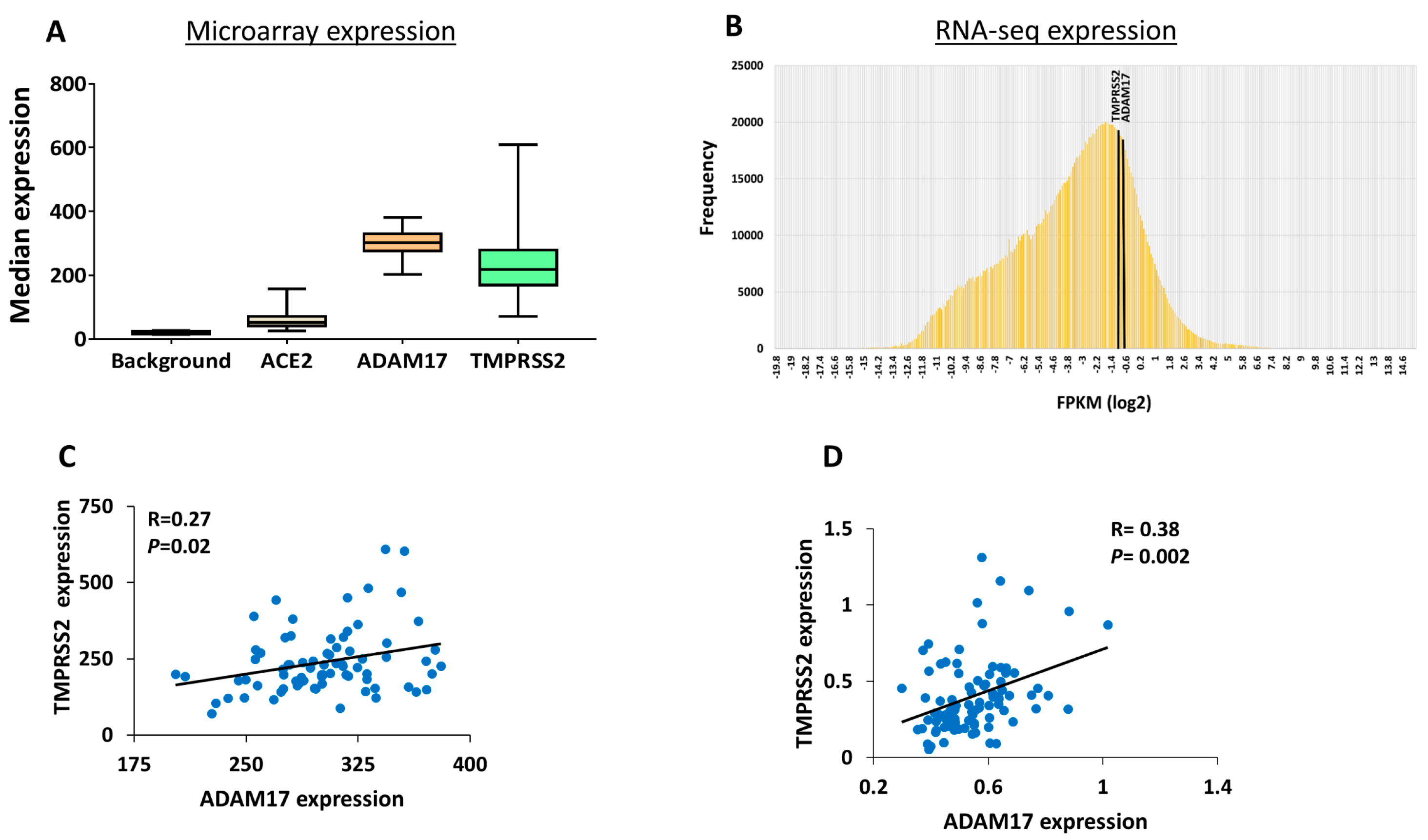

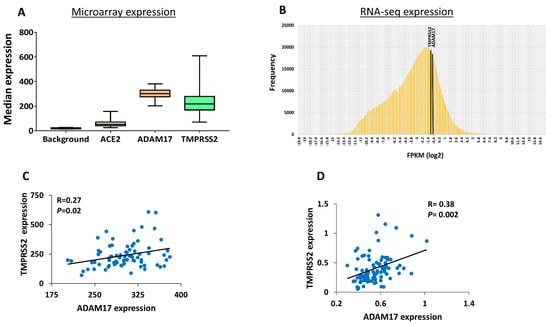

Figure 1. Gene expression profile of ACE2, ADAM17 and TMPRSS2 in human pancreatic islets. (A) Microarray expression of ACE2, ADMA17 and TMPRSS2 in non-diabetic (n = 64) donors. Background signal levels of all negative control probe sets were calculated based on Human Gene 1.0 ST. (B) RNA-seq histogram expression frequency (FPKMs) of ADMA17 and TMPRSS2 in non-diabetic human pancreatic islets (n = 64). (C) Microarray expression correlation of ADAM17 with TMPRSS2 (n = 75). (D) RNA-seq expression correlation of ADAM17 with TMPRSS2 (n = 89). p- and R-values are shown as per the respective figure.
Figure 1. Gene expression profile of ACE2, ADAM17 and TMPRSS2 in human pancreatic islets. (A) Microarray expression of ACE2, ADMA17 and TMPRSS2 in non-diabetic (n = 64) donors. Background signal levels of all negative control probe sets were calculated based on Human Gene 1.0 ST. (B) RNA-seq histogram expression frequency (FPKMs) of ADMA17 and TMPRSS2 in non-diabetic human pancreatic islets (n = 64). (C) Microarray expression correlation of ADAM17 with TMPRSS2 (n = 75). (D) RNA-seq expression correlation of ADAM17 with TMPRSS2 (n = 89). p- and R-values are shown as per the respective figure.
Biology 09 00215 g001
Biology 09 00215 g002 550

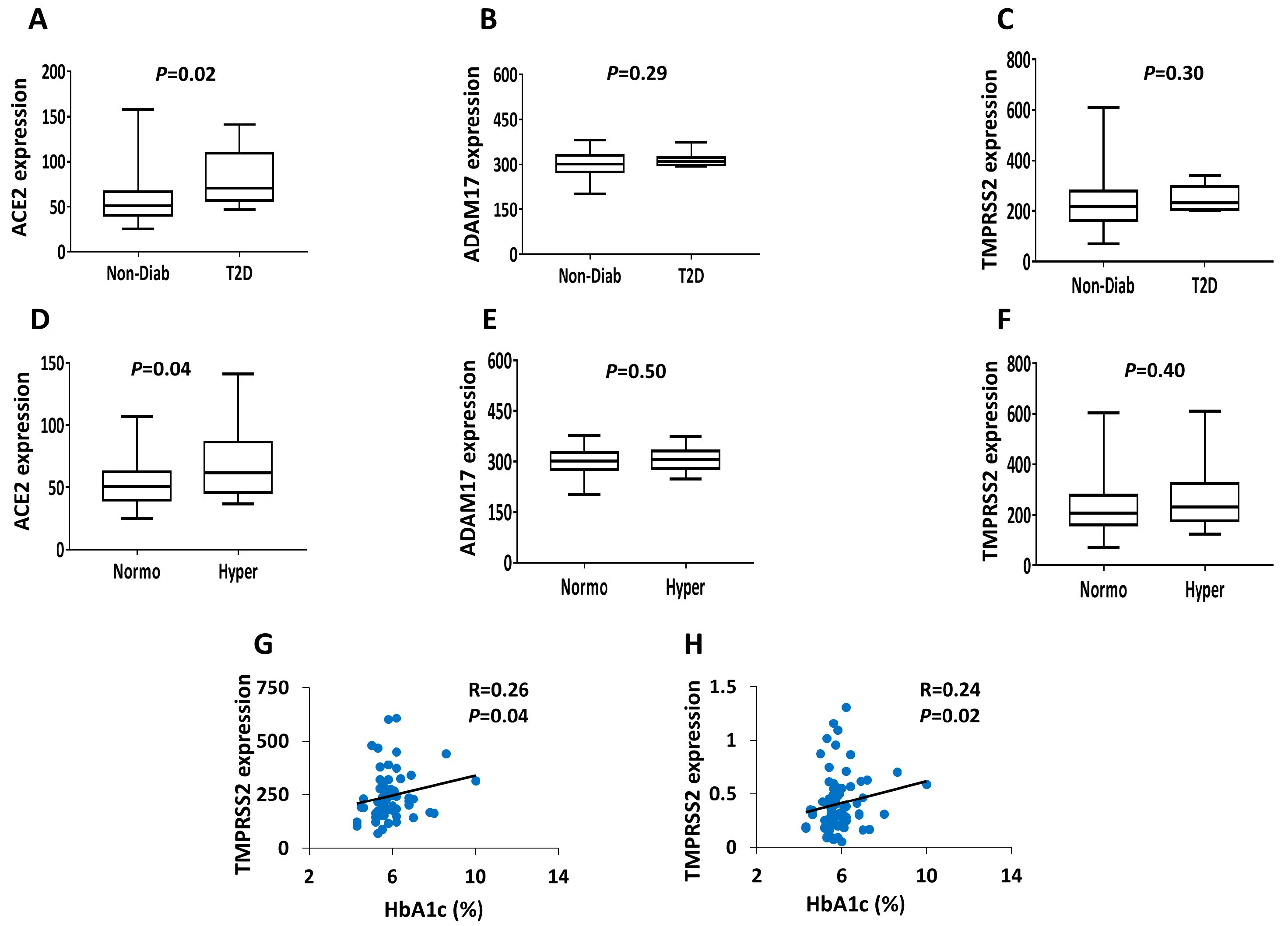

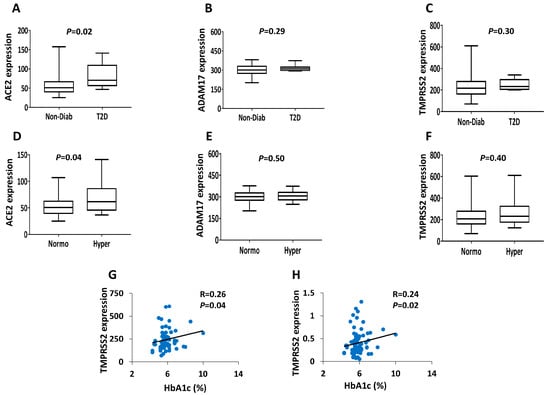

Figure 2. Impact of diabetes status and hyperglycemia on the expression of ACE2, ADAM17 and TMPRSS2 in human pancreatic islets. (A–C) Microarray expression of ACE2 (A), ADMA17 (B) and TMPRSS2 (C) in diabetic (n = 8) and non-diabetic (n = 64) donors. (D–F) Microarray expression of ACE2 (D), ADMA17 (E) and TMPRSS2 (F) in hyperglycemic (n = 23; HbA1c ≥ 6%) versus normoglycemic (n = 44; HbA1c < 6%) donors. (G) Microarray expression correlation of TMPRSS2 with HbA1c level (n = 63). (H) RNA-seq expression correlation of TMPRSS2 with HbA1c (n = 77). p- and R-values are shown as per the respective figure.
Figure 2. Impact of diabetes status and hyperglycemia on the expression of ACE2, ADAM17 and TMPRSS2 in human pancreatic islets. (A–C) Microarray expression of ACE2 (A), ADMA17 (B) and TMPRSS2 (C) in diabetic (n = 8) and non-diabetic (n = 64) donors. (D–F) Microarray expression of ACE2 (D), ADMA17 (E) and TMPRSS2 (F) in hyperglycemic (n = 23; HbA1c ≥ 6%) versus normoglycemic (n = 44; HbA1c < 6%) donors. (G) Microarray expression correlation of TMPRSS2 with HbA1c level (n = 63). (H) RNA-seq expression correlation of TMPRSS2 with HbA1c (n = 77). p- and R-values are shown as per the respective figure.
Biology 09 00215 g002
Biology 09 00215 g003 550

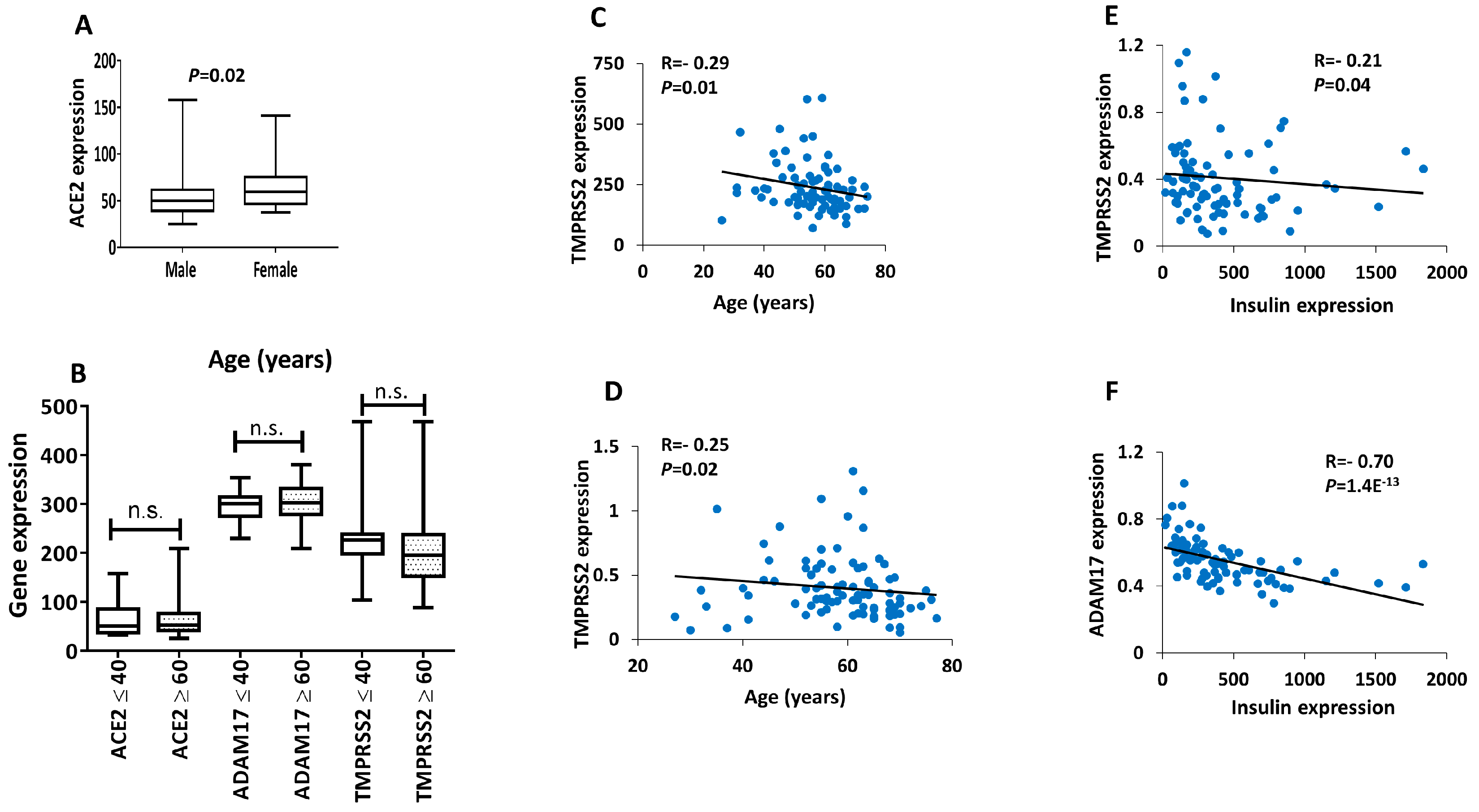

Figure 3. Impact of gender and age on expression levels of ACE2, ADAM17 and TMPRSS2 in human islets. (A) Microarray expression of ACE2 obtained from male donors (n = 45) versus females (n = 30). (B) Microarray expression of ACE2, ADMA17 and TMPRSS2 from donors ≤ 40 years old (n = 6) versus ≥ 60 years (n = 31). (C) Microarray expression correlation of TMPRSS2 with age (n = 76). (D) RNA-seq expression correlation of TMPRSS2 with age (n = 77). RNA-seq expression correlation of TMPRSS2 (E) or ADAM17 (F) with insulin gene expression (n = 85). N.S.; not significant. p- and R-values are shown as per the respective figure.
Figure 3. Impact of gender and age on expression levels of ACE2, ADAM17 and TMPRSS2 in human islets. (A) Microarray expression of ACE2 obtained from male donors (n = 45) versus females (n = 30). (B) Microarray expression of ACE2, ADMA17 and TMPRSS2 from donors ≤ 40 years old (n = 6) versus ≥ 60 years (n = 31). (C) Microarray expression correlation of TMPRSS2 with age (n = 76). (D) RNA-seq expression correlation of TMPRSS2 with age (n = 77). RNA-seq expression correlation of TMPRSS2 (E) or ADAM17 (F) with insulin gene expression (n = 85). N.S.; not significant. p- and R-values are shown as per the respective figure.
Biology 09 00215 g003
Biology 09 00215 g004 550

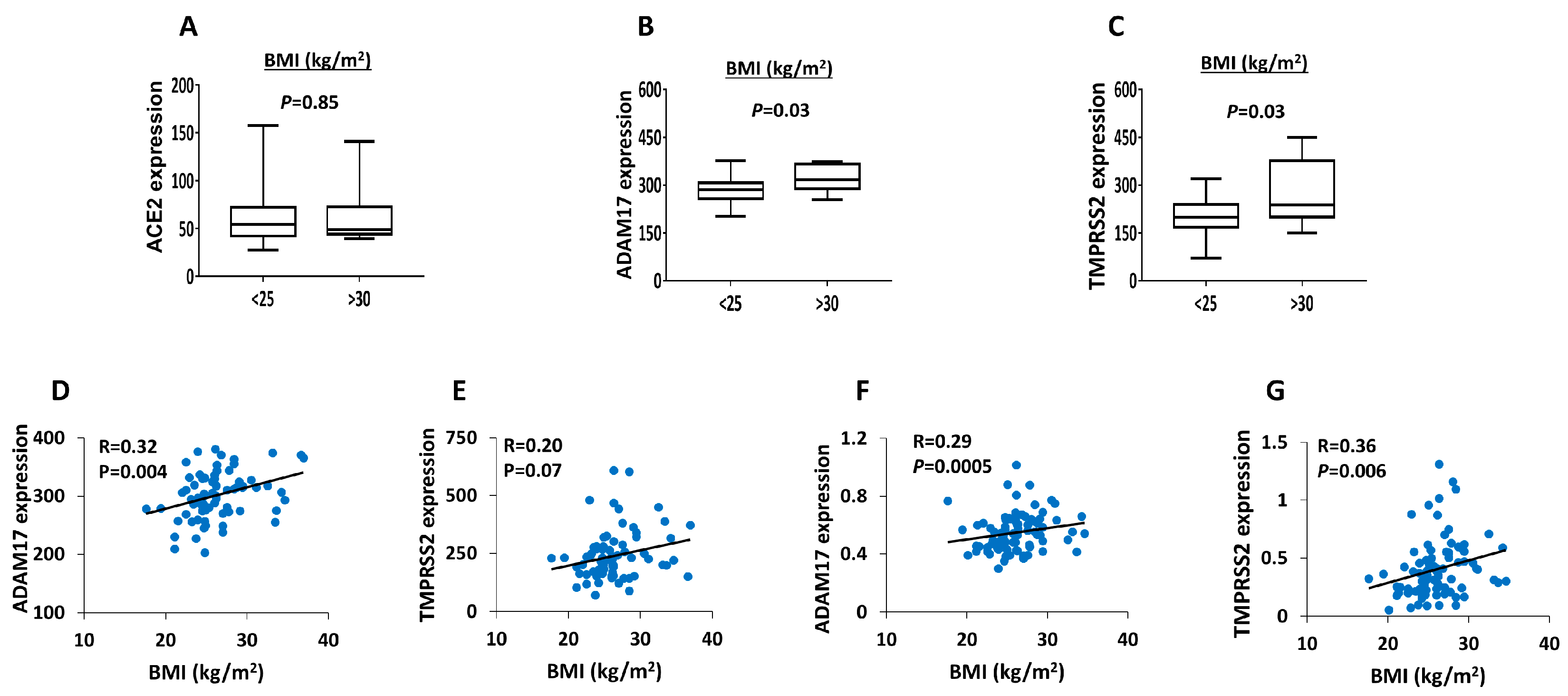

Figure 4. Impact of BMI on expression levels of ACE2, ADAM17 and TMPRSS2 in human islets. (A–C) Microarray expression of ACE2 (A), ADMA17 (B) and TMPRSS2 (C) obtained from donors with BMI < 25 (n = 34) versus BMI > 30 (n = 10). (D–E) Microarray expression correlation of ADAM17 (D) and TMPRSS2 (E) with BMI (n = 76). (F–G) RNA-seq expression correlation of ADAM17 (F) and TMPRSS2 (G) with BMI (n = 89). p-and R-values are shown as per the respective figure.
Figure 4. Impact of BMI on expression levels of ACE2, ADAM17 and TMPRSS2 in human islets. (A–C) Microarray expression of ACE2 (A), ADMA17 (B) and TMPRSS2 (C) obtained from donors with BMI < 25 (n = 34) versus BMI > 30 (n = 10). (D–E) Microarray expression correlation of ADAM17 (D) and TMPRSS2 (E) with BMI (n = 76). (F–G) RNA-seq expression correlation of ADAM17 (F) and TMPRSS2 (G) with BMI (n = 89). p-and R-values are shown as per the respective figure.
Biology 09 00215 g004
Biology 09 00215 g005 550
Figure 5. Microarray gene expression of ACE2, ADAM17 and TMPRSS2 in diabetic tissues. (A–C) Mean expression of ACE2 (A), ADAM17 (B) and TMPRSS2 (C) in muscle tissues obtained from diabetic and healthy donors. (D–F) Mean expression of ACE2 (D), ADAM17 (E) and TMPRSS2 (F) in subcutaneous adipose tissues obtained from diabetic and normal donors.
Figure 5. Microarray gene expression of ACE2, ADAM17 and TMPRSS2 in diabetic tissues. (A–C) Mean expression of ACE2 (A), ADAM17 (B) and TMPRSS2 (C) in muscle tissues obtained from diabetic and healthy donors. (D–F) Mean expression of ACE2 (D), ADAM17 (E) and TMPRSS2 (F) in subcutaneous adipose tissues obtained from diabetic and normal donors.
Biology 09 00215 g005
Table
Table 1. Clinical characteristics of human islet donors.
Table 1. Clinical characteristics of human islet donors.
Non-DiabeticsDiabetics
N of donors679
Gender (male/female)37/305/4
Age (years)59 ± 1060.7 ± 12
Purity %70 ± 1760.1 ± 20
BMI (kg/m2)25.9 ± 3.528.1 ± 4.5
HbA1c5.5 ± 1.17.1 ± 1.2
Days in culture3.5 ± 1.92 ± 0.9
Data are presented as mean ± SD.
Table
Table 2. Expression of ACE2, ADMA17, and TMPRSS2 in pancreatic cell type using RNA-seq data from sorted endocrine and exocrine cells.
Table 2. Expression of ACE2, ADMA17, and TMPRSS2 in pancreatic cell type using RNA-seq data from sorted endocrine and exocrine cells.
β-Cellsα-CellsExocrine Cells
ACE20.270.180.21
ADMA171.51.43.1
TMPRSS20.551.025.1
