Leguminous Seeds Powder Diet Reduces the Survival and Development of the Khapra beetle, Trogoderma granarium Everts (Coleoptera: Dermestidae)

by
Spiridon Mantzoukas
1,*,
Georgia Korbou
1,
Alexandra Magita
1,
Panagiotis A. Eliopoulos
2 and
Konstantinos Poulas
1,*
1
Department of Pharmacy, School of Health Sciences, University of Patras, 26504 Patras, Greece
2
Department of Agrotechnology, University of Thessaly, 45100 Larissa, Greece
*
Authors to whom correspondence should be addressed.
Biology 2020, 9(8), 204; https://doi.org/10.3390/biology9080204
Submission received: 2 July 2020 / Revised: 26 July 2020 / Accepted: 27 July 2020 / Published: 3 August 2020
Browse Figure
Versions Notes

Abstract

:
Chemical storage pest control is interlinked with many challenges such as environmental pollution and toxicity to humans and animals. Alternative tools are thus being increasingly researched and applied to supplement and/or substitute old-fashioned chemical means. Entomotoxic proteins, such as the lectins of leguminous seeds, have been shown to be effective alternative control agents against many serious insect pests. The objective of this work was to evaluate the effect of the flour of three leguminous seeds, Phaseolus vulgaris L. (Fabaceae) (the common bean), Vicia faba L. (Fabaceae) (the broad bean) and Glycine max L. (Fabaceae) (the soya bean), against 4th instar larvae of Trogoderma granarium Everts (Coleoptera: Curculionidae). The flours were tested at different concentrations. They all demonstrated significant effects on larval mortality, as well as they all induced a decrease in the number of larvae reaching the pupal stage. The flours of P. vulgaris and V. faba were highly insecticidal against T. granarium larvae, especially at the highest concentrations (86.7% for PV100 and 90% for VF100). Our results enrich previous findings on the entomotoxic effect of leguminous plant lectins and highlight P. vulgaris and V. faba lectins as potential alternative control agents against T. granarium.

1. Introduction

Insects constitute the major pests of stored products whereby insect-related damage impacts the quality, quantity, and commercial and agronomic value of these food products. Many stored product pests are Coleopterans, and one of the most destructive and hard-to-kill species belong to the genus Trogoderma [1]. Trogoderma granarium Everts (Coleoptera: Dermestidae), also known as the khapra beetle, has been attributed the status of a quarantine organism [2] and has been classified among the most invasive species on a global scale [3]. It can survive extreme conditions for long periods of time, and it exhibits increasing resistance to several mainstream chemical insecticides as well as other non-chemical methods [4].
The challenges involved in the control of the khapra beetle are reinforced by the fact that chemical applications for pest control are problematic due to environmental pollution, emergence of pest resistance, toxicity to humans and related concerns, which account for the strict requirements imposed on their application on or near food, for safety reasons [5]. Chemical applications certainly remain one means of preventing some losses during storage. However, there is a need to explore new effective pest control methods which can confer adequate crop protection against insect pests, by employing a consumer- and environmentally friendly approach.
Plant lectins, which are carbohydrate-binding proteins, are such non-chemical control agents with proven insecticidal action against many insect taxa (for an extensive overview of the role and classification of plant lectins [6]). They are present mainly in seeds as well as in other tissues (bark, bulbs etc.), and they act as defense proteins against phytophagous insects [6,7]. Literature contains several studies documenting the effects of entomotoxic lectins of diverse plant species on the survival of a broad range of insect orders [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23] with noteworthy results, inter alia, against Homoptera [8,24,25], Lepidoptera [9,26], and Coleoptera [10,27,28]. Indicatively, Macedo et al. [12,13]. reported 50% mortality of Callosobruchus maculatus F. (Coleoptera: Chrysomelidae) by lectins from Koelreuteria paniculate Laxm. (Sapindales: Sapindaceae) seeds, in the order of 0.7 and 0.3% (w:w), when added in artificial diets. The same entomotoxic lectins caused LD50 against Ephestia kuehniella (Lepidoptera: Pyralidade), albeit at 0.65% (w:w) [12]. Zero Leptinotarsa decemlineata (Coleoptera: Chrysomelidae) larvae reached the pupal instar stage when they were fed with the Gleheda solution, indicating that the entomotoxic Lamiacae lectin, which is structurally similar to the classical legume lectins, caused complete mortality [29]. Melander et al. [30] investigated the effect of entomotoxic lectins on the growth and survival of Meligethes aeneus larvae F. (Coleoptera: Nitidulidae) when fed Brassica napus L. (Brassicacae) anthers which had been soaked in 1% solution containing the lectins, with excellent results. Plant lectins can also be detrimental to insects with chewing and sap-sucking mouthparts such as aphids [31,32].
The objective of this study was to test the lectin insecticidal properties of three leguminous flours derived from seeds of Phaseolus vulgaris L. (Fabaceae: Faboideae), Vicia faba L. (Fabaceae: Faboideae) and Glycine max L. (Fabaceae: Faboideae) against 4th instar larvae of T. granarium. Legume lectins have provided encouraging output in terms of their insecticidal potential [33]. They make up a large family of homologous carbohydrate-binding proteins of non-immune origin which have been purified mostly from mature legume seeds although they have been also identified in other plant tissues [34,35,36,37]. To the best of our knowledge, however, this is the first time that these legumes, especially V. faba, or any plant lectins, have been tested against the khapra beetle. Our results are discussed in terms of enhancing the use of these alternative chemicals in stored-product Integrated Pest Management (IPM).

2. Materials and Methods

The initial stock of T. granarium was obtained from infested wheat. Insects were established in lab culture in a controlled environment chamber at 27 ± 3 °C and 73 ± 5% r.h., with alternating light ± cycles of 12 h. Larvae were kept in glass jars (0.25 l capacity) covered with muslin cloth. For their diet, they were provided with pesticide-free sterilized corn flour (200 g). Every two weeks emerged adults were carefully removed by sieving to use in experiments. Experimental insects were kept in a growth chamber (PHC Europe/Sanyo/Panasonic Biomedical MLR-352-PE), in controlled environmental conditions (27 ± 3 °C, 73 ± 5% r.h., light ± cycles of 12 h). These experimental insect larvae L4 were identified with their morphological traits of robust and hairy body, body length and dark brown color.

2.1. Flour from Leguminous Crop Seeds

The seeds of P. vulgaris, V. faba and G. max were reduced to flour in EMBIA Laboratory, Department of Pharmacy, University of Patras. For each of the three plants, the seeds (2000 g) were ground to obtain the flour, using the Waring Blender CB15TP (Waring Commercial, Huntington Beach, CA, USA). We then eliminated large particles by further sifting the flours with the Retch Jaw Crusher BB 50 sieve (mesh-size < 0.5 mm) (Retch GMBH, Haan, Germany). The different flour fractions were weighted using the Sartorius 126,400 scales (Sartorius AG, Gottingen, Germany), with precision of 0.01 g. All the flours were used directly in the biological assays.

2.2. Insecticidal Efficiency of the Flours of the Three Leguminous Seeds

The tested formulations were prepared by first placing the flours of the insecticidal legume seeds in sterile Petri dishes, in quantities which incrementally ranged every 2.5 g (from 0 g, 2.5 g, 5.0 g, 7.5 g to 10 g). To the leguminous seed flours, we also added corn flour to further supplement them. Corn flour quantities also ranged every 2.5 g, but they were provided in a decremental fashion (from 10 g, 7.5 g, 5.0 g, 2.5 g to 0 g) so that each Petri dish had the same overall content (10 g). The content of each Petri dish was homogenized by stirring it 20 times with a spatula. The Petri dish which contained only the corn flour constituted the control. In total, 10 Petri dishes were assembled, and 10 insects were placed in each Petri dish with 10 g of flour. Each Petri dish underwent 10 replications. Each treatment involved ten 4th instar larvae of T. granarium. Prior to the experiment, the larvae had been starved for a 24 h period. Daily observations of the Petri dishes were carried out for 16 days, by emptying the contents onto sterilized white paper to identify dead individuals. Forty-five days after the applications, we checked all Petri dishes and recorded the number of T. granarium pupae. Finally, after 60 days, we documented adult emergence.

2.3. Statistical Analysis

Corrected percent mortality was calculated using Abbott’s formula [38] and, prior to analysis, these values were arcsine transformed. Data were then analyzed by means of two-way ANOVA using the general linear model of the SPSS (SPSS FInc., Armonk, NY, USA, version 25) [39]. In case of significant F values, means were compared using the Bonferroni test. The Kaplan-Meier method was also selected to determine the mean overall survival of T. granarium individuals in each applied concentration, per treatment (flour) and exposure time. Comparison of median survival time was obtained using the Breslow test (Generalized Wilcoxon) (SPSS v.25.0).
The survival probability (which is also called the survivor- function), S(t), is the probability that an individual survives from the original time (e.g., beginning of treatment) to a specified future time, t. The following equation calculates the proportion of initial individuals which are still alive at time t:
S(t) = e −τ/μ
We also used the Cox regression model to calculate the hazard function [40]. The latter is denoted by h(t) and it allows us to calculate the risk of dying at time t while evaluating the effect of several simultaneous factors on survival. The hazard function is estimated as follows:
h(t) = h0(t) × exp (b1 × 1 + b2 × 2 + …+ bp × p),
where by t denotes the survival time; h(t) represents the hazard function which is determined by a set of covariates; (b1, b2, …, bpb1, b2, …, bp) symbolize the coefficients which measure the impact of covariates; h0 is called the baseline hazard.

3. Results

All the flours derived from the seeds of the three edible leguminous crops demonstrated noteworthy insecticidal action against the T. granarium larvae. However, the flours tested were not equally toxic to the beetles. Toxicity increased as the concentration in seed flour increased. The flours of P. vulgaris and V. faba were the most effective against T. granarium. More specifically, with the flour of V. faba, the median lethal time values varied from 8.87 (VF100) to 12.2 days (VF25) (Table 1), with the flour of P. vulgaris, the median lethal time values varied from 9.03 (PV100) to 12.7 days (PV25) (Table 1), and, finally, with the flour of G. max, the median lethal time values varied from 9.13 (GM100) to 13.1 days (GM25) (Table 1) (Chi-square = 24.999, df = 1, p < 0.001, Breslow (Generalized Wilcoxon)). The control median lethal time was 15.6 days.
In terms of mortality, all main effects and associated interactions between the three leguminous flours were significant, for flour (F = 3.079, df = 12.623; p < 0.001), for exposure time (F = 12.666, df = 15.623; p = 0.0001), and for flour × exposure time (F = 1.773; df = 180.623; p = 0.0001). After 16 days, control mortality was 3.3%. On the G. max flour, it ranged between 30 (GM25) and 83.3% (GM100) (Figure 1A); on the V. faba flour, it ranged between 46.7 (VF25) and 90% (VF100) (Figure 1B); on the P. vulgaris flour, mean larval mortality ranged between 40 (PV25) and 86.7% (PV100) (Figure 1C).
Table 1 presents the number of T. granarium pupae 45 days post treatment. The number of pupae was also dependent upon the applied concentrations. Indeed, there was a significant difference between the number of treated pupae (F = 1.688, df = 12.632, P < 0.001) and the number of control pupae. After 60 days, there was also a significant difference between the number of treated and untreated adults (F = 1.989, df = 12.632, p < 0.001).
The treatments that reinforced the mortality of T. granarium larvae had positive β-values (Table 2). However, their influence is estimated in connection with the total number of dead larvae. The treatments which had a progressively greater mortality effect were PV 75, PV 100, VF 75, VF 100, GM 75, and GM 100 (Table 1). The Hazard Rate (Exp(B)) in these treatments was higher than all treatments and the control. Finally, the above treatments were statistically significant, with p values of 0.006, 0.002 and <0.001 respectively (Table 2).

4. Discussion

The objective of this work was to evaluate the effect of the flour of three leguminous seeds, P. vulgaris, V. faba and G. max against 4th instar larvae of T. granarium. All flours demonstrated a significant dose-dependent effect on larval mortality as well as on pupation rate. However, mortality induced by the flours of P. vulgaris and V. faba exceeded that of G. max, especially at the highest concentrations (86.7% for PV100 and 90% for VF100).
Entomotoxic lectins have been reported plentiful in the seeds of legumes, including bean and soybean. [11] They have been extensively studied for their significant entomotoxic properties pertaining to a broad spectrum of insect orders which attack a wide range of important crops (including wheat, rice, tobacco, and others) [41,42]. For instance, lectins from the seeds of Canavalia brasiliensis (Fabaceae: Faboideae), Dioclea grandiflora (Fabaceae: Faboideae), Dioclea rostrate (Fabaceae: Faboideae), Cratylia loribunda (Fabaceae: Faboideae), and P. vulgaris plants contain lectins which have successfully been assayed for their protection of seeds against the beetle Callosobruchus maculatus F. (Coleoptera: Chrysomelidae) [41].
Lectins can interfere with important physiological insect functions either by binding to sugars on the surface of glycoprotein-rich epithelial gut cells, thus affecting nutrient absorption, or by becoming internalized and finding targets intracellularly, thereby disturbing metabolic pathways. A significant prerequisite is that lectins first bypass being degraded by the digestive enzymes of the insect gut. Most insecticidal lectins appear resistant to proteolysis as well as tolerant in a broad pH spectrum. The cellular pathways affected will vary in relation to insect species and lectin type [41,42,43].
The array of plant lectin-induced effects involves significant mortality, delays in insect development, reduced pupation, fecundity and/or adult emergence, susceptibility to natural enemies and other [11,12,13,19,20,21,22,23,44]. Some of the aforementioned complications are confirmed in our study documenting significant mortality as well as a reduction in the final number of individuals completing their biological cycle after being fed with the bean flour and the fava bean flour; this could be explained by the lectin action which limits food consumption and, consequently, halts insect development. The reduction in the production of progeny in the treated substrate is deemed equally important as parental mortality, if not more so. In a similar vein, Hypera postica Gyllenhal (Coleoptera: Curcuniolidae) larvae died swiftly after feeding on bean flour [28]. The black bean flour introduced into the millet’s flour inhibited the development of the red weevil of flour and Sitophilus oryzae L. (Coleoptera: Curculionidae) [45,46]. SBA (soybean agglubitin) had a negative impact on larvae of the melon fly Bactrocera cucurbitae (Coquillet) (Diptera: Tephritidae) in terms of pupal weight, number of pupae and number of emerging insects, as lectin concentration increased [47]. Callosobruchus maculatus which is detrimental to the chickpea Cicer arietinum (Fabaceae: Faboideae) could not develop in the seeds of Phaseolus spp. In fact, the bean meals disrupted female fecundity, adult emergence, and the developmental timespan [48].
The different degrees of insecticidal efficiency between the three leguminous flours of the present study must be linked to their botanical group. Observed differences in their entomotoxicity can be attributed to their taxonomy as well as to the variability in the chemical and biochemical constituents [11,45,46,49]. Differences in lectin entomotoxicity could also be accounted for by the volume and spatial arrangement of their carbohydrate recognition domain (CRD) [50].
Edible legumes containing entomotoxic lectins should be considered in pest management strategies. They could also provide an alternative to introducing entomotoxic factors in the genome of plants which is otherwise prohibitive considering the cost of seeds. Based on our experimental results, the bean flour and the fava bean flour which caused the highest mortality to T. granarium larvae could be considered in the framework of storage infestation control.

5. Conclusions

Edible legumes containing entomotoxic lectins appear promising for use in pest management strategies. They could also provide an alternative to introducing entomotoxic factors in the genome of plants which is otherwise prohibitive considering the cost of seeds. Based on our experimental results, the bean flour and the fava bean flour which caused the highest mortality to T. granarium larvae could be considered in the framework of storage infestation control.

Author Contributions

Conceptualization, S.M.; methodology, S.M.; software, S.M.; validation, S.M., P.A.E. and K.P.; formal analysis, S.M.; investigation, S.M., A.M. and G.K.; resources, S.M.; data curation, S.M.; writing-original draft preparation, S.M., P.A.E. and K.P.; writing-review and editing, S.M., P.A.E. and K.P.; visualization, S.M.; supervision, S.M., P.A.E. and K.P.; project administration, S.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We would like to thank Ioanna Zampara in Interpreting and Translating, for her help with the language.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. OEPP/EPPO. PM 7/13 (2) Trogoderma granarium. Bulletin 2013, 43, 431–448. [Google Scholar]
  2. OEPP/EPPO. Data sheets on quarantine organisms, Trogoderma granarium. Bulletin 1981, 121, 1–6. [Google Scholar]
  3. Lowe, S.; Browne, M.; Boudjelas, S.; de Poorter, M. 100 of the World’s Worst Invasive Alien Species: A Selection from the Global Invasive Species Database; Invasive Species Specialist Group, World Conservation Union (IUCN): New Zealand, 2000. [Google Scholar]
  4. Athanassiou, G.A.; Thomas, W.P.; Wakas, W. Biology and control of the khapra beetle, Trogoderma granarium, a major pest to global food security. Annu. Rev. Entomol. 2019, 64, 131–148. [Google Scholar] [CrossRef] [PubMed]
  5. Padin, S.; Dal-Bello, G.; Fabrizio, M. Grain loss caused by Tribolium castaneum, Sitophilus oryzae, and Acanthoscelides obtecus in stored durum wheat and beans treated with Beauveria bassiana. J. Stored Prod. Res. 2002, 38, 69–74. [Google Scholar] [CrossRef]
  6. Van Damme, E.J.M. Plant lectins as part of the plant defense system against insects. In Induced Plant Resistance to Herbivory; Schaller, A., Ed.; Springer: Dordrecht, The Netherlands, 2008; pp. 285–307. [Google Scholar]
  7. Vandeborre, G.; Smaggheb, G.; Van Damme, E.J.M. Plant lectins as defense proteins against phytophagous insects. Phytochemistry 2011, 72, 538–1550. [Google Scholar]
  8. Powell, K.S.; Gatehouse, A.M.R.; Hilder, V.A.; Van Damme, E.J.M.; Peumans, W.J.; Boonjawat, J.; Horsham, K.; Gatehouse, J.A. Different antimetabolic effects of related lectins towards nymphal stages of Nilaparvata lugens. Entomol. Exp. Appl. 1995, 75, 61–65. [Google Scholar] [CrossRef]
  9. Czapla, T.H.; Lang, B.A. Effect of plant lectins on the larval development of the European corn borer (Lepidoptera: Pyralidae) and the Southern corn rootworm (Coleoptera: Chrysomelidae). J. Econ. Entomol. 1990, 83, 2480–2485. [Google Scholar] [CrossRef]
  10. Gatehouse, A.M.R.; Powell, K.S.; Peumans, W.J.; Van Damme, E.J.M.; Gatehouse, J.A. Insecticidal properties of plant lectins: Their potential in plant protection. In Lectins: Biomedical Perspectives; Pusztai, A., Bardocz, S., Eds.; Taylor & Francis Ltd.: London, UK, 1995; pp. 35–57. [Google Scholar]
  11. Louis, S. Diversité Structurale et D’activité Biologique des Albumines Entomotoxiques de Type 1b des Graines de Légumineuses. Ph.D. Thesis, National Institute of Applied Sciences of Lyon I.N.S.A, Lyon, France, 2004. [Google Scholar]
  12. Macedo, M.L.R.; Damico, D.C.; Freire, M.; Toyama, M.H.; Marangoni, S.; Novello, J.C. Purification and characterization of an N-acetylglucosamine-binding lectin from Koelreuteria paniculata seeds and its effect on the larval development of Callosobruchus maculatus (Coleoptera: Bruchidae) and Anagasta kuehniella (Lepidoptera: Pyralidae). J. Agric. Food Chem. 2003, 51, 2980–2986. [Google Scholar] [CrossRef]
  13. Macedo, M.L.R.; Freire, M.G.M.; da Silva, M.B.; Coelho, L.C.B.B. Insecticidal action of Bauhinia monandra leaf lectin (BmoLL) against Anagasta kuehniella (Lepidoptera: Pyralidae), Zabrotes subfasciatus and Callosobruchus maculatus (Coleoptera: Bruchidae). Comp. Biochem. Physiol. A Mol. Integr. Physiol. 2007, 146, 486–498. [Google Scholar] [CrossRef]
  14. Janzen, D.H.; Juster, H.B.; Leiner, I.E. Insecticidal action of the phytohemagglutinin in black beans on bruchid beetle. Science 1976, 192, 795–796. [Google Scholar] [CrossRef]
  15. Shukle, R.H.; Murdock, L.L. Lipoxygenase, trypsin inhibitor, and lectin from soybeans: Effects on larval growth of Manduca sexta (Lepidoptera: Sphingidae). Environ. Entomol. 1983, 12, 787–791. [Google Scholar] [CrossRef]
  16. Habibi, J.; Backus, E.A.; Czapla, T.H. Plant lectins affect survival of the potato leafhopper (Homoptera: Cicadellidae). J. Econ. Entomol. 1993, 86, 945–951. [Google Scholar] [CrossRef]
  17. Gatehouse, A.M.R.; Hilder, V.A.; Gatehouse, J.A. Antimetabolic effects of plant lectins and plant and fungal enzymes on the nymphal stages of two important rice pests, Nilaparvata lugens and Nephotettix cinciteps. Entomol. Exp. Appl. 1993, 66, 119–126. [Google Scholar]
  18. Law, I.J.; Kfir, R. Effects of mannose-binding lectin from peanut and pea on the stem borer Chilo partellus. Entomol. Exp. Appl. 1997, 82, 261–265. [Google Scholar] [CrossRef]
  19. Higgins, T.J.V.; Chandler, T.E.; Randall, P.J.; Spencer, D.; Beach, R.L.; Blogrove, R.J.; Kortt, A.A.; Inglis, A.S. Gene structure, protein structure and regulation of the synthesis of sulphur rich protein in pea seeds. J. Biol. Chem. 1986, 261, 11124–11130. [Google Scholar]
  20. Watanabe, Y.; Barbashov, S.F.; Komatsu, S.; Hemmings, A.M.; Miyagi, M.; Tsunasawa, S.; Hirano, H. A peptide that stimulates phosphorylation of the plant insulin-binding protein. Isolation, primary structure, and cDNA cloning. Eur. J. Bchem. 1994, 224, 167–172. [Google Scholar] [CrossRef]
  21. Buxton, T.; Eziah, V.Y.; Owusu, E.O. Bioactivities of Powders of four plants against Prostephanus truncatus Horn. (Coleoptera: Bostrichidae) and Tribolium Castaneum Herbst (Coleoptera: Tenebrionidae). West Afr. J. Appl. Ecol. 2014, 22, 95–101. [Google Scholar]
  22. Udo, I.O. Potential of Zanthoxylum xanthoxyloides (Lam) for the control of stored product insect pests. J. Stored Prod. Postharvest Res. 2011, 2, 40–44. [Google Scholar]
  23. Epidi, T.T.; Odili, E.O. Biocidal activity of selected plant powders against Tribolium castaneum Herbst in stored groundnut (Arachis hypogaea L.). Afr. J. Environ. Sci. Technol. 2009, 3, 001–005. [Google Scholar]
  24. Rahbe, Y.; Sauvion, N.; Febvay, G.; Peumans, W.J.; Gatehouse, A.M.R. Toxicity of lectins and processing of ingested proteins in the pea aphid, Acrythosiphon pisum. Entomol. Exp. Appl. 1995, 76, 143–155. [Google Scholar] [CrossRef]
  25. Powell, K.S.; Spence, J.; Brarathi, M.; Gatehouse, J.A.; Gatehouse, A.M.R. Immunohistochemical and developmental studies to elucidate the mechanism of action of the snowdrop lectin on the rice brown planthopper, Nilaparvata lugens (Stal). J. Insect Physiol. 1998, 44, 529–539. [Google Scholar] [CrossRef]
  26. Fitches, E.; Gatehouse, A.M.R.; Gatehouse, J.A. Effects of snowdrop lectins (GNA) delivered via artificial diet and in transgenic plants on the development of tomato moth (Lacanobia oleracea) larvae in laboratory and glasshouse trials. J. Insect Physiol. 1997, 43, 727–739. [Google Scholar] [CrossRef]
  27. Sharma, H.C.; Sharma, K.K.; Crouch, J.H. Genetic transformation of crop plants for insect resistance: Potential and limitations. CRC Crit. Rev. Plant Sci. 2004, 23, 47–72. [Google Scholar] [CrossRef]
  28. Elden, T.C. Influence of a cysteine proteinase inhibitor on alfafa weevil (Coleoptera: Curculionidae) growth and development over successive generations. J. Entomol. Sci. 2000, 35, 70–76. [Google Scholar] [CrossRef]
  29. Wang, W.; Hause, B.; Peumans, W.J.; Smagghe, G.; Mackie, A.; Fraser, R.; Van Damme, E.J.M. The Tn antigen-specific lectin from ground ivy is an insecticidal protein with an unusual physiology. Plant Physiol. 2003, 132, 1322–1334. [Google Scholar] [CrossRef] [Green Version]
  30. Melander, M.; Ahman, I.; Kamnert, I.; Strömdahl, A.C. Pea lectin expressed transgenically in oilseed rape reduces growth rate of pollen beetle larvae. Transgenic Res. 2003, 12, 555–567. [Google Scholar] [CrossRef]
  31. Sprawka, I.; Golawska, S. Effect of the lectin PHA on the feeding behavior of the grain aphid. J. Pest Sci. 2010, 83, 149–155. [Google Scholar] [CrossRef]
  32. Zapata, N.; Van Damme, E.J.M.; Vargas, M.; Devotto, L.; Smagghe, G. Insecticidal activity of a protein extracted from bulbs of Phycella australis Ravenna against the aphids Acyrthosiphon pisum Harris and Myzus persicae Sulzer. Chil. J. Agric. Res. 2016, 76, 188–194. [Google Scholar] [CrossRef] [Green Version]
  33. Lagarda-Diaz, I.; Guzman, A.; Vazquez-Moreno, L. Legume Lectins: Proteins with Diverse Applications. Int. J. Mol. Sci. 2017, 18, 1242. [Google Scholar] [CrossRef] [Green Version]
  34. Reyes-Montaño, E.A.; Vega-Castro, N.A. Plant Lectins with Insecticidal and Insectistatic Activities. IntechOpen 2018. [Google Scholar] [CrossRef] [Green Version]
  35. Sharon, N.; Lis, H. Legume lectins a large family of homologous proteins. FASEB J. 1990, 4, 3198–3208. [Google Scholar] [CrossRef] [PubMed]
  36. Van Damme, E.J.M.; Peuman, W.J.; Pusztai, A.; Bardocz, S. Handbook of Plant Lectins: Properties and Boiomedical Applications; John Wiley & Sons: New York, NY, USA, 1998. [Google Scholar]
  37. Nasi, A.; Picariello, G.; Ferranti, P. Proteomic approaches to study structure, functions, and toxicity of legume seeds lectins. Perspectives for the assessment of food quality and safety. J. Proteom. 2009, 72, 527–538. [Google Scholar] [CrossRef] [PubMed]
  38. Abbott, W.S. A method of computing the effectiveness of an insecticide. J. Econ. Entomol. 1925, 18, 265–267. [Google Scholar] [CrossRef]
  39. IBM Corp. IBM SPSS Statistics for Windows; IBM Corp.: Armonk, NY, USA, 2015; Available online: http://www-01.ibm.com/support/docview.wss?uid=swg21476197 (accessed on 8 March 2019).
  40. Cox, D.R. Regression Models and Life-Tables. J. R. Stat. Soc. Ser. B (Methodol.) 1972, 34, 187–202. [Google Scholar] [CrossRef]
  41. Macedo, M.L.R.; Oliveira, C.F.R.; Oliveira, C.T. Insecticidal activity of plant lectins and potential application in crop protection. Molecules 2015, 20, 2014–2033. [Google Scholar] [CrossRef] [Green Version]
  42. Casas, Z.Y.; Reyes-Montaño, E.A.; Vega, N.A. Lectinas con dominio de Leguminosa: Características estructurales y utilidad como agentes insectistáticos e insecticidas. Chil. J. Agric. Anim. Sci. 2016, 32, 157–169. [Google Scholar] [CrossRef] [Green Version]
  43. Michiels, K.; Van Damme, E.J.M.; Smagghe, G. Plant–insect interactions: What can we learn from plant lectins? Arch. Insect Biochem. Physiol. 2010, 73, 193–212. [Google Scholar] [CrossRef]
  44. Lagarda-Diaz, I.; Guzman-Partida, A.M.; Urbano-Hernandez, G.; Ortega-Neblas, M.M.; Robles-Burgueno, M.R.; Winzerling, J.; Vazquez-Moreno, L. Insecticidal action of PF2 lectin from Olneya tesota (palo fierro) against Zabrotes subfasciatus larvae and midgut glycoconjugate binding. J. Agric. Food Chem. 2009, 57, 689–694. [Google Scholar] [CrossRef]
  45. Fatimé, A.A. Amélioration de la Conservation de la Farine de Sorgho par L’incorporation des Huiles Essentielles et de la Farine de deux Légumineuses Alimentaires. Master’s Thesis, ENSAI, Université de Ngaoundéré, Yaounde, Cameroon, 2007. [Google Scholar]
  46. Tamgno, B.R. Activité Insecticide d’une Formulation Poudreuse à base de la Farine de Phaseolus vulgaris (L.) sur Sitophilus oryzae (L.) (Coleoptera: Curculionidae). Master’s Thesis, Département B.P.A. Université de Yaoundé I, Yaoundé, Cameroon, 2009. [Google Scholar]
  47. Singh, K.; Kaur, M.; Rup, P.J.; Singh, J. Exploration for anti-insect properties of lectin from seeds of soybean (Glycine max) using Bactrocera cucurbitae as a model. Phytoparasitica 2006, 34, 463–473. [Google Scholar] [CrossRef]
  48. Karbache, F.; Mouhouche, F.; Fleurat-Lessard, F. Deterrant and insecticidal properties of bean seed (Phaseolus vulgaris L.) whole meal or protein extract incorporated into the diet of Callosobrushus maculatus (F.) (Coleoptera: Bruchidae). J. Stored Prod. Res. 2011, 47, 197–203. [Google Scholar] [CrossRef]
  49. Southon, W.; Bisby, F.A.; Buckingham, J.; Harborne, J.B. Phytochemical Dictionary of Leguminoseae; Chapman and Hall: London, UK, 2000; p. 854. [Google Scholar]
  50. Sprawka, I.; Goławska, S.; Goławski, A.; Chrzanowski, G.; Czerniewicz, P.; Sytykiewicz, H. Entomotoxic action of jackbean lectin (Con A) in bird cherry-oat aphid through the effect on insect enzymes. J. Plant Interact. 2014, 9, 425–433. [Google Scholar] [CrossRef]
Biology 09 00204 g001 550

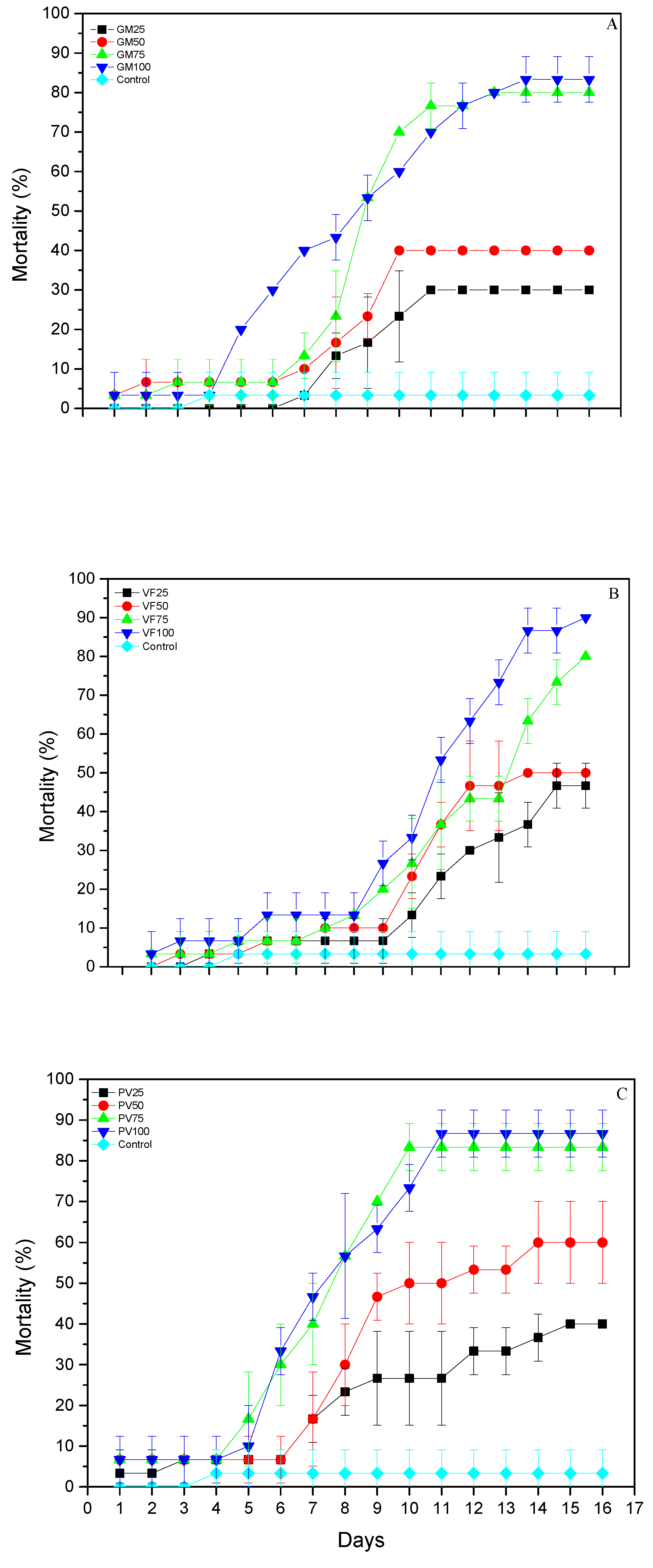

Figure 1. Mortality (% ± sd) of T. granarium larvae exposed to (A) G. max flour, (B) V. faba flour and (C) P. vulgaris flour after 16 days.
Figure 1. Mortality (% ± sd) of T. granarium larvae exposed to (A) G. max flour, (B) V. faba flour and (C) P. vulgaris flour after 16 days.
Biology 09 00204 g001
Table
Table 1. Mean effect of P. vulgaris, V. faba and G. max flour on pupation, adult emergence, and median survival time of larval instars of T. granarium. Means sharing the same lower-case letters are not significantly different from each other.
Table 1. Mean effect of P. vulgaris, V. faba and G. max flour on pupation, adult emergence, and median survival time of larval instars of T. granarium. Means sharing the same lower-case letters are not significantly different from each other.
TreatmentPupation
(% ± sd)		Adult Emergence (% ± sd)Median Lethal Time
(days ± sd)
(Chi-square = 24.999, df = 1, p < 0.001 Breslow (Generalized Wilcoxon))
PV 2569.2 ± 0.9 b32.8 ± 3.8 c12.7 ± 0.3 b
PV 5053.8 ± 1.8 d18.7 ± 3.7 d11.4 ± 0.2 c
PV 753.5 ± 1.7 g0 ± 0 e10.4 ± 0.5 d
PV 1002.3 ± 2.4 g0 ± 0 e9.03 ± 0.2 e
VF 2561.6 ± 2.9 c48.6 ± 2.7 b12.2 ± 0.4 b
VF 5032.7 ± 1.826.6 ± 3.7 c10.8 ± 0.3 d
VF 752.9 ± 0.8 g0 ± 0 e9.25 ± 0.4 e
VF 1000.8 ± 0.7 g0 ± 0 e8.87 ± 0.1 e
GM 2563.2 ± 4.8 b31.4 ± 2.7 c13.1 ± 0.1 b
GM 5039.7 ± 4.6 e18.3 ± 1.3 d10.3 ± 0.3 d
GM 753.8 ± 1.7 g0 ± 0 e9.89 ± 0.2 e
GM 1000.8 ± 0.2 g0 ± 0 e9.13 ± 0.3 e
Control92.7 ± 1.5 a87.7 ± 4.9 a15.6 ± 0.2 α
Table
Table 2. Toxicity variables in the equation from Cox regression for the treatments against larval instars of T. granarium. All tested treatments had 1 df.
Table 2. Toxicity variables in the equation from Cox regression for the treatments against larval instars of T. granarium. All tested treatments had 1 df.
TreatmentB †StdSigExp(B) ††95.0% CI for Exp(B)
LowerUpper
PV 25−1.3770.3750.5300.2520.1210.526
PV 50−1.0280.3750.3790.3580.1720.745
PV 750.1760.2800.0061.1920.6882.065
PV 1000.2520.2870.0001.2870.7332.258
VF 25−0.6350.3100.0400.4570.2890.973
VF 50−0.7830.3270.0170.5300.2410.868
VF 750.0840.3270.0020.9090.6451.575
VF 1000.0960.2900.0020.9570.7411.867
GM 25−1.4800.3900.8920.2280.1060.488
GM 50−1.0880.3520.7920.3370.1690.672
GM 750.0380.2830.0020.9270.5261.633
GM 1000.0760.2890.0020.9620.5561.676
Control−13.971157.5350.9290.0000.0001.063E+128
†B: B values are associated with increased hazard and decreased survival time; as the predictor increases, the hazard of the event increases and the predicted survival duration decreases. Negative coefficients indicate decreased hazard and increased survival times. ††Exp(B): the ratio of hazard rates.
