The Genus Chaetogaster Baer, 1827 (Annelida, Clitellata) in Switzerland: A First Step toward Cataloguing Its Molecular Diversity and Description of New Species on a DNA Sequence Basis

by
Régis Vivien
1,*,
Michel Lafont
2,
Colin Issartel
2,
Benoît J. D. Ferrari
1 and
Patrick Martin
3
1
Swiss Center for Applied Ecotoxicology (Ecotox Center), EPFL ENAC IIE-GE, 1015 Lausanne, Switzerland
2
Univ Lyon, Université Claude Bernard Lyon 1, CNRS, ENTPE, UMR 5023 LEHNA, F-69622 Villeurbanne, France
3
Royal Belgian Institute of Natural Sciences, Taxonomy and Phylogeny, 29 rue Vautier, B-1000 Brussels, Belgium
*
Author to whom correspondence should be addressed.
Biology 2024, 13(9), 693; https://doi.org/10.3390/biology13090693
Submission received: 1 August 2024 / Revised: 20 August 2024 / Accepted: 28 August 2024 / Published: 4 September 2024
(This article belongs to the Section Conservation Biology and Biodiversity)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Chaetogaster is a genus of the subfamily Naidinae (Naididae). It includes a large number of species and is frequent in surface coarse sediments in streams. The aim of the present study is to establish a first inventory of lineages of Chaetogaster (=species) in Switzerland. We analyzed genetically 135 specimens collected at 6 sites in 4 streams of 4 cantons and preserved the anterior part of almost all specimens. We were able to delimit six lineages belonging to the nominal species Chaetogaster diaphanus (one lineage), Chaetogaster diastrophus (three lineages), Chaetogaster langi (one lineage), and Chaetogaster setosus (one lineage), as well as three lineages of unidentified Chaetogaster spp. We described the three cryptic lineages of C. diastrophus and two Chaetogaster spp. lineages as new species. The prospects of the present work are to acquire more data on the molecular diversity of this genus in Switzerland and to describe the newly found Chaetogaster species on a molecular/morphological basis.

Abstract

The genus Chaetogaster belongs to the subfamily Naidinae (Naididae); it includes mostly species of small size and is diverse and abundant in surface coarse sediments in streams. The aim of the present study is to initiate an inventory of lineages (=species) of Chaetogaster in Switzerland. We used 135 specimens collected at 6 sites in 4 streams of 4 cantons. We sequenced the cytochrome c oxidase (COI) gene from all specimens and ITS2 and rDNA 28S from all or several specimens of each lineage that was delimited using COI data, and preserved, for morphological identifications, the anterior part of almost all sequenced specimens. We were able to delimit, based on the calculation of genetic distances and analyses of single-locus data, one lineage for Chaetogaster diaphanus (Gruithuisen, 1828), three within Chaetogaster diastrophus (Gruithuisen, 1828), one for Chaetogaster langi Brestcher, 1896, one for Chaetogaster setosus Svetlov, 1925, and three unidentified Chaetogaster spp. Two lineages of Chaetogaster spp. could correspond to a new morphological group, but this should be confirmed in more specimens. We proposed a new identification key of the nominal species and described the three C. diastrophus lineages and two Chaetogaster spp. as new species. The prospects of the present work are to complete the data of the molecular diversity of this genus in Switzerland and to describe the newly found Chaetogaster species on a molecular/morphological basis.

1. Introduction

The genus Chaetogaster von Baer, 1827 belongs to the subfamily of Naidinae (Naididae) and includes species of small size (0.5–4 mm long, 0.08–0.6 mm wide) that reproduce mainly asexually by paratomy (budding and fission). While C. limnaei (von Baer, 1827) is an ectosymbiont and/or endoparasite on snails and other molluscs, the other Chaetogaster species are predators of other invertebrates and/or feed on algae [1,2]. They are frequently found during biomonitoring surveys in streams in fine to coarse sediments [3]. Chaetogaster species are characteristic of surface habitats and their presence in the hyporheic zone indicates infiltration of surface water [4]. In addition, they are all considered sensitive to moderately resistant to chemical pollution [4].
In total, eighteen species of Chaetogaster have been described based on morphological features [5]. In Switzerland, six species of Chaetogaster have been recorded in streams so far based on a morphological ground: C. diaphanus (Gruithuisen, 1828), C. diastrophus (Gruithuisen, 1828), C. langi Bretscher, 1896, C. parvus Pointner, 1914, C. limnaei, and C. setosus Svetlov, 1925. While C. diaphanus, C. diastrophus, and C. langi are frequent, C. parvus has been only found in some streams [3,6], C. setosus at two sites in one stream [7], and C. limnaei at one stream site [3].
Recently, Mack et al. [2] suggested that 3 commonly referenced species in North America and Europe, C. diaphanus, C. diastrophus, and C. limnaei, are a complex of mostly 24 cryptic species. They sequenced mitochondrial and nuclear markers of 128 Chaetogaster specimens from ponds, lake shores, and creeks at many locations in North America (Maryland) and Europe (mostly Scandinavian countries) and found, based on the calculation of genetic distances and analyses of single-locus and multi-locus data, 2 cryptic species for C. diaphanus, 3 for C. limnaei, and 19 for C. diastrophus. In other words, the overall species diversity of Chaetogaster has been largely underestimated on morphological grounds. For this reason, we initiated an inventory of lineages of Chaetogaster in Switzerland based on a DNA barcoding approach.
The aim of this study is not only to reveal the hidden diversity among Chaetogaster in Switzerland but also to genetically characterize the species C. langi and C. setosus and to attribute to them DNA barcode sequences. We propose an identification key to identify the nominal species C. diaphanus, C. diastrophus, C. langi, and C. setosus and describe five lineages we found within Chaetogaster as new species on a DNA sequence basis.

2. Material and Methods

2.1. Specimen Collection

We used for the present study 135 Chaetogaster specimens collected in spring 2020–2023 and autumn 2020–2022 in surface coarse sediments at 6 different sites in 4 different streams in Canton of Vaud (Sorge River, 1 site), Canton of Bern (Suze River, 1 site), Canton of St-Gallen (Glatt River, 4 sites), and Canton Aargau (Bünz River, 1 site) as part of surveys for biomonitoring purposes (Table S1). The sediments were collected using a shovel and oligochaetes were fixed in the field with neutral buffered formalin (final concentration of formalin 10% (=formaldehyde of 4%) in the recipients). Formalin optimally fixes oligochaete specimens, and a study showed that fixation and storage of oligochaete specimens in 4% neutral buffered formalin for up to 30 days was suitable for subsequent genetic analyses [8].
In the laboratory, sediments were sieved through a column of 5 and 0.2 mm mesh size sieves. The material retained on the 0.2 mm mesh size sieve was transferred to a Tupperware box and absolute ethanol was added (final concentration of ethanol of about 100%). These boxes were preserved at −20 °C. From these samples, we selected 33 specimens of C. diaphanus, 67 of C. diastrophus, 30 of C. langi, and 5 of C. setosus using a stereomicroscope. C. diaphanus, C. langi, and C. setosus are recognizable using a stereomicroscope, but it is impossible to distinguish C. diastrophus from C. limnaei and C. parvus using the magnification of a stereomicroscope. The “C. diastrophus” specimens were, therefore, supposed to belong to this morphospecies (morphospecies = group of morphologically identical species) as according to the morphological inventories, it is much more frequent in Switzerland than C. limnaei and C. parvus. This was subsequently confirmed by examination with a compound microscope (see below).
Each specimen (except one specimen, Chaetogaster sp. MOTU 8) was cut into two pieces, the anterior part for morphological analysis and the posterior part for genetic analyses (preserved in absolute ethanol at −20 °C in Eppendorf tubes).

2.2. Morphological Analysis

The anterior parts were mounted on slides in a coating solution (containing lactic acid, glycerol, and Mowiol) [9] and specimens were identified to a species or morphospecies level using a compound microscope. The anterior parts (=vouchers) of all specimens, except isolates Glatt6, Nos 29, 30, 37, 38, 155, 204, 205, are deposited in the “Muséum cantonal des sciences naturelles” of Lausanne (Table S1). Almost all vouchers were photographed with an Olympus SC50 camera, with 10× and 40× magnification (photos available upon request). Out of the 135 analyzed Chaetogaster specimens, none were sexually mature.

2.3. Molecular Analyses

2.3.1. DNA Extraction and Sequencing

We sequenced a fragment of 658 base pairs of the mitochondrial COI gene from 128 specimens, a fragment of 313 base pairs of the mitochondrial COI gene from 7 specimens, a fragment of 558 base pairs of the nuclear ITS2 region from 112 specimens, and a fragment of 796 base pairs of the 28S gene from 67 specimens. ITS2 and 28S were sequenced from all or several specimens per lineage delimited using COI sequences.
Total genomic DNA was extracted using guanidine thiocyanate as described by Tkach and Pawlowski [10]. We used the LCO 1490 and HCO 2198 primers [11] for amplifying the COI fragment of 658 bp, the “mlCOIintF” and “jgHCO2198” primers [12] for amplifying the COI fragment of 313 bp, the ITS2-1 and ITS2-2 primers [13] for amplifying the ITS2 rDNA region, and the 28SC1 et 28SD2 primers [14] for amplifying the 28S region.
PCR amplifications were performed in a total volume of 20 μL containing 0.2 μL of Taq polymerase 5 U/μL (Roche, Basel, Switzerland), 2 μL of the PCR buffer (10× concentrated) with MgCl2 (Roche), 0.5 μL of each primer (10 μM each), 0.4 μL of a mix containing 10 mM of each dNTP (Roche), and 1 μL of DNA template. The PCR comprised an initial denaturation step at 95 °C for 5 min, followed by 35 cycles of denaturation at 95 °C for 40 s, annealing at 44 °C for 45 s and elongation at 72 °C for 1 min, and a final elongation step at 72 °C for 8 min.
COI, ITS2, and 28S products were then bi-directionally Sanger-sequenced on an Applied Biosystems 96-capillary 3730xl instrument from Fasteris (Plan-les-Ouates, Switzerland) using the same primers (mentioned above) and following the manufacturer’s protocol. The raw sequence editing and the generation of contiguous sequences were accomplished using CodonCode Aligner (CodonCode Corporation, Centerville, MA, USA). All ITS2 and 28S sequences were obtained by direct sequencing.
The COI, ITS2, and 28S sequences are provided as Supplemental Files S1–S3 and are accessible in GenBank: COI: PP996388-PP996521, PQ198874; ITS2: PQ013378-PQ013490; 28S: PQ013491-PQ013557.

2.3.2. Molecular Phylogeny

All sequences were aligned for each marker using the MUSCLE algorithm (default options) [15] implemented in Seaview v. 5.0.5 [16]. For each marker, a phylogenetic tree was inferred by maximum likelihood using IQ-TREE v. 2.2.0 for macOS [17,18], as well as optimization of its parameters, and data partitioned according to the codon position when relevant (COI: TPM3+F+G4 (codon 1), TNe+G4 (codon 2), F81+F+I (codon 3); ITS2: TNe+I+G4; 28S: TIM3+F+I+G4). Branch support was obtained with the ultrafast bootstrap with 1000 replicates [19].

2.3.3. Distance Analysis

Uncorrected pairwise genetic distances in COI and ITS2 were calculated using MEGA 11 [20]. Genetic distances were calculated between sequences within consensus MOTUs (molecular operational taxonomic units) and between sequences of the different MOTUs as identified by the single-locus approaches (see below). To estimate the barcoding gap of each MOTU, we determined the maximal genetic distance within sequences of the same MOTU (=maximal intra-MOTU variation) and the minimal genetic distance between sequences of a MOTU and sequences of the other MOTUs (=minimal inter-MOTU variation). Genetic distances were also computed between the COI (Chaetogaster) sequences obtained by Mack et al. [2] and the COI sequences of our Chaetogaster MOTUs to study if our lineages were new or already found by Mack et al. [2]. For this analysis, COI sequences diverging by less than 5% of genetic divergence were considered belonging to the same lineage.

2.3.4. Single-Locus Species Delimitation

Species were delineated following two complementary approaches: a distance-based method, assemble species by automatic partitioning (ASAP) [21], and a tree-based method, the “Poisson Tree Processes” (PTP) method [22]. Although very popular over the last two decades, the generalized mixed Yule-coalescent (GMYC) approach [23] was not used here because the method has been shown on several occasions to have a strong tendency to oversplit species [24,25], in particular to delimit oligochaete species [26], due to its extreme sensitivity to parametrization [27].
ASAP was run using p-distances as well as both the Jukes–Cantor (JC69) and the Kimura 2-parameter (K80) substitution models to compute the distances, in order to investigate the possible impact of different distance models on the partitioning. Analyses were performed on the dedicated public web server (https://bioinfo.mnhn.fr/abi/public/asap/, accessed on 2 May 2024).
PTP analyses were performed using multi-rate PTP (mPTP), which, unlike PTP, considers differences in intraspecific variation due to the evolutionary history or sampling of each species. mPTP is presented as an improvement of the single-rate model PTP [22], making it possible to obtain more accurate estimates than the latter [28]. PTP analyses do not require an ultrametric input tree, which is a potentially error-prone process. Therefore, the phylogenetic tree produced by the I-QTREE analysis was used as the input tree for analyses based on the PTP model. The stand-alone version of mPTP was preferred to its web implementation because certain functionalities are not available in the web service (https://mptp.h-its.org/, accessed on 2 May 2024). The last release of the pre-compiled macOS binary (mPTP 0.2.4) was downloaded from GitHub (https://github.com/Pas-Kapli/mptp, accessed on 22 August 2023).

3. Results

3.1. Identification Key of the Nominal Species

The genus Chaetogaster is characterized by a fusion of the first five segments forming a head containing a muscular pharynx, by the absence of ventral chaetae in segments III-V, and by the overall absence of dorsal chaetae [29]. C. diaphanus is different from the other species of this genus by its much larger size. C. diastrophus has a distinct prostomium, while C. diaphanus, C. langi, and C. setosus have a vestigial prostomium, or it is absent. C. setosus has simple pointed ventral chaetae, while C. diaphanus, C. diastrophus, and C. langi have bifid ventral chaetae. Based on these characters, we have created the following key to identify C. diaphanus, C. diastrophus, C. langi, and C. setosus. The mentioned sizes in the key correspond to the specimens of the present study (fixed material).
  • Body size: 1.5–4 mm long and 0.3–0.6 mm wide (at head); prostomium absent, buccal cavity large                    C. diaphanus
-
Body size: 0.5–1.2 mm long, 0.08–0.16 mm wide (at head); prostomium present or absent; buccal cavity large or not large          2
2(1)
Simple-pointed chaetae                                                    C. setosus
-
Bifid chaetae                                                          3
3(2)
Body size: 0.6–1.2 mm long, 0.11–0.16 mm wide (at head); prostomium present; buccal cavity not large to large              C. diastrophus
-
Body size 0.5–0.7 mm long, 0.08–0.11 mm wide (at head); prostomium absent or presence of a vestigial prostomium (notch in its place at the edge of the mouth); buccal cavity generally large                                               C. langi

3.2. Delimitation of Lineages

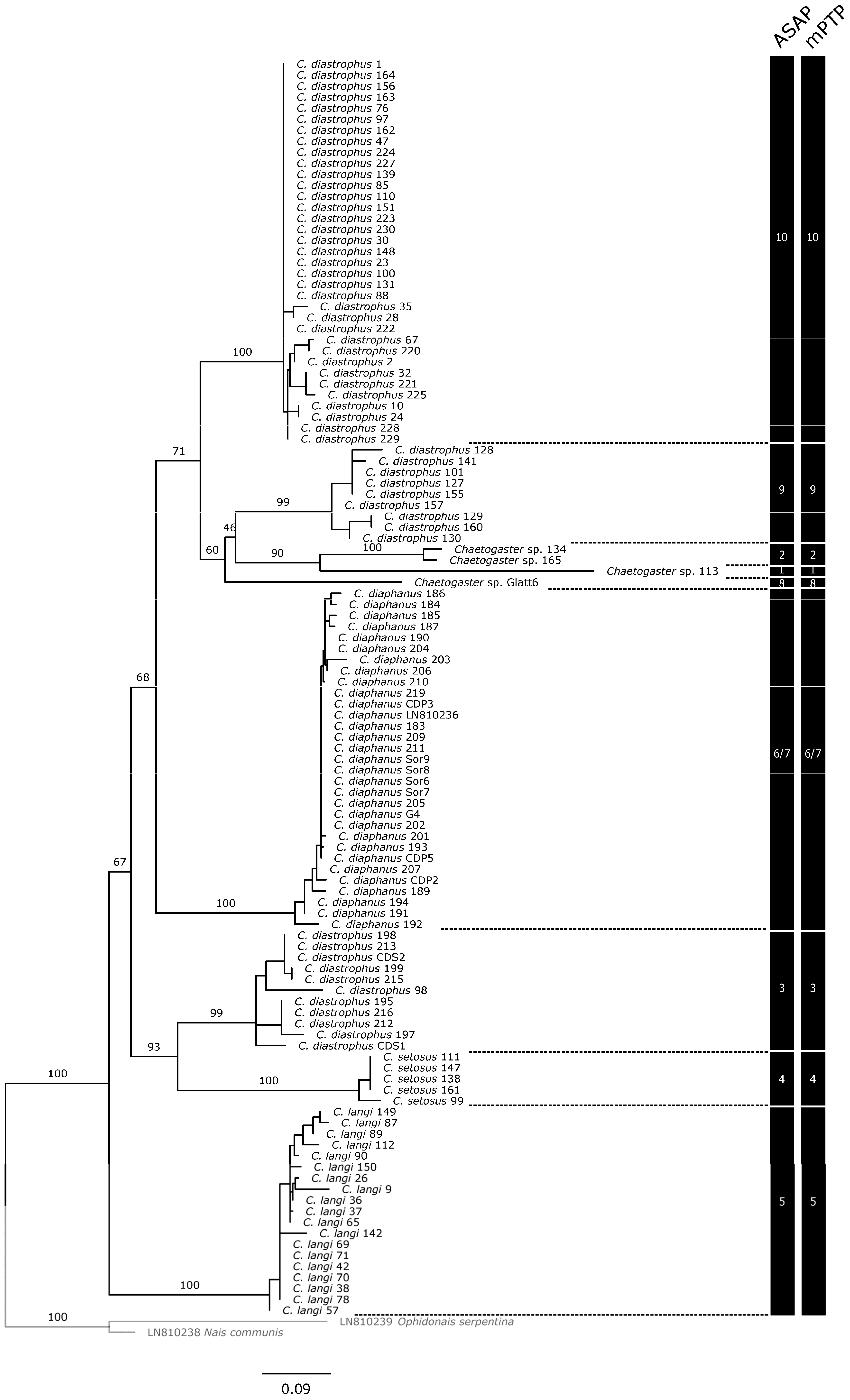

Species delimitation based on the COI gene leads to the identification of 10 MOTUs, either with ASAP or mPTP, which correspond to strongly supported singletons or clades in the ML tree (BV: 98–100) (Figure 1). The ASAP analyses consistently suggest the same partitioning into 10 different MOTUs, regardless of how the distances were estimated (p-distances, JC69, K80). While the grouping of specimens identified as C. langi and C. setosus remains consistent with their morphological identifications, the morphospecies C. diaphanus and C. diastrophus split into 2 (MOTU6, MOTU7) and 3 (MOTU3, MOTU9, MOTU10) groups, respectively. ASAP analyses also show a clear barcoding gap (p-distances: 4–9%; JC69: 5–9%; K2P: 4–10%). The correspondence of each lineage found in the present study to the species (=lineages) described by Mack et al. [2] is indicated in Table 1 and the mean genetic variations between lineages (present study and Mack et al. [2]) are provided in Table S2.
Delineations based on ITS2 and 28S confirm these results, except for the morphospecies C. diaphanus, which appears as a single lineage, so that only 9 MOTUs are delineated based on nuclear genes (Figure 2 and Figure S1).
ITS2 produces identical delineations with both ASAP and mPTP. These delimitations also correspond to strongly supported singletons or clades in the ML tree (BV: 99–100). A barcoding gap remains, albeit narrower than that observed on the basis of COI (p-distances, JC69: 6–8%; K2P: 8–10%).
28S produced less consistent results between methods than ITS2. A discordance is observed in the ASAP analyses depending on whether the evolutionary model is p-distances and K2P (9 MOTUs identified) or JC69 (8 MOTUs by merging MOTU7 and MOTU8). However, it should be noted that, in the latter case, the second-best solution from the ASAP analysis delimits 9 MOTUs again. These MOTUs correspond to singletons or clades strongly supported in the ML tree (BV: 98–100), with the exception of M10, which forms a clade supported by a BV of 94. In contrast, the mPTP approach leads to inconsistent results, both in relation to the ASAP analyses and in relation to the clades identified by the ML analysis: the specimens identified as C. setosus (MOTU4) are split between two lineages despite their genetic proximity, and in addition to the lumping of MOTU6 and MOTU7 already observed with the ITS2, a new grouping occurs between MOTU5, MOTU8, MOTU9, and MOTU10, which appear as a single lineage; C. langi no longer appears as a distinct species. There is no visible barcoding gap.

3.3. Distance Analyses

In COI, the maximum intra-MOTU variations were low (max. 3.9%) and the minimal inter-MOTU variations were high (11.5–14.9%) except for the two MOTUs of C. diaphanus (9.6%) (Table 1). In ITS2, the maximum intra-MOTU variations were between 2.7% and 6.2% and the minimal inter-MOTU variations were between 7.5% and 13.9%.

3.4. Morphological vs. Molecular Identifications

As we morphologically identified some specimens as C. langi while they belonged to a C. diastrophus lineage and inversely, we concluded that the morphological features attributed to C. langi were, in practice, not entirely reliable and that identification errors were possible. Indeed, fixation can cause a deformation or flattening of the prostomium, and the position on the slide of a C. langi specimen can falsely suggest that the specimen has a developed prostomium. We, therefore, suggest that doubtful specimens of C. langi/C. diastrophus should be identified as Chaetogaster sp. or that genetic analysis carried out when possible. However, the morphological features specific to C. diastrophus and C. langi (Figure 3) can be verified on most specimens of each morphological group, so we consider that C. langi is significantly different from C. diastrophus and that a specific lineage can be attributed to this species.

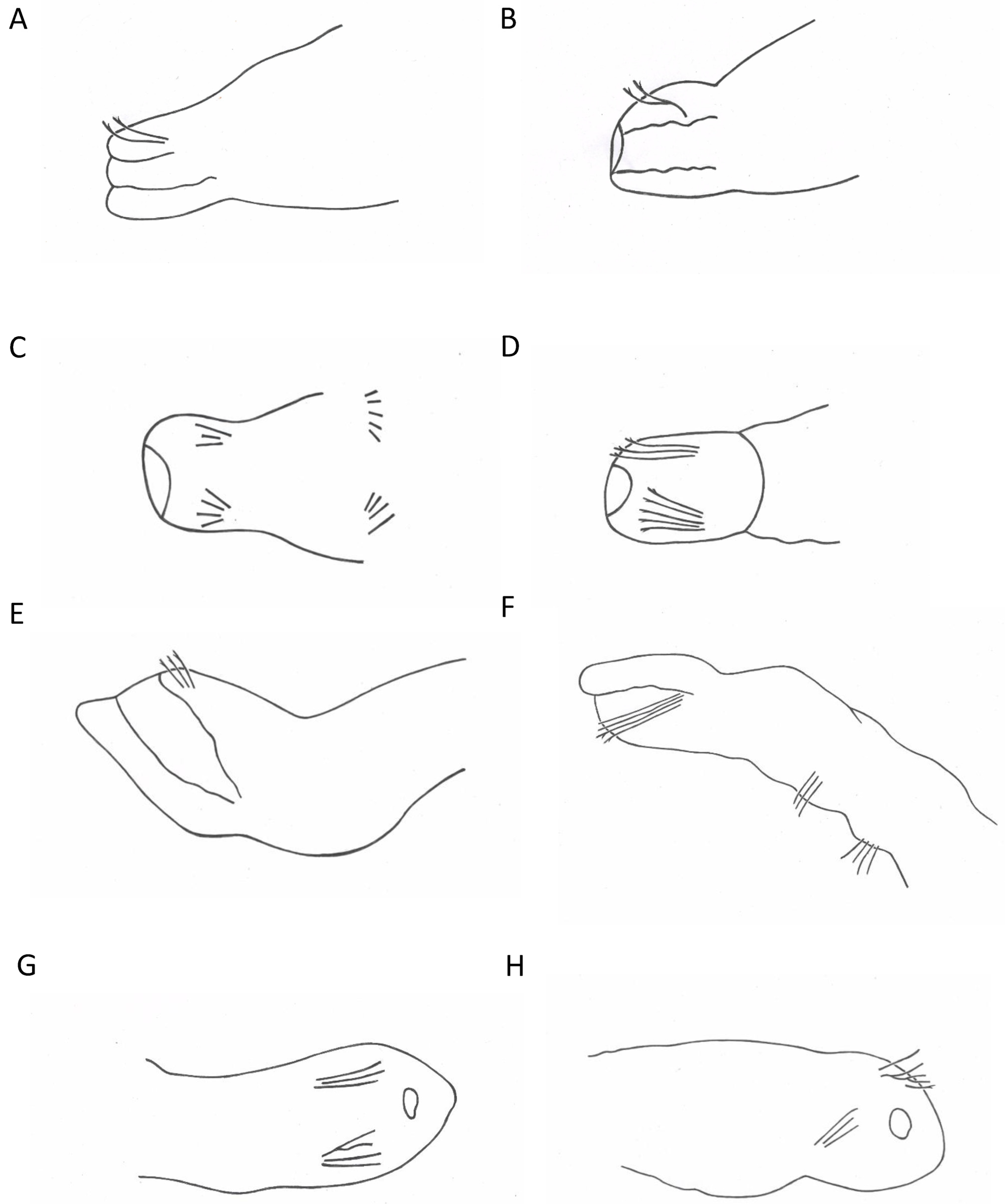

Chaetogaster sp. MOTU1 and MOTU2 were characterized morphologically based on observations of only three specimens. They had a size close to the one of C. langi, so smaller than the one of C. diastrophus. However, we could not identify them as C. langi as they seemed to possess a developed prostomium. For Chaetogaster MOTU8, no voucher was available (entire specimen sequenced), so it could not be attributed to morphospecies. We sequenced subsequently 11 additional specimens (No 220–230) from site Dws4 in the Glatt River to obtain a voucher of this lineage but none of them belonged to it. In addition, we could not distinguish morphologically the lineages within the morphogroup C. diastrophus, which seemed completely cryptic.

3.5. Taxonomy

Here, we describe the three C. diastrophus MOTUs 3, 9, and 10 and the Chaetogaster spp. MOTUs 1–2 as new species (cf. Discussion section) (Table 2). We also attribute a lineage to C. langi (MOTU 5) and C. setosus (MOTU 4) and describe material corresponding to C. diaphanus (MOTUs 6–7) and to the new lineage of Chaetogaster sp. MOTU8, for which no anterior part was preserved.
  • Morphological group Chaetogaster diastrophus (MOTUs 3, 9 and 10)
Length 0.6–1.2 mm, diameter 0.11–0.16 mm (head). Prostomium present. Fusion of the first five segments forming a head containing a muscular pharynx, buccal cavity not large to large. Ventral chaetae bifid, absent in segments III–V; dorsal chaetae completely lacking.
Chaetogaster communis sp. nov. Vivien, Lafont & Martin (MOTU10)
Holotype: Isolate No 1; anterior part of the body mounted on a microscopic slide in a medium containing glycerol, lactic acid, and Mowiol, specimen voucher: GBIFCH 1222926; DNA voucher stored in buffer at −20 °C at the Ecotox Center in Lausanne.
Type locality: Flawil (St. Gallen, Switzerland), 47.419157° N 9.195899° E.
Paratypes: Isolates No 2, 10, 21, 23, 24, 28, 30, 32, 35, 47, 67, 76, 85, 88, 97, 100, 110, 131, 139, 148, 151, 156, 162, 163, 164, 220–230 (geographical coordinates in Table 2 and voucher references in Table S1).
Etymology: Named “communis” (Latin for “common”) as it seems frequent according to the data from the present study.
Distribution (previous studies, GenBank data): Reported in Switzerland (Geneva area), Sweden, and Norway.
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2 and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996388-PP996389, PP996393, PP996396-PP996398, PP996402, PP996404, PP996406, PP996408, PP996415, PP996421, PP996423, PP996426, PP996429, PP996432, PP996434, PP996442, PP996446, PP996451, PP996454, PP996456, PP996461, PP996511-PP996521, PQ198874; ITS2: PQ013378-PQ013379, PQ013381-PQ013383, PQ013385-PQ013388, PQ013393, PQ013396, PQ013400, PQ013402, PQ013404, PQ013407, PQ013410, PQ013412, PQ013420, PQ013423, PQ013427, PQ013430, PQ013432, PQ013436-PQ013438, PQ013481-PQ013490; 28S: PQ013492, PQ013497, PQ013499, PQ013506, PQ013510, PQ013515, PQ013518, PQ013521-PQ013523.
Chaetogaster fluvii sp. nov. Vivien, Lafont & Martin (MOTU3)
Holotype: Isolate CDS1; anterior part of the body mounted on a microscopic slide in a medium containing glycerol, lactic acid, and Mowiol, specimen voucher: GBIFCH 1223004; DNA voucher stored in buffer at −20 °C at the Ecotox Center in Lausanne.
Type locality: Muri (Aargau, Switzerland), 47.305217° N 8.327193° E
Paratypes: Isolates: CDS2, No 98, 195, 196, 197, 198, 199, 200, 212, 213, 214, 215, 216 (geographical coordinates in Table 2 and voucher references in Table S1).
Etymology: Named “fluvii” (Latin for “of river”) as this species was found in streams
Distribution (previous studies, GenBank data): Reported in Sweden, USA, and Norway.
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996430, PP996465-PP996466, PP996489-PP996494, PP996505-PP996509; ITS2: PQ013408, PQ013440-PQ013441, PQ013462-PQ013465, PQ013476-PQ013479; 28S: PQ013495, PQ013525-PQ013526, PQ013544-PQ013545, PQ013555-PQ013556.
Chaetogaster fluminis sp. nov. Vivien, Lafont & Martin (MOTU9)
Holotype: Isolate No 5; anterior part of the body mounted on a microscopic slide in a medium containing glycerol, lactic acid, and Mowiol, specimen voucher: GBIFCH 1222928; DNA voucher stored in buffer at −20 °C at the Ecotox Center in Lausanne.
Type locality: Flawil (St. Gallen, Switzerland), 47.419157° N 9.195899° E.
Paratypes: Isolates No 34, 86, 101, 127, 128, 129, 130, 141, 155, 157, 159, 160 (geographical coordinates in Table 2 and voucher references in Table S1).
Etymology: Named “fluminis” (Latin for “of river”) as this species was found in streams.
Distribution (previous studies, GenBank data): Reported in USA, Canada, Sweden, Norway, United Kingdom, and Italy.
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996390, PP996407, PP996424, PP996433, PP996438-PP996441, PP996448, PP996455, PP996457, PP996459; ITS2: PQ013411, PQ013416-PQ013419, PQ013424, PQ013431, PQ013433-PQ013434; 28S: PQ013498, PQ013503-PQ013505, PQ013512, PQ013519.
  • Morphological group Chaetogaster spp. (MOTUs 1–2)
Length 0.5–0.6 mm, diameter 0.07–0.1 mm (head). Prostomium present. Fusion of the first five segments forming a head containing a muscular pharynx, buccal cavity not large to large. Ventral chaetae bifid, absent in segments III-V; dorsal chaetae completely lacking.
Chaetogaster suzensis sp. nov. Vivien, Lafont & Martin (MOTU1)
Holotype: Isolate No 113; anterior part of the body mounted on a microscopic slide in a medium containing glycerol, lactic acid, and Mowiol, specimen voucher: GBIFCH 1222976; DNA voucher stored in buffer at −20 °C at the Ecotox Center in Lausanne.
Type locality: Villeret (Bern, Switzerland), 47.152502° N 7.014924° E.
Paratypes: None.
Etymology: Named after the stream (Suze River) in which the holotype was found.
Distribution (previous studies): -
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession number for COI: PP996437; ITS2:PQ013415; 28S: PQ013502.
Chaetogaster sorgensis sp. nov. Vivien, Lafont & Martin (MOTU2)
Holotype: Isolate No 134; anterior part of the body mounted on a microscopic slide in a medium containing glycerol, lactic acid, and Mowiol, specimen voucher: GBIFCH 1222983; DNA voucher stored in buffer at −20 °C at the Ecotox Center in Lausanne.
Type locality: Ecublens (Vaud, Switzerland), geographical coordinates: 46.522661° N 6.573581° E.
Paratypes: Isolate No 165 (geographical coordinates in Table 2 and voucher reference in Table S1).
Etymology: Named after the stream (Sorge River) in which the holotype was found.
Distribution (previous studies, GenBank data): Reported in Sweden and Norway.
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996444, PP996464; ITS2: PQ013421, PQ013439; 28S: PQ013508, PQ013524.
  • Chaetogaster langi (MOTU5)
Material examined: Isolate No 7, 9, 12, 13, 25, 26, 27, 29, 31, 36–40, 42, 57, 65, 69–71, 78, 87, 89, 90, 112, 132, 140, 142, 149, 150 (geographical coordinates in Table 2 and voucher references in Table S1).
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996391-PP996392, PP996394-PP996395, PP996399-PP996401, PP996403, PP996405, PP996409-PP996414, PP996416-PP996420, PP996422, PP996425, PP996427-PP996428, PP996436, PP996443, PP996447, PP996449, PP996452-PP996453; ITS2: PQ013380, PQ013384, PQ013389-PQ013392, PQ013394-PQ013395, PQ013397-PQ013399, PQ013401, PQ013403, PQ013405-PQ013406, PQ013414, PQ013425, PQ013428, PQ013429; 28S: PQ013491, PQ013493-PQ013494, PQ013501, PQ013507, PQ013511, PQ013513, PQ013516-PQ013517.
  • Chaetogaster setosus (MOTU4)
Material examined: Isolates No 99, 111, 138, 147, 161 (geographical coordinates in Table 2 and voucher references in Table S1).
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996431, PP996435, PP996445, PP996450, PP996460; ITS2: PQ013409, PQ013413, PQ013422, PQ013426, PQ013435; 28S: PQ013496, PQ013500, PQ013509, PQ013514, PQ013520.
  • Chaetogaster diaphanus (MOTUs 6–7)
Material examined: Isolates Sor6-9; G4; CDP1-5, No 183–187, 189–194, 201–207, 209–211, 219 (geographical coordinates in Table 2 and voucher references in Table S1).
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession numbers for COI: PP996467-PP996471, PP996473-PP996476, PP996478-PP996488, PP996495-PP996504, PP996510; ITS2: PQ013442-PQ013449, PQ013451-PQ013461, PQ013466-PQ013475; 28S: PQ013527-PQ013532, PQ013534-PQ013543, PQ013546- PQ013554, PQ013557.
  • Chaetogaster sp. with no morphological description (MOTU8)
Material examined: Isolate Glatt6 (geographical coordinates in Table 2).
Diagnostic molecular characters: The species can be distinguished from other Chaetogaster species on the basis of COI, ITS2, and 28S DNA sequences (Table S1). GenBank accession number for COI: PP996477; ITS2: PQ013450; 28S: PQ013533.

4. Discussion

4.1. Species Delimitations and Chaetogaster Diversity in Switzerland

It is generally accepted that as a rule of thumb in clitellates, if two clusters delimited on the basis of the COI gene differ from each other by more than 10% of uncorrected genetic distances, they are likely to belong to different species, and if they differ by less than 5%, they are likely to belong to one species [30] (but see Liu et al. [31] for exceptions within the Limnodrilus hoffmeisteri species complex). The different approaches and genes used yielded largely congruent results and confirmed the delineation obtained by ASAP with the COI gene, except for MOTUs 6 and 7, grouped together in all analyses based on nuclear genes and the mPTP analysis of 28S sequences.
Incomplete lineage sorting (ILS) and/or introgression are the most common factors invoked to explain phylogenetic discordance between nuclear and mitochondrial markers [32,33]. Distinguishing between the two processes can be a challenging task [34] and is out of the scope of the present study. Although ILS can affect both nuclear and mitochondrial markers, the lack of recombination in mtDNA means that the genetic variation in mtDNA tends to coalesce more rapidly than in nuclear DNA, suggesting that MOTU6 and MOTU7 are possible recent separately evolving lineages—in other words, potential distinct species according to the de Queiroz’s species concept [35].
By delimiting only 6 MOTUs, by merging MOTUs identified in the other analyses (MOTUs 6, 7; 5, 8, 9, 10), and despite the splitting of MOTU4 into two distinct lineages, the mPTP analysis of the 28S sequences clearly stands out from the other results. The splitting of MOTU4 into two lineages is clearly an artifact, given the genetic proximity between the 28S sequences that are split. Usually, mPTP is considered superior to its previous variants (PTP, bPTP) because it produces more taxonomically congruent delineations [30]. However, it is possible that the lower variability of 28S compared with COI and ITS2 partially explains this result. Indeed, Dellicour and Flot [25] showed that PTP and bPTP tend to produce more overlumping when the mutation rate of the markers is low.
Chaetogaster sp. MOTUs 1–2, considered morphologically as possibly intermediate between C. diastrophus and C. langi, were, on the phylogenetic analysis of COI and 28S, early-branching, which shows an important genetic divergence between these two lineages and the rest of the Chaetogaster lineages. Chaetogaster sp. MOTU2, corresponding to sp. 1 in Mack et al. [2], was also early-branching on a concatenated tree based on COI, ITS2, and H3 markers built by these authors. The COI, ITS2, and 28S data suggest that Chaetogaster sp. MOTU8 is a cryptic species of C. diastrophus. But we cannot exclude that it belongs to the morphospecies C. limnaei or C. parvus (anterior part not preserved).
As ITS2 and 28S data suggested that all C. diaphanus MOTUs 6–7 sequences formed only one lineage, we decided to regroup all sequences of this morphogroup in a unique species, as a conservative measure. The genetic divergence in COI barely reached the threshold of 10% used to distinguish clitellate species, so the distinction based on COI data only was already doubtful. Mack et al. [2] considered these two MOTUs as significantly different based on the analysis of COI, the mitochondrial marker 16S rDNA, and the nuclear region H3. The ITS2 sequences obtained by Mack et al. [2] also showed a distinction between these MOTUs, which is in contradiction with our ITS2 data. This discordance is difficult to understand, and we cannot exclude that the ITS2 sequences provided by Mack et al. [2] for MOTU sp. 3 (=our MOTU7) correspond, in fact, to specimens other than those of this MOTU.
Chaetogaster langi was considered by some authors as a synonym of C. diastrophus [2]. We were able to attribute a DNA barcode to the morphospecies C. langi and demonstrate that it was morphologically significantly different from C. diastrophus. Mack et al. [2] found this lineage but did not describe it as belonging to C. langi, probably because the small size of the Chaetogaster specimens required the extraction of DNA from whole specimens, making it impossible to go back to the morphological study of the lineages.
In addition, Mack et al. [2] did not mention that one of the C. diastrophus lineages they found could belong to Chaetogaster parvus Poitner, 1914, probably because this species is considered by some authors as invalid or a synonym of C. langi [10,36] despite the mention of its presence in France [37] and Switzerland and the fact that it can be easily differentiated from C. langi or C. diastrophus by the form of the crotchets [37,38]. Finally, Mack et al. [2] discussed the possibility that one of the two MOTUs of C. diaphanus could be confined to North America (sp. 3) and the other to Europe (sp. 4). But in the present study, the MOTU (MOTU7)—supposed to be present only in North America—was abundant in one stream, which suggests that it is also well represented in Europe.
In terms of diversity, we observed a large number of Chaetogaster lineages in/at a low number of streams and sites. These results suggest that we only collected the part of the Chaetogaster lineages present in Switzerland and that a larger number of Chaetogaster species could be found in this small territory. The phylogenetic and morphological analyses suggest that the lineages Chaetogaster sp. MOTUs 1–2 could correspond to a new morphological group (morphospecies). However, this observation should be confirmed based on the morphological analysis of more specimens belonging to these lineages.

4.2. Description of New Chaetogaster Species

It is widely acknowledged that cryptic species within morphospecies are frequent in metazoans and that they should be considered distinct species [39]. It is now accepted that in many cases, speciation in metazoans can occur without any (visible) morphological modifications [40]. However, there is still no consensus on the criteria required to assign the status of nominal species to morphologically indistinguishable lineages. Many taxonomists agree that taxonomic descriptions should be integrative, i.e., consider all available data in the literature (morphology, molecular sequences, behavior, ecology, reproductive isolation, etc.) to establish if the different lineages within the same morphospecies are distinct species [40,41]. The taxonomists should, however, select some characteristics that could be pertinent to distinguish cryptic species in a particular group [42,43]. For example, behavioral and reproductive isolation experiments could be conducted on terrestrial oligochaetes, such as lumbricids [44,45,46]. However, these experiments are not feasible for rare aquatic oligochaete species, which are difficult or nearly impossible to isolate and cultivate. Such experiments, for example, could not be performed on cryptic species of Chaetogaster. Indeed, to attribute a lineage to a specimen of this genus, it is necessary to collect at least half of its body for genetic analyses, and Chaetogaster specimens do not have the property to regenerate their posterior segments. Given the current state of scientific knowledge and technological capabilities, it is probable that for the most cryptic metazoan species (e.g., worms, insects, etc.) on Earth, only DNA sequences could be used as a tool for distinguishing them. Molecular analyses that have proven to be effective for the identification of species in many invertebrate groups, including annelids (e.g., [47,48,49]) could be sufficient tools to delimit and describe species.
The fact that cryptic species remain almost always considered MOTUs, OTUs, or putative species and named differently in the different studies leads to a denial of their existence as real species and, consequently, their absence from species inventories and conservation programs [42]. Once their validity is established (based on DNA data and if possible other observations), these cryptic species should consequently be described as nominal species and considered by the scientific community as an integrant part of biodiversity [31,49]. There are no official requirements of the ICZN that the description of species should be based only on morphological grounds [42].
We agree with Zamani et al. [50] and Martinsson and Erséus [49] that the description of species using only DNA data should be avoided and that it should be accompanied by morphological observations. We preserved a voucher for most sequenced specimens and tried to find distinctive characters between the lineages of the same morphospecies and specific features of the lineages identified as Chaetogaster spp.
Currently, the newly described species of Chaetogaster could be recognized only using genetic analyses as we could not find any morphological characters, such as the specimen size and the form of prostomium and crotchets specific to each of them. We cannot expect in the short and medium term to characterize each one using the morphology of their reproductive organs as sexually mature Chaetogaster specimens are very rarely found. In addition, it is necessary to cut specimens in two to sequence them, so the segments bearing the genital features can be removed or damaged. Therefore, only an examination of live sexually mature specimens and photo acquisitions before sequencing could allow us to differentiate and describe them based on these characters. This procedure would not allow us to preserve a voucher containing the distinctive morphological features, and of course, it is not evident at all that the species of the same morphospecies would show observable differences in the genital apparatus.
The nominal species C. diastrophus [51] could potentially correspond to one of the three described lineages of this morphospecies. But its type has probably been lost or cannot be sequenced. In the 19th century, specimens were generally fixed using low-pH formalin and preserved in this medium or in 70% ethanol. In addition, the type could be preserved mounted on a slide in a conservative medium, which could also hamper subsequent genetic analyses. When type material is lost or cannot be used for genetic analyses, assigning a genetic lineage to a nominal species still remains possible as long as new biological material is collected as close as possible to the original type locality [49]. Neotypes can, thus, be designated in compliance with the conditions required by the International Code of Zoological Nomenclature (Art. 75.3), in particular the provision of Article 75.3.6 relating to the original type locality, and genetically characterized. Sampling C. diastrophus at the type locality would not definitively determine the lineage of the type specimen as multiple lineages corresponding to this morphospecies may coexist at the same locality. For example, in the present study, the three lineages of C. diastrophus were present at site 9 in the Suze River.
As the C. diastrophus specimens of the present study were certainly not sampled at or close to the type locality (which is not mentioned in Gruithuisen [51]), we described each lineage corresponding to this morphospecies as a new species for science. If, in the future, it could be demonstrated that one of these new lineages corresponded to the nominal species, it would be possible to consider the new lineage as a synonym to the nominal species. The nominal species C. diastrophus should currently be considered species inquirendae. We recommend that any future studies based solely on a morphological approach should refer to it as species “sensu lato”.
As it has not been demonstrated that the nominal species C. diaphanus, C. setosus, and C. langi contained cryptic species, the lineages obtained in the present study for each of these species can be considered as belonging to the nominal species. If, in the future, cryptic species were detected within these species, we would recommend describing the cryptic lineages as new species for science and considering the nominal species as species inquirendae. The new lineage MOTU8 could not be described as a new species for science as we could not preserve any voucher for this lineage. Even if the phylogenetic analyses suggest that it is an additional cryptic species of C. diastrophus, it may belong to the species C. limnaei or C. parvus.

5. Conclusions

Here, we reported nine Chaetogaster lineages based on specimens collected at a few sites in a small territory and we were able to genetically characterize the species of Chaetogaster langi and Chaetogaster setosus. We described five new Chaetogaster species, among them three within the nominal species Chaetogaster diastrophus and two Chaetogaster spp., which could possibly belong to a new morphological group. A large number of cryptic species of aquatic oligochaetes have been reported so far but are still not considered an integrant part of biodiversity as none was described as a new species for science. Several cryptic species (lineages) were reported, for example, within Limnodrilus hoffmeisteri [31], Globulidrilus riparius [52], Nais communis [53], and Haplotaxis gordioides [54]. We believe that these new Chaetogaster species validated based on mitochondrial and nuclear data should be fully considered as individual species by the scientific community, especially because it cannot be expected to characterize each of them using morphological features. The genus Chaetogaster represents an excellent candidate for initiating descriptions of cryptic species within aquatic oligochaetes. The prospects of the present work are to complete the data of the molecular diversity of this genus in Switzerland and to describe, on a molecular/morphological basis, the future new Chaetogaster cryptic species that we will probably find. Special effort will be made to barcode C. parvus to confirm its existence as a separate species.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology13090693/s1, Table S1: Details of each Chaetogaster specimen: sampling, morphological identification, GenBank accession numbers (COI, ITS2 and 28S), and specimen voucher reference (Place of deposit: Muséum cantonal des sciences naturelles of Lausanne). Table S2: Mean genetic variations (p-distances) between the MOTUs of the present study (M01–M10) and the lineages found by Mack et al. (2023) (Sp01–Sp24). Figure S1: Molecular phylogeny constructed using the maximum likelihood method and 28S gene fragment of Chaetogaster specimens. Partitions at the right side of the figure represent the results of the species delimitation analyses with single-locus methods (ASAP, mPTP). For comparison purposes, the MOTU numbers correspond to those used for the MOTUs identified from the COI. Numbers at nodes are ultrafast bootstrap values (BV). Nodes were considered supported if BVs were higher or equal to 90 [19]. For the sake of clarity, BVs are not shown within delimited MOTUs. File S1: Aligned COI sequences of Chaetogaster obtained in the present study. File S2: Aligned ITS2 sequences of Chaetogaster obtained in the present study. File S3: Aligned 28S sequences of Chaetogaster obtained in the present study.

Author Contributions

Conceptualization: R.V., M.L., C.I., B.J.D.F. and P.M.; methodology: R.V. and P.M.; choice of sites and sampling: R.V. and B.J.D.F.; investigation: R.V., M.L., C.I. and P.M.; formal analysis: R.V. and P.M.; preparation of figures and tables: R.V. and P.M.; writing—original draft preparation: R.V. and P.M.; writing—review and editing: R.V., B.J.D.F. and P.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no specific external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The COI, ITS2, and 28S sequences are provided as Supplemental Files S1–S3 and are accessible in GenBank: COI: PP996388-PP996521, PQ198874; ITS2: PQ013378-PQ013490; 28S: PQ013491-PQ013557. The anterior parts of all specimens (vouchers), except isolates Glatt6, Nos 29, 30, 37, 38, 155, 204, 205, are deposited in the “Muséum cantonal des sciences naturelles” of Lausanne (Table S1).

Acknowledgments

We are grateful to Emmanuelle Rohrbach and Alessandro Scapuso for their help with PCR amplifications and sequencing.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Timm, T.; Martin, P.J. Chapter 21—Clitellata: Oligochaeta. In Thorp and Covich’s Freshwater Invertebrates, 4th ed.; Thorp, J.H., Rogers, D.C., Eds.; Academic Press: Boston, MA, USA, 2015; pp. 529–549. [Google Scholar]
  2. Mack, J.M.; Klinth, M.; Martinsson, S.; Lu, R.; Stormer, H.; Hanington, P.; Proctor, H.C.; Erséus, C.; Bely, A.E. Cryptic carnivores: Intercontinental sampling reveals extensive novel diversity in a genus of freshwater annelids. Mol. Phylogenet. Evol. 2023, 182, 107748. [Google Scholar] [CrossRef] [PubMed]
  3. Vivien, R.; Lafont, M.; Werner, I.; Laluc, M.; Ferrari, B.J.D. Assessment of the effects of wastewater treatment plant effluents on receiving streams using oligochaete communities of the porous matrix. Knowl. Manag. Aquat. Ec. 2019, 420, 18. [Google Scholar] [CrossRef]
  4. Lafont, M.; Jézéquel, C.; Vivier, A.; Breil, P.; Schmitt, L.; Bernoud, S. Refinement of biomonitoring of urban watercourses by combining descriptive and ecohydrological approaches. Ecohydrol. Hydrobiol. 2010, 10, 3–11. [Google Scholar] [CrossRef]
  5. Martin, P.; Reynolds, J.; van Haaren, T. World List of Marine Oligochaeta. Chaetogaster von Baer, 1827. World Register of Marine Species. 2024. Available online: https://www.marinespecies.org/aphia.php?p=taxdetails&id=137356 (accessed on 17 May 2024).
  6. Vivien, R.; Lafont, M. Note faunistique sur les oligochètes aquatiques de la région genevoise et de Suisse. Rev. Suisse Zool. 2015, 122, 207–212. [Google Scholar]
  7. Vivien, R.; Ferrari, B.J.D. Assessment of the Biological Quality and Functioning of the Suze River Upstream and Downstream of the Wastewater Treatment Plant in Villeret (Canton of Bern) Using Oligochaete Communities in the Porous Matrix; Centre Ecotox; Eawag-EPFL: Lausanne, Switzerland, 2023. [Google Scholar]
  8. Vivien, R.; Werner, I.; Ferrari, B.J.D. Simultaneous preservation of the DNA quality, the community composition and the density of aquatic oligochaetes for the development of genetically based biological indices. PeerJ 2018, 6, e6050. [Google Scholar]
  9. Reymond, O. Préparations microscopiques permanentes d’oligochètes: Une méthode simple. Bull. Soc. Vaud. Sci. Nat. 1994, 83, 1–3. [Google Scholar]
  10. Tkach, V.; Pawlowski, J. A new method of DNA extraction from the ethanol-fixed parasitic worms. Acta Parasitol. 1999, 44, 147–148. [Google Scholar]
  11. Folmer, O.; Black, M.; Hoeh, W.; Lutz, R.; Vrigenhoek, R. DNA primers for amplification of mitochondrial cytochrome c oxidase subunit I from diverse metazoan invertebrates. Mol. Mar. Biol. Biotechnol. 1994, 3, 294–299. [Google Scholar]
  12. Leray, M.; Yang, J.Y.; Meyer, C.P.; Mills, S.C.; Agudelo, N.; Ranwez, V.; Boehm, J.T.; Machida, R.J. A new versatile primer set targeting a short fragment of the mitochondrial COI region for metabarcoding metazoan diversity—Application for characterizing coral reef fish gut contents. Front. Zool. 2013, 10, 34. [Google Scholar] [CrossRef]
  13. Navajas, M.; Lagnel, J.; Gutierrez, J.; Boursot, P. Species wide homogeneity of nuclear ribosomal ITS2 sequences in the spider mite Tetranychus urticae contrasts with extensive mitochondrial COI polymorphism. Heredity 1998, 80, 742–752. [Google Scholar] [CrossRef] [PubMed]
  14. Jamieson, B.G.; Tillier, S.; Tillier, A.; Justine, J.L.; Ling, E.; James, S.; McDonald, K.; Hugall, A.F. Phylogeny of the Megascolecidae and Crassiclitellata (Annelida, Oligochaeta): Combined versus partitioned analysis using nuclear (28S) and mitochondrial (12S, 16S) rDNA. Zoosystema 2002, 24, 707–734. [Google Scholar]
  15. Edgar, R.C. MUSCLE: A multiple sequence alignment method with reduced time and space complexity. BMC Bioinform. 2004, 5, 113. [Google Scholar] [CrossRef]
  16. Gouy, M.; Guindon, S.; Gascuel, O. SeaView version 4: A multiplatform graphical user interface for sequence alignment and phylogenetic tree building. Mol. Biol. Evol. 2010, 27, 221–224. [Google Scholar] [CrossRef] [PubMed]
  17. Kalyaanamoorthy, S.; Minh, B.Q.; Wong TK, F.; von Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef]
  18. Nguyen, L.T.; Schmidt, H.A.; von Haeseler, A.; Minh, B.Q. IQ-TREE: A fast and effective stochastic algorithm for estimating maximum-likelihood phylogenies. Mol. Biol. Evol. 2015, 32, 268–274. [Google Scholar]
  19. Hoang, D.T.; Chernomor, O.; von Haeseler, A.; Minh, B.Q.; Vinh, L.S. UFBoot2: Improving the ultrafast bootstrap approximation. Mol. Biol. Evol. 2018, 35, 518–522. [Google Scholar] [PubMed]
  20. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
  21. Puillandre, N.; Brouillet, S.; Achaz, G. ASAP: Assemble species by automatic partitioning. Mol. Ecol. Resour. 2021, 21, 609–620. [Google Scholar] [CrossRef]
  22. Zhang, J.; Kapli, P.; Pavlidis, P.; Stamatakis, A. A general species delimitation method with applications to phylogenetic placements. Bioinformatics 2013, 29, 2869–2876. [Google Scholar] [CrossRef]
  23. Pons, J.; Barraclough, T.G.; Gomez-Zurita, J.; Cardoso, A.; Duran, D.P.; Hazell, S.; Kamoun, S.; Sumlin, W.D.; Vogler, A.P. Sequence-based species delimitation for the DNA taxonomy of undescribed insects. Syst. Biol. 2006, 55, 595–609. [Google Scholar]
  24. Dellicour, S.; Flot, J.-F. The hitchhiker’s guide to single-locus species delimitation. Mol. Ecol. Resour. 2018, 18, 1234–1246. [Google Scholar] [CrossRef]
  25. Luo, A.; Ling, C.; Ho, S.Y.W.; Zhu, C.D. Comparison of methods for molecular species delimitation across a range of speciation scenarios. Syst. Biol. 2018, 67, 830–846. [Google Scholar] [PubMed]
  26. Goulpeau, A.; Penel, B.; Maggia, M.-E.; Marchán, D.F.; Steinke, D.; Hedde, M.; Decaëns, T. OTU delimitation with earthworm DNA barcodes: A comparison of methods. Diversity 2022, 14, 866. [Google Scholar] [CrossRef]
  27. Phillips, J.D.; Gillis, D.J.; Hanner, R.H. Lack of statistical rigor in DNA barcoding likely invalidates the presence of a true species’ barcode gap. Front. Ecol. Evol. 2022, 10, 859099. [Google Scholar] [CrossRef]
  28. Kapli, P.; Lutteropp, S.; Zhang, J.; Kobert, K.; Pavlidis, P.; Stamatakis, A.; Flouri, T. Multi-rate Poisson tree processes for single-locus species delimitation under maximum likelihood and Markov chain Monte Carlo. Bioinformatics 2017, 33, 1630–1638. [Google Scholar] [PubMed]
  29. Timm, T. A guide to the freshwater Oligochaeta and Polychaeta of Northern and Central Europe. Lauterbornia 2009, 66, 1–235. [Google Scholar]
  30. Schmelz, R.M.; Rüdiger, M.; Beylich, A.; Boros, G.; Dózsa-Farkas, K.; Graefe, U. How to deal with cryptic species in Enchytraeidae, with recommendations on taxonomical descriptions. Opusc. Zool. 2017, 48, 45–51. [Google Scholar] [CrossRef]
  31. Liu, Y.; Fend, S.V.; Martinsson, S.; Erséus, C. Extensive cryptic diversity in the cosmopolitan sludge worm Limnodrilus hoffmeisteri (Clitellata, Naididae). Org. Divers. Evol. 2017, 17, 477–495. [Google Scholar] [CrossRef]
  32. Dong, X.; Zhang, H.; Zhu, X.; Wang, K.; Xue, H.; Ye, Z.; Zheng, C.; Bu, W. Mitochondrial introgression and mito-nuclear discordance obscured the closely related species boundaries in Cletus Stål from China (Heteroptera: Coreidae). Mol. Phylogenet. Evol. 2023, 184, 107802. [Google Scholar]
  33. Toews, D.P.L.; Brelsford, A. The biogeography of mitochondrial and nuclear discordance in animals. Mol. Ecol. 2012, 21, 3907–3930. [Google Scholar] [CrossRef]
  34. Galtier, N. An approximate likelihood method reveals ancient gene flow between human, chimpanzee and gorilla. Peer Community J. 2024, 4, e3. [Google Scholar]
  35. de Queiroz, K. Species concepts and species delimitation. Syst. Biol. 2007, 56, 879–886. [Google Scholar] [PubMed]
  36. Sperber, C. A taxonomical study of the Naididae. Zool. Bidr. Upps. 1950, 29, 45–81. [Google Scholar]
  37. Lafont, M. Redescription de Chaetogaster parvus Poitner, 1914 (Oligochaeta, Naididae) avec quelques remarques sur la validité de cette espèce et sa répartition dans les eaux douces françaises. Ann. Limnol. 1981, 17, 211–217. [Google Scholar] [CrossRef]
  38. Juget, J. Quelques données Nouvelles sur les oligochètes du Léman: Composition et origine du peuplement. Ann. Limnol. 1967, 3, 217–229. [Google Scholar] [CrossRef]
  39. Bickford, D.; Lohman, D.J.; Sodhi, N.S.; Ng, P.K.; Meier, R.; Winker, K.; Ingram, K.K.; Das, I. Cryptic species as a window on diversity and conservation. Trends Ecol. Evol. 2007, 22, 148–155. [Google Scholar] [CrossRef] [PubMed]
  40. Dayrat, B. Towards integrative taxonomy. Biol. J. Linn. Soc. 2005, 85, 407–415. [Google Scholar] [CrossRef]
  41. Padial, J.M.; Miralles, A.; De la Riva, I.; Vences, M. The integrative future of taxonomy. Front. Zool. 2010, 7, 16. [Google Scholar] [CrossRef]
  42. Jörger, K.M.; Schrödl, M. How to describe a cryptic species? Practical challenges of molecular taxonomy. Front. Zool. 2013, 10, 59. [Google Scholar] [CrossRef]
  43. Marchán, D.F.; Díaz Cosín, D.J.; Novo, M. Why are we blind to cryptic species? Lessons from the eyeless. Eur. J. Soil Biol. 2018, 86, 49–51. [Google Scholar] [CrossRef]
  44. Jones, G.L.; Wills, A.; Morgan, A.J.; Thomas, R.J.; Kille, P.; Novo, M. The worm has turned: Behavioural drivers of reproductive isolation between cryptic lineages. Soil Biol. Biochem. 2016, 98, 11–17. [Google Scholar] [CrossRef]
  45. Dupont, L.; Audusseau, H.; Porco, D.; Butt, K.R. Mitonuclear discordance and patterns of reproductive isolation in a complex of simultaneously hermaphroditic species, the Allolobophora chlorotica case study. J. Evol. Biol. 2022, 35, 831–843. [Google Scholar] [CrossRef] [PubMed]
  46. Lowe, C.N.; Butt, K.R. Culture techniques for soil dwelling earthworms: A review. Pedobiologia 2005, 49, 401–413. [Google Scholar]
  47. Knutson, V.L.; Gosliner, T.M. The first phylogenetic and species delimitation study of the nudibranch genus Gymnodoris reveals high species diversity (Gastropoda: Nudibranchia). Mol. Phylogenet. Evol. 2022, 171, 107470. [Google Scholar] [CrossRef]
  48. Lawley, J.W.; Gamero-Mora, E.; Maronna, M.M.; Chiaverano, L.M.; Stampar, S.N.; Hopcroft, R.R.; Collins, A.G.; Morandini, A.C. The importance of molecular characters when morphological variability hinders diagnosability: Systematics of the moon jellyfish genus Aurelia (Cnidaria: Scyphozoa). PeerJ 2021, 9, e11954. [Google Scholar]
  49. Martinsson, S.; Erséus, C. Cryptic Clitellata: Molecular species delimitation of clitellate worms (Annelida): An overview. Diversity 2021, 13, 36. [Google Scholar] [CrossRef]
  50. Zamani, A.; Faltynek Fric, Z.; Gante, H.F.; Hopkins, T.; Orfinger, A.B.; Scherz, M.D.; Suchacko Bartonova, A.; Dal Pos, D. DNA barcodes on their own are not enough to describe a species. Syst. Entomol. 2022, 47, 385–389. [Google Scholar] [CrossRef]
  51. Gruithuisen, F.V.P. Über die Nais diaphana und Nais diastropha mit dem Nerven-und Blutsystem derselben. Nova Acta Phys.-Medica Acad. Caesareae Leopold.-Carol. Naturae Curiosorum 1828, 14, 407–420 + Plate I. [Google Scholar]
  52. Martinsson, S.; Erséus, C. Cryptic diversity in supposedly species-poor genera of Enchytraeidae (Annelida: Clitellata). Zool. J. Linn. Soc. 2018, 183, 749–762. [Google Scholar]
  53. Envall, I.; Gustavsson, L.M.; Erséus, C. Genetic and chaetal variation in Nais worms (Annelida, Clitellata, Naididae). Zool. J. Linn. Soc. 2012, 165, 495–520. [Google Scholar] [CrossRef]
  54. Martin, P.; Knüsel, M.; Alther, R.; Altermatt, F.; Ferrari, B.; Vivien, R. Haplotaxis gordioides (Hartmann in Oken, 1819) (Annelida, Clitellata) as a sub-cosmopolitan species: A commonly held view challenged by DNA barcoding. Zoosymposia 2023, 23, 78–93. [Google Scholar]
Biology 13 00693 g001
Figure 1. Molecular phylogeny constructed using the maximum likelihood method and COI gene fragment of Chaetogaster specimens. Partitions at the right side of the figure represent the results of the species delimitation analyses with single-locus methods (ASAP, mPTP). Numbers at nodes are ultrafast bootstrap values (BV). Nodes were considered supported if BVs were higher or equal to 90 [19]. For the sake of clarity, BVs are not shown within delimited MOTUs.
Figure 1. Molecular phylogeny constructed using the maximum likelihood method and COI gene fragment of Chaetogaster specimens. Partitions at the right side of the figure represent the results of the species delimitation analyses with single-locus methods (ASAP, mPTP). Numbers at nodes are ultrafast bootstrap values (BV). Nodes were considered supported if BVs were higher or equal to 90 [19]. For the sake of clarity, BVs are not shown within delimited MOTUs.
Biology 13 00693 g001
Biology 13 00693 g002
Figure 2. Molecular phylogeny constructed using the maximum likelihood method and ITS2 gene fragment of Chaetogaster specimens. Partitions at the right side of the figure represent the results of the species delimitation analyses with single-locus methods (ASAP, mPTP). For comparison purposes, the MOTU numbers correspond to those used for the MOTUs identified from the COI. Numbers at nodes are ultrafast bootstrap values (BV). Nodes were considered supported if BVs were higher or equal to 90 [19]. For the sake of clarity, BVs are not shown within delimited MOTUs.
Figure 2. Molecular phylogeny constructed using the maximum likelihood method and ITS2 gene fragment of Chaetogaster specimens. Partitions at the right side of the figure represent the results of the species delimitation analyses with single-locus methods (ASAP, mPTP). For comparison purposes, the MOTU numbers correspond to those used for the MOTUs identified from the COI. Numbers at nodes are ultrafast bootstrap values (BV). Nodes were considered supported if BVs were higher or equal to 90 [19]. For the sake of clarity, BVs are not shown within delimited MOTUs.
Biology 13 00693 g002
Biology 13 00693 g003
Figure 3. Drawings of anterior parts of C. langi (A–D) and C. diastrophus (E–H) showing an absence or a vestigial state of the prostomium in C. langi and a well-developed prostomium in C. diastrophus ((A) = isolate No 150, (B) = isolate No 13, (C) = isolate No 87, (D) = isolate No 25, (E) = isolate No 85, (F) = isolate No 156, (G) = isolate No 164, and (H) = isolate No 23); lateral view in (A,B,E,F), ventral view in (C,D,G,H); the black arrows show the buccal cavity of the specimens; the blue arrows show the prostomium of the specimens or where it would be if it was present.
Figure 3. Drawings of anterior parts of C. langi (A–D) and C. diastrophus (E–H) showing an absence or a vestigial state of the prostomium in C. langi and a well-developed prostomium in C. diastrophus ((A) = isolate No 150, (B) = isolate No 13, (C) = isolate No 87, (D) = isolate No 25, (E) = isolate No 85, (F) = isolate No 156, (G) = isolate No 164, and (H) = isolate No 23); lateral view in (A,B,E,F), ventral view in (C,D,G,H); the black arrows show the buccal cavity of the specimens; the blue arrows show the prostomium of the specimens or where it would be if it was present.
Biology 13 00693 g003
Table 1. Percentages of maximal intra-MOTU and minimal inter-MOTU variations (p-distances) in COI and ITS2 of each MOTU of Chaetogaster found in the present study, with an indication of the correspondence of each MOTU to the species (=lineages) described by Mack et al. [2].
Table 1. Percentages of maximal intra-MOTU and minimal inter-MOTU variations (p-distances) in COI and ITS2 of each MOTU of Chaetogaster found in the present study, with an indication of the correspondence of each MOTU to the species (=lineages) described by Mack et al. [2].
No of Species Found by [2]Maximal Intra-MOTU Variation (%) in COIMinimal Inter-MOTU Variation (%) in COIMaximal Intra-MOTU Variation (%) in ITS2Minimal Inter-MOTU Variation (%) in ITS2
C. diaphanus MOTU6“C. diaphanus” sp. 42.129.574.977.46
C. diaphanus MOTU7“C. diaphanus” sp. 30.059.57
C. diastrophus MOTU10“C. diastrophus” sp. 113.8711.454.489.60
C. diastrophus MOTU3“C. diastrophus” sp. 82.7414.356.217.46
C. diastrophus MOTU9“C. diastrophus” sp. 122.8911.455.5811.59
C. langi MOTU5“C. diastrophus” sp. 190.9113.675.6810.34
C. setosus MOTU4 0.0012.612.7312.50
Chaetogaster sp. MOTU1 NC14.89NC13.86
Chaetogaster sp. MOTU2“C. diastrophus” sp. 1012.002.7812.29
Chaetogaster sp. MOTU8“C. diastrophus” sp. 18NC11.89NC9.84
NC = not calculable.
Table 2. For each lineage, indication of the new species name (when applicable) and information on geographical coordinates, preservation of material (DNA and voucher); the habitat is the same for all specimens, surface coarse sediments in streams.
Table 2. For each lineage, indication of the new species name (when applicable) and information on geographical coordinates, preservation of material (DNA and voucher); the habitat is the same for all specimens, surface coarse sediments in streams.
Morphospecies/GroupNew Species NameGeographical CoordinatesMaterial Preservation
Chaetogaster diaphanus MOTUs 6–7 Isolates Sor6-9: 46.522661° N, 6.573581° E;
Isolate G4: 47.419157° N, 9.195899° E;
Isolates CDP1-5, No 201–207, 209–211, 219, No 183–187, 189–194: 47.305217° N, 8.327193° E		DNA voucher of the 32 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of 30 specimens (all except No 204 and 205) preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster diastrophus MOTU10Chaetogaster communis sp. nov. Vivien, Lafont & MartinIsolates No 1, 2, 10, 21: 47.419157° N, 9.195899° E;
Isolates No 23, 24, 28, 30, 32, 35, 47, 67, 76, 85: 47.414825° N, 9.198461° E;
Isolates No 88, 97, 100, 110, 131, 139, 148, 151, 156, 162, 163, 164: 47.152502° N, 7.014924° E;
Isolates No 220–230: 47.43167° N, 9.17485° E 		Holotype and paratypes: DNA voucher of the 36 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of 35 specimens (all except No. 30) preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster diastrophus MOTU3Chaetogaster fluvii sp. nov. Vivien, Lafont & MartinIsolates CDS1, CDS2, No 195, 196, 197, 198, 199, 200, 212, 213, 214, 215, 216: 47.305217° N, 8.327193° E;
Isolate No 98: 47.152502° N, 7.014924° E		Holotype and paratypes: DNA voucher of the 14 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of the 14 specimens preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster diastrophus MOTU9Chaetogaster fluminis sp. nov. Vivien, Lafont & MartinIsolates No 5: 47.419157° N, 9.195899° E;
Isolates No 34, 86: 47.414825° N, 9.198461° E;
Isolate No 101: 47.152502° N, 7.014924° E
Isolates No 127, 128, 129, 130 46.522661° N, 6.573581° E;
Isolates No 141, 155, 157, 159, 160: 47.152502° N, 7.014924° E		Holotype and paratypes: DNA voucher of the 13 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of 12 specimens (all except No 155) preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster sp. MOTU1Chaetogaster suzensis sp. nov. Vivien, Lafont & MartinIsolate No 113: 47.152502° N, 7.014924° EHolotype: DNA voucher of the specimen stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of the specimen (mounted on a slide) preserved in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster sp. MOTU2Chaetogaster sorgensis sp. nov. Vivien, Lafont & MartinIsolate No 134: 46.522661° N, 6.573581° E;
Isolate No 165: 47.152502° N, 7.014924° E		Holotype and paratype: DNA voucher of the 2 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of the 2 specimens preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster sp. MOTU8 Isolate Glatt6: 47.43167° N, 9.17485° EDNA voucher of the specimen (Glatt 6) stored in buffer at −20 °C at the Ecotox Center in Lausanne.
Chaetogaster langi MOTU5 Isolates No 7, 9, 12, 13: 47.419157° N, 9.195899 ° E;
Isolates No 25, 26, 27, 29, 31, 36–40, 42, 57, 65, 69–71, 78: 47.414825° N, 9.198461° E;
Isolates No 87, 89, 90, 112: 47.152502° N, 7.014924° E;
Isolate No 132: 46.522661° N, 6.573581° E;
Isolates No 140, 142, 149, 150: 47.152502° N, 7.014924° E		DNA voucher of the 30 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of 27 specimens (all except No 29, 37, and 38) preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Chaetogaster setosus MOTU4 Isolates No 99, 111, 138, 147, 161: 47.152502° N, 7.014924 ° EDNA voucher of the 5 specimens stored in buffer at −20 °C at the Ecotox Center in Lausanne; anterior part of the 5 specimens preserved (mounted on slides) in the Muséum cantonal des sciences naturelles of Lausanne.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Vivien, R.; Lafont, M.; Issartel, C.; Ferrari, B.J.D.; Martin, P. The Genus Chaetogaster Baer, 1827 (Annelida, Clitellata) in Switzerland: A First Step toward Cataloguing Its Molecular Diversity and Description of New Species on a DNA Sequence Basis. Biology 2024, 13, 693. https://doi.org/10.3390/biology13090693

AMA Style

Vivien R, Lafont M, Issartel C, Ferrari BJD, Martin P. The Genus Chaetogaster Baer, 1827 (Annelida, Clitellata) in Switzerland: A First Step toward Cataloguing Its Molecular Diversity and Description of New Species on a DNA Sequence Basis. Biology. 2024; 13(9):693. https://doi.org/10.3390/biology13090693

Chicago/Turabian Style

Vivien, Régis, Michel Lafont, Colin Issartel, Benoît J. D. Ferrari, and Patrick Martin. 2024. "The Genus Chaetogaster Baer, 1827 (Annelida, Clitellata) in Switzerland: A First Step toward Cataloguing Its Molecular Diversity and Description of New Species on a DNA Sequence Basis" Biology 13, no. 9: 693. https://doi.org/10.3390/biology13090693

APA Style

Vivien, R., Lafont, M., Issartel, C., Ferrari, B. J. D., & Martin, P. (2024). The Genus Chaetogaster Baer, 1827 (Annelida, Clitellata) in Switzerland: A First Step toward Cataloguing Its Molecular Diversity and Description of New Species on a DNA Sequence Basis. Biology, 13(9), 693. https://doi.org/10.3390/biology13090693

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
