Molecular Phylogeny and Evolution of the Tuerkayana (Decapoda: Brachyura: Gecarcinidae) Genus Based on Whole Mitochondrial Genome Sequences

by
Zhengfei Wang
1,*,†,
Yuqing Zheng
1,†,
Xinyue Zhao
1,
Xinyi Xu
1,2,
Zhiwen Xu
1 and
Chong Cui
1,3
1
Jiangsu Key Laboratory for Bioresources of Saline Soils, Jiangsu Synthetic Innovation Center for Coastal Bio-Agriculture, Jiangsu Provincial Key Laboratory of Coastal Wetland Bioresources and Environmental Protection, School of Wetlands, Yancheng Teachers University, Yancheng 224001, China
2
Ministry of Education Key Laboratory of Contemporary Anthropology, Department of Anthropology and Human Genetics, School of Life Sciences, Fudan University, Shanghai 200000, China
3
College of Life Sciences, Henan Normal University, Xinxiang 453007, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biology 2023, 12(7), 974; https://doi.org/10.3390/biology12070974
Submission received: 14 June 2023 / Revised: 6 July 2023 / Accepted: 6 July 2023 / Published: 8 July 2023
(This article belongs to the Special Issue Advances in Biological Research into Shrimps, Crabs and Lobsters)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

The current classification system of the Brachyura based on complete mitochondrial genomes lacks representative species for many genera and even families. This leads to a confusing and incomplete taxonomy within the Brachyura suborder. The target species in this study belong to Gecarcinidae: Tuerkayana, which is an intriguing genus proposed in recent years but lacks complete mitochondrial genome phylogenetic evidence. In our research, we sequenced the complete mitochondrial genomes of four species and compared with the existing dataset of 202 mitochondrial genomes of crabs. Our analyses provide mitochondrial evidence for Tuerkayana and shedding light on the division of genera within Gecarcinidae. Furthermore, using the dataset of 206 crab mitochondrial genomes to examine selective pressure in individual codons, and the selective pressure in the nad6 gene, suggesting its potential role in the evolutionary history of Gecarcinidae.

Abstract

Tuerkayana is of particular interest because it has been separated, in recent years, from Cardisoma and Discoplax but studies of its taxonomic status, especially from a whole mitochondrial genome perspective, have been lacking. In this study, the mitogenomes of four species (Tuerkayana magnum, Tuerkayana rotundum, Tuerkayana hirtipes, and Tuerkayana celeste) of Tuerkayana are sequenced and contrasted with other species in Brachyura for the first time. The phylogenetic tree of Brachyura, which includes 206 crab species (189 species of Brachyuran and 17 Anomura species) with a complete mitogenome, was constructed to evaluate the phylogenetic position of Tuerkayana and Gecarcinidae within Brachyuran, and explore the monophyly of Gecarcinidae. Furthermore, two single gene trees based on cox1 and 16SrRNA separately within interspecies of Gecarcinidae were reconstructed, providing molecular evidence for Tuerkayana and further clarifying the division of genera in Gecarcinidae. Based on the mitogenome dataset of 206 crabs, the branch-site model was utilized to explore selective pressure in individual codons with CodeML. The strong selective pressure shown in nad6 indicates that it may have played a significant role in the evolution of Gecarcinidae.

1. Introduction

Due to its rapid evolutionary rate, maternal inheritance, small size, conserved gene content, and relatively easy acquisition, the mitochondrial genome (mitogenome) plays a key role in evolutionary studies [1]. The complete mitochondrial sequence contains more biological information than single gene molecular markers and can effectively avoid the interference of nuclear pseudogenes [2]. The mitogenomes within metazoan are generally 14–20 kb in length, comprising two ribosomal RNA genes (12SrRNA and 16SrRNA), 22 transfer RNA genes (tRNAs), 13 protein-coding genes (PCGs), and 1 control region (CR, or D-loop region). Complete mitogenome sequences are usually utilized in phylogenetic research, comparative genomics, population genetics, and molecular evolution [3]. The important information provided by mitogenome data regarding sequences and genomic rearrangements, which are generally complex and diverse, partly reflects the evolution of animals [4].
At present, Gecarcinidae is considered to have 7 genera (Cardisoma, Discoplax, Gecarcinus, Gecarcoidea, Johngarthia, Epigrapsus, and Tuerkayana) and 26 species. The main object of our study, Tuerkayana, is a newly established genus in recent years [5], which includes five species separated from Discoplax (Tuerkayana celeste and Tuerkayana magnum), Cardisoma (Tuerkayana rotundum, Tuerkayana hirtipes), and Tuerkayana latens. However, the taxonomic status of the genus, especially from a whole mitochondrial genome perspective, has been lacking. Mitogenome information in Gecarcinidae is available for only four sequenced species belonging to genera Cardisoma (Cardisoma armatum and Cardisoma carnifex) and Gecarcoidea (Gecarcoidea lalandii and Gecarcoidea natalis), and other genera still lack representative species. This situation, with the phylogeny not yet resolved and requiring further investigation, has caused difficulties in confirming the monophyly of Tuerkayana.
In addition, beyond that, we have taken note of the adaptability that may be manifested by mitochondrial selection pressure. Gecarcinidae crabs, a semi-terrestrial family in the Brachyura group, are generally distributed in coastal burrows, rock crevices, and coastal thickets [6,7]. Adult crabs of Gecarcinidae are generally terrestrial, but they seasonally spawn in seawater, and their larva grows in water prior to maturity [8]. For example, the Christmas Island red crab (Gecarcoidea natalis) migrates yearly to the coast for breeding [9]. On account of the terrestrial characteristics of Gecarcinidae, many studies have been published regarding its morphological structure, reproduction, tolerance level, feeding habit, and other aspects [9,10,11,12,13]. Evidence of periodic transitions from marine to terrestrial environments suggests land crabs could be the result of single adaptive radiation from a marine ancestor which invaded terrestrial habitats [14]. Land crabs may therefore be hypoxic-adapted [15]. Oxygen plays a central role in the mitochondrial respiratory chain during the OXPHOS process, acting as the terminal electron acceptor of the electron transport chain (ETC) and enabling the synthesis of adenosine triphosphate (ATP) [16]. Accompanying inflation and a posterior narrowing of the carapace, the reduction of gill filaments, and the occurrence of branchiostegal lungs [10,17], hypoxia may have imposed important selective constraints on the evolution of the mitogenome in terrestrial crabs.
T. magnum, T. rotundum, T. hirtipes, and T. celeste are distributed in the Indo–West Pacific region and are highly terrestrial, usually settling in the vegetation above shorelines and shallow burrows near freshwater. In this study, the complete mitogenome sequences of four species in Tuerkayana were determined and analyzed for the first time. To ensure the conclusions we reached were reliable, we used a variety of existing complete mitogenomes in this study and compared their molecular features with Tuerkayana. The phylogenetic tree of Brachyuran was reconstructed, based on the sequences of 13 PCGs from 206 species, to analyze the selection pressure of 13 PCGs. The reconstructed phylogenetic tree of Brachyuran enables the division of genera in the family Gecarcinidae to be better understood. The tree was constructed to provide evidence for the establishment of Tuerkayana at the mitochondrial level. In addition, based on the results of the selection pressure analysis, the influence of the terrestrial adaptation of Gecarcinidae in the mitochondrial genes was investigated.

2. Materials and Methods

2.1. Samples and the Extraction of DNA

Two samples of each of the four species (T. magnum, T. rotundum, T. hirtipes, and T. celeste) were purchased from Indonesia. The samples entered China in accordance with the Animal Quarantine Law of the People’s Republic of China and the Animal Quarantine Control Measures. One of the samples was stored as a copy in the freezer at −80 °C. The other was dissected for muscle samples, which were flash-frozen under liquid nitrogen and stored in the freezer at −80 °C in Yancheng Teachers University for extracting the total genomic DNA as per the manufacturer’s instructions of the Aidlab Genomic DNA Extraction Kit (Aidlab Biotech, Beijing, China); 1% agarose gel electrophoresis (0.2 g agarose, 20 mL 1 × TAE, and 2 μL EB) was used to evaluate the quality of the extracted DNA samples, which were stored at −20 °C for further polymerase chain reaction (PCR) if they were of sufficiently high quality.

2.2. PCR Amplification and Sequencing

The conserved sequences were amplified by PCR using the universal primer cox1 and 16SrRNA (Table S2) [4,18]. PCR was undertaken with a 25 μL mixed system (12.5 μL of 2 × F8 PCR MasterMix; 0.5 μL of forward primer and reverse primer, respectively; 1.5 μL DNA template; and 10 μL ddH2O) on a DNA amplification apparatus (ABI9700). The thermocycling profile was operated in 94 °C for 5 min, followed by 34 cycles, 95 °C for 30 s, 53–59 °C for 30 s, 72 °C for 30 s, followed by a 10 min extension at 72 °C. Subsequently, the quantity and the quality were assessed with 1% agarose gel electrophoresis.
The complete mitogenomes were sequenced using next-generation sequencing. T. magnum was sequenced with Shanghai Origingene Bio-pharm Technology Co. Ltd., Shanghai, China (Illumina HisSeq 4000), and the other three species (T. celeste, T. rotundum, and T. hirtipes) were sequenced with majorbio Bio-Pharm Technology Co. Ltd., Shanghai, China (Illumina HisSeq 6000). To ensure consistency between species names and sequences, the assembled mitochondrial genes were identified by checking the cox1 barcode sequence on NCBI with NCBI’s Basic Local Alignment Search Tool (BLAST) search function for nucleotide sequences (BLASTn; available at: https://www.ncbi.nlm.nih.gov/; accessed on 7 November 2021) [19]. BLASTn searches, using putative orthologous sequences from other crab species obtained from NCBI, was used to query the non-redundant nucleotide (nr/nt) sequence database in order to discover annotated putative orthologue genes. Clean data were assembled from scratch without sequencing adapters using NOVOPlasty [20]. To evaluate the single-base accuracy of the assembled mitogenome (assembled mitochondrial genome) with two confirmed sequences, it was contrasted with Sanger sequencing. The complete mitogenome was uploaded to GenBank (accession number ON990061, OQ948153-OQ948155, available at NCBI).

2.3. Sequence Analysis and Gene Annotation

The PCGs were identified using NCBI and MITOS Web Server [20] (http://mitos2.bioinf.unileipzig.de/index.py; accessed on 20 March 2022) to analyze the mitogenome code of invertebrates. Codon usage was assessed with MEGA 7.0 [21] based on PCGs with incomplete stop codons removed. The secondary structures of tRNAs were determined with MITOS Web Server and tRNAscan-SE Web Server (http://lowelab.ucsc.edu/tRNAscan-SE/; accessed on 23 March 2022) [22]. Moreover, MEGA was applied to confirm compositional skews and calculated through the following formulas: AT-skew = (A − T)/(A + T) and GC-skew = (G − C)/(G + C) [23], and calculated genetic distance analysis (p-distance) [24].
The gene maps of the mitogenomes of four species were generated and visualized with Organellar Genome DRAW (https://chlorobox.mpimp-golm.mpg.de/OGDraw.html; accessed on 25 March 2022) [25]. In addition, the RNAfold WebServer (http://rna.tbi.univie.ac.at/; accessed on 2 May 2022) was used to predict secondary structures of rRNA and CR, and the Tandem Repeats Finder server (http://tandem.bu.edu/trf/trf.html; accessed on 10 May 2022) was used to identify tandem repeats of the control region.

2.4. Phylogenetic Analysis and Gene Rearrangement

In conformity with the phylogenetic trees conducted with the 13 PCGs of all crabs downloaded from GenBank, the taxonomic status of Tuerkayana was confirmed. Except for the newly sequenced mitogenomes, the complete mitogenomes of 189 Brachyuran species belonged to 39 families and 17 Anomura species as the outgroup (Table S1) were included. MEGA7.0 [26] was used to align the 13 PCGs of 206 mitogenomes with the default nucleotide and amino acid sequences set in MUSCLE 3.8 [27]. The aligned PCGs were then concatenated into datasets. Before reconstruction, we used DAMBE [28] to detect the nucleotide substitution saturation rate of the aligned PCGs. The phylogenetic tree was reconstructed by the concatenated set of the nucleotide sequence and amino acid sequences, respectively. MtArt + I + G, which was selected by ProtTest, was determined as the best model for analyzing nucleotide sequences [29]. Using Bayesian Inference (BI) and Maximum Likelihood (ML) methods, four phylogenetic trees were constructed with MrBayes v3.2.6 [30] and IQ-TREE [31], respectively. ML bootstrap values (BS) ≥ 75% and Bayesian posterior probabilities (BPP) ≥ 0.95 were considered significant. In the analysis of BI, we made two simultaneous 10,000,000 generation runs to encourage swapping among the Markov chain Monte Carlo (MCMC) chains and sampled trees every 1000 generations. The convergence of sampled parameters and potential autocorrelation (the effective sampling size of all parameters > 200) were investigated by Tracer 1.6 (http://tree.bio.ed.ac.uk/software/tracer; accessed on 5 July 2022), and the average standard deviation of split frequencies was inspected between runs (<0.01). The first 25% of trees were in the burn-in stage. These were removed, and the BPPs could be obtained from the 50% majority rule consensus of the postburn-in trees sampled at stationarity. Subsequently, the final phylogenetic trees were visualized and edited using FigTreev1.4.2.
Two single gene phylogenetic trees (Table S1) were constructed based on the cox1 and 16SrRNA from 11 Gecarcinidae species (including all Discoplax, Tuerkayana, and Cardisoma species) and a Menippidae species (Pseudocarcinus gigas), respectively. Similar to the above phylogenetic trees of Brachyura, the datasets of nucleotide sequences were used to construct the trees using BI and ML.
Regarding gene rearrangement, MITOS [20] and NCBI [32] were used to re-annotate all the different mitogenomes to ensure the accuracy, consistency, and comparability of the studied species. If differences in the mitochondrial genome are found, they are repaired artificially. In order to examine the underlying evolutionary mechanisms, the CREx Web Server was used. The Common Interval Rearrangement Explorer (CREx) [33] was used to flexibly calculate complex rearrangement mechanisms by means of mathematical models. Under normal circumstances, a single transformation was frequently utilized to determine the most economical mechanism from a variety of possibilities.

2.5. Selective Pressure Detection

The alignments and consensus trees were used to perform the analysis of selective pressure. The analyses of selective pressure compared the nonsynonymous/synonymous substitution ratios (ω = dN/dS) [34] based on the phylogeny with the codon-based maximum likelihood (CodeML) method in the PAML4.7 package [35]. A Values of ω < 1, =1, and >1 correspond to purifying selection, neutral evolution, and positive selection, respectively. The improved branch-site model A (test 2) was performed for every gene in each foreground lineage. Additionally, all the positively selected sites in branch-site models were identified by using Bayes Empirical Bayes (BEB) analysis with posterior probabilities of ≥0.80. Likelihood ratio tests (LRTs) were used to evaluate the significance of differences between the two nested models following a Chi-square distribution by calculating twice the log-likelihood (2ΔL) of the difference. The degrees of freedom refer to the difference in the number of free parameters between models.

3. Results

3.1. Mitogenome Organization and Base Composition

The current study sequenced and fully annotated the mitogenome of four species (T. magnum, T. rotundum, T. hirtipes, T. celeste) in Tuerkayana. The mitogenomes in Tuerkayana are 15,556 (T. magnum, T. celeste), 15,559 (T. hirtipes), 15,562 (T. rotundum) base pairs (bp) long. Each species has a standard set of 37 genes, including 13 PCGs, 2 rRNAs, 22 tRNAs, and a control region (CR). The distribution was the typical of Decapoda, with 23 genes distributed on the heavy (+) strand, and 14 genes distributed on the light (−) strand (Figure 1 and Table S3). An amount of 14 overlapping regions existed among the mitochondrial genes of species in Tuerkayana, and these ranged from 1 bp to 25 bp. The number of overlapping bases is the same except for the difference in T. magnum between cox2 and trnK. The longest overlapping region existed between trnL1 and rrnL (Table S3). In addition, a total of 803 (T. hirtipes) and −828 (T. celeste) bp non-coding regions were present in the mitogenomes of Tuerkayana, of which 181 (T. hirtipes) −208 (T. celeste) bp were distributed in 15 intergenic spacers. The other longest non-coding regions, the CRs, were identically situated between rrnS and trnI with high A + T content (76.01–79.56%).
The nucleotide bias, which occurred in high A and T representation, was the general characteristic of metazoan mitogenomes [36]. These characteristics resulted in a subsequent bias in homologous encoded amino acids. The AT contents of mitogenome in Tuerkayana are high (70.23–71.48%), as is typical of species in Brachyuran (Table S3). In Figure S1, the genera of the Gecarcinidae family are represented separately in a three-dimensional Cartesian coordinate system (X-axis represents AT-skew, Y-axis represents GC-skew, and Z-axis represents AT content). The GC-skews were negative, indicating that Cs were more abundant than Gs. AT-skew and GC-skew resulted from the nucleotides being distributed differentially between the two DNA strands, which caused further DNA strand asymmetry [37].

3.2. Protein-Coding Genes and Codon Usage

PCGs (protein-coding genes) in Tuerkayana occupied approximately 71.77–71.82% (11,165 bp, 111,72 bp), including one cytochrome b (cob), two ATP synthase (atp6 and atp8), seven NADH dehydrogenases (nad1-6 and nad4l), and three cytochrome c oxidases (cox1-3). The sizes of the 13 PCGs ranged from 159 bp (atp8) to 1719 bp (nad5) (Table S3). Similar to a typical mitogenome in Brachyura, 9 PCGs were encoded in the heavy strand (cox1-3, cob, atp6, atp8, nad2-3, and nad6), and 4 PCGs were encoded on the light strand (nad1, nad4-5, and nad4l) in every mtDNA of Tuerkayana. The start codon of the 13 PCGs used the typical start codon ATN, embracing ATG, ATA, and ATT. In addition, the stop codon of PCGs also used the representative stop codon TNN, including TAA, TAG, and the incomplete stop codon: T (cox2 in T. magnum and cob). The peculiar incomplete stop codon (T) was possibly completed as TAA through post-transcriptional polyadenylation and would not affect the normal synthesis of amino acids [38].
RSCU (Relative Synonymous Codon Usage) is a reference value to evaluate the frequency of codons encoding the same amino acid. When the RSCU results were higher than 1, this suggested that the codon appears many times and with a high frequency. On the contrary, a value of less than one indicates that the frequency of this codon is low and the number of occurrences is small. As shown in Figure 2, the RSCU of single amino acids of Gecarcinidae were compared, and they were all significantly different, especially Leucine (Leu) and Serine (Ser) in terms of the two patterns in the first codons (Leu: CUN, UUA/UUG; Ser: AGN, UCN). The RSCU ratio of each species varies greatly, as UUA, UCU, CCU, and GCU are used relatively frequently, and the frequency of CUG, CCG, GCG, and UGC was low. According to the results, the RSCU values varied widely, indicating that there is a great bias in the usage frequency of codons. The RSCU of NNU and NNA codons were larger than one, indicating that the codons with the third site of the A and T base were used more frequently. This bias in codon usage is consistent with a strong AT bias in the third site of the codon of the protein-coding gene. In addition, we counted the single amino acid usage count. A frequency of 20 amino acids showed a strong bias. The frequencies of leucine (Leu), isoleucine (Ile), phenylalanine (Phe), and serine (Ser) were high. These amino acids were all composed of T or TA. The frequencies of arginine (Arg), aspartate (Asp), and cysteine (Cys) determined by CG-rich base codons were relatively low. This phenomenon is consistent with the mitochondrial genome showing strong AT bias (Figure 3).

3.3. Transfer RNAs, Ribosomal RNAs, and CR

The mitogenomes of Tuerkayana all included 22 tRNAs, ranging from 62 bp (trnC in T. magnum and T. celeste) to 73 bp (trnV) in size. Eight tRNA genes were distributed on the light strand [trnP, trnQ, trnV, trnC, trnY, trnH, trnL1 (CUN), and trnF], and the other 14 tRNAs were distributed on the other strand (Figure 1 and Table S3), these distributions were consistent with other Gecarcinidae crabs. As shown in Figures S2 and S3, the majority of tRNAs exhibited typical cloverleaf structures. However, the trnS (AGN) lacked the entire dihydrouridine (DHU) arm, which was simplified as a loop. The absence of the DHU arm in the secondary structure of trnS (AGN) is common in the mitogenome of metazoans [39,40]. Previous studies have verified that the lack of the D-arm does not impact the function of tRNA in metazoans. Additionally, many mismatches (G-U, A-C, U-U, C-U) have been found in tRNAs, most of which are G-U pairs. This often occurs in tRNAs of other Crustacea species [41], and these mismatches have been amended in the tRNA modification [42].
Mitogenomes of all species in Gecarcinidae showed that the small coding subunit (12SrRNA) and large coding subunit (16SrRNA) were separated by trnV. In addition, all were located on the light strand, which is also a characteristic shared by most species of Brachyura. Due to the specific function of rRNAs, their sequences are often conserved, such that the secondary structure and three-dimensional composition are not significantly altered (Figure S4).
The CR typically was heavily A + T biased. Its length was 620 (T. celeste) −622 (T. hirtipes) bp with an A+T content of 76.01% (T. magnum) −78.58% (T. rotundum). The AT-skew and GC-skew in CR were −0.072–0.074 and −0.306–0.315, respectively. On account of in-depth research undertaken in recent years, CR is no longer considered a pure non-coding. However, its specific function remains to be studied. There were many conserved motifs, such as the poly T-stretch, TA(A)n-like stretch, G(A)nT motif, TATA motif, and hairpin loop structures (Figure S5), and these motifs have been identified as initiation sites for replication and transcription [43]. Notably, Tandem Repeats Finder was used to search for tandem repeats, but none were found, which is unusual in crustaceans.

3.4. Phylogenetic Relationships

The paucity of existing mitochondrial genome data constrained the scope of this study. Complete data were only available for the Tuerkayana we sequenced. For other species belonging to the same family, information was limited to cox1 and 16SrRNA sequences available in the database. In order to facilitate a more comprehensive examination of the taxonomic relationships involving Tuerkayana, we reconstructed two single-gene phylogenetic trees (Figure S6 and Table S1) of cox1 and 16SrRNA sequences from 11 different species belonging to the Gecarcinidae family (including species from Discoplax, Tuerkayana, and Cardisoma) and a Menippidae species (Pseudocarcinus gigas). In the two single gene phylogenetic trees, three genera Tuerkayana, Discoplax, and Cardisoma were closely related and appeared to be monophyletic, forming the relationship of (Cardisoma (Discoplax + Tuerkayana)).
In addition, two types of phylogenetic trees (ML and BI tree) were reconstructed with complete mitogenomes in order to further investigate the phylogenetic position of Tuerkayana and Gecarcinidae within Brachyuran. This phylogenetic tree included 189 Brachyuran crabs belonging to 39 families and 17 Anomura species as the outgroup (Table S1). The phylogenetic tree was estimated using the dataset of nucleotide sequences and amino acid sequences of 13 PCGs. In front of the building, the substitution saturation of PCGs was measured by DAMBE (Figure S7), all iss were smaller than iss.c, indicating that PCGs were not saturated and contained accurate phylogenetic information. Through BI and ML methods, most of the same topological structures were produced from nucleotide sequences and amino acid sequences, respectively. Based on the analysis of support values, the BI topologies were used to present both support values, including the bootstrap values for the ML tree (BS) and the posterior probabilities for Bayesian analysis (BPP), to show the results of nucleotide sequences (N-tree) and amino acid sequences (AA-tree) separately (Figure 2 and Figure S8).
The phylogenetic relationships of Tuerkayana can be inferred from its representation in the N-tree as (T. rotundum (T. hirtipes (T. celeste + T. magnum))) and in the AA-tree as ((T. rotundum + T. hirtipes) (T. celeste + T. magnum)). Both of these topologies support the monophyly of Tuerkayana and imply a close evolutionary affinity between T. celeste and T. magnum.
Notably, the N-tree and AA-tree display divergent phylogenetic information. The first and fundamental question is “Is the G family monophyletic?”. The answer to this question depends mainly on the position of the genus Gecarcoidea in the phylogenetic trees (Figure S6). According to the N-tree, the Gecarcoidea and Sesarmidae exhibit a sister group relationship with high BPP and low BS, indicating that Gecarcinidae is partially paraphyletic with respect to Sesarmidae, presenting a ((Tuerkayana + Cardisoma) (Gecarcoidea + Sesarmidae)) topology. Thus, Gecarcinidae appears to be polyphyletic. However, the AA-tree presents a different scenario, as it shows that Gecarcinidae is monophyletic, featuring a (Gecarcoidea (Tuerkayana + Cardisoma)) topology with robust support values for both BS and BPP. To further investigate this issue, a genetic distance analysis (p-distance) was conducted (Figure S9 and Table S4). The results indicate that the p-distance between Gecarcoidea and (Tuerkayana + Cardisoma) is 0.1485–0.1659 (average 0.1587), whereas the p-distance between Gecarcoidea and Sesarmidae is 0.1512–0.1711 (average 0.1602). The p-distance between Gecarcinidae and Sesarmidae was 0.1773. Based solely on genetic distance values, the p-distance between Gecarcoidea and (Tuerkayana + Cardisoma) was slightly smaller than between Gecarcinidae and Sesarmidae, indicating a closer relationship between Gecarcoidea and the genera Tuerkayana and Cardisoma, which supports the current classification status of Gecarcinidae. Nevertheless, further studies combining morphology and biogeography are necessary to validate this conclusion. Additionally, a notable divergence can be observed in the classification of Gecarcinidae within the N-tree and AA-tree (Figure S6). In the N-tree, Gecarcinidae is closely associated with Sesarmidae and Xenograpsidae, which are typically positioned in the Grapsoidea 4. In different forms, the AA-tree exhibits a more intricate configuration, with Gecarcinidae classified as (Gecarcinidae (Camptandriidae (Dotillidae (Dotillidae + Xenophthalmidae)) + Sesarmidae)) rather than associated solely with Sesarmidae. The utilization of the genetic distance analysis reveals that the distance between Gecarcinidae or Sesarmidae and Ocypodoidea 4 is greater than between Gecarcinidae and Sesarmidae, providing evidence to support the closer relationship between Gecarcinidae and Sesarmidae and thus justifying the N-tree topology. Additionally, comparisons made with previous studies lent further credence to this result [44,45]. Third, despite the lack of substantial differences in the overall status of the superfamily, the distribution of individual families within it has resulted in significant variations. Following a thorough comparison with the phylogenetic tree presented in previous studies, we posit that the N-tree represents a more precise depiction of the evolutionary relationships between families. Consequently, we elected to concentrate on the N-tree.
Having been added to the dataset, 33 of the 39 families included in this tree formed a monophyletic clade, and from the other families arose branches. This finding is not consistent with previous research [46,47]. Therefore, it is necessary to increase the mitogenome of species for the research of phylogeny. In addition, Lissocarcinus arkati (Portunidae species) occurred unexpectedly in Xanthidae. Through the analysis and comparison of 13 PCGs, L. arkati was determined as closer to Eriphia species, and we speculated that L. arkati should belong to Eriphia or that there may have been an identification error or a contamination in the original study. Furthermore, at the superfamily level, Ocypodoidea and Grapsoidea were polyphyletic, with Grapsoidea and Ocypodoidea mutually intersecting. Many studies have suggested that Grapsoidea and Ocypodoidea could be polyphyletic and combined into a large taxon [48,49,50]. This conjecture is consistent with our phylogenetic analysis, and the reconstruction of the phylogenetic tree in this study used more location data than in previous studies, enhancing the persuasiveness of this conjecture. At the same time, some taxonomists have proposed that the morphological classification of Ocypodoidea and Grapsoidea is indeed inconsistent with molecular phylogeny, but the creation of these superfamilies was primarily for practical purposes and convenience rather than phylogenetic accuracy [51,52].

3.5. Mitogenome Gene Rearrangement

The mitogenome order of species in Gecarcinidae is presented in Figure S10. This figure shows that all the species in the Gecarcinidae have the same gene order pattern as the ancestors of Brachyura. This is consistent with a previous study regarding the evolution of Brachyura (Crustacea: Decapoda) based on mitochondrial arrangement and gene order rearrangements [4].
The mitogenome arrangements of a Grapsoidea lineage (Sesarmidae and Xenograpsidae) have been researched (Figure S10) and were determined to be located in the same branch as “Grapsoidea 4” (Figure S6). We studied the sequence evolution of genes from three aspects (Figure 4), namely the (A) evolutionary process from the ancestor of Brachyura to Sesarmidae, (B) evolutionary process from the ancestor of Brachyura to Xenograpsus ngatama, and (C) evolutionary process from the ancestor of Brachyura to Xenograpsus testudinatus. The mitogenome gene arrangements of all Gecarcinidae species were the same. It is clear, therefore, that the mitogenome arrangements of Sesarmidae species are identical and differ from the ancestral arrangement of the Brachyura only by the inversion of trnI-trnQ, which has been described in previous studies of Sesarmidae species [53,54].
As a semi-terrestrial family of Grapsoidea, the species of Xenograpsidae usually inhabit the harsh environment of the Epipelagic thermal spring ecosystem [55]. Xenograpsidae contained one genus (Xenograpsus), and three known species are included in this category, two (X. ngatama and X. testudinatus) of which have published complete mitogenomes [56]. In this study, CREx was used to preliminarily predict the putative evolutionary rearrangement mechanisms in X. ngatama and X. testudinatus. The results of this analysis are summarized in Figure 4B. Two tandem duplication-random loss (TDRL) events were inferred from the Brachyura ancestor to X. ngatama. The first TDRL event occurred between trnH and trnS2. Then, trnH-trnF-nad5-nad4-nad4l, trnP, trnT, and nad6-cob-trnS2 were randomly absent. The second TDRL event went from trnA to trnY. Then, six redundant fragments were deleted (trnA-trnR, trnI, trnW, trnN-trnS1-trnE-trnT-nad6-cob-trnS2-trnH-trnF-nad5-nad4-nad4l-trnP-nad1-trnL1-rrnL-trnV-rrnS-CR, trnQ-trnM-nad2, trnC-trnY). Moreover, from Brachyura ancestors to X. testudinatus, a complex genetic rearrangement was determined, which is illustrated in Figure 4C. This genetic rearrangement is more complicated than that of the Brachyura ancestor to X. ngatama, which started with a small-scale TDRL with trnN and trnR transposed and accompanied by trnY reversed. Subsequently, the TDRL event went from trnH to trnS2. Then four redundant fragments were lost (trnH-trnF-nad5-nad4-nad4l, trnP, trnT, nad6-cob-trnS2), with trnA reversed. After two consecutive TDRLs and gene reversals, two large-range TDRLs were experienced again, which changed the position of trnA, trnC, trnY and trnS1, trnI, trnW, respectively. The three families are closely related but have completely different rearrangement mechanisms.

3.6. Selective Pressure in Gecarcinidae

To explore the adaptive evolution of Brachyura in the mitochondrial genes and assess the evolutionary patterns of PCGs, the branch-site model was used to detect selective pressure in individual codons for 206 crabs (Table S1) with CodeML, and the dN/dS(ω) were calculated. The codon nad6 was found under positive selection, where LRTs of the branch-site model A were statistically significant (Table 1). Except for nad6, the ω values of the other 12 PCGs were far lower than one, indicating that the other 12 PCGs had a low evolutionary rate, and nad6 was subjected to strong positive selection (p << 0.05, ω2 >> 1).

4. Discussion

In this study, the complete mitogenome of four species in Tuerkayana was determined and described. Based on the phylogenetic tree constructed from the most complete dataset of mitogenomes in Brachyura to date, the classification within Brachyura was further investigated, stabilizing the phylogenetic positions of Tuerkayana and Gecarcinidae and furthered our understanding. Our four primary conclusions are given below.
First, Tuerkayana is an independent genus. Based on morphological analysis, four species previously assigned to Discoplax (T. celeste and T. magnum) and Cardisoma (T. rotundum and T. hirtipes) were divided into the new genus, Tuerkayana. The specific manifestation is proepistome dome-shaped wide but low, pleonal somite six broad and short, telson short, bluntly tipped, no suborbital ridge, and no stridulatory apparatus [5]. Based on the results of the two single gene phylogenetic trees, it is evident that the three genera (Tuerkayana, Discoplax, and Cardisoma) are closely related and show monophyly of each branch. This consequence is consistent with the results of morphological studies, which support Tuerkayana as an independent genus.
Secondly, the mitogenomes in Gecarcinidae are structurally stable, indicating a common origin or common derivation from adaptation to a similar terrestrial environment. In Gecarcinidae, the mitogenomes have 37 genes. Their size varied from 15,545 (G. natalis) to 15,597 bp (C. carnifex), with a maximum difference of only 52bp [5,57,58]. These lengths are smaller in metazoans, and the genes are compact. The range of A + T content of species in Gecarcinidae is from 68.86% to 75.22%, with an abundance of A and T. As a highly mutated region in the mitogenome, CR is the most prone to gene mutation and length change. While in Gecarcinidae, the CR region is highly conserved, and the size, position (rrnS-CR-trnI), and stem–loop structures of CR did not demonstrate significant variation. Research of the complete mitogenome demonstrates that the gene order in vertebrates is almost fixed, and gene rearrangement rarely occurs [59]. In contrast, in invertebrates, the probabilities of gene rearrangement is significantly higher, and a variety of gene rearrangement models are derived [60]. However, the genetic order of Gecarcinidae is the same as that of the presumed ancestor of Brachyura. As the most derived family within Brachyura, it exhibited no genetic rearrangement, which is relatively rare among invertebrates. All of the above evidence suggests that the mitogenome of Gecarcinidae is structurally stable. We conjecture that this is on account of common origin or derived from adaptations to a similar terrestrial environment.
Third, Gecarcoidea belongs to the monophyletic Gecarcinidae. However, the monophyly of Gecarcinidae remains uncertain due to the inconsistent positions of Gecarcoidea on the N-tree and AA-tree. Although a preliminary analysis based on genetic distance indicates a closer relationship between Gecarcoidea and other species in Gecarcinidae, this inference lacks conclusive evidence. To resolve the taxonomic position of Gecarcinidae, additional evidence from morphology and geographic distribution must be considered. Morphologically, species of Gecarcinidae can be distinguished from other Grapsoidea by the unique characteristics of zoea larvae, antennal and telson morphology, and setation of the second maxilliped endopod [51]. Geographically, members of Gecarcinidae are restricted to tropical island regions (such as Indonesia, the Spratly Islands, the Philippines) and typically inhabit damp crevices, migrating to the sea only during the breeding season. In contrast, Sesarmidae have a much broader distribution, encompassing nearly all coastal regions in tropical and subtropical areas. Given these factors, we tentatively support the monophyly of Gecarcinidae while recognizing that the evidence remains inconclusive. Furthermore, the presence of polyphyly in the N-tree raises the possibility of homology and a close relationship between Gecarcinidae and Sesarmidae.
Fourth, nad6 may play a significant role in the adaptation within Gecarcinidae. According to its terrestrial characteristics, Gecarcinidae would inevitably face selection pressure to adapt to the habitat, so the branch-site has been conducted here. It is remarkable that nad6 was subjected to strong positive selection (p << 0.05, ω2 >> 1); nad6 is an essential part of the NADH dehydrogenase (complex I) whose alteration can have a significant impact on organisms [61]. NADH dehydrogenase is an important enzyme that catalyzes the oxidation of NADH into NAD+. NAD+ maintains redox homeostasis, energy metabolism, DNA repair, gene expression, adaptive stress responses, metabolism, mitochondrial homeostasis, and cellular bioenergetics [62,63,64]. The dynamic NAD+ rewires biological processes with post-synthesis modification of fundamental biomolecules to enable cells the adaption to environmental changes [65]. Given that Gecarcinidae repeatedly transitioned from marine to terrestrial environments and suffered from hypoxia stress, the larger numbers of nonsynonymous substitutions, which accumulated in nad6, indicate its critical effect on the adaptive process. The adaptive evolution of nad6 has been previously reported in the study of mammals (Equus caballus) [66] subjected to a low temperature and hypoxia environment. These results indicate that nad6 was significantly determined by the regulation of hypoxia. In consequence, unusual selection pressures acting at the molecular level for organisms that were subjected to hypoxia stress would be disclosed by comparative analyses of complete mitogenomes in Gecarcinidae. This study lays an important foundation for exploring the process of terrestrial Gecarcinidae and provides new insight into possible molecular adaptation mechanisms in crabs under hypoxia. However, the analyses of molecular evolution that this study provided could be strengthened. Only 1 out of 13 genes was found to indicate a signal of selection that could be random or a species-specific pattern. Future analyses of the biochemical or protein structure are, therefore, needed.

5. Conclusions

The complete mitogenome sequences of four species in Tuerkayana were determined and analyzed for the first time. The most comprehensive phylogenetic tree of Brachyura involving 206 crabs was constructed. The research evaluated the phylogenetic position of Tuerkayana and Gecarcinidae in Brachyuran, further supported the establishment of Tuerkayana and the division of the genus in Gecarcinidae at the mitochondrial level, and investigated the monophyly of Gecarcinidae. The mitochondrial genome structure of Gecarcinidae is stable. The strong selective pressure shown in nad6 suggested that it may play a crucial part in the evolution of Gecarcinidae.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology12070974/s1, Figure S1: The three-dimensional Cartesian coordinate system within Gecarcinidae. X-axis represents AT-skew, Y-axis represents GC-skew, and Z-axis represents AT content. Tuerkayana are represented by circles, Cardisoma by triangles, and Gecarcoidea by squares; Figure S2: Predicted secondary cloverleaf structure for the tRNAs of Tuerkayana magnum; Figure S3: Predicted secondary cloverleaf structure for the tRNAs of Tuerkayana rotunda, Tuerkayana hirtipes, and Tuerkayana celeste; Figure S4: Predicted secondary structure for 16SrRNA and 12SrRNA in Tuerkayana; Figure S5: Predicted secondary structure for CR (control region) in Tuerkayana; Figure S6: Nucleotide substitution saturation analysis of PCGs. X-axis represents F84 distance and Y-axis represents s and v; Figure S7: (A,B): Two single gene phylogenetic trees were inferred from cox1 and 16SrRNA using BI and ML methods, including 11 Gecarcinidae species (including all Discoplax species, Tuerkayana species and Cardisoma species have been sequenced) and a Menippidae species (Pseudocarcinus gigas). Numbers on branches indicate posterior probability (BI) and bootstrap values (ML). (C,D): The configurational difference of trees in nucleotide and amino acid sequences by PCGs, especially the taxonomic status of Gecarcinidae; Figure S8: The phylogenetic tree was inferred from the amino acid sequences of 13 mitogenome PCGs using BI and ML methods; Figure S9: The genetic distance analysis (p-distance) between species in Gecarcinidae and Sesarmidae; Figure S10: The mitogenome genetic sequence of species in Gecarcinidae, Sesarmidae, Xenograpsidae, and the ancestor of Brachyura. All genes are transcribed from left to right. CR represents control region. rrnL and rrnS are the large and small ribosomal RNA subunits, respectively; Table S1: The GenBank accession numbers of 189 Brachyura species and 17 Anomura species in this study; Table S2: Sequences of universal primers; Table S3: Summary of mitochondrial genomes of Tuerkayana magnum, Tuerkayana rotunda, Tuerkayana hirtipe, Tuerkayana celeste; Table S4: Estimates of Evolutionary Divergence.

Author Contributions

Conceptualization, Z.W. and Y.Z.; Data curation, Y.Z., X.Z., X.X. and C.C.; Formal analysis, Y.Z. and X.Z.; Funding acquisition, Z.W.; Investigation, Y.Z.; Methodology, Z.W.; Project administration, Z.W.; Software, Y.Z., X.Z., X.X. and Z.X.; Supervision, Z.W.; Validation, Y.Z., X.Z., X.X., Z.X. and C.C.; Visualization, Y.Z., X.Z., Z.X. and C.C.; Writing—original draft, Z.W. and Y.Z.; Writing—review & editing, Z.W. and Y.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the National Natural Science Foundation of China (grant number 31702014), Doctoral Scientific Research Foundation of Yancheng Teachers University to Z.F.W, and Open Foundation of Jiangsu Key Laboratory for Bioresources of Saline Soils (grant number JKLBS2019006).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support this study are available at NCBI and are provided in Table S1.

Acknowledgments

We thank the editor and anonymous reviewers for their comments that helped improve this work.

Conflicts of Interest

The authors declare there are no competing interest.

References

  1. Broughton, R.E.; Milam, J.E.; Roe, B.A. The Complete Sequence of the Zebrafish (Danio rerio) Mitochondrial Genome and Evolutionary Patterns in Vertebrate Mitochondrial DNA. Genome Res. 2001, 11, 1958–1967. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Ingman, M.; Kaessmann, H.; Pääbo, S.; Gyllensten, U. Mitochondrial genome variation and the origin of modern humans. Nature 2000, 408, 708–713. [Google Scholar] [CrossRef] [PubMed]
  3. Xu, X.; Wang, Q.; Wu, Q.; Xu, J.; Wang, J.; Wang, Z. The entire mitochondrial genome of Macrophthalmus abbreviatus reveals insights into the phylogeny and gene rearrangements of Brachyura. Biochem. Genet. 2021, 59, 617–636. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Q.; Wang, J.; Wu, Q.; Xu, X.; Wang, P.; Wang, Z. Insights into the evolution of Brachyura (Crustacea: Decapoda) from mitochondrial sequences and gene order rearrangements. Int. J. Biol. Macromol. 2021, 170, 717–727. [Google Scholar] [CrossRef]
  5. Guinot, D.; Ng, N.K.; Moreno, P.A.R. Review of grapsoid families for the establishment of a new family for Leptograpsodes Montgomery, 1931, and a new genus of Gecarcinidae H. Milne Edwards, 1837 (Crustacea, Decapoda, Brachyura, Grapsoidea MacLeay, 1838). Zoosystema 2018, 40, 547–604. [Google Scholar] [CrossRef]
  6. Jiménez, C.; Rubio, A.O.; Cárdenas, S.A.; Arnaud, G. Ecological aspects of the land crab Gecarcinus planatus (Decapoda: Gecarcinidae) in Socorro Island, Mexico. Biol. Conserv. 1994, 69, 9–13. [Google Scholar] [CrossRef]
  7. Green, P.T. Burrow Dynamics of the Red Land Crab Gecarcoidea natalis (Brachyura, Gecarcinidae) in Rain Forest on Christmas Island (Indian Ocean). J. Crustac. Biol. 2004, 24, 340–349. [Google Scholar] [CrossRef] [Green Version]
  8. Hartnoll, R.G.; Clark, P.F. A mass recruitment event in the land crab Gecarcinus ruricola (Linnaeus, 1758) (Brachyura: Grapsoidea: Gecarcinidae), and a description of the megalop. Zool. J. Linn. Soc. 2010, 146, 149–164. [Google Scholar] [CrossRef] [Green Version]
  9. Adamczewska, A.M.; Morris, S. Ecology and behavior of Gecarcoidea natalis, the Christmas Island red crab, during the annual breeding migration. Biol. Bull. 2001, 200, 305–320. [Google Scholar] [CrossRef]
  10. Farrelly, C.A.; Greenaway, P. Land crabs with smooth lungs: Grapsidae, Gecarcinidae, and Sundathelphusidae ultrastructure and vasculature. J. Morphol. 1993, 215, 245–260. [Google Scholar] [CrossRef]
  11. Cuesta, J.A.; Anger, K. Larval morphology and salinity tolerance of a land crab from West Africa, Cardisoma armatum (Brachyura: Grapsoidea: Gecarcinidae). J. Crustac. Biol. 2005, 25, 640–654. [Google Scholar] [CrossRef] [Green Version]
  12. Allardyce, B.J.; Linton, S.M. Functional morphology of the gastric mills of carnivorous, omnivorous, and herbivorous land crabs. J. Morphol. 2010, 271, 61–72. [Google Scholar] [CrossRef]
  13. Mendes, R.A.S.; Silva, J.R.F.; Neto, J.S.; Hazin, F.H.V. Reproductive biology of the land crab Cardisoma guanhumi (Decapoda: Gecarcinidae) in north-eastern Brazil. J. Mar. Biol. Assoc. UK 2013, 93, 761–768. [Google Scholar] [CrossRef]
  14. Schubart, C.D.; Diesel, R.; Hedges, S.B. Rapid evolution to terrestrial life in Jamaican crabs. Nature 1998, 393, 363–365. [Google Scholar] [CrossRef]
  15. Watson-Zink, V.M. Making the grade: Physiological adaptations to terrestrial environments in decapod crabs. Arthropod Struct. Dev. 2021, 64, 101089. [Google Scholar] [CrossRef] [PubMed]
  16. López-Barneo, J.; Pardal, R.; Ortega-Sáenz, P. Cellular mechanism of oxygen sensing. Annu. Rev. Physiol. 2001, 63, 259–287. [Google Scholar] [CrossRef]
  17. Farrelly, C.A.; Greenaway, P. Morphology and ultrastructure of the gills of terrestrial crabs (Crustacea, Gecarcinidae and Grapsidae): Adaptations for air-breathing. Zoomorphology 1992, 112, 39–49. [Google Scholar] [CrossRef]
  18. Simon, C.; Buckley, T.R.; Frati, F.; Stewart, J.B.; Beckenbach, A.T. Incorporating Molecular Evolution into Phylogenetic Analysis, and a New Compilation of Conserved Polymerase Chain Reaction Primers for Animal Mitochondrial DNA. Annu. Rev. Ecol. Evol. Syst. 2006, 37, 545–579. [Google Scholar] [CrossRef] [Green Version]
  19. Altschul, S.F.; Madden, T.L.; Schäffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [Green Version]
  20. Bernt, M.; Donath, A.; Jühling, F.; Externbrink, F.; Florentz, C.; Fritzsch, G.; Pütz, J.; Middendorf, M.; Stadler, P.F. MITOS: Improved de novo metazoan mitochondrial genome annotation. Mol. Phylogenet. Evol. 2013, 69, 313–319. [Google Scholar] [CrossRef]
  21. Sudhir, K.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar]
  22. Lowe, T.M.; Chan, P.P. tRNAscan-SE On-line: Integrating search and context for analysis of transfer RNA genes. Nucleic Acids Res. 2016, 44, W54–W57. [Google Scholar] [CrossRef] [PubMed]
  23. Peng, Y.; Zhou, L.; Zhou, X.; Yang, W.; Zhang, J.; Zhang, X.; Wang, Y.; Gui, J. Unusual AT-skew of Sinorhodeus microlepis mitogenome provides new insights into mitogenome features and phylogenetic implications of bitterling fishes. Int. J. Biol. Macromol. 2019, 129, 339–350. [Google Scholar]
  24. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular Evolutionary Genetics Analysis Using Maximum Likelihood, Evolutionary Distance, and Maximum Parsimony Methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Lohse, M.; Drechsel, O.; Bock, R. OrganellarGenomeDRAW (OGDRAW): A tool for the easy generation of high-quality custom graphical maps of plastid and mitochondrial genomes. Curr. Genet. 2007, 52, 267–274. [Google Scholar] [CrossRef] [PubMed]
  26. Sudhir, K.; Glen, S.; Koichiro, T. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar]
  27. Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [Green Version]
  28. Xia, X. DAMBE6: New Tools for Microbial Genomics, Phylogenetics, and Molecular Evolution. J. Hered. 2017, 108, 431–437. [Google Scholar] [CrossRef] [Green Version]
  29. Darriba, D.; Taboada, G.L.; Doallo, R.; Posada, D. ProtTest 3: Fast selection of best-fit models of protein evolution. Bioinformatics 2011, 27, 1164–1165. [Google Scholar] [CrossRef] [Green Version]
  30. Ronquist, F.; Teslenko, M.; Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Larget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian Phylogenetic Inference and Model Choice Across a Large Model Space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [Green Version]
  31. Trifinopoulos, J.; Nguyen, L.; Haeseler, A.; Minh, B.Q. W-IQ-TREE: A fast online phylogenetic tool for maximum likelihood analysis. Nucleic Acids Res. 2016, 44, W232–W235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Wang, W. The Molecular Detection of Corynespora Cassiicola on Cucumber by PCR Assay Using DNAman Software and NCBI. In Proceedings of the International Conference on Computer and Computing Technologies in Agriculture, Beijing, China, 27–30 September 2015; Springer: Cham, Switzerland, 2015; pp. 248–258. [Google Scholar]
  33. Bernt, M.; Merkle, D.; Ramsch, K.; Fritzsch, G.; Perseke, M.; Bernhard, D.; Schlegel, M.; Stadler, P.F.; Middendorf, M. CREx: Inferring genomic rearrangements based on common intervals. Bioinformatics 2007, 23, 2957–2958. [Google Scholar] [CrossRef] [Green Version]
  34. Ohta, T. The nearly neutral theory of molecular evolution. Annu. Rev. Ecol. Syst. 1992, 23, 263–286. [Google Scholar] [CrossRef]
  35. Yang, Z.; Nielsen, R. Estimating synonymous and nonsynonymous substitution rates under realistic evolutionary models. Mol. Biol. Evol. 2000, 17, 32–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Cha, S.Y.; Yoon, H.J.; Lee, E.M.; Yoon, M.H.; Hwang, J.S.; Jin, B.R.; Han, Y.S.; Kim, I. The complete nucleotide sequence and gene organization of the mitochondrial genome of the bumblebee, Bombus ignitus (Hymenoptera: Apidae). Gene 2007, 392, 206–220. [Google Scholar] [CrossRef]
  37. Reyes, A.; Gissi, C.; Pesole, G.; Saccone, C. Asymmetrical directional mutation pressure in the mitochondrial genome of mammal. Mol. Biol. Evol. 2018, 15, 957–966. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Ojala, D.; Montoya, J.; Attardi, G. tRNA punctuation model of RNA processing in human mitochondria. Nature 1981, 290, 470–474. [Google Scholar] [CrossRef]
  39. Lavrov, D.V.; Brown, W.M.; Boore, J.L. A novel type of RNA editing occurs in the mitochondrial tRNAs of the centipede Lithobius forficatus. Proc. Natl. Acad. Sci. USA 2000, 97, 13738–13742. [Google Scholar] [CrossRef]
  40. Kilpert, F.; Podsiadlowski, L. The complete mitochondrial genome of the common sea slater, Ligia oceanica (Crustacea, Isopoda) bears a novel gene order and unusual control region features. BMC Genom. 2006, 7, 241. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, Q.; Wang, Z.; Tang, D.; Xu, X.; Tao, Y.; Ji, C.; Wang, Z. Characterization and comparison of the mitochondrial genomes from two Alpheidae species and insights into the phylogeny of Caridea. Genomics 2020, 112, 65–70. [Google Scholar] [CrossRef]
  42. Yuan, M.L.; Zhang, Q.L.; Guo, Z.L.; Wang, J.; Shen, Y.Y. Comparative mitogenomic analysis of the superfamily Pentatomoidea (Insecta: Hemiptera: Heteroptera) and phylogenetic implications. BMC Genom. 2015, 16, 460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Taanman, J. The mitochondrial genome: Structure, transcription, translation and replication. Biochim. Biophys. Acta (BBA)-Bioenerg. 1999, 1410, 103–123. [Google Scholar] [CrossRef] [Green Version]
  44. Sun, S.E.; Jiang, W.; Yuan, Z.; Sha, Z. Mitogenomes Provide Insights Into the Evolution of Thoracotremata (Brachyura: Eubrachyura). Front. Mar. Sci. 2022, 9, 848203. [Google Scholar] [CrossRef]
  45. Zhang, Y.; Gong, L.; Lu, X.; Miao, Z.; Jiang, L.; Liu, B.; Liu, L.; Li, P.; Zhang, X.; Lü, Z. Comparative mitochondrial genome analysis of Varunidae and its phylogenetic implications. Acta Oceanol. Sin. 2022, 41, 119–131. [Google Scholar] [CrossRef]
  46. Zhang, Y.; Gong, L.; Lu, X.; Jiang, L.; Liu, B.; Liu, L.; Lü, Z.; Li, P. Gene rearrangements in the mitochondrial genome of Chiromantes eulimene (Brachyura: Sesarmidae) and phylogenetic implications for Brachyura. Int. J. Biol. Macromol. 2020, 162, 704–714. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, Y.; Gao, Y.; Gong, L.; Lu, X.; Jiang, L.; Liu, B.; Liu, L.; Lü, Z.; Li, P. Mitochondrial Genome of Episesarma lafondii (Brachyura: Sesarmidae) and Comparison with Other Sesarmid Crabs. J. Ocean. Univ. China 2021, 20, 1545–1556. [Google Scholar] [CrossRef]
  48. Basso, A.; Babbucci, M.; Pauletto, M.; Riginella, E.; Patarnello, T.; Negrisolo, E. The highly rearranged mitochondrial genomes of the crabs Maja crispata and Maja squinado (Majidae) and gene order evolution in Brachyura. Sci. Rep. 2017, 7, 4096. [Google Scholar] [CrossRef] [Green Version]
  49. Tsang, L.M.; Ahyong, S.T.; Shih, H.; Ng, P.K. Further polyphyly of pinnotheroid crabs: The molecular phylogenetic position of the polychaete-associated Aphanodactylidae. Invertebr. Syst. 2018, 32, 92–99. [Google Scholar] [CrossRef]
  50. Kobayashi, G.; Itoh, H.; Fukuda, H.; Kojima, S. The complete mitochondrial genome of the sand bubbler crab Scopimera globosa and its phylogenetic position. Genomics 2021, 113, 831–839. [Google Scholar] [CrossRef]
  51. Ng, P.K.; Guinot, D.; Davie, P.J. Systema Brachyurorum: Part I. An annotated checklist of extant brachyuran crabs of the world. Raffles Bull. Zool. 2008, 17, 1–286. [Google Scholar]
  52. Davie, P.J.; Guinot, D.; Ng, P.K. Systematics and classification of Brachyura. In Treatise on Zoology-Anatomy, Taxonomy, Biology; Brill Academic Publisher: Leiden, The Netherlands, 2015; Volume 9, pp. 1049–1130. [Google Scholar]
  53. Xin, Z.Z.; Liu, Y.; Zhang, D.Z.; Chai, X.Y.; Wang, Z.F.; Zhang, H.B.; Zhou, C.L.; Tang, B.P.; Liu, Q.N. Complete mitochondrial genome of Clistocoeloma sinensis (Brachyura: Grapsoidea): Gene rearrangements and higher-level phylogeny of the Brachyura. Sci. Rep. 2017, 7, 4128. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Wang, Z.; Wang, Z.; Shi, X.; Wu, Q.; Tao, Y.; Guo, H.; Ji, C.; Bai, Y. Complete mitochondrial genome of Parasesarma affine (Brachyura: Sesarmidae): Gene rearrangements in Sesarmidae and phylogenetic analysis of the Brachyura. Int. J. Biol. Macromol. 2018, 118 Pt A, 31–40. [Google Scholar] [CrossRef]
  55. Ng, N.K.; Davie, P.J.F.; Schubart, C.D.; Ng, P.K.L. Xenograpsidae, a new family of grapsoid crabs (Crustacea: Brachyura) associated with shallow water hydrothermal vents. Raffles Bull. Zool. 2007, 16, 233–256. [Google Scholar]
  56. Ki, J.S.; Dahms, H.U.; Hwang, J.S.; Lee, J.S. The complete mitogenome of the hydrothermal vent crab Xenograpsus testudinatus (Decapoda, Brachyura) and comparison with brachyuran crabs. Comp. Biochem. Physiol. Part D Genom. Proteom. 2009, 4, 290–299. [Google Scholar] [CrossRef]
  57. Tan, M.H.; Gan, H.M.; Lee, Y.P.; Linton, S.; Grandjean, F.; Bartholomei-Santos, M.L.; Miller, A.D.; Austin, C.M. ORDER within the chaos: Insights into phylogenetic relationships within the Anomura (Crustacea: Decapoda) from mitochondrial sequences and gene order rearrangements. Mol. Phylogenet. Evol. 2018, 127, 320–331. [Google Scholar] [CrossRef]
  58. Gan, H.M.; Linton, S.M.; Austin, C.M. Two reads to rule them all: Nanopore long read-guided assembly of the iconic Christmas Island red crab, Gecarcoidea natalis (Pocock, 1888), mitochondrial genome and the challenges of AT-rich mitogenomes. Mar. Genom. 2019, 45, 64–71. [Google Scholar] [CrossRef]
  59. Lombardo, G.; Migliore, N.R.; Colombo, G.; Capodiferro, M.R.; Formenti, G.; Caprioli, M.; Moroni, E.; Caporali, L.; Lancioni, H.; Secomandi, S.; et al. The Mitogenome Relationships and Phylogeography of Barn Swallows (Hirundo rustica). Mol. Biol. Evol. 2022, 39, msac113. [Google Scholar] [CrossRef]
  60. Tang, P.; Zhu, J.C.; Zheng, B.Y.; Wei, S.J.; Sharkey, M.J.; Chen, X.X.; Vogler, A. Mitochondrial phylogenomics of the Hymenoptera. Mol. Phylogenet. Evol. 2019, 131, 8–18. [Google Scholar] [CrossRef] [PubMed]
  61. Bai, Y.; Attardi, G. The mtDNA-encoded ND6 subunit of mitochondrial NADH dehydrogenase is essential for the assembly of the membrane arm and the respiratory function of the enzyme. EMBO J. 1998, 17, 4848–4858. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Kushnareva, Y.; Murphy, A.N.; Andreyev, A. Complex I-mediated reactive oxygen species generation: Modulation by cytochrome c and NAD(P)+ oxidation–reduction state. Biochem. J. 2002, 368, 545–553. [Google Scholar] [CrossRef] [Green Version]
  63. Yang, H.; Yang, T.; Baur, J.A.; Perez, E.; Matsui, T.; Carmona, J.J.; Lamming, D.W.; Souza-Pinto, N.C.; Bohr, V.A.; Rosenzweig, A.; et al. Nutrient-Sensitive Mitochondrial NAD+ Levels Dictate Cell Survival. Cell 2007, 130, 1095–1107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Nakahata, Y.; Kaluzova, M.; Grimaldi, B.; Sahar, S.; Hirayama, J.; Chen, D.; Guarente, L.P.; Sassone-Corsi, P. The NAD+-dependent deacetylase SIRT1 modulates CLOCK-mediated chromatin remodeling and circadian control. Cell 2008, 134, 329–340. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Xie, N.; Zhang, L.; Gao, W.; Huang, C.; Huber, P.E.; Zhou, X.; Li, C.; Shen, G.; Zou, B. NAD+ metabolism: Pathophysiologic mechanisms and therapeutic potential. Signal Transduct. Target. Ther. 2020, 5, 227. [Google Scholar] [CrossRef] [PubMed]
  66. Ning, T.; Xiao, H.; Li, J.; Hua, S.; Zhang, Y.P. Adaptive evolution of the mitochondrial ND6 gene in the domestic horse. Genet. Mol. Res. 2010, 1, 144–150. [Google Scholar] [CrossRef]
Biology 12 00974 g001 550

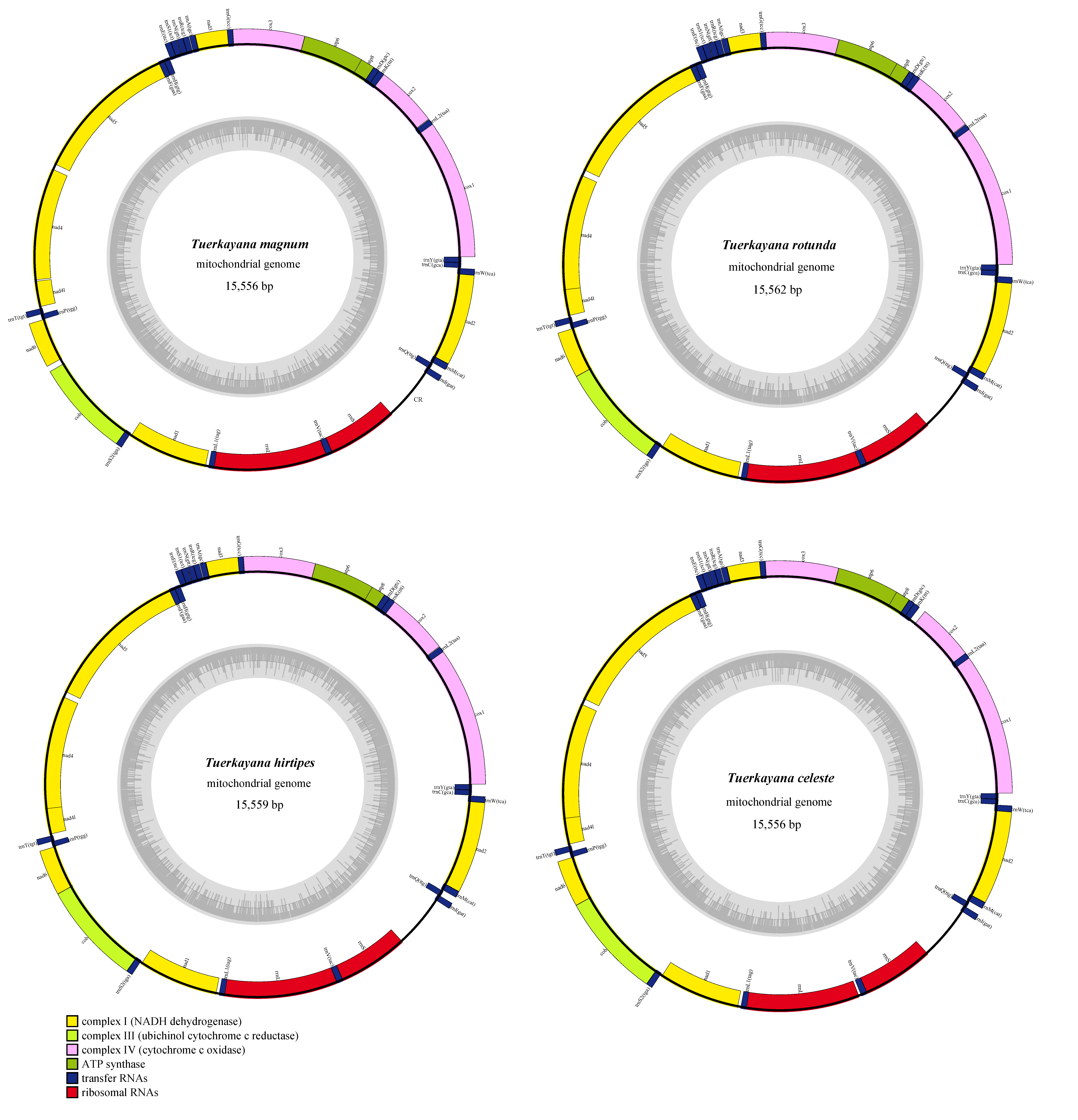

Figure 1. Mitochondrial genome maps of Tuerkayana. Protein-coding genes are color-coded (cox: lavender; nad: yellow; atp: green; cob: kelly); rRNA genes are in red; tRNA genes are in blue. Abbreviations of protein-coding genes are: atp6 and atp8 for ATP synthase subunits 6 and 8, cox1-3 for cytochrome oxidase subunits 1-3, cob for cytochrome b, nad1-6 and nad4l for NADH dehydrogenase subunits 1-6 and 4 L, rrnL and rrnS for large and small rRNA subunits, CR for control region.
Figure 1. Mitochondrial genome maps of Tuerkayana. Protein-coding genes are color-coded (cox: lavender; nad: yellow; atp: green; cob: kelly); rRNA genes are in red; tRNA genes are in blue. Abbreviations of protein-coding genes are: atp6 and atp8 for ATP synthase subunits 6 and 8, cox1-3 for cytochrome oxidase subunits 1-3, cob for cytochrome b, nad1-6 and nad4l for NADH dehydrogenase subunits 1-6 and 4 L, rrnL and rrnS for large and small rRNA subunits, CR for control region.
Biology 12 00974 g001
Biology 12 00974 g002 550

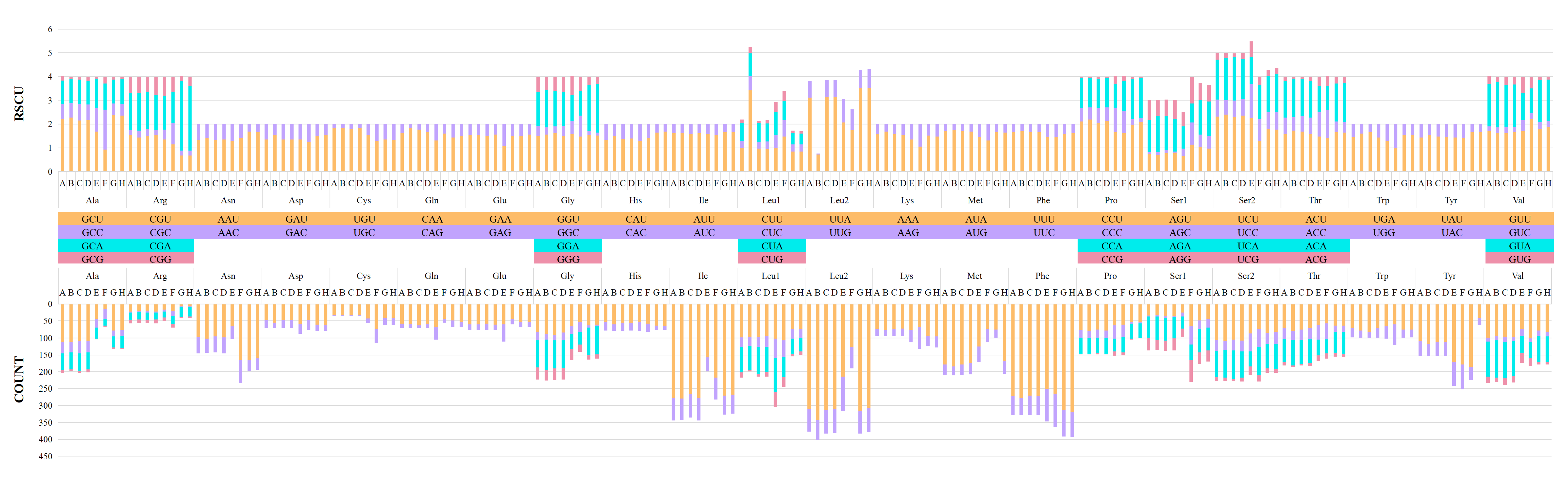

Figure 2. The relative synonymous codon usage (RSCU) in the mitogenomes of Tuerkayana. A: Tuerkayana magnum; B: Tuerkayana rotundum; C: Tuerkayana hirtipes; D: Tuerkayana celeste; E: Cardisoma armatum; F: Cardisoma carnifex; G: Gecarcoidea lalandii; H: Gecarcoidea natalis.
Figure 2. The relative synonymous codon usage (RSCU) in the mitogenomes of Tuerkayana. A: Tuerkayana magnum; B: Tuerkayana rotundum; C: Tuerkayana hirtipes; D: Tuerkayana celeste; E: Cardisoma armatum; F: Cardisoma carnifex; G: Gecarcoidea lalandii; H: Gecarcoidea natalis.
Biology 12 00974 g002
Biology 12 00974 g003 550

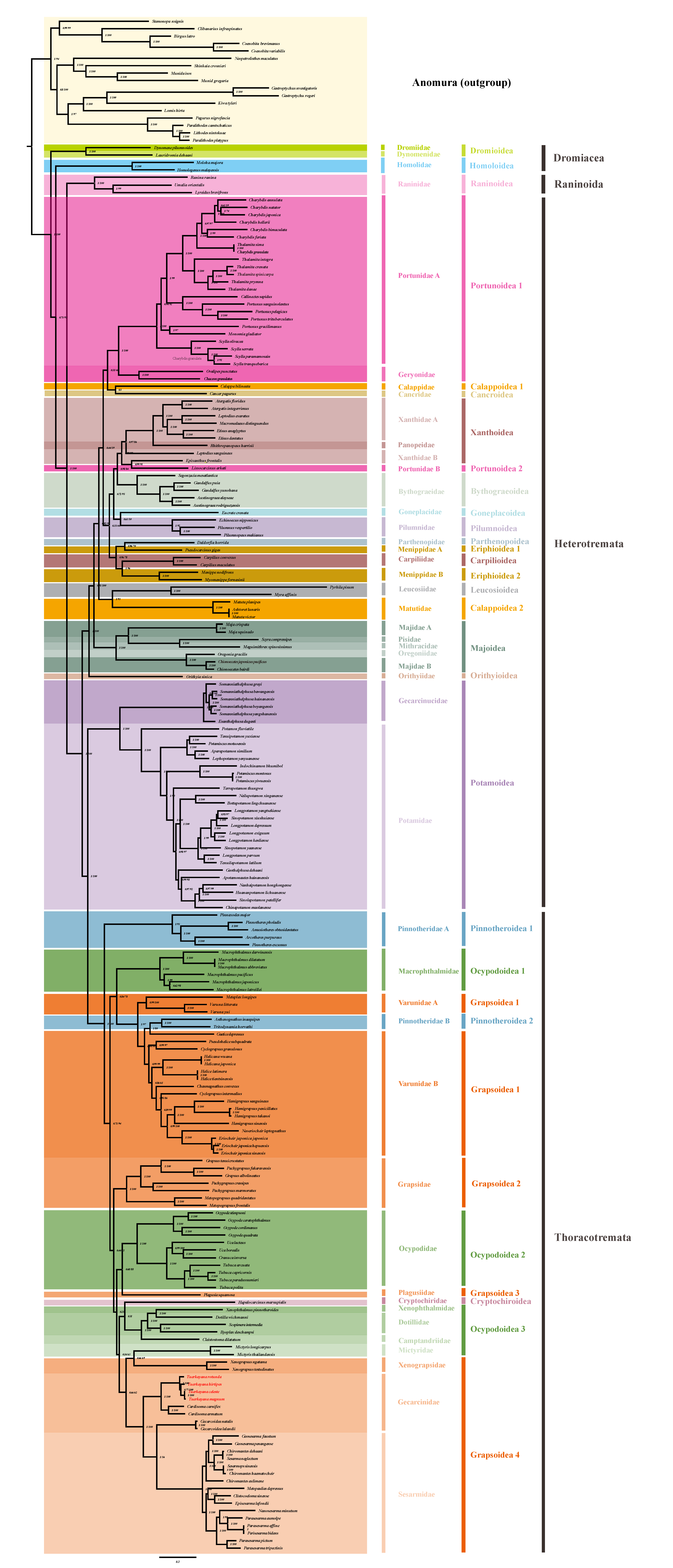

Figure 3. The phylogenetic tree was inferred from the nucleotide sequences of 13 mitogenome PCGs using BI and ML methods, including 189 species of Brachyuran belonging to 39 families and 17 Anomura species as the outgroup. Numbers on branches indicate posterior probabilities (BI) and bootstrap values (ML). The dashed lines on the right represent the families and superfamilies of these species, respectively.
Figure 3. The phylogenetic tree was inferred from the nucleotide sequences of 13 mitogenome PCGs using BI and ML methods, including 189 species of Brachyuran belonging to 39 families and 17 Anomura species as the outgroup. Numbers on branches indicate posterior probabilities (BI) and bootstrap values (ML). The dashed lines on the right represent the families and superfamilies of these species, respectively.
Biology 12 00974 g003
Biology 12 00974 g004 550

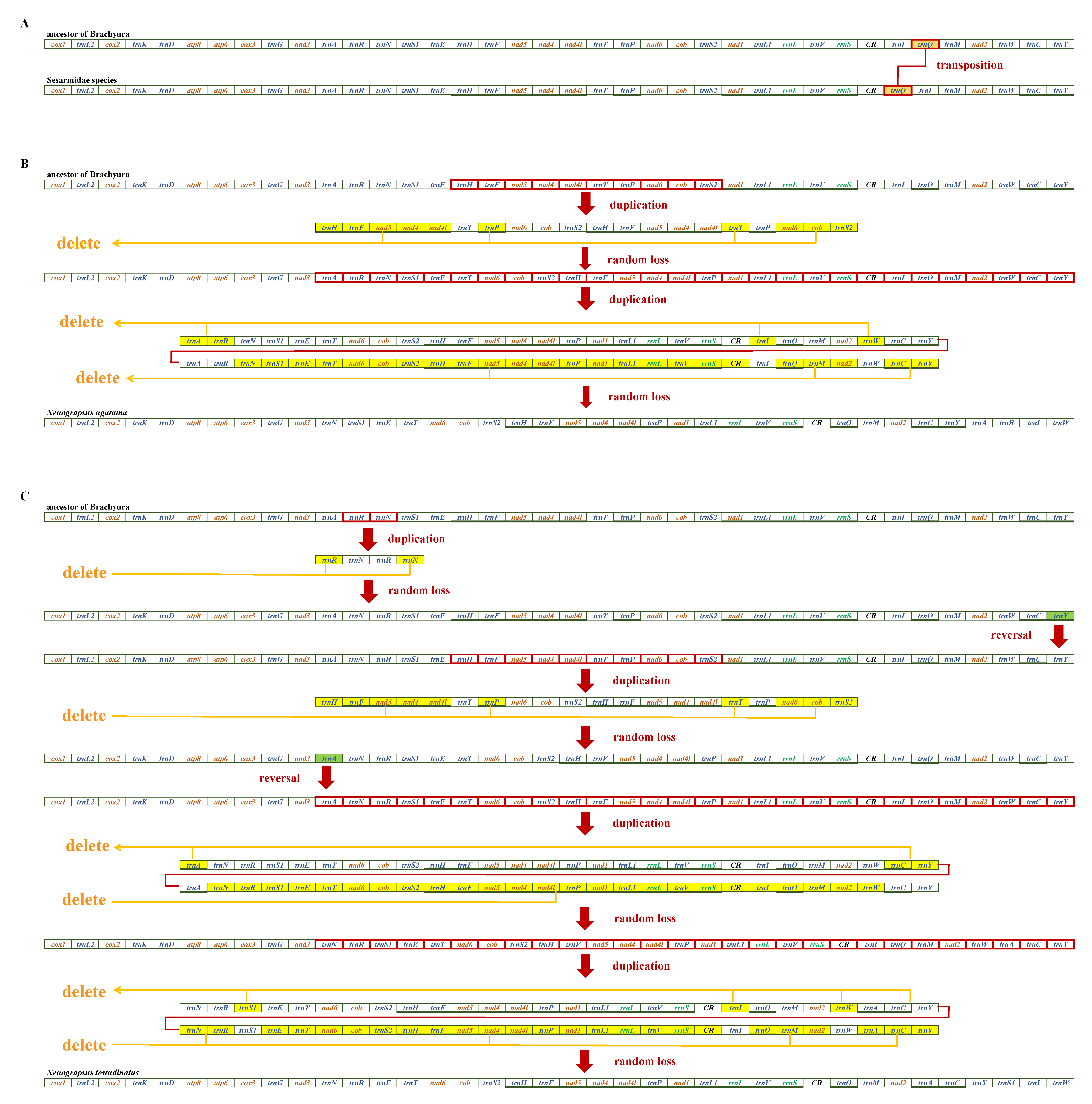

Figure 4. (A) Evolutionary procession from the ancestors of Brachyura to Sesarmidae; (B) Evolutionary procession from the ancestors of Brachyura to Xenograpsus ngatama. (C) Evolutionary procession from the ancestors of Brachyura to Xenograpsus testudinatus.
Figure 4. (A) Evolutionary procession from the ancestors of Brachyura to Sesarmidae; (B) Evolutionary procession from the ancestors of Brachyura to Xenograpsus ngatama. (C) Evolutionary procession from the ancestors of Brachyura to Xenograpsus testudinatus.
Biology 12 00974 g004
Table
Table 1. Selective pressure analyses (branch-site model) of mitochondrial protein-encoding genes (13 genes) in all crabs datasets.
Table 1. Selective pressure analyses (branch-site model) of mitochondrial protein-encoding genes (13 genes) in all crabs datasets.
GeneModellnL2lnLp LevelParametersPositive Selected Sites
(Posterior Probabilities)
atp8Ge
ma−14,486.44134 ω0 = 0.087 ω1 = 1.0 ω2 = 1.019 I 0.852;
ma0−14,486.4413401ω0 = 0.087 ω1 = 1.0 ω2 = 1.0
cox2Ge
ma−39,595.89288 ω0 = 0.018 ω1 = 1.0 ω2 = 1.628
ma0−39,595.89284−7.4 × 10−51ω0 = 0.018 ω1 = 1.0 ω2 = 1.0
cox3Ge
ma−44,309.9257 ω0 = 0.016 ω1 = 1.0 ω2 = 1.605
ma0−44,309.92564−0.000121ω0 = 0.016 ω1 = 1.0 ω2 = 1.0
cobGe
ma−69,109.49107 ω0 = 0.017 ω1 = 1.0 ω2 = 1.0
ma0−69,109.491130.000120.991259787ω0 = 0.017 ω1 = 1.0 ω2 = 1.0
cox1Ge
ma−77,798.40391 ω0 = 0.008 ω1 = 1.0 ω2 = 2.421
ma0−77,798.40376−0.0002921ω0 = 0.008 ω1 = 1.0 ω2 = 1.0
atp6Ge
ma−42,775.44489 ω0 = 0.02 ω1 = 1.0 ω2 = 11.004
ma0−42,775.449740.0096960.921560467ω0 = 0.02 ω1 = 1.0 ω2 = 1.0
nad4lGe
ma−19,516.44828 ω0 = 0.023 ω1 = 1.0 ω2 = 1.0
ma0−19,514.55719−3.7821821ω0 = 0.023 ω1 = 1.0 ω2 = 1.0
nad1Ge
ma−55,412.74594 ω0 = 0.017 ω1 = 1.0 ω2 = 1.0
ma0−55,412.7459401ω0 = 0.017 ω1 = 1.0 ω2 = 1.0
nad3Ge
ma−24,126.5674 ω0 = 0.026 ω1 = 1.0 ω2 = 1.0
ma0−24,126.56742 × 10−60.998871621ω0 = 0.026 ω1 = 1.0 ω2 = 1.0
nad2Ge
ma−90,455.6106 ω0 = 0.042 ω1 = 1.0 ω2 = 1.0
ma0−90,455.610601ω0 = 0.042 ω1 = 1.0 ω2 = 1.0
nad5Ge
ma−123,998.0812 ω0 = 0.034 ω1 = 1.0 ω2 = 1.0
ma0−123,998.081201ω0 = 0.034 ω1 = 1.0 ω2 = 1.0
nad4Ge
ma−91,823.48875 ω0 = 0.03 ω1 = 1.0 ω2 = 1.0386 I 0.728;
ma0−91,823.4887501ω0 = 0.03 ω1 = 1.0 ω2 = 1.0
nad6Ge
ma−45,717.39912 ω0 = 0.043 ω1 = 1.0 ω2 = 137.93728 L 0.686; 36 V 0.556; 88 I 0.997;
ma0−45,721.311657.8250620.005152668ω0 = 0.043 ω1 = 1.0 ω2 = 1.0
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, Z.; Zheng, Y.; Zhao, X.; Xu, X.; Xu, Z.; Cui, C. Molecular Phylogeny and Evolution of the Tuerkayana (Decapoda: Brachyura: Gecarcinidae) Genus Based on Whole Mitochondrial Genome Sequences. Biology 2023, 12, 974. https://doi.org/10.3390/biology12070974

AMA Style

Wang Z, Zheng Y, Zhao X, Xu X, Xu Z, Cui C. Molecular Phylogeny and Evolution of the Tuerkayana (Decapoda: Brachyura: Gecarcinidae) Genus Based on Whole Mitochondrial Genome Sequences. Biology. 2023; 12(7):974. https://doi.org/10.3390/biology12070974

Chicago/Turabian Style

Wang, Zhengfei, Yuqing Zheng, Xinyue Zhao, Xinyi Xu, Zhiwen Xu, and Chong Cui. 2023. "Molecular Phylogeny and Evolution of the Tuerkayana (Decapoda: Brachyura: Gecarcinidae) Genus Based on Whole Mitochondrial Genome Sequences" Biology 12, no. 7: 974. https://doi.org/10.3390/biology12070974

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
