Article

Response of Cyanic and Acyanic Lettuce Cultivars to an Increased Proportion of Blue Light

Leibniz-Institute of Vegetable and Ornamental Crops (IGZ), Theodor-Echtermeyer-Weg 1, 14979 Großbeeren, Germany
*
Author to whom correspondence should be addressed.
Biology 2022, 11(7), 959; https://doi.org/10.3390/biology11070959
Received: 31 May 2022 / Revised: 20 June 2022 / Accepted: 21 June 2022 / Published: 24 June 2022

Abstract

:

Simple Summary

Indoor crop cultivation systems such as vertical farms or plant factories necessitate artificial lighting. The composition of light quality (i.e., spectral composition) within these systems plays a key role in crop growth and development. Conflicting results on the effects of the light spectrum reported for different plant species and cultivars confirm the specificity of light requirements and the dependency on interacting factors. In this paper, we have therefore investigated how a certain light quality (light with a high share of blue) affects photosynthetic and morphological parameters in two contrasting lettuce cultivars (red and green leaves) with a similar leaf shape and phenotype. The results obtained suggest the occurrence of distinctive morpho-physiological adaptive strategies in green and red pigmented lettuce cultivars to adapt to the higher proportion of blue light environment.

Abstract

Indoor crop cultivation systems such as vertical farms or plant factories necessitate artificial lighting. Light spectral quality can affect plant growth and metabolism and, consequently, the amount of biomass produced and the value of the produce. Conflicting results on the effects of the light spectrum in different plant species and cultivars make it critical to implement a singular lighting solution. In this study we investigated the response of cyanic and acyanic lettuce cultivars to an increased proportion of blue light. For that, we selected a green and a red leaf lettuce cultivar (i.e., ‘Aquino’, CVg, and ‘Barlach’, CVr, respectively). The response of both cultivars to long-term blue-enriched light application compared to a white spectrum was analyzed. Plants were grown for 30 days in a growth chamber with optimal environmental conditions (temperature: 20 °C, relative humidity: 60%, ambient CO2, photon flux density (PFD) of 260 µmol m−2 s−1 over an 18 h photoperiod). At 15 days after sowing (DAS), white spectrum LEDs (WW) were compared to blue-enriched light (WB; λPeak = 423 nm) maintaining the same PFD of 260 µmol m−2 s−1. At 30 DAS, both lettuce cultivars adapted to the blue light variant, though the adaptive response was specific to the variety. The rosette weight, light use efficiency, and maximum operating efficiency of PSII photochemistry in the light, Fv/Fm’, were comparable between the two light treatments. A significant light quality effect was detected on stomatal density and conductance (20% and 17% increase under WB, respectively, in CVg) and on the modified anthocyanin reflectance index (mARI) (40% increase under WB, in CVr). Net photosynthesis response was generally stronger in CVg compared to CVr; e.g., net photosynthetic rate, Pn, at 1000 µmol m−2 s−1 PPFD increased from WW to WB by 23% in CVg, compared to 18% in CVr. The results obtained suggest the occurrence of distinct physiological adaptive strategies in green and red pigmented lettuce cultivars to adapt to the higher proportion of blue light environment.

1. Introduction

Indoor vertical farms (IVFs), also called plant factories with artificial lighting (PFALs) as, e.g., described by [1], are completely closed and continuous production systems for crops that utilize vertical space, a controlled environment, and artificial light [2,3,4]. These innovative production systems represent a good solution for producing food locally and without climate impact while concurrently contributing to lessening transportation and food waste and strengthening quality food security [5]. Indeed, crop food production in such systems can be finely tuned to control yield and, peculiarly, morphological and nutritional quality [6], making it possible to increase produce value. For example, applying blue light (B) in an appropriate proportion to other wavelengths, especially to red light (R), enhances crop quality by stimulating the accumulation of secondary compounds [7,8]. In some cases, blue light has also been reported to have positive effects on stomatal conductance, gs, and photosynthesis [9,10]. However, conflicting results on the optimal proportion of blue light are reported in the literature, especially between different plant species and cultivars, as in the case of lettuce [11,12,13]. Differing responses actuated by distinct lettuce cultivars may originate from variety-specific characteristics, including morphological and physiological features, such as plant architecture, leaf pigment pool, and stomata traits. These characteristics can account for peculiar light absorption, light use, photosynthetic rate, biomass accumulation, and secondary metabolite content, which can make some cultivars more or less suitable for a certain environment [14,15]. For instance, some cultivars may be more sensitive, or less tolerant, to temperature stress. Cold stress is reported as an effective stimulant for the accumulation of secondary metabolites in a wide range of plants [16], although it could also inhibit growth. In the case of [17], despite cold stress being effective in increasing the accumulation of antioxidants in both the investigated Capsicum cultivars, it elicited a contrasting effect on growth. The characterization of cultivar-specific traits to definite conditions can be very relevant for improving both production efficiency and produce quality. Additionally, information on such peculiar properties may be valuable for breeding practices aiming at creating new, more resilient, and nutrient-rich cultivars.
For instance, the secondary metabolite pool, including carotenoids, seems to vary significantly between lettuce cultivars, mainly based on leaf color [18], and this characteristic pool can make cultivars more or less suitable for a certain environment. While red leaf (cyanic) lettuce cultivars are reported to be more plastic to light intensity and spectral composition [19], green (acyanic) cultivars seem to be more sensitive and less capable of adapting to and overcoming the potential light stress [20]. The main reason behind such varied behavior may be the distinct pool of pigments characteristic of red leaves, i.e., an abundance of anthocyanins, lower chlorophyll a:b ratios, and a smaller xanthophyll cycle pool [21]. Thanks to the anthocyanin preventive (through shielding underlying chlorophylls from green, and blue in a minor percentage, photons) and defensive (through antioxidant capacity) functions, red pigmented plants have a higher photoprotective capacity and are considered to cope better with high light [20,22]. Carotenoids, which are generally more abundant in acyanic leaves, have a similar photoprotective role to that of anthocyanins in cyanic leaves, though, due to lacking the shielding function, they are not as effective in reducing the energy load of the photosynthetic apparatus, and thus there is a higher probability of damage [23]. In addition to leaf pigments, various examples of variety-specific responses implemented to adjust to the surrounding environmental conditions have been identified in the literature [24,25]. Distinct responses can also be attributed to cultivar-specific behaviors, such as differences in stomata responses [26]. For instance, cultivars which tend to increase stomata density and, consequently, evapotranspiration, could be more productive in warmer conditions [27].
The great network of adaptive mechanisms that helps the plant adjust to the light environment acts at multiple levels and with different timing [28,29]. Early responses, including adjustments in leaf angle, are beneficial to mitigate the stress effect and prevent the onset of damage. Longer-term adaptation is established when the adverse condition persists, becoming the new standard, and through physiological strategies, e.g., changes to stomata density, allowing plant growth with more or less repercussions [30].
Our aim was to investigate the cultivar-specific adaptive response of differently pigmented lettuce to higher energy light. We hypothesize that (1) alternative and analogous adaptive strategies develop in cyanic and acyanic lettuce cultivars in response to long-term higher energy radiation, applied as blue-enriched white spectrum for 15 days, (2) allowing for regular growth through altered physiology. Therefore, we conducted experiments selecting two lettuce cultivars with a similar architecture and leaf shape, mainly differing in leaf pigmentation, and investigated the cultivar-specific response to light spectral quality (i.e., ‘Aquino’ as acyanic and ‘Barlach’ as cyanic). To assess the impact of light quality on these two contrasting lettuce cultivars, next to destructive observations, non-destructive measurements including light-adapted chlorophyll a fluorescence, stomatal conductance, stomatal traits, photosynthetic rate, and leaf optical properties were taken.

2. Materials and Methods

2.1. Experimental Design

One experiment with six replications was conducted with two light treatments (white-blue light (WB), and white light control (WW)) and two lettuce cultivars (green leaf lettuce ‘Aquino’ cv. (CVg), red leaf lettuce ‘Barlach’ cv. (CVr), Rijk Zwaan, The Netherlands), resulting in four experimental treatments (WW_CVg; WB_CVg; WW_CVr; WB_CVr).
The two lettuce cultivars were chosen based on their similar plant architecture and leaf shape. The experiment was performed in four separate compartments in a climate-controlled growth chamber (2.40 × 3.85 × 2.20 m; York) at the Leibniz-Institute of Vegetable and Ornamental Crops (Grossbeeren, Germany). The experiment was planned as a split plot block design, with light treatment as the main plot and cultivars as the sub-plot. At three time points (6 October, 10 and 29 November 2021) six young plants (15 days after sowing, DAS) from each of the two cultivars were randomly placed between 10:00 a.m. and 11:00 a.m. in four separated cultivation areas, i.e., 12 plants per shelf, (for technical description see below), each considered as one statistical replication. This resulted in a total of six replications, i.e., three time points with two spatial replications each time.

2.2. Plant Cultivation and Light Treatments

Seeds from both lettuce cultivars were germinated in peat plugs (3 cm, Jiffy Growblocks, Jiffy Growing Solutions, Zwijndrecht, The Netherlands) for the first replication and stone-wool cubes (4 cm, Rockwool®, Grodan, Roermond, The Netherlands) for the second and third replications. After 24 h in the dark and refrigerated cool conditions (4 °C), seeds were moved (in the morning) to the growth chamber, under white light (260 µmol m−2 s−1 for an 18 h photoperiod) with controlled temperature (20 °C; day and night) and relative humidity (60%; day and night). After seedling establishment (at 15 DAS, with 5 leaves > 1 cm), the young plants including roots and substrate were inserted into stone-wool cubes (10 cm, Rockwool®, Grodan, The Netherlands) and allocated to the different compartments of the growth chamber, where light treatments were applied for the next consecutive 15 days. WW was compared to WB throughout the period (spectral composition, see Table 1). The light intensity of the two treatments was comparable (i.e., similar), in terms of PFD (263.25 ± 6.30 and 259.10 ± 8.46 µmol m−2 s−1 for WW and WB, respectively) and PPFD (243.03 ± 5.74 and 247.61 ± 8.05 µmol m−2 s−1 for WW and WB, respectively), between the light treatments.
Each of the two light treatments was replicated in two compartments at the same time, and each was replicated three times (see above). In every compartment, light was applied with two dimmable 8-channel LED lamps (LightDNA8, Valoya, Finland) adjusted to homogenous light distribution at the growth surface. The irradiance and light spectral composition of the treatments were measured using a PAR spectrometer (UPRtek PG200N, 350–800 nm; UPRtek Corp., Taiwan) at the beginning of each trial at each plant canopy level. Figure 1 illustrates the averaged measured light spectra of WW and WB.
Irrigation was provided four times during the light period (evenly distributed over the light period, i.e., 4:00 a.m.–10:00 p.m., with an irrigation event of 1 min) with nutrient solution prepared for lettuce (EC: 1.9 dS m−1, pH: 5.5–6) [31]. EC, pH, and water consumption were controlled weekly. Each cultivation area was separately irrigated and its microclimate individually monitored every 15 min (Tinytag Ultra 2, Gemini Data Loggers, Chichester, UK).
The growth chamber was equipped with racking systems, each containing two layers (1.3 × 0.50 m each). Only evenly irradiated areas of the shelves were used for cultivation (0.70 × 0.30 m) of the twelve plants (i.e., 66.67 plants m−2). For determination of the transpiration rate, the area contained two empty stone-wool cubes. Each plant was kept in the same position for the whole experimental period, and replicated in two planned distributed blocks of 6 plants each (2/cultivar) to have a more homogeneous representation of the environmental variability within the growth area. The two empty stone-wool cubes were placed in each compartment to account for water evaporation. The growth area, including the stone-wool cubes, was covered with a white plastic sheet to reduce evaporation.

2.3. Non-Destructive Measurements

2.3.1. Plant Physiology and Morphology

For analyzing responses to light treatment in the investigated lettuce cultivars, various physiological measurements were performed on different plants at 30 DAS. Samples for the measured physiological and morphological parameters were preselected, based on their position, to gather a population representative of the potential environmental variability, e.g., border effects across the growth area used. For leaf measurements, the same leaf number (counted from the bottom) was employed for different plants and leaf numbers ranging between 11 and 14 were chosen. A greater leaf number was selected for CVg compared to CVr due to distinct plant development. Measurements of different cultivars and light treatments were alternated. Stomatal measurements, e.g., stomatal traits or stomatal conductance, were always measured between 10:30 and 11:30 a.m.

2.3.2. Light-Adapted Imaging Chlorophyll a Fluorescence

Chlorophyll a fluorescence was measured on light-adapted plants using the modulated fluorescence imaging apparatus FluorCam (PSI, Czech Republic). Fluorescence quenching analysis protocol [32] was performed on two plants per replicate (n = 2; N = 48) and manual standard size mask selection was used to define an equal area size to be measured.

2.3.3. Light Response Curve and Leaf Photosynthetic Rate Estimation

At each timely replication, two plants of each replicate and treatment (n = 2, N = 48) were used to measure the photosynthetic light response curve (at PPFD courses of 260, 100, 50, 0, 260, 600, and 1200 µmol m−2 s−1) (LI-COR 6400XT, Licor Biosciences, Lincoln, NE, USA). To minimize gradients between the growth chamber ambient conditions and inside the cuvette of the gas exchange system, the sample CO2 concentration, relative humidity, and leaf temperature inside the cuvette were set to 400 µmol mol−1, 60%, and 22 °C, respectively. For these measurements, leaf number 14 and leaf number 12 (counted from the first unfolded leaf) were used for CVg and CVr, respectively. Leaf net photosynthesis (Pn, µmol [CO2] m−2 s−1) measurements were fitted to the non-rectangular hyperbolic function [33] and the exponential light response curve (Pn = Pg,max (1 − exp [(−ε PPFD)/Pg,max] − Rd) to estimate chemical light use efficiency (ε, mol CO2 mol−1 photons), the theoretical maximum leaf net and gross photosynthesis values (Pn,max or Pg,max, µmol [CO2] m−2 s−1), and leaf dark respiration (Rd) according to [34] using non-linear least-squares curve fitting (nlinfit, MATLAB, ver. 2020b, The MathWorks Inc., Portola, CA, USA).

2.3.4. Stomatal Conductance Traits

Similar to the light response curve measurements and using the same set-up of 48 plants (i.e., n = 2, N = 48), stomatal conductance (gs) was measured on the abaxial right side of leaf number 13 and 11, for the two lettuce cultivars, using a leaf porometer (AP4, Delta-T Devices Ltd., UK) [35]. The instrument was adapted to the measuring ambient for one hour prior to calibration (±5%), which was performed in the same environment (growth chamber).

2.3.5. Stomata Morphology

Stomatal imprints (n = 2, N = 48) were taken from the abaxial left side of leaf 13 and 11 of the same plants used for leaf conductance readings. Imprints were taken within the growth area and during light with the respective treatments. A fluid silicone (Elite HD+ Super Light Body, Zhermack Dental, Marl am Dümmer, Germany) was spread on the leaf using a dispenser (D2, Zhermack Dental, Germany) to obtain a negative imprint of the leaf lower surface. The fluid was applied instantaneously with minimized physical contact to the plant to avoid measuring related stomata reactions. After hardening of the silicon, a thin layer of transparent nail polish was applied on the silicone imprint to obtain a positive one [36].
The latter was photographed in three sections of 133.9 mm2 each (total leaf area measured per plant sample = 401.7 mm2) at a zoom of 700X (lighting: full coaxal (30%), transmitted (20%)) using a digital 4K microscope (Keyence VHX-7000, KEYENCE DEUTSCHLAND GmbH, Germany). Measurements determined on the images (Figure 2) included stomatal index (stomatal index (%) = (number of stomata/number of stomata + number of epidermal cells) x 100), stomatal density (= number of stomata on the leaf area), stomata length, stomata width, pore length, and pore width [37]. Pore width was adopted to describe the stomatal pore aperture.

2.4. Destructive Measurements

At the end of each of the three experimental replications in time (i.e., at 31 DAS and 16 days under experimental light conditions), destructive measurements were performed. Different plants and plant parts were used for various destructive observations as described in the sub-sections below. The work was done between 9:00 a.m. and 5:00 p.m., using a structured sampling protocol (i.e., leaf 12 and 14 were measured for spectral measurements and, immediately after, sampled in liquid nitrogen, rosette excision was conducted at the shoot base for leaf number count, leaf area measurement, and fresh and dry weight determination).

2.4.1. Quantification of Leaf Pigment Content and Estimation of Anthocyanin Content

Two plants per experimental replicate (n = 2, N = 48) were sampled for leaf pigment quantification and estimation. Leaf number 14 (CVg) and 12 (CVr) were used.

2.4.2. Optical Leaf Measurements and Estimation of Anthocyanin Content

Reflectance was measured on each leaf (both sides of the midrib) using a double-beam spectrophotometer (V-670, Jasco, Japan). Relevant reflectance values were used to calculate mARI and PRIn to estimate leaf anthocyanin content and plant photosynthetic performance, respectively. Indexes were calculated as: mARI = [(R530-570−1 − R690-710−1) ∗ RNIR] and PRIn = PRI/[RDVI ∗ (R700/R670)] [38,39,40,41].

2.4.3. Extraction and Quantification of Leaf Pigment Content

Leaf disk samples of each replication were kept at −80 °C and lyophilized and milled in following batches, ensuring immediate extraction after sample processing. The resulting powder of each biological sample was weighed in three technical replicates. After 48 h of extraction in three consecutive washes with 95% ethanol, the obtained extracts were read (at 470, 649, and 664 nm) in triplicates against the same amount of blank solution using a UV/VIS spectrophotometer (Infinite M200PRO, Tecan, Switzerland). The plate was read in a 96-well half area microplate, which was used to ensure a 1 cm pathlength [42].

2.4.4. Growth and Morphology Measurements

Intact plants (n = 4, N = 96) were destructively harvested at 31 DAS and rosette and root fresh and dry weights were determined as described by [42]. For a sub-sample of plants (n = 3, N = 72), the total number of leaves per plant was counted and the area of each leaf was read and summed up (using a leaf area meter, the LI-3100C Area Meter, LI-COR Biosciences, Lincoln, NE, USA) to obtain the total leaf area of each plant.

2.4.5. Data Processing and Statistics

Data were processed and statistically analyzed using Microsoft Excel 2016 and R studio (R version 3.5.2 (20 December 2018), “Eggshell Igloo”) with package “doebioresearch” [43]. Outlier values (range: 0.025–0.975) of each dependent variable were removed prior to statistical analysis. An analysis of variance (ANOVA) test at p ≤ 0.05 was applied to the normally-distributed data with a split plot design considering light treatment as the main plot factor, cultivar as the subplot factor, and replication as the block. As a post hoc test, Tukey’s honest significant difference (HSD) test was performed to locate the statistically pairwise comparison between the treatments and cultivars. All measured endpoints were individually analyzed (rosette fresh and dry weights, number of leaves per plant, plant leaf area, minimum (F0′) and maximum (Fm’) chlorophyll fluorescence intensity in the light, maximum operating efficiency of PSII photochemistry in the light (Fv/Fm’), stomatal conductance (gs), stomata width and length, pore width or aperture and length, stomatal density and index, chlorophyll a and b and their ratio, carotenoids, maximal gross (Pg,max) photosynthetic rate, normalized photochemical reflectance index (PRIn) and modified anthocyanin reflectance index (mARI)).

3. Results

Split plot design ANOVA reported that most of the significant differences in the measured variables were between the two lettuce cultivars, Aquino cv. (CVg) and Barlach cv. (CVr), and, to a lesser extent, between the two light treatments, WB and WW (Table 2, Figure 3, Figure 4 and Figure 5).
Major differences between the two cultivars were found in rosette weight, total leaf area, chlorophylls, carotenoids, and PRIn. After 15 days of exposure to blue-enriched light, CVr was characterized by a 25% (under WW)–19% (under WB) greater rosette fresh weight compared to CVg, reflecting the faster plant development shown by the red cultivar since seedlings establishment.
Chlorophyll a content was greater (approx. 20%) in CVr and, consequently, chlorophyll a:b ratio was greater (15%) in CVg. For carotenoid content, which was greater in CVr, the difference between the two cultivars was almost doubled under WB light treatment (15% greater carotenoid content in CVr than CVg) compared to WW light control treatment (9%).
A statistically significant effect of the light treatment was found for stomatal conductance and Pg,max in both cultivars. Pg,max was significantly increased under WB light compared to control light treatment (WW) in both cultivars, though the treatment effect was more pronounced in CVg. Correspondingly, the net photosynthesis response was stronger in CVg compared to CVr; e.g., net photosynthetic rate Pn at 1000 µmol m−2 s−1 PPFD increased from WW to WB by 23% in CVg compared to 18% in CVr (Figure 3). Likewise, greater values of stomatal conductance were measured under WB and in CVg.
An interactive effect between the light treatment and cultivar was detected for stomatal density and mARI. A similar response extent to WB was observed for stomatal density in CVg (36%) and for mARI in CVr (40%) (Table 2).

4. Discussion

Light in plant production, especially in closed-type systems, represents a very powerful tool for driving productivity and produce quality towards desired targets and increasing produce commercial value [44]. The light quality requirements of lettuce, the latter being the model plant in IVFs, have been broadly investigated, and discrepancies between distinct cultivars have often emerged [25,45]. As has been seen for other abiotic stresses, divergent responses have been observed between cyanic and acyanic lettuce cultivars: for example, in [46], where the green cultivar was more sensitive to salinity eustress application, or in [47], where the green cultivar was more plastic in regards to its phenolic compound pool in response to nitrogen deficiency. In our case, except for traits that were characteristics of the lettuce cultivar, e.g., fresh weight, pigments, and mARI, we observed analogous adaptation outcomes of the two cultivars to light quality after 15 days of exposure. Moreover, Fv/Fm’, which describes the maximum efficiency of energy harvesting open/oxidized PSII reaction centers in light and reflects the imbalance between PSII and PSI stoichiometry, remained unaffected after 15 days of WB application. In studies where Fv/Fm’ was monitored over time, it showed a stabilization with time [48]. In lettuce, the red or blue light effect on Fv/Fm’ vanished at 32 days of treatment [49]. The comparable Fv/Fm’ values measured after 15 days of treatment, together with the lack of light treatment effect on lettuce weights (both fresh and dry), suggested the plants may have adapted to blue light by implementing cultivar-specific strategies [46].
Nonetheless, variety-specific strategies manifested in the two studied lettuce cultivars, helping the plants to adapt to a blue-enriched light environment. If the cultivar-specific strategy adopted by CVr, expectedly, was the increased leaf anthocyanin content, estimated through mARI [42,50], CVg responded to blue-enriched light by increased stomatal density (Table 2, Figure 4). Anthocyanins are known to help reduce the leaf energy load by absorbing excessive photons, especially of blue-green wavelengths. The decreased light absorption in specific wavebands affected by anthocyanins causes adjustments at the light harvesting system level to better match light harvesting to the available light [20]. Changes in stomatal density occur during leaf development, triggered by the light sensing of mature leaves [51], and can be regarded as a slow mid-term process. Stomatal density and stomatal index (but not stomatal aperture) are reported to increase in plants exposed to long-term blue light [52]. In our case, however, stomatal index (i.e., the ratio of the number of stomata to the total number of stomata and epidermal cells) was comparable between the light treatments (WB and WB). This was probably due to a precisely proportional increase in both the number of stomata (% > 51.1) and number of cells (% > 51.5) under WB compared to white light.
Blue light is also reported to stimulate stomatal conductance, gs [53], with potential benefits for evaporative cooling and nutrient translocation [54] and photosynthesis [55,56]. In our case, gs was increased under WB in both cultivars, though a significant effect was only detected in CVg, probably due to the increased stomatal density. The two processes, i.e., increased stomatal density and conductance, tentatively helped to reduce the leaf heat load under WB. Similarly, WB caused an increased capacity of photosynthesis, denoted by an increased theoretical Pg,max and higher photosynthesis levels (Figure 3 and Figure 4). Photosynthesis was increased to a greater extent in CVg compared to CVr, reflecting the lower photosynthetic capacity of cyanic leaves [57].
PRIn, in the literature proposed as an alternative measure of radiation use efficiency that is also valid across species [38,58], in our case did not correlate with calculated LUE (correlation coefficient: 0.308, p-value = 0.329). Calculated PRIn was comparable between light treatments and, in contrast to LUE, it was different in the two studied lettuce cultivars and doubled in CVr compared to CVg. The potential reason behind such cultivar distinction may be found in the greater pigment pool characteristic of cyanic leaves and suggests that PRIn can better describe the foliar photochemistry than the radiation use efficiency.
As disclosed in our initial hypotheses, most of the measurable plant responses after a period of long-term increased radiation energy, in this case applied as 15 days of blue-enriched light application, remained unaffected. Our data suggest that adaptation to a high energy radiation occurred and it was similar in both cyanic and acyanic lettuce cultivars (resulting in increased photosynthetic capacity and stomatal conductance), though with alternative adaptive strategies, i.e., increased stomatal density in the green lettuce cultivar and increased leaf red pigmentation in the red lettuce cultivar, leading to similar growth performance.

5. Conclusions

An increased proportion of blue light was used to induce nutritional enhancement (carotenoids and anthocyanins) in two lettuce cultivars; no detrimental effect on growth was observed either in the cyanic or in the acyanic variety. Qualitative and quantitative screening of the secondary metabolites, which was not possible in our case, could represent an interesting investigation for future works. Unexpectedly, long-term effects of blue light did not impact biomass accumulation, though our results reveal the inefficiency of the treatment due to the generated energy waste as, in spite of the greater amount of energy required by WB, no further improvements in rosette weight occurred. Therefore, blue light could be used for short-term application, as recommended in the literature, to enhance nutritional and morphological traits. Moreover, its potential as a hardening treatment, through adjustments in nutritional composition and plant morphology, could be further investigated for improving produce shelf life.
Another interesting aspect is represented by the blue light beneficial effects on stomatal traits and photosynthetic capacity; these blue light specific effects could be further investigated and exploited to trigger increased plant productivity by application of defined light treatments. Moreover, characterization and understanding of cultivar-specific responses to abiotic stresses, e.g., increased stomatal density in response to blue-enriched light in ‘Aquino’ lettuce cv., could generate valuable knowledge in breeding plants for specific environments or purposes.

Author Contributions

Conceptualization, L.C. and O.K.; methodology, L.C.; software, L.C. and O.K.; validation, L.C. and O.K.; formal analysis, L.C.; investigation, L.C.; resources, O.K.; data curation, L.C.; writing—original draft preparation, L.C.; writing—review and editing, L.C. and O.K.; visualization, O.K.; supervision, O.K.; project administration, L.C.; funding acquisition, O.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are very grateful for the professional technical support by Angela Schmidt.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AbbreviationMeaningUnit
IVFIndoor vertical farming-
LUELight use efficiencyg [DW] mol−1
εChemical light use efficiencymol [CO2] mol−1
LEDsLight emitting diodes-
PFDPhoton flux density (i.e., total flux) µmol m−2 s−1
PPFDPhotosynthetic photon flux density (i.e., photosynthetic exploitable flux)µmol m−2 s−1
BBlue light, 400–480 nmnm
UVUltraviolet light, 360–399 nmnm
GGreen light, 481–599 nmnm
RRed light, 600–669 nmnm
FRFar red light, 670–800 nmnm
λPeakPeak wavelengthnm
ECElectrical conductivitydS m−1
WWWhite light control treatment
WBWhite-blue light treatment
CVgGreen cultivar, green-leaf lettuce cv. Aquino RZ
CVrRed cultivar, red-leaf lettuce cv. Barlach RZ
DASDays after sowingday
F0Minimum chlorophyll fluorescence intensity in the light-
FmMaximum chlorophyll fluorescence intensity in the light-
Fv/FmMaximum operating efficiency of PSII photochemistry in the light, = (Fm’–F0′)/FM-
gsStomatal conductancemmol m−2 s−1
Pn,maxMaximal net photosynthetic rateµmol m−2 s−1
Pg,maxMaximal gross photosynthetic rateµmol m−2 s−1
RdDark respirationµmol m−2 s−1
mARIModified anthocyanin reflectance index,= [(R530−570−1 − R690−710−1) * RNIR]-
NIRNear infrared reflectance (760–900 nm)nm
PRInNormalized photochemical reflectance index,= PRI/[RDVI * (R700/R670)]-
RDVIRenormalized difference vegetation index= (R800 − R670)/√(R800 + R670)-
PSIIPhotosynthesis system II-

References

  1. Kozai, T. Sustainable plant factory: Closed plant production systems with artificial light for high resource use efficiencies and quality produce. Acta Hortic. 2013, 1004, 27–40. [Google Scholar] [CrossRef]
  2. Al-Chalabi, M. Vertical farming: Skyscraper sustainability? Sustain. Cities Soc. 2015, 18, 74–77. [Google Scholar] [CrossRef]
  3. Avgoustaki, D.D.; Xydis, G. Plant factories in the water-food-energy Nexus era: A systematic bibliographical review. Food Secur. 2020, 12, 253–268. [Google Scholar] [CrossRef]
  4. Avgoustaki, D.D.; Xydis, G. Indoor Vertical Farming in the Urban Nexus Context: Business Growth and Resource Savings. Sustainability 2020, 12, 1965. [Google Scholar] [CrossRef][Green Version]
  5. Benke, K.; Tomkins, B. Future food-production systems: Vertical farming and controlled-environment agriculture. Sustain. Sci. Pract. Policy 2017, 13, 13–26. [Google Scholar] [CrossRef][Green Version]
  6. Cammarisano, L.; Donnison, I.S.; Robson, P.R.H. Producing Enhanced Yield and Nutritional Pigmentation in Lollo Rosso Through Manipulating the Irradiance, Duration, and Periodicity of LEDs in the Visible Region of Light. Front. Plant Sci. 2020, 11, 598082. [Google Scholar] [CrossRef]
  7. Appolloni, E.; Pennisi, G.; Zauli, I.; Carotti, L.; Paucek, I.; Quaini, S.; Orsini, F.; Gianquinto, G. Beyond vegetables: Effects of indoor LED light on specialized metabolite biosynthesis in medicinal and aromatic plants, edible flowers, and microgreens. J. Sci. Food Agric. 2022, 102, 472–487. [Google Scholar] [CrossRef]
  8. Taulavuori, K.; Hyöky, V.; Oksanen, J.; Taulavuori, E.; Julkunen-Tiitto, R. Species-specific differences in synthesis of flavonoids and phenolic acids under increasing periods of enhanced blue light. Environ. Exp. Bot. 2016, 121, 145–150. [Google Scholar] [CrossRef]
  9. Izzo, L.G.; Mickens, M.A.; Aronne, G.; Gómez, C. Spectral effects of blue and red light on growth, anatomy, and physiology of lettuce. Physiol. Plant. 2021, 172, 2191–2202. [Google Scholar] [CrossRef]
  10. Modarelli, G.C.; Paradiso, R.; Arena, C.; De Pascale, S.; Van Labeke, M.C. High Light Intensity from Blue-Red LEDs Enhance Photosynthetic Performance, Plant Growth, and Optical Properties of Red Lettuce in Controlled Environment. Horticulturae 2022, 8, 114. [Google Scholar] [CrossRef]
  11. Taulavuori, K.; Pyysalo, A.; Julkunen-Tiitto, R. Responses of phenolic acid and flavonoid synthesis to blue and blue-violet light depends on plant species. Environ. Exp. Bot. 2018, 150, 183–187. [Google Scholar] [CrossRef][Green Version]
  12. Paradiso, R.; Proietti, S. Light-Quality Manipulation to Control Plant Growth and Photomorphogenesis in Greenhouse Horticulture: The State of the Art and the Opportunities of Modern LED Systems. J. Plant Growth Regul. 2021, 41, 742–780. [Google Scholar] [CrossRef]
  13. Snowden, M.C.; Cope, K.R.; Bugbee, B. Sensitivity of Seven Diverse Species to Blue and Green Light: Interactions with Photon Flux. PLoS ONE 2016, 11, e0163121. [Google Scholar] [CrossRef] [PubMed]
  14. Eriksen, R.L.; Knepper, C.; Cahn, M.D.; Mou, B. Screening of Lettuce Germplasm for Agronomic Traits under Low Water Conditions. HortScience 2016, 51, 669–679. [Google Scholar] [CrossRef][Green Version]
  15. Barickman, T.C.; Sublett, W.L.; Miles, C.; Crow, D.; Scheenstra, E. Lettuce Biomass Accumulation and Phytonutrient Concentrations Are Influenced by Genotype, N Application Rate and Location. Horticulturae 2018, 4, 12. [Google Scholar] [CrossRef][Green Version]
  16. Ramakrishna, A.; Ravishankar, G.A. Influence of abiotic stress signals on secondary metabolites in plants. Plant Signal Behav. 2011, 6, 1720–1731. [Google Scholar]
  17. Genzel, F.; Dicke, M.D.; Junker-Frohn, L.V.; Neuwohner, A.; Thiele, B.; Putz, A.; Usadel, B.; Wormit, A.; Wiese-Klinkenberg, A. Impact of Moderate Cold and Salt Stress on the Accumulation of Antioxidant Flavonoids in the Leaves of Two Capsicum Cultivars. J. Agric. Food Chem. 2021, 69, 6431–6443. [Google Scholar] [CrossRef]
  18. Kim, D.-E.; Shang, X.; Assefa, A.D.; Keum, Y.-S.; Saini, R.K. Metabolite profiling of green, green/red, and red lettuce cultivars: Variation in health beneficial compounds and antioxidant potential. Food Res. Int. 2018, 105, 361–370. [Google Scholar] [CrossRef]
  19. Park, Y.; Gómez, C.; Runkle, E.S. Indoor production of ornamental seedlings, vegetable transplants, and microgreens. In Plant Factory Basics, Applications and Advances; Kozai, T., Niu, G., Masabni, J., Eds.; Academic Press: Cambridge, MA, USA, 2022. [Google Scholar]
  20. Landi, M.; Agati, G.; Fini, A.; Guidi, L.; Sebastiani, F.; Tattini, M. Unveiling the shade nature of cyanic leaves: A view from the “blue absorbing side” of anthocyanins. Plant Cell Environ. 2021, 44, 1119–1129. [Google Scholar] [CrossRef]
  21. Kyparissis, A.; Grammatikopoulos, G.; Manetas, Y. Leaf morphological and physiological adjustments to the spectrally selective shade imposed by anthocyanins in Prunus cerasifera. Tree Physiol. 2007, 27, 849–857. [Google Scholar] [CrossRef][Green Version]
  22. El-Nakhel, C.; Giordano, M.; Pannico, A.; Carillo, P.; Fusco, G.M.; De Pascale, S.; Rouphael, Y. Cultivar-Specific Performance and Qualitative Descriptors for Butterhead Salanova Lettuce Produced in Closed Soilless Cultivation as a Candidate Salad Crop for Human Life Support in Space. Life 2019, 9, 61. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Stetsenko, L.; Pashkovsky, P.; Voloshin, R.; Kreslavski, V.; Kuznetsov, V.; Allakhverdiev, S. Role of anthocyanin and carotenoids in the adaptation of the photosynthetic apparatus of purple- and green-leaved cultivars of sweet basil (Ocimum basilicum) to high-intensity light. Photosynthetica 2020, 58, 890–901. [Google Scholar] [CrossRef]
  24. Lee, A.; Liao, F.; Lo, H. Temperature, Daylength, and Cultivar Interact to Affect the Growth and Yield of Lettuce Grown in High Tunnels in Subtropical Regions. HortScience 2015, 50, 1412–1418. [Google Scholar] [CrossRef][Green Version]
  25. Sapkota, S.; Sapkota, S.; Liu, Z. Effects of Nutrient Composition and Lettuce Cultivar on Crop Production in Hydroponic Culture. Horticulturae 2019, 5, 72. [Google Scholar] [CrossRef][Green Version]
  26. Körner, O.; Fanourakis, D.; Hwang, M.C.-R.; Hyldgaard, B.; Tsaniklidis, G.; Nikoloudakis, N.; Larsen, D.H.; Ottosen, C.-O.; Rosenqvist, E. Incorporating cultivar-specific stomatal traits into stomatal conductance models improves the estimation of evapotranspiration enhancing greenhouse climate management. Biosyst. Eng. 2021, 208, 131–151. [Google Scholar] [CrossRef]
  27. Harbick, K.; Albright, L. Comparison of energy consumption: Greenhouses and plant factories. Acta Hortic. 2016, 1134, 285–292. [Google Scholar] [CrossRef][Green Version]
  28. Ruban, A.V. Plants in light. Commun. Integr. Biol. 2009, 2, 50–55. [Google Scholar] [CrossRef]
  29. Gommers, C.M.M. Adapting to High Light: At a Different Time and Place? Plant Physiol. 2020, 182, 10–11. [Google Scholar] [CrossRef][Green Version]
  30. Athanasiou, K.; Dyson, B.C.; Webster, R.E.; Johnson, G.N. Dynamic Acclimation of Photosynthesis Increases Plant Fitness in Changing Environments. Plant Physiol. 2010, 152, 366–373. [Google Scholar] [CrossRef][Green Version]
  31. Sonneveld, C.; Straver, N. Nutrients Solutions for Vegetables and Flowers Grown in Water or Substrates. Voedingsoploss. Glastuinb. 1994, 8, 33. [Google Scholar]
  32. Maxwell, K.; Johnson, G.N. Chlorophyll fluorescence—A practical guide. J. Exp. Bot. 2000, 51, 659–668. [Google Scholar] [CrossRef] [PubMed]
  33. Cannel, R.M.G.; Thornley, J.H.M. Temperature and CO2 Responses of Leaf and Canopy Photosynthesis: A Clarification using the Non-rectangular Hyperbola Model of Photosynthesis. Ann. Bot. 1998, 82, 883–892. [Google Scholar] [CrossRef][Green Version]
  34. Körner, O.; Heuvelink, E.; Niu, Q. Quantification of temperature, CO2, and light effects on crop photosynthesis as a basis for model-based greenhouse climate control. J. Hortic. Sci. Biotechnol. 2009, 84, 233–239. [Google Scholar] [CrossRef]
  35. Monteith, J.; Campbell, G.; Potter, E. Theory and performance of a dynamic diffusion porometer. Agric. For. Meteorol. 1988, 44, 27–38. [Google Scholar] [CrossRef]
  36. Scarpeci, T.; Zanor, M.; Valle, E. Estimation of Stomatal Aperture in Arabidopsis thaliana Using Silicone Rubber Imprints. Bio-Protocol 2017, 7, e2347. [Google Scholar] [CrossRef]
  37. Savvides, A.; Fanourakis, D.; van Ieperen, W. Co-ordination of hydraulic and stomatal conductances across light qualities in cucumber leaves. J. Exp. Bot. 2012, 63, 1135–1143. [Google Scholar] [CrossRef][Green Version]
  38. Gamon, J.A.; Serrano, L.; Surfus, J.S. The photochemical reflectance index: An optical indicator of photosynthetic radiation use efficiency across species, functional types, and nutrient levels. Oecologia 1997, 112, 492–501. [Google Scholar] [CrossRef]
  39. Gitelson, A.A.; Keydan, G.P.; Merzlyak, M.N. Three-band model for noninvasive estimation of chlorophyll, carotenoids, and anthocyanin contents in higher plant leaves. Geophys. Res. Lett. 2006, 33, 1–5. [Google Scholar] [CrossRef][Green Version]
  40. Zarco-Tejada, P.J.; Gonzalez-Dugo, V.; Williams, L.E.; Suárez, L.; Berni, J.A.J.; Goldhamer, D.; Fereres, E. A PRI-based water stress index combining structural and chlorophyll effects: Assessment using diurnal narrow-band airborne imagery and the CWSI thermal index. Remote Sens. Environ. 2013, 138, 38–50. [Google Scholar] [CrossRef]
  41. Kováč, D.; Veselovská, P.; Klem, K.; Večeřová, K.; Ač, A.; Peñuelas, J.; Urban, O. Potential of Photochemical Reflectance Index for Indicating Photochemistry and Light Use Efficiency in Leaves of European Beech and Norway Spruce Trees. Remote Sens. 2018, 10, 1202. [Google Scholar] [CrossRef][Green Version]
  42. Cammarisano, L.; Donnison, I.S.; Robson, P.R.H. The Effect of Red & Blue Rich LEDs vs Fluorescent Light on Lollo Rosso Lettuce Morphology and Physiology. Front. Plant Sci. 2021, 12, 603411. [Google Scholar] [PubMed]
  43. Popat, R.; Banakara, K. Doebioresearch: Analysis of Design of Experiments for Biological Research. 2020. Available online: https://CRAN.R-project.org/package=doebioresearch (accessed on 28 May 2022).
  44. Jones, M.A. Using light to improve commercial value. Hortic. Res. 2018, 5, 47. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Ishii, T.; Iisako, R.; Kawano, K.; Akutsu, M. Growth Responses in Leaf Lettuce Cultivar Grown under Different Qualities of Light from LED Sources. Hortic. Res. 2018, 17, 439–447. [Google Scholar] [CrossRef][Green Version]
  46. Carillo, P.; Giordano, M.; Raimondi, G.; Napolitano, F.; Di Stasio, E.; Kyriacou, M.C.; Sifola, M.I.; Rouphael, Y. Physiological and Nutraceutical Quality of Green and Red Pigmented Lettuce in Response to NaCl Concentration in Two Successive Harvests. Agronomy 2020, 10, 1358. [Google Scholar] [CrossRef]
  47. Becker, C.; Urlić, B.; Špika, M.J.; Kläring, H.-P.; Krumbein, A.; Baldermann, S.; Ban, S.G.; Perica, S.; Schwarz, D. Nitrogen Limited Red and Green Leaf Lettuce Accumulate Flavonoid Glycosides, Caffeic Acid Derivatives, and Sucrose while Losing Chlorophylls, Β-Carotene and Xanthophylls. PLoS ONE 2015, 10, e0142867. [Google Scholar] [CrossRef]
  48. Jia, M.; Li, D.; Colombo, R.; Wang, Y.; Wang, X.; Cheng, T.; Zhu, Y.; Yao, X.; Xu, C.; Ouer, G.; et al. Quantifying Chlorophyll Fluorescence Parameters from Hyperspectral Reflectance at the Leaf Scale under Various Nitrogen Treatment Regimes in Winter Wheat. Remote Sens. 2019, 11, 2838. [Google Scholar] [CrossRef][Green Version]
  49. Yudina, L.; Sukhova, E.; Mudrilov, M.; Nerush, V.; Pecherina, A.; Smirnov, A.A.; Dorokhov, A.S.; Chilingaryan, N.O.; Vodeneev, V.; Sukhov, V. Ratio of Intensities of Blue and Red Light at Cultivation Influences Photosynthetic Light Reactions, Respiration, Growth, and Reflectance Indices in Lettuce. Biology 2022, 11, 60. [Google Scholar] [CrossRef]
  50. Gitelson, A.; Merzlyak, M.; Chivkunova, O. Optical Properties and Nondestructive Estimation of Anthocyanin Content in Plant Leaves. Photochem. Photobiol. 2001, 74, 38–45. [Google Scholar] [CrossRef]
  51. Schoch, P.-G.; Zinsou, C.; Sibi, M. Dependence of the Stomatal Index on Environmental Factors during Stomatal Differentiation in Leaves of Vigna sinensis L.: 1. Effect of Light Intensity. J. Exp. Bot. 1980, 31, 1211–1216. [Google Scholar] [CrossRef]
  52. Zheng, L.; Van Labeke, M.C. Long-Term Effects of Red- and Blue-Light Emitting Diodes on Leaf Anatomy and Photosynthetic Efficiency of Three Ornamental Pot Plants. Front. Plant Sci. 2017, 8, 917. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Vialet-Chabrand, S.; Matthews, J.S.A.; Lawson, T. Light, power, action! Interaction of respiratory energy- and blue light-induced stomatal movements. New Phytol. 2021, 231, 2231–2246. [Google Scholar] [CrossRef] [PubMed]
  54. Matthews, J.S.A.; Vialet-Chabrand, S.; Lawson, T. Role of blue and red light in stomatal dynamic behaviour. J. Exp. Bot. 2020, 71, 2253–2269. [Google Scholar] [CrossRef] [PubMed]
  55. Hogewoning, S.; Trouwborst, G.; Maljaars, H.; Poorter, H.; Van Ieperen, W.; Harbinson, J. Blue light dose-responses of leaf photosynthesis, morphology, and chemical composition of Cucumis sativus grown under different combinations of red and blue light. J. Exp. Bot. 2010, 61, 3107–3117. [Google Scholar] [CrossRef]
  56. Abidi, F.; Girault, T.; Douillet, O.; Guillemain, G.; Sintes, G.; Laffaire, M.; Ben Ahmed, H.; Smiti, S.; Huché-Thélier, L.; Leduc, N. Blue light effects on rose photosynthesis and photomorphogenesis. Plant Biol. 2013, 15, 67–74. [Google Scholar] [CrossRef] [PubMed]
  57. Landi, M.; Zivcak, M.; Sytar, O.; Brestic, M.; Allakhverdiev, S.I. Plasticity of photosynthetic processes and the accumulation of secondary metabolites in plants in response to monochromatic light environments: A review. Biochim. Biophys. Acta 2020, 1861, 148131. [Google Scholar] [CrossRef] [PubMed]
  58. Peñuelas, J.; Filella, I.; Gamon, J. Assessment of photosynthetic radiation-use efficiency with spectral. New Phytol. 1995, 131, 291–296. [Google Scholar] [CrossRef]

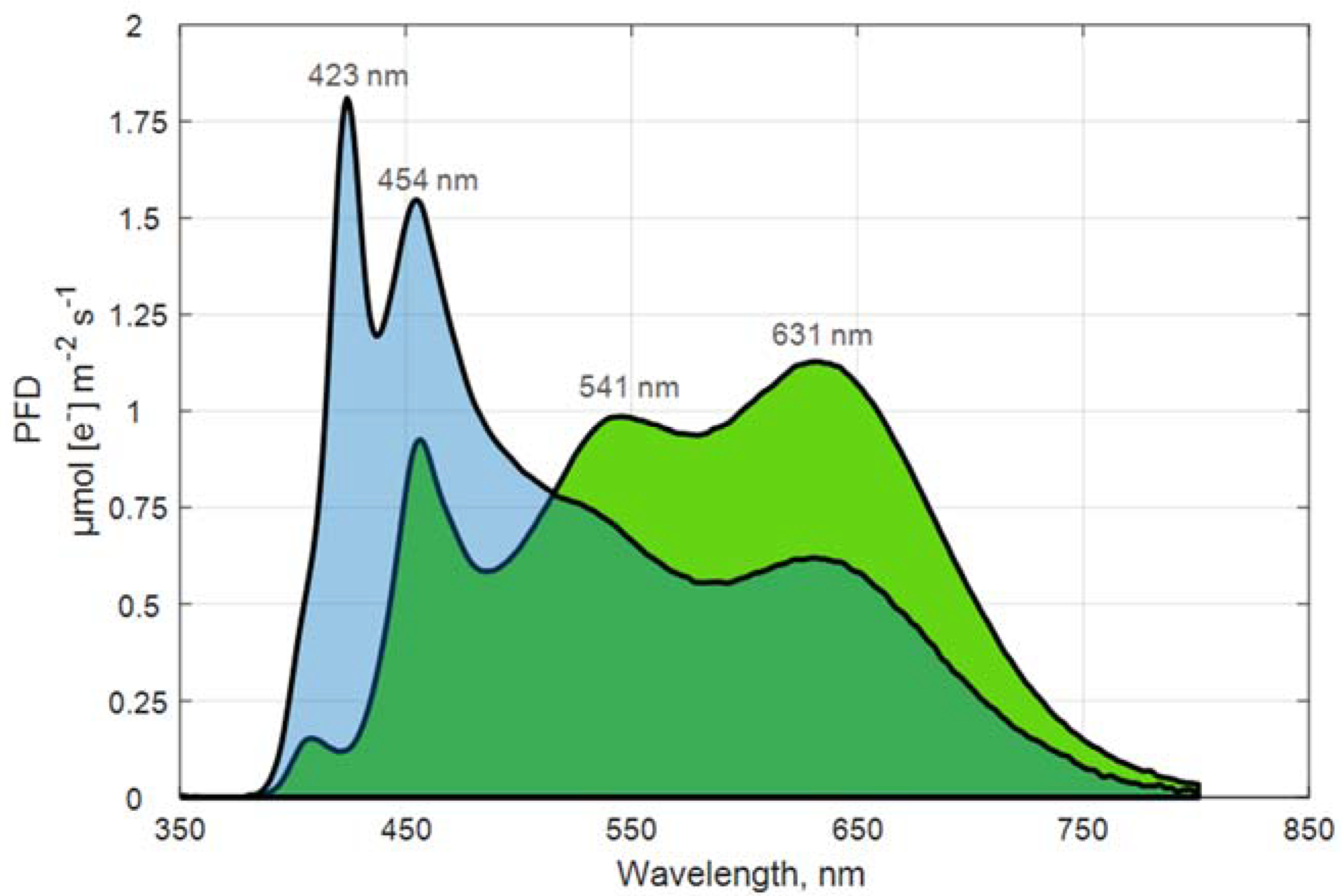

Figure 1. Averaged measured light spectra (average of 3 measurements) for the light treatments tested, blue-enriched white light (WB, in light blue) and white light (WW, in green), with indication of emission peaks.
Figure 1. Averaged measured light spectra (average of 3 measurements) for the light treatments tested, blue-enriched white light (WB, in light blue) and white light (WW, in green), with indication of emission peaks.
Biology 11 00959 g001
Figure 2. Model images of lettuce stomata positive imprints measured by image analysis using a digital 4K microscope. Images (af) show the increasing opening of the stomatal pore. Images scale: 10 µm.
Figure 2. Model images of lettuce stomata positive imprints measured by image analysis using a digital 4K microscope. Images (af) show the increasing opening of the stomatal pore. Images scale: 10 µm.
Biology 11 00959 g002

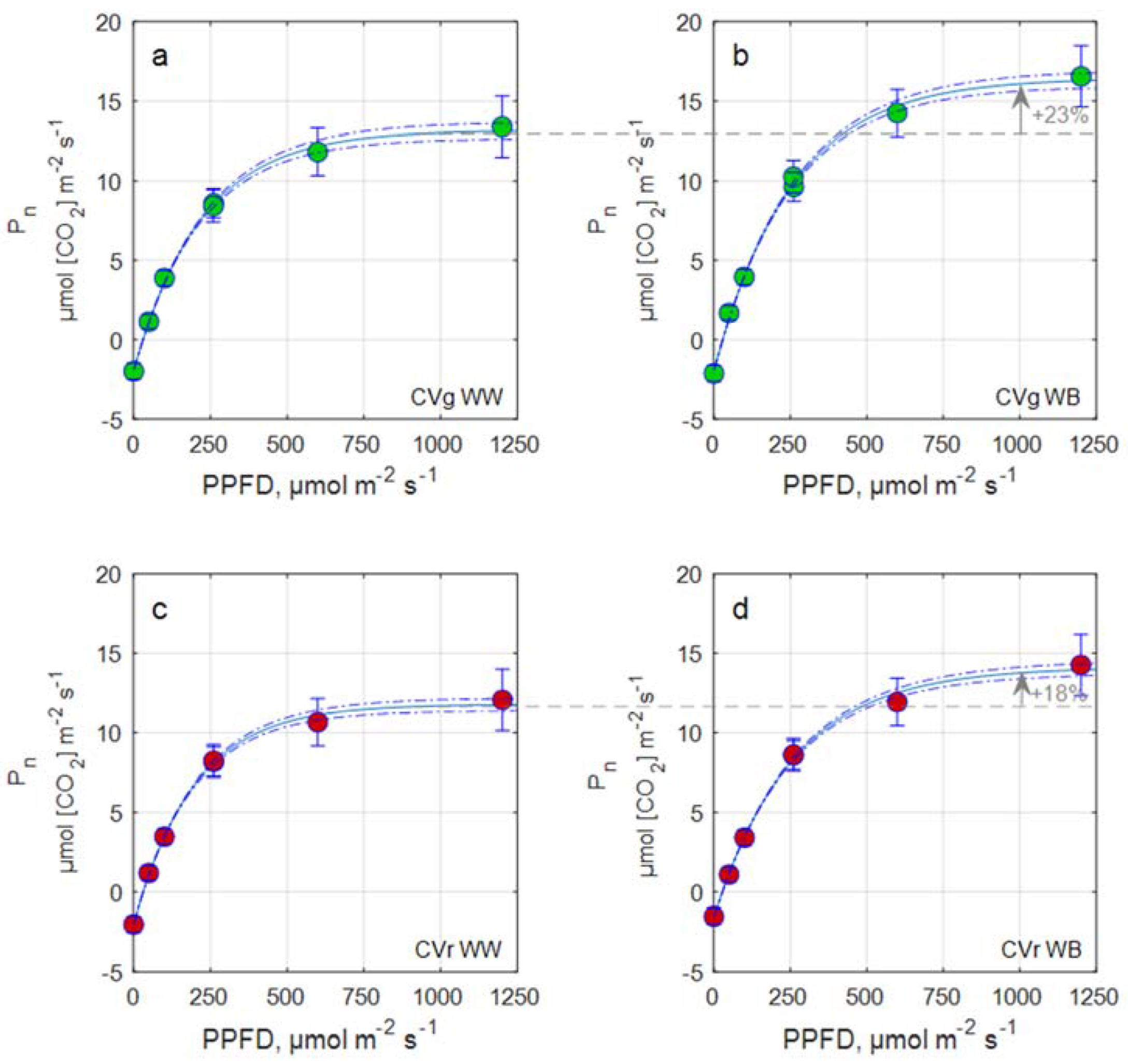

Figure 3. Exponential light response curve with maximum net photosynthesis and chemical light use efficiency (LUE) fitted to measured net photosynthesis rate, Pn for Aquino (CVg) (a,b) and Barlach (CVr) (c,d) treated with white light (WW) or white-blue light (WB) spectra for 15 days.
Figure 3. Exponential light response curve with maximum net photosynthesis and chemical light use efficiency (LUE) fitted to measured net photosynthesis rate, Pn for Aquino (CVg) (a,b) and Barlach (CVr) (c,d) treated with white light (WW) or white-blue light (WB) spectra for 15 days.
Biology 11 00959 g003
Figure 4. Boxplot overview of the measured variables: (a) plant fresh weight; (b) plant dry weight; (c) plant leaf area; (d) leaf number; (e) stomatal conductance, gs; (f) stomatal pore aperture; (g) stomatal density; and (h) maximal gross photosynthetic rate, Pg,max. Measurements were taken on the two lettuce cultivars, Aquino (CVg) and Barlach (CVr), treated with white light (WW) or white-blue light (WB) spectra for 15 days.
Figure 4. Boxplot overview of the measured variables: (a) plant fresh weight; (b) plant dry weight; (c) plant leaf area; (d) leaf number; (e) stomatal conductance, gs; (f) stomatal pore aperture; (g) stomatal density; and (h) maximal gross photosynthetic rate, Pg,max. Measurements were taken on the two lettuce cultivars, Aquino (CVg) and Barlach (CVr), treated with white light (WW) or white-blue light (WB) spectra for 15 days.
Biology 11 00959 g004
Figure 5. Boxplot overview of measured variable: (a) light use efficiency, LUE; (b) chlorophyll a content; (c) chlorophyll b content; (d) chlorophyll a:b ratio; (e) carotenoid content; (f) minimum value for chlorophyll fluorescence at light, F0′; (g) maximum chlorophyll fluorescence at light, Fm’; and (h) maximum operating efficiency of PSII photochemistry in the light, Fv/Fm’. Measurements were taken on the two lettuce cultivars, Aquino (CVg) and Barlach (CVr), treated with white light (WW) or white-blue light (WB) spectra for 15 days.
Figure 5. Boxplot overview of measured variable: (a) light use efficiency, LUE; (b) chlorophyll a content; (c) chlorophyll b content; (d) chlorophyll a:b ratio; (e) carotenoid content; (f) minimum value for chlorophyll fluorescence at light, F0′; (g) maximum chlorophyll fluorescence at light, Fm’; and (h) maximum operating efficiency of PSII photochemistry in the light, Fv/Fm’. Measurements were taken on the two lettuce cultivars, Aquino (CVg) and Barlach (CVr), treated with white light (WW) or white-blue light (WB) spectra for 15 days.
Biology 11 00959 g005
Table 1. Spectral composition (in percentage) of the two light treatments, white light control (WW) and white-blue light (WB), clustered in four main wavelength groups: blue 400–480 nm, green-yellow 481–599 nm, red 600–699 nm, and far-red 670–800 nm, and the indicated light peak (λPeak).
Table 1. Spectral composition (in percentage) of the two light treatments, white light control (WW) and white-blue light (WB), clustered in four main wavelength groups: blue 400–480 nm, green-yellow 481–599 nm, red 600–699 nm, and far-red 670–800 nm, and the indicated light peak (λPeak).
WWWB
Blue (400–480 nm)1540
Green-yellow (481–599 nm)4034
Red (600–669 nm)2916
Far-red (670–800 nm)1610
λPeak, nm631423
Table 2. ANOVA results based on split plot analysis with light treatment as the whole plot factor, cultivar as subplot factor, and replications as block. Effects of lettuce cultivar (cv. ’Aquino’, RZ, CVg and cv. ‘Barlach’, RZ, CVr) exposed to 15 days of light spectral treatment (blue-enriched white light, WB, and white light, WW) and their interactions on the measured dependent variables: biomass, morphological traits, light-adapted chlorophyll a fluorescence (F0′, Fm’, Fv/Fm’), stomatal conductance (gs), stomatal pore aperture, stomatal density, stomatal index, chlorophylls, carotenoids, maximal gross (Pg,max) photosynthetic rate, photochemical reflectance index (PRIn), and modified anthocyanin reflectance index (mARI).
Table 2. ANOVA results based on split plot analysis with light treatment as the whole plot factor, cultivar as subplot factor, and replications as block. Effects of lettuce cultivar (cv. ’Aquino’, RZ, CVg and cv. ‘Barlach’, RZ, CVr) exposed to 15 days of light spectral treatment (blue-enriched white light, WB, and white light, WW) and their interactions on the measured dependent variables: biomass, morphological traits, light-adapted chlorophyll a fluorescence (F0′, Fm’, Fv/Fm’), stomatal conductance (gs), stomatal pore aperture, stomatal density, stomatal index, chlorophylls, carotenoids, maximal gross (Pg,max) photosynthetic rate, photochemical reflectance index (PRIn), and modified anthocyanin reflectance index (mARI).
Dependent VariablesReplicationLight TreatmentCultivarInteraction
DfMSDfMSDfMSDfMS
Rosette fresh weight222.83.111.39 ns169.31 ***13.39 ns
Rosette dry weight20.21 ns10.07 ns10.10 **10.01 ns
Number of leaves219.00 ns144.44 ns10.00 ns10.44 ns
Plant leaf area28969.00 ns112,428.00 ns131,840.00 ***10.00 ns
F0245.92 ns161.91 ns12.70 **12.70 ns
Fm2443.00 ns1134.00 ns138,841.00 ***1160.00 ns
Fv/Fm29.55 × 10−5 ns14.11 × 10−5 ns13.00 × 10−5 ns15.20 × 10−5 ns
gs223,337.30 *116,684.00 *12686.70 ns12.20 ns
Pore aperture25.32 ns10.14 ns12.78 ns110.70 ns
Stomata density10.00 ns10.00·10.00·10.00 **
Stomata index21.64 ns13.32 ns12.24 ns12.23 ns
Chlorophyll a211.61 ns10.96 ns112.50 ***10.02 ns
Chlorophyll b211.01 *10.00 ns14.32 **10.04 ns
Chlorophyll a:b21.60·10.10 ns10.49 **10.01 ns
Carotenoids20.59 ns10.03 ns10.34 **10.05 ns
Pg,max20.73 ns120.71111.77·11.24 ns
PRIn20.00 ns10.00 ns10.00 ***10.00 ns
mARI20.11 ns15.49·185.62 ***15.29 *
Numbers represent degrees of freedom (df) and mean squares (MS). Asterix or ns indicate significant differences at p < 0.05, as determined by split plot analysis. Significance codes: 0.000 “***”, 0.00 “**”, 0.01 “*”, ≤0.05 “·”, >0.05 “ns”.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cammarisano, L.; Körner, O. Response of Cyanic and Acyanic Lettuce Cultivars to an Increased Proportion of Blue Light. Biology 2022, 11, 959. https://doi.org/10.3390/biology11070959

AMA Style

Cammarisano L, Körner O. Response of Cyanic and Acyanic Lettuce Cultivars to an Increased Proportion of Blue Light. Biology. 2022; 11(7):959. https://doi.org/10.3390/biology11070959

Chicago/Turabian Style

Cammarisano, Laura, and Oliver Körner. 2022. "Response of Cyanic and Acyanic Lettuce Cultivars to an Increased Proportion of Blue Light" Biology 11, no. 7: 959. https://doi.org/10.3390/biology11070959

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
