Early Cretaceous Keteleerioxylon Wood in the Songliao Basin, Northeast China, and Its Geographic and Environmental Implications

by
Xiao Shi
1,2,*,
Yuewu Sun
3,4,
Fanli Meng
1,
Jianxin Yu
5 and
Zilie Lan
1
1
Department of Geology, College of Earth Sciences, Jilin University, Changchun 130061, China
2
International Center of Future Science, Dinosaur Evolution Research Center, Jilin University, Changchun 130012, China
3
Research Center of Paleontology and Stratigraphy, Jilin University, Changchun 130026, China
4
Bioarchaeology Laboratory, Jilin University, Changchun 130021, China
5
School of Earth Sciences, State Key Laboratory of Biogeology and Environmental Geology, China University of Geosciences, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Biology 2022, 11(11), 1624; https://doi.org/10.3390/biology11111624
Submission received: 23 September 2022 / Revised: 20 October 2022 / Accepted: 2 November 2022 / Published: 7 November 2022
(This article belongs to the Special Issue Recent Advances in Palaeobotany)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Keteleeria is a small group of Pinaceae, now only distributed in east and southeast Asia, but which was widely distributed in Asia, Europe, and North America in the northern hemisphere during the Late Mesozoic and Cenozoic periods. A new Keteleeria-like wood fossil, Keteleerioxylon changchunense Shi, Sun, Meng et Yu sp. nov., was described in the Early Cretaceous strata about 110 million years ago in Changchun, Jilin Province, Northeast China. The growth rings of wood contain rich palaeoecological and paleoclimatic information. Quantitative analysis of growth rings revealed that the new species is evergreen with leaf longevity of 1–3 years. The growth rings of Keteleerioxylon changchunense indicate that the climate seasonality was pronounced in the Songliao Basin during the Early Cretaceous period. By reviewing Keteleeria and closely related fossil taxa, we depict the probable migration route of Keteleeria. The oldest Keteleeria-like wood was found in the middle Jurassic period in Svalbard, Norway. They were distributed in both the middle and the high latitudes during the Late Jurassic–Cretaceous global warming time, while during the Paleogene and Neogene cooling times, the Keteleeria-like wood became scarce, especially in the Quaternary Glaciation, and until now, they were strictly restricted to the subtropical and tropical regions of east and southeast Asia.

Abstract

The extant Keteleeria is endemic to east and southeast Asia, while Keteleeria-like trees were widely distributed in the northern hemisphere in Earth’s history. In this paper, we reported a novel wood fossil of Keteleerioxylon changchunense Shi, Sun, Meng et Yu sp. nov., collected from the middle part of the Yingcheng Formation, Yingcheng Coal Mine, Changchun City, Jilin Province, northeast China. The quantitative growth-ring analyses of K. changchunense indicate that it was evergreen with a leaf longevity of 1–3 years, which is consistent with the foliar retention of extant Keteleeria. Its high ring-markedness index (RMI) indicates that the climate seasonality was pronounced during the Early Albian period in the Songliao Basin, northeast China. The fossil records of Keteleeria and closely related taxa indicate that this group might have originated from high latitudes in the northern hemisphere, then spread and migrated southward during the Late Jurassic and Cretaceous periods, gradually decreased in the Cenozoic period, and so far only survives in east and southeast Asia.

1. Introduction

Keteleeria was firstly described as a genus in 1866, named by Carrière [1]. The genus Keteleeria Carrière includes ten extant species and two variants, which are endemic to east and southeast Asia and only found in southern China (from Qinling Mountain to Hainan Island), northern Laos, and southern Vietnam [2] (Figure 1). Keteleeria is confined to humid, moderately warm (subtropical) areas with relatively low mountains (200–3000 m above sea level) [3,4,5,6].
Fossil woods with similar anatomy to extant Keteleeria were first described in the Lower Cretaceous of Franz Josef Land with the name Keteleerioxylon [7]. Although Keteleeria and Abies separated in the Paleocene based on molecular clock estimation [8], the oldest representatives of Keteleeria-like (the fossil woods, leaves, and reproductive organs showing similarities to the genus Keteleeria, including Keteleerioxylon, Keteleeria, and Protopiceoxylon or Pinoxylon) wood might have been in the Middle Jurassic [9]; most fossils reLated to the Keteleeria were discovered from the Late Jurassic to Cenozoic strata of Asia, Europe, and North America in the northern hemisphere (e.g., [10,11,12]).
In this study, we describe two new silicified wood specimens belonging to the genus Keteleerioxylon from the early Cretaceous sediments in the Songliao Basin, northeast China, and named Keteleerioxylon changchunense sp. nov. Quantitative growth-ring analyses were made to understand ecological and climatic indications. Meanwhile, the geological and geographical distributions of Keteleeria-like fossil woods are summarized in order to depict the relationship between its migration and paleoclimate changes during the Cretaceous and Cenozoic times.

2. Materials and Methods

2.1. Materials

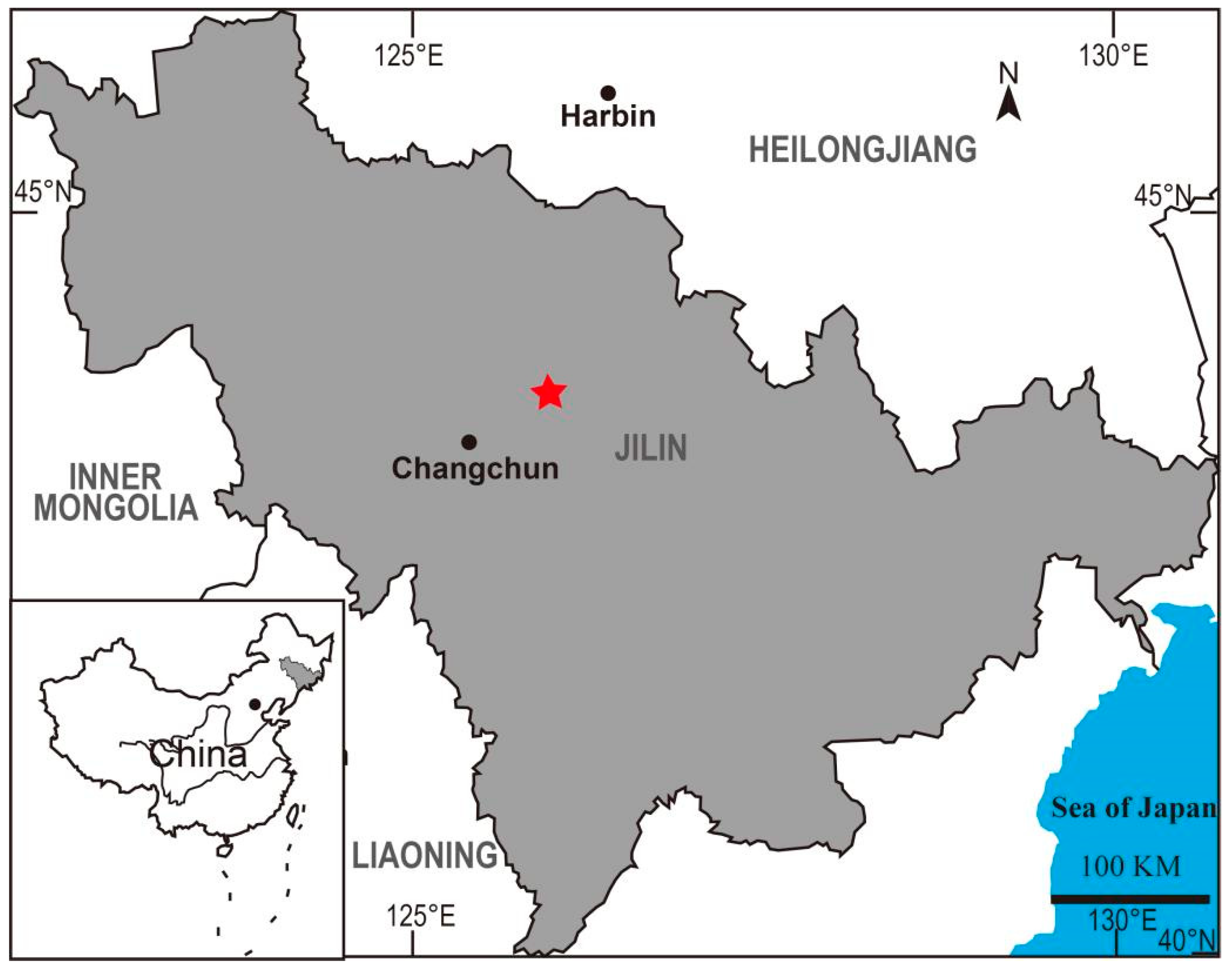

Two silicified woods (registered nos. JLJY-01 and JLJY-02) were collected from the middle section of the Yingcheng Formation, Yingcheng Coal Mine (44°9′47.53″ N, 125°54′53.92″ E), Changchun City, Jilin Province, northeast China (Figure 2). The location is situated at the southeast margin of the Songliao Basin, the largest Mesozoic–Cenozoic terrestrial oil-bearing basin in northeast Asia. The Lower Cretaceous succession in the Songliao Basin is composed of the Huoshiling, Shahezi, Yingcheng, and Denglouku formations in ascending order [13]. The Yingcheng Formation, dominated by medium-acid volcanic, volcaniclastic rocks, and coal-bearing deposits, can be divided into three parts. The middle section is a set of sedimentary rocks with coal layers yielding spores and pollen, leaves, woods, and insects.
Detailed isotopic dating of volcanic rocks indicates that the age of the middle section is Late Aptian–early Albian, between 115.2 ± 0.4 Ma and 110.0 ± 2.0 Ma [14,15]. Based on palynological data, due to the presence of Tricolpites sp. in the middle part of the Yingcheng Formation where the present silicified wood specimens were collected, the member is considered earliest Albian in age [16,17,18,19].
The specimen JLJY-01 is 45.5 cm long with a maximum diameter of 13.5 cm. The specimen JLJY-02 is 29.4 cm long and 11.0–21.6 cm in diameter. They are gray to black in color with well-preserved secondary xylem. However, no pith or primary xylem is preserved.
All the specimens and slides are housed in the Research Center of Paleontology and Stratigraphy, Jilin University, Changchun, China.

2.2. Methods

To investigate the anatomical characteristics of those silicified woods, microscopic slides of the transverse, radial, and tangential sections were made in the State Key Laboratory of Biogeology and Environmental Geology, China University of Geosciences (Wuhan). The slides were observed using a microscope (Nikon AZ100M) with a digital camera (Nikon DS-Ri2) in the International Center of Future Science, Dinosaur Evolution Research Center, Jilin University. Images were processed by the software Adobe Photoshop CS6 (Version 13. San Jose, CA, USA: Adobe Inc., licensed to Jilin University).
For the quantitative growth ring analysis, the radial diameters of tracheids were measured, and the percentage of diminution, percentage of latewood, ring markedness index (RMI), and percentage of skews of CSDM (cumulative sum of the deviation from mean diameter) curves were calculated following the method of Falcon-Lang [20].

3. Results

ORDER Coniferales.
GENUS Keteleerioxylon I.A. Shilkina, 1960.
Type species: Keteleerioxylon arcticum I.A. Shilkina, 1960.
Keteleerioxylon changchunense Shi, Sun, Meng et Yu sp. nov.
Holotype: Specimen JLJY-02 (Figure 3A); Slides JLJY-02 a1, JLJY-02 a2, JLJY-02 b1, JLJY-02 b2, JLJY-02 c1, JLJY-02 c2.
Repository: Research Center of Paleontology and Stratigraphy, Jilin University, Changchun, China.
Type locality: Yingcheng Coal Mine, Changchun City, Jilin Province, China.
Stratigraphic horizon and age: The middle section of the Yingcheng Formation, earliest Albian (Early Cretaceous).
Etymology: The specific name is derived from Changchun where the specimens were collected.
Diagnosis: Growth rings distinct. Pits on radial walls of tracheids uniseriate to triseriate. Pits circular; uniseriate pits scattered, rarely contiguous slightly; biseriate pits mostly opposite, occasionally alternate; triseriate in a row. Crassulae present. Pits on tangential walls of tracheids absent. Transverse walls of axial parenchyma cells smooth. Rays, (1)6–11(37) cells high, uniseriate, sometimes with one to eight layers of biseriate cells. Horizontal and end walls of ray cells distinctly pitted (Abientineentüpfelung). Ray marginal cells, resembling ray tracheids, with scattered uniseriate pits. Pits, of taxodioid-cupressoid type, 1–3(6) per cross-field, 5–10 μm in diameter. Resin canals, vertical, normal, surrounded by six to eleven thick-walled epithelial cells in a ring. Horizontal resin canals absent.
Description: The two specimens show similar characteristics, but the features of the transverse section are clearer in specimen JLJY-02. Thus, the description here is mainly based on the specimen JLJY-02. Only the secondary xylem was preserved in the two specimens.
The homoxulous pycnoxylic wood consists of tracheids, rays, axial parenchyma cells, and epithelial cells of resin canals. The growth rings are distinct, 0.79–2.85 mm wide, with distinct and relatively straight boundaries (Figure 3B,D). The early-late wood transition is abrupt. In the transverse section, the early wood tracheids are large, thin-walled, and mainly rectangular (sometimes polygonal or circular). The latewood tracheids are thick-walled, and radially compressed, and lumens almost disappeared near the growth-ring margin. The radial tracheid lumens are 0–89 μm in diameter. Intercellular space is absent. Xylem rays mainly consist of uniseriate cells, and 1–10 seriates of tracheids in between.
Pits on the radial walls are borded, circular in shape, (11)12–17(20) μm in diameter. In the late woods, they are uniseriate, partly biseriate, and scattered, rarely slightly contiguous, with an included aperture (circular or elliptical). In the early woods, they are mostly biseriate or triseriate, occasionally uniseriate (Figure 3F,G,H and Figure 4A). When biseriate, the pits are mainly opposite, occasionally they show a tendency toward alternate arrangement (Figure 3G,H); when triseriate, the pits arrange in a row (Figure 4A). The pits are (16)18–22(25) μm in diameter, with circular or elliptical apertures. Crassulae are present (Figure 3F,H and Figure 4A). Axial parenchyma cells are rare, and `their transverse walls are smooth (Figure 4C).
Rays are (1)6–11(37) cells in height, uniseriate, occasionally with one to eight layers of biseriate cells (Figure 4G,H). In the radial section, ray cells are brick-shaped, 19–25 μm in height, and 50–129 μm in length. The horizontal and end walls of the ray parenchyma cells are pitted (Figure 4B,I). In the tangential section, ray cells are 10–28 μm in width, elliptical, circular, or rectangular, but rounded-triangular in marginal ray cells. Marginal ray cells resemble those ray tracheids with scattered uniseriate pits (Figure 4F).
There are 1–3(6) pits per cross-field, of taxodioid-cupressoid type, 5–10 μm in diameter. (Figure 4D,E). Two or three pits arrange in a row, while four to six pits are in a diffuse arrangement.
Vertical resin canals are present only (Figure 3E). Resin canals are circular or oval, radially elongated, 47–206 μm in diameter, and single or in pairs (Figure 3B,C). They are lined with six to eleven thick-walled epithelial cells in a ring and situated in both early and latewood. Horizontal resin canals are absent.
Comparison: The fossil woods described here are characterized by the presence of (only) vertical normal resin canals with thick-walled epithelial cells, axial parenchyma, and the marginal cells of rays resembling ray tracheids. They closely resemble the extant genus Keteleeria [11].
The presence of (only) vertical normal resin canals with thick-walled epithelial cells and the absence of horizontal resin canals are unique characteristics of the extant Keteleeria [7,11,21,22,23,24,25]. Sole vertical resin canals may also occur in the wood of some taxa of the Taxodiaceae and Cupressaceae. However, these canals are traumatic, relatively large, with irregular outlines, and without typical epithelial cells that form a continuous lining around a resin canal [11].
The absence of true ray tracheids is also an important characteristic of Keteleeria [22]. The marginal ray cells of Keteleeria have a slightly greater number of pits on the radial walls and undulate slightly convex external walls. The phenomenon can be also observed in the wood of Abies and Pseudolarix [22]. However, the two taxa do not possess normal resin canals.
The presence of axial parenchyma is also the characteristic of Keteleeria, although it is scarce [21,22,23].
Shilkina proposed the generic name Keteleerioxylon for the fossil woods with the anatomical characteristics of the extant Keteleeria [7]. Pinoxylon (Knowlton) Read or Protopiceoxylon Gothan (the generic name is controversial) shows similar characteristics with Keteleerioxylon in possessing sole vertical resin canals [25,26,27,28,29]. As clearly explained by Philippe and Bamford, Pinoxylon or Protopiceoxylon shows araucarian, or araucarian and abietinean pitting on the radial walls of tracheids, while the pits on the tracheid radial walls of Keteleerioxylon are abietinean, or slightly alternate when biseriate [29]. In the wood of Keteleeria, the tracheid pitting in radial walls is abietinean, but occasionally shows a tendency toward “alternate” [30]. The radial pitting of the studied fossil wood is quite like extant Keteleeria. Thus, the present specimen should be assigned to the genus Keteleerioxylon.
The present fossil woods differ from the extant species of Keteleeria in having uniseriate to triseriate pits on the radial walls of tracheids, in lacking pits on tangential walls of tracheids, and in possessing taxodioid and cupressoid cross-field pits (Table 1).
The fossil wood genus Keteleerioxylon was established from the materials collected from the Early Cretaceous Franz Josef Land, Russia by Shilkina [7]. Until now, four species of Keteleerioxylon have been described. K. arcticum Shikkina, 1960 differs from K. changchunense in having uniseriate to biseriate pits on the radial walls of tracheids, in possessing pits on tangential walls of tracheids, in lacking marginal ray cells of the ray tracheid type, and in having fewer pits per cross-field [7]. K. fokinii Shilkina, 1986 was found in the Early Cretaceous Kirovsk Region of Russia [34]. K. fokinii differs from the present woods in having uniseriate to biseriate pits on the radial walls of tracheids, in the absence of crassula, and in the taxodioid cross-field pits. K. primoryense Blokhina, 2000 from the Oligocene–Miocene of Primorye differs from K. changchunense in having uniseriate to biseriate pits on the radial walls of tracheids, in possessing pits on tangential walls of tracheids, and in the cupressoid cross-field pits [35]. K. kamtshatkiense Blokh. et Afonin, 2006, from the Lower Cretaceous of the Kamchatka Peninsula, Russia, is different from the woods under the description, in having uniseriate to biseriate pits on the radial walls of tracheids, in possessing pits on tangential walls of tracheids, and in the absence of crassula [11]. Jiang et al. reported that the Keteleeria liaoxiense and Keteleeria sp. were discovered from the Middle Jurassic Liaoning Province, but they did not give a description [36].
There are many woods that were identified as Keteleeria. Keteleeria mabetiensis Watari, 1941 was collected from the Lower Miocene of Japan [37,38]. Keteleeria mabetiensis differs from Keteleerioxylon changchunense in possessing pits on tangential walls of tracheids, in knotty transverse walls of axial parenchyma, and taxodioid and piceooid cross-field pits. Keteleeria zhilinii Blokhina et Bondarenko, 2005 was first discovered in the Pliocene of Primorye, Russia [10]. K. zhilinii differs from the woods under study in having uniseriate to biseriate pits on the radial walls of tracheids, in having pits on tangential walls of tracheids, and in the taxodioid cross-field pits. Yang et al. discovered a silicified wood belonging to the genus Keteleeria in the Late Cretaceous of Henan, China [39]. They named these woods after the extant species “Keteleeria fortunei”. “Keteleeria fortunei” is different from Keteleerioxylon changchunense in having uniseriate to biseriate pits on the radial walls of tracheids and in the absence of axial parenchyma. Keteleeria sp. from the early Holocene of Hubei, China, differs from Keteleerioxylon changchunense in having uniseriate to biseriate pits on the radial walls of tracheids and in the taxodioid cross-field pits [40]. Keteleeria sp. from Guangdong, China differs from the woods under study in having uniseriate to biseriate pits on the radial walls of tracheids, in lower rays, and in having fewer pits per cross-field [12].
For the details of each fossil record, please see Table S1.

4. Discussion

4.1. Paleoecological and Paleoclimatic Implications

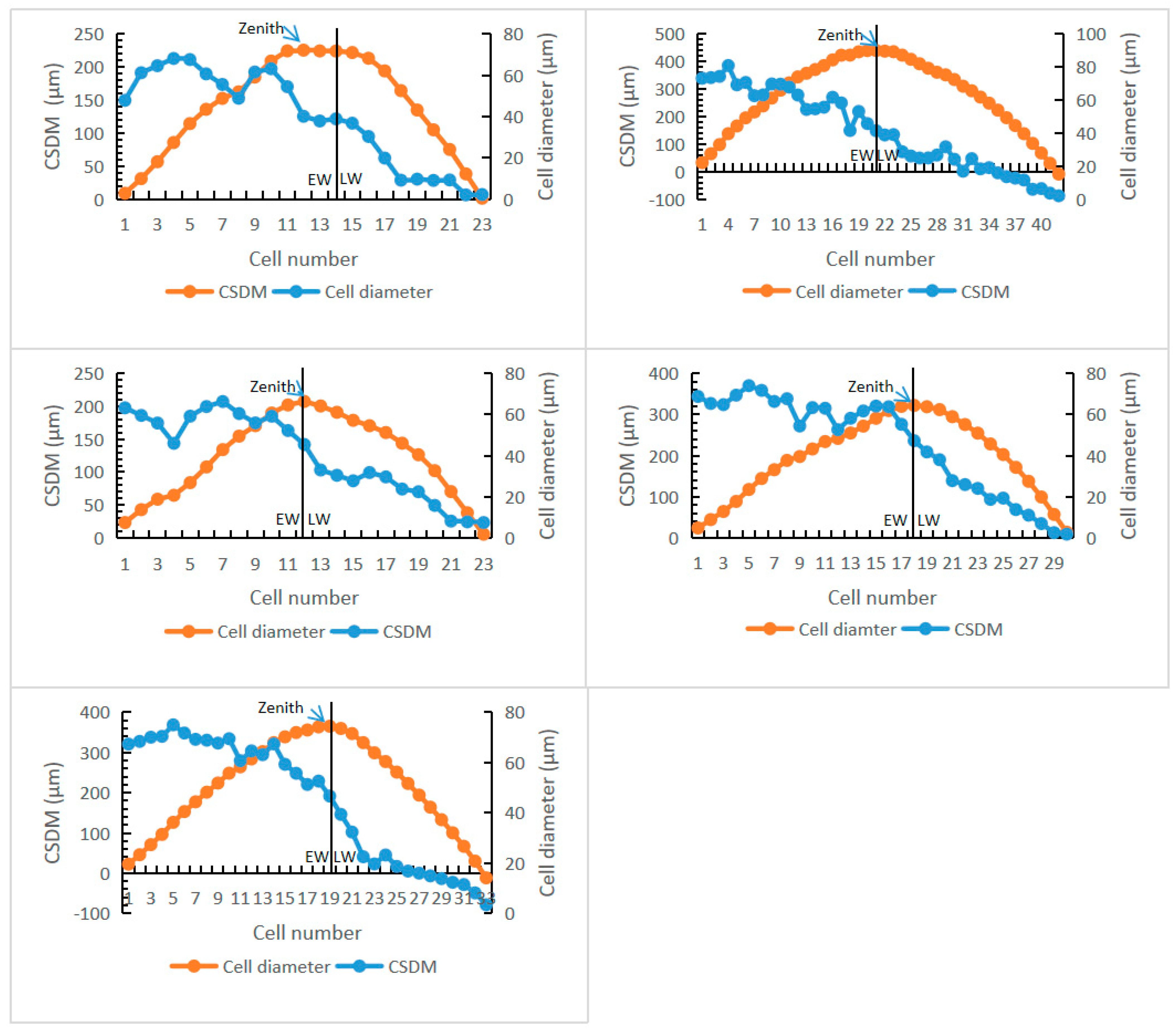

Quantitative analysis of growth rings can be used to detect whether the conifer species is evergreen or deciduous, and how long the leaf longevity is [20,41]. Through the measuring of radial diameters of five adjacent files of tracheid cells, four parameters were calculated, including (1) percentage of latewood, (2) percentage of cell diminution in a ring increment, (3) RMI, and (4) percentage of skews of CSDM curves (Table 2, Supplementary data).
Deciduous conifers have dominantly left-skewed CSDM or symmetrical curves, whereas evergreen conifers mainly have right-skewed CSDM curves. The CSDM curves of Keteleerioxylon changchunense are from 0 to +20.00% (mean percentage of skew +8.77%), right-skewed, suggesting that this species was evergreen (Figure 5, Table 3).
The percentage of latewood in Keteleerioxylon changchunense is 40.00–50.00%, with a mean of 45.62%; and the percentages of the CSDM curves skews range from 0–20.00% (mean 8.77%). These two parameters are quite close to those of Pinus sylvestris and Picea abies, while the percentage of cell diminution (89.39–97.50%, mean 95.45%) and the RMI (38.92–48.75%, mean 43.51%) are higher than those of Larix decidua (Table 2). Therefore, the leaf retention time of Keteleerioxylon changchunense is considered to be 1–3 years, the most likely approach to the extent of Keteleeria [42].
The CSDM curves are widely used for identifying evergreen or deciduous habits. However, an exception comes from the Late Pleistocene Keteleeria sp. of Guangdong, China, as its CSDM curves showed both left and right skews [12]. However, the radial cells in three growth rings of Keteleeria sp. are less than 15; this might result from false rings triggered by the East Asian monsoon. Therefore, we still think the right skew of CSDM curves is reliable in recognizing evergreen trees like K. changchunense.
The earliest Albian climate is regarded as a greenhouse with high atmospheric carbon dioxide concentration [19]. The global temperature in the Aptian and Albian periods would have been much higher than today [43], and the Arctic area was covered by evergreen broadleaf mixed with deciduous conifer forests in the Late Cretaceous period [44]. The growth ring RMI is considered as an indicator of the climatic seasonality intensity [20]. Keteleerioxylon changchunense shows very marked growth rings (high RMI) (Table 3). This might indicate that the climate seasonality was likely to be strong in the earliest Albian period in the Songliao Basin, Northeast China.

4.2. Phytogeographical Distribution

As mentioned above, Keteleerioxylon and Protopiceoxylon or Pinoxylon show great similarity to the extant Keteleeria. According to Blokhina et al., there is a distinct possibility that they are the remote ancestors of Keteleeria. Although extant Keteleeria is endemic to East and Southeast Asia, the Keteleeria-like fossils (including Keteleeria, Keteleerioxylon, and Protopiceoxylon or Pinoxylon) had been widely distributed in Europe, North America, and Asia in the northern hemisphere since the Middle Jurassic period (Table 4).

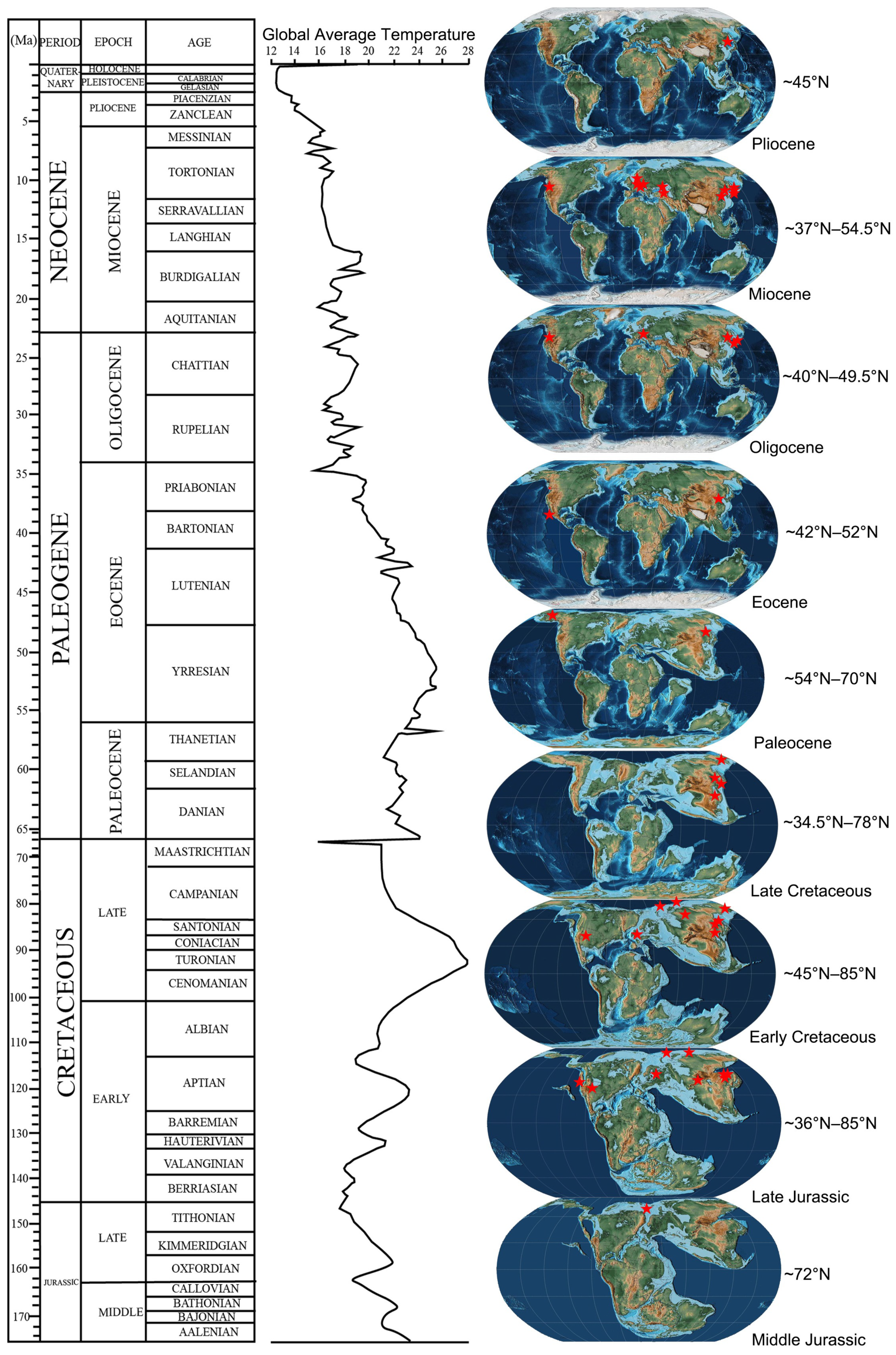

The earliest record of a Keteleeria-like fossil was discovered in Middle Jurassic Svalbard, Norway. The Late Jurassic-Early Cretaceous Keteleeria-like trees are widely distributed from western Liaoning, China to the Arctic areas (Figure 6). Their paleolatitudes range from 36° N to 85° N (Figure 6). This indicates that the climate might be warm and suitable for these subtropical thermophilic Keteleeria-like trees in the Late Jurassic-Early Cretaceous. In the Late Cretaceous, Keteleeria-like trees were still persistently distributed in the middle and high latitudes of the Russian far east and northeast China. After the K-Pg mass extinction, records of Keteleeria fossils were rare in the Paleocene [56,63]. In the Eocene, Keteleeria migrated to middle latitudes [6,64]. This migration was contemporary with the Paleocene–Eocene thermal maximum [88,89]. During the Oligocene and Miocene, Keteleeria was widely distributed in the mid-latitudes of North America, Europe, and east Asia in the northern hemisphere. From the Pliocene on, Keteleeria started to retreat southward from Primorye, Russia to the subtropical and tropical monsoon climate regions of South China and Southeast Asia in the middle and low latitudes (~13.8° N–35.5° N) in the Quaternary. Therefore, the palaeogeographical distribution of Keteleeria-like was closely related to the paleoclimate changes (Figure 6).

5. Conclusions

In this study, the species Keteleerioxylon changchunense Shi, Sun, Meng et Yu sp. nov. is described for the first time in the Late Early Cretaceous deposits of Changchun, Northeast China. The quantitative growth ring analysis of the two specimens shows that the species is evergreen, with the foliar long around 1–3 years. This is quite consistent with the habits of extant Keteleeria. The presence of very marked growth rings indicates that it lived in a seasonal climate during the earliest Albian period in the Songliao Basin, northeast China. The palaeogeographical distribution of the Keteleeria-like fossils indicates that they were distributed in both the middle and the high latitudes during the Late Jurassic–Cretaceous global warming time, while they retreated to the middle latitude in the Cenozoic due to global cooling, and they have only survived in east and southeast Asia after the Quaternary glaciations until now.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biology11111624/s1, Table S1: Comparison of wood anatomical characters of Keteleerioxylon changchunense sp. nov. and closely reLated fossil species. Supplementary data: Cell diameter for CSDM curve.

Author Contributions

Conceptualization, X.S. and Y.S.; field sampling, data processing, and measurement, X.S., Y.S., F.M., J.Y. and Z.L.; writing—original draft preparation, X.S.; writing—review and editing, Y.S. All authors contributed suggestions and revised the article. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Sciences Foundation of China (Nos. 92055201, 41972012 and 31700183).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We are greatly indebted to the editor and the three anonymous reviewers for their critical revision of an earlier version of the manuscript. We thank Ning Tian (Shenyang Normal University) and Zikun Jiang (Chinese Academy of Geological Sciences) for their constructive and helpful suggestions. Xiaogang Wu is thanked for his assistance in making thin sections. We especially thank Wei Sun and Zhen Xu, who helped improve the English.

Conflicts of Interest

The authors declare no conflict of interest.
