Organic Dyes for Light-Based Biomedical Imaging and Therapy

Abstract

Light-based diagnostic and therapeutic approaches are increasingly important in modern biomedicine, with organic dyes emerging as versatile optical agents due to their tunable photophysical properties. Precise control over absorption and emission characteristics has enabled their application in fluorescence, photoacoustic, and Raman imaging, as well as in photodynamic and photothermal therapies. However, challenges related to biocompatibility, aqueous stability, and in vivo performance remain critical for clinical translation. Organic dyes that absorb in the near-infrared region are particularly attractive because of their deeper tissue penetration and reduced background interference. This review highlights key structure property relationships of organic dyes and summarizes current design strategies, including chromophore modification, peripheral functionalization for water solubility, and self-assembled nanotheranostic systems. Recent biomedical applications in cancer diagnosis and therapy, bacterial detection, and imaging-guided treatment are discussed, along with future directions for advancing dye-based technologies in healthcare.

1. Introduction

Light-based technologies have emerged as powerful and versatile tools for probing biological systems and enabling non-invasive diagnosis and therapy across a wide range of diseases [1,2]. By complementing and extending conventional imaging and detection platforms, optical technologies have found broad applications in conditions such as inflammation, cancer, and cardiovascular disease. Among these approaches, fluorescence-based imaging has been extensively employed for molecular-level visualization due to its high sensitivity and specificity [3,4,5]. More recently, the integration of fluorescence imaging with photoacoustic imaging (PAI) has attracted significant attention [6,7]. This hybrid modality combines strong optical contrast with ultrasound-based spatial resolution, enabling deeper tissue penetration and improved diagnostic accuracy, particularly for early disease detection in oncology [6,8]. These advances have enabled the development of theranostic platforms that integrate disease detection, real-time imaging, and targeted therapy within a single molecular or nanoscale system, offering new opportunities for precision medicine.

Alongside diagnostic advancements, light-activated therapeutic modalities such as photothermal therapy (PTT) and photodynamic therapy (PDT) have gained prominence as minimally invasive strategies for cancer and other diseases [9,10,11]. Several review articles have summarized the principles and biomedical applications of photothermal and photodynamic approaches in disease diagnosis and therapy, including neurodegenerative disorders such as Alzheimer’s disease [12,13,14]. In this context, organic dye-based systems have emerged as promising platforms due to their tunable optical properties and ability to enable combined imaging and therapeutic functions. In these approaches, photoactive agents—commonly referred to as photosensitizers—convert absorbed light into localized heat (PTT) or generate cytotoxic reactive oxygen species, primarily singlet oxygen (PDT), resulting in targeted tumor ablation [15,16]. Despite their therapeutic promise, achieving precise control over optical absorption, energy conversion pathways, and biological behavior remains a major challenge [16,17]. These limitations underscore the need for rationally designed materials with tunable optical properties, high photostability, and favorable biocompatibility.

Organic dyes represent a particularly attractive class of photoactive materials owing to their highly tunable molecular structures and diverse photophysical properties [18]. Since the discovery of the first synthetic azo dye (aniline yellow) in the nineteenth century, organic dyes have been widely utilized in fields ranging from textiles and solar energy conversion to optoelectronic devices such as light-emitting diodes [19,20]. In recent years, their role has expanded significantly into biomedical applications, driven by advances in molecular design and synthetic chemistry [21]. Dye families, including cyanines, perylene and rylene derivatives, BODIPY dyes, indocyanine green, and aggregation-induced emission (AIE) luminogens, have been extensively explored for bioimaging, photodynamic therapy, photothermal therapy, and, in some cases, image-guided chemotherapy [22,23,24].

A key advantage of organic dyes lies in the ability to precisely tailor their absorption and emission characteristics through chemical modification of the chromophore backbone and peripheral functional groups. Such modifications can induce pronounced spectral shifts, modulate fluorescence intensity, or alter non-radiative decay pathways. While some colorimetric changes are visible to the naked eye, most biological applications rely on fluorescence- or photoacoustic-based signal modulation for sensitive in vitro and in vivo detection. Organic dyes absorbing in the near-infrared (NIR-I and NIR-II) spectral windows enable deeper tissue penetration, reduced autofluorescence, and improved signal-to-noise ratios, making them highly suitable for biomedical imaging [25,26].

Beyond fluorescence, organic dyes can also be engineered to favor non-radiative relaxation processes, efficiently converting absorbed optical energy into heat. This property is especially advantageous for photoacoustic imaging, where transient thermoelastic expansion generates detectable acoustic waves with high spatial resolution [25,27]. Dye-based photoacoustic probes have therefore enabled non-invasive visualization of tumors, inflammatory lesions, and vascular abnormalities, addressing several limitations associated with conventional diagnostic techniques [28,29].

Despite these advantages, the clinical translation of organic dyes is often hindered by poor aqueous solubility and limited stability in biological environments. Significant progress has been made to address these challenges through chemical functionalization with hydrophilic moieties, polymer conjugation, and supramolecular assembly [30,31]. Furthermore, advances in nanomaterial synthesis and nanoprecipitation strategies have enabled organic dyes to be encapsulated within or conjugated to inorganic and hybrid nanostructures [32,33]. These nanoformulations enhance water solubility, photostability, circulation time, and targeting capability. For example, BODIPY dyes functionalized with hydrophilic groups or integrated with inorganic nanoparticles such as gold nanostructures exhibit improved performance in bioimaging, photodynamic therapy, and photothermal therapy due to synergistic optical and photothermal effects [22].

Several previous review articles have summarized organic dye-based photothermal and photodynamic therapeutic strategies for disease diagnosis and treatment, often focusing primarily on phototherapeutic mechanisms or specific disease applications. In contrast, this review provides a broader and more integrated perspective by highlighting recent advances in the design and biomedical applications of organic dyes and their nanoformulations, with particular emphasis on imaging, phototherapy, and emerging theranostic strategies. Special attention is given to structure–property relationships, optical tuning approaches, and nanoengineering strategies that govern the performance of these systems, as well as translational challenges relevant to the development of next-generation light-based diagnostic and therapeutic platforms. The review primarily focuses on developments reported over the past decade (approximately 2014–2025), while also referencing earlier foundational studies that established the design principles of dye-based biomedical imaging and therapy.

The development of organic dye platforms for biomedical imaging and therapy is guided by several key molecular design principles, including spectral tuning of chromophores, control of solubility and aggregation behavior, targeting of specific biological environments, and integration with multimodal imaging or therapeutic systems. To provide a clear framework for this broad and rapidly evolving field, the review is organized as follows. First, key molecular design strategies for organic dyes are summarized, including chromophore engineering, solubility and aggregation control, and nanoformulation approaches. Subsequent sections highlight representative biomedical applications, including antimicrobial systems, in vitro and in vivo diagnostic imaging, and emerging modalities such as photoacoustic imaging and surface-enhanced Raman spectroscopy. The review also discusses light-activated therapeutic approaches, including photothermal and photodynamic therapy. While the primary focus is on dye-based optical imaging and therapy platforms, other imaging technologies that do not rely directly on dye photophysics are beyond the scope of this article. Finally, translational challenges and future opportunities for advancing organic dye-based platforms toward integrated biomedical technologies are discussed.

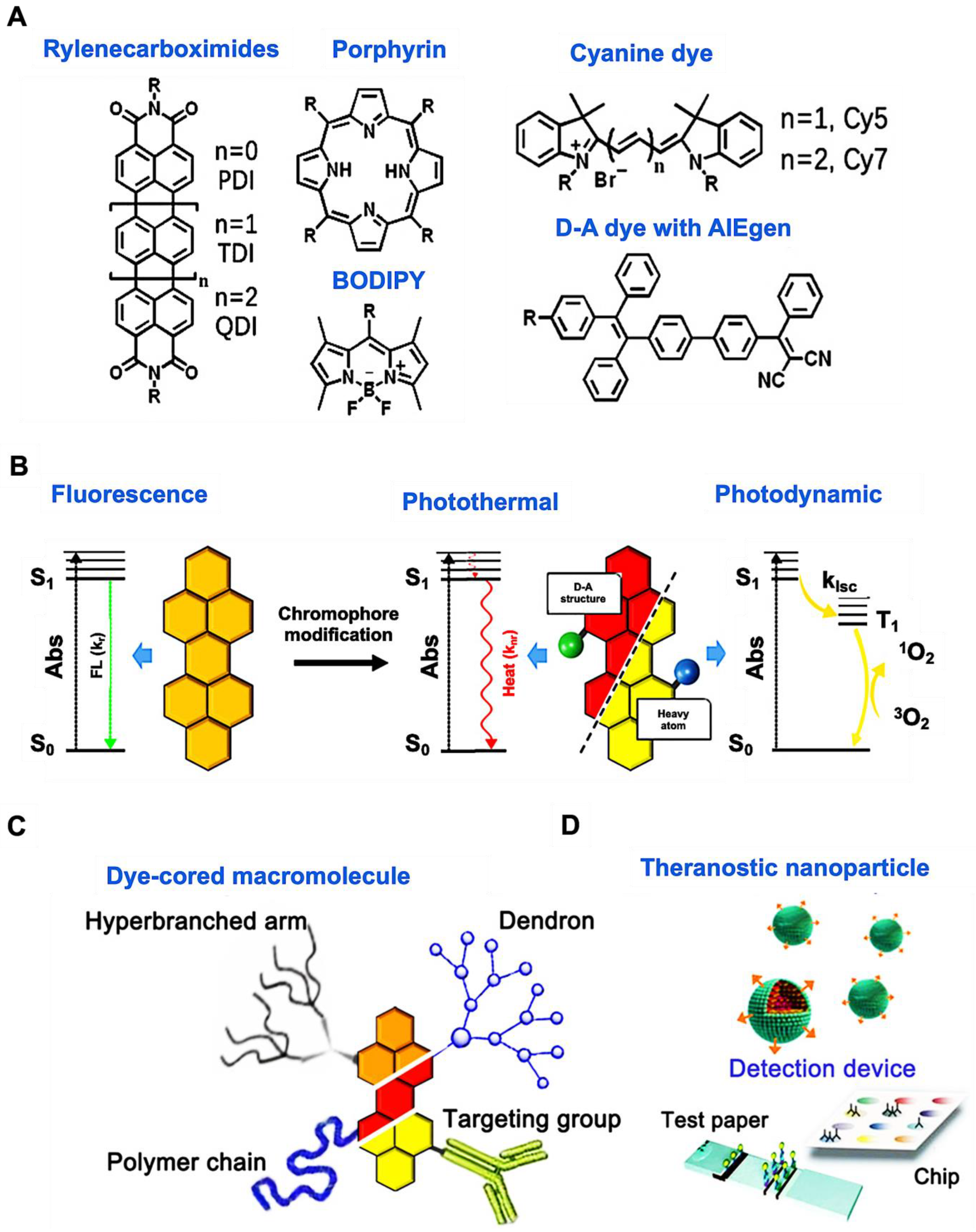

2. Design Strategy

The design of organic dyes is highly application-dependent, with molecular architecture playing a central role in determining their optical behavior. Incorporation of diverse donor–acceptor motifs within the conjugated backbone enables precise modulation of photophysical properties, allowing absorption profiles to be shifted toward the far-red and near-infrared regions [34,35]. To enhance aqueous compatibility, dyes can be functionalized with hydrophilic moieties or transformed into nanoformulations using strategies such as nanoprecipitation, self-assembly, or supramolecular interactions [36]. An overview of the design strategies for organic dyes used in biomedical imaging and therapeutic applications is summarized in Figure 1, including representative dye structures (Figure 1A), modulation of photophysical pathways through molecular engineering (Figure 1B), dye-cored macromolecular architectures (Figure 1C), and functional dye-based material platforms for imaging and therapy (Figure 1D).

Upon excitation at appropriate wavelengths, organic dyes can undergo radiative emission, non-radiative heat dissipation, or generate reactive oxygen species, depending on their molecular structure. These photophysical pathways can be finely regulated through chemical modification of the dye backbone (Figure 1B). Fluorophores such as BODIPY, cyanine, and perylene derivatives exhibit strong fluorescence and are widely utilized in bioimaging [22,23]. Structural engineering of these dyes further enables their application in light-activated therapeutic modalities. For example, the introduction of heavy atoms such as bromine or iodine promotes intersystem crossing, thereby modulating fluorescence quantum yield and enhancing photothermal or photodynamic efficiency (Figure 1B) [37,38]. Dyes with inherently low fluorescence quantum yields preferentially convert absorbed light into heat, making them particularly suitable for photoacoustic imaging as well as photothermal and photodynamic therapies [39].

Despite their favorable optical properties, many organic dyes possess hydrophobic cores that limit their direct use in biological environments due to aggregation in aqueous or physiological media. This limitation can be addressed by incorporating hydrophilic functional groups such as polyethylene glycol chains, glycol or ether linkages, or charged moieties including amines, carboxylates, phosphates, and sulfonates (Figure 1C) [23]. Recent studies have demonstrated that core–shell macromolecular dye architectures bearing hydrophilic outer layers significantly improve aqueous stability while preserving optical performance [40]. Such designs have shown promise in bioimaging, drug delivery, and tumor-targeted therapeutic applications by reducing aggregation and enhancing circulation stability (Figure 1C).

Leveraging their distinctive optical characteristics and surface chemistry, organic dyes have increasingly been engineered into nanoscale materials for energy and biomedical applications. Dye-based nanoparticles can be prepared through nanoprecipitation or by encapsulation within polymeric or metallic nanocarriers [41]. Owing to their rigid and planar molecular structures, organic dyes readily assemble through π–π stacking and hydrophobic interactions, enabling the formation of nanoscale imaging agents and nanomedicines. Like inorganic nanomaterials, organic dye assemblies can achieve ultrasmall particle sizes depending on the extent of molecular aggregation [32]. These nanostructures can serve as carriers for hydrophobic therapeutics, with light-triggered release at target sites. Additionally, incorporation of dyes into metal–organic frameworks or hydrogel matrices has emerged as an effective approach for controlled drug delivery and photothermal-based therapeutic interventions.

Organic dyes also play an important role in in vitro analytical and diagnostic applications. By incorporating stimulus-responsive functional groups into fluorescent dye structures, highly selective probes can be engineered for the detection of gases, metal ions, disease-associated biomarkers, and antibodies [42]. These fluorescent sensing platforms range from simple formats, such as polymer-based fluorescent films and paper-based test strips, to more advanced systems, including fluorescent microarrays and chip-based sensors designed for microscopic analysis (Figure 1D) [43]. In such systems, overall sensing performance is strongly influenced not only by the intrinsic photophysical properties of the dye but also by its interaction with the supporting substrate and the strategy used to immobilize or couple the probe to the sensing platform.

Across these studies, several general molecular design principles emerge. Donor–acceptor architectures and extended π-conjugation commonly promote red-shifted absorption into the near-infrared region, improving tissue penetration for imaging and therapy [44,45]. Heavy-atom substitution (e.g., iodine or bromine) is frequently used to enhance intersystem crossing and increase singlet oxygen generation for photodynamic therapy, although it may reduce fluorescence quantum yield [46,47]. Conversely, strategies that favor nonradiative relaxation pathways, such as intramolecular charge transfer or molecular flexibility, tend to enhance photothermal conversion efficiency and photoacoustic signal generation [39]. These design principles illustrate how careful modulation of dye electronic structure enables tuning of optical and therapeutic performance across diverse biomedical applications.

3. Healthcare Applications

3.1. Antimicrobial and Antibacterial Applications

Bacterial infection remains one of the major concerns in public health [48]. Antimicrobial agents are widely used to kill microorganisms and suppress their growth, and recent developments have introduced a variety of synthetic and natural antimicrobial agents. Identifying pathogens, such as bacteria, is a crucial first step, followed by their disinfection using appropriate antimicrobial agents. Advances in fluorescence and chemiluminescence based on organic dyes have led to the development of antimicrobial systems that enable facile pathogen detection [49]. These systems exploit surface functionalities that interact with bacterial components to generate detectable fluorescence signals. Although growth inhibition tests remain the gold standard, technological advancements have introduced simpler detection approaches, including colorimetric assays and paper-based test strips [50].

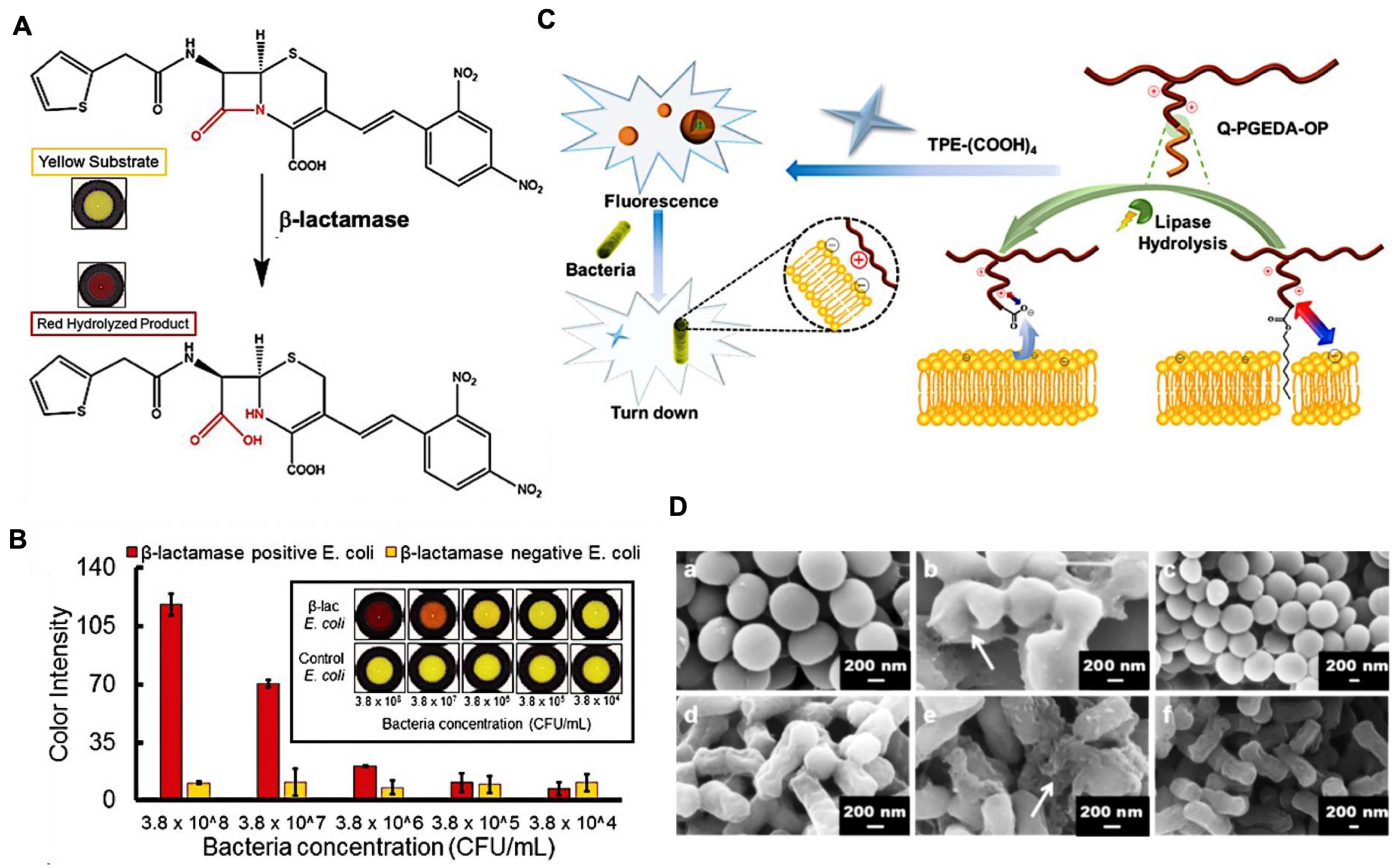

Boehle et al. prepared a paper test strip for β-lactamase-mediated resistance detection using nitrocefin [51]. Cleavage of nitrocefin by β-lactamase produced a visible color change from yellow to red, as shown in Figure 2A. The β-lactamase–nitrocefin reaction was optimized in phosphate-buffered saline at pH 7.5, with an optimal nitrocefin concentration of 0.5 mM, achieving a detection limit of 10 mU/mL for lyophilized enzyme. Under these optimized conditions, β-lactamase activity was detected directly in live E. coli without culturing. A visible color change was observed only in β-lactamase-expressing bacteria, with a detection threshold above 3.8 × 10⁶ CFU/mL (Figure 2B). Importantly, non-β-lactamase-producing bacteria did not interfere with signal generation, as comparable color intensities were observed in both pure and mixed bacterial populations. Cell lysis resulted in only a modest enhancement in assay performance, with an approximately 5% increase in signal intensity after 10 min compared to intact cells. This minimal improvement suggests that β-lactamase is either released from bacterial cells or that nitrocefin readily penetrates the bacterial membrane, enabling effective detection without additional sample processing.

Aggregation-induced emission (AIE) luminogen-based dyes and nanoparticles have also found applications in bacterial detection through fluorescence-based approaches. Chen et al. developed an antimicrobial polymer incorporating ester linkages between the polymer backbone and functional units, while integrating AIE luminogens to enable simultaneous bacterial imaging and eradication (Figure 2C) [52]. The cationic segments of the polymer electrostatically interact with negatively charged bacterial membranes, while hydrophobic alkyl chains insert into the lipid bilayer, collectively disrupting membrane integrity. The ester bonds impart strong short-term antibacterial activity and undergo enzymatic hydrolysis in biological environments, thereby improving biocompatibility. The resulting Q-PGEDA-OP/TPE system achieved antibacterial efficiencies exceeding 99% against both S. aureus and E. coli, with SEM analysis confirming severe membrane damage (Figure 2C). Similarly, Wang et al. demonstrated that AIEgen-based nanostructures can function as both photodynamic and photothermal antibacterial agents, achieving antibacterial rates as high as 99.9% for S. aureus and 99.8% for E. coli [53].

Perylene diimides (PDI) possess excellent fluorescence and photothermal properties. Conjugation of the perylene core with water-soluble groups has enabled the fabrication of a series of fluorescent dyes for biomedical applications [23]. Yang et al. reported a supramolecular complex formed between cucurbit [7] uril and perylene diimides [54]. Facultative anaerobic bacteria such as E. coli exhibit sufficient reducing activity to generate radical anions of the dye complex in situ, enabling effective photothermal killing under near-infrared irradiation. In contrast, aerobic bacteria such as B. subtilis lack the reductive capacity required for dye complex activation and therefore do not generate photothermally active species. This differential redox response enables the dye complex to selectively inhibit specific bacterial populations through photothermal therapy.

Collectively, these studies highlight several emerging molecular design principles for dye-based antimicrobial platforms. First, enzyme-responsive dyes such as nitrocefin demonstrate how pathogen-specific biochemical activity can be exploited for rapid and selective bacterial detection [51]. Second, cationic and amphiphilic dye-containing polymers or nanoparticles enhance interactions with negatively charged bacterial membranes, facilitating efficient bacterial targeting and membrane disruption [52]. In addition, aggregation-induced emission (AIE) luminogens provide strong fluorescence signals and can simultaneously enable photodynamic or photothermal antibacterial activity [53]. Finally, π-conjugated dye systems such as perylene diimides illustrate how redox-responsive activation and near-infrared absorption can be harnessed for selective photothermal killing of bacteria [54]. These design strategies demonstrate how rational control of molecular structure, charge distribution, and photophysical properties enables organic dyes to function as multifunctional platforms for both pathogen detection and antimicrobial therapy.

3.2. Disease Diagnosis

3.2.1. In Vitro Diagnosis

Detection of biomarkers and biomolecules is essential because their analysis provides valuable information about disease progression and treatment monitoring [55,56]. Among various diagnostic tools, organic dyes have gained wide attention due to their good biocompatibility and strong optical properties, offering advantages over many inorganic materials. Traditional techniques such as chromatography, electrophoresis, and electrochemical methods are often time-consuming and less suitable for rapid or early diagnosis [57]. In contrast, recent advances in fluorescent and chemiluminescent organic materials have made biomarker detection faster, simpler, and more accessible [42].

Ai and Lu et al. developed imidazolium-functionalized polydiacetylenes (iPDAs) as a sensing system for the rapid and selective detection of lysobisphosphatidic acid (LPA), a biomarker linked to early-stage ovarian cancer (Figure 3A) [58]. This system operates through a “lock–key” mechanism, where LPA interacts specifically with the iPDA structure via electrostatic and hydrophobic interactions. Upon binding, the iPDA backbone undergoes a structural change, producing a visible color shift from blue to red. This color change enables quantitative detection of LPA in plasma (Figure 3B). Using this approach, the authors further developed a portable point-of-care device capable of reliably distinguishing blood samples from ovarian cancer patients and healthy individuals (Figure 3C).

In parallel, microarray-on-chip technologies have emerged as powerful tools for rapid and multiplexed biomarker detection. Hucknall et al. introduced an inkjet-printed microarray platform, known as the D4 assay chip, designed for quantitative and self-contained immunoassays [59]. By correlating fluorescence intensity with analyte concentration in IL-6-spiked serum samples, accurate quantification of IL-6 was achieved. Additionally, multiple biomarkers could be detected simultaneously by printing different capture spots on a single chip. Compared with conventional ELISA methods, the D4 assay is faster, easier to use, and well-suited for rapid blood-based diagnostics and early disease detection.

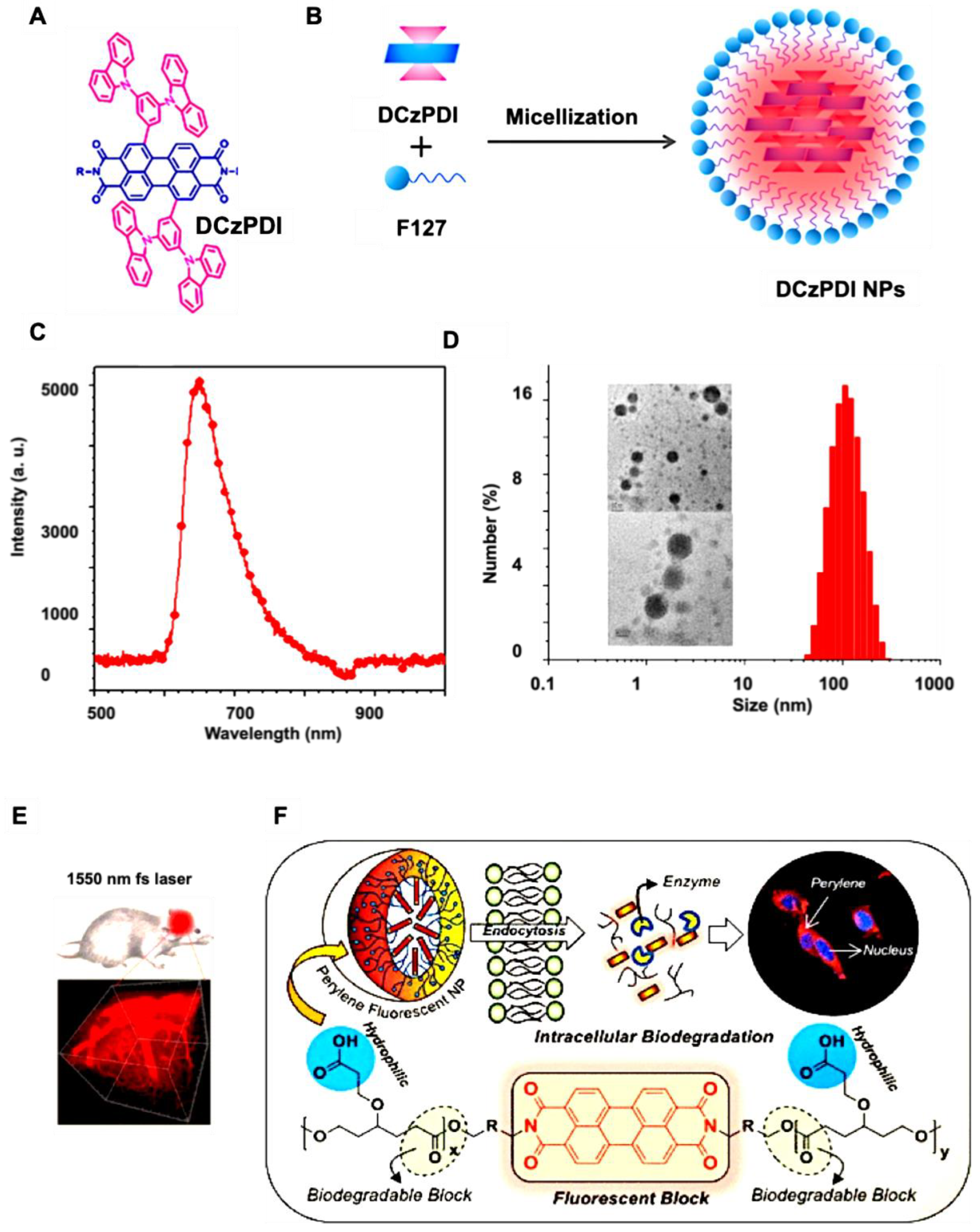

Water-soluble PDIs are widely used for in vitro cellular imaging owing to their intrinsic fluorescence, which is highly sensitive to various stimuli such as temperature and pH of media, which allow visualization of cellular structure and cellular processes. Zimmerman and co-workers developed a polyglycerol-dendronized perylene diimide, functionalized with a single biotin moiety for targeted fluorescence imaging applications (Figure 3D) [60]. Upon attachment to PEG-passivated substrates through biotin–neutravidin interactions, the fluorophore displayed strong and selective fluorescence, demonstrating its targeting specificity. In live E. coli cells expressing biotinylated surface receptors, prior treatment with streptavidin resulted in distinct fluorescent localization on the bacterial membrane, occasionally appearing as helical patterns that reflect underlying protein organization. These results demonstrate the utility of perlyene as a high-precision fluorescent probe and introduce a versatile biolabeling concept that combines a fluorescent core with a multivalent dendritic shell for targeted imaging and potential therapeutic use (Figure 3E). In a related study, a guanidinium-functionalized dendronized perylene analog was shown to efficiently enter HeLa cells and accumulate within the cytoplasm, enabling effective intracellular fluorescence imaging [61].

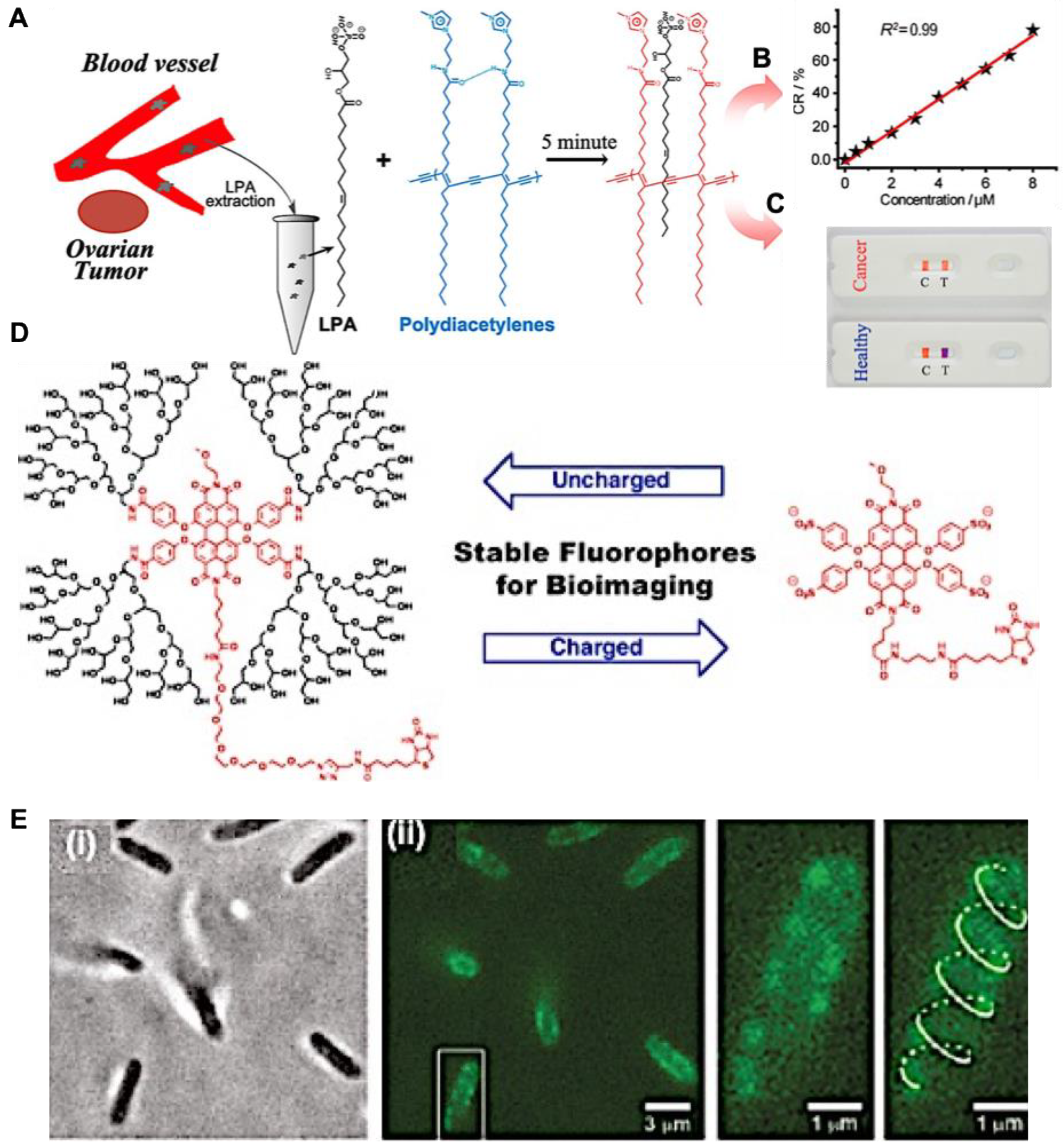

Figure 3. In vitro disease diagnosis using photoresponsive organic dyes. (A) Schematic illustration of the sensing mechanism employed for lysophosphatidic acid (LPA) recognition. (B) Colorimetric response of iPDAs as a function of increasing LPA molar equivalents. (C) Conceptual depiction of an LPA-driven point-of-care diagnostic strategy for ovarian cancer detection. Reproduced with permission from [58]. Copyright 2017 American Chemical Society. (D) Molecular structure of polyglycerol-dendronized perylene diimide. (E) Bright-field (i,ii) and fluorescence microscopy images of E. coli following labeling with PDI-41 after streptavidin preincubation. The enlarged panel on the right corresponds to the boxed region in the central image, highlighting the helical distribution of λ receptors within an individual bacterium. Reproduced with permission from [60]. Copyright 2011, American Chemical Society.

Figure 3. In vitro disease diagnosis using photoresponsive organic dyes. (A) Schematic illustration of the sensing mechanism employed for lysophosphatidic acid (LPA) recognition. (B) Colorimetric response of iPDAs as a function of increasing LPA molar equivalents. (C) Conceptual depiction of an LPA-driven point-of-care diagnostic strategy for ovarian cancer detection. Reproduced with permission from [58]. Copyright 2017 American Chemical Society. (D) Molecular structure of polyglycerol-dendronized perylene diimide. (E) Bright-field (i,ii) and fluorescence microscopy images of E. coli following labeling with PDI-41 after streptavidin preincubation. The enlarged panel on the right corresponds to the boxed region in the central image, highlighting the helical distribution of λ receptors within an individual bacterium. Reproduced with permission from [60]. Copyright 2011, American Chemical Society.

BODIPY dyes have been extensively used for various in vitro bioimaging applications [22]. They have been used for cell membrane imaging, mitochondria, cytosol, and for endoplasmic reticulum imaging with proper surface modifications and charges [62]. To enhance plasma membrane–specific bioimaging, Collot et al. developed BODIPY-based plasma membrane probes by introducing amphiphilic and zwitterionic anchors to a green-emitting BODIPY core, generating variants with one to three anchors [63]. Among them, only one probe exhibited the best performance, showing a high quantum yield (0.92) and superior membrane specificity. Unlike conventional membrane labels such as fluorescent lectins, this probe remains non-emissive in aqueous environments and becomes strongly fluorescent only upon membrane binding, resulting in significantly higher signal-to-noise ratios. Across multiple cell models, including KB, HeLa, and U87 spheroids, the probe enabled bright, membrane-specific imaging using confocal and two-photon microscopy, with minimal cytotoxicity and favorable biodistribution, highlighting its advantages over traditional membrane-staining agents.

Recent studies demonstrate how structural modification of BODIPY probes enables distinct membrane-focused imaging and therapeutic functions. Polita et al. reported a viscosity-responsive s-indacene BODIPY probe that rapidly stains plasma membranes and enables fluorescence-lifetime-based mapping of membrane and cytoplasmic viscosity in live A549 cells [64]. In contrast, Li et al. introduced a fluorinated aza-BODIPY platform that combines fluorescence imaging with ¹⁹F MRI, enabling simultaneous membrane visualization, oxygen mapping, and photodynamic therapy guidance [65]. Fluorination enhanced membrane affinity and photosensitization, leading to singlet-oxygen-mediated lipid oxidation and pyroptosis, effectively suppressing tumor growth in vivo.

Complementing these approaches, Xiong et al. developed a pyrazolone-functionalized BODIPY probe designed for long-term plasma membrane imaging. Unlike internalizing probes, this derivative binds noncovalently to membrane proteins and remains membrane-confined, providing stable, photobleaching-resistant fluorescence for over 96 h [66]. Collectively, these studies illustrate how viscosity sensitivity, fluorination, and functional anchoring endow BODIPY probes with complementary capabilities ranging from biophysical sensing to image-guided therapy.

Recent advances in BODIPY probe design demonstrate how targeted structural modifications enable control over solubility, spectral tuning, and cellular localization for bioimaging applications. Alkene substitution combined with ester or carboxylic acid groups effectively shifts BODIPY absorption and emission into the far-red and near-infrared regions (≈627–747 nm) while improving aqueous solubility and fluorescence efficiency, enabling sensitive imaging of cancer cells with high contrast [67]. Extension of π-conjugation through rigid chromophoric units further enhances NIR emission and induces turn-on fluorescence responses upon cellular interaction, supporting deep-tissue imaging and potential photodynamic applications with low cytotoxicity [68]. In parallel, sulfonation strategies provide precise control over cellular permeability and probe localization, where mono-sulfonated BODIPYs readily cross cell membranes and di-sulfonated analogs remain confined to cell-surface receptors [69]. Collectively, these approaches highlight complementary design principles, spectral red-shifting via conjugation and alkene substitution, solubility enhancement through polar functionalities, and localization control via ionic groups, underscoring the versatility of BODIPY platforms for tailored intracellular and surface-targeted bioimaging, while also emphasizing the need for systematic in vivo validation to fully establish their translational potential.

Taken together, these studies reveal several general molecular design principles that govern the performance of organic dye systems for in vitro diagnostics. First, selective biomarker recognition is often achieved through rational functionalization of dye platforms with charged, amphiphilic, or biomolecule-binding groups, enabling specific interactions with target biomolecules or cellular structures. Second, chromophore engineering strategies such as π-conjugation extension, fluorination, and heterocycle modification enable tuning of absorption and emission wavelengths, improving detection sensitivity and enabling near-infrared imaging. Third, the integration of responsive molecular motifs—including viscosity-sensitive groups, fluorinated segments, or aggregation-induced emission units—allows probes to report specific biochemical or biophysical changes within cellular environments. Finally, nanoengineering strategies such as dendronization, polymer conjugation, and microarray-based platforms improve probe stability, targeting capability, and multiplexed detection. Collectively, these design strategies demonstrate how structural engineering of organic dyes enables sensitive, selective, and adaptable platforms for biomarker detection and cellular imaging in in vitro diagnostic applications.

3.2.2. In Vivo Diagnosis

Photoacoustic and fluorescence imaging are two of the most widely used techniques for in vivo disease diagnosis using organic dyes [70,71]. Fluorescence imaging provides high sensitivity and enables real-time visualization of biological processes with relatively simple instrumentation. In contrast, photoacoustic imaging offers deeper tissue penetration and higher spatial resolution by converting optical absorption into acoustic signals, thereby overcoming several limitations of purely optical imaging techniques. The complementary strengths of these imaging modalities have therefore promoted the development of dye-based platforms for multimodal biomedical imaging and image-guided therapeutic applications. The dyes with NIR absorption in regions I and II can be exclusively used for such imaging applications due to their deep tissue penetration capability and reduced noise from backgrounds. Such non-invasive imaging platforms are widely used these days for in vivo imaging and early detection of various biomarkers with short exposure time.

Urano et al. fabricated a fluorescent probe HMRef-βGal based on an optimized spirocyclization strategy for in vivo visualizing peritoneal metastatic tumors [72]. This membrane-permeable dye showed enhanced fluorescence turn-on, with up to 1400-fold fluorescence enhancement on activation. After confirming its ability to detect intracellular β-galactosidase activity, HMRef-βGal was evaluated for in vivo cancer imaging using a mouse model of peritoneal metastasis. Following intraperitoneal administration, HMRef-βGal enabled rapid and specific visualization of metastatic nodules smaller than 1 mm, with fluorescence intensity increasing over time to allow clear identification of tumors, including by naked eye observation. The detected lesions were confirmed as ovarian cancer metastases through colocalization with a lectin-based stain, and signal suppression by a β-galactosidase inhibitor verified enzyme-specific activation. Importantly, HMRef-βGal successfully visualized peritoneal metastases across multiple ovarian cancer models, including cell lines that were not detectable using earlier enzyme-targeted probes, highlighting its broad applicability for metastatic cancer imaging.

BODIPY [22], Aza-bodipy [62,73], and perlyene derivatives [23,74], indocyano green [75,76], cyanine [77,78], etc., are widely employed for in vivo tumor imaging applications. For in vivo imaging applications, the organic dyes are mostly converted into their nanoformulations for improved biocompatibility and blood circulation. Perylene diimide-based nanoparticles (PDI NPs) have gained increasing attention as robust fluorescent probes for bioimaging due to their excellent photostability and tunable optical properties [79]. NIR and emerging NIR-II PDI systems enable deep-tissue imaging with reduced background interference, supporting applications in high-resolution cancer diagnosis and therapy monitoring. Zong et al. reported DCZPDI NPs engineered with a carbazole-based isolation unit to regulate dye aggregation (Figure 4A) [80]. These nanoparticles, fabricated via nanoprecipitation using Pluronic F-127, exhibited strong deep-red emission (λ_max = 658 nm), high photostability (≈79% signal retention after prolonged laser irradiation), and an average hydrodynamic diameter of ~100 nm (Figure 4B–D). When combined with three-photon excitation microscopy, PDI NPs enabled high-contrast imaging of mouse cerebral vasculature through the intact skull, achieving penetration depths of up to 450 μm (Figure 4E).

In a complementary strategy, a biodegradable and enzyme-responsive polycaprolactone (CPCL]-based PDI nanoprobe was developed for intracellular imaging (Figure 4F) [81]. Amphiphilic PDI-CPCL block copolymers self-assembled into stable spherical nanoparticles (~100 nm) in aqueous media and exhibited suitable fluorescence efficiencies (Φ = 0.25–0.30). These nanoprobes demonstrated excellent biocompatibility and efficient cellular uptake via endocytosis, with preferential accumulation in the perinuclear region of both normal and cancer cells, highlighting their potential for intracellular fluorescence imaging.

BODIPY/aza-BODIPY dyes can be used for multimodal imaging applications owing to the labile and exchangeable groups in their backbone [22,82]. Early work by Li and co-workers in 2011 established the feasibility of BODIPY dyes as dual positron emission tomography (PET) and fluorescence imaging agents through the successful radiofluorination of a hydroxyl-functionalized BODIPY using an [¹⁸F]TBAF complex [83]. Following systemic administration of the resulting [¹⁸F]BODIPY probe in mice, in vivo PET imaging revealed predominant accumulation in the kidneys and liver, with no detectable bone uptake, indicating favorable in vivo stability of the C–¹⁸F bond. Additional uptake in the gall bladder suggested hepatobiliary clearance. Importantly, ex vivo fluorescence and PET analyses showed consistent organ distribution profiles, confirming the reliability of the probe for multimodal imaging. Building on this concept, Chansaenpak and co-workers systematically investigated a series of cationic ammonium-substituted [¹⁸F]BODIPY derivatives to assess their suitability as PET imaging probes [84]. By varying the nitrogen substituents at the meso position, they identified a BODIPY derivative bearing two methyl groups and one ethyl group on the ammonium center as particularly promising, exhibiting low lipophilicity (log P = 1.04), pronounced cardiac uptake, and favorable heart-to-organ contrast ratios. To introduce tumor specificity, BODIPY probes were further functionalized with targeting ligands such as the Arg–Gly–Asp (RGD) peptide, which binds selectively to integrin αvβ3 overexpressed in glioblastoma cells. In vivo and ex vivo imaging studies using an RGD-conjugated [¹⁸F]BODIPY probe in U87MG tumor–bearing mice demonstrated strong tumor uptake in both PET and fluorescence modalities [85]. While PET imaging revealed tracer accumulation in the liver, kidneys, and tumor, fluorescence imaging provided enhanced tumor contrast due to reduced hemoglobin-mediated optical absorption in the less vascularized tumor tissue. This complementary behavior highlights the advantage of combining nuclear and optical readouts. Consistent results were further obtained using a dimeric RGD-conjugated BODIPY probe, which exhibited high tumor accumulation in both PET and fluorescence images at 2 h post-injection in glioblastoma xenograft models [86]. Collectively, these studies demonstrate the versatility and reliability of [¹⁸F]BODIPY-based platforms for dual-modality imaging and targeted cancer visualization.

Indocyanine green (ICG) is an FDA-approved NIR dye used for various bioimaging and light-based therapy [75]. Even though it is FDA approved, its solubility, photostability, biocompatibility, etc., are a threat to its smooth use. Many nanoformulations have been developed in which ICG is conjugated to proteins, polymers, peptides, etc., for smooth delivery and stability in future biomedical applications. Owing to the strong fluorescence in the NIR region, ICG is used for visualization of tumors and inflammations using fluorescence microscopy. ICG-based fluorescence imaging has emerged as a promising approach for intraoperative tumor visualization and margin assessment in breast-conserving surgery. In a clinical study involving 40 patients, ICG fluorescence images acquired at multiple surgical stages—including in situ tumors, post-excision cavities, freshly excised specimens, and histopathology grossing—were analyzed using intensity- and texture-based imaging features [87]. Machine-learning models, including logistic regression and support vector machines, demonstrated that combining fluorescence intensity with spatial texture metrics improved tumor extent prediction with pixel-level resolution. Notably, ICG fluorescence was preserved following formalin fixation, enabling validation of imaging findings across fresh and fixed tissue samples. The trained models achieved high sensitivity and specificity in identifying tumor regions and were successfully extended to predict residual disease in surgical cavities. Collectively, these findings highlight the potential of quantitative ICG fluorescence imaging, coupled with data-driven analysis, as a practical tool for real-time intraoperative decision-making and post-excision tumor assessment. Chen et al. used ICG dye for targeted prostate cancer by conjugating ICG to prostate-specific membrane antigen targeting peptide (PSMA) [88]. In vivo studies showed tumor targeting specificity, and identification of the probe under a fluorescence microscope enabled surgical guidance for the tumor resection. This work was further extended for a human patient with prostate cancer. A 62-year-old male patient (67 kg) with biopsy-confirmed prostate cancer presented with markedly elevated prostate-specific antigen levels (total PSA: 21 ng/mL). Preoperative staging using positron emission tomography/computed tomography and magnetic resonance imaging revealed no evidence of distant metastasis, consistent with a localized primary malignancy. Fluorescence-guided laparoscopic radical prostatectomy was performed using an endoscopic imaging platform. The patient received a single intravenous dose of the PSMA-targeted probe ICG-PSMA-D5 (0.03 mg/kg) 24 h prior to surgery. The procedure was well tolerated, with no observable adverse events or clinically significant pharmacological effects. Albumin-ICG nanoparticles are used for a wide variety of tumor imaging and therapy applications [89,90]. Due to the high circulation time and biocompatibility of albumin nanoparticles, ICG-conjugated albumin nanoparticles are used for endometriosis detection and for inflammation studies.

Taken together, these studies illustrate several key design principles that govern the performance of organic dye platforms for in vivo diagnosis. First, activatable probes that respond to specific enzymatic activities or molecular biomarkers, such as β-galactosidase–responsive fluorophores, enable highly selective tumor visualization and improve signal-to-background ratios. Second, engineering dyes with strong near-infrared (NIR-I and NIR-II) absorption enhances tissue penetration and reduces autofluorescence, enabling deeper imaging of biological structures. Third, nanoformulation strategies, including polymeric nanoparticles, albumin carriers, and amphiphilic block copolymers, improve dye stability, circulation time, and tumor accumulation through enhanced permeability and retention effects. Finally, multimodal probe design, such as PET/fluorescence dual-modality BODIPY derivatives or targeting ligand-conjugated dyes, enables complementary imaging readouts and improves diagnostic accuracy. Collectively, these strategies highlight how molecular engineering, nanostructure design, and targeting ligands can be integrated to develop highly sensitive and clinically relevant dye-based platforms for in vivo diagnostic imaging.

4. Photoacoustic Imaging Applications

Photoacoustic imaging (PAI) has emerged as a powerful biomedical imaging modality by combining the high contrast of optical excitation with the deep tissue penetration of ultrasound detection [29,91]. A wide range of photoacoustic contrast agents, including inorganic nanomaterials and organic dyes, have been developed to enhance imaging performance [27]. Among these, small-molecule probes are particularly attractive for translational applications due to their favorable in vivo behavior and ease of chemical modification. Recent advances in near-infrared (700–1700 nm) PAI have further improved imaging depth and quality by minimizing optical scattering compared to visible wavelengths, enabling more effective visualization of deep biological tissues [92]. In 2008, Wang et al. reported the first use of ICG for PAI for brain tumors in vivo [93]. This study opened a new pathway for the use of organic dyes in PAI applications.

Studies have shown that incorporating PEG into ICG formulations can improve their solubility and increase their PA signal intensity due to the strong absorption coefficient of ICG after assembly. In 2017, Saji and co-workers improved the aqueous compatibility and photoacoustic performance of ICG by conjugating it with polysarcosine, leading to the formation of stable nanoparticles that enhanced photoacoustic signal intensity [94]. This ICG–polysarcosine nanosystem exhibited rapid tumor accumulation in vivo, which was attributed to the favorable transport and tumor-penetrating characteristics of the polymer, thereby improving probe localization within tumor tissue. Subsequently, Poggi et al. developed an integrin-targeted photoacoustic probe by coupling ICG to an RGD peptide [95]. In vivo photoacoustic imaging demonstrated that ligand-based functionalization not only improved ICG solubility but also prolonged its retention within tumor regions, underscoring the value of molecular targeting strategies for enhancing tumor-specific photoacoustic contrast.

Ratiometric photoacoustic (PA) probes have been developed to improve in vivo signal-to-noise ratios by enabling self-referenced detection of endogenous biomarkers, thereby minimizing interference from tissue heterogeneity and physiological fluctuations. By generating two spectrally distinct PA signals—one responsive and one invariant—these probes provide intrinsic calibration and more reliable quantification in complex biological environments [96]. Chen et al. introduced a Cu²⁺-responsive ratiometric PA system by co-encapsulating a copper-sensitive dye and a nonresponsive reference dye within nanomicelles, achieving selective and quantitative Cu²⁺ detection through wavelength-dependent PA signal changes [97]. Similarly, Fan et al. designed a small-molecule cyanine-based probe capable of ratiometric hydrogen sulfide sensing, where nucleophilic reaction with H₂S produced opposite PA responses at two wavelengths, enabling sensitive detection at physiological concentrations and successful in vivo imaging with rapid probe clearance [98].

Beyond ratiometric strategies, molecular engineering has been widely employed to enhance PA performance by shifting absorption into the near-infrared region and promoting nonradiative energy dissipation. Squaraine dyes, which undergo aggregation-induced red shifts in aqueous environments, were adapted for PA imaging through albumin-assisted stabilization, enabling effective NIR signal generation [99,100]. Structural modification of BODIPY dyes through conjugation with electron-rich moieties, such as 1H-pyrrole, has also been shown to induce red-shifted absorption and fluorescence quenching via photoinduced electron transfer, thereby enhancing PA output [101]. In parallel, metal–ligand coordination has emerged as an effective approach to strengthen push–pull electronic interactions, as demonstrated by iron(II) complexes with high photothermal conversion efficiency and strong PA signals combined with favorable biocompatibility [102].

Fundamental photophysical studies further revealed that enhanced PA emission in organic dyes is closely linked to efficient excited-state absorption and rapid nonradiative relaxation pathways. Comparative investigations of BODIPY, cyanine, and curcumin-based systems showed that tailored donor–π–acceptor architectures significantly amplify PA signals, with nonlinear increases observed at higher excitation fluence. These insights provide a mechanistic foundation for the rational design of next-generation PA contrast agents with improved sensitivity and imaging depth.

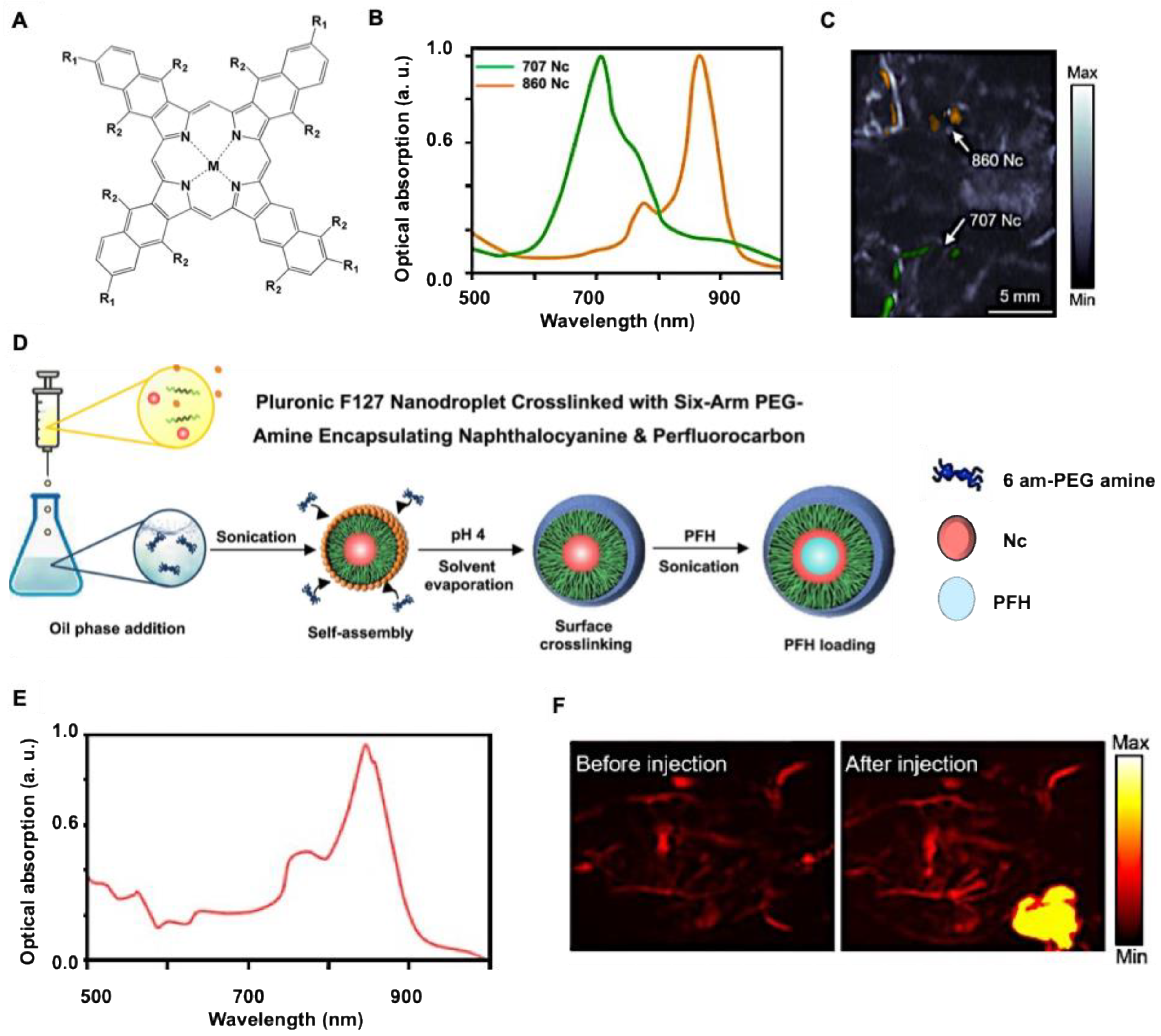

Naphthalocyanine-based nanoformulations have been extensively explored as high-performance contrast agents for photoacoustic imaging (PAI) and image-guided therapy [103,104]. Zhang and co-workers developed a series of nanoformulated naphthalocyanine dyes with tunable absorption profiles for in vivo PAI of the gastrointestinal tract and lymphatic system (Figure 5A,B) [105,106]. By adjusting the dye structure, they generated multicolor probes that enabled clear visualization of lymphatic networks and facilitated multispectral imaging, in which distinct tracers with different near-infrared absorption maxima were used to independently map bilateral lymphatic drainage pathways (Figure 5C). Building on these imaging capabilities, the same group later optimized naphthalocyanine nanoformulations for theranostic applications in 4T1 breast cancer models by increasing dye loading through the removal of excess surfactant [107]. The resulting nanoparticles exhibited strong near-infrared absorption, enabling both tumor-specific photoacoustic contrast and effective photothermal therapy. Complementary work by Choi et al. introduced naphthalocyanine-loaded nanodroplets designed for high-intensity focused ultrasound (HIFU)-guided tumor ablation (Figure 5D) [108]. Encapsulation of the dye within a perfluorohexane core produced agents with pronounced absorption in the near-infrared region (Figure 5E) and robust in vivo imaging performance following systemic administration in breast tumor-bearing mice (Figure 5F). In addition to providing photoacoustic contrast, these nanodroplets enabled efficient HIFU-mediated tumor destruction, as confirmed by post-treatment tumor regression measurements.

PDI-based materials have attracted growing interest as photoacoustic (PA) contrast agents due to their strong optical absorption, high photostability, and efficient nonradiative energy conversion. These intrinsic properties enable effective transformation of absorbed light into acoustic signals, making PDI nanostructures particularly suitable for high-resolution imaging of deep tissues. Recent studies have demonstrated that rational molecular design and nanoparticle formulation can further optimize PDI systems for in vivo photoacoustic applications.

Fan et al. developed a near-infrared-absorbing PDI derivative by incorporating a tertiary amine donor and a diimide acceptor to enhance intramolecular charge transfer, followed by nanoparticle formulation using DSPE-mPEG-5000 to improve aqueous dispersibility [109]. The resulting PDI nanoparticles exhibited a narrow size distribution (~50 nm), strong NIR absorption around 700 nm, and excellent photostability and serum stability compared with indocyanine green. In vivo photoacoustic imaging demonstrated robust accumulation of these nanoparticles in orthotopic brain tumors through passive targeting, with PA spectra and three-dimensional ultrasound/PA imaging confirming selective localization and high-contrast tumor delineation.

Beyond tumor imaging, PDI nanoparticles have also been adapted for long-term cellular tracking. Stabilization of PDI nanoparticles using a star-shaped hyperbranched polymer matrix enabled persistent photoacoustic signals from labeled mesenchymal stromal cells for more than ten days after transplantation [110]. Importantly, control studies confirmed that the observed signals originated from viable labeled cells rather than secondary uptake by macrophages, supporting the suitability of PDI nanoparticles for reliable longitudinal cell tracking.

Targeted vascular imaging has also been achieved through surface functionalization of PDI nanoparticles. Cui et al. modified PEGylated PDI nanoparticles with cyclic RGD peptides to selectively recognize GPIIb/IIIa receptors in early thrombus formation [111]. In a mouse thrombosis model, these probes generated significantly stronger PA signals in newly formed clots compared with older thrombi, enabling sensitive discrimination of thrombus stage. Photoacoustic imaging further allowed real-time monitoring of thrombolytic therapy, while conventional ultrasound and MRI showed limited sensitivity, highlighting the advantages of PDI-based PA probes for molecularly targeted vascular imaging.

Across these studies, several general molecular design principles for photoacoustic probes become evident. Efficient photoacoustic signal generation typically requires strong optical absorption in the near-infrared region combined with rapid nonradiative relaxation pathways that convert absorbed photon energy into heat and acoustic waves. Donor–π–acceptor architectures and extended π-conjugation are frequently employed to red-shift absorption into the NIR window and improve tissue penetration. In addition, aggregation engineering and nanoparticle formulation strategies can enhance photothermal conversion efficiency while improving probe stability and circulation time in vivo. Targeting ligands such as peptides or polymers further enable selective accumulation in disease tissues, thereby improving imaging contrast and diagnostic specificity. These combined molecular and nanoengineering strategies provide a rational framework for developing next-generation organic dye probes for high-contrast photoacoustic imaging and image-guided therapy. The applications of various organic dyes used for PAI applications are given in

Table 1. Representative organic dye systems used for photoacoustic imaging (PAI).

Dye System	Molecular Design Strategy	Absorption (nm)	Imaging Application	Key Advantage	Refs.
ICG derivatives	PEGylation/peptide targeting	~780	Tumor imaging	Clinical dye, improved stability	[94,95]
Cyanine probes	Ratiometric sensing	~700–800	H2S detection in live mice	Self-calibrated PA signal	[98]
Squaraine dyes	Aggregation engineering	~700	PA contrast enhancement	Strong NIR absorption	[99]
BODIPY derivatives	Donor–acceptor modification	~650–750	Molecular PA imaging	Tunable absorption	[101]
Naphthalocyanines	Nanoformulation	~700–860	Lymphatic imaging	Multispectral PA	[106]
PDI nanoparticles	ICT design + PEGylation	~700	Brain tumor imaging	High photostability	[109]
CellBrite® NIR680	Lipophilic membrane	~683	Intratumoral blood vessels	High-sensitivity and resolution visualization	[112]
FTC dye	D−π–A structure	~635	In vivo tumor imaging	Photothermal conversion efficiency of ~52.71%	[113]

.

5. SERS-Based Imaging

Organic dyes possess well-defined vibrational signatures, making them effective Raman reporters for surface-enhanced Raman spectroscopy (SERS) in both bioanalytical detection and biomedical imaging [114,115]. When incorporated as Raman tags, these dyes enable highly sensitive and multiplexed identification of biomolecules, cells, and disease-associated markers [115]. Importantly, chemical modification of organic chromophores allows fine control over Raman intensity, resonance enhancement, and molecular targeting, supporting their use in selective diagnostic and imaging applications. In healthcare settings, dye-based Raman probes have been widely explored for cancer diagnosis, pathogen detection, and real-time monitoring of cellular behavior, offering high molecular specificity with minimal background interference [116]. Their integration with plasmonic nanostructures and targeted delivery systems continues to advance the clinical potential of Raman-based technologies in noninvasive diagnostics and precision medicine [117].

Among organic Raman reporters, BODIPY dyes have been extensively investigated for SERS applications due to their characteristic vibrational modes, including C–H stretching, C=C bonds, and B–N/C–N functionalities, which are strongly enhanced upon interaction with gold or silver nanoparticles [118,119]. Adarsh and co-workers developed a series of aza-BODIPY derivatives capable of adsorbing onto gold nanoparticle surfaces to generate robust SERS signals [119]. One derivative in particular exhibited high photostability and strong Raman response, enabling label-free discrimination of multiple human cancer cell lines through distinct Raman fingerprints without the need for specific surface markers. Three-dimensional Raman imaging and spectral analysis confirmed that the nanoprobe localized near the cell membrane, while no comparable signal was observed in normal fibroblast cells. Further conjugation of the probe with an epidermal growth factor receptor–targeting ligand improved cancer-cell specificity, enabling ultrasensitive and selective imaging. Beyond cancer detection, Raman-active dyes have also been applied to metabolic imaging. Klapper et al. demonstrated that Raman spectroscopy could be used to quantify lipid distribution and fat content in biological systems, where BODIPY-labeled lipid structures showed strong spatial correlation with Raman lipid signals [120]. Collectively, these studies highlight the versatility of organic dyes as Raman reporters for sensitive, targeted, and multifunctional healthcare applications.

SERS tags provide a powerful platform for probing local chemical environments and dynamic changes within living cells [121]. The strong electromagnetic enhancement generated by noble metal nanoparticles enables ultrasensitive and nondestructive detection of endogenous molecular species that are otherwise difficult to observe. By analyzing variations in SERS signals, subtle biochemical parameters—such as local pH and molecular composition—can be monitored at high spatial resolution. Pioneering studies by Kneipp and co-workers demonstrated this capability using dye-labeled gold and silver nanoparticles, including probes based on indocyanine green [122], rose Bengal [123], and crystal violet [124]. Upon cellular internalization, these SERS tags produced distinct vibrational fingerprints from both the reporter dyes and surrounding intracellular components. Importantly, spectral subtraction and analysis revealed Raman features associated with proteins, lipids, and nucleic acids in the immediate nanoparticle environment, highlighting the ability of SERS to extract localized chemical information from complex biological matrices at the single-cell level.

SERS-based theranostic platforms have recently gained significant attention for their ability to integrate diagnostic imaging with therapeutic intervention. Bhatia and co-workers demonstrated this concept using near-infrared–responsive plasmonic gold nanorods (AuNRs) loaded with organic dyes for simultaneous tumor detection and photothermal therapy (Figure 6A) [125]. In their design, AuNRs were encoded with multiple Raman reporter dyes (DTTC-765, IR-792 and DTDC-655), enabling strong SERS signals that were several orders of magnitude higher than those obtained through conventional optical detection (Figure 6B). In vivo Raman imaging of mice bearing bilateral MDA-MB-435 tumors revealed pronounced signal enhancement from reporter-loaded nanorods, confirming effective tumor accumulation (Figure 6C). Upon irradiation with an 810 nm laser, tumors treated with either bare or SERS-encoded AuNRs rapidly reached temperatures sufficient for thermal ablation, while control tumors showed minimal heating (Figure 6D). These findings highlight the utility of SERS-coded plasmonic nanostructures as multifunctional agents capable of noninvasive tumor imaging and effective photothermal treatment within a single platform.

6. Cardiovascular Imaging

Cardiovascular diseases are life-threatening conditions. Early detection and diagnosis are crucial for these diseases. Atherosclerosis is a chronic inflammatory condition that creates vulnerable plaques that eventually form fatty streaks, and their rupture causes thrombosis and other severe health issues, including blood loss and death [126]. Organic dyes have been used as a contrast agent to track such conditions using various imaging techniques.

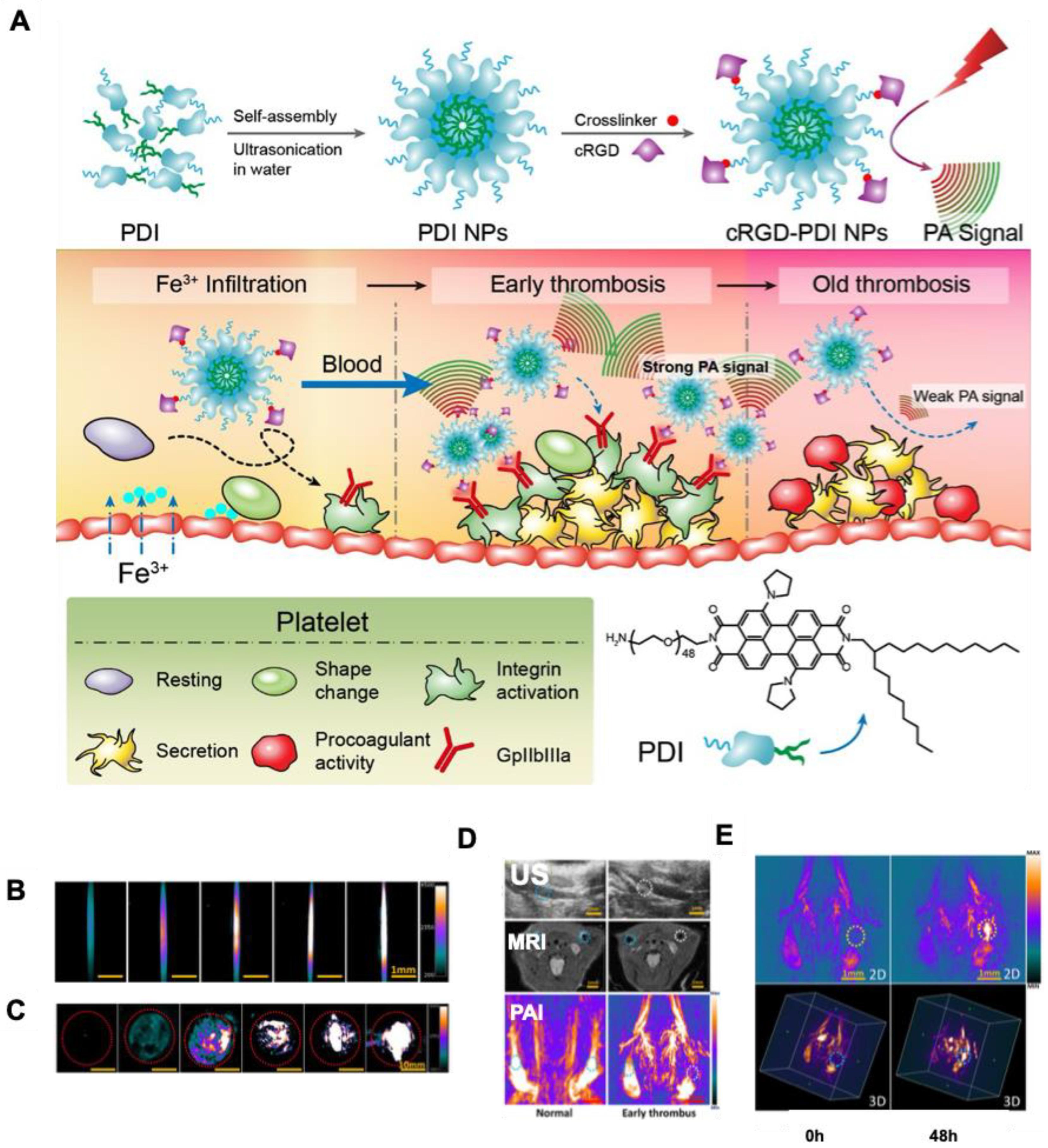

In one of the works, Yu et al. fabricated amphiphilic PDI NPs, aiming to diagnose early thrombus (Figure 7A) [111]. The assembled PDI molecules were conjugated with a cyclic RGD peptide to selectively combine with Glycoprotein IIb/IIIa, an appropriate biomarker of early blood clotting. Owing to their high PAI capability, these nanoparticles were used for in vitro and in vivo imaging to diagnose early thrombus formation in live mice (Figure 7B,C). These NPs possessed excellent stability, blood circulation and PA contrast intensity, which was four times higher than that of the control, blocking and old thrombus groups. As shown in Figure 7C, early thrombus formation was evaluated in an FeCl₃-induced murine jugular vein thrombosis model using ultrasound (US), MRI, and PAI. US revealed a vague wall-adherent protrusion in the thrombus-bearing vessel; however, poor intrinsic contrast made it difficult to clearly distinguish the thrombus from the surrounding tissue. T2-weighted MRI provided superior anatomical detail and vessel visualization, but small, non-occlusive thrombi did not generate discernible signal changes due to their minimal effects on blood flow. In contrast, PAI enabled high-contrast, high-resolution visualization of the vasculature based on hemoglobin absorption. A marked loss of PA signal was observed at the thrombus site, consistent with local ischemia and reduced hemoglobin content. Compared with US and MRI, PAI allowed unambiguous detection of early thrombus, highlighting its strong potential for thrombosis imaging (Figure 7D). Nevertheless, the signal-off nature of thrombus in PAI underscores the need for targeted PA contrast agents to improve thrombus visualization and characterization.

Li et al. developed a NIR-II dye, LZ-1105, that exhibits both absorption and emission beyond 1000 nm [127]. Owing to its long blood circulation half-life (~3.2 h), this probe was successfully applied for imaging ischemia–reperfusion in hindlimb models, monitoring thrombolysis in the carotid artery, and visualizing the opening and subsequent recovery of the blood–brain barrier. In another study, Sun et al. used J-aggregates from cyanine dye FD-1080 for NIR-II In Vivo Dynamic Vascular Imaging beyond 1500 nm [128]. These aggregates enabled continuous, real-time imaging of carotid artery diameter in the >1500 nm NIR window following intravenous administration of the J-aggregates together with a hypotensive agent in spontaneously hypertensive rats. Quantitative analysis based on the full width at half maximum of cross-sectional intensity profiles revealed a marked increase in carotid artery width from approximately 370 to 680 μm within 240 s. In parallel, arterial blood pressure was independently monitored using a clinically approved blood pressure device, which showed a reduction in systolic pressure from 180 to 134 mmHg within 280 s. These results demonstrate a clear correlation between vessel dilation and decreasing blood pressure following Isoket administration. This study represents the first demonstration of real-time evaluation of hypotensive efficacy through direct monitoring of vascular diameter changes using NIR-II imaging.

Shimizu and colleagues developed an ICG-derived fluorescent probe, termed Peptide-ICG2, for NIR imaging of macrophage-rich atherosclerotic lesions [129]. This probe functions as an activatable “turn-on” system in which fluorescence is initially suppressed by a peptide linker. Upon enzymatic cleavage by lysosomal cathepsin B, the quenching effect is removed, resulting in fluorescence activation. To enhance plaque targeting, Peptide-ICG2 was further incorporated into phosphatidylserine-containing liposomes (P-ICG2-PS-Lip), leveraging the affinity of phosphatidylserine receptors expressed on macrophages that preferentially localize within embolism-prone plaques. This liposomal formulation promoted selective uptake by macrophages and enabled intracellular fluorescence activation, allowing effective NIR visualization of vulnerable atherosclerotic regions. In a separate study, Kim and Chang et al. introduced a low-molecular-weight fluorescent probe, CDg16, designed to selectively recognize activated macrophages [130]. In vivo studies demonstrated that CDg16 effectively highlighted inflammatory sites in atherosclerotic tissue through direct targeting of macrophage populations. Detailed transporter screening revealed that probe uptake occurs via the SLC18B1 transporter, providing mechanistic insight into its selective staining behavior. Collectively, these studies present promising molecular imaging strategies for detecting macrophage-driven inflammation and advancing diagnostic approaches for inflammation-associated diseases.

7. Light-Based Therapy

Organic dyes absorb light at specific wavelengths and dissipate the absorbed energy through heat generation or via secondary photochemical processes that produce reactive oxygen species (ROS) [131]. These mechanisms form the basis of photothermal therapy (PTT) and photodynamic therapy (PDT), where tumor ablation is achieved through localized heating or ROS-mediated cytotoxicity [15,22,23].

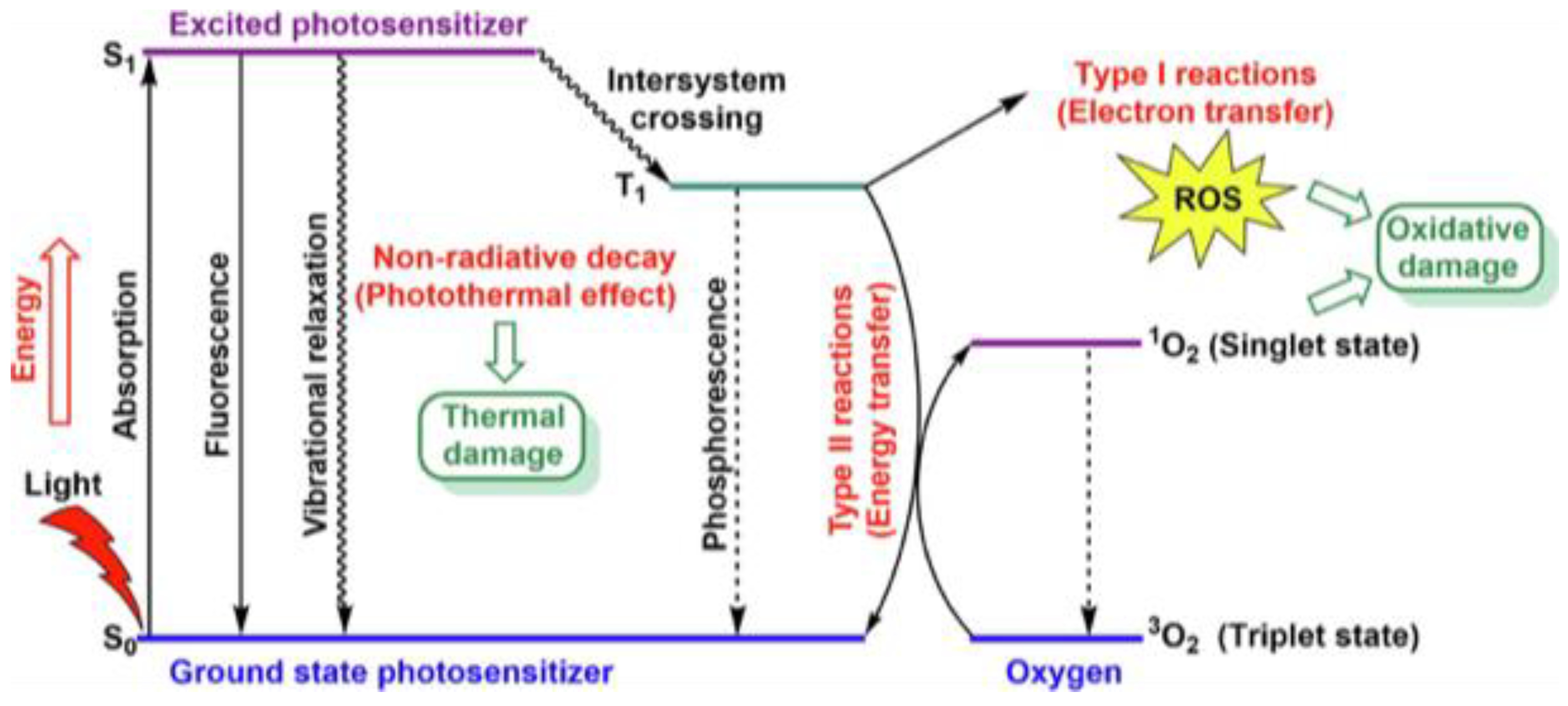

Upon near-infrared (NIR) excitation, organic dyes undergo absorption followed by electronic transitions that can be described using the Jablonski diagram (Figure 8) [132]. Light absorption promotes an electron from the ground singlet state (S₀) to an excited singlet state (Sn), which rapidly relaxes to the lowest excited singlet state (S₁). From S₁, the molecule can follow three competing pathways: radiative decay producing fluorescence, non-radiative relaxation generating heat, or intersystem crossing to the triplet state (T₁), which can subsequently yield ROS through energy transfer to molecular oxygen. These pathways underpin fluorescence imaging, PTT, and PDT, respectively. The balance among fluorescence emission, thermal dissipation, and ROS generation is governed by molecular structure and electronic properties. Rigid molecules with large energy gaps tend to favor radiative decay, whereas flexible structures or donor–acceptor systems with strong intramolecular charge transfer enhance non-radiative decay and intersystem crossing. While donor–acceptor architectures can improve ROS generation for PDT, they may suppress fluorescence or reduce photothermal efficiency. Therefore, rational molecular design is essential to optimize NIR dyes for combined imaging and synergistic PTT–PDT applications, particularly in overcoming limitations such as tumor hypoxia, light penetration depth, and photosensitizer localization.

7.1. Dyes for Photothermal Therapy Applications

NIR dyes can be used directly as a photothermal agent. The FDA-approved dye ICG was first used directly as a PT agent for tumor ablation. Studies showed that ICG + laser irradiation showed a larger decrease in tumor volume than saline + laser. But the half-life of ICG is very short, approximately 3 min, so the irradiation study had to be performed quickly after the tail vein injection [133]. Controlling the temperature and long-term accumulation of PT agents is still challenging. Recently, these organic dyes have been used along with other nanoformulations to improve their solubility, targeting capability, and reduce their dose for PTT applications. IR-780 iodide dye, which is a class of cyanine dye known for its NIR absorption and emission, lacks solubility in most biological media. It was shown that encapsulation of this dye into PEG–PCL (Poly(ethylene glycol)-Polycaprolactone) micelles improved their in vivo imaging-assisted PTT [134]. One of the challenges of using organic dyes for PTT applications is their inherent photobleaching and degradation properties under laser irradiation. To control this, a variety of cyanine dyes were developed by controlling their photoinduced electron transfer property with various substituents. These dyes showed enhanced photothermal conversion efficiencies by up to 34.5% as compared with the unsubstituted derivatives.

Recently, image-guided PTT has become an advanced cancer treatment modality, in which the contrast agent can guide clinicians in the visualization of the tumor, and precise laser-based therapy can be performed. A recent study by Hassan et al. showed the use of NIR-II dye (IR1116) as an effective photothermal agent with a photothermal conversion efficacy of 79% [135]. The dye structure contains donor–acceptor units that control the photooxidation and stability. To improve water solubility, DSPEPEG was used, and a nanoformulation was prepared, which was called a nano heater. In vitro and in vivo studies on 4T1 breast cancer showed tumor cell apoptosis under 1064 nm laser irradiation for 1 min. The dye showed promising results for tumor ablation in both NIR-I and NIR-II conditions.

BODIPY-based chromophores have emerged as highly efficient photothermal agents, particularly when engineered to operate in the near-infrared (NIR) region, where light penetration through biological tissues is maximized while minimizing off-target damage [22]. One of the key advantages of these dyes lies in their modular molecular architecture, which enables fine control over absorption wavelengths to meet the requirements of photothermal therapy (PTT). In PTT, localized heat generation induces cancer cell death through hyperthermia and the activation of heat-shock protein-mediated pathways [136]. Due to their strong NIR absorbance, BODIPY derivatives are well-suited for treating deep-seated tumors [137]. Notably, π-conjugation extension in BODIPY scaffolds has led to photothermal conversion efficiencies exceeding 90%, demonstrating exceptional light-to-heat conversion performance (Figure 9A) [138]. Upon exposure to an 808 nm laser (0.75 W cm⁻²), aqueous suspensions of meso-CF₃-substituted BODIPY nanoparticles (20 μM dye concentration) exhibited rapid temperature elevation, reaching peak values of 66.8 °C (ΔT = 43 °C, TCF3PEn), 64.9 °C (ΔT = 41 °C, TCF3MEn), and 64.3 °C (ΔT = 41 °C, DCF3MEn) within 5 min (Figure 9B). Both in vitro and in vivo evaluations using an MCF-7 xenograft tumor model confirmed substantial therapeutic efficacy, with approximately 50% tumor volume reduction following treatment. Among the derivatives tested, the meso-CF₃-functionalized BODIPY (TCF3M) demonstrated superior apoptotic induction and tumor suppression under low-power NIR irradiation (808 nm, 0.3 W cm⁻²), outperforming its structural analogs (Figure 9C).

Complementary studies by Li and co-workers further validated the therapeutic potential of aza-BODIPY derivatives, reporting photothermal conversion efficiencies in the range of 48–50% along with pronounced cytotoxic effects against human colon cancer cells [101]. In a related investigation, Liu et al. developed an aza-BODIPY compound exhibiting strong absorption at 781 nm, high photostability, and robust photothermal performance [139]. Photothermal measurements revealed a concentration-dependent heating effect, with temperatures rising to 74.5 °C at a dye concentration of 35 μg mL⁻¹ after 5 min of laser exposure. Correspondingly, laser-activated cytotoxicity assays showed a clear dose-dependent reduction in CT26 cell viability. In vivo fluorescence imaging combined with PTT demonstrated rapid temperature increases of up to 44.9 °C within 1 min, resulting in tumor growth inhibition of approximately 96% following intratumoral administration and 89% after systemic delivery. Importantly, treated animals exhibited normal weight gain post-therapy, indicating minimal systemic toxicity. In another example, Pewklang et al. reported an aza-BODIPY-pyrazole derivative displaying intense NIR absorption around 900 nm and a photothermal conversion efficiency approaching 33% [140]. Confocal imaging confirmed efficient cellular uptake within 6 h, while subsequent PTT experiments achieved nearly 70% cancer cell eradication. Beyond oncological applications, this dye also demonstrated potent antibacterial activity, achieving complete elimination of Escherichia coli 780 and Staphylococcus aureus 1466 upon laser irradiation.

Self-assembled PDI derivatives are also used for PTT applications [23]. Various J- and H-aggregates from PDI derivatives showed interesting photophysical properties and high photothermal conversion efficiencies. Recently, Yan et al. prepared self-assembled PDI derivatives with varying sizes, 30, 60, 100, and 200 nm, by adjusting the initial PDI concentration (Figure 9D) [141]. Among these, the NPs with a size of 60 nm showed enhanced tumor targeting and photothermal conversion efficiency (Figure 9E,F). These NPs were used as PA probes and photothermal agents, with size-dependent aggregation being observed in tumors through PA and PET imaging using [⁶⁴Cu] labeling. After 10 days, the results showed complete elimination of the tumor via PTT (Figure 9G). Yang et al. reported a photoresponsive theranostic nanoplatform (HMPDI@TP-SN38) for imaging-guided photothermal chemotherapy using an in situ skeleton growth strategy [142]. The nanoparticles were prepared by co-hydrolyzing PEG2000–PDI–silane with silica precursors, followed by selective ammonia etching to remove the mesoporous silica core and generate a hollow PDI shell. Subsequent grafting of thermosensitive polymers enhanced fluorescence and photoacoustic signals while enabling efficient drug tracking. Under NIR irradiation, PDI-mediated photothermal heating-induced polymer contraction and triggered controlled SN38 release, reducing premature leakage and improving drug loading efficiency. This integrated nanotheranostic system enables real-time visualization of drug distribution and precise, on-demand therapy. Other dyes, such as Rhodamine, Porphyrin, Diketopyrrolopyrrole, etc., were also used for PTT and image-guided therapy [15].

Taken together, these studies reveal several key molecular design principles that govern the photothermal performance of organic dye systems. First, strong near-infrared (NIR-I and NIR-II) absorption arising from extended π-conjugation or donor–acceptor electronic structures is critical for efficient light harvesting and deeper tissue penetration. Second, molecular architectures that promote nonradiative relaxation pathways—such as intramolecular charge transfer or aggregation-induced photothermal effects—enhance light-to-heat conversion efficiency. Third, structural modifications and substituent engineering can improve photostability and suppress photobleaching, which are common limitations of cyanine-type dyes. In addition, nanoformulation strategies including polymeric micelles, albumin carriers, and self-assembled nanoparticles significantly improve dye solubility, circulation time, and tumor accumulation through enhanced permeability and retention effects. Collectively, these design strategies demonstrate how rational control of electronic structure, aggregation behavior, and nanoscale formulation enables organic dyes to function as highly efficient photothermal agents for image-guided cancer therapy.

Table 2. Various dyes used for PTT application.

Dye System	Design Strategy	Absorption (nm)	Photothermal Conversion Efficiency	Application	Ref.
ICG	FDA-approved NIR dye	~800	~3–5%	Tumor ablation	[133]
IR-780 micelles	PEG–PCL nanoencapsulation	~780	~20–30%	Imaging-guided PTT	[134]
IR1116	Donor–acceptor NIR-II dye	1064	~79%	Image-guided tumor ablation	[135]
BODIPY nanoparticles	π-conjugation extension	~808	>90%	NIR PTT	[138]
Aza-BODIPY	NIR chromophore engineering	~781	48–50%	Cancer therapy	[139]
Pyazole-azBODIPY	azaBODIPY	726–810	33%	PTT, Antibacterial activities	[140]
PDI nanoparticles	Aggregation-controlled nanostructure	~675	~40–50%	PA imaging + PTT	[141]
Porphyrin	Covalent organic frameworks	~660	~50.56%	Antibacterial nanoreagents	[143]
Sulfone-rhodamines	Rhodamine with ortho substituents	~730	~53.06%	photoacoustic imaging-guided photothermal therapy	[144]
Diketopyrrolopyrrole	DSPE-Hyd-PEG2000-cRGD to form NPs	~730	~47.7%	NIR-II fluorescence/photoacoustic/photothermal imaging	[145]

illustrates the application of various organic dyes used for PTT-based applications.

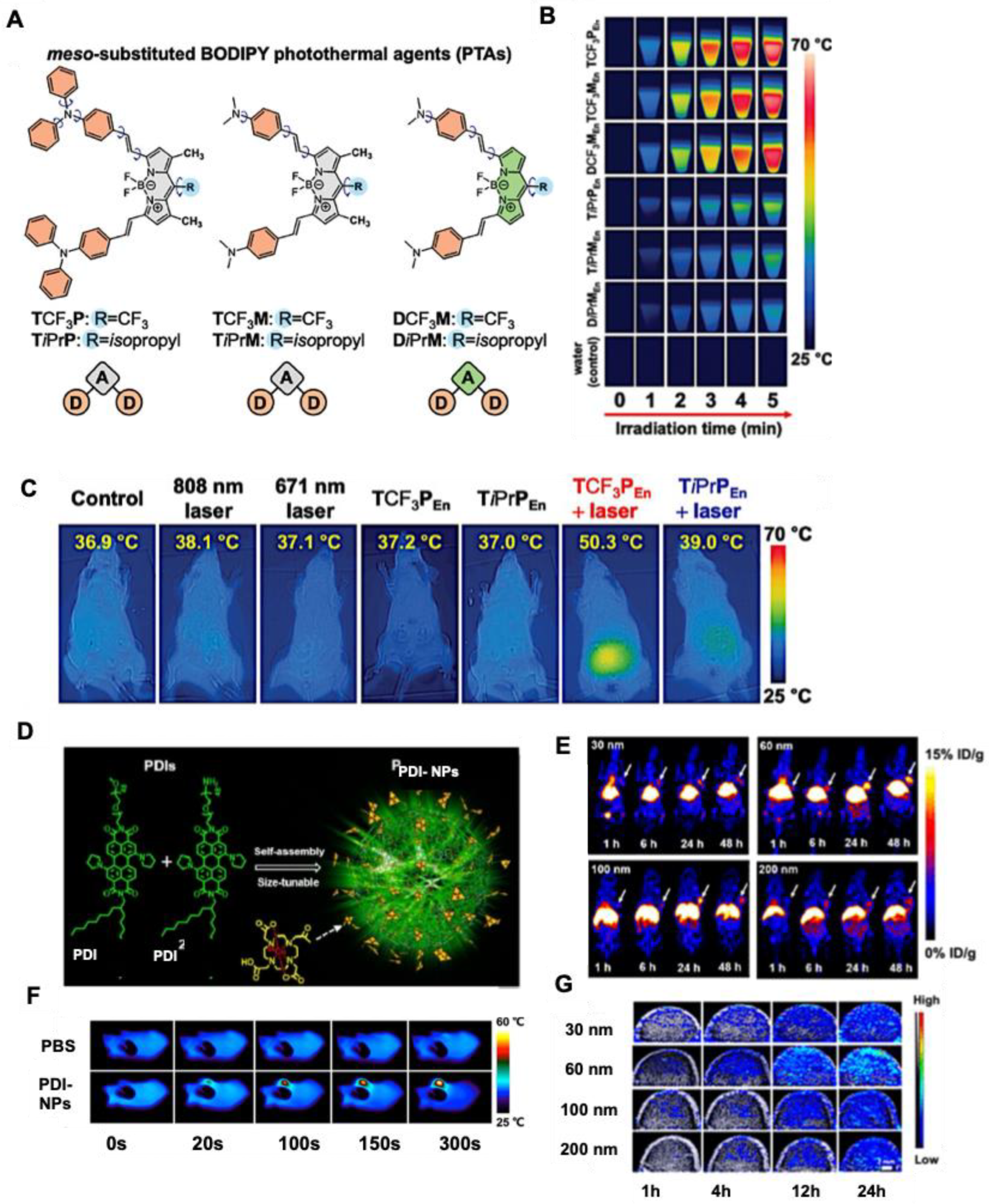

Figure 9. Application of organic dyes for PTT. (A) Molecular structures of the synthesized BODIPY dye series. (B) Infrared thermographic images of BODIPY dyes exposed to 808 nm laser irradiation (0.75 W cm⁻²), showing a pronounced temperature increase for TCF3MEn and TCF3PEn. (C) In vivo thermal infrared imaging of tumor-bearing mice after intratumoral administration of TCF3PEn or TiPrPEn (15 µM, 2 h incubation), or control treatment, followed by laser irradiation at 0.3 W cm⁻² for 5 min, highlighting temperature changes at the tumor region. Reproduced with permission from [138]. Copyright 2024, Wiley. (D) Schematic illustration of the self-assembly strategy used to fabricate PDI-58 nanoparticles. (E) Decay-corrected coronal PET images acquired at 1, 6, 24, and 48 h after intravenous injection of PDI- nanoparticles with different sizes; U87MG tumors are marked by white arrows. (F) Infrared thermal images of U87MG tumor-bearing mice under 675 nm laser irradiation (1 W cm⁻²) at 24 h following administration of PBS or PDI- nanoparticles. (G) Overlayed coronal photoacoustic (PA) and ultrasound (US) images of U87MG tumors collected at 1, 4, 12, and 24 h post-injection of size-controlled PDI-nanoparticles. Reproduced with permission from [141]. Copyright 2017, American Chemical Society.

Figure 9. Application of organic dyes for PTT. (A) Molecular structures of the synthesized BODIPY dye series. (B) Infrared thermographic images of BODIPY dyes exposed to 808 nm laser irradiation (0.75 W cm⁻²), showing a pronounced temperature increase for TCF3MEn and TCF3PEn. (C) In vivo thermal infrared imaging of tumor-bearing mice after intratumoral administration of TCF3PEn or TiPrPEn (15 µM, 2 h incubation), or control treatment, followed by laser irradiation at 0.3 W cm⁻² for 5 min, highlighting temperature changes at the tumor region. Reproduced with permission from [138]. Copyright 2024, Wiley. (D) Schematic illustration of the self-assembly strategy used to fabricate PDI-58 nanoparticles. (E) Decay-corrected coronal PET images acquired at 1, 6, 24, and 48 h after intravenous injection of PDI- nanoparticles with different sizes; U87MG tumors are marked by white arrows. (F) Infrared thermal images of U87MG tumor-bearing mice under 675 nm laser irradiation (1 W cm⁻²) at 24 h following administration of PBS or PDI- nanoparticles. (G) Overlayed coronal photoacoustic (PA) and ultrasound (US) images of U87MG tumors collected at 1, 4, 12, and 24 h post-injection of size-controlled PDI-nanoparticles. Reproduced with permission from [141]. Copyright 2017, American Chemical Society.

7.2. Organic Dyes for Photodynamic Therapy (PDT)

Photodynamic therapy (PDT) is a light-activated cancer treatment that requires a photosensitizer (PS), oxygen, and an external light source [146]. Upon excitation, the PS relaxes through fluorescence emission, heat dissipation, or intersystem crossing to a triplet excited state, as described by the Jablonski diagram (Figure 8). The triplet state reacts with oxygen to generate singlet oxygen via Type II processes or reactive oxygen species (ROS) through Type I pathways. These cytotoxic species induce tumor cell death through apoptosis, necrosis, and autophagy while also stimulating antitumor immune responses. An effective photosensitizer should selectively accumulate in tumors, exhibit minimal dark toxicity, maintain chemical stability, efficiently generate singlet oxygen, and be activatable within the 680–800 nm therapeutic window.

Barbero et al. reported a series of pentamethine NIR cyanine dyes engineered for photodynamic therapy [147]. Structural modifications, including bromination of the benzoindolenine unit and alkyl substitution at the C2/C4 positions, enhanced singlet oxygen generation and light-induced cytotoxicity. All dyes displayed sharp NIR absorption within the therapeutic window and showed strong phototoxic effects at low concentrations in HT-1080 cells, while bromine substitution had minimal influence on overall PDT efficiency, supporting their in vivo potential. Peng et al. later developed a water-soluble aminocyanine dye incorporating a TEMPO radical to promote efficient intersystem crossing [148]. This design resulted in a prolonged triplet-state lifetime (≈9.16 μs), a large Stokes shift (~100 nm), and NIR absorption/emission suitable for biological applications. Time-resolved spectroscopy confirmed oxygen-sensitive long-lived triplet states, enabling efficient singlet oxygen generation. In vitro studies demonstrated high phototoxicity with negligible dark toxicity, with AO/EB staining indicating apoptosis as the primary cell-death mechanism, highlighting dye 5 as a promising PDT candidate for future biomedical applications.

Conventional BODIPY dyes show strong singlet oxygen generation with heavy atom substitution, such as iodine and bromine, in their backbone. This enhances the intersystem crossing efficiency of BODIPY dyes, allowing various secondary processes such as singlet oxygen and ROS generation. In 2016, Kim and co-workers reported the development of a halogenated BODIPY photosensitizer designed to enhance photodynamic performance [149]. In acetonitrile, this dye displayed well-defined absorption and emission maxima at 528 nm and 546 nm, respectively, accompanied by a low fluorescence quantum yield (ΦF ≈ 0.02), indicative of efficient nonradiative deactivation pathways. Direct near-infrared luminescence measurements revealed intense singlet oxygen emission at 1270 nm, with an exceptionally high singlet oxygen quantum yield (ΦΔ ≈ 0.93). This remarkable efficiency was attributed to the heavy-atom effect introduced by iodine substitution at the 2- and 6-positions, which significantly promoted intersystem crossing to the triplet excited state. Biological evaluation in LLC cells showed minimal dark toxicity, with cell viability remaining above 70% at concentrations up to 15 μmol L⁻¹, while light irradiation (3.5 mW cm⁻²) induced substantial cytotoxicity, reducing viability to approximately 50% at 10 μmol L⁻¹. These results highlight this dye as a highly effective and biocompatible light-activated photosensitizer.

PDT-induced hypoxia remains a major limitation of photodynamic therapy, as it can activate angiogenic pathways that promote tumor recurrence and reduce therapeutic efficacy. To address this challenge, Jung et al. developed an acetazolamide-conjugated BODIPY photosensitizer (AZ-BPS) that integrates anti-angiogenic activity with PDT and BODIPY sensitizer (BPS) as a control molecule (Figure 10A) [150]. AZ-BPS showed strong absorption at 661 nm and emission at 689 nm, with a fluorescence quantum yield of 0.06 and a singlet oxygen quantum yield of 0.6, comparable to clinically used photosensitizers. The probe was photostable in PBS containing 10% DMSO. Notably, the dye selectively targeted carbonic anhydrase IX (CAIX), a hypoxia-associated enzyme overexpressed in tumors. CAIX-high MDA-MB-231 cells exhibited significantly higher uptake and fluorescence than CAIX-low MCF-7 cells (Figure 10B). Upon 660 nm laser irradiation, AZ-BPS induced extensive phototoxicity in MDA-MB-231 cells, with ~92.5% undergoing late apoptosis or necrosis. In tumor-bearing mice, PDT treatment with AZ-BPS resulted in markedly reduced CD31 expression, indicating effective suppression of hypoxia-driven angiogenesis. Overall, this dual-functional design highlights the potential of combining PDT with anti-angiogenic targeting to improve cancer therapeutic outcomes (Figure 10C,D).

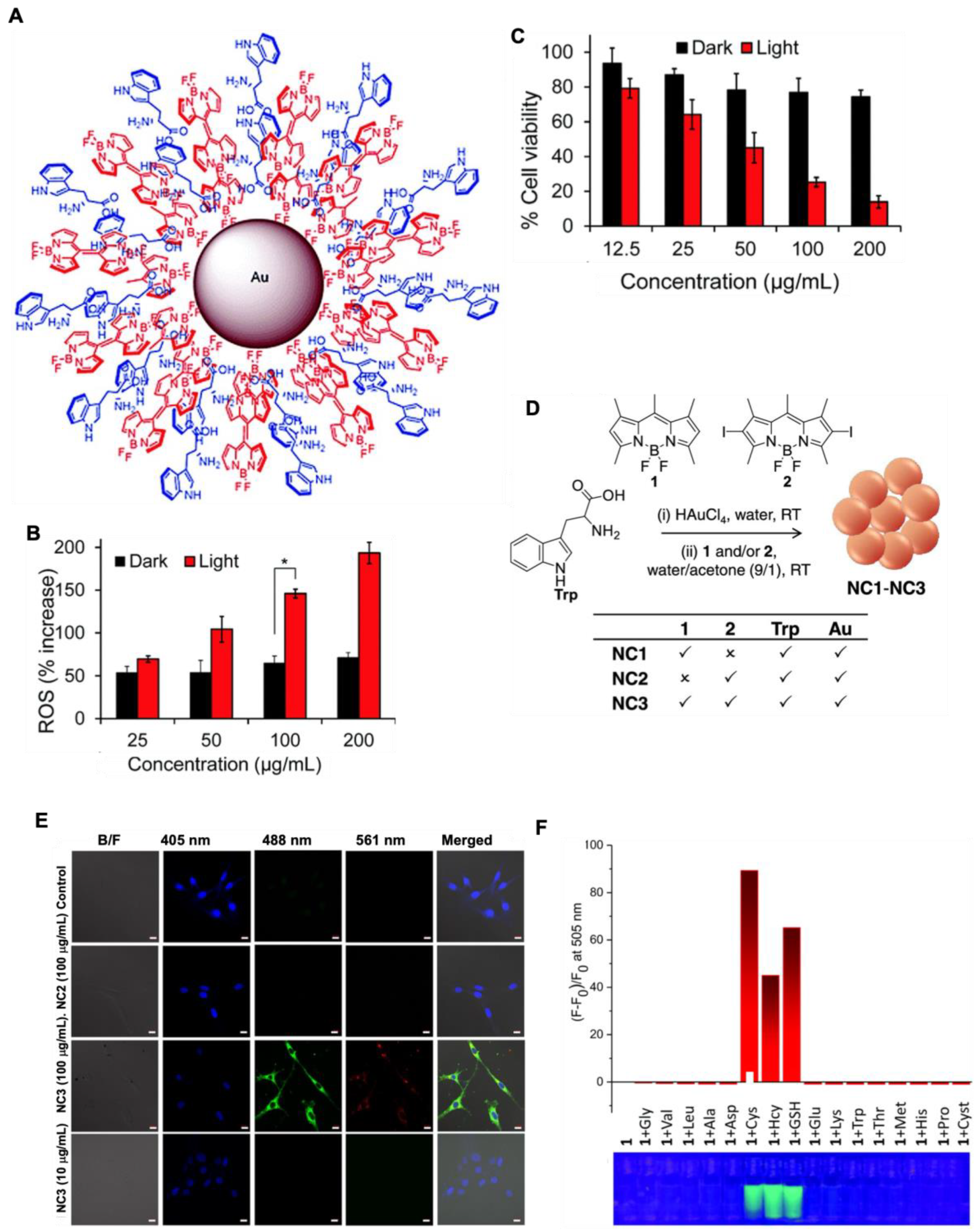

In photodynamic therapy (PDT), hybrid nanoplatforms combining gold nanoparticles (AuNPs) with BODIPY dyes have demonstrated notable improvements in both therapeutic efficacy and bioimaging performance. Kumar and co-workers reported a series of rationally designed AuNP–BODIPY systems, highlighting how modulation of structure–activity relationships enable fine control over the photophysical behavior and fluorescence characteristics of these nanomaterials for diverse biomedical applications [151]. In their approach, tryptophan-reduced AuNPs served as a biocompatible scaffold onto which unmodified BODIPY dyes were immobilized through supramolecular interactions (Figure 11A). The resulting assemblies exhibited markedly improved photostability, suppressed fluorescence emission, and efficient singlet oxygen generation, with a quantum yield (ΦΔ) of 0.46. Notably, these nanostructures produced strong PDT-induced cytotoxicity against C6 glioma cells (~85% cell death) while maintaining negligible toxicity toward healthy cells (Figure 11B,C). Building on this concept, the same group further explored the interplay between BODIPYs’ molecular structure and energy-transfer processes by developing a series of Förster resonance energy transfer (FRET)-based nanocomposites [152]. In this system, NC1 consisted of pentamethyl BODIPY (1) coupled to AuNPs, NC2 employed an iodinated pentamethyl BODIPY derivative (2), and NC3 incorporated both BODIPY dyes simultaneously within a single AuNP framework. Upon photoexcitation, NC3 displayed enhanced surface-associated luminescence arising from an alternative radiative decay pathway, enabling concurrent fluorescence imaging and PDT (Figure 11D,E). This dual-dye nanocomposite achieved a high singlet oxygen quantum yield (ΦΔ = 0.68), comparable to that of methylene blue, while offering superior photostability relative to the free dye [120]. Beyond therapy, AuNP–BODIPY assemblies have also been engineered for intracellular sensing applications. Because tumor cells typically exhibit elevated levels of biothiols, an indicator displacement strategy was developed in which BODIPY fluorescence was initially quenched upon adsorption to the AuNP surface. Interaction with cellular biothiols displaced the dye from the metallic interface, restoring fluorescence and generating a distinct “turn-on” signal (Figure 11F). This responsive platform enabled effective cancer cell imaging as well as quantitative assessment of intracellular biothiol concentrations, demonstrating the multifunctional potential of AuNP–BODIPY nanoconstructs in oncological diagnostics and therapy [153,154].

Phthalocyanines (Pcs) are well-established second-generation photosensitizers for photodynamic therapy (PDT) owing to their strong near-infrared (NIR) absorption, favorable photostability, and efficient singlet oxygen generation [131]. Zinc and silicon phthalocyanines (ZnPcs and SiPcs) are the most widely explored Pc platforms, with several derivatives demonstrating dual functionality in imaging and PDT [155]. ZnPcs exhibit intense NIR fluorescence suitable for optical and nuclear imaging, while maintaining high photodynamic efficiency [156]. Structural modification of Pc cores has enabled enhanced cellular uptake, subcellular targeting, and tumor selectivity, resulting in promising in vitro and preliminary in vivo PDT outcomes [157]. Targeted Pc designs have further expanded PDT efficacy by exploiting tumor-specific biological features. Mitochondria-directed SiPc conjugates achieved efficient intracellular localization and strong one- and two-photon phototoxicity, highlighting the advantage of organelle-specific PDT [158]. Similarly, biotin-functionalized SiPcs selectively accumulated in biotin receptor-overexpressing cancer cells, producing potent light-induced cytotoxicity with minimal dark toxicity [159]. Peptide-mediated targeting using cyclic RGD motifs enabled selective recognition of integrin αvβ3-overexpressing tumors, resulting in enhanced tumor uptake and significant tumor growth inhibition in vivo [160]. Collectively, these studies demonstrate that rational functionalization of phthalocyanines enables multifunctional, tumor-selective photosensitizers with strong potential for image-guided PDT.

Beyond cyanines, BODIPYs, and phthalocyanines, a range of emerging chromophores have been reported as alternative photosensitizers. Rhodamine-based systems, valued for their chemical robustness and optical brightness, have been extensively modified to create next-generation PDT agents [161,162]. Selenium-containing rhodamine derivatives exploit the internal heavy-atom effect to enhance intersystem crossing [163]. Piao et al. developed a hypoxia-activated seleno-rosamine photosensitizer incorporating an azo linker that suppressed singlet oxygen generation under normoxic conditions (ΦΔ ≈ 0.03) but was selectively cleaved under hypoxia to release the active dye (ΦΔ ≈ 0.56) [163]. Upon light irradiation, treated A549 cells exhibited marked cytotoxicity under hypoxia, with cell viability reduced to ~40%, and effective PDT was observed even at ~8% oxygen.

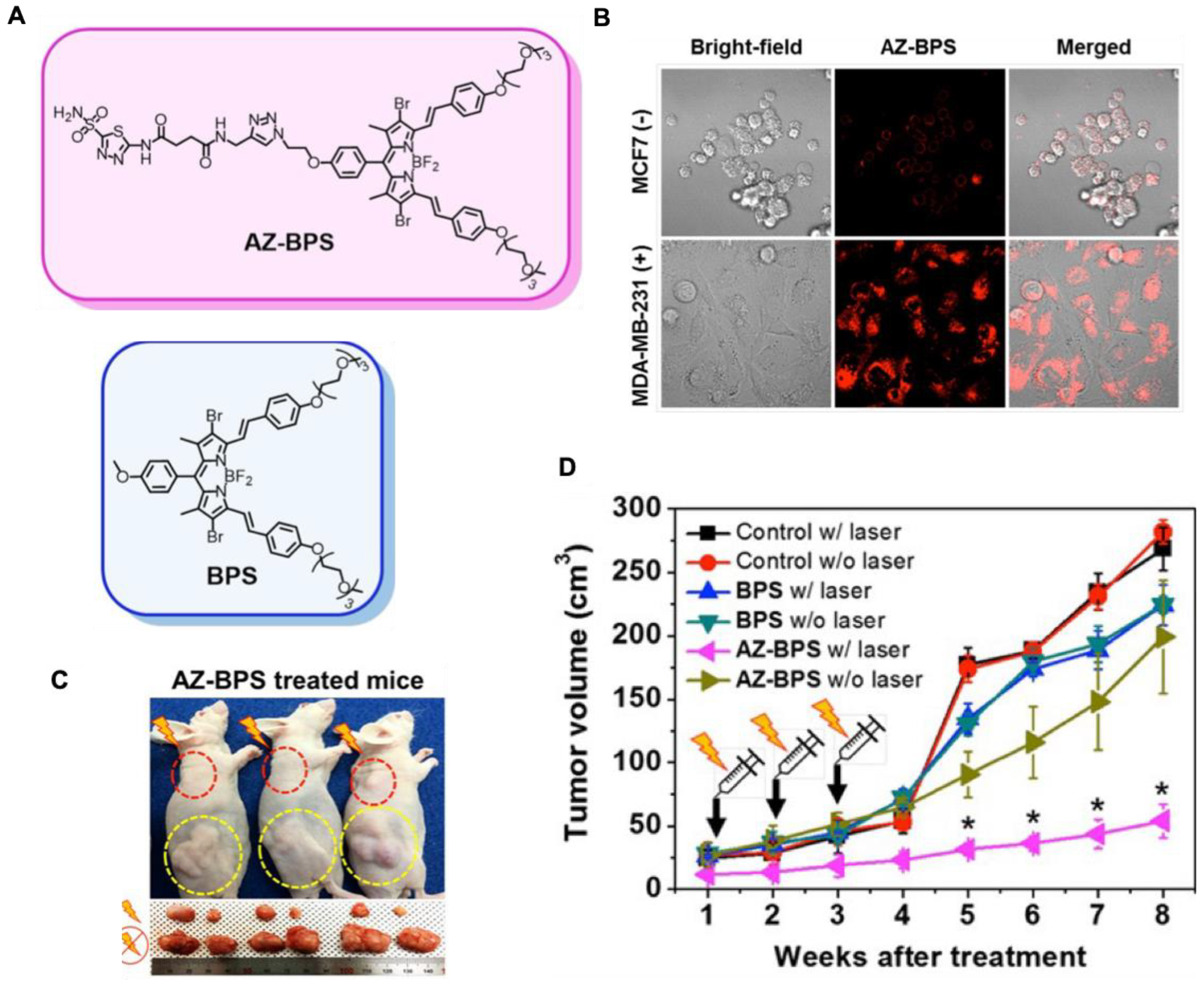

Tumor-enzyme activation has also been used to improve selectivity. Chiba and co-workers designed a γ-glutamyltranspeptidase (GGT)-responsive selenorhodamine pro-photosensitizer that remained photoinactive until enzymatic cleavage in GGT-overexpressing tumors [164]. This system produced strong fluorescence recovery, efficient singlet oxygen generation, and selective phototoxicity in high-GGT cancer models, while causing minimal damage to normal tissues in chick chorioallantoic membrane assays. In another approach, a carbazole-based iodinated photosensitizer exhibited enhanced DNA-associated fluorescence in cancer cells, leading to light-dependent viability reduction to ~60% at 20 μM and significant tumor growth inhibition in vivo [165].

To overcome aggregation-caused quenching commonly observed in planar photosensitizers, aggregation-induced emission (AIE) materials have gained prominence. Mitochondria-targeted AIE photosensitizers combining tetraphenylethylene and triphenylphosphonium groups showed strong intracellular accumulation, pronounced fluorescence enhancement upon aggregation, and irradiation-dependent cytotoxicity [166]. Notably, this derivative displayed both photo- and chemo-cytotoxicity, enabling combined imaging, PDT, and chemotherapy without external drug conjugation. Multifunctional AIE systems have further enabled real-time therapy monitoring. Yuan et al. reported an AIE-active photosensitizer linked to a rhodol dye via a singlet oxygen-cleavable aminoacrylate linker and functionalized with cRGD for enhanced tumor uptake [167]. This probe exhibited a high singlet oxygen quantum yield (ΦΔ ≈ 0.68), substantially exceeding that of Photofrin, and allowed real-time fluorescence tracking of singlet oxygen generation during PDT.

Recent designs have expanded AIE scaffolds beyond tetraphenylethylene. A water-soluble NIR AIEgen displayed strong aggregation-dependent emission at ~708 nm, an exceptionally high singlet oxygen yield (~80%), and potent PDT efficacy, reducing HeLa cell viability to ~15% at sub-micromolar concentrations [168]. Following intratumoral injection, this probe enabled clear tumor imaging and effective cancer ablation in mouse models, while remaining non-fluorescent in aqueous environments to minimize background interference. Similarly, mitochondria-targeted AIE photosensitizers generated high levels of reactive oxygen species (ROS) and eliminated ~80% of A549 cells upon light irradiation, with successful mitochondrial imaging demonstrated in both cells and zebrafish embryos [169]. Stimuli-responsive theranostic systems have further improved PDT precision. Hu and co-workers developed a nitric oxide (NO)-activatable photosensitizer with a large two-photon absorption cross-section (~3300 GM) [170]. Upon exposure to elevate NO levels, fluorescence intensity increased ~18-fold and singlet oxygen generation reached ~82%. Two-photon irradiation reduced activated macrophage viability to ~19%, highlighting its potential for inflammation-associated cancer therapy.

Far-red and NIR AIE luminogens with strong donor–acceptor architectures have also been reported, displaying high solid-state quantum yields (up to ~30%), large Stokes shifts, and deep tissue imaging capability (>150 μm). Among these, a mitochondria-targeted derivative reduced cancer cell viability to ~10% at micromolar concentrations, outperforming commercial chlorin-based photosensitizers [171]. Additional non-AIE strategies include quinacridone derivatives capable of rapid ROS generation and photo-induced DNA cleavage, reducing cell viability to ~30% after seconds of irradiation and achieving effective tumor growth suppression in vivo [172]. To address hypoxia-induced PDT resistance, Nile blue-based heavy-atom-modified photosensitizers were developed to generate superoxide radicals via oxygen-independent Type I photoreactions [173]. These systems achieved up to ~94% cancer cell killing under hypoxic conditions and demonstrated strong tumor selectivity and renal clearance in vivo.

Across these studies, several key molecular design principles emerge for developing efficient organic photosensitizers for photodynamic therapy. Structural strategies that promote intersystem crossing such as heavy-atom substitution (e.g., iodine, bromine, selenium) and donor–acceptor electronic architectures—are widely employed to enhance triplet-state formation and singlet oxygen generation. Extension of π-conjugation and incorporation of near-infrared chromophores enable activation within the therapeutic optical window (≈680–800 nm), thereby improving tissue penetration for in vivo applications. In addition, nanostructuring approaches including gold nanoparticle assemblies, polymeric nanocarriers, and aggregation-induced emission systems can improve photostability, tumor targeting, and controlled ROS generation in biological environments. Stimuli-responsive and enzyme-activated photosensitizers further enhance therapeutic selectivity by enabling activation within disease-associated microenvironments. Collectively, these molecular and nanoengineering strategies illustrate how rational control of dye electronic structure, aggregation behavior, and targeting functionality enables the development of next-generation photosensitizers for image-guided photodynamic therapy. Various dyes used for PDT application are summarized in

Table 3. Various dyes used for PDT applications.

Dye Class	Design Strategy	Absorption (nm)	Singlet Oxygen Yield	Key Application	Refs.
Cyanine	Bromination/radical ISC promotion	~700–750	High	Cancer PDT	[147]
Porphyrin	Covalent organic frameworks for ISC	~660	Nd	Antibacterial	[143]
Heptamethine aminocyanine	Enhance ISC	~660	0.20	PDT in HeLa cells	[148]
Halogenated BODIPY	Heavy atom substitution	~528	ΦΔ ≈ 0.93	Tumor PDT	[149]
AZ-BPS	Enzyme-targeted PDT	~661	ΦΔ ≈ 0.6	Anti-angiogenic PDT	[150]
AuNP–BODIPY	Nanoparticle energy transfer	Visible–NIR	ΦΔ ≈ 0.46–0.68	Imaging-guided PDT	[151,152,153,154]
Rhodamine B	Melanin NPs loaded with Rhodamine for ISC	Broad spectrum from 570 nm	Nd	Imaging and PDT in U-87 cells	[162]
Carbazole/Benzindole	D-A system	~475–510	photodynamic index PI > 9.23	In vitro/In vivo Antimicrobial; In Vivo Antitumor	[165]
AIE photosensitizers	Aggregation-induced ROS generation	~700	ΦΔ ≈ 0.68–0.80	Image-guided PDT	[166,167,168]
bis(phenylethynyl)benzene derivative	Intramolecular photoinduced electron transfer	~361	ΦΔ ≈ 0.12	Imaging of exogenous and endogenous NO in vitro; PDT and activated macrophages in vivo	[170]
Push–pull AIE gens	ISC	480–530	Nd	Two-photon imaging and PDT in HeLa cells	[171]

where Nd: Not determined, D-A: Donor-Acceptor.

.

8. Dyes for Intraoperative Surgery Guidance and Therapy

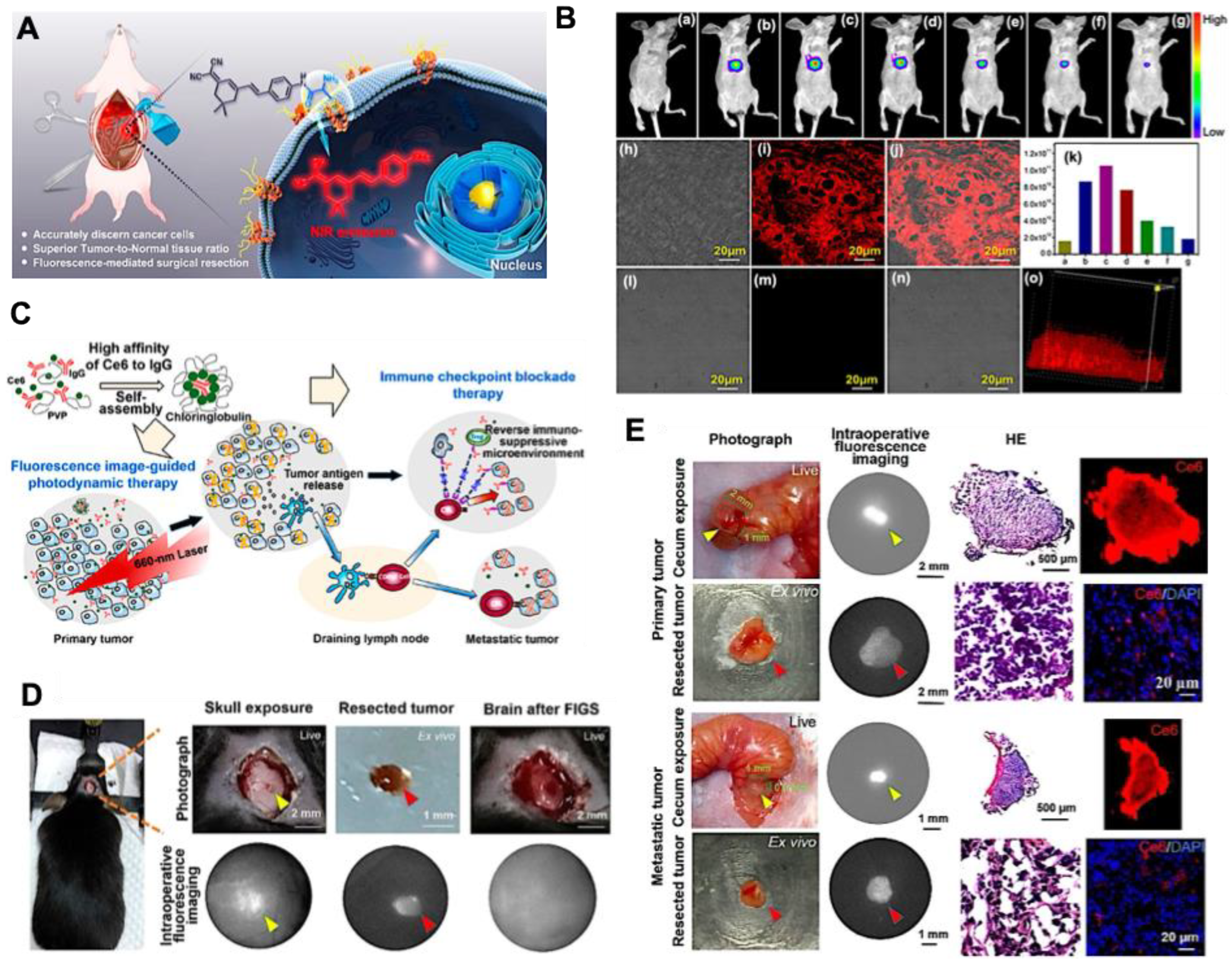

Imaging-guided cancer therapy offers a unified framework that combines diagnosis and treatment, enabling real-time tumor monitoring, in situ acquisition of disease-specific information, and precise delivery of therapeutic agents. Organic dye-based theranostic platforms have been extensively developed to support near-infrared fluorescence and photoacoustic imaging, as well as multimodal image-guided surgery and light-activated therapeutic strategies, including PDT, PTT, and chemotherapy [4]. Leveraging external light activation, these approaches enable minimally invasive, high-efficiency treatments with reduced collateral damage. Intraoperative optical molecular imaging offers sensitive and specific visualization of tumor margins, facilitating accurate surgical resection, while advances in NIR-I/NIR-II multispectral imaging and combinatorial approaches incorporating PDT, PTT, or immune checkpoint blockade have demonstrated improved survival and strong translational potential, despite remaining limitations in penetration depth and targeting specificity [174,175].

An activatable cyanine probe emitting in the NIR-I window was reported to achieve an exceptionally high tumor-to-normal tissue contrast, enabling improved detection of metastatic lesions and facilitating image-guided surgical procedures (Figure 12A) [176]. The specific dye targets the CD13/aminopeptidase N (APN), a specific cancer marker. The dye was used to distinguish normal and tumor cells accurately through a spraying method to achieve superior fluorescent tumor-to-normal (T/N) tissue ratios (subcutaneous transplantation tumor, 13.86; hepatic metastasis, 4.42 and 6.25; splenic metastasis, 4.99) (Figure 12B). In comparison with conventional NIR-I fluorescence-guided surgery currently used in clinical practice, combined NIR-I and NIR-II multispectral imaging provided superior sensitivity, enhanced signal-to-noise ratios, and improved diagnostic specificity [177]. In a separate study, chlorin e6 (Ce6) was co-administered with either single or multiple immune checkpoint-blocking monoclonal antibodies to enable fluorescence-guided photodynamic therapy alongside immunotherapy during surgery (Figure 12C) [178]. This integrated intraoperative strategy, based on red-light fluorescence imaging, significantly extended survival in tumor-bearing mice and elicited durable immune memory responses, highlighting its translational promise for glioma and colorectal cancer treatment (Figure 12D,E). Collectively, these findings underscore the strong clinical potential of intraoperative fluorescence-guided PDT, PTT, and checkpoint inhibition approaches. However, optical molecular imaging remains constrained by limited tissue penetration and insufficient targeting precision, emphasizing the need for next-generation imaging probes that offer greater accuracy and specificity for real-time surgical cancer imaging.

Chemotherapy remains a cornerstone of cancer treatment; however, its clinical effectiveness is often limited by poor bioavailability, nonspecific distribution, and systemic toxicity. Incorporation of organic dyes into chemotherapeutic systems enables real-time visualization of drug biodistribution and therapeutic response, thereby enhancing treatment precision [4]. Advances in nanotechnology have facilitated the co-encapsulation of dyes and drugs within unified drug delivery systems via noncovalent interactions, allowing in vitro and in vivo tracking of therapeutic agents [179]. Notably, Yin and co-workers developed core–shell fluorescent macromolecules, including PDI-cored star polymers and dendrimers, which exhibit high fluorescence quantum yields, excellent photostability, and good biocompatibility, enabling imaging-guided cancer chemotherapy [180]. To address premature drug leakage, stimulus-responsive dye–drug conjugates have also been explored [181,182]. For example, Kim et al. linked fluorophores such as coumarin [183,184], naphthalimide [179], and Cy7 [185] to chemotherapeutic agents via disulfide bonds, allowing glutathione-triggered drug release accompanied by fluorescence changes. Beyond carrier systems, planar aromatic dyes can function as DNA-intercalating agents through rational molecular design. Such intercalators disrupt DNA replication by inserting between base pairs; representative examples include naphthalimide-based polyintercalators with GC-selective binding and perylene bisimide derivatives that combine potent anticancer activity with effective nuclear imaging [186,187].

Taken together, these studies reveal several key molecular design principles that govern the performance of organic dyes as PDT photosensitizers. Efficient singlet oxygen generation typically requires molecular architectures that promote intersystem crossing from the excited singlet state to the triplet state. Strategies such as heavy-atom substitution (e.g., iodine, bromine, or selenium incorporation), donor–acceptor electronic structures, and extended π-conjugation are widely employed to enhance triplet-state formation and reactive oxygen species production. In addition, nanoengineering approaches, including gold nanoparticle assemblies, polymeric nanocarriers, and AIE systems, can improve photostability, tumor targeting, and controlled ROS generation within biological environments. Stimuli-responsive and enzyme-activated photosensitizers further enhance therapeutic selectivity by activating PDT only within disease-associated microenvironments. Collectively, these design strategies highlight how rational control of electronic structure, aggregation behavior, and biological targeting enables the development of next-generation photosensitizers for image-guided photodynamic therapy.

9. Summary and Outlook

The rapid evolution of optical technologies has significantly expanded the role of organic dyes in biomedical applications, transforming them from conventional fluorescent probes into multifunctional platforms for imaging-guided diagnosis and therapy. Through rational molecular design and chemical modification, organic dyes can be engineered to exhibit diverse light-responsive behaviors, including fluorescence emission, photothermal heat generation, and photodynamic reactive oxygen species production. These tunable photophysical properties, together with the structural versatility of organic chromophores, have enabled their application in a wide range of biomedical fields, including intraoperative imaging guidance, antimicrobial treatment, cancer therapy, and multimodal imaging and theranostic applications.

Recent progress in this field has been driven primarily by advances in molecular engineering and materials integration. Precise regulation of energy conversion pathways allows a single chromophore scaffold to be tailored for fluorescence imaging, photothermal therapy (PTT), or photodynamic therapy (PDT). In addition, application-oriented synthetic strategies, often combined with polymer chemistry, supramolecular assembly, and nanotechnology, have enabled the development of dye-based nanomaterials capable of functioning efficiently in complex biological environments. These advances highlight the versatility of organic dyes as customizable platforms for integrated biomedical imaging and therapeutic applications.

Despite these encouraging developments, several critical challenges remain that must be addressed to fully realize the clinical potential of organic dyes in biomedical imaging and therapy. One of the primary limitations is the photostability and chemical stability of many dye systems under prolonged light irradiation and physiological conditions. Photobleaching and structural degradation can significantly compromise imaging reliability and therapeutic performance. Molecular strategies such as increasing backbone rigidity, incorporating fused aromatic structures, or designing rylene-type chromophores have shown promise in improving thermal and photochemical stability.

Another important challenge lies in achieving high and controllable photophysical efficiency, particularly with respect to photothermal conversion and singlet oxygen (^1O₂) generation. Although significant progress has been made through donor–acceptor engineering, heavy-atom effects, and supramolecular design, maintaining high energy conversion efficiency under biological conditions remains difficult. Continued advances in molecular design aimed at regulating nonradiative decay pathways and enhancing intersystem crossing will be essential for improving the therapeutic performance of dye-based systems.

In addition, biological specificity and imaging contrast in vivo remain major considerations for clinical translation. Strong background signals from biological tissues can reduce detection sensitivity and imaging accuracy. Future developments are therefore expected to focus on dyes operating in the near-infrared II (NIR-II) spectral region, which offers deeper tissue penetration and reduced biological scattering. In parallel, emerging imaging strategies such as fluorescence lifetime imaging and time-gated detection can further improve signal-to-background ratios and enable more precise visualization of biological processes in living systems.

Another promising research direction involves the development of activatable and stimuli-responsive dye systems that respond selectively to disease-associated biological signals. Enzyme-responsive probes targeting proteases such as matrix metalloproteinases (MMPs), cathepsins, and other biomarkers can enable highly specific imaging of pathological microenvironments. Such activatable systems generate optical signals only upon biochemical activation, thereby significantly improving imaging specificity and enabling early disease detection as well as intraoperative guidance.

Furthermore, the integration of organic dyes into photoacoustic imaging (PAI) platforms has emerged as a powerful strategy for deep-tissue molecular imaging. Compared with conventional fluorescence imaging, photoacoustic imaging provides higher spatial resolution and greater penetration depth, enabling real-time visualization of biological structures and disease processes in vivo. Organic dyes with strong near-infrared absorption and efficient photothermal conversion are increasingly being explored as molecular contrast agents for photoacoustic-guided diagnostics and therapy monitoring.

Finally, the integration of organic dyes with nanotechnology and smart delivery systems offers significant opportunities for improving biomedical performance. Functional polymer coatings, ultrasmall nanoparticles, and stimulus-responsive nanostructures can enhance circulation stability, targeting efficiency, and controlled therapeutic activation. Such hybrid platforms also enable multimodal imaging and combination therapies, further expanding the capabilities of dye-based systems in precision medicine.

In summary, continued advances in molecular design, photophysical regulation, and nanotechnological integration will further establish organic dyes as key materials for next-generation biomedical imaging and light-based therapy. Addressing current challenges related to stability, energy conversion efficiency, and biological specificity, while leveraging emerging technologies such as activatable probes, NIR-II imaging, and photoacoustic molecular imaging, will be essential for translating these versatile systems from proof-of-concept studies toward clinically impactful biomedical applications.
