# Statistical Analysis of Mechanical Stressing in Short Fiber Reinforced Composites by Means of Statistical and Representative Volume Elements

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

## 3. Results

#### 3.1. Influence of Finite Volume Approaches

#### 3.2. Influence of Finite Volume Size

- Sampling stress values from a statistical population;
- Calculating mean value of samples;
- Calculating stiffness out of mean of samples with global strain;
- Repeating steps 1–3 several times to achieve stiffness distribution;
- Repeating steps 1–4 for different volumes.

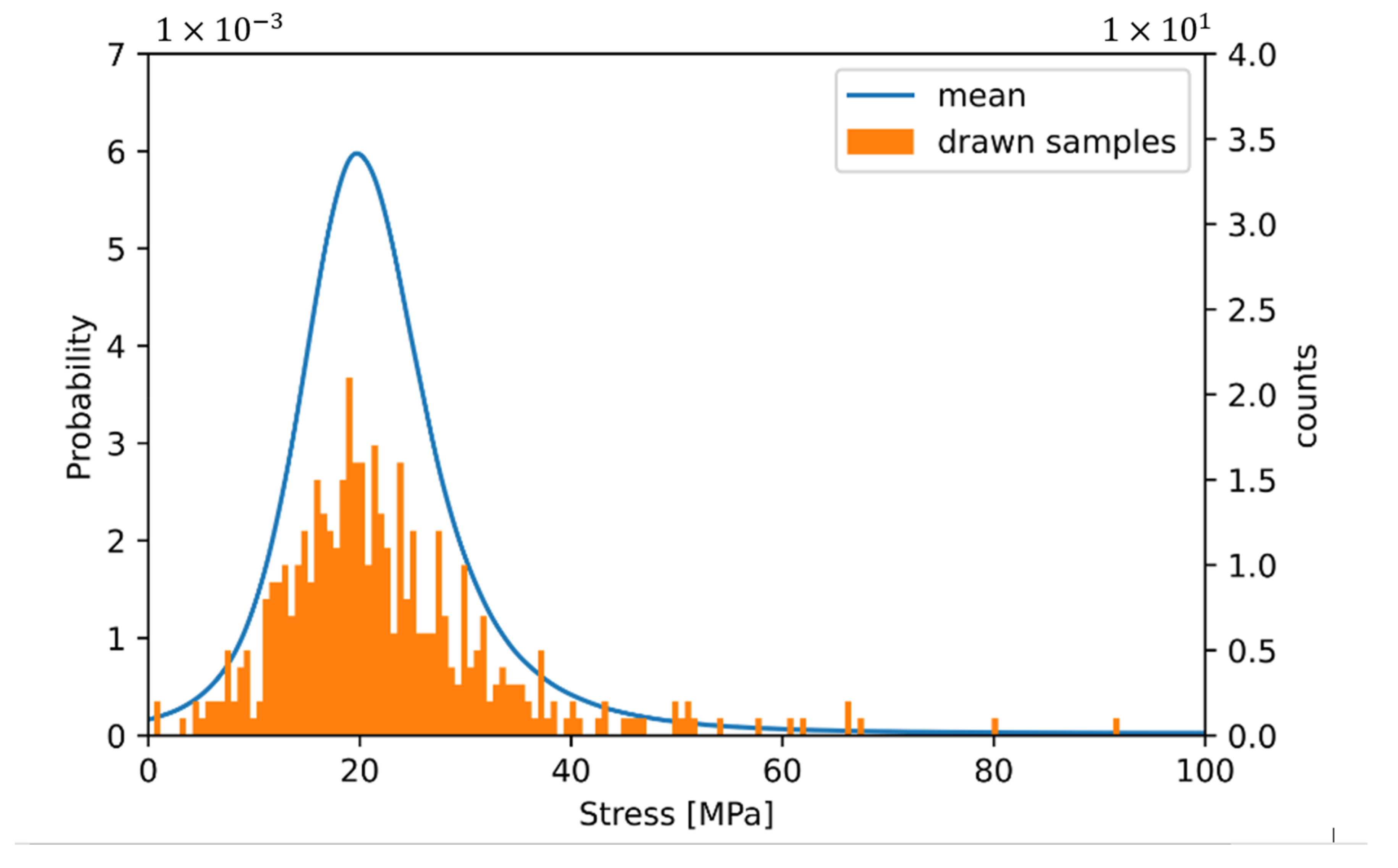

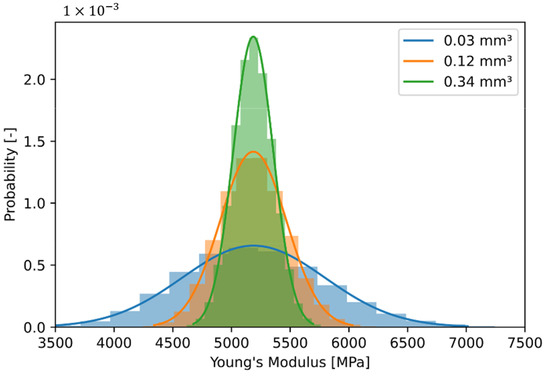

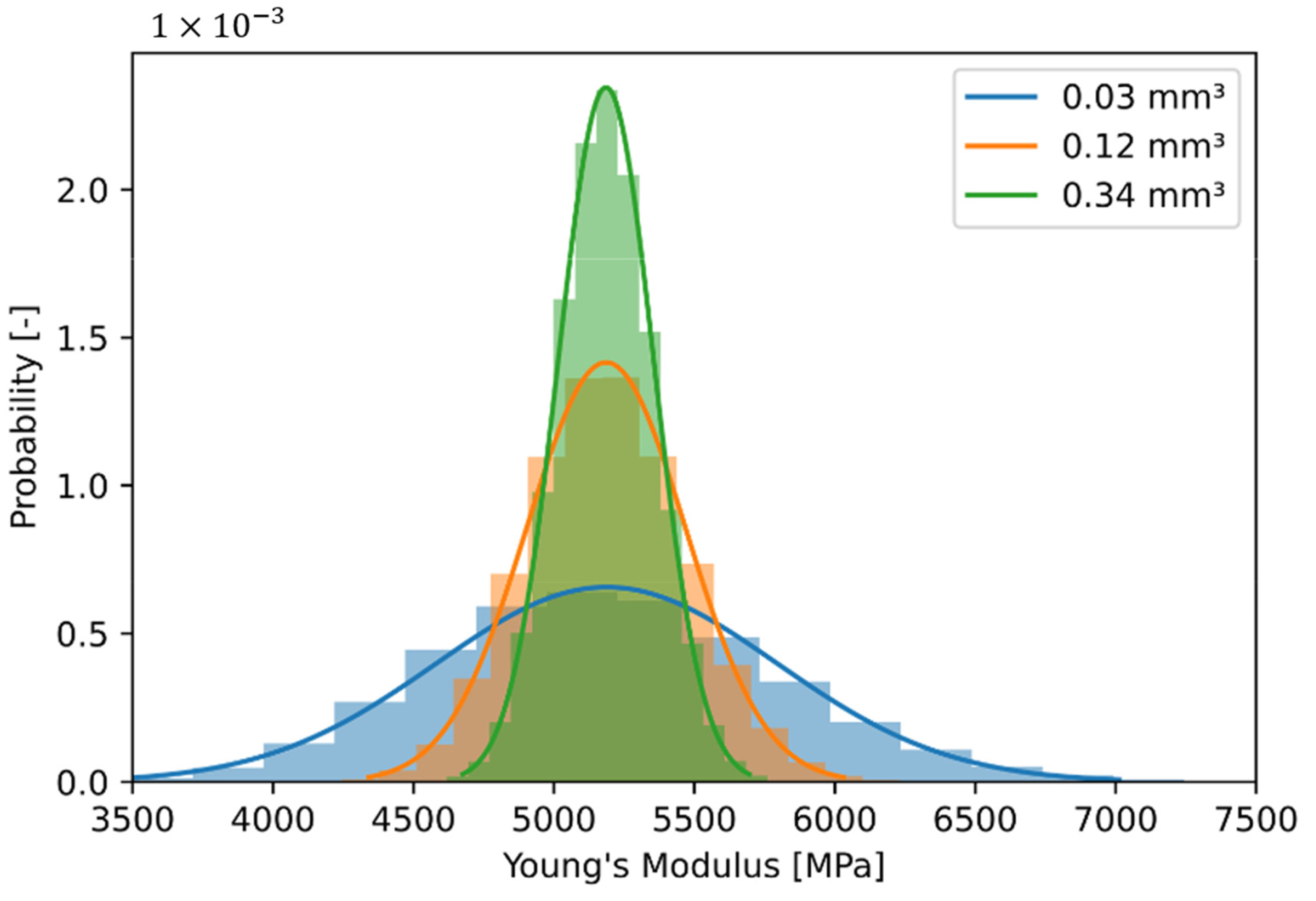

^{3}in the legend. The identical mean value of the three stiffness distributions and the different scattering are clearly visible. The largest scattering is the sampling with the smallest volume and vice versa.

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Duschlbauer, D.; Pettermann, H.E.; Böhm, H.J. Mori–Tanaka based evaluation of inclusion stresses in composites with nonaligned reinforcements. Scr. Mater.
**2003**, 48, 223–228. [Google Scholar] [CrossRef] - Mori, T.; Tanaka, K. Average stress in matrix and average elastic energy of materials with misfitting inclusions. Acta Metall.
**1973**, 21, 571–574. [Google Scholar] [CrossRef] - Benveniste, Y. A new approach to the application of Mori-Tanaka’s theory in composite materials. Mech. Mater.
**1987**, 6, 147–157. [Google Scholar] [CrossRef] - Doghri, I.; Quar, A. Homogenization of two-phase elasto-plastic composite materials and structures: Study of tangent operators, cyclic plasticity and numerical algorithms. Int. J. Solids Struct.
**2003**, 40, 1681–1712. [Google Scholar] [CrossRef] - Eshelby, J.D. The Determination of the Elastic Field of an Ellipsoidal Inclusion, and Related Problems. Proc. R. Soc. Lon. Ser. A
**1957**, 241, 376–396. [Google Scholar] - Sun, C.T.; Vaidya, R.S. Prediction of composite properties from a representative volume element. Compos. Sci. Technol.
**1996**, 56, 171–179. [Google Scholar] [CrossRef] - Sab, K. On the homogenization and the simulation of random materials. Eur. J. Mech. A Solids
**1992**, 11, 585–607. [Google Scholar] - Akpoyomare, A.I.; Okereke, M.I.; Bingley, M.S. Virtual testing of composites: Imposing periodic boundary conditions on general finite element meshes. Compos. Struct.
**2017**, 160, 983–994. [Google Scholar] [CrossRef] - Gusev, A.A. Representative volume element size for elastic composites: A numerical study. J. Mech. Phys. Solids
**1997**, 45, 1449–1459. [Google Scholar] [CrossRef] - Okereke, M.I.; Akpoyomare, A.I. A virtual framework for prediction of full-field elastic response of unidirectional composites. Comput. Mater. Sci.
**2013**, 70, 82–99. [Google Scholar] [CrossRef] - Schneider, M.; Ospald, F.; Kabel, M. Computational homogenization of elasticity on a staggered grid. Int. J. Numer. Methods Eng.
**2016**, 105, 693–720. [Google Scholar] [CrossRef] - Hill, R. Elastic properties of reinforced solids: Some theoretical principles. J. Mech. Phys. Solids
**1963**, 11, 357–372. [Google Scholar] [CrossRef] - Drugan, W.J.; Willis, J.R. A micromechanics-based nonlocal constitutive equation and estimates of representative volume element size for elastic composites. J. Mech. Phys. Solids
**1996**, 44, 497–524. [Google Scholar] [CrossRef] - Gitman, I.M.; Askes, H.; Sluys, L.J. Representative volume: Existence and size determination. Eng. Fract. Mech.
**2007**, 74, 2518–2534. [Google Scholar] [CrossRef] - Brisard, S.; Dormieux, L. FFT-based methods for the mechanics of composites: A general variational framework. Comput. Mater. Sci.
**2010**, 49, 663–671. [Google Scholar] [CrossRef] [Green Version] - Wang, Z.; Smith, D.E. Numerical analysis on viscoelastic creep responses of aligned short fiber reinforced composites. Compos. Struct.
**2019**, 229, 111394. [Google Scholar] [CrossRef] - Babu, K.P.; Mohite, P.M.; Upadhyay, C.S. Development of an RVE and its stiffness predictions based on mathematical homogenization theory for short fibre composites. Int. J. Solids Struct.
**2018**, 130–131, 80–104. [Google Scholar] [CrossRef] - Berger, H.; Kari, S.; Gabbert, U.; Rodríguez-Ramos, R.; Bravo-Castillero, J.; Guinovart-Díaz, R. Evaluation of effective material properties of randomly distributed short cylindrical fiber composites using a numerical homogenization technique. J. Mech. Mater. Struct.
**2007**, 2, 1561–1570. [Google Scholar] [CrossRef] [Green Version] - Chen, L.; Gu, B.; Tao, J.; Zhou, J. The average response and isotropy of 3D representative volume elements for random distributed short fibers reinforced elastomer. Compos. Struct.
**2019**, 216, 279–289. [Google Scholar] [CrossRef] - Pan, Y.; Iorga, L.; Pelegri, A.A. Analysis of 3D random chopped fiber reinforced composites using FEM and random sequential adsorption. Comput. Mater. Sci.
**2008**, 43, 450–461. [Google Scholar] [CrossRef] - Chen, L.; Gu, B.; Zhou, J.; Tao, J. Study of the Effectiveness of the RVEs for Random Short Fiber Reinforced Elastomer Composites. Fibers Polym.
**2019**, 20, 1467–1479. [Google Scholar] [CrossRef] - Pan, Y.; Iorga, L.; Pelegri, A.A. Numerical generation of a random chopped fiber composite RVE and its elastic properties. Compos. Sci. Technol.
**2008**, 68, 2792–2798. [Google Scholar] [CrossRef] - Burgarella, B.; Maurel-Pantel, A.; Lahellec, N.; Bouvard, J.-L.; Billon, N.; Moulinec, H.; Lebon, F. Effective viscoelastic behavior of short fibers composites using virtual DMA experiments. Mech. Time-Depend. Mater.
**2019**, 23, 337–360. [Google Scholar] [CrossRef] - Wang, L.; Nygren, G.; Karkkainen, R.L.; Yang, Q. A multiscale approach for virtual testing of highly aligned short carbon fiber composites. Compos. Struct.
**2019**, 230, 111462. [Google Scholar] [CrossRef] - Breuer, K.; Stommel, M. RVE modelling of short fiber reinforced thermoplastics with discrete fiber orientation and fiber length distribution. SN Appl. Sci.
**2019**, 2, 91. [Google Scholar] [CrossRef] [Green Version] - Görthofer, J.; Schneider, M.; Ospald, F.; Hrymak, A.; Böhlke, T. Computational homogenization of sheet molding compound composites based on high fidelity representative volume elements. Comput. Mater. Sci.
**2020**, 174, 109456. [Google Scholar] [CrossRef] - Greco, A. FEM analysis of the elastic behavior of composites and nanocomposites with arbitrarily oriented reinforcements. Compos. Struct.
**2020**, 241, 112095. [Google Scholar] [CrossRef] - Huet, C. Application of variational concepts to size effects in elastic heterogeneous bodies. J. Mech. Phys. Solids
**1990**, 38, 813–841. [Google Scholar] [CrossRef] - Hazanov, S.; Huet, C. Order relationships for boundary conditions effect in heterogeneous bodies smaller than the representative volume. J. Mech. Phys. Solids
**1994**, 42, 1995–2011. [Google Scholar] [CrossRef] - Kanit, T.; Forest, S.; Galliet, I.; Mounoury, V.; Jeulin, D. Determination of the size of the representative volume element for random composites: Statistical and numerical approach. Int. J. Solids Struct.
**2003**, 40, 3647–3679. [Google Scholar] [CrossRef] - Celanese. Celanex 2300 GV1/20 Datasheet. Available online: http://catalog.ides.com/Datasheet.aspx?I=26793&E=73487 (accessed on 28 April 2021).
- Kaiser, J.-M.; Stommel, M. Modified mean-field formulations for the improved simulation of short fiber reinforced thermoplastics. Compos. Sci. Technol.
**2014**, 99, 75–81. [Google Scholar] [CrossRef] - Parra-Venegas, E.J.; Campos-Venegas, K.; Martinez-Sanchez, R.; Herrera-Ramirez, J.M.; Rodriguez-Miranda, A. The Tensile Behavior of E-glass fibers. Microsc. Microanal.
**2012**, 18, 784–785. [Google Scholar] [CrossRef] - Breuer, K.; Stommel, M.; Korte, W. Analysis and Evaluation of Fiber Orientation Reconstruction Methods. J. Compos. Sci.
**2019**, 3, 67. [Google Scholar] [CrossRef] [Green Version] - D’Agostino, R.B. An omnibus test of normality for moderate and large sample size. Biometrika
**1971**, 58, 341–348. [Google Scholar] [CrossRef] - D’Agostino, R.B.; Pearson, E.S. Tests for departure from normality. Biometrika
**1973**, 60, 613–622. [Google Scholar] - Gandhi, U.N.; Goris, S.; Osswald, T.A.; Song, Y.-Y. Discontinuous Fiber-Reinforced Composites, 1st ed.; Hanser: Munich, Germany, 2020. [Google Scholar]

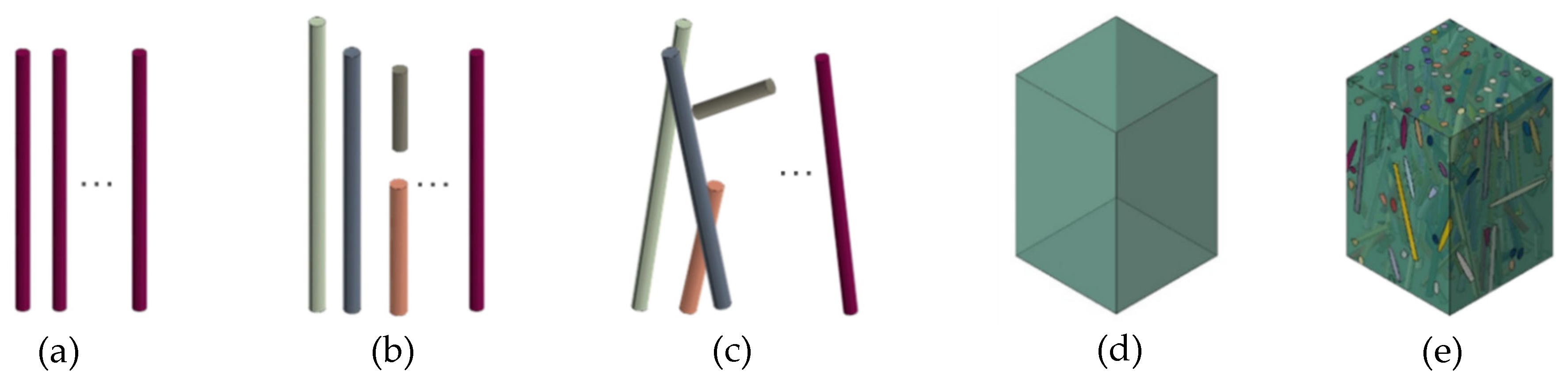

**Figure 1.**Procedure of the creation of a model with a unique fiber ensemble. (

**a**): Considering the number of fibers. (

**b**): Fiber length according to LDF. (

**c**): Spatial orientation of fibers according to ODF. (

**d**): Determining volume. (

**e**): Placing fibers to achieve periodic microstructure.

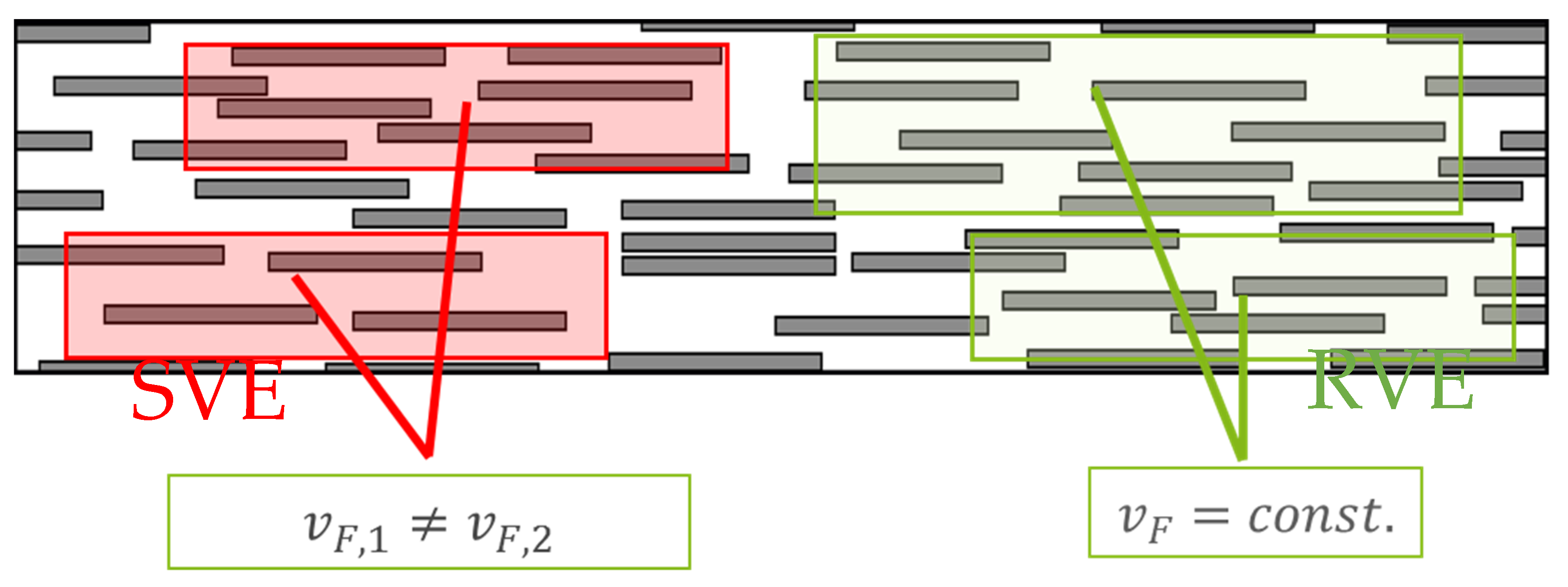

**Figure 2.**Two different approaches to define the finite volume: Statistical Volume Element (SVE) with constant dimensions and Representative Volume Element (RVE) with constant fiber volume fraction.

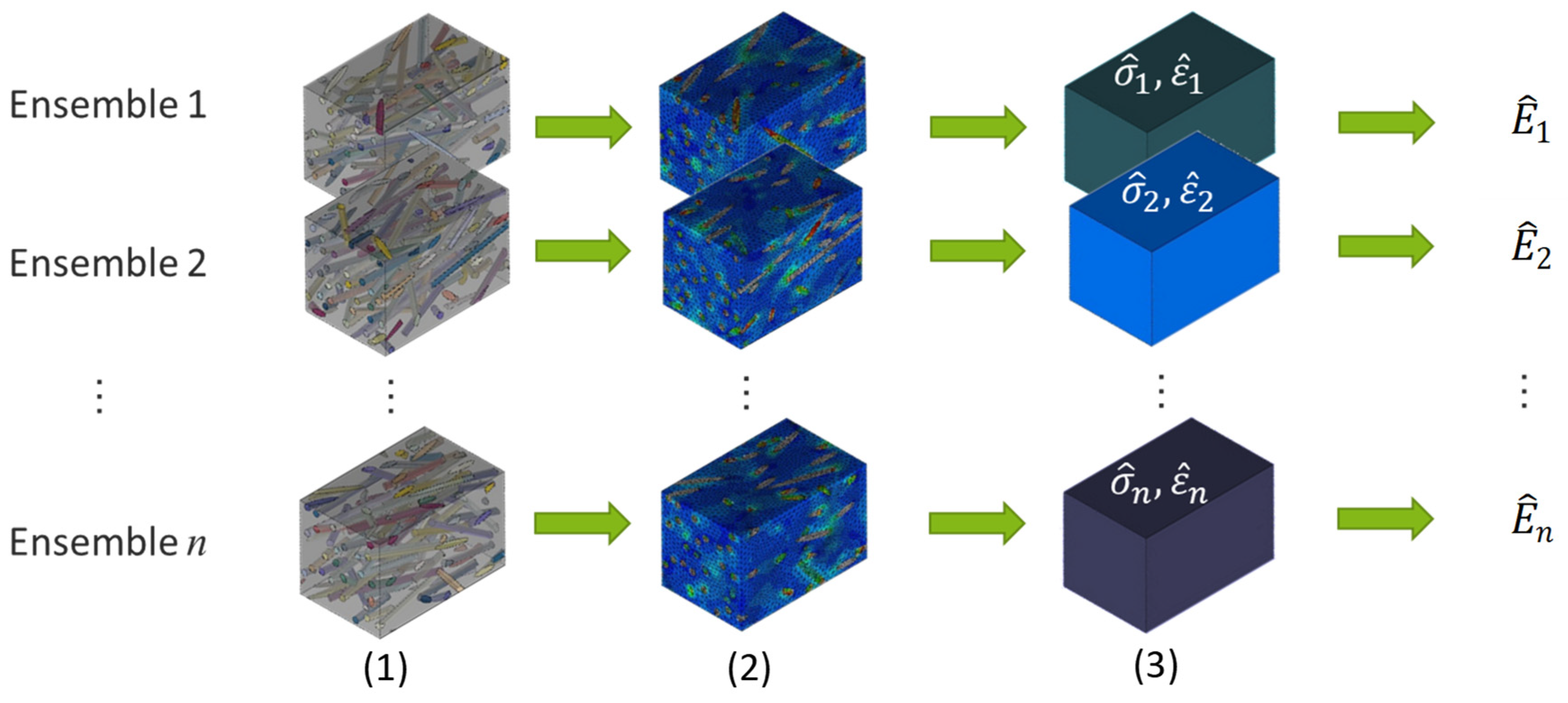

**Figure 3.**Method of homogenization: creation of the microstructure (1), use of FEM to determine local stresses and strains (2), volume averaging (3) and calculation of effective modulus (4).

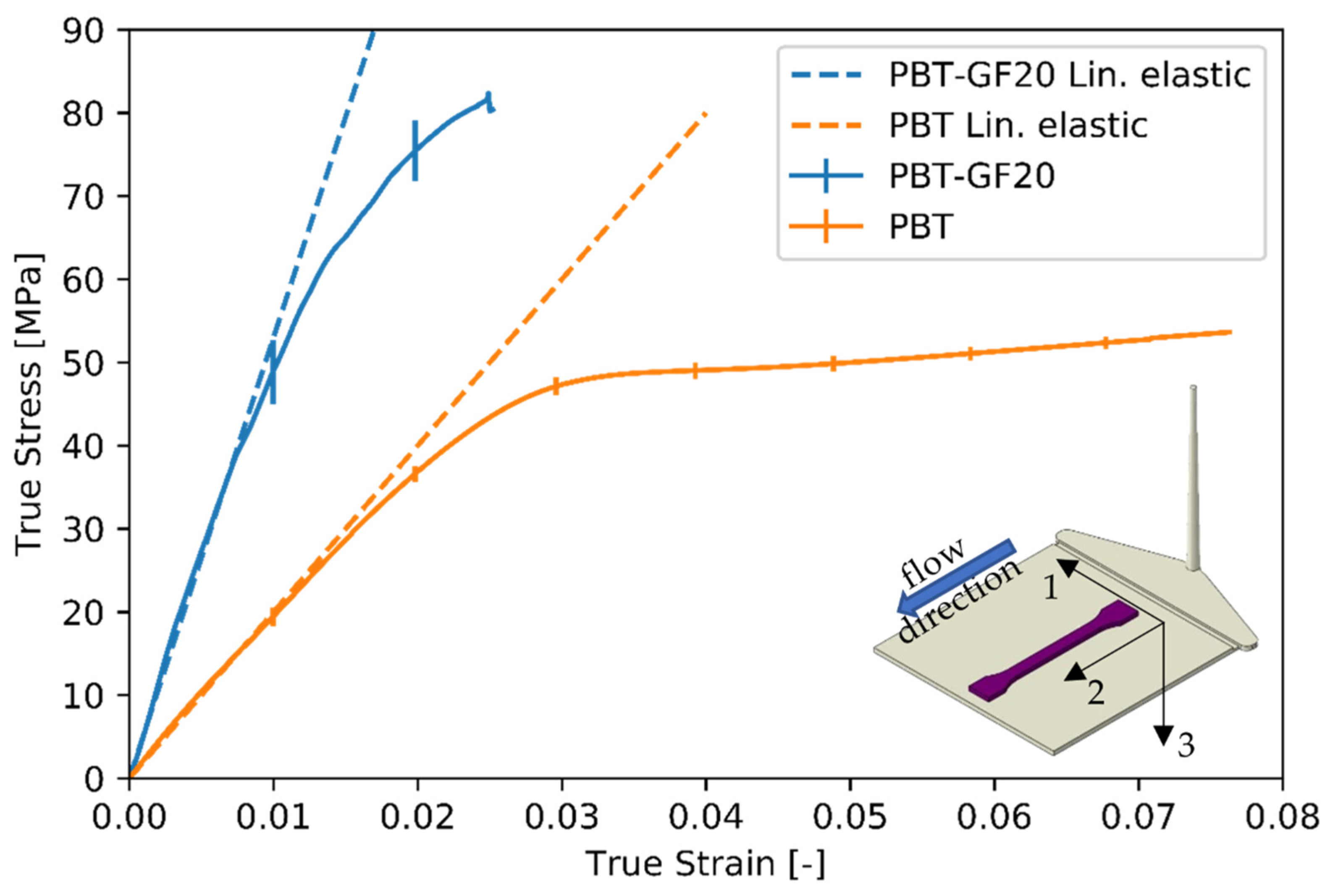

**Figure 4.**Mechanical characterization of PBT-GF20 and PBT by tensile testing of specimens milled out of injection molded plates. The tensile direction with the PBT-GF20 corresponds to the flow direction of the injection molding process (2-direction).

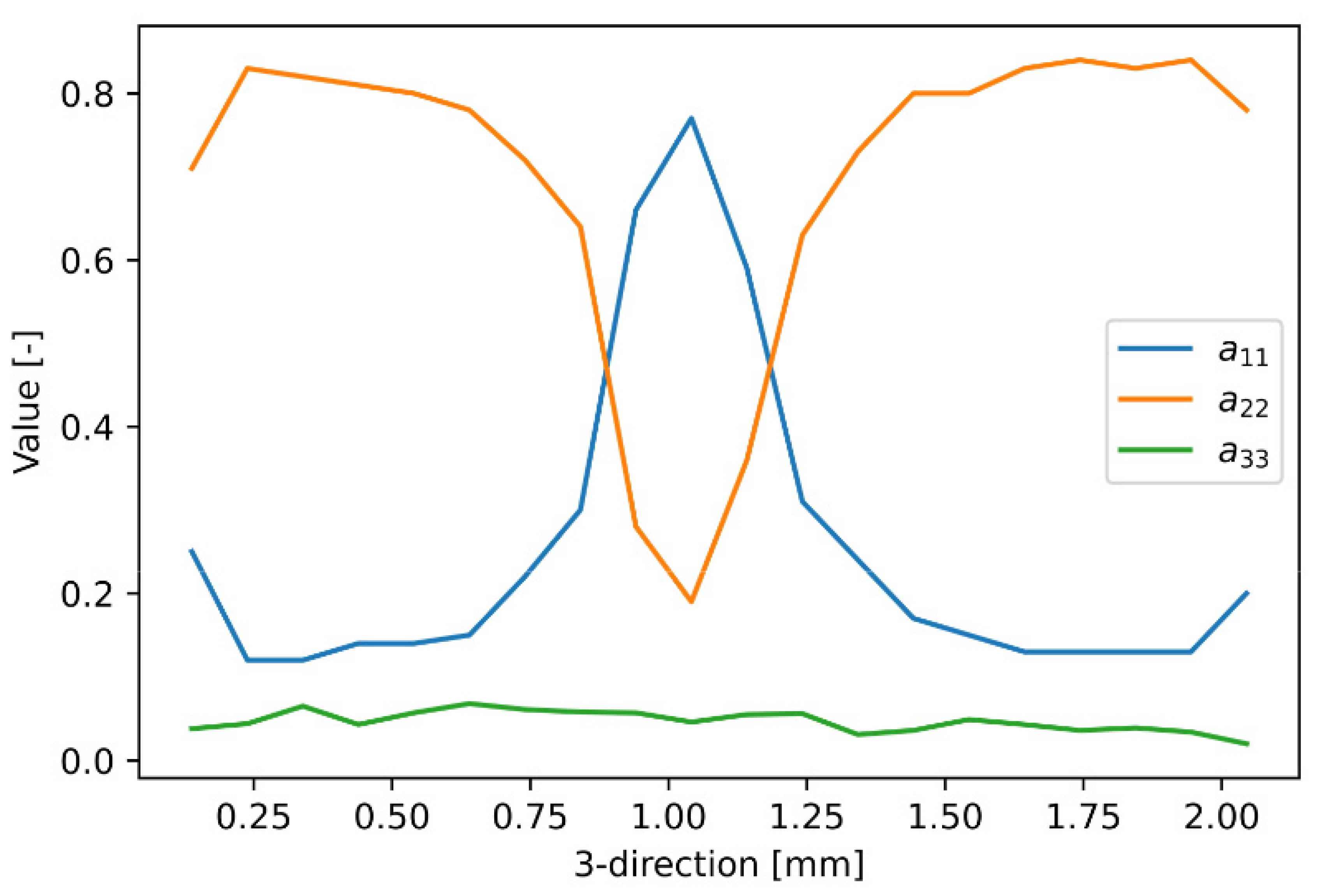

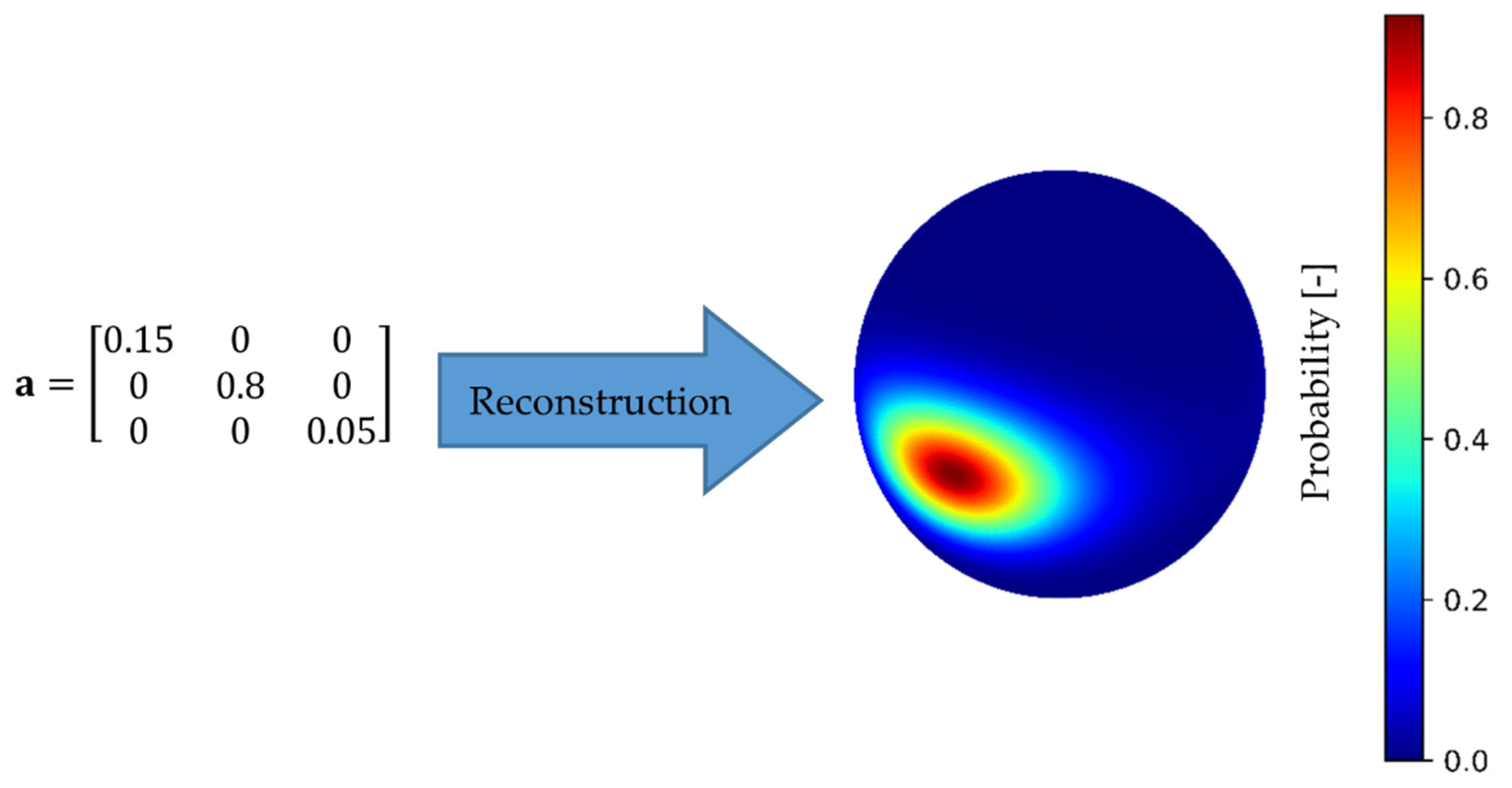

**Figure 6.**Reconstructed ODF by the maximum entropy method of the shown fiber orientation tensor of second order. The color shows the probability that a fiber points in this direction.

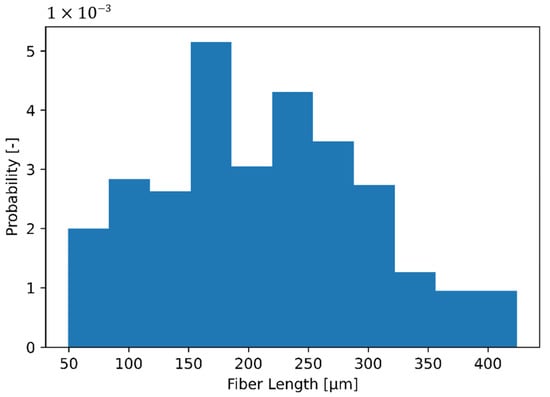

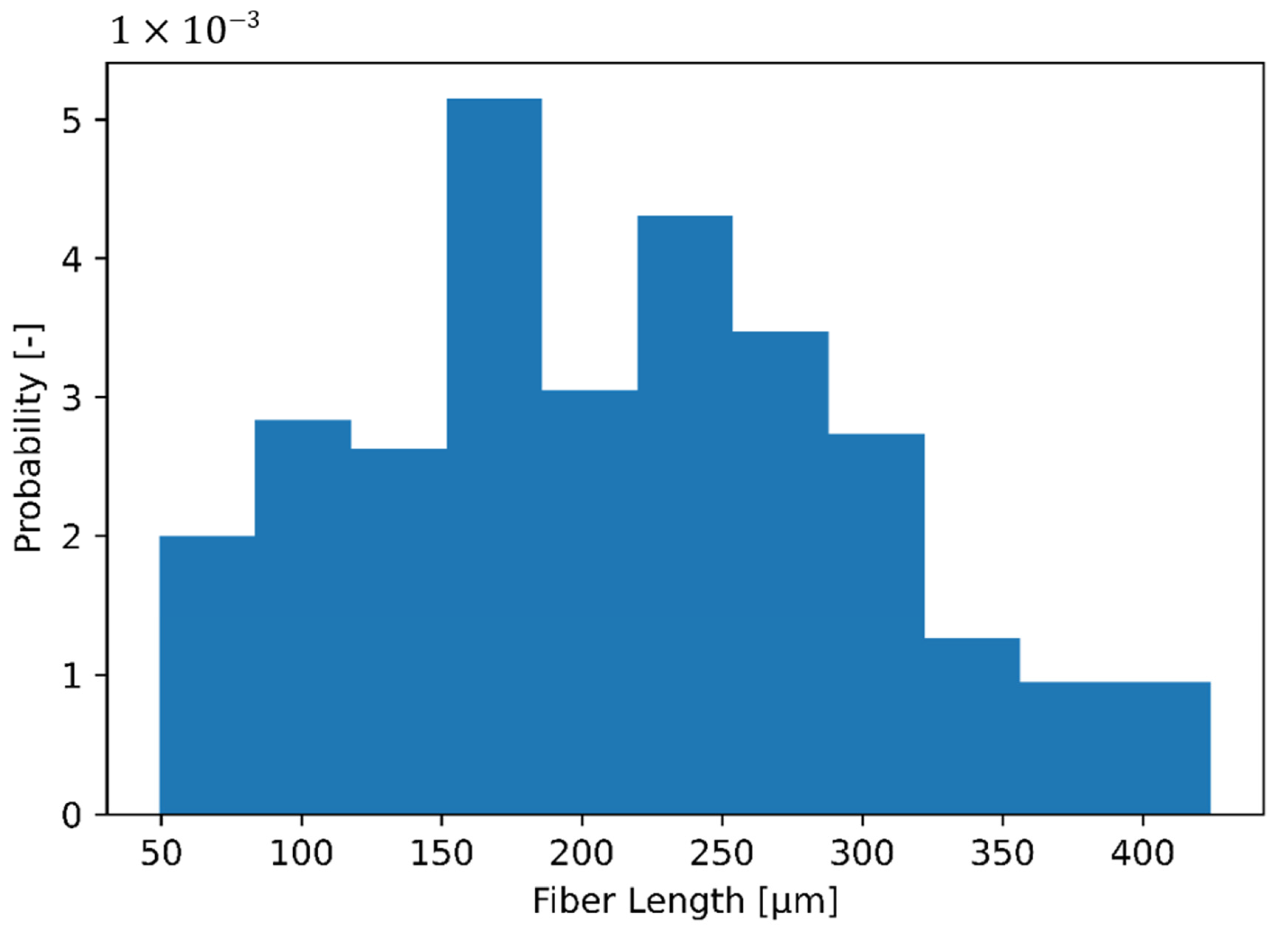

**Figure 7.**Normalized histogram of experimentally measured fiber lengths. Mean aspect ratio of fiber length distribution is 15.4.

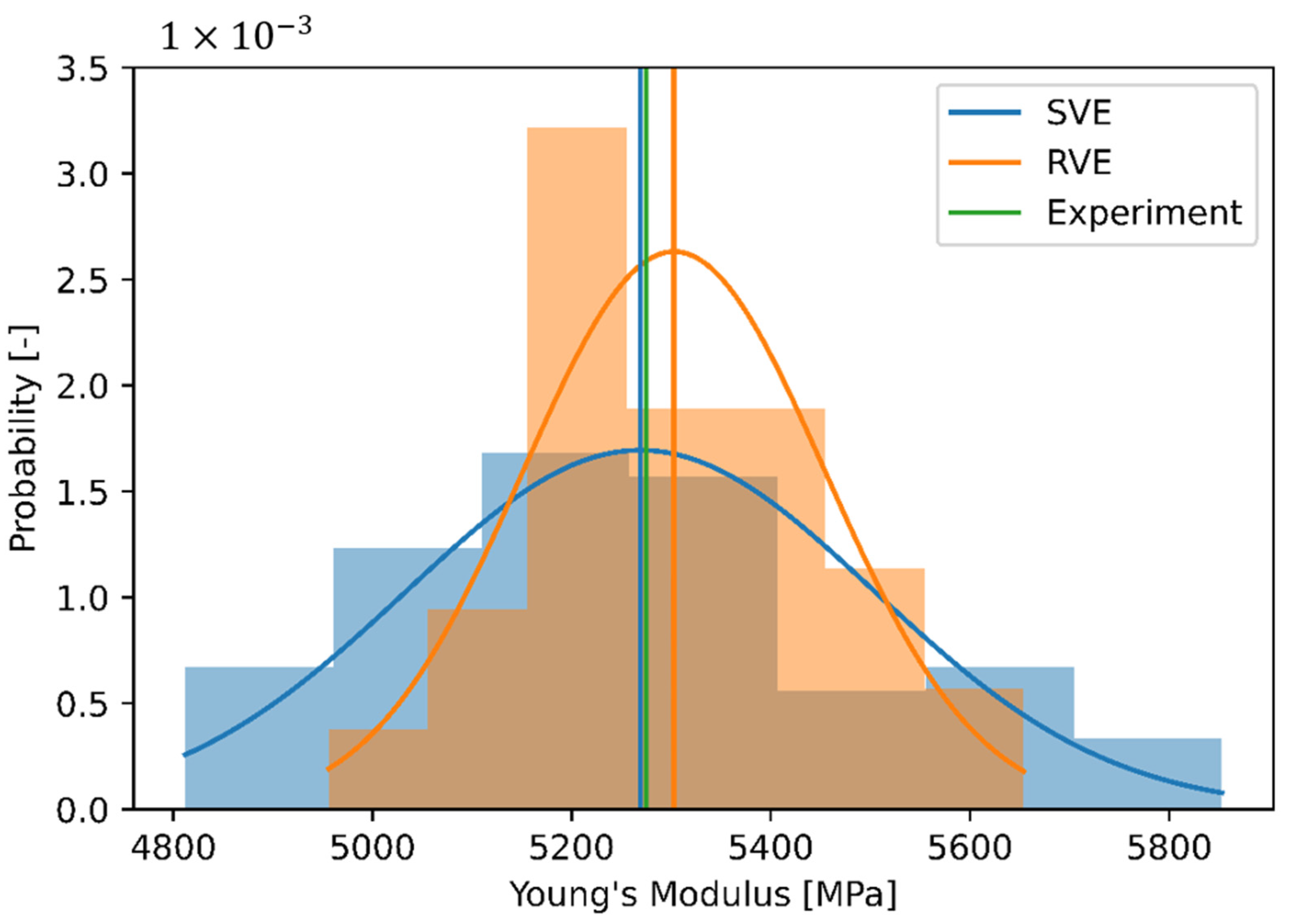

**Figure 8.**Histograms, normal distributions and mean values of the effective stiffnesses, calculated with the RVE and SVE approach as well as mean value of experimentally measured stiffness. We used 100 fibers in 60 different fiber ensembles for both approaches.

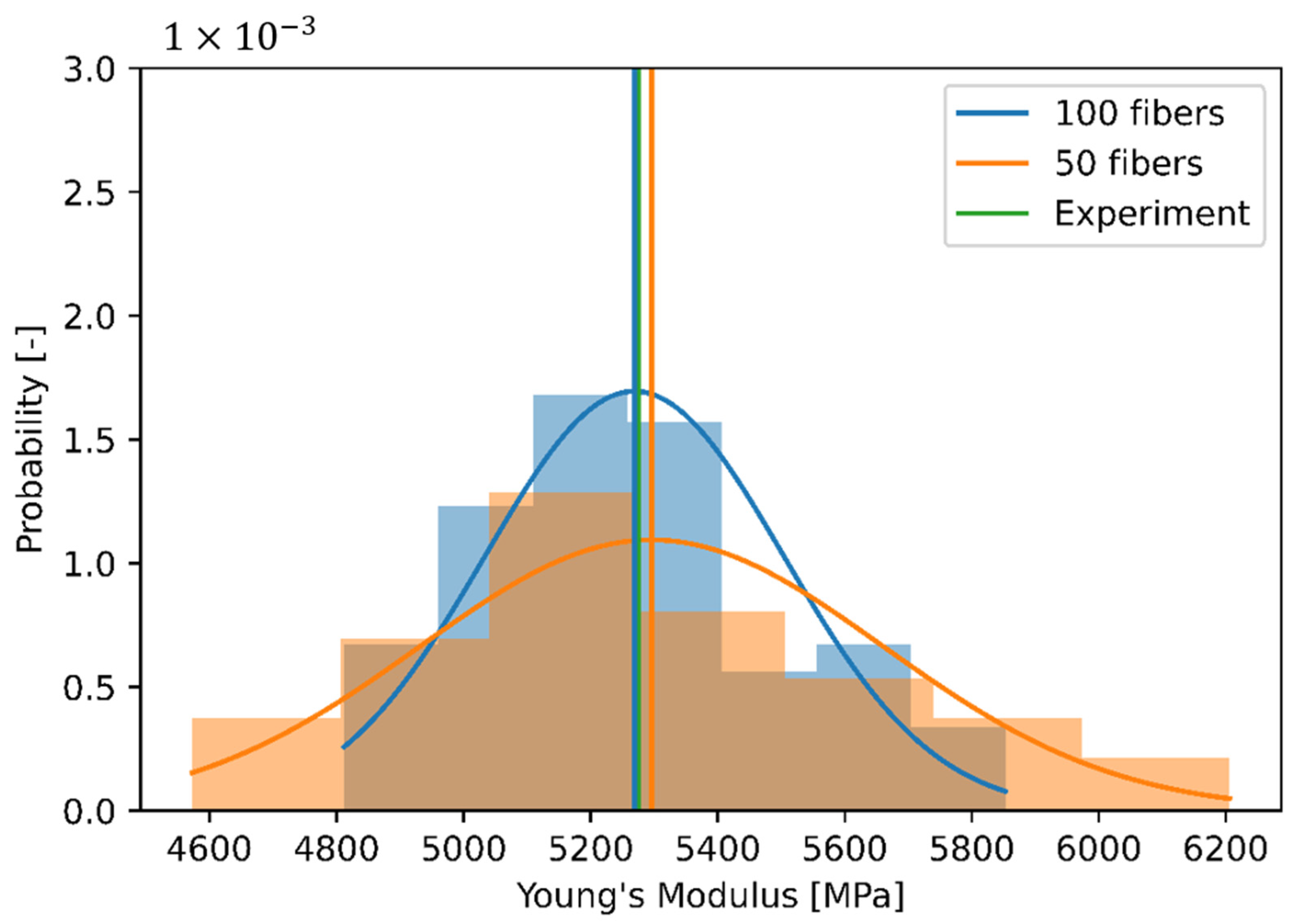

**Figure 9.**Histogram and normal distribution of the effective stiffness, calculated with 50 and 100 fibers using the SVE approach.

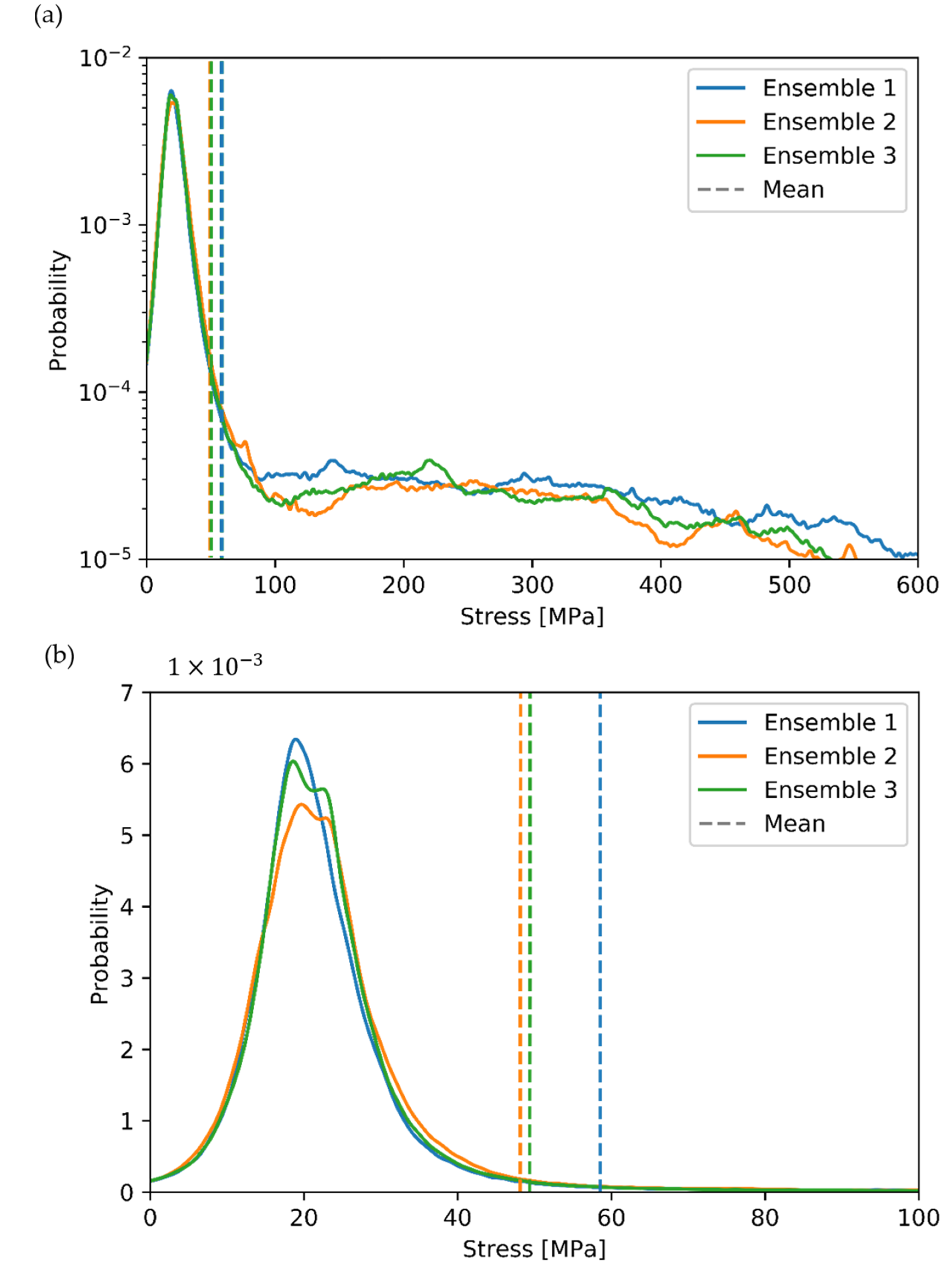

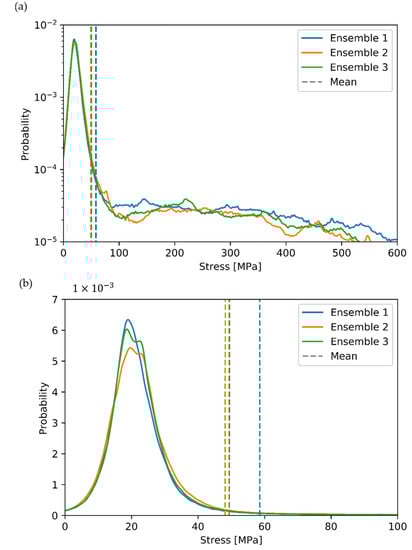

**Figure 10.**(

**a**) Stress distribution of three unique fiber ensembles (top), (

**b**) Stress distribution of the matrix phase of the same ensembles (bottom).

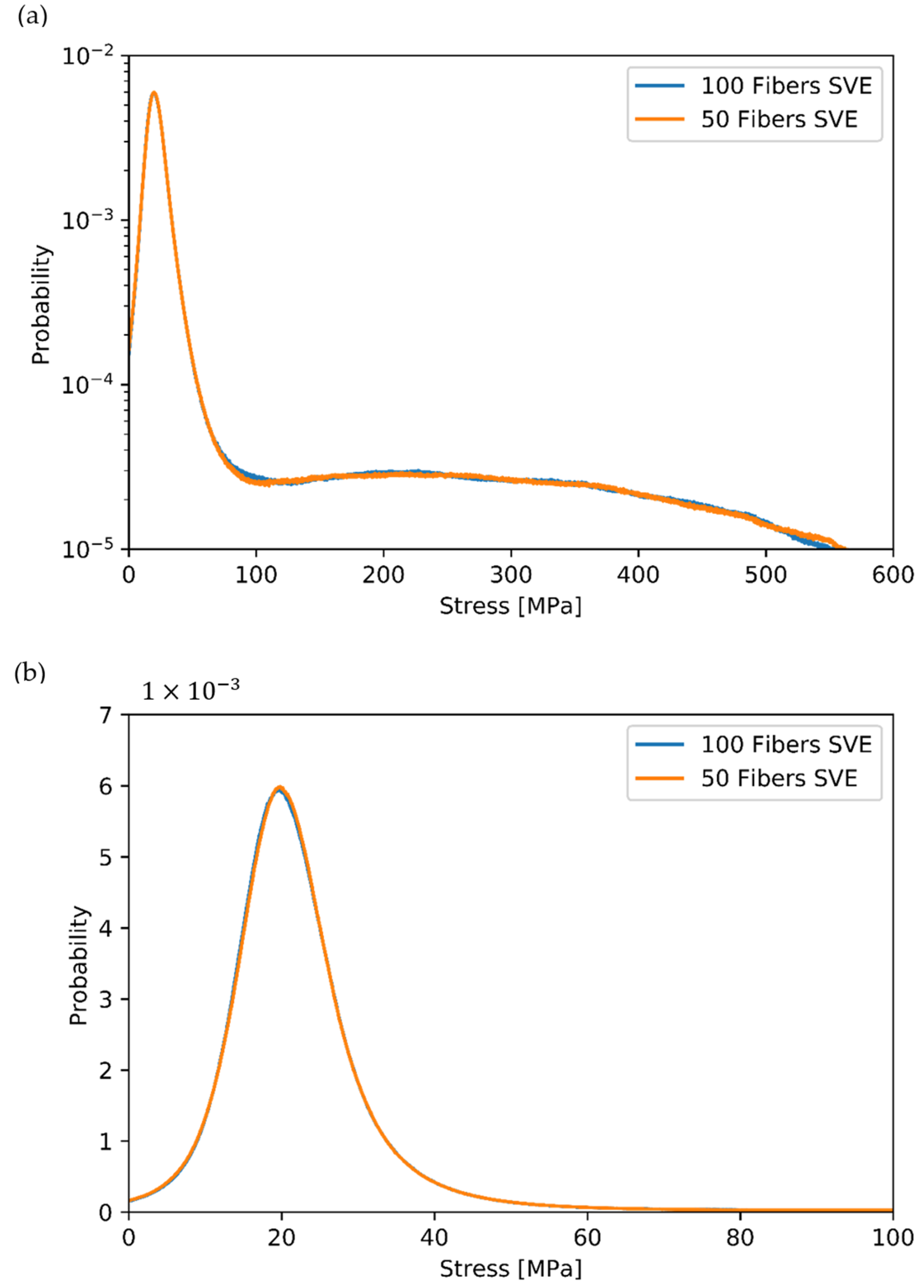

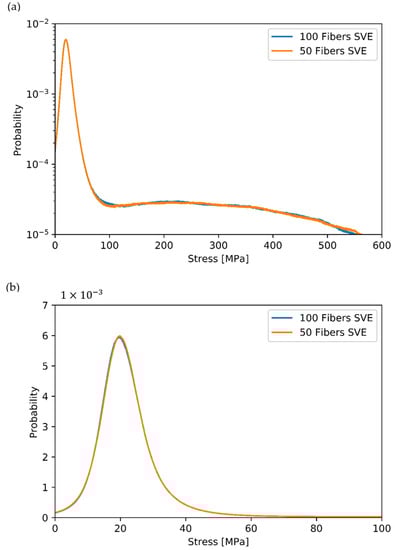

**Figure 11.**(

**a**) Average stress distribution of the composite with 50 and 100 fibers (top). (

**b**) Average stress distribution in the matrix phase with 50 and 100 fibers (bottom).

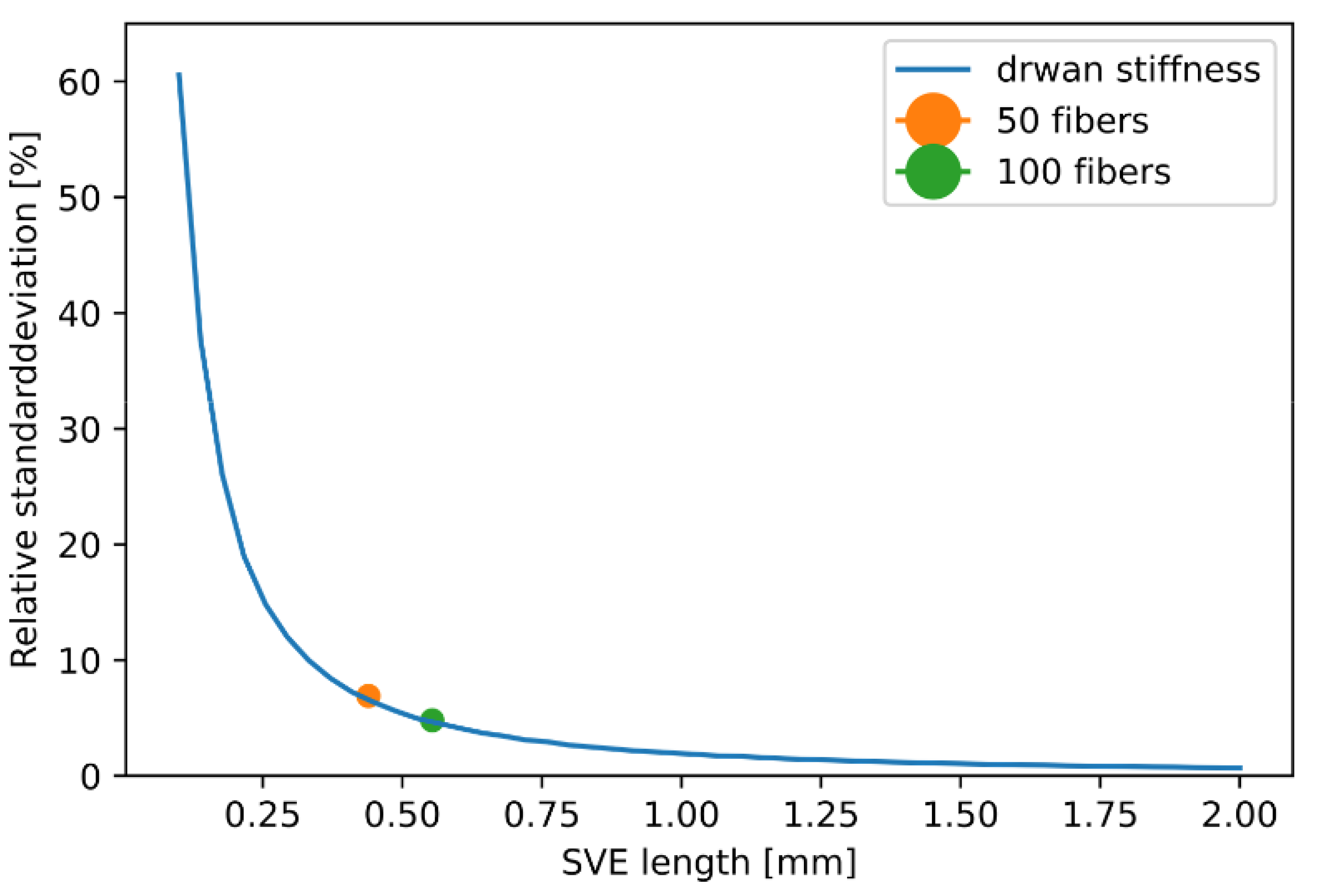

**Figure 14.**Relative standard deviation of drawn effective stiffness in dependency of considered volume and relative standard deviation of Monte-Carlo simulations with 50 and 100 fibers.

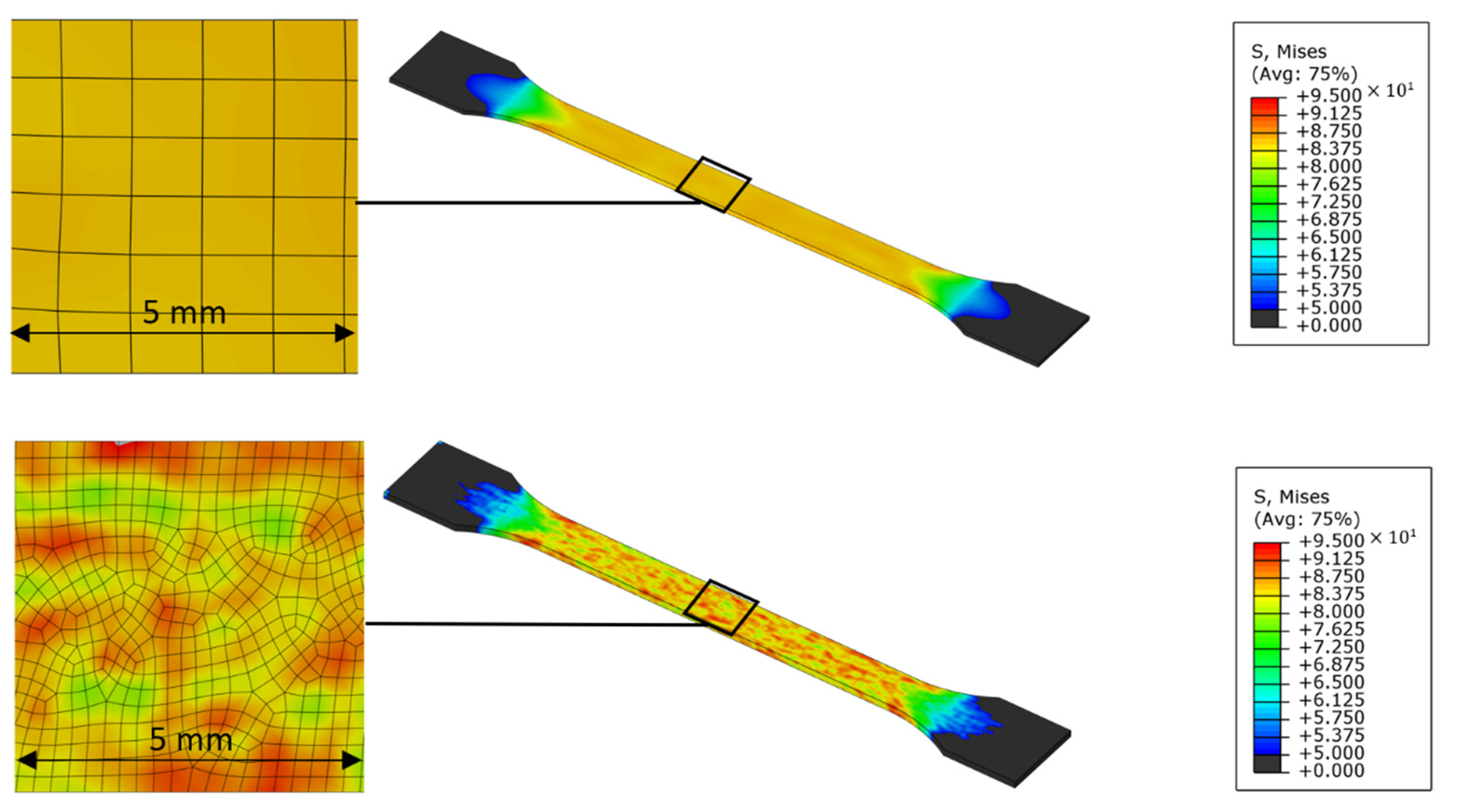

**Figure 15.**FEA with two different mesh sizes (top: 1.0 mm, bottom: 0.25 mm) of a test specimen with uniform fiber orientation under consideration of the statistical deviation of the effective Young’s modulus due to the effect of different fiber ensembles.

Parameter | SVE | RVE |
---|---|---|

number of fibers | constant | constant |

fiber geometry | constant | constant |

fiber length | defined by LDF | defined by LDF |

fiber volume fraction | defined by fibers and total volume | constant |

total volume | constant | defined by fibers and fiber volume fraction |

fiber orientation | defined by ODF | defined by ODF |

fiber arrangement | random | random |

phase properties | constant | constant |

**Table 2.**Parameters of the isotropic, linear–elastic material model used for the individual phases and parameter of linear elastic fit of the PBT-GF20 composite for comparison.
